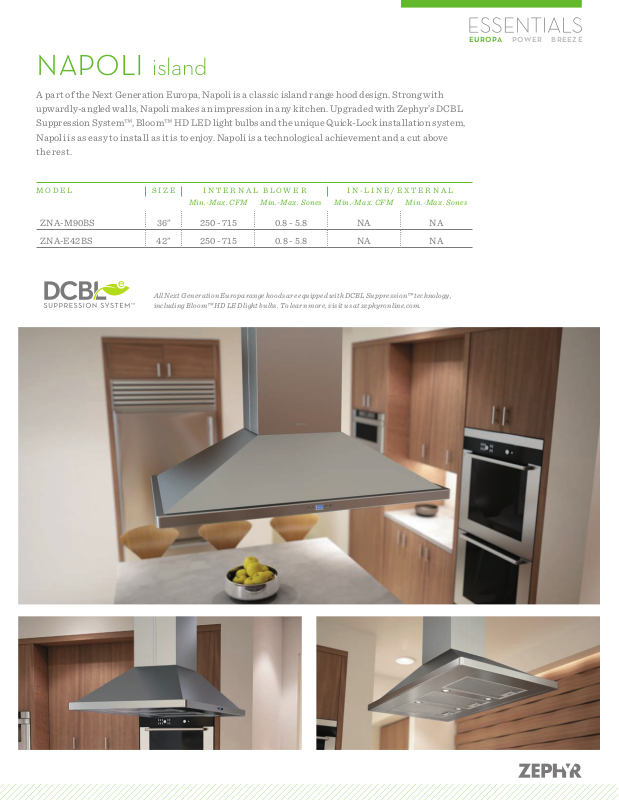

Zephyr ZNAE42BS, ZNAM90BS Specification Sheet

napoli island

A part of the Next Generation Europa, Napoli is a classic island range hood design. Strong with
upwardly-angled walls, Napoli makes an impression in any kitchen. Upgraded with Zephyr’s DCBL
Suppression System™, Bloom™ HD LED light bulbs and the unique Quick-Lock installation system,
Napoli is as easy to install as it is to enjoy. Napoli is a technological achievement and a cut above
the rest.

MODEL SIZE INTERNAL BLOWER IN-LINE/EXTERNAL

Min.-Max. CFM Min.-Max. Sones Min.-Max. CFM Min.-Max. Sones

ZNA-M90BS 36” 250 - 715 0.8 - 5.8 NA NA

ZNA-E42BS 42” 250 - 715 0.8 - 5.8 NA NA

All Next G eneratio n Europa range ho ods are equipped w ith DCBL Supp ression™ technol ogy,
includ ing Bloom™ HD LED l ight bulbs. To lea rn more, vi sit us at zephyro nline.com .

eu ro pa power breeze

napoli island | next generation europa

TOP

12 13/16”

eu ro pa power breeze

z NA-M90Bs

P eR FORMANCe

INTE RNAL, M IN.-MAX . BLOWER CFM 250 - 715

INTERNAL, MIN.-MAX . SO NES 0.8 - 5.8

STA INLE SS STEEL SS

S PEED LEV ELS 5 + Burst

AUTO D ELAY-OFF Yes

DUAL LEV EL LIGHTING Ye s

RE CIRCU LATI NG OPTION Ye s

EXTENSION DUC T COVER OPTION Yes, Up to 12’ Ceiling

duC t sPe C iF iCAtiONs

V ERTICA L - INTERNA L 8”

HORIZONTAL - INTERNAL NA

size

36”

z NA-e42Bs

COl OR

F eA tuR es

C ONTRO LS Electronic LCD

LIGHTING Bloom LED 3W x 4

FI LTER S Aluminum Mesh

42”

9 9/16”10 5/16”

35 7/16”, 41 15/16”

FRONT

9 13/16”

STANDARD

min. ducted - 32”
min. recirc. - 36 1/2”
max. - 50”

Z1C- 01NA

min. ducted - 49”
min. recirc. - 53 1/2”
max. - 80”

AC iNPut 120V - 60Hz

AC POweR Max. 215W at 3.5A

OPtiONAl ACCessOR ies

RE CIRCU LATI NG KIT ZRC-00NA

EXTENSIO N DUCT C OVER Z1C-01NA

MOu NtiN g height* 26” - 34”

C eiliN g h eight 8’ 8. 5’ 9’ 9.5’ 10’ 10 .5’ 11’ 12’

stANdARd

duCt COVeR

eXteNsiON

duCt COVeR

*Mounti ng height refer s to distance b etween top of a 36 ” tall cookin g surface an d bottom of hoo d.

Ducte d Mounting Heig ht* 26”-2 8” 26”- 34” 26”- 34” 28”-3 4” 34”-34” NA NA NA

Recirc. Mounting Height* NA 26 ”-29.5” 2 6”-34” 2 8”-34” 34”-34” NA NA NA

Ducte d Mounting Heig ht* NA NA NA 26”-2 9” 26”- 34” 26”- 34” 26”-3 4” 28”-3 4”

Recirc. Mounting Height* NA NA NA NA 2 6”-30. 5” 26”-3 4” 26”-3 4” 2 8”-34”

C/L

9/16”

25 9/16”

SIDE

C/L

AC In

4 1/2”

2 1/16”

7 15/16”

MAY11 .0101

All Next G eneratio n Europa rang e hoods are equi pped with DCBL S uppressi on™ technology ,
includ ing Bloom™ HD L ED light bulbs . To learn more , visit us at ze phyronlin e.com.
