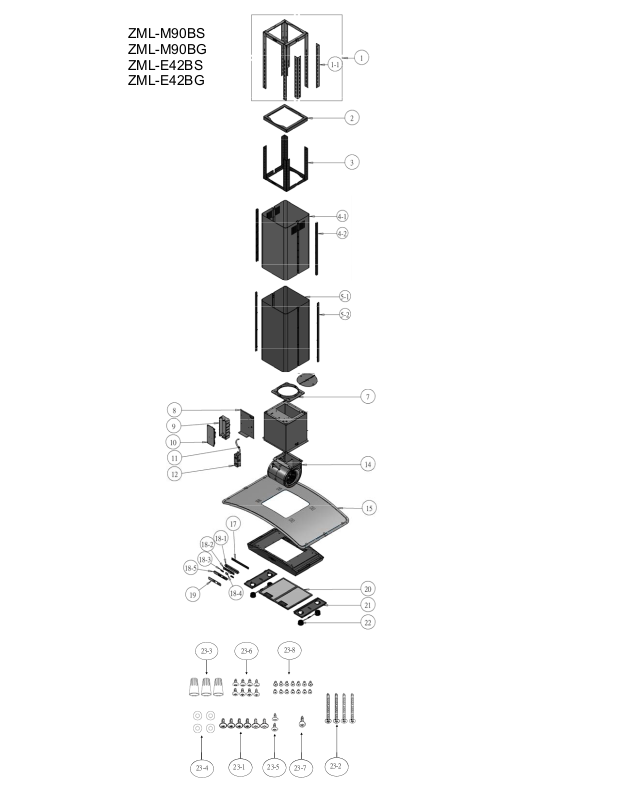

Zephyr ZMLM90BS, ZMLE42BS, ZMLE42BG, ZMLM90BG Diagram

ZML-E42BS

ZML-M90BS
ZML-M90BG
ZML-E42BS
ZML-E42BG

23-3 23-6

23-4

23-1

23-5

23-8

23-7

23-2

Milano Is.

ZML-M90BS/G, ZML-E42BS/G

Ref # Part # Description Qty.

1 54110103 Support Frame, Upper 1
1-1 54120011 Lateral Support Bracket 2
2 54110081 Bracket, Support Frame 1
3 54110104 Support Frame, Lower 1
4-1 50050127 Duct Cover, Upper (SN<24) 2
4-1 50050164 Duct Cover, Upper (SN24+) 2
4-2 50170054 Trim, Upper Duct Cover (SN<24) 2
5-1 50050129 Duct Cover, Lower (SN<24) 2
5-1 50050165 Duct Cover, Lower (SN24+) 2
5-2 50170055 Trim, Lower Duct Cover (SN<24) 2
7 54050080 Collar, 8" Round w/Damper 1
8 54140104 Bracket, Electrical 1
9 56200051 Box, Control Board 1
10 11010043 Control Board 1
11 11030070 Wires, Electrical 1
12 50500101 Assembly, Junction Box 1
14 12120064 Motor 1
15 50300100 Canopy (ZML-M90BS) 1
15 50300101 Canopy (ZML-E42BS) 1
15 50300102 Canopy (ZML-M90BG) 1
15 50300103 Canopy (ZML-E42BG) 1
17 54140119 Bracket, Switch, Rear 1
18 11000072 Switch Assembly 1
18-1 52170042 Housing, Switch 1
18-2 11010044 Switch Board 1
18-3 50400011 Switch Buttons 2
18-4 52170043 Cover, LCD Screen 1
18-5 56210055 Cover, Switch 1
19 54140117 Bracket, Switch, Front 1
20 50200043 Filter, Aluminum Mesh 2
21 50110098 Panel, Light 2

22 Z0B-0032 Bulb, Bloom LED, 3W 4
23 05000080 Hardware Packet 1
23-1 01020011 Screw, 3/16 x 1/4 6
23-2 01090002 Screw, M6 x 1 1/2" 4
23-3 15000002 Wire Nut 3
23-4 02170001 Washer 4
23-5 01070006 Screw, Sheet Metal, M4 x 8mm 2
23-6 01070022 Screw, Machine, M4 x 8mm 8
23-7 01070021 Screw, M4 x 12mm 1
23-8 01060011 Screw, M3 x 5mm 14
24 81010003 Template, Ceiling 1

MAR16.0401
