Milano Island
ZML-M90AG/AS
ZML-E42AG/AS
www.zephyronline.com
Model number:
Serial Number:
Use, Care, and Installation Guide
FEB09.0301 © Zephyr Corporation
www.zephyronline.com
SAFETY NOTICE ................................................................. 2-3
LIST OF MATERIALS ....................................................... 4
INSTALLATION
Ducting Calculation Sheet
....................................... 5
Mounting Height & Clearance
Ducting Options
Hood Specifi cations

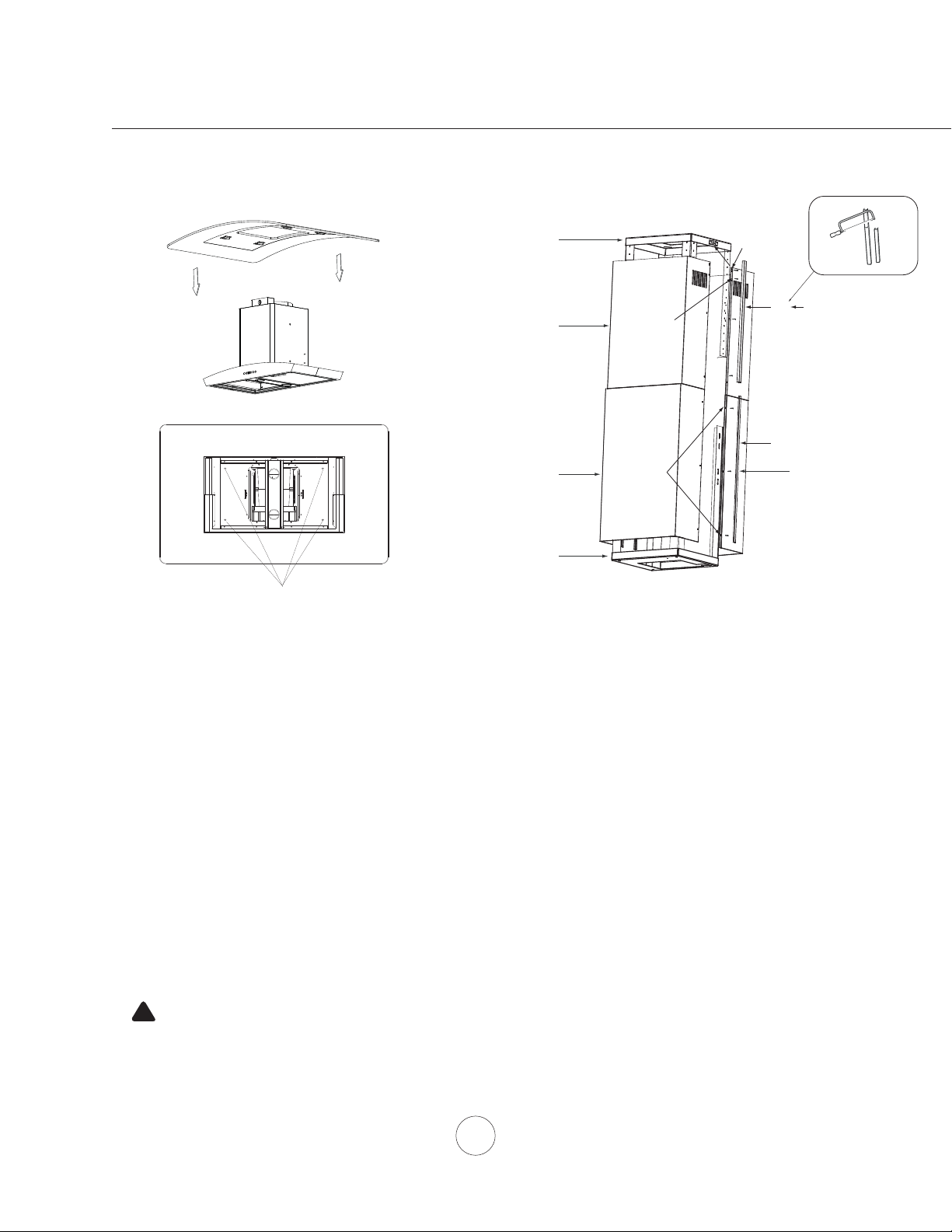

Mounting the Hood

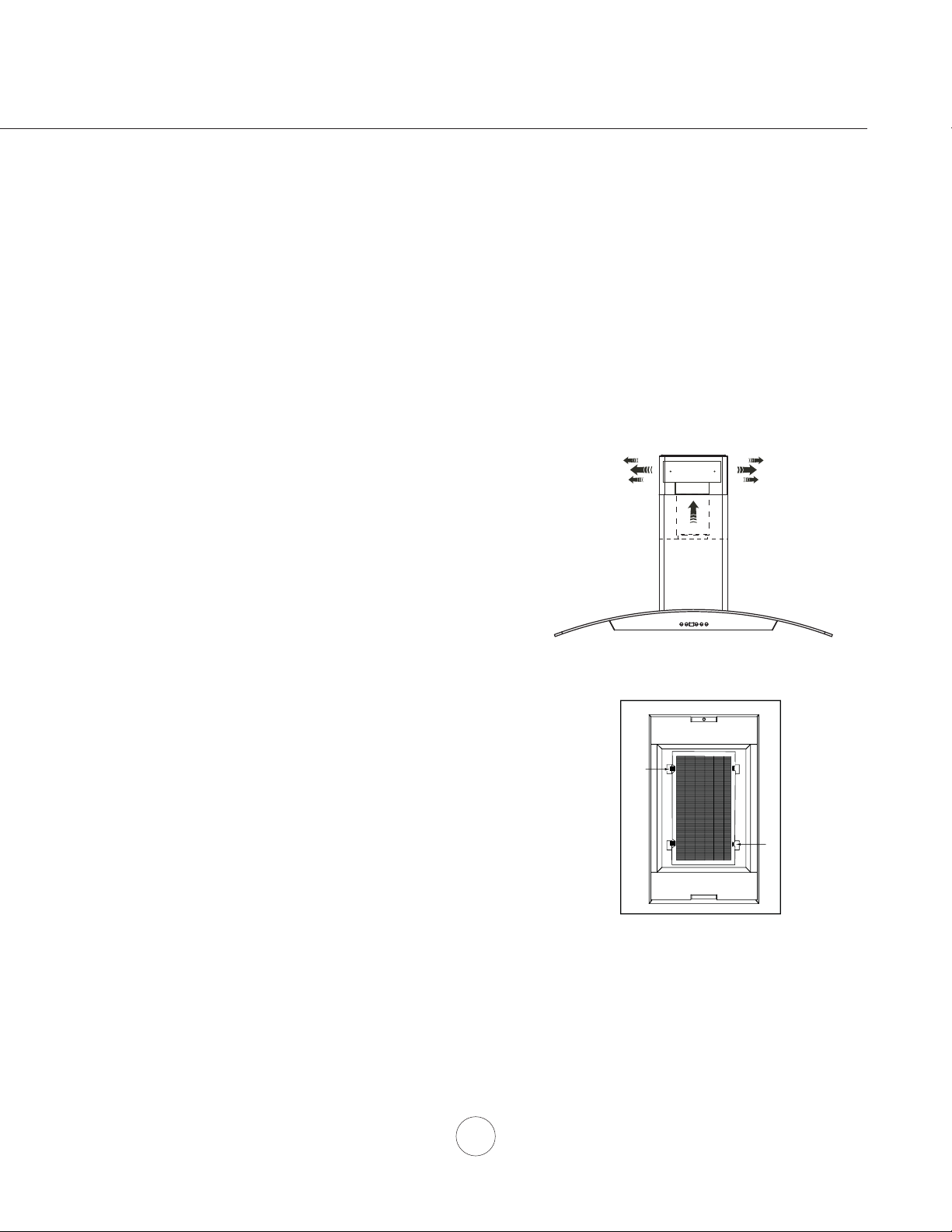

Ductless Recirculation
CONTROLS
..................................................................................... 12-14
........................................................... 7
................................................... 8
..................................................... 9 - 10
.............................................. 11
MAINTENANCE
Hood and Filter Cleaning
Lights
................................................................................ 16
TROUBLESHOOTING
................................................................ 17
......................................... 15
LIST OF PARTS AND ACCESSORIES
................................ 6
Table of Contents
.............................. 18
1
READ AND SAVE THESE INSTRUCTIONS
www.zephyronline.com
WARNING
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT USE THIS FAN WITH ANY SOLID-STATE CONTROL DEVICE.
WARNING
TO REDUCE THE RISK OF FIRE ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:
a. Use this unit only in the manner intended by the manufacturer, if you have questions, contact the manufacturer.
b. Before servicing or cleaning unit, switch power off at service panel and lock panel to prevent power from being switched on accidentally.
When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service
panel.
CAUTION
For general ventilating use only. Do not use to exhaust hazardous or explosive materials and vapors. Take care when using cleaning
agents or detergents. Suitable for use in household cooking area.
WARNING
TO REDUCE THE RISK OF RANGE TOP GREASE FIRE:
a. Never leave surface units unattended at high settings. Boilovers cause smoking and greasy spillovers that may ignite. Heat oils slowly
on low or medium settings.
b. Always turn hood ON when cooking at high heat or when fl aming food
c. Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan or fi lter .
Important Safety Notice
d. Use proper pan size. Always use cookware appropriate for the size of the surface element.
e. Keep fan, fi lters and grease laden surfaces clean.
f. Use high setting on hood only when necessary.
g. Don’t leave hood unattended when cooking.
h. Always use cookware and utensils appropriate for the type of and amount of food being prepared.
WARNING
TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A RANGE TOP FIRE, OBSERVE THE FOLLOWING:
a. SMOTHER FLAMES with a close-fi tting lid, cookie sheet, or metal tray, then turn off the burner. BE CAREFUL TO PREVENT BURNS.
If the fl ames do not go out immediately, EVACUATE AND CALL THE FIRE DEPARTMENT.
b. NEVER PICK UP A FLAMING PAN – You may be burned.
c. DO NOT USE WATER, including wet dishcloths or towels – a violent steam explosion will result.
d. Use an extinguisher ONLY if:
1. You know you have a Class ABC extinguisher, and you already know how to operate it.
2. The fi re is small and contained in the area where it started.
3. The fi re department is being called.
4. You can fi ght the fi re with your back to an exit
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:
a. Installation work and electrical wiring must be done by qualifi ed person(s) in accordance with all applicable codes and standards.
Including fi re-rated construction.
b. Suffi cient air is needed for power combustion and exhausting of gases through the fl ue (chimney) of fuel burning equipment to prevent
back-drafting. Follow the heating equipment manufacturer’s guideline and safety standards such as those published by the National
Fire Protection Association (NFPA) and the American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE) and
the local code authorities.
c. When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.
d. Ducted fans must always vent to the outdoors.
e. If this unit is to be installed over a tub or shower, it must be marked as appropriate for the application and be connected to a GFI
(Ground Fault Interrupter protected branch circuit).
g. NEVER place a switch where it can be reached from a tub or shower.
h. Make sure the power is off before installing, wiring or maintenancing.
2
WARNING
TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCTWORK.
CAUTION
To reduce risk of fi re and to properly exhaust air outside - Do not vent exhaust air into spaces within walls, ceilings,
attics, crawl spaces or garages.
OPERATION
Always leave safety grilles and fi lters in place. Without these components, operating blowers could catch onto hair, fi ngers
and loose clothing.
The manufacturer declines all responsibility in the event of failure to observe the instructions given here for installation,
maintenance and suitable use of the product. The manufacturer further declines all responsibility for injury due to
negligence and the warranty of the unit automatically expires due to improper maintenance.
*NOTE: Please check www.zephyronline.com for revisions before doing any custom work.
ELECTRICAL REQUIREMENTS
Important:
Observe all governing codes and ordinances.
It is the customer’s responsibility:
- To contact a qualifi ed electrical installer.
- To assure that the electrical installation is adequate and in conformance with National Electrical Code, ANSI/NFPA 70
latest edition* or CSA standards C22.1-94, Canadian Electrical Code, Part 1 and C22.2 No.0-M91 - latest edition** and
all local codes and ordinances.
If codes permit and a separate ground wire is used, it is recommended that a qualifi ed electrician determine that the
ground path is adequate.
Do not ground to a gas pipe.
Check with a qualifi ed electrician if you are not sure the range hood is properly grounded.
Do not have a fuse in the neutral or ground circuit.
*National Fire Protection Association Batterymarch Park, Quincy, Massachusetts 02269
** CSA International 8501 East Pleasant Valley Road, Cleveland, Ohio 44131-5575
This appliance requires a 120V 60Hz electrical supply and connected to an individual properly grounded branch circuit
protected by a 15 or 20 ampere circuit breaker or time delay fuse. Wiring must be 2 wire with ground. Please also refer to
Electrical Diagram on product.
A cable locking connector (not supplied) might also be required by local codes. Check with local requirements, purchase
and install appropriate connector if necessary.
ZML-M90AS/AG - 400 Watts, 3.3 Amps
ZML-E42AS/AG - 400 Watts, 3.3 Amps
Important Safety Notice
3
MODELS: ZML-M90AS, ZML-M90AG, ZML-E42AS, ZML-E42AG
PARTS SUPPLIED
2 - Top duct covers
2 - Thick trim pieces
www.zephyronline.com
1 - Top support frame
List of Materials
HARDWARE PACKAGE CONTENTS
(3) Wire Nuts
(4) M4 x 1-1/2”
Wood Screws
2 - Bottom duct covers
2 - Thin trim pieces
1 - 6” round damper, pre-installed
1 - Hood body
(4) ø12 OD / ø5 ID
Washers
1 - Bottom support frame
1 - Hardware package
1 - Canopy, glass or stainless steel
2 - 50W GU-10 halogen lights
2 - Metal mesh filters
(1) Suction Cup
(4) 3/16 x 8
PARTS NOT SUPPLIED
- Ducting, conduit and all installation tools
- Cable connector (if required by local codes)
- Duct cover extension accessory - Z1C-02ML
- Recirculating kit accessory - ZRC-0190
(2) M4 x 8
Philips Head Screws
(12) M3 x 6
Philips Head Screws
4
Duct pieces
3- 1/ 4” x 10”
Rect.,
straight
Equivalent number
length x used =
1 Ft. x ( ) =
To t a l
Ft.
Duct pieces
6”- 8” Round
wall cap
with damper
Equivalent number
length x used =
30 Ft. x ( ) =
To t a l
Ft.
7” Round,
straight
8” Round,
straight
3- 1/ 4” x 10”
0
Rect. 90
elbow
3- 1/ 4” x 10”
0
Rect. 45
elbow
3- 1/ 4” x 10”
0
Rect. 90
flat elbow
3- 1/ 4” x 10”
Rect.
wall cap
with damper
3- 1/ 4” x 10”
Rect. to
6” round
transition
3- 1/ 4” x 10”
Rect. to
6” round
transition
0
elbow
90
6” Round,
0
90
elbow
1 Ft. x ( ) =
1 Ft. x ( ) =
15 Ft. x ( ) =
9 Ft. x ( ) =
24 Ft. x ( ) =
30 Ft. x ( ) =
5 Ft. x ( ) =
20 Ft. x ( ) =
15 Ft. x ( ) =
Ft.
Ft.
Ft.
Ft.
Ft.
Ft.
Ft.
Ft.
Ft.
6”- 8” Round,
roof cap
6” round to
3- 1/ 4” x 10”
rect.
transition
6” round to
3- 1/ 4” x 10”
rect.
transition
0
elbow
90
7” or 8”
Round,
0
elbow
90
7” or 8”
Round,
0
45
elbow
7” or 8”
Round
wall cap
with damper
7” or 8”
Round,
roof cap
7” round to
3 1/ 4” x 10”
rect.
transition
7” round to
3- 1/ 4” x 10”
rect.
transition
0
90
elbow
30 Ft. x ( ) =
1 Ft. x ( ) =
16 Ft. x ( ) =
15 Ft. x ( ) =
9 Ft. x ( ) =
30 Ft. x ( ) =
30 Ft. x ( ) =
8 Ft. x ( ) =
23 Ft. x ( ) =
Ft.
Ft.
Ft.
Ft.
Ft.
Ft.
Ft.
Ft.
Installation – Ducting Calculation Sheet
Ft.
6” Round,
0
elbow
45
9 Ft. x ( ) =
Subtotal column 1 =
Maximum Duct Length: For satisfactory air movement,
the total duct length of a 3 1/ 4” x 10” rectangular 6” or 7”
diameter round duct should not exceed 100 equivalent feet.
Ft.
Ft.
Subtotal column 2 =
Subtotal column 1 =
Total ductwork =
Ft.
Ft.
Ft.
5
Min. ducted 28”
Min. recirc. 28”
Max. 38”
Min 28"-Max 36"
36"
Min 7’ 8"
Max 9’ 2"
www.zephyronline.com
Minimum mount height between range top to hood
bottom should be no less than 28”.
Maximum mount height should be no higher than
36”.
It is important to install the hood at the proper
mounting height. Hoods mounted too low could
result in heat damage and fi re hazard; while hoods
mounted too high will be hard to reach and will
loose its performance and effi ciency.
If available, also refer to range manufacturer’s
height clearance requirements and recommended
hood mounting height above range. Always check
your local codes for any differences.
Mounting Height (Recirculating or Ducted)
Minimum Ceiling Height 7’8’. Hood mounted 28”
above cooking surface; 64” from fl oor .
Maximum Ceiling Height 9’2”. Hood mounted 36”
above cooking surface; 72” from fl oor .
Duct cover extension kit available for ceiling
heights up to 12 feet. Turn to page 18 for part
DUCTING
A minimum of 6” round ducting must be used to
maintain maximum air fl ow effi ciency.
Always use rigid type metal ducts only. Flexible
ducts could restrict air fl ow by up to 50%.
Use calculation worksheet to compute total duct
work.
Installation – Mounting Height & Clearance
ALWAYS, when possible, reduce the number of
transitions and turns. If a long duct run is required,
increase duct size from 6” to 7” or 8”.
If turns or transitions are required: Install as far
away from opening and as far apart, between 2,
as possible.
number and ordering information.
DAMAGE-SHIPMENT / INSTALLATION:
• Please fully inspect unit for damage before
• If the unit is damaged in shipment, return the
• If the unit is damaged by the customer, repair
• If the unit is damaged by the installer (if other
installation.
unit to the store in which it was bought for
repair or replacement.
or replacement is the responsibility of the
customer.
than the customer), repair of replacement must
be made by arrangement between customer
and installer.
6
WARNING FIRE HAZARD
NEVER exhaust air or terminate duct work into spaces between walls, crawl spaces, ceiling, attics or garages.
All exhaust must be ducted to the outside, unless using the recirculating option.
Use single wall rigid Metal ductwork only.
Fasten all connections with sheet metal screws and tape all joints w/ certifi ed Silver Tape or Duct Tape.
Some Ducting Options
Roof Pitch w/
Flashing & Cap
(blower
housing)
(blower
housing)
ductless
recirculating
(blower
housing)
Soffit or crawl space
side wall cap
w/ gravity damper
Installation – Ducting Options
7
www.zephyronline.com
front of hood side of hood
15”
Installation – Hood Specifi cations
10 3/8”
min. ducted - 28”
min. recirc. - 28”
(blower
housing)
max. - 38”
23 15/16”
35 7/16” or 41 15/16”
(blower housing & ceiling bracket)
10 13/16”
26”
top of hood
8
8 1/4”
8 3/4”
6ӯ
elec. k/o
front
4”
8 1/2”
Ceiling Joists
Top Support Frame
Wood Blocking
Top Support Frame
Bottom Support Frame
Hood/Canopy
Front
1
3
2
5
6
4
front
Bottom Support Frame
2. Key hole
1. Wider cut out
side
back
front
FIG. B
FIG. C
FIG. A
!
CAUTION: At least two installers are
required due to the weight and size of the
hood.
1. *Determine desired mounting location on ceiling and add wood blocking (min. 2” x 4”) onto ceiling joists. (FIG. A, #1)
2. Remove screws securing top and bottom support frame together. Adjust support frame to accomodate the desired
height and re-assemble using the previously removed screws (2 for each support frame arm). (FIG. A, #2)
3. Fasten top support frame to desired location on ceiling using (4) M4 x 1-1/2” wood screws with washers. (FIG. A, #3)
The top support frame should be positioned so the narrow side is facing front to back. FIG. B. Make sure to install
the bottom support frame with the wider cut-out section facing the front of the hood. (FIG. C, #1)
4. Remove the (2) metal mesh fi lters and the (2) black charcoal fi lter brackets located behind the metal mesh fi lters.
Each bracket is secured to the hood with (4) Philips head screws. (Note: If hood is used in ducted mode the charcoal
brackets may be discarded.) Place canopy over blower housing on top of hood and secure to hood body using (4)
3/16” x 8 screws. (FIG D, page 10)
5. Lift hood and align the (4) pre-installed mounting screws on top of hood (FIG. A, #5-6) with the (4) key holes on
bottom of support frame. (FIG. C, #2) Slide hood towards the narrow end of key holes to lock into place. Hand
tighten each of the (4) screws to secure hood to bottom of support frame.
6. Reinstall the (2) charcoal fi lter brackets (if recirculating) and metal mesh fi lters.
*Hood is intended to be mounted to a fi nished ceiling.
Installation – Mounting the Hood
9
canopy
www.zephyronline.com
cut-down
(Bottom of the hood)
screw holes (4) for the canopy
FIG. D
Installation – Mounting the Hood
7. Install electrical and duct work. Seal duct work with aluminum duct tape.
8. Power up hood and check for leaks around duct tape.
9. *Assemble top duct covers (with louver holes) together using (2) M3 x 6 screws. (FIG. E, #9). Larger screw
hole openings should overlap the smaller holes.
10. Secure top duct covers to top support frame using (2) M4 x 8 screws. (FIG. E, #10). Note: If using hood in
“ducted mode” the top duct covers may be turned upside-down to hide the louver holes.
11. Assemble bottom duct covers together over top duct covers using the fi nal (4) M3 x 6 screws. Bottom duct
covers should rest on top of the hood body. (FIG. E, #11)
12. Insert the (2) thin trim pieces into left and right seams of bottom duct covers. (1 on each side)
(FIG. E, #12)
13. Insert the (2) thick trim pieces into left and right seams of top duct covers. (1 on each side)
Note: Because less of the top duct covers will be exposed, it may not be necessary to measure and
cut the thick trim pieces with a hack saw before installing them into the top duct covers.
* If using hood in recirculating mode you must install the air diverter plate before assembling the duct
covers. Turn to page 11 for instructions.
Top support frame
Top duct covers
Bottom duct covers
Bottom support frame
9
11
FIG. E
10
Thick trim piece
13
12
Thin trim piece
WARNING: Electrical wiring must be done by a qualified person(s) in
!
accordance with all applicable codes and standards. This range hood must be
properly grounded. Turn off electrical power at service entrance before wiring.
10
Ductless recirculation is intended for applications where an exhaust duct work is not possible to be installed.
When converted, the hood functions as a recirculating hood rather than an exhaust hood. Fumes and exhaust
from cooking are drawn and fi ltered by a set of optional charcoal fi lters. The air is then purifi ed and re-
circulated back within the home.
We recommend to ALWAYS exhaust air outside of the home by employing existing or installing new duct
work, if possible. The hood is most effective and effi cient as an exhaust hood. Only when the exhaust option
is not possible should you recourse to converting the hood into a recirculating hood.
When converted to be a recirculating hood, a set of charcoal fi lters are required on top of its standard Metal
Filter set. Order according to its Part number below. The standard Metal Filters are intended to capture
residue from cooking and the optional charcoal fi lters help to purify fumes exhausted from cooking for re-
circulation.
RECIRCULATING KIT (REQUIRED IF NO DUCTING IS USED)
Kit includes charcoal fi lters and air diverter plate.
Hood Model Part No. Filters in Pkg.
ZML-M90AS/AG ZRC-0190 2
ZML-E42AS/AG ZRC-0190 2
1. Purchase recirculating kit per the part number above.
2. Secure air diverter plate to top support frame. (FIG. F) Open
(blower
housing)
sides of air diverter plate should face left and right and align
with louver holes on the duct covers. Run 6” ducting from top
of blower housing and secure to air diverter plate. See manual
included with recirculating kit for more detailed instructions.
3. Remove metal mesh fi lters from hood. Clip charcoal fi lters onto
FIG. F
each charcoal fi lter bracket. (FIG. G) The brackets are pre-installed and
located behind the mesh fi lters.
front of the hood
4. Re-install metal mesh fi lters.
5. Enable charcoal fi lter change indicator on control panel. (Refer details
to pg. 13)
E
6. Charcoal fi lters must be replaced after every 120 hours of use (or
approximately every 3 to 4 months based on the average of 1 to 2
hrs. of daily cooking time). The microprocessor in the controls when
set, will elapse and count usage time and indicate when charcoal fi lter
D
replacement is required every 120 hrs.
Charcoal Filter Replacements
Hood Model Part No. Qty to Order
ZML-M90AS/AG Z0F-C002 2
Install charcoal filter (plastic side exposed)
into charcoal filter bracket. Insert tab
cut-out side D of charcoal filter into bracket
first. Lock charcoal filter into place by
pushing down on side E with locking tabs.
back of the hood
ZML-E42AS/AG Z0F-C002 2
FIG. G
Charcoal Filter Dimensions:
9in x 6 3/8in
228mm x 162mm
Installation – Ductless Recirculation
11
www.zephyronline.com
Blower On/Off
1. Blower On/Off
By pressing the blower is switched on and off. When switched on, the blower starts up on speed level 3.
2. Speed Selection
The 6 speed levels are selected by pressing to decrease and to increase speed levels. The display indicates levels
selected.
3. Delay Off
This feature is used for programmed shut down of the blowers 15 minutes after the function is activated. Press once, a
dot flashes in the lower right side of display indicating the function is on. The blowers will shut down after 15
minutes.
Display (speed level, delay off, filter clean/change)
Lights On/Dim/Off
Adjust 6 Speed Levels
15 Min Delay Off
4. Lights On/Dim/Off
Switch lights on by pressing once, press a second time to dim and again to shut off lights.
5. Display Window
Features & Controls – Touch Controls
The display window indicates speed levels and features such as metal filter clean reminder, delay off and charcoal filter change
reminder.
Metal Filter Clean Reminder (metal mesh filter)
After every 30 hours of use the display will start flashing an reminding you to clean the metal filters from residue and
possible clogs.
The standard metal mesh filters are required to be cleaned frequently and as recommended in order to maintain blower
efficiency. If improperly maintained, residue from cooking will sift through filters and cause damage to hood blowers and
other sensitive components; and possible clog duct work and create a fire hazard.
F
12
Charcoal Filter Change Reminder (charcoal filter, if installed)
C
C
C
C
C
C
C
When your hood is installed as a recirculating unit, it is fitted with a set of charcoal filters to purify exhaust
and fumes from cooking, then re-circulates the air within the home. These charcoal filters are required to
be replaced after every 120 hours of use. The charcoal filters should never be cleaned or placed in a dish
washer.
The filter change reminder function in the microprocessor needs to be switched on. When switched on, the
microprocessor will elapse and count usage time and indicate by a flashing when charcoal filter
replacements are needed.
Setting the Filter Change Reminder
When off, hold for approximately 5 seconds.
The display will change from (exhaust mode) to
(recirculating mode) this indicates that the
elapse timer function is switched on and charcoal
filters are used.
Filter Replace Indicator
When the display starts flashing, the charcoal
filters need to be replaced.
Re-setting Function
Once filters are replaced, with hood off, press and
hold the display will appear; hold for apprimately
5 seconds until on displays disappears .
The filter change reminder is now re-set and a new
120 hour elapse cycle is initiated.
Set Mode
hold 5 sec. display from < - > to < C >
Set Mode
Change FIlters
display < C > flashes
To Reset
hold 5 sec. display from < C > to < >
Features & Controls – Charcoal Filter Change Reminder
13
www.zephyronline.com
F
F
F
F
F
Metal Filter Clean Reminder (metal mesh filter)
Whether your hood is installed as an exhaust or purifying unit, a set if metal mesh filters are fitted by the
factory, These metal mesh filters are intended to filter out residue from cooking. They need not be
replaced on a regular basis but are required to be kept clean. The filter clean reminder function in the
microprocessor will automatically indicate by a flashing when the metal mesh filters need to be
cleaned after every 30 hours of use. Filters can be cleaned by hand with non-abrasive soap or in a
dishwasher. Heavily soiled filters should also be soaked in grease cutting detergent prior to cleaning.
Metal Filter Clean Indicator
When flashes on display, the metal filters
installed are required to be cleaned. This will occur
after every 30 hours of use.
Re-setting Function
Reset the filter clean reminder timer when filters are
cleaned and re-installed (with hood off). Press and
hold for approximately 5 seconds, the display will
appear; hold for approximately 5 seconds until on
display disappears . The filter clean reminder
function is now reset and a new 30 hours elapse
cycle is initiated.
Clean Filters
display < F > flashes
To Re set
hold 5 sec. display from < F > to < >
Features & Controls – Metal Mesh Filter Clean Reminder
14
SURFACE MAINTENANCE:
Clean periodically with hot soapy water and clean cotton cloth. Do not use corrosive or abrasive detergent ,
or steel wool/scouring pads which will scratch and damage surface.
For heavier soil use liquid degreaser.
After cleaning it is recommended that you use non-abrasive stainless steel polish/cleaners, to polish and buff
out the stainless luster and grain. Always scrub lightly, with clean cotton cloth, and with the grain.
Do not use any product containing chlorine bleach. Do not use “orange” cleaners.
Metal Filters
The metal fi lters installed by the factory are intended to fi lter out residue and grease from cooking. They need
not be replaced on a regular basis but are required to be kept clean.
Filters should be cleaned after every 30 hours of use or once a month.
Remove and clean by hand or in dishwasher on low heat. Spray degreasing detergent and leave to soak if
heavily soiled.
Dry fi lters and re-install before using hood.
Replacing Metal Filters
Should fi lters wear out due to age and
prolonged use, replace with following part
number:
Hood Model: Part No. Qty. to Order.
ZML-M90AS/AG 50200011 2
ZML-E42AS/AG 50200011 2
Replace any damaged fi lter that has punctured
or broken mesh or damaged frame.
Metal Filter Dimensions:
10 1/8in. x 12 9/16in.
253mm x 314mm
Maintenance – Hood and Filter Cleaning
15
REPLACING LIGHT BULBS
CAUTION: Light bulb becomes extremely hot when turned on.
DO NOT touch bulb until switched off and cooled. Touching hot bulbs could cause serious burns.
Make sure all power is turned off and bulbs are not hot.
Remove by turning bulb counter clockwise. Note: Bulb does not unscrew; it turns 60 degrees,
stops and falls out.
If bulbs are diffi cult to turn due to prolonged use, fi rmly attach a glass suction cup approximately the diameter of
the bulb or use a rubber/latex glove and turn counter clockwise.
Replacement bulbs are available at specialty lighting stores. Purchase type GU-10 50W halogen.
For Zephyr part numbers please turn to page 18 of the manual.
Maintenance – Lights
www.zephyronline.com
16
TROUBLESHOOTING PROCEDURES FOR MILANO ISLAND
Issue Cause What to do
After installation,
the unit doesn’t
work.
Light works,
but motor is not
turning.
The unit is
vibrating.
The motor is
working, but the
lights are not.
The hood is
not venting out
properly.
Metal Filter is
vibrating.
1. The power source is not turned ON. 1. Make sure the circuit breaker and the unit’s
power is ON.
2. The power line and the cable locking connector
is not connecting properly.
3. The switch board and control board wirings are
disconnected.
4. The switch board or control board is defective. 4. Change the switch board or control board.
1. The motor is defective, possibly seized. 1. Change the motor.
2. The thermally protected system detects if the
motor is too hot to operate and shuts the motor
down.
3. Damaged capacitor. 3. Change the capacitor.
4. The switch board or control board is defective. 4. Change defective part.
1. The motor is not secure in place. 1. Tighten the motor in place.
2. Damaged blower wheel. 2. Replace the blower.
3. The hood is not secured in place. 3. Check the installation of the hood.
4. The switch board or control board is defective. 4. Change defective part.
1. Defective halogen bulb. 1. Change the halogen bulb.
2. The light bulb is loose. 2. Tighten the light bulb.
1. The hood might be hanging to high from the
cook top.
2. The wind from the opened windows or opened
doors in the surrounding area are affecting the
ventilation of the hood.
3. Blockage in the duct opening or ductwork. 3. Remove all the blocking from the duct work or
4. The direction of duct opening is against the wind. 4. Adjust the duct opening direction.
5. Using the wrong size of ducting. 5. Change the ducting to at least 6” or higher
1. Metal fi lter is loose. 1. Change the metal fi lter.
2. Check the power connection with the unit is
connected properly.
3. Make sure the wirings between the switch
board and control board are connected
properly.
2. The motor will function properly after the
thermally protected system cool down.
1. Adjust the distance between the cook top and
the bottom of the hood within 28” and 36”
range.
2. Close all the windows and doors to eliminate
the outside wind fl ow.
duct opening.
for the internal blower and 8” or higher for the
external blower.
Troubleshooting
17
www.zephyronline.com
DESCRIPTION PART#
Replacement Parts
Light Bulb GU10 50W (each) Z0B-0020
Metal Filter (each) 50200011
Optional Accessories
Recirculating Kit ZRC-0190
Replacement Charcoal Filter (each) Z0F-C002
Duct Cover Extension Z1C-02ML
To order parts, visit us online at http://store.zephyronline.com or call us at 1.888.880.8368
List of Parts and Accessories
18
STAPLE YOUR RECEIPT HERE
Proof of the original purchase
date is needed to obtain
Limited Warranty
TO OBTAIN SERVICE UNDER WARRANTY OR FOR ANY SERVICE RELATED QUESTIONS, please call:
service under warranty
1-888-880-8368
Zephyr Corporation (referred to herein as “we” or “us”) warrants to the original consumer purchaser (referred to herein
as “you” or “your”) of Zephyr products (the “Products”) that such Products will be free from defects in materials or workmanship as follows:
Two Year Limited Warranty for Parts: For two years from the date of your original purchase of the Products, we will
provide, free of charge, Products or parts to replace those that failed due to manufacturing defects. We may choose, in
our sole discretion, to repair or replace parts before we elect to replace the Products.
One Year Limited Warranty for Labor: For one year from the date of your original purchase of the Products, we will
provide, free of charge, the labor cost associated with repairing the Products or parts to replace those that failed due to
manufacturing defects. After the first year from the date of your original purchase, you are responsible for all labor costs
associated with this warranty.
Warranty Exclusions: This warranty covers only repair or replacement, at our option, of defective Products or parts
and does not cover any other costs related to the Products including but not limited to: (a) normal maintenance and
service required for the Products and consumable parts such as light bulbs, metal and carbon filters and fuses; (b) any
Products or parts which have been subject to freight damage, misuse, negligence, accident, faulty installation or installation contrary to recommended installation instructions, improper maintenance or repair (other than by us); (c) commercial use of the Products or use otherwise inconsistent with its intended purpose; (d) natural wear of the finish of the Products or wear caused by improper maintenance, use of corrosive and abrasive cleaning products, pads, and oven cleaner
products; (e) chips, dents or cracks caused by abuse or misuse of the Products; (f) service trips to your home to teach
you how to use the Products; or (g) damage to the Products caused by accident, fire, floods or act of God. If you are
outside our service area, additional charges may apply for shipping costs for warranty repair at our designated service
locations and for the travel cost to have a service technician come to your home to repair, remove or reinstall the Products. After the first year from the date of your original purchase, you are also responsible for all labor costs associated
with this warranty.
Limitations of Warranty. OUR OBLIGATION TO REPAIR OR REPLACE, AT OUR OPTION, SHALL BE YOUR SOLE
AND EXCLUSIVE REMEDY UNDER THIS WARRANTY. WE SHALL NOT BE LIABLE FOR INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES ARISING OUT OF OR IN CONNECTION WITH THE USE OR PERFORMANCE OF
THE PRODUCTS. THE EXPRESS WARRANTIES IN THE PRECEDING SECTION ARE EXCLUSIVE AND IN LIEU OF
ALL OTHER EXPRESS WARRANTIES. WE HEREBY DISCLAIM AND EXCLUDE ALL OTHER EXPRESS WARRANTIES FOR THE PRODUCTS, AND DISCLAIM AND EXCLUDE ALL WARRANTIES IMPLIED BY LAW, INCLUDING
THOSE OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. Some states or provinces do not
allow limitations on the duration of an implied warranty or the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. To the extent that applicable law prohibits the exclusion of implied warranties, the duration of any applicable implied warranty is limited to the same two-year period
described above. Any oral or written description of the Products is for the sole purpose of identifying the Products and
shall not be construed as an express warranty. Prior to using, implementing or permitting use of the Products, you shall
determine the suitability of the Products for the intended use, and you shall assume all risk and liability whatsoever in
connection with such determination. We reserve the right to use functionally equivalent refurbished or reconditioned
parts or Products as warranty replacements or as part of warranty service. This warranty is not transferable from the
original purchaser and applies in the United States and Canada.
To Obtain Service Under Limited Warranty: To qualify for warranty service, you must: (a) notify us at the address or
telephone number stated below within 60 days of the discovery of the defect; (b) give the model number and part identification number and serial number; and (c) describe the nature of any defect in the Product or part. At the time of the
request for warranty service, you must present evidence of your proof of purchase and proof of the original purchase
date. If we determine that the warranty exclusions listed above apply or if you fail to provide the necessary documentation to obtain service, you will be responsible for all shipping, travel, labor and other costs related to the services.
Please check our website for any revisions, www.zephyronline.com.
Zephyr Corporation Service Department, 2277 Harbor Bay Parkway, Alameda, CA 94502 1-888-880-8368
JUN08.0 101
Loading...
