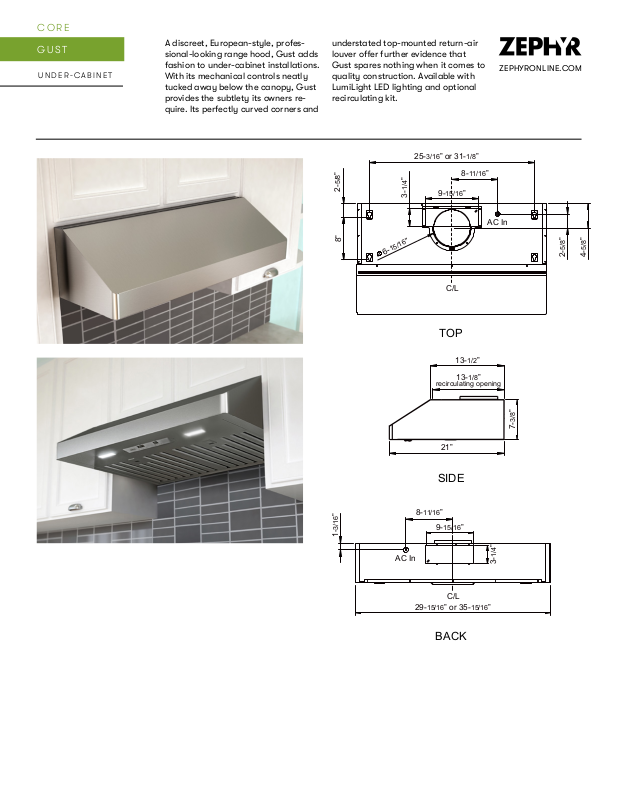

Page 1
CORE
GUST
UNDER-CABINET
A discreet, European-style, professional-looking range hood, Gust adds
fashion to under-cabinet installations.
With its mechanical controls neatly
tucked away below the canopy, Gust
provides the subtlety its owners require. Its perfectly curved corners and
understated top-mounted return-air
louver oer further evidence that
Gust spares nothing when it comes to
quality construction. Available with
LumiLight LED lighting and optional
recirculating kit.
3/16” or 31-1/8”
25-
8-11/16”
2-5/8”
3-1/4”
9-15/16”
ZEPHYRONLINE.COM
AC In
8”
6-
15/16
”
C/L
5/8”
5/8”
2-
4-
TOP
13-1/2”
13-1/8”
recirculating opening
7-3/8”
21”
SIDE
8-11/16”
1-3/16”
9-15/16”
AC In
29-15/16” or 35-15/16”
BACK
3-1/4”
C/L
Page 2
CORE
GUST
UNDER-CABINET
MODEL
Stainless Steel
Size
BLOWER PERFORMANCE
Blower CFM (Min. - Max.)
Sones (Min. - Max.)
FEATURES
Controls
Speed Levels
Auto Delay-O
Lighting
Dual-Level Lighting
Filters
Recirculating Option
DUCT SPECIFICATIONS
Vertical Internal Blower
Horizontal Internal Blower
400 CFM AC POWER
290 CFM AC POWER
AK7100BS-BF
30”
150 - 400
2 - 5
Mechanical Slide
3
No
LumiLight LED, 6W x2
Yes
Bae x2
Yes
7” Round or 3-1/4” x 10”
3-1/4” x 10”
120V, 60Hz at Max. 1.7A
120V, 60Hz at Max. 1.55A
AK7100BS290-BF
30”
120 - 290
1.1 - 3.2
Mechanical Slide
3
No
LumiLight LED, 6W x2
Yes
Bae x2
Yes
7” Round or 3-1/4” x 10”
3-1/4” x 10”
120V, 60Hz at Max. 1.7A
120V, 60Hz at Max. 1.55A
AK7136BS-BF
36”
150 - 400
2 - 5
Mechanical Slide
3
No
LumiLight LED, 6W x2
Yes
Bae x2
Yes
7” Round or 3-1/4” x 10”
3-1/4” x 10”
120V, 60Hz at Max. 1.7A
120V, 60Hz at Max. 1.55A
ZEPHYRONLINE.COM
AK7136BS290-BF
36”
120 - 290
1.1 - 3.2
Mechanical Slide
3
No
LumiLight LED, 6W x2
Yes
Bae x2
Yes
7” Round or 3-1/4” x 10”
3-1/4” x 10”
120V, 60Hz at Max. 1.7A
120V, 60Hz at Max. 1.55A
OPTIONAL ACCESSORIES
Recirculating Kit
Stainless Steel Telescopic Backsplash
Make-Up Air Kit
Damper, 7” Round
MOUNTING HEIGHT RANGE*
WARRANTY
*Mounting height refers to distance between top of a 36” tall cooking surface and bottom of hood.
ZRC-0071
AK1710
MUA006A
AK00067
24” - 32”
3 years parts, 1 year labor
ZRC-0071
AK1710
MUA006A
AK00067
24” - 32”
3 years parts, 1 year labor
ZRC-0071
AK1716
MUA006A
AK00067
24” - 32”
3 years parts, 1 year labor
ZRC-0071
AK1716
MUA006A
AK00067
24” - 32”
3 years parts, 1 year labor
Specications subject to change, check zephyronline.com for up-to-date information.
Zephyr Ventilation | 2277 Harbor Bay Parkway, Alameda, CA 94502 | 888.880.VENT
AUG21.0101
