Plane
APN-M90ABX
APN-M90AWX
www.zephyronline.com
RANGE HOOD - Installation instructions
www.zephyronline.com
HOTTE PER CUISINE - Notice d’utilisation...Pag. 21
CAMPANA EXTRACTORA - Manual de utilización...Pag. 41
CAPPA ASPIRANTE - istruzioni per l’uso...Pag. 61
- 2 -
SAFETY INSTRUCTIONS..................................................................................................pag. 4
LIST OF MATERIALS...........................................................................................................pag. 7
DUCTING CALCULATION SHEETS...............................................................................pag. 8
HOOD SPECIFICATION.....................................................................................................pag. 9
INSTALLATION
- INTERNAL BLOWER.....................................................................................pag. 10
- EXTERNAL & IN-LINE BLOWER PREPARATION...............................pag. 12
- DUCTING OPTIONS.....................................................................................pag. 14
- POWER SUPPLY CONNECTION..............................................................pag. 16
- MOUNTING THE RANGE HOOD.............................................................pag. 17
MAINTENANCE.................................................................................................................pag. 18
LIST OF PARTS AND ACCESSORIES..........................................................................pag. 19
Contents
- 3 -
www.zephyronline.com
IMPORTANT SAFETY INSTRUCTIONS
FOR RESIDENTIAL USE ONLY
READ AND SAVE THESE INSTRUCTIONS
PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING.
IMPORTANT: Save these Instructions for the Local Electrical Inspectors use.
INSTALLER: Please leave these Instructions with this unit for the owner.
OWNER: Please retain these instructions for future reference.
Take care when using cleaning agents or detergents.
Suitable for use in household cooking area
Safety instructions
WARNING - To reduce the risk of re or electric shock, do not use this fan
with any Solid-State Speed Control Device.
CAUTION - To reduce risk of re and to properly exhaust air, be sure to duct
air outside – Do not vent exhaust air into spaces within walls or ceilings or into
attics, crawl spaces, or garages.
CAUTION - For general ventilating use only. Do not use to exhaust hazardous
or explosive materials and vapors.
CAUTION - To avoid motor bearing damage and noisy and/or unbalanced
impellers, keep drywall spray, construction dust, etc. o power unit.
CAUTION - Please read speci cation label on product for further information
and requirements.
WARNING – TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO
PERSONS, OBSERVE THE FOLLOWING:
A. Use this unit only in the manner intended by the manufacturer. If you have
ques tions, contact the manufacturer.
B. Before servicing or cleaning unit, switch power o at service panel and lock
the service disconnecting means to prevent power from being switched on accidentally. When the service disconnecting means cannot be locked, securely
fasten a prominent warning device, such as a tag, to the service panel.
WARNING - TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:
A. Never leave surface units unattended at high settings. Boilovers cause smo-
king and greasy spillovers that may ignite. Heat oils slowly on low or medium
- 4 -
settings.
B. Always turn hood ON when cooking at high heat or when ambeing foods
( i.e. Crepes Suzette, Cherries Jubilee, Peppercorn Beef Flambè ).
C. Clean ventilating fans frequently. Grease should not be allowed to accumulate
on fan or lter.
D. Use proper pan size. Always use cookware appropriate for the size of the
surface element.
E. Keep fan, lters and grease laden surface clean.
F. Use high range setting on range only when necessary.Heat oil slowly on
low to medium setting.
G. Don’ t leave range unattended when cooking.
H. Always use cookware and utensils appropriate for the type and amount o
food being prepared.
WARNING – TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF
A RANGE TOP GREASE FIRE, OBSERVE THE FOLLOWING:
A. SMOTHER FLAMES with a close- tting lid, cookie sheet, or metal tray, then
turn o the burner. BE CAREFUL TO PREVENT BURNS. If the ames do not go
out mmediately, EVACUATE AND CALL THE FIRE DEPARTMENT.
B. NEVER PICK UP A FLAMING PAN – You may be burned.
C. DO NOT USE WATER, including wet dishcloths or towels – a violent steam
explosion will result.
D. Use an extinguisher ONLY if:
1. You know you have a Class ABC extinguisher, and you already know how
to perate it.
2. The re is small and contained in the area where it started.
3. The re department is being called.
4. You can ght the re with your back to an exit.
aBased on “kitchen resafety tips” published by NFPA
Safety instructions
Proper maintenance of the Range Hood will assure proper performance
of the unit.
INSTALLATION INSTRUCTIONS
WARNING – TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO
PERSONS, OBSERVE THE FOLLOWING:
A. Installation work and electrical wiring must be done by quali ed person(s)
in accordance with all applicable codes and standards, including re-rated
construction.
B. Su cient air is needed for proper combustion and exhausting of gases
- 5 -
www.zephyronline.com
through the ue (chimney) of fuel burning equipment to prevent back drafting.
Follow the heating equipment manufacturer’s guideline and safety standards
such as those published by the National Fire Protection Association (NFPA), and
the American Society for Heating, Refrigeration and Air Conditioning Engineers
(ASHRAE), and the local code authorities.
C. When cutting or drilling into wall or ceiling, do not damage electrical wiring
and other hidden utilities.
D. Ducted fans must always be vented to the outdoors.
E. This unit must be grounded.
WARNING - TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCTWORK.
Safety instructions
WARNING - UNDER CERTAIN CIRCUMSTANCES DOMESTIC APPLIANCES MAY
BE DANGEROUS.
A. Do not check lters with hood working.
B. Do not touch the lamps after a prolonged use of the appliance.
C. No food must be cooked ambè underneath the hood.
D. The use of an unprotected ame is dangerous for the lters and could cause
res.
E. Watch constantly the fried food in order to avoid the cooking oil ares up.
F. before performing any mainteinance operation, disconnect the hood from
the electrical service.
The manufacturers will not to accept any responsability for eventual damages,
because of failure to observe the above instructions.
- 6 -
Duct Cover Bracket
Electrical
Junction Box
Duct Covers
Control
List of Materials
Glass
Range Hood Body
- 7 -
Light Bulbs
Decorative Mesh Filters
(1+1) M4
(12) 1/4"
www.zephyronline.com

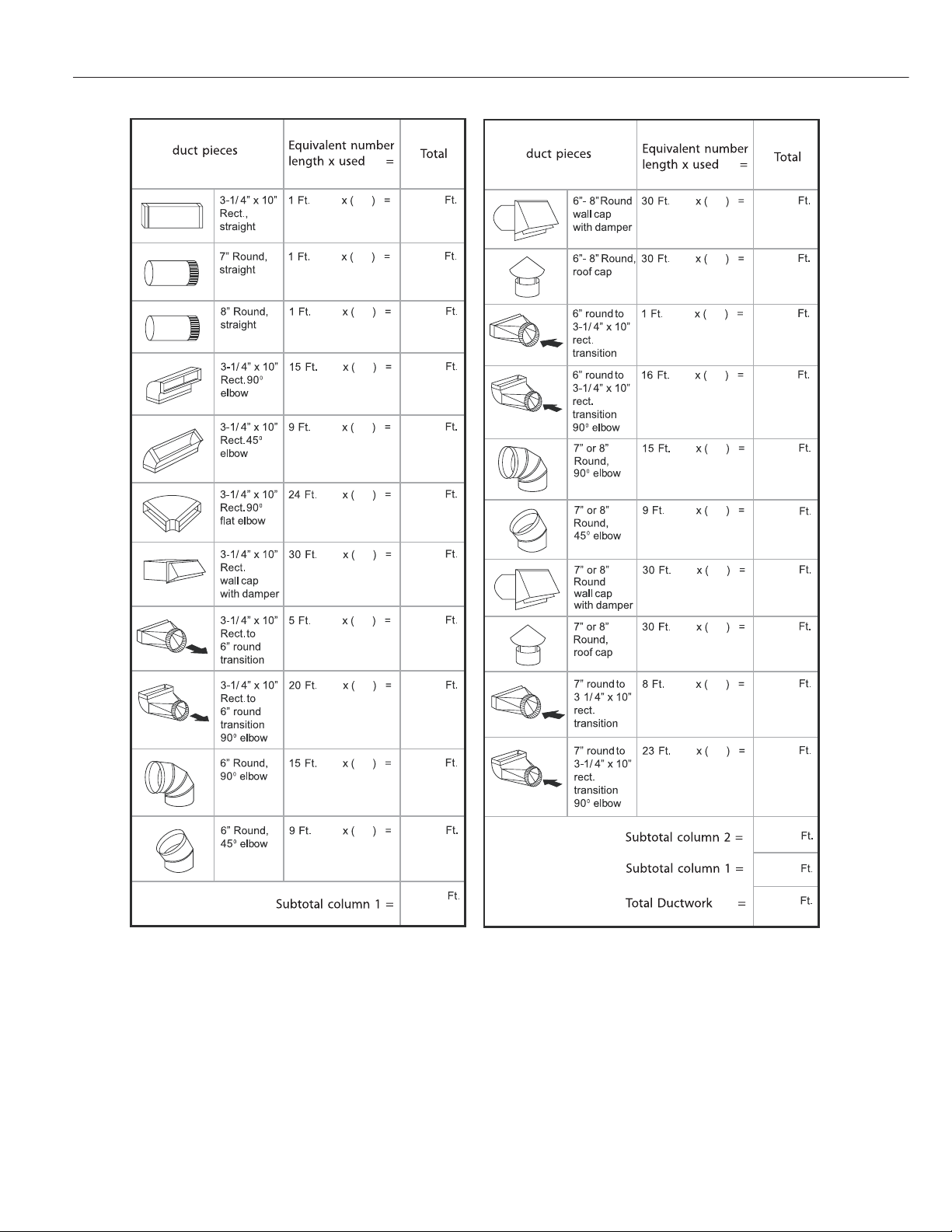

Ducting Calculation Sheet
Maximum Duct Length:
For satisfactory air movement, the total duct length
should not exceed 100 equivalent feet.
- 8 -
front of hood
side of hood
Hood Speci cations
top of hood
- 9 -
www.zephyronline.com
The following instructions are for installing the internal blower.
CAUTION: To reduce the risk of re and electric shock, install this rangehood only with internal blower models MT-017 provided with the kit cod
CBI-600A.
For external and in-line blower preparation please turn to page 12.

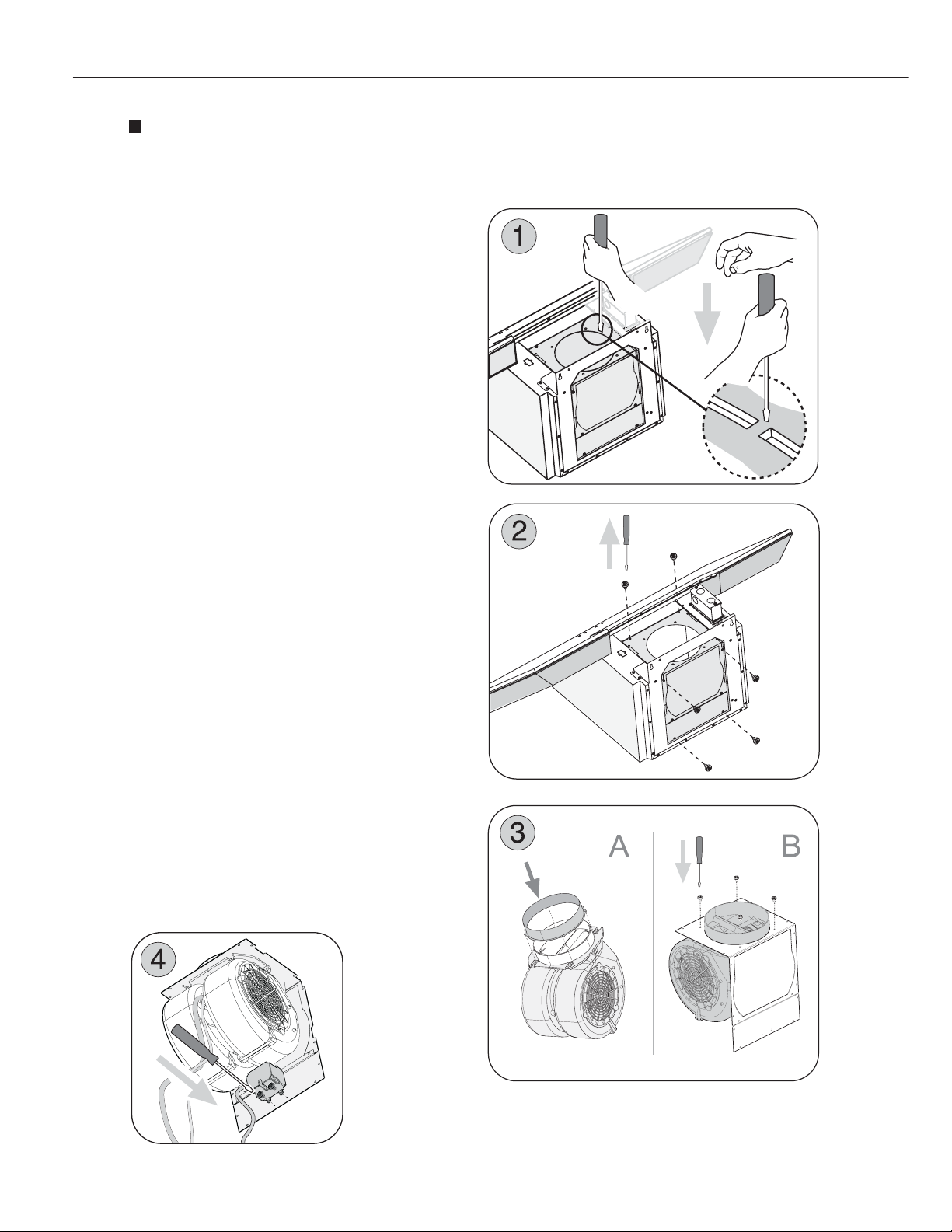

1.Remove the 6” round metal knockout
plate from the blower plate by using
a at head screwdriver. See.Fig.1
2. Remove the (6) screws securing the
blower plate to the blower housing
and remove blower plate. See. Fig.2
3. Place the 6" metallic ange provided
on the blower's air outlet Fig.3A.(the
Installation - Internal Blower
ange may already be pre-installed).
Install internal blower into blower plate and secure using (4) screws included with the blower. See Fig.3B
4. Secure capacitor box connected to
the provided cable to the blower
plate using (2) screws included with
the blower. See.Fig.4
5. Secure Green/Yellow ground wire
connected to the cable to the provided capacitor to blower plate.Fig.5
- 10 -
6. Attach the 6 pin male molex connector from blower
wire to the 6 pin female molex connector located
inside the blower housing. See Fig.6
7. Install blower and blower plate into blower housing
by following the reverse instructions from step 2.
See Fig.7
8. Connect 9 pin male molex connector from blower wire to 9 pin female molex
connector on the capacitor wire. See Fig.8
WARNING! Place electrical wiring inside the motor housing.
The hood is now ready to be installed on the wall.
Installation - Internal Blower
- 11 -
www.zephyronline.com
The following instructions are for preparing the hood for use with an external or in-line blowers models CBE-1000 or PBN-1000A.
CAUTION: To reduce the risk of re and electric
shock, install this rangehood only with remote
blowers rated maximum 6.2 A.
For internal blower instructions please turn to
page 10.

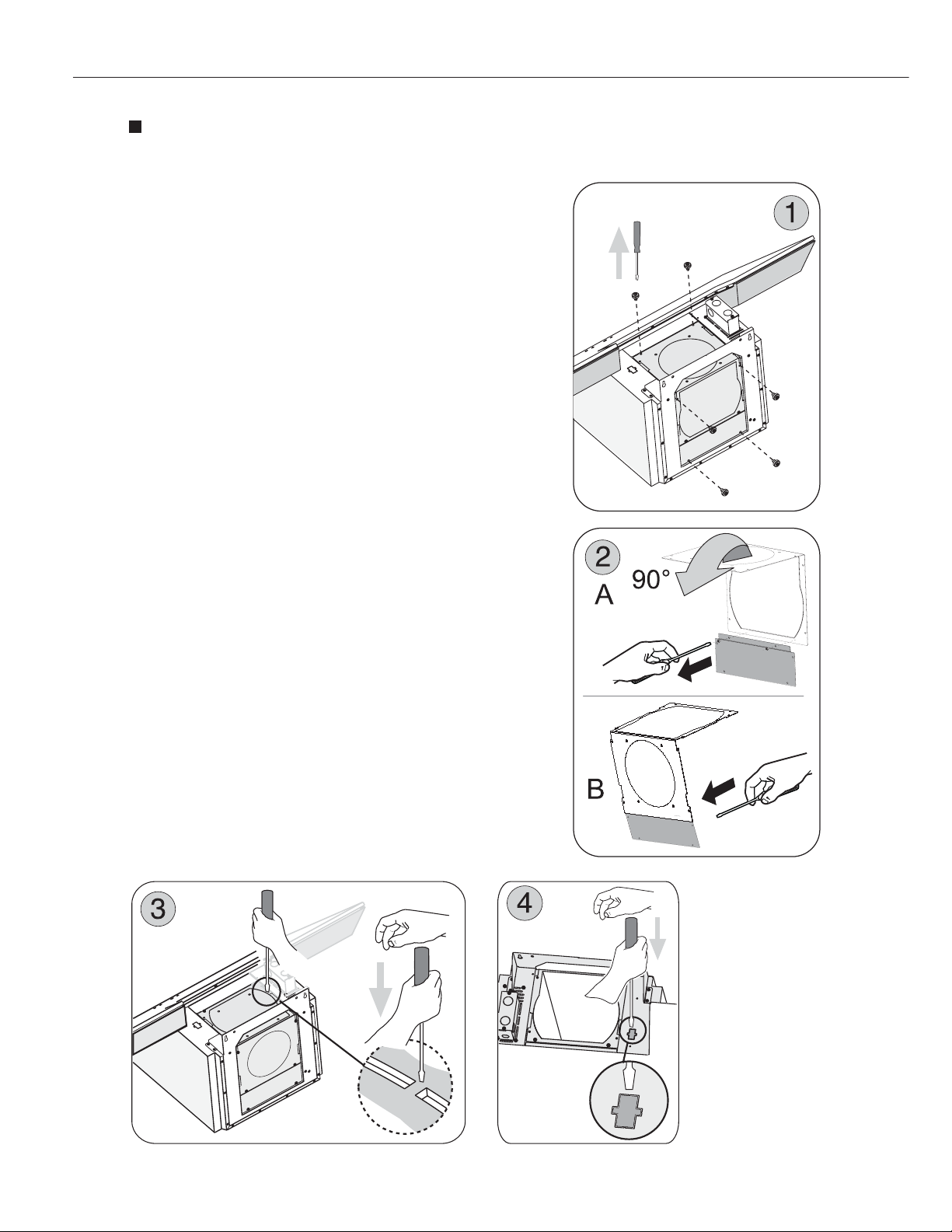

1. Remove the (6) screws securing the blower pla-
te to the blower housing and remove blower
plate. See.Fig.1
2. Detach rectangular metal plate from blower
plate. See Fig. 2A Flip blower plate 90 degrees
and attach rectangular plate to blower plate side
with round knock-out.See Fig.2B
3. Re-install blower plate into blower housing by
following reverse instructions from step 1.
4. Remove top knock-out plate and remote blower
knock-out plate by using a at head screwdriver.
See Fig. 3 and Fig. 4
5. Secure 8” round blower collar to top of blower
housing using (4) screws. See Fig. 5
Installation - External & In-Line Blower Preparation
- 12 -
6. Insert the 6 pin female molex connector into the
junction box. See Fig. 6A. Secure remote blower
junction box to top of blower housing using (2)
screws. See Fig. 6B
7. Feed remote blower wire harness through remote
blower junction box cover and Connect the wires
with those inside the junction box. See Fig. 7
Note: Carry out the power supplly connection in
accordance with the national electric
code, ANSI/NFPA 70-1999.
8.Secure cover to junction box using (2)
screws.
Note1: A cable lock (not included) may
be required by local codes. Please
review local codes for more information.
9. Attach 6 pin male molex connectors to 6 pin fe-
male molex connectors inside blower housing.
See Fig. 8
Note2: Check local codes to determine minimum
wire gauge.
See manual included with external and in-line
blower for instructions on installing the blower.
Installation - External & In-Line Blower Preparation
- 13 -
www.zephyronline.com
WARNING FIRE HAZARD
NEVER exhaust air or terminate duct work into spaces between walls, crawl
spaces, ceiling, attics or garages.
All exhaust must be ducted to the outside, unless using the recirculating option.
Use single wall rigid Metal ductwork only.
Fasten all connections with sheet metal screws and tape all joints w/ certif ed
Silver Tape or Duct Tape.
Some Ducting Options
Installation - Ducting Options
- 14 -
MOUNTING HEIGHTS
The range hood must be installed at a minimum
eight of 24 inches (71cm) from the cooking
surface. If a connecting duct work composed
of two parts is used, the upper part must be
placed outside the lower part. Do not connect
he range hood duct to the same duct used to
exhaust hot air or fumes from another appliance.
Before proceeding with the assembly instructions
remove the decorative mesh lters so that the
range hood is esier to handle.
MOUNTING TO THE WALL
Min 24" - Max 36"
1. Place the paper template included with your
hood on the wall to determine where to add
the screws for mounting the hood. Make sure
the bottom of the template aligns with the
bottom of where the hood will be located.
See Fig. 9
2. Lift the hood onto the screws and
adjust to make sure the hood is
level.
3. When the hood has been adjusted
tighten the screws to secure the
hood in place.
NOTE: Screws must be fastened into
wooden studs so wood blocking may
be necessary. If using wall anchors
make sure to check your local codes
for suitability and type of anchors
to use.
36"
Installation - Mounting the Range Hood
NOTE1: For the various installations use screws and screw anchors suited to the
type of wall (minimum screw size: 1/4" diameter x 2-3/4" length).
- 15 -
www.zephyronline.com
GENERAL
• Carefully read the following important information regarding installation
safety and maintenance. Keep this information booklet accessible for further
consultations.
POWER SUPPLY CONNECTION
For connection to the power supply refer to
the following:
1. Lift the bottom part of the duct cover and
secure it carefully using adhesive tape.
2. Remove the power supply cover by un-
doing the (2) screws Fig. 17.
3. Break through the hole on the box co-
ver.
4. Secure the power supply conduit to the
cover.
5. Connect the wires of the hood to those of
the power supply as described. Fig.18 :
BLACK = L line
WHITE = N neutral
GREEN / YELLOW = G ground
- A double-pole switch properly rated must
Installation - Power Supply Connection
be installed to provide the range hood
power supply disconnection.
- Connect the electrical conduit to the Field
Wiring Compartment using listed onduit
ttings.
- Carry out the power supplly connection in
accordance with the national electric code,
ANSI/NFPA 70-1999.
6. Insert the wires into the box, then close the box cover, securing it using the
screws that were previously removed.
7. Remove the adhesive tape from the chimney and place the lower part of the
chimney on the hood.
- 16 -
MOUNTING THE DUCT COVER
1. Install the electrical wiring and test hood for
functions prior to installing the duct covers.
2. If using hood in air recirculating mode make sure
to install the air diverter plate prior to mounting
the duct covers. See the manual included with
the recirculating kit for more instructions.
3. Adjust the width of the duct cover support bra-
cket so that it ts inside the top of the chimney
and observing the distance shown in Fig.10
4. Secure duct cover bracket to top of wall just
below the ceiling using (2) screws A provided.
See Fig. 11
5. Place ducting from ceiling over the collar on top
of the hood and secure using aluminum duct
tape. See Fig.12
6. Insert top duct cover into bottom duct cover.
Seat the duct covers correctly on the hood.
7. Extend top duct cover up and secure to the duct
cover bracket using (2) screws. See Fig. 13
Installation - Mounting the Range Hood
- 17 -
www.zephyronline.com
MAINTENANCE
• It is recommended to operate the appliance prior to cooking. It is recommended
to leave the appliance in operation for 5 minutes after cooking is completed in
order to completely eliminate cooking vapors and odors. The proper function
of the range hood is conditioned by the regularity of maintenance.
• The decorative mesh lters capture the grease particles suspended in the air
and are therefore subject to clogging because of frequent use. In order to prevent a re hazard, it is recommended to clean the lter a minimum of every 2
Maintencance
months or when instructed by the Metal Filter Clean indicator on the range hood
controls. Clean the range hood by carrying out the following instructions:
- Remove the lters from the range hood and wash them in a solution of water
and neutral liquid detergent, leaving to soak.
- Rinse thoroughly with warm water and leave to dry.
- Filters may also be washed in the dishwasher at the lowest setting.
The lters may alter in color after several washes but is not cause for replacement.
• Clean the blower and other surfaces of the range hood regularly using a cloth
moistened with denatured alcohol or non abrasive liquid detergent.
- 18 -
DESCRIPTION HOOD PART#
REPLACEMENT PARTS
Light Bulb GU4, 20W (each) APN Z0B0030
OPTIONAL ACCESSORIES
Recirculating Kit APN ZRC-00PN
Replacement Charcoal Filters APN Z0F-00AC
Duct Cover Extension APN Z1C-00PN
To order parts, visit us online at http://store.zephyronline.com or call us at 1.888.880.8368
List of Parts and Accessories
- 19 -
www.zephyronline.com
- 20 -
Loading...
