RANGE HOOD - Installation instructions
www.zephyronline.com
HOTTE PER CUISINE - Notice d’utilisation...Pag. 25
CAMPANA EXTRACTORA - Manual de utilización...Pag. 48
CAPPA ASPIRANTE - istruzioni per l’uso...Pag. 73
- 2 -
SAFETY INSTRUCTIONS..................................................................................................pag. 4
LIST OF MATERIALS...........................................................................................................pag. 7
DUCTING CALCULATION SHEETS...............................................................................pag. 9
HOOD SPECIFICATION..................................................................................................pag. 10
INSTALLATION
- INTERNAL BLOWER.....................................................................................pag. 12
- EXTERNAL & IN-LINE BLOWER PREPARATION...............................pag. 14
- DUCTING OPTIONS.....................................................................................pag. 16
- MOUNTING THE RANGE HOOD.............................................................pag. 17
- POWER SUPPLY CONNECTION..............................................................pag. 20
MAINTENANCE.................................................................................................................pag. 22
LIST OF PARTS AND ACCESSORIES.........................................................................pag. 23
Contents
- 3 -
www.zephyronline.com
IMPORTANT SAFETY INSTRUCTIONS
FOR RESIDENTIAL USE ONLY
READ AND SAVE THESE INSTRUCTIONS
PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING.
IMPORTANT: Save these Instructions for the Local Electrical Inspectors use.
INSTALLER: Please leave these Instructions with this unit for the owner.
OWNER: Please retain these instructions for future reference.
Take care when using cleaning agents or detergents.
Suitable for use in household cooking area
Safety instructions
WARNING - To reduce the risk of re or electric shock, do not use this fan
with any Solid-State Speed Control Device.
CAUTION - To reduce risk of re and to properly exhaust air, be sure to duct
air outside – Do not vent exhaust air into spaces within walls or ceilings or into
attics, crawl spaces, or garages.
CAUTION - For general ventilating use only. Do not use to exhaust hazardous
or explosive materials and vapors.
CAUTION - To avoid motor bearing damage and noisy and/or unbalanced
impellers, keep drywall spray, construction dust, etc. o power unit.
CAUTION - Please read speci cation label on product for further information
and requirements.
WARNING – TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO
PERSONS, OBSERVE THE FOLLOWING:
A. Use this unit only in the manner intended by the manufacturer. If you have
ques tions, contact the manufacturer.
B. Before servicing or cleaning unit, switch power o at service panel and lock
the service disconnecting means to prevent power from being switched on accidentally. When the service disconnecting means cannot be locked, securely
fasten a prominent warning device, such as a tag, to the service panel.
WARNING - TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:
A. Never leave surface units unattended at high settings. Boilovers cause smo-
king and greasy spillovers that may ignite. Heat oils slowly on low or medium
- 4 -
settings.
B. Always turn hood ON when cooking at high heat or when ambeing foods
( i.e. Crepes Suzette, Cherries Jubilee, Peppercorn Beef Flambè ).
C. Clean ventilating fans frequently. Grease should not be allowed to accumulate
on fan or lter.
D. Use proper pan size. Always use cookware appropriate for the size of the
surface element.
E. Keep fan, lters and grease laden surface clean.
F. Use high range setting on range only when necessary.Heat oil slowly on
low to medium setting.
G. Don’ t leave range unattended when cooking.
H. Always use cookware and utensils appropriate for the type and amount o
food being prepared.
WARNING – TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF
A RANGE TOP GREASE FIRE, OBSERVE THE FOLLOWING:
A. SMOTHER FLAMES with a close- tting lid, cookie sheet, or metal tray, then
turn o the burner. BE CAREFUL TO PREVENT BURNS. If the ames do not go
out mmediately, EVACUATE AND CALL THE FIRE DEPARTMENT.
B. NEVER PICK UP A FLAMING PAN – You may be burned.
C. DO NOT USE WATER, including wet dishcloths or towels – a violent steam
explosion will result.
D. Use an extinguisher ONLY if:
1. You know you have a Class ABC extinguisher, and you already know how
to perate it.
2. The re is small and contained in the area where it started.
3. The re department is being called.
4. You can ght the re with your back to an exit.
aBased on “kitchen resafety tips” published by NFPA
Safety instructions
Proper maintenance of the Range Hood will assure proper performance
of the unit.
INSTALLATION INSTRUCTIONS
WARNING – TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO
PERSONS, OBSERVE THE FOLLOWING:
A. Installation work and electrical wiring must be done by quali ed person(s)
in accordance with all applicable codes and standards, including re-rated
construction.
B. Su cient air is needed for proper combustion and exhausting of gases
- 5 -
www.zephyronline.com
through the ue (chimney) of fuel burning equipment to prevent back drafting.
Follow the heating equipment manufacturer’s guideline and safety standards
such as those published by the National Fire Protection Association (NFPA), and
the American Society for Heating, Refrigeration and Air Conditioning Engineers
(ASHRAE), and the local code authorities.
C. When cutting or drilling into wall or ceiling, do not damage electrical wiring
and other hidden utilities.
D. Ducted fans must always be vented to the outdoors.
E. This unit must be grounded.
WARNING - TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCTWORK.
Safety instructions
WARNING - UNDER CERTAIN CIRCUMSTANCES DOMESTIC APPLIANCES MAY
BE DANGEROUS.
A. Do not check lters with hood working.
B. Do not touch the lamps after a prolonged use of the appliance.
C. No food must be cooked ambè underneath the hood.
D. The use of an unprotected ame is dangerous for the lters and could cause
res.
E. Watch constantly the fried food in order to avoid the cooking oil ares up.
F. before performing any mainteinance operation, disconnect the hood from
the electrical service.
WARNING! For models ADL-M90ASX and ADL-E42ASX never lean on the hood's
body any object weighing more than 33,1lb (15kg), although evenly spread over
the whole surface.
The manufacturers will not to accept any responsability for eventual damages,
because of failure to observe the above instructions.
- 6 -
Models: ADL-M90ASX / ADL-E42ASX
Duct Covers
List of Materials
Support Frame
Assembly
Light Panel
Blower Housing
Control
Range Hood
Body
Light Bulbs
Decorative
Mesh Filters
TYPE DESCRIPTION N°
A
B
C
M4 1 + 1
1/8" x 1/4" 28
1/4" x 2-3/4" 4
- 7 -
www.zephyronline.com
Models: ALL-M90ABX / ALL-M90AWX / ALL-E42AWX / ALL-E42ABX
Duct Covers
List of Materials
Support Frame
Assembly
Control
Light Bulbs
Glass
Blower Housing
Range Hood
Body
Decorative
Mesh Filters
TYPE DESCRIPTION N°
A
M4 1 + 1
B
C
1/8" x 1/4" 28
1/4" x 2-3/4" 4
- 8 -
Maximum Duct Length:
For satisfactory air movement, the total duct length
should not exceed 100 equivalent feet.
Ducting Calculation Sheet
- 9 -
Models: ADL-M90ASX / ADL-E42ASX
www.zephyronline.com

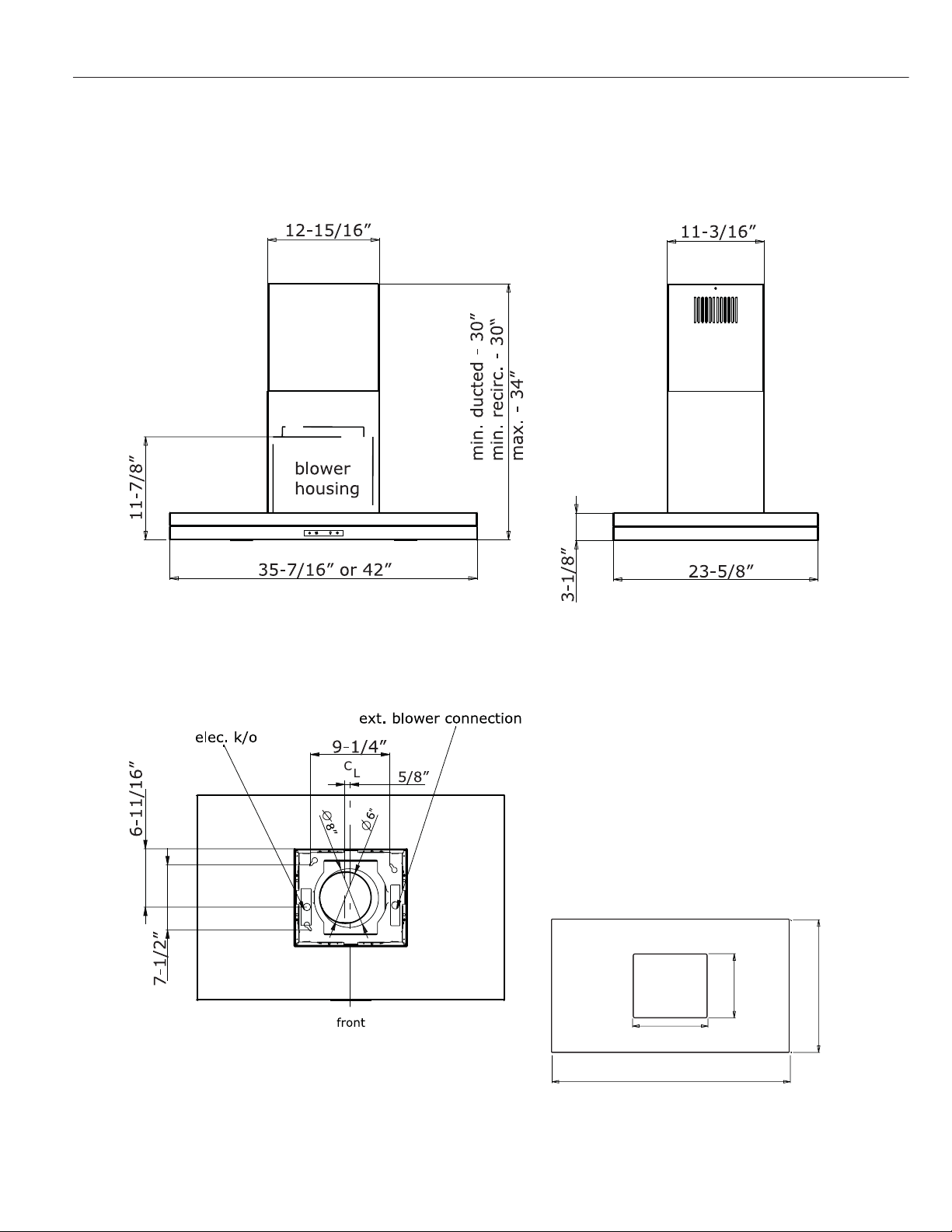

Hood Speci cations
front of hood
side of hood
top of hood
13"
35-3/8" or 42"
11-1/4"
23-5/8"
- 10 -
Wood Trim Dimensions
1-5/8" Thickness
Models: ALL-M90ABX / ALL-M90AWX / ALL-E42AWX / ALL-E42ABX
front of hood
side of hood
Hood Speci cations
top of hood
- 11 -
www.zephyronline.com
The following instructions are for installing the internal blower.
CAUTION: To reduce the risk of re and electric shock, install this range-
hood only with internal blower models MT-020 provided with the kit cod
CBI-600A.
For external and in-line blower preparation
please turn to page 14.

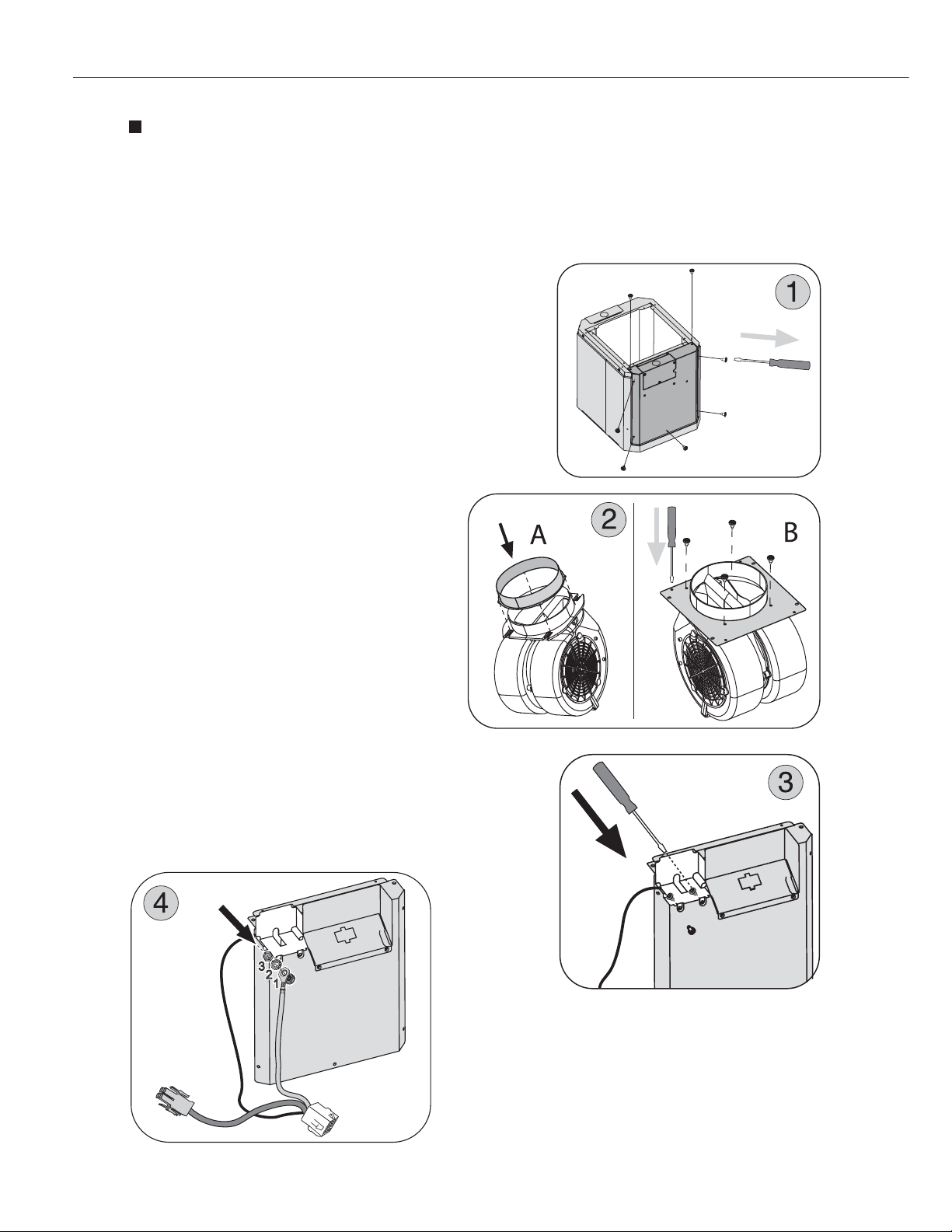

1. Remove the (7) screws securing the remote
motor support bracket to the motor housing
and then remove the bracket. See Fig.1
2. Insert the 6” sheet metal ange in
the motor air exhaust outlet. Fig.
2A Then insert the plate (supplied
with the motor) and secure all
Installation - Internal Blower
parts using the (4) screws. Fig2B
3. Secure the condenser, connected
to the supplied wire, to the bracket
using the (2 type B) screws. See
Fig.3
4. Secure the green/yellow ground
wire, connected to the wire supplied
with the condenser, using the screw on the bracket. (type A) Fig. 4

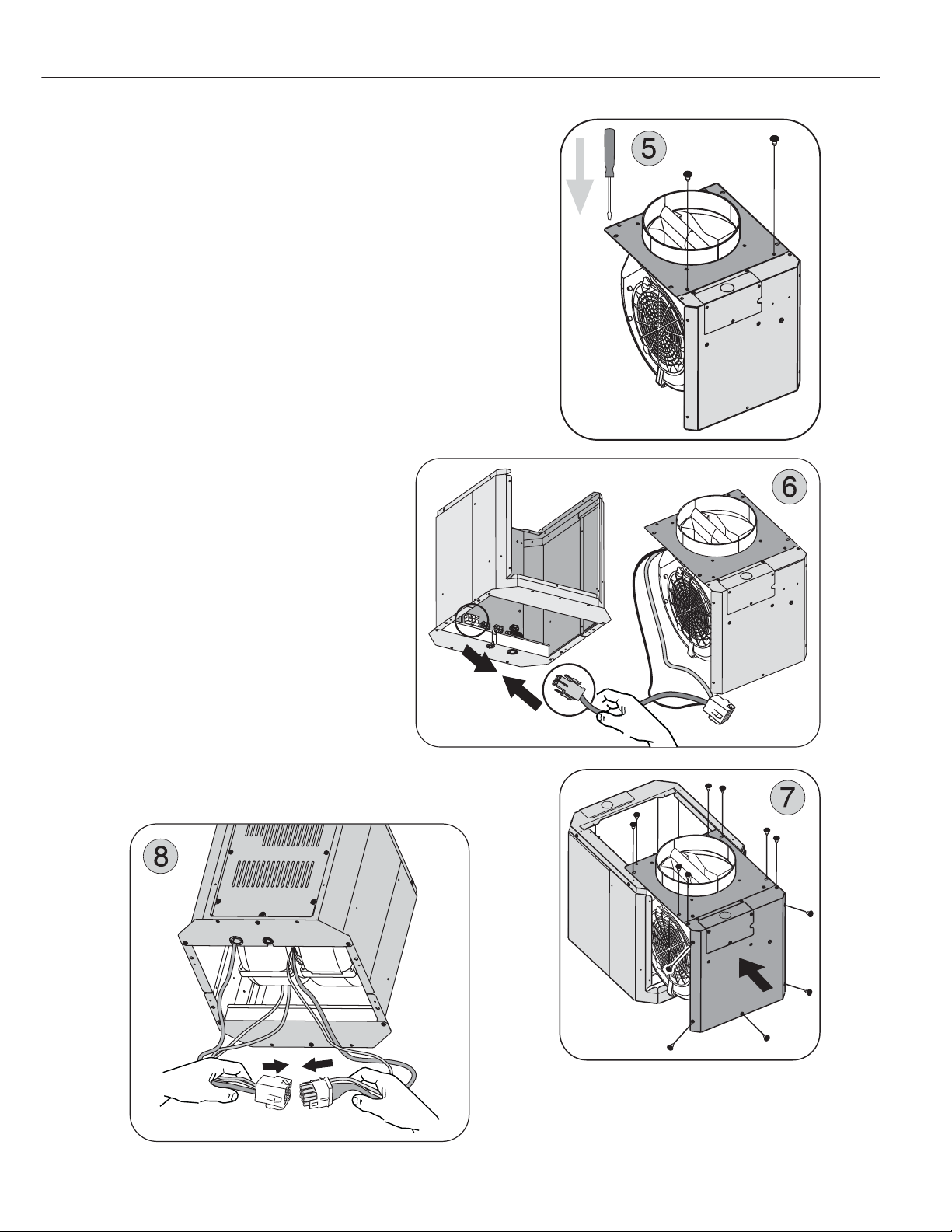

5. Connect the plate and the motor, on the
remote motor support bracket, securing it
using the (2 type B) screws. Fig. 5
- 12 -
6. Attach the 6 pin male molex connector from
blower wire to the 6 pin female molex connector located inside the blower housing. See
Fig.6
7. Install the motor and bracket, inside the motor
housing, completing the installation using the
other screws (6 type B )that have been supplied. (Tot. 13 type B). Fig. 7
8. Connect 9 pin male molex connector from
blower wire to 9 pin female molex connector
on the capacitor wire. See Fig.8
WARNING! Place electrical
wiring inside the blower housing.
Installation - Internal Blower
The hood is now ready to be
installed on the wall.
- 13 -
www.zephyronline.com
The following instructions are for preparing the hood for use with an ex-
ternal or in-line blowers models CBE-1000 or PBN-1000A.
CAUTION: To reduce the risk of re and electric shock, install this rangehood
only with remote blowers rated maximum 6.2 A.
For internal blower instructions please turn to page 12.
1. Break out the partially precut circle in the lid, located
on the remote motor support bracket, using a at
head screwdriver. Fig. 1
2. Remove the cover by undoing the (3) screws. Fig. 2
3. Secure 8" round blower collar to top of blower
housing using (4 type B) screws. Fig.3
4. Insert the female connector into the remote
motor support bracket enclosure. Fig.4
5. Pass the wires of the remote motor through the
hole in the cover that was previously removed
Installation - External & In-Line Blower Preparation
and connect them with those of the connector
located in the enclosure. Fig. 5
Note: Carry out the power supplly connection
in accordance with the national electric code,
ANSI/NFPA 70-1999.
- 14 -
Note1: A cable lock (not included) may be re-
quired by local codes. Please review local codes for more information.
6. Reinstall the cover on the motor housing by
following the instructions from step 2 in reverse order.
7. Attach 6 pin male molex connectors to 6 pin
female molex connectors inside blower housing. See Fig. 6
Note2: Check local codes to determine minimum wire gauge.
See manual included with external and inline blower for instructions on installing the
blower.
Installation - External & In-Line Blower Preparation
- 15 -
www.zephyronline.com
WARNING FIRE HAZARD
NEVER exhaust air or terminate duct work into spaces between walls, crawl
spaces, ceiling, attics or garages.
All exhaust must be ducted to the outside, unless using the recirculating option.
Use single wall rigid Metal ductwork only.
Fasten all connections with sheet metal screws and tape all joints w/certi ed
Silver Tape or Duct Tape.
Some Ducting Options
Installation - Ducting Options
- 16 -

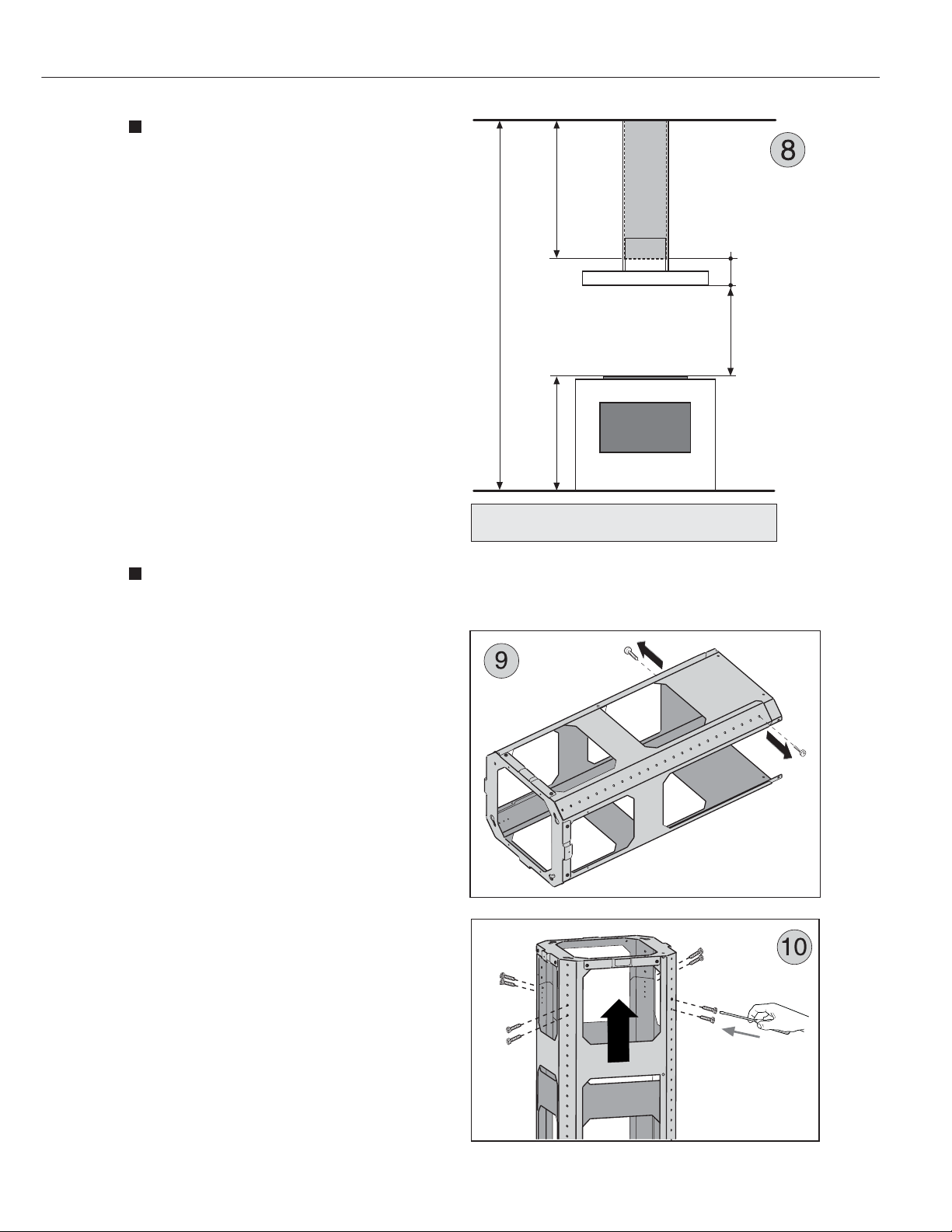

MOUNTING HEIGHTS
The range hood must be installed at
a minimum height of 24 inches (61
cm) from the cooking surface. If a
connecting duct work composed of
two parts is used, the upper part must
be placed outside the lower part. Do
not connect the range hood duct to
the same duct used to exhaust hot
air or fumes from another appliance.
Before proceeding with the assembly
instructions remove the decorative
mesh lters so that the range hood
is easier to handle.
MOUNTING TO THE CEILING
The following instructions assume
the installer has access to the attic
or crawl space. Each installation may
be unique to the home.
X
4,3 - 1/16"
C
24"
B
X = C - (4,3-1/16" + 24" + B)
1. Remove the (2) screws to unlock
the top support frame from the
bottom support frame. Fig.9.
Adjust the height by referring to
the diagram in Fig. 8. Secure the
support frames together with (2
type B) screws per extension arm
(Tot. 8 type B). Fig.10
2. Place correct size ducting for your
installation (not supplied) on top
of hood and secure to the blower
collar with aluminum duct tape.

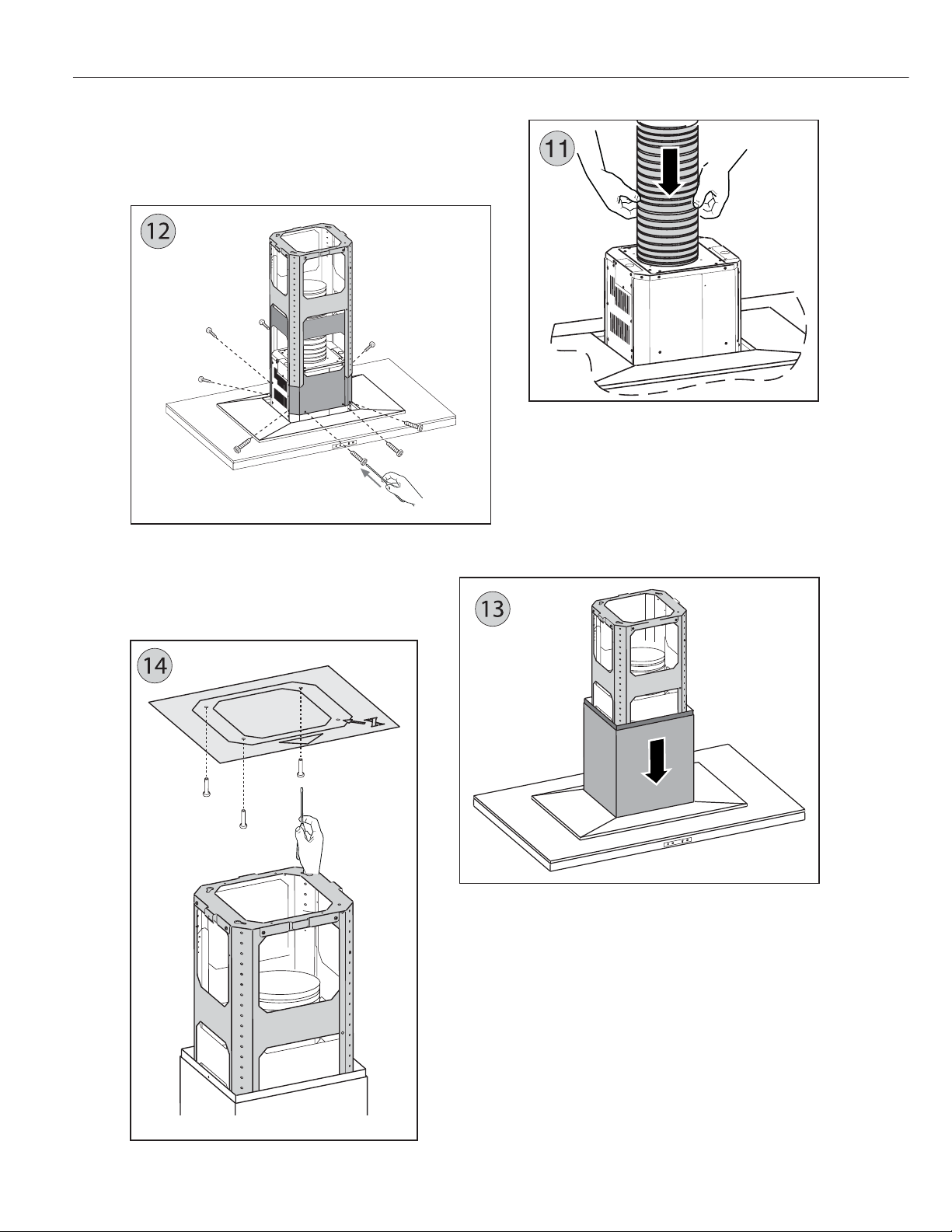

The ducting should be long enough so it protrudes out the top of
the support frame and extends
Installation - Mounting the Range Hood
- 17 -
into the attic to connect after the hood is
installed. Fig.11
www.zephyronline.com
3. Place assembled support frames
on top of hood and secure it to the
hood body using 8 type B screws.
Fig.12
4. Place duct covers over assembled
support frame until they rest on
Installation - Mounting the Range Hood
the hood body. Fig.13
Note! If you ordered a wood trim piece or recirculating kit please refer to the instructions
included inside the kits prior to installing the
hood to the ceiling.
- 18 -
5. Position hole template
on the ceiling paying attention that the arrow is
positioned on the same
side as the range hood
controls.
- Make 4, holes in the ceiling
and drive in (3 type C)
screws without completely
tightening them. Pay attention not to insert
the screw into the hole marked with an X on
the hole template Fig.14
6. Lift the hood assembly to the ceiling and
align the top support frame with the (3)
screws previously installed in the ceiling.
- Rotate assembly slightly clockwise to
lock in place. Fig.15A. Drive in the fourth
screw (type C) and tighten the remaining 3
screws to secure the structure in place. Fig.15B
7. Extend the upper duct cover and secure it to the top support frame by using
(2 type B) screws. Fig.16
8. Verify that ducting from hood is connected to ducting in the attic that will
exhaust air out of the home.
NOTE: For the various installations use screws and screw anchors suited to the
type of ceiling (minimum screw size: 1/4" diameter x 2-3/4" length).
Installation - Mounting the Range Hood
- 19 -
www.zephyronline.com
GENERAL
• Carefully read the following important information regarding installation
safety and maintenance. Keep this information booklet accessible for further
consultations.
POWER SUPPLY CONNECTION
For connection to the power supply refer
to the following:

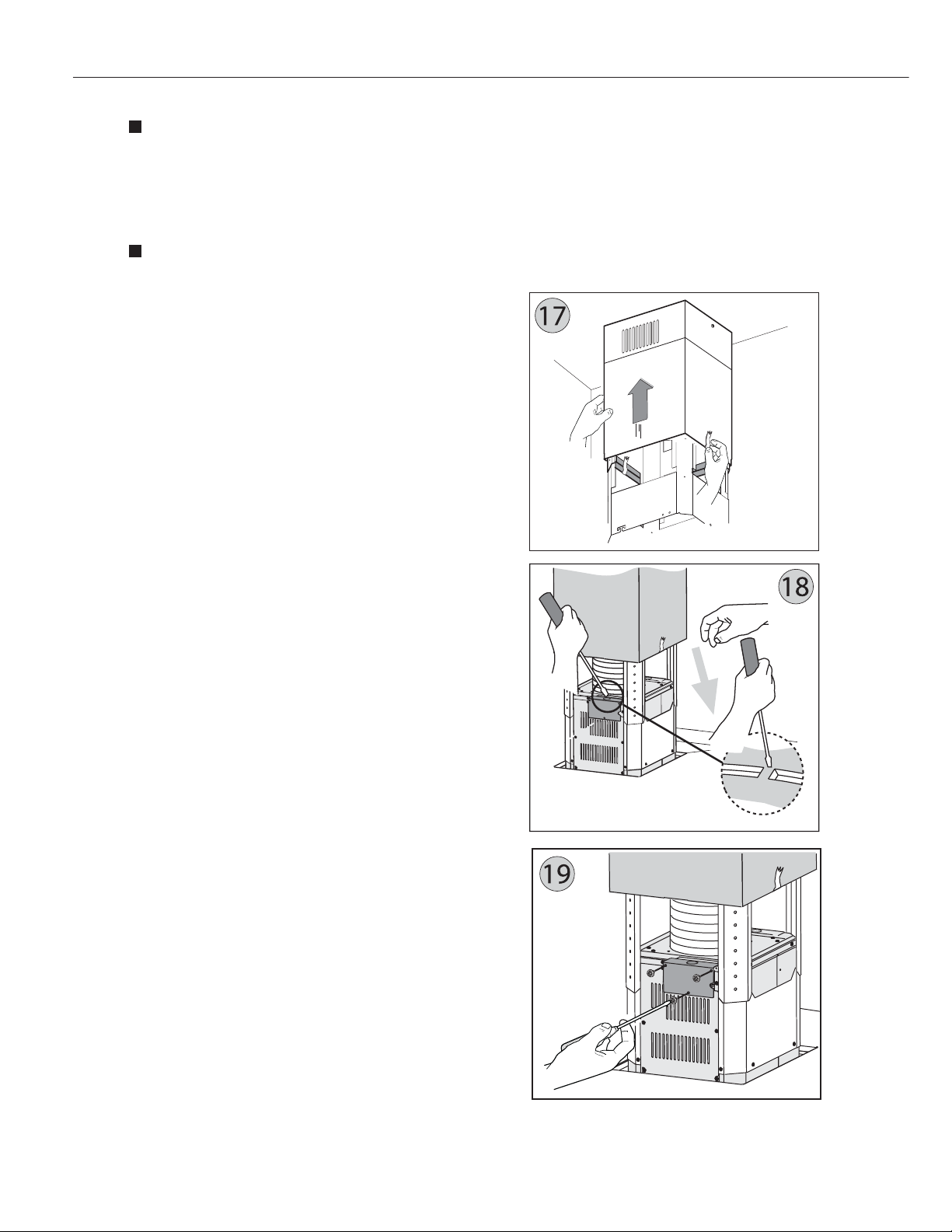

1. Temporarily join the two duct covers by
lifting the bottom one and then carefully
securing it to the top by using adhesive
tape. Fig. 17. Take care not to scratch the
duct covers.
2. Break out the partially pre-cut circle in the
cover of the mains power connection enclosure using a at head screwdriver. Fig.
18
3. Remove the power supply cover by un-
Installation - Power Supply Connection
doing the (2) screws. Fig. 19
4. Connect the supply conduit to the cover,
then connect the hood to the power supply by making the following connections.
Fig. 20:
BLACK = L line
WHITE = N neutral
GREEN / YELLOW = G ground
- A double-pole switch properly rated must
be installed to provide the range hood power supply disconnection.
- 20 -
- Connect the electrical conduit to the Field
Wiring Compartment using listed onduit
ttings.
- Carry out the power supplly connection in
accordance with the national electric code,
ANSI/NFPA 70-1999.
5. Replace the lid by following the instructions from step 3 in reverse order, ensuring that the tab on the lid is within the enclosure.
6. Remove adhesive tape and lower the bottom duct cover so it rests on top of
the hood body.
- 21 -
Installation - Power Supply Connection
www.zephyronline.com
MAINTENANCE
• It is recommended to operate the appliance prior to cooking. It is recommended
to leave the appliance in operation for 5 minutes after cooking is completed in
order to completely eliminate cooking vapors and odors. The proper function
of the range hood is conditioned by the regularity of maintenance.
• The decorative mesh lters capture the grease particles suspended in the air
and are therefore subject to clogging because of frequent use. In order to prevent a re hazard, it is recommended to clean the lter a minimum of every 2
Maintencance
months or when instructed by the Metal Filter Clean indicator on the range hood
controls. Clean the range hood by carrying out the following instructions:
- Remove the lters from the range hood and wash them in a solution of water
and neutral liquid detergent, leaving to soak.
- Rinse thoroughly with warm water and leave to dry.
- Filters may also be washed in the dishwasher at the lowest setting.
The lters may alter in color after several washes but is not cause for replacement.
• Clean the blower and other surfaces of the range hood regularly using a cloth
moistened with denatured alcohol or non abrasive liquid detergent.
- 22 -
DESCRIPTION HOOD PART#
REPLACEMENT PARTS
Light Bulb G4, 20W (each) ADL Z0B0013
Light Bulb GU4, 20W (each) ALL Z0B0030
OPTIONAL ACCESSORIES
Recirculating Kit ADL, ALL ZRC-00LL
Replacement Charcoal Filters ADL, ALL Z0F-00AC
Duct Cover Extension, Short (9” ceiling) ADL, ALL Z1C-00LL
Duct Cover Extension, Long (10”-12" ceiling) ADL, ALL Z1C-01LL
Wood Trim, 90cm, Wenge ADL-M90ASX AUW-00BR
Wood Trim, 90cm, Charcoal ADL-M90ASX AUW-00CH
Wood Trim, 42in, Wenge ADL-E42ASX AUW-01BR
Wood Trim, 42in, Charcoal ADL-E42ASX AUW-01CH
To order parts, visit us online at http://store.zephyronline.com or call us at 1.888.880.8368
List of Parts and Accessories
- 23 -
www.zephyronline.com
- 24 -
3LIK0500
Loading...
