AK9228AS
AK9228AS290
AK9234AS
AK9234AS290
23-1
23-5
23-3
23-4
23-2
Monsoon I
AK9228AS / 290, AK9234AS / 290
Ref # Part # Description Qty.
1 54060010 Damper, 8" Round 1
2 56230001 Trim, Rubber 2
3 54050073 Collar, 8" Round 1
4 52170054 Cover, Top 1
5 54060011 Collar, 3-1/4" x 10" w/Damper 1
6 54140146 Bracket, Motor Mount 2
7 11030020 Wires, Electrical 1
8 50120078 Panel, Rear (AK9228AS) 1
8 50120079 Panel, Rear (AK9234AS) 1
9 12050028 Capacitor (600 CFM) 1
9 12050030 Capacitor (290 CFM) 1
10 54200011 Box, Junction 1
11 56130015 Tray, Residue (AK9228AS) 1
11 56130016 Tray, Residue (AK9234AS) 1
12 54140049 Bracket, Control Board 1
13 12120070 Motor (600 CFM) 1
13 12120073 Motor (290 CFM) 1
14 11010052 Control Board 1
15 50210013 Filter, Baffle, Large 2
15 50210017 Filter, Baffle, Small (AK9234AS) 1
15-1 54140147 Spring, Baffle Filter (AK9234AS x 3) 2
16 50120063 Panel, Spacer (AK9228AS) 2
17 54140148 Bracket, Switch 1
18 11000116 Switch Assembly 1
18-1 52170033 Housing, Switch 1
18-2 11010035 Board, Switch 1
18-3 52110015 Membrane, Switch 1
18-4 50400009 Button, Switch 1
18-5 56210049 Cover, Switch Housing 1
18-6 11030045 Wiring, Switch 1
19 52170055 Cover, Switch Assembly 1
20 50140099 Panel, Interior (AK9228AS) 1
20 50140100 Panel, Interior (AK9234AS) 1
21 14000005 Remote Control 1
21-1 15000007 Battery, A23, 12V 1
21-2 52180001 Holder, Remote Control 1
21-3 56210029 Battery Cover, Remote Control 1
22 50500122 Assembly, Light Panel (AK9228AS) 1
22 50500123 Assembly, Light Panel (AK9234AS) 1
22-1 50110110 Panel, Light (AK9228AS) 1
22-1 50110111 Panel, Light (AK9234AS) 1
22-2 54140050 Bracket, Light Socket 1
22-3 12100041 Socket, Light 2
22-4 Z0B-0023 Bulb, Halogen, GU-10, 35W 2
22-5 12060002 Connector, Socket 2
23 05000088 Hardware Packet 1
23-1 01070009 Screw, M4 x 6mm 8
23-2 01020024 Screw, 3/16 x 3/8 10
23-3 15000002 Wire Nut 3
23-4 01020025 Screw, #8 x 1/2" 12
23-5 15000004 Suction Cup 1
OCT16.0501
AK9240AS
AK9246AS

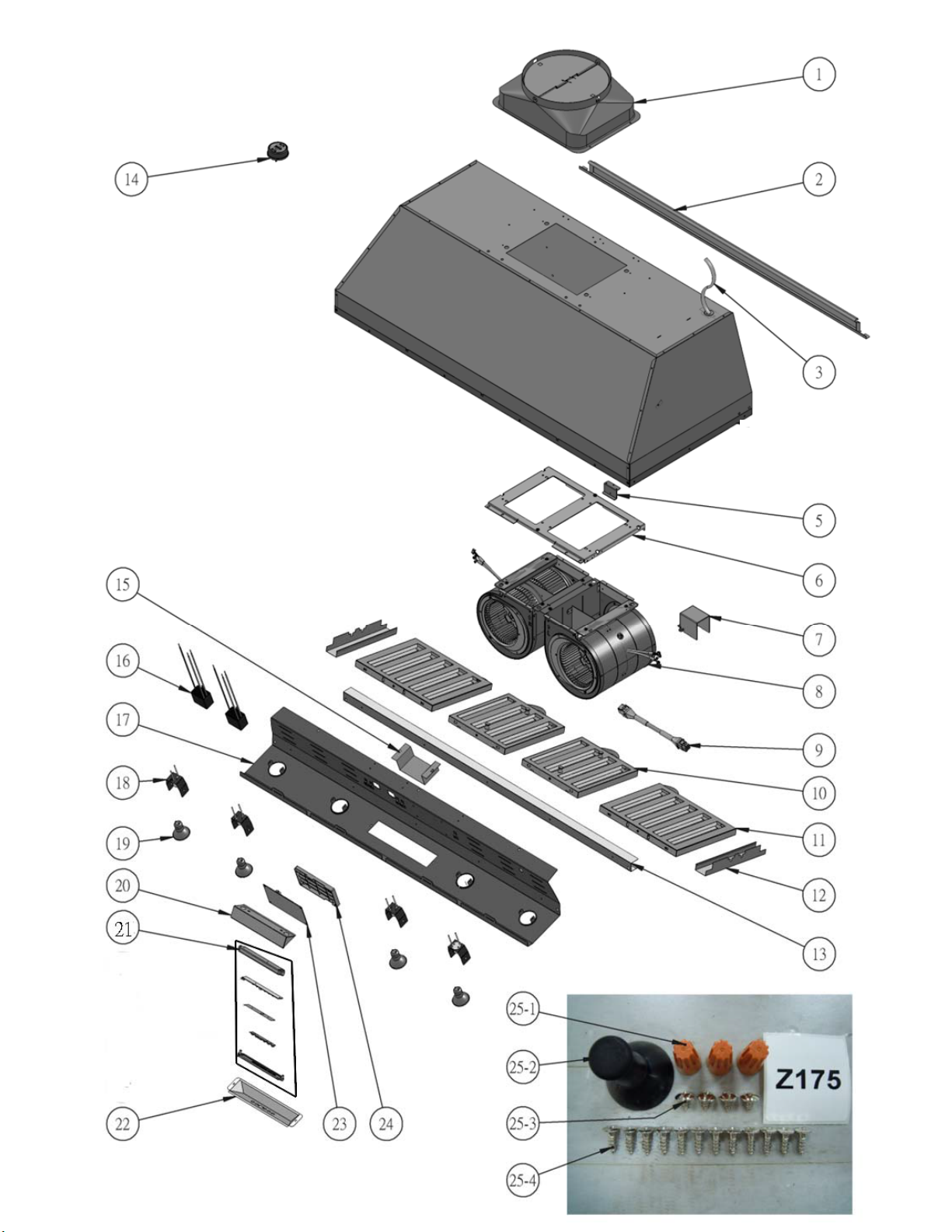

AK9240AS, AK9246AS
Ref # Part # Description Qty.
1 54050081 Collar, 10" Round 1
2 56130017 Residue Tray (AK9240AS) 1
2 56130018 Residue Tray (AK9246AS) 1
3 11030112 Wires, Electrical 1
4 50120080 Panel, Rear (AK9240AS) 1
4 50120081 Panel, Rear (AK9246AS) 1
5 54190010 Plate, Motor Bracket 1
6 54190038 Bracket, Motor 1
7 54200011 Electrical Junction Box 1
8 12120070 Motor 2
9 11030079 Motor Cable Extension 1
10 50210017 Baffle Filter, Small (AK9246AS) 2
11 50210013 Baffle Filter, Large (AK9240AS x 3) 2
12 50120064 Panel, Spacer (AK9240AS) 2
12 50120065 Panel, Spacer (AK9246AS) 2
13 50140131 Panel, Internal (AK9240AS) 1
13 50140132 Panel, Internal (AK9246AS) 1
14 14000005 Remote Control 1
14-1 15000007 Battery, A23, 12V 1
14-2 52180001 Holder, Remote Control 1
14-3 56210029 Battery Cover, Remote Control 1
15 54140149 Bracket, Motor Cable 1
16 12050028 Capacitor 2
17 50110176 Light Panel (AK9240AS) 1
17 50110177 Light Panel (AK9246AS) 1
18 50500159 Light Socket Assembly (AK9240AS x 2) 4
19 Z0B-0023 Bulb, Halogen, GU10, 35W (AK9240AS x 2) 4
20 54140148 Bracket, Switch 1
21 11000116 Switch Assembly 1
22 52170055 Cover, Switch Assembly 1
23 11010064 Control Board 1
24 56200009 Plate, Control Board 1
25 05000089 Hardware Packet 1
25-1 15000002 Wire Nut 3
25-2 15000004 Suction Cup 1
25-3 01070009 Screw, M4 x 6mm 4
25-4 01020025 Screw, M8 x 1/2" 12
AUG18.0301
Monsoon I
