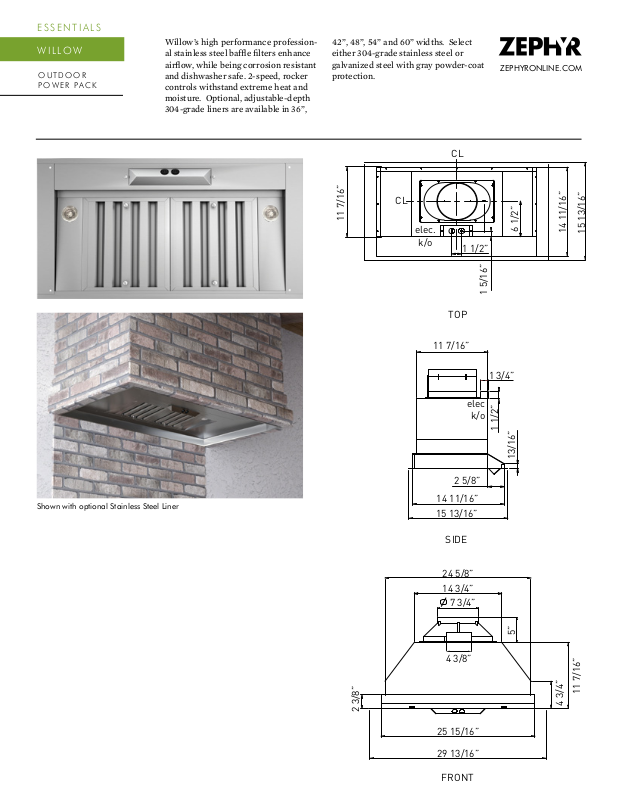

Zephyr AK8800AS, AK8800AG Specifications

ESSENTIALS

WILLOW

OUTDOOR
POWER PACK

Willow’s high performance profession­al stainless steel baffle filters enhance
airflow, while being corrosion resistant
and dishwasher safe. 2-speed, rocker
controls withstand extreme heat and
moisture. Optional, adjustable-depth
304-grade liners are available in 36”,

42”, 48”, 54” and 60” widths. Select
either 304-grade stainless steel or
galvanized steel with gray powder-coat
protection.

CL

CL

11 7/16”

elec.

k/o

1 1/2”

TOP

ZEPHYRONLINE.COM

6 1/2”

1 5/16”

14 11/16”

15 13/16”

Shown with optional Stainless Steel Liner

11 7/16”

1 3/4”

elec

k/o

1 1/2”

13/16”

2 5/8”

14 11/16”
15 13/16”

SIDE

24 5/8”
14 3/4”

7 3/4”

5”

2 3/8”

4 3/8”

11 7/16”

4 3/4”

25 15/16”

29 13/16”

FRONT

ESSENTIALS

WILLOW

OUTDOOR
POWER PACK

MODEL

Stainless Steel
Gray Powder Coated

Size
Net Width
Blower CFM (Min. - Max.)
Sones (Min. - Max.)

FEATURES
Controls
Speed Levels
Lighting
Dual-Level Lighting
Filters
Recirculating Option
High Quality Stainless Steel

DUCT SPECIFICATIONS
Vertical Internal Blower
Horizontal Internal Blower
AC POWER

ZEPHYRONLINE.COM

AK8800AS
AK8800AG

29”
29-13/16”
500 - 1,000

3.5 - 8

Rocker Switch
2
Halogen, 35W x2
No
Pro Baffle x2
No
304S (AK8800AS)

8” Round
NA
120V, 60Hz at Max. 6A

OPTIONAL ACCESSORIES
36” SS Liner, 20-1/2” - 23-1/2”
36” SS Liner, 26-1/2” - 29-1/2”
42” SS Liner, 20-1/2” - 23-1/2”
42” SS Liner, 26-1/2” - 29-1/2”
48” SS Liner, 20-1/2” - 23-1/2”
48” SS Liner, 26-1/2” - 29-1/2”
54” SS Liner, 20-1/2” - 23-1/2”
54” SS Liner, 26-1/2” - 29-1/2”
60” SS Liner, 20-1/2” - 23-1/2”
60” SS Liner, 26-1/2” - 29-1/2”
Bloom™ GU10 LED

MOUNTING HEIGHT RANGE*

WARRANTY

*Mounting height refers to distance between top of a 36” tall cooking surface and bottom of hood.

AK0886AS
AK0886BS
AK0882AS
AK0882BS
AK0888AS
AK0888BS
AK0884AS
AK0884BS
AK0880AS
AK0880BS
Z0B0040

30” - 36”

3 years parts, 1 year labor

Specifications subject to change, check zephyronline.com for up-to-date information.
Zephyr Ventilation | 2277 Harbor Bay Parkway, Alameda, CA 94502 | 888.880.VENT

MAY17.0101
