Zephyr AK7536BS, AK7042BS User Manual

www.zephyronline.com
Tempest Recirculating Kit
Model number:
Serial Number:
Date of Purchase:
Sales Dealer:
Use, Care, and Installation Guide
J$1.001 © Zephyr Corporation
READ AND SAVE THESE INSTRUCTIONS
www.zephyronline.com
LIST OF MATERIALS ....................................................... 2
INSTALLATION
Speci cations Mounting the Diverter Box Mounting the Filters and Brackets
LIST OF PARTS AND ACCESSORIES
............................................................... 3
....................................... 4
....................... 5
.............................. 6
Table of Contents
1
MODELS: ZRC-7000%, ZRC-7036%, ZRC-7042%
PARTS SUPPLIED
1 - Air diverter box
- Charcoal filters ( for ZRC-7000B)  - Charcoal filter brackets ( for ZRC-7000B)
1 - Hardware package
HARDWARE PACKAGE CONTENTS
www.zephyronline.com
List of Materials
M4 x 8” (8)
3/16 x 1/2” (4)
Pre-installed
PARTS NOT SUPPLIED
- Ducting, conduit and all installation tools
- Cable connector (if required by local codes)
2
Top
1
27
or
"
4
1
"
33
4
3
or
39
"
16
9
"
2
16
3
1
"
8
7
"
8
7
9
"
2
16
3
1
"
16
1
"
2
Installation – Specifi cations
Front
4"
15
or
"
29
16
15
or
"
35
16
15
"
41
16
Side
12"
3
Mounting the air diverter box
FOR USE WITH AK7000BS, AK7036BS, AK7042BS
AK7500BS, and AK7536BS ONLY
FOR USE WITH SINGLE INTERNAL BLOWER ONLY
NOT COMPATIBLE WITH DUAL INTERNAL BLOWER

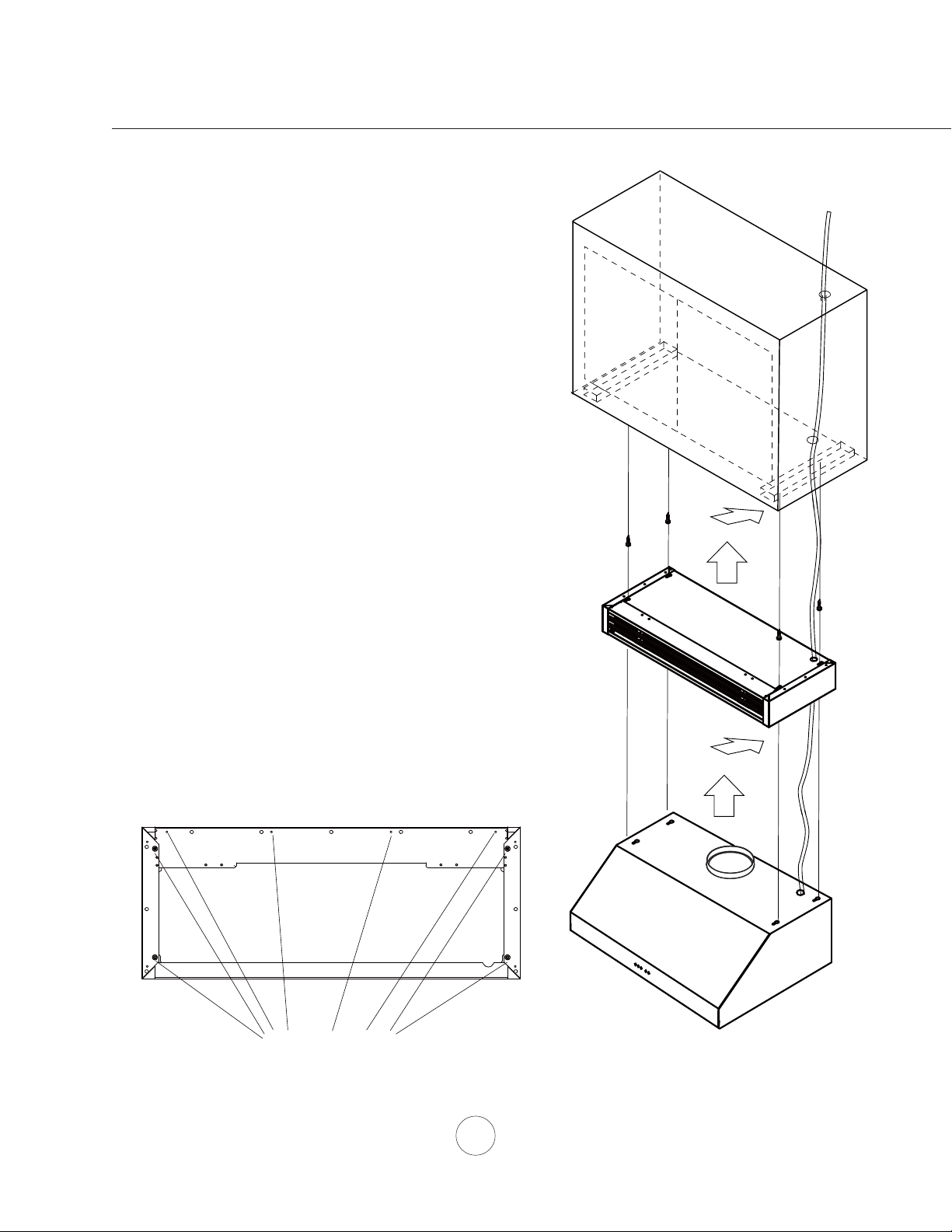

1. Position the air diverter box under cabinet. Mark the (4) key­holes for the 3/16” x 1/2” screws and electrical knock out opening with a pencil. Remove air diverter box and install the (4) 3/16” x 1/2” screws. Do not tighten screws all the way. Drill out the electrical knock-out opening. Note: Reinforce cabinet with 1” x 2” wood strips if additional strengthening is required or if cabinets are framed.
2. Lift air diverter box and align the holes on top of the air diverter box with the screws recently installed. Slide the air diverter box towards the wall to temporarily lock in place. Hand tighten the (4) screws. (Fig. A)
3. Lift Tempest I range hood and align the key-holes on top of the hood with the screws protruding from the bottom of the air diverter box. Slide hood towards wall to temporarily lock in place. Hand tighten the (4) screws. (Fig. A) Note: Electrical wiring will pass through the cabinet bottom, air diverter box and connect to the hood wiring. See Tempest I instruction manual for more details.
4. Further secure the hood to the air diverter box by fastening M4 x 8 screws to each of the (8) holes on the bottom of the air diverter box. You can gain access to the screw holes from within the hood. The holes on top of the Tempest I will align
Installation – Mounting the Diverter Box
with the holes on the bottom of the air diverter box. (Fig. B)
www.zephyronline.com
(8) M4 x 8 screws go here
Fig. B
Fig. A
4
Mounting the Bracket and Baffl e Filter
1. Insert the charcoal filter bracket into back side of baffle fi lter (side without handles). The (2) tabs on the bottom of the bracket should be inserted into the baffle filter first. Push the bracket towards the baffle filter to lock bracket in place. There is a clip on top of the bracket that will secure it to the baffle filter. (Fig. C) Repeat this step for each bracket.
clip
tab
tab
Fig. C
Installing the Charcoal Filter
1. Insert the charcoal filter into the bracket. Tab cut-out side of the charcoal filter should be installed first then push down on the filter to lock in place. (Fig. D)
Installation – Charcoal Filters and Brackets
Fig. D
5
www.zephyronline.com
DESCRIPTION PART #
Replacement Parts
Charcoal Filter (each) Z0F-C002
To order parts, visit us online at http://store.zephyronline.com or call us at 1.888.880.8368
List of Parts and Accessories
6
