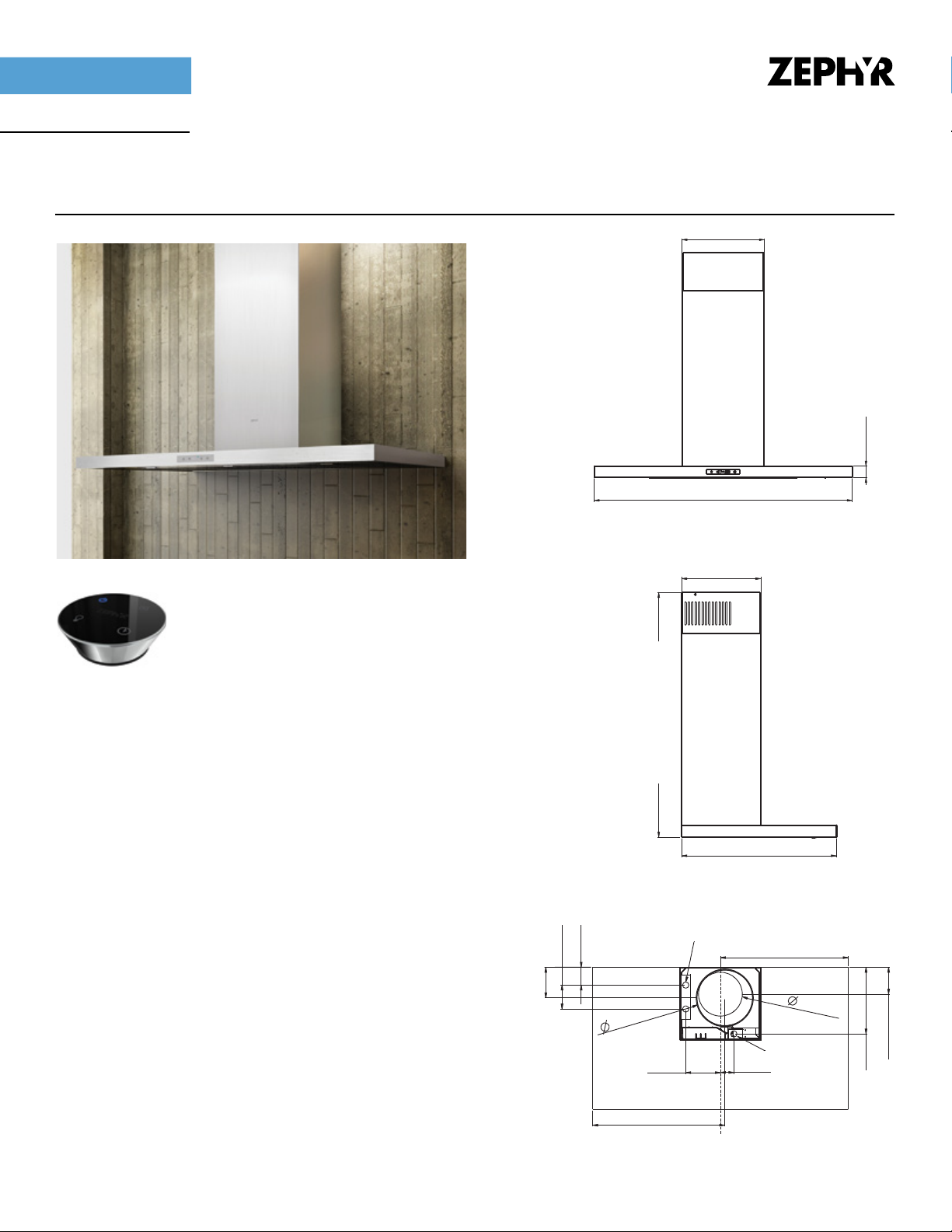

ARC
DUO
WALL
DESIGNER:
ROBERT BRUNNER
An ideal duo of materials, Duo can be
paired with a wood overlay using our
template as the guide. Or, if you prefer
the simplicity of a slim profile stainless
steel canopy, keep the Duo Wall as-is;
for the stylish, and contemporary kitch-
en. Now available with a tri-level LED
light strip.
ZEPHYRONLINE.COM
11 1/4"
1 5/8"
35 3/8"
Wireless Remote Control
Standard
min. ducted - 27”
min. recirc. - 30”
max. - 49”
Z1C-00LA
min. ducted - 45 1/2”
min. recirc. - 48 1/2”
max. - 84 1/2”
2 7/16"
3 5/16"
Front
10"
19 5/8"
Side
Ext. k/o
17 5/8" (Int.)
4 1/4" (Ext.)
8" (Ext.)
18 1/4" (Ext.)
C/L
Top
1 7/8"4 7/8"
6" (Int.)
Elec. k/o
3 3/4" (Int.)
9 1/4"
ARC
DUO
WALL
DESIGNER:
ROBERT BRUNNER
MODEL
Stainless Steel
Size
PERFORMANCE
Internal Blower (CBI-290A)*
Internal Blower (CBI-600A)*
In-Line Blower (PBN-1000A)*
External Blower (CBE-1000)*
FEATURES
Controls
Speed Levels
Auto Delay-Off
CleanAir Function**
Lighting
Tri-Level Lighting
Filters
Wireless Remote Control
Recirculating
Extension Duct Cover
ADA Compliant
ZEPHYRONLINE.COM
ADU-M90BSX
90cm (35-3/8”)
200-290 CFM, 1.4-3 sones
240-600 CFM, 1.8-6 sones
500-1,000 CFM, sones NA
500-1,000 CFM, sones NA
Capacitive Touch
3
Yes
Yes
LED Strip x 1 (8.5W)
Yes
Decorative Mesh x3
Yes, RF
Yes
Yes
Yes
DUCT SPECIFICATIONS
Vertical Internal Blower
Vertical In-Line/External Blower
Horizontal
6”
10” to 8”***
NA
AC POWER
Hood w/ CBI-290A
Hood w/ CBI-600A
Hood w/ PBN-1000A
Hood w/ CBE-1000
120V, 60Hz, Max. 1.15A
120V, 60Hz, Max. 3.15A
120V, 60Hz, Max. 5.85A
120V, 60Hz, Max. 6.65A
OPTIONAL ACCESSORIES
Recirculating Kit
Extension Duct Cover
Make-Up Air Kit
ZRC-01LA
Z1C-00LA
(up to 12’ ceiling)
MUA006A (600 CFM)
MUA008A (1,000 CFM)
MOUNTING HEIGHT RANGE†
WARRANTY
CEILING HEIGHT
STANDARD DUCT COVER
EXTENSION DUCT COVER
*Blower sold separately.
**CleanAir turns your hood on once every four hours for 10 minutes on speed one.
***10” round duct connects to external and in-line blower. Must transition from 10” to 8” before duct passes through ceiling. A 10” to 8” adapter is included with external and in-line blowers.
†Mounting height refers to distance between top of a 36” tall cooking surface and bottom of hood.
Specifications subject to change, check zephyronline.com for up-to-date information.
Zephyr Ventilation | 2277 Harbor Bay Parkway, Alameda, CA 94502 | 888.880.VENT
SEP17.0101
24” - 36”
1 year parts, 1 year labor
Ducted Mounting Height†
Recirc. Mounting Height†
Ducted Mounting Height†
Recirc. Mounting Height†
8’
24” - 30.5”
24” - 30.5”
NA
NA
8.5’
24” - 36”
24” - 36”
NA
NA
9’
24” - 36”
24” - 36”
NA
NA
9.5’
29” - 36”
29” - 36”
24” - 29”
24” - 29”
10’
35” - 36”
35” - 36”
24” - 35”
24” - 35”
10.5’
NA
NA
24” - 36”
24” - 36”
11’
NA
NA
24” - 36”
24” - 36”
12’
NA
NA
24” - 36”
24” - 36”
