Zenoah MD6210M User Manual

115 33 81-10 (001)

Original Instruction

OWNER’S MANUAL

MISTER

MD6210M

G

G
B

B

MD6210M

GB-1

MD6210M

EC DECLARATION OF CONFORMITY

(Applies to Europe only)

The undersigned manufacturer,

Husqvarna Zenoah Co.,Ltd.,
1-9, Minamidai, Kawagoe, Saitama, Japan,

declares under sole responsibility that the following products referred to in this
declaration conform with the requirement of the following COUNCIL’S DIRECTIVE.

The products referred to are :

DESIGNATION : MISTER (Back-pack garden mister)
MANUFACTURER : Husqvarna Zenoah Co., Ltd.
MODELS : MD6210M
SERIAL NUMBERS DATING : 2010 and onwards

This declaration conform with :

・DIRECTIVE 2006/42/EC of 17 May, 2006
・DIRECTIVE 2004/108/EC of December 15, 2004

(The following standards have been applied: EN 61000-6-1, EN 55012 (CISPR 12))
・DIRECTIVE 2000/14/EC of 8 May, 2000
conformity assessment procedure followed ANNEX V
(The following standards have been applied: ISO 11094)
・DIRECTIVE 97/68/EC of December 16, 1997

Date :

2002/88/EC of December 9, 2002

29 December 2009

(The year is clearly stated on the rating plate,
followed by the serial number)

Signature :
Kiyoshi Honda

General Manager, Development Center

Authorised representative :

Person authorised to compile the technical file :

Husqvarna AB
SE-561 82 Huskvarna, Sweden

Bo R Jonsson
SE-561 82 Huskvarna, Sweden

EXPLANATION OF SYMBOLS AND SAFETY WARNINGS

WARNING!!!

RISK OF DAMAGING HEARING

Wear head, eye and ear protection.

MODEL

DISPLACEMENT

SOUND LEVEL

LWA

MD6210M 62.0 cm

* Specifications are subject to change without notice

1) Noise emissions in the environment measured as sound power (LWA) in conformity with EC directive 2000/14/EC.
Reported soundpower level for the machine has been measured with the original attachment.
The difference between guaranteed and measured sound power is that the guaranteed sound power also includes disper­sion in the measurement result and thevariations between different machines of the same model according to Directive 2000/
14/EC.
Reported data for sound pressure level (L
dard deviation) of 1 dB (A),

2) Reported data for equivalent vibration level (a
tion) of 1 m/s

2

.

3

107 dB(A) 108 dB(A) 102 dB(A) 4.7 m/s

) at the operator’s ear for the machine has a typical statistical dispersion (stan-

pARa

hv,eq) at the control handle has a typical statistical dispersion (standard devia-

measured

guaranteed

1)

ISO 79172000/14/EC

L

pARa

VIBRATION LEVEL

ISO 22867

ahv, eq

2

2)

GB-2

APPROVAL NUMBER OF CE EXHAUST EMISSION REGULATION

DIRECTIVE 97/68/EC AMENDED 2002/88/EC

e13*97/68SH3G3*2002/88*0095*02

MD6210M

SAFETY PRECAUTIONS

Warning labels bearing the mark on the product and in this
Manual refer to important safety matters. Please familiarize your­self with them and observe them well.
If a warning label on the product becomes soiled or detached,
please order a replacement label from your dealer and attach it
in the requisite place.

PRECAUTIONS

In this Operator's Manual, precautions that are considered to be
particularly important are indicated as follows.

WARNINGS IN THE MANUAL

WARNING

Failure to observe the precaution may result in the risk of death
or serious injury.

IMPORTANT

Failure to observe the precaution may result in damage or mal­function of the product.

NOTE

Other additional explanations that may be of use when operat­ing the product.

Contents

1. Parts location .................................................. 3

2. Specification ................................................... 4

3. Symbols in the manual ................................... 4

4. Symbols on the machine ................................ 4

5. For safe operation ........................................... 5

6. Set up ........................................................... 11

7. Fuel ............................................................... 12

8. Operation ...................................................... 13

9. Maintenance ................................................. 15

10. Storage ......................................................... 17

11. Disposal ........................................................ 17

12. Troubleshooting guide .................................. 18

G
B

1. Parts location

5

18

13

26

3

29

25

4

17

19

14

27

15

28

9

6

12

7

8

24

20

16

11

21

25

1

22

1. Flame

2. Harness

3. Engine cover

4. Volute case

2

10

23

5. Net

6. Air clener cover

7. Recoil starter

8. Fuel tank

9. Spark plug

10. Shock Absorber (Rubber)

11. Shock Absorber (Rubber)

12. Choke lever

13. Material tank

14. Stop switch

15. Throttle lever

16. Control handle

17. Elbow

18. Clamp (Large)

19. Flexible hose

20. Clamp (Small)

21. Swivel joint

22. Bend pipe

23. Mist nozzle

24. Intermediate valve

25. Solution tube

26. Clip

27. Ower’s manual

28. Plug wrench (Hexagon socket S13/S19 +
Screw driver (cross head))

29. Spanner (S8/S10)

GB-3

MD6210M

2. Specification

MODEL MD6210M

Dimensions (LxWxH)** mm 354x520x740
Dry weight* kg 12.7
Fuel tank capacity liter 1.8
Engine type Air cooled 2-cycle gasoline engine
Displacement cm
Air filter Half wet polyurethane foam
Carburetor Diaphragm, rotary valve type
Ignition system C.D.I.
Spark plug NGK BPMR7A (Noise-proof)
Operating engine speed* rpm 2000 to 8900
Fuel consumption liter/h 1.9
Container capacity liter 18
Discharge Water l/min 4
Longitudinal coverage Watet Horizontal m 12

Water Vertical m 12

* with standard pipe **without pipe
Specifications are subject to change without notice.

3

62.0

3. Warning labels on the machine

(1) WARNING! The machine canbe a dangerous tool if used incorrectly

or carelessly, which can cause serious or fatal injury to the opera­tor or others.

(1) (2) (3) (4) (5)

(6)

Keep all children, bystanders and helpers 15 meters away from the machine.

If warning label peels off or becomes soiled and
impossible to read, you should contact the dealer
from which you purchased the product to order new
labels and affix them in the required location(s).

4. Symbols on the ma-

(2) Read owner’s manual carefully and make sure you understand the

instructions before using the machine.
(3) Wear a protective mask, eye and ear protection.
(4) Wear foot protecion.
(5) Wear gloves.
(6) Hot surface

Avoid contact the hot surface during and immediately operation.

Never modify your machine.
We won’t warrant the machine, if you use the
remodeled machine or if you don’t observe the
proper usage written in the manual.

The port to refuel the “MIX GASOLINE”
Position: FUEL TANK CAP

chine

For safe operation and maintenance, symbols are carved
in relief on the machine. According to these indications,
please be careful not to make a mistake.

GB-4

The direction to close the choke
Position: AIR CLEANER COVER

The direction to open the choke
Position: AIR CLEANER COVER

5. For safe operation

MD6210M

WARNING

1. Read this manual carefully un­til you completely understand
and follow all safety and oper­ating instructions.

2. Keep this manual handy so that
you may refer to it later when­ever any questions arise. Also
note, if you have any questions
which cannot be answered
herein, contact the dealer from
whom you purchased the prod­uct.

3. Always be sure to include this
manual when selling, lending,
or otherwise transferring the
ownership of this product.

4. Do not lend or rent your ma­chine without the owner's
manual.

5. Be sure that anyone using your
unit understands the infomation
contained in this manual.

6. Never let a child under 13 years
old use the machine.

7. Long-term exposure to noise
can result in permanent hear­ing impairment. So always use
approved hearing protection.

8. Under no circumstances may
the design of the machine be
modified without the permission
of the manufacturer. Always use
genuine accessories. Non-au­thorized modifications and/or
accessories can result in seri­ous personal injury or the death
of the operator or others.

9. This machine is a dangerous
tool if used carelessly or incor­rectly and can cause serious,
even fatal injuries. It is ex­tremely important that you read
and understand the contents of
this Operator’s manual.

10. Husqvarna Zenoah has a
policy of continuous product
development and therefore re­serves the right to modify the
design and appearance of
products without prior notice.

11. The machine is mainly designed
for the purpose of spraying pest
control chemicals and weed kill­ers. Do not use it for other pur­pose, as this max cause unfore­seen accidents.

12. Always follow the instructions

from the chemical supplier re­garding personal proective
equipment, usage of the chemi­cals, mixing and handling of the
chemicals and waste.

WORKING CONDITION

1. Refrain from operating the ma­chine if you are tired, ill, or upset,
or if you are under the influence
of alcohol, drugs or medication.

2. To reduce the risk of hearing loss
associated with sound level(s),
hearing protection is required.

3. To reduce the risk of injury asso­ciated with thrown objects, al­ways wear eye protection and
foot protection. Eye protection
should meet the requirements of
ANSI Z87.1.

4. To reduce the risk of injury asso­ciated with the inhalation of dust,
use a face filter mask.

5. Wear sturdy rubber-soled shoes
or shoes with some other form of
anti-slip protection to help protect
you against falling.

6. To reduce the risk of injury asso­ciated with objects being drawn
into rotating parts, do not wear
loose clothing, scarves, neck
chains, hair longer than shoulder
length, or other loose material.

7. Prolonged use of a machine, ex­posing the operator to vibrations
and cold may produce
whitefinger disease (Raynaud’s
phenomenon), which symptoms
are tingling and burning sensa­tions followed by loss of color and
numbness in the fingers. All fac­tors which contribute to
whitefinger disease are not
known, but cold weather, smok­ing diseases or physical condi­tions as well as long periods of
exposure to vibration are men­tioned as factors. In order to re­duce the risk of whitefinger dis­ease, the following precautions
are strongly recommended;

a) Keep your body warm. Never use

machine during rains.

b) Wear thick anti-vibration gloves.
c) Take more than 5 minutes of break

in warm place frequently.

d) Maintain a firm grip at all times,

GB-5

G
B

MD6210M

5. For safe operation

GB-6

but do not squeeze the handles
with constant, excessive pres­sures.

e) If you feel discomfort, redness

and swelling of your fingers or any
other part of your body, see a
doctor before getting worse.

8. The ignition system of your unit
produces an electromagnetic
field of a very low intensity. This
field may interfere with some
pacemakers. To reduce the risk
of serious or fatal injury, persons
with pacemaker should consult
their physician and the pace­maker manufacturer before oper­ating this tool.

OTHER PRECAUTIONS

• When engaged in spraying work
over a protracted period of time,
please have your health checked
regularly.

• Please carry out spraying in a
planned fashion, keeping a daily
record of the date and time of
spraying, the chemicals used, the
target pest, contents of the work,
duration of the work, and other
details.

• Please keep the following points
in mind when selecting or using
protective gear.

a) Protective clothing

Choose clothing that is cool to
wear and offers good ventilation
and waterproofing. In addition,
wear items that enable you to
carry out spraying work in total
comfort and safety.

b) Spraying hood

Use a hood with a brim that is
waterproof and covers your neck
and shoulders.

c) Gloves

Use gloves that are difficult for
chemicals to penetrate and do
not slip even if you perspire while
doing the work.

d) Rubber apron

When mixing chemicals, wear a
long, thick, and wide apron that
cannot be penetrated by chemi­cal splashes.

e) Protective goggles, mask, etc.

Select suitable protective
goggles, mask, rubber boots, eye
washer, and protective cream,

etc., paying attention to stan­dards and the recommendations
of farm work safety promotion or­ganizations.

WORKING CIRCUMSTANCE

1. To reduce the risk of injury asso­ciated with exhaust fume inhala­tion, do not operate in
unventilated area. The exhaust
gases contain harmful carbon
monoxide.

2. Avoid using the machine where
stable footing and balance are
not assured.

3. Never operate the machine in
high wind, bad weather, poten­tially explosive atmosphere, when
visibility is poor or in very high or
low temperatures. (Our recom­mended use environment is be­low 40 degrees C (104 degrees
F).)

AVOID NOISE PROBLEM

IMPORTANT

Check and follow the local

regulations as to sound level
and hours of operations for
machine.

1. Operate machine only at reason­able hours-not early in the morn­ing or late at night when people
might be disturbed. Comply with
times listed in local ordinances.

2. To reduce sound levels, limit the
number of pieces of equipment
used at any one time.

3. Operate the machine at the low­est possible throttle speed to do
the job.

4. Check your equipment before op­eration, especially the muffler, air
intakes and air filters.

WORKING PLAN

• When using for the first time, be­fore commencing actual spraying
please receive guidance in oper­ating the product from a person
with adequate experience.

• When planning your work sched­ule, allow plenty of time to rest.
Limit the amount of time over
which the product is to be used
continuously to somewhere

5. For safe operation

MD6210M

around 30 ~ 40 minutes per ses­sion, and take 10 ~ 20 minutes of
rest between work sessions. Also
try to keep the total amount of
work performed in a single day
under 2 hours or less.

WARNING

If you don’t observe the working
time, or working manner, Repeti­tive Stress Injury (RSI) could oc­cur.
If you feel discomfort, redness and
swelling of your fingers or any
other part of your body, see a doc­tor before getting worse.

PRECAUTIONS BEFORE
SPRAYING

• Make sure you have the correct
protective clothing, headgear,
rubber gloves and boots, a pro­tective mask, goggles, a towel,
protective cream, etc., to prevent
chemicals from coming into con­tact with your skin or entering your
lungs. When spraying, please
wear this protective gear to pre­vent any risk of injury.

1. Protective headgear

2. Protective goggles

3. Protective mask

4. Rubber boots

5. Ear muffs

6. Neck covering

7. Protective clothing

8. Rubber gloves

9. Protective clothing

•Prepare yourself physically on the
day before spraying, by for ex­ample cutting down on alcoholic
beverages or late-night work.

• Do not allow children, animals,
etc., to enter the chemical spray­ing area.

• Before spraying, please prepare
fully by inspecting sprayer
nozzles and checking for abnor­malities such as loose screws or
spray hose connections, fuel
leaks, defective or broken fluid
gaskets, or damage to the carry­ing band.

PRECAUTIONS WHEN
TRANSPORTING CHEMICALS

• When transporting chemicals,
please handle with care to ensure
that there is no spillage of chemi­cals from torn bags, broken
bottles, or loose stoppers.

• Do not carry chemicals in the
same container as food.

PRECAUTIONS WHEN TRANS­PORTING THE SPRAYER

• Do not transport the sprayer while
it has chemicals or fuel in the tank,
as these could leak out as a re­sult of impact during transporta­tion.

• When transporting in a vehicle,
please use a rope or similar to fix
the sprayer firmly to the cargo
trailer in an upright position.
Please do not transport by bicycle
or motorbike, as this is danger­ous.

FUEL

WARNING

G
B

• Please store chemicals in a
locked storage box, locker, or
other safe place out of the reach
of children.

• Carefully read the instructions for
using the chemicals, and famil­iarize yourself with the level of tox­icity, method of use, etc.

•Please pay all due consideration
to the area in which you will be
spraying, to ensure that you do
not pollute the water supply, riv­ers, lakes, ponds, etc., or cause
any damage to residents,
passers-by, livestock, etc.

To reduce the risk of fire and burn
injury:

a) Handle fuel with care. It is highly

flammable.
b) Do not smoke while handing fuel.
c) Do not refuel a hot engine.
d) Do not refuel a running engine.
e) Avoid spilling fuel or oil. Always

wipe unit dry before using.
f ) Move at least 10 ft. (3 meters)

away from the fueling point be-

fore starting engine.
g) Always store gasoline in a con-

GB-7

MD6210M

5. For safe operation

GB-8

tainer approved for flammable liq­uids.

h) Make sure the unit is properly as-

sembled and in good operating
condition.

i ) Do not use the machine near a

fire, as aiming the machine in the
direction of a flame may cause
flammable substances to ignite.

PRECAUTIONS WHEN
REFILLING CHEMICALS

• Before filling the tank with chemi­cals, please make sure that the
spray lever is completely at rest.

• After chemical refilling, firmly
tighten the tank cap. If not fully
tightened the cap may become
loose during spraying, with the
risk of physical exposure to the
chemicals.

BEFORE STARTING THE
ENGINE

• Each time before starting the en­gine, inspect the entire unit to see
if every part is in good order and
is securely tightened in place. If
any damage is found in the fuel
line, the exhaust line, or the igni­tion wiring, do not use the ma­chine until it has been repaired.

IMPORTANT

• Before starting operation, al­ways make sure to check if any
obstacles are left inside the vo­lute case and net. The obstacles
may cause damage on fan and
volute case and serious injury.

WARNING

• Check to see if the shock-absorb­ing rubber mount has become
cracked or otherwise damaged.

Note that failing to replace this
rubber mount when it has be­come cracked or damaged may
cause the engine to come loose
from its frame during use, thus
resulting in possible serious
bodily injury.

• If cracked, be sure to replace
without delay.

WARNING

•To reduce the risk of injury asso-

ciated with contacting rotating
parts, stop the engine before in­stalling or removing attachments.

Do not operate without net in
place. Always disconnect the

spark plug before performing
maintenance or accessing mov­able parts.

USING THE PRODUCT

WARNING

While using the product, if abnor­mal noise or vibration occurs, stop
the engine immediately and con­tact the nearest ZENOAH servic­ing dealer for assistance. Check­ing the fan is very important. If the
rotating fan should break up, it
might lead to serious accidents.

1. This machine, mister, is a back­pack type, and is shouldered
while operating. The blow tube is
held with the control handle and
operated by right hand. And then
throttle is controlled by left hand.

2. Since protective clothing gener­ally offers poor ventilation and
thus places stress on the body,
there is a risk of contracting heat­stroke or other illness when oper­ating for long periods under high
temperatures. Please avoid
spraying on hot days, aiming in­stead for early morning and late
afternoon times when tempera­tures are relatively cool and winds
are low.

3. Check the work area that the ma­chine will be used in and remove
or cover all valuables that may be
damaged by the air blast or
thrown debris.

4. Make sure you can move and
stand safely. Check the area
around you for possible obstacles
(roots, rocks, branches, ditches,
etc.) in case you have to move
suddenly. Take great care when
working on sloping ground.
If the sprayer is tilted the chemi­cal may leak out through the air
holes in the cap. When spraying
always make sure you have a firm
footing and maintain your bal­ance.

5. To reduce the risk of injury asso­ciated with thrown objects.

5. For safe operation

MD6210M

a) When starting work, please pay

all due consideration to the spray­ing time, wind direction, etc., to
ensure that no noise disturbance
or chemical hazard is caused to
nearby residents, passers-by,
farm crops, and so on.

b) Watch out for children, pets, open

windows or freshly washed cars,
and blow debris safely away.

c) Do not allow bystanders in work

area.
While spraying please hold the
pipe firmly at all times and be
careful not to point the nozzle in
the direction of people or animals.

d) Always check to be sure that no

debris has been blown onto
someone else’s property.

e) While spraying please be careful

of the wind direction and always
stand on the upwind side, to
avoid spraying yourself with
chemicals.

f) Never point a blower tube toward

an open flame to avoid the possi­bility of igniting the unit, causing
injury to yourself or damage to
surroundings.

6. The machine must not be used
while on a ladder or scaffolding.

7. Never put the machine down with
the engine running unless you
have it in clear sight.

8. Never to touch the spark plug or
plug cord while the engine is in
operation. Doing so may result in
being subjected to an electrical
shock.

9. Never to touch the muffler, spark
plug, or other metallic parts of the
engine or engine cover while the
engine is in operation or immedi­ately after shutting down the en­gine. These metallic parts and en­gine cover reach high tempera­tures during operation and doing
so could result in serious burns.

WARNING

The temperature of the machine
may increase after stopping the
engine. Especially never forget to
cool down the engine before refu­eling the machine.

10. Should you begin to feel even

slightly unwell while spraying,

consult a doctor immediately.
When doing so, inform the doc­tor of the name of the chemical
you were using, the conditions of
use, etc.

11. In an emergency, pull up the
lower portion of both strap buck­les to loosen the straps. Move
yourself away from the unit.

12. After completing the work and
tidying away chemicals and
spraying tools, you should imme­diately take a bath or wash your
hands, feet, face, etc. thoroughly
with soap, as well as washing
your mouth out.

13. You should change all clothes
worn, including underwear, and
wash them thoroughly. Clothes
worn during spraying should not
be worn again the following day.

14. After spraying, please limit your
alcohol intake and rest thor­oughly by going to bed early. If
you feel even slightly unwell,
please see a doctor as soon as
possible.

MAINTENANCE

1. In order to maintain your product

in proper working order, perform
the maintenance and checking
operations described in the
manual at regular intervals.

2. Always be sure to turn off the en-

gine and disconnect the spark
plug before performing any main­tenance or checking procedures.

WARNING

The metallic parts and engine
cover reach high temperatures
immediately after stopping the
engine.

3. Examine the machine at intervals

for loose fasteners and rusted or
damaged parts. Use special

care around the fuel line, the
muffler, and the ignition wiring.

4. All engine service except for

those described in this manual
should be performed by compe­tent service personnel. Improper
service to the blower fan and muf­fler could cause a hazardous fail­ure.

5. When replacing the any other

GB-9

G
B

MD6210M

5. For safe operation

part, or any lubricant, always be
sure to use only ZENOAH prod­ucts or products which have been
certified by ZENOAH for use with
the ZENOAH product.

6. In the event that any part must be
replaced or any maintenance or
repair work not described in this
manual must be performed,
please contact a representative
from the store nearest ZENOAH
authorized servicing dealer for
assistance.

7. Do not use any accessory or at­tachment other than those bear­ing the ZENOAH mark and rec­ommended for the unit.

8. Under no circumstances should
you ever take apart the product
or alter it in any way. Doing so
might result in the product be­coming damaged during opera­tion or the product becoming un­able to operate properly.

TRANSPORTATION

• Drain the fuel from the fuel tank
before transporting or storing the
machine.

• Secure the unit carefully to pre­vent movement when it is trans­ported.

•A unit that receives a strong
shock during transport and un­loading may malfunction.

DISPOSAL

• When you dispose of the ma­chine, do not disassemble the
machine.

• Do not simply discard empty
chemical containers, but dispose
of them safely by incinerating,
burying, or another similar
method. In addition, please take
every care that the water used to
clean spraying tools does not cre­ate any hazard.

• When disposing your machine,
fuel or oil for the machine, be sure
to allow your local regulations

GB-10

STORAGE

• When storing the machine,
choose a space indoors free from
moisture and out of the reach of
children.

• Please seal unused chemicals
and store them out of the reach
of children.

• Fully inspect and maintain protec­tive clothing, masks, gloves, and
other protective gear in prepara­tion for the next session.

6. Set up

MD6210M

FLEXIBLE HOSE and SWIVEL JOINT

1. Connect the blower and swivel joint with flexible hose.
Clamp both ends of the flexible hose securely with
the hardware supplied with the unit. Fix the clamp
(small) with the intermediate valve.

(5)

(4)

(3) (1) (4) (2)

(1) Flexible hose
(2) Swivel joint
(3) Clamp (Large)
(4) Clamp (Small)
(5) Intermediate valve (fixed with clamb (small))

NOTE

BEND PIPE AND MIST NOZZLE

• Connect the swivel joint and bend pipe. Push the pipes
together and turn them so they lock in relation to one
another until the connection is locked. Connect the
mist nozzle to the bend pipe.

(1)

(2)

(1) Swivel joint
(2) Bend pipe
(3) Mist nozzle

SOLUTION TUBE

• Route the solution tube from material tank to the mist
nozzle.

(2)

(3)

G
B

A light lubricant may be used to ease assembly of

flexible pipe to blower elbow.

CONTROL HANDLE

• Set up the handle holder to the swivel joint and tighten
the screw on the handle holder. Use the clamp to fas­ten the solution pipe to the pipe.

(4)

(4)

(2)

(1)

(3)

(1) Handle holder
(2) Swivel joint
(3) Screw
(4) Clamp

GB-11

MD6210M

7. Fuel

■ FUEL

WARNING

• Gasoline is very flammable. Avoid smoking or
bringing any flame or sparks near fuel. Make sure
to stop the engine and allow it cool before refuel­ing the unit. Select outdoor bare ground for fuel­ing and move at least 3 m (10 ft) away from the
fueling point before starting the engine.

• The Zenoah engines are lubricated by oil specially
formulated for air-cooled 2-cycle gasoline engine use.
If Zenoah oil is not available, use an anti-oxidant added
quality oil expressly labeled for air-cooled 2-cycle en­gine use (JASO FC GRADE OIL or ISO EGC GRADE).

• Do not use BIA or TCW (2-stroke water-cooling type)
mixed oil.

■ RECOMMENDED MIXING RATIO

GASOLINE 50 : OIL 1
<when using ZENOAH genuine oil>

• Exhaust emission are controlled by the funda­mental engine parameters and components (eq.,
carburation, ignition timing and port timing) with­out addition of any major hardware or the intro­duction of an inert material during combustion.

• These engines are certified to operate on unleaded
gasoline.

• Make sure to use gasoline with a minimum octane
number of 89RON (USA/Canada: 87AL).

• If you use a gasoline of a lower octane value than
prescribed, there is a danger that the engine tem­perature may rise and an engine problem such as
piston seizing may consequently occur.

• Unleaded gasoline is recommended to reduce the
contamination of the air for the sake of your health
and the environment.

• Poor quality gasolines or oils may damage sealing
rings, fuel lines or fuel tank of the engine.

■ HOW TO MIX FUEL

IMPORTANT

• Pay attention to agitation.

1. Measure out the quantities of gasoline and oil to be
mixed.

GB-12

2. Put some of the gasoline into a clean, approved fuel
container.

3. Pour in all of the oil and agitate well.

4. Pour in the rest of gasoline and agitate again for at
least one minute. As some oils may be difficult to agi­tate depending on oil ingredients, sufficient agitation
is necessary for the engine to last long. Be careful
that, if the agitation is insufficient, there is an increased
danger of early piston seizing due to abnormally lean
mixture.

5. Indicate the contents on outside of container for easy
identification. To avoid mixing up with gasoline or other
containers.

■ FUELING THE UNIT

1. Untwist and remove the fuel cap. Rest the cap on a
dustless place.

2. Put fuel into the fuel tank to 80% of the full capacity.

3. Fasten the fuel cap securely and wipe up any fuel
spillage around the unit.

WARNING

1. Select bare ground for fueling.

2. Move at least 10 feet (3 meters) away from the fu­eling point before starting the engine.

3. Stop the engine before refueling the unit. At that
time, be sure to sufficiently agitate the mixed gaso­line in the container.

4. Do not smoke or place hot object near fuel.

■ FOR YOUR ENGINE LIFE, AVOID:

1. FUEL WITH NO OIL (RAW GASOLINE) – It will cause
severe damage to the internal engine parts very
quickly.

2. GASOHOL – It can cause deterioration of rubber and/
or plastic parts and disruption of engine lubrication.

3. OIL FOR 4-CYCLE ENGINE USE – It can cause spark
plug fouling, exhaust port blocking, or piston ring stick­ing.

4. Mixed fuels which have been left unused for a pe-
riod of one month or more may clog the carburetor
and result in the engine failing to operate properly.

5. In the case of storing the product for a long period of
time, clean the fuel tank after rendering it empty. Next,
activate the engine and empty the carburetor of the
composite fuel.

6. In the case of scrapping the used mixed oil container,
scrap it only at an authorized repository site.

NOTE

• As for details of quality assurance, read the descrip­tion in the section Limited Warranty carefully. More­over, normal wear and change in product with no func­tional influence are not covered by the warranty. Also,
be careful that, if the usage in the instruction manual
is not observed as to the mixed gasoline, etc. de­scribed therein, it may not be covered by the war­ranty.

8. Operation

MD6210M

■ CONTROL ARM

•Hold the upper end of the control arm in hand and,
while pulling it away from the unit, rotate arm forward
(anti-clockwise as the arrow direction) until it clicks.
To fold the arm, reverse the order.

1. Push the primer bulb until fuel flows out in the clear
tube.

2. When the engine is cool, close the choke.

(1)Choke lever
(2)Primer bulb
(3)OPEN
(4)CLOSE

ADJUSTING IDLE SPEED

• The idling speed is set for 2000 rpm at the factory. If it
is necessary to adjust the idle speed, use the adjust­ment screw on the top side of carburetor.

G
B

(1)

(1)Idling adjustment screw

STOPPING ENGINE

• Move the throttle lever to the idling position and press
the stop swich (red button) until the engine comes to
a complete stop.

(1)

(1) Stop switch

(1)Full Throttle
(2)About 1/3 Open
(3)Idling

4. Set the throttle lever in 1/3 open position.

5. To start, hold the top of the mister firmly with your left
hand. Pull the starter knob slowly until you feel it en­gage and then give it a vigorous strong pull.

IMPORTANT

• Avoid pulling the starter rope out to its full extent and
allowing the starter rope to snap back. This will pre­vent premature damage to the starter.

6. Once the engine is running, gradually open the choke
if it was set closed, and let the engine run at idle speed
for a minute to warm it up.

NOTE

(1)

(2)

(3)

HOW TO USE

1. Pour the solution into the tank with the intermediate
valve closed.

2. Adjust the solution flow and the spray range accord­ing to work conditions.

The solution flow is changed by shifting the number
on the top of the valve at the mist nozzle. The figure
shows 5.5 lit/min. position.

When the engine fails to start after several attempts due to
overchoking, open the choke and repeat pulling the rope.

GB-13

MD6210M

8. Operation

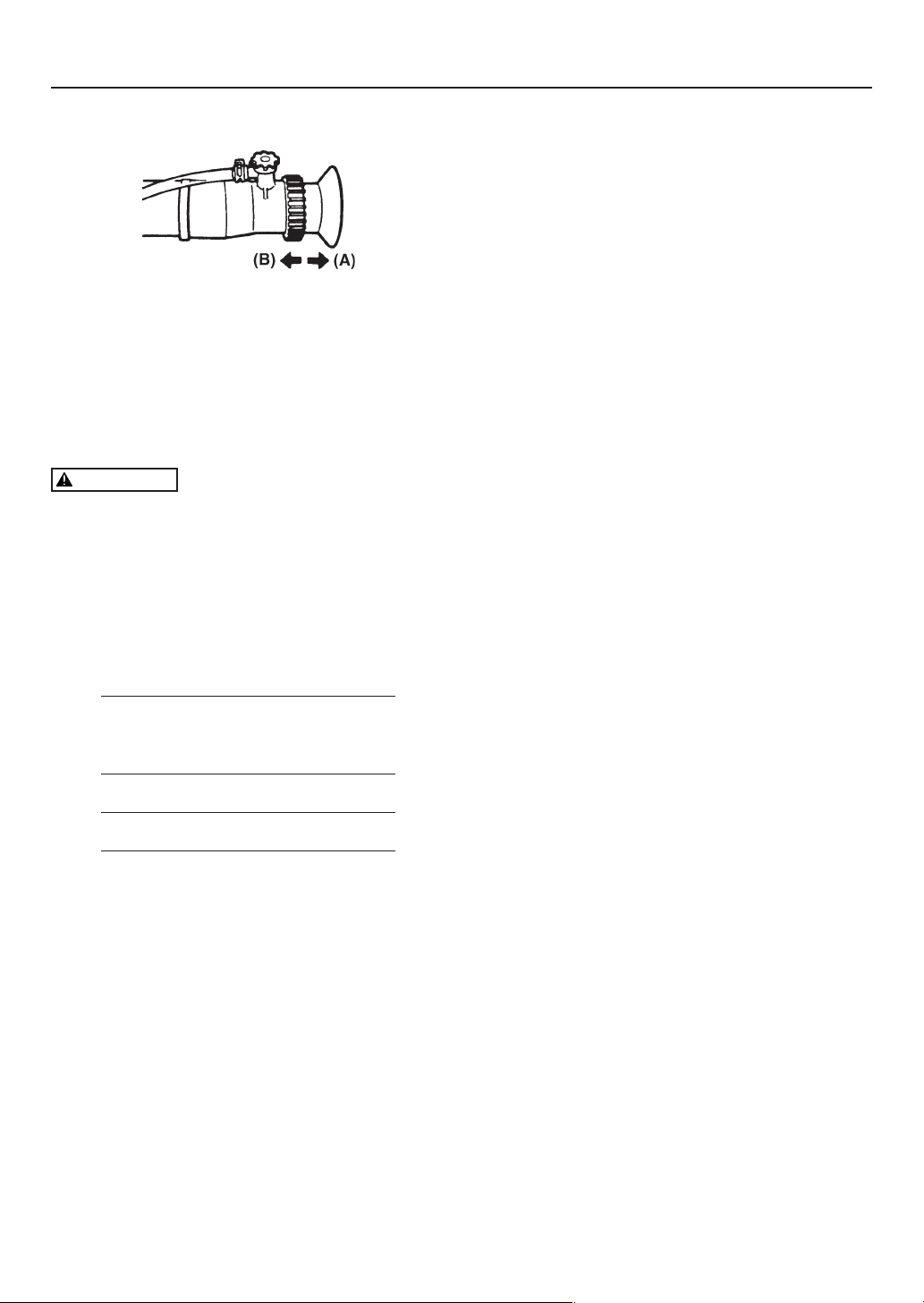

The spray range is changed by shifting the bell posi­tion after loosening the lock ring.

(A) Pulled out position: Long distance, narrow angle spray
(B) Pushed In position: Short distance, wide angle spray

3. Start the engine and carry the unit on your back.

4. While holding the control handle in your right hand,
move the throttle lever upward and turn the interme­diate valve to the open position.

5. After spraying work has finished, close the intermedi­ate valve and stop the engine.

WARNING

• Before the solution spraying work, supply water
into the tank and operate the mister to make sure
that there is any leakage or any mechanical fail­ure.

• Repair it if there is any leakage or failure before
the solution spraying work.

Discharge rate

Valve travel (lit/min.)

11
22
33
44

Max. Longitudinal coverage

Horizontal direction : 12 m
Ver tical direction : 12 m

GB-14

9. Maintenance

MD6210M

Maintenance, replacement, or repair of the emission
control device and systems may be performed by any
non-road engine repair establishment or individual.

WARNING

Make sure that the engine has stopped and is cool
before performing any service to the machine. Con­tact with rotating blower fan or hot muffler may
result in a personal injury.

■ AIR CLEANER

Check the air cleaner every 25 hours of use or more fre­quently if used under dusty conditions. A clogged air

filter may increase fuel consumption while cutting
down the engine power. Never operate the mister
without the air filter or with a deformed filter element
because unfiltered dusty air may quickly ruin the
engine.

CLEANING AIR FILTER:

1. Remove the air cleaner cover by pulling the tab on
bottom and take out the filter element.

FUEL FILTER

•A clogged fuel filter may cause poor acceleration of
the engine. Check periodically to see if the filter is
clogged with dirt. The filter can be taken out of the
fueling port using a small wire hook. Disconnect the
filter assembly from the fuel pipe and unhook the re­tainer to disassemble it. Clean the components with
gasoline.

(1) Screen (2) Element
(3) Holder (4) Retainer

■ Spark plug

WARNING

• Do not touch the spark plug with your bare hands
immediately after operation, as there is the risk of
burns due to high temperature.

G
B

2. Use neutral detergent and warm water to clean the
filter element. After cleaning, air dry the element com­pletely and moisten with a small amount of 2 cycle
motor oil.

• After every 50 hours of operation, detach the spark
plug and remove dirt from the electrodes with a
wire brush or similar.

• The correct electrode gap is 0.6 to 0.7mm.

•

When replacing plugs, please use designated items.

0.6~0.7 mm

NGK (BPMR7A)

IMPORTANT

• If too much fuel is absorbed or poor quality oil is used,
the spark plug electrodes become dirty, making the
engine harder to start.

• Note that using any spark plug other than those des­ignated may result in the engine failing to operate
properly or in the engine becoming overheated and
damaged.

•To install the spark plug, first turn the plug until it is
finger tight, then tighten it a quarter turn more with a
socket wrench.

TIGHTENING TORQUE:

14.7 to 21.6 N.m.
(150 to 220 kgf-cm)

GB-15

MD6210M

9. Maintenance

MUFFLER

WARNING

• Inspect periodically, the muffler for loose fasten­ers, any damage or corrosion. If any sign of ex­haust leakage is found, stop using the machine
and have it repaired immediately.

• Note that failing to do so may result in the engine
catching on fire.

IMPORTANT

• Before starting operation, always make sure to check
if the muffler is properly held by three bolts to the cyl­inder. (Fastening Torque : 8~12 N·m)

• Even if one bolt out of three bolts is loose, the muffler
may get loose during operation which may result in
engine catching on fire.

PROCEDURES TO BE PERFORMED AFTER
EVERY 100 HOURS OF USE

1. Remove the muffler, insert a screwdriver into the vent,
and wipe away any carbon buildup. Wipe away any
carbon buildup on the muffler exhaust vent and cylin­der exhaust port at the same time.

2. Tighten all screws, bolts, and fittings.

3. Check to see if any oil or grease has worked its way
in between the clutch lining and drum, and if it has,
wipe it away using oil-free, lead-free gasoline.

WARNING

Never use the machine without the net of the ma­chine. Before each use, check that the net is at­tached in place and is free from any damage.

SHOULDER STRAP

• If the shoulder strap is damaged it may break during
use, thus causing the product to fall and resulting in
personal injury. Follow the instructions below to re­place the shoulder strap with new one.

1. Pass the upper end of the strap through the hanger,
making the FLAPPED SIDE OUTSIDE.

2. Put the end of the strap through the ring on the strap,
and then push the ring toward the hanger as close as
possible.

(1)Ring
(2)Flapped side

AIR INLET NET

IMPORTANT

• Blowing air is taken in from the air inlet net. When air
flow has dropped down during operation, stop the
engine and inspect the air inlet net for blocking by
obstacles.

• Note that failure to remove any such obstacles may
result in the engine becoming overheated and dam­aged.

(1)Air inlet net

GB-16

WARNING

The flap on the end of the strap works as a stop­per. Never install the strap with the flapped side
inside, or the unit may fall from the operation,
which could result in injury to the operator and/or
damage to the unit.

10. Storage

WARNING

• When draining fuel, please be careful not to spill
it. If fuel is spilt, wipe off thoroughly. In addition,
please be sure to close the storage container cap
tightly.

IMPORTANT

• If fuel is left in the engine for protracted periods, the
inside of the carburetor may become clogged and
cause engine malfunction (faulty starting and insuffi­cient output).

• During storage, slightly loosen the cap of the chemi­cal fluid tank. If screwed too tightly, the gasket may
become distorted.

On completion of all work procedures, when not plan­ning to use again for a protracted period please carry
out the following pre-storage care, to prevent trouble
caused by time-lapse changes.

MD6210M

1. Clean the chemical fluid tank and nozzle.

2. Remove dirt from the sprayer, inspect it for any dam­age or looseness, and, if any abnormality is found,
correct it thoroughly in preparation for the next time
you use the unit.

3. Drain the fuel tank.

4. Start the engine, and leave it in idling condition until
all the fuel inside the carburetor is spent and the en­gine comes to a natural stop.

5. Remove the spark plug and put a few drops (1 to 2
cc) of 2-cycle oil inside the engine. After pulling the
starter rope 2 or 3 times, return the spark plugs to
their original position and stop in compressed posi­tion.

6. After oiling the throttle lever and other metal parts with
anti-corrosive oil, cover the sprayer and store unit in
a dry, dust free place, out of the reach of children.

G
B

11. Disposal

• When you dispose of the machine, do not disassemble
the machine.

• Do not simply discard empty chemical containers, but
dispose of them safely by incinerating, burying, or
another similar method. In addition, please take ev­ery care that the water used to clean spraying tools
does not create any hazard.

• When disposing your machine, fuel or oil for the ma­chine, be sure to allow your local regulations

GB-17

MD6210M

12. Troubleshooting guide

Case 1. Starting failure

CHECK PROBABLE CAUSES ACTION

fuel tank → incorrect fuel → drain it and use correct fuel
fuel filter → fuel filter is clogged → clean
carburetor adjustment screw → out of normal range → adjust to normal range
sparking (no spark) → spark plug is fouled/wet → clean/dry

→ plug gap is incorrect → correct (GAP: 0.6 to 0.7 mm)

spark plug → disconnected → retighten

Case 2. Engine starts but does not keep running/hard re-starting

CHECK PROBABLE CAUSES ACTION

fuel tank → incorrect fuel or staled fuel → drain it and use correct fuel
carburetor adjustment screw → out of normal range → adjust to normal range
muffler, cylinder (exhaust port) → carbon is built-up → wipe away
air cleaner → clogged with dust → wash
cylinder fin, fan cover → clogged with dust → clean

When your unit seems to need further service, please consult with our ZENOAH service shop in your area.

Limited warranty

Should any failure occur on the product under normal oper­ating conditions within the applicable warranty period, the
failed part will be replaced or repaired free of charge by a
ZENOAH authorized dealer.

WARRANTY PERIOD: 1 year (6 months if used profession­ally, and 30 days if used for rental purpose) from the date of
initial purchase.

THE PURCHASER SHALL BEAR COSTS OF TRANS­PORTING THE UNIT TO AND FROM THE ZENOAH DEALER.

THE PURCHASER SHALL NOT BE CHARGED FOR DIAG­NOSTIC LABOR WHICH LEADS TO THE DETERMINATION
THAT A WARRANTED PART IS DEFECTIVE, IF THE DIAG­NOSTIC WORK IS PERFORMED AT THE ZENOAH DEALER.

THE PURCHASER OR OWNER IS RESPONSIBLE FOR THE
PERFORMANCE OF THE REQUIRED MAINTENANCE AS
DEFINED BY THE MANUFACTURER IN THE OWNER/OP­ERATOR MANUAL.

ANY WARRANTED PART WHICH IS NOT SCHEDULED FOR
REPLACEMENT AS REQUIRED MAINTENANCE, OR
WHICH IS SCHEDULED ONLY FOR REGULAR INSPECTION
TO THE EFFECT OF REPAIR OR “REPLACE AS NECES­SARY” SHALL BE WARRANTED FOR THE WARRANTY PE­RIOD. ANY WARRANTED PART WHICH IS SCHEDULED
FOR REPLACEMENT AS REQUIRED MAINTENANCE
SHALL BE WARRANTED FOR THE PERIOD OF TIME UP
TO THE FIRST SCHEDULED REPLACEMENT POINT FOR
THE PART.

NOT REDUCE THE WARRANTY OBLIGATION OF THE
COMPANY.

THE COMPANY IS LIABLE FOR DAMAGES TO OTHER
ENGINE COMPONENTS CAUSED BY THE FAIRURE OF A
WARRANTED PARTS STILL UNDER WARRANTY.

THE WARRANTY DOES NOT APPLY TO THOSE UNITS
WHICH HAVE BEEN DAMAGED BY NEGLIGENCE OF IN­STRUCTION LISTED IN THE OWNER/OPERATOR MANUAL
FOR PROPER USE AND MAINTENANCE OF THE UNITS
ACCIDENT MISHANDLING, ALTERATION, ABUSE, IM­PROPER LUBRICATION, USE OF ANY PARTS OR ACCES­SARIES OTHER THAN THOSE SPECIFIED BY THE COM­PANY, OR OTHER CAUSES BEYOND THE COMPANY’S
CONTROL.

THIS WARRANTY DOES NOT COVER THOSE PARTS RE­PLACED BY NORMAL WEAR OR HARMLESS CHANGES
IN THEIR APPEARANCE.

THERE ARE NO OTHER EXPRESS WARRANTIES.

IMPLIED WARRANTIES INCLUDING THOSE OF MER-

CHANTABILITY AND FITNESS FOR A PARTICULAR PUR­POSE ARE LIMITED TO TWO (2) YEARS OF HOME USE
[ONE (1) YEAR FOR ANY OTHER USE] FROM THE ORIGI­NAL DELIVERY DATE.

LIABILITIES FOR INCIDENTAL OR CONSEQUENTIAL
DAMAGE UNDER ANY AND ALL WARRANTIES ARE
EXCLUDED.

ANY REPLACEMENT PART THAT IS EQUIVALENT IN PER­FORMANCE AND DURABILITY MAY BE USED IN NON­WARRANTY MAINTENANCE OR REPAIRS, AND SHALL

GB-18

IF YOU NEED TO OBTAIN MORE INFORMATION, PLEASE
CALL YOUR NEAREST SERVICE CENTER, OR CHECK
PLEASE ZENOAH WEB SITE

http://www.zenoah.net
