Zenoah HTZ7510, CHTZ6010 User Manual
HTZ7510
CHTZ6010
848D3L93A1 (704)
OWNER’S MANUAL
• Before using our products,
please read this manual
carefully to understand the
proper use of your unit.
• Keep this manual handy.
CAUTION
HEDGE-TRIMMERS
SAFETY FIRST
Instructions contained in warnings
within this manual marked with a
symbol concern critical points
which must be taken into
consideration to prevent possible
serious bodily injury, and for this
reason you are requested to read
all such instructions carefully and
follow them without fail.
■ NOTES ON TYPES OF
WARNINGS IN THE MANUAL
This mark indicates instructions
which must be followed in order to
prevent accidents which could lead to
serious bodily injury or death.
This mark indicates instructions
which must be followed, or it leads to
mechanical failure, breakdown, or
damage.
This mark indicates hints or
directions useful in the use of the
product.
NOTE
IMPORTANT
3
English
Contents
1. PARTS LOCATION ………………………4
2. SYMBOLS ON THE MACHINE …………5
3. SAFETY PRECAUTIONS ………………6
4. FUEL………………………………………13

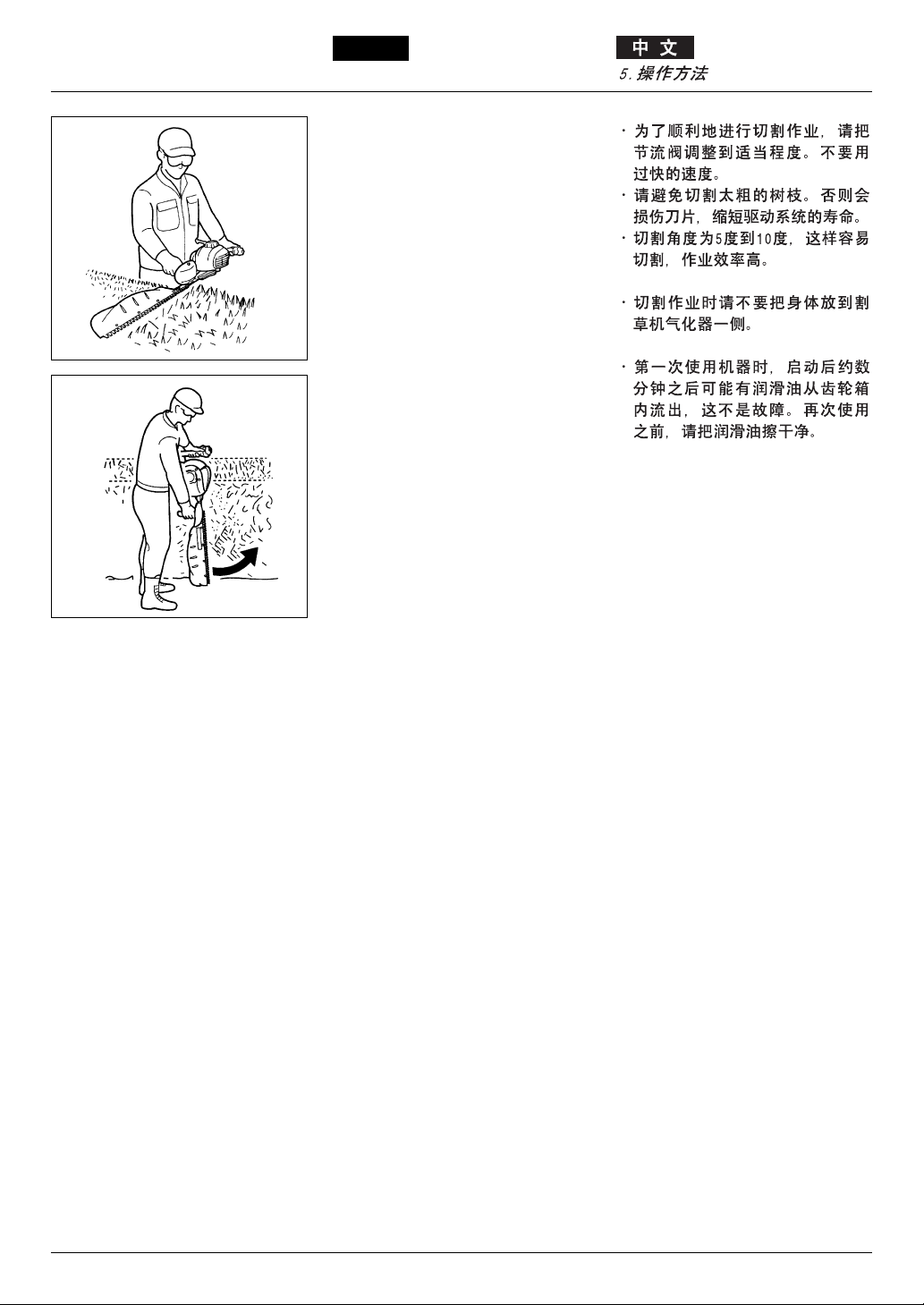

5. OPERATION ……………………………14
6. MAINTENANCE …………………………17

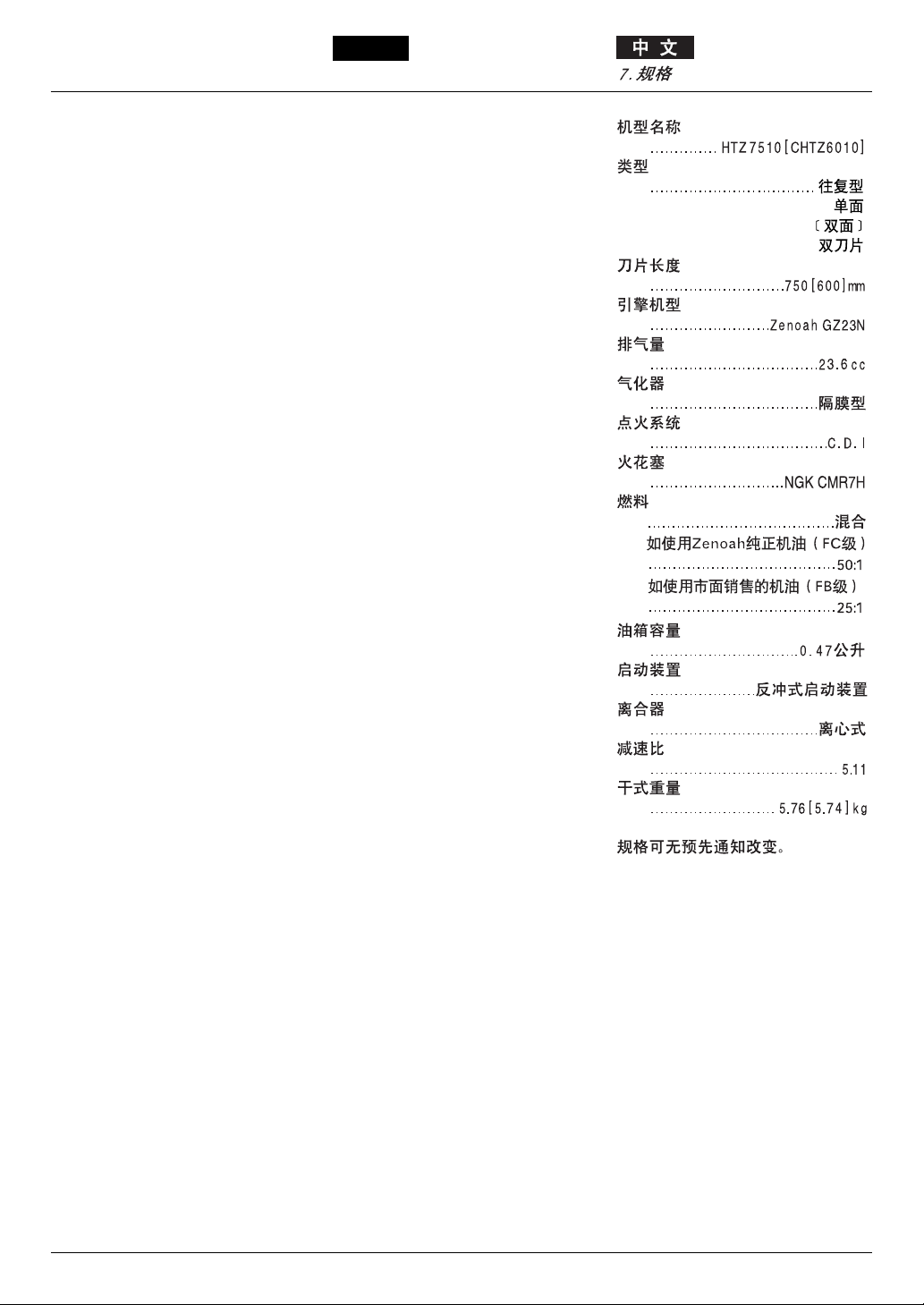

7. SPECIFICATIONS ………………………22
English
WARNING
4
1. Right handle
2. Fuel tank
3. Starter
4. Left handle
5. Throttle lever
6. Engine switch
7. Muffler
8. Blade
9. Front handle
10. Rear handle
11. Plate receive
12. Engine stop switch
English
1. PARTS LOCATION
English
For safe operation and maintenance,
symbols are carved in relief on the
machine. According to these
indications, please be careful not to
take a mistake.
(a).The port to refuel the "MIX
GASOLINE"
POSITION: FUEL TANK CAP
(b).The direction to close the choke
POSITION: AIR CLEANER COVER
(c).The direction to open the choke
POSITION: AIR CLEANER COVER
1. CLEANER
Please inspect the cleaner
every
day for dirt. Please clean out any
dust that is found up to the
element on the carburetor side.
When rebuilding the cleaner, be
sure to follow the following order:
element → felt → element. If
dust remains on the cleaner
when it is used, the dust may
enter the engine, cause abrasion
in the pistons, and lead to engine
damage.
2. GEAR CASE
Please re-supply the gear case
with grease every 25 hours.
Grease must be added every
day if the unit is used in dusty
areas. Grease should be added
until the old grease emerges.
Dirty grease is a cause of
internal abrasion.
3. BLADES
Please replace the blades
if the
space between them becomes
0.7mm or more. This is because
dust may enter the gear case
and cause abrasion.
WARNING
2. SYMBOLS ON THE MACHINE
5
6
3. SAFETY PRECAUTIONS
■ BEFORE USING THE MACHINE
a. Read this owner's manual
carefully to understand how to
operate this unit properly.
b. This product has been designed
for use in trimming leaves and
branches from trees and hedges,
and it should never be used for
any other purpose since doing so
could result in unforeseen
accidents and injuries occurring.
c. You should never use this hedge-
trimmer when under the influence
of alcohol, when suffering from
exhaustion or lack of sleep, when
suffering from drowsiness as a
result of having taken cold
medicine, or at any other time
when a possibility exists that your
judgment might be impaired or
that you might not be able to
operate the hedge-trimmer
properly and in a safe manner.
d. Avoid running the engine indoors.
The exhaust gases contain
harmful carbon monoxide.
e. Never use your hedge-trimmer
under circumstances like those
described below:
1. When the ground is slippery or
when other conditions exist
which might make it not
possible to maintain a steady
posture while using the hedgetrimmer.
2. At night, at times of heavy fog,
or at any other times when your
field of vision might be limited
and it would be difficult to gain a
clear view of the area.
3. During rain storms, during
lightning storms, at times of
strong or gale-force winds, or at
any other times when weather
conditions might make it unsafe
to use this product.
f. When using this product for the
first time, before beginning actual
work, learn to handling the hedgetrimmer from skilled worker.
English
3. SAFETY PRECAUTIONS
g. Lack of sleep, tiredness, or
physical exhaustion results in
lower attention spans, and this in
turn leads to accidents and injury.
Limit the amount of time over
which the hedge-trimmer is to be
used continuously to somewhere
around 30~40 minutes per
session, and take 10~20 minutes
of rest between work sessions.
Also try to keep the total amount
of work performed in a single day
under 2 hours or less.
h. Be sure to keep this manual
handy so that you may refer to it
later whenever any questions
arise.
i. Always be sure to include this
manual when selling, lending, or
otherwise transferring the
ownership of this product.
j. Never allow children or anyone
unable to fully understand the
directions given in this manual to
use this hedge-trimmer.
■
WORKING GEAR AND CLOTHING
a. When using your hedge-trimmer,
you should wear proper clothing
and protective equipment as
follows.
(1) Helmet
(2) Protection goggles or face
protector
(3) Thick work gloves
(4) Non-slip-sole work boots
(5) Ear protectors
b. And you should carry with you
things as follows.
1. Attached tools and files
2. Properly reserved fuel
3. Spare blade
4. Things to notify your working
area (Rope, warning signs)
5. Whistle (for collaboration or
emergency)
6. Hatchet or saw (for removal of
obstacles)
c. Never use your hedge-trimmer
when wearing pants with loose
cuffs, when wearing sandals, or
when barefoot.
English
7
8
3. SAFETY PRECAUTIONS
■ WARNING CONSIDERING
HANDLING OF FUEL

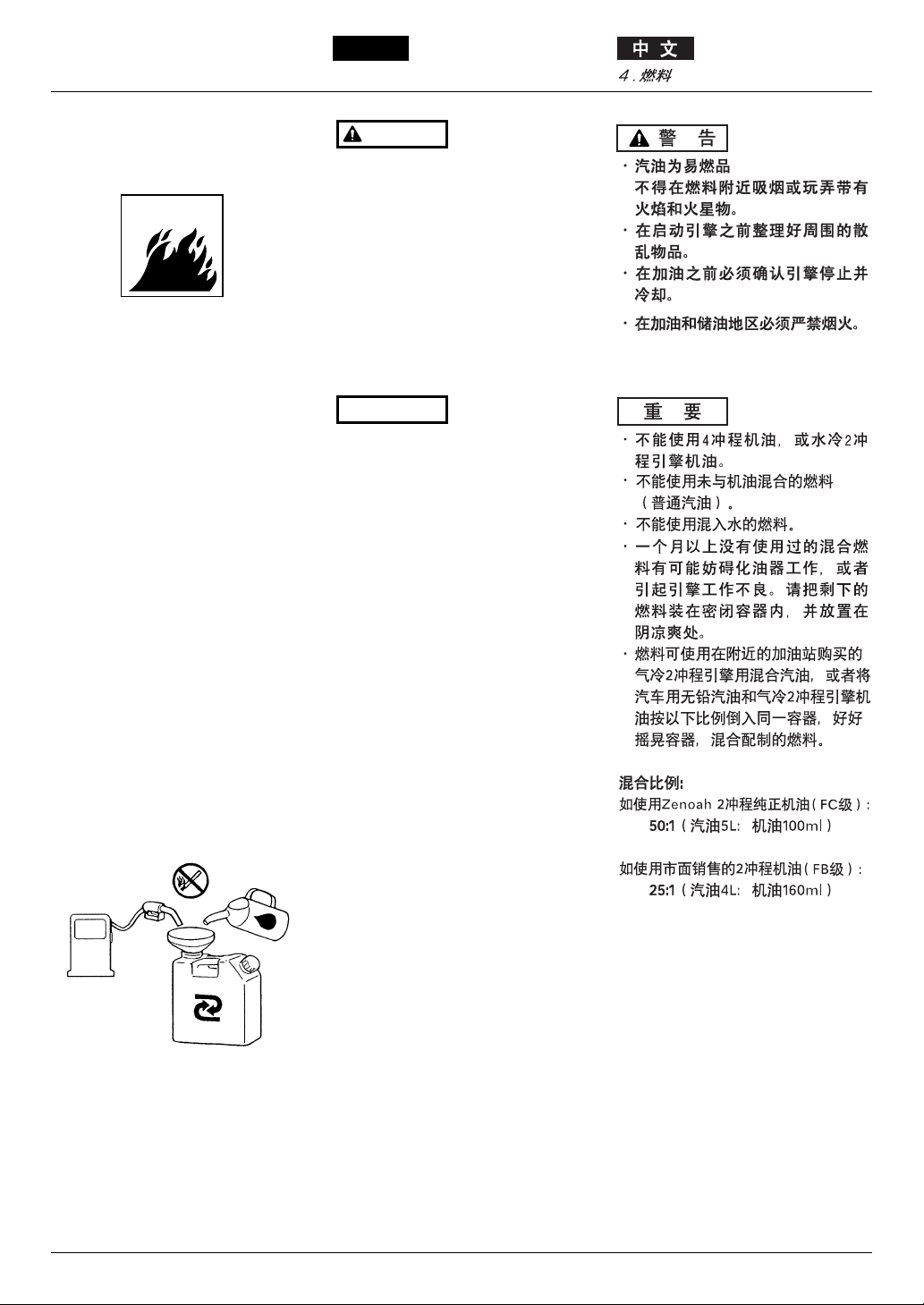

a. The engine of this product is
designed to run on a mixed fuel
which contains highly flammable
gasoline. You should never store
cans of fuel or refill the fuel tank in
any place where there is a boiler,
stove, wood fire, electrical sparks,
welding sparks, or any other
source of heat or fire which might
ignite the fuel.
b. Smoking while operating the
hedge-trimmer or refilling its fuel
tank is extremely dangerous.
Always be sure to keep lit
cigarettes away from the hedgetrimmer at all times.
c. When refilling the tank always turn
off the engine first and take a
careful look around to make sure
that there are no sparks or open
flames anywhere nearby before
refueling.
d. If any fuel spillage occurs during
refueling, use a dry rag to wipe up
spills before turning the engine
back on again.
e. After refueling, screw the fuel cap
back tightly onto the fuel tank and
then carry the hedge-trimmer to a
spot 3m or more away from where
it was refueled before turning on
the engine.
■ THINGS TO CHECK BEFORE
USING YOUR HEDGE-TRIMMER
a. Before beginning work, look
around carefully to get a feel for
the shape of the land, or grass to
be trimmed, and whether or not
there are any obstacles which
might get in the way while
working, and remove any
obstacles which can be cleared
away.
b. The area within a perimeter of
15m of the person using the
hedge-trimmer should be
considered a hazardous area into
which no one should enter while
the hedge-trimmer is in use, and
when necessary yellow warning
rope, warning signs should be
placed around the work area.
When work is to be performed
simultaneously by two or more
English
