Zennox D4100 Instruction Manual

0XOWLIXQFWLRQVWHUHR

JUDPRSKRQHDQG&'%XUQHU
,QVWUXFWLRQPDQXDO

MODEL: D4100 

IMPORTANT SAFETY INSTRUCTIONS

-READ THOROUGHLY

When using electrical products, basic precautions should always be followed including:

1. Read Instructions - All the safety and operating instructions should be read before the product is

operated.

2. Retain Instructions - The safety and operating instructions should be retained for future

reference.

3. Heed Instructions - All warnings on the product and in the operating instructions should be

adhered to.

4. Follow Instructions - All operating and user instructions should be followed.

5. Cleaning - Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or

aerosol cleaners. Use a damp cloth for cleaning.

6. Attachments - Do not use attachments not recommended by the product manufacturer as they

may cause hazards.

7. Water and Moisture - Do not use this product near water-for example, near a bath tub, wash bowl,

kitchen sink, or laundry tub, in a wet basement, or near a swimming pool, etc.

8. Accessories - Do not place this product on an unsteady surface. The product may fall, causing

serious injury to a child or adult and serious damage to the product. Use only with a stand, bracket,
or table recommended by the manufacturer, or sold with the product. Any mounting of the product
should follow the manufacturer’s instructions, and should use a mounting accessory recommended
by the manufacturer.

9. Transporting - This product should be moved with care to avoid damage

or injury.

10. Ventilation - Slots and openings in the cabinet are provided for

ventilation, to ensure reliable operation of the product and to protect it from
overheating. These openings must not be blocked or covered. The openings
should never be blocked by placing the product on a bed, sofa, rug, or similar
surface. This product should not be placed in a built-in installation such as a bookcase or rack unless
proper ventilation is provided or the manufacturer’s instructions have been adhered to.

11. Power Sources - This product should be operated only from the type of power source indicated

on the marking label. If you are not sure of the type of power supply to your home, consult your
product dealer or local power company. For products intended to operate from battery power, or
other sources, refer to the operation instructions.

1

12. Main Plug - The main plug is used as the disconnect device, the disconnect device shall remain
readily accessible.

13. Power - Cord Protection - Power-supply cords should be routed so that they are not likely to be
trapped in any way.

14. Lightning - For added protection for this product during a lightning storm, or when it is left
unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the
antenna or cable system. This will prevent damage to the product due to lightning and power-line
surges.

15. Power Lines - An outside antenna system should not be located in the vicinity of overhead
power lines or other electric light or power circuits, or where it can fall into such power lines or circuits.
When installing an outside antenna system, extreme care should be taken to keep from touching
such power lines or circuits as contact with them might be fatal.

16. Overloading - Do not overload wall outlets, extension cords, or integral convenience receptacles
as this can result in a risk of fire or electric shock.

17. Object and Liquid Entry - Never push objects of any kind into this product through openings as
they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock.
Never spill liquid of any kind on the product.

The apparatus shall not be exposed to dripping or splashing, and no object filled with liquids such as
vases, shall be placed on the apparatus.

18. Servicing - Do not attempt to service this product yourself as opening or removing covers may
expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

19. Damage Requiring Service - Unplug this product from the wall outlet and refer servicing to
qualified service personnel under the following conditions:

a. If the power-supply cord or plug is damaged.
b. If liquid has spilled, or objects have fallen into the product.
c. If the product has been exposed to rain or water.
d. If the product does not operate normally by following the operating instructions. Adjust only

those controls that are covered by the operating instructions, as an improper adjustment of other
controls may result in damage and will often require extensive work by a qualified technician to
restore the product to its normal operation.

e. If the product has been dropped or damaged in any way, and the product exhibits a distinct
change in performance-this indicates a need for service.

20. Replacement Parts - When replacement parts are required, be sure the service technician has
used replacement parts specified by the manufacturer or have the same characteristics as the
original part. Unauthorized substitutions may result in fire, electric Shock, or other hazards.

2

21. Safety Check - Upon completion of any service or repairs to this product, ask the service
technician to perform safety checks to determine that the product is in proper operating condition.

22. Wall or Ceiling Mounting - The product should be mounted to a wall or ceiling only as
recommended by the manufacturer.

23. Heat - The product should be situated away from heat sources such as radiators, heat registers,
stoves or other products (including amplifiers)that produce heat.

3

PRECAUTIONS

Safety Information

1. Use of controls and adjustments or performance of procedures other than those specified herein
may result in hazardous radiation exposure.

2. If this product develops trouble, contact qualified service centers, and do not use the product in
defective states.

Safety Precautions

WARNING:
To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.
CAUTION:
Use of controls or adjustments or performance of procedures other than those specified may result in

hazardous radiation exposures.
CAUTION
RISK OF ELECTRIC SHOCKS - DO NOT OPEN!
To reduce the risk of electric shock, do not remove cover or back.
No user serviceable parts inside. Refer servicing to qualified service personnel.

The light flash with arrowhead symbol, within an equilateral triangle, is intended to alert
user to the presence of non-insulated “dangerous voltage” within the product’s
enclosure that may be of sufficient magnitude to constitute risk of electric shock to
persons.

The exclamation point within an equilateral triangle is intended to alert user to the
presence of important operating and maintenance (servicing) instructions in the
literature accompanying the appliance.

CAUTION:
For compact disc units only: invisible laser radiation when open and interlock failed or

defeated. Avoid direct exposure to laser beam.

PRODUCT COMPLIES WITH DHHS RULE 21 CFR SUB CHAPTER J IN EFFECT AT DATE OF

MANUFACTURE.
(See markings on the back of the unit)
CAUTION:
To prevent electric shock, match wide blade of plug to wide slot, fully insert.

4

BEFORE USE

1. Choose unit installation location carefully. Avoid placing it in direct sunlight or close to a source of
heat. Also avoid locations subject to vibrations and excessive dust, cold or moisture. Keep away from
sources that hum, such as transformers or motors.

2. Do not open the cabinet as this might result in damage to the circuitry or electrical shock, if a
foreign object should get into the set, contact your dealer.

3. Be sure not to handle discs with dirty fingers. Never insert a disc that has a crack on the surface.

4. When removing the power plug from the wall outlet, always pull directly on the plug, never pull the
cord.

5. To keep the laser pickup clean, do not touch it, and do not forget to close the disc tray.

6. Do not attempt to clean the unit with chemical solvents as this might damage the finish. Use a
clean, dry cloth.

7. In order to shut off the power to this product completely, unplug the power cord from the wall outlet.
Be sure to unplug the unit if you do not intend to use it for an extended period of time, such as a
vacation.

8. Keep this manual in a safe place for future reference.

Beware of Condensation
When the player (or a compact disc) is moved from a cold to a warm place or is used after a sudden

temperature change, there is a danger of condensation. Water vapor in the air could condense on
the mechanism or the laser pickup. If droplets of water form on these parts, correct playback will be
impossible because the laser cannot read the information from the disc correctly. To prevent this, if
you are going to use the player in a condition where condensation could occur, you should leave the
player for 1 or 2 hours after plugging it into an AC outlet depending on the amount of condensation. If
this is done, the player will stabilize at the temperature of its surroundings.

5

HANDLING RECORDS

• Do not touch the record’s grooves. Only handle records by the edges or the label with clean

hands. Otherwise, the dirty handle can leave a residue on the recode surface that will gradually
deteriorate the quality of your record.

• If the record has become dirty, use a soft anti-static cloth to wipe the record surface gently.

• Keep records in their shield when not in use.

• Store records upright on their edges. The level store would make it become curved.

• Avoid placing it in direct sunlight or close to a source of heat such as radiators, stoves. Also

avoid location subject to vibration and excessive dust, heat, cold or moisture.

6

HOW TO REPLACE THE STYLUS

Caution:

Check the stylus is placed in the centre. (third photo is correct.)

The stylus is located on the left.

The stylus is located on the right.

The stylus is located in the centre

Caution:

Do not remove or bend the stylus.
Do not touch the needle, which could injure your hand.
Don’t let the stylus touch the turning turntable when without the disc.
Turn off the unit's power before you replace the stylus.
Keep out of the reach of children.
Avoid direct sunlight or other heat sources.

Removing old stylus

1. Set a screwdriver at the tip of the stylus and push down to the

direction "A".

2. Remove the stylus by pulling it forward and down.

Installing a new stylus

1. Hold the tip of the stylus and insert the other edge by pressing in

direction "B".

2. Push up in direction "C" until it locks at the tip.

7

DISCS

Depending on the quality of the disc and the condition of the recording, some CD-R/CD-RW

discs may not be playable.

Always place the disc on the disc tray with the label side uppermost(compact discs can be

played or recorded only on one side)

To move a disc from its storage case, press down on the centre of the case and lift the disc out,

holding it carefully by the edges.

If the disc becomes dirty, wipe the surface from the centre hole

outwards towards the outer edge with a soft, dry cloth.

Never use chemicals such as record spray, antistatic sprays or fluid, benzine or thinner to

clean the discs. Such chemicals will do irreparable damage to the disc's plastic surface.

Discs should be returned to their cases after use to avoid dust and scratches that could cause

the laser pick up "skip".

Do not expose discs to direct sunlight, humidity or high temperatures for extended periods of time.

Long exposure to high temperatures will warp the disc.

Printable CD-R and CD-RW discs are not recommended, as the label side might be sticky and

damage the unit.

Use a soft oil-based felt-tipped pen to write the information on the label side. Never use a

ball-point or hard-tipped pen, as this may cause damage to the recorded side.

Do not use CDs with an irregular shape(octagonal, heart shaped, business card size, etc).CDs

of this sort can damage the unit:

If you have any doubts about using a CD-R/CD-RW disc, read the precautions supplied with the disc,

or contact the disc manufacturer directly.

8

CONNECTIONS

CAUTION:

Switch off the power to all equipment before making connections.
Read the instructions of each component you intend to use with this unit.
Be sure to insert each plug securely. To prevent hum and noise, avoid bundling the signal

interconnection cables together with the AC power cord.

FM antenna

While tuned to a station in FM mode, extend the wire and reposition to adjust for best reception.

AUX IN sockets

For audio sources (such as a CD player, cassette tape) with RCA jacks, connect the RCA cable into
the AUX IN socket on the appliance, and the other end of the cable into the HEADPHONE or LINE
OUT socket on audio sources. Make sure to connect the white plug to the white jacks (Left) and the
red plug to the red jacks (Right)

AC Power Cord

Plug this power cord into the electrical outlet.

9

PARTS OF THE TURNTABLE

Turntable
Screw fixing the turntable for transportation

When you transport the unit, turn the screw anti clockwise to secure the turntable.

Before use, turn the screw clockwise with a coin or screwdriver.

Cue-lever

Use this lever to lift the tone arm.

Speed selector
Tone arm hold
Tone arm

Before use, completely loosen the tone arm holder on the tone arm and uplift tone arm.

45 RPM adaptor

10

FUNCTIONS ILLUSTRATION

MAIN UINT

1. POWER
Press this button to switch on the unit or switch the unit to standby mode. The display will remain lit

but nothing will be displayed. (NOTE: If you experience a malfunction during operation, you may
disconnect the unit and retry.)

2．PHONO
Press to select PHONO function.
3．AUX
Press to select AUX function to listen to the external source connected to the AUX IN sockets.
4．AUX IN SOCKET
Connect the external source with proper cable to this socket.
5．FM/AM
Press to listen to the radio. Press again to switch between AM and FM mode.

6. CD
Press to play a CD.

7. TAPE
Press to play a cassette.

11

12

8. REMOTE SENSOR

When operating the remote control unit, point it towards the REMOTE SENSOR.

9. TUNER DISPLAY

When the unit is on, this display will light.

10. TRACK INCREMENT

During recording, use this button to separate tracks.

11. RECORD

Press to enter record pause mode.

12. DISPLAY

13. TUNED INDICATOR

Lights when a station is correctly tuned in.

14. SPEAKERS (STEREO)

15. STOP

Press to stop playback or recording.

16. PLAY

Press to start playback, recording, finalizing and erasing.

17. PAUSE

Press to pause playback or recording.

18. OPEN/CLOSE

In CD, PHONO or AUX mode, press to open and close the disc tray. (NOTE: This button doesn't

work in FM/AM mode.)

19. VOLUME

Turn to adjust the volume sound. (NOTE: The volume control level from 00 to 32).

20. DISC TRAY

21. MUSIC SKIP

In CD mode, use to skip tracks. Hold down to fast rewind or fast forward the current track.

22. REC LEVEL

In record pause mode use to adjust the recording level.

23. FINALIZE

Press to finalize a CD-R/CD-RW disc.

24. ERASE

Press to erase or unfinalize a CD-RW disc.

25. TUNING
In FM/AM mode, rotate to tune in a station.

26. PHONES
For private listening, first reduce the volume level to minimum. Then insert the plug from your

headphones into the PHONES socket, and adjust the volume after then. The sound from speaker will
be cut off while the headphones are plugged in.

27. AUTO/MANUAL
Use to select the mode of track number assignment.

28. CASSETTE EJECT

REMOTE CONTROLLER

A. STANDBY
With the unit powered on, press to enter standby mode. The

display will remain on but nothing show on the display.
B. OPEN/CLOSE
In CD, PHONO or AUX mode, press to open and close the

disc tray. This button doesn't work in FM/AM mode.
C. CD
Press to play a CD.
D. REPEAT
In CD mode, press to select a repeat mode.
E. PROGRAM
In CD mode, press to program tracks.
F. SHUFFLE
In CD mode, press for shuffle playback.
G. DISPLAY
In CD mode, press to change the display.
H. TRACK INCREMENT
During recording, press to divide tracks.
I. MANUAL/AUTOINCREMENT

13

Press to select the mode of track number assignment.
J. Record
Press to enter record pause mode.
K. REC VOL+/REC VOL ­Use to adjust the record volume.
L. FINALIZE
Press to finalize a CD-R/CD-RW disc.
M. ERASE
Press to erase or unfinalize a CD-RW disc.
N. Clear
In CD mode, press to clear programmed tracks.
O. PHONO
Press to play a vinyl record.
P. AUX
Press AUX to listen to the external source connected to the AUX IN sockets.
Q. Radio
Press to listen to the radio. Press again to switch between AM and FM mode.
R. TAPE
Press to listen to an audio cassette tape.
S. MUSIC SKIP
In CD mode, use to skip tracks. Hold down to fast rewind or fast forward the current track.
T. VOL+/VOL­Press to adjust the volume.
U. PLAY/PAUSE
Press to play/pause recording, finalizing and erasing.
V. STOP
Press to stop playback or recording.

14

REMOTE CONTROL UNIT

You may operate the apparatus at a distance with the remote control.
Within the effective range, point the remote control unit towards the front panel of the apparatus.
Note:
If the remote control fails to work, check whether:

- the batteries in the remote control are flat;

- there is an obstacle between the remote control uni

- another appliance which generates infrared rays is in use nearby.

Battery Installation

1. Remove the battery compartment cover.

2. Insert two "AAA" dry batteries. Make sure that the batteries are
inserted with their positive "+" and "-" poles positioned correctly.

3. Close the cover.

Battery Replacement

If the distance required between the remote control unit and main unit decreases, the batteries are flat.
In this case, please replace the battery wi

Precautions concerning batteries

Be sure to insert the batteries with correct positive “+” and negative “-” polarities.

th new ones.

t and the apparat

us;

Use batteries of the same type, never use different types of batteries together.
Rechargeable and non-re-chargeable batteries can be used. Refer to the precautions on their

labels.

When the remote control unit is not to be used for a long time (more than a month), remove the

batteries from the remote control unit to prevent them from leaking. If they leak, wipe away the
liquid inside the battery compartment and replace the batteries with new ones.

Do not heat or disassemble batteries and never dispose of old batteries by throwing them in a

fire.

15

USAGE

1. Connect the AC power cord to the mains.

2. Remove white protective needle cover by gently pulling towards front of unit.

3. Release TONE ARM by gently pushing hold-down clip to the right. This will unlock tone arm from
its arm rest. Re-lock the hold-down clip when moving the unit to another location.

16

BASIC OPERATION

1. Press the POWER switch to turn the unit on.

2. Select the source by pressing the corresponding
button.

3. Rotate the VOLUME knob clockwise to turn the radio on and adjust to desired sound level.

4. Listening through Earphones/Headphones (not included).

17

LISTENING TO THE RADIO

1. Select FM or AM using the FM/AM button.

2. Tune to the desired frequency.

NOTE:

The TUNED indicator lights when a station is correctly tuned in.
The STEREO indicator lights when an FM stereo broadcast is tuned in.

Adjusting For Best
AM broadcast: Rotate the unit to find the best position.
FM broadcast: Extend and reposition the FM antenna.

Reception

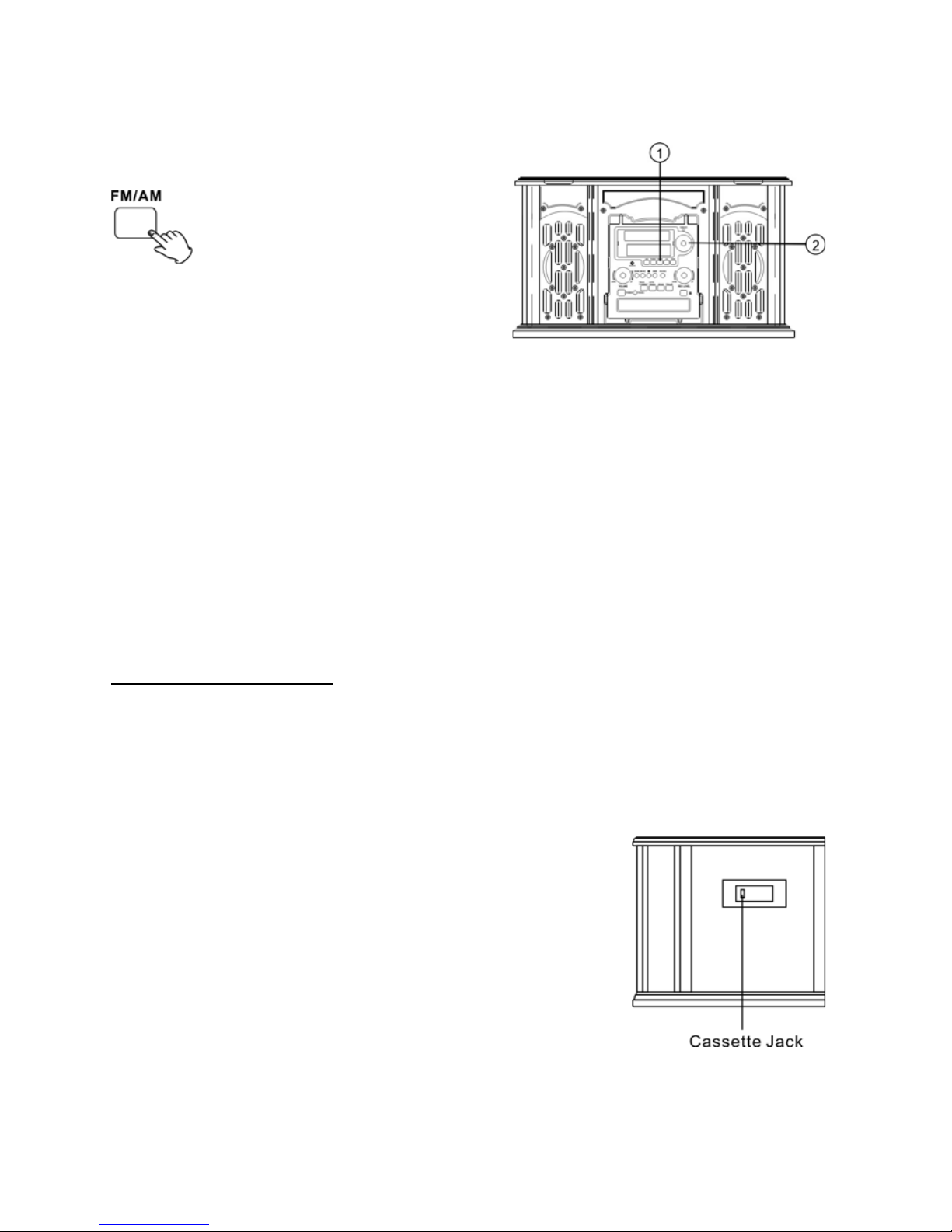

LISTENING TO TAPE

1. Load Cassette Tape into the unit (located on side of the unit).
Playback will automatically begin.

2. Press button halfway to Fast Forward the Tape.
Press button lightly and playback will resume.

3. Press button all the way to end playback and eject Tape.

18

LISTENING TO A RECORD

1 Press the PHONO button once to select PHONO.

2．Gently open the dust cover.
NOTE: Be carefully not to pinch your finger.

3. Put the record on the turntable. When playing a 45 RPM record, use the included adaptor.

4. Select the speed.

5. Gently push the clamper to the right to release the tone arm.

6. Raise the cue lever to lift the tone arm off the tone arm support.

19

7. Move the tone arm gently to the edge of the record (or the starting point of a track).
The turntable will begin to turn.

8. Gently lower the tone arm by slowly releasing the cue lever.

9. When the end of the vinyl record is reached, the tone arm automatically returns to the tone arm
holder and the return indicator will light up. To stop playback manually, slightly lift the tone arm using
the cue lever and return it to the tone arm holder.

NOTE: When playing a 78 rpm record, it will take approximately 20 seconds for the tone arm to
return to the tone arm holder.

INPORTANT:
Closing the top cover will help prevent dust from setting on the turntable.
Do not place anything on top of the turntable cover, especially while playing a record.
Always relock the tone arm clip before transporting the appliance.

20

LISTENING TO A CD

1. Press the CD button. "--- BUSY CD" blinks for a few
seconds.

NOTE: When no disc is set, “NO DISC” appears on the
display.

2. Press the OPEN/CLOSE button .

3. Place a disc on the tray with the printed label face up.

• Never place more than one disc on the tray.

• The disc must be placed in the centre of the disc tray. If

the disc is not correctly loaded, it may not be possible to
open the tray again once it has closed, so you should
ensure the disc is always centred on the tray.

• Do not force the tray by hand during opening and closing operations.

4. Press the OPEN/CLOSE button

It takes a few seconds for the unit to load the disc. No buttons will work during loading. Wait until the
total number of the tracks and the total play time of the disc are displayed.

The disc type indicator shows the type of disc currently loaded.

to close the tray.

21

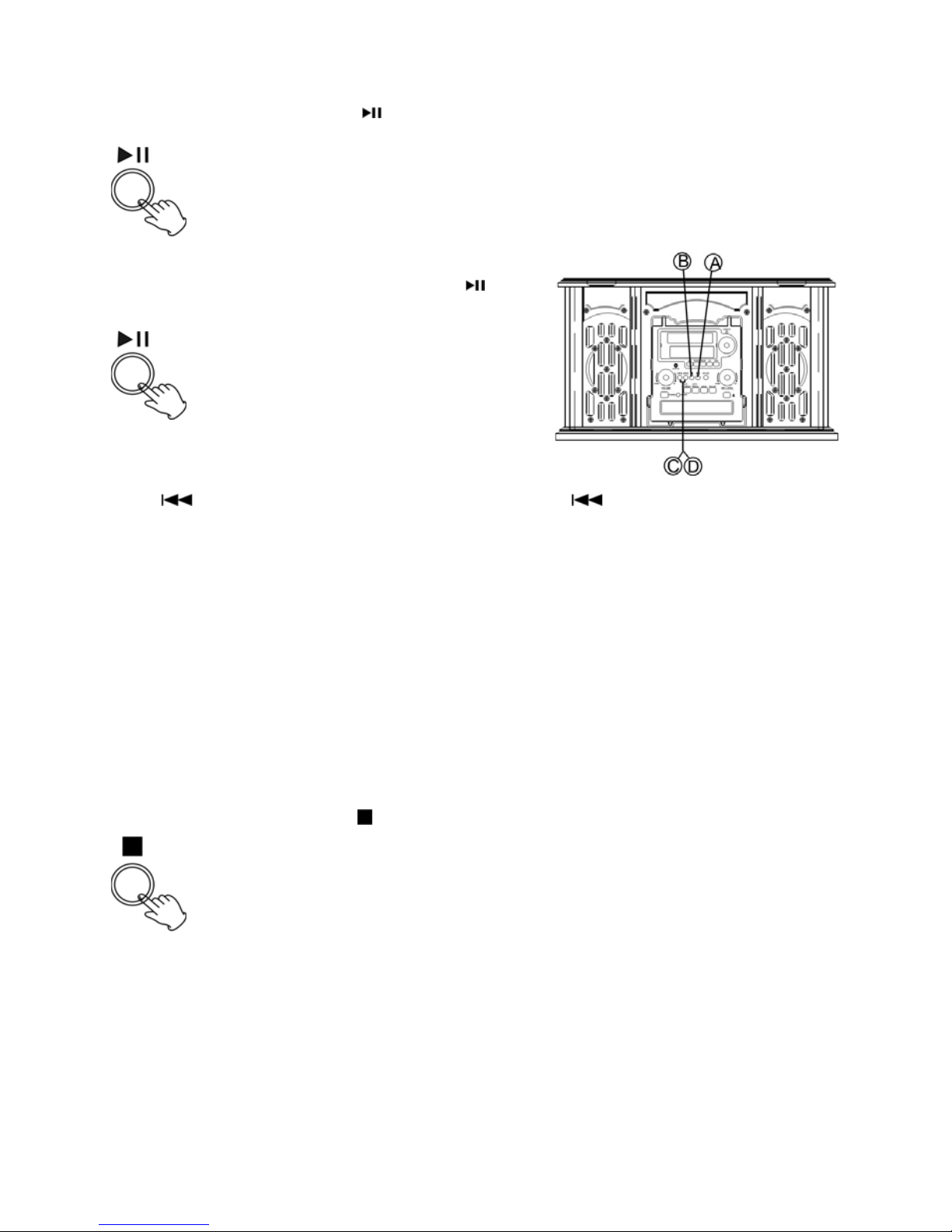

5. Press the PLAY/PAUSE button ( ) to start playback.

A To interrupt the playback temporarily press the
PLAY/PAUSE button. Press the PAUSE button (

) again

to resume.

B To skip tracks backward or forward, press the
corresponding skip button.

Press

button once will restart the current track, press button twice in succession will

return to the beginning of the previous track.

C To fast rewind or fast forward within a track, hold down the corresponding button until the desired
position is reached.

D To stop playback press STOP ( ) button.

22

DISPLAY

Each time the DISPLAY button is pressed, the display changes as follows:

- Track Number + Track Play Time (Default Display Mode)

- Track Play Time Countdown

- Track Play Time

- CD Play Time

REPEAT PLAYBACK

Each time the REPEAT button is pressed, the repeat mode is changed as follows:

REPEAT ALL (Repeat the entire CD): The entire CD will be played repeatedly.
REPEAT 1(Repeat one track): The current track will be played repeatedly. If you press

button to select another track, the track you select will be played repeatedly.

or

23

NOTE:

• If one of the following buttons is pressed, repeat mode will be cancelled:

OPEN/CLOSE, STAND BY, FM/AM, PHONO/AUX.

• Repeat playback works with finalized disc only.

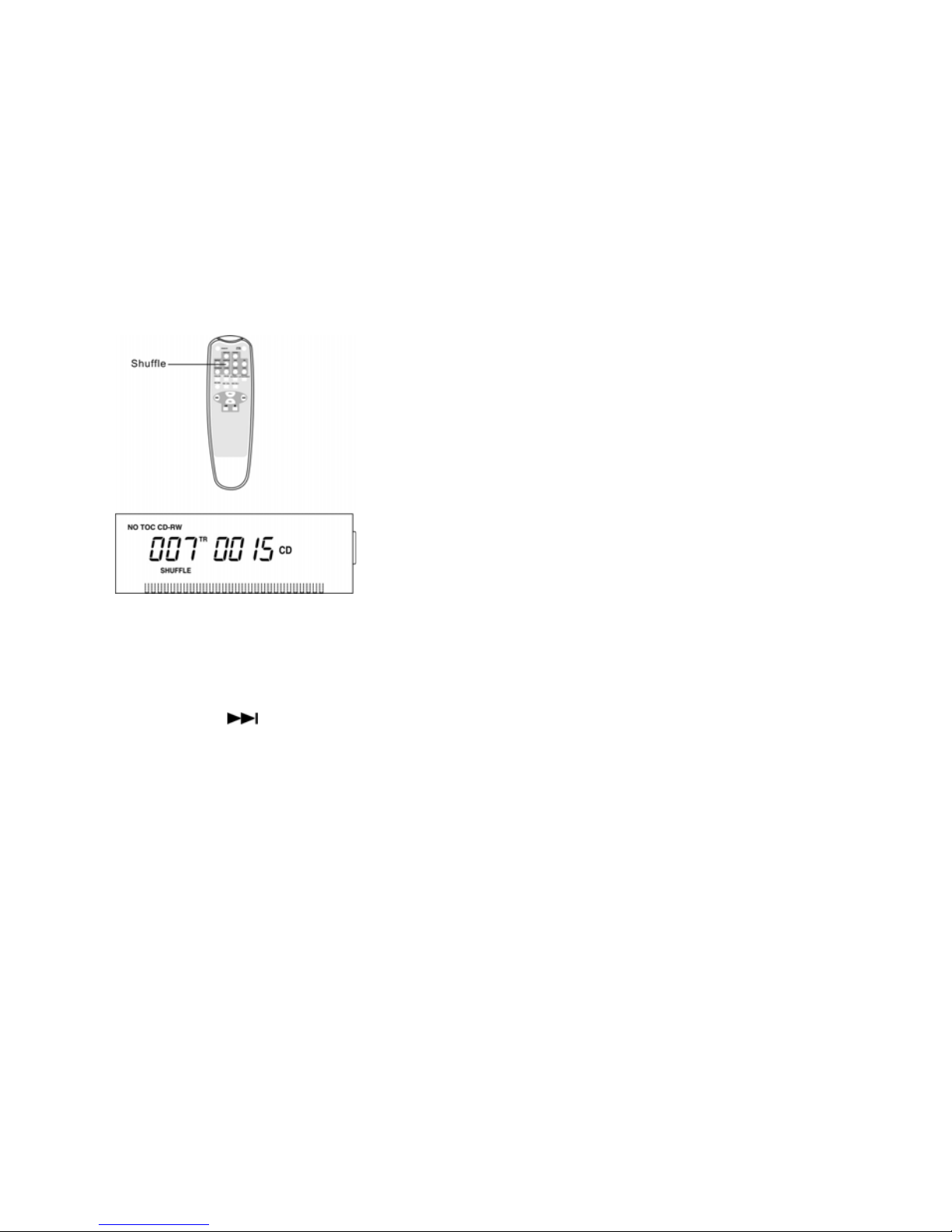

SHUFFLE PLAYBACK

To play the tracks on the disc in a random sequence, press SHUFFLE button during playback.

NOTE:

• Pressing

• When the SHUFFLE playback of all the tracks has been finished, the unit stops and the shuffle

playback mode is cancelled.

• Shuffle playback doesn’t work during programmed playback.

• A track cannot be repeated during shuffle playback.

• If one of the following buttons is pressed, shuffle mode will be cancelled:

OPEN/CLOSE, STAND BY, FM/AM, PHONO /AUX

• Shuffle playback works with finalized disc only.

button during shuffle playback will randomly select the next track.

24

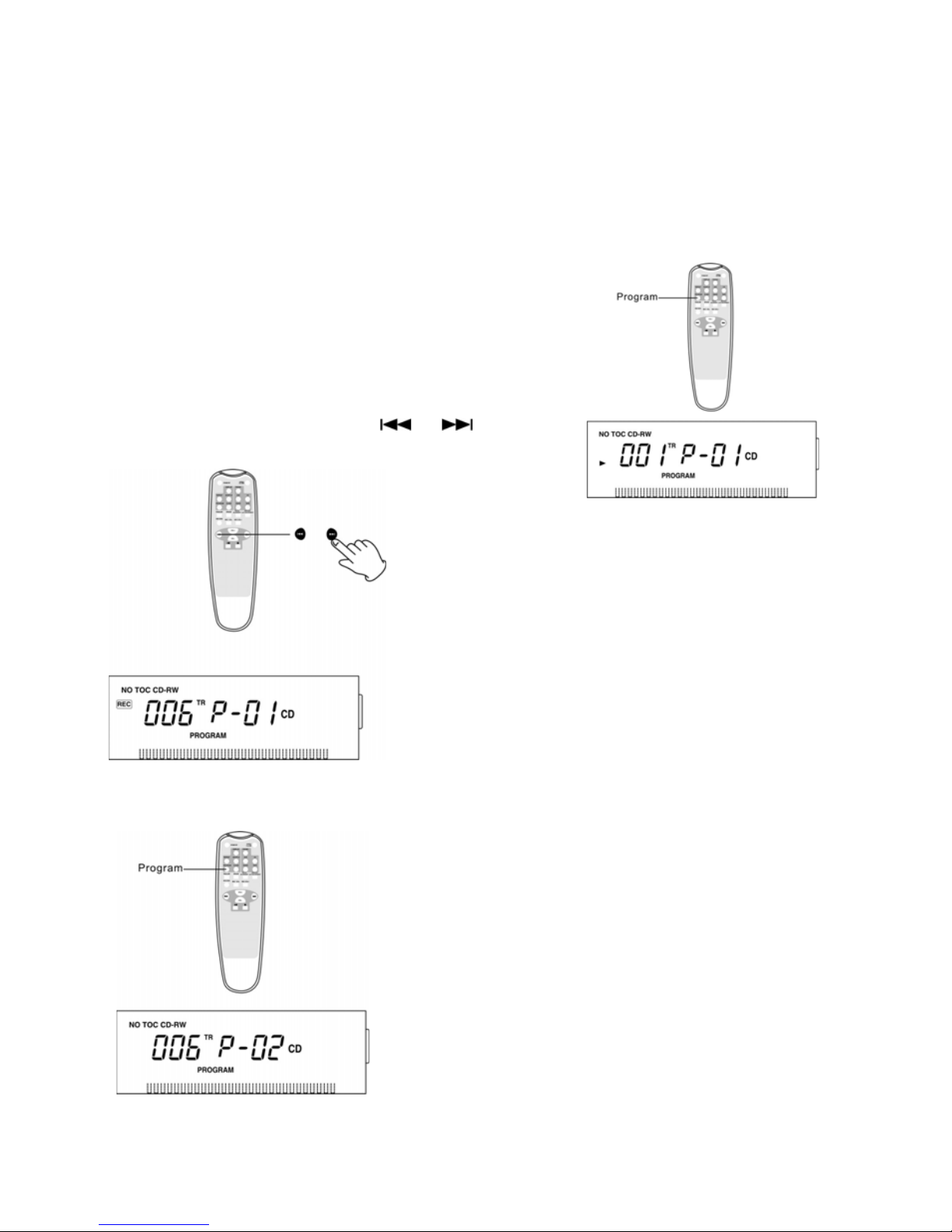

PROGRAMMED PLAYBACK

Up to 32 tracks can be programmed in the desired order.
NOTE:

• Shuffle playback does not work during programmed playback.

• Programmed playback works with finalized disc only.

1. Press CD button and load a CD.

2. Then press STOP button.

3. Press the PROGRAM button. “PROGRAM” indicator blinks,
and “P-01” appears on the display.

4. Press the MUSIC SKIP button (
track.

5. Press the PROGRAM button again to add the track into program list.

or ) to select a

25

6. “P-02” is display. Repeat step 4 and 5 to program more tracks.

7. When the selection of track numbers has been finished, press the PLAY ( ) button to start
program playback.

To cancel the program mode, press the STOP button (

).

To check the programmed order
In the stop mode, press the MUSIC SKIP button repeatedly to show the track numbers that have

been programmed.

To add a track to the end of the program
In the stop mode, press the PROGRAM button.
Select a track number by pressing

or button, and then press the PROGRAM button.

The track is added to the end of the program.

To delete the last track from the program
In the stop mode, press the CLEAR button to delete the last track from the

program.

To clear the program
Press STOP when the CD is already stopped, or press OPEN/CLOSE,

STAND BY, FM/AM, PHONO or AUX.

26

27

RECORD TO A CD-R/CD-RW

• Switch the power on and insert a non-nalized CD-R or CD-RW disc onto the tray

and wait for the “BUSY” text to disappear.

• Select means of recording: PHONE, AUX or TAPE (you cannot record CD or radio).

• Press the auto/manual button to select to space tracks “automatically” or “manually”.

For example, if you are recording a music tape with clear track division, it’s best to

select “auto”, but if you are recording a classical tape, select “manual” and you can

divide tracks manually by pressing the “track increment” button at the end of each

song. Please note that manual mode is indicated by three lines --- on the display.

• When selecting automatic track spacing, scroll through the decibels to select a

suitable sensitivity level:

-20dB

-30dB

-40dB

• When the sound drops below the value you have chosen (-20db, -30db or –40db) a

new track will be assigned.

• Press record, and REC ll will appear on the display, then press play/pause to begin

recording. Normally the recording level should be set to ‘0’, but if the sound exceeds

‘OVER’ on the LCD display, adjust the recording level using the REC level dial.

Please note the green recording meter usually moves back and forth. When it

reaches to the ‘OVER’ position, it becomes red and the recording quality will

become poor and the recorded tracks distorted. So you’ll need to lower the

recording level.

• When you wish to stop recording, press the stop button.

• To listen to the recorded CD back, press the “CD” button and press play and if

necessary adjust the volume dial.

28

TRACK DIVISION

If you want to assign a new track during recording the current song, press the TRACK

INCREMENT button. The TRACK INCREMENT button works both in manual mode and

auto mode.

Also note that if you press the PLAY/PAUSE button to interrupt the recording (to turn

the tape over for example) a new track will be assigned automatically as well.

HOW TO ERASE TRACKS:

(a) Press CD button to switch to CD mode.

(b) Press STOP button to make sure the disc is in stop phase.

(c) Press the ERASE button and then press PLAY/PAUSE button to erase from the last

track one by one.

Or hold the ERASE button and then press PLAY/PAUSE button to erase all tracks in

the CD-RW disc.

TIPS

If you use a CD-R disc, erasing tracks is impossible. So we strongly recommend you

use a CD-RW disc so you can test recording rst.

Before starting to record, you can erase your test recording tracks.

29

FINALIZING THE RECORDED DISC

Only a nalized disc can be played on another device. Discs that are not nalized can

only be played on this device.

• Finalize the CD in recording source mode (TAPE/PHONO/AUX) or you may switch to

CD feature.

• Press FINALIZE button.

• Press PLAY/PAUSE button to start nalizing process.

• Wait until OPEN appears on the display and the tray is ejected automatically.

SPECIFICATIONS

AMPLIFIER section

Output Power……………………………....5 W + 5 W

Frequency Response………………….….60 to 20, 000 Hz

TUNER section

FM Section
Frequency Range…………………………88 to 108 MHz
AM Section
Frequency Range……………………..…..530 to 1600 KHz

CD PLAYER section

Frequency Response…………………….60 to 20, 000 Hz +/-4 dB
Signal-to-Noise Ratio……………….……55 dB (IEC-A)

CASSETTE DECK section

Track System…………………………...….4 Track, 2 channel stereo
Tape Speed………………………………...4.8 cm/sec
Wow and Flutter………………………..….0.4% (WRMS)
Frequency Response……………..……...125 to 6300 Hz

RECORD PLAYER section

Motor……………………………………....DC servo motor

Drive System………………………..…….Belt Drive
Speeds……………………………….……33-1/3 rpm, 45 rpm and 78 rpm
Wow &Flutter………………………...……Less than 0.35% (WTD)
S/N Ratio…………………………….…….More than 50 dB
Cartridge Type…………………………….Ceramic Stereo Cartridge
Stylus………………………………………402-M208-165

SPEAKER SYSTEM section

Type…………………………………….….1-way
Impedance………………………………..4 ohms
Input Power……………………………….Max. 10W

GENERAL

Power Requirements……………….……AC 230 V~ 50 Hz

30

Power Consumption……………………..42 W

Dimensions (W x H x D)……............... 20.1''x12.2''x13.6''(approx.)

Weight……………………………….…...29.1 Ibs. (approx.)
Standard Accessories……………...……Operating Instruction Booklet
45 rpm Adapter

RCA AUX IN Cable

TROUBLESHOOTING GUIDE

In case of trouble with the unit, please look through this chart and see if you can solve the problem by
yourself before calling customer services.

Power does not come
on when the power
switch is pressed.

No sound comes out of
the speakers.

The sound is noisy.

THE WHOLE UNIT

If fails to respond.

Unit is unplugged.

The volume is turned down (to
MIN).

The input selector does not
match the playback source.

The unit is too close to a TV set
or another similar appliance.

External factors such as ESD
(Electro-static discharge) affect
the appliance.

noituloS esuaC melborP

Connect the unit to the
AC power supply.

Adjust the volume.
Re-select the desired

input source.

Turn off the TV or other
appliance, and relocate
the unit.

Disconnect the
appliance and remove
all power supply device.
Re-plug the power cord
after one minute.

31

The tape does not
move.

The cassette tape is not
inserted properly.

Insert the cassette tape

correctly.
No sound from tape. The tape heads are dirty. Clean the tape heads.
The sound is distorted

TAPE DECK

or faint.

The tape heads are dirty. Clean the tape heads.

The station is not tuned-in

Cannot listen to any
station, or signal
appears weak.

properly.
A TV set is being used nearby

and is interfering with the radio
reception.

TUNER UNIT

The sound is distorted. .

CD stops immediately
after starting, or unit
pauses or stops during
play.

The antenna is not oriented
properly.

The CD is inserted upside
down.

The CD is dusty or dirty or there
is condensation on the CD.

No sound. The CD player is paused.

The CD is scratched, damaged

Specific CD is noisy, or

CD PLAYER

or warped.

playback stops or skips.

The disc is very dirty.

Properly tune-in the

desired station.

Turn-off the interfering

TV set.

Re-orient the antenna

until reception

improves.

Insert the CD with the

printed side right-side

up.

Carefully clean and dry

the CD.

Press the

PLAY/PAUSE button.

The CD should be

changed.

Carefully clean the CD.
Can't record or show

"NO
DISC" on the display.

The sound is noise
when playing the
record.

PHONO PLAYER

The CD-RW has recorded.

The stylus is not placed in the
middle centre.

32

Erase the contents of

the CD-RW.

Place the stylus in the

middle centre.
