Zenith VRC421 OPERATING GUIDE

Download
machine numbers | VRC421
enjoy the view
operating guide / warranty
®
WARNING:
TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
WARNING:
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
POWER CORD POLARIZATION:
CAUTION: To Prevent Electric Shock, match wide blade of plug to wide slot, fully insert.
ATTENTION: Pour éviter les chocs électriques, introduire la lame la plus large de la fiche dans la borne correspondante de la prise et pousser jusqu’au fond.
NOTE TO CABLE/TV INSTALLER:
This reminder is provided to call the cable TV system installer’s attention to Article 820-40 of the National Electric Code (U.S.A.). The code provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of the cable entry as practical.
REGULATORY INFORMATION:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.
CAUTION:
Do not attempt to modify this product in any way without written authorization from Zenith Electronics Corporation. Unauthorized modification could void the user’s authority to operate this product.
This class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.
“Ce appareil numérique de la class b respecte toutes les exigences du Règulement sur le matériel brouillier du Canada.”
Zenith is a trademark of ZEC © Copyright Zenith Electronics Corporation 2000
RECORD YOUR MODEL NUMBER (Now, while you can see it)
The model and serial number of your new VCR are located on the back of the VCR cabinet. For your future convenience, we suggest that you record these numbers here:
MODEL NO.____________________________________
SERIAL NO.____________________________________
WARNING
RISK OF ELECTRIC SHOCK
DO NOT OPEN
IMPORTANT SAFETY INSTRUCTIONS
SAFETY TIPS
PAGE 3
1. Read Instructions
Read all of the safety and operating instructions before operating the product.
2. Retain Instructions
Keep all safety and operating instructions for future reference.
3. Heed Warnings
Follow warnings on the product and in the operating guide.
4. Follow Instructions
Follow all operating and use instructions.
5. Cleaning
Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.
6. Attachments
Do not use attachments not recommended by product manufacturer as they may cause hazards.
7. Water and Moisture
Do not use this product near water—for example, near a bathtub, wash bowl, sink, or laundry tub, in a wet basement, or near a swimming pool.
8. Accessories
Do not place product on an unstable cart, stand, tripod, bracket, or table. Product may fall, causing serious injury to a child or adult, and serious damage to the product. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer or sold with the product. Any mounting of product should follow manufacturer’s instructions and should use a mounting accessory recommended by manufacturer.
9. Transporting Product
Move product and cart combinations with care. Quick stops, excessive force, and uneven surfaces may cause product and cart combination to overturn.
10. Ventilation
Slots and openings in cabinet must not be blocked or covered. They are provided for ventilation, to ensure reliable operation, and to protect from overheating. Never block openings by placing product on a bed, sofa, rug, or other similar surface. Do not place product in built-in installation such as a bookcase or rack unless proper ventilation is provided or manufacturer’s instructions have been adhered to.
11. Power Sources
Operate product only from type of power source indicated on marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. For products intended to operate from battery power or other sources, refer to manual.
12. Line-Cord Polarization
Product is equipped with a polarized alternating­current line plug (a plug having one blade wider than the other). As a safety feature, this plug will fit into power outlet only one way. If you’re unable to insert plug fully into outlet, try reversing the plug. If plug still fails to fit, contact an electrician to replace your obsolete outlet. Do not defeat safety purpose of polarized plug.
13. Power-Cord Protection
Route power-supply cords so they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from product.
14. Outdoor Antenna Grounding
If an outside antenna or cable system is connected to this product, be sure antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code (USA), ANSI/NFPA 70 provides information on grounding of mast and supporting structure, grounding of lead-in wire to an antenna discharge unit connection to grounding electrodes, and requirements for grounding electrode. ( See Fig. 1 below. )
These simple precautions will help ensure that you get many years of safe enjoyment from your new product.
Fig. 1
Antenna Lead-in Wire
Ground
Clamp
Antenna Discharge Unit NEC Section 810-20
Electric Service
Equipment
Power Service Grounding Electrode System NEC Art 250, Part H
Grounding Conductors NEC Section 810-21
Ground Clamps
NEC: National Electrical Code
Antenna grounding per NEC Code, ANSI/NFPA 70
IMPORTANT SAFETY INSTRUCTIONS
PAGE 4
SAFETY TIPS
15. Lightning
For added protection for this product during a lightning storm, or when product is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect antenna or cable system. This will prevent damage to product due to lightning and power line surges.
16. Power Lines
An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, take extreme care to keep from touching such power lines or circuits, as contact with them might be fatal.
17. Overloading
Do not overload wall outlets, extension cords or integral convenience receptacles, as this can result in risk of fire or electric shock.
18. Object and Liquid Entry
Never push objects of any kind into this product through openings, as they may touch dangerous voltage points or short-out parts that could result in fire or electric shock. Never spill liquid of any kind on product.
19. Servicing
Do not attempt to service this product yourself, as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
20. Wall or Ceiling Mounting
Mount product to wall or ceiling only as recommended by manufacturer.
21. Replacement Parts
When replacement part(s) are required, be sure service technician has used replacement part(s) specified by manufacturer or have same characteristics as original part(s). Unauthorized substitutions may result in fire, electric shock, or other hazards.
22. Damage Requiring Service
Unplug this product from the wall outlet and refer servicing to qualified service personnel under these conditions:
a. If power-supply cord or plug is damaged.
b. If liquid has been spilled or objects have fallen into
product.
c. If product has been exposed to rain or water.
d. If product doesn’t operate normally by following
handbook instructions. Adjust only those controls covered by handbook instructions; improper adjustment of other controls may result in damage and often requires extensive work by a qualified technician to restore product to normal operation.
e. If product has been dropped or cabinet has been
damaged.
f. If product exhibits a distinct change in performance.
23. Heat
Keep product away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.
24. Safety Check
Upon completion of any service or repairs to this product, ask service technician to perform safety checks to determine that product is in proper operating condition.
These simple precautions will help ensure that you get many years of safe enjoyment from your new product.
Contents/Index
INSTALLATION PAGE 5
CONTENTS
SAFETY TIPS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . 6-12
VCR Features Chart. . . . . . . . . . . . . . . . . . . . . . . . 6
Connections for Your VCR . . . . . . . . . . . . . . . . . . 7-8
Before you operate your VCR . . . . . . . . . . . . . . . 9-12
CONTROLS AND DISPLAYS. . . . . . . . . . . . . . . . . . 13-15
Front Panel Diagram . . . . . . . . . . . . . . . . . . . . . . 13

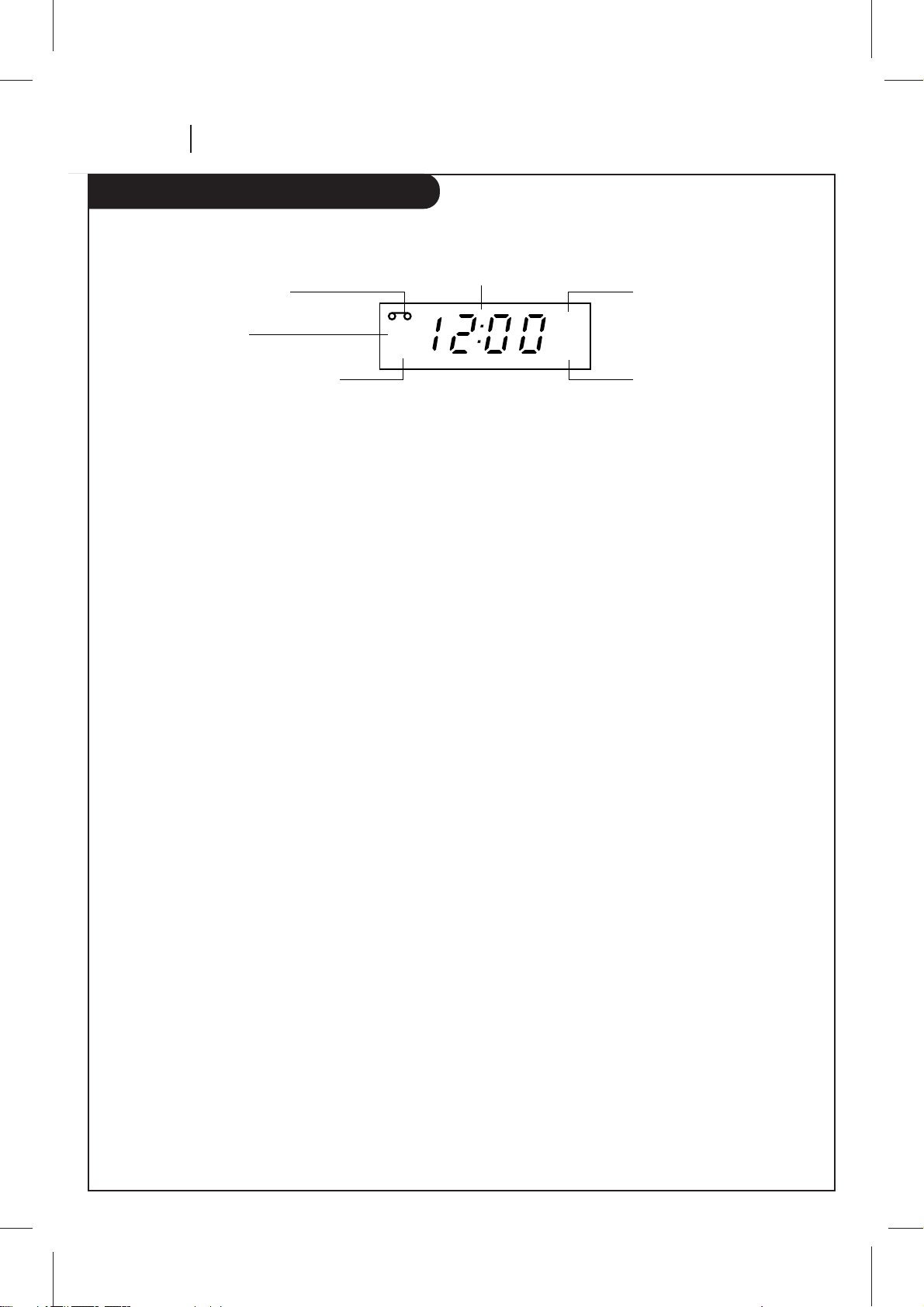

Message Center Front Panel Display . . . . . . . . . . . . 14
VCR Status Displays . . . . . . . . . . . . . . . . . . . . . . 15
OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . 16-30
The Buttons on Your Remote . . . . . . . . . . . . . . . . 16
Programming your remote . . . . . . . . . . . . . . . . . . 17
Clock Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Timer Menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Setup Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Audio Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Watching TV Through the VCR . . . . . . . . . . . . . . . . 22
Camcorder Connected to VCR . . . . . . . . . . . . . . . . 23
Playing Tapes . . . . . . . . . . . . . . . . . . . . . . . . 24-25
Instant Recording . . . . . . . . . . . . . . . . . . . . . 26-28
Recording While You’re Away . . . . . . . . . . . . . . . . 29
Easy Watch Playback. . . . . . . . . . . . . . . . . . . . . . 30
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . 31-33
SPECIFICATIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . 34
WARRANTY. . . . . . . . . . . . . . . . . . . . . . . . . Rear Cover
INDEX
Audio Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Auto Channel Search . . . . . . . . . . . . . . . . . . . . . .11, 20
Connections . . . . . . . . . . . . . . . . . . . . . . . . . . .7-8, 23
Channel Add/Del . . . . . . . . . . . . . . . . . . . . . . . .11, 20
Clock Set . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11, 18
Easy Watch Playback . . . . . . . . . . . . . . . . . . . . . . . .30
Features Chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Front Panel Diagram . . . . . . . . . . . . . . . . . . . . . . . .13
Instant Recording . . . . . . . . . . . . . . . . . . . . . . . .26-28
Language Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Main Menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Message Center Front Panel Display . . . . . . . . . . . . . . .14
Playing Tapes . . . . . . . . . . . . . . . . . . . . . . . . . . .24-25
Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Safety Information . . . . . . . . . . . . . . . . . . . . . . . . .2-4
Setup Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
SpeakEZ Function . . . . . . . . . . . . . . . . . . . . . . . . . .10
Timer Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Timer-Controlled Recording . . . . . . . . . . . . . . . . . . . .29
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . .31-33
VCR Status Displays . . . . . . . . . . . . . . . . . . . . . . . . .15
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . .Rear cover
Watching TV through the VCR . . . . . . . . . . . . . . . . . .21
PAGE 6 INSTALLATION
VCR Features Chart
This page shows the features of your VCR.
FEATURES
SpeakEZ Function
Easy Watch Playback
4-Heads (Special Video Effects)
Full Load/Quick Start
Auto Head Cleaner
MTS Hi-Fi Stereo Audio System
Stereo Audio/Video (A/V) Jacks
Remote Control MBR421T
Auto/Manual Band Select
Auto/Manual Channel Search
181 Channel Capability (CATV & TV)
Record Speeds SP/EP
Playback Speeds SP/LP/EP
Auto Playback System
Auto/Manual Digital Tracking
Instant Recording
Timer-Controlled Recording
Auto Playback Tape Speed Adjust
Slow-Motion Video (4-head VCR); Variable 1/10 to 1/32
Clear Pause/Still Video
Real-Time Tape Counter
Speed Search
CM Skip
English/Spanish/French Menus
1-Year, 8-Event Timer
Message Center Front Panel Display
Auto Clock Set System
Hook-up Cable (VCR to TV)
Energy Saving
VCR design and specifications are subject to change without prior notice.
INSTALLATION PAGE 7
Connections for your VCR
Required connections for your VCR.
Connections With a Cable Box
Connections Without a Cable Box
VHF/UHF
/CATV
ANT.
IN
OUT
TO TV
CH3 CH4
VIDEO
OUT
MONO
LINE1(AUX1)
IN
OUT
IN
R - AUDIO - L
Back Panel of Stereo VCR
Back Panel of Typical TV
Antenna
Flat Wire (300 ohm)
300/75 ohm Adaptor (Not provided)
Cable TV Wall Jack
This cable is provided
with your VCR.
OR
OR
IN
OUT OUT
IN
R
L
AUDIO
VIDEO
VHF/UHF/CATV
ANT
IN
Turn off power or unplug VCR before making any connections.
VHF/UHF
/CATV
ANT.
IN
OUT
TO TV
CH3 CH4
VIDEO
OUT
MONO
LINE1(AUX1)
IN
OUT
IN
R - AUDIO - L
Back Panel of
Typical Cable Box
CH3 CH4
CABLE
OUT IN
Back Panel of Stereo VCR Back Panel of Typical TV
IN IN
OUTOUT
R
L
AUDIO VIDEO
VHF/UHF/CATV
ANT
IN
Cable TV
Wall Jack
This cable is provided
with your VCR.
Turn off power or unplug VCR before making any connections.
Connections for your VCR
PAGE 8 INSTALLATION
Optional connections for your VCR.
Audio/Video (A/V) Connections to TV
Use A/V connections for a better picture.
VHF/UHF
/CATV
ANT.
IN
OUT
TO TV
CH3 CH4
VIDEO
OUT
MONO
LINE1(AUX1)
IN
OUT
IN
R - AUDIO - L
OUT
IN
OUT
IN
R-AUDIO-L VIDEO
VHF/UHF/CATV
ANT
IN
Back Panel of Typical TV
A/V cable is not provided with VCR.
Back Panel of Stereo VCR
VHF/UHF
/CATV
ANT.
IN
OUT
TO TV
CH3 CH4
VIDEO
OUT
MONO
LINE1(AUX1)
IN
OUT
IN
R - AUDIO - L
Back Panel of Stereo VCR
OUT
IN
OUT
IN
R-AUDIO-L VIDEO
Jack panel of Accessory
A/V cable is not provided with VCR.
Turn off power or unplug VCR before making any connections.
Turn off power or unplug VCR before making any connections.
Accessory Component: Another VCR, Camcorder, Video Camera, Satellite Receiver, Laser Disc Player
Accessory Audio/Video (A/V) Connections to VCR
INSTALLATION PAGE 9
Before you operate your VCR
Things you must do before you can operate your VCR.
Press number keys
QUIT = exit
SpeakEZ
CLOCK : 1 TIMER : 2 SETUP : 3 AUDIO : 4
PROGRAM 1 MONTH : DAY : START : STOP : CHANNEL : SPEED : REPEAT: (1-8) to select program ENTER to adjust program
Press number keys
QUIT = exit
SETUP MENU
AUTO PROGRAM: 1 CH. ADD/DEL: 2 SOURCE: 3 ON-SCREEN DISPLAY: 4 LANGUAGE SELECT: 5
CLOCK
MAIN MENU
TIMER SETUP AUDIO
Press NUMBER (1, 2, 3, 4) button
CLOCK MENU
AUTO CLOCK SET(ON): 1 MANUAL CLOCK SET : 2
Press number keys
QUIT = exit
Press number keys then ENTER QUIT = exit
AUDIO MENU
SpeakEZ: ON 1 ON 2 OFF PLAYBACK: HI-FI
RECORD: STEREO
How to Access Menus
Menu operation is easy—just follow the instructions shown at the bottom of the menu.
1. Press MENU to see main menu.
2. Press NUMBER (1, 2, 3, or 4) to see desired sub menu to be used.
3. Press NUMBER to choose desired option to be changed.
4. Press QUIT/CC to exit menu, or wait a few minutes and the VCR returns to normal operation.
Note:
Perform menu operations with the VCR and TV on, and tune the TV to channel 3 or 4. The VCR must also be in the VCR mode of operation. Press the TV/VCR button repeatedly until VCR indicator light appears in the front panel.
Point remote toward VCR
vcr
cbl/ dbs
tv
power
eject
ch
ch
vol
vol
menu
enter
quit/cc
rec/itr
123
456
789
tv/vcr
adj
EZ watch
0
cm skip
sp/ep program
sel
memory
mute
p
a
u
s
e
s
t
o
p
play
rew f fwd
PAGE 10 INSTALLATION
Before you operate your VCR
Things you must do before you can operate your VCR.
Connect the Power
(Required) Plug your VCR into an unswitched
120 Vac, 60 Hz household power outlet. Turn on the VCR by pressing the POWER on the remote or on the VCR’s front panel. While plugged into an AC outlet, the VCR consumes 3W of electrical power in OFF condition.
Do not plug the VCR into a switched power outlet. Otherwise, when the power is switched off, the VCR turns off. You may then have to reset the time and date, and reprogram operational features.
Set your VCR’s Clock and Tuner automatically
After you connect an antenna (or cable company), and you plug your VCR into a 120 Vac, 60 Hz power outlet, the VCR will set the clock and place channels into memory automatically. The “SCH” message will blink for 2~5 minutes in the VCR’s front panel display during auto setting.
The auto clock set works only in areas where Data Service (DS) signals are provided along with normal TV signals. If there is not channel that is memorized, “no” will appear.
Set Position of the CH3/CH4 Switch
(Required) The CH3/CH4 switch on the VCR’s
back panel determines which channel the VCR uses to send video signals to your TV. The TV must be tuned to the same channel you set with the CH3/CH4 switch to see tape playback and status displays from the VCR. To determine which video channel provides the best picture for your system, try the switch in CH3 position and tune your TV to channel 3; then try the CH4 position and tune your TV to channel 4.
For a test display, press the TV/VCR button on remote repeatedly until the VCR indicator light appears in the VCR’s front panel display. Press MENU on the remote to see the main menu.
Select SpeakEZ Function (On/Off)
A voice tells you how to use the features in the menus if SpeakEZ is ON. (ON is recommended.) See the AUDIO Menu for details.
SpeakEZ only functions with ENGLISH.
3
4
1
2
TYPICAL ZENITH VCR
WALL
SWITCH
120V, 60Hz
POWER OUTLET
Tune TV to
Ch.3
CH3 CH4
Tune TV to
Ch.4
CH3 CH4
OR
EZ watch
rec/itr
ch
stop/ejectpower
rew f fwd
play
pause
REC VCR
TIMER
AM
video l - audio - r
aux 2
MAIN MENU
Press NUMBER (1 or 2) to
choose ON or OFF
Press 4.
SpeakEZ
CLOCK : 1 TIMER : 2 SETUP : 3 AUDIO : 4
Press number keys
QUIT = exit
AUDIO MENU
SpeakEZ: ON 1 ON 2 OFF PLAYBACK: HI-FI
RECORD: STEREO
Press number keys then ENTER QUIT = exit
INSTALLATION PAGE 11
Before you operate your VCR
Some things you must do and others you may want to do before you can operate your VCR.
Select Language for VCR Menus/Displays
(Optional) Select English, Spanish, or French for
VCR menus and status displays. See the LANGUAGE SELECT option on the SETUP menu for details.
Set Date and Time for Clock
Set the clock in the VCR to the current date and time. See CLOCK Menu on page 18 for details.
Your VCR also has an Auto-Clock Set feature. See CLOCK Menu for details.
The Timer feature will not function unless the Clock has been set.
Select Source for VCR
(Optional) Set the source of the VCR for the
type of program signal you have connected to the ANT IN jack on the back of the VCR. Choose TV if you have an antenna connected to the VCR. Choose CATV if you have a cable system (with or without a cable box) connected to the VCR. Choose AUX1 (or AUX2) if you have an accessory Audio/Video (A/V) connected to the VCR. See SOURCE option on SETUP menu (page 19) for details.
Use Auto Program to Find Channels
(Required) Use AUTO PROGRAM to find active
channels in your broadcast area. AUTO PROGRAM stores the active channels that you can access by using the CH (▼/▲). See AUTO PROGRAM on the SETUP Menu (page 20) for details.
6
7
8
5
CLOCK MENU
AUTO CLOCK SET(ON): 1 MANUAL CLOCK SET : 2
Press number keys
QUIT = exit
CLOCK MENU
MONTH : 1 JANUARY DAY : 1 SAT YEAR : 2000 TIME : 12:00 AM
Press number keys then ENTER QUIT = exit
CLOCK MENU
Press NUMBER (0-9) then
ENTER to set date and time
Press 2.
Press number keys
QUIT = exit
SETUP MENU
AUTO PROGRAM: 1 CH. ADD/DEL: 2 SOURCE: 3 ON-SCREEN DISPLAY: 4 LANGUAGE SELECT: 5
Press number keys then ENTER QUIT = exit
SETUP MENU
SOURCE: TUNER (TV)
1 TV 2 CATV 3 AUX1 4 AUX2
SETUP MENU
Press NUMBER (1, 2, 3 or 4)
to select the desired source
Press 3.
Press number keys
QUIT = exit
SETUP MENU
AUTO PROGRAM: 1 CH. ADD/DEL: 2 SOURCE: 3 ON-SCREEN DISPLAY: 4 LANGUAGE SELECT: 5
QUIT = exit
SETUP MENU
AUTO PROGRAM: SEARCHING
SETUP MENU
Press 1.
SETUP MENU
Press NUMBER (1, 2, or 3)
to select the desired
language
Press 5.
SETUP MENU
AUTO PROGRAM: 1 CH. ADD/DEL: 2 SOURCE: 3 ON-SCREEN DISPLAY: 4 LANGUAGE SELECT: 5
Press number keys
QUIT = exit
SETUP MENU
LANGUAGE SELECT : ENGLISH 1 ENGLISH 2 ESPAÑOL 3 FRANÇAIS Press number keys then ENTER QUIT = exit
Before you operate your VCR
PAGE 12 INSTALLATION
Things you may want to do before you operate your VCR.
9
Use CH. ADD/DEL to Create Favorite Channels
(Optional) Use CH. ADD/DEL to change the list
of active channels found when using AUTO PROGRAM, so you can list your favorites. See CH. ADD/DEL on the SETUP Menu (page 20) for details.
Select Other Menu Options
Show or hide the VCR status on your screen by using the ON-SCREEN DISPLAY option on the SETUP menu. We recommend keeping this option ON. See the SETUP menu for details.
If you have a stereo VCR, press ENTER to select the audio format (HI-FI or NORMAL) to use when you play a tape. We recommend setting this option to HI-FI. See the PLAYBACK MODE option on the AUDIO Menu for details.
If you have a stereo VCR, press ENTER to select the audio format (STEREO, MONO or SAP) to use when recording. We recommend using STEREO. See the RECORD MODE option on the AUDIO Menu for details.
Press number keys
QUIT = exit
SETUP MENU
AUTO PROGRAM: 1 CH. ADD/DEL: 2 SOURCE: 3 ON-SCREEN DISPLAY: 4
LANGUAGE SELECT: 5 Press number keys then ENTER QUIT = exit
SETUP MENU
ON-SCREEN DISPLAY: ON
1 ON 2 OFF
SETUP MENU
Press NUMBER (1 or 2) to
choose ON or OFF
Press 4.
SpeakEZ
CLOCK : 1 TIMER : 2 SETUP : 3 AUDIO : 4
Press number keys
QUIT = exit
Press number keys then ENTER QUIT = exit
AUDIO MENU
SpeakEZ: ON PLAYBACK: HI-FI 1 HI-FI
2 NORMAL
RECORD: STEREO
MAIN MENU
Press NUMBER (1 or 2) to
choose HI-FI or NORMAL
Press 4.
SpeakEZ
CLOCK : 1 TIMER : 2 SETUP : 3 AUDIO : 4
Press number keys
QUIT = exit
Press number keys then ENTER QUIT = exit
AUDIO MENU
SpeakEZ: ON PLAYBACK: HI-FI
RECORD: STEREO 1 STEREO
2 MONO 3 SAP
MAIN MENU
Press NUMBER (1, 2 or 3)
to choose STEREO, MONO,
or SAP
Press 4.
SETUP MENU
Press NUMBER (0-9)
then ENTER
Press 2.
10
SETUP MENU
AUTO PROGRAM: 1 CH. ADD/DEL: 2 SOURCE: 3 ON-SCREEN DISPLAY: 4 LANGUAGE SELECT: 5
Press number keys
QUIT = exit
SETUP MENU
CH. ADD/DEL: CH. 2 ADD
Press number keys then ENTER QUIT = exit
CONTROLS AND DISPLAYS PAGE 13
Front Panel Diagram
Descriptions of items you need to know to operate your VCR.
Front Panel Controls
These controls perform basic VCR operations—some of them light up as you use them. The Remote performs basic as well as advanced VCR operations.
EZ watch
rec/itr
ch
stop/ejectpower
rew f fwd
play
pause
REC VCR
TIMER
AM
video l - audio - r
aux 2
POWER On/Off
Button
Cassette
Compartment
Channel Up/Down
Selector
Stop/Eject
Selector
PLAY, REW (Rewind), F FWD (Fast
Forward), PAUSE Selector
Message Center Front
Panel Display
Easy Watch Button
and Indicator
REC/ITR
(Instant Timer
Record) Selector
Audio/Video (A/V)
Auxiliary In Jacks
(AUX2)
PAGE 14 CONTROLS AND DISPLAYS
Message center front panel display
A Cassette is in the VCR
VCR functions are available and channels are selected at VCR
Clock/Tape operation indicator
VCR is in timer recording
Time is AM
VCR is Recording
Front Panel Display shows which VCR function you are using. For example, when you press SP/EP, SP or EP appears to indicate the tape speed. As you change channels, the channel numbers appear. The current time shows even while the VCR is off.
Auto Setup Message
SCH — This message will blink during auto setting. no — After auto setting, if there is not channel that is
memoried, “no” will appear.
Playback Messages
Err — Turn VCR On and OFF to erase “Err” message. If it is
not erased, take VCR to an authorized repair center.
FF (Fast Forward) — Tape is advancing rapidly. CUE — Tape is advancing rapidly in playback mode for
visual search.
-CUE — Tape is reversing rapidly in playback mode for visual search.
PLAY — Tape is playing at normal playback speed. REW (Rewind) — Tape is rewinding rapidly. SLW — Tape is playing at slow-motion speed. ST:LL — Playback is halted on one frame. STOP — Tape rewind or playback is stopped.
Record Message
Err — Turn VCR On and OFF to erase “Err” message. If it is
not erased, take VCR to an authorized repair center.
PAUS — Record mode is halted. SP or EP — Displays the recording speed. REC — VCR is recording. STOP — Recording is stopped.
Tuner Messages
AU_ (Auxiliary_) — Auxiliary channel is selected for view-
ing equipment connected to Audio/Video jacks on front or rear of the VCR.
ch _ — VCR tuned to Channel _. HI — VCR is turned on. BYE — VCR is turned off.
Information appears in the Front Panel Display depending on the VCR function being used.
TIMER REC VCR
AM
CONTROLS AND DISPLAYS PAGE 15
VCR Status Displays
On-Screen displays tell you the status of the tape inserted and VCR functions.
VCR Status Display
The VCR Status Display appears on the TV when a VCR function starts, like when you change a channel or select a different VCR mode. For example, pressing STOP while the VCR is in PLAY mode shows STOP in the display. Press ENTER on the remote at any time (except Special Effects Playback mode; SLOW, STILL etc.) to see the Status Display.
Note:
If the VCR Status Display does not appear on the TV screen, check the ON-SCREEN DISPLAY option on the SETUP menu. Select ON to see the display. See “Setup Menu” section for details.
VCR Status Display Options
When the Status Display appears, press ENTER repeatedly to see abbreviated displays, as follows:
1. Press ENTER to see Status Display.
2. Press ENTER a second time to show only the tape counter position.
3. Press ENTER a third time to show only the tape time remaining.
4. Press ENTER repeatedly until all displays are removed.
PLAY HI-FI VCR CH 11 SP ST/SAP
15 MON 7:17 AM M-1:35:45
M-1:35:45 REM 1:35
Current mode of operation (STOP, PAUSE, RECORD, PLAY, etc.) and audio format of tape, where Play=HI-FI or NORMAL(No display)
Tape Speed
EP=Extended Play LP=Long Play SP=Standard Play
Current date, day, and time
Current CH (Channel) selected by using tuner in VCR
Audio format of signal received by VCR tuner: STEREO, MONO or ST/SAP
Real-time tape counter M = Counter Memory is active – = Tape is rewound past index
mark.
1:35:45 = Length of tape (in time)
1 = 1 hour 35 = 35 minutes 45 = 45 seconds
Typical VCR Status Display on TV
Tape Counter Position
Tape Time Remaining
PAGE 16 OPERATION
The Buttons on Your Remote
A quick list of all the buttons on your remote control and what they do.
Installing Batteries
Be sure to install the batteries provided with this remote. Match positive (+) and negative (-) with markings shown in battery compartment.
After installing batteries, the remote resets to the following brand codes: TV = 100, CABLE = 300
Note: All VCR operations and menu options can be accessed by using the remote control.
ADJ (Adjust) (
F/G
) — Adjusts tape playback tracking while in VCR mode. Use to change status of Zenith TV menu options while in TV mode.
CH (▼/▲) — Channel Selectors. Also selects AUX A/V input channel.
CM SKIP — Fast forwards picture search through 30 seconds of recording.
EJECT — Ejects the tape from the VCR.
ENTER — Programs menu options and shows VCR display.
EZ WATCH — Press to play back the portion you just
recorded.
F FWD (Fast Forward)—Advances tape rapidly.
MEMORY — Returns real-time tape counter to zero
(M 0:00:00).
MENU — Shows main menu. Accesses Zenith TV menus while in the TV mode.
MUTE — Press to turn off TV sound. Press again to restore TV sound.
Numbers — Chooses channels and enters programming information.
PAUSE — Pauses tape temporarily during playback or
record.
PLAY — Begins tape playback.
POWER — Turns VCR On and Off. Also turns VCR Timer Off
and On, if programmed.
PROGRAM — Programs remote with brand codes for your brand of TV and/or cable box (DBS).
QUIT/CC — Exits menu system. Selects closed caption for Zenith TV while in TV mode.
REC/ITR — Begins tape recording.
REW (Rewind) — Rewinds tape to the beginning.
SEL (Select) (▼/▲) — Chooses Zenith TV on-screen menu
options while in TV mode.
SP/EP — Chooses tape recording speed.
STOP — Cancels playback or record modes.
TV/VCR — Switches source of TV picture between TV
channel and VCR channel selection. VCR functions are available in VCR mode.
VCR/CBL(DBS)/TV — Selects operational mode of remote.
VOL (Volume) (▼/▲) — Changes volume of TV.
Remote Control Operation
vcr
cbl/ dbs
tv
power
eject
ch
ch
vol
vol
menu
enter
quit/cc
rec/itr
123
456
789
tv/vcr
adj
EZ watch
0
cm skip
sp/ep program
sel
memory
mute
p
a
u
s
e
s
t
o
p
play
rew f fwd
Select VCR Mode,
aim at VCR
Select TV Mode,
aim at TV
Select CBL(DBS) Mode,
aim at cable box or DBS
POWER Button
MODE Selector
CBL
VCR/DBS/TV
Selecting Mode of Operation
1. Slide VCR/CBL(DBS)/TV selector to desired position for VCR, cable box (DBS), or TV operation.
2. Press POWER to turn On/Off the selected equipment.
3. Refer to instructions with TV and/or cable box (DBS) for operation.
EZ watch
rec/itr
ch
stop/ejectpower
rew f fwd
play
pause
REC VCR
TIMER
AM
video l - audio - r
aux 2
AA
AA
OPERATION PAGE 17
Programming Your Remote
Your remote control operates the common features of most, but not all, models and brands of IR (infrared) controlled TVs and cable converters (DBS).
Some functions of your particular equipment may not be controlled by this remote. In such cases, use the original remote control for your equipment. If you are using Zenith products, the remote comes programmed for the most commonly used codes. For other brands — or if your remote fails to control your Zenith product — you will have to program the remote.
Follow these steps for each product:
1. Locate the three-digit code for your brand and type of equipment in the code tables below.
2. Slide VCR/CBL(DBS)/TV to choose TV or cable box (DBS) mode of operation.
3. Press and hold PROGRAM while entering the brand code for your equipment.
4. Enter the three-digit brand code and then release PROGRAM. If your equipment does not work, repeat steps 3 and 4, or try a different brand code.
5. Write down the code that operates your equipment. TV
, CATV , DBS
vcr
cbl/ dbs
tv
power
eject
ch
ch
vol
vol
menu
enter
quit/cc
rec/itr
123
456
789
tv/vcr
adj
EZ watch
0
cm skip
sp/ep program
sel
memory
mute
p
a
u
s
e
s
t
o
p
play
rew f fwd
VCR/CBL(DBS)/TV Mode Selector
Program Button
TV Codes by Brand
TV Brand Name Codes
ADMIRAL 110, 113, 144, 151, 152 AKAI 115 AMARK 131 AOC 115 BELL & HOWELL 113 BROKSONIC 140, 143 CANDLE 158 CENTURION 130 CITIZEN 156, 157, 158, 159, 160, 161, 162 CORONADO 131 CROWN 131 CURTIS MATHES 113, 115, 118, 130, 144, 151 DAEWOO 145, 146, 147, 148, 149, 150 DAYTRON 115, 130 EMERSON 110, 111, 115, 131, 140, 143 FISHER 116, 125 FUNAI 153, 154 GENERAL ELECTRIC 102, 118, 127, 128, 133, 144, 151 HITACHI 119, 131, 132 JC PENNEY 102, 115, 124, 130, 133 JVC 109, 141 KMC 131 KTV 115, 130, 131, 138 LG (GOLDSTAR) 115, 122, 130, 131, 133, 146 LODGENET 113 LOGIK 113 LXI 104, 116, 123, 124, 125, 131, 139 MAGNAVOX 100, 106, 107, 109, 114, 115, 121
122, 130, 131, 133, 158 MAJESTIC 113 MARANTZ 103, 115 MEMOREX 113 MGA/MITSUBISHI 103, 114, 115, 130 MONTGOMERY WARD 103, 113, 114, 115, 121, 129,
130, 131, 139 NEC 115, 130 PANASONIC 104, 122, 127, 128, 133, 163 PHILCO 115, 121, 122, 130, 131, 150 PHILIPS 121, 122 PIONEER 134
TV Codes by Brand
TV Brand Name Codes
PORTLAND 131 PROSCAN 118, 144, 151 QUASAR 127, 128 RADIO SHACK 110, 111, 129 RCA 115, 118, 144, 151 REALISTIC 110, 111, 129 SAMPO 130 SAMSUNG 104, 115, 130, 131 SANYO 116, 125 SCOTT 115, 130 SEARS 104, 116, 123, 124, 125, 131 SHARP 112, 129, 131, 139 SIGNATURE 2000 102, 113, 114, 115, 121, 129,
130, 131, 139 SONY 105 SOUNDESIGN 158 SYLVANIA 106, 107, 115, 121, 122, 130,
133, 158 SYMPHONIC 153, 154 TATUNG 128 TEKNIKA 110, 113, 122, 131, 158 TELERENT 113, 131 YORX 130 TOSHIBA 104, 123, 124 WARDS 102, 113, 114, 115, 121, 130, 131 XR1000 155 ZENITH 100, 101
Cable Converter Codes by Brand
Cable Decoder
Codes
Brand Name
ALLEGRO 351 ARCHER 336 CABLEVIEW 336 CITIZEN 336 CURTIS MATHES 317 EAGLE 306, 307, 310 GEMINI 302, 327, 328, 333 GENERAL ELECTRIC 353 GENERAL INSTRUMENT 324, 326, 327, 328 GOBRAND 336
Cable Converter Codes by Brand
Cable Decoder Codes Brand Name
HAMLIN 314, 330, 331 JERROLD 323, 324, 325, 326, 327, 329 KALE VISION 334 MACOM 311, 312, 342 MAGNAVOX 306, 307, 310, 334, 337, 338 NSC 332 OAK 301, 321, 322 PANASONIC 313, 318, 320 PARAGON 300 PHILIPS 306, 307, 308, 309, 310 PIONEER 318, 319 PLUSER 336 RCA 318 REGAL 310 REGENCY 304 SAMSUNG 318, 327, 334 SCIENTIFIC ATLANTA 317, 335, 347, 354 SLMARX 318, 327 SPRUCER 318, 320, 327 STANDARD COMPONENTS
334 STARGATE 318, 327, 328 TELEVIEW 318, 327, 336 TEXSCAN 303 TOCOM 315, 316 UNIDEN 348 UNIKA 336 UNIVERSAL 351, 352 VID TECH 339 VIDEO WAY 300, 349 VIEWSTAR 306, 307, 310 ZENITH 300, 305, 311 ZENITH HT-2000 300
DBS Codes by Brand
DBS Brand Name
Codes
RCA 356 SONY 355
PAGE 18 OPERATION
Clock Menu
The Clock Menu sets the clock in the VCR to the current time. There are two options AUTO and MANUAL.
Auto Clock Set
AUTO automatically sets the clock in the VCR to the current time and date. AUTO works only in areas where Data Service (DS) signals are provided along with normal TV signals.
1. Press MENU to see Main Menu.
2. Press 1 to see Clock Menu.
3. Press 1 to set the current time automatically on the Clock Menu.
Notes:
We recommend that you set the clock using the MANUAL method the first time you use your VCR. See MANUAL option for details.
The clock must be set before you can record by using the TIMER.
Manual Clock Set
The CLOCK Menu allows you to set the clock in the VCR to the current date and time.
Notes:
The clock must be set before you can record, using the TIMER menu.
You may have to reset the clock and other features if a power outage lasts for more than 3 seconds.
If you use the Manual option. The AUTO CLOCK SET mode will be turned to OFF
How to Set Clock
1. Press MENU to see Main Menu.
2. Press 1 to see clock options.
3. Press 2 to adjust your options.
4. First insert the month number (5=MAY, 6=JUNE etc).
5. Press ENTER to move to next option.
6. Press QUIT/CC to exit the menu system.
CLOCK MENU
MONTH : 1 JANUARY DAY : 1 SAT YEAR : 2000 TIME : 12:00 AM
Press number keys then ENTER QUIT = exit
CLOCK MENU
AUTO CLOCK SET(ON): 1 MANUAL CLOCK SET : 2
Press number keys
QUIT = exit
Typical CLOCK Menu with
date and time settings
OPERATION PAGE 19
Timer Menu
The TIMER Menu tells the VCR when to record a program on a day and at a time you specify.
PROGRAM 1 MONTH : 7 JULY DAY : 20 THU START : 11:16 AM STOP : 11:46 AM CHANNEL : 20 TV SPEED : EP REPEAT: ONCE (1-8) to select program To erase press (0)
Timer will be on
when VCR is off
PROGRAM 1 MONTH : 7 JULY DAY : 20 THU START : 11:16 AM STOP : 11:46 AM CHANNEL : 20 TV SPEED : EP REPEAT: ONCE (1-8) to select program To erase press (0)
You can specify eight different events to be recorded in a one-year period.
SpeakEZ
CLOCK : 1 TIMER : 2 SETUP : 3 AUDIO : 4
Press number keys
QUIT = exit
PROGRAM 1 MONTH : DAY : START : STOP : CHANNEL : SPEED : REPEAT: (1-8) to select program ENTER to adjust program
PROGRAM 8 MONTH : DAY : START : STOP : CHANNEL : SPEED : REPEAT: (1-8) to select program ENTER to adjust program
Press 2
Press QUIT/CC
Month of Recording
Day of Recording
Start Time of Recording
Stop Time of Recording
Channel of Recording
Speed of Recording
Frequency of Recording
Program Number When highlighted, press NUMBER (1-8) to choose program Number.
REPEAT OPTIONS
ONCE — Records once. WEEKLY — Records once each week. DAILY — Records one time each day,
Monday - Friday.
CHANNEL OPTIONS
To select an AUX channel, select the next highest or lowest channel programmed in the VCR with the CH (▼/▲).
SPEED OPTIONS (SP or EP)
The SP mode determines how much tape is left and switches speed from SP to EP, if necessary, to complete recording the program. There will be some picture and sound distortion at the point of the speed change.
AM/PM OPTIONS
Press 1 for AM Press 2 for PM
Press 0 to erase program
Follow these steps
How to Use Timer
1. Press MENU to see main menu.
2. Press 2 to see the TIMER menu.
3. When the TIMER menu is displayed on screen, press the
NUMBER button to select the correct month, then press the ENTER button again to move the next option or setting.
4. When you have entered all of the settings to your
satisfaction, press QUIT/CC to exit the menu system.
Note:
Set the VCR in TIMER mode by pressing POWER to turn off the VCR. The TIMER indicator light appears in the front panel of the VCR.
You cannot operate the VCR manually while it is recording. Pressing POWER stops the recording.
To Erase a Program
1. Press MENU to see main menu.
2. Press 2 to see the TIMER menu.
3. Press NUMBER(1-8) to select desired PROGRAM to be erased.
4. Press 0 to erase the program.
5. Press QUIT/CC to exit the menu system.
PAGE 20 OPERATION
Setup Menu
The SETUP Menu customizes the VCR’s operation for your particular needs.
Press number keys
QUIT = exit
SETUP MENU
AUTO PROGRAM: 1 CH. ADD/DEL: 2 SOURCE: 3 ON-SCREEN DISPLAY: 4 LANGUAGE SELECT: 5
1. Press MENU to see main menu.
2. Press 3 to see the SETUP menu.
3. Press NUMBER to choose desired option to be
changed.
AUTO PROGRAM Finds all active channels and stores them in the VCR’s memory for access by CH (▼/▲). Press
1 to begin search.
CH. ADD/DEL Edits the channels found by AUTO PROGRAM. Use number keys followed by ENTER to select
the channel to be edited (e.g., to ADD channel 3, press 3 then ENTER). Press ENTER to ADD or DEL (Delete) channels to create your own list of favorite channels.
SOURCE Selects TV, CATV, AUX1, or AUX2 as the source of the program to watch or record. Choose TV if
you have an antenna connected to the VCR. Choose CATV if you have a cable system (with or without a cable box) connected to the VCR. Choose AUX1 if you want to see the program from accessory equipment, such as a camcorder, connected to the Audio/Video (A/V) IN jacks on the VCR rear panel. Choose AUX2 if you want to see the program from accessory equipment, such as a camcorder, connected to the Audio/Video (A/V) IN jacks on the VCR front panel.
ON-SCREEN DISPLAY Selects whether or not you see VCR Status Displays on the TV.
LANGUAGE SELECT Selects English, Spanish or French for VCR menus and displays on the TV.
OPERATION PAGE 21
Audio Menu
The AUDIO Menu specifies the audio format to be used when recording or playing a tape.
SpeakEZ Turns SpeakEZ ON or OFF.
A voice tells you how to use the features you select in the menus if SpeakEZ is ON. (ON is recommended.)
PLAYBACK Selects HI-FI or NORMAL for tape playback.
HI-FI (High Fidelity) provides stereo sound, if present on the tape, to the left and right VCR AUDIO output jacks on the back of the VCR. NORMAL provides monaural sound, regardless of the audio format present on the tape.
RECORD Select the STEREO, MONO, or SAP for recording a program.
STEREO records sound from the left and right audio tracks in stereophonic format. MONO (Monaural) records sound in monaural format even if the program is in stereo. SAP records the Second Audio Program (SAP) track, if present, in addition to the stereo audio tracks. SAP usually contains audio in another language.
The AUDIO Menu indicates the audio format used when recording or playing a tape.
1. Press MENU to see main menu.
2. Press 4 to see the AUDIO menu.
3. Press 1 or 2 to turn SpeakEZ ON or OFF.
4. Press ENTER (and repeat) to choose items in the menu.
Press number keys then ENTER QUIT = exit
AUDIO MENU
SpeakEZ: ON 1 ON 2 OFF PLAYBACK: HI-FI
RECORD: STEREO
PAGE 22 OPERATION
Watching TV Through the VCR
This page shows a typical video system and explains how to select channels.
Selecting Channels when the VCR is OFF
1. Turn TV on.
2. Select channel you’d like to watch at the TV. If you have
a cable box, select channel 3 or 4 at the TV. Select cable box channels at the cable box.
Selecting Channels at the TV when VCR is ON
1. Turn TV and VCR on.
2. Place VCR in TV mode by pressing the TV/VCR button on
the remote control repeatedly until the VCR indicator disappears from the front panel of the VCR.
3. Select channel you’d like to watch at the TV. If you have
a cable box, select channel 3 or 4 at the TV. Select cable box channels at the cable box.
Selecting Channels at the VCR when VCR is ON
1. Turn TV and VCR on.
2. Place VCR in VCR mode by pressing the TV/VCR button on the remote control repeatedly until the VCR indicator appears in the front panel of the VCR.
3. Select channels 3 or 4 at the TV. If your TV is equipped with A/V input jacks, check your TV operating manual to select the A/V source for a better picture.
4. Select the channel you’d like to watch at the VCR. If you have a cable box, select channel 3 or 4 at the VCR. Select cable box channels at the cable box.
IN OUT
Audio/Video Output to TV
VCR Output to TV (Channel 3 or 4 when VCR is on and TV/VCR is in VCR position)
CH3 CH4
Cable Box
Output to VCR
From
Cable- TV
System
Direct Cable
All-Channel
Antenna
Cable TV
Wall Jack
Typical Cable Box
OUT
VHF/UHF/CATV
IN
AUDIO
OUT
VIDEO
OUT
RL
34
CHANNEL
Zenith Stereo VCR
VHF-UHF
CABLE IN
VIDEOINAUDIO
IN
RL
Zenith TV
Or
Or
OPERATION PAGE 23
Camcorder Connected to VCR
This page describes how to connect a camcorder to your VCR.
EZ watch
stop/ejectpower
video l - audio - r
aux 2
Front Panel of Stereo VCR
A/V cable is not provided with VCR.
Select AUX for Viewing an Audio/Video source like a Camcorder
1. With TV and VCR on, place VCR in VCR mode by pressing the TV/VCR button on the remote (and repeat) until the VCR indicator light appears in the VCR’s front panel.
2. Select channel 3 (or 4) on the TV. Note: If your TV has A/V jacks, you may get a better picture if you connect your VCR there. (Then, select the A/V source on the TV.)
3. At the VCR, Channel Down lower than the lowest channel (or Channel Up above the highest) to select “AUX2”.
You can also choose the SETUP menu as described below.
Press MENU to see main menu.
Press 3 to see the SETUP menu.
Press 3 for the SETUP menu’s SOURCE item.
Press 4 for AUX2, then ENTER. (Press QUIT/CC to exit.)
Items in the Menu
Turn off power or unplug VCR before making any connections.
Press number keys then ENTER QUIT = exit
SETUP MENU
SOURCE: TUNER (TV)
1 TV 2 CATV 3 AUX1 4 AUX2
Press 4 to select AUX2
SOURCE Shows the program source—TV, CATV, or AUX—selected for the VCR to receive.
TUNER The VCR is using its Tuner to receive programs from an antenna or cable.
TV Selects programs for the VCR from a rooftop-type antenna.
CATV Selects programs for the VCR from Cable TV.
AUX1 Selects programs for the VCR from the rear R-AUDIO-L—VIDEO IN jacks (where you may have connected your
camcorder).
AUX2 Selects programs for the VCR from the front R-AUDIO-L—VIDEO IN jacks (where you may have connected your
camcorder).
PAGE 24 OPERATION
Playing Tapes
This page explains the basics of playing tapes in your VCR.
Automatic Playback (No Safety Tab)
1. Tape playback begins automatically, if the safety tab has been removed from the cassette case. For example, most rental movies have no safety tab. Simply insert the prerecorded VHS cassette into the VCR. Power will turn on automatically and playback will begin.
2. Select the channel 3 or 4 at the TV or select the TV’s AUX (Auxiliary) source to see the picture, if you are using the A/V jacks. Refer to page 7 and 8.
Manual Playback (Has Safety Tab)
1. Press POWER to turn VCR on.
2. Insert a prerecorded VHS cassette into the VCR.
3. Press PLAY to begin playback.
4. Select the channel 3 or 4 at the TV or select the TV’s AUX (Auxiliary) source to see the picture, if you are using the A/V jacks. Refer to your TV operating manual.
Unloading the Cassette from the VCR
1. Press STOP if the tape is playing.
2. Press STOP/EJECT at the VCR until the cassette is ejected.
Note:
This VCR records only in SP and EP speeds. Your VCR sets the playback speed automatically to the speed used to record the tape.
(Continued on next page)
Cassette
Safety Tab
Shown in
Place
VHS Cassette Playback/Record Times
Cassette SP LP EP
Length (Standard Play) (Long Play) (Extended Play)
T-30 30 Minutes 1 Hour 1 Hour,
30 Minutes
T-60 1 Hour 2 Hours 3 Hours
T-120 2 Hours 4 Hours 6 Hours
T-160 2 Hours, 5 Hours, 8 Hours
40 Minutes 20 Minutes
POWER
PLAY
STOP
TV/VCR
vcr
cbl/ dbs
tv
power
eject
ch
ch
vol
vol
menu
enter
quit/cc
rec/itr
123
456
789
tv/vcr
adj
EZ watch
0
cm skip
sp/ep program
sel
memory
mute
p
a
u
s
e
s
t
o
p
play
rew f fwd
stop/ejectpower
play
VCR’s Controls
OPERATION PAGE 25
Playing Tapes
Auto/Manual Tracking Adjustment
Your VCR adjusts tracking automatically when you play a tape. If the tape was recorded on a different VCR, streaks (video noise) may appear. While the tape is playing, press ADJ (
F/G
) to
adjust the tracking manually.
Real-Time Tape Counter
Press ENTER twice to keep the tape counter on the TV screen. Press ENTER repeatedly to remove all displays. The counter resets to 0:00:00 when you insert a cassette or when a tape is rewound to its beginning.
Pause/Slow-Motion Video
(While in play mode) Press PAUSE for still video. While in still video mode, press F FWD or REW for slow motion. Press F FWD or REW to control slow speed during slow motion. Press PLAY to resume normal tape playing.
Tape Rewind and Fast Forward
(While in Stop mode) Press and release REW or F FWD (Fast Forward), as desired. Press STOP when tape reaches desired location.
Reverse/Forward Search
(While in Play mode) Press and release REW or F FWD, as desired. Press PLAY to resume normal tape playing.
CM Skip (Commercial Skip)
(While in play mode) Pressing CM SKIP on the remote skips commercials or other program material. Pressing 1, 2, 3, or 4 times skips 30, 60, 90, or 120 seconds, respectively. CM SKIP skips a full 120 seconds of commercials in a few seconds, then resumes normal playback.
This page explains how to use the remote to play tapes on your VCR.
vcr
cbl/
dbs
tv
power
eject
ch
ch
vol
vol
menu
enter
quit/cc
rec/itr
123
456
789
tv/vcr
adj
EZ watch
0
cm skip
sp/ep program
sel
memory
mute
p
a
u
s
e
s
t
o
p
play
rew f fwd
POWER
ENTER
PAUS E
REW (Rewind)
PLAY
F FWD (Fast Forward)
STOP
CM SKIP
ADJUST (
F/G
)
PAGE 26 OPERATION
Instant Recording
Recording what you are watching on TV.
Options You Can Use While Recording
Instant recording lets you record until you reach the end of tape or you press STOP to stop recording.
Turn TV and VCR on.
Place VCR in VCR mode by pressing the TV/VCR button on the remote repeatedly until the VCR indicator light appears in the VCR front panel.
Select channel 3 or 4 at the TV. If you have connected your VCR to the TV’s A/V input jacks, select the A/V source at the TV for a better picture.
Select the channel to be watched and recorded at the VCR. If you have a cable box, select the cable box output channel (usually 3 or 4) at the VCR. Select cable box channels at the cable box.
Insert a VHS cassette tape into the VCR.
Press SP/EP to select recording speed, if desired. Recording speed is always SP, unless you select EP.
Press REC/ITR until recording begins. REC indicator light appears in the VCR front panel. Recording continues until you reach the end of the tape, or until you press STOP to stop recording.
Instant Recording Instant Timer Recording
(until end of tape) (Preset recording times)
PAUSE – STOP or STOP/EJECT – Momentarily pauses Stops and exits recording recording. Press PAUSE mode. again to resume recording.
STOP or STOP/EJECT – Stops and exits recording mode.
2
3
4
1
5
6
7
power
tv/vcr
Remote's Controls
sp/ep
rec/itr
s
t
p
o
stop/ejectpower
rec/itr
VCR's Controls
OPERATION PAGE 27
Instant Recording
Recording using preset time periods.
Remote's Controls
sp/ep
tv/vcr
rec/itr
power
s
t
o
p
VCR's Controls
rec/itr
stop/ejectpower
Presses of
Display
Preset Time For
REC/ITR Recording
1 (Press) Current Time Until end of tape
2 0:30 30 minutes 3 1:00 1 hours 4 1:30 1 hour and
30 minutes
5 2:00 2 hours
.. . .. . .. .
9 4:00 4 hours
10 No display normal recording
Preset Time Periods for ITR Recording.
Note:
Preset recording time counts down until the recording time is over.
Instant (attended) Timer Recording (ITR) lets you record for a specific preset time period, instead of recording until the end of tape is reached. For example, you can record a 30-minute show using the preset time period.
Turn TV and VCR on.
Place VCR in VCR mode by pressing the TV/VCR button on the remote repeatedly until the VCR indicator light appears in the VCR front panel.
Select channel 3 or 4 at the TV. If you have connected your VCR to the TV’s A/V input jacks, select the A/V source at the TV for a better picture.
Select the channel to be watched and recorded at the VCR. If you have a cable box, select the cable box output channel (usually 3 or 4) at the VCR. Select cable box channels at the cable box.
Insert a VHS cassette tape into the VCR.
Press SP/EP to select recording speed, if desired. Recording speed is always SP, unless you select EP.
Note: The SP mode determines how much tape is left and switches speed from SP to EP, if necessary, to complete recording the program. There will be some picture and sound distortion at the point of the speed change.
Press REC/ITR until recording begins. The REC indicator light appears in the VCR front panel. Recording continues until you reach the end of the tape, or until you press STOP to stop recording.
Press REC/ITR repeatedly to select a preset recording time period. Each subsequent press of REC/ITR increases the recording time by 30 minutes until you reach a maximum of 4 hours.
2
3
4
1
5
6
7
8
PAGE 28 OPERATION
Instant Recording
Recording one show while watching another.
Note:
If you have a cable box connected to your VCR, you cannot record one show and watch another.
Choose the show you wish to record using the VCR’s channel selector. Choose the show you wish to watch using the TV’s channel selector.
Turn TV and VCR on.
Place VCR in VCR mode by pressing the TV/VCR button on the remote repeatedly until the VCR indicator light appears in the VCR front panel.
Select channel 3 or 4 at the TV. If you have connected your VCR to the TV’s A/V input jacks, select the A/V source at the TV for a better picture.
Select the channel to be watched and recorded at the VCR. If you have a cable box, select the cable box output channel (usually 3 or 4) at the VCR. Select cable box channels at the cable box.
Insert a VHS cassette tape into the VCR.
Press SP/EP to select recording speed, if desired. Recording speed is always SP, unless you select EP.
Press REC/ITR until recording begins. REC indicator light appears in the VCR front panel. Recording continues until you reach the end of the tape, or until you press STOP to stop recording.
Place VCR in TV mode by pressing the TV/VCR button on remote to turn off VCR indicator light in the VCR front panel.
Select the show you wish to watch using the TV’s channel selector.
Note:
To return to the show you’re recording, select channel 3 or 4 at the TV. Place the VCR in the VCR mode by pressing the TV/VCR button on the remote to show the VCR indicator light in the VCR’s front panel.
Options You Can Use While Recording
2
1
3
4
5
6
7
8
9
Instant Recording
(until end of tape)
PAUSE –
Momentarily pauses recording. Press PAUSE again to resume recording.
STOP or STOP/EJECT – Stops and exits recording mode.
Remote's Controls
sp/ep
tv/vcr
rec/itr
power
s
t
o
p
VCR's Controls
rec/itr
stop/ejectpower
OPERATION PAGE 29
Recording While You’re Away
This page explains how to use the Timer so that you can record while you are away.
Timer-controlled recording lets you record shows unattended. Pick a day and time up to one year in advance. The show may be recorded once or on multiple days. You can schedule up to eight different events into the PROGRAM TIMER for recording, as long as no events overlap in the same time period.
Turn TV and VCR on.
Place VCR in VCR mode by pressing the TV/VCR button on the remote repeatedly until the VCR indicator light appears in the VCR front panel.
Select channel 3 or 4 at the TV.
Insert a VHS cassette tape into the VCR.
Program events to be recorded with the Timer by following the procedure in the TIMER MENU section. If you have a cable box, select channel 3 or 4 (ar the VCR) as the channel to be recorded. Keep your cable box on when using the Timer to record.
Enable the Timer by pressing POWER to turn off the VCR. The TIMER indicator light appears in the VCR front panel to indicate the VCR is in the TIMER recording mode.
VCR TIMER
VCR OPERATION
POWER STATUS
On Off
Off On (or set)
Disables Timer-controlled recording if an event is scheduled in the Timer. All other VCR operations can be used as desired.
Enables Timer-controlled recording if an event is scheduled in the Timer. You cannot operate the VCR manually while it is in Timer Set mode. If you have scheduled the Timer, you’ll be recording at a later time.
2
3
4
1
5
6
VCR Operation with Timer Off or On
SpeakEZ
CLOCK : 1 TIMER : 2 SETUP : 3 AUDIO : 4
Press number keys
QUIT = exit
PROGRAM 1 MONTH : DAY : START : STOP : CHANNEL : SPEED : REPEAT: (1-8) to select program ENTER to adjust program
PROGRAM 8 MONTH : DAY : START : STOP : CHANNEL : SPEED : REPEAT: (1-8) to select program ENTER to adjust program
Press 2
MAIN MENU TIMER MENU
for Program 1
TIMER MENU
for Program 8
PAGE 30 OPERATION
Easy Watch Playback
Using Easy Watch Playback after timer recording is conve­nient. You can make timer recordings and play back only the portion you just recorded with the timer by pressing a single button later.
Stop recording (when recording without timer). EZ WATCH indicator on the VCR lights.
Note: If another operation button is pressed after you stop recording, Easy Watch Playback will be canceled.
Press EZ WATCH on the VCR or remote control. The tape rewinds to the start of the recorded portion and playback begins.
Note:
When you set the timer for more than two timer programs. The VCR starts playing back from the earliest one when you use Easy Watch Playback.
2
1
Playing back the portion you just recorded.
EZ WATCH
EZ WATCH Button
and Indicator
EZ watch
stop/ejectpower
video l - audio - r
aux 2
power
menu
enter
cbl/ dbs
vcr
tv
eject
ch
vol
vol
ch
quit/cc
s
u
e
a
p
rew f fwd
play
s
t
p
o
rec/itr
123
456
789
tv/vcr
EZ watch
memory
mute
cm skip
0
adj
sp/ep program
sel
TROUBLESHOOTING PAGE 31
Troubleshooting
Some quick and easy tips to fixing problems yourself.
Before Calling for Service
Please refer to this chart before calling for service. First, turn on the TV and VCR. Select appropriate input for the TV to receive the video signal from the VCR. You will probably use the Antenna In connection to the TV. Select channel 3 or 4 at the TV. Place the VCR in the VCR mode by pressing the TV/VCR button on the remote repeatedly until VCR indicator light appears in the VCR front panel. If you have a cable box, turn it on and select channel 3 or 4 at the VCR.
Operating Problems
Observed Condition
No power to the VCR.
Remote does not function.
No picture appears on TV screen from any VCR function.
VCR features do not function. VCR does not respond to remote functions or VCR keys.
Possible Cause
Power cord is not connected.
Batteries are weak.
You are too far away from the VCR.
Remote may be at an awkward angle.
Source for TV is not selected properly.
TV/VCR mode for VCR is set to TV.
VCR is locked up.
Probable Solution
Connect power cord.
Replace with new batteries.
Move closer to the VCR.
Avoid holding the remote at sharp angle.
Set INPUT source on TV to Audio/Video In, or tune TV to Channel 3 or 4, as appropriate.
Press the TV/VCR button on remote repeatedly to choose VCR mode. VCR indicator light appears in VCR front panel.
Disconnect VCR power cord for three (3) minutes. Reset clock and other features as necessary.
Playing Tapes (Playback) Problems
Observed Condition
Tape will not rewind or fast forward.
Mechanical sound is audible during playback.
Tape playback does not appear on TV screen.
Video “noise” (horizontal streaks) appear during normal tape playing.
VCR Status Display flickers when using STILL video during tape playback.
Possible Cause
Tape is fully rewound or is at its end.
Note: This is normal operating sound from internal mechanisms.
Source for TV is not selected properly.
TV/VCR mode for VCR is set to TV.
Tape is a rental or was recorded on another VCR.
Tape heads are dirty.
Tape tracking needs to be adjusted while in slow-motion playback.
Probable Solution
No action necessary.
No action necessary.
Set Input source on TV to Audio/Video In, or tune TV to Channel 3 or 4, as appropriate.
Press the TV/VCR button repeatedly to choose VCR mode. VCR indicator light appears in VCR front panel.
Use ADJ (
F/G
) for manual tracking
adjustment while tape is playing.
Clean video heads.
From STILL video mode, enable slow-motion playback. Use ADJ (
F/G
) to adjust tracking for best picture. Return to PLAY mode, then press PAUSE for STILL video.
PAGE 32 TROUBLESHOOTING
Troubleshooting
Some quick and easy tips to fixing problems yourself.
Recording Problems
Observed Condition
Camcorder image is not shown.
Camcorder image via A/V input to VCR is not shown on TV screen.
Timer recording is not possible.
TIMER indicator light appears after VCR is turned off.
Possible Cause
Camcorder is off.
VCR SOURCE is not set to AUX.
Clock in VCR is not set to correct time.
VCR is on which disables timer.
Timer has been programmed incorrectly.
TIMER indicator light does not appear after programming timer.
VCR is in Timer Recording mode.
Probable Solution
Turn camcorder on and operate properly.
Use CH (▼/▲) to select AUX A/V input channel.
Set clock to correct time. See CLOCK menu on page 18.
Turn VCR off to enable timer. TIMER indicator light appears in the VCR front panel.
Reprogram Timer. See TIMER menu on page 19.
Reprogram Timer and turn VCR off to enable timer.
This is the normal indication that the VCR is in TIMER mode.
Channel Tuning Problems
Observed Condition
Some channels are skipped over when using CH (▼/▲).
Picture and sound are weak or missing.
Possible Cause
Those channels were deleted with the CH. ADD/DEL option.
Antenna or cables are loose.
Wrong SOURCE option is being used.
Probable Solution
Use CH. ADD/DEL to restore channels. See SETUP Menu on page 20 for details.
Tighten connections or replace cable.
Try all SOURCE options. See SETUP menu on page 20 for details.
Stereo Audio Record and/or Playback Problems
Observed Condition
Stereo is not present.
Possible Cause
TV is not Stereo-compatible.
Program is not in stereo format.
VCR A/V Out jacks are not connected to TV A/V In jacks.
VCR Audio/Video Out is not selected for viewing at the TV.
VCR AUDIO RECORD mode is set to SAP or MONAURAL.
Probable Solution
No action is possible.
No action is possible.
Make A/V connections. Stereo is available only via A/V output from VCR.
Select AUX or A/V source as TV input.
Set VCR AUDIO RECORD mode to Stereo. See AUDIO Menu on page 21.
TROUBLESHOOTING PAGE 33
Troubleshooting
Magnetic Field from Other Equipment
Keep the VCR and videotapes away from strong magnetic fields, such as those produced by a vacuum cleaner, refrigerator, or air conditioner.
Video Head Cleaning
Your VCR automatically cleans the heads as it is used. However, after long periods of use, your video heads may become clogged with accumulated dirt, causing distortion. When this occurs, use a do-it-yourself wet-type head cleaning cassette available from your Zenith dealer.
Caution:
Do not use a dry-type head-cleaning system. It may seriously damage the VCR and cassettes used in the VCR. Snow, streaking in picture, and horizontal pulling indicate the need for professional video head cleaning. See your Zenith approved service center for cleaning.
Cabinet Cleaning
Clean the outside surfaces of the VCR with a soft lint-free cloth as required. Use care not to scratch the VCR during cleaning.
Moisture Condensation
Moisture condensation can occur:
• When the video recorder is moved from a cold place to a warm place.
• Under extremely humid conditions.
In locations where moisture condensation may occur:
• Keep the power cord plugged into an AC outlet and POWER On. This will help prevent condensation.
• When condensation has occurred, wait a few hours for the VCR to dry before using it.
Some quick and easy tips to fixing problems yourself.
PAGE 34 SPECIFICATIONS
Specifications
GENERAL
Head System Four head Power Source AC 120V, 60Hz Power Consumption Approx. 19 Watts Dimensions (WxHxD) 360 x 94 x 270 mm (14.2" x 3.7" x 10.6") Operating Temperature 5 °C~35 °C (41 °F~95 °F) Operating Humidity Less than 80% RH Timer 12-hour display type with AM, PM Weight Approx. 3.4 kg (7.5 lbs) Tape Speed (SP) 33.35 mm/sec
(LP) 16.67 mm/sec (EP) 11.12 mm/sec
Tape Width 12.7 mm Maximum Recording Time (SP) 2 HOURS (T-120)
(EP) 6 HOURS (T-120)
8 HOURS (T-160)
Rewind Time Less than 65 seconds (T-120)
TUNER
Antenna (UHF) 75 ohms
(VHF) 75 ohms
VHF Output Signal Channel 3 or 4 Channel Coverage (VHF) 2-13
(UHF) 14-69
(CATV) 1-125 (4A, A-W, W+1~W+84, A-5~A-1)
VIDEO
Video Signal System EIA Standard (525 lines, 60 fields)
NTSC type color signal
Input 1.0 Vp-p 75 ohms unbalanced Output 1.0 Vp-p 75 ohms unbalanced Signal to Noise Ratio More than 43 dB (SP mode)
AUDIO
FM audio
Frequency Range 20Hz to 20kHz Dynamic Range More than 83 dB Channel Separation More than 55 dB
Conventional audio
Input (LINE) -6.0 dBm more than 47 kohms Output (LINE) -6.0 dBm less than 1.5 kohms S/N Ratio More than 43 dB (SP mode) Frequency Range 200 Hz to 10kHz (SP mode)
Supplied Accessory Hook-up Cable (VCR to TV) (1)
Batteries (2) Remote Control (1)
* Designs and specifications are subject to change without notice. * Weight and dimensions shown are approximate.
Recommended VCR Accessories
Kids watching movies in another room? Baby in another room as you watch TV? Keep tabs on them with our inexpensive intercom set.
• FM wireless two stations, 3 channels, plug into standard AC outlets
• Relatively noiseless transmission for excellent sound
• Upgrades to four stations with additional set
• Units wall mount or set on table
WIRELESS INTERCOM SET
Use Your Visa or MasterCard to Order
PLEASE ALLOW 3 - 4 WEEKS FOR DELIVERY
zenith
Most repair work on VCRs and Camcorders is due to excessive rewinding. Prolong the life of your video equipment with our rewinder!
ONLY $14.99
PLUS $6.95
SHIPPING & HANDLING
VHS TAPE REWINDER
ZEN 901
Broken or lost remote? Need a second remote or more functions? Order direct from Zenith!!
• Operates TV, VCR, CD, DVD, DIVX, DSS & Cable Box
• Operates PIP and Most Screen Menus
• Extended Range & MORE!!!
Orders 1 year or more after product purchase may receive upgraded models. Other Remotes with 3, 4, 5 & 7 Functions Available Upon Request
ZENITH 5 FUNCTION REMOTE
ONLY $19.99
PLUS $6.95
SHIPPING & HANDLING
ZEN 525
ORDER TODAY!
CALL OR FAX TOLL-FREE
1.800.255.6790
Fax 1.888.693.6484
email: parts.sales@zenith.com
ONLY $49.99
ALG 1188
PLUS $6.95
SHIPPING & HANDLING
Your Zenith Limited Warranty
VIDEO CASSETTE RECORDER OR PLAYER
Welcome into the Zenith family! We believe that you will be pleased with your new Zenith Entertainment Machine. Please read this warranty carefully, it is a “LIMITED WARRANTY” as defined under Federal Law. This warranty gives you specific legal rights, and you may also have other rights that vary from state to state within the U.S.A.
ZENITH’S RESPONSIBILITY
Service Labor During a period of 90 days from effective warranty date, Zenith will provide service labor by a Zenith authorized service center
when needed as determined by Zenith, as a result of manufacturing defects.
Parts New or remanufactured replacements for factory-defective parts will be supplied by a Zenith authorized service center for one
year from effective warranty date . Such replacement parts are warranted for the remaining portion of the original warranty period.
Not Covered This warranty covers manufacturing defects and does not cover installation, adjustment of customer controls in the home,
installation or repair of home antenna systems, cable converters or cable company-supplied equipment; it also does not cover damage due to misuse, abuse, negligence, acts of God or other causes beyond the control of Zenith. Any alteration of the product after manufacture voids this warranty in its entirety.
OWNER’S RESPONSIBILITY
Effective Warranty Date Warranty begins on the date of original consumer purchase. For your convenience, keep the dealer’s dated bill of sale or a
delivery ticket as evidence of the purchase date.
Operating Guide Read your Operating Guide carefully so that you will understand the operation of your set and how to adjust the customer
controls.
Carry-In Service The video product must be taken to a U.S. or Canadian Zenith authorized service center for warranty service and must be picked
up by the owner.
TV Set Performance It is the owner’s responsibility to maintain the TV receiver with which the video product is used, and the associated antenna
system, in proper operating condition..
Important Product Registration—Please fill out and mail your Product Registration Card. It is imperative that Zenith know how to reach
you promptly if we should discover a safety problem that could affect you.
Warranty Service For warranty service information, contact any Zenith authorized service center. Parts and service labor that are Zenith’s
responsibility (see above) will be provided without charge. Other service is at the owner’s expense. If you have any problem in obtaining satisfactory warranty service, call or write the Zenith Response Center. You must provide the model number, serial number and date of purchase or date of original installation. Before you ask for warranty service, read “Maintenance And Troubleshooting” in your operating guide. You might avoid a service call.
THIS WARRANTY IS IN LIEU OF ANY OTHER WARRANTY, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION, ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, AND ZENITH SHALL NOT BE LIABLE FOR ANY CONSEQUENTIAL, INDIRECT, OR INCIDENTAL DAMAGES OF ANY KIND, INCLUDING LOST REVENUES OR PROFITS IN CONNECTION WITH THE PRODUCT.
ZENITH ELECTRONICS CORPORATION Zenith Part No. 206-3605 1000 MILWAUKEE AVENUE GS# 3835RM0039A GLENVIEW, ILLINOIS 60025-2493 Printed in Korea
Issue O
Customer Service
Zenith National Response Center
201 James Record Road, Building #3
Huntsville, AL 35824
Phone: (256) 772-1515
Fax: (256) 774-4070
email: customer.service@zenith.com
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
