Operating Guide and
Warranty for your new Zenith
Entertainment Machine
Model
VRA423C
thanks for
choosing zenith
R
WARNING:
TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
WARNING:
TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.
POWER CORD POLARIZATION:
CAUTION: To Prevent Electric Shock, match wide blade of plug to wide slot, fully insert.
ATTENTION: Pour éviter les chocs électriques, introduire la lame la plus large de la fiche dans la borne
correspondante de la prise et pousser jusqu’au fond.
NOTE TO CABLE/TV INSTALLER:
This reminder is provided to call the cable TV system installer’s attention to Article 820-40 of the National Electric
Code (U.S.A.). The code provides guidelines for proper grounding and, in particular, specifies that the cable ground
shall be connected to the grounding system of the building, as close to the point of the cable entry as practical.
REGULATORY INFORMATION:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the
equipment is operated in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.
CAUTION:
Do not attempt to modify this product in any way without written authorization from Zenith Electronics
Corporation. Unauthorized modification could void the user’s authority to operate this product.
This class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment
Regulations.
“Ce appareil numérique de la class b respecte toutes les exigences du Règulement sur le matériel brouillier
du Canada.”
RECORD YOUR MODEL NUMBER
(Now, while you can see it)
The model and serial number of your new VCR are located
on the back of the VCR cabinet. For your future convenience,
we suggest that you record these numbers here:
MODEL NO.____________________________________
SERIAL NO.____________________________________
WARNING
RISK OF ELECTRIC SHOCK
DO NOT OPEN
IMPORTANT SAFETY INSTRUCTIONS
Your product has been manufactured and tested with your
safety in mind. However, improper use can result in potential electrical shock or fire hazards. To avoid defeating the
safeguards that have been built into your new product,
please read and observe the following safety points when
installing and using your new product, and save them for
future reference.
Observing the simple precautions discussed in this section of
the operating guide can help you get many years of
enjoyment and safe operation from your new product.
1. Read Instructions
Read all the safety and operating instructions before
operating the product.
2. Follow Instructions
Follow all operating and use instructions.
3. Retain Instructions
Keep the safety and operating instructions for future
reference.
4. Heed Warnings
Follow all warnings on the product and in the
operating instructions.
5. Cleaning
Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use
a damp cloth for cleaning.
6. Water and Moisture
Do not use this product near water – for example, near
a bath tub, washbowl, kitchen sink, laundry tub, in a
wet basement, or near a swimming pool.
7. Accessories
Do not place this product on an unstable cart, stand,
tripod, bracket, or table. The product may fall, causing
serious injury to a child or adult, and serious damage to
the product. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer or sold
with the product. Any mounting of the product should
follow the manufacturer’s instructions, and should use a
mounting accessory recommended by the manufacturer.
8. Transporting Product
Move product and cart combination with care. Quick
stops, excessive force, and uneven surfaces may cause
the product and cart combination to overturn.
PORTABLE CART WARNING
9. Attachments
Do not use attachments not recommended by the product manufacturer as they may cause hazards.
10. Ventilation
Slots and openings in the cabinet must not be blocked
or covered. They are provided for ventilation, to ensure
reliable operation, and to protect from overheating.
Never block the openings by placing the product on a
bed, sofa, rug, or other similar surface. This product
should not be placed in a built-in installation such as a
bookcase or rack unless proper ventilation is provided or
the manufacturer’s instructions have been adhered to.
11. Power Sources
Operate this product only from the type of power source
indicated on the marking label. If you are not sure of
the type of power supply to your home, consult your
product dealer or local power company. For products
intended to operate from battery power or other
sources, refer to the operating instructions.
12. Line-Cord Polarization
This product is equipped with a polarized alternatingcurrent line plug (a plug having one blade wider than
the other). As a safety feature this plug will fit into the
power outlet only one way. If you are unable to insert
the plug fully into the outlet, try reversing the plug. If
the plug should still fails to fit, contact your electrician
to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.
13. Power-Cord Protection
Power-supply cords so that they are not likely to be
walked on or pinched by items placed upon or against
them, paying particular attention to cords at plugs,
convenience receptacles, and the point where they exit
from the product.
IMPORTANT SAFETY INSTRUCTIONS
14. Outdoor Antenna Grounding
If an outside antenna or cable system is connected to
the product, be sure the antenna or cable system is
grounded so as to provide some protection against voltage surges and built-up static charges. Article 810 of
the National Electrical Code (U.S.A.), ANSI/NFPA 70 provides information with regard to proper grounding of
the mast and supporting structure, grounding of the
lead-in wire to an antenna discharge unit, size of
grounding conductors, location of antenna-discharge
unit, connection to grounding electrodes, and requirements for the grounding electrode.
15. Lightning
For added protection for this product (receiver) during a
lightning storm, or when it is left unattended and
unused for long periods of time, unplug it from the wall
outlet and disconnect the antenna or cable system. This
will prevent damage to the product due to lightning and
power-line surges.
16. Power Lines
An outside antenna system should not be located in the
vicinity of overhead power lines or other electric light
or power circuits, or where it can fall into such power
lines or circuits. When installing an outside antenna
system, take extreme care to keep from touching such
power lines or circuits as contact, with them might be
fatal.
17. Overloading
Do not overload wall outlets and extension cords, as
this can result in a risk of fire or electric shock.
18. Object and Liquid Entry
Never push objects of any kind into this product
through openings, as they may touch dangerous voltage
points or short-out parts that could result in a fire or
electric shock. Never spill liquid of any kind on the
product.
19. Servicing
Do not attempt to service this product yourself, as
opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
20. Damage Requiring Service
Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following
conditions:
a. If the power-supply cord or plug is damaged.
b. If liquid has been spilled, or objects have fallen into
the product.
c. If the product has been exposed to rain or water.
d. If the product does not operate normally by follow-
ing the operating instructions. Adjust only those
controls that are covered by the operating instructions; improper adjustment of other controls may
result in damage and will often require extensive
work by a qualified technician to restore the product
to its normal operation.
e. If the product has been dropped or the cabinet has
been damaged.
f. If the product exhibits a distinct change in perfor-
mance.
21. Replacement Parts
When replacement parts are required, be sure the service
technician has used replacement parts specified by the
manufacturer or that have the same characteristics as
the original part. Unauthorized substitutions may result
in fire, electric shock, or other hazards.
22. Safety Check
Upon completion of any service or repairs to this product, ask the service technician to perform safety
checks to determine that the product is in proper operating condition.
23. Wall or Ceiling Mounting
Mount the product to a wall or ceiling only as recommended by the manufacturer.
24. Heat
The product should be situated away from heat sources
such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.
EXAMPLE OF GROUNDING ACCORDING TO
NATIONAL ELECTRICAL CODE INSTRUCTIONS
Antenna Lead in Wire
Ground
Clamp
Antenna Discharge Unit
(NEC Section 810-20)
Grounding Conductors
Electric Service
Equipment
NEC - NATIONAL ELECTRICAL CODE
Power Service Grounding
Electrode System
(NEC Art 250, Part H)
(NEC Section 810-21)
Ground Clamps
INSTALLATION PAGE 5
This page
shows the
features of
your VCR.
VCR Features Chart
FEATURES
VCR Plus+ Recording System
SpeakEZ Function
4-Heads (Special Video Effects)
Full Load/Quick Start
Auto Head Cleaner
MTS Hi-Fi Stereo Audio System
Front and Rear Audio/Video (A/V) Jacks
Remote Control MBR424
Auto/Manual Band Select
Auto/Manual Channel Search
181 Channel Capability (CATV & TV)
Record Speeds SP/EP
Playback Speeds SP/LP/EP
Auto Playback System
Auto/Manual Digital Tracking
Instant Recording
Timer-Controlled Recording
Auto Playback Tape Speed Adjust
Forward/Reverse Slow-Motion Video (4-head VCR); Variable 1/10 to 1/32
Clear Pause/Still Video
Real-Time Tape Counter
Speed Search
CM Skip
English/Spanish/French Menus
1-Year, 8-Event Timer
Message Center Front Panel Display
Auto Clock Set System
Hook-up Cable (VCR to TV)
VCR design and specifications are subject to change without prior notice.
INSTALLATIONPAGE 6
Required
connections
for your VCR
Connections for your VCR
Connections With a Cable Box
Connections Without a Cable Box
Back Panel of Stereo VCR
Back Panel of Typical TV
Antenna
Flat Wire
(300 ohm)
300/75 ohm
Adaptor
(Not provided)
Cable TV
Wall Jack
This cable is provided
with your VCR.
OR
OR
IN
OUT OUT
IN
R
L
AUDIO
VIDEO
VHF/UHF/CATV
ANT
IN
ANT
IN
OUT
TO
TV
VHF/UHF/CATV
VIDEOR-AUDIO-L
OUT
IN
OUT
CH3 CH4
IN
AUX 1
Turn off power or unplug VCR
before making any connections.
ANT
IN
OUT
TO
TV
VHF/UHF/CATV
VIDEOR-AUDIO-L
OUT
IN
OUT
CH3 CH4
IN
AUX 1
Back Panel of
Typical Cable Box
CH3 CH4
CABLE
OUT IN
Back Panel of Stereo VCR Back Panel of Typical TV
IN IN
OUTOUT
R
L
AUDIO VIDEO
VHF/UHF/CATV
ANT
IN
Cable TV
Wall Jack
This cable is provided
with your VCR.
Turn off power or unplug VCR
before making any connections.
INSTALLATION PAGE 7
Optional
connections
for your VCR
Connections for your VCR
Audio/Video (A/V) Connections to TV
Use A/V connections for a better picture.
Accessory Audio/Video (A/V) Connections to VCR
ANT
IN
OUT
TO
TV
VHF/UHF/CATV
VIDEOR-AUDIO-L
OUT
IN
OUT
CH3 CH4
IN
AUX 1
OUT
IN
OUT
IN
R-AUDIO-L VIDEO
VHF/UHF/CATV
ANT
IN
Back Panel of Typical TV
A/V cable is not provided with VCR.
Back Panel of Stereo VCR
ANT
IN
OUT
TO
TV
VHF/UHF/CATV
VIDEOR-AUDIO-L
OUT
IN
OUT
CH3 CH4
IN
AUX 1
Back Panel of Stereo VCR
OUT
IN
OUT
IN
R-AUDIO-L VIDEO
Jack panel of Accessory
A/V cable is not provided with VCR.
Accessory
Component:
Another VCR,
Camcorder,
Video Camera,
Satellite Receiver,
Laser Disc Player
Turn off power
or unplug VCR
before making
any connections.
Turn off power
or unplug VCR
before making
any connections.
INSTALLATIONPAGE 8
Things you
must do
before you
can operate
your VCR
Before you operate your VCR
1
2
Press number keys
QUIT = exit
SpeakEZ
CLOCK : 1
TIMER : 2
SETUP : 3
AUDIO : 4
PROGRAM 1
MONTH :
DAY :
START :
STOP :
CHANNEL :
SPEED :
REPEAT :
(1-8) to select program
ENTER to adjust program
Press number keys
QUIT = exit
SETUP MENU
AUTO PROGRAM: 1
CH. ADD/DEL: 2
SOURCE: 3
ON-SCREEN DISPLAY: 4
LANGUAGE SELECT: 5
CLOCK
MAIN MENU
TIMER SETUP AUDIO
Press NUMBER (1, 2, 3, 4) button
Press number keys
then ENTER QUIT = exit
AUDIO MENU
SpeakEZ: ON 1 ON 2 OFF
PLAYBACK:
RECORD:
CLOCK MENU
AUTO CLOCK SET(ON): 1
MANUAL CLOCK SET : 2
Press number keys
QUIT = exit
Connect the Power
(Required) Plug your VCR into an unswitched
120 Vac, 60 Hz household power outlet. Turn
on the VCR by pressing the POWER on the
remote or on the VCR’s front panel.
Do not plug the VCR into a switched
power outlet. Otherwise, when the
power is switched off, the VCR turns
off. You may then have to reset the
time and date, and reprogram operational features.
Set Position of the CH3/CH4 Switch
(Required) The CH3/CH4 switch on the VCR’s
back panel determines which channel the VCR
uses to send video signals to your TV. The TV
must be tuned to the same channel you set
with the CH3/CH4 switch to see tape playback and status displays from the VCR. To
determine which video channel provides the
best picture for your system, try the switch
in CH3 position and tune your TV to channel
3; then try the CH4 position and tune your
TV to channel 4.
For a test display, press TV/VCR on remote
repeatedly until the symbol appears in
the VCR’s front panel display. Press MENU on
the remote to see the main menu.
VCR
TYPICAL ZENITH VCR
WALL
SWITCH
POWER
OUTLET
CH3 CH4
OR
play
f fwd
pause
ch
rew
ch
rec/itr
Tune
CH3 CH4
TV to
Ch.4
power
stop/eject
sp/ep
Tune
TV to
Ch.3
AM
VCR
PM
INSTALLATION PAGE 9
Things you
must do
before you
can operate
your VCR
Before you operate your VCR
How to Access Menus
1. Press MENU to see Main Menu.
2. Press NUMBER (1, 2, 3, or 4) to see
desired sub menu to be used.
3. Press NUMBER to choose desired
option to be changed.
4. Press QUIT/CC to exit menu, or wait a
few minutes and the VCR returns to
normal operation.
Select SpeakEZ Function (ON/OFF)
(Optional) Explain with voice the VCR
menus on your screen by using the
SpeakEZ option on the AUDIO menu. We
recommend keeping this option ON. See
the AUDIO Menu for details.
You must set the language to
ENGLISH for SpeakEZ function.
Select Language for VCR
Menus/Displays
(Optional) Select English, Spanish, or
French for VCR menus and status displays. See the LANGUAGE SELECT option
on the SETUP menu for details.
tv
dvd
cbl/
dbs
vcr
vcr+ sel
adj
rev fwd
power
play
stop
rew
f fwd
123
456
789
0
mute
program
cm skip
tv/vcr
tv/vcr
memorysp/ep
rec/itr
vol vol
ch
pause
menu
quit/cc
enter
123
456
789
0
menu
quit/cc
enter
ch
sel
Selects
VCR tuner
Chooses and
modifies options
SpeakEZ
CLOCK : 1
TIMER : 2
SETUP : 3
AUDIO : 4
Press number keys
QUIT = exit
Press number keys
then ENTER QUIT = exit
AUDIO MENU
SpeakEZ: ON 1 ON 2 OFF
PLAYBACK:
RECORD:
MAIN MENU
Press NUMBER
(1 or 2) to choose
ON or OFF
Press 4.
SETUP MENU
Press NUMBER (1, 2,
or 3) to select the
desired language
Press 5.
3
4
SETUP MENU
AUTO PROGRAM: 1
CH. ADD/DEL: 2
SOURCE: 3
ON-SCREEN DISPLAY: 4
LANGUAGE SELECT: 5
Press number keys
QUIT = exit
SETUP MENU
LANGUAGE SELECT : ENGLISH
1 ENGLISH 2 ESPAÑOL
3 FRANÇAIS
Press number keys
then ENTER QUIT = exit
INSTALLATIONPAGE 10
Some things
you must do
and others
you may
want to do
before you
can operate
your VCR
Before you operate your VCR
Press number keys
QUIT = exit
SETUP MENU
AUTO PROGRAM: 1
CH. ADD/DEL: 2
SOURCE: 3
ON-SCREEN DISPLAY: 4
LANGUAGE SELECT: 5
Press number keys
then ENTER QUIT = exit
SETUP MENU
SOURCE: TUNER (TV)
1 TV 2 CATV
3 AUX1 4 AUX2
SETUP MENU
Press NUMBER
(1, 2, 3, or 4) to
select the desired
source
Press 3.
Set Date and Time for Clock
(Required) Set the clock in the VCR to
the current date and time. See CLOCK
Menu for details.
You must set the clock before
you can use any timer-controlled VCR features, for example, TIMER recordings.
Select Source for VCR
(Optional) Set the source of the VCR for
the type of program signal you have
connected to the ANT IN jack on the
back of the VCR. Choose TV if you have
an antenna connected to the VCR.
Choose CATV if you have a cable system
(with or without a cable box) connected
to the VCR. Choose AUX1 (or AUX2) if
you have an accessory Audio/Video
(A/V) connected to the VCR.
See SOURCE option on SETUP menu for
details.
Use Auto Program to Find
Channels
(Required) Use AUTO PROGRAM to find
active channels in your broadcast area.
AUTO PROGRAM stores the active channels that you can access by using the
Channel Up/Down arrows. See AUTO
PROGRAM on the SETUP Menu for
details.
Use CH. ADD/DEL to Create
Favorite Channels
(Optional) Use CH. ADD/DEL to change
the list of active channels found when
using AUTO PROGRAM, so you can list
your favorites. See CH.ADD/DEL on the
SETUP Menu for details.
6
Press number keys
QUIT = exit
SETUP MENU
AUTO PROGRAM: 1
CH. ADD/DEL: 2
SOURCE: 3
ON-SCREEN DISPLAY: 4
LANGUAGE SELECT: 5
QUIT = exit
SETUP MENU
AUTO PROGRAM: SEARCHING
SETUP MENU
Press 1.
Press number keys
QUIT = exit
SETUP MENU
AUTO PROGRAM: 1
CH. ADD/DEL: 2
SOURCE: 3
ON-SCREEN DISPLAY: 4
LANGUAGE SELECT: 5
Press number keys
then ENTER QUIT = exit
SETUP MENU
CH. ADD/DEL: CH. 2 ADD
SETUP MENU
Press NUMBER
(0-9) then ENTER
Press 2.
7
8
5
CLOCK MENU
AUTO CLOCK SET(ON): 1
MANUAL CLOCK SET : 2
Press number keys
QUIT = exit
CLOCK MENU
MONTH : 1 JANUARY
DAY : 1 THU
YEAR : 1998
TIME : 12:00 PM
Press number keys
then ENTER QUIT = exit
CLOCK MENU
Press NUMBER
(0-9) then ENTER to
set date and time
Press 2.
INSTALLATION PAGE 11
Things you
may want to
do before you
operate your
VCR.
Before you operate your VCR
9
Select Other Menu Options
Your VCR automatically adjusts the clock
to the current time. You can also select 1
for the Auto Clock Set on the CLOCK
Menu.
Show or hide the VCR status on your
screen by using the ON-SCREEN DISPLAY
option on the SETUP menu. We recommend keeping this option ON. See the
SETUP menu for details.
If you have a stereo VCR, select the audio
format (HI-FI or NORMAL) to use when
you play a tape. We recommend setting
this option to HI-FI. See the PLAYBACK
MODE option on the AUDIO Menu for
details.
If you have a stereo VCR, select the audio
format (STEREO, MONO or SAP) to use
when recording. We recommend using
STEREO. See the RECORD MODE option on
the AUDIO Menu for details.
Press number keys
QUIT = exit
SETUP MENU
AUTO PROGRAM: 1
CH. ADD/DEL: 2
SOURCE: 3
ON-SCREEN DISPLAY: 4
LANGUAGE SELECT: 5
Press number keys
then ENTER QUIT = exit
SETUP MENU
ON-SCREEN DISPLAY: ON
1 ON 2 OFF
SETUP MENU
Press NUMBER
(1 or 2) to choose
ON or OFF
Press 4.
CLOCK MENU
AUTO CLOCK SET(ON): 1
MANUAL CLOCK SET : 2
Press number keys
QUIT = exit
CLOCK MENU
Press number keys
QUIT = exit
AUTO CLOCK SET : SEARCHING
CLOCK MENU
Press 1.
SpeakEZ
CLOCK : 1
TIMER : 2
SETUP : 3
AUDIO : 4
Press number keys
QUIT = exit
Press number keys
then ENTER QUIT = exit
AUDIO MENU
SpeakEZ:
PLAYBACK: HI-FI 1 HI-FI
2 NORMAL
RECORD:
MAIN MENU
Press NUMBER
(1 or 2) to choose
HI-FI or NORMAL
Press 4.
SpeakEZ
CLOCK : 1
TIMER : 2
SETUP : 3
AUDIO : 4
Press number keys
QUIT = exit
Press number keys
then ENTER QUIT = exit
AUDIO MENU
SpeakEZ:
PLAYBACK:
RECORD: STEREO 1 STEREO
2 MONO
3 SAP
MAIN MENU
Press NUMBER
(1, 2 or 3) to choose
STEREO, MONO, or SAP
Press 4.
INSTALLATIONPAGE 12
Before you
can record
programs
with VCR
Plus+, you
must tell this
VCR the
PlusCode
channels for
your area.
Setup for VCR Plus+ recording
Example of Completed Worksheet
VCR Plus+ and PlusCode are trademarks of Gemstar Development
Corporation. The VCR Plus+ system is manufactured under license
from Gemstar Development Corporation.
Introduction
These PlusCode channels must be mapped to the
active channels you found using AUTO PROGRAM on
the SETUP menu. An example of channel mapping
and a blank worksheet are provided for your
convenience. Check the TV schedule in your local
newspaper for the published PlusCodechannels.
Channel Mapping Your VCR
PREPARATION (Already Done)
See “Before You Operate Your VCR” section.
1. Set Date and Time for Clock.
2. Select Tuning Band for VCR.
3. Use Auto Channel to find channels.
PRELIMINARY STEPS
1. Turn on VCR, TV, and cable box (if used).
2. Select TV (or CATV) for SOURCE on SETUP
menu.
3. Obtain listing of PlusCode channels.
CHANNEL MAPPING
1. Complete Channel Mapping Worksheet.
2. Press VCR+ on remote and follow all on-screen
instructions.
Channel found
via Auto Channel
(TV Ch/Cable Ch)
Network or
Station ID
Network or
Station ID
Worksheet with Channels Found
via Auto Channel
Published
PlusCode
Channel
(VCR+ Ch)
TM
2 CBS
5 NBC
7 ABC
9WB
11 PBS
20 PBS
23 WFBT
26 WCIU
32 WFLD
38 WSNS
50 WPWR
60 HSN
66 WGBO
Channel found
via AutoChannel
(TV Ch/Cable Ch)
PlusCodes
Ch.2:WBBM (CBS) 2
Ch.5:WMAQ (NBC) 5
Ch.7:WLS (ABC) 6
Ch.9:WGN (WB) 8
Ch.11:WTTW (PBS) 11 &19
Ch.20:WYCC (PBS) 20
Ch.26:WCIU (Ind.) 26
Ch.32:WFLD (Fox) 32
Ch.38:WCFC (Ind.) 3
Ch.44:WSNS (Tel.) 4
Ch.50:WPWR (UPN) 42
Ch.66:WGBO (Uni.) 46
Completed Worksheet for Channel Mapping
Published List of PlusCode
Channels
Published
PlusCode
Channel
(VCR+ Ch)
TM
22CBS
55NBC
76ABC
98WB
11 11 & 19PBS
20 20PBS
23 – –WFBT
26 26WCIU
32 32WFLD
38 4WSNS
50 42WPWR
60 – –HSN
66 46WGBO
CHANNELS,
VCR PLUS+
TM
INSTALLATION PAGE 13
Before you
can record
programs with
VCR Plus+,
you must tell
this VCR the
PlusCode
channels for
your area.
Setup for VCR Plus+ recording
On-Screen Instructions for TV Tuning Band
On-Screen Instructions for CATV Tuning Band
VCR PLUS
VCR+ program: 1
Ch Map Setup: 2
Ch Map Review: 3
Press number keys
QUIT = exit
VCR PLUS
Setup complete
Are your channels on
TV the same as in TV
listing?
1 Yes
2 No
Press number keys
QUIT = exit
Channel Map
to select to adjust
QUIT=exit
TV Ch VCR+ Ch
2 - -
3- 4- 5- 6- 7- -
Channel Map
to select to adjust
QUIT=exit
TV Ch VCR+ Ch
2 - -
3- 4- 5- 6- 7- -
Double Map
to select to adjust
QUIT=exit
TV Ch VCR+Ch 2nd VCR+Ch
2 2 - 33 - -
4 4 - 5 5 - 6 6 - 7 7 - -
START
Press VCR+
on remote
Press 0000 to show
Double Map Screen
3-Review
2-Setup
1-Yes
2-No
QUIT
QUIT
Channel mapping a
second PlusCode
Channel for
TV channel 3.
TM
Are your channels on
TV the same as in TV
listing?
1 Yes
2 No
Press number keys
QUIT = exit
Do you have a Cable
Box or DBS receiver?
1 Yes
2 No
Press number keys
QUIT = exit
Is the Cable Box or
DBS receiver connected
to VCR ‘ANT IN’?
1 Yes
2 No
Press number keys
QUIT = exit
Enter your Cable Box
or DBS receiver
output channel:
-
(Use to erase)
Press number keys
then ENTER QUIT = exit
VCR PLUS
VCR+ program: 1
Ch Map Setup: 2
Ch Map Review: 3
Press number keys
QUIT = exit
VCR PLUS
Setup complete
VCR PLUS
Setup complete
START
Press VCR+
on remote
Press 0000 to show
Double Map Screen
3-Review
2-No
1-Yes
1-Yes
1-Yes
ENTER
2-Setup
2-No
QUIT
QUIT
2-No
QUIT
Channel mapping a
second PlusCode
Channel for Cable
channel 3.
TM
Double Map
to select to adjust
QUIT=exit
Cable VCR+Ch 2nd VCR+Ch
1 1 - - 2 2 - - 33 - - -
4 4 - - 5 5 - - 6 6 - - -
Channel Map
to select to adjust
QUIT=exit
Cable Ch VCR+ Ch
1 - - -
2 - - 3 - - 4 - - 5 - - 6 - - -
Channel Map
to select to adjust
QUIT=exit
Cable Ch VCR+ Ch
1 - - -
2 - - 3 - - 4 - - 5 - - 6 - - -
Channel Map
to select to adjust
QUIT=exit
Cable Ch VCR+ Ch
1 - - -
2 - - 3 - - 4 - - 5 - - 6 - - -
INSTALLATIONPAGE 14
Before you
can record
programs
with VCR
Plus+, you
must tell this
VCR the
PlusCode
channels for
your area.
Setup for VCR Plus+ recording
Channel Mapping Worksheets
Channel found Network or Published
via Auto Channel Station ID PlusCode
(TV Ch/Cable Ch) Channel (VCR+ Ch)
Channel found Network or Published
via Auto Channel Station ID PlusCode
(TV Ch/Cable Ch) Channel (VCR+ Ch)
NOTE: Two PlusCode channel numbers may be listed for certain networks or stations. Enter both
numbers on the worksheet. The second number will be channel mapped after you have mapped
the first number. Press 0000 to show Double Map screen, and enter the second number next to
the first number.
CONTROLS AND DISPLAYS PAGE 15
Descriptions
of items you
need to know
to operate
your VCR.
Front Panel Diagram
Front Panel Controls
The items on the front panel perform basic VCR operations. The remote performs basic, as well as advanced
VCR operations.
video
audio
lr
ch
rec/itr
ch
sp/ep
play
f fwd
rew
pause
aux 2
power
stop/eject
PM
AM
VCR
POWER On/Off
Button
Cassette
Compartment
Channel Up/Down
Selector
Stop/Eject
Selector
PLAY, REW (Rewind),
F FWD (Fast Forward),
PAUSE Selector
Message center
Front Panel Display
Recording
Speed Selector
REC/ITR
(Instant Timer
Record) Selector
Audio/Video (A/V)
Auxiliary In Jacks
(AUX2)
CONTROLS AND DISPLAYSPAGE 16
Information
appears in
the Front
Panel Display
depending on
the VCR
function
being used.
Message Center Front Panel Display
A Cassette is in the VCR
Month Da y
Time is PM
Time is AM
Time
VCR functions are available and
channels are selected at VCR
Front Panel Display shows which VCR function you
are using. For example, when you press SP/EP, SP
or EP appears to indicate the tape speed. As you
change channels, the channel numbers appear. The
current time shows even while the VCR is off.
Clock Message
SET CLOCK — VCR clock is not set, or there was an
extended power interruption.
Playback Messages
AUTO TRACK — Tape tracking is being adjusted
from VCR.
EP — Extended Play speed is selected.
ALARM — Turn VCR On and OFF to erase “ALARM”
message. If it is not erased, take VCR to an authorized repair center.
F FWD (Fast Forward) — Tape is advancing rapidly.
FWD SEARCH — Tape is advancing rapidly in playback mode for visual search.
LP — Long Play speed is being used.
PLAY — Tape is playing at normal playback speed.
PLAY HI-FI — Tape playback using High Fidelity
audio.
PLAYX2 — Tape is advancing at twice (X2) normal
playback speed.
REV SEARCH — Tape is reversing rapidly in play-
back mode for visual search.
REW (Rewind) — Tape is rewinding rapidly.
SLOW — Tape is playing at slow-motion forward
speed.
SP — Standard Play speed is selected.
STILL — Playback is halted on one frame.
STOP — Tape rewind or playback is stopped.
-PLAY — Tape is reversing at normal playback
speed.
-PLAYX3 — Tape is reversing at three (X3) times
normal playback speed.
-SLOW — Tape is playing at slow-motion reverse
speed.
Record Message
ALARM — Turn VCR On and OFF to erase “ALARM”
message. If it is not erased, take VCR to an authorized repair center.
NO CASSETTE — No cassette is in VCR.
NO TAPE TAB — Recording is not possible as
Safety Tab is removed on cassette.
REC AUX_ (Recording Auxiliary_) — VCR is record-
ing the program from the equipment connected to
the Audio/Video jacks on the front or rear of the
VCR.
REC CH _— VCR is recording Channel _.
REC PAUSE — Record mode is halted.
STOP — Recording is stopped.
TAPING DONE — All Timer-Controlled Recording
assignments are done.
TIMER SET — VCR is in Timer-Controlled Recording
mode.
Tuner Messages
ADDED 3 — Channel 3 has been added to your
favorite channels.
AUX_ (Auxiliary_) — Auxiliary channel is
selected for viewing equipment connected to
Audio/Video jacks on front or rear of the VCR.
CHANNEL _ — VCR tuned to Channel _.
DELETED 7 — Channel 7 has been deleted from
your Favorite Channel.
HELLO — VCR is turned on.
MONO — Monaural audio is being received.
STEREO — Stereo audio is being received.
ST/SAP — Stereo audio with Secon d Audi o Progr am
(SAP) is being received.
VCR
AM
PM
CONTROLS AND DISPLAYS PAGE 17
On-Screen
displays tell
you the
status of the
tape inserted
and VCR functions.
VCR Status Displays
VCR Status Display
The VCR Status Display appears on the TV when a
VCR function starts, like when you change a
channel or select a different VCR mode. For
example, pressing STOP while the VCR is in PLAY
mode shows STOP in the display. Press ENTER on
the remote at any time (except Special Effect
Playback mode; SLOW, STILL etc.) to see the Status
Display.
Note:
If the VCR Status Display does not appear on the
TV screen, check the ON-SCREEN DISPLAY option
on the SETUP menu. Select ON to see the display.
See “VCR Menu Operations” section for details.
VCR Status Display Options
When the Status Display appears, press ENTER
repeatedly to see abbreviated displays, as follows:
1. Press ENTER to see Status Display.
2. Press ENTER a second time to show only the
tape counter position.
3. Press ENTER a third time to show only the tape
time remaining.
4. Press ENTER repeatedly until all displays are
removed.
PLAY HI-FI VCR CH 11
SP ST/SAP
15 MON
7:17 AM M-1:35:45
M-1:35:45 REM 1:35
Current mode of operation
(STOP, PAUSE, RECORD, PLAY, etc.)
and audio format of tape, where
Play=HI-FI or NORMAL (No display)
Tape Speed
EP=Extended Play
LP=Long Play
SP=Standard Play
Current date, day, and time
Current CH (Channel) selected
by using tuner in VCR
Audio format of signal
received by VCR tuner:
STEREO, MONO or ST/SAP
Real-time tape counter
M = Counter Memory is active
– = Tape is rewound below zero.
1:35:45 = Length of tape (in time)
1 = 1 hour
35 = 35 minutes
45 = 45 seconds
Typical VCR Status Display
on TV
Tape Counter Position
Tape Time Remaining
OPERATIONPAGE 18
A quick list
of all the
buttons on
your remote
control and
what they do.
The Buttons on Your Remote
Installing Batteries
Be sure to install the batteries
provided with this remote. Match
positive (+) and negative (-) with
markings shown in battery compartment.
After installing batteries, the
remote resets to the following
brand codes:
TV = 100, CABLE = 300
Note: All VCR operations and menu
options can be accessed by using
the remote control.
ADJ (ADJUST Left/Right) — Changes status of
menu options. Adjusts tape playback tracking while
in VCR mode.
CH (Up/Down) — Changes favorite channel list.
Also selects AUX A/V input channel.
CM SKIP — Fast forwards picture search through
30 seconds of recording.
ENTER — Programs menu options and shows VCR
status display.
F FWD (Fast Forward)—Advances tape rapidly.
MEMORY — Returns real-time tape counter to
zero (M 0:00:00).
MENU — Shows main menu. Accesses Zenith TV
menus while in the TV mode.
MUTE — Press to turn off TV sound. Press again to
restore TV sound.
Numbers — Chooses channels and enters pro-
gramming information.
PAUSE — Pauses tape temporarily during playback
or record.
PLAY — Begins tape playback.
POWER — Turns VCR On and Off. Also turns VCR
Timer Off and On, if programmed.
PROGRAM — Programs remote with br and cod es f or
your brand of TV and/or cable box (DBS)/ DVD.
QUIT/CC — Exits menu system. Selects closed
caption for some TVs while in TV mode.
REC/ITR — Begins tape recording.
REV ❚❚ FWD (Reverse/Forward) — Rotate Shuttle
Ring for variable-speed playback. Move Jog Wheel
for frame-by-frame playback.
REW (REWIND) — Rewinds tape to the beginning.
SEL (SELECT Up/Down) — Chooses on-screen
menu options.
SP/EP — Chooses tape recording speed.
STOP — Cancels playback or record modes.
TV/VCR — Switches source of TV picture between
TV channel and VCR channel selection. VCR functions are available in TV mode.
VCR/CBL(DBS)/TV/DVD — Selects operational
mode of remo t e.
VCR+ — Begins VCR Plus+ setup and accesses VCR
Plus+ recording.
VOL (VOLUME Up/Down) — Changes volum e o f TV.
Remote Control Operation
tv
dvd
cbl/
dbs
vcr
vcr+ sel
adj
rev fwd
power
play
stop
rew
f fwd
123
456
789
0
mute
program
cm skip
tv/vcrmemorysp/ep
rec/itr
vol vol
ch
pause
menu
quit/cc
enter
ch
sel
Select VCR Mode,
aim at VCR
Select TV Mode,
aim at TV
Select CBL(DBS) Mode,
aim at cable box or DBS
Select DVD Mode,
aim at Zenith DVD
POWER Button
MODE Selector
CBL
VCR/DBS/TV/DVD
ch
rec/itr
ch
sp/ep
play
f fwd
rew
pause
power
stop/eject
PM
AM
VCR
Selecting Mode of Operation
1. Slide VCR/CBL(DBS)/TV/DVD selector
to desired position for VCR, cable box
(DBS), TV, or DVD operation.
2. Press POWER to turn On/Off the
selected equipment.
3. Refer to instructions with TV, cable
box (DBS) and/or DVD for operation.
AAA
AAA
OPERATION PAGE 19
Your remote
control
operates the
common
features of
most, but not
all, models and
brands of IR
(infrared)
controlled TVs
and cable
converters
(DBS).
Programming Your Remote
Some functions of your particular equipment may not be
controlled by this remote. In such cases, use the original
remote control for your equipment.
If you are using Zenith products, the remote comes programmed for the most commonly used codes. For other
brands — or if your remote f ails to con trol your Z enith pr oduct — you will have to program the remote.
Follow these steps for each product:
1. Locate the three-digit code for your brand and type of
equipment in the code tables below.
2. Slide VCR/CBL(DBS)/TV/DVD to choose TV or cable box
(DBS) mode of operation.
3. Press and hold PROGRAM while entering the brand code
for your equipment.
4. Enter the three-digit brand code and then release
PROGRAM. If your equipment does not work, repeat steps
3 and 4, or try a different brand code.
5. Write down the code that operates your equipment.
TV , CATV , DBS
Note: DVD mode is operated only with Zenith DVD.
tv
dvd
cbl/
dbs
vcr
vcr+ sel
adj
rev fwd
power
play
stop
rew
f fwd
123
456
789
0
mute
program
cm skip
tv/vcrmemorysp/ep
rec/itr
vol vol
ch
pause
menu
quit/cc
enter
ch
sel
Program Button
VCR/DBS/TV/DVD
Mode Selector
CBL
TV Codes by Brand
TV Brand Name Codes
Admiral 151, 152, 110, 144
Citizen 156, 157, 158, 160, 161, 162
Curtis Mathes 115, 130, 113, 118, 144, 151
Daewoo 145, 146, 147, 148, 149, 150
Daytron 130, 115
Emerson 110, 111, 115, 131, 140, 143
Fisher 116, 125
Funai 153, 154
General Electric 102, 118, 127, 128, 144, 151
Goldstar 115, 122, 130, 131, 133, 146
Hitachi 119, 131, 132
JCPenney 102, 115, 124, 130, 133
JVC 109, 141
KTV 115, 130, 131, 138
LXI 104, 116, 123, 124, 125, 131
Magnavox 100, 101, 106, 107, 109, 114
115,
121, 122, 130, 131, 133
MGA/Mitsubishi 103, 115, 130
Montgomery Wards 115, 129, 131, 103, 113, 121
NEC 115, 130
Panasonic 104, 122, 127, 128, 133, 163
Philco 115, 121, 122, 131, 130, 150
Philips 121, 122
Pioneer 134
Proscan 118, 144, 151
Quasar 127, 128
Radio Shack 110, 111, 129
RCA 118, 144, 151
Realistic 110, 111, 129
Samsung 104, 115, 130, 131
Sanyo 116, 125
Cable Converter Codes by Brand
Cable Decoder
Codes
Brand Name
Arccher 336
Cableview 336
Citizen 336
Curtis Mathes 317
Eagle 306, 307, 310
GE 353
Gemini 302, 328, 333
General Instrument 327, 328
Gobrand 336
Hamlin 314, 330, 331
Jerrold 323, 324, 325, 326, 329
Kale Vision 334
Macom 311, 312, 342
Magnavox 307, 310, 337, 338
NSC 332, 334
OAK 301, 321, 322
TV Codes by Brand
TV Brand Name Codes
Scott 115, 130
Sears 104, 116, 123, 124, 125, 131
Sharp 112, 129, 131, 139
Sony 105
Sylvania 106, 107, 115, 121, 122, 130
133
Symphonic 153, 154
Toshiba 104, 123, 124
Wards 102, 113, 114, 115, 121, 130
131
XR1000 155
Zenith 100, 101
Cable Converter Codes by Brand
Cable Decoder
Codes
Brand Name
Panasonic 313, 320
Paragon 300
Philips 306, 307, 308, 309, 310
Pioneer 318, 319
Pluser 336
RCA 318
Regal 310
Regency 304
Samsung 334
Scientific Atlanta 317, 347, 335, 354
Simarx 318, 327
Sprucer 318, 320, 327
Standard 334
Components
Stargate 318, 327, 328
Teleview 336
Texscan 303
Tocom 315, 316
Uniden 348
Unika 336
Universal 351, 352
Vid Tech 339
Video Way 349
Viewstar 306, 307, 310
Zenith 300, 305, 311
DBS Codes by Brand
DBS Brand Name
Codes
RCA 356
Sony 355
OPERATIONPAGE 20
Playback
Jog-Shuttle
Operation
(For Special
Video Effects)
Playback Jog-Shuttle operation
Shuttle Ring Operation
1. Press PAUSE for playback STILL mode.
2. Rotate shuttle ring toward FORWARD to advance
the tape, or toward REVERSE to r everse the tape.
How far you rotate and hold the shuttle ring
determines the speed at which the tape moves.
3. Release the shuttle ring to return to STILL mode .
4. Press PLAY to return to normal playback speed.
NOTES:
■ Shuttle ring may also be operate while in PLAY
mode instead of in STILL mode. In case, you will
return to PLAY mode at normal playback speed
when the Shuttle Ring is released.
■ Some of the speeds given in the pictorial above
are not indicated in the VCR Status Display
shown on the TV.
■ Some video “noise” may be present in REV
(Reverse) mode.
■ Tapes recorded at SP (Standard Play) speed have
better quality special effects than tapes recorded at EP (Extended play) speed.
Jog Wheel Operation
1. Press PAUSE for playback STILL mode.
2. Move jog wheel with finger toward FWD to
advance tape frame-by-frame, or toward REV to
reverse tape frame-by-frame. Movement of the
jog wheel one “click” moves the tape by one
frame. H ow “f ast” you move th e jog wh eel determines how fast the frame-by-frame movement
occurs.
3. Press PLAY to return to normal playback speed.
NOTES:
■ Jog wheel cannot be used for special video
effects while the VCR is in play mode.
■ Tapes recorded at SP (Standard Play) speed have
better quality special effects than tapes recorded at EP (Extended Play) speed.
rev fwd
Jog Wheel
Move Jog Wheel for
frame-by-frame tape
playback. Movement
of Jog for one
“click” moves tape
one frame in the
direction chosen.
Jog wheel
Shuttle Ring
Slow
Play
PlayX2
FWD Search
FWD Jet Search
—Slow
—Play
—PlayX3
REV Search
REV Jet Search
REVERSE FORWARDSTILL (Pause)
rev fwd
Rotate Shuttle
Ring for variable
speed adjust from
Slow to Jet Speed
Search in the
direction chosen
PLAY for normal
Playback speed
PAUSE for Still
Playback
Jog Wheel for
frame-by-frame
Shuttle Ring for
variable speed
Keys Used for
Special Effects
power
rew
pause
quit/cc
enter
123
456
789
0
vcr+ sel
rev fwd
vcr
dbs
play
stop
menu
ch
vol vol
ch
adj
cbl/
tv
dvd
f fwd
rec/itr
mute
program
cm skip
tv/vcrmemorysp/ep
sel
OPERATION PAGE 21
Introducing
you to the
Main Menu
selections
Main Menu
Press number keys
QUIT = exit
SpeakEZ
CLOCK : 1
TIMER : 2
SETUP : 3
AUDIO : 4
PROGRAM 1
MONTH :
DAY :
START :
STOP :
CHANNEL :
SPEED :
REPEAT :
(1-8) to select program
ENTER to adjust program
Press number keys
QUIT = exit
SETUP MENU
AUTO PROGRAM: 1
CH. ADD/DEL: 2
SOURCE: 3
ON-SCREEN DISPLAY: 4
LANGUAGE SELECT: 5
CLOCK
MAIN MENU
TIMER SETUP AUDIO
Press NUMBER (1, 2, 3, 4) button
Press number keys
then ENTER QUIT = exit
AUDIO MENU
SpeakEZ: ON 1 ON 2 OFF
PLAYBACK:
RECORD:
CLOCK MENU
AUTO CLOCK SET(ON): 1
MANUAL CLOCK SET : 2
Press number keys
QUIT = exit
How to Access Menus
Menu operation is easy—just follow the instructions
shown at the bottom of the menu.
1. Press MENU to see main menu.
2. Press NUMBER (1, 2, 3, or 4) to see desired sub
menu to be used.
3. Press NUMBER to choose desired option to be
changed.
4. Press QUIT/CC to exit menu, or wait a few
minutes and the VCR returns to normal operation.
tv
dvd
cbl/
dbs
vcr
vcr+ sel
adj
rev fwd
power
play
stop
rew
f fwd
123
456
789
0
mute
program
cm skip
tv/vcr
tv/vcr
memorysp/ep
rec/itr
vol vol
ch
pause
menu
quit/cc
enter
123
456
789
0
menu
quit/cc
enter
ch
sel
Selects
VCR tuner
Chooses and
modifies options
Note:
Perform menu operations with the VCR and TV on,
and tune the TV to channel 3 or 4. The VCR must
also be in the VCR mode of operation. Press TV/VCR
repeatedly until symbol appears in the front
panel.
VCR
OPERATIONPAGE 22
The Clock
Menu sets
the clock in
VCR to the
current time.
Clock Menu
The Clock Menu sets the clock in the VCR to the current
time. There are two options. AUTO and MANUAL
Auto Clock Set
AUTO automatically sets the clock in the VCR to the current
time and date. AUTO works only in areas where Data Service
(DS) signals are provided along with normal TV signals.
1. Press MENU to see Main Menu.
2. Press 1 to see Clock Menu on the Main Menu.
3. Press 1 to set the current time automatically on the
Clock Menu.
Notes:
We recommend that you set the clock using the MANUAL
method the first time you use your VCR. See MANUAL
option for details.
The clock must be set before you can record by using the
TIMER Menu.
Manual Clock Set
The CLOCK Menu sets the clock in the VCR to the current
date and time.
Notes:
The clock must be set before you can record by using the
TIMER menu.
You may have to reset the clock if a power outage lasts for
more than 3 seconds.
How to Set Clock
1. Press MENU to see Main Menu.
2. Press 1 to see clock options.
3. Press 2 to adjust your options.
4. Press the NUMBER (0~9) then ENTER to specify current
date and time.
5. Press QUIT/CC to exit the menu system.
CLOCK MENU
MONTH : 1 JANUARY
DAY : 1 THU
YEAR : 1998
TIME : 12:00 PM
Press number keys
then ENTER QUIT = exit
CLOCK MENU
AUTO CLOCK SET(ON): 1
MANUAL CLOCK SET : 2
Press number keys
QUIT = exit
Typical CLOCK Menu with
date and time settings
OPERATION PAGE 23
The TIMER
Menu tells the
VCR when to
record a program on a day
and at a time
you specify
Timer Menu
PROGRAM 1
MONTH : 7 JULY
DAY : 20 MON
START : 11:16 AM
STOP : 11:46 AM
CHANNEL : 20 TV
SPEED : EP
REPEAT : ONCE
(1-8) to select program
to erase press (0)
PROGRAM 1
MONTH : 7 JULY
DAY : 20 MON
START : 11:16 AM
STOP : 11:46 AM
CHANNEL : 20 TV
SPEED : EP
REPEAT : ONCE
(1-8) to select program
to erase press (0)
You can specify eight different events to be recorded in a one-year period.
How to Use Timer
1. Choose TIMER menu as described in “How to
Access Menus.”
2. Press NUMBER(0-9) then ENTER to set the timer.
3. Press QUIT/CC to exit the menu system.
Note:
Set the VCR in TIMER mode by pressing POWER to
turn off the VCR. The TIMER SET appears in the front
panel of the VCR.
You cannot operate the VCR manually while
it is recording. Pressing POWER stops the
recording.
To Erase a Program
1. Choose TIMER menu as described in “How to
Access Menus.”
2. Press NUMBER(1-8) to select desired PROGRAM to
be erased.
3. Press 0 to erase the program.
4. Press QUIT/CC to exit the menu system.
SpeakEZ
CLOCK : 1
TIMER : 2
SETUP : 3
AUDIO : 4
Press number keys
QUIT = exit
PROGRAM 1
MONTH :
DAY :
START :
STOP :
CHANNEL :
SPEED :
REPEAT :
(1-8) to select program
ENTER to adjust program
PROGRAM 8
MONTH :
DAY :
START :
STOP :
CHANNEL :
SPEED :
REPEAT :
(1-8) to select program
ENTER to adjust program
Press 2
Month of Recording
Day of Recording
Start Time of Recording
Stop Time of Recording
Channel of Recording
Speed of Recording
Frequency of Recording
Program Number
When highlighted, press NUMBER (1-
8) to choose program Number.
REPEAT OPTIONS
ONCE — Records once.
WEEKLY — Records once each week.
DAILY — Records one time each day,
Monday - Friday.
CHANNEL OPTIONS
To select an AUX channel, select the
next highest or lowest channel programmed in the VCR with the CHANNEL Up/Down arrows.
SPEED OPTIONS (SP or EP)
The SP mode determines how much
tape is left and switches speed from
SP to EP, if necessary, to complete
recording the program. There will be
some picture and sound distortion at
the point of the speed change.
Press 0 to erase program
Follow
these
steps
OPERATIONPAGE 24
The SETUP
Menu cus-
tomizes the
VCR’s opera-
tion for your
particular
needs.
Setup Menu
Press number keys
QUIT = exit
SETUP MENU
AUTO PROGRAM: 1
CH. ADD/DEL: 2
SOURCE: 3
ON-SCREEN DISPLAY: 4
LANGUAGE SELECT: 5
Choose SETUP Menu as
described in “How to
Access Menus.”
AUTO PROGRAM Finds all active channels and stores them in the VCR’s memory for access
by Channel Up/Down. Press 1 to begin search.
CH. ADD/DEL Edits the channels found by AUTO PROGRAM. Use number keys followed by
ENTER to select the channel to be edited (e.g., to ADD channel 3, press 3
then ENTER). Press ENTER to ADD or DEL (Delete) channels to create your
own list of favorite channels.
SOURCE Selects TV, CATV, AUX1, or AUX2 as the source of the program to watch or
record. Choose TV if you have an antenna connected to the VCR. Choose
CATV if you have a cable system (with or without a cable box) connected
to the VCR. Choose AUX1 if you want to see the program from accessory
equipment, such as a camcorder, connected to the Audio/Video (A/V) IN
jacks on the VCR rear panel. Choose AUX2 if you want to see the program
from accessory equipment, such as a camcorder, connected to the
Audio/Video (A/V) IN jacks on the VCR front panel.
ON-SCREEN DISPLAY Selects whether or not you see VCR Status Displays on the TV.
LANGUAGE SELECT Selects English, Spanish or French for VCR menus and displays on the TV.
OPERATION PAGE 25
The AUDIO
Menu specifies
the audio
format to be
used when
recording or
playing a
tape.
Audio Menu
SpeakEZ Selects ON or OFF for SpeakEZ function.
Explain with voice or not the VCR menus on your screen by using the
SpeakEZ option.
PLAYBACK Selects HI-FI or NORMAL for tape playback.
HI-FI (High Fidelity) provides stereo sound, if present on the tape, to the
left and right VCR AUDIO output jacks on the back of the VCR.
NORMAL provides monaural sound, regardless of the audio format present
on the tape.
RECORD Select the STEREO, MONO, or SAP for recording a program.
STEREO records sound from the left and right audio tracks in stereophonic
format.
MONO (Monaural) records sound in monaural format even if the program is
in stereo.
SAP records the Second Audio Program (SAP) track, if present, in addition
to the stereo audio tracks. SAP usually contains audio in another language.
The AUDIO Menu indicates
the audio format used
when recording or playing
a tape. Choose AUDIO
Menu as described in
“How to Access Menus.”
Press ENTER (and repeat)
to choose items in the
menu (some models).
Press number keys
then ENTER QUIT = exit
AUDIO MENU
SpeakEZ: ON 1 ON 2 OFF
PLAYBACK:
RECORD:
OPERATIONPAGE 26
This page
shows a
typical video
system and
explains how
to select
channels.
Watching TV Through the VCR
Selecting Channels when the VCR is OFF
1. Turn TV on.
2. Select channel you’d like to watch at the TV. If
you have a cable box, select channel 3 or 4 at
the TV. Selects cable box channels at the cable
box.
Selecting Channels at the TV when VCR is
ON
1. Turn TV and VCR on.
2. Place VCR in TV mode by pressing TV/VCR on
the remote repeatedly until the symbol
disappears from the VCR front panel.
3. Select channel you’d like to watch at the TV. If
you have a cable box, select channel 3 or 4 at
the TV. Select cable box channels at the cable
box.
Selecting Channels at the VCR when VCR is
ON
1. Turn TV and VCR on.
2. Place VCR in VCR mode by pressing TV/VCR on
remote repeatedly until the symbol
appears in the VCR front panel.
3. Select channels 3 or 4 at the TV. If you have
connected your VCR to the TV’s A/V input
jacks, select the A/V source at the TV for a
better picture.
4. Select the channel you’d like to watch at the
VCR. If you have a cable box, select channel 3
or 4 at the VCR. Select cable box channels at
the cable box.
VCR
VCR
IN OUT
Audio/Video Output to TV
VCR Output to TV
(Channel 3 or 4 when
VCR is on and TV/VCR
is in VCR position)
CH3 CH4
Cable Box
Output
to VCR
From
Cable- TV
System
Direct Cable
All-Channel
Antenna
Cable TV
Wall Jack
Typical
Cable Box
OUT
VHF/UHF/CATV
IN
AUDIO
OUT
VIDEO
OUT
RL
34
CHANNEL
Zenith Stereo VCR
VHF-UHF
CABLE IN
VIDEOINAUDIO
IN
RL
Zenith TV
Or
Or
OPERATION PAGE 27
This page
describes how
to connect a
camcorder to
your VCR.
Camcorder Connected to VCR
Select AUX for Viewing an Audio/Video
source like a Camcorder
1. With TV and VCR on, place VCR in VCR mode by
pressing TV/VCR on the remote (and repeat) until
the VCR indicator appears in the VCR’s front panel.
2. Select channel 3 (or 4) on the TV. Note: If your TV
has A/V jacks, you may get a better picture if you
connect your VCR there. (Then, select the A/V
source on the TV.)
3. At the VCR, Channel Down lower than the lowest
channel (or Channel Up above the highest) to
select “AUX2” Or, you may—
Choose the SETUP menu as described in “How to
Access Menus.”
Press 3 for the SETUP menu’s SOURCE item.
Press 4 for AUX2, then ENTER. (Press QUIT/CC to
exit.)
Turn off power or unplug VCR
before making any connections.
Press number keys
then ENTER QUIT = exit
SETUP MENU
SOURCE: TUNER (TV)
1 TV 2 CATV
3 AUX1 4 AUX2
Press 4 to select AUX2
SOURCE Shows the program source—TV, CATV, or AUX—selected for the VCR to receive.
TUNER The VCR is using its Tuner to receive programs from an antenna or cable.
TV Selects programs for the VCR from a rooftop-type antenna.
CATV Selects programs for the VCR from Cable TV.
AUX1 Selects programs for the VCR from the rear R-AUDIO-L—VIDEO IN jacks (where you may
have connected your camcorder).
AUX2 Selects programs for the VCR from the front R-AUDIO-L—VIDEO IN jacks (where you may
have connected your camcorder).
Items in the Menu
Front Panel of Stereo VCR
power
stop/eject
aux 2
video
audio
lr
A/V cable is not provided with VCR.
OPERATIONPAGE 28
This page
explains the
basics of
playing tapes
in your VCR.

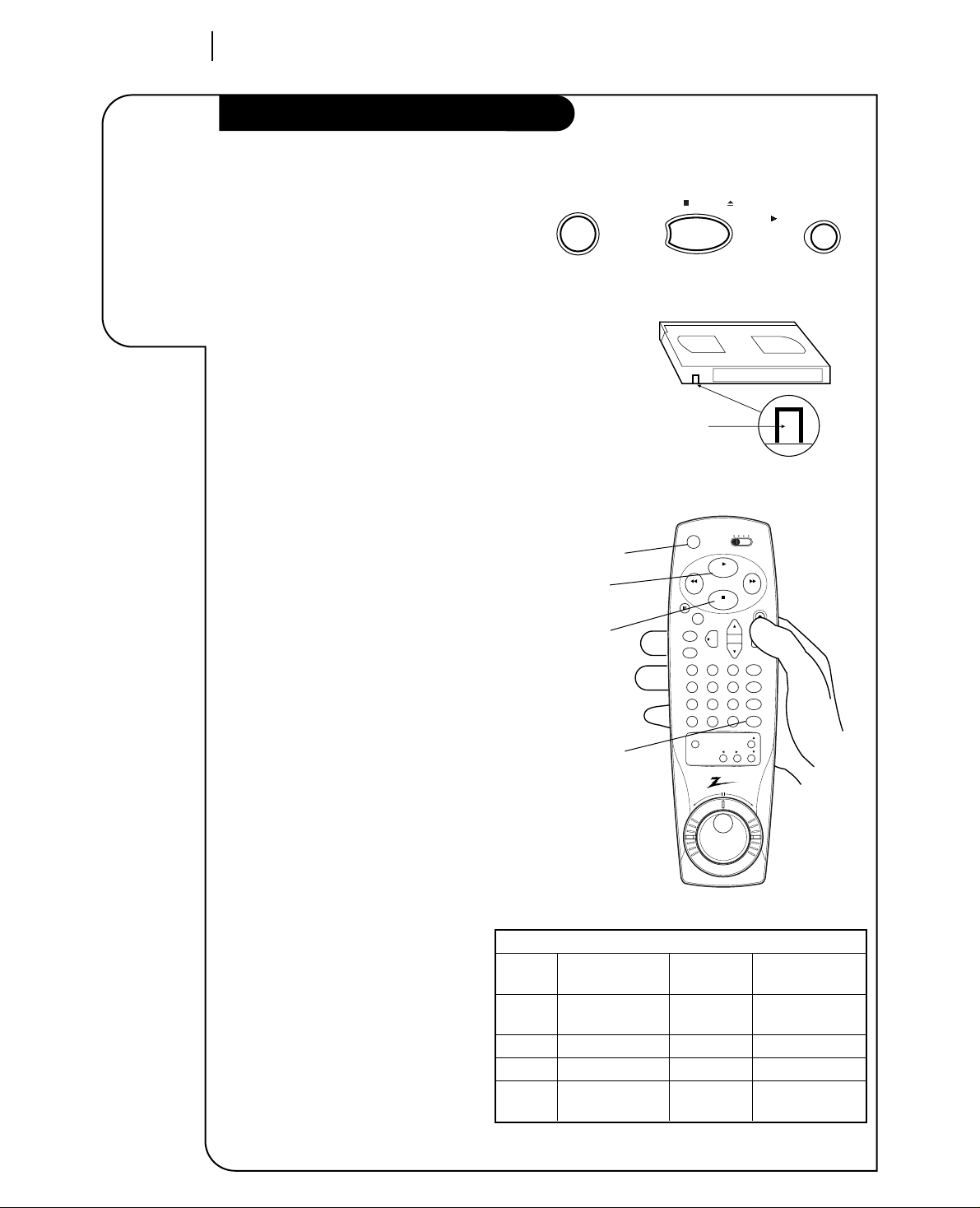

Playing Tapes
Automatic Playback (No Safety Tab)
1. Tape playback begins automatically, if the safety tab is removed from the cassette case. For
example, most rental movies have no safety
tab. Simply insert the prerecorded VHS cassette
into the VCR. Power turns on and playback
begins.
2. Select the channel 3 or 4 at the TV. Or, select
the TV’s AUX (Auxiliary) source to see the
picture, if you are using the A/V jacks.
Manual Playback (Has Safety Tab)
1. Press POWER to turn VCR on.
2. Insert a prerecorded VHS cassette into the VCR.
3. Press PLAY to begin playback.
4. Select the channel 3 or 4 at the TV. Or, select
the TV’s AUX (Auxiliary) source to see the picture, if you are using the A/V jacks.
Unloading the Cassette from the VCR
1. Press STOP if the tape is playing.
2. Press STOP/EJECT at the VCR until the cassette
is ejected.
Note:
This VCR records only in SP and EP speeds. Your
VCR sets the playback speed automatically to the
speed used to record the tape.
(Continued on next page)
Cassette
Safety Tab
Shown in
Place
VHS Cassette Playback/Record Times
Cassette SP LP EP
Length (Standard Play) (Long Play) (Extended Play)
T-30 30 Minutes 1 Hour 1 Hour,
30 Minutes
T-60 1 Hour 2 Hours 3 Hours
T-120 2 Hours 4 Hours 6 Hours
T-160 2 Hours, 5 Hours, 8 Hours
40 Minutes 20 Minutes
tv
dvd
cbl/
dbs
vcr
vcr+ sel
adj
rev fwd
power
play
stop
rew
f fwd
123
456
789
0
mute
program
cm skip
tv/vcrmemorysp/ep
rec/itr
vol vol
ch
pause
menu
quit/cc
enter
ch
sel
POWER
PLAY
STOP
TV/VCR
play
power
stop/eject
VCR’s Controls
OPERATION PAGE 29
This page
explains how
to use the
remote to play
tapes on your
VCR.
Playing Tapes
Auto/Manual Tracking Adjustment
Your VCR adjusts tracking automatically when
you play a tape. If the tape was recorded on
a different VCR, streaks (video noise) may
appear. While the tape is playing, press
ADJ (
F/G
) to adjust the tracking manually.
Real-Time Tape Counter
Press ENTER twice to keep the tape counter
on the TV screen. Press ENTER repeatedly to
remove all displays. The counter resets to
0:00:00 when you insert a cassette or when a
tape is rewound to its beginning.
Pause/Forward/Reverse Slow-Motion
Video
(While in play mode) Press PAUSE for still
video. Press PAUSE again, and follow
on-screen instructions for Forward or Reverse
slow motion. Press F FWD or REW to control
slow speed during slow motion. Press PLAY to
resume normal tape playing.
Note: When the reverse slow mode continues
for more than 30 secondes, the VCR will automatically change to play mode.
Tape Rewind and Fast Forward
(While in Stop mode) Press and release REW
or F FWD (Fast Forward), as desired. Press
STOP when tape reaches desired location.
Reverse/Forward Search
(While in Play mode) Press and release REW or
F FWD, as desired. Press PLAY to resume
normal tape playing.
CM Skip (Commercial Skip)
(While in play mode) Pressing CM SKIP on the
remote skips commercials or other program
material. Pressing 1, 2, 3, or 4 times skips
30, 60, 90, or 120 seconds, respectively. CM
SKIP skips a full 120 seconds of commercials
in a few seconds, then resumes normal playback.
tv
dvd
cbl/
dbs
vcr
vcr+ sel
adj
rev fwd
power
play
stop
rew
f fwd
123
456
789
0
mute
program
cm skip
tv/vcrmemorysp/ep
rec/itr
vol vol
ch
pause
menu
quit/cc
enter
ch
sel
POWER
PLAY
REW (Rewind)
PAUSE
ENTER
F FWD
(Fast Forward)
STOP
CM SKIP
ADJUST
(
F/G
)
OPERATIONPAGE 30
Recording
what you are
watching
on TV.
Instant Recording
Options You Can Use While Recording
Instant recording lets you record until you reach
the end of tape or you press STOP to stop recording.
1. Turn TV and VCR on.
2. Place VCR in VCR mode by pressing TV/VCR on
the remote repeatedly until the symbol
appears in the VCR front panel.
3. Select channel 3 or 4 at the TV. If you have
connected your VCR to the TV’s A/V input jacks,
select the A/V source at the TV for a better picture.
4. Select the channel to be watched and recorded
at the VCR. If you have a cable box, select the
cable box output channel (usually 3 or 4) at the
VCR. Select cable box channels at the cable box.
5. Insert a VHS cassette tape into the VCR.
6. Press SP/EP to select recording speed, if
desired. Recording speed is always SP, unless
you select EP.
7. Press REC/ITR until recording begins. REC CH_
appears in the VCR front panel. Recording continues until you reach the end of the tape, or
until you press STOP to stop recording.
VCR
Instant Recording Instant Timer Recording
(until end of tape) (Preset recording times)
PAUSE – STOP or STOP/EJECT –
Momentarily Pauses Stops and exits recording
recording. Press PAUSE mode.
again to resume recording.
STOP or STOP/EJECT –
Stops and exits recording
mode.
power
power
sp/ep
Remote's Controls
sp/ep
tv/vcr
stop
rec/itr
stop/eject
rec/itr
VCR's Controls
OPERATION PAGE 31
Recording
using preset
time periods.
Instant Recording
Presses of
Display
Preset Time For
REC/ITR Recording
1 (Press) Current Time Until end of tape
2 0:30 30 minutes
3 1:00 1 hours
4 1:30 1 hour and
30 minutes
5 2:00 2 hours
...
...
...
9 4:00 4 hours
10 No display normal recording
Preset Time Periods for ITR Recording.
Note:
Preset recording time counts down until the recording time is over.
Instant (attended) Timer Recording (ITR) lets you
record where you record for a specific preset time
period, instead of recording until the end of tape is
reached. For example, you can record a 30-minute
show using the preset time period.
Turn TV and VCR on.
Place VCR in VCR mode by pressing
TV/VCR on the remote repeatedly until
the symbol appears in the VCR
front panel.
Select channel 3 or 4 at the TV. If you
have connected your VCR to the TV’s
A/V input jacks, select the A/V source
at the TV for a better picture.
Select the channel to be watched and
recorded at the VCR. If you have a
cable box, select the cable box output
channel (usually 3 or 4) at the VCR.
Select cable box channels at the cable
box.
Insert a VHS cassette tape into the
VCR.
Press SP/EP to select recording speed,
if desired. Recording speed is always
SP, unless you select EP.
Press REC/ITR until recording begins.
The REC CH_ appears in the VCR front
panel. Recording continues until you
reach the end of the tape, or until you
press STOP to stop recording.
Press REC/ITR repeatedly to select a
preset recording time period. Each subsequent press of REC/ITR increases the
recording time by 30 minutes until you
reach a maximum of 4 hours.
VCR
2
3
4
1
5
6
7
8
Note: The SP mode determines how much tape is
left and switches speed from SP to EP, if necessary,
to complete recording the program. There will be
some picture and sound distortion at the point of
the speed change.
power
sp/ep
power
tv/vcr
Remote's Controls
sp/ep
rec/itr
VCR's Controls
stop
rec/itr
stop/eject
OPERATIONPAGE 32

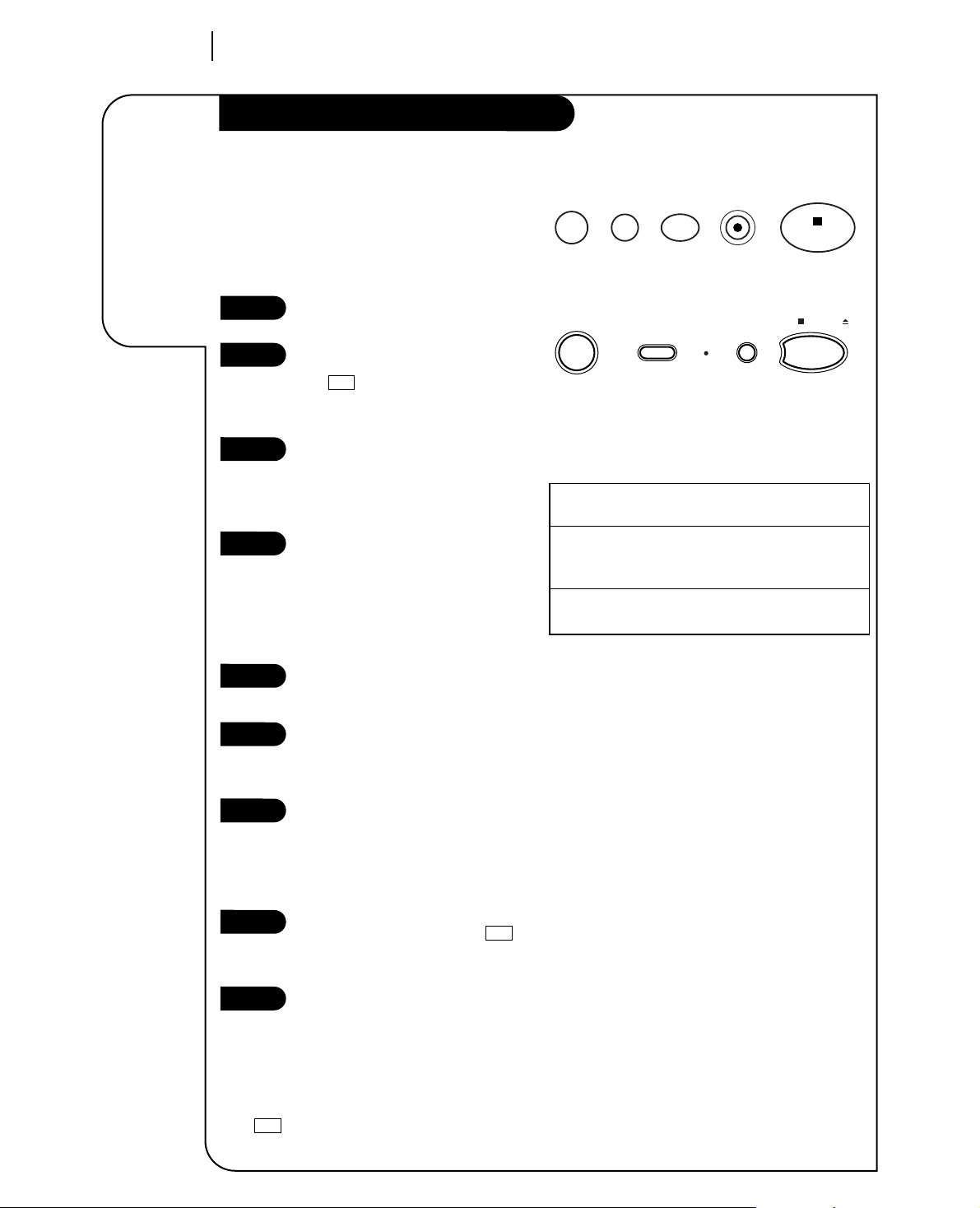

Recording
one show
while
watching
another.
Instant Recording
Note:
If you have a cable box connected to your VCR, you
cannot record one show and watch another.
Choose the show you wish to record using the VCR’s
channel selector. Choose the show you wish to
watch using the TV’s channel selector.
Turn TV and VCR on.
Place VCR in VCR mode by pressing
TV/VCR on the remote repeatedly until
the symbol appears in the VCR
front panel.
Select channel 3 or 4 at the TV. If you
have connected your VCR to the TV’s
A/V input jacks, select the A/V source
at the TV for a better picture.
Select the channel to be watched and
recorded at the VCR. If you have a
cable box, select the cable box output
channel (usually 3 or 4) at the VCR.
Select cable box channels at the cable
box.
Insert a VHS cassette tape into the
VCR.
Press SP/EP to select recording speed,
if desired. Recording speed is always
SP, unless you select EP.
Press REC/ITR until recording begins.
REC CH_ appears in the VCR front panel.
Recording continues until you reach the
end of the tape, or until you press STOP
to stop recording.
Place VCR in TV mode by pressing
TV/VCR on remote to turn off
symbol in the VCR front panel.
Select the show you wish to watch
using the TV’s channel selector.
Note:
To return to the show you’re recording, select
channel 3 or 4 at the TV. Place the VCR in the VCR
mode by pressing TV/VCR on the remote to show
the symbol in the VCR’s front panel.
VCR
VCR
VCR
Options You Can Use While Recording
2
3
4
1
5
6
7
8
9
Instant Recording
(until end of tape)
PAUSE –
Momentarily pauses recording. Press PAUSE
again to resume recording.
STOP or STOP/EJECT – Stops and exits
recording mode.
power
power
sp/ep
Remote's Controls
sp/ep
tv/vcr
rec/itr
rec/itr
VCR's Controls
stop
stop/eject
OPERATION PAGE 33
This page
explains how
to use the
timer so that
you can record
while you are
away.
Recording While You’re Away
Timer-controlled recording lets you record shows
unattended. Pick a day and time up to one year in
advance. The show may be recorded once or on
multiple days. You can schedule up to eight
different events into the PROGRAM TIMER for
recording, as long as no events overlap in the
same time period.
Turn TV and VCR on.
Place VCR in VCR mode by pressing
TV/VCR on the remote repeatedly until
the symbol appears in the VCR
front panel.
Select channel 3 or 4 at the TV.
Insert a VHS cassette tape into the
VCR.
Program events to be recorded with the
Timer by following the procedure in the
TIMER MENU section. If you have a
cable box, select channel 3 or 4 as the
channel to be recorded. Keep your
cable box on when using the Timer to
record.
Enable the Timer by pressing POWER to
turn off the VCR. The TIMER SET
appears in the VCR front panel to indicate the VCR is in the TIMER recording
mode.
VCR
MAIN MENU
TIMER MENU
for Program 1
TIMER MENU
for Program 8
VCR TIMER
VCR OPERATION
POWER STATUS
On Off
Off On (or set)
Disables timer-controlled
recording if an event is
Scheduled in the Timer. All
other VCR operations can
be used as desired.
Enables timer-controlled
recording if an event is
scheduled in the Timer. You
cannot be operate the VCR
manually while it is in
Timer Set mode. If you
have scheduled the Timer,
you’ll be recording at a
later time.
2
3
4
1
5
6
SpeakEZ
CLOCK : 1
TIMER : 2
SETUP : 3
AUDIO : 4
Press number keys
QUIT = exit
PROGRAM 1
MONTH :
DAY :
START :
STOP :
CHANNEL :
SPEED :
REPEAT :
(1-8) to select program
ENTER to adjust program
PROGRAM 8
MONTH :
DAY :
START :
STOP :
CHANNEL :
SPEED :
REPEAT :
(1-8) to select program
ENTER to adjust program
Press 2
VCR Operation with Timer Off or On
OPERATIONPAGE 34
Recording
With
PlusCode
program
Numbers
VCR Plus+ recording
VCR Plus+ tapes for you automatically. Simply enter
the PlusCode number for your f avorite sh ow fr om the
TV listing, and your VCR does the rest. It turns on at
the proper time, selects the channel to be recorded,
and starts recording. You can record a show once, or
on a daily or weekly basis. You can schedule up to
eight different sh ows in th e VCR Plus+ recor din g system, as long as no show overlaps another in
the same time period.
Turn TV and VCR on.
Place VCR in VCR mode by pressing
TV/VCR on the remote repeatedly until
the symbol appears in the VCR
front panel.
Select channel 3 or 4 at the TV.
Insert a VHS cassette tape into the VCR.
Program events to be recorded in the
VCR Plus+ system by following the procedure shown when you press VCR+ on
the remote.
Enable the VCR Plus+ timer by pressing
the POWER to turn off the VCR. The
TIMER SET appears in the VCR front panel
to indicate the VCR is in the VCR Plus+
timer mode of recording.
Turn the VCR on after the recording is
made if you want to remove the message, TAPING DONE.
VCR
VCR PLUS MENU
VCR PlusCode Entry
TIMER MENU
VCR TIMER
VCR OPERATION
POWER STATUS
On Off
Off On (or set)
Disables timer-controlled
recording if an event is
Scheduled in the Timer. All
other VCR operations can
be used as desired.
Enables timer-controlled
recording if an event is
scheduled in the Timer. You
cannot be operate the VCR
manually while it is in
Timer Set mode. If you
have scheduled the Timer,
you’ll be recording at a
later time.
3
4
5
2
1
6
7
VCR PLUS
VCR+ program: 1
Ch Map Setup: 2
Ch Map Review: 3
Press number keys
QUIT = exit
Pluscode
- - - - - - - - -
Press number keys
then ENTER QUIT = exit
Enter Pluscode
from TV listing
(Use to erase)
PROGRAM 1
MONTH : 7 JULY
DAY : 26 MON
START : 11:16 AM
STOP : 11:46 AM
CHANNEL : 20 TV
SPEED : EP 1 EP 2 SP
REPEAT : ONCE
Press number keys
then ENTER QUIT = exit
Press 1
Enter PlusCode
VCR Operation with Timer Off or On
Sample TV Schedule Showing VCR Plus+ PlusCode Number
MIDNIGHT
12:00 9 In the Heat of the Night
Lana’s inherited home plays an
important part in a mob-related
real estate scam (Part 2 of 2)
(CC) (60 mins.) 52228
11 Tonight (R) 23624
26 Lauren Hutton and... Gabrielle
Reece. (30 mins.) 989402
32 I Love Lucy “Drafted” Lucy and
Ethel think their husbands have
been
drafted. (30 mins.) 529044
9
In the Heat of the Night
Lake Winahatchie (Part 2
of 2) 52228
Tonight
73624
L.Hutton
989402
Paid Prog
273353
Love Lucy
813995
Paid Prog
770841
Paid Prog
147599
Paid Prog
886976
Paid Prog
426518
Love Lucy
529044
Charlie Rose 16112
Fat Man In
France 79082
Paid Programming
44808
Paid Programming
51686
11
26
32
12:00 12:30 1:00 1:30
TROUBLESHOOTING PAGE 35
Some quick
and easy tips
to fixing
problems
yourself.
Troubleshooting
Before Calling for Service
Please refer to this chart before calling for service. First, turn on the TV and VCR. Select appropriate
input for the TV to receive the video signal from the VCR. You will probably use the Antenna In connection to the TV. Select channel 3 or 4 at the TV. Place the VCR in the VCR mode by pressing TV/VCR on
the remote repeatedly until symbol appears in the VCR front panel. If you have a cable box, turn
it on and select channel 3 or 4 at the VCR.
VCR
Operating Problems
Observed Condition
No power to the VCR.
Remote does not function.
No picture appears on TV screen
from any VCR function.
VCR features do not function.
VCR does not respond to remote
functions or VCR keys.
Possible Cause
Power cord is not connected.
Batteries are weak.
You are too far away from the
VCR.
Remote may be at an awkward
angle.
Source for TV is not selected
properly.
TV/VCR mode for VCR is set to TV.
VCR is locked up
Probable Solution
Connect power cord.
Replace with new batteries.
Move closer to the VCR
Avoid holding the remote at
sharp angle.
Set INPUT source on TV to
Audio/Video In, or tune TV to
Channel 3 or 4, as appropriate.
Press TV/VCR on remote repeatedly to choose VCR mode.
symbol appears in VCR front
panel.
Disconnect VCR power cord for
three (3) seconds. Reset clock
and other features as necessary.
VCR
Playing Tapes (Playback) Problems
Observed Condition
Tape will not rewind or fast
forward.
Mechanical sound is audible
during playback.
Tape playback does not appear
on TV screen.
Video “noise” (horizontal
streaks) appear during normal
tape playing.
VCR Status Display flickers
when using STILL video during
tape playback.
Possible Cause
Tape is fully rewound or is at
its end.
Note: This is normal operating
sound from internal
mechanisms.
Source for TV is not selected
properly.
TV/VCR mode for VCR is set to
TV.
Tape is a rental or was recorded
on another VCR.
Tape heads are dirty.
Tape tracking needs to be
adjusted while in slow-motion
playback.
Probable Solution
No action necessary.
No action necessary.
Set Input source on TV to
Audio/Video In, or tune TV to
Channel 3 or 4, as appropriate.
Press TV/VCR repeatedly to
choose VCR mode. symbol
appears in VCR front panel.
Use ADJ (
F/G
) for manua l
tracking adjustment while tape
is playing.
Clean video heads.
From STILL video mode, enable
slow-motion playback. Use
ADJ (
F/G
) to adjust tracking
for best picture. Return to PLAY
mode, then press PAUSE for
STILL video.
VCR
TROUBLESHOOTINGPAGE 36
Some quick
and easy tips
to fixing
problems
yourself.
Troubleshooting
Recording Problems
Observed Condition
Camcorder image is not shown.
Camcorder image via A/V input
to VCR is not shown on TV
screen.
Timer recording is not possible.
TIMER SET appears after VCR is
turned off.
Possible Cause
Camcorder is off.
VCR SOURCE is not set to AUX.
Clock in VCR is not set to
correct time.
VCR is on which disables timer.
Timer has been programmed
incorrectly.
TIMER SET does not appear after
programming timer.
VCR is in Timer Recording mode.
Probable Solution
Turn camcorder on and operate
properly.
Use Channel Up/Down to select
AUX A/V input channel.
Set clock to correct time. See
CLOCK menu.
Turn VCR off to enable timer.
TIMER SET appears in the VCR
front panel.
Reprogram Timer. See TIMER
menu.
Reprogram Timer and turn VCR
off to enable timer.
This is normal indication that
the VCR is in TIMER mode. If
needed, disable TIMER by
turning VCR on.
VCR Plus+ Recording Problems
Observed Condition
VCR records program on different
channel than channel specified.
Recorded wrong channel or no
channel with cable box.
Possible Cause
Channel Mapping was not
performed or is incorrect.
Cable box is not tuned to
channel you wanted to record.
Cable box is not turned on.
VCR is not tuned to cable box
output channel 3 or 4.
Probable Solution
Channel map the VCR for your
area. See “Setup for VCR Plus+
Recording” section.
Tune cable box to channel you
want to record. Keep cable box
turned on.
Turn on cable box and keep it
on.
Tune VCR to cable box output
channel.
Channel Tuning Problems
Observed Condition
Some channels are skipped over
when using Channel Up/Down.
Picture and sound are weak or
missing.
Possible Cause
Those channels were deleted
with the CH. ADD/DEL option.
Antenna or cables are loose.
Wrong SOURCE option is being
used.
Probable Solution
Use CH. ADD/DEL to restore
channels. See SETUP Menu for
details.
Tighten connections or replace
cable.
Try all SOURCE options. See
SETUP menu for details.
TROUBLESHOOTING PAGE 37
Some quick
and easy tips
to fixing
problems
yourself.
Troubleshooting
Magnetic Field from Other Equipment
Keep the VCR and videotapes away from strong magnetic fields, such as those produced by a vacuum
cleaner, refrigerator, or air conditioner.
Video Head Cleaning
Your VCR automatically cleans the heads as it is used. However, after long periods of use, your video
heads may become clogged with accumulated dirt, causing distortion. When this occurs, use a do-ityourself wet-head cleaning cassette available from your Zenith dealer.
Caution:
Do not use a dry-head cleaning system. It may seriously damage the VCR and cassettes used in the VCR.
Snow, streaking in picture, and horizontal pulling indicate the need for professional video head cleaning.
See your Zenith approved service center for cleaning.
Cabinet Cleaning
Clean the outside surfaces of the VCR with a soft lint-free cloth as required. Use care not to scratch the
VCR during cleaning.
Moisture Condensation
Moisture condensation can occur:
• When the video recorder is moved from a cold
place to a warm place.
• Under extremely humid conditions
In locations where moisture condensation may
occur:
• Keep the power cord plugged into an AC outlet
and POWER On. This will help prevent condensation.
• When condensation has occurred, wait a few
hours for the VCR to dry before using it.
Stereo Audio Record and/or Playback Problems
Observed Condition
Stereo is not present.
Possible Cause
TV is not Stereo-compatible.
Program is not in stereo format.
VCR A/V Out jacks are not con-
nected to TV A/V In jacks.
VCR Audio/Video Out is not
selected for viewing at the TV.
VCR AUDIO RECORD mode is set
to SAP or MONAURAL.
Probable Solution
No action is possible.
No action is possible.
Make A/V connections. Stereo is
available only via A/V output
from VCR.
Select AUX or A/V source as TV
input.
Set VCR AUDIO RECORD mode to
Stereo. See AUDIO Menu.
INDEXPAGE 38
Find what
you want
quickly.
Index
FEATURE. . . . . . . . . . . . . . . . . . . . . . . PAGE
Audio Menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Auto Channel Search . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10, 24
Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-7, 26
Ch. Add/Del. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10, 24
Clock Set . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10, 22
Features Chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Front Panel Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Instant Recording . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30-32
Language Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Main Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Message Center Front Panel Display . . . . . . . . . . . . . . . . . . . . . . 16
Playing Tapes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28-29
Playback Jog-Shuttle Operation. . . . . . . . . . . . . . . . . . . . . . . . . 20
Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18-19
Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4
Setup for VCR Plus+ Recording . . . . . . . . . . . . . . . . . . . . . . . 12-14
Setup Menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
SpeakEZ Function. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Timer Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Timer-Controlled Recording. . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35-37
VCR Plus+ Recording . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
VCR Status Displays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Watching TV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Loading...
