Zenith VRA411, VRA421, VRA211 OPERATING GUIDE

Operating Guide and Warranty for your new Zenith Entertainment Machine
Models
VRA211 VRA411 VRA421
thanks for
choosing zenith
TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the pres­ence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to con­stitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important oper­ating and maintenance (servicing) instructions in the literature accompanying the appliance.
WARNING:
TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.
POWER CORD POLARIZATION:
CAUTION: To Prevent Electric Shock, match wide blade of plug to wide slot, fully insert. ATTENTION: Pour éviter les chocs électriques, introduire la lame la plus large de la fiche dans la borne
correspondante de la prise et pousser jusqu’au fond.
NOTE TO CABLE/TV INSTALLER:
This reminder is provided to call the cable TV system installer’s attention to Article 820-40 of the National Electric Code (U.S.A.). The code provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of the cable entry as practical.
REGULATORY INFORMATION:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help.
CAUTION:
Do not attempt to modify this product in any way without written authorization from Zenith Electronics Corporation. Unauthorized modification could void the user’s authority to operate this product.
This class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.
“Ce appareil numérique de la class b respecte toutes les exigences du Règulement sur le matériel brouillier du Canada.”
RECORD YOUR MODEL NUMBER (Now, while you can see it)
The model and serial number of your new VCR are located on the back of the VCR cabinet. For your future convenience, we suggest that you record these numbers here:
MODEL NO.____________________________________ SERIAL NO.____________________________________
WARNING
RISK OF ELECTRIC SHOCK
DO NOT OPEN
SAFETY TIPS
:
Refer to the “Safety Tips” leaflet that came with your product for Important Safety Instructions.
INSTALLATION PAGE 3
This page shows the fea­tures of your VCR and the differences between the models
VCR Features Chart
FEATURES VRA211 VRA411 VRA421
SpeakEZ Function X X X 2-Heads X N/A N/A 4-Heads (Special Video Effects) N/A X X Full Load/Quick Start X X X Auto Head Cleaner X X X Audio System Monaural Monaural MTS Hi-Fi Stereo Audio/Video (A/V) Jacks Monaural Monaural Stereo Remote Control SC411 X X X Auto/Manual Band Select X X X Auto/Manual Channel Search X X X Channel Capability (CATV & TV) 181 181 181 Record Speeds SP/EP X X X Playback Speeds SP/LP/EP X X X Auto Playback System X X X Auto/Manual Digital Tracking X X X Instant Recording X X X Timer-Controlled Recording X X X Auto Playback Tape Speed Adjust X X X Forward/Reverse Slow-Motion
N/A
XX
Video (4-head VCR) Variable 1/10 to 1/32 Variable 1/10 to 1/32 Pause/Still Video Noise Clear Clear Real-Time Tape Counter X X X Speed Search X X X CM Skip X X X
English/Spanish/French Menus X X X
1-Year, 8-Event Timer X X X LED Front Panel Indicator X X X Auto Daylight Saving Time X X X Hook-up Cable (VCR to TV) X X X
1. Model VRA421 is used for the description, operation, and details provided in this operating guide.
2. VCR design and specifications are subject to change without prior notice. X = Feature is provided N/A = Feature is Not Available
INSTALLATIONPAGE 4
Required
connections
for your VCR
Connections for your VCR
Connections With a Cable Box
Connections Without a Cable Box
Back Panel of Stereo VCR
Back Panel of Typical TV
Antenna
Flat Wire (300 ohm)
300/75 ohm Adaptor (Not provided)
Cable TV Wall Jack
This cable is provided
with your VCR.
OR
OR
IN
OUT OUT
IN
R
L
AUDIO
VIDEO
VHF/UHF/CATV
ANT
IN
ANT
IN
OUT
TO TV
VHF/UHF/CATV
VIDEOR-AUDIO-L
OUT
IN
OUT
CH3 CH4
IN
Turn off power or unplug VCR before making any connections.
Back Panel of
Typical Cable Box
CH3 CH4
CABLE
OUT IN
Back Panel of Stereo VCR Back Panel of Typical TV
IN IN
OUTOUT
R
L
AUDIO VIDEO
VHF/UHF/CATV
ANT
IN
Cable TV
Wall Jack
This cable is provided
with your VCR.
ANT
IN
OUT
TO TV
VHF/UHF/CATV
VIDEOR-AUDIO-L
OUT
IN
OUT
CH3 CH4
IN
Turn off power or unplug VCR before making any connections.
INSTALLATION PAGE 5
Optional connections for your VCR
Connections for your VCR
Audio/Video (A/V) Connections to TV
Use A/V connections for a better picture.
Accessory Audio/Video (A/V) Connections to VCR
CH3 CH4
OUT
IN
OUT
IN
R-AUDIO-L VIDEO
VHF/UHF/CATV
ANT
IN
Back Panel of Typical TV
ANT
IN
A/V cable is not provided with VCR.
ANT
IN
OUT
TO TV
VHF/UHF/CATV
VIDEOAUDIO
OUT
IN
Back Panel of Monaural VCR
Back Panel of Stereo VCR
OUT
AUDIO VIDEO
IN
VHF/UHF/CATV
A/V cable is not provided with VCR.
ANT
IN
OUT
TO TV
VHF/UHF/CATV
VIDEOR-AUDIO-L
OUT
IN
OUT
CH3 CH4
IN
Back Panel of Typical Monaural TV
Note: If the back panel on your TV is different, refer to the TV’s operating guide.
ANT
IN
OUT
TO TV
VHF/UHF/CATV
VIDEOR-AUDIO-L
OUT
IN
OUT
CH3 CH4
IN
Back Panel of Stereo VCR
OUT
IN
OUT
IN
R-AUDIO-L VIDEO
Jack panel of Accessory
A/V cable is not provided with VCR.
Accessory Component: Another VCR, Camcorder, Video Camera, Satellite Receiver, Laser Disc Player
Turn off power or unplug VCR before making any connections.
Turn off power or unplug VCR before making any connections.
INSTALLATIONPAGE 6
Things you
must do
before you
can operate
your VCR
Before you operate your VCR
1
2
Press number keys
QUIT = exit
SpeakEZ
CLOCK : 1 TIMER : 2 SETUP : 3 AUDIO : 4
PROGRAM 1 MONTH : DAY : START : STOP : CHANNEL : SPEED : REPEAT : (1-8) to select program ENTER to adjust program
Press number keys
QUIT = exit
SETUP MENU
AUTO PROGRAM: 1 CH. ADD/DEL: 2 SOURCE: 3 ON-SCREEN DISPLAY: 4 LANGUAGE SELECT: 5
CLOCK
MAIN MENU
TIMER SETUP AUDIO
Press NUMBER (1, 2, 3, 4) button
Press number keys then ENTER QUIT = exit
AUDIO MENU
SpeakEZ: ON 1 ON 2 OFF PLAYBACK:
RECORD:
CLOCK MENU
AUTO DAYLIGHT SAVING:ON 1 ON 2 OFF MANUAL CLOCK SET: 3
Press number keys
QUIT = exit
Note:
Audio menu’s PLAYBACK and RECORD options are available only with stereo VCRs.
Connect the Power
(Required) Plug your VCR into an unswitched
120 Vac, 60 Hz household power outlet. Turn on the VCR by pressing the POWER on the remote or on the VCR’s front panel.
Do not plug the VCR into a switched power outlet. Otherwise, when the power is switched off, the VCR turns off. You may then have to reset the time and date, and reprogram opera­tional features.
Set Position of the CH3/CH4 Switch
(Required) The CH3/CH4 switch on the VCR’s
back panel determines which channel the VCR uses to send video signals to your TV. The TV must be tuned to the same channel you set with the CH3/CH4 switch to see tape play­back and status displays from the VCR. To determine which video channel provides the best picture for your system, try the switch in CH3 position and tune your TV to channel 3; then try the CH4 position and tune your TV to channel 4.
For a test display, press TV/VCR on remote repeatedly until the VCR indicator appears in the VCR’s front panel display. Press MENU on the remote to see the main menu.
TYPICAL ZENITH VCR
WALL
SWITCH
POWER
OUTLET
Tune TV to
Ch.3
CH3 CH4
Tune TV to
Ch.4
CH3 CH4
OR
power
play
rew
f fwd
pause
power cst.in vcr rec timer
ch
rec/itr
sp/ep
ch
stop/eject
zenith
INSTALLATION PAGE 7
Things you must do before you can operate your VCR
Before you operate your VCR
How to Access Menus
1. Press MENU to see Main Menu.
2. Press NUMBER (1, 2, 3, or 4) to see desired sub menu to be used.
3. Press NUMBER to choose desired option to be changed.
4. Press QUIT to exit menu, or wait a few minutes and the VCR returns to normal operation.
Select SpeakEZ Function (On/Off)
A voice tells you how to use the features in the menus if SpeakEZ is ON. (ON is recommended.). See the AUDIO Menu for details.
SpeakEZ only functions with ENGLISH.
Select Language for VCR Menus/Displays
(Optional) Select English, Spanish, or
French for VCR menus and status dis­plays. See the LANGUAGE SELECT option on the SETUP menu for details.
Selects
VCR tuner
Chooses and
modifies options
power
eject
ch
ch
menu
quit
sp/ep
enter
memory
rec/itr
123
456
789
tv/vcr
trk
0
cm skip
p
a
u
s
e
s
t
o
p
play
rew f fwd
menu
quit
enter
123
456
789
tv/vcr
0
Point remote toward VCR
SpeakEZ
CLOCK : 1 TIMER : 2 SETUP : 3 AUDIO : 4
Press number keys
QUIT = exit
Press number keys then ENTER QUIT = exit
AUDIO MENU
SpeakEZ: ON 1 ON 2 OFF PLAYBACK:
RECORD:
MAIN MENU
Press NUMBER
(1 or 2) to choose
ON or OFF
Press 4.
SETUP MENU
Press NUMBER (1, 2,
or 3) to select the
desired language
Press 5.
3
4
SETUP MENU
AUTO PROGRAM: 1 CH. ADD/DEL: 2 SOURCE: 3 ON-SCREEN DISPLAY: 4 LANGUAGE SELECT: 5
Press number keys
QUIT = exit
SETUP MENU
LANGUAGE SELECT : ENGLISH 1 ENGLISH 2 ESPAÑOL 3 FRANÇAIS Press number keys then ENTER QUIT = exit
INSTALLATIONPAGE 8
Some things you must do
and others
you may
want to do
before you
can operate
your VCR
Before you operate your VCR
Press number keys
QUIT = exit
SETUP MENU
AUTO PROGRAM: 1 CH. ADD/DEL: 2 SOURCE: 3 ON-SCREEN DISPLAY: 4 LANGUAGE SELECT: 5
Press number keys then ENTER QUIT = exit
SETUP MENU
SOURCE: TUNER (TV)
1 TV 2 CATV 3 AUX
SETUP MENU
Press NUMBER
(1, 2, or 3) to select
the desired source
Press 3.
Set Date and Time for Clock
(Required) Set the clock in the VCR to
the current date and time. See CLOCK Menu for details.
You must set the clock before you can use any timer-con­trolled VCR features, for exam­ple, TIMER recordings.
Select Source for VCR
(Optional) Set the source of the VCR for
the type of program signal you have connected to the ANT IN jack on the back of the VCR. Choose TV if you have an antenna connected to the VCR. Choose CATV if you have a cable system (with or without a cable box) connected to the VCR. Choose AUX if you have an accessory Audio/Video (A/V) connected to the VCR.
See SOURCE option on SETUP menu for details.
Use Auto Program to Find Channels
(Required) Use AUTO PROGRAM to find
active channels in your broadcast area. AUTO PROGRAM stores the active chan­nels that you can access by using the Channel Up/Down arrows. See AUTO PROGRAM on the SETUP Menu for details.
Use CH. ADD/DEL to Create Favorite Channels
(Optional) Use CH. ADD/DEL to change
the list of active channels found when using AUTO PROGRAM, so you can list your favorites. See CH.ADD/DEL on the SETUP Menu for details.
6
Press number keys
QUIT = exit
SETUP MENU
AUTO PROGRAM: 1 CH. ADD/DEL: 2 SOURCE: 3 ON-SCREEN DISPLAY: 4 LANGUAGE SELECT: 5
QUIT = exit
SETUP MENU
AUTO PROGRAM: SEARCHING
SETUP MENU
Press 1.
Press number keys
QUIT = exit
SETUP MENU
AUTO PROGRAM: 1 CH. ADD/DEL: 2 SOURCE: 3 ON-SCREEN DISPLAY: 4 LANGUAGE SELECT: 5
Press number keys then ENTER QUIT = exit
SETUP MENU
CH. ADD/DEL: CH. 2 ADD
SETUP MENU
Press NUMBER
(0-9) then ENTER
Press 2.
7
8
5
CLOCK MENU
AUTO DAYLIGHT SAVING:ON 1 ON 2 OFF MANUAL CLOCK SET: 3
Press number keys
QUIT = exit
CLOCK MENU
MONTH : 1 JANUARY DAY : 1 THU YEAR : 1998 TIME : 12:00 PM
Press number keys then ENTER QUIT = exit
CLOCK MENU
Press NUMBER
(0-9) then ENTER to
set date and time
Press 3.
INSTALLATION PAGE 9
Things you may want to do before you operate your VCR.
Before you operate your VCR
9
Select Other Menu Options
You may not want to have the clock in your VCR adjusted automatically for Daylight Saving Time. Refer to Clock Menu for details.
Show or hide the VCR status on your screen by using the ON-SCREEN DISPLAY option on the SETUP menu. We recom­mend keeping this option ON. See the SETUP menu for details.
If you have a stereo VCR, select the audio format (HI-FI or NORMAL) to use when you play a tape. We recommend setting this option to HI-FI. See the PLAYBACK MODE option on the AUDIO Menu for details.
If you have a stereo VCR, select the audio format (STEREO, MONO or SAP) to use when recording. We recommend using STEREO. See the RECORD MODE option on the AUDIO Menu for details.
Press number keys
QUIT = exit
SETUP MENU
AUTO PROGRAM: 1 CH. ADD/DEL: 2 SOURCE: 3 ON-SCREEN DISPLAY: 4 LANGUAGE SELECT: 5
Press number keys then ENTER QUIT = exit
SETUP MENU
ON-SCREEN DISPLAY: ON
1 ON 2 OFF
SETUP MENU
Press NUMBER
(1 or 2) to choose
ON or OFF
Press 4.
SpeakEZ
CLOCK : 1 TIMER : 2 SETUP : 3 AUDIO : 4
Press number keys
QUIT = exit
CLOCK MENU
AUTO DAYLIGHT SAVING:ON 1 ON 2 OFF MANUAL CLOCK SET: 3
Press number keys
QUIT = exit
MAIN MENU
Press NUMBER
(1 or 2) to choose
Auto Daylight Saving
ON or OFF
Press 1.
SpeakEZ
CLOCK : 1 TIMER : 2 SETUP : 3 AUDIO : 4
Press number keys
QUIT = exit
Press number keys then ENTER QUIT = exit
AUDIO MENU
SpeakEZ: PLAYBACK: HI-FI 1 HI-FI
2 NORMAL
RECORD:
MAIN MENU
Press NUMBER
(1 or 2) to choose
HI-FI or NORMAL
Press 4.
SpeakEZ
CLOCK : 1 TIMER : 2 SETUP : 3 AUDIO : 4
Press number keys
QUIT = exit
Press number keys then ENTER QUIT = exit
AUDIO MENU
SpeakEZ: PLAYBACK:
RECORD: STEREO 1 STEREO
2 MONO 3 SAP
MAIN MENU
Press NUMBER
(1, 2 or 3) to choose
STEREO, MONO, or
SAP
Press 4.
CONTROLS AND DISPLAYSPAGE 10
Descriptions
of items you
need to know
to operate
your VCR.
Front Panel Diagram
Front Panel Controls
These controls perform basic VCR operations. The Remote performs basic as well as advanced VCR operations.
power
play
rew
f fwd
pause
power cst.in vcr rec timer
ch
rec/itr
sp/ep
ch
stop/eject
zenith
LED Front Panel Indicators
A Cassette is in the VCR
VCR is in Timer recording
Remote Window: Keep this area free of obstruction.
VCR is recording
VCR is turned on
VCR functions are
available and channels
are selected at VCR
POWER On/Off
Button
Cassette
Compartment
Channel Up/Down
Selector
Stop/Eject
Selector
PLAY, REW (Rewind),
F FWD (Fast Forward),
PAUSE Selector
LED Front Panel
Indicators
Recording
Speed Selector
REC/ITR
(Instant Timer
Record) Selector
power cst.in vcr rec timer
CONTROLS AND DISPLAYS PAGE 11
On-Screen dis­plays tell you the status of the tape inserted and VCR functions.
VCR Status Displays
VCR Status Display
The VCR Status Display appears on the TV when a VCR function starts, like when you change a chan­nel or select a different VCR mode. For example, pressing STOP while the VCR is in PLAY mode shows STOP in the display. Press ENTER on the remote at any time (except Special Effect Playback mode; SLOW, STILL etc.) to see the Status Display.
Note:
If the VCR Status Display does not appear on the TV screen, check the ON-SCREEN DISPLAY option on the SETUP menu. Select ON to see the display. See “VCR Menu Operations” section for details.
VCR Status Display Options
When the Status Display appears, press ENTER repeatedly to see abbreviated displays, as follows:
1. Press ENTER to see Status Display.
2. Press ENTER a second time to show only the tape counter position.
3. Press ENTER a third time to show only the tape time remaining.
4. Press ENTER repeatedly until all displays are removed.
PLAY HI-FI VCR CH 11 SP ST/SAP
15 MON 7:17 AM M-1:35:45
M-1:35:45 REM 1:35
Current mode of operation (STOP, PAUSE, RECORD, PLAY, etc.) and audio format of tape, where
Play=HI-FI or NORMAL(No display)
Tape Speed
EP=Extended Play LP=Long Play SP=Standard Play
Current date, day, and time
Current CH (Channel) selected by using tuner in VCR
Audio format of signal received by VCR tuner: STEREO, MONO or ST/SAP
Real-time tape counter M = Counter Memory is active – = Tape is rewound past index
mark.
1:35:45 = Length of tape (in time)
1 = 1 hour 35 = 35 minutes 45 = 45 seconds
Typical VCR Status Display
on TV
Tape Counter Position
Tape Time Remaining
OPERATIONPAGE 12
A quick list
of all the
buttons on
your remote
control and
what they do.

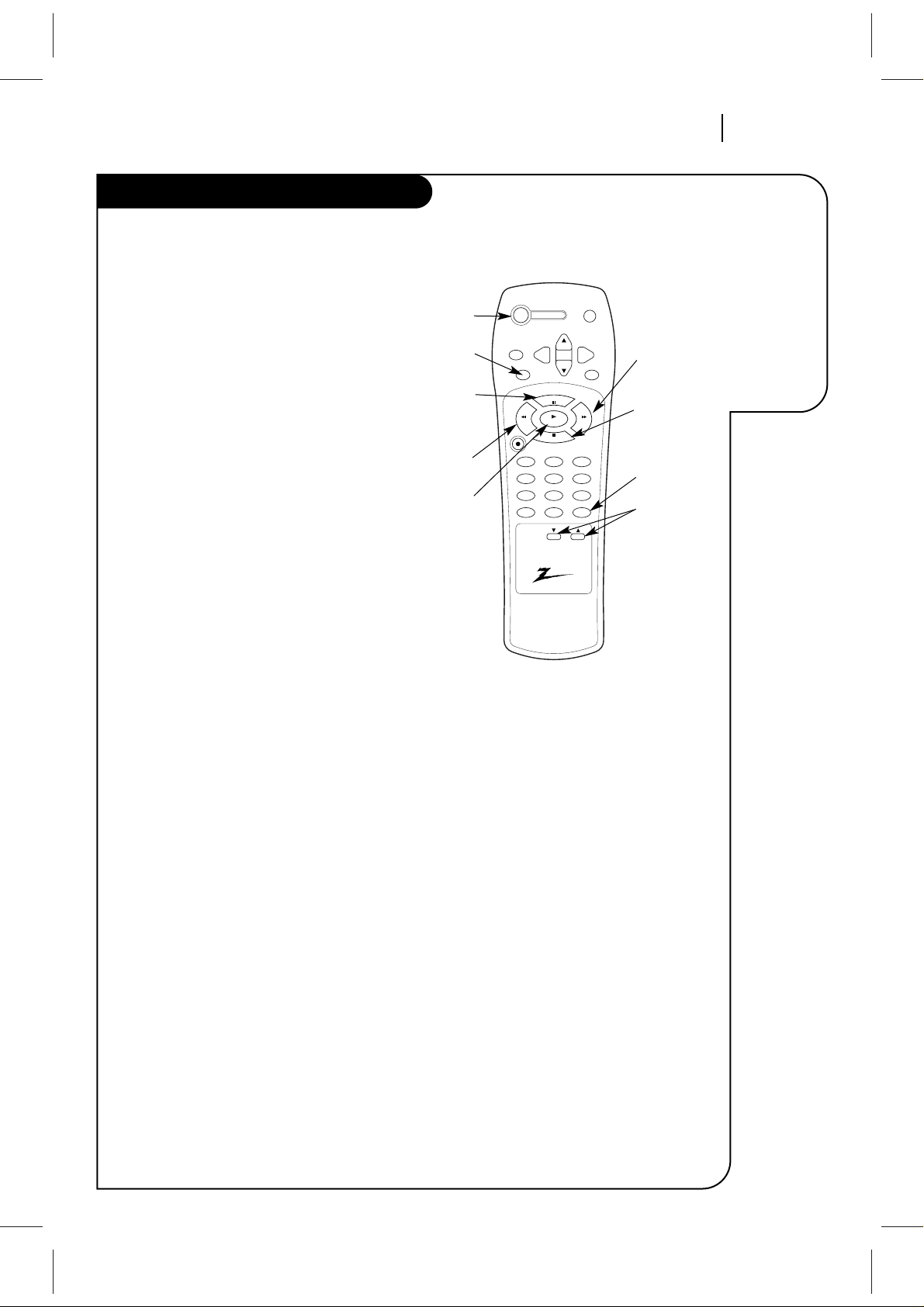

The Buttons on Your Remote
Turns VCR
On/Off
Exits Any Menu
Chooses Tape
Recording Speed
Enters a Menu
Tape Play/Record
Options
Direct Channel and
Programming Entry
Switches TV Picture
between TV and VCR
Channel Selectors
(Tuner)
Ejects a tape
Shows main menu
Accesses Tape Counter Display
Channel Selectors
Fast forwards picture search through 30 seconds of record­ing
Adjusts tape playback tracking.
Installing Batteries
Be sure to install the batteries provided with this remote. Match positive (+) and negative (-) with markings shown in battery com­partment.
Note: All VCR operations and menu options can be accessed by using the remote control.
CH (/) — Changes favorite channel list. Also selects AUX A/V input channel.
CM SKIP — Fast forwards picture search through 30 seconds of recording.
EJECT — Ejects the tape in the VCR.
ENTER — Programs menu options and shows VCR display.
F FWD (Fast Forward)—Advances tape rapidly.
MEMORY — Returns real-time tape counter to zero (M 0:00:00).
MENU — Shows main menu. Numbers — Chooses channels
and enters programming informa­tion.
PAUSE — Pauses tape temporarily during playback or record.
PLAY — Begins tape playback. POWER — Turns VCR On and Off.
Also turns VCR Timer Off and On, if programmed.
QUIT — Exits menu system. REC/ITR — Begins tape record-
ing. REW — Rewinds tape to the
beginning. SP/EP — Chooses tape recording
speed. STOP — Cancels playback or
record modes. TRACKING (/) — Adjusts
tape playback tracking. TV/VCR — Switches source of TV
picture between TV channel and VCR channel selection. VCR func­tions are available in VCR mode.
power
sp/ep
ch
quit
ch
enter
s
u
e
a
p
rew f fwd
play
s
t
p
o
rec/itr
123
456
789
tv/vcr
0
trk
cm skip
eject
menu
memory
AA
AA
OPERATION PAGE 13
Introducing you to the Main Menu selections
Main Menu
Press number keys
QUIT = exit
SpeakEZ
CLOCK : 1 TIMER : 2 SETUP : 3 AUDIO : 4
PROGRAM 1 MONTH : DAY : START : STOP : CHANNEL : SPEED : REPEAT : (1-8) to select program ENTER to adjust program
Press number keys
QUIT = exit
SETUP MENU
AUTO PROGRAM: 1 CH. ADD/DEL: 2 SOURCE: 3 ON-SCREEN DISPLAY: 4 LANGUAGE SELECT: 5
CLOCK
MAIN MENU
TIMER SETUP AUDIO
Press NUMBER (1, 2, 3, 4) button
Press number keys then ENTER QUIT = exit
AUDIO MENU
SpeakEZ: ON 1 ON 2 OFF PLAYBACK:
RECORD:
CLOCK MENU
AUTO DAYLIGHT SAVING:ON 1 ON 2 OFF MANUAL CLOCK SET: 3
Press number keys
QUIT = exit
How to Access Menus
Menu operation is easy—just follow the instructions shown at the bottom of the menu.
1. Press MENU to see main menu.
2. Press NUMBER (1, 2, 3, or 4) to see desired sub menu to be used.
3. Press NUMBER to choose desired option to be changed.
4. Press QUIT to exit menu, or wait a few minutes and the VCR returns to normal operation.
Selects
VCR tuner
Chooses and
modifies options
power
eject
ch
ch
menu
quit
sp/ep
enter
memory
rec/itr
123
456
789
tv/vcr
trk
0
cm skip
p
a
u
s
e
s
t
o
p
play
rew f fwd
menu
quit
enter
123
456
789
tv/vcr
0
Point remote toward VCR
Note:
Perform menu operations with the VCR and TV on, and tune the TV to channel 3 or 4. The VCR must also be in the VCR mode of operation. Press TV/VCR repeatedly until VCR indicator appears in the front panel.
OPERATIONPAGE 14
The Clock
Menu sets
the clock in
VCR to the
current time.
Clock Menu
How to Access Auto Daylight Saving
This VCR can adjust the clock automatically for Daylight Saving Time.
1. Press MENU to see Main Menu.
2. Press 1 to see Clock Menu on the Main Menu.
3. Press 1 to choose ON on the Clock Menu.
Note:
We recommend that you set the clock using the MANUAL method the first time you use your VCR. See MANUAL option for details.
Manual Clock Set
The CLOCK Menu sets the clock in the VCR to the current date and time.
Notes:
The clock must be set before you can record by using the TIMER menu.
You may have to reset the clock if a power outage lasts for more than 3 seconds.
How to Set Clock
1. Press MENU to see Main Menu.
2. Press 1 to see clock options.
3. Press 3 to adjust your options.
4. Press the NUMBER (0~9) then ENTER to specify current date and time.
5. Press QUIT to exit the menu system.
CLOCK MENU
MONTH : 1 JANUARY DAY : 1 THU YEAR : 1998 TIME : 12:00 PM
Press number keys then ENTER QUIT = exit
CLOCK MENU
AUTO DAYLIGHT SAVING:ON 1 ON 2 OFF MANUAL CLOCK SET: 3
Press number keys
QUIT = exit
Typical CLOCK Menu with
date and time settings
OPERATION PAGE 15
The TIMER Menu tells the VCR when to record a pro­gram on a day and at a time you specify
Timer Menu
PROGRAM 1 MONTH : 7 JULY DAY : 20 MON START : 11:16 AM STOP : 11:46 AM CHANNEL : 20 TV SPEED : EP REPEAT : ONCE (1-8) to select program to erase press (0)
PROGRAM 1 MONTH : 7 JULY DAY : 20 MON START : 11:16 AM STOP : 11:46 AM CHANNEL : 20 TV SPEED : EP REPEAT : ONCE (1-8) to select program to erase press (0)
You can specify eight different events to be recorded in a one-year period.
How to Use Timer
1. Choose TIMER menu as described in “How to Access Menus.”
2. Press NUMBER(0-9) then ENTER to set the timer.
3. Press QUIT to exit the menu system.
Note:
Set the VCR in TIMER mode by pressing POWER to turn off the VCR. The TIMER indicator appears in the front panel of the VCR.
You cannot operate the VCR manually while it is recording. Pressing POWER stops the recording.
To Erase a Program
1. Choose TIMER menu as described in “How to Access Menus.”
2. Press NUMBER(1-8) to select desired PROGRAM to be erased.
3. Press 0 to erase the program.
4. Press QUIT to exit the menu system.
SpeakEZ
CLOCK : 1 TIMER : 2 SETUP : 3 AUDIO : 4
Press number keys
QUIT = exit
PROGRAM 1 MONTH : DAY : START : STOP : CHANNEL : SPEED : REPEAT : (1-8) to select program ENTER to adjust program
PROGRAM 8 MONTH : DAY : START : STOP : CHANNEL : SPEED : REPEAT : (1-8) to select program ENTER to adjust program
Press 2
Month of Recording
Day of Recording
Start Time of Recording
Stop Time of Recording
Channel of Recording
Speed of Recording
Frequency of Recording
Program Number When highlighted, press NUMBER (1-
8) to choose program Number.
REPEAT OPTIONS
ONCE — Records once. WEEKLY — Records once each week. DAILY — Records one time each day,
Monday - Friday.
CHANNEL OPTIONS
To select an AUX channel, select the next highest or lowest channel pro­grammed in the VCR with the CHAN­NEL Up/Down arrows.
SPEED OPTIONS (SP or EP)
The SP mode determines how much tape is left and switches speed from SP to EP, if necessary, to complete recording the program. There will be some picture and sound distortion at the point of the speed change.
Press 0 to erase program
Follow these steps
OPERATIONPAGE 16
The SETUP
Menu
customizes
the VCR’s
operation for
your
particular
needs.
Setup Menu
Press number keys
QUIT = exit
SETUP MENU
AUTO PROGRAM: 1 CH. ADD/DEL: 2 SOURCE: 3 ON-SCREEN DISPLAY: 4 LANGUAGE SELECT: 5
Choose SETUP Menu as described in “How to Access Menus.”
AUTO PROGRAM Finds all active channels and stores them in the VCR’s memory for access
by Channel Up/Down. Press 1 to begin search.
CH. ADD/DEL Edits the channels found by AUTO PROGRAM. Use number keys followed by
ENTER to select the channel to be edited (e.g., to ADD channel 3, press 3 then ENTER). Press ENTER to ADD or DEL (Delete) channels to create your own list of favorite channels.
SOURCE Selects TV, CATV, or AUX as the source of the program to watch or record.
Choose TV if you have an antenna connected to the VCR. Choose CATV if you have a cable system (with or without a cable box) connected to the VCR. Choose AUX if you want to see the program from accessory equip­ment, such as a camcorder, connected to the Audio/Video (A/V) IN jacks
on the VCR. ON-SCREEN DISPLAY Selects whether or not you see VCR Status Displays on the TV. LANGUAGE SELECT Selects English, Spanish or French for VCR menus and displays on the TV.
OPERATION PAGE 17
AUDIO Menu’s PLAYBACK and RECORD options are available only with stereo VCRs.
Audio Menu
SpeakEZ Turns SpeakEZ ON or OFF.
A voice tells you how to use the features you select in the menus if SpeakEZ is ON. (ON is recommended.)
PLAYBACK Selects HI-FI or NORMAL for tape playback.
HI-FI (High Fidelity) provides stereo sound, if present on the tape, to the left and right VCR AUDIO output jacks on the back of the VCR. NORMAL provides monaural sound, regardless of the audio format present on the tape.
RECORD Select the STEREO, MONO, or SAP for recording a program.
STEREO records sound from the left and right audio tracks in stereophonic format. MONO (Monaural) records sound in monaural format even if the program is in stereo. SAP records the Second Audio Program (SAP) track, if present, in addition to the stereo audio tracks. SAP usually contains audio in another language.
The AUDIO Menu indicates the audio format used when recording or playing a tape. Choose AUDIO Menu as described in “How to Access Menus.”
Press ENTER (and repeat) to choose items in the menu (some models).
Press number keys then ENTER QUIT = exit
AUDIO MENU
SpeakEZ: ON 1 ON 2 OFF PLAYBACK:
RECORD:
OPERATIONPAGE 18
This page
shows a
typical video
system and
explains how
to select
channels.
Watching TV Through the VCR
Selecting Channels when the VCR is OFF
1. Turn TV on.
2. Select channel you’d like to watch at the TV. If you have a cable box, select channel 3 or 4 at the TV. Selects cable box channels at the cable box.
Selecting Channels at the TV when VCR is ON
1. Turn TV and VCR on.
2. Place VCR in TV mode by pressing TV/VCR on the remote repeatedly until the VCR indicator disappears from the VCR front panel.
3. Select channel you’d like to watch at the TV. If you have a cable box, select channel 3 or 4 at the TV. Select cable box channels at the cable box.
Selecting Channels at the VCR when VCR is ON
1. Turn TV and VCR on.
2. Place VCR in VCR mode by pressing TV/VCR on remote repeatedly until the VCR indicator appears in the VCR front panel.
3. Select channels 3 or 4 at the TV. If you have connected your VCR to the TV’s A/V input jacks, select the A/V source at the TV for a better picture.
4. Select the channel you’d like to watch at the VCR. If you have a cable box, select channel 3 or 4 at the VCR. Select cable box channels at the cable box.
IN OUT
Audio/Video Output to TV
VCR Output to TV (Channel 3 or 4 when VCR is on and TV/VCR is in VCR position)
CH3 CH4
Cable Box
Output to VCR
From
Cable- TV
System
Direct Cable
All-Channel
Antenna
Cable TV
Wall Jack
Typical Cable Box
OUT
VHF/UHF/CATV
IN
AUDIO
OUT
VIDEO
OUT
RL
34
CHANNEL
Zenith Stereo VCR
VHF-UHF
CABLE IN
VIDEOINAUDIO
IN
RL
Zenith TV
Or
Or
OPERATION PAGE 19
This page describes how to connect a camcorder to your VCR.
Camcorder Connected to VCR
Select AUX for Viewing an Audio/Video source like a Camcorder
1. With TV and VCR on, place VCR in VCR mode by pressing TV/VCR on the remote (and repeat) until the VCR indicator appears in the VCR’s front panel.
2. Select channel 3 (or 4) on the TV. Note: If your TV has A/V jacks, you may get a better picture if you connect your VCR there. (Then, select the A/V source on the TV.)
3. At the VCR, Channel Down lower than the lowest channel (or Channel Up above the highest) to select “AUX” Or, you may­Choose the SETUP menu as described in “How to Access Menus.” Press 3 for the SETUP menu’s SOURCE item. Press 3 for AUX, then ENTER. (Press QUIT to exit.)
Turn off power or unplug VCR before making any connections.
Press number keys then ENTER QUIT = exit
SETUP MENU
SOURCE: TUNER (TV)
1 TV 2 CATV 3 AUX
Press 3 to select AUX
SOURCE Shows the program source—TV, CATV, or AUX—selected for the VCR to receive TUNER The VCR is using its Tuner to receive programs from an antenna or cable. TV Selects programs for the VCR from a rooftop-type antenna. CATV Selects programs for the VCR from Cable TV. AUX Selects programs for the VCR from the R-AUDIO-L—VIDEO IN jacks (where you may have
connected your camcorder).
Items in the Menu
Back Panel of Stereo VCR
ANT
VIDEOR-AUDIO-L
OUT
OUT
CH3 CH4
IN
IN
A/V cable is not provided with VCR.
IN
VHF/UHF/CATV
OUT
TO TV
OPERATIONPAGE 20
This page
explains the
basics of
playing tapes
in your VCR.

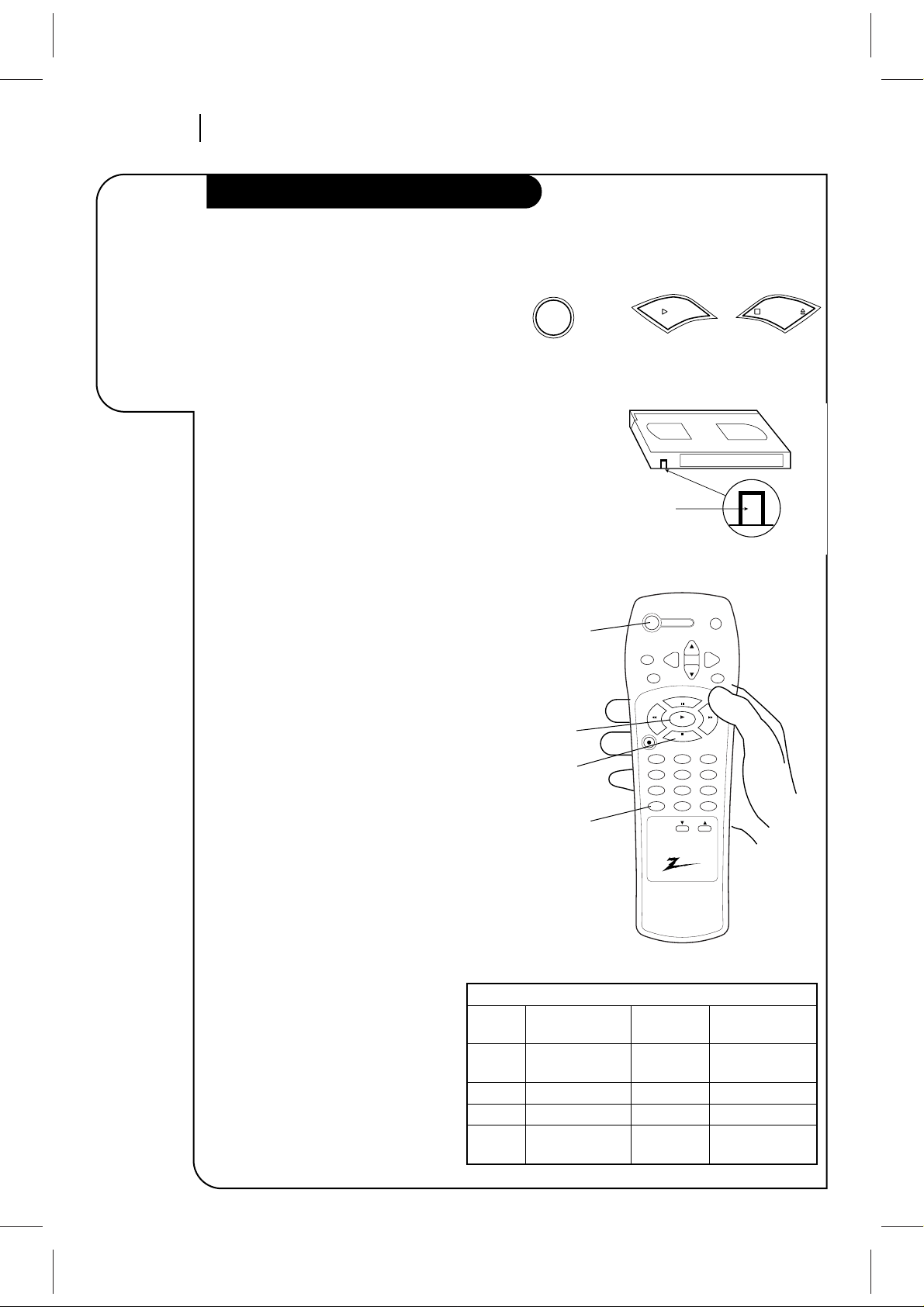

Playing Tapes
Automatic Playback (No Safety Tab)
1. Tape playback begins automatically, if the safe­ty tab is removed from the cassette case. For example, most rental movies have no safety tab. Simply insert the prerecorded VHS cassette into the VCR. Power turns on and playback begins.
2. Select the channel 3 or 4 at the TV. Or, select the TV’s AUX (Auxiliary) source to see the pic­ture, if you are using the A/V jacks.
Manual Playback (Has Safety Tab)
1. Press POWER to turn VCR on.
2. Insert a prerecorded VHS cassette into the VCR.
3. Press PLAY to begin playback.
4. Select the channel 3 or 4 at the TV. Or, select the TV’s AUX (Auxiliary) source to see the picture, if you are using the A/V jacks.
Unloading the Cassette from the VCR
1. Press STOP if the tape is playing.
2. Press STOP/EJECT at the VCR until the cassette is ejected.
Note:
This VCR records only in SP and EP speeds. Your VCR sets the playback speed automatically to the speed used to record the tape.
(Continued on next page)
VHS Cassette Playback/Record Times
Cassette SP LP EP
Length (Standard Play) (Long Play) (Extended Play)
T-30 30 Minutes 1 Hour 1 Hour,
30 Minutes T-60 1 Hour 2 Hours 3 Hours T-120 2 Hours 4 Hours 6 Hours T-160 2 Hours, 5 Hours, 8 Hours
40 Minutes 20 Minutes
POWER
PLAY
STOP
TV/VCR
power
eject
ch
ch
menu
quit
sp/ep
enter
memory
rec/itr
123
456
789
tv/vcr
trk
0
cm skip
p
a
u
s
e
s
t
o
p
play
rew f fwd
power
play
stop/eject
VCR’s Controls
Cassette
Safety Tab
Shown in
Place
OPERATION PAGE 21
This page explains how to use the remote to play tapes on your VCR.
Playing Tapes
Auto/Manual Tracking Adjustment
Your VCR adjusts tracking automatically when you play a tape. If the tape was recorded on a different VCR, streaks (video noise) may appear. While the tape is playing, press TRACKING (▼/▲) to adjust the tracking manually.
Real-Time Tape Counter
Press ENTER twice to keep the tape counter on the TV screen. Press ENTER repeatedly to remove all displays. The counter resets to 0:00:00 when you insert a cassette or when a tape is rewound to its beginning.
Pause/Forward/Reverse Slow-Motion Video
(While in play mode) Press PAUSE for still video. Press PAUSE again, and follow on-screen instructions for Forward or Reverse slow motion. Press F FWD or REW to control slow speed during slow motion. Press PLAY to resume normal tape playing.
Note: When the reverse slow mode continues for more than 30 secondes, the VCR will automati­cally change to play mode.
Tape Rewind and Fast Forward
(While in Stop mode) Press and release REW or F FWD (Fast Forward), as desired. Press STOP when tape reaches desired location.
Reverse/Forward Search
(While in Play mode) Press and release REW or F FWD, as desired. Press PLAY to resume normal tape playing.
CM Skip (Commercial Skip)
(While in play mode) Pressing CM SKIP on the remote skips commercials or other program material. Pressing 1, 2, 3, or 4 times skips 30, 60, 90, or 120 seconds, respectively. CM SKIP skips a full 120 seconds of commercials in a few seconds, then resumes normal play­back.
power
eject
ch
ch
menu
quit
sp/ep
enter
memory
rec/itr
123
456
789
tv/vcr
trk
0
cm skip
p
a
u
s
e
s
t
o
p
play
rew f fwd
POWER
ENTER
PAUSE
REW (Rewind)
PLAY
F FWD (Fast Forward)
STOP
CM SKIP TRACKING
(/)
OPERATIONPAGE 22
Recording
what you are
watching
on TV.
Instant Recording
Options You Can Use While Recording
Instant recording lets you record until you reach the end of tape or you press STOP to stop record­ing.
1. Turn TV and VCR on.
2. Place VCR in VCR mode by pressing TV/VCR on the remote repeatedly until the VCR indicator appears in the VCR front panel.
3. Select channel 3 or 4 at the TV. If you have connected your VCR to the TV’s A/V input jacks, select the A/V source at the TV for a better pic­ture.
4. Select the channel to be watched and recorded at the VCR. If you have a cable box, select the cable box output channel (usually 3 or 4) at the VCR. Select cable box channels at the cable box.
5. Insert a VHS cassette tape into the VCR.
6. Press SP/EP to select recording speed, if desired. Recording speed is always SP, unless you select EP.
7. Press REC/ITR until recording begins. REC indi­cator appears in the VCR front panel. Recording continues until you reach the end of the tape, or until you press STOP to stop recording.
Instant Recording Instant Timer Recording
(until end of tape) (Preset recording times) PAUSE STOP or STOP/EJECT
Momentarily Pauses Stops and exits recording recording. Press PAUSE mode. again to resume recording.
STOP or STOP/EJECT – Stops and exits recording mode.
power
power
sp/ep
Remote's Controls
sp/ep
tv/vcr
rec/itr
VCR's Controls
rec/itr
s
t
stop/eject
p
o
OPERATION PAGE 23
Recording using preset time periods.
Instant Recording
Presses of
Display
Preset Time For
REC/ITR Recording
1 (Press) Current Time Until end of tape 2 0:30 30 minutes 3 1:00 1 hours 4 1:30 1 hour and
30 minutes 5 2:00 2 hours ...
... ...
9 4:00 4 hours 10 No display normal recording
Preset Time Periods for ITR Recording.
Note:
Preset recording time counts down until the record­ing time is over.
Instant (attended) Timer Recording (ITR) lets you record where you record for a specific preset time period, instead of recording until the end of tape is reached. For example, you can record a 30-minute show using the preset time period.
Turn TV and VCR on.
Place VCR in VCR mode by pressing TV/VCR on the remote repeatedly until the VCR indicator appears in the VCR front panel.
Select channel 3 or 4 at the TV. If you have connected your VCR to the TV’s A/V input jacks, select the A/V source at the TV for a better picture.
Select the channel to be watched and recorded at the VCR. If you have a cable box, select the cable box output channel (usually 3 or 4) at the VCR. Select cable box channels at the cable box.
Insert a VHS cassette tape into the VCR.
Press SP/EP to select recording speed, if desired. Recording speed is always SP, unless you select EP.
Press REC/ITR until recording begins. The REC indicator appears in the VCR front panel. Recording continues until you reach the end of the tape, or until you press STOP to stop recording.
Press REC/ITR repeatedly to select a preset recording time period. Each sub­sequent press of REC/ITR increases the recording time by 30 minutes until you reach a maximum of 4 hours.
2
3
4
1
5
6
7
8
Note: The SP mode determines how much tape is left and switches speed from SP to EP, if necessary, to complete recording the program. There will be some picture and sound distortion at the point of the speed change.
power
power
sp/ep
Remote's Controls
sp/ep
tv/vcr
rec/itr
VCR's Controls
s
t
p
rec/itr
o
stop/eject
OPERATIONPAGE 24
Recording
one show
while
watching
another.
Instant Recording
Note:
If you have a cable box connected to your VCR, you cannot record one show and watch another.
Choose the show you wish to record using the VCR’s channel selector. Choose the show you wish to watch using the TV’s channel selector.
Turn TV and VCR on.
Place VCR in VCR mode by pressing TV/VCR on the remote repeatedly until the VCR indicator appears in the VCR front panel.
Select channel 3 or 4 at the TV. If you have connected your VCR to the TV’s A/V input jacks, select the A/V source at the TV for a better picture.
Select the channel to be watched and recorded at the VCR. If you have a cable box, select the cable box output channel (usually 3 or 4) at the VCR. Select cable box channels at the cable box.
Insert a VHS cassette tape into the VCR.
Press SP/EP to select recording speed, if desired. Recording speed is always SP, unless you select EP.
Press REC/ITR until recording begins. REC indicator appears in the VCR front panel. Recording continues until you reach the end of the tape, or until you press STOP to stop recording.
Place VCR in TV mode by pressing TV/VCR on remote to turn off VCR indi­cator in the VCR front panel.
Select the show you wish to watch using the TV’s channel selector.
Note:
To return to the show you’re recording, select channel 3 or 4 at the TV. Place the VCR in the VCR mode by pressing TV/VCR on the remote to show the VCR indicator in the VCR’s front panel.
Options You Can Use While Recording
2
3
4
1
5
6
7
8
9
Instant Recording
(until end of tape) PAUSE
Momentarily pauses recording. Press PAUSE again to resume recording.
STOP or STOP/EJECT – Stops and exits recording mode.
power
power
sp/ep
Remote's Controls
sp/ep
tv/vcr
rec/itr
VCR's Controls
rec/itr
stop/eject
s
t
p
o
OPERATION PAGE 25
This page explains how to use the timer so that you can record while you are away.
Recording While You’re Away
Timer-controlled recording lets you record shows unattended. Pick a day and time up to one year in advance. The show may be recorded once or on multiple days. You can schedule up to eight different events into the PROGRAM TIMER for recording, as long as no events overlap in the same time period.
Turn TV and VCR on.
Place VCR in VCR mode by pressing TV/VCR on the remote repeatedly until the VCR indicator appears in the VCR front panel.
Select channel 3 or 4 at the TV.
Insert a VHS cassette tape into the VCR.
Program events to be recorded with the Timer by following the procedure in the TIMER MENU section. If you have a cable box, select channel 3 or 4 (ar the VCR) as the channel to be recorded. Keep your cable box on when using the Timer to record.
Enable the Timer by pressing POWER to turn off the VCR. The TIMER indicator appears in the VCR front panel to indi­cate the VCR is in the TIMER recording mode.
MAIN MENU
TIMER MENU
for Program 1
TIMER MENU
for Program 8
VCR TIMER
VCR OPERATION
POWER STATUS
On Off
Off On (or set)
Disables timer-controlled recording if an event is Scheduled in the Timer. All other VCR operations can be used as desired.
Enables timer-controlled recording if an event is scheduled in the Timer. You cannot be operate the VCR manually while it is in Timer Set mode. If you have scheduled the Timer, you’ll be recording at a later time.
2
3 4
1
5
6
SpeakEZ
CLOCK : 1 TIMER : 2 SETUP : 3 AUDIO : 4
Press number keys
QUIT = exit
PROGRAM 1 MONTH : DAY : START : STOP : CHANNEL : SPEED : REPEAT : (1-8) to select program ENTER to adjust program
PROGRAM 8 MONTH : DAY : START : STOP : CHANNEL : SPEED : REPEAT : (1-8) to select program ENTER to adjust program
Press 2
VCR Operation with Timer Off or On
TROUBLESHOOTINGPAGE 26
Some quick
and easy tips
to fixing
problems
yourself.
Troubleshooting
Before Calling for Service
Please refer to this chart before calling for service. First, turn on the TV and VCR. Select appropriate input for the TV to receive the video signal from the VCR. You will probably use the Antenna In connec­tion to the TV. Select channel 3 or 4 at the TV. Place the VCR in the VCR mode by pressing TV/VCR on the remote repeatedly until VCR indicator appears in the VCR front panel. If you have a cable box, turn it on and select channel 3 or 4 at the VCR.
Operating Problems
Observed Condition
No power to the VCR. Remote does not function.
No picture appears on TV screen from any VCR function.
VCR features do not function. VCR does not respond to remote functions or VCR keys.
Possible Cause
Power cord is not connected. Batteries are weak. You are too far away from the
VCR. Remote may be at an awkward
angle. Source for TV is not selected
properly.
TV/VCR mode for VCR is set to TV.
VCR is locked up
Probable Solution
Connect power cord. Replace with new batteries. Move closer to the VCR.
Avoid holding the remote at sharp angle.
Set INPUT source on TV to Audio/Video In, or tune TV to Channel 3 or 4, as appropriate.
Press TV/VCR on remote repeat­edly to choose VCR mode. VCR indicator appears in VCR front panel.
Disconnect VCR power cord for three (3) seconds. Reset clock and other features as necessary.
Playing Tapes (Playback) Problems
Observed Condition
Tape will not rewind or fast forward.
Mechanical sound is audible during playback.
Tape playback does not appear on TV screen.
Video “noise” (horizontal streaks) appear during normal tape playing.
VCR Status Display flickers when using STILL video during tape playback.
Possible Cause
Tape is fully rewound or is at its end.
Note: This is normal operating sound from internal mechanisms.
Source for TV is not selected properly.
TV/VCR mode for VCR is set to TV.
Tape is a rental or was recorded on another VCR.
Tape heads are dirty. Tape tracking needs to be
adjusted while in slow-motion playback.
Probable Solution
No action necessary.
No action necessary.
Set Input source on TV to Audio/Video In, or tune TV to Channel 3 or 4, as appropriate.
Press TV/VCR repeatedly to choose VCR mode. VCR indicator appears in VCR front panel.
Use TRACKING (
/) for manu-
al tracking adjustment while tape is playing.
Clean video heads. From STILL video mode, enable
slow-motion playback. Use TRACKING (
/) to adjust
tracking for best picture. Return to PLAY mode, then press PAUSE for STILL video.
TROUBLESHOOTING PAGE 27
Some quick and easy tips to fixing prob­lems yourself.
Troubleshooting
Recording Problems
Observed Condition
Camcorder image is not shown.
Camcorder image via A/V input to VCR is not shown on TV screen.
Timer recording is not possible.
TIMER indicator appears after VCR is turned off.
Possible Cause
Camcorder is off.
VCR SOURCE is not set to AUX.
Clock in VCR is not set to correct time.
VCR is on which disables timer.
Timer has been programmed incorrectly.
TIMER indicator does not appear after programming timer.
VCR is in Timer Recording mode.
Probable Solution
Turn camcorder on and operate properly.
Use Channel Up/Down to select AUX A/V input channel.
Set clock to correct time. See CLOCK menu.
Turn VCR off to enable timer. TIMER indicator appears in the VCR front panel.
Reprogram Timer. See TIMER menu.
Reprogram Timer and turn VCR off to enable timer.
This is normal indication that the VCR is in TIMER mode. If needed, disable TIMER by turning VCR on.
Channel Tuning Problems
Observed Condition
Some channels are skipped over when using Channel Up/Down.
Picture and sound are weak or missing.
Possible Cause
Those channels were deleted with the CH. ADD/DEL option.
Antenna or cables are loose.
Wrong SOURCE option is being used.
Probable Solution
Use CH. ADD/DEL to restore channels. See SETUP Menu for details.
Tighten connections or replace cable.
Try all SOURCE options. See SETUP menu for details.
Stereo Audio Record and/or Playback Problems
Observed Condition
Stereo is not present.
Possible Cause
TV is not Stereo-compatible. Program is not in stereo format. VCR A/V Out jacks are not con-
nected to TV A/V In jacks.
VCR Audio/Video Out is not selected for viewing at the TV.
VCR AUDIO RECORD mode is set to SAP or MONAURAL.
Probable Solution
No action is possible. No action is possible. Make A/V connections. Stereo is
available only via A/V output from VCR.
Select AUX or A/V source as TV input.
Set VCR AUDIO RECORD mode to Stereo. See AUDIO Menu.
TROUBLESHOOTINGPAGE 28
Some quick
and easy tips
to fixing
problems
yourself.
Troubleshooting
Magnetic Field from Other Equipment
Keep the VCR and videotapes away from strong magnetic fields, such as those produced by a vacuum cleaner, refrigerator, or air conditioner.
Video Head Cleaning
Your VCR automatically cleans the heads as it is used. However, after long periods of use, your video heads may become clogged with accumulated dirt, causing distortion. When this occurs, use a do-it­yourself wet-type head cleaning cassette available from your Zenith dealer.
Caution:
Do not use a dry-type head cleaning system. It may seriously damage the VCR and cassettes used in the VCR. Snow, streaking in picture, and horizontal pulling indicate the need for professional video head cleaning. See your Zenith approved service center for cleaning.
Cabinet Cleaning
Clean the outside surfaces of the VCR with a soft lint-free cloth as required. Use care not to scratch the VCR during cleaning.
Moisture Condensation
Moisture condensation can occur:
• When the video recorder is moved from a cold place to a warm place.
• Under extremely humid conditions
In locations where moisture condensation may occur:
• Keep the power cord plugged into an AC outlet and POWER On. This will help prevent condensa­tion.
• When condensation has occurred, wait a few hours for the VCR to dry before using it.
INDEX PAGE 29
Find what you want quickly.
Index
FEATURE. . . . . . . . . . . . . . . . . . . . . . . PAGE
Audio Menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Auto Channel Search . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8, 16
Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5, 19
Ch. Add/Del. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8, 16
Clock Set . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8, 14
Features Chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Front Panel Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Instant Recording . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22-24
Language Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Main Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Playing Tapes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20-21
Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Setup Menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
SpeakEZ Function. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Timer Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Timer-Controlled Recording. . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26-28
VCR Status Displays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Watching TV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Recommended Audio/Video Accessories
STEREO SURROUND SOUND SPEAKERS
For use with any Surround Sound compatible TV. These speakers create a sound so real, it’s as if you were part of the action. The convenient, space-saving shelf design make these speakers an ideal addition to any Home Theater System. The contemporary black finish complements any room.
CV5000
ONLY $224.95
PLUS
$17.95
SHIPPING & HANDLING
Broken or lost remote? Perhaps you would just like the convenience of having a second remote on hand. Order your replacement remote control direct from Zenith! To ensure that you receive the correct remote, have your television's model number ready when you call.
ONLY $39.95
ORDER TODAY!
CALL TOLL-FREE
1.800.255.6790
REPLACEMENT REMOTE
PLUS $4.95
SHIPPING & HANDLING
zenith
Use Your Visa or MasterCard to Order
PLEASE ALLOW 3- 4 WEEKS FOR DELIVERY
NOTES PAGE 31
Use this page to makes notes.
Notes
VIDEO CASSETTE RECORDER OR PLAYER
Welcome into the Zenith family! We believe that you will be pleased with your new Zenith Entertainment Machine. Please read this warranty carefully, it is a “LIMITED WARRANTY” as defined under Federal Law. This warranty gives you specific legal rights, and you may also have other rights that vary from state to state within the U.S.A.
ZENITH’S RESPONSIBILITY
Service Labor During a period of 90 days from effective warranty date, Zenith will provide service labor by a Zenith authorized service center
when needed as determined by Zenith, as a result of manufacturing defects.
Parts New or remanufactured replacements for factory-defective parts will be supplied by a Zenith authorized service center for one year
from effective warranty date . Such replacement parts are warranted for the remaining portion of the original warranty period.
Not Covered This warranty covers manufacturing defects and does not cover installation, adjustment of customer controls in the home, installation
or repair of home antenna systems, cable converters or cable company-supplied equipment; it also does not cover damage due to mis­use, abuse, negligence, acts of God or other causes beyond the control of Zenith. Any alteration of the product after manufactu re voids this warranty in its entirety.
OWNER’S RESPONSIBILITY
Effective Warranty Date Warranty begins on the date of original consumer purchase. For your convenience, keep the dealer’s dated bill of sale or a delivery tick-
et as evidence of the purchase date.
Operating Guide Read your Operating Guide carefully so that you will understand the operation of your set and how to adjust the customer controls.
Carry-In Service The video product must be taken to a U.S. or Canadian Zenith authorized service center for warranty service and must be picked up by
the owner.
TV Set Performance It is the owner’s responsibility to maintain the TV receiver with which the video product is used, and the associated antenna system,
in proper operating condition..
Important Product Registration—Please fill out and mail your Product Registration Card. It is imperative that Zenith know how to reach you
promptly if we should discover a safety problem that could affect you.
Warranty Service For warranty service information, contact any Zenith authorized service center. Parts and service labor that are Zenith’s responsibility
(see above) will be provided without charge. Other service is at the owner’s expense. If you have any problem in obtaining satisfactory warranty service, call or write the Zenith Response Center. You must provide the model number, serial number and date of purchase or date of original installation. Before you ask for warranty service, read “Maintenance And Troubleshooting” in your operating guide. You might avoid a service call.
THIS WARRANTY IS IN LIEU OF ANY OTHER WARRANTY, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION, ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, AND ZENITH SHALL NOT BE LIABLE FOR ANY CONSEQUENTIAL, INDIRECT, OR INCIDENTAL DAMAGES OF ANY KIND, INCLUDING LOST REVENUES OR PROFITS IN CONNECTION WITH THE PRODUCT.
Zenith Electronics Corporation
Customer Service Department
1000 Milwaukee Avenue
Glenview, Illinois 60025-2493
Telephone: (847) 391-8752
Mon-Fri, 8:00 a.m. - 4:30 p.m. Central Time
Your Zenith Limited Warranty
ZENITH ELECTRONICS CORPORATION Zenith Part No. 206-3389 1000 MILWAUKEE AVENUE GS# 3835RM0024G GLENVIEW, ILLINOIS 60025-2493 Printed in Korea
Issuc O
Loading...
