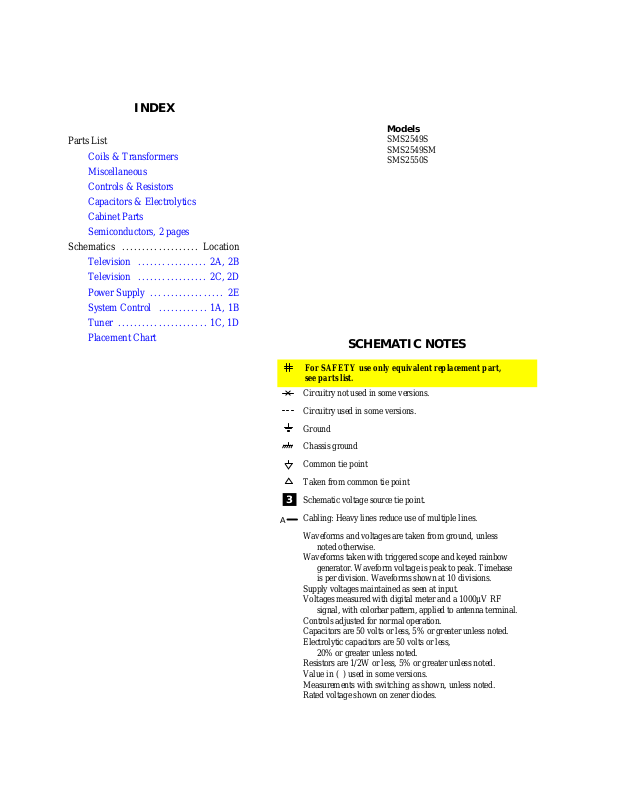

Circuitry not used in some versions.
Circuitry used in some versions.
Ground
Chassis ground
Common tie point
Taken from common tie point
Schematic voltage source tie point.
3
Cabling: Heavy lines reduce use of multiple lines.
A

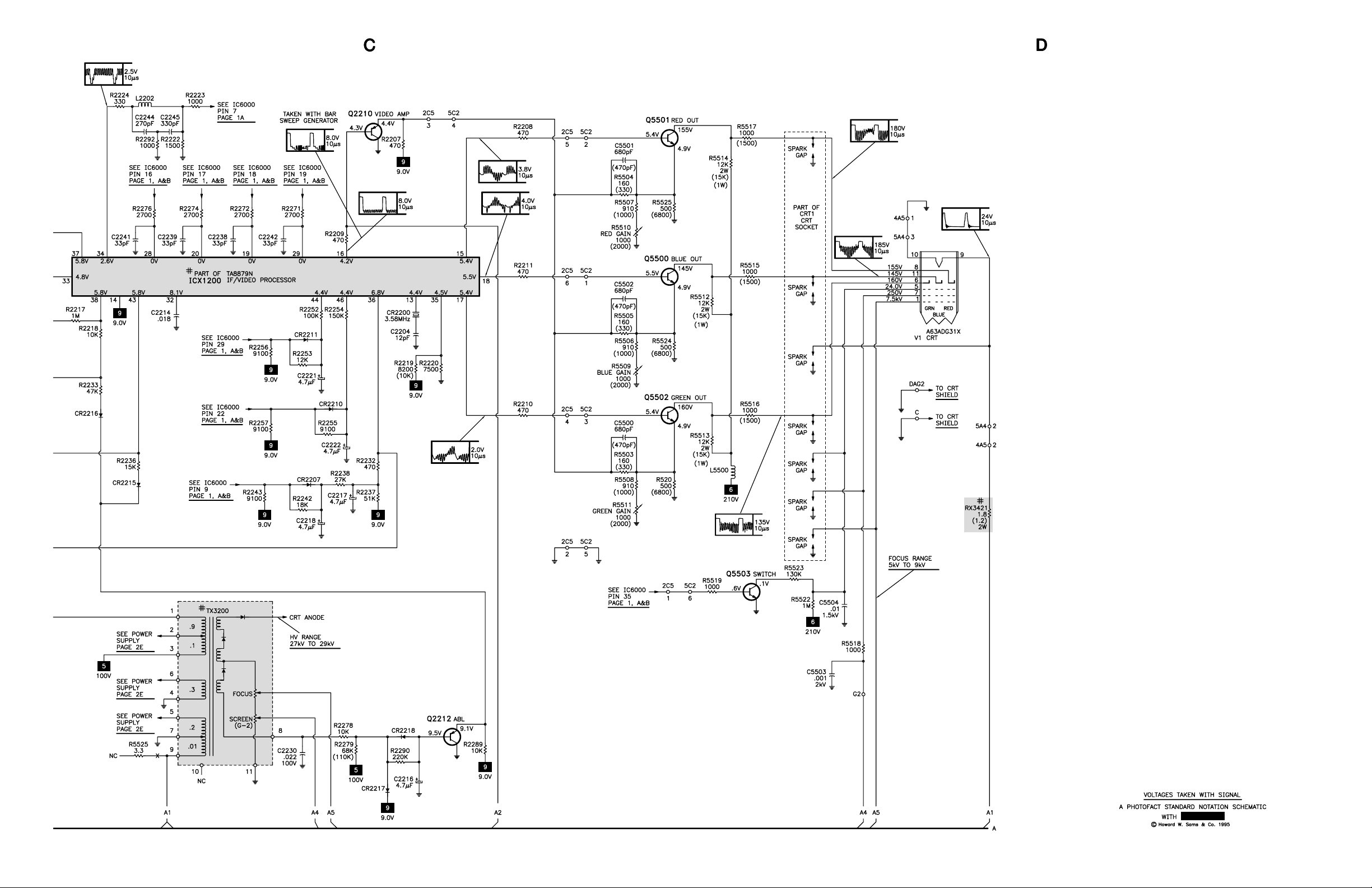

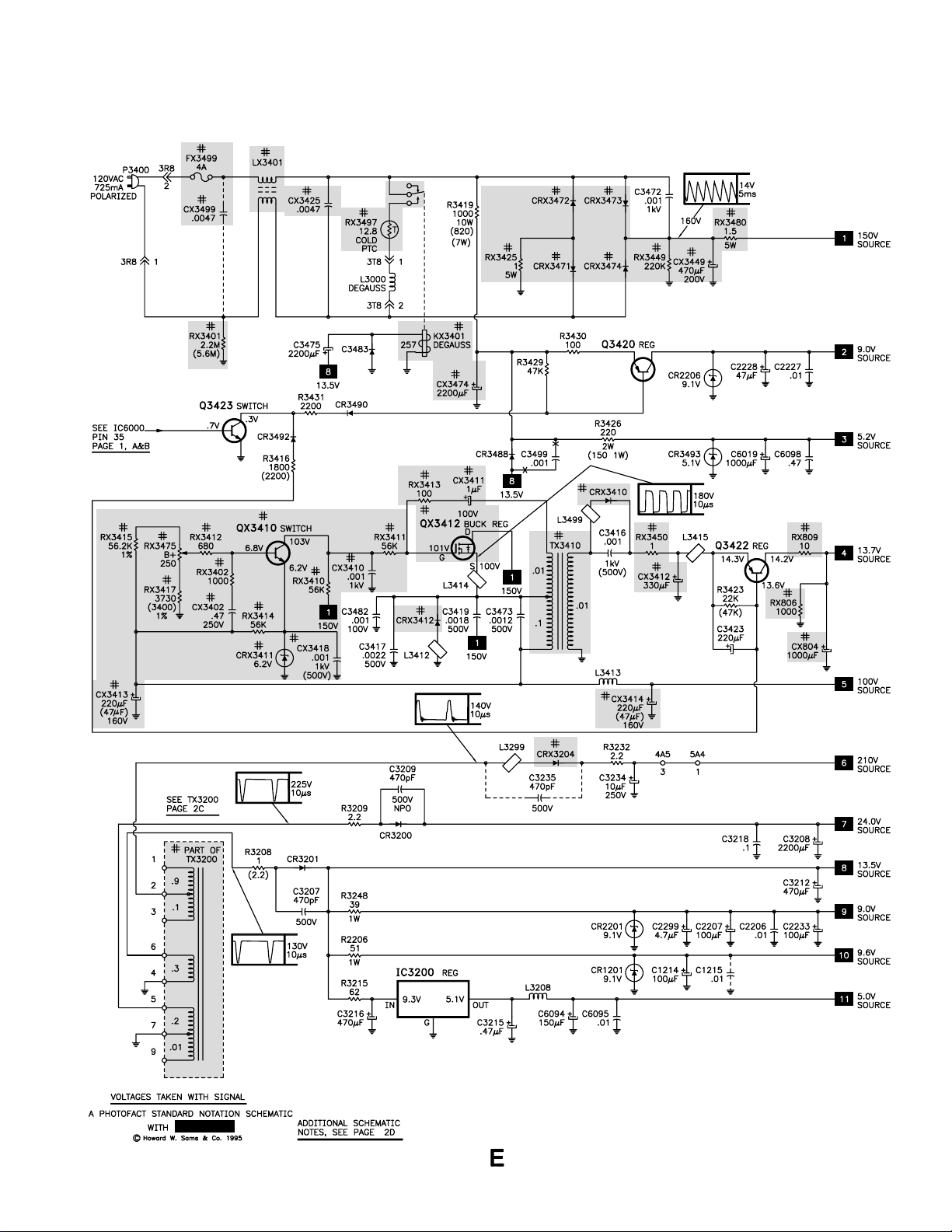

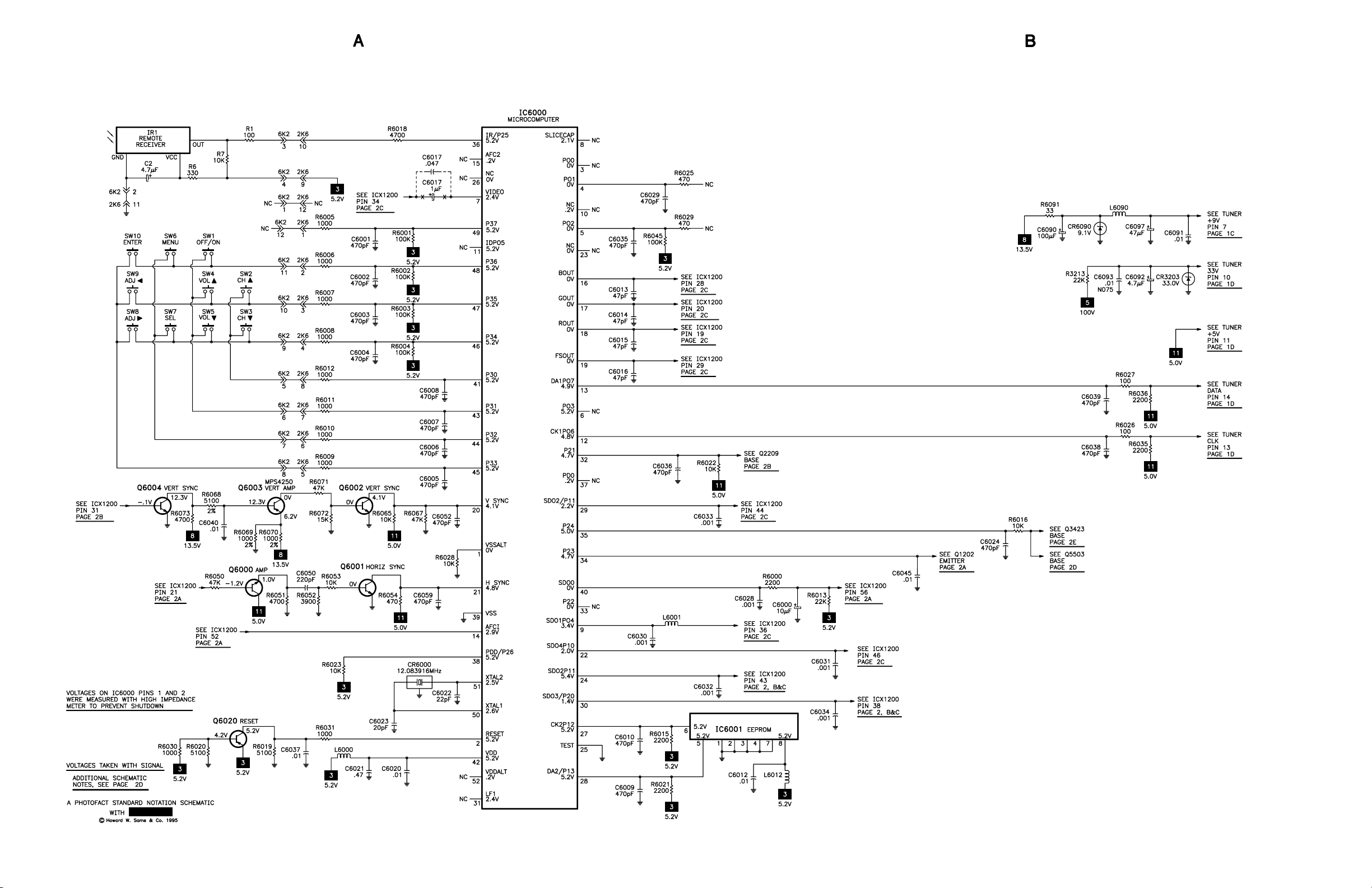

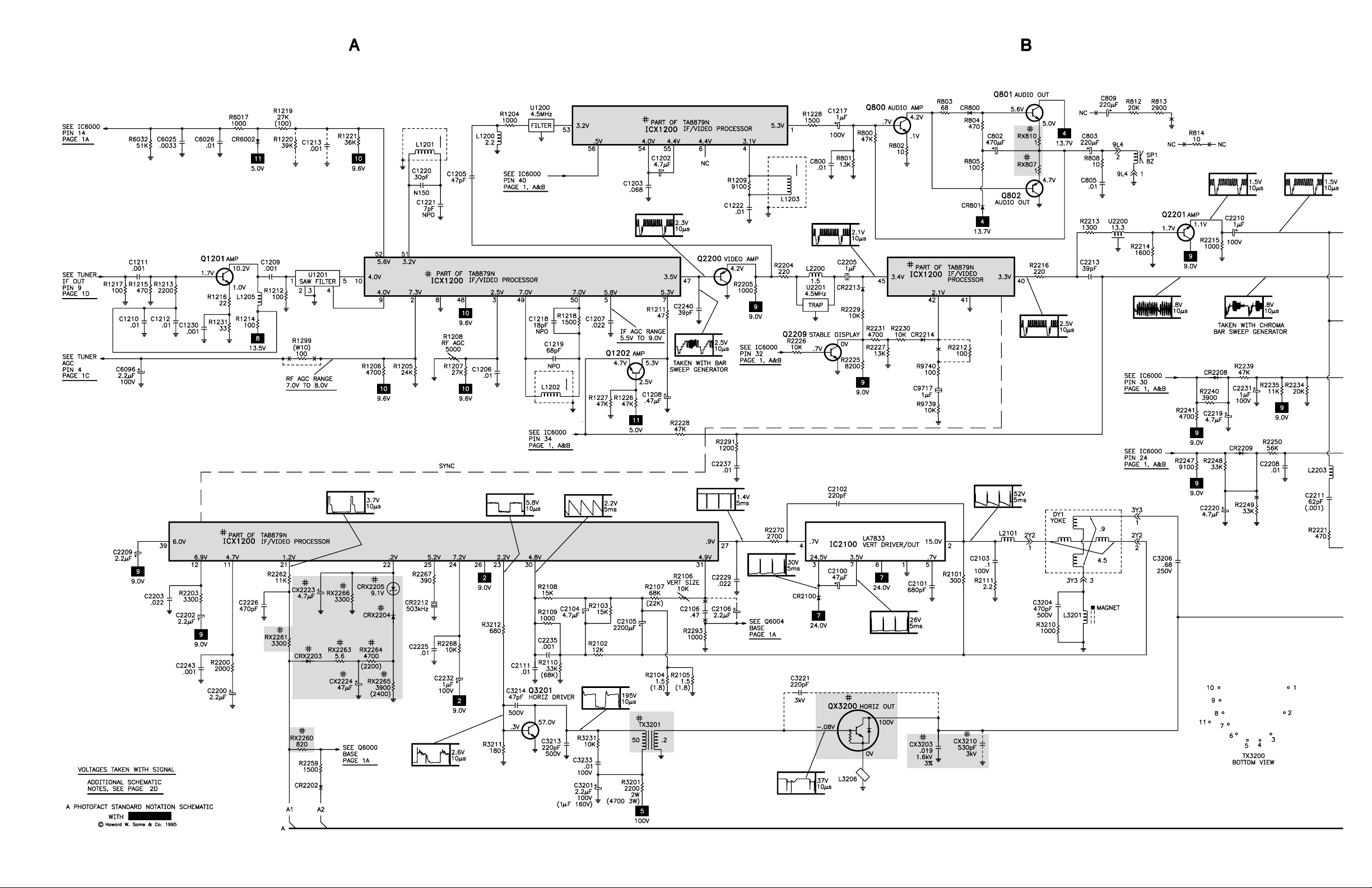

Waveforms and voltages are taken from ground, unless
noted otherwise.
Waveforms taken with triggered scope and keyed rainbow
generator. Waveform voltage is peak to peak. Timebase
is per division. Waveforms shown at 10 divisions.
Supply voltages maintained as seen at input.
Voltages measured with digital meter and a 1000µV RF
signal, with colorbar pattern, applied to antenna terminal.
Controls adjusted for normal operation.
Capacitors are 50 volts or less, 5% or greater unless noted.
Electrolytic capacitors are 50 volts or less,
20% or greater unless noted.
Resistors are 1/2W or less, 5% or greater unless noted.
Value in ( ) used in some versions.
Measurements with switching as shown, unless noted.
Rated voltage shown on zener diodes.
P3400Line CordA-17339AC, Polarized
SP1Speaker49-1368-032" X 5", 8 Ohms, 5W
SW1Switch85-1691AOff/On
SW2Switch85-1691AChannel Up
SW3Switch85-1691AChannel Down
SW4Switch85-1691AVolume Up
SW5Switch85-1691AVolume Down
SW6Switch85-1691AMenu
SW7Switch85-1691ASelect
SW8Switch85-1691AAdjust Right
SW9Switch85-1691AAdjust Left
SW10Switch85-1691AEnter
TU6000Tuner (1)175-2402UHF/VHF
U1200Filter224-54A4.5MHz
U1201Trap224-160SAW
U2200Delay Line105-218U2201Filter224-234.5MHz
V1CRT-A63ADG31X
BalunA-14323Antenna
Fuse Holder19-840-02For FX3499 (2 Used)
MagnetA-7690-05Purity/Convergence

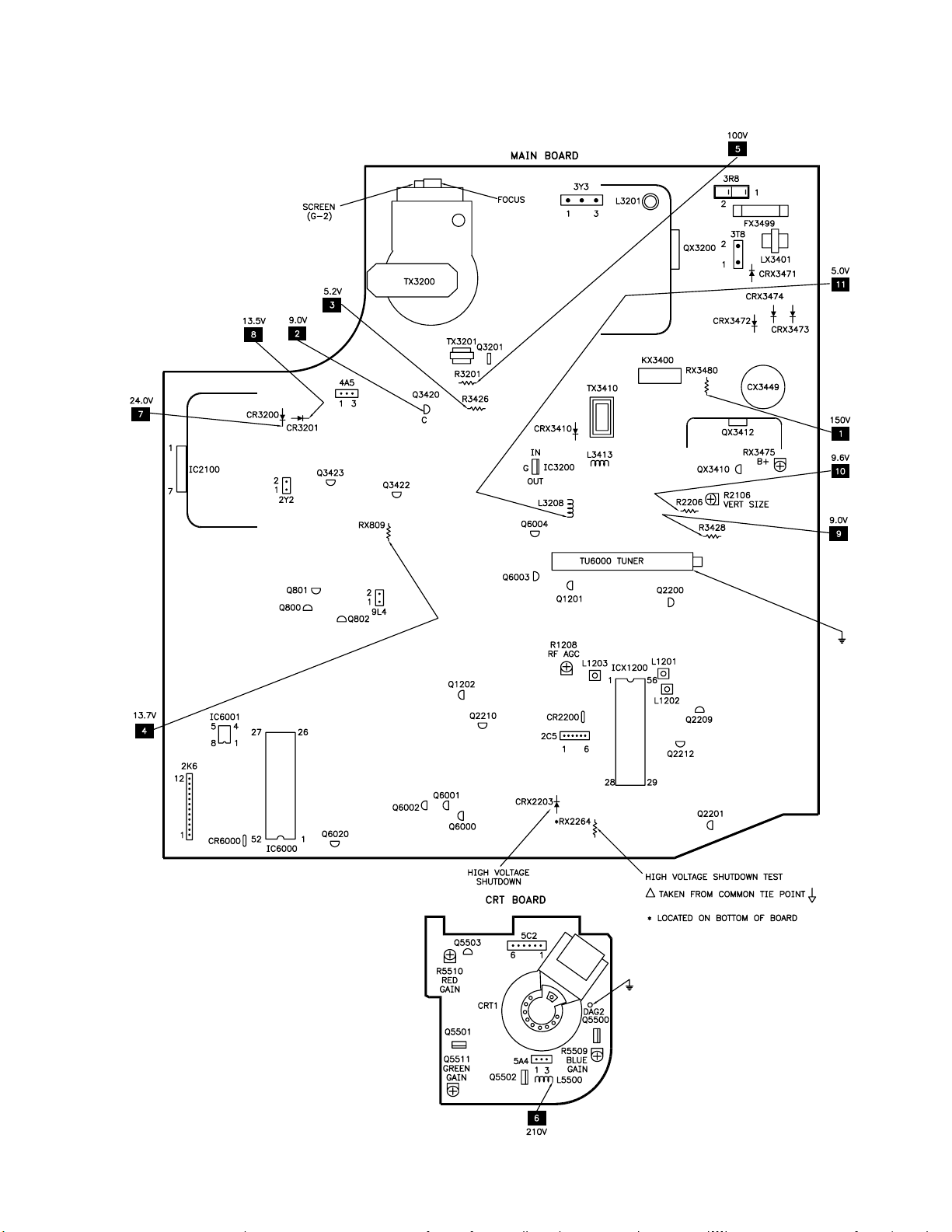

PC Board (1)A-17931Keyboard
PC Board (1)9-1458-01Main
Transmitter124-185-06Remote
Transmitter124-157-37Remote, Used in model SMS2550S
Wedge152-338Yoke Positioning (3 Used)

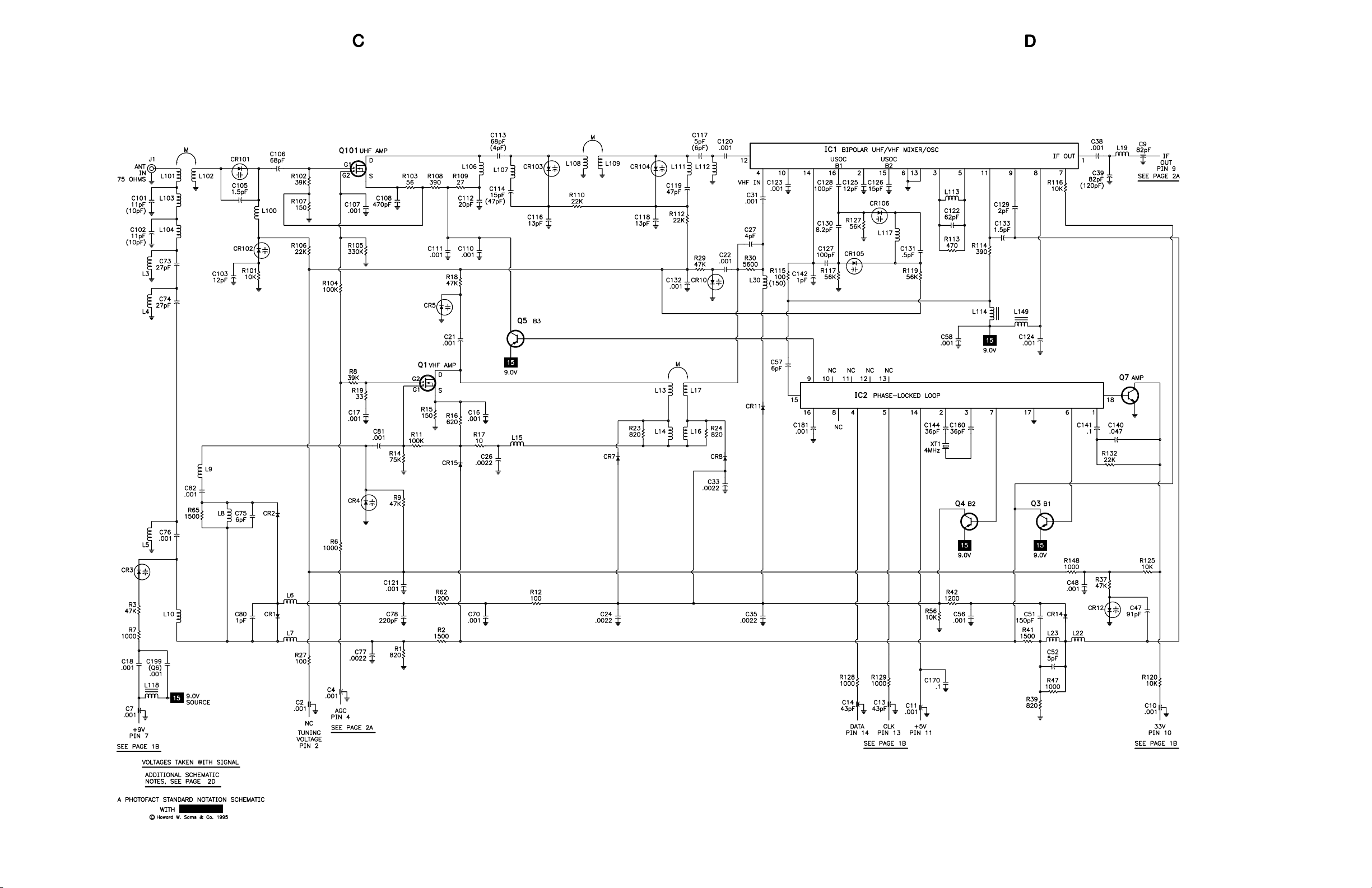

TUNER
XT1Crystal224-1384MHz
# For SAFETY use only equivalent replacement part.
(1) Contact PTS Electronics Corporation for replacement; order by manufacturer's part number.
