OPERATING GUIDE & WARRANTY

-ecycled paper

Monaural Color TV

with Remote Control

and Closed Captions

Return the Product Registration

Card, and your TV could be free!

WARNING:

TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO USER SERVICE_M3LE

PARTS INSIDE. REFER TO QUALIFIED SERVICE PERSONNEL.

TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of unJ_ulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is inteoded to alert the user to the presence of important operating and maintenance (servicing) instructions in the fiterature accompanying the appliance.

Safety Tips

Refer to the "Safety Tips" booklet that came with your product for important safety considerations.

Note to Cable TV System Installer

This reminder is provided[ to call the cable TV system installer's attention to Article 820-40 of the NEC that

provides guidelines for proper grounding and, in particular, specifies that the cable grourtd shall be connected to the groundhag system of the building, as close to the point of the cable entry as practical.

Power-Cord Polarization

This product is equipped with a polarized alternating-

current line plug (a plug having one blade wider than the other.) This plug will fit into the power outlet only one

way. This is a safety feature. If you are unable to insert

the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety

purpose of the polarized plug.

CAUTION

To prevent electric shock, match wide blade of plug to wide slot, fully insert.

ATTENTION

Pour 6viter les chocs _[ectriques, introduire la lame la plus large de la fiche dans la borne correspondante de la prise et pousser jusqu'au fond.

CONTENTS

INTRODUCTION

Welcome ............................................ ii

Installation Considerations ........................... ii

CONNECTIONS FOR YOUR 'IV

Connection Center on Back of TV ................... 1-1

Input Source, s for Type II Connection Center .......... 1-1

Step 1. Make Basic Connection to TV ................ 1-2

Step 2. Make VCR

Connections to TV (Select Models) ............... 1-4

THE FIRST TIME YOU OPERATE YOUR TV

Step 1. Connect the Power .......................... 2-1

Step 2. Turn TV On ............................... 2-1

Step 3. Use Auto Ch. (Channel) Search ............... 2-1

Step 4. Use Other Options .......................... 2-1

OPERATING YOUR 'IV

Basic TV Operations .............................. 3-1

Earphone Jack (Select Models) ..................... 3-1

Sleep Timer (Select Models) ........................ 3-1

GETrlNG I"O KNOW YOUR TV

Horizontal Control Panels .......................... 4-1

Vertical Control Panel ............................. 4-2

REMOTE CONTROL MODEL SC2300

TV Operations .................................... 5-1

Installing Batteries ................................ 5-1

REMOTE C,ONTROL MODEL SC3390

Operation ........................................ 6-1

Preparation for Use ............................... 6-2

Installing Batteries ................................ 6-2

REMOTE CONTROL MODEL SC3820

TV Operations ...................................... 7-1

VCR Operations .................................... 7-2

TV and VCR Operational Notes ...................... 7-3

Preparation tor Use .................................. 7-3

Installing Batteries .................................. 7-3

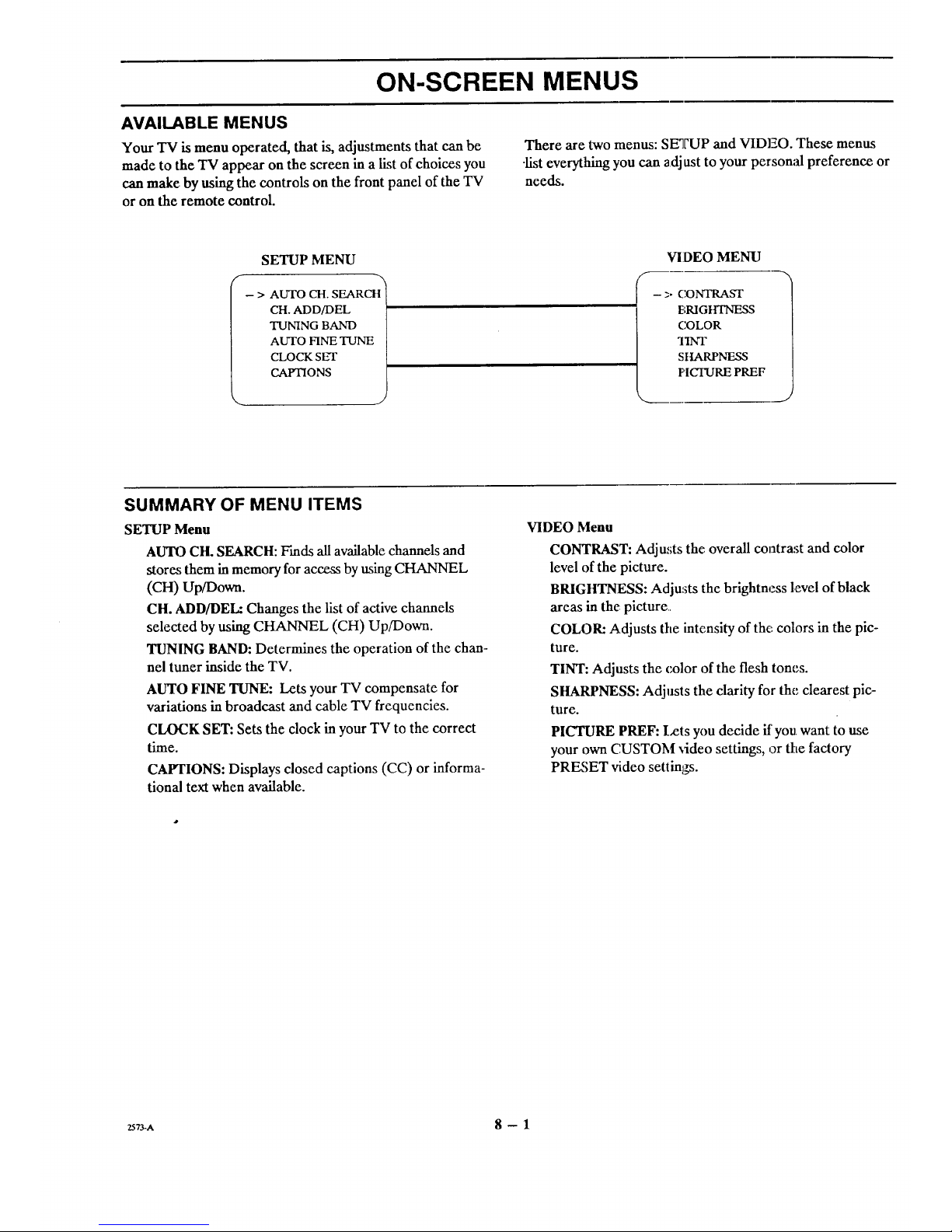

ON-SCREEN MENUS

Available Menus ..................................... 8-1

Summary of Menu Items ............................. 8-1

Basic Menu Operations .............................. 8-2

SETUP MENU

Auto Ch. (Channel) Search .......................... %1

Ch. (Channel) Add/Del ............................. 9-2

Tuning Band ...................................... 9-2

Auto Fine Tune ................................... 9-3

Clock Set ......................................... 9-3

Captions ......................................... 9-4

VIDEO MENU

Contrast ......................................... 10-1

Brightness ....................................... 10-1

Color ........................................... 10-1

Tint ............................................. 10-1

Sharpness ....................................... 10-1

Picture Pref. (Preference) .......................... 10-1

MAINTENANCE AND TROUBLESHOOTING

Caring for Your TV ............................... 11-1

Extended Absence ................................ 11-1

TV Picture Interference ........................... 11-1

Before Calling for Service .......................... 11-2

Product Registration Card Recommended Accessories fi)r Your Television

Your Zenith Warranty

USING YOUR OPERATING GUIDE

This operating guide describes a family of TV models. Some models have features

that are not provided on other models. Different control panels and remote controls may be used from model-to-model. Some models do not include a remote control.

Refer to the applicable sections of this operating guide for the features and items provided with your TV.

2573-C i

INTRODUCTION

WELCOME

Welcome into the family of Zenith Color Television owners.

This guide provides instructions on how to operate your

new TV. It is supplemented by a booklet containing Safety Tips. We urge you to read these publications carefully so that you will receive full enjoyment from your new Zenith TV for many years to come.

Your new Zenith TV has been designed and built to give you the very best in quality, features and performance. There are approximately 75 regional Zenith distributors and thousands of distributor-approved Zenith service centers throughout the U.S. and Canada who can attend promptly and effectively to ordinary service needs.

If you should have an unusual performance or service problem that cannot be satisfactorily resolved by your distn'butor- approved Zenith service center, contact the regional Zenith distributor in your area, or write:

Zenith Electronics Corporation

Customer Service Department 1900 N. Austin Avenue

Chicago, Illinois 60639-5079

Telephone: (312) 745-5152

Mon-Fri, 8:00 a.m. - 4:30 p.m. Central Time

Send the model number, serial number, and date of pur- chase or original installalion, with a full explanation of the problem and the service history. We will welcome the op- portunity to look into your specific question or problem and to be of assistance in resoMng it promptly.

The model and serial ntmlbers of your new TV are located on the back of the TV cabinet. For your future.,convenience and protection, we suggest that you record these numbers here:

Model No.

Serial No.

INSTALLATION CONSIDERATIONS

Before you install your TV...

Ventilation - Proper ventilation keeps your TV

running cool. Air circulates through perfora- tions in the back and bottom of the cabinet. Do

not block these vents or you will shorten the life of your TV.

Power Source - Your TV is designed to operate on normal household current, 120 volt 60 Hertz

AC. Do not attempt to operate it on DC current. Power Cord - Your power cord has a

polarized plug as required by Underwriters' Laboratories. It has one regular blade and one wide blade and fits only one way into a standard

electrical outlet. If the blades will not enter either way, your outlet is very old and non-

standard. A new outlet should be installed by a qualified electrician.

Safe Operation - Your TV is manufactured and tested with your safety in mind. However, unusual stress caused by dropping or mishan- dling, exposure to flood, fire, rain or moisture, or accidental spilling of liquids into the TV, can result in potential electrical shock or fire hazards. If this happens, have your TV checked by a service technician before using it again.

Please read and observe _ach safety point in the "Safety

Tips" folder when installing and using ;four 3W.

FIXED PATrERN DISPLAY CAUTION - Ifyou use your

"IV for video games, teletext or other fixed displays, avoid

setting the BRIGHTNESS control for an excessively bright picture. A bright, ftxed pattern, if used for long periods of time, can result in a permanent imprint on the TV picture tube. You can reduce this possibility by alternating the use of the fixed pattern display with normal TV picture viewing, by turning down the CO/'H'RAST control for sustained

fixed pattern use, and by turning off the fixed pattern dis-

play when not in use. PLUGGING IN YOUR TV -- Be sure to plug your TV into

an "unswitched" AC power source. The "switched" AC out- lets found on some video equipment will not continue sup-

plying power to the TV c,nce the equipment is turned off. If the power to the TV is interrupted, you wilJ[have to reset

the clock in the TV to the current time.

ii OSWEt.C

CONNECTIONS FOR YOUR TV

CONNECTION CENTER ON BACK OF TV

Your TV has one of the two connection centers shown below. Refer to the corresponding detail while reading the

following description.

The connection center on the rear of your TV allows you to

connect the 'viewing source to your TV. You can choose from a variel_ of audio/video components for your viewing pleasure.

1. VHF-UHF/CABLE or TV ANT (Antenna) Use this jack for 75-ohm, antenna-type signal con-

nections to your TV. Attach your antenna, cable-TV line, or other video component to this jack. The input cable may come from an outdoor or master antenna, cable-TV line, cable decoder box, or the TV output from a VCR.

2. AUD (Audio) IN Audio input from VCR or other video equipment

(Disc Player).

3. VID (Video) IN

Video (Base Band) input from VCR or other video equipment (Disc Player). Gives improved picture quality ,over that oE,tained through the TV ANT

jack.

(S)

VHF-UHF/CABLE

(75 ohm inpuf)

TV ANT

(75 ohm Input)

VID IN AUD IN

? o

® ®

Type I Connection Center (Select Models)

Type. 11Connection Center (Select Models)

INPUT SOURCES FOR TYPE II CONNECTION CENTER

Two input connection areas are provided on the Type II Connection Center: one is marked TV ANT and the other

VID IN - AUD IN. These two inputs allow you to connect two different "signal sources" to your TV at the same time. The "Signal Source" refers to the item supplying the picture and sound to your TV.

The most common "signal source" is your outdoor antenna (or master antenna) or a cable-TV system. This type of sig- nal is called a radio frequency (RF) source, and is con- nected to the TV ANT input connector.

Another common "signal source" is the audio and video

(A/V) from a VCR or video disc player. Th!tstype of signal is called base.,band (basic video and audio), and is con-

nected to the VID IN - AUD IN connectors. To use these

VCR connections, you must watch the AUX channel on the

TV. To select the AUX charLael, press CHANNEL (CH)

Up/Down until you select the next channel ;ffter the highest/lowest channel (or you may enter the number 999 from the remote ca)ntrol.)

zs73-o 1 --1

CONNECTIONS FOR YOUR "i%r

STEP 1. MAKE BASIC CONNECTION TO TV

There are four basic hook ups to your TV; outdoor antenna

(or master antenna) with or without VCR, and cable-TV

system with or without VCR. Select the hook up that best

fits your needs. See the following diagrams.

Your connection is made to, the VHF-UHF/CABLE jack or to the TV ANT jack on the back of the TV. Tlfis jack ac- cepts 75-ohan cable terminated in an F-type male connec- tor. You may want to do the hook-up yourself, or call a TV service technician, or a cablie company.

A° Antenna Connection to TV

If You Have a Round Antenna Wire: Connect the 75-ohm round antenna wire into the

VHF-UHF/CABLE jack or to the TV ANT jack on the TV.

If You Have a Flat, Twin-Lead Antenna Wire:

Use the 300/75 ohm adaptor included with the TV. Hook up the ends of the wire to the adaptor and plug it into the VHF-UHF/CABLE jack or to the TV ANT jack.

ANTENNA

--4 _= II_lJ=_l Adaptor

=or " _: I1=_==11 i Flat Wlre I_

k...... _.bT÷__J

Round Wire [___ ,,

VHF-UHF/C:ABLE

(75 ohm input)

NOTE: Connector is screened TV ANT on some models.

Connection Center on Back of TV

B° Antenna Connection to VCR and 'IV

1. Antenna Hook Up Connect the 75-ohm round aatenna wire into ANTENNA IN jack on VCR.

2.VCR Hook Up

Connect ANTENNA OUT wire from VCR into VHF-UHF/CABLE jack on TV or to the TV

ANT jack.

ANTENNA

RF OUT

CHAN3/4

VCR

? I

VHF--UIIFICABLE

(75 ohm input)

NOTE: Connector is screened TV ANT on some models.

Connecfie,n Center on Back of TV

z_7_o 1 --2

CONNECTIONS FOR YOUR TV

STEP 1. MAKE BASIC CONNECTION TO TV (CONTINUED)

C. Cable-TV Connection to TV

If You Have a Converter/Decoder Box:

Connect the 75-ohm output from the con-

verter/decoder box into the VHF-UHF/CABLE jack or to the TV ANT jack on the TV.

If You Do Not Have a Converter/Decoder B6x" Connect the 75-ohm round cable-TV line directly to the VHF-UHF/CABLE jack or to the TV ANT jack

on the TV.

CH 3/4 OUTPUT

DECODEROR _-

CONVERTER

CABLE-TV ]

(Direct connection)

VHF-UHWCABLE

(75 o_ ]npu0

NOTE: Connector is screened TVANT on some models.

Connection Center on IE]ock of TV

D. Cable-TV Connection to VCR and TV

I. Cable-TV Hook Up

Connect 75-ohm round cable-TV wire into ANTENNA IN jack on VCR.

2.VCR Hook Up Connect ANTENNA OUT wire from VCR into

VHF-UHF/CABLE jack or to the TV ANT jack off TV.

CH 3/4 OUTPUT VCR

DECODER _ N

CONVF_.RTERJ [ RF OUT

CH 3/4 OO

VHF-UHF/CABLE

(75 ohm Input)

CABLE-TV

(Direct connection)

ANTENNA

NOTE: Connector is screened

TV ANT on some models.

Connection Center on Back of TV

_7_o 1 --3

CONNECTIONS FOR YOUR TV

STEP 2. MAKE VCR CONNECTIONS TO TV (SELECT MODELS)

MONAURAL VCR

Connections:

1. Connect VCR AUDIO OUT to the AUD IN (Audio Input) jack on TV.

2. Connect VCR VIDEO OUTPUT into the VID IN

(Video Input) jack on TV.

,Operation: To use these VCR connections, you must watch the AUX channel on the TV. To select the AUX channel, press CH (CHANNEL) Up/Do_ until you select the next channel after the highest/lowest channel (or you may enter the number 999 from the remote control.) For improved picture quality, place VCR/rV switch on the VCR in the VCR position.

Q-

BASE BANE VIDEO

MONAURAL VCR

OUTPUTS

v_o _ol

OUT

AUDIO

TV ANT

VID IN AUD IN

:© ©:

Connection Center on Back o,F TV

STEREO VC R Connections: Use the following connections to obtain

monaural sound from your TV while playing a stereo video tape.

1. Connect VCR RIGHT/LEFT AUDIO OUTPUT using the "Y" adaptor (customer supplied), into the AUD IN (Audio Input) jack on TV.

2. Connect VCR VIDEO OUTPUT into the VID IN (Video. Input) jack on TV.

Operation: 'Touse these VCR connections, you must watch the AUX channel on the TV. To select the AUX channel, press CH (CHANNEL) Up/Down until you select the next channel after the highestBowest channel (or you may enter the number 999 from the remote control.) For improved picture quality, place VCR/FV switch on the VCR in the VCR position.

BASE

BAND VIDEO

STEREO VCR

OUTPUTS

II',,_ _ l I out _ L

__/_LEFT STEREO AUDIO

-- |RIGHT STEREO AUDIO

TV ANT

VlO IN AUD IN

:©

Connection Center on Bock of TV

2sTJ_o 1 -- 4

THE FIRST TIME YOU OPERATE YOUR TV

STEP 1. CONNECT THE POWER

i ®

Plug your "IV into an unswitched AC power source. The switched AC outlets found on some video equipment

will not continue supplying power to the TV once the equip- ment is turned off. If the power to the TV is interrupted, you will have to set the clock in the TV to the current time.

Do not plug TV into switched outlet on cable-TV decoder

Do not plug TV into .,;witched outlel_on a VCR

STEP 2. TURN TV ON

Turn the TV on by pressing OFF-ON.

STEP 3. USE AUTO SEARCH

When your TV is first powered up you will see the AUTO

CH. SEARCH reminder display. AUTO CH. SEARCH

finds all available channels and stores them in memory for

access by CHANNEL (CH) Up/Down. To activate AUTO

CH. SEARCH, press ADJUST (ADJ) Left/Right. When the search is complete, you can watch the TV program of your choi_.

NOTES:

1. The AUTO CH. SEARCH reminder display ap- pears each time you turn on your TV until it has

been u,;ed at:least once.

2. Antenna or cable must be connected to TV before

you use AUTO CH. SEARCH.

AUTO CH. SEARCH

PRESS ADJUST KEY TO START

SEARCHING FOR CHANNELS

_,lYrO CH. SEARCH HAS COMPLEIEE,

TUNING BAND IS

[-_ CHANNEL_ FOUND

CH2

Auto Ch. Search While Searching for When Search is

Reminder Display Active Channels Complete

When Returning to

Channel Display

STEP 4. USE OTHER OPTIONS

You may want to consider using the following options:

• Program the channels accessed by using CHANNEL (CH) Up/Down. Refer to CH. ADD/DEL option of the "Setup Menu" section of this operating guide for details.

Set the clock in the TV. Refer to the CLOCK SET option of the "Setup Menu" section of this operating guide for

details.

25rvo 2 -- 1

OPERATING YOUR TV

BASIC TV OPERATIONS

Selecting Channels by Using CHANNEL (CH) Up/Down (All Models): You may select a channel through channel scan- ning by using CHANNEL (CH) Up/Down. Only channels stored in the channel scan sequence can be selected.

Selecting Channels by Using Numbers on Remote (Select

Models): Press the numbers corresponding to the channel desired, then press ENTER (ENT). Any channel in the band chosen can be selected through direct number entry.

FLSHBK (Flashback) on Remote (Select Models): Press

FLSHBK to return to the last TV channel you were watch-

Adjusting Volume (All Models): You can adjust the volume

of your TV by using VOLUME (VOL) Up/Down. Muting Volume (Select Models): To mute the sound com-

ing from your TV, press MUTE on the remote control. To restore sound, press MUTE again.

After an Extended Power Outage (All Models): If you pre-

viously used AUTO CH. SEARCH, you do not have to use it again unless you permanently changed the connections to

the TV. All of the channels previously found are stored in

protected memory, and are not affected by a power outage. However, the clock must be reset to the current time.

C'H2

10".56

CH2

10:56

MLrI_D

Channel/Time Display

ChanvLelFI'imeDisplay

Whil,e TV is Muted

:VOL

Volume Display *

MUTED

Mute ]Display *

* VOL or MUTE display is shown only

when captions are not being displayed.

EARPHONE JACK (Select Models)

The earphone jack is used to connect a private listening ear- phone (optional item) to your TV set. When the earphone is plugged in, the TV speaker is turned off. This permits you to enjoy TV programs without disturbing others in the area. Any earphone having an 8-ohrn impedance and terminated in a 35ram (1/8") subminiature plug may be used. You may purchase an earphone from your dealer.

CAUTION: When using the earphone, we suggest that you

set the volume on the TV to a low level before putting the earphone ill your ear. Then adjust the volume to a comfort- able listening level.

SLEEP TIMER (Select Models)

Some remote controls are equipped with a TIMER button that provides access to the SLEEP TIMER available with some TV faodels. By using the SLEEP TIMER, you can program the TV to automatically shut off after a 15 minute period up to 4 hours. To Set SLEEP TIMER

1. Press TIMER to see status display.

2. Press TIMER repeatedly until you reach desired shut-off time.

One minute before the TV shuts off, the GOOD NIGHT display appears on the screen. At this time you have a choice of the following three actions.

1. Do nothing. The TV will shut off in one minute.

2. Remove the GOOD NIGHT display by pressing ENTER (ENT). The TV will still shut off in one minute.

3. Delay the shut off by using TIMER to select a new

shut off time.

To Cancel the SLEEP TIMER You can cancel the SLEEP TIMER by setting the SLEEP

TIMER status to OFF. NOTE: The SLEEP TIMFR resets to OFF when you turn

off the TV.

SLEEP TIMER

0:15

PRESS TIMER

KEY TO CHANGE

Sleep Timer Display

GOOD NIGHT

"Good Night" Display

z573-^ 3 -- 1

GETTING TO KNOW YOUR TV

HORIZONTAL CONTROL PANELS

The following description applies to models having a horizontal c_ontrol panel.

w w

&tM &IM SKI. dO4U _ _ Q.I 04

4 I_ ",, ,L v h.

I '' i I I I I I 1 1

Full Size Control Panel

Mini Control Panel

Front Panel Controls

1. ENTER (ENT) Press to see the Channel/Time display, or to remove

any on-screen display or menu.

2. ADJUST (ADJ) Left/Right or ,_/l_ Press during on-screen menu operation to see infor- mation/status display for selected option. Press again to adjust the selected menu option.

3. SELECT (SEL) Press during on-screen menu operations to select a menu "option.

4. MENU Press once to see a menu. Press repeatedly to se-

quence through the available menus.

5. VOLUME (VOL) Up/Down Press to increase of decrease the sound level.

6. CHANNEL (CH) Up/Down

Press to select channels higher or lower than the chan- nels being viewed. You can add channels to or delete

channels from the scanning sequence stored in memory. See CH. ADD/DEL option of the "Setup

Menu" section of thi:_ operating guide for channel programming informal:ion.

7. OFF-ON Press to turn TV power ON or OFF.

8. Remote Control Detector Window (Some Models)

Point 1Lheremote co_atrol toward:_ this window to

operate the TV.

2573-0 4 -- 1

GETTING TO KNOW YOUR TV

VERTICAL CONTROL PANEL

The following description applies to models having a verti-

cal control panel.

I=,,J I,=.J

Full Size Control Panel

[

OR:ION

CHANNEl.

Y A

VOLUME

ME/',IU

SELECT

_:)JUSI'

ENTER

pro,

: 3q : 4q

--[6--1

--[8-1

Mini Control Panel

Front Panel Controls

1. Remote Control Detector Window (Some Models) Point the remote control towards this window to

operate the TV.

2. OFF-ON Press to turn TV power ON or OFF.

3. CHANNEL Up/Down Press to select channels higher or lower than the chan-

nels being viewed. You can add channels to or delete channels from the scanning sequence stored in memory. See CH. ADD/DEL option of the "Setup Menu" section of this operating guide for channel programming information.

4. VOLUME Up/Down Press to increase or decrease the sound level.

5. MENU

Press once again to see a menu. Press repeatedly to sequence through _he available menus.

6. SELECT Press during on-screen menu operations to select a

menu option.

7. ADJUST Left/Right Press during on-screen menu operations to see in-

formation/status display for selected option. Press again to adjust the selected menu option.

8. ENTER Press to see the Channel/Time display, or to remove any on-screen displ_ay.

2573-o 4 -- 2

REMOTE CONTROL MODEL SC2300

TV OPERATIONS

VOLUME Up/Down Used to adjust the volume level of the TV.

MUTE Used to turn offsound while the picture

remains. Pre_ again to restore the sound.

For optimum performance, point the

remote control toward your Zenith "IV.

_LUI( Cll.hf_H1

MUl'[ RECALL

OFF-ON Used to turn TV ON or OFF.

CHANNEL Up/Down

Used to select a TV channel by going up or down throu_ ,:hannels.

RECALL (ENTER) Used to see Channel!Time display for TVs having on-scrc,en displays. Press again to remove display.

SC2300

INSTALLING BATTERIES

Your remote comes with batteries installed. When the effec- tive range of the remote becomes noticeably shorter,

replace the batteries with two (2) high quality, size AAA, alkaline batteries.

1. Remove the two (2) Phillip head screws from the back of the remote control, and remove the com- partmz:nt cover.

2. Insert the new batteries making sure the polarity markings ("+" and "-") on the batteries match those shown in the compartment.

NOTES:

• Be careJhl not to place heavy objects on top of the remote

control buttons. Prolonged accidental[ operation of the remote control will shorten battery life.

• If you do not use the remote control for a month or more, remove the batteries. Battery leakage can cause damage

to the remote control.

• Zenith is not responsible for damage caused by such battery leakage.

o o

_) < _liovc Two sc_t-ws To REPt.Acr eATTCmCS> (_

o o

)

249o-o 5 -- 1

REMOTE CONTROL MODEL SC3390

OPERATION

This remote control provides access to all on-screen menus, as well as, access to special features that can not be ac- cessed by using the control panel on the,TV.

For optimum performance, point the remote control toward your Zenith "IV.

MENU, SELECT and ADJUST Used with on-screen menus to see menu,

select an option, and adjust that option.

Numbered Buttons

Used to select a TV channel.

ENTER Used to view the Channel/Time Display or

to remove any on-screen menu or display.

TIMER • Used to activate the SLEEP TIMER.

--t

v--] v--l

tdDdJ

[]@@ []@@

Ol'lr.4_q

CZY

@ @

WUrE

CZg-

OFF-ON Used to turn TV ON or OFF.

FLStIBK (Flashbackl_

Used to return to the :lastTV

/ cham_el you were watching.

CHANNEL Up/Down Used to select a TV chamml by going

Up or [)own through channels

progratamed in your FAV. (Favorite) CHANNELS scan sequence.

VOLUME Up/Down

Used to,adjust the volume level of the TV.

MUTE Used to turn off sound w[dle the picture

remain:;. Press again to restore the

sound.

CAFFIONS Used to view closed captious broadcast

with so:me television programs.

SC3390

2597-A 6 -- 1

REMOTE CONTROL MODEL SC3390

PREPARATION FOR USE

Batteries are provided with this remote, but you must install them before using the remote.

INSTALLING BATTERIES

When the effective operating range of your remote becomes noticeably shorter, replace the batteries with two (2) high quality, alkaline, size AAA batteries.

1. Remove the battery compartment cover, PUSH DOWN tab and PULL OUT from top.

2. Insert new batteries as indicated in the diagram inside the compartment.

3. Replace the cover by inserting the tab on the bottom of the cover into its housing. Snap the cover into position.

NOTES:

• Be careful not to plac_ heavy objects on top of the remote control buttons. Prolonged accidental operation of the remote control will shorten battery life.

• If you do not use the remote control for a month or more, remove the batteries. L_;atteryleakage carl cause damage

to the remote control.

• Zenith is not responsible for damage caused by such battery leakage.

In 1 5.

_-A 6 - 2

REMOTE CONTROL MODEL SC3820

'IV OPERATIONS

The following functions and operations apply to Zenith TV

models built after 1981.

The remote control must be _a the TV mode to operate your TV. Press MODE to select the TV mode. The TV in- dicator lights when you are in the TV mode.

"IV Mode Indicator Light

Lights when remote is in TV mode of operation

MENU, SEI,ECT and ADJUST Used with the on-screen menus of the TV.

CC (Closed Captions) Used to access closed captions via

on-screen information displays. Numbered Buttons Used to select a TV channel.

ENTER

Used to view the Channel2Time Display or to remove any on-screen menu or display.

For optimum performance, point the

remote control toward your TV.

TV VCR

(D®® ®®® ®®®

ENIER

l_MOf_

RECORD STOP

RZW PLAY F FWD

MODE

Press to select TV mode of operation.

Used to turn TV ON or OFF.

SOURCE

Press; to display the menu of TV sour- ces fl)r TVs having a SOURCE Menu. Press SOURCE agahL to step through the source selections. On some TVs,

press SOURCE to select the AUX

(Auxili;_'y) channel.

___ FLASE[BK (Flashback)

Used to return to the last TV channel

you were watching.

CHANNEL Up/Down

Used t,) select a TV chattael by going Up or Down through channels programmed in your Fay. (Favorite) Channels scan sequence.

VOLUME Up/Down

Used to adjust the volume level of the TV.

MUTE

Used to turn off sotmLdwhile the pic- ture remains. Press again to restore

the sound.

SC3820

TIMER

Used to activate the SLEEP TIMER.

2S_-B 7 -- 1

REMOTE CONTROL MODEL SC3820

VCR OPERATIONS

The following functions and operations apply to Zenith VCR models built after 1991.

For complete details on how to operate your Zenith VCR, refer to the operating guide supplied with it.

The remote control must be in the VCR raode to operate your VCR. Press MODEl to select the VCR mode. The VCR indicator lights when you are in the VCR mode.

For optimum performance, point the

remote control toward your VCIL

VCR Mode Indicator Light

Lights when remote is in VCR mode of operation.

MENU, SELECT, ADJUST and QUIT Used with the on-screen menus and programming options of the VCR.

Numbered Buttons

Used to select a TV channel through the VCR. Also, used to set the timer in the VCR, and to enter programming information.

ENTER Used with the numbered buttons to select a

TV channel through the VCR.

AM/PM Used to set timer during programming.

MEMO RY Used to activate the COUNTER MEMORY feature.

RECORD, STOP, PAUSE, REW, PLAY and F FWD

Used for tape recording and playback functions.

VCR

SELECT QUIT

(i)®® ®®® ®®®

(EKD

RECORD STOP P_

PEW _ F F'_

SC3820

MODE

Press to select VCR mode of operation. OFF-ON

Used to turn VCR ON or OFF.

FL_S:HBK (Flashback) Press during VCR playback to view the

channel tuned by the VCR.

CHANNEL Up/Do_na

Used to select a TV channel by going

Up or Down through channels from your VCR.

Press to operate the VCR SEARCH feature which allow:; you to rewind or fast forward to an i_Ldexed segment of tape.

T%_CR Used to select the source of the programs seen on the TV. Switches the

VCR between TV mode, and VCR mode. TV Mode: channels are selected

through the TV. VCR Mode: channels or tape operations are selected through the

VCR.

TIMER

Used to activate the SLEEP TIMER.

2598-B 7 --2

REMOTE CONTROL MODEL SC3820

TV AND VCR OPERATIONAL NOTES

Some controls on the remote, like PLAY and VOLUME will always operate the VCR or the TV. Whether other keys

operate the TV or the VCR depends on the mode of the remote control. For example, OFF-'ON will turn the VCR ()N and OPT while the remote control is in the VCR mode. litwill turn the TV ON or OFF while the remote control is in the TV mode.

Some of the functions provided by this remote control may not be part of your TV and/or VCR. You wiJ/!not be able to activate those functions even though there is a control but- ton on the remote. For example, pressing TIMER provides direct access to the Sleep Timer on many TVs. I:[your TV does not have a Sleep Timer, pressing TIMER has no effect.

PREPARATION FOR USE

Batteries are provided with this remote, but you must install

them before using the remote.

INSTALLING BATTERIES

When the effective operating range of your remote becomes noticeably shorter, replace the batteries with two (2) high

quality, alkaline, sik_eAAA batteries.

1. Remove the battery compartment cover, PUSH DOWN tab and PULL OUT from top.

2. Insert new batteries as indicated in the diagram inside the compartment.

3. Replace the cover by inserting the tab on the bottom of the cover into its housing. Snap the cover into position.

NOTES:

• Be carefid not to place heavy objects on top of the remote

control buttons. Prolonged accidental operation of the remote control will shorten battery life.

• If you do not use the remote control for a month or more,

remove the batteries. 13a_Iteryleakage can €_ausedamage to the remote control.

• Zenith is not respon_.ible for damage: caused by such

battery leakage.

0 1 m

zs_B 7 -- 3

ON-SCREEN MENUS

AVAILABLE MENUS

Your TV is menu operated, that is, adjustments that can be

made to the TV appear on the screen in a list of choices you

can make by using the controls on the front panel of the TV or on the remote control.

There are two menus: SETUP and VIDEO. These menus

-list everything you can adjust to your personal preference or needs.

SETUP MENU

-- > AUTO CH. SEARCH

CH. ADD/DEL

TUNING BAND

AUTO FINE TUNE CLOCK SET CAPTIONS

VIDEO MENU

- > CONTRAST

E;R.IG_

COLOR TINT SHARPNESS PICTURE PREF

SUMMARY OF MENU ITEMS

SETUP Menu

AUTO CH. SEARCH: Finds all available channels and

stores them in memory for access by using CHANNEL (CH) Up/Down.

CH. ADD/DEL: Changes the list of active channels selected by using CHANNEL (CH) Up/Down.

TUNING BAND: Determines the operation of the chan- nel tuner inside the TV.

AUTO FINE TUNE: Lets your TV compensate for variations in broadcast and cable TV frequencies.

CLOCK SET: Sets the clock in your TV to the correct time.

CAPTIONS: Displays closed captions (CC) or informa- tional text when available.

VIDEO Menu

CONTRAST: Adjusts the overall contrast and color

level of the picture. BRIGHTNESS: Adjusts the brightness level of black

areas in the picture. COLOR: Adjusts the intensity of the colors in the pic-

ture. TINT: Adjusts the color of the flesh tones. SHARPNESS: Adjusts the clarity for the clearest pic-

ture.

PICTURE PREF: Lets you decide if you want to use

your own CUSTOM _Jdeo settings, or the factory PRFA;ET video settings.

_73-A 8 -- 1

ON-SCREEN MENUS

BASIC MENU OPERATIONS

Vertical Control Panel Shown

(Menu buttons are provided

on some remote controls.)

1. To See a Menu or Change Menus Press MENU repeatedly until the desired menu is shown. Example shows choosing the SETUP Menu.

-- > AUTO CH. SEARCH

CH, ADD/DEL TUNING BAND AUTO FINE TUNE CLOCK SET CAFrIONS

Choosing Setup Menu

2. To Select an Option/Feature on a Menu Press SELECT (SEL) repeatedly until the desired option/feature is highlighted. Example shows

selecting CLOCK SET.

AUTO CH. SEARCH

CH. ADD/DEL

TUNING BAND AUTO FINE TUNE

- > CLOCKSET

CAPTIONS

Selecting Clock Set

To Access an Option/Feature for Adjustment Press ADJUST (ADJ) Left/Right to access the

selected option/feature to see its submenu or status display. Follow the instructions shown in the dis- play. In :most cases, you simply press ADJUST (ADJ) Left/Right a second time to adjust the ac- cessed option/feature. You still see the status of the item change in the display.

NOTE: :Do not change channels during menu operations unless instructed to do so in the proce- dures given in this operating guide.

f -,--,

CI_3CK SET

PRESS NUMBERS

OR ADJUST KEYS

Clock Set Display

4. To Access a Different !Vlain Menu Press MENU repeatedly until the desired menu is

shown.

5. To Return to Normal Viewing Press ENTER (ENT) or wait a few seconds and the

TV will return automatically to normal operation.

Service Menus: In addition to the menus shown above,

there are menus for factory attd field servichag. Service menus are not intended for use by the ownez.

If you inadvertently access a service menu, press ENTER

(ENT) to return immediately to normal TV viewing.

2s_A 8 -- 2

SETUP MENU

> AUTO CH, SF_ARCtt'_

CH. ADD/DEL | TUNING BAND | AUTO FINE TUNE[ CLOCK SET i CAPTIONS ..,}

I I

i i 1

AUTO CH. SEARCH CH2

ADDED

PRE_KSADJUST PRESS ADJUST

KEY TO START KEY TO CHANG E

Auto Ch. Search Ch. Add/Dei Display

Display

i 1

PRESS ADJUST

KEY TO CHANGE

Captions Display

< 1

TUNING BAND

BROADCAST

PRESS ,M)JUST

KEY TO CHANGE

Tuning Band Display

I CLOCK SET

PRESS NUMBERS

OR ADJUST KEYS

Clock Set Display

PRESS .ADJUST

KEY TO CHANGE

Awto Fiine Tune

Display

AUTO CH. (Channel) SEARCH

Purpose

Finds "allavailable channels and stores them in memory for

access by CHANNEL (CH) Up/Down. Use AUTO CH. SEARCH only when you first install your

TV, or when you permanently change the connections to

the TV. For example, when you replace the antenna with a cable-TV system.

Programmed channels are stored in protected memory, and are not affected by a power outage.

- > AI._O CH. SEARCH

CH. ADD/DEL TUNING BAND

AUtO FINETUNE

CT_OCK SET C,AFHONS

_-..._...___

Selecting Auto Ch.

SEARCHING FOR CHANNELS

While Searching for

Active Channels

2373-A

=======._

AUTO CH. SEARCH

PRESS ADJUST

KEY TO START

Auto Ch. Search Display

f ',

AUTO CH. SEARCH HAS COMPLEIED

TUNING BAND IS

-"--]CHANNELS FOUND

When Search is

Complete

Before Using AUTO CIt. SEARCH Connect ;andturn ON all external equipment, such as cable

TV decoder, VCR, etc. To Use AUTO SEARCH

1. AUTO CH. SEARCH display should be shown on the TV if you followed the "Basic: Menu Operation" given in the "On-Screen Menus" section.

2. Press ADJUST (ADJ) Left/Right to start the AUTO CH. SEARCH, the status of the search is shown in the display. When the search is complete, you can watch the TV program of your choice.

When Some Channels A_ Not Found AUTO CH. SEARCH flaldsonlyactive channe,ls and stores

them in the favorite channel[ memory. You can add channels to those stored in memory by using the CH. ,4J)D/DEL option.

If you have difficulty tunktg some channels, you may have to manually change the TUNING BAND _mdAUTO FINE TUNE. Refer Io respective option for details.

When Oaly AU2KChannel[ Is Found You may have used AUT() CH. SEARCH without having a

signal source (antenna, cable-TV, etc...) connected to the TV. In which case, no channels are stored in the favorite channel

memory, ;andthe TV operates only on the AUX channel To resolve this conditiott, connect a signal source, turn signal

source ON, if needed, and use AUTO CFI. SEARCH again. NOTE: AUX (Auxiliar2j) channel is operatio_ml only on TVs

having separate video ard audio inputs for VCR operations.

9-1

SETUP MENU

CH. (Channel) ADD/DEL

Purpose

Lets you add channels to and remove channels from the ac-

'fivechannels found when using the AUTO CH. SEARCH

option. In this way you can customize the channels that are

accessed through CHANNEL (CH) Up/Down. CH. ADD/DEL is an optional feature. You do not have to

activate this feature in order to use your TV. Before Using CH. ADD/DEL

Use the AUTO CH. SEARCH feature, if not previously used when you first installed the TV.

To Add a Channel to Scan Sequence

1. CH. ADD/DEL display should be shown on the TV if you followed the "Basic Menu Operation" given

in the "On-Screen Menus" section.

ALrI'O CH. SEARCH

-- > CH. ADD/DEL TUNING BAND AUTO FINE TUNE

CLOCKSET

CAFFIONS

'x_

Selecting Ch. Add/Dei

CH. ADD/DEL

CH 2

ADDED

PRF__ ADJUST

KEY TO CHANGE

Ch. Add/Del Display

2. Using CHANNEL (CH) Up/Down go to the nearest

channel ABOVE the channel you wish to add. NOTE: AUX channel will not appear while using

CH. ADD/DEL.

3. Press SELECT to go down to the channel .you wish to add.

4. Add channel by pressing ADJUST (ADJ) Left/Right until the display shows ADDED.

5. Press ENTER (ENT) to return to normal TV viewing.

To Delete a Channel from Scan Sequence

1. CH. ADD/DEL display should be shown on the TV if you followed the "Basic Menu Operation" given

in the "On-Screen Menus" section.

2. Using CHANNEL (CH) Up/Down go to the channel you wish to remove. NOTE: AUX channel cannot

be removed.

3. Remove channel by pressing ADJUST (ADJ) Left/Right until the display shows DELETED.

4. Press ENTER (ENT) to return to normal TV viewing.

When Some Channels Can Not Be Tuned If you have some difficulty tuning some channels, you may

have to manually set the TUNING BAND option. If you have the correct band, but are still having difficulty finding a channel you know to be active, set the AUTO FINE TUNE to SEARCH.

TUNING BAND

Purpose

Allows for setting the TV tuner to match your antenna or

cable-TV system.

If you are having difficulty tuning channels, the TUNING BAND may have to be set manually to match your viewing

needs.

Before Using TUNING BAND Connect and turn ON all external equipment, such as cable-

TV decoder, VCR, etc. Use AUTO CH. SEARCH if not previously used.

NOTE: TUNING BAND is not displayed while AUX chan-

nel is being used. To Use TUNING BAND

1. TUNING BAND display should be shown on the TV if you followed the "Basic Menu Operation" given in the "On-Screen Menus" section.

AUTO CH. SEARCH CH. ADD/DEL

-- > TUNING BAND AUTO FIN_ TUNE

CLOCK SET CAPTIONS

Selecting Tuning Band

TUNING BAND

BROADCAST

PRESS ADJUST

KEY TO CHANGE

Tuning Band Display

2573-A

2. Press ADJUST (AD,I) Left/Right to select the

desired tuning band, as follows:

• BROADCAST is used for standard "over-the-air" broadcasts.

• Cable - CATV is used for most standard cable-TV

(CATV) systems.

• Cable - HRC is used for cable-TV systems that use HRC (Harmonically Related Carrier).

• Cable - ICC is usedl for cable-TV systems using ICC

(Incremental Coherent Carrier).

Available Channels per Band The channels that are available in the broadcast and cable

tuning bands are shown below:

BROADCAST Band

VHF 2 to 13 UHF 14 to 69*

* Channels above 6!9_xe not selectable.

CATV, HRC and ICC Bands

1to 125"* ** Channels above 125 may not be selectable.

When Some Channels Are Not Clear

If some channels are not dear: change the AUTO FINE TUNE. You may have to try different TUNING BAND madAUTO

•FINE TUNE settings until'youget a dear pictaxre,channel-to- channel. Refer to Ihe AUTO iFINE TUNE option for details.

9-2

SETUP MENU

AUTO FINE TUNE

Purpose

Lets your TV compensate for variations in broadcast and cable-TV frequencies.

If you are having difficulty tuning channels, the AUTO FINE TUNE may have to be set manually to match your

viewing needs.

Before Using AUTO FINE TUNE Connect and turn ON all external equipment, such as cable-

TV decoder, VCR, etc.

NOTE: AUTO FINE TUNE is not displayed while AUX channel is being used.

AUTO CH. SEARCH CH. ADD/DEL

TUNING BAND

- > AUTO FINE TUNE

CLOCK SET

CAPTIONS

AUTO FINE TUNE

FIXED

PRESS ADJUST

KEY TO CHANGE

To Use AUTO FINE TUNE

1. AUTO FINE TUNE display shouht be shown on the

TV if you followed the "Basic Menu Operation"

given in the "On-Screen Menus" section.

2. Press ADJUST (ADJ) Left/Right to select the desired mode of operation, as follows:

• FIXED is used to receive "over-the-air" TV stations,

and with many cable TV systems.

• SEARCH is used only when the TV must search to

f'm(l the frequency being received, such as when used

with certain VCRs and video game controllers. When Some Channels Are Not Clear If some channels are not clear, change the TURNING

BAND. You may have to try different AUTO FINE TUNE and TUNING BAND se_tings until you get a ,consistently

clear picture, charmel-to--channel. Refer to the TUNING

BAND option for details.

Selecting Auto Fine Tune

Auto Fine Tune Display

CLOCK SET

Purpose

Sets the clock in the TV to the correct time. After the time has been set, the current time will appear on

the Channel/Time display whenever the TV is turned on, the channel is changed, or ENTER (ENT) is pressed.

Power Failure Note: The time will have to be reset if power to the TV is interrupted.

AUTO CH. SEARCH

CH.ADD/DEL

TUNINGBAND AUTO FINETUNE

- > CLOCKSET

CAFFIONS

Selecting Clock Set

CLOCK SET

P_RE_ NUMBERS

OR ADJUST KEYS

Clock Set Display

To Use CLOCK SET from Remote Control

1. CLOCK SET display should be shown on the TV if

you followed the "Basic Menu Operation" given in the "On-Screen Menus" section.

2. Use the numbered buttons on the remote control to

enter the current time. Press ENTER (ENT) to start the clock.

For example, to set the clock to 6:30, press 6, then 3, then 0; and then press ENTER (ENT). If you enter an invalid time, such as 14:35 or 2:80, the time

will disappear and you can enter another time.

To Use CLOCK SET from Control Panel

1. CLOCK SET display should be shown on the TV if

you followed the "Basic Menu Operation" given in the "On-Screen Menus" section.

2. Use ADJUST (ADJ) Left/Right to set the time, and

then press ENTER (ENT) to starll the clock.

ZS_A 9 -- 3

SETUP MENU

CAPTIONS

Purpose

Displays dosed captions (CC) or informational text when available on the selected channel.

To Access CAPTIONS Menu Indirectly (All Models)

1. Press MENU until the SETUP Menu is shown.

2. Press SELECT (SEL) until CAPTIONS is high- lighted.

3. Press ADJUST (ADJ) Left/Right to see informa- tion display. One of five different displays is shown: OFF, CAPTION 1, CAPTION 2, TEXT 1 and

TEXT 2.

4. Press ADJUST (ADJ) Left/Right to select desired status.

5. The display disappears from the screen automat- ically in about 10 seconds, or you may press ENTER (ENT) to remove the display immediately.

To Access CAPTIONS Menu Directly (Select Models)

1. Press CAPTIONS or CC/QUIT on the remote con- trol to see the CAPTIONS information display. One of five different displays is shown: OFF, CAPTION 1, CAPTION 2, TEXT 1 and TEXT 2.

2. Press CAPTIONS or CC/QUIT until the informa- tion display you desire is shown.

3. The display disappears from the screen automat- ically in about 10 seconds, or you may press ENTER (ENT) to remove the display immediately.

ALrFO CH. SEARCH CH. ADD/DEL

TUNING BAND" AUTO FINE TUNE CLOCK SET

- > CAFI'IONS

Selecting Setup Menu

and Calftions Option

CAPTIONS

OFF

PRESS CAFI'ION

OR ADJUST KEYS

_Captions Turned OFl_

Application

Your new TV is able to decode and display the closed cap-

dons and infl_rmational text that are broadcast vAthsome TV shows. Capdons can be subtitles for the hearing im-

paired, or translations into another language. Informational text can be the daily program schedule for the TV station, or special announcements.

Look for a (CC) or similar silgnin your TV schedule, or on the video tape cassette, which indicates tha_ captions are provided.

The closed caption signal is recorded by all VCRs when recording a "IV broadcast or copying a tape ha,hng closed captions.

About Closed Caption Operation Once you turn CAPTIONS ON, they will stay ON until you

turn CAPTIONS OFF. Captions will appear as they are received. If captions stop being received, they will stop ap- pearing on the TV. If they are received again, captions will automatically appear agamaon the TV. The captions will ap- pear on the TV screen as th_:y were created. If they were created in oalor, they will appear in color. ]Ifthey were created in both upper and lc,wer case letters, they will ap- pear in both upper and lower case letters.

The TV can not show more Jzhanone on-screen display at a time, so no captions will appear until all other ,displays (Channel/Time) have been removed from llhe screen. (The exceptions to this rule are the Volume and Mute displays.)

To remove a display that is interfering with captions, press ENTER until the display di,,;appears. Likewise, you can in- stantly remove any captions by pressing ENTF,R to call up the Channel/Time display. When you press ENTER again, the Channel!Time display d:isappears and you return in- stantly to captions.

CAPTIONS has four different selections that can be made: CAPTION 1, CAPTION 2, TEXT 1 or TEXT 2. At the time of this writing, very littlie appears in any selection ex- cept CAPTION 1. Therefore you should select CAPTION 1 and leave it in that position unless you lo]ow there is some- thing you want to see in one of the other selections. Once you make a selection, that selection is remembered until you change it.

........................ _ Captions may be shown

Hello! Are you anywhere on the screen. there? (Shown here at bottom

Typical Captions Display of screen.)

..o... ..........

See special

newscast tonight

at 7:00PM on

channel 2.

I......o .......... J

Typical Text Display

e e o

Fixed size text window. May be all black when no

information is shown.

2S73-A 9 -- 4

VIDEO MENU

CONTRAST 1

-I +

PRESS ADJUST

Contrast Display

- > CONTRAST

BRIGHTNESS COLOR

TINT

SHARPNESS

PICI'URE PREF

BRIGHTNESS

]-I +

] PRESS ADJUST _ KEYTO CHANGE

Brightness Display

NOTE: All adjt_stments on the VIDEO Menu are optional. You do not:have to use these features in order to use your TV.

-" l +

Color Dis play

iP--i

CUSTOM

PRESS ADJUST

KEY TO CHANGE

Picture Pref Display

I I

SHARPNESS TINrI'

[-= +/ ° '

PRESS ADJUST PRESS ADJUST

L KEY TO CHANG[_. _ KEY TO CHANGE

Sharpness Display Tint Display

CONTRAST

Adjusts the overall contrast and color level of the picture.

If the fight areas in the picture are overly bright and some of the highlight details are missing, press ADJUST (ADJ)

Left until the highlights are restored.

If the picture is grayish and lacks contrast and sparkle, press ADJUST (ADJ) Right until you reach the CON-

TRAST level you prefer.

BRIGHTNESS

Adjusts the brightness level of black areas in the picture.

If the blackareas are too fight, press ADJUST (ADJ) Left until you reach the BRIGHTNESS level you prefer.

If the black areas in the picture are too dark and show little detail, press ADJUST (ADJ) Right until you reach the BRIGHTNESS level you prefer.

COLOR

Adjusts the intensity of the colors in the picture. If all the colors seem too vivid or intense, press ADJUST

(ADJ) Left to decrease the COLOR intensity. If all the colors seem faded or washed out, press ADJUST

(ADJ) Right to increase the COLOR intensity.

TINT

Adjusts the color of the flesh tones. If the flesh tones are too red or purple, press ADJUST

(ADJ) Left until you reach the desired flesh tones.

If the flesh tones are green or have a greenish TINT, press ADJUST (AD.!) Right until you reach the desired flesh tones.

SHARPNESS

Adjusts the clarity, for the clearest picture. If the picture is too "grainy" and vertical edges show multi-

ple fines on the right side, press ADJUST (ADJ) Left to ob- tain the desired SHARPNF_2;S.

If the picture is too "soft" and vertical edges are fuzzy, press ADJUST (ADJ) Righl: to increase the SItARPNESS.

PICTURE PREF. (Preference)

Lets you decide il' you want to use your owa CUSTOM video settings, or the factery PRESET video settings.

Press ADJUST (ADJ) Left/Right to obtain the desired setting.

If the factory PRESET se|ting is selected, any adjustment made to the VIDEO Menu options, automatically changes the PICTURE PREF. setting to CUSTOM, and saves your

current video settings in the CUSTOM mode.

2573-o 10 -- 1

MAINTENANCE AND TROUBLESHOOTING

CARING FOR YOUR TV

Your "IV will look better, have a longer life and perform

better if you care for it properly.

_k irst check to see that the TV is off. For added

safety, unplug the TV from the power outlet.

Picture Glass Cleaning

The picture tube face attracts dust particles and should be

cleaned regularly. To clean the face, spray a small amount of glass cleaner on a cleaning cloth and wipe the picture tube glass face until clean. Repeat if necessary.

To delay new dust accumulation, wet a soft cloth in

lukewarm water in which a little fabric softener or Ivory dishwashiug detergent has been mixed. Wring the cloth al- most dry. Wipe the glass face. Make sure no drops of mois- ture are squeezed onto the glass. Do not wipe the glass dry.

Allow the glass to air-dry before you turn the TV on again.

Cabinet Care Non-Wood Cabinet or Cabinet Components.

Moisten a soft cloth with a mild soap solution or Ivory dish- washing detergent. Wipe the surface with a damp cloth.

Then rinse the cloth in cle_m water and wipe the surface again. Allow the TV to air--&y before tur_ag it on.

Wood Cabinets or Cabinel: Components. Use any good furniture clearter and polish. Regular care

will help preserve the finish.

EXTENDED ABSENCE

Before an extended absence (such as a vacation) you may

want to unplug the power cord from the electrical wall out-

let. This will protect the TV from possible damage from lightning or power line surges. If you have an outdoor anten- na, you may also want to disconnect the antenna lead-in

wires on the back of the TV.

NOTE: If you unplug your TV, you will have to reset the clock to the current time.

TV PICTURE INTERFERENCE

Your TV picture may be affected by interference caused by

one or a number of factors. These include:

Nearby Alltomobile Ignition, Electrical Appliances, etc.

Which causes a speckled, streaked picture. This is most

noticeable in weak signal areas.

Snow in Picture Caused by insufficient signal. Usually caused by the TV being located too far from the TV station

or by an improper antenna installation.

Ghosts or Reflections Caused by signals being reflected from surrounding buildings, water tanks, or other high struc- tures.

Radio Signal Police, amateur or CB radio tr_msmltters may cause interference.

These interference probleras can often be corrected through the use of a better antenna, signzd anlplifiers, or various l_flterdevices. See your TV dealer for additional in- formation, and available TV accessories.

¢__ca_1 11 -- 1

MAINTENANCE AND TROUBLESHOOTING

BEFORE CALLING FOR SERVICE

Check these items and see if you can correct the trouble by changing the adjustment of a control or the setting of a switch.

By making: these simple checks before calling: for service, you may save time and money.

Problem

Picture OK. Poor sound.

Sound OK. Poor picture.

No picture or sound.

Picture blurred, ghost in picture, or distorted.

Try This

Re-orient antenna. Check for local interference. Try another channel - possible station trouble. Check AUTO

FINE TUNE and TUNING BAND Menu options.

Re-orient antenna. Adjust VIDEO Menu options with PICTURE PREF. in CUSTOM mode. Try another channel

- possible station trouble.

Is TV on? Power in wall outlet? TV plugged in? Antenna hooked up? Cable hooked up? Check wilLhyour cable company. Check auxifiary audio/video eqLuipment. Check channel selection. Check TUNING BAND and AUTO FINE TUNE Menu options. Check remote control, if provided.

Check antenna or cable hook up for broken s_fires?Possible station trouble - try another channel. Check for local interference.

No color, or poor color. Check antenna or cable hook up. Adjust VIDEO Menu

options with PIC'TURE PREF. in the CUSTOM mode. Is it a color program?

No sound. Check VOL. (VOL) setting. Check MUTE button

operation on remote control, if provided.

Cannot select certain channels. Channels may be skipped !inCH. ADD/DEL Menu option.

Check AUTO FINE TUNE Menu option.

Remote control does not work. Are batteries okay? Is "I'V turned ON? I,; TV plugged in? Is

remote in the TV mode'?

No closed captions. Are captions available? Is CAPTION 1 or CAPTION 2

selected using the CAPTIONS option on the SETUP Menu.

Black box covers most of screen. Is TEXT 1 or TEXT 2 selected using the CAPTIONS

option on the SETUP Menu? Text information maynot be available.

Always request that your technician use only genuine Zenith exact replacement parts for continued Quality and Safety performance. Keep your Zenith ALL Zenith.

NOTE: If your TV fails to respond to the PICTURE PREF. selection, or to any other menu selection, you must reset the TV. Simply disconnect it from AC power by un- plugging the AC power cord from the power oatlet. Wait a few minutes, then plug the TV back into the power outlet. You will have to reset the clock to the current time.

_73-o 11 -- 2

PRODUCT REGISTRATION CARD

You could win a full refund on your new Zenith product.

Look for the Product Registration Card on your new video

product. F,ach month a drawing is held by Zenith from the com-

pleted Product Registration Cards received during the preceding month. Zenith will reimburse the winner for the filll purchase price of the product purchased.

In order to participate, simply complete and return the Product Re_;tration Card at once, even if you choose not to complete the information and interests portion of the

questionnaire.

The odds of winning the free drawing described above,

depend on the number of participants. Free drawing

offer is void in Canada and other places where restricted or prohibited by law. Offer is void for Hotel/Motel and Institutional models. Rental models

are not eligible.

Product Card lost or misplaced?

The Product Registration Card furnished with your video

product is pre-printed with its Model and Serial numbers.

Please Fill out 'the card and mail it at your earliest con- venience. It is imperative that Zenith know how to reach you promptly ff we discover a safety problem that would af-

fect you. If the: original card has been lost or misplaced, you

may use the replacement ca_rdprovided below. Either card

will qualify you for the free drawing, but you are limited to

only one entry in the drawing. Complete the card, place it in

an envelope and mail it to:

Zenith Electronics Corporation

P. O. Box 173257

Denver, CO 80217-3257

Use the replacement Product Registration Card only if the

original card has been misplaced or lost.

PHOTOCOPY AND CUT ALONG DASHED LINE

Zenith Product Registration Cord H5Z01-01

O Please Print Clearly or Type Q Area Code Telephone

,.D=_. =._=r.. _._,. ,_==, I I I III 1 I--I I I II

First Name Inltlal Last Name

lllllllllllU[,llll!lll

Street

IIIIIIII!1111111111111

City

IIIIIIIIIIIIIIII ®Dat,

State Zlp Code Ma.

"IIIIIIIII-IIIII III

II_IIIII

Apt. No.

[_1 I I I/

of Purchase

Day Yr.

LII L_LI

NUkg_.R

Copy Numbers Here

From Label on Set

- 111111111111

Please record the model number

and serial number from the sticker

on the back c_f 'your set.

I .......... . .................................. _ ........ ...°° ........ _...= ......................................... . .... . .....

TVCARD2

RECOMMENDED ACCESSORIES FOR YOUR TELE'VISION

ONLY $29.95

Plus shipping and handling

ONLY $129.95

Plus shipping and handling

MBC400P 3 FUNCTION WALL MOUNTS If your TV Order MULTI-BRAND REMOTE (17 Ib=) screen is: this model CONTROL (2 Ibs) • Easy to instaJI

Combining three remotes • Safe and strong 13;" CWM0113 ONLY

into one has never been • 5 year warranty (17 Ibs)

easier. Operate your "IV, VCR • Made in U.S.A. $69.95 andremoteCablecontrol.converterwith one • Space saving 19/_' CWM0; Oa LY

• Electronic mode switching • UL listed (17 Ibs)

• Easy set-up: simply , Adjustable, tilt angle: $89.95

0 to 12 degrees

depress the "Learn" key 25/27' CWM027 ON LY

for 5 seconds and enter (17 Ibs)

the three digit pre- $99.95

programmed code Plus shipping

• Three LED mode indicators and handling

• Operate on-screen menus and displays

• Ideal replacement for lost or broken remotes

ATS800 OMNI-STAR _, AMPLIFIED UHFiVHF _' ANTENNA (7 Ibs) !i

• Omni directional amplifiea i

UHF/VHF antenna I

• Attic or roof mount

• Built-in amplifier boosts TV ',,'

signal strength up to 6

times on VHF and 9 times

on UHF

• Includes: 50 ft. and 6 ft. coaxial Cable with

connectors, U/V band separator, mounting bracket and hardware. (Mast and mast mount are not included.)

ATS400 DELUXE 75 OHM INDOOR ANTENR[A

,i (3 nb=)

1_ • 75 ohm all channel

UHFNHF/FM antenna

• High 'tech black styling

• Fully ;_djustable

Order Form

.............,T............................................................]...............

excitingoffer,pleesefillout |item Number Description Quantity Price Per Item

this card and return a photocopy to: |

Attn: Acce.sso_, Offers / Zenith Video Tech Corporation / 1900 N. At_tin Avenue |

Chicago, Illinois 60639 J

Charge card<;ustomers, to spe_:l Sales Tax: Please add your state sales tax ff you Subtolal your order, call toll flee 1-800-255-6790

Check payment method you prefer:, live in one of the following states.

CA 7 3/4%, GA 4%, IL 8 3/4%, KS 4.9%, KY 6%, ME 6%, State Sales Tax

[] Check or rnoney order PA 6%, R 7%, TX 7 3/'4%, VA 4 1/2%, WA 6 1/'2%

(made payable to Zenith Video Tech)

L"-Jvisa [] Masterc.ard Shipping Information

Account Number

IIIIIlllllllllltl

Exp. date

Signature

PLEASE ALLOW 3-4 'WEEKS FOIl OELIVERY. THANK YOU!

To receive information on other fine accessory products like those above, please t_ke a moment to complete the following:

Total (Lbs)

Ship weight Charge

1 - 5 Ibs $4.5Cn

6 - 10 Ibs $5.35

11 - 15 Ibs $7.0CI 16 - 20 Ibs $8.75,

26 + Ibs $10.45

/ /

,_ch=uges[SeeChart)

Total Amount of Order

Ship 1o:

Telephone

Name

Address

Apt# c_y

State Zip Code

NOTE: Pnce and availability subject to change.

Television Model # Television SedaJ # (from back of set) (from back of set)

Mo. Day. Yr. (Approx_ date of purchase)

Total Ship Weight

Ibs

TVACCF_I

YOUR ZENITH WARRANTY

Consumer Protection Plan for Zenith TV Welcome into the Zenith family! We believe that you will be

pleased with your new Zenith Color TV. Please read this Consumer Protection Plan carefully. It is a "LIMITED WARRANTY" as det'med under Federal Law. This warran- ty gives you specific legal rights, and you may also have

other rights that vary from state to state within the U.S.A.

Zenith's Responsibility

Service labor - During a period of 90 days from effective

warranty date, Zenith will pay for service labor by a U.S. or

Canadian distributor-approved Zenith service center when needed as a result of manufacturing defects.

Parts - New or remanufactured replacements for factory- defective parts will be supplied by a U.S. or Canadian distributor-approved service center for one year from effective warranty date (color picture tube - two years). Such replace- ment parts are warranted for the remaining portion of the original wazTanty period.

Home Service -- Warranty service for 19" diagonal (U.S.A.) or larger screen size models is provided in the

home. Not Covered - This warranty covers manufacturing defects

and does not cover installation, adjustment of customer con- trois in the home, installation or repair of home antenna sys- tems, cable converters or cable company-supplied equipment; it also does not cover damage due to misuse, abuse, negligence, acts of God or other causes beyond the control of Zenith. Any alteration of the product after manufacture voids this warranty in its entirety.

Owner's Responsibility Effective Warranty Date - Warranty beg_s on the date of original consumer installation. For your convenience, keep

the dealers dated bill of sale or delivery ticket as evidence of the purchase date.

Operating Guide -- Read your Operating GuJidecarefully so that you will understand l:he operation of your set and how to adjust the customer controls.

Carry-In Service - Modets under 19" diagomd (U.S.A.) screen size must be taken tc, a distributor-approved Zenith

service center for warranty service and mttst be picked up

by the owner.

Antenna - Reception problems caused by inadequate

home antennas or faulty antenna connections are the

owner's responsibility. Important: Product Regista'ation -- Please fdi out and mail your Product Registration Card. It is imperative that Zenith

know how to reach you promptly if we should discover a safety problem that could ad'fectyou.

Warranty Service - For warranty service iuformation, con- tact your Zenith dealer preferably, or any distributor- approved Zenith service center. Parts and service labor that are Zenith's responsibility (see above) will be provided without charge. Other se_-viceis at the owaer',; expense. If you have any problem in obtaining satisfactory warranty ser- vice, write:

Zenith Electronics Corporation Customer SeB4ce Department

1900 N. Austin Avenue

Chicago, Illinois 60639-5079 Telephone: (312) 745-5152 Mon-Fri, 8:00 a.m. - 4:30 p.m. Ce,ntral Time

NOTE: Before you ask for Warranty service, check the Operating Guide section entitled, "MAIN.. TENANCE AND TROUBLESHOOTING." It may be possible to avoid a service call.

TVWARR3

ZENITH ELECTRONICS CORPORATION

1000 MILWAUKEE AVENUE

GLENVIEW, ILLINOIS 60025

Part No. 206-2573

Printed in U.S.A.

EP-EDC

Zenith SENTRY 2 S1320S, SENTRY 2 SLS7041W, SENTRY 2 S1907S, SENTRY 2 SLS2049S, SENTRY 2 SL-1327W Operating Manual & Warranty

Specifications and Main Features

Frequently Asked Questions

User Manual
