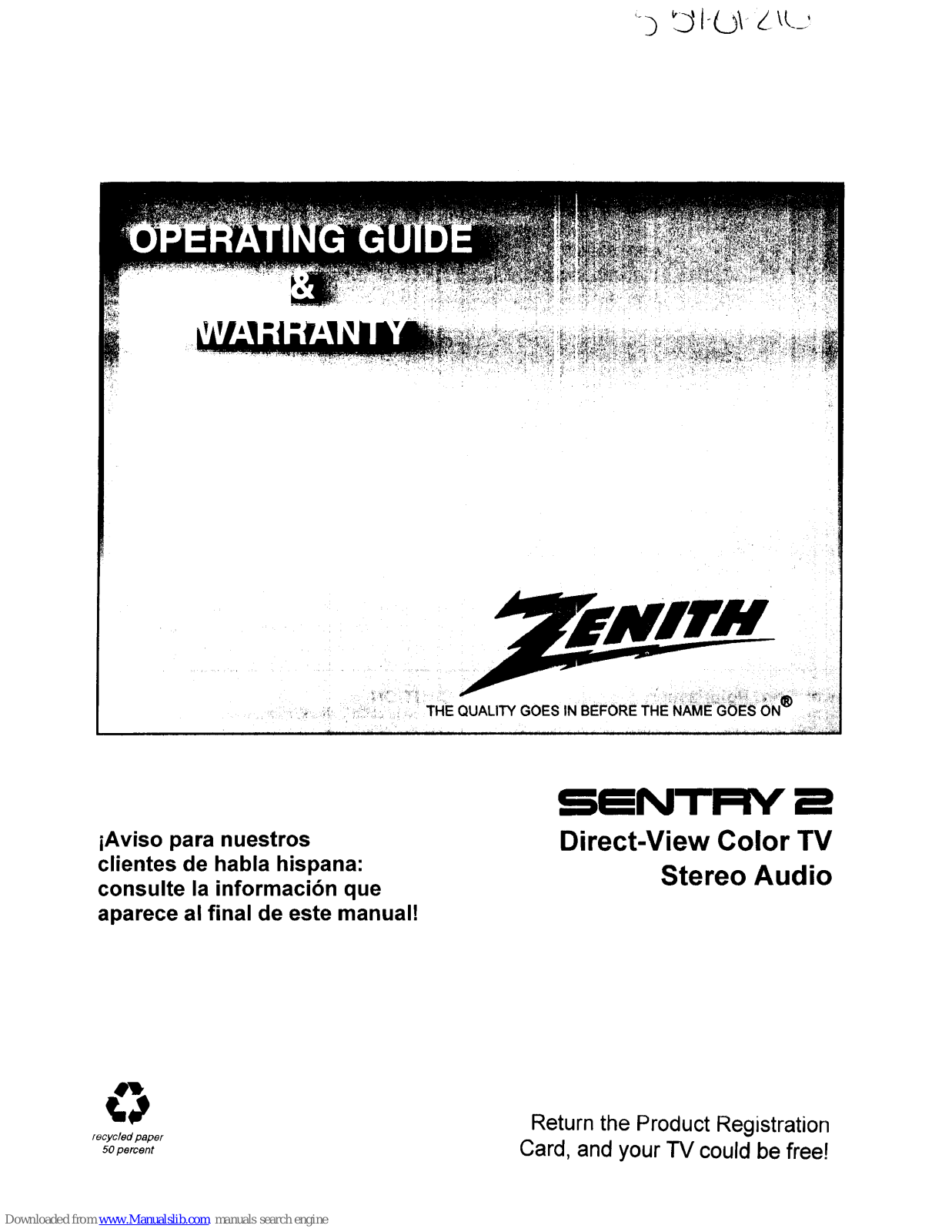

Zenith Sentry 2, Sentry 2 Series Operating Manual & Warranty

THE QUALITY GOES IN BEFORE THE

iAviso para nuestros
clientes de habla hispana:
consulte la informaci6n que
aparece al final de este manual!

SEN

Direct-View Color TV

Stereo Audio

recycled paper

50 percent

Return the Product Registration

Card, and your TV could be free!

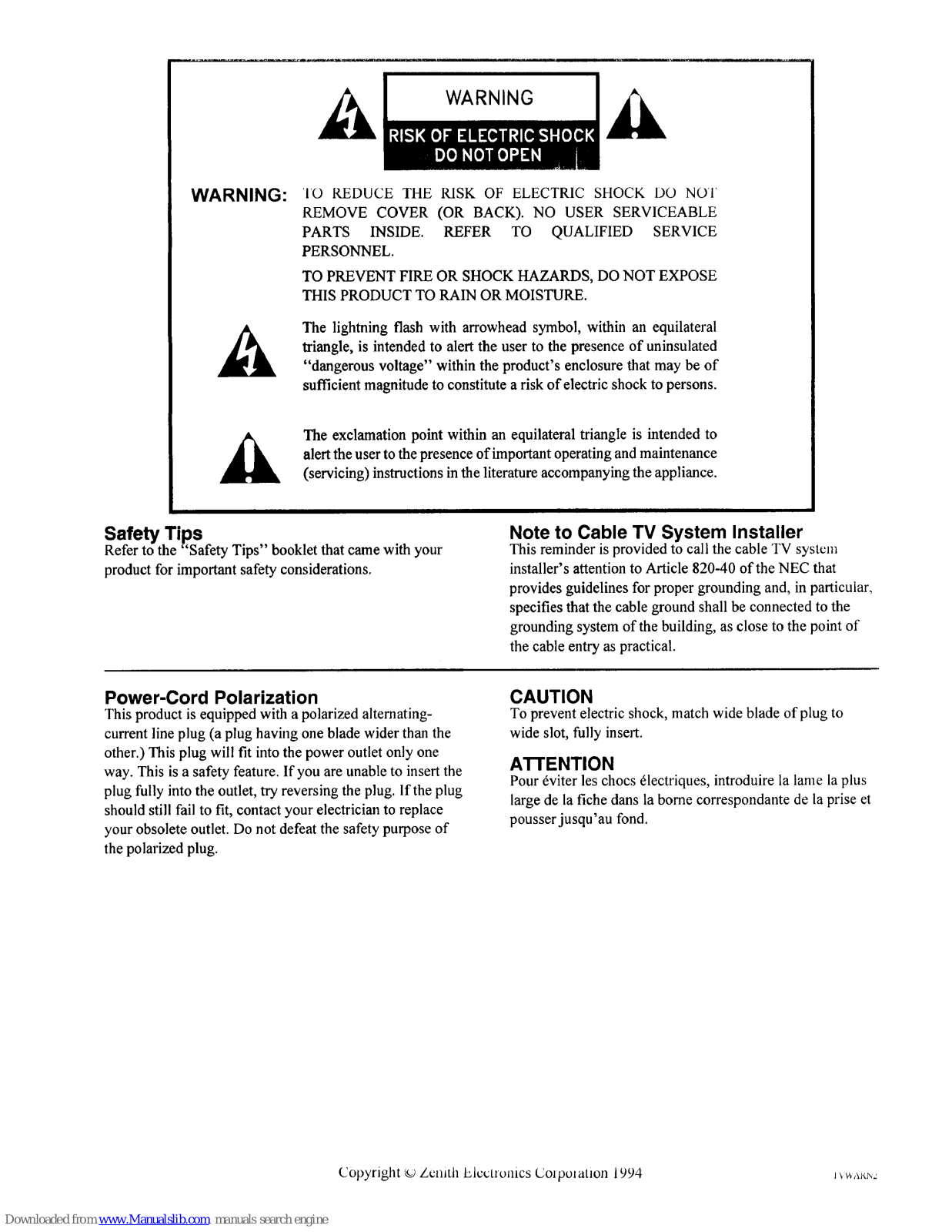

WARNING:

'i'O REDUCE THE RISK OF ELECTRIC SHOCK DO NOT
REMOVE COVER (OR BACK). NO USER SERVICEABLE

PARTS INSIDE. REFER TO QUALIFIED SERVICE
PERSONNEL.

TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE
THIS PRODUCT TO RAIN OR MOISTURE.

The lightning flash with arrowhead symbol, within an equilateral
triangle, is intended to alert the user to the presence of uninsulated

"dangerous voltage" within the product's enclosure that may be of
sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to

alert the user to the presence of important operating and maintenance
(servicing) instructions in the literature accompanying the appliance.

Safety Tips

Refer to the "Safety Tips" booklet that came with your
product for important safety considerations.

Note to Cable TV System Installer

This reminder isprovided to call the cable TV systcln
installer's attention to Article 820-40 of the NEC that

provides guidelines for proper grounding and, in particular,
specifies that the cable ground shall be connected to the

grounding system of the building, as close to the point of

the cable entry as practical.

Power-Cord Polarization

This product isequipped with a polarized alternating-
current line plug (a plug having one blade wider than the
other.) This plug will fit into the power outlet only one
way. This is a safety feature. If you are unable to insert the
plug fully into the outlet, try reversing the plug. lfthe plug
should still fail to fit, contact your electrician to replace
your obsolete outlet. Do not defeat the safety purpose of
the polarized plug.

CAUTION

To prevent electric shock, match wide blade of plug to

wide slot, fully insert.

ATTENTION

Pour _viter les chocs _lectriques, introduire la lame la plus

large de la fiche dans la borne correspondante de la prise et

pousser jusqu'au fond.

Copyright c_Zcmth Llcctronics Uoipolation 1994 J_i_r,:

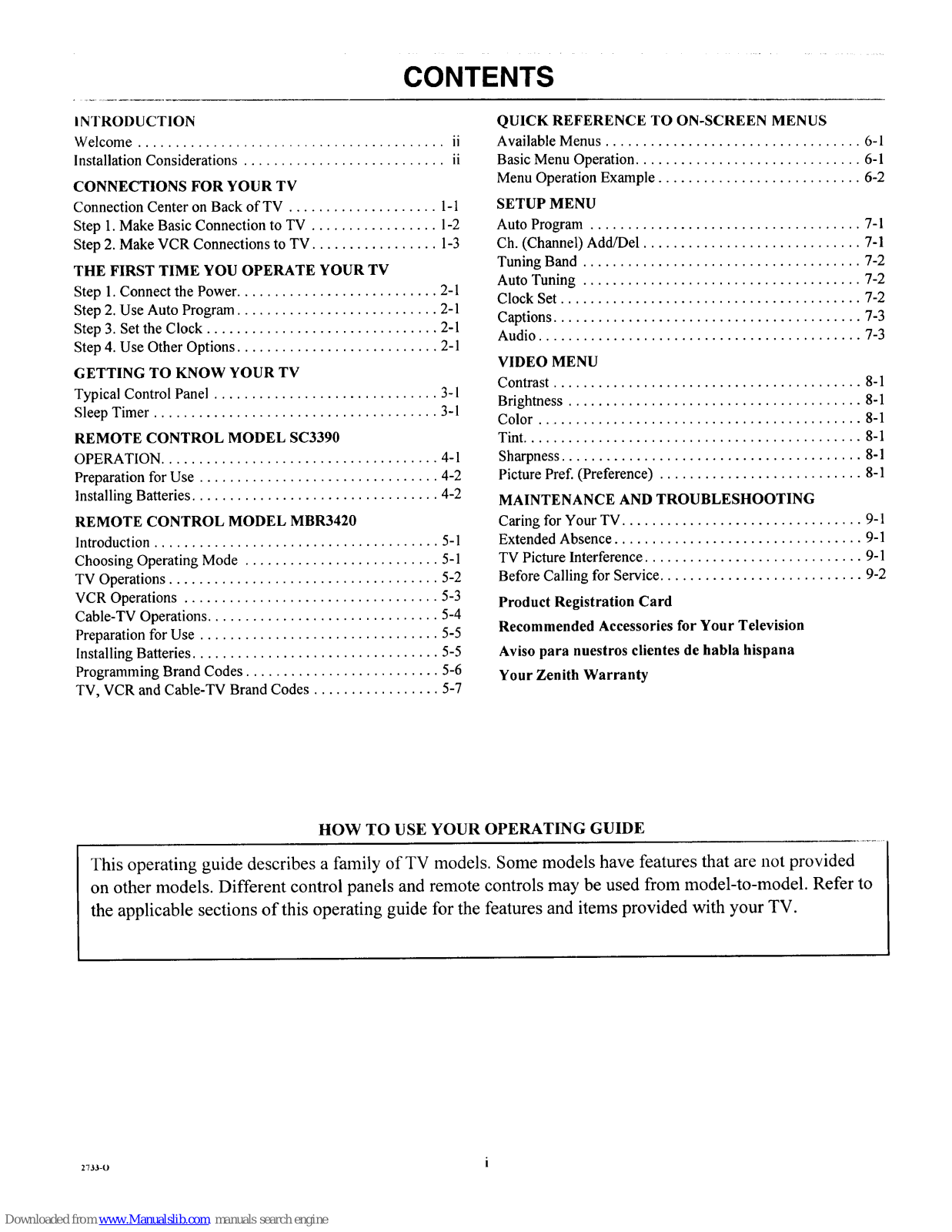

CONTENTS

INTRODUCTION

Welcome ......................................... ii

Installation Considerations ........................... ii

CONNECTIONS FOR YOUR TV

Connection Center on Back of TV .................... 1-1

Step 1.Make Basic Connection to TV ................. 1-2

Step 2. Make VCR Connections to TV ................. 1-3

THE FIRST TIME YOU OPERATE YOUR TV

Step 1. Connect the Power ........................... 2-1

Step 2. Use Auto Program ........................... 2-1

Step 3. Set the Clock ............................... 2-1

Step 4. Use Other Options ........................... 2-1

GETTING TO KNOW YOUR TV

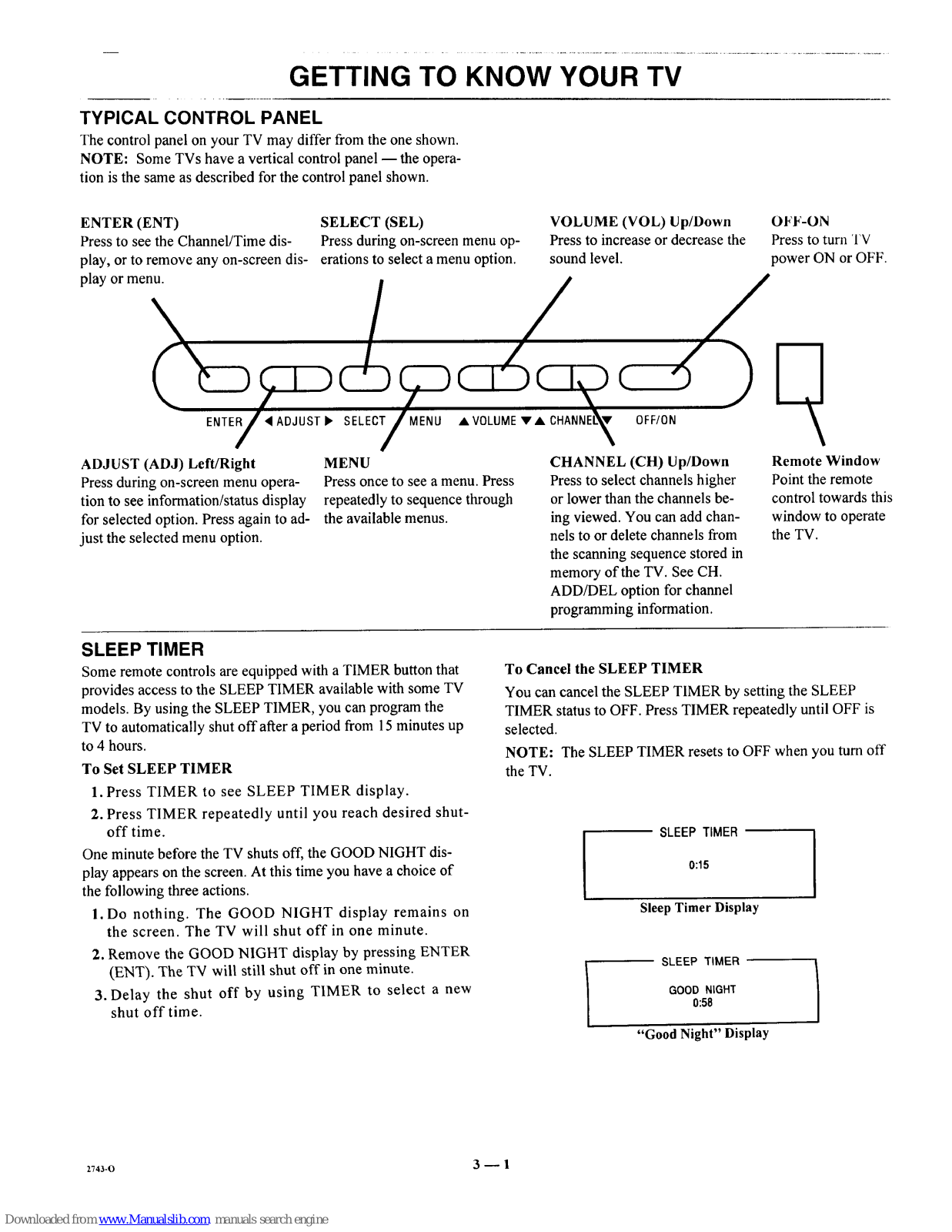

Typical Control Panel .............................. 3-1

Sleep Timer ...................................... 3-1

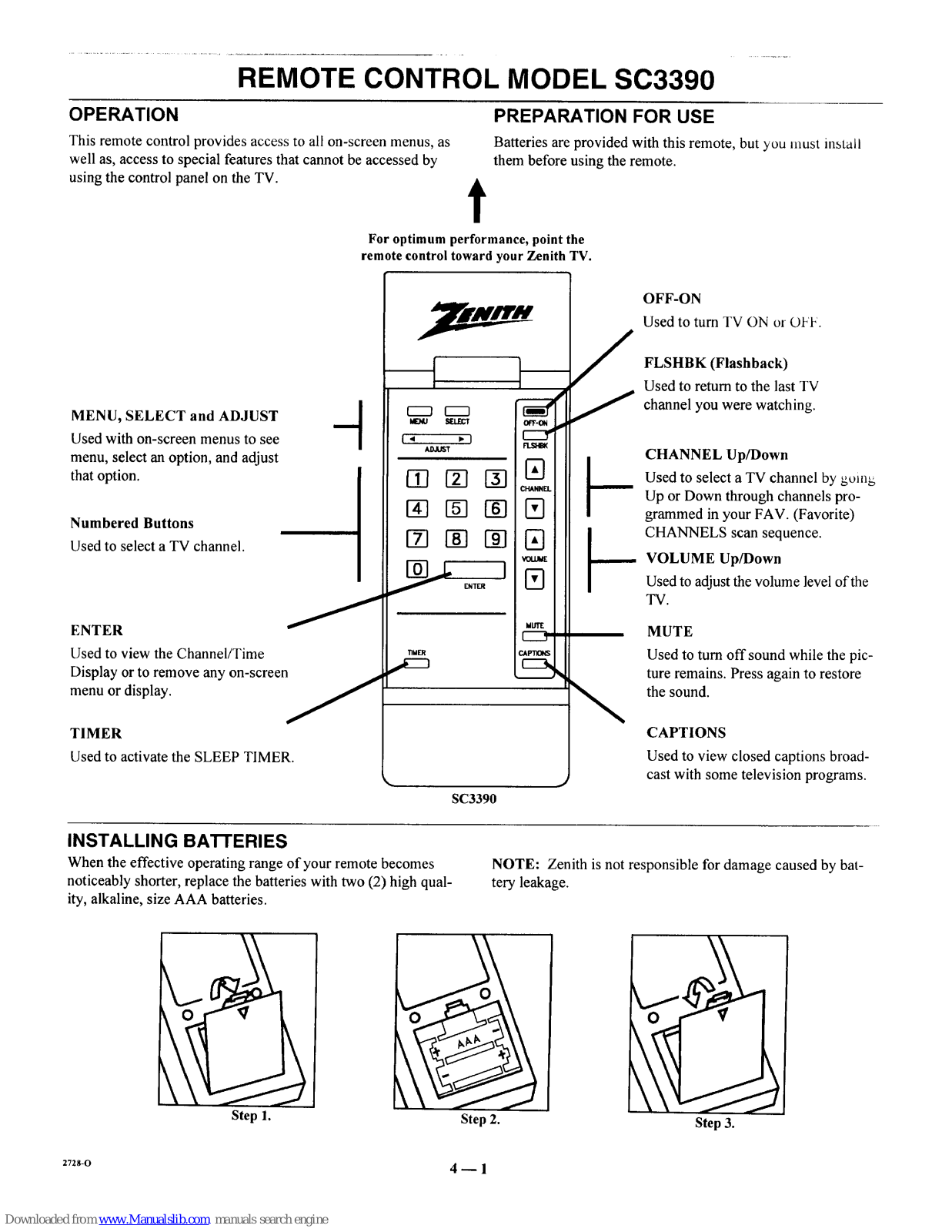

REMOTE CONTROL MODEL SC3390

OPERATION ..................................... 4-1

Preparation for Use ................................ 4-2

Installing Batteries ................................. 4-2

REMOTE CONTROL MODEL MBR3420

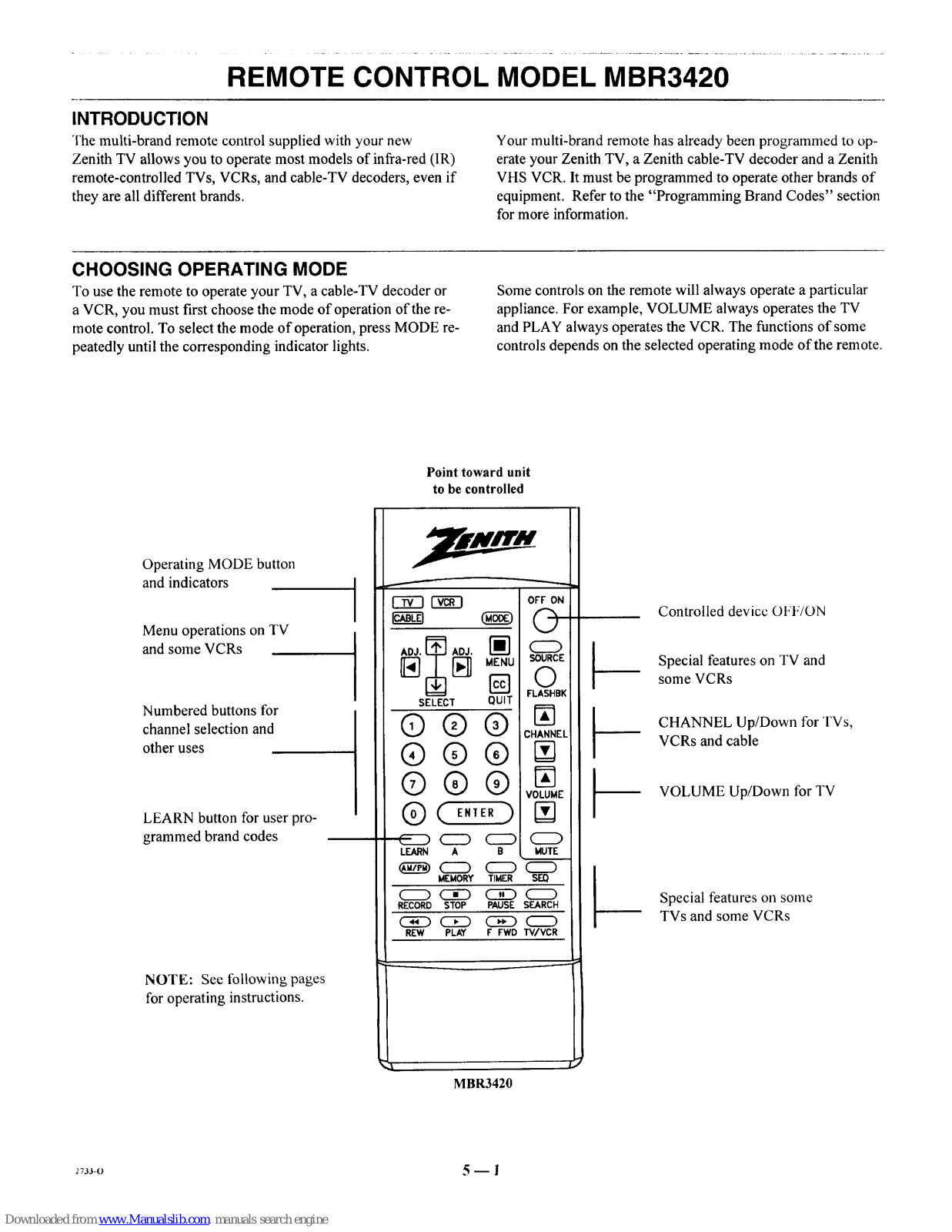

Introduction ...................................... 5-1

Choosing Operating Mode .......................... 5-1

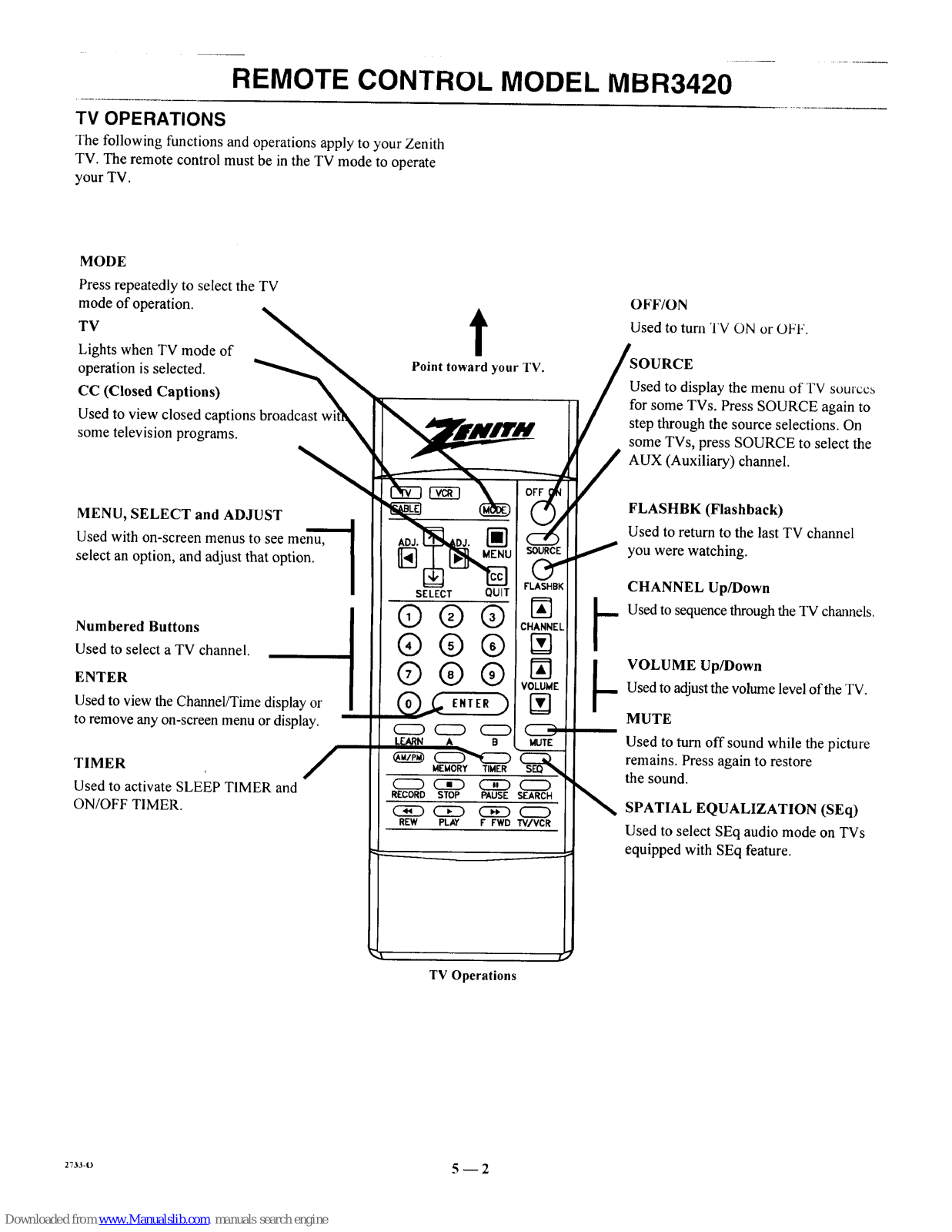

TV Operations .................................... 5-2

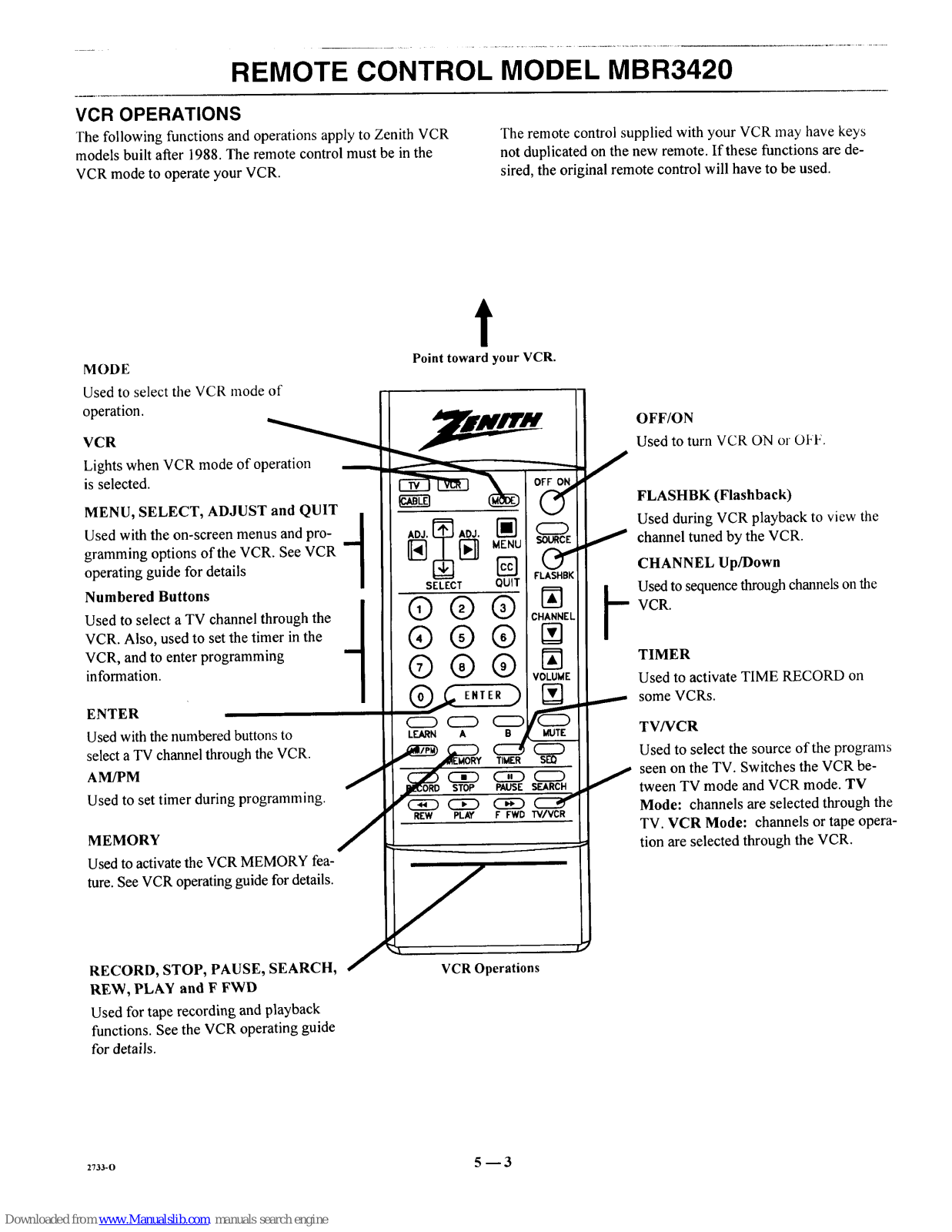

VCR Operations .................................. 5-3

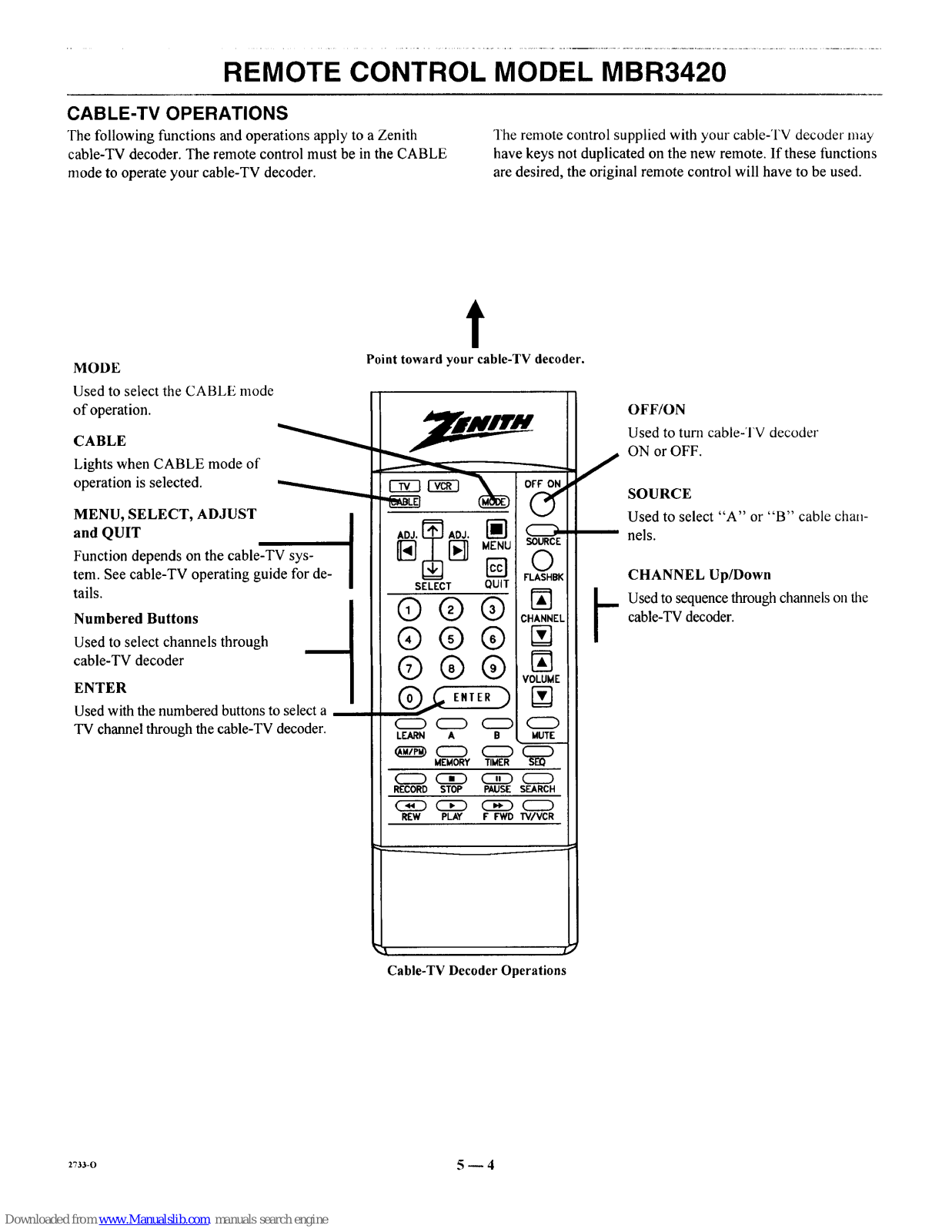

Cable-TV Operations ............................... 5-4

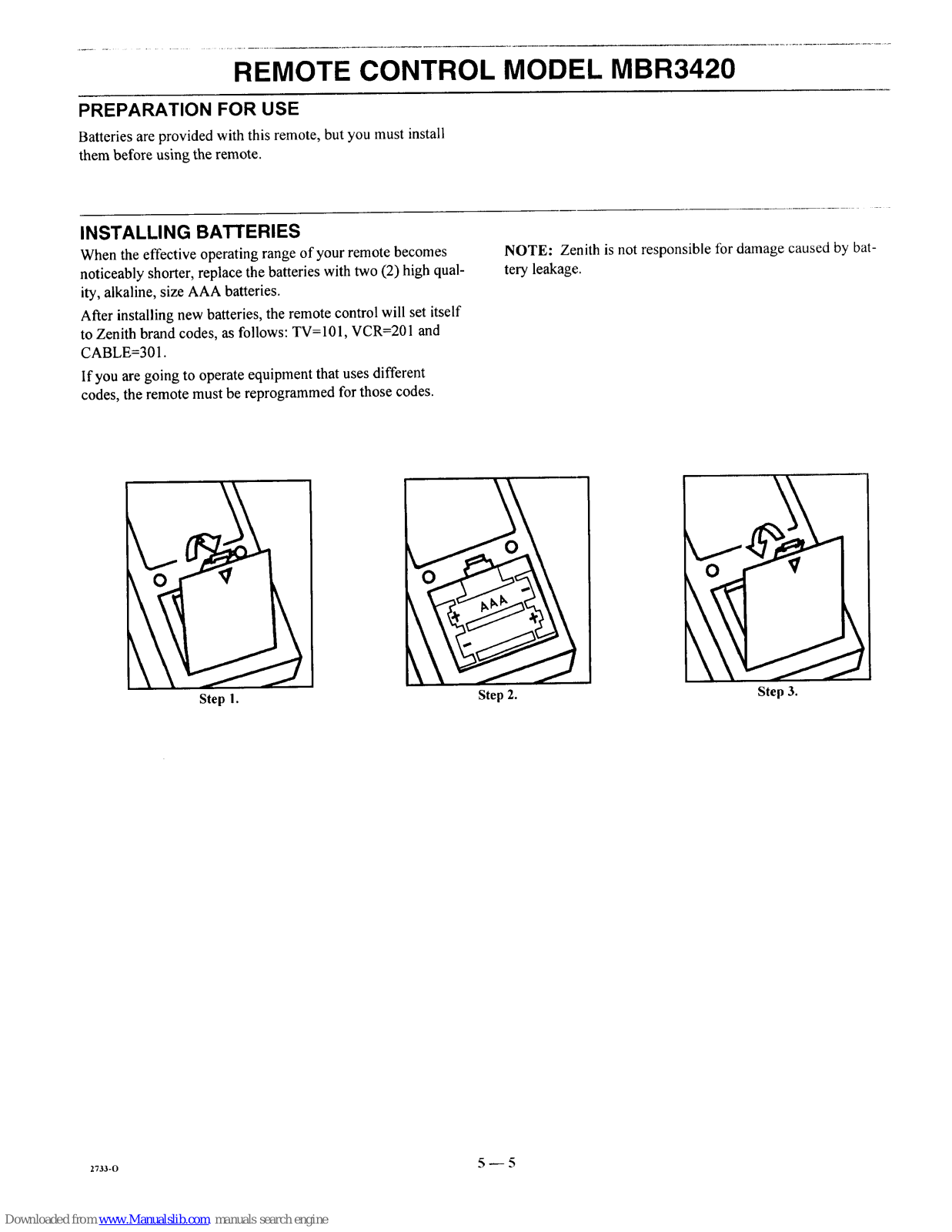

Preparation for Use ................................ 5-5

Installing Batteries ................................. 5-5

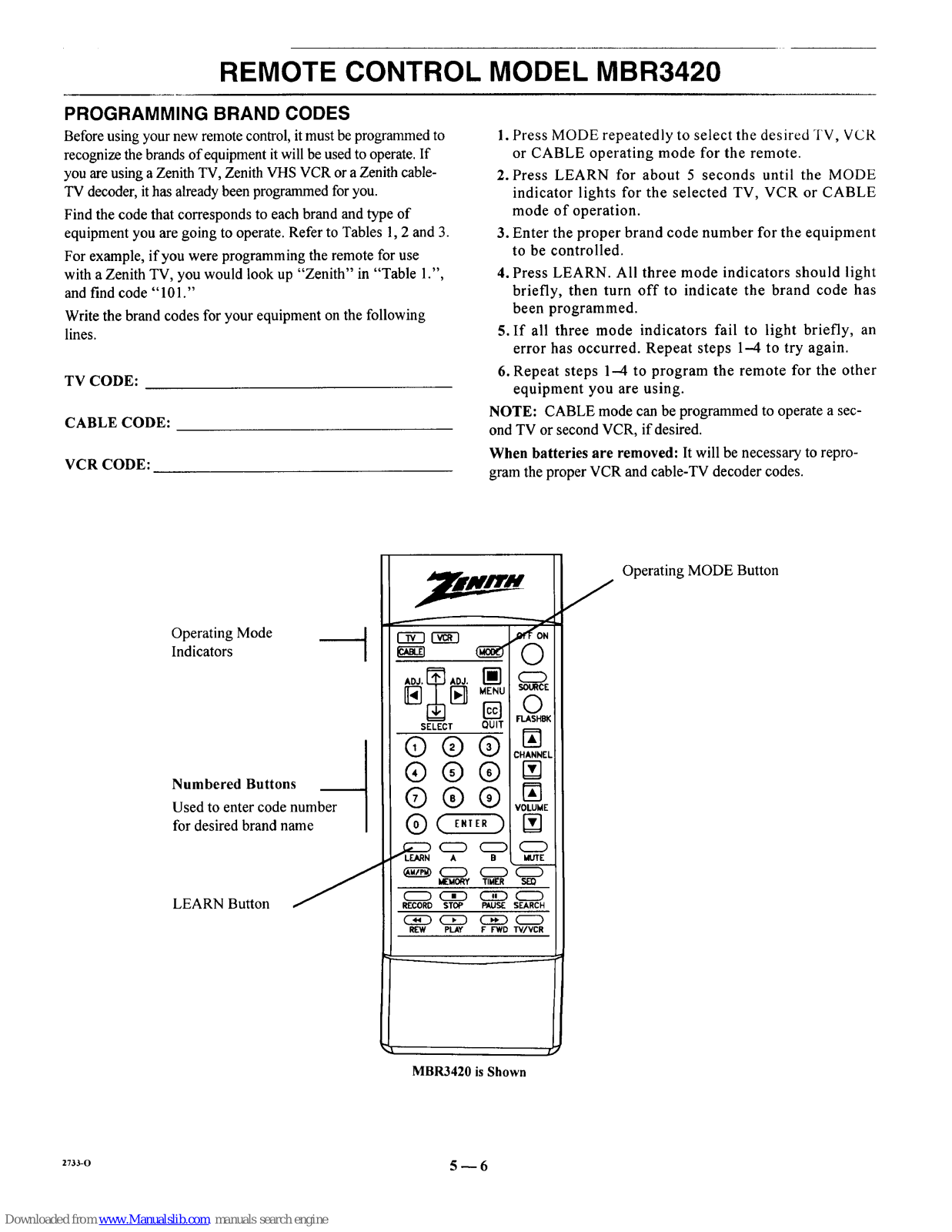

Programming Brand Codes .......................... 5-6

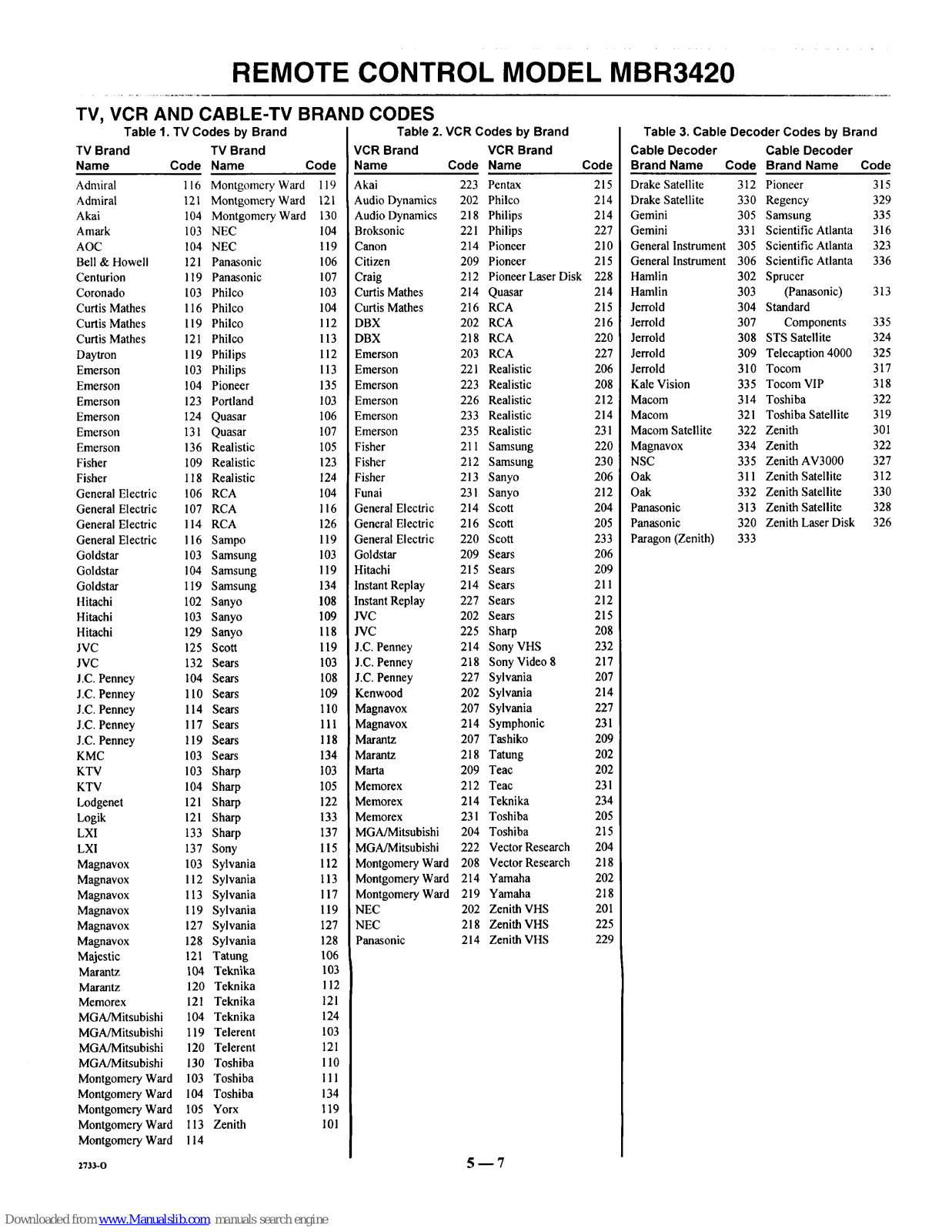

TV, VCR and Cable-TV Brand Codes ................. 5-7

QUICK REFERENCE TO ON-SCREEN MENUS

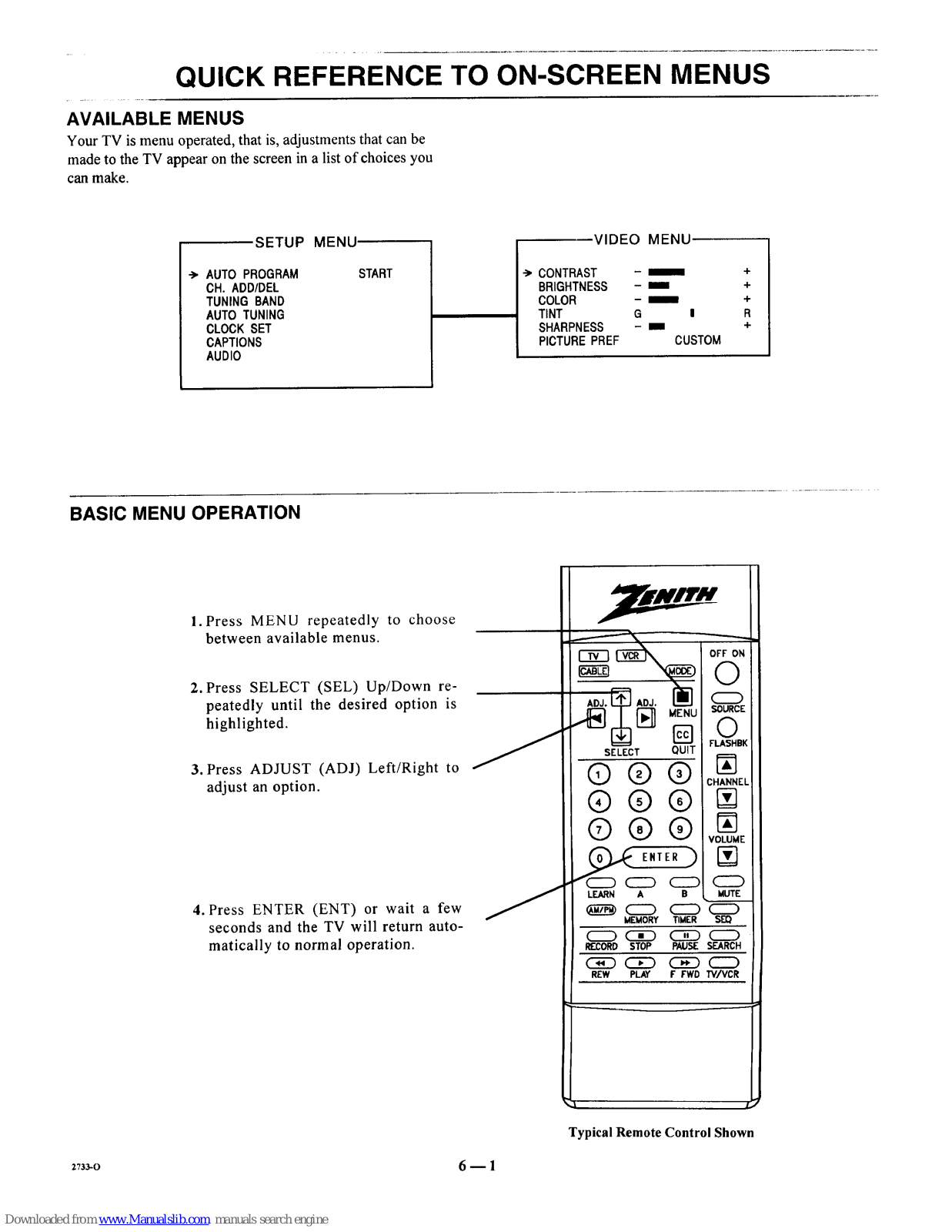

Available Menus .................................. 6-1

Basic Menu Operation .............................. 6-1

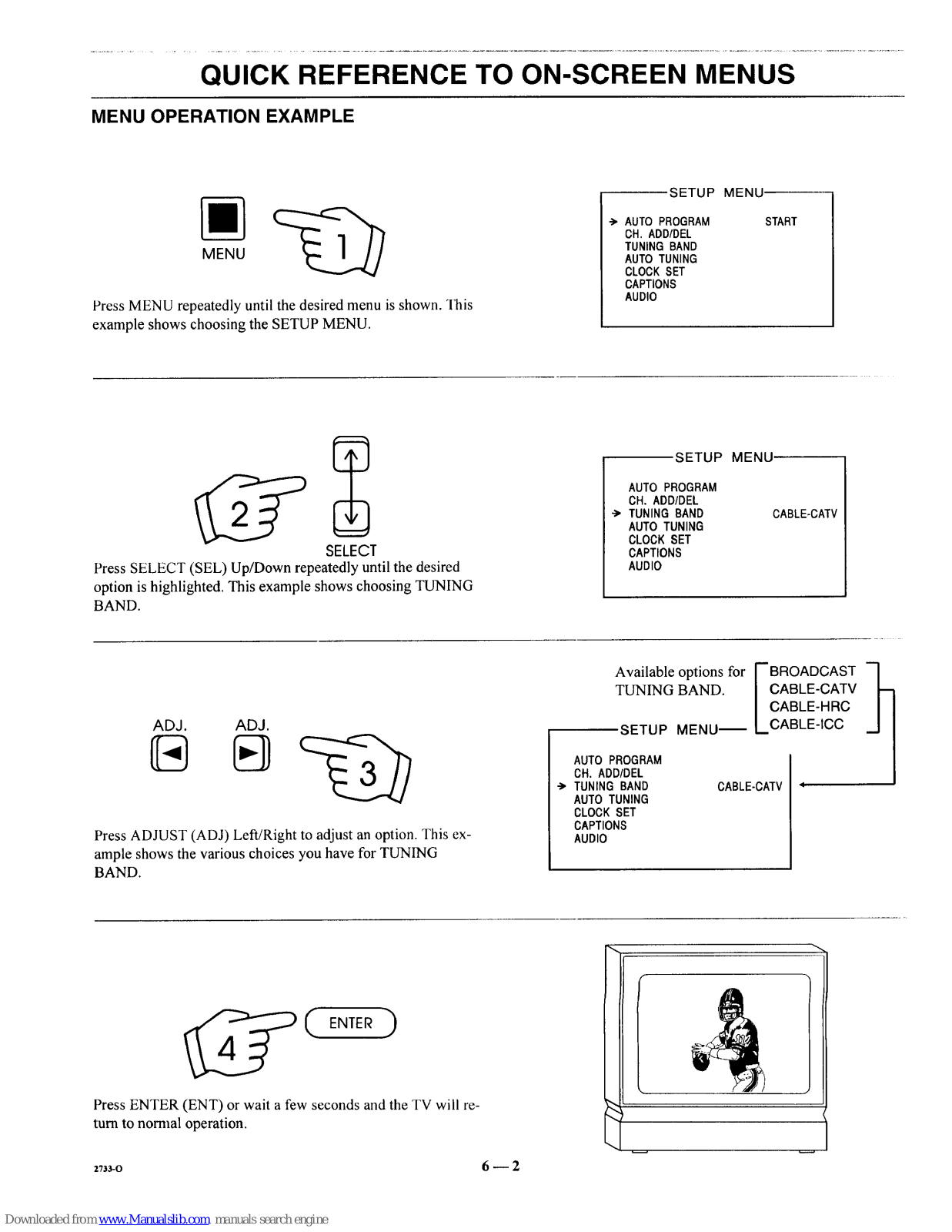

Menu Operation Example ........................... 6-2

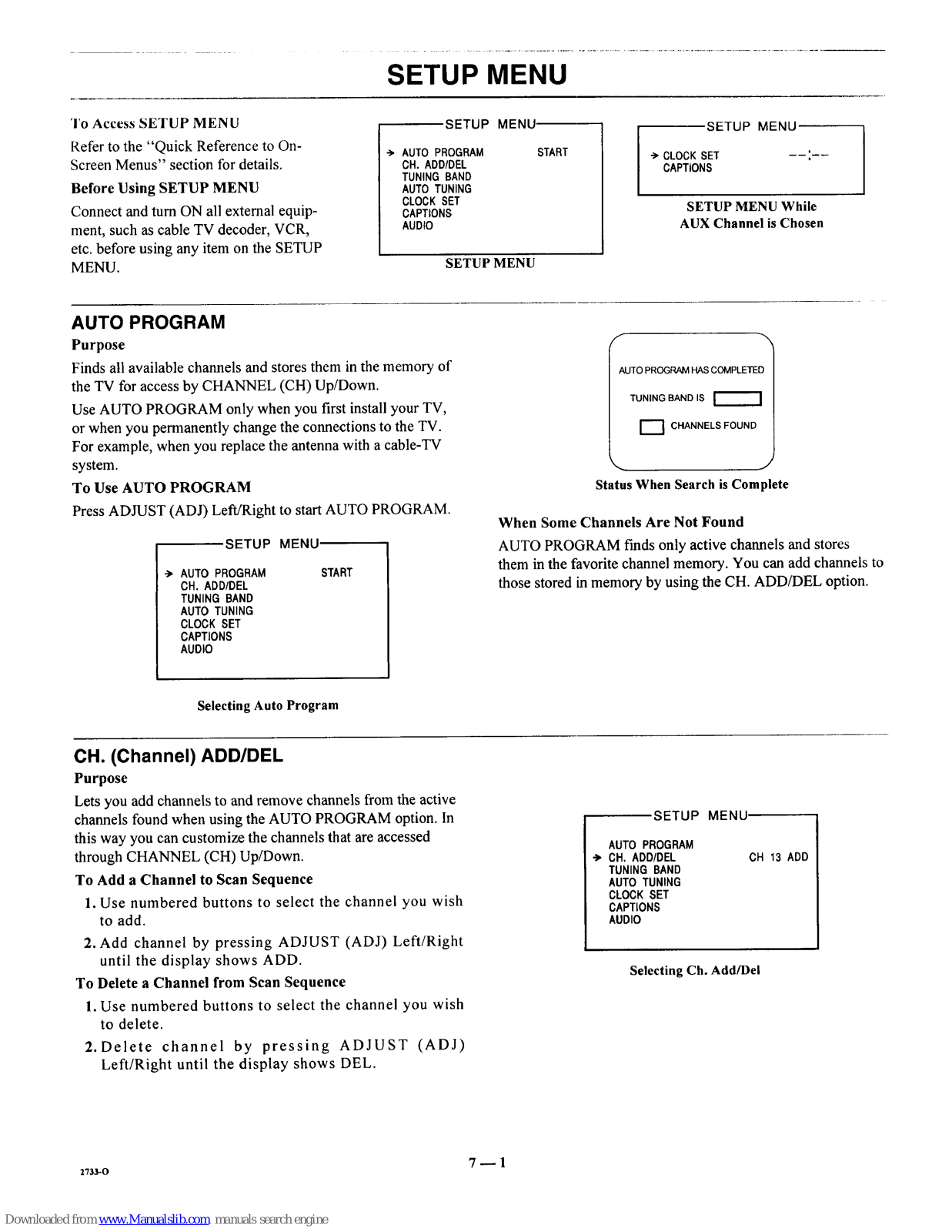

SETUP MENU

Auto Program .................................... 7-1

Ch. (Channel) Add/Del ............................. 7-1

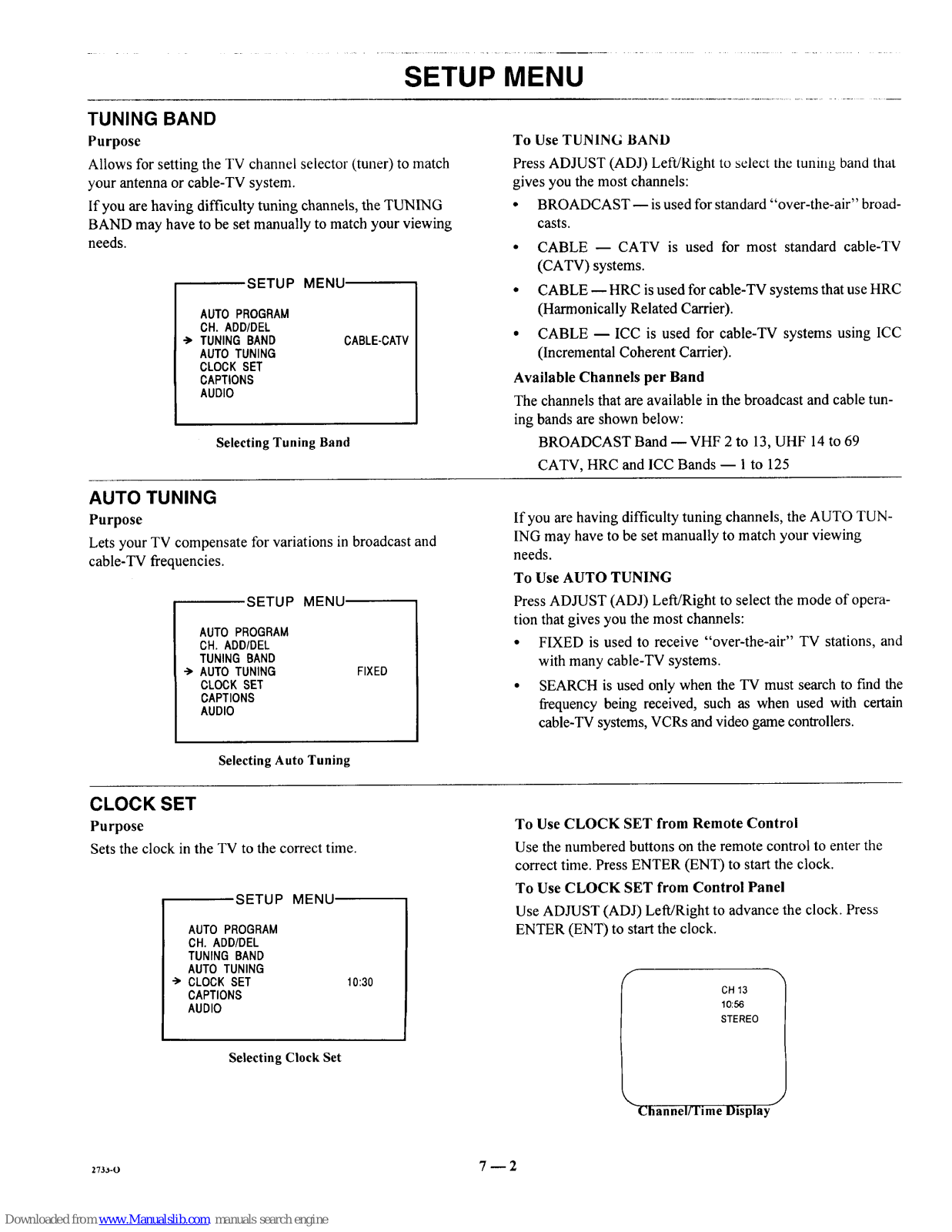

Tuning Band ..................................... 7-2

Auto Tuning ..................................... 7-2

Clock Set ........................................ 7-2

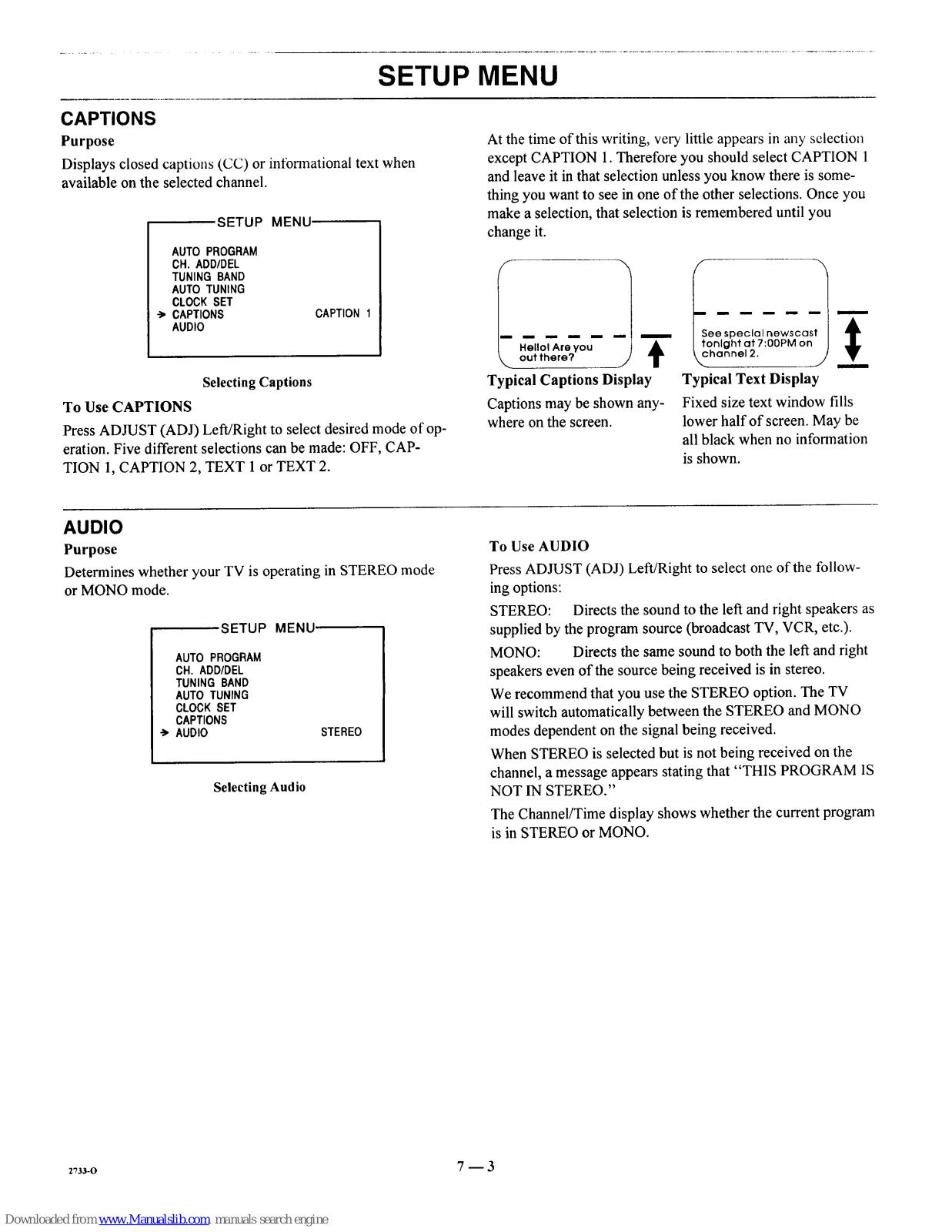

Captions ......................................... 7-3

Audio ........................................... 7-3

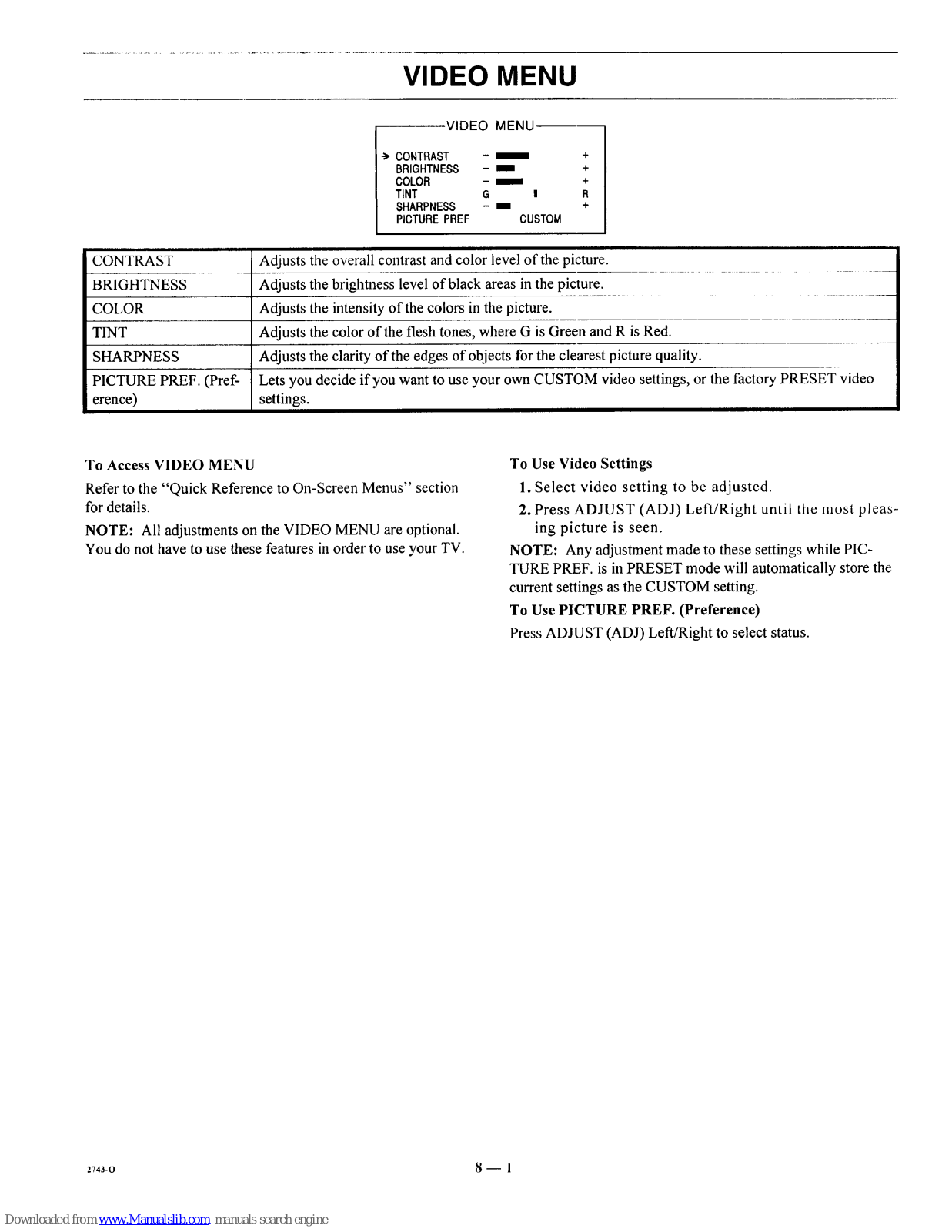

VIDEO MENU

Contrast ......................................... 8-1

Brightness ....................................... 8-1

Color ........................................... 8-1

Tint ............................................. 8-1

Sharpness ........................................ 8-1

Picture Pref. (Preference) ........................... 8-1

MAINTENANCE AND TROUBLESHOOTING

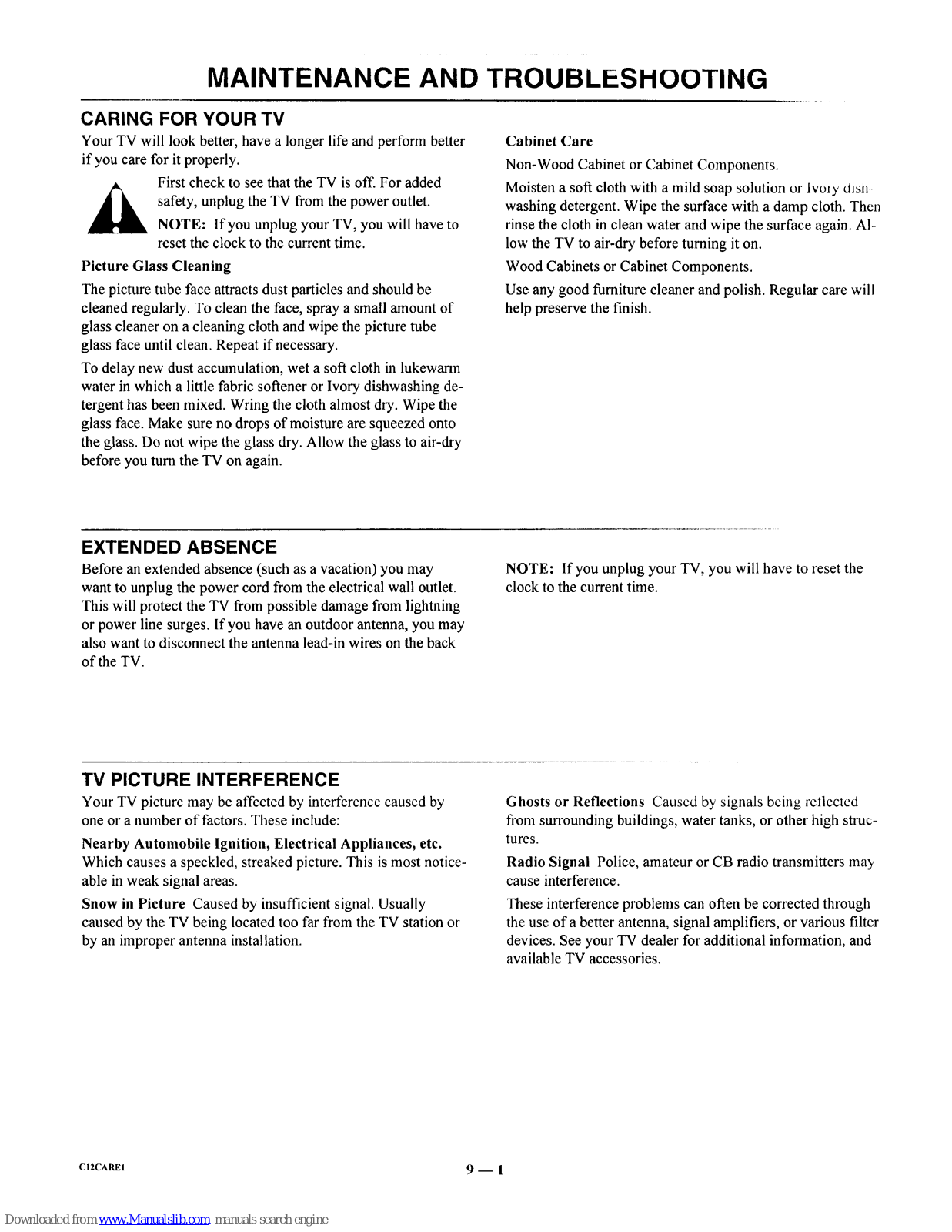

Caring for Your TV ................................ 9-1

Extended Absence ................................. 9-1

TV Picture Interference ............................. 9-1

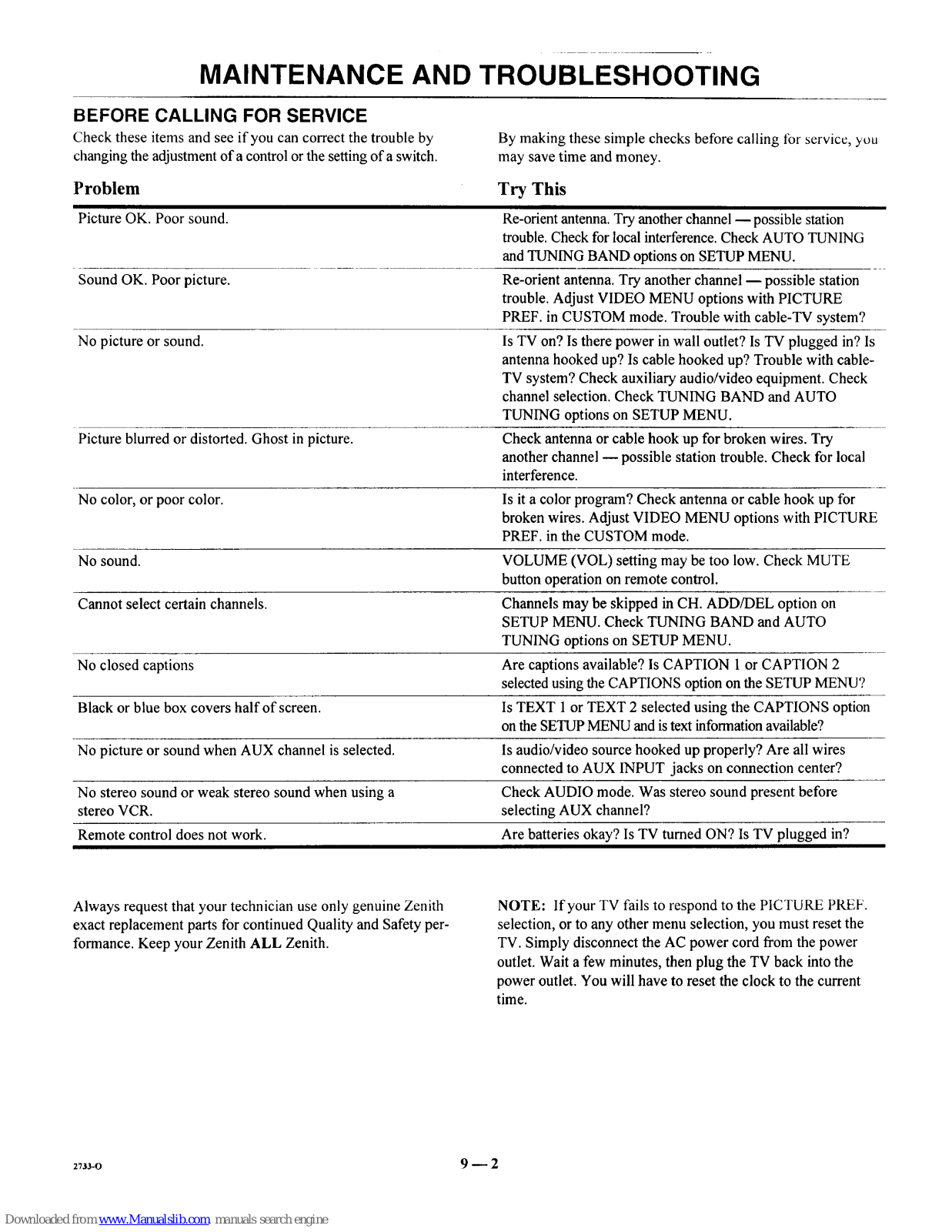

Before Calling for Service ........................... 9-2

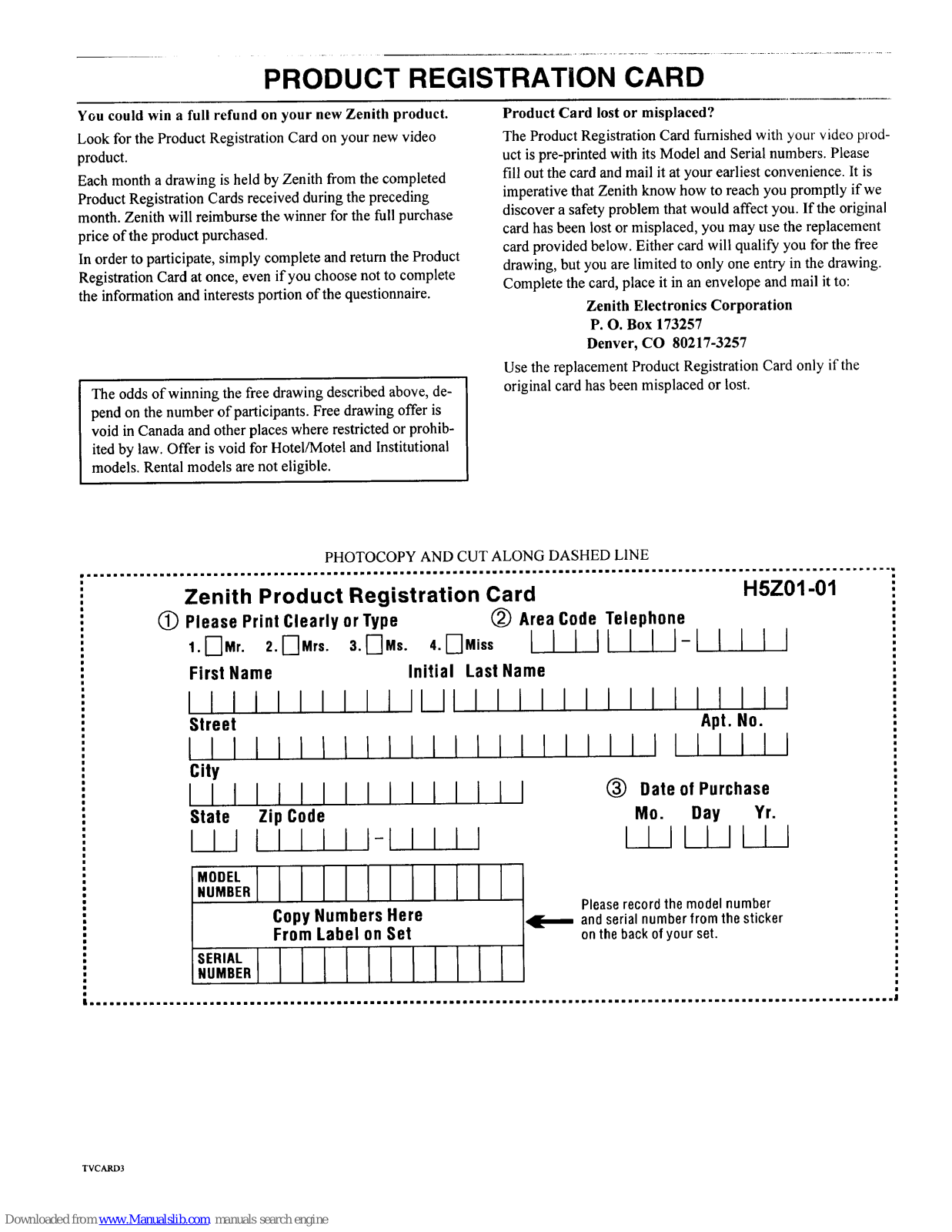

Product Registration Card

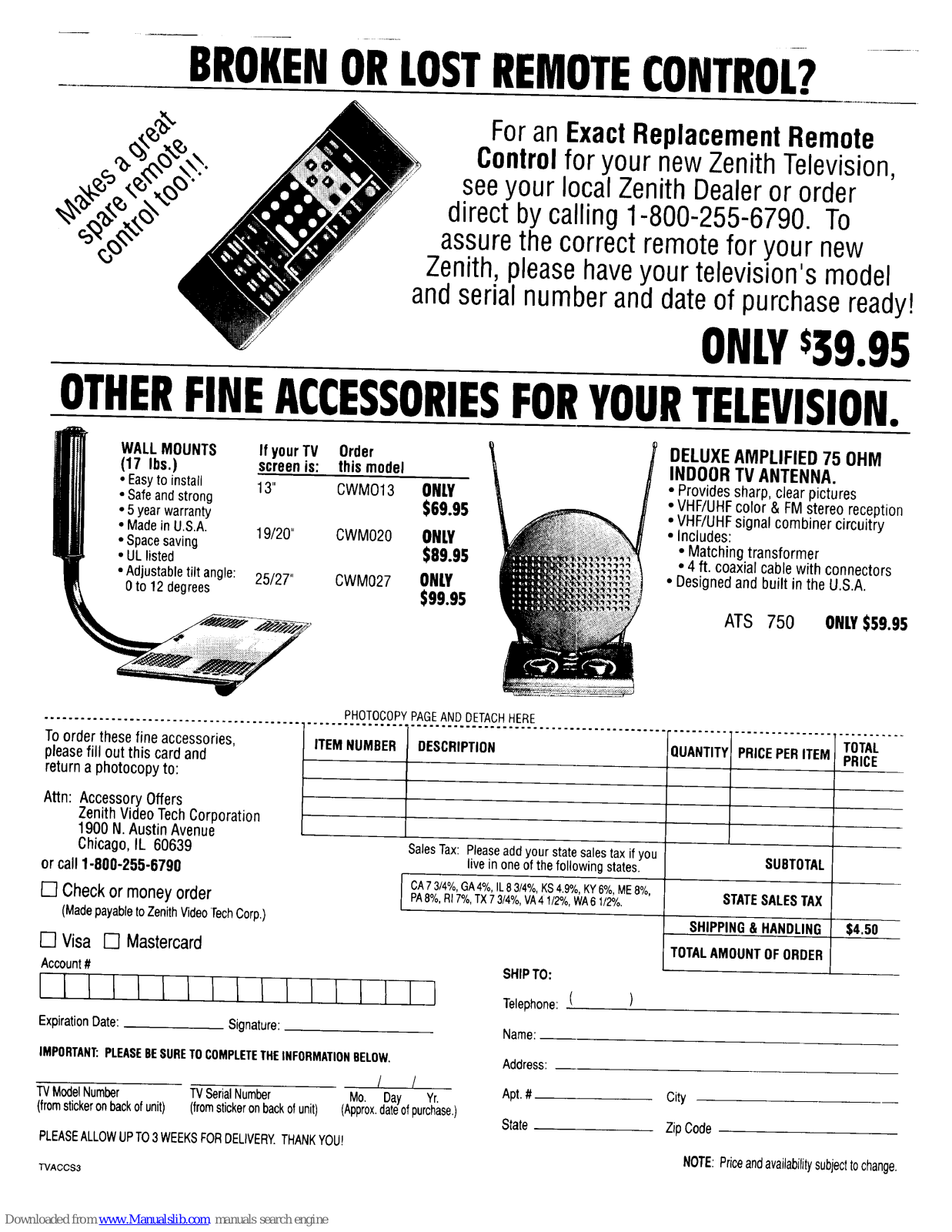

Recommended Accessories for Your Television

Aviso para nuestros clientes de habla hispana

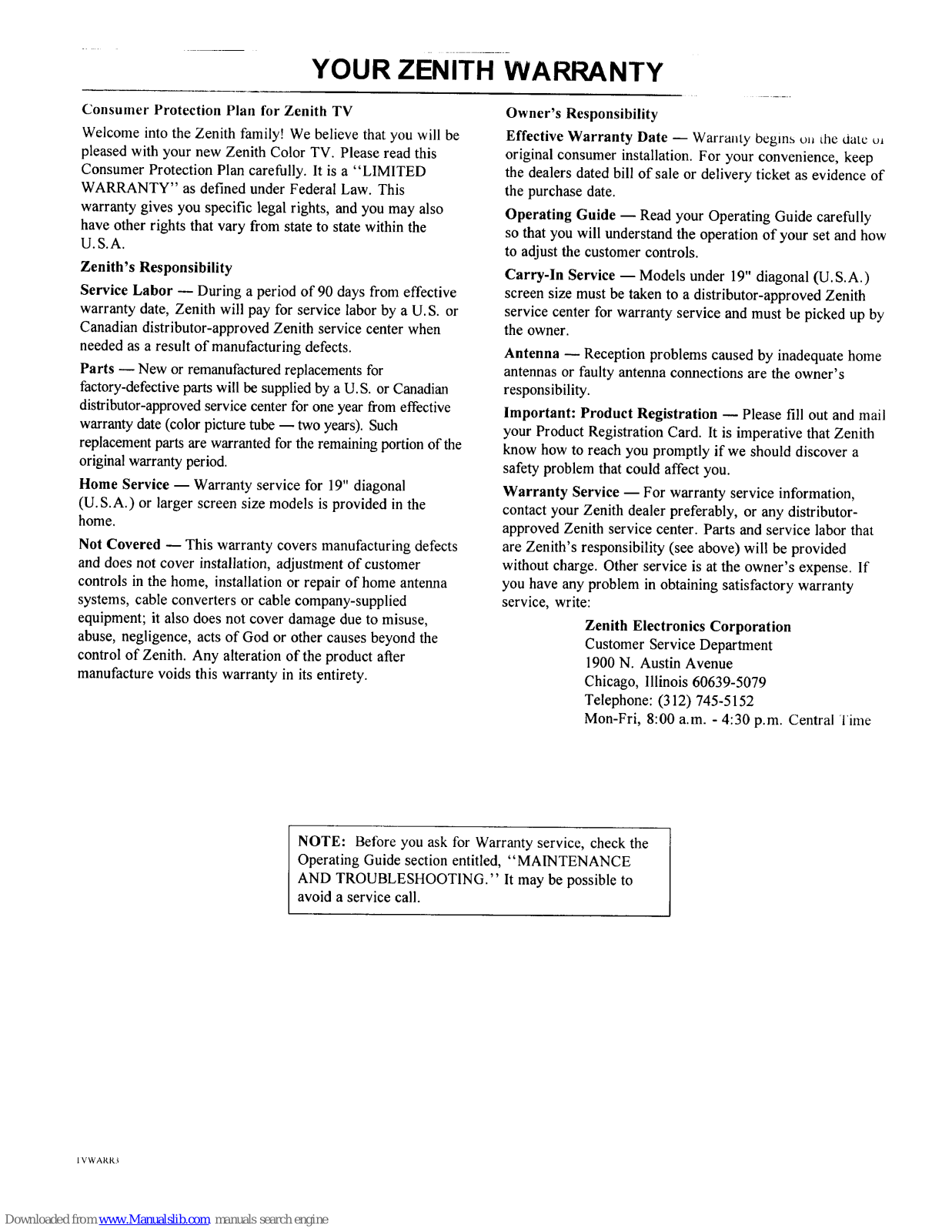

Your Zenith Warranty

HOW TO USE YOUR OPERATING GUIDE

This operating guide describes a family of TV models. Some models have features that are not provided
on other models. Different control panels and remote controls may be used from model-to-model. Refer to
the applicable sections of this operating guide for the features and items provided with your TV.

2733-0 i

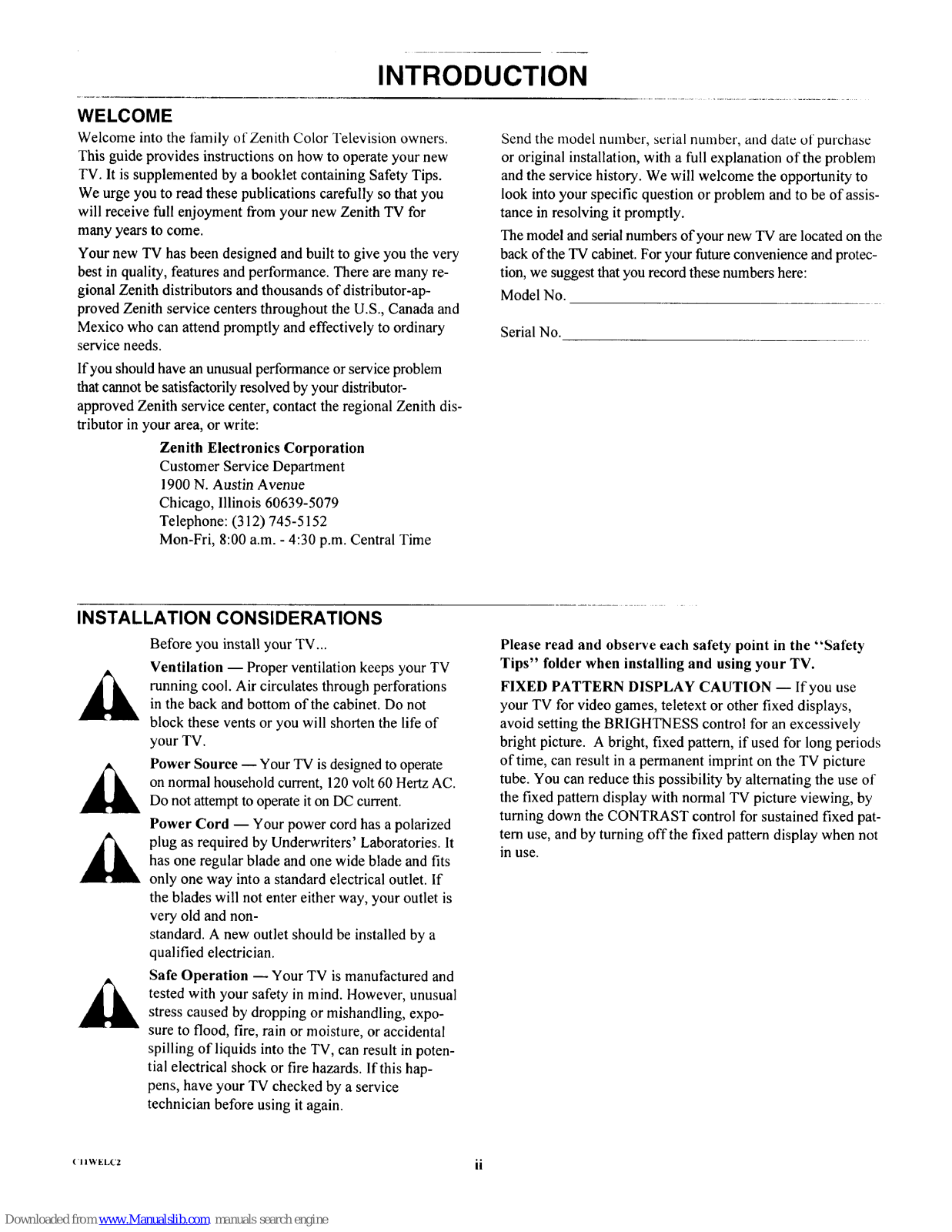

INTRODUCTION

WELCOME

Welcome into the family of Zenith Color Television owners.
This guide provides instructions on how to operate your new
TV. It is supplemented by a booklet containing Safety Tips.
We urge you to read these publications carefully so that you
will receive full enjoyment from your new Zenith TV for
many years to come.

Your new TV has been designed and built to give you the very

best in quality, features and performance. There are many re-
gional Zenith distributors and thousands of distributor-ap-
proved Zenith service centers throughout the U.S., Canada and
Mexico who can attend promptly and effectively to ordinary
service needs.

Send the model number, serial number, and date of purchase
or original installation, with a full explanation of the problem
and the service history. We will welcome the opportunity to
look into your specific question or problem and to be of assis-

tance in resolving it promptly.
The model and serial numbers of your new TV are located on the
back ofthe TV cabinet. For your future convenience and protec-

tion, we suggest that you record these numbers here:
Model No.

Serial No.

If you should have an unusual performance or service problem
that cannot be satisfactorily resolved by your distributor-
approved Zenith service center, contact the regional Zenith dis-
tributor in your area, or write:

Zenith Electronics Corporation
Customer Service Department

1900 N. Austin Avenue

Chicago, Illinois 60639-5079
Telephone: [phone]
Mon-Fri, 8:00 a.m. - 4:30 p.m. Central Time

INSTALLATION CONSIDERATIONS

Before you install your TV...
Ventilation -- Proper ventilation keeps your TV

running cool. Air circulates through perforations
in the back and bottom of the cabinet. Do not

block these vents or you will shorten the life of
your TV.

Power Source -- Your TV is designed to operate
on normal household current, 120 volt 60 Hertz AC.

Do not attempt to operate it on DC current.
Power Cord -- Your power cord has a polarized

plug as required by Underwriters' Laboratories. It
has one regular blade and one wide blade and fits
only one way into a standard electrical outlet. If
the blades will not enter either way, your outlet is
very old and non-
standard. A new outlet should be installed by a
qualified electrician.

Safe Operation -- Your TV is manufactured and
tested with your safety in mind. However, unusual
stress caused by dropping or mishandling, expo-
sure to flood, fire, rain or moisture, or accidental
spilling of liquids into the TV, can result in poten-

tial electrical shock or fire hazards. If this hap-
pens, have your TV checked by a service
technician before using it again.

Please read and observe each safety point in the "Safety
Tips" folder when installing and using your TV.

FIXED PATTERN DISPLAY CAUTION -- If you use
your TV for video games, teletext or other fixed displays,
avoid setting the BRIGHTNESS control for an excessively
bright picture. A bright, fixed pattern, if used for long periods
of time, can result in a permanent imprint on the TV picture
tube. You can reduce this possibility by alternating the use of
the fixed pattern display with normal TV picture viewing, by
turning down the CONTRAST control for sustained fixed pat-
tern use, and by turning offthe fixed pattern display when not

in use.

<.WELCZ ii

CONNECTIONS FOR YOUR TV

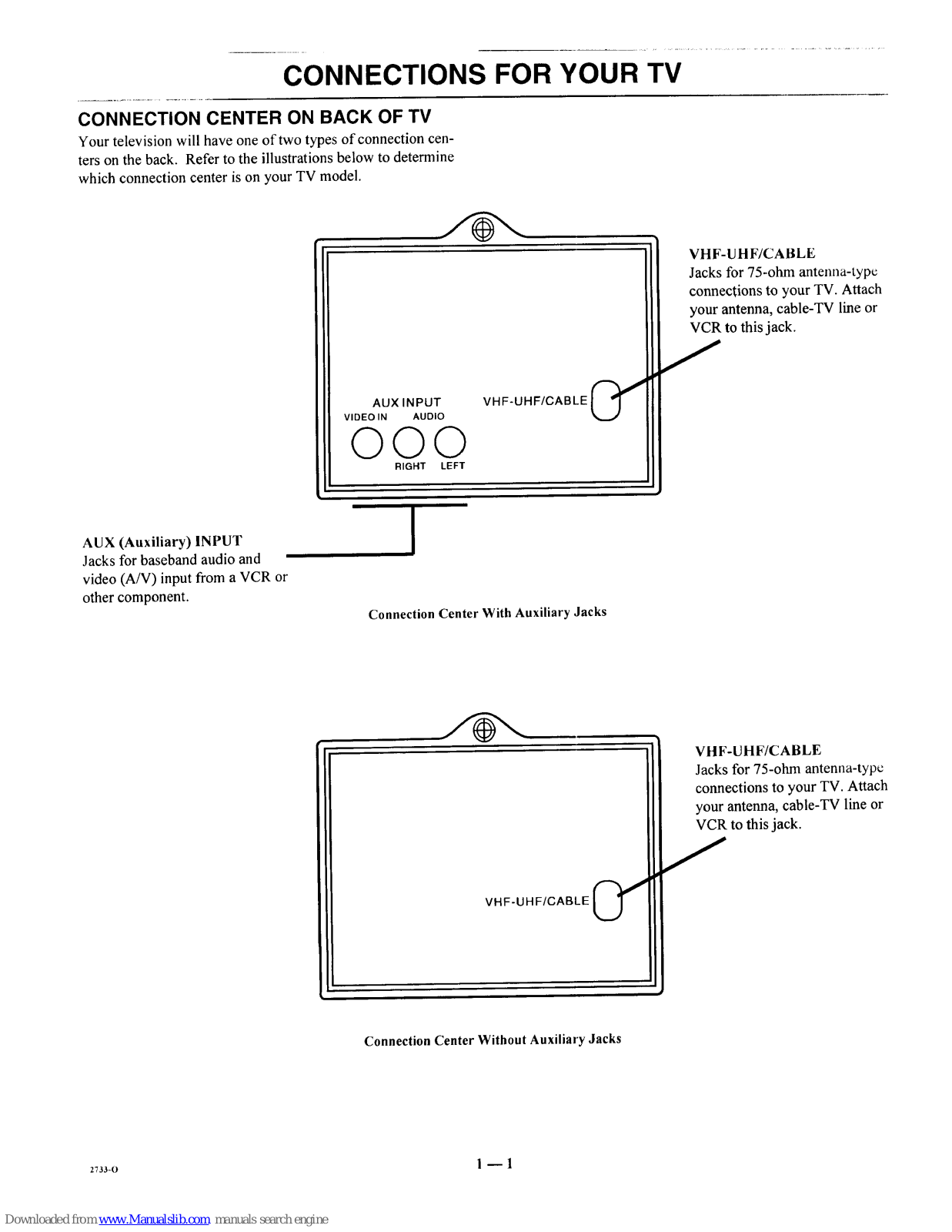

CONNECTION CENTER ON BACK OF TV

Your television will have one of two types of connection cen-
ters on the back. Refer to the illustrations below to determine
which connection center is on your TV model.

AUX INPUT

VIDEO IN AUDIO

000

RIGHT LEFT

VHF-UHF/CABLE

VHF-UHF/CABLE
Jacks for 75-ohm antenna-type
connections to your TV. Attach
your antenna, cable-TV line or
VCR to this jack.

AUX (Auxiliary) INPUT
Jacks for baseband audio and

video (A/V) input from a VCR or
other component.

I

Connection Center With Auxiliary Jacks

VHF-UHF/CABLE

VHF-UHF/CABLE

Jacksfor 75-ohm antenna-type
connections to your TV. Attach
your antenna, cable-TV line or
VCR to this jack.

Connection Center Without Auxiliary Jacks

2733-0 1 -- 1

CONNECTIONS FOR YOUR TV

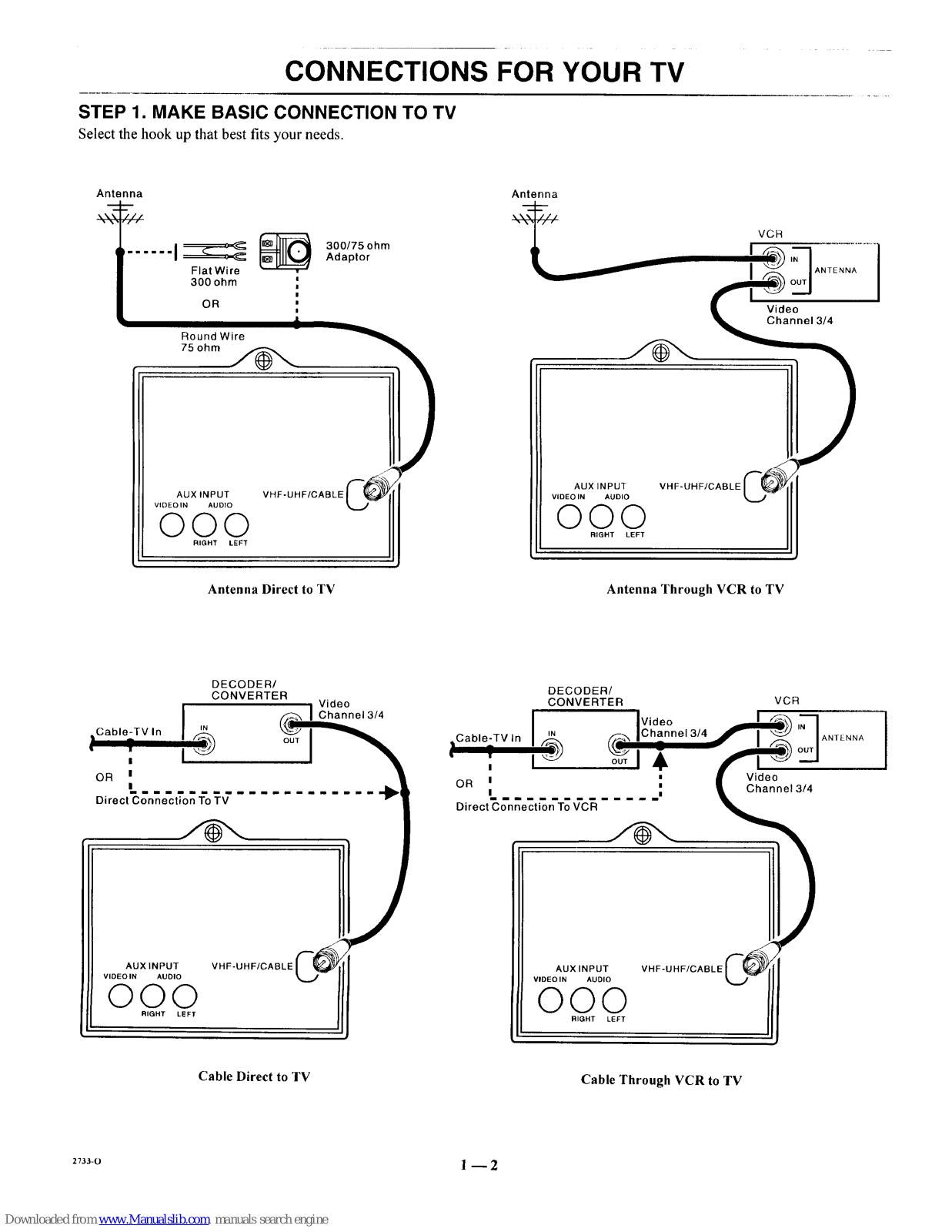

STEP 1. MAKE BASIC CONNECTION TO TV

Select the hook up that best fits your needs.

Antenna

Flat Wi re
300 ohm

=

OR '

i

• i

300/75 ohm

Adaptor

Round Wire

75 ohm

AUX INPUT VHF-UHF/CABLE _'_

L_.F

VIDEOIN AUDIO

OOO

RIGHT LEFT

Antenna

VCR

_U_T ANTENNA

AUX INPUT VHF-UHFICABLE (_)

k.__.'--

VIDEO IN AUDIO

OOO

RIGHT LEFT

Antenna Direct to TV

Antenna Through VCR to TV

tCableJV In

I

OR I

I

Direct Connection To TV

DECODER/

CONVERTER

. Video

I'- °°TI "_

AUX INPUT

VIDEO IN AUDIO

O©O

RIGHT LEFT

VHF-UHF/CABLE C_

DECODER/
CONVERTER

tCableLTVln [

, I

OR _

I

Direct Connection To VCR

AUX INPUT

VIDEOIN AUDIO

©©O

RIGHT LEFT

VCR

Ividoo IJ___,_,.--I

IChannel3/4 _ I ,_, • ANTENNA

I "- " =-J_.-"_ OUT,

OUTI _, __J--J

, _ _i_ nnel 3t4

VHF-UHF/CABLE C_

,i

I

Cable Direct to TV

Cable Through VCR to TV

2733-0 1_2

CONNECTIONS FOR YOUR TV

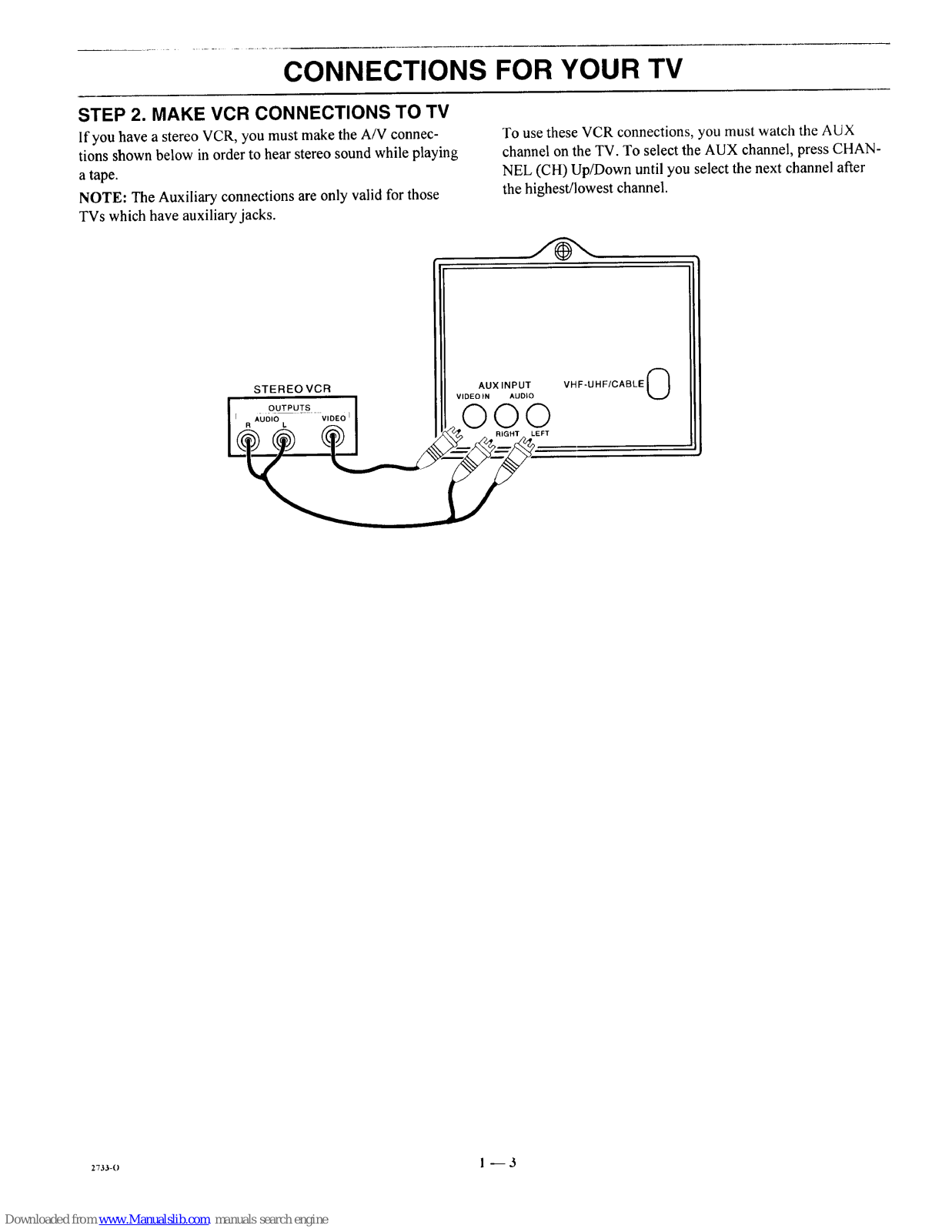

STEP 2. MAKE VCR CONNECTIONS TO TV

If you have a stereo VCR, you must make the A/V connec-
tions shown below in order to hear stereo sound while playing
a tape.

NOTE: The Auxiliary connections are only valid for those
TVs which have auxiliary jacks.

To use these VCR connections, you must watch the AUX
channel on the TV. To select the AUX channel, press CHAN-

NEL (CH) Up/Down until you select the next channel after

the highest/lowest channel.

STEREOVCR

OUTPUTS

/ AU0JO_ - vfoEoJ

R

AUX INPUT

VIDEO IN AUDIO

©©©

LEFT

VHF-UHF/CABLE @

273_-o 1 -- 3

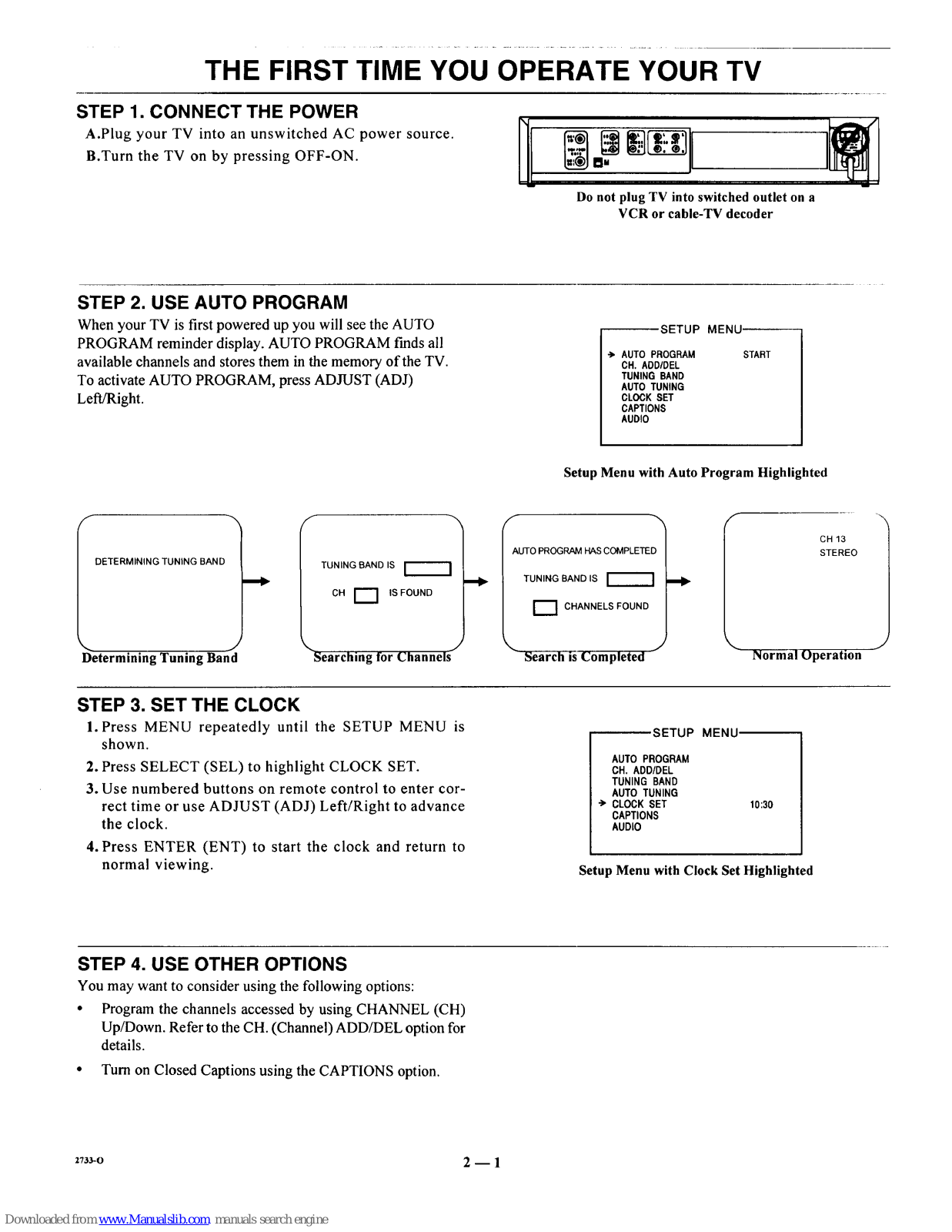

THE FIRST TIME YOU OPERATE YOUR TV

STEP 1. CONNECT THE POWER

A.Plug your TV into an unswitched AC power source.
B.Turn the TV on by pressing OFF-ON.

Do not plug TV into switched outlet on a

VCR or cable-TV decoder

STEP 2. USE AUTO PROGRAM

When your TV is first powered up you will see the AUTO
PROGRAM reminder display. AUTO PROGRAM finds all
available channels and stores them in the memory of the TV.
To activate AUTO PROGRAM, press ADJUST (ADJ)
Left/Right.

SETUP MENU---

-> AUTO PROGRAM
CH. ADDIDEL
TUNING BAND
AUTO TUNING
CLOCK SET
CAPTIONS
AUDIO

START

Setup Menu with Auto Program Highlighted

DETERMINING TUNING BAND

J

DeterminingTuning Band

TUNING BAND IS

CH I'---"] IS FOUND

Searching for Channels-

AUTO PROGRAM HAS COMPLETEI

_1_ / TUNING BAND IS _

/

[ I--I C"ANNE'SFOUND

Search is Completed

S

CH 13

STEREO

Normal Operation

J

STEP 3. SET THE CLOCK

1. Press MENU repeatedly until the SETUP MENU is
shown.

2. Press SELECT (SEL) to highlight CLOCK SET.

3. Use numbered buttons on remote control to enter cor-
rect time or use ADJUST (ADJ) Left/Right to advance

the clock.

4. Press ENTER (ENT) to start the clock and return to
normal viewing.

SETUP MENU

AUTO PROGRAM
CH. ADD/DEL
TUNING BAND
AUTO TUNING

-> CLOCK SET
CAPTIONS
AUDIO

10:30

Setup Menu with Clock Set Highlighted

STEP 4. USE OTHER OPTIONS

You may want to consider using the following options:

• Program the channels accessed by using CHANNEL (CH)
Up/Down. Refer to the CH. (Channel) ADD/DEL option for

details.

• Turn on Closed Captions using the CAPTIONS option.

273_o 2 -- 1

GETTING TO KNOW YOUR TV

TYPICAL CONTROL PANEL

The control panel on your TV may differ from the one shown.
NOTE: Some TVs have a vertical control panel m the opera-
tion is the same as described for the control panel shown.

ENTER (ENT) SELECT (SEL) VOLUME (VOL) Up/Down OFF-ON
Press to see the Channel/Time dis- Press during on-screen menu op- Press to increase or decrease the Press to turn TV
play, or to remove any on-screen dis- erations to select a menu option, sound level, power ON or OFF.

play or menu. _ _

_ UST OFFION

MENU
Press once to see a menu. Press
repeatedly to sequence through
the available menus.

ADJUST (ADJ) Left/Right
Press during on-screen menu opera-

tion to see information/status display
for selected option. Press again to ad-

just the selected menu option.

CHANNEL (CH) Up/Down

Press to select channels higher
or lower than the channels be-

ing viewed. You can add chan-
nels to or delete channels from

the scanning sequence stored in
memory of the TV. See CH.
ADD/DEL option for channel
programming information.

Remote Window
Point the remote
control towards this

window to operate
the TV.

SLEEP TIMER

Some remote controls are equipped with a TIMER button that
provides access to the SLEEP TIMER available with some TV
models. By using the SLEEP TIMER, you can program the
TV to automatically shut off after a period from 15 minutes up
to 4 hours.

To Set SLEEP TIMER

1. Press TIMER to see SLEEP TIMER display.

2. Press TIMER repeatedly until you reach desired shut-
off time.

One minute before the TV shuts off, the GOOD NIGHT dis-
play appears on the screen. At this time you have a choice of
the following three actions.

l. Do nothing. The GOOD NIGHT display remains on

the screen. The TV will shut off in one minute.

2. Remove the GOOD NIGHT display by pressing ENTER

(ENT). The TV will still shut off in one minute.

3. Delay the shut off by using TIMER to select a new
shut off time.

To Cancel the SLEEP TIMER

You can cancel the SLEEP TIMER by setting the SLEEP
TIMER status to OFF. Press TIMER repeatedly until OFF is
selected.

NOTE: The SLEEP TIMER resets to OFF when you turn off
the TV.

SLEEP "rIMER

o:15

Sleep Timer Display

SLEEP TIMER /

l GOOD NIGHT

0:58

"Good Night" Display

z74s-o 3 -- 1

REMOTE CONTROL MODEL SC3390

OPERATION

This remote control provides access to all on-screen menus, as
well as, access to special features that cannot be accessed by

using the control panel on the TV.

/

For optimum performance, point the

remotecontrol toward your Zenith TV.

PREPARATION FOR USE

Batteries are provided with this remote, but you must install
them before using the remote.

/

MENU, SELECT and ADJUST
Used with on-screen menus to see
menu, select an option, and adjust
thatoption.

Numbered Buttons

Used to select a TV channel.

ENTER J

Used to view the Channel/Time
Display or to remove any on-screen
menu or display.

TIMER

Used to activate the SLEEP TIMER.

f--q

I 4 p'I

AIXI..I_T

IN@@

TluER

OFT-ON

[]

CHANNEL

@

MUTE

SC3390

OFF-ON
Used to turn TV ON or OFF.

FLSHBK (Flashback)

Used to returnto the last TV

J channel you were watching.

CHANNEL Up/Down
Used to select a TV channel by going

Up or Down through channels pro-
grammed in your FAV. (Favorite)
CHANNELS scan sequence.

VOLUME Up/Down
Used to adjustthevolume level of the

TV.

MUTE

Used to turn off sound while the pic-
ture remains. Press again to restore
the sound.

CAPTIONS

Used to view closed captions broad-
cast with some television programs.

INSTALLING BATTERIES

When the effective operating range of your remote becomes
noticeably shorter, replace the batteries with two (2) high qual-
ity, alkaline, size AAA batteries.

NOTE: Zenith is not responsible for damage caused by bat-

tery leakage.

Step 1.

Step2.

Step 3.

2728-o 4-- 1

REMOTE CONTROL MODEL MBR3420

INTRODUCTION

The multi-brand remote control supplied with your new

Zenith TV allows you to operate most models of infra-red (IR)

remote-controlled TVs, VCRs, and cable-TV decoders, even if

they are all different brands.

Your multi-brand remote has already been programmed to op-
erate your Zenith TV, a Zenith cable-TV decoder and a Zenith

VHS VCR. It must be programmed to operate other brands of
equipment. Refer to the "Programming Brand Codes" section

for more information.

CHOOSING OPERATING MODE

To use the remote to operate your TV, a cable-TV decoder or

a VCR, you must first choose the mode of operation of the re-
mote control. To select the mode of operation, press MODE re-

peatedly until the corresponding indicator lights.

Some controls on the remote will always operate a particular
appliance. For example, VOLUME always operates the TV
and PLAY always operates the VCR. The functions of some
controls depends on the selected operating mode of the remote.

Point toward unit

to be controlled

Operating MODE button
and indicators

Menu operations on TV
and some VCRs

Numbered buttons for
channel selection and
other uses

LEARN button for user pro-
grammed brand codes

NOTE: See following pages
for operating instructions.

r_-i r¢-_--i

ADJ, i']

SELECT QUIT

©®®

®®®

®®®

®( E,,E,)

(2253(223(2223

LEARN A B

MEMORY TIMER

RECORD STOP PAUSE

REW PLAY F FWD

OFF ON

0

0

SOURCE

©

FLASHBK

N]

CHANNEL

VOLUME

CZD

MUTE

CZD

s_

CZ)

SEARCH

TV/VCR

i

MBR3420

Controlled devicc OFF/ON

Special features on TV and
some VCRs

CHANNEL Up/Down for TVs,
VCRs and cable

VOLUME Up/Down for TV

Special features on some
TVs and some VCRs

REMOTE CONTROL MODEL MBR3420

TV OPERATIONS

The following functions and operations apply to your Zenith
TV. The remote control must be in the TV mode to operate
your TV.

MODE

Press repeatedly to select the TV

mode of operation.

TV

Lights when TV mode of

operation is selected.

CC (Closed Captions)

Used to view closed captions broadcast w

some television programs.

MENU, SELECT and ADJUST
Used with on-screen menus to see menu,

select an option, and adjust that option.

Numbered Buttons

Used to select a TV channel.

ENTER

Used to view theChannel/Time display or

to remove any on-screen menu ordisplay.

TIMER

Used to activate SLEEP TIMER and

ON/OFF TIMER.

t

Point toward your TV.

MEMORY TIMER

RECORD STOP PAUSE SEARCH

REW PLAY F FWD TV/VCR

TVOperations

OFF/ON
Used to turn TV ON or OFF.

Used to display the menu of TV sources
for some TVs. Press SOURCE again to
step through the source selections. On
some TVs, press SOURCE to select the
AUX (Auxiliary) channel.

FLASHBK (Flashback)
Used to return to the last TV channel
you were watching.

CHANNEL Up/Down
Used to sequence through the TV channels.

VOLUME Up/Down
Used to adjust the volume level of the TV.

MUTE

Used to turn off sound while the picture
remains. Press again to restore

the sound.

SPATIAL EQUALIZATION (SEq)
Used to select SEq audio mode on TVs

equipped with SEq feature.

273_-o 5 -- 2

_=

REMOTE CONTROL MODEL MBR3420

VCR OPERATIONS

The following functions and operations apply to Zenith VCR
models built after 1988. The remote control must be in the

VCR mode to operate your VCR.

The remote control supplied with your VCR may have keys
not duplicated on the new remote. If these functions are de-
sired, the original remote control will have to be used.

MODE

t

Point toward your VCR.

Used to select the VCR mode of

operation.

VCR

Lights when VCR mode of operation
is selected.

MENU, SELECT, ADJUST and QUIT

Used with the on-screen menus and pro-

gramming options of the VCR. See VCR

operating guide for details
Numbered Buttons
Used to select a TV channel through the

VCR. Also, used to set the timer in the
VCR, and to enter programming

information.

ENTER

Used with the numbered buttons to
select a "IV channel through the VCR.

AM/PM
Used to set timer during programming

MEMORY

Used to activatethe VCR MEMORY fea-
ture. See VCR operating guide for details.

RECORD, STOP, PAUSE, SEARCH,
REW, PLAY and F FWD

Used fortape recording and playback
functions. See the VCR operating guide

SELECT QUIT FLASHBK

®©®

® ® ®

_c_ C_D CZD

,._0RD STOP PAUSE

REW PLAY F FWD TV/VCR

VCR Operations

for details.

OFF/ON

Used to turn VCR ON or OH:.

FLASHBK (Flashback)
Used during VCR playback to view the

/ channel tuned by the VCR.

CHANNEL Up/Down

Used to sequence through channelsonthe

VCR.

TIMER
Used to activate TIME RECORD on

some VCRs.

J

TVNCR
Used to select the source of the programs

seen on the TV. Switches the VCR be-
tween TV mode and VCR mode. TV
Mode: channels are selected through the
TV. VCR Mode: channels or tape opera-
tion are selected through the VCR.

2733-0 5 m3

REMOTE CONTROL MODEL MBR3420

CABLE-TV OPERATIONS

The following functions and operations apply to a Zenith

cable-TV decoder. The remote control must be in the CABLE
mode to operate your cable-TV decoder.

The remote control supplied with your cable-TV decoder may
have keys not duplicated on the new remote. If these functions
are desired, the original remote control will have to be used.

MODE
Used to select the CABLE mode
of operation.

CABLE
Lights when CABLE mode of

operation is selected.

t

Point toward your cable-TV decoder.

MENU, SELECT, ADJUST
and QUIT

Function depends on the cable-TV sys-

tem. See cable-TV operating guide for de-

tails.

Numbered Buttons
Used to select channels through

cable-TV decoder

ENTER
Used with the numbered buttons to select a

TV channel through the cable-TV decoder.

[_ ADJ. [i]

SELECT QUIT

©®®
®©®

®®®

I ®J- )

LEARN A B

MEMORY TIMER

RECORD STOP PAUSE

REW PLAY F FWD

O

SOURCE

0

FLASHBK

CHANNEL

r_

VOLUME

0

MUTE

CZD

sm

CED

SEARCH

TV/VCR

Cable-TV Decoder Operations

OFF/ON

Used to turn cable-TV decoder
ON or OFF.

SOURCE

Used to select "A" or "B" cable chau-
nels.

CHANNEL Up/Down

Used to sequence through channels on the

cable-TV decoder.

273_-o 5 -- 4

REMOTE CONTROL MODEL MBR3420

PREPARATION FOR USE

Batteries are provided with this remote, but you must install
them before using the remote.

INSTALLING BATTERIES

When the effective operating range of your remote becomes
noticeably shorter, replace the batteries with two (2) high qual-
ity, alkaline, size AAA batteries.

After installing new batteries, the remote control will set itself
to Zenith brand codes, as follows: TV=101, VCR=201 and
CABLE=301.

If you are going to operate equipment that uses different
codes, the remote must be reprogrammed for those codes.

NOTE: Zenith is not responsible _br damage caused by bat-
tery leakage.

Step 1. Step 2.

Step 3.

2733-0 5_5

REMOTE CONTROL MODEL MBR3420

PROGRAMMING BRAND CODES

Before using your new remote control, it must be programmed to
recognize the brands of equipment it will be used to operate. If
you are using a Zenith TV, Zenith VHS VCR or a Zenith cable-
TV decoder, it has already been programmed for you.

Find the code that corresponds to each brand and type of
equipment you are going to operate. Refer to Tables 1, 2 and 3.

For example, if you were programming the remote for use
with a Zenith TV, you would look up "Zenith" in "Table 1.",
and find code "101."

Write the brand codes for your equipment on the following
lines.

TV CODE:

CABLE CODE:

VCRCODE:

1. Press MODE repeatedly to select the desired TV, VCR

or CABLE operating mode for the remote.

2. Press LEARN for about 5 seconds until the MODE
indicator lights for the selected TV, VCR or CABLE
mode of operation.

3. Enter the proper brand code number for the equipment
to be controlled.

4. Press LEARN. All three mode indicators should light
briefly, then turn off to indicate the brand code has
been programmed.

5. If all three mode indicators fail to light briefly, an
error has occurred. Repeat steps 1--4 to try again.

6. Repeat steps 1--4 to program the remote for the other
equipment you are using.

NOTE: CABLE mode can be programmed to operate a sec-
ond TV or second VCR, if desired.

When batteries are removed: It will be necessary to repro-
gram the proper VCR and cable-TV decoder codes.

Operating Mode
Indicators

Numbered Buttons
Used to enter code number

for desired brand name

LEARN Button

C_E3r_--1

SELECT QUIT

@®®
®®®
@®®

_2_ _ CZD

MEMORY TIMER

RECORD STOP PAUSE

REW PLAY F FWD

.gf'T ON

0

(ZZ)

SOURCE

0

FLASHBK

CHANNEL

VOLUME

CD

MUTE

C_
CZD

SEARCH

CZD

"I_€/VCR

I

MBR3420 is Shown

Operating MODE Button

2733-O 5 -- 6

REMOTE CONTROL MODEL MBR3420

TV, VCR AND CABLE-TV BRAND CODES

Table 1. TV Codes by Brand Table 2. VCR Codes by Brand

TV Brand TV Brand VCR Brand VCR Brand

Name Code Name Code Name Code Name

Admiral 116 Montgomery Ward 119 Akai 223 Pentax

Admiral 121 Montgomery Ward 121 Audio Dynamics 202 Philco
Akai 104 Montgomery Ward 130 Audio Dynamics 218 Philips

Code

215
214

214
Amark 103 NEC 104
AOC 104 NEC 119
Bell & Howell 121 Panasonic 106
Centurion 119 Panasonic 107
Coronado 103 Philco 103
Curtis Mathes 116 Philco 104
Curtis Mathes 119 Philco 112
Curtis Mathes 121 Philco 113

Daytron 119 Philips 112
Emerson 103 Philips 113
Emerson 104 Pioneer 135
Emerson 123 Portland 103

Emerson 124 Quasar 106
Emerson 131 Quasar 107
Emerson 136 Realistic 105
Fisher 109 Realistic 123
Fisher 118 Realistic 124

General Electric 106 RCA 104

General Electric 107 RCA 116
General Electric 114 RCA 126
General Electric 116 Sampo 119
Goldstar 103 Samsung 103
Goldstar 104 Samsung 119
Goldstar 119 Samsung 134
Hitachi 102 Sanyo 108
Hitachi 103 Sanyo 109
Hitachi 129 Sanyo 118
JVC 125 Scott 119
JVC 132 Sears 103
J.C. Penney 104 Sears 108
J.C. Penney 110 Sears 109
J.C. Penney 114 Sears 110
J.C. Penney 117 Sears 111
J.C. Penney 119 Sears 118
KMC 103 Sears 134
KTV 103 Sharp 103
KTV 104 Sharp 105
Lodgenet 121 Sharp 122
Logik 121 Sharp 133
LXI 133 Sharp 137
LX1 137 Sony 115
Magnavox 103 Sylvania 112
Magnavox 112 Sylvania 113
Magnavox 113 Sylvania 117
Magnavox 119 Sylvania 119
Magnavox 127 Sylvania 127
Magnavox 128 Sylvania 128

Majestic 121 Tatung 106
Marantz 104 Teknika 103
Marantz 120 Teknika 112
Memorex 121 Teknika 121
MGAlMitsubishi 104 Teknika 124
MGA/Mitsubishi 119 Telerent 103
MGA/Mitsubishi 120 Telerent 121
MGA/Mitsubishi 130 Toshiba 110

Montgomery Ward 103 Toshiba 111
Montgomery Ward 104 Toshiba 134
Montgomery Ward 105 Yorx 119
Montgomery Ward 113 Zenith 101
Montgomery Ward 114

221 Philips 227
214 Pioneer 210
209 Pioneer 215
212 Pioneer Laser Disk 228

Broksonic

Canon
Citizen

Craig
Curtis Mathes 214
Curtis Mathes 215

DBX 216
DBX 220

Emerson 227

Emerson 206

Emerson 208

Emerson 212
Emerson 214
Emerson 231

Fisher 220

Fisher 230
Fisher 206
Funai 212
General Electric 204
General Electric 205
General Electric 233
Goldstar 206
Hitachi 209
Instant Replay 211
Instant Replay 212
JVC 215
JVC 208
J.C. Penney 232

J.C. Penney 217

J.C. Penney 207

Kenwood 214

Magnavox 227

Magnavox 231

Marantz 209

Marantz 202

Marta 202

Memorex 23 I

Memorex 234

Memorex 205

MGA/Mitsubishi 215

MGA/Mitsubishi 204

Montgomery Ward 208 Vector Research 218

Montgomery Ward 214 Yamaha 202

Montgomery Ward 219 Yamaha 218

NEC 202 Zenith VHS 201

NEC 218 Zenith VHS 225

Panasonic 214 Zenith VHS 229

214 Quasar
216 RCA
202 RCA

218 RCA
203 RCA
221 Realistic
223 Realistic
226 Realistic
233 Realistic
235 Realistic
211 Samsung

212 Samsung
213 Sanyo
231 Sanyo
214 Scott
216 Scott
220 Scott
209 Sears
215 Sears
214 Sears
227 Sears
202 Sears
225 Sharp

214 Sony VHS

218 Sony Video 8

227 Sylvania

202 Sylvania

207 Sylvania

214 Symphonic

207 Tashiko

218 Tatung

209 Teac

212 Teac

214 Teknika

231 Toshiba

204 Toshiba

222 Vector Research

Table 3. Cable Decoder Codes by Brand
Cable Decoder Cable Decoder
Brand Name Code Brand Name Code

Drake Satellite 312 Pioneer 315
Drake Satellite 330 Regency 329
Gemini 305 Samsung 335

Gemini 331 Scientific Atlanta 316
General Instrument 305 Scientific Atlanta 323
General Instrument 306 Scientific Atlanta 336

Hamlin 302 Sprucer
Hamlin 303 (Panasonic) 313

Jerrold 304 Standard
Jerrold 307 Components 335

Jerrold 308 STS Satellite 324
Jerrold 309 Telecaption 4000 325

Jerrold 310 Tocom 317
Kale Vision 335 Tocom VIP 318
Macom 314 Toshiba 322
Macom 321 Toshiba Satellite 319
Macom Satellite 322 Zenith 301
Magnavox 334 Zenith 322
NSC 335 Zenith AV3000 327
Oak 311 Zenith Satellite 312
Oak 332 Zenith Satellite 330
Panasonic 313 Zenith Satellite 328
Panasonic 320 Zenith Laser Disk 326
Paragon (Zenith) 333

2733-o 5 _ 7

QUICK REFERENCE TO ON-SCREEN MENUS

AVAILABLE MENUS

Your TV is menu operated, that is, adjustments that can be
made to the TV appear on the screen in a list of choices you

can make.

SETUP MENU

-> AUTO PROGRAM

CH. ADD/DEL
TUNING BAND
AUTO TUNING
CLOCK SET
CAPTIONS
AUDIO

START

,VIDEO MENU

CONTRAST -I
BRIGHTNESS - ""

COLOR -

TINT G I
SHARPNESS - am
PICTUREPREF CUSTOM

+

4-

+

R

4-

BASIC MENU OPERATION

1.Press MENU repeatedly to choose
between available menus.

2. Press SELECT (SEL) Up/Down re-
peatedly until the desired option is
highlighted.

3. Press ADJUST (ADJ) Left/Right to

adjust an option.

4. Press ENTER (ENT) or wait a few
seconds and the TV will return auto-

matically to normal operation.

SELECT QUIT

®®®

®®®
®®®

_c_ ENTER)

CZD

LEARN A B

_ C::D C:::)

MEMORY TIMER

RECORD STOP PAU51E:

REW PLAY F FWD

OFF ON

©

CZD

SOURCE

©

FLASHBK

IN

CHANNEL

N

N]

VOLUME

r_

c_

CZD
CZD

SEARCH

C_D

TV/VCR

L

Typical Remote Control Shown

2733-0 6 m 1

QUICK REFERENCE TO ON-SCREEN MENUS

MENU OPERATION EXAMPLE

MENU (__

Press MENU repeatedly until the desired menu is shown. This
example shows choosing the SETUP MENU.

SETUP MENU

-> AUTO PROGRAM

CH. ADD/DEL

TUNING BAND
AUTO TUNING

CLOCKSET
CAPTIONS
AUDIO

S_RT

SELECT
Press SELECT (SEL) Up/Down repeatedly until the desired
option is highlighted. This example shows choosing TUNING

BAND.

SETUP MENU'

AUTO PROGRAM

OH. ADD/DEL

TUNING BAND
AUTO TUNING
CLOCK SET
CAPTIONS
AUDIO

CABLE-CATV

ADJ. ADJ.

Press ADJUST (ADJ) Left/Right to adjust an option. This ex-
ample shows the various choices you have for TUN1NG
BAND.

Available options for
TUNING BAND.

SETUP MENU_

AUTO PROGRAM
OH. ADD/DEL
TUNING BAND
AUTO TUNING

CLOCK SET
CAPTIONS

AUDIO

BROADCAST
CABLE-CATV
CABLE-HRC
CABLE-ICC

CABLE-CATV I

1

ENTER )

Press ENTER (ENT) or wait a few seconds and the TV will re-
turn to norn_al operation.

z73_o 6 _ 2

SETUP MENU

To Access SETUP MENU

Refer to the "Quick Reference to On-
Screen Menus" section for details.

Before Using SETUP MENU

Connect and turn ON all external equip-
ment, such as cable TV decoder, VCR,
etc. before using any item on the SETUP
MENU.

SETUP MENU

-> AUTO PROGRAM

CH. ADD/DEL
TUNINGBAND
AUTO TUNING

CLOCKSET
CAPTIONS

AUDIO

START

SETUP MENU

SETUP MENU

CLOCK SET
CAPTIONS

SETUP MENU While

AUX Channel is Chosen

AUTO PROGRAM

Purpose

Finds all available channels and stores them in the memory of
the TV for access by CHANNEL (CH) Up/Down.

Use AUTO PROGRAM only when you first install your TV,
or when you permanently change the connections to the TV.
For example, when you replace the antenna with a cable-TV
system.
To Use AUTO PROGRAM

Press ADJUST (ADJ) Left!Right to start AUTO PROGRAM.

SETUP MENU'

-> AUTO PROGRAM

CH. ADD/DEL
TUNING BAND
AUTO TUNING
CLOCK SET
CAPTIONS
AUDIO

START

f ---.,

AUTO PROGRAM HAS COMPLETED

TUNING BAND IS

_ CHANNELS FOUND

Status When Search is Complete

When Some Channels Are Not Found
AUTO PROGRAM finds only active channelsandstores

theminthefavorite channelmemory. You canaddchannelsto
thosestoredinmemory by usingtheCH. ADD/DEL option.

Selecting Auto Program

CH. (Channel) ADD/DEL

Purpose
Lets you add channels to and remove channels from the active

channels found when using the AUTO PROGRAM option. In
this way you can customize the channels that areaccessed
through CHANNEL (CH) Up/Down.

To Add a Channel to Scan Sequence

1. Use numbered buttons to select the channel you wish
to add.

2. Add channel by pressing ADJUST (ADJ) Left/Right
until the display shows ADD.

To Delete a Channel from Scan Sequence

I. Use numbered buttons to select the channel you wish

to delete.

2. Delete channel by pressing ADJUST (ADJ)
Left/Right until the display shows DEL.

SETUP MENU'

AUTO PROGRAM

"> CH. ADD/DEL

TUNING BAND
AUTO TUNING
CLOCKSET
CAPTIONS
AUDIO

CH 13 ADD

Selecting Ch. Add/Del

7J1

2733-0

SETUP MENU

TUNING BAND

Purpose

Allows for setting the TV channel selector (tuner)to match
your antenna or cable-TV system.

If you are having difficulty tuning channels, the TUNING
BAND may have to be set manually to match your viewing

needs.

SETUP MENU

AUTO PROGRAM
CH. ADD/DEL

-> TUNING BAND
AUTO TUNING
CLOCK SET
CAPTIONS
AUDIO

CABLE-CATV

Selecting Tuning Band

To Use TUNING BAND
Press ADJUST (ADJ) Left/Right to select the tuning band that

gives you the most channels:

• BROADCAST-- is used for standard "over-the-air" broad-
casts.

• CABLE -- CATV is used for most standard cable-TV
(CATV) systems.

• CABLE _ HRC is used for cable-TV systems that use HRC
(Harmonically Related Carrier).

• CABLE m ICC is used for cable-TV systems using ICC
(Incremental Coherent Carrier).

Available Channels per Band

The channels that are available in the broadcast and cable tun-
ing bands are shown below:

BROADCAST Band m VHF 2 to 13, UHF 14to 69
CATV, HRC andICC Bands -- 1 to 125

AUTO TUNING

Purpose
Lets your TV compensate for variations in broadcast and

cable-TV frequencies.

SETUP MENU

AUTO PROGRAM
CH. ADD/DEL
TUNING BAND

-_ AUTO TUNING

CLOCK SET

CAPTIONS

AUDIO

FIXED

If you are having difficulty tuning channels, the AUTO TUN-
ING may have to be set manually to match your viewing
needs.

To Use AUTO TUNING

Press ADJUST (ADJ) Left/Right to select the mode of opera-
tion that gives you the most channels:

• FIXED is used to receive "over-the-air" TV stations, and
with many cable-TV systems.

• SEARCH is used only when the TV must search to fred the
frequency being received, such as when used with certain
cable-TV systems, VCRs and video game controllers.

Selecting Auto Tuning

CLOCK SET

Purpose

Sets the clock in the TV to the correct time.

SETUP MENU

AUTO PROGRAM
CH. ADD/DEL
TUNING BAND
AUTO TUNING

-_ CLOCK SET
CAPTIONS
AUDIO

10:30

Selecting Clock Set

To Use CLOCK SET from Remote Control
Use the numbered buttons on the remote control to enter the

correct time. Press ENTER (ENT) to start the clock.
To Use CLOCK SET from Control Panel

Use ADJUST (ADJ) Left/Right to advance the clock. Press
ENTER (ENT) to start the clock.

CH 13

10:56
STEREO

Channel/Time Display"

2735-0 7 _ 2

SETUP MENU

CAPTIONS

Purpose

Displays closed captions (CC) or intormational text when
available on the selected channel.

SETUP MENU

AUTO PROGRAM
CH. ADD/DEL
TUNING BAND
AUTO TUNING
CLOCK SET

•"_ CAPTIONS
AUDIO

CAPTION 1

SelectingCaptions
To Use CAPTIONS
Press ADJUST (ADJ) Left/Right to select desired mode of op-

eration. Five different selections can be made: OFF, CAP-
TION 1, CAPTION 2, TEXT 1 or TEXT 2.

At the time of this writing, very little appears in any selection

except CAPTION 1. Therefore you should select CAPTION 1
and leave it in that selection unless you know there is some-

thing you want to see in one of the other selections. Once you
make a selection, that selection is remembered until you

change it.

i Hellol Are you !

out there? T

Typical Captions Display
Captions may be shown any-

where on the screen.

&

ee speclol newscos

Z

Typical Text Display

Fixed size text window fills
lower half of screen. May be

all black when no information
is shown.

AUDIO

Purpose

Determines whether your TV is operating in STEREO mode
orMONO mode.

SETUP MENU

AUTO PROGRAM
CH. ADD/DEL
TUNING BAND
AUTO TUNING
CLOCK SET
CAPTIONS

"> AUDIO STEREO

Selecting Audio

To Use AUDIO
Press ADJUST (ADJ) Left/Right to select one of the follow-

ing options:
STEREO: Directs the sound to the left and right speakers as
supplied by the program source (broadcast TV, VCR, etc.).
MONO: Directs the same sound to both the left and right
speakers even of the source being received is in stereo.
We recommend that you use the STEREO option. The TV
will switch automatically between the STEREO and MONO
modes dependent on the signal being received.

When STEREO is selected but is not being received on the
channel, a message appears stating that "THIS PROGRAM 1S
NOT 1N STEREO."

The Channel/Time display shows whether the current program
is in STEREO or MONO.

2733-0 7 _ 3

VIDEO MENU

i ,VIDEO MENU

•">CONTRAST - _ +
BRIGHTNESS - n +

COLOR - _' +

TINT G I R

SHARPNESS - == +
PICTUREPREF CUSTOM

,, ,,i,,

CONTRAST
BRIGHTNESS
COLOR
TINT
SHARPNESS
PICTURE PREF. (Pref-

erence)

Adjusts the overall contrast and color level of the picture.
Adjusts the brightness level of black areas in the picture.
Adjusts the intensity of the colors in the picture.
Adjusts the color of the flesh tones, where G is Green and R is Red.
Adjusts the clarity of the edges of objects for the clearest picture quality.
Lets you decide if you want to use your own CUSTOM video settings, or the factory PRESET video

settings.

To Access VIDEO MENU
Refer to the "Quick Reference to On-Screen Menus" section

for details.
NOTE: All adjustments on the VIDEO MENU areoptional.

You do not have to use these features in orderto use your TV.

To Use Video Settings

1. Select video setting to be adjusted.

2. Press ADJUST (ADJ) Left/Right until the most pleas-
ing picture is seen.

NOTE: Any adjustment made to these settings while PIC-
TURE PREF. is in PRESET mode will automatically store the

current settings as the CUSTOM setting.
To Use PICTURE PREF. (Preference)

Press ADJUST (ADJ) Left/Right to select status.

2743-0 8 -- 1

• H

MAINTENANCE AND TROUBLESHOOTING

CARING FOR YOUR TV

Your TV will look better, have a longer life and perform better
if you care for it properly.

First check to see that the TV is off. For added

safety, unplug the TV from the power outlet.
NOTE: If you unplug your TV, you will have to

reset the clock to the current time.

Picture Glass Cleaning

The picture tube face attracts dust particles and should be
cleaned regularly. To clean the face, spray a small amount of
glass cleaner on a cleaning cloth and wipe the picture tube
glass face until clean. Repeat if necessary.

To delay new dust accumulation, wet a soft cloth in lukewarm
water in which a little fabric softener or Ivory dishwashing de-
tergent has been mixed. Wring the cloth almost dry. Wipe the
glass face. Make sure no drops of moisture are squeezed onto
the glass. Do not wipe the glass dry. Allow the glass to air-dry
before you turn the TV on again.

Cabinet Care

Non-Wood Cabinet or Cabinet Components.
Moisten a soft cloth with amild soap solution or Ivory dish

washing detergent. Wipe the surface with a damp cloth. Then
rinse the cloth in clean water and wipe the surface again. Al-

low the TV to air-dry before turning it on.
Wood Cabinets or Cabinet Components.

Use any good furniture cleaner and polish. Regular care will
help preserve the finish.

EXTENDED ABSENCE

Before an extended absence (such as a vacation) you may
want to unplug the power cord from the electrical wall outlet.
This will protect the TV from possible damage from lightning
or power line surges. If you have an outdoor antenna, you may

also want to disconnect the antenna lead-in wires on the back
of the TV.

NOTE: If you unplug your TV, you will have to reset the
clock to the current time.

TV PICTURE INTERFERENCE

Your TV picture may be affected by interference caused by
one or a number of factors. These include:

Nearby Automobile Ignition, Electrical Appliances, etc.

Which causes a speckled, streaked picture. This is most notice-

able in weak signal areas.
Snow in Picture Caused by insufficient signal. Usually

caused by the TV being located too far from the TV station or
by an improper antenna installation.

Ghosts or Reflections Caused by signals being reflected

from surrounding buildings, water tanks, or other high struc-
tures.

Radio Signal Police, amateur or CB radio transmitters may

cause interference.

These interference problems can often be corrected through

the use of a better antenna, signal amplifiers, or various filter

devices. See your TV dealer for additional information, and
available TV accessories.

CUCAREI 9- 1

MAINTENANCE AND TROUBLESHOOTING

BEFORE CALLING FOR SERVICE

Check these items and see if you can correct the trouble by

changing the adjustment of a control or the setting of a switch.

Problem

Picture OK. Poor sound.

Sound OK. Poor picture.

No picture or sound.

By making these simple checks before calling tbr service, you
may save time and money.

Try This

Re-orient antenna. Try another channel -- possible station
trouble. Check for local interference. Check AUTO TUNING

and TUNING BAND options on SETUP MENU.
Re-orient antenna. Try another channel -- possible station

trouble. Adjust VIDEO MENU options with PICTURE

PREF. in CUSTOM mode. Trouble with cable-TV system?

Is TV on? Is there power in wall outlet? Is TV plugged in? ls
antenna hooked up? Is cable hooked up? Trouble with cable-
TV system? Check auxiliary audio/video equipment. Check

channel selection. Check TUNING BAND and AUTO

TUNING options on SETUP MENU.

Picture blurred or distorted. Ghost in picture. Check antenna or cable hook up for broken wires. Try

another channel _ possible station trouble. Check for local

interference.

No color, or poor color. Is it a color program? Check antenna or cable hook up for

broken wires. Adjust VIDEO MENU options with PICTURE
PREF. in the CUSTOM mode.

No sound. VOLUME (VOL) setting may be too low. Check MUTE

button operation on remote control.

Cannot select certain channels. Channels may be skipped inCH. ADDiDEL option on

SETUP MENU. Check TUNING BAND and AUTO
TUNING options on SETUP MENU.

No closed captions Are captions available? Is CAPTION 1or CAPTION 2

selected using the CAPTIONS option on the SETUP MENU?

Black or blue box covers half of screen. Is TEXT 1 or TEXT 2 selected using the CAPTIONS option

on the SETUP MENU and is text information available?

No picture or sound when AUX channel is selected. Is audio/video source hooked up properly? Are all wires

connected to AUX INPUT jacks on connection center?

No stereo sound or weak stereo sound when using a Check AUDIO mode. Was stereo sound present before
stereo VCR. selecting AUX channel?

Remote control does not work. Are batteries okay? Is TV turned ON? Is TV plugged in?

Always request that your technician use only genuine Zenith
exact replacement parts for continued Quality and Safety per-
formance. Keep your Zenith ALL Zenith.

NOTE: If your TV fails to respond to the PICTURE PREF.
selection, or to any other menu selection, you must reset the

TV. Simply disconnect the AC power cord from the power
outlet. Wait a few minutes, then plug the TV back into the
power outlet. You will have to reset the clock to the current

time.

2733-0 9_2

PRODUCT REGISTRATION CARD

You could win a full refund on your new Zenith product.
Look for the Product Registration Card on your new video

product.
Each month a drawing is held by Zenith from the completed

Product Registration Cards received during the preceding
month. Zenith will reimburse the winner for the full purchase

price of the product purchased.
In order to participate, simply complete and return the Product

Registration Card at once, even if you choose not to complete
the information and interests portion of the questionnaire.

The odds of winning the free drawing described above, de-
pend on the number of participants. Free drawing offer is

void in Canada and other places where restricted or prohib-

ited by law. Offer is void for Hotel/Motel and Institutional
models. Rental models are not eligible.

Product Card lost or misplaced?
The Product Registration Card furnished with your video prod-

uct is pre-printed with its Model and Serial numbers. Please
fill out the card and mail it at your earliest convenience. It is
imperative that Zenith know how to reach you promptly if we
discover a safety problem that would affect you. If the original
card has been lost or misplaced, you may use the replacement
card provided below. Either card will qualify you for file free
drawing, but you are limited to only one entry in the drawing.
Complete the card, place it in an envelope and mail it to:

Zenith Electronics Corporation

P. O. Box 173257

Denver, CO 80217-3257

Use the replacement Product Registration Card only if the
original card has been misplaced or lost.

PHOTOCOPY AND CUT ALONG DASHED LINE

•. ===n .=.=. ===ma == =.. =m= .= .== == ==w == .=mi= w=.== iww.= ===lma==l• =w•== •i•== •==wwamiiw.==== === == .= • • • • =. •-•-• =-•--=--• = •-• ="" • =

Zenith Product Registration Card HfZ01-01

(_ Please Print Clearly or Type _ Area Code Telephone

1.i_Mr. 2.[_Mrs. 3.[-JMs. 4. I--]Miss [ [ [ [[

First Name Initial Last Name

I IIIIIII II IIIIIIIIIII

Street

IIIIIIil111111111111

City

IIIIIIIIIIIIIIII

State Zip Code

IIIIn IIIl-lnnll

IIl-IIIII

II

I

II I

®

IIII

Apt. No.

IIII

Date of Purchase

I
I

Mo. Day Yr.

IIIIIIL_U

MODEL
NUMBER

SERIAL

NUMBER

I LIII

Copy Numbers Here

From Label on Set

IIIIIIIIllll

Please record the model number
and serial number from the sticker

on the back of your set.

==•=••===•o===•|

TVCARD3

BROKENORLOSTREMOTECONTROL?

Zenith, pleasehaveyour television's model

_ andserialnumberand

Foran ExactReplacementRemote

Controlfor your new Zenith Television,

seeyour localZenith Dealeror order

direct bycalling 1-800-255-6790. To

assurethe correct remotefor your new

dateof purchaseready!

ONLY$39.95

OTHERFINEACCESSORIESFORYOURTELEVISION.

WALL MOUNTS

(17Ibs,)

• Easytoinstall 13"

• Safeandstrong

• 5 yearwarranty

• Made in U.S.A. 19/20"

• Spacesaving

• UL listed

• Adjustabletilt angle: 25/27"
0to 12 degrees

IfyourTV

screenis:

Order

this model

CWMO13 ONLY

$69.95

CWM020 ONLY

S89.es

CWM027 ONLY

S99.es

DELUXEAMPLIFIED 75 OHM
INDOOR TV ANTENNA.

• Provides sharp, clear pictures

• VHF/UHF color & FM stereo reception

• VHF/UHF signal combiner circuitry

• Includes:

• Matching transformer

• 4 ft. coaxial cable with connectors

• Designed and built in the U.S.A.

ATS 750 ONLY$59.95

PHOTOCOPYPAGEANDDETACHHERE

Toorder thesefine accessories,

pleasefill out this card and
return a photocopy to:

Attn: Accessory Offers

Zenith Video TechCorporation
1900 N.Austin Avenue

Chicago,IL 60639

or call1-800-255-6790

[] Check or moneyorder

(MadepayabletoZenithVideorechCorp.)

ITEMNUMBER DESCRIPTION PRICEPERITEM

SUBTOTAL

CA73/4%,GA4%,IL83/4%,KS4.9%,KY6%,ME8%,

o o o

PA8%,RI7Yo,TX73/4Yo,VA4 1/2_/o,WA61/2%.

S4gO

SalesTax: Pleaseaddyour statesalestax if you

livein oneof thefollowing states.

[] Visa [] Mastercard

Account#

/llllllllllllll I

ExpirationDate: Signature:

STATESALESTAX

SHIPPING& HANDLING

TOTALAMOUNTOFORDER

TOTAL
PRICE

SHIPTO:

Telephone:( )

Name:

IMPORTANT:PLEASEBESURETOCOMPLETETHEINFORMATIONBELOW.

/ /

ModelNumber TVSerialNumber Mo. Day, Y.r, ,

(fromstickeronbackofunit) (fromstickeronbackofunit) (Approx.dateoxpurcnase.)

PLEASEALLOWUPTO3WEEKSFORDELIVERY.THANKYOUP

TVACCS3

Address:

Apt. #

State

City
ZipCode

NOTE:Priceandavailabilitysubjecttochange.

YOUR ZENITH WARRANTY

Consumer Protection Plan for Zenith TV
Welcome into the Zenith family! We believe that you will be

pleased with your new Zenith Color TV. Please read this
Consumer Protection Plan carefully. It is a "LIMITED
WARRANTY" as defined under Federal Law. This
warranty gives you specific legal rights, and you may also
have other rights that vary from state to state within the
U.S.A.

Zenith's Responsibility

Service Labor -- During a period of 90 days from effective
warranty date, Zenith will pay for service labor by a U.S. or
Canadian distributor-approved Zenith service center when
needed as a result of manufacturing defects.

Parts -- New or remanufactured replacements for
factory-defective parts will be supplied by a U.S. or Canadian
distributor-approved service center for one year fi'om effective
warranty date (color picture tube -- two years). Such
replacement parts are warranted for the remaining portion of the
original warranty period.

Home Service -- Warranty service for 19" diagonal
(U. S. A.) or larger screen size models is provided in the
home.

Not Covered -- This warranty covers manufacturing defects
and does not cover installation, adjustment of customer

controls in the home, installation or repair of home antenna
systems, cable converters or cable company-supplied
equipment; it also does not cover damage due to misuse,

abuse, negligence, acts of God or other causes beyond the
control of Zenith. Any alteration of the product after
manufacture voids this warranty in its entirety.

Owner's Responsibility

Effective Warranty Date -- Warranty begins oiJ the date w

original consumer installation. For your convenience, keep
the dealers dated bill of sale or delivery ticket as evidence of
the purchase date.

Operating Guide -- Read your Operating Guide carefully

so that you will understand the operation of your set and how

to adjust the customer controls.

Carry-In Service --Models under 19" diagonal (U.S.A.)
screen size must be taken to a distributor-approved Zenith
service center for warranty service and must be picked up by

the owner.

Antenna -- Reception problems caused by inadequate home
antennas or faulty antenna connections are the owner's
responsibility.

Important: Product Registration -- Please fill out and mail
your Product Registration Card. It is imperative that Zenith

know how to reach you promptly if we should discover a

safety problem that could affect you.
Warranty Service -- For warranty service information,

contact your Zenith dealer preferably, or any distributor-
approved Zenith service center. Parts and service labor that
are Zenith's responsibility (see above) will be provided
without charge. Other service is at the owner's expense. If
you have any problem in obtaining satisfactory warranty
service, write:

Zenith Electronics Corporation
Customer Service Department
1900 N. Austin Avenue
Chicago, Illinois 60639-5079
Telephone: [phone]
Mon-Fri, 8:00 a.m. - 4:30 p.m. Central Time

NOTE: Before you ask for Warranty service, check the
Operating Guide section entitled, "MAINTENANCE
AND TROUBLESHOOTING." It may be possible to
avoid a service call.

1VWAKR3

ZION1i t I LLLL_ 1K(gN l(gb CORPORA 1IO_

1000 MILWAUKEE AVENUE

GLENVIEW, ILLINOIS 6002fi

Part No. 206-Z/33

Printed in U.S.A.

EP-EDCBAO
