Zenith SD100 Installation Instructions And Operating Manual

Superdry Installation & Operating Instructions - 87297 - June 2008 Page 1

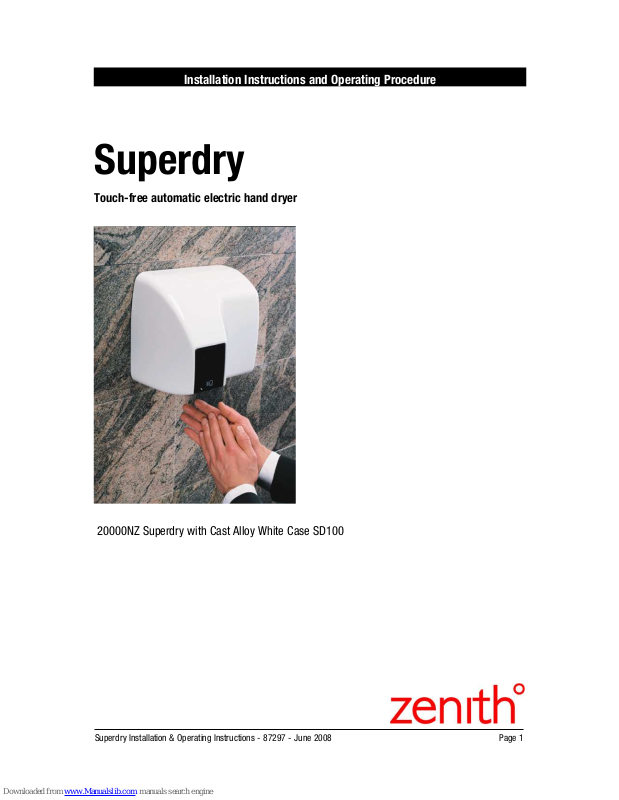

Installation Instructions and Operating Procedure

20000NZ Superdry with Cast Alloy White Case SD100

Superdry

Touch-free automatic electric hand dryer

Page 2 Superdry Installation & Operating Instructions - 87297 - June 2008

Key Features

l Warm-air recycling system speeds warm-up, improves thermal efficiency.

l Unique air-directional flap directs air upward for fast face drying.

l Aerodynamic design reduces drying time and power consumption.

l Motor vibration isolation system reduces noise to a minimum.

l Robust diecast alloy case is hard to damage, easy to clean.

l Two overload sensors with automatic motors and element cutoff.

Key Specifications

Model Number SD100
Element 2.2 kW protected by 100°C cutout
Fan Electronically balanced pressed metal
Motor Sealed ball bearing motor with thermal protection
Electrical 220 – 240 AC 50 Hz, 9.8 amps
Air Volume 52 Litres per second
Stop/Start Infra-red electronic sensor
Overheat Cuts out if thermally overloaded
Reset Automatically resets at normal temperature
Cutout Cuts out after 60 seconds if sensor obstructed
Reset Automatically resets when obstruction removed
Case White powder coated alloy diecasting
Height (mm) 252
Width (mm) 287
Depth (mm) 185

Read These Warnings First

Please read all installation requirements, installation procedures and
precautions before installing any Superdry hand dryer.

Never attempt to install any Superdry hand dryer without reading all of the
applicable instructions.

All electrical connections must comply with current wiring rules.
This appliance is not designed for use by young children or infirm people

without supervision.
Young children should be prevented from having access to ensure they are not

able to use or play with the heater.
This appliance must be earthed.
If the power supply cord is damaged it must be replaced by a HydroTap

Company Service Provider or a qualified electrician.
Do not remove the cover of the appliance under any circumstances without

first isolating the appliance from the power supply.
Do not use strong, corrosive or abrasive cleaners to clean the case of the

appliance.
