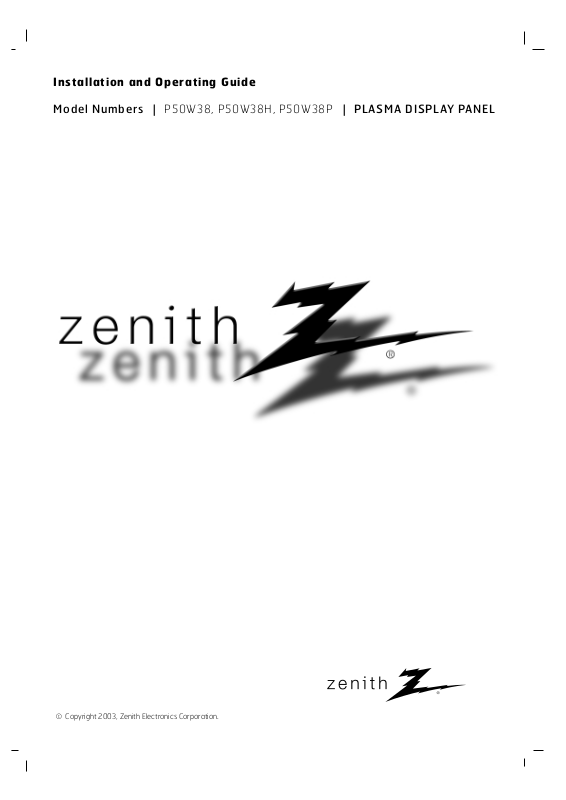

Zenith P50W38H, P50W38P OPERATING GUIDE

Installation and Operating Guide

Model Numbers | P50W38, P50W38H, P50W38P | PLASMA DISPLAY PANEL

© Copyright 2003, Zenith Electronics Corporation.

Warning

WARNING

RISK OF ELECTRIC SHOCK
DO NOT OPEN

W

arning

W

arning

WARNING:

TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO USER
SERVICEABLE PARTS INSIDE. REFER TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to

the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of suffi­cient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of

important operating and maintenance (servicing) instructions in the literature accompanying the appli­ance.

WARNING:

TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.

FCC NOTICE

• A Class B digital device

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

• Any changes or modifications not expressly approved by the party responsible for compli­ance could void the user’s authority to operate the equipment.

CAUTION:

Do not attempt to modify this product in any way without written authorization from Zenith Electronics
Corporation. Unauthorized modification could void the user’s authority to operate this product.

COMPLIANCE:

The responsible party for this product’s compliance is:
Zenith Electronics Corporation
2000 Millbrook Drive
Lincolnshire, Il 60069, USA
Phone: [phone]

WARNING

TO REDUCE THE RISK OF FIRE AND ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO
RAIN OR MOISTURE.

2 Plasma Display Panel

Safety Instructions

PORTABLE CART WARNING

Safety Instructions

Safety Instructions

Important safeguards for you and your new product

Y our product has been manufactured and tested with your safety in mind. However, improper use can result in potential elec­trical shock or fire hazards. To avoid defeating the safeguards that have been built into your new product, please read and
observe the following safety points when installing and using your new product, and save them for future reference.

Observing the simple precautions discussed in this manual can help you get the many years of enjoyment and safe opera­tion that are built into your new product.

This product complies with all applicable U.S. Federal safety requirements, and those of the Canadian Standards Association.

1. Read Instructions

All the safety and operating instructions should be read
before the product is operated.

2. Follow Instructions

All operating and use instructions should be followed.

3. Retain Instructions

The safety and operating instructions should be retained for
future reference.

4. Heed Warnings

All warnings on the product and in the operating instructions
should be adhered to.

5. Cleaning

Unplug this product from the wall outlet before cleaning. Do
not use liquid cleaners or aerosol cleaners. Use a damp
cloth for cleaning.

6. Water and Moisture

Do not use this product near water, for example, near a bath
tub, wash bowl, kitchen sink, or laundry tub, in a wet base­ment, or near a swimming pool.

7. Accessories, Carts, and Stands

Do not place this product on a slippery or tilted surface, or on
an unstable cart, stand, tripod, bracket, or table. The product
may slide or fall, causing serious injury to a child or adult,
and serious damage to the product. Use only with a cart,
stand, tripod, bracket, or table recommended by the manu­facturer, or sold with the product. Any mounting of the prod­uct should follow the manufacturer’s instructions, and should
use a mounting accessory recommended by the manufac­turer.

8. Transporting Product

A product and cart combination should be moved with care.
Quick stops, excessive force, and uneven surfaces may
cause the product and cart combination to overturn.

9. Attachments

Do not use attachments not recommended by the product
manufacturer as they may cause hazards.

10. Ventilation

Slots and openings in the cabinet are provided for ventilation
and to ensure reliable operation of the product and to protect
it from overheating, and these openings must not be blocked
or covered. The openings should never be blocked by plac­ing the product on a bed, sofa, rug, or other similar surface.
This product should not be placed in a built-in installation
such as a bookcase or rack unless proper ventilation is pro­vided or the manufacturer’s instructions have been adhered
to.

11. Power Sources

This product should be operated only from the type of power
source indicated on the marking label. If you are not sure of
the type of power supply to your home, consult your product
dealer or local power company. For products intended to
operate from battery power, or other sources, refer to the
operating instructions.

12. Power-Cord Polarization

This product is equipped with a three-wire grounding type
plug, a plug having a third (grounding) pin. This plug will only
fit into the grounding-type power outlet. This is a safety fea­ture. If you are unable to insert the plug into the outlet, con­tact your electrician to replace your obsolete outlet. Do not
defeat the safety purpose of the grounding-type plug.

13. Power-Cord Protection

Power-supply cords should be routed so that they are not
likely to be walked on or pinched by items placed upon or
against them, paying particular attention to cords at plugs,
convenience receptacles, and the point where they exit from
the product.

Owner’s Manual 3

Safety Instructions

Antenna Lead in Wire

Antenna Discharge Unit
(NEC Section 810-20)

Grounding Conductor
(NEC Section 810-21)

Ground Clamps
Power Service Grounding

Electrode System (NEC
Art 250, Part H)

Ground Clamp

Electric Service

Equipment

Safety Instructions continued

Safety Instructions continued

14. Outdoor Antenna Grounding

If an outside antenna or cable system is connected to the
product, be sure the antenna or cable system is grounded so
as to provide some protection against voltage surges and
built-up static charges. Article 810 of the National Electrical
Code (U.S.A.), ANSI/ NFPA 70 provides information with
regard to proper grounding of the mast and supporting struc­ture, grounding of the lead-in wire to an antenna discharge
unit, size of grounding conductors, location of antenna-dis­charge unit, connection to grounding electrodes, and
requirements for the grounding electrode.

Example of Grounding According to National
Electrical Code Instructions

NEC - National Electrical Code

15. Lightning

For added protection for this product (receiver) during a light­ning storm, or when it is left unattended and unused for long
periods of time, unplug it from the wall outlet and disconnect
the antenna or cable system. This will prevent damage to the
product due to lightning and power-line surges.

16. Power Lines

An outside antenna system should not be located in the
vicinity of overhead power lines or other electric light or
power circuits, or where it can fall into such power lines or
circuits. When installing an outside antenna system, extreme
care should be taken to keep from touching such power lines
or circuits as contact with them might be fatal.

17. Overloading

Do not overload wall outlets and extension cords as this can
result in a risk of fire or electric shock.

19. Servicing

Do not attempt to service this product yourself as opening or
removing covers may expose you to dangerous voltage or
other hazards. Refer all servicing to qualified service per­sonnel.

20. Damage Requiring Service

Unplug this product from the wall outlet and refer servicing to
qualified service personnel under the following conditions:

a. If the power-supply cord or plug is damaged.
b. If liquid has been spilled, or objects have fallen into the

product.
c. If the product has been exposed to rain or water.
d. If the product does not operate normally by following the

operating instructions. Adjust only those controls that are

covered by the operating instructions as an improper

adjustment of other controls may result in damage and

will often require extensive work by a qualified technician

to restore the product to its normal operation.
e. If the product has been dropped or the cabinet has been

damaged.
f. If the product exhibits a distinct change in performance.

21. Replacement Parts

When replacement parts are required, be sure the service
technician has used replacement parts specified by the man­ufacturer or have the same characteristics as the original
part. Unauthorized substitutions may result in fire, electric
shock, or other hazards.

22. Safety Check

Upon completion of any service or repairs to this product,
ask the service technician to perform safety checks to deter­mine that the product is in proper operating condition.

23. Wall or Ceiling Mounting

The product should be mounted to a wall or ceiling only as
recommended by the manufacturer. The product may slide
or fall, causing serious injury to a child or adult, and serious
damage to the product.

24. Heat

The product should be situated away from heat sources
such as radiators, heat registers, stoves, or other products
(including amplifiers) that produce heat.

18. Object and Liquid Entry

Never push objects of any kind into this product through
openings as they may touch dangerous voltage points or
short-out parts that could result in a fire or electric shock.
Never spill liquid of any kind on the product.

4 Plasma Display Panel

Contents

Contents

Contents

Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3~4

Introduction

Controls and Connection Options . . . . . . . . . . . .7

Remote Control Key Functions . . . . . . . . . . . . . .8

Installation

Installation Instructions . . . . . . . . . . . . . . . . . . .9~10

External Equipment Connections . . . . . . . . . .11~14

VCR Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Cable TV Setup . . . . . . . . . . . . . . . . . . . . . . . .11

External A/V Source Setup . . . . . . . . . . . . . . . .12

DVD Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

DTV Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

PC Setup . . . . . . . . . . . . . . . . . . . . . . . . . .13~14

Operation

Turning on the Monitor . . . . . . . . . . . . . . . . . . . . .15

Menu Language Selection . . . . . . . . . . . . . . . . . .15

Video Menu Options

APC (Auto Picture Control) . . . . . . . . . . . . . . . .16

Manual Picture Control . . . . . . . . . . . . . . . . . . .16

Auto Color Temperature Control . . . . . . . . . . . .16

Manual Color Temperature Control . . . . . . . . . .16

Audio Menu Options

DASP (Digital Auto Sound Processing) . . . . . . .17

Manual Sound Control . . . . . . . . . . . . . . . . . . .17

AVL(Auto Volume Leveler) . . . . . . . . . . . . . . . .17

Time Menu Options

Clock Setup . . . . . . . . . . . . . . . . . . . . . . . . . . .18

On/Off Timer Setup . . . . . . . . . . . . . . . . . . . . .18

Auto Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

Sleep Timer . . . . . . . . . . . . . . . . . . . . . . . . . . .18

Special Menu Options

Key Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

ISM Method . . . . . . . . . . . . . . . . . . . . . . . . . . .19

Low power . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

Menu Rotation For Vertical Viewing . . . . . . . . . .19

Screen Menu Options

Auto Adjustment . . . . . . . . . . . . . . . . . . . . . . . .20

Setting Picture Format . . . . . . . . . . . . . . . . . . .20

Picture Size Zoom . . . . . . . . . . . . . . . . . . . . . .20

Split Zoom . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

Screen Position . . . . . . . . . . . . . . . . . . . . . . . .21

Manual Configure . . . . . . . . . . . . . . . . . . . . . . .21

Screen Adjustments . . . . . . . . . . . . . . . . . . . . .22

Initializing . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

Selecting Wide VGA/XGA mode . . . . . . . . . . . .22

Luminance Noise Reduction . . . . . . . . . . . . . . .22

PIP (Picture-in-Picture) Feature

Watching PIP . . . . . . . . . . . . . . . . . . . . . . . . . .23

PIP Size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

PIP Aspect Ratio . . . . . . . . . . . . . . . . . . . . . . . .23

Swapping PIP . . . . . . . . . . . . . . . . . . . . . . . . . .23

Moving PIP . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

Selecting an Input Signal Source for PIP . . . . . .23

Twin Picture Setup Options

Watching Twin Picture . . . . . . . . . . . . . . . . . . . .24

Sub Picture Size Adjustment . . . . . . . . . . . . . . .24

Swapping the Twin Picture . . . . . . . . . . . . . . . .24

Selecting a Source for the Twin Picture . . . . . . .24

External Control Device Setup . . . . . . . . . . . . . . . .25~30

IR Code Information . . . . . . . . . . . . . . . . . . . . . . . .31~32

Troubleshooting Checklist . . . . . . . . . . . . . . . . . . . . . .33

Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34

Your Zenith Limited Warranty . . . . . . . . . . . . . . . . .35~36

Setup and Operation Checklist

Setup and Operation Checklist

Setup and Operation Checklist
(See pages 11~13 for available connection and operational setup options.)

1. Unpack Monitor and all accessories.

2. Connect all external video and audio equipment.
see pages 11 ~ 14.

3 Install batteries in remote control.

See page 8.

4. Turn Monitor on.
See page 15.

5. Turn video source equipment on.

6. Select viewing source for Monitor.
See page 8.

7. Fine-tune source image and sound to personal preference
or as required by source.
See pages 16 ~ 17.

8. Additional features Setup
See Contents above.

After reading this manual, keep it handy for future reference.

Owner’s Manual 5

Introduction

Introduction

Introduction

What is a Plasma Display Panel (PDP)?

If voltage is applied to gas within glass panels, ultraviolet rays are produced and fused with a fluorescent substance. At that
instant, light is emitted. APlasma Display is a next generation flat Display using this phenomenon.

160° - Wide angle range of vision

Your flat panel plasma screen offers an exceptionally broad viewing angle -- over 160 degrees. This means that the display is
clear and visible to viewers who can see the screen anywhere in the room.

Wide Screen

The screen of the Plasma Display is so wide that your viewing experience is as if you are in a theater.

Multimedia

Connect your plasma display to a PC and you can use it for conferencing, games, and internet browsing. The Picture-in-Picture
feature allows you to view your PC and video images simultaneously.

Versatile

The light weight and thin size makes it easy to install your plasma display in a variety of locations where conventional TVs would
not fit.

The PDP Manufacturing Process: Why minute colored dots may be present on the PDP screen

The PDP (Plasma Display Panel) which is the display device of this product is composed of 0.9 to 2.2 million cells. A few cell
defects will normally occur in the PDP manufacturing process. Several minute colored dots visible on the screen should be accept­able. This also occurs in other PDP manufacturers' products and the tiny dots appearing does not mean that this PDP is defective.
Thus a few cell defects are not sufficient cause for the PDP to be exchanged or returned. Our production technology is designed
to minimize cell defects during the manufacture and operation of this product.

Cooling Fan Noise

In the same way that a fan is used in a PC computer to keep the CPU (Central Processing Unit) cool, the PDP is equipped with
cooling fans to cool the Monitor and improve its reliability. Therefore, a certain level of noise could occur while the fans are operat­ing and cooling the PDP.
The fan noise doesn't have any negative effect on the PDP's efficiency or reliability. The noise from these fans is normal during the
operation of this product. We hope you understand that a certain level of noise from the cooling fans is acceptable and is not suffi­cient cause for the PDP to be exchanged or returned.

6 Plasma Display Panel

Controls

R

( )

( )

( )

( )

L

RS-232C INPUT

(CONTROL/SERVICE)

EXTERNAL SPEAKER

YPBP

R

(MONO)

R

AUDIO

L

R

AUDIO

L

S-VIDEO

AC INPUT

AUDIO INPUTVIDEO INPUT

AUDIO INPUT

AUDIO INPUT

REMOTE
CONTROL

COMPONENT INPUT

DVI INPUT

RGB INPUT

RGB OUTPUT

VOL.

MENU

INPUT SELECT

ON/OFF

Controls

Front Panel Controls

Front Panel Controls

- This is a simplified representation of a typical front panel.
Image shown may be slightly different from your model.

Introduction

Main Power Button

INPUT SELECT Button

Power Standby Indicator

Illuminates red in standby

mode. Illuminates green when

the Monitor is turned on.

Connection Options

Connection Options

Back Connection Panel

Back Connection Panel

- Connection panels shown may be somewhat different from your monitor.

1

1. EXTERNAL SPEAKER (8 ohm output)

Connect to optional external speaker(s).
* For further information, refer to ‘Speaker & Speaker

Stand’ manual.

2. RS-232C INPUT (CONTROL/SERVICE) PORT

Connect to the RS-232C port on a PC.

3. DVI (Digital Visual Interface) INPUT/

RGB INPUT/AUDIO INPUT JACKS

Connect the monitor output connector from a PC to the
appropriate input port.

4. RGB OUTPUT PORT

You can watch the RGB signal on another monitor, connect
RGB OUTPUT to another monitor’s PC input port.

2 4 53 7

5. REMOTE CONTROL

Connect your wired remote control to the remote control
port on the Monitor.

6. COMPONENT INPUT/AUDIO INPUT JACKS

Connect a component video/audio device to these jacks.

7. S-VIDEO INPUTS

Connect S-Video out from an S-VIDEO VCR or other S-Video
device input.

AUDIO/VIDEO INPUT JACKS

Connect audio/video out from external equipment to these
jacks.

8. POWER CORD SOCKET

This Monitor operates on an AC power. The voltage is indi­cated on the Specifications page. Never attempt to operate
the Monitor on DC power.

VOLUME (F,G) Buttons

MENU Button

6

E, D Buttons

Remote Control Sensor

8

Owner’s Manual 7

Introduction

123

456

7809

POWER

SLEEP INPUT SELECT

APC DASP

ARC PIP ARC

PIP

TWIN PICTURE

SWAP

MENU MUTE

OK

VOL

POWER STOP

PLAY FF

REC

REW

P/STILL

WIN.SIZE

WIN.POSITION

ZOOM +

ZOOM -

SPLIT ZOOM

VOL

SUB INPUT

Remote Control Key Functions

Remote Control Key Functions

- When using the remote control, aim it at the remote control sensor on the monitor.

- Under certain conditions such as if the remote IR signal is interrupted, the remote control may not function. Press
the key again as necessary.

POWER

Switches the Monitor between

ON and STANDBY.

SLEEP

INPUT SELECT

Selects source:

RGB, DVI, or Component mode.

Video, S-Video,

Sets the Sleep Timer.

(Refer to p.18)

APC

Adjusts the factory preset picture

according to the room.

(Refer to p.16)

ARC

Changes the picture format.

(Refer to p.20)

PIP

Switches the sub picture on or off.

(Refer to p.23)

SWAP

Exchanges main and sub picture

images. (Refer to p.23, 24)

Displays on screen menus one by one.

Exits the current menu.

NUMBER buttons

Adjusts the sub picture size.

MENU

WIN. SIZE

DASP

To select the sound appropriate to
your viewing program character:

Flat, Music, Cinema, Sports,or
User (Refer to p.17)

PIP ARC

Changes the PIP picture format.
(Refer to p.23)

TWIN PICTURE

(Refer to p.24)

SUB INPUT

Selects the input source for the sub
picture.

MUTE

Switches the sound on or off.

OK
D / E

Selects menu option.
Memorizes menu changes.

F / G (Volume button)

Increases/decreases sound level.
Adjusts menu settings.

WIN.POSITION

Moves the sub picture.

VCR BUTTONS

Control some video cassette

Enlarges the picture.

ZOOM-/ZOOM+

Enlarges or reduces

SPLIT ZOOM

recorders.

the main picture size.

Installing Batteries

Installing Batteries

8 Plasma Display Panel

• Open the battery compartment cover on the back side and
insert the batteries with correct polarity.

• Install two 1.5V batteries of AAA type. Don’t mix used batteries
with new batteries.

Installation

1.5V

1.5V

123

456

7809

POWER

SLEEP INPUT SELECT

APC DASP

ARC PIP ARC

PIP

TWIN PICTURE

SWAP

MENU MUTE

OK

VOL

POWER STOP

PLAY FF

REC

REW

P/STILL

WIN.SIZE

WIN.POSITION

ZOOM +

ZOOM -

SPLIT ZOOM

VOL

SUB INPUT

Installation

Installation

Ensure that the following accessories are included with your plasma display. If an accessory is missing, please contact the dealer
where you purchased the product.

Owner’s Manual

D-sub 15 pin Cable

Installation Instructions

Installation Instructions

Batteries

Power Cord

BNC-RCAAdapter

DVI-D Cable

Remote Control

• The Monitor can be installed in various ways such as on a wall, or on a desktop etc.

• The plasma display is designed to be mounted horizontally or vertically. The speakers shown are optional.

GROUNDING

Ensure that you connect the grounding / earth wire to prevent possible
electric shock. If grounding methods are not possible, have a qualified
electrician install a separate circuit breaker. Do not try to ground the
unit by connecting it to telephone wires, lightening rods, or gas pipes.

all Mount: Horizontal installation

WWall Mount: Horizontal installation

Power

Supply

Short-circuit

Breaker

For proper ventilation, allow a clearance of 4” on each
side and 2” from the wall. Detailed installation instruc­tions are available from your dealer, see the optional
Wall Mounting Bracket Installation and Setup Guide.

4 inches

4 inches4 inches

4 inches

2 inches

Owner’s Manual 9

Installation

Installation Instructions continued

Installation Instructions continued

Desktop Pedestal Installation

Desktop Pedestal Installation

For proper ventilation, allow a clearance of 4” on each
side and the top, 2.36” on the bottom, and 2” from the
wall. Detailed installation instructions are included in the
optional Desktop Stand Installation and Setup Guide
available from your dealer.

all Mount: V

WWall Mount: V

ertical installation

ertical installation

2 inches

4 inches

4 inches

4 inches

2.36 inches

Detailed installation instructions are included in the
optional Vertical Wall Mounting Bracket Installation and
Setup Guide available from your dealer.
NOTE: When installing the monitor vertically, the front
panel controls must be in the left side position.

When installing the monitor vertically, you
have to change the OSD display mode so
that the menus will appear correctly and also
to protect the monitor from overheating
(Refer to P. 19).

10 Plasma Display Panel

Installation

S-VIDEO

OUT

IN

(R) AUDIO (L) VIDEO

YPBP

R

(MONO)

R

AUDIO

L

R

AUDIO

L

S-VIDEO

AUDIO INPUTVIDEO INPUT

AUDIO INPUT COMPONENT INPUT

TV

VCR

RF Cable

(R) AUDIO (L) VIDEO

YPBP

R

(MONO)

R

AUDIO

L

R

AUDIO

L

S-VIDEO

AUDIO INPUTVIDEO INPUT

AUDIO INPUT

COMPONENT INPUT

External Equipment Connections

External Equipment Connections

NOTE: All cables shown are not included with the plasma display.

VCR Setup

VCR Setup

- To avoid picture noise (interference), leave an adequate distance between the VCR and Monitor.

- Use the ISM Method feature to avoid having a fixed image remain on the screen for a long period of time. Typically a frozen still
picture from a VCR. If the 4:3 picture format is used; the fixed image, shown at the sides of the screen, may remain visible on
the screen.

How to connect

1. Connect the provided BNC-RCA adapter to the monitor’s VIDEO
INPUT.

2. Connect the audio and video cables from the VCR's output jacks to
the monitor input jacks, as shown in the figure.
When connecting the monitor to VCR, match the jack colors (Video
= yellow, Audio Left = white, and Audio Right = red).

Mono VCR: Connect the video output cable from the VCR to the
VIDEO input on the monitor.

S-VIDEO VCR: Connect the S-Video output cable from the VCR to
the S-VIDEO input on the monitor. (Note that S-Video offers higher
picture quality).

How to use

1. Insert a video tape into the VCR and press PLAY on the VCR.
(Refer to the VCR owner’s manual.)

2. Use the INPUT SELECT button on the remote control to select

Video.

VCR

(If connected to S-VIDEO, select the S-Video input source.)

Cable

TV Setup

Cable

TV Setup

- After subscribing to a cable TV service from a local provider and installing a converter, you can watch cable TV programming.
The monitor cannot display TV programming unless a TV tuner device or cable TV converter box is connected to the Monitor.

- For further information regarding cable TV service, contact your local cable TV service provider(s).

How to connect

1. Connect the provided BNC-RCA adapter to the monitor’s VIDEO
INPUT.

2. Connect the audio and video cables from the Cable Box's output
jacks to the monitor input jacks, as shown in the figure.
When connecting the monitor to a Cable Box, match the jack colors
(Video = yellow, Audio Left = white, and Audio Right = red).

How to use

1. Use the INPUT SELECT button on the remote control to select
Video.

2. Select your desired channel with the remote control for cable box.

Cable Box

Owner’s Manual 11

Installation

RL

AUDIO VIDEO

Video Game Set

Camcorder

YPBP

R

(MONO)

R

AUDIO

L

R

AUDIO

L

S-VIDEO

AUDIO INPUTVIDEO INPUT

AUDIO INPUT

COMPONENT INPUT

YPBP

R

(MONO)

R

AUDIO

L

R

AUDIO

L

S-VIDEO

AUDIO INPUTVIDEO INPUT

AUDIO INPUT

AUDIO INPUT

REMOTE
CONTROL

COMPONENT INPUT

DVI INPUT

RGB INPUT

RGB OUTPUT

B

R

(R) AUDIO (L)

RGB-DTV OUTPUT

(R) AUDIO (L)(R) AUDIO (L)

DVI-DTV OUTPUT

B

R

(R) AUDIO (L) (R) AUDIO (L)

S-VIDEO

YPBP

R

(MONO)

R

AUDIO

L

R

AUDIO

L

S-VIDEO

AUDIO INPUTVIDEO INPUT

AUDIO INPUT

COMPONENT INPUT

External

External

A/V Source Setup

A/V Source Setup

How to connect

1. Connect the provided BNC-RCA adapter to the monitor’s
VIDEO INPUT.

2. Connect the audio and video cables from the external
equipment's output jacks to the monitor input jacks, as
shown in the figure.
When connecting the monitor to external equipment, match
the jack colors (Video = yellow, Audio Left = white, and
Audio Right = red).

How to use

1. Use the INPUT SELECT button on the remote control to
select Video.

2. Operate the corresponding external equipment. Refer to
external equipment operating guide.

DVD Setup

DVD Setup

or

DVD

How to connect

1. Connect the DVD video outputs to the COMPONENT (Y, PB, PR)
INPUT jacks and connect the DVD audio outputs to the AUDIO
INPUT jacks on the monitor, as shown in the figure.

2. If your DVD only has an S-Video output jack, connect this to the
S-VIDEO input on the monitor and connect the DVD audio outputs
to the AUDIO INPUT jacks on the monitor, as shown in the figure.

How to use

1. Turn on the DVD player, insert a DVD.

2. Use the INPUT SELECT button on the remote control to select
Component. (If connected to S-VIDEO, select the S-Video exter­nal input source.)

3. Refer to the DVD player's manual for operating instructions.

• Component Input ports

To get better picture quality, connect a DVD player to the compo­nent input ports as shown below.

Component ports of the

Monitor

Y

PB

PR

DTV Setup

DTV Setup

- To watch digitally broadcast programs, purchase and
connect a digital set-top box.

- This monitor supports HDCP (High-bandwidth Digital
Contents Protection) protocol for DVI DTV
(480p,720p,1080i) mode.

How to connect

Use the monitor’s COMPONENT (Y, PB, PR) INPUT,
RGB or DVI jack for video connections, depending on
your set-top box connector. Then, make the corre­sponding audio connections.

How to use

1. Turn on the digital set-top box. (Refer to the owner’s
manual for the digital set-top box.)

2. Use INPUT SELECT on the remote control to select
Component, RGB, or DVI.

12 Plasma Display Panel

Pb

B-Y

Cb
PB

Pr

R-Y

Cr

PR

Video output ports
of DVD player

Y
Y
Y
Y

oror

Digital Set-top Box

Installation

R

( )

( )

( )

( )

L

RS-232C INPUT

(CONTROL/SERVICE)

EXTERNAL SPEAKER

AUDIO INPUT

REMOTE
CONTROL

DVI INPUT

RGB INPUT

RGB OUTPUT

PC Setup

PC Setup

- This monitor provides Plug and Play capability, meaning that the PC adjusts automatically to its settings. The monitor sends
configuration information (EDID) to the PC using the Video Electronics Standard Association (VESA) Display Data Channel
(DDC) protocol.

- The monitor perceives 640x480, 60Hz as DTV 480p based on the PC graphic card. In this case, change the screen scanning
rate for the graphic card.

How to connect

1. To get the best picture quality, adjust the PC

graphics card to 1024x768, 60Hz. Resolutions
over UXGA cannot be displayed.

2. Use the monitor’s RGB INPUT or DVI (Digital

Visual Interface) INPUT port for video connections,
depending on your PC connector.

If the graphic card on the PC does not output ana­log and digital RGB simultaneously, connect only
one of either RGB INPUT or DVI INPUT to display

the PC on the monitor.
If the graphic card on the PC does output analog
and digital RGB simultaneously, set the monitor to
either RGB or DVI; (the other mode is set to Plug
and Play automatically by the monitor.)

3. Then, make the corresponding audio connections.
If using a sound card, adjust the PC sound as
required.

How to use

1. Turn on the PC and the monitor.

2. Turn on the display by pressing the POWER button on the monitor's remote control.

3. Use the INPUT SELECT button on the remote control to select RGB or DVI.

4. Check the image on your monitor. There may be noise associated with the resolution, vertical pattern, contrast or
brightness in PC mode. If noise is present, change the PC mode to another resolution, change the refresh rate to
another rate or adjust the brightness and contrast on the menu until the picture is clear. If the refresh rate of the PC
graphic card can not be changed, change the PC graphic card or consult the manufacturer of the PC graphic card.

NOTES: • Depending on the graphics card, DOS mode may not work if you use a DVI-I cable.

• Avoid keeping a fixed image on the monitor's screen for a long period of time. The fixed image may become

permanently imprinted on the screen. Use the screen saver when possible.

• The synchronization input form for Horizontal and Vertical frequencies is separate.

Owner’s Manual 13

Installation

Monitor Display Specifications (RGB-PC / DVI-PC Mode)

Resolution

640x350

720x400

640x480

800x600

832x624

848x480

Horizontal

Frequency(KHz)

31.468

37.861

31.469

37.927

31.469

35.000

37.861

37.500

43.269

35.156

37.879

46.875

53.674

49.725

31.500

35.000

37.500

Vertical

Frequency(Hz)

70.09

85.08

70.08

85.03

59.94

66.66

72.80

75.00

85.00

56.25

60.31

75.00

85.06

74.55

60.00

70.00

75.00

Resolution

852x480

1024x768

1152x864

1280x960

1280x1024

1360x768

1366x768

Horizontal

Frequency(KHz)

31.500

35.000

37.500

48.363

56.476

60.023

54.348

63.995

67.500

60.000

63.981

47.700

59.625

47.700

59.625

Vertical

Frequency(Hz)

60.00

70.00

75.00

60.00

70.06

75.02

60.05

70.01

75.00

60.00

60.02

60.00

75.02

60.00

75.02

14 Plasma Display Panel

Operation

Operation

urning on the Monitor

TTurning on the Monitor

Tu rning on the Monitor just after installation

1. Connect power cord correctly.

2. Press the ON/OFF button on the Monitor. At this moment, the Monitor is switched to standby

mode. Press the INPUT SELECT button on the Monitor or press the POWER, INPUT SELECT
button on the remote control and then the Monitor will switch on.

Turning on the Monitor (power cord is still connected)

1. If the Monitor was turned off with the ON/OFF button on the Monitor

• Press the ON/OFF button on the Monitor to turn the Monitor on.

2. If the Monitor was turned off with the remote control and then the ON/OFF button on the Monitor

Operation

• Press the ON/OFF button on the Monitor and then press the INPUT SELECT button on the

Monitor or press the POWER, INPUT SELECT button on the remote control to turn the Monitor on.

Menu Language Selection

Menu Language Selection

- The menus can be shown on the screen in the selected language. First select your language.

1. Press the MENU button and then use

2. Press the G button and then use

3. Press the G button and then use

From this point on, the on-screen menus will be shown in the language of your choice.

4. Press the OK button to save.

D/ E

D/ E

button to select the SPECIAL menu.

D/ E

button to select Language.

button to select your desired language.

Owner’s Manual 15

Operation

0
0
0

ideo Menu Options

VVideo Menu Options

- Video menu adjustment are unique to each input source. Readjust Video menu settings for each following
input source as preferred.

• RGB (PC) / DVI (PC),

• RGB (DTV) / DVI (DTV) / Component (480p, 720p, 1080i)

• Video / S-Video / Component (480i)

APC (Auto Picture Control)

APC (Auto Picture Control)

- APC adjusts the Monitor for the best picture appearance.

- When adjusting Video menu options (contrast, brightness, color, sharpness, and tint) manually, APC automatically
changes the setting to User.

1. Press the APC button repeatedly to select the picture appearance setup option as shown below.

Clear Optimum Soft User

• You can also select Clear, Optimum, Soft, or User in the VIDEO menu.

• Clear, Optimum, and Soft settings are preset for optimum picture quality at the factory and cannot be changed.

Manual Picture Control (User

Manual Picture Control (

option)

option)

- You can adjust picture contrast, brightness, color, sharpness, and tint to the levels you prefer.

VIDEO

1. Press the MENU button and then use

2. Press the

G button and then use

D / E

D / E

(Contrast, Brightness, Color, Sharpness, or Tint)

3. Press the

G button and then use F / G button to make appropriate adjustments.

4. Press the OK button to save.

Auto Color TT

Auto Color

emperature Control

emperature Control

button to select the VIDEO menu.

button to select the desired picture option

.

AUDIO

TIME

SPECIAL

SCREEN

TWIN

APC
ACC
Color temp.

Contrast 85 G

Brightness 60
Color 50
Sharpness 50
Tint 0

MENU

Prev.

- To initialize values (reset to default settings), select the Normal option.

- When adjusting color temperature options (red, green, and blue) manually, ACC automatically changes the setting to User.

1. Press the MENU button and then use

2. Press the

3. Press the

G button and then use

G button and then use

D / E

D / E

(Preset), Warm (Preset), or User (Manual Adjustment).

4. Press the OK button to save.

Manual Color TT

Manual Color

emperature Control (User

emperature Control (

button to select the VIDEO menu.

D / E

button to select ACC .

button to select either Normal (Default), Cool

option)

option)

VIDEO

AUDIO

TIME

SPECIAL

SCREEN

TWIN

APC

ACC G

Color temp.
Contrast 85
Brightness 60
Color 50
Sharpness 50
Tint 0

MENU

Prev.

Normal
Cool
Warm
User

- You can adjust red, green, and blue to any color temperature you prefer.

1. Press the MENU button and then use

2. Press the

3. Press the

4. Use the

G button and then use
G button and then use

F / G button to make appropriate adjustments.

D / E

D / E

button to select the VIDEO menu.

D / E

button to select the Color temp option.
button to select Red, Green, or Blue.

• The adjustment range for Red, Green, and Blue is -20 ~ +20.

5. Press the OK button to save.

16 Plasma Display Panel

VIDEO

AUDIO

TIME

SPECIAL

SCREEN

TWIN

APC
ACC

Color temp. G

Contrast 85
Brightness 60
Color 50
Sharpness 50
Tint 0

MENU

Prev.

Red
Green
Blue

Audio Menu Options

Audio Menu Options

DASP

DASP

(Digital

(Digital

Auto Sound Processing)

Auto Sound Processing)

- DASP lets you enjoy the best sound without any special adjustment because the Monitor selects the appropri­ate sound options based on the program content.

- When adjusting sound options (treble, bass, and balance) manually, DASP automatically changes to User.

1. Press the DASP button repeatedly to select the appropriate sound setup as shown below.

Flat Music Cinema Sports User

• You can also select Flat, Music, Cinema, Sports, or User in the AUDIO menu.

• Flat, Music, Cinema, and Sports are preset for good sound quality at the factory and cannot be

changed.

Operation

Manual Sound Control (User

Manual Sound Control (

Press the MENU button and then use

1.

2. Press the G button and then use

(

Balance, Treble, or Bass).

option)

option)

button to select the AUDIO menu.

D / E

button to select the desired sound option

D / E

3. Press the G button and then use F / G button to make appropriate adjustments.

4. Press the OK button to save.

(Auto V

AAVLVL(Auto V

olume Leveler)

olume Leveler)

- This feature maintains an equal sound level; even if you change channels.

1. Press the MENU button and then use

2. Press the G button and then use

3. Press the

G button and then use

D / E

D / E

button to select the AUDIO menu.

D / E

button to select AV L .
button to select On or Off.

4. Press the OK button to save.

VIDEO

AUDIO

TIME

SPECIAL

SCREEN

TWIN

VIDEO

AUDIO

TIME

SPECIAL

SCREEN

TWIN

DASP
AVL
Balance 0

Treble 50 G

Bass 50

MENU

Prev.

DASP

AVL G

Balance 0
Treble 50
Bass 50

MENU

Prev.

On
Off

Owner’s Manual 17

Operation

12 00

30

:

-- --:

z

z

z

z

ime Menu Options

TTime Menu Options

Clock Setup

Clock Setup

- If current time setting is wrong, reset the clock.

1. Press the MENU button and then use

2. Press the G button and then use

3. Press the

G button and then use

4. Press the G button and then use

D / E

D / E

D / E

button to select the TIME menu.

D / E

button to select Clock.
button to set the hour.
button to set the minutes.

5. Press the OK button to save.

On/Off f TT

On/Of

imer Setup

imer Setup

- Timer function operates only if current time has been set.

- Off-Timer function overrides On-Timer function if they are both set to the same time.

1. Press the MENU button and then use

2. Press the

3. Press the G button and then use

G button and then use

D / E

D / E

button to select the TIME menu.

D / E

button to select Off timer or On timer.
button to select On.

• To cancel On/Off timer function, select Off.

4. Press the G button and then use

5. Press the G button and then use

6. For On timer function only, press the G button and then use

button to set the hour.

D / E

button to set the minutes.

D / E

button to set the

D / E

volume level at turn on.

7. Press the OK button to save.

Auto Offf

Auto Of

- If there is no input signal, the Monitor turns off automatically after 10 minutes.

1. Press the MENU button and then use

2. Press the G button and then use

3. Press the G button and then use

D / E

D / E

button to select the TIME menu.

D / E

button to select Auto off.
button to select On or Off.

4. Press the OK button to save.

VIDEO

Clock G

Off timer

AUDIO

On timer
Auto off

TIME

SPECIAL

SCREEN

TWIN

MENU

VIDEO

Clock
Off timer

AUDIO

On timer G

TIME

Auto off

SPECIAL

SCREEN

TWIN

MENU

VIDEO

Clock

AUDIO

Off timer
On timer

TIME

Auto off G On

SPECIAL

SCREEN

TWIN

MENU

Prev.

Prev.

Prev.

On
Off

Vol.

Off

Sleep TT

Sleep

imer

imer

- The sleep timer turns the Monitor off at a preset time. Note that this setting is cleared when the monitor is turned off.

1. Press the SLEEP button repeatedly to select the number of minutes. First the --- Min option appears on the
screen, followed by the following sleep timer options: 10, 20, 30, 60, 90, 120, 180, and 240 minutes.

2. When the number of minutes you want is displayed on the screen, press the OK button. The timer begins to count

down from the number of minutes selected.

3. To check the remaining minutes before the monitor turns off, press the SLEEP or OK button once.

4. To cancel the Sleep Timer, press the SLEEP button repeatedly until --- Min appears.

18 Plasma Display Panel

Special Menu Options

W

Special Menu Options

Key Lock

Key Lock

- The monitor can be set up so that it can only be used with the remote control.

- This feature can be used to prevent unauthorized viewing by disabling the front panel controls.

- This Monitor is programmed to remember which option it was last set to even if you turn the monitor off.

1. Press the MENU button and then use

2. Press the G button and then use

3. Press the G button and then use

D / E

D / E

• When setting On, the display ‘ Key lock’ appears on the screen if any button on

the front panel is pressed.

4. Press the OK button to save.

button to select the SPECIAL menu.

D / E

button to select Key lock.

button to select On or Off.

VIDEO

AUDIO

TIME

SPECIAL

SCREEN

TWIN

Language

Key lock G

ISM Method
Low power
Set ID
OSD Rotate

MENU

Prev.

-In setting Key lock ‘On’, if the monitor is turned off with the remote control, press the INPUT SELECT button
on the monitor or POWER, or INPUT SELECT on the remote control to turn the monitor on.

ISM (Image Sticking Minimization) Method

ISM (Image Sticking Minimization) Method

- A frozen still picture from a PC/video game displayed on the screen for prolonged periods of time will result in a
ghost image remaining; even if you change the image. Avoid allowing a fixed image to remain on the Monitor's
screen for a long period of time.

1. Press the MENU button and then use

2. Press the

3. Press the G button and then use

Orbiter, or Inversion.

G button and then use

D / E

D / E

• Normal

button to select the SPECIAL menu.

D / E

button to select ISM Method.
button to select either Normal, White wash,

VIDEO

AUDIO

TIME

SPECIAL

SCREEN

TWIN

Language
Key lock

ISM Method G

Low power
Set ID
OSD Rotate

MENU

Prev.

If image sticking is never a problem, ISM is not necessary - set to Normal.

•

White wash

White Wash removes permanent images from the screen. Note: An excessive burned in permanent image may be impossi­ble to clear entirely with White Wash. To return to normal viewing, press any button.

• Orbiter
Orbiter may help prevent ghost images. However, it is best not to allow any fixed image to remain on the screen. To avoid
a permanent image on the screen, the image will move every 1 minutes: Right → Right → Downside → Downside → Left
→ Left → Upside → Upside.

• Inversion
Inversion will automatically invert the plasma display panel color every 30 minutes.

4. Press the OK button to save.

Operation

On
Off

Normal
White wash
Orbiter
Inversion

Low Power

Low Power

- Low power reduces the plasma display's power consumption.

1. Press the MENU button and then use

2. Press the

3. Press the G button and then use

G button and then use

D / E

D / E

button to select the SPECIAL menu.

D / E

button to select Low power.
button to select On or Off.

• When you select On, the screen darkens.

4. Press the OK button to save.

Menu Rotation for V

Menu Rotation for V

1. Press the MENU button and then use the

2. Press the G button and then use the

3. Press the G button and then use the

ertical V

ertical V

iewing

iewing

D / E

button to select OSD Rotate.

D / E

button to select Normal or Rotate.

D / E

• Select Normal, if the monitor was installed horizontally.

• Select Rotate, if the monitor was installed vertically.

4. Press the OK button to save.

button to select the SPECIAL menu.

VIDEO

AUDIO

TIME

SPECIAL

SCREEN

TWIN

VIDEO

AUDIO

TIME

SPECIAL

SCREEN

TWIN

Language
Key lock
ISM Method

Low power G

Set ID
OSD Rotate

MENU

Prev.

Language
Key lock
ISM Method
Low power
Set ID

OSD Rotate

MENU

Prev.

On
Off

G

Normal
Rotate

Owner’s Manual 19

Operation

Screen Menu Options

Screen Menu Options

Auto

Adjustment

Auto

Adjustment

- RGB (PC) mode only; This function doesn’t work for RGB-DTV mode.

- Automatically adjusts picture position and minimizes image shaking.

- After adjustment, if the image is still not correct, your Monitor is functioning properly but needs further adjustment.

- Auto config. and Manual config. are not available for DVI mode.

1. Press the MENU button and then use

2. Press the G button and then use

D / E

3. Press the G button to run Auto configure.

• When Auto config. has finished, OK will appear on the screen.

• If the position of the image is still not correct, try Auto adjustment again.

4. In RGB (PC) mode, if the image needs to be adjusted more after using Auto config.,

button to select the SCREEN menu.

D / E

button to select Auto config..

VIDEO

AUDIO

TIME

SPECIAL

SCREEN

TWIN

Auto config. G

ARC
Zoom in/out
Position
Manual config.

Screen adj.

Reset
XGA Mode

MENU

Prev.

you can make further adjustments with the Manual config. option.

Setting Picture Format

Setting Picture Format

- Caution: If a 4:3 fixed image is shown with gray bars at the sides of the screen for a long time, the gray images
may remain visible.

- All aspect ratio for RGB 480p, DVI 480p, Component 480i/480p, Video, and S-Video sources are shown below.

- Use 4:3, or 16:9 for other input sources.

1. Press the ARC button repeatedly to select the desired picture format. You can also adjust ARC in the SCREEN
menu.

• 4:3

- Choose 4:3 when you want to view a picture with an original 4:3 aspect ratio, with bars appearing at both the

left and right sides to fill the screen.

• 16:9

- Choose 16:9 when you want to adjust the picture horizontally, in a linear proportion to fill the entire screen.

• Horizon

- Choose Horizon when you want to adjust the picture in a non-linear proportion, that is, more enlarged at both

sides, to create a spectacular view.

• Zoom

- Choose Zoom when you want to view the picture without any alteration. However, the top and bottom portions

of the picture will be cropped.

To set

Picture Size Zoom

Picture Size Zoom

- If enlarging or reducing the picture, the image may become distorted.

1. Use ZOOM+/ZOOM- button to enlarge or reduce the picture size.

• Zoom adjustment range is 100~300.

2. Adjust the main picture position using the

Zoom out

100%

D

F

G

E

D / E

/ F / G

buttons while in enlarged picture mode.

20 Plasma Display Panel

1
4

▲
▼

◀▶

▲
▼

◀▶

12

54

▲
▼

◀▶

12

3

4

5

6

7

89

0
0

◀▶

▲

▼

▲
▼

◀▶

12

3

4

5

6

7

89

Split Zoom

Split Zoom

- Enlarges the picture in correct proportions.

- Split Zoom can be used for all input sources.

- In 2-Split Zoom mode, you can only move the image up or down.

- If a screen is enlarged, a screen can move without selecting section of screen Split Zoom.

-It’s not available to use this function if OSD Rotate is set to the Rotate option.

1. Press the SPLIT ZOOM button repeatedly to select either 2, 4 , or 9 Split Zoom.

Operation

2-Split zoom

4-Split zoom

9-Split zoom

2. Press the number button corresponding to the section you wish to enlarge. You can move within the enlarged
image with the

Screen Position

Screen Position

/ F / G button. To return to normal viewing, press the SPLIT ZOOM button again.

D / E

9-Split zoom

Example of choosing 5.

Section 5 is enlarged to fill
the screen.

- This function works in the following mode:
RGB-PC, RGB-DTV (480p,720p,1080i), COMPONENT (480p,720p,1080i).

1. Press the MENU button and then use

2. Press the

3. Press the

G button and then use
G button and then use

D / E
D / E

4. Press the OK button to save.

button to select the SCREEN menu.

D / E

button to select Position.

/ F / G button to adjust the position.

VIDEO

AUDIO

TIME

SPECIAL

SCREEN

TWIN

Auto config.
ARC
Zoom in/out

Position G

Manual config.

Screen adj.

Reset
XGA Mode

MENU

Prev.

Manual Configure (RGB-PC mode only)

Manual Configure (RGB-PC mode only)

- If the image still isn’t clear after auto adjustment and especially if characters are still jittery, adjust the picture

Phase manually.

- To correct the screen size, adjust

1. Press the MENU button and then use

2. Press the G button and then use

3. Press the G button and then use

4. Use the F / G button to make appropriate adjustments.

• The Phase adjustment range is 0 ~ 31.

• The Clock adjustment range is -50 ~ +50.

Clock.

button to select the SCREEN menu.

D / E

button to select Manual config..

D / E

button to t o select Phase or Clock.

D / E

VIDEO

AUDIO

TIME

SPECIAL

SCREEN

TWIN

Auto config.
ARC
Zoom in/out
Position

Manual config. G

Screen adj.

Reset
XGA Mode

MENU

5. Press the OK button to save.

Phase
Clock

Prev.

Owner’s Manual 21

Operation

Screen Menu Options continued

Screen Menu Options continued

Screen

Screen

Adjustments (V

Adjustments (V

ideo, S-V

ideo, S-V

ideo, and Component 480i mode only)

ideo, and Component 480i mode only)

- Use this function to correct jittering or picture instability during video tape playback.

1. Press the MENU button and then use

2. Press the G button and then use

3. Press the G button and then use

D / E

D / E

button to select the SCREEN menu.

D / E

button to select Screen adj..
button to t o select TV or VCR .

• Select the VCR option if watching a VCR.

• Select the TV option for other equipment.(Except VCR)

4. Press the OK button to save.

Initializing (Reset to original factory value)

Initializing (Reset to original factory value)

- You can reset values in all modes.

- To initialize the adjusted value, follow instructions below.

1. Press the MENU button and then use

2. Press the G button and then use

D / E

button to select the SCREEN menu.

D / E

button to select Reset.

3. Press the G button.

•You can initialize Zoom In/Out, Manual config., Position, Split zoom, PIP size, PIP posi­tion, and sub picture size for twin picture features.

Selecting W

Selecting W

ide VGA/XGA

ide VGA/XGA

mode (RGB-PC, DVI-PC mode only)

mode (RGB-PC, DVI-PC mode only)

VIDEO

AUDIO

TIME

SPECIAL

SCREEN

TWIN

VIDEO

AUDIO

TIME

SPECIAL

SCREEN

TWIN

Auto config.

ARC
Zoom in/out

Position
Manual config.

Screen adj. G

Reset
YNR

MENU

Prev.

Auto config.
ARC
Zoom in/out
Position
Manual config.

Screen adj.

Reset G

XGA Mode

MENU

Prev.

TV
VCR

To set

- To see a normal picture, match the resolution of RGB XGAmode (1024x768, 1360x768, 1366x768) with the selection for XGA
mode and the resolution of RGB VGA mode (640x480, 848x480, 852x480) with the selection for VGA mode in the SCREEN
menu.

- If the input source is RGB VGA mode, the screen menu option is changed from XGA mode to VGA mode automatically.

1. Press the MENU button and then use

2. Press the G button and then use

3. Press the G button and then use

D / E

D / E

4. Press the OK button to save.

Luminance Noise Reduction (V

Luminance Noise Reduction (V

button to select the SCREEN menu.

D / E

button to select VGA mode/XGA mode.

button to select the desired VGA/XGA resolution.

ideo, S-V

ideo, S-V

ideo and Component 480i modes only)

ideo and Component 480i modes only)

VIDEO

AUDIO

TIME

SPECIAL

SCREEN

TWIN

Auto config.
ARC
Zoom in/out
Position
Manual config.

Screen adj.

Reset

XGA Mode G

MENU

Prev.

1024x768
1360x768
1366x768

- Use YNR to reduce the picture noise which may appear on the screen.

1. Press the MENU button and then use

2. Press the G button and then use

3. Press the G button and then use

D / E

D / E

4. Press the OK button to save.

button to select the SCREEN menu.

D / E

button to select YNR.

button to select On or Off.

VIDEO

AUDIO

TIME

SPECIAL

SCREEN

TWIN

Auto config.

ARC
Zoom in/out

Position
Manual config.

Screen adj.
Reset

YNR G

MENU

Prev.

On
Off

22 Plasma Display Panel

Operation

10 : 30

PIP

PIP

(Picture-In-Picture) Feature

(Picture-In-Picture) Feature

- PIP lets you view 2 different inputs (sources) on your monitor screen at the same time. One source will be large, and the
other source will show a smaller inset image.

PIP

Size

PIP

atching PIP

WWatching PIP

Press the PIP button repeatedly to turn PIP on or off.

Size

Press the WIN.SIZE button and then use F / G button to
change the sub picture size.

Component

Video

Win.size

F G

PIP

Aspect Ratio

PIP

Aspect Ratio

Press the PIP ARC button. The sub picture appears as shown.

Swapping PIP

Swapping PIP

Press the SWAP button to switch the main and sub pictures.

Component

Video

10 : 30 10 : 30

Video

Component

4 : 3

Moving PIP

Moving PIP

16 : 9

Press the WIN.POSITION button.
Press the

/ F / G button repeatedly until desired posi-

D / E

tion is achieved. The sub picture moves up/down/left/right.

Win.position

▲

◀▶

▼

Selecting an Input Signal Source for the PIP

Selecting an Input Signal Source for the PIP

Use the SUB INPUT button to select the input source for
the sub picture.

Main Picture Source

Video
S-Video
Component 480i
Component 480p/720p/1080i
RGB and DVI

Available Sub Picture Sources

S-Video, Component 480i/480p/720p/1080i, RGB, and DVI
Video, Component 480i/480p/720p/1080i, RGB, and DVI
Video,S-Video, RGB, and DVI
Video and S-Video
Component 480i, Video, and S-Video

Main Picture Sub Picture

Owner’s Manual 23

Operation

DW 1

DW 2

10 : 30

10 : 30

◀▶

win Picture Setup Option

TTwin Picture Setup Option

- As the name suggests, this mode splits the screen into 2, allowing 2 picture sources to be shown on the monitor screen at the
same time. Each source is given half the screen.

atching TT

WWatching

win Picture

win Picture

Press the TWIN PICTURE button repeatedly to select one of the Twin Picture options.

Sub Picture Size

Sub Picture Size

Adjustment

Adjustment

Press the WIN.SIZE button and then use F / G button to change the sub picture size.

• Using the WIN.SIZE function in Twin Picture mode, main and sub picture sizes are
changed simultaneously.
Using the WIN.SIZE function in PIP mode, sub picture size is changed.

• WIN.POSITION is not functional in Twin Picture mode.

Swapping the TT

Swapping the

win Picture

win Picture

Use the SWAP button to switch the main and sub pictures in twin picture mode.

Win.size

F G

Component

Video

Main Picture Sub Picture

Selecting a Source for the TT

Selecting a Source for the

win Picture

win Picture

Use the SUB INPUT button to select the input source for the sub picture.

Main Picture Source

Video
S-Video
Component 480i
Component 480p/720p/1080i
RGB and DVI

Available Sub Picture Sources

S-Video, Component 480i/480p/720p/1080i, RGB, and DVI
Video, Component 480i/480p/720p/1080i, RGB, and DVI
Video,S-Video, RGB, and DVI
Video and S-Video
Component 480i, Video, and S-Video

24 Plasma Display Panel

Video

Component

External Control Device Setup

R

( )

( )

( )

( )

L

RS-232C INPUT

(CONTROL/SERVICE)

EXTERNAL SPEAKER

YPBP

R

(MONO)

R

AUDIO

L

R

AUDIO

L

S-VIDEO

AC INPUT

AUDIO INPUTVIDEO INPUT

AUDIO INPUT

AUDIO INPUT

REMOTE

CONTROL

COMPONENT INPUT

DVI INPUT

RGB INPUT

RGB OUTPUT

External Control Device Setup

External Control Device Setup

- Connect the RS-232C input jack to an external control device (such as a computer or an A/V control system)
and control the Monitor’s functions externally.

- Connect the serial port of the control device to the RS-232C jack on the Monitor's back panel.

- RS-232C connection cables are not supplied with the Monitor.

ype of Connector: D-Sub 9-pin Male

TType of Connector: D-Sub 9-pin Male

No. Pin Name
1 No Connection
2 RXD (Receive data)
3 TXD (Transmit data)
4 DTR (DTE side ready)
5 GND
6 DSR (DCE side ready)
7 RTS (Ready to send)
8 CTS (Clear to send)
9 No Connection

RS-232C Configurations

RS-232C Configurations

7-Wire Configuration

(Standard RS-232C cable)

RXD
TXD

GND

DTR
DSR
RTS
CTS

PC

2
3
5
4
6
7
8

PDP

3
2
5
6
4
8
7

TXD
RXD
GND
DSR
DTR
CTS
RTS

1
5

9
6

3- Wire Configuration

(Non standard)

RXD
TXD

GND

DTR
DSR
RTS
CTS

PC

2
3
5
4
6
7
8

PDP

3
2
5
4
6
7
8

TXD
RXD

GND

DTR

DSR

RTS
CTS

D-Sub 9

D-Sub 9

D-Sub 9

D-Sub 9

Owner’s Manual 25

External Control Device Setup

1

Set ID

Set ID

- Use this function to specify a monitor ID number.

- Refer to ‘Real Data Mapping 1’. See page 27.

1. Press the MENU button and then use the

2. Press the G button and then use

button to select Set ID.

D / E

button to select the SPECIAL menu.

D / E

3. Press the G button and then use F / G button to adjust Set ID to choose the desired
monitor ID number.

• The adjustment range of Set ID is 1 ~ 99.

Communication Parameters

Communication Parameters

VIDEO

AUDIO

TIME

SPECIAL

SCREEN

TWIN

Language
Key lock
ISM Method
Low power

Set ID G

OSD Rotate

MENU

Prev.

• Baud rate : 115200 bps (UART)

• Data length : 8 bits

• Parity : None

Command Reference List

Command Reference List

COMMAND 1 COMMAND 2 DATA

(Hexadecimal)

01. Power k a 0 ~ 1

02. Input Select k b 0 ~ 4

03. Aspect Ratio k c 0 ~ 3

04. Screen Mute k d 0 ~ 1

05. Volume Mute k e 0 ~ 1

06. Volume Control k f 0 ~ 64

07. Contrast k g 0 ~ 64

08. Brightness k h 0 ~ 64

09. Color k i 0 ~ 64

10. Tint k j 0 ~ 64

11. Sharpness k k 0 ~ 64

12. OSD Select k l 0 ~ 1

13.

Remote Control Lock Mode

k m 0 ~ 1

14. PIP/Twin k n 0 ~ 3

15. PIPAspect Ratio k o 0 ~ 1

16. Split Zoom k p 0 ~99

17. PIP Position k q 0 ~ 3

18. Treble k r 0 ~ 64

19. Bass k s 0 ~ 64

20. Balance k t 0 ~ 64

21. Color Temperature k u 0 ~ 3

22. Red Adjustment k v 0 ~ C8

23. Green Adjustment k w 0 ~ C8

24. Blue Adjustment k $ 0 ~ C8

25. PIP Input Source k y 0 ~ 4

26. Abnormal State k z 0 ~ a

27. ISM Method j p 0 ~ 3

28. Low Power j q 0 ~ 1

29. Orbiter Time Setting j r 1 ~ FE

30. Orbiter Pixel Setting j s 0 ~9

31. Picture Size Setting j t 0 ~64
for Twin Picture mode

32. Auto Configure j u 1

• Menu doesn’t display on screen when setting the 4,

12, 13, and 26 ~ 32.

• Stop bit : 1 bit

• Communication code : ASCII code

ransmission / Receiving Protocol

TTransmission / Receiving Protocol

Transmission

[Command1][Command2][ ][Set ID][ ][Data][Cr]

[Command 1]: k, j

*

[Command 2]: To control PDP set.

*

[Set ID]: You can adjust the set ID to choose desired moni-

*

tor ID number in Special menu. Adjustment range
is 1 ~ 99. When selecting Set ID ‘0’, every con­nected PDP set is controlled. Set ID is indicated
as decimal (1~99) on menu and as Hexa decimal
(0x0~0x63) on transmission/receiving protocol.

[DATA]: To transmit command data.

*
*
*

Transmit ‘FF’ data to read status of command.

[Cr]: Carriage Return

ASCII code ‘0x0D’

[ ]: ASCII code ‘space (0x20)’

OK Acknowledgement

[Command2][ ][Set ID][ ][OK][Data][x]

* The Monitor transmits ACK (acknowledgement) based on

this format when receiving normal data. At this time, if the
data is data read mode, it indicates present status data. If
the data is data write mode, it returns the data of the PC
computer.

Error Acknowledgement

[Command2][ ][Set ID][ ][NG][x]

* The Monitor transmits ACK (acknowledgement) based on

this format when receiving abnormal data from
non-viable functions or communication errors.

Data 1: Illegal Code

2: Not supported function
3: Wait more time

26 Plasma Display Panel

External Control Device Setup

01. Power (Command2:a)

G To control Power On/Off of the Monitor.

Transmission

[k][a][ ][Set ID][ ][Data][Cr]

Data 0 : Power Off 1 : Power On

Acknowledgement

[a][ ][Set ID][ ][OK][Data][x]

G To show Power On/Off.

Transmission

[k][a][ ][Set ID][ ][FF][Cr]

Data 0 : Power Off 1 : Power On

Acknowledgement

[a][ ][Set ID][ ][OK][Data][x]

* In a like manner, if other functions transmit ‘FF’ data

based on this format, Acknowledgement data feedback
presents status about each function.

02. Input Select (Command2:b) (Main Picture Input)

G To select input source for the Monitor.

You can also select an input source using the INPUT
SELECT button on the Monitor's remote control.

Transmission

[k][b][ ][Set ID][ ][Data][Cr]

Data 0 : RGB

1 : Component
2 : Video

Acknowledgement

[b][ ][Set ID][ ][OK][Data][x]

3 : S-video
4 : DVI

04. Screen Mute (Command2:d)

G To select screen mute on/off.

Transmission

[k][d][ ][Set ID][ ][Data][Cr]

Data 0 : Screen mute off (Picture on)

1 : Screen mute on (Picture off)

Acknowledgement

[d][ ][Set ID][ ][OK][Data][x]

05. Volume Mute (Command2:e)

G To control volume mute on/off.

You can also adjust mute using the MUTE button on
remote control.

Transmission

[k][e][ ][Set ID][ ][Data][Cr]

Data 0 : Volume mute on (Volume off)

1 : Volume mute off (Volume on)

Acknowledgement

[e][ ][Set ID][ ][OK][Data][x]

06. Volume Control (Command2:f)

G To adjust volume.

You can also adjust sound level with the volume but­tons on remote control.

ransmission

T

[k][f][ ][Set ID][ ][Data][Cr]

Data Min : 0 ~ Max : 64

Refer to ‘Real Data Mapping1’ as shown below.

•

Acknowledgement

[f][ ][Set ID][ ][OK][Data][x]

03. Aspect Ratio (Command2:c) (Main Picture Format)

G To adjust the screen format.

You can also adjust the screen format using the ARC
(Aspect Ratio Control) button on remote control or in the
Special menu.

ransmission

T

[k][c][ ][Set ID][ ][Data][Cr]

Data 0 : Wide screen (16:9)

1 : Normal screen (4:3)
2 : Full screen (Zoom)
3 : Horizon

Acknowledgement

[c][ ][Set ID][ ][OK][Data][x]

* You select either 16:9 or 4:3 screen aspect ratio using the

PC, DTV 720p/1080i.

07. Contrast (Command2:g)

G To adjust screen contrast.

You can also adjust contrast in the Video menu.

ransmission

T

[k][g][ ][Set ID][ ][Data][Cr]

Data Min : 0 ~ Max : 64

• Refer to ‘Real Data Mapping1’ as shown below.

Acknowledgement

[g][ ][Set ID][ ][OK][Data][x]

Real Data Mapping 1

*

0 : Step 0

A : Step 10 (SET ID 10)

F : Step 15 (SET ID 15)

10 : Step 16 (SET ID 16)

64 : Step 100

Owner’s Manual 27

External Control Device Setup

08. Brightness (Command2:h)

G To adjust screen brightness.

You can also adjust brightness in the Video menu.

Transmission

[k][h][ ][Set ID][ ][Data][Cr]

Data Min : 0 ~ Max : 64

• Refer to ‘Real Data Mapping 1’. See page 27.

Acknowledgement

[h][ ][Set ID][ ][OK][Data][x]

09. Color (Command2:i)

G To adjust the screen color.

You can also adjust color in the Video menu.

ransmission

T

[k][i][ ][Set ID][ ][Data][Cr]
Data Min : 0 ~ Max : 64

• Refer to ‘Real Data Mapping 1’. See page 27.

Acknowledgement

[i][ ][Set ID][ ][OK][Data][x]

10. Tint (Command2:j)

G To adjust the screen tint.

You can also adjust tint in the Video menu.

T

ransmission

[k][j][ ][Set ID][ ][Data][Cr]
Data Red : 0 ~ Green : 64

Refer to ‘Real Data Mapping 1’. See page 27.

•

Acknowledgement

[j][ ][Set ID][ ][OK][Data][x]

11. Sharpness (Command2:k)

G To adjust the screen sharpness.

You can also adjust sharpness in the Video menu.

ransmission

T

[k][k][ ][Set ID][ ][Data][Cr]

Data Min: 0 ~ Max: 64

• Refer to ‘Real Data Mapping 1’. See page 27.

Acknowledgement

[k][ ][Set ID][ ][OK][Data][x]

12. OSD Select (Command2:l)

G To select OSD (On Screen Display) on/off.

T

ransmission

[k][l][ ][Set ID][ ][Data][Cr]
Data 0: OSD off 1: OSD on

Acknowledgement

[l][ ][Set ID][ ][OK][Data][x]

13. Remote Control Lock Mode (Command2:m)

G To lock the remote control and front panel controls on the

monitor

ransmission

T

[k][m][ ][Set ID][ ][Data][Cr]

Data 0: Lock off 1: Lock on

Acknowledgement

[m][ ][Set ID][ ][OK][Data][x]

• If you’re not using the remote control or front panel controls

on the monitor, use this mode. When the main power is
turned on/off, remote control lock is released.

14. PIP / Twin (Command2:n)

G To control the PIP (Picture-in-Picture) or Twin Picture.

Y ou can also control the PIP/T win picture mode using the PIP
or TWIN PICTURE button on the remote control or in the
Twin menu.

Transmission

[k][n][ ][Set ID][ ][Data][Cr]

Data 0: PIP/DW off

1: PIP

Acknowledgement

[n][ ][Set ID][ ][OK][Data][x]

2: DW1
3: DW2

15. PIP Aspect Ratio (Command2:o)

G To select the PIP picture format.

You can also select the PIP picture format using PI P ARC
on the remote control.

T

ransmission

[k][o][ ][Set ID][ ][Data][Cr]

Data 0: 4:3 1: 16:9

Acknowledgement

[o][ ][Set ID][ ][OK][Data][x]

16. Split Zoom (Command2:p)

G To operate split zoom function and select the split

zoom section number.

ransmission

T

[k][p][ ][Set ID][ ][Data][Cr]

Data Min: 0 ~ Max: 99

• Refer to ‘Real Data Mapping 2’.

Acknowledgement

[p][ ][Set ID][ ][OK][Data][x]

Real Data Mapping 2

*

0 : Reset split zoom
21: Selection 1 of 2 split zoom
24: Selection 4 of 2 split zoom
41: Selection 1 of 4 split zoom
42: Selection 2 of 4 split zoom
44: Selection 4 of 4 split zoom
45: Selection 5 of 4 split zoom
91: Selection 1 of 9 split zoom

28 Plasma Display Panel

99: Selection 9 of 9 split zoom

External Control Device Setup

17. PIP Position (Command2:q)

G To select sub picture position for PIP.

You can also adjust the sub picture position using
Win.position on the remote control or in the Twin menu.

ransmission

T

[k][q][ ][Set ID][ ][Data][Cr]

Data 0: Right down on screen

1: Left down on screen
2: Left up on screen
3: Right up on screen

Acknowledgement

[q][ ][Set ID][ ][OK][Data][x]

18. Treble (Command2:r)

G To adjust treble.

You can also adjust treble in the Audio menu.

ransmission

T

[k][r][ ][Set ID][ ][Data][Cr]

Data Min: 0 ~ Max: 64

• Refer to ‘Real Data Mapping 1’. See page 27.

Acknowledgement

[r][ ][Set ID][ ][OK][Data][x]

19. Bass (Command2:s)

G To adjust bass.

You can also adjust bass in the Audio menu.

ransmission

T

[k][s][ ][Set ID][ ][Data][Cr]

Data Min: 0 ~ Max: 64

• Refer to ‘Real Data Mapping 1’. See page 27.

Acknowledgement

[s][ ][Set ID][ ][OK][Data][x]

20. Balance (Command2:t)

G To adjust balance.

You can also adjust balance in the Audio menu.

T

ransmission

[k][t][ ][Set ID][ ][Data][Cr]

Data Min: 0 ~ Max: 64

• Refer to ‘Real Data Mapping 1’. See page 27.

Acknowledgement

[t][ ][Set ID][ ][OK][Data][x]

21. Color Temperature (Command2:u)

G To adjust color temperature.

You can also adjust ACC in the Video menu.

ransmission

T

[k][u][ ][Set ID][ ][Data][Cr]

Data 0: Normal 1: Cool 2: Warm 3: User

Acknowledgement

[u][ ][Set ID][ ][OK][Data][x]

22. Red Adjustment (Command2:v)

G To adjust red in color temperature.

Transmission

[k][v][ ][Set ID][ ][Data][Cr]

Data Min: 0 ~ Max: C8

• Refer to ‘Real Data Mapping 3’ as shown below.

Acknowledgement

[v][ ][Set ID][ ][OK][Data][x]

23. Green Adjustment (Command2:w)

G To adjust green in color temperature.

ransmission

T

[k][w][ ][Set ID][ ][Data][Cr]

Data Min: 0 ~ Max: C8

• Refer to ‘Real Data Mapping 3’ as shown below.

Acknowledgement

[w][ ][Set ID][ ][OK][Data][x]

24. Blue Adjustment (Command2:$)

G To adjust blue in color temperature.

Transmission

[k][$][ ][Set ID][ ][Data][Cr]

Data Min: 0 ~ Max: C8

• Refer to ‘Real Data Mapping 3’ as shown below.

Acknowledgement

[$][ ][Set ID][ ][OK][Data][x]

Real data mapping 3

*

0 : -20
5 : -19
A : -18

5F: -1
64: 0
69: +1

C3: +19
C8: +20

Owner’s Manual 29

External Control Device Setup

25. PIP Input Select (Command2:y)

G To select input source for sub picture in PIP mode.

ransmission

T

[k][y][ ][Set ID][ ][Data][Cr]
Data 0: RGB 1: Component

2: Video 3: S-video 4: DVI

Acknowledgement

[y][ ][Set ID][ ][OK][Data][x]

26. Abnormal State (Command2:z)

G To recognize an abnormal state.

Transmission

[k][z][ ][Set ID][ ][FF][Cr]
Data FF:Read

Acknowledgement

[z][ ][Set ID][ ][OK][Data][x]
Data 0: Normal (Power on and signal exist)

1: No signal (Power on).
2: Turn the monitor off with remote control.
3: Turn the monitor off with Sleep Time function.
4: Turn the monitor off with RS-232C function.
5: 5V down.
6: AC down.
7: Turn the monitor off with Fan Alarm function.
8: Turn the monitor off with off time function.
9: Turn the monitor off with auto off function.
a: Turn the monitor off with AV board detect.

27. ISM Method (Command2:p)

G To avoid having a fixed image remain on screen.

Transmission

[j][p][ ][Set ID][ ][Data][Cr]
Data 0: Normal

1: White wash

Acknowledgement

[p][ ][Set ID][ ][OK][Data][x]

2: Orbiter
3: Inversion

28. Low Power (Command2:q)

G To control the low power function on/off.

Transmission

[j][q][ ][Set ID][ ][Data][Cr]
Data 0: Low power off

1: Low power on

Acknowledgement

[q][ ][Set ID][ ][OK][Data][x]

29. Orbiter Time Setting (Command2:r)

G To adjust orbiter operation time term.

ransmission

T

[j][r][ ][Set ID][ ][Data][Cr]

Data Min: 1 ~ Max: FE

Acknowledgement

[r][ ][Set ID][ ][OK][Data][x]

30. Orbiter Pixel Setting (Command2:s)

G To adjust pixel number in orbiter function.

Transmission

[j][s][ ][Set ID][ ][Data][Cr]

Data Min: 0 ~ Max: 9

Acknowledgement

[s][ ][Set ID][ ][OK][Data][x]

31. Picture Size Setting for Twin Picture mode
(Command2:t)

G To adjust main picture size in twin picture mode.

Transmission

[j][t][ ][Set ID][ ][Data][Cr]

Data Min: 0 ~ Max: 64

Refer to ‘Real data mapping1’. See page 27.

•

Acknowledgement

[t][ ][Set ID][ ][OK][Data][x]

32. Auto Configure (Command2:u)

G To adjust picture position and minimize image shaking

automatically. Auto Configure only works in RGB-PC
mode.

ransmission

T

[j][u][ ][Set ID][ ][Data][Cr]

Data 1: To set

Acknowledgement

[u][ ][Set ID][ ][OK][Data][x]

30 Plasma Display Panel

G Output waveform

Single pulse, modulated with 37.917KHz signal at 455KHz

G Configuration of frame

G Repeat code

G Lead code

•

1st frame

Low
custom code

Lead
code

High
custom code

Data code

Data code

TC

T

f

T1

C0

Carrier frequency

FCAR

= 1/TC = fOSC/12

Duty ratio = T1/T

C = 1/3

• Repeat frame

C1 C2 C3 C4 C5 C6 C7 C0 C1 C2 C3 C4 C5 C6 C7 D0 D1 D2 D3 D4 D5 D6 D7 D0 D1 D2 D3 D4 D5 D6 D7

Repeat code

9 ms 4.5 ms

0.55 ms

9 ms

2.25 ms

G Bit description

G Frame interval : Tf

The waveform is transmitted as long as a key is depressed.

• Bit “0”

Tf Tf

Tf=108ms @455KHz

0.56 ms 0.56 ms

1.12 ms

• Bit “1”

2.24 ms

IR Code Information

IR Code Information

How to Connect

How to Connect

G Connect your wired remote control to the Remote Control port on the Monitor.

Remote Control IR Code

Remote Control IR Code

IR Code Information

Owner’s Manual 31

IR Code Information

Code (Hexa) Function Note

00H
01H
02H
03H

08H
C4H
C5H

09H

10H

11H
12H
13H
14H
15H
16H
17H
18H
19H
0BH

D5H
C6H

5AH

D8H
BFH

0EH
44H
43H
52H

4DH

60H
61H
63H
64H
6BH
40H
41H
69H
6AH
7BH
79H
76H
77H

AFH

99H

UP (D)
DOWN (
VOL+ (

G)

)

E

VOL- (F)
POWER On/Off
POWER ON
POWER OFF
MUTE
Number Key 0
Number Key 1
Number Key 2
Number Key 3
Number Key 4
Number Key 5
Number Key 6
Number Key 7
Number Key 8
Number Key 9
AII INPUT SELECT
RGB
DVI
VIDEO
S-VIDEO
COMPONENT
SLEEP
OK (

Á)

MENU
DASP
APC
PIP
SUB INPUT
SWAP
PIP ARC
TWIN PICTURE
ZOOM +
ZOOM ­Window Size
Window Position
Split Zoom
ARC
ARC (4:3)
ARC (16:9)
ARC (ZOOM)
Auto configure

R/C Button
R/C Button
R/C Button
R/C Button
R/C Button (Power On/Off)
Discrete IR Code (Only Power On)
Discrete IR Code (Only Power Off)
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button (RGB/DVI/Video/S-video/Component)
Discrete IR Code (Input RGB Selection)
Discrete IR Code (Input DVI Selection)
Discrete IR Code (Input Video Selection)
Discrete IR Code (Input S-video Selection)
Discrete IR Code (Input Component Selection)
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button (PIP/TWIN Exchange)
R/C Button (4:3/16:9)
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button(4:3/16:9/Zoom Mode Selection)
Discrete IR Code (Only 4:3 mode)
Discrete IR Code (Only 16:9 mode)
Discrete IR Code (Only ZOOM mode)
Discrete IR Code (Only RGB-PC mode)

32 Plasma Display Panel

roubleshooting Checklist

TTroubleshooting Checklist

• Check whether the Monitor is turned on.

Troubleshooting Checklist

No picture &

No sound

Picture OK &

No sound

The remote control

doesn’t work

Picture appears slowly

after switching on

• Is power cord inserted into wall power outlet?

• Test the wall power outlet, plug other product’s power cord into the wall
power outlet where the Monitor’s power cord was plugged in.

• Press the VOLUME (G) button.

• Sound muted? Press MUTE button.

• Check to see if there is any object between the Plasma Display and the

remote control causing obstruction.

• Are batteries installed with correct polarity (+ to +, - to -)?
(Refer to p.8)

• Install new batteries. (Refer to p.8)

• This is normal, the image is muted during the plasma display startup process.

Please contact your service center, if the picture has not appeared after five
minutes.

• Select Color in the VIDEO menu and press the VOLUME (G) button.
(Refer to p.16)

No or Poor color

or Poor picture

Horizontal/vertical bars

or picture shaking

No output from one of

the speakers

Unusual sound from

inside the monitor

• Keep a sufficient distance between the Monitor and the VCR.

• Activate any function to restore the brightness of the picture.

(If still picture is on the screen for more than 5 minutes, the screen gets dark.)

• Check for local interference such as an electrical appliance or power tool.

• Adjust Balance in the AUDIO menu. (Refer to p.17)

• A change in ambient humidity or temperature may result in an unusual noise

when the plasma display is turned on or off and does not indicate a fault with
the monitor.

Owner’s Manual 33

Maintenance & Specification

Maintenance

Maintenance

- Early malfunctions can be prevented. Careful and regular cleaning can extend the amount of time you will have your
new Monitor. Be sure to turn the power off and unplug the power cord before you begin any cleaning.

Cleaning the Screen

Cleaning the Screen

1. Here’s a great way to keep the dust off your screen for a while. Wet a soft cloth in a mixture of lukewarm water and
a little fabric softener or dish washing detergent. Wring the cloth until it’s almost dry, and then use it to wipe the
screen.

2. Make sure the excess water is off the screen, and then let it air-dry before you turn on your Monitor.

Cleaning the Cabinet

Cleaning the Cabinet

To remove dirt or dust, wipe the cabinet with a soft, dry, lint-free cloth.
Please be sure not to use a wet cloth.

Extended

Extended

Product Specifications

Product Specifications

Absence

Absence

If you expect to leave your Monitor dormant for a long time (such as a vacation), it’s a good idea to
unplug the power cord to protect against possible damage from lightning or power surges.

MODELS

Width (inches / mm)

Height (inches / mm)

Depth (inches / mm)

Weight (pounds / kg)

Power requirement

P50W38, P50W38H, P50W38P

48.2 / 1223

28.9 / 734

4.1 / 105

95.2 / 43.2

AC120V, 60Hz

Resolution

Color

16,770,000 (256 steps of each R, G and B)

Operating Temperature Range

Operating Humidity Range

Maximum Elevation

• The specifications shown above may be changed without notice for quality improvement.

34 Plasma Display Panel

1366 x 768 (Dot)

32 ~ 104°F (0 ~ 40°C)

Less than 80%

6561 feet (2000m)

ZENITH ELECTRONICS CORPORATION

PLASMA DISPLAY PANEL P50W38/H/P LIMITED WARRANTY – USA

Zenith will repair or replace your product, at Zenith’s option, if it proves to be defective in material or workman­ship under normal use, during the warranty period (“Warranty Period”) listed below, effective from the date of orig­inal consumer/end user purchase. This warranty is good only to the original consumer/end user of the product and
is effective only when used in the United States.

WARRANTY PERIOD:

LABOR: ONE YEAR from the Date of Purchase.

PARTS: ONE YEAR from the Date of Purchase.

Effective Date of Warranty: Your warranty period

Begins on the date of sale to the original
consumer/end user. KEEP THE DEALER’S DATED BILL
OF SALE OR PROOF OF DELIVERY as evidence of the
purchase date. You will be required to submit a legible
copy of your bill of sale or proof of delivery when
requesting warranty service.

Repair Parts and Replacement Units are warranted

HOW SERVICE IS HANDLED:

Please call the Zenith Customer Interactive Center at

In Home Service. Please Call the Zenith Interactive
Center at 1-877-9ZENITH (1-877-993-6484) to
schedule a service appointment.

Your unit will be repaired or replaced with a new, sub­stitute model or factory reconditioned unit, at Zenith’s
option. If repaired, parts used in the repair may be new
or remanufactured.

Visit our website at http://www.zenithservice.com

for the remaining period of the original warranty.

THIS WARRANTY IS IN LIEU OF ANY OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WITHOUT
LIMITATION, ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. TO THE
EXTENT ANY IMPLIED WARRANTY IS REQUIRED BY LAW, IT IS LIMITED IN DURATION TO THE EXPRESS
WARRANTY PERIOD ABOVE. ZENITH WILL NOT BE LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL,
INDIRECT, SPECIAL, OR PUNITIVE DAMAGES OF ANY NATURE, INCLUDING, WITHOUT LIMITATION, LOST
PROFITS, LOST OR CORRUPTED PROGRAMMING OR DATA, OR ANY OTHER DAMAGE WHETHER BASED IN
CONTRACT, TORT, OR OTHERWISE. Some states do not allow the exclusion or limitation of incidental or conse-

quential damages or limitations on how long an implied warranty lasts, so the above exclusion or limitation may not
apply to you. This warranty gives you specific legal rights and you may also have other rights that vary from stat
to state.

THIS LIMITED WARRANTY DOES NOT APPLY TO:

● damage caused in shipping or transit

● service required as a result of improper installation,

including incorrect or insufficient AC supply (please
consult the owner’s manual for power supply
requirements)

● installation or repair of antenna systems, cable con-

verters, cable company supplied equipment, or
other components in a video system

● set-up or adjustment on consumer controls, or

damage caused by improper adjustments

● damage caused by other system components

● any panel that has been modified or incorporated

into any other product

● replacement of batteries on the remote control.

● damage (including cosmetic damage), failure, loss

or personal injury due to misuse, abuse, negli­gence, improper maintenance or storage, or to acts
of nature or other causes beyond Zenith’s control.
(Causes beyond Zenith’s control include but are not
limited to lightning strike, power surges, power out­ages and water damage.)

● Image burn-in

● repair or replacement of warranted parts by other

than Zenith Authorized Service Centers.

● units purchased or serviced outside of the U.S.A.

● product where the original factory serial numbers

have been removed, defaced or changed in any
way.

● product sold and labeled as “as is, where is” or sim-

ilar disclaimer.

The costs of repair or replacement under these excluded circumstances shall be borne by the consumer.

CONCERNING PIXEL FUNCTIONALITY: Your Plasma Display Panel contains about one million individual pixels.
Plasma displays typically contain a small number of pixels that do not function normally. Your display has been
inspected and is in compliance with manufacturer’s specifications, indicating that any pixel defects do not affect the
operation or use of your display.

CUSTOMER INTER-ACTIVE CENTER NUMBERS:

To obtain customer assistance, prod­uct information, or Dealer or Service
locations

Call 1-877-9Zenith (1-877-993-6484) (24 hours a day,

365 days per year) and select appropriate options from the
menu.
Or visit our website at http://www.zenithservice.com

BEFORE CALLING FOR SERVICE:

● Please check your operating guide – you may avoid a service call.

● Please have your product model number, serial number and the date of purchase or the date of original instal-

lation available.

● If a replacement unit is required, under some circumstances you may be asked to provide a reserve deposit to

Zenith against a credit card number as surety for advanced shipment. Your credit card will not be charged if
you return the defective unit within 10 working days.

● If a replacement unit is received, please use the carton and packaging from that unit in returning the defective

unit to Zenith.

● Parts and service in accordance with the Zenith warranty are Zenith’s responsibility and will be provided without

charge. Other service requirements will be at the owner’s expense. If you have problems in obtaining satisfac­tory warranty service, write or call the Zenith Customer Interactive Center. Service may be provided by inde­pendently owned and operated service organizations.

● To assure proper credit and avoid unnecessary charges, you must obtain a Return Authorization before return-

ing any product for Zenith Warranty Service. Contact the number below or your authorized Zenith repair facility
for details.

IMPORTANT: Please fill out and mail your Product Registration Card or go to www.zenithservice.com to register
your product online. This information allows Zenith to reach you promptly should we discover a safety or reliabili­ty problem that could affect you.

TO CONTACT ZENITH BY MAIL:

Zenith Customer Interactive Center
P.O. Box 240007
201 James Record Road
Huntsville, AL 35824
ATTN: CIC Plasma Display, Building 3

P/N : 3828VA0410B

c

(RF03GB)

206-3918
