REMOTE CONTROL MODEL MBR3430
OPERATION
The multi-brand remote supplied with your new Zenith TV
allows you to operate most models of infrared (IR)
remote-controlled TVs, VCRs and cable-TV converters, even
if they are all different brands.
CHOOSE THE OPERATING MODE
To operate your TV, VCR or CABLE-TV decoder, you must
first choose the remote’s mode of operation. To select the
mode, press the MODE key until the desired indicator lights.
Point toward unit
to be controlled
Your multi-brand remote has already been programmed to
operate your Zenith TV, a Zenith VCR and a Zenith cable-TV
decoder. It must be “taught” to operate other brands. Refer
to “Auto Find Mode” and “Programming Your Remote
Control” for details.
Some KEYS on the remote will always operate a particular
appliance. For example, VOLUME always operates the TV
volume and PLAY always operates the VCR. The function of
other keys depends on the mode selected.
Operating mode selection
and indicators
Menu operations on TV
and some VCRs
Numbered buttons for
channel selection and other
uses
Learn functions for user
programmed sequences
NOTE: See following pages
for operating instructions.
OFF-ON
SOURCE
FLASHBK
CHANNEL
VOLUME
t-
Controlled device
OFF/ON
Special features on TV and
some VCRs
Channel Up/Down
for TVs, VCRs and cable
Volume Up/Down for TV
k
1
MUTE
SEQ
m
SEARCH
Special features on some
TVs and some VCRs
t
-
G?=*
aEDez3am
e=3
m e
RECORD
wcE3cEE3a
REW
FREEZE
PIP
SWAP
TIMER
STOP PAUSE
F FWD TVNCR
PLAY
2736-O
MBR3430
4-l
REMOTE CONTROL MODEL MBR3430
TV OPERATIONS
The following functions and operations apply to your Zenith
TV. The remote control must be in the TV mode to operate
your TV.
MODE
Used to select the TV mode of
operation.
TV
Lights when TV mode of
operation is selected.
CC (Closed Captions)
Used to view closed captions
broadcast with some television
programs.
MENU, SELECT and ADJUST
Used with on-screen menus to
see menu, select an option, and
adjust that option.
Numbered Buttons
Used to select a TV channel.
ENTER
Used to view the Channel/Time
Display or to remove any on-
screen menu or display.
LEARN
Used to program remote.
PIP
Used to activate
Picture-In-Picture inset.
SWAP
Used to swap picture in PIP inset
with the main television picture.
\
--=I
/
Point toward your
TV,
OFF/ON
Used to turn TV ON or OFF.
SOURCE
Used to display the menu of TV
sources for some TVs. Press again
to step through the source
selections. On some TVs, press to
select AUX (Auxiliary) channel,
FLASHBK (Flashback)
Used to return to the last TV
/
-
\
channel you were watching.
CHANNEL Up/Down
Used to sequence through the TV
channels.
VOLUME Up/Down
Used to adjust the TV’s volume.
MUTE
Used to turn off sound while the
picture remains. Press again to
restore the sound.
SPATIAL EQUALIZATION
(SW
Used to select SEQ audio mode on
TVs equipped with SEQ feature.
FREEZE
Used to freeze the motion of the
picture on the PIP inset.
TIMER
Used to activate the SLEEP
TIMER. Press repeatedly to select
desired turn-off time.
2736-O
4-2
REMOTE CONTROL MODEL MBR3430
VCR OPERATIONS
The following functions and operations apply to Zenith VCR
models built after 1988. The remote control must be in the
VCR mode to operate your VCR.
The remote control supplied with your VCR may have keys
not duplicated on the new remote. If these functions are
desired, the original remote control will have to be used.
MODE
Used to select the VCR mode of
operation.
VCR
Lights when VCR mode of
operation is selected.
MENU, SELECT, ADJUST
and QUIT
Used with on-screen menus and
programming options of the VCR.
See VCR operating guide for details.
Numbered Buttons
Used to select a TV channel through
the VCR.
Also,
used to set the
timer in the VCR, and to enter
programming information.
ENTER
Used with the numbered buttons to
select a TV channel through the VCR.
AIW/PM
Used to set timer during
programming.
Point toward your VCR.
OFF/ON
Used to turn VCR ON or OFF.
FLASHBK (Flashback)
Used during VCR playback to
SOURCE
CY
FLASHBK
‘@@@@VCR
view the channel tuned by the
.
CHANNEL Up/Down
CHANNEL
VOLUME
Used to sequence through channels
on the VCR.
TIMER
Activates TIME RECORD on
some VCRs. See the VCR
/
LEARN
&pQ
a
SWAP TIMER SEQ
c=> CD CZD CD
RECORD
tzaD
REW
STOP PAUSE
CEI
PLAY
EES
F FWD TV/VCR
SEARCH
CzP
operating guide for details.
TV/VCR
Used to select the source of the
programs seen on the TV. Switches
the VCR between TV mode and
VCR mode.
TV Mode: Channels are selected
through the TV.
VCR Mode: Channels or tape
operation are selected through the
VCR.
2736-O
4-3
RECORD, STOP, PAUSE,
\
SEARCH, REW, PLAY and
F FWD
Used for tape recording and
playback functions. See the VCR
operating guide for details.
REMOTE CONTROL MODEL MBR3430

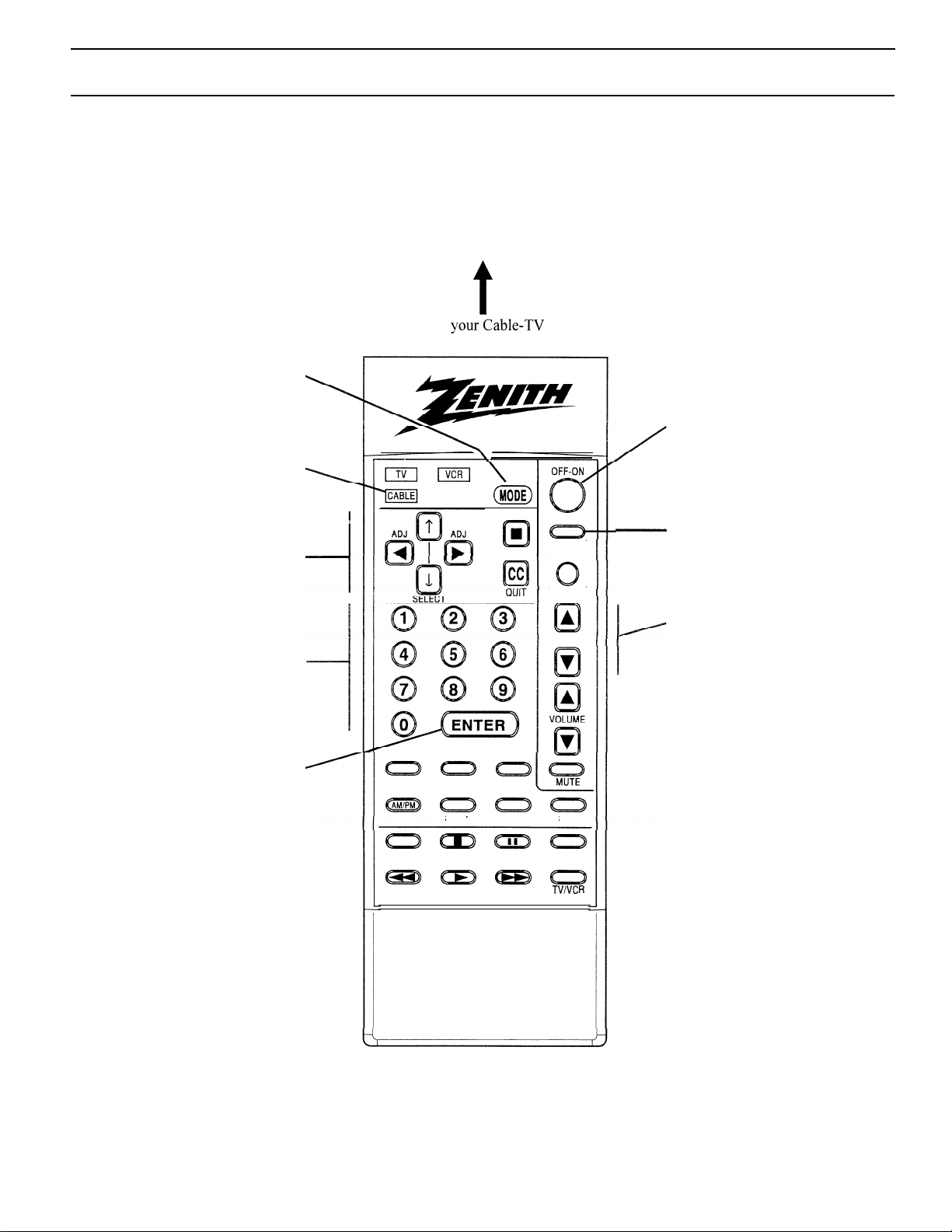

CABLE-TV OPERATIONS
The following functions and operations apply to a Zenith
cable-TV decoder. The remote control must be in the CABLE
mode to operate your cable-TV decoder.
The remote control supplied with your cable-TV decoder may
have keys not duplicated on the new remote. If these functions
are desired, the original remote control will have to be used.
MODE
Used to select the Cable mode of
operation.
CABLE
Lights when CABLE mode of
operation is selected.
MENU, SELECT, ADJUST
and QUIT
Functions depend on Cable-TV
system. See Cable-TV decoder
operating guide for details.
Numbered Buttons
Used to select channels through
Cable-TV decoder.
ENTER
Used with the numbered buttons to
select a TV channel through the
Cable-TV decoder.
Point toward
cl3 a
LEARN PIP
GB cx
your-Cable-TV
@iii)
El
MENU
a
FREEZE
SWAP TIMER
c2
decoder.
SOURCE
FLASHBK
CHANNEL
CI
SEQ
OFF/ON
Used to turn VCR ON or OFF.
SOURCE
s
Selects “A” or “B” cable channels.
CHANNEL Up/Down
Used to sequence through channels
on the Cable-TV decoder.
2736-O
c3
REW
CxB as
CB
PLAY F FWD
4
-4
RECORD STOP PAUSE SEARCH
c3zD
cz3
ED
CD
TVlVC
R
REMOTE CONTROL MODEL MBR3430
PREPARATION FOR USE
Batteries are provided with this remote, but you must install
them before using the remote.

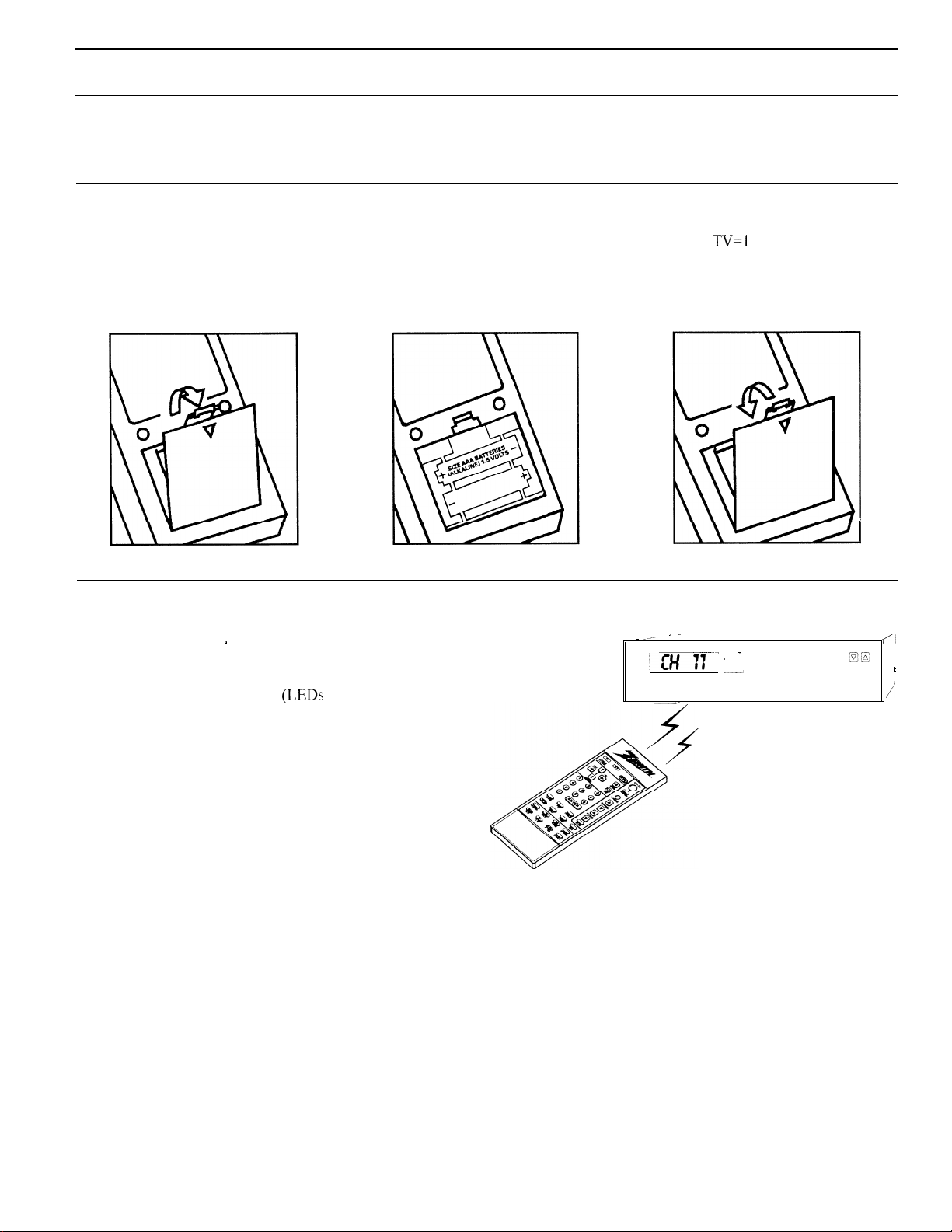

INSTALLING BATTERIES
When the effective operating range of your remote becomes
noticeably shorter, replace the batteries with two high-quality,
alkaline, size AAA batteries.
Zenith is not responsible for damage caused by battery
leakage.
After installing new batteries, the remote control will set itself
to Zenith brand codes, as follows:
TV=1
0 I, VCR=20 1 and
CABLE=30 1.
If you are going to operate equipment that uses different
codes, the remote must be reprogrammed for those codes.
AUTO FIND MODE
Use Auto Find to automatically find the brand code needed to
operate your equipment
NOTE:
If no button is pressed for 60 seconds or more during
Auto Find, the remote will automatically exit Auto Find
without storing any brand codes.
upon exiting.)
1.
Turn on the equipment you wish the remote to operate.
2. Press and hold LEARN until mode indicator lights
(about 4 seconds).
3.
Use MODE to select the mode you wish to program
(TV, VCR or CABLE).
4.
Enter “00” then press ENTER within 2 seconds. All four
mode indicator lights will turn ON and then OFF, leaving
the mode indicator light for the active mode ON.
5.
Point remote towards the equipment.
6.
Press and release OFF/ON on the remote about once every
second, until the equipment turns OFF. Press ENTER
before pressing any other buttons.
If you press OFF/ON again before pressing ENTER
Auto Find will have to be repeated.
7.
Try other buttons to see if they operate the equipment.
If they do not, you may wish to reenter Auto Find and
try to find another code. The remote will begin with
codes starting from where it left off prior to exiting
Auto Find.
L)
(LEDs
will flash 3 times
-
_ ___-- - -
~-----_
3-lII
8.
Repeat Auto Find for each piece of equipment you want
.
-
’ ~
L--1
CABLE-TV DECODER
CHANNEL ,
g(g
your remote to operate. NOTE: Only one brand code can
be programmed in each of the four modes.
If no brand code has been entered after searching through all
brand codes in any mode, the remote will flash all four mode
indicator lights in a chasing manner. Wait 60 seconds or press
ENTER or LEARN to return to normal operation.
//
I
i
2736-O
4-5
REMOTE CONTROL MODEL MBR3430

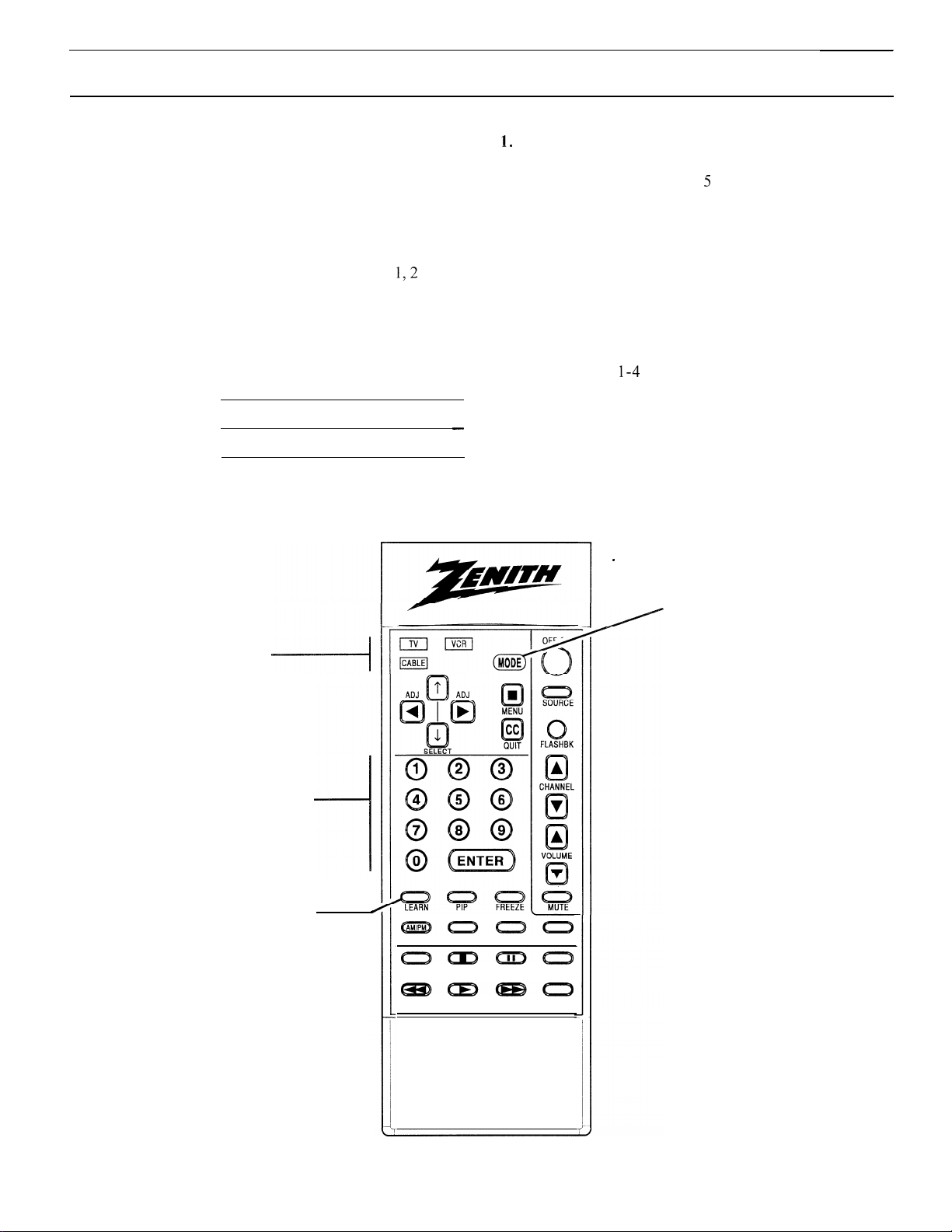

PROGRAMMING BRAND CODES
Introduction
Before using your new remote control, it must be programmed
to recognize the brands of equipment it will be used to
operate.
cable-TV decoder, the remote has already been programmed
for you.
Find the code that corresponds to each brand and type of
equipment you are going to operate. Refer to Tables 1,2 and 3.
For example, if you were programming the remote for use
with a Zenith TV, you would look for “Zenith” in “Table I”,
and find code “101.”
Write the brand codes for your equipment on the following
lines.
If you are using a Zenith VHS VCR or a Zenith
TV CODE:
CABLE CODE:
VCR CODE:
1.
Press MODE repeatedly to select the desired TV,
VCR or CABLE operating mode for the remote.
2.
Press LEARN for about 5 seconds until the MODE
indicator lights for the selected TV, VCR or CABLE
mode of operation.
Enter the proper brand code number for the equipment
3.
to be controlled.
4.
Press LEARN. All three mode indicators should light
briefly, then turn off to indicate the brand code has
been programmed.
5.
If all three mode indicators fail to light briefly, an
error has occurred. Repeat Steps 1-4 to try again.
Repeat steps
6.
1-4
to program the remote for the other
equipment you are using.
NOTE: CABLE mode can be programmed to operate a
-
second TV or second VCR, if desired.
When batteries are removed: It will be necessary to reprogram
the proper VCR and cable-TV decoder codes.
Operating Mode
Indicators
Numbered Buttons
Use to enter code number
for desired brand.
LEARN Button
1
~c3~~
CCDCIDCD
RECORD STOP
a3cEB~cz3
SWAP
REW PLAY
TIMER
PAUSE
F FWD TVNCR
SEQ
SEARCH
.
Operating MODE Selector
2736-O
4
-6
REMOTE CONTROL MODEL MBR3430
TV, VCR AND CABLE-TV OPERATING CODES
Table 1. TV Codes by Brand
TV Brand
Name
Admiral
Admiral
Akai
Amark
AOC
Bell & Howell
Centurion
Coronado
Curtis Mathes
Curtis Mathes
Curtis Mathes
Daytron
Emerson
Emerson
Emerson
Emerson
Emerson
Emerson
Fisher
Fisher
General Electric
General Electric
General Electric
General Electric
Goldstar
Goldstar
Go1
dstar
Hitachi
Hitachi
Hitachi
JVC
JVC
J.C. Penney
J.C. Penney
J.C. Penney
J.C. Penney
J.C. Penney
KMC
KTV
KTV
Lodgenet
Logik
LX1
LX1
Magnavox
Magnavox
Magnavox
Magnavox
Magnavox
Magnavox
Majestic
Marantz
Marantz
Memorex
MGA/Mitsubishi
MGA/Mitsubishi
MGA/Mitsubishi
MGAMitsubishi 130 Toshiba
Montgomery Ward 103 Toshiba
Montgomery Ward 104 Toshiba
Montgomery Ward 105 Yom
Montgomery Ward 113 Zenith
Montgomery Ward 114
Code
TV Brand
Name
116
Montgomery Ward
121
Montgomery Ward
104
Montgomery Ward
103
NEC
104
NEC
12 1
Panasonic
119
Panasonic
103
Philco
116
Philco
119
Philco
121
Philco
119
Philips
103
Philips
104
Pioneer
123
Portland
124
Quasar
13 1
Quasar
136
Realistic
109
Realistic
118
Realistic
106
RCA
107
RCA
114
RCA
116
Sampo
103
Samsung
104
Samsung
119
Samsung
102
Sanyo
103
Sanyo
129
Sanyo
125
Scott
132
Sears
104
Sears
110
Sears
114
Sears
117
Sears
119
Sears
103
Sears
103
Sharp
104
Sharp
121
Sharp
121
Sharp
133
Sharp
137
Sony
103
Sylvania
112
Sylvania
113
Sylvania
119
Sylvania
127
Sylvania
128
Sylvania
121
Tatung
104
Teknika
120
Teknika
121
Teknika
104
Teknika
119
Telerent
120 Telerent
Code
Table 2. VCR Codes by Brand
JCR Brand VCR Brand
(ame
119
1kai 223
121
iudio Dynamics
130
iudio Dynamics
104
3roksonic
119
zanon
106
zitizen
107
:raig
103
:urt~s
104
112
113
112
113
135
103
106
107
105
123
124
104
116
126
119
103
119
134
108
109
118
119
103
108
109
110
111
118
134
103
105
122
133
137
115
112
113
117
119
127
128
106
103
112
121
124
103
121
110
111
134
119
101
Mathes 214 Quasar
Curtis
Mathes 216 RCA
>BX 202
>BX 218
zmerson
3merson
zmerson
imerson
lmerson
3merson
?sher
Tisher 212
yisher 213
:unai
General
General
General
3oldstar
Hitachi 215
nstant Replay 214 Sears
nstant Replay 227 Sears
vc
vc
.C. Penney
.C. Penney
.C. Penney
(enwood
vlagnavox
vlagnavox
vIarantz
tiararitz
vlarta 209
demorex
tiemorex
vIemorex
tiGA/Mitsubishi
vIGA/Mitsubishi
tiontgomery Ward 208 Vector Research
tiontgomery Ward 214 Yamaha
\/lontgomery
qEC
gEC
)anasonic
Code Name
202
2 18
22 1
214
209
212
203
22 1
223
226
233
235
2 11
231
Electric
Electric 216 Scott
Electric 220 Scott
214 Scott
209
202
225
214 Sony VHS
2 18
227 Sylvania
202
207
2 14
207
2 18
212
214
23 1
204
222 Vector Research
Ward 219 Yamaha
202 Zenith VHS
2 18
2 14
Code
Pentax
Philco
Philips
Philips
Pioneer
Pioneer
Pioneer Laser Disk
RCA
RCA
RCA
Realistic
Realistic
Realistic
Realistic
Realistic
Samsung 220
Samsung 230
Sanyo
Sanyo
Sears
Sears 209
Sears
Sharp
Sony Video
Sylvania
Sylvania
Symphonic
Tashiko 209
Tatung
Teat
Teat
Teknika
Toshiba
Toshiba
Zenith VHS
Zenith VHS
215
214
214
227
210
215
228
214
215
216
220
227
206
208
212
214
231
206
212
204
205
233
206
211
212
215
208
232
8
217
207
214
227
231
202
202
231
234
205
215
204
218
202
218
201
225
229
Table 3. Cable Decoder Codes by
Brand
Cable Decoder
Brand Name
Drake Satellite
Drake Satellite
Gemini
Gemini
General Instrument
General Instrument
Ham1
in
Ham1
in
Jerrold
Jerrold
Jerrold
Jerrold
Jerrold
Kale Vision
Macom
Macom
Macom Satellite
Magnavox
NSC
Oak
Oak
Panasonic
Panasonic
Paragon (Zenith)
Code
Cable Decoder
Brand Name
312
Pioneer
330
Regency
305
Samsung
33 1
Scientific Atlanta
305
Scientific Atlanta
306
Scientific Atlanta
302 Sprucer
303
304
307
308
309
310
335
3 14
32 1
322
334
335
3 11
332
3 13
320
333
(Panasonic)
Standard
Components
STS Satellite
Telecaption 4000
Tocom
Tocom VIP
Toshiba
Toshiba Satellite
Zenith
Zenith
Zenith AV3000
Zenith Satellite
Zenith Satellite
Zenith Satellite
Zenith Laser Disk
Code
315
329
335
316
323
336
313
335
324
325
317
318
322
319
301
322
327
312
330
328
326
2736-O
4-7
Loading...
