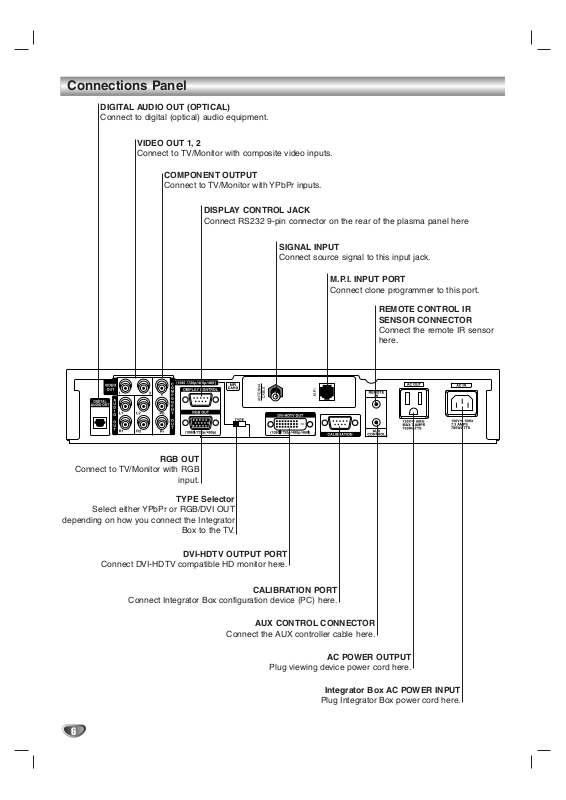

Connections Panel

Integrator Box AC POWER INPUT

Plug Integrator Box power cord here.

AC POWER OUTPUT

Plug viewing device power cord here.

AUX CONTROL CONNECTOR

Connect the AUX controller cable here.

CALIBRATION PORT

Connect Integrator Box configuration device (PC) here.

DVI-HDTV OUTPUT PORT

Connect DVI-HDTV compatible HD monitor here.

TYPE Selector

Select either YPbPr or RGB/DVI OUT

depending on how you connect the Integrator

Box to the TV.

RGB OUT

Connect to TV/Monitor with RGB

input.

SIGNAL INPUT

Connect source signal to this input jack.

M.P.I. INPUT PORT

Connect clone programmer to this port.

REMOTE CONTROL IR
SENSOR CONNECTOR

Connect the remote IR sensor
here.

DISPLAY CONTROL JACK

Connect RS232 9-pin connector on the rear of the plasma panel here

VIDEO OUT 1, 2

Connect to TV/Monitor with composite video inputs.

DIGITAL AUDIO OUT (OPTICAL)

Connect to digital (optical) audio equipment.

COMPONENT OUTPUT

Connect to TV/Monitor with YPbPr inputs.
