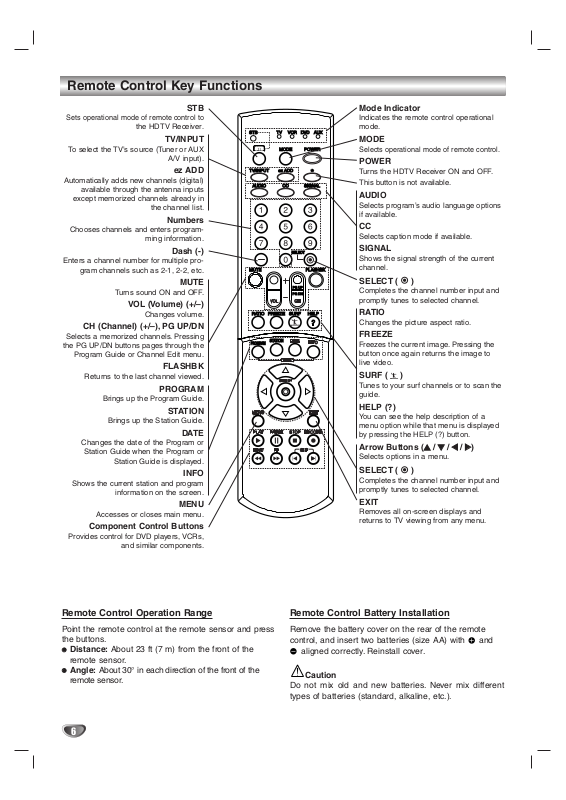

Remote Control Key Functions
STB
GUIDE
STB
MODE
TV/INPUT
UDIOCCCC
SIGNAL
SELECT
ez ADD
WER
VCR
UX
FLASHBK
MUTE
TIO
OGRAM
TION
FREEZE
SURF
HELP
STB
Sets operational mode of remote control to
the HDTV Receiver
.
TV/INPUT
To select the TV’s source (Tuner or AUX
A/V input).
ez ADD
Automatically adds new channels (digital)
available through the antenna inputs
except memorized channels already in
the channel list.
Numbers
Chooses channels and enters program-
ming information.
Dash (-)
Enters a channel number for multiple pro-
gram channels such as 2-1, 2-2, etc.
MUTE
Turns sound ON and OFF.
VOL (Volume) (+/–)
Changes volume.
CH (Channel) (+/–), PG UP/DN
Selects a memorized channels. Pressing
the PG UP/DN buttons pages through the
Program Guide or Channel Edit menu.
FLASHBK
Returns to the last channel viewed.
PROGRAM
Brings up the Program Guide.
STATION
Brings up the Station Guide.
DATE
Changes the date of the Program or
Station Guide when the Program or
Station Guide is displayed.
INFO
Shows the current station and program
information on the screen.
MENU
Accesses or closes main menu.
Component Control Buttons
Provides control for DVD players, VCRs,
and similar components.
Mode Indicator
Indicates the remote control operational
mode.
MODE
Selects operational mode of remote control.
POWER
Turns the HDTV Receiver ON and OFF.
This button is not available.
AUDIO
Selects program’s audio language options
if available.
CC
Selects caption mode if available.
SIGNAL
Shows the signal strength of the current
channel.
SELECT ( )
Completes the channel number input and
promptly tunes to selected channel.
RATIO
Changes the picture aspect ratio.
FREEZE
Freezes the current image. Pressing the
button once again returns the image to
live video.
SURF ( )
Tunes to your surf channels or to scan the
guide.
HELP (?)
You can see the help description of a
menu option while that menu is displayed
by pressing the HELP (?) button.
Arrow Buttons (33/ 44/ 11/ 22)
Selects options in a menu.
SELECT ( )
Completes the channel number input and
promptly tunes to selected channel.
EXIT
Removes all on-screen displays and
returns to TV viewing from any menu.
Remote Control Operation Range
Point the remote control at the remote sensor and press
the buttons.
Distance: About 23 ft (7 m) from the front of the
remote sensor.
Angle: About 30° in each direction of the front of the
remote sensor.
Remote Control Battery Installation
Remove the battery cover on the rear of the remote
control, and insert two batteries (size AA) with and
aligned correctly. Reinstall cover.
Caution
Do not mix old and new batteries. Never mix different
types of batteries (standard, alkaline, etc.).
STB
TVTVVCR
DVDVDAUX
STB
MODE
POPOWER
TV/INPUT
AUDIO
ez ADD
*
SIGNAL
MUTE
SELECT
PG UP
PG DN
FLASHBK
RARATIO
FREEZE
SURF
HELP
PRPROGRAM
STSTATION
GUIDE
REFERENCE
39
Programming the Remote Control to Operate Other Devices
The HDTV Receiver remote control is a multi-brand or universal remote control that can be programmed to operate most remote-controllable devices
from other manufacturers.
ote
The remote control may not be able to control all models of other brands.
11
Test your remote control.
To find out whether your remote control can operate a device without
programming, turn on the device such as a VCR and select the corresponding mode (VCR) by pressing MODE on the remote control while
pointing at the device. Use the POWER and CH +/– buttons to see if the
device responds properly. If not, the remote control requires programming.
22
Turn on the device to be programmed. Then select the corresponding mode (VCR, AUX, TV, DVD or STB) by pressing MODE on the
remote control.
33
Press the POWER button and the MUTE button simultaneously.
The remote control is now ready to program the code for the device.
44
There are two ways to find the correct code for the device.
First, if you press the CH + buttons repeatedly, the codes will change
one at-a-time. If the right code is found, the device will turn off.
Second, enter the code number using the number buttons on the remote
control. The right code numbers for the corresponding device can be
found on the following pages. If the code is correct, the device will turn
off.
55
Press the EXIT button to store the programming code.
66
Test the remote control functions to see if the device responds
properly. If not, repeat from step 2.
