Zenith L20V34S Specifications

TM

Space Saving Flat Panel Display

100mm Standard VESA Mounting
Interface

Built-in NTSC Tuner

640 x 480 (VGA) Panel Resolution

Super IPS Panel

High Reliability, Sealed Front
Panel Controls

Direct AC Input

Discrete IR Codes

Built-in Stereo Speakers

Wide Viewing Angle

Electrically Isolated Earphone
Output

Built-in Zenith Card Slot —
Multiple Protocol Interface (MPI)

Built-in Pillow Speaker Port

UL Hospital Grade Approved

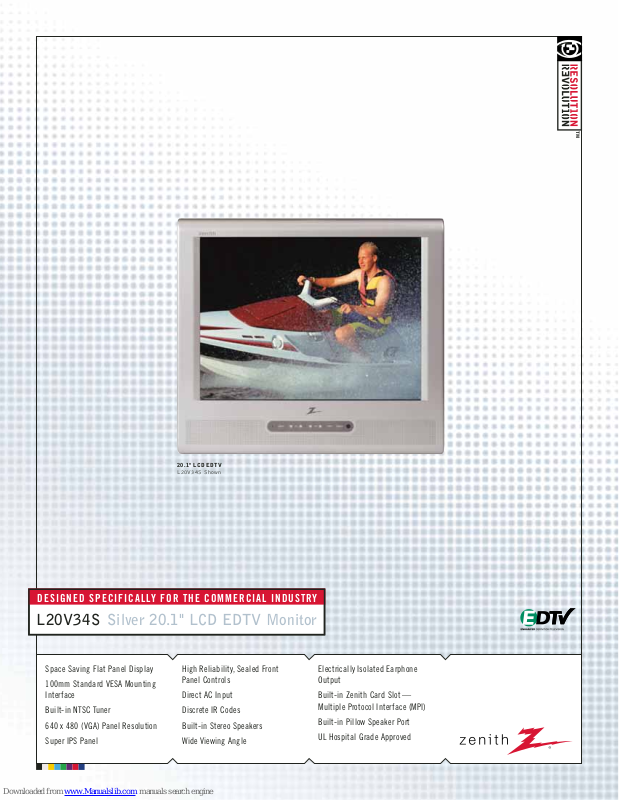

L20V34S Silver 20.1" LCD EDTV Monitor

20.1" LCD EDTV

L20V34S Shown

DESIGNED SPECIFICALLY FOR THE COMMERCIAL INDUSTRY

PANEL

Screen Size 20.1"

Aspect Ratio 4:3

Panel Resolution (640 x 480) VGA

Pixels (H x V x 3) 921,600

Brightness 450 cd/m2

Contrast Ratio 500:1

Viewing Angle (Horizontal) 176°

Viewing Angle (Vertical) 176°

Color Depth 262,144

Super IPS Panel Yes

VIDEO

NTSC Tuner Built-in

Tuner Type NTSC-M

Comb Filter 4H Digital

Digital Progressive Scan Yes

Auto-Programming Yes

White Peak Control Yes

VIDEO/AUDIO INPUTS

Composite A/V 1 Set

RF 1 Input (on Card only)

MPI (RJII) Yes (on Card)

Stereo Headphone (Isolated) 1 (Side)

RS232 Control Yes w/optional Card

Pillow Speaker Port Yes

AUDIO

Mono/MTS Stereo Yes

Auto Volume Leveler Yes

Headphone Output Yes (Isolated)

Audio Power 2 x 4 Watts

SPECIAL FEATURES

Discrete IR Codes Yes

Menu Languages English/Spanish/French

Sleep & On/Off Timers Yes

Parental Control w/ V-Chip Yes

Flashback, Captions, CC When Mute Yes
(Flashback w/optional remote)

Soft Touch Controls Yes

VESA Standard 100mm Mount Interface Yes

Built-in Pillow Speaker Port Yes

UL Hospital Grade Yes

CABINET

Color Silver

Dimensions (H x W x D) 17.62" x 19.62" x 2.80"

Weight 16.36 Lbs.

POWER REQUIREMENTS

Direct AC Input Yes

Power Source 100~ 220 VAC (50~60 Hz)

Power (Nominal)

– Standby 10.0 Watts (typ.)
– Operation 58.0 Watts (typ.)

SERVICE/LIMITED WARRANTY

Warranty (Parts/Labor) 1 Year

Customer Service 1-888-865-3026

Dimensions and weights are approximate. Design and specifications
subject to change without notice.

The lightning bolt ‘z’ and Resolution Revolution are trademarks of
Zenith Electronics Corporation. ©2005 Zenith Electronics Corporation.
Printed in the USA. Z20V34S0305

Zenith Electronics Corporation

2000 Millbrook Drive, Lincolnshire, lL 60069
Web: www.zenith.com

L20V34S Silver 20.1”LCD EDTV Monitor

DIMENSIONS

Side View

Top View

Front View Top View

Side View
