machine number |
|
IQD61W35 |
|
®
t a b l e o f c o n t e n t s |
6 |
p a g e |
g l o s s a r y o f t e r m s |
55 |
p a g e |
e n j o y t h e v i e w
Toll Free Digital TV Hotline: 1-877-993-6484
© Copyright 2001, Zenith Electronics Corporation.
o p e r a t i n g g u i d e
WARNING
RISK OF ELECTRIC SHOCK
DO NOT OPEN
WARNING:
TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER TO QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
WARNING:
TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.
POWER CORD POLARIZATION:
CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.
ATTENTION: POUR ÉVITER LES CHOCS ÉLECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQU’AU FOND.
NOTE TO CABLE/TV INSTALLER:
This reminder is provided to call the cable TV system installer’s attention to Article 820-40 of the National Electric Code (U.S.A.). The code provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of the cable entry as practical.
REGULATORY INFORMATION:
This equipment, trade name Zenith, model number, IQD61W35, has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
•Consult the dealer or an experienced radio/TV technician for help.
The responsible party for this device compliance is: Zenith Electronics Corporation
201 James Record Road Huntsville, AL 35824, USA
Digital TV Hotline: 1-877-993-6484
CAUTION:
Do not attempt to modify this product in any way without written authorization from Zenith Electronics Corporation. Unauthorized modification could void the user’s authority to operate this product.
©2001 Zenith Electronics Corporation. All rights reserved.
Dolby Digital®
Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories. Confidential Unpublished Works. ©1992-1997 Dolby Laboratories, Inc. All rights reserved.
The presence of the DTV certification mark indicates that this product will successfully receive digital television transmissions that conform to any and all of the video formats described in the ATSC Digital Television Standard.
VCR is required for recording.
206-03714
P A G E 2
IMPORTANT SAFETY INSTRUCTIONS
Important safeguards for you and your new product
Your product has been manufactured and tested with your safety in mind. However, improper use can result in potential electrical shock or fire hazards. To avoid defeating the safeguards that have been built into your new product, please read and observe the following safety points when installing and using your new product, and save them for future reference.
Observing the simple precautions discussed in this booklet can help you get many years of enjoyment and safe operation that are built into your new product.
This product complies with all applicable U.S. Federal safety requirements, and those of the Canadian Standards Association.
1. Read Instructions
All the safety and operating instructions should be read before the product is operated.
2. Follow Instructions
All operating and use instructions should be followed.
3. Retain Instructions
The safety and operating instructions should be retained for future reference.
4. Heed Warnings
All warnings on the product and in the operating instructions should be adhered to.
5. Cleaning
Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.
6. Water and Moisture
Do not use this product near water, for example, near a bath tub, wash bowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool.
7. Accessories Carts and Stands
Do not place this product on a slippery or tilted surface, or on an unstable cart, stand, tripod, bracket, or table. The product may slide or fall, causing serious injury to a child or adult, and serious damage to the product. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the product. Any mounting of the product should follow the manufacturer’s instructions, and should use a mounting accessory recommended by the manufacturer.
8. Transporting Product
A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn.
9. Attachments
Do not use attachments not recommended by the product manufacturer as they may cause hazards.
10. Ventilation
Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from overheating, and these openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer’s instructions have been adhered to.
11. Power Sources
This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. For products intended to operate from battery power, or other sources, refer to the operating instructions.
12. Power-Cord Polarization
This product is equipped with a polarized alternating-cur- rent line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.
13. Power-Cord Protection
Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the product.
(Continued on next page)
206-03714 |
PORTABLE CART WARNING |
P A G E 3 |
|
IMPORTANT SAFETY INSTRUCTIONS
(Continued from previous page)
14. Outdoor Antenna Grounding
If an outside antenna or cable system is connected to the product, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code (U.S.A.), ANSI/ NFPA 70 provides information with regard to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.
Example of Grounding According to National Electrical Code Instructions
Ground Clamp
|
|
Antenna Lead in Wire |
|
|
|
|
|
Antenna Discharge Unit |
|
|
(NEC Section 810-20) |
|
|
Grounding Conductor |
Electric Service |
|
(NEC Section 810-21) |
|
|
|
Equipment |
|
Ground Clamps |
|
|
|
Fig. 1 |
|
Power Service Grounding |
|
Electrode System (NEC |
|
|
|
Art 250, Part H) |
NEC - National Electrical Code
openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.
19. Servicing
Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
20. Damage Requiring Service
Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions:
a.If the power-supply cord or plug is damaged.
b.If liquid has been spilled, or objects have fallen into the product.
c.If the product has been exposed to rain or water.
d.If the product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to its normal operation.
e.If the product has been dropped or the cabinet has been damaged.
f.If the product exhibits a distinct change in performance.
15. Lightning
For added protection for this product (receiver) during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the product due to lightning and power-line surges.
16. Power Lines
An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.
17. Overloading
Do not overload wall outlets and extension cords as this can result in a risk of fire or electric shock.
18. Object and Liquid Entry
Never push objects of any kind into this product through
21. Replacement Parts
When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards.
22. Safety Check
Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in proper operating condition.
23. Wall or Ceiling Mounting
The product should be mounted to a wall or ceiling only as recommended by the manufacturer. The product may slide or fall, causing serious injury to a child or adult, and serious damage to the product.
24. Heat
The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.
P A G E 4 |
206-03714 |
EZ Help
The EZ Help feature is created to let you understand each function of the Menu and Program in an easy and convenient way. When you navigate through the Menu, press and hold the HELP (?) button on your remote control if you want to know about the highlighted item. Information about the highlighted item will be displayed on the right part of the TV screen.
Simply press and hold to see the helpful information.
Menu
206-03714 |
P A G E 5 |
Table of Contents |
|
Safety Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . |
.2 |
Important Safety Instructions . . . . . . . . . . . . . . . . . . . |
3 |
EZ Help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
5 |
Step 1. Hook Up TV |
|
Rear Jack Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 Front Jack Panel . . . . . . . . . . . . . . . . . . . . . . . . . . .8 ANT/CABLE Hookup . . . . . . . . . . . . . . . . . . . . . . . . .9 CABLE BOX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10 VCR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11 DVD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12 PC Hookup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13 External Stereo . . . . . . . . . . . . . . . . . . . . . . . . . . .14 Dolby Digital Audio Hookup . . . . . . . . . . . . . . . . . . .15 Room Setups for Home Theater . . . . . . . . . . . . . . . . .16 Monitor Out . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17 Remote Button Functions . . . . . . . . . . . . . . . . . . .18-19 On-Screen Display . . . . . . . . . . . . . . . . . . . . . . . . . .20 Front Panel Controls . . . . . . . . . . . . . . . . . . . . . . . .21
Step 2. Customize your TV’s Features
SETUP Menu
EZ Scan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 CH. Edit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23 Channel Label . . . . . . . . . . . . . . . . . . . . . . . . . . .24 Input Source . . . . . . . . . . . . . . . . . . . . . . . . . . . .25 DTV signal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26 PIP/POP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27 EZ Convergence . . . . . . . . . . . . . . . . . . . . . . . . . .28
VIDEO Menu . . . . . . . . . . . . . . . . . . . . . . . . . . |
.29-30 |
AUDIO Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . |
31-32 |
TIME Menu |
|
Auto Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . |
. .33 |
Manual Clock . . . . . . . . . . . . . . . . . . . . . . . . . . |
. .34 |
Off Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
. .35 |
On Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
. .36 |
Sleep Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . |
. .37 |
Auto off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
. .38 |
SPECIAL Menu |
|
Aspect Ratio . . . . . . . . . . . . . . . . . . . . . . . . . . |
. .39 |
Captions/Text . . . . . . . . . . . . . . . . . . . . . . . . . . |
. .40 |
On-Screen Language . . . . . . . . . . . . . . . . . . . . . |
. . 41 |
EZ Demo . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
. .42 |
LOCK Menu |
|
Parental Lock . . . . . . . . . . . . . . . . . . . . . . . . . . |
43-45 |
Programming the Remote . . . . . . . . . . . . . . . . . . . |
. .46 |
Programming Codes . . . . . . . . . . . . . . . . . . . . . . |
47-50 |
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . |
51-52 |
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . |
53-54 |
Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
55-56 |
Product Specifications . . . . . . . . . . . . . . . . . . . . |
. .57 |
P A G E 6 |
Note: Design and specifications are subject to change without prior notice. |
206-03714 |

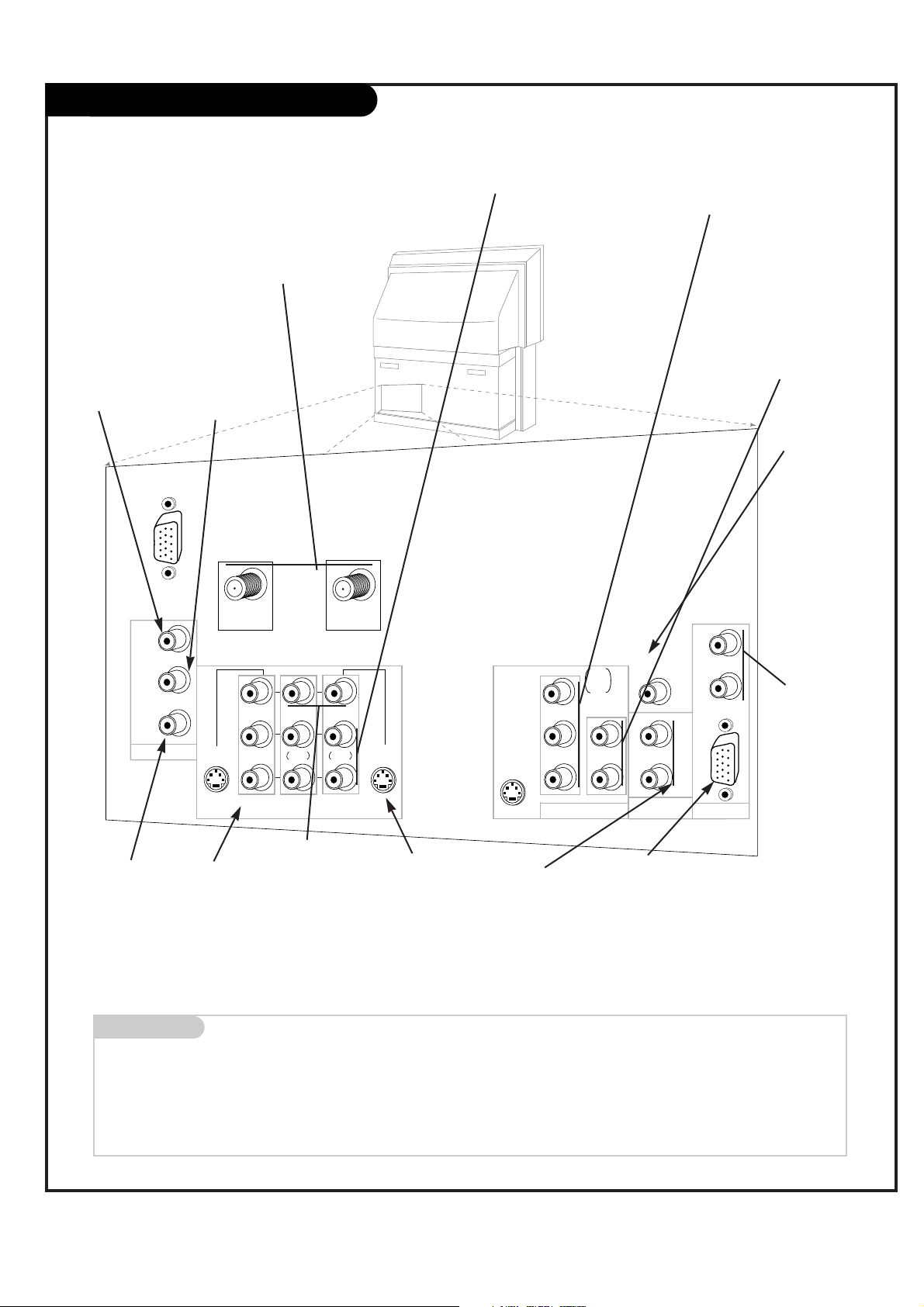

Rear Audio/Video Jacks
Connecting cables to your Entertainment Machine.
RF Connectors: Antenna 1 input, Antenna 2 input
Used to connect cable or antenna signals to the television, either directly or through your cable box.
Dolby Digital |
Dolby Digital COM- |
|
Out |
PONENT in |
|
Connects to a |
Connects to a Dolby |
|
Dolby Digital |
||
Digital output from |
||
A/V receiver. |
||
DVD or external |
||
|
||
|
equipment. |
CALIBRATION |
|
|
|
|
|
|
|
ANTENNA 1 |
|
ANTENNA 2 |
|
|
|
(AIR/CATV/DTV) |
|
(DTV) |
|
|
|
INPUT |
|
INPUT |
|
OUT |
|
|
|
|
|
COMP IN |
|
|
|
|
|
|
|
VIDEO |
|
VIDEO |
|
PC IN |
|
|
|
|
|
|
|
L |
|
L |
|
DOLB |
GITAL |
S-VIDEO |
MONO |
MONO |
S-VIDEO |
|
|
OUT |
IN |
||
|
|
|
|
||
|
|
R |
|
R |
|
|
|
MONITOR |
VIDEO 2 |
VIDEO 1 |
|
|
|
OUT |
INPUT |
INPUT |
|
Left/Right Audio
Used for stereo sound from various types of equipment.
Y, PB, PR
DVD Component Video and HD Component Video
Some top-of-the-line DVD players use what is called “component video,” for extremely accurate picture reproduction.
Refer to your DVD manual for further information.
Left/Right Audio
Used for stereo sound from various types of equipment.
Center Mode IN
Connect to external Dolby Digital Center “preamp output.”
|
|
|
|
L |
|
|
|
AUDIO |
|
|
COMPONENT |
|
CENTER MODE |
|
|
480 i / p |
IN |
PC Audio Input |
|
|
|
|
||
|
|
720 p |
|
|
|
|
1080 i |
|
R |
Y |
|
|
Used in audio |
|
|
|
|
||
|
|
AUDIO |
|
connections from |
|
|
IN |
|
|
PB |
|
L |
|
an PC source. |
|
|
L |
||
|
|
|
||
S-VIDEO |
|
|
|
|
IN |
|
R |
|
|
PR |
|
|
R |
|
|
COMPONENT INPUT |
VARIABLE |
|
|
|
AUDIO OUT |
RGB-PC IN |
|
|
Video 1 or 2 |
|
|
Dolby Digital |
Monitor Out |
Connects the |
S-VIDEO In |
|
PC in |
Connects to a |
video signals from |
A connection |
|
Connects to a |
second TV or |
various types of |
available with |
|
some high-end |
||||
Dolby Digital |
Monitor. |
equipment. |
||
equipment that |
||||
output from PC. |
|
|
||
|
|
provides even |
||
|
|
|
||
|
|
|
better picture |
|
|
|
|
quality for |
|
|
|
|
Video 1. |
Variable Audio Out
Used to connect either an external amplifier, or add a sub-woofer to your surround sound system.
PC Input
Used to connect from an PC source.
Mini glossary
JACK |
A connection on the back of a TV, VCR, or any other A/V device. This includes the RF jack and the Audio/Video jacks that are color- |
|
coded. |
SIGNAL |
Picture and sound traveling through cable, or on the air, to your television screen. |
206-03714 |
P A G E 7 |
Front Audio/Video Jacks

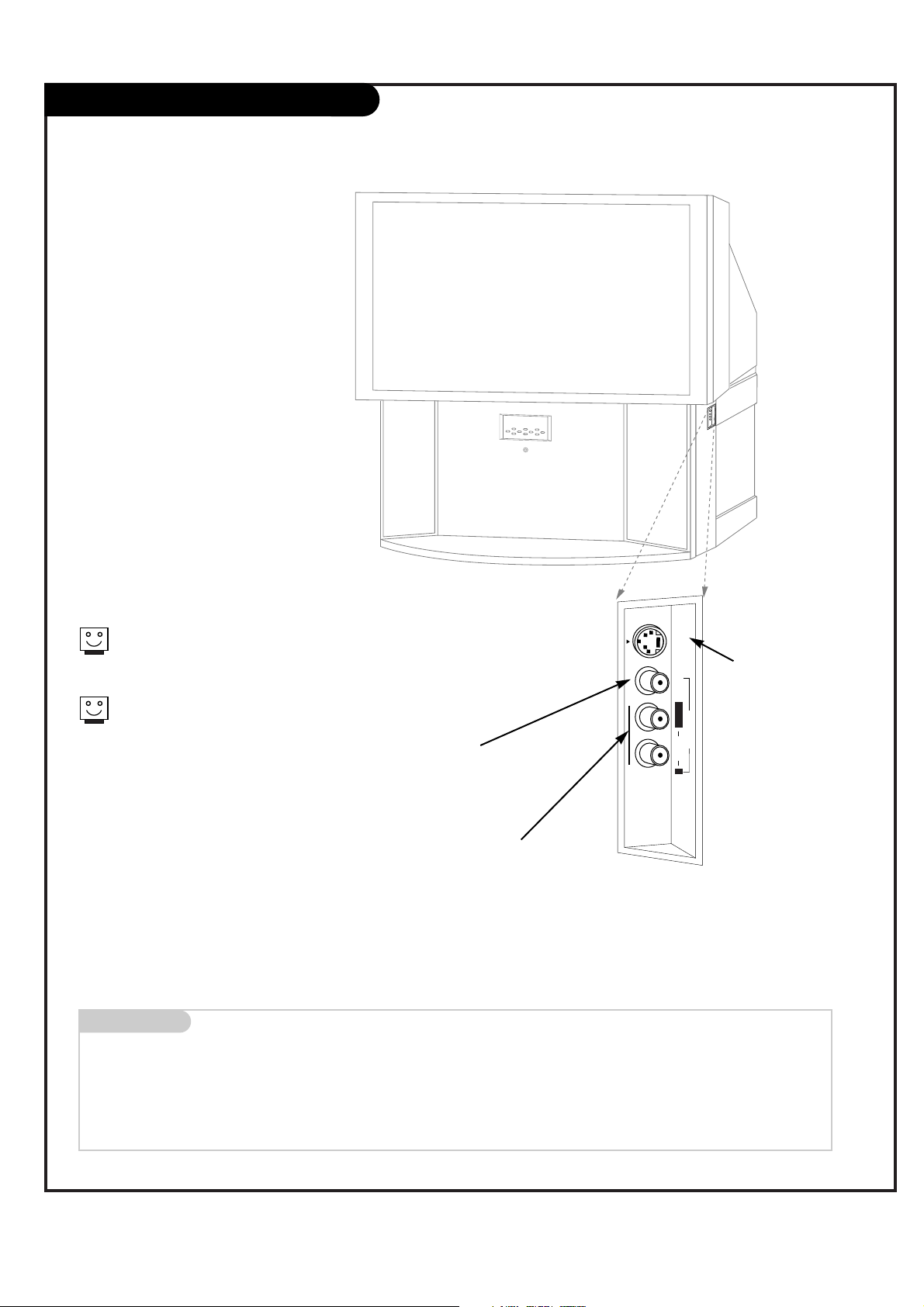

There are four jacks on the right side of your Entertainment Machine that make connecting Audio/Video devices like video games and camcorders very simple.
The jacks are like those found in the jack pack on the back of your Entertainment Machine. This means that most equipment that connects to those types of jacks in the rear jack pack, can also be connected in side.

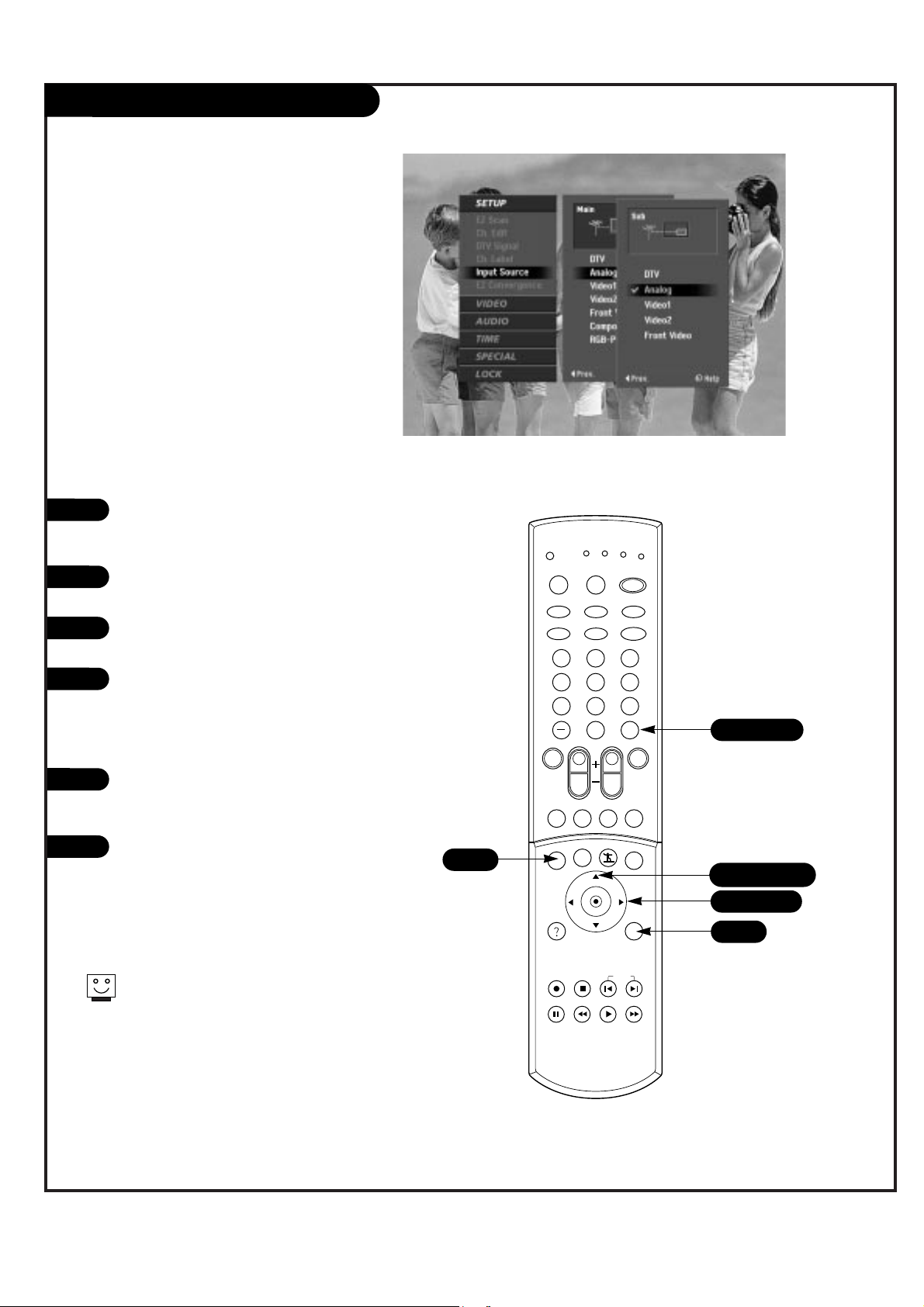

To use the side jacks as the signal source, use the input Source menu as described on page 25. They will be named “Front Video” in the Main Source menu.
When you choose Front Video or Front S-Video, the audio is automatically changed as well.
If you’re connecting a video game unit, make sure to change the picture settings with the EZ Video option in the Video menu (see page 29).
Mini glossary
Front A/V Panel
|
S |
|
|
- |
|
|
VIDEO |
|
|
VIDEO |
|
|
L/MONO |
FRONT |
|
|
|
Video |
AUDIO |
A/V |
|
||
Connects the video |
R |
|
signals from any |
|
|
piece of equipment. |
|
|
Left/Right Audio
Used for stereo sound from various types of equipment.
S-Video
A feature available with some very high-end equipment that provides even better picture quality.
A/V CABLES |
Audio/Video cables. Three cable connectors—Right audio (red), Left audio (white), and Video (yellow). A/V cables are used for stereo |
|
playback of videocassettes and for higher quality picture and sound from other A/V devices. |
A/V DEVICE |
Any device that produces video or sound (VCR, DVD, cable box, or television). |
P A G E 8 |
206-03714 |

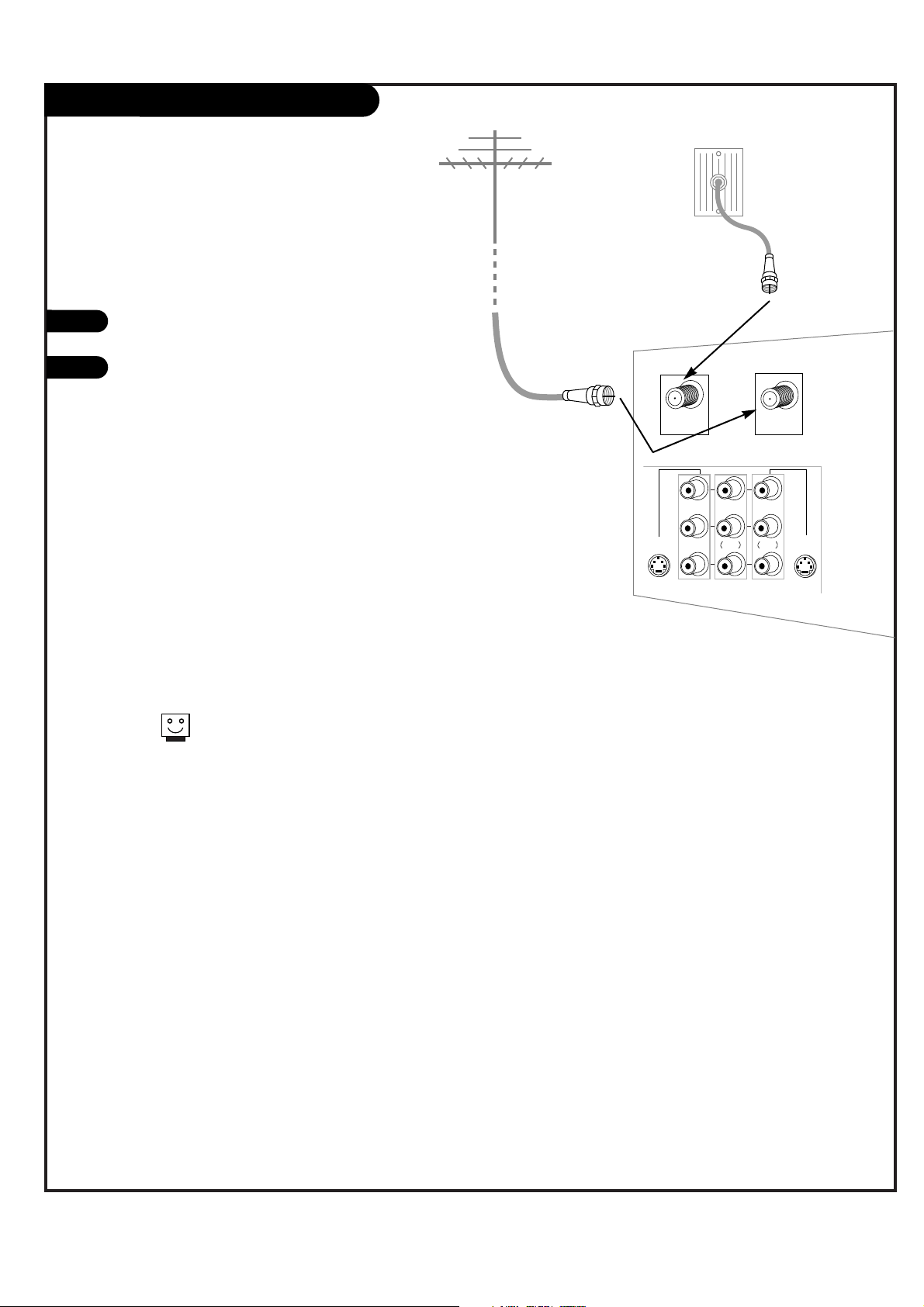

ANT / CABLE Hookup
1 |
Connect the Entertainment Machine to your |
antenna as shown. |
2 |
Turn to page 22 to tune your Antenna 1, 2. |
|
Cable TV wall jack
Antenna
RF coaxial wire (75ohm)
RF (75
ANTENNA 1 |
ANTENNA 2 |
(AIR/CATV/DTV) |
(DTV) |
INPUT |
INPUT |
VIDEO |
|
|
VIDEO |
|
L |
|
|
L |
|
S-VIDEO |
MONO |
MONO |
S-VIDEO |
|
OUT |
IN |
|||
|
|
|||
R |
|
|
R |
|
MONITOR |
VIDEO 2 |
VIDEO 1 |
|
|
OUT |
INPUT |
INPUT |
|
If you receive your RF signal through an antenna that is several years old and connects with two small prongs, you will need to purchase a 300 to 75 Ohm adapter. It should be available from your local electronics dealer.
Zenith recommends using a 75 ohm cable for your antenna connections in order to prevent interference.
For best performance, have your Antenna professionally adjusted.
206-03714 |
P A G E 9 |

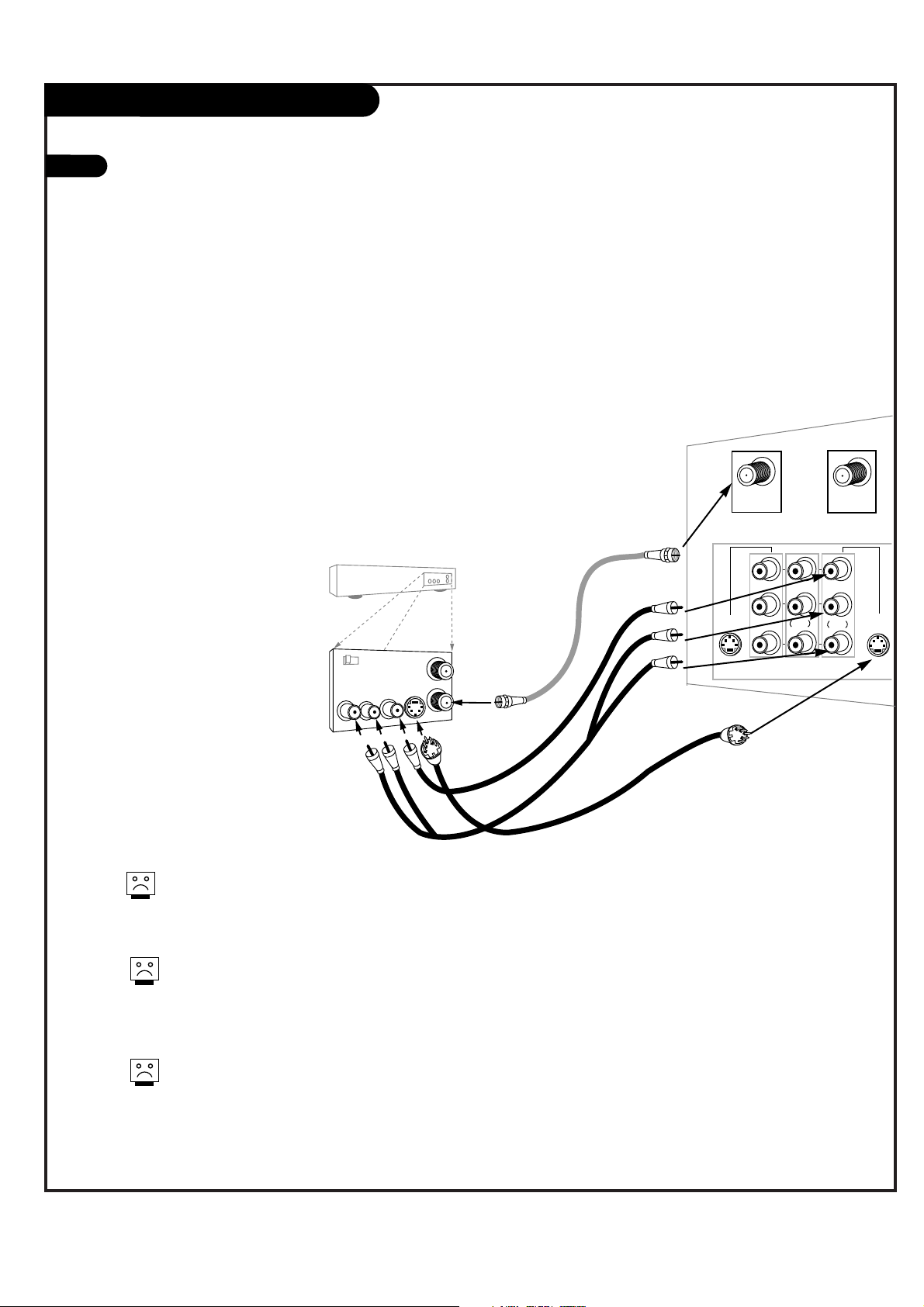

CABLE BOX
1 |
Locate the output jack on the back of |
|
your cable box. Connect this to the |
||
|
||
|
Antenna 1 jack on the back of your TV. |
|
|
Or find the composite video and audio |
|
|
jacks on the back of your cable box, and |
|
|
connect them following the instructions |
|
|
provided with your equipment. |
|
|
This can be combined with any other |
|
|
equipment you may want to hook up. |
Cable box
Out In
or
Rf coaxial wire
(75ohm)
Cable box
Back AV panel
Audio Video
L R
TV
VCR
ANTENNA 1 |
ANTENNA 2 |
(AIR/CATV/DTV) |
(DTV) |
INPUT |
INPUT |
VIDEO |
|
|
VIDEO |
|
L |
|
|
L |
|
S-VIDEO |
MONO |
MONO |
S-VIDEO |
|
OUT |
IN |
|||
|
|
|||
R |
|
|
R |
|
MONITOR |
VIDEO 2 |
VIDEO 1 |
|
|
OUT |
INPUT |
INPUT |
|
P A G E 1 0 |
206-03714 |

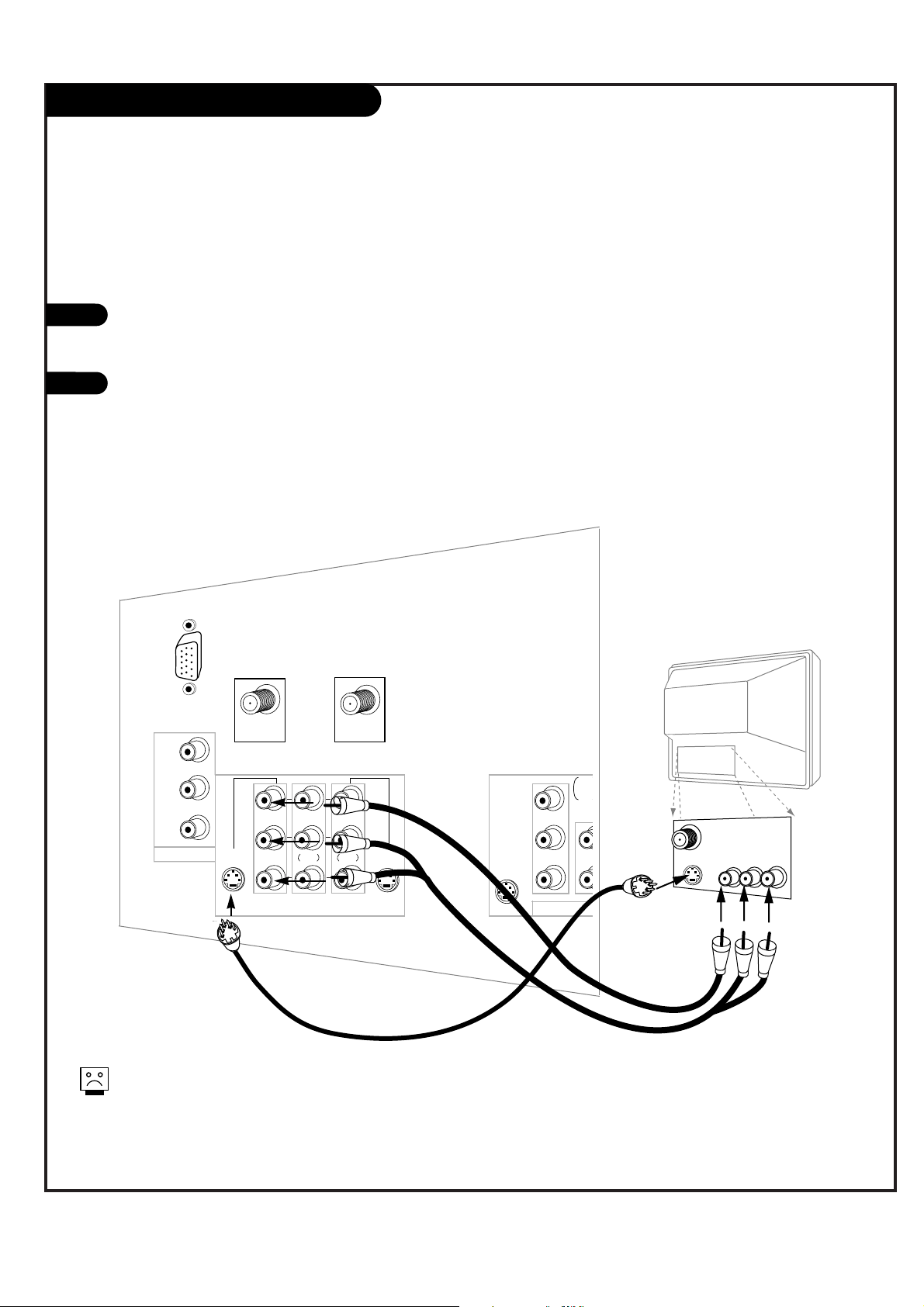

VCR
1 |
Locate the Antenna 1 jack on the back |
|
of your TV. Connect this to out jack on |
||
|
||
|
the back of your VCR. |
|
|
Or find the composite video and |
|
|
audio jacks on the back of your |
|
|
VCR, and connect them following |
|
|
the instructions provided with |
|
|
your equipment. |
|
|
You may connect either the com- |
|
|
posite video or the S-Video cables |
|
|
to your Entertainment Machine. |
|
|
(Do not connect BOTH the com- |
|
|
posite and the S- Video cables. In |
|
|
the event that you connect both |
|
|
composite and the S-Video cables, |
|
|
only the S-Video will work.) |
VCR
Back AV panel
|
In |
3 |
4 |
|
Out |
Audio Video S-Video |
|
L |
R |
To hear stereo sound from cable or your VCR, you will need to connect A/V cables as well as the wire that runs from the VCR to your Entertainment Machine.
If you want to receive your signals on Channel 3 or 4, locate the Out to TV jack on your VCR. Connect a cable from the Out to TV jack to the Antenna/Cable 1 jack on the back of your Entertainment Machine.
If 4:3 aspect ratio or still word such as watching VCR or CH. Label is on the screen for a long time, it’ll be remain afterimage.
206-03714
or
A/V cables not included with TV
ANTENNA 1 |
|
ANTENNA 2 |
|
(AIR/CATV/DTV) |
|
(DTV) |
|
INPUT |
|
INPUT |
|
VIDEO |
|
|
VIDEO |
L |
|
|
L |
S-VIDEO |
MONO |
MONO |
S-VIDEO |
OUT |
IN |
||
R |
|
|
R |
MONITOR |
VIDEO 2 |
VIDEO 1 |
|
OUT |
INPUT |
INPUT |
|
|
P A G E |
1 1 |
DVD Player
1
2
Find the S-Video jacks and audio or Dolby digital out jack on the back of your DVD Player and connect them following the instructions provided with your equipment.
You may connect either the composite video or the S-Video cables to your Entertainment Machine.
Do not connect both the composite and the S-Video.
DVD Player
Back AV panel
Audio |
Dolby Digital S-Video |
|
R Out |
||
L |
or
A/V cables not included with TV
CALIBRATION
ANTENNA 1 |
ANTENNA 2 |
|
|
|
(AIR/CATV/DTV) |
(DTV) |
|
|
|
INPUT |
INPUT |
|
|
|
OUT |
|
|
|
|
|
|
|
COMPONENT |
480 i / p |
COMP IN |
|
|
|
|
|
|
|
720 p |
|
VIDEO |
VIDEO |
Y |
|
1080 i |
|
|
|||
|
|
|
|
AUDIO |
|
|
|
|
IN |
PC IN |
|
|
|
|
L |
L |
PB |
|
L |
DOLBY DIGITAL |
S-VIDEO |
MONO |
MONO |
S-VIDEO |
|
|
OUT |
IN |
|
||
|
|
|
|
S-VIDEO |
|
|
|
R |
R |
IN |
R |
|
|
P |
MONITOR |
VIDEO 2 |
VIDEO 1 |
OUT |
INPUT |
INPUT |
|
|
COMPONENT INPUT |
Some high-end DVD players use a picture reproduction system called “component video.” If your DVD player has component output, use the connectors marked “COMPONENT INPUT” on the jack panel. Please refer to your DVD manual for proper installation.
DVD Player
|
Back AV panel |
CALIBRATION |
|
|
|
|
|
|
|
||
|
|
|
|
|
ANTENNA 1 |
|
ANTENNA 2 |
|
|
|
|
|
|
|
|
|
(AIR/CATV/DTV) |
|
(DTV) |
|
|
|
|
|
|
|
|
|
INPUT |
|
INPUT |
|
|
|
|
|
|
|
|
OUT |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
AUDIO |
|
|
|
|
|
|
|
|
|
COMPONENT |
|
CENTER MODE |
|
|
|
|
|
|
|
|
|
480 i / p |
IN |
|
|
|
|
|
COMP IN |
|
|
|
|
|
720 p |
|
|
|
Dolby Digital |
|
|
VIDEO |
|
VIDEO |
|
1080 i |
|
|
Audio |
Component Video |
|
|
|
|
|
|
AUDIO |
|
||
Out |
|
|
|
|
|
|
IN |
|
|||
L |
R |
|
IN |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
L |
|
L |
|
PB |
L |
|
|
|
|
|
DOLBY DIGITAL |
S-VIDEO |
MONO |
MONO |
S-VIDEO |
|
|
|
|
|
|
|
|
OUT |
IN |
|
|
|
||
|
|
|
|
|
|
|
S-VIDEO |
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
R |
|
R |
|
IN |
R |
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
MONITOR |
VIDEO 2 |
VIDEO 1 |
|
|
|
VARIABLE |
|
|
|
|
|
OUT |
INPUT |
INPUT |
|
COMPONENT INPUT |
||
|
|
or |
|
|
|
|
|
|
AUDIO OUT |
||
|
|
|
|
|
|
|
|
|
|
|
A/V cables not included with TV
Mini glossary
COMPONENT VIDEO Some video equipment uses three separate lines (Y, Pb, Pr) to more precisely reproduce images. Your manual will explain how this relates to your equipment.
<COMPONENT Input>
Y PB PR
1920X1080i
1280X720p
720X480p
720X480i
P A G E 1 2 |
206-03714 |
PC Hookup
1
2
Find the audio and VGA jack on the back of your Computer, then connect them following the instructions provided with your equipment.
Connect these cables to your Entertainment Machine as shown.
Computer |
CALIBRATION
ANTENNA 1 |
ANTENNA 2 |
(AIR/CATV/DTV) |
(DTV) |
INPUT |
INPUT |
OUT
COMP IN |
|
|
|
|
|
VIDEO |
|
|
VIDEO |
PC IN |
|
|
|
|
|
L |
|
|
L |
DOLBY DIGITAL |
S-VIDEO |
MONO |
MONO |
S-VIDEO |
|
OUT |
IN |
||
|
|
|
||
|
R |
|
|
R |
|
MONITOR |
VIDEO 2 |
VIDEO 1 |
|
|
OUT |
INPUT |
INPUT |
|
|
|
|
|
L |
|
|
|
AUDIO |
|
|
COMPONENT |
|
CENTER MODE |
|
|
480 i / p |
IN |
|
|
|
|
720 p |
|
R |
Y |
|
1080 i |
|
|
|
|
|
||
|
|
AUDIO |
|
|
|
|
IN |
|
|
PB |
|
L |
|
L |
|
|
|
||
S-VIDEO |
|
|
|
|
IN |
|
R |
|
|
PR |
|
|
R |
|
|
COMPONENT INPUT |
VARIABLE |
|
|
|
AUDIO OUT |
-PC IN |
<RGB-PC Input>
Adjustment of V-position/H-position/PHASE
(Make sure to select RGB-PC before operating)
-Press the UP/DOWN/LEFT/RIGHT arrows to adjust V-position/H-position and press the info button to adjust PHASE.
MODE |
Resolution |
Horizontal |
Vertical |
|||
|
|
|
|
|||
Text |
640x400 |
37.861KHz |
85Hz |
|||
|
|
720x400 |
37.927KHz |
85Hz |
||
|
|
640x480 |
31.469KHz |
60Hz |
||
|
|
|
|
|
|
|
VGA |
640x480 |
37.861KHz |
72Hz |
|||
|
|
|
|
|||
640x480 |
37.5KHz |
75Hz |
||||
|
|
|||||
|
|
|
|
|
||
|
|
640x480 |
43.269KHz |
85Hz |
||
|
|
|
|
|
||
|
|
800x600 |
35.156KHz |
56Hz |
|
|
|
|
|
|
|
|
|
|
|
800x600 |
46.875KHz |
75Hz |
||
SVGA |
|
|
|
|||
800x600 |
37.879KHz |
60Hz |
||||
|
|
|
|
|
|
|
|
|
800x600 |
48.077KHz |
72Hz |
||
|
|
|
|
|
||
|
|
800x600 |
53.764KHz |
85Hz |
||
|
|
|
|
|
|
|
|
|
1024x768 |
48.363KHz |
60Hz |
||
XGA |
|
|
|
|
||
1024x768 |
56.476KHz |
70Hz |
||||
|
|
|
|
|
||
|
|
1024x768 |
60.023KHz |
75Hz |
||
|
|
|
|
|
|
206-03714 |
P A G E 1 3 |

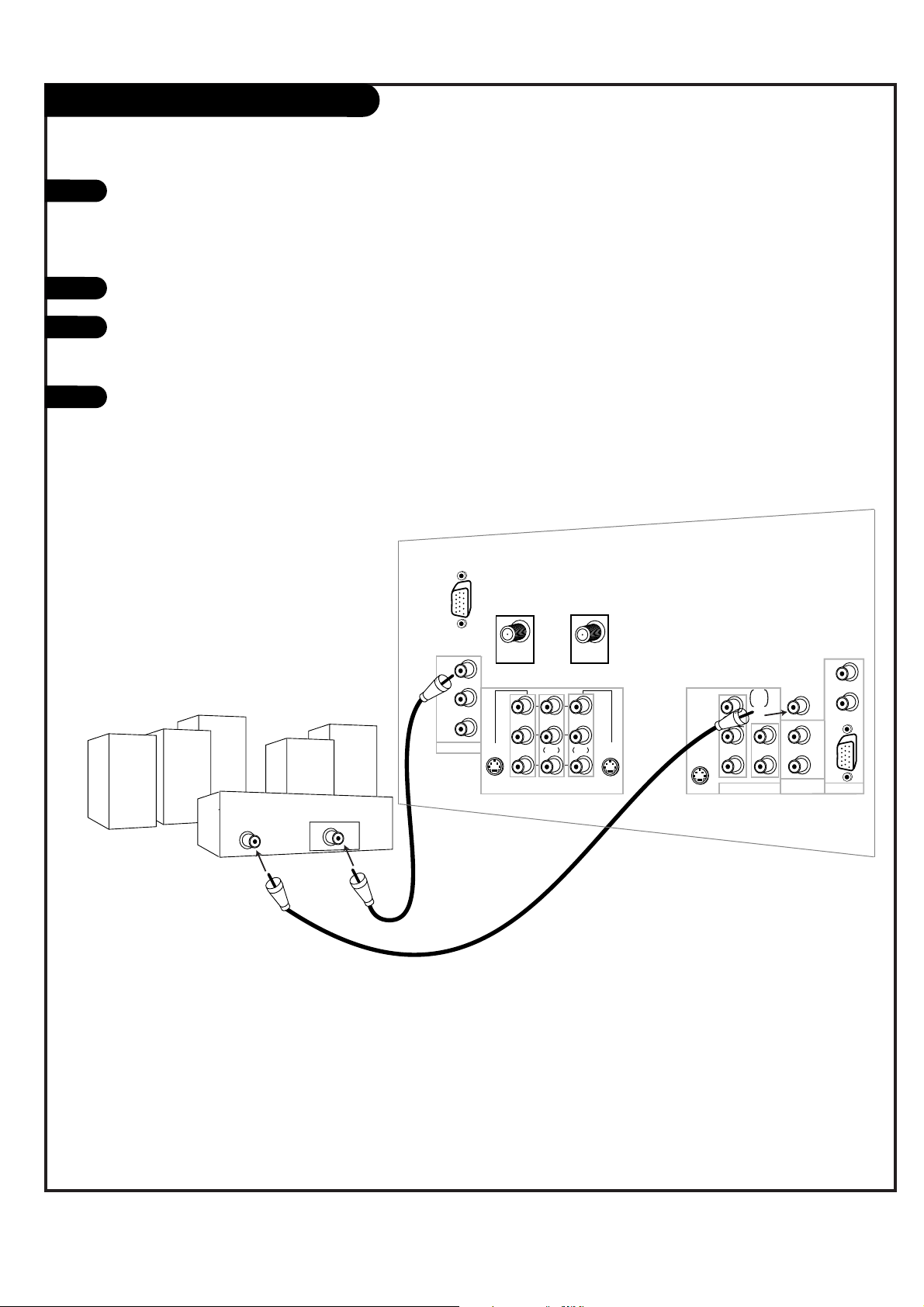

External Stereo
1
2
3
Hook up Left/Right Front Speaker to Amplifier System.
Locate the Variable Audio Out jacks on the back of your Entertainment Machine and the Input jacks on the back of your stereo's amplifier.
Connect the two jacks, making sure that the right and left channels are placed correctly.
Set up your speakers through your analog stereo amplifier, according to those directions.
|
|
|
|
L |
|
|
|
AUDIO |
|
|
COMPONENT |
|
CENTER MODE |
|
|
480 i / p |
IN |
|
|
|
|
720 p |
|
R |
Y |
|
1080 i |
|
|
|
|
|
||
|
|
|
|
|
|
|
AUDIO |
|
|
|
|
IN |
|
|
PB |
|
L |
|
L |
|
|
|
||
S-VIDEO |
|
|
|
|
IN |
|
|
|
|
PR |
|
|
|
R |
|
COMPONENT INPUT |
VARIABLE |
|
|
|
AUDIO OUT |
RGB-PC IN |
Analog stereo amplifier
L R
Audio cables not included with TV
P A G E 1 4 |
206-03714 |
Dolby Digital Audio Hookup
1
2
3
4
Locate the Dolby Digital Output jacks on the back of your Entertainment Machine and the Input jacks on the back of your Dolby Digital Receiver.
Connect the two jacks, as shown.
Set up your Dolby Digital Receiver according to the directions provided with that device.
If you wish to use your Entertainment Machine as the “center channel” for your Home Theater, re-direct the center channel into the special, “Center Mode In” jack on your Entertainment Machine.
|
|
|
CALIBRATION |
|
|
|
|
|
|
|
|
ANTENNA 1 |
|
ANTENNA 2 |
|
|
|
|
|
(AIR/CATV/DVD) |
|
(DTV) |
|
|
|
|
|
INPUT |
|
INPUT |
|
|
|
|
OUT |
|
|
|
|
|
Dolby Digital A/V Receiver |
|
IN |
|
|
|
|
|
|
|
VIDEO |
|
VIDEO |
||
|
Front Right |
Rear Right |
PC IN |
|
|
|
|
|
|
|
L |
|
L |
|
|
|
Front Left |
Surround |
|
|
|
||
Powered |
DOLBY DIGITAL |
S-VIDEO |
|
|
S-VIDEO |
||
Rear Left |
|
MONO |
MONO |
||||
Subwoofer |
|
|
OUT |
|
|
IN |
|
|
|
|
|
|
|||
Surround |
|
|
R |
|
R |
|
|
|
|
|
|
|
|||
|
|
|
|
MONITOR |
VIDEO 2 |
VIDEO 1 |
|
|
|
|
|
OUT |
INPUT |
INPUT |
|
Center Channel |
Dolby Digital |
|
Preamp |
||
In |
||
Out |
||
|
Use shielded 75 Ω Video type cable
|
|
|
|
L |
|
|
|
AUDIO |
|
|
COMPONENT |
|
CENTER MODE |
|
|
480 i / p |
IN |
|
|
|
|
|
|
|
|
|
720 p |
|
R |
Y |
|
1080 i |
|
|
|
|
|
||
|
|
|
|
|
|
|
AUDIO |
|
|
|
|
IN |
|
|
PB |
|
L |
|
L |
|
|
|
||
S-VIDEO |
|
|
|
|
IN |
|
R |
|
|
PR |
|
|
R |
|
|
COMPONENT INPUT |
VARIABLE |
|
|
|
AUDIO OUT |
RGB-PC IN |
Audio cables not included with TV
206-03714 |
P A G E 1 5 |
Room Setups for Home Theater
This is just a general room design. Any number of set-ups are possible, and some changes may be needed to maximize your sound. However, a Dolby Digital Receiver is needed for 5.1 channel audio.
A left and right speaker on either side of the set enhances separation. The Entertainment Machine “center mode in,” makes the dialog sound as thought it’s coming directly from the Entertainment Machine. The rear surround sound speakers provide the majority of other sounds, like those from special effects in movies. Your sub-woofer generates ultra-low frequency sound, for rumbling low-end audio.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
left |
|
|
|
right |
|||||
speaker |
|
|
|
speaker |
|||||
|
|
|
|
|
sub-woofer |
surround |
surround |
sound |
sound |
speaker |
speaker |
Sound is affected by speaker placement, so make sure nothing is in front of the speakers, and that they are aimed in appropriate directions.
You have the option of turning on or off the internal speakers.
P A G E 1 6 |
206-03714 |
Monitor Out
1
2
Your Entertainment Machine has a special feature which allows you to hook up a second TV or monitor.
Just connect the second TV or monitor using the OUT Audio/Video jacks located on the back of your Entertainment Machine. See the Operating Manual of the second TV or monitor for further details regarding that device’s input settings.
CALIBRATION |
|
|
|
ANTENNA 1 |
ANTENNA 2 |
|
Second TV |
|
|
||
(AIR/CATV/DTV) |
(DTV) |
|
|
INPUT |
INPUT |
|
|
OUT |
|
|
|
|
|
COMPONENT |
480 i / |
COMP IN |
|
|
|
|
|
720 p |
|
VIDEO |
Y |
|
1080 i |
|
|
||
|
|
|
AUD |
|
|
|
I |
PC IN
|
|
L |
|
PB |
L |
L |
R |
|
DOLBY DIGITAL |
S-VIDEO |
|
|
S-VIDEO |
S-Video |
|||
MONO |
MONO |
Video |
Audio |
|||||
|
OUT |
IN |
||||||
|
|
|
|
S-VIDEO |
|
|
|
|
|
|
R |
|
IN |
R |
|
|
|
|
|
|
PR |
|
|
MONITOR |
VIDEO 2 |
VIDEO 1 |
OUT |
INPUT |
INPUT |
|
|
COMPONENT INP |
A/V cables not included with TV
Component & PC input cannot be output through
Monitor Out.(except COMPONENT S-Video)
206-03714 |
P A G E 1 7 |

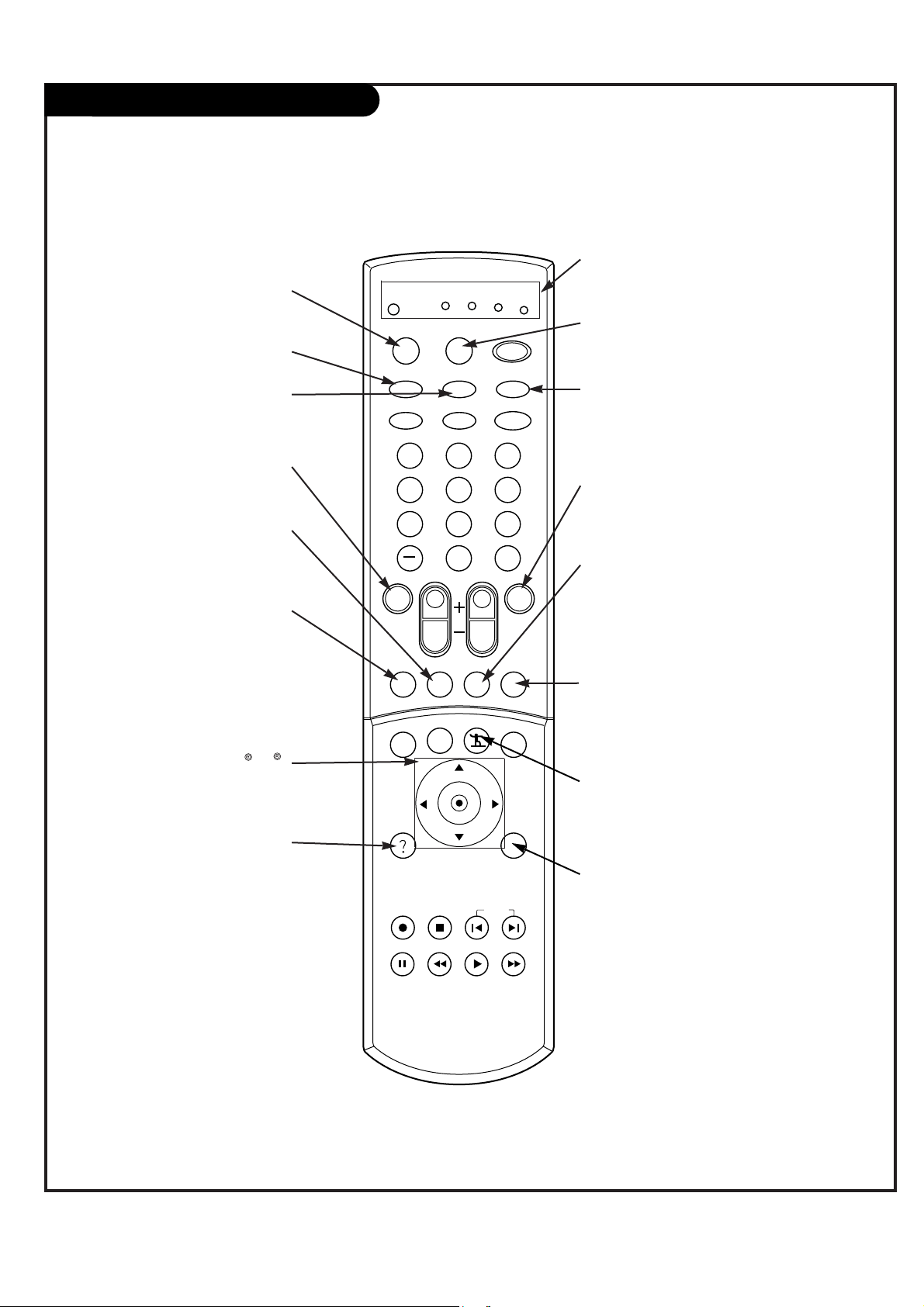

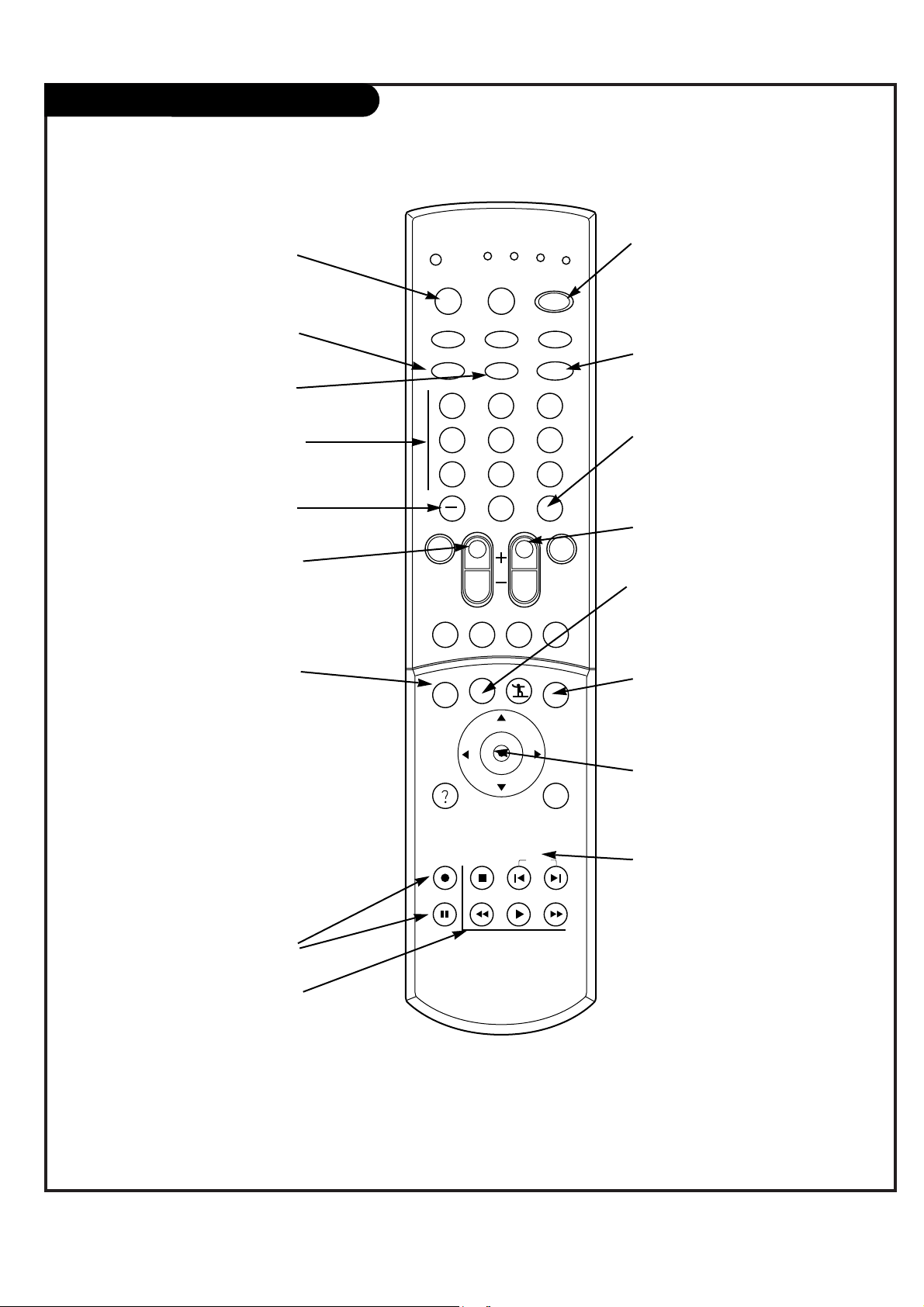

Button functions on your Remote

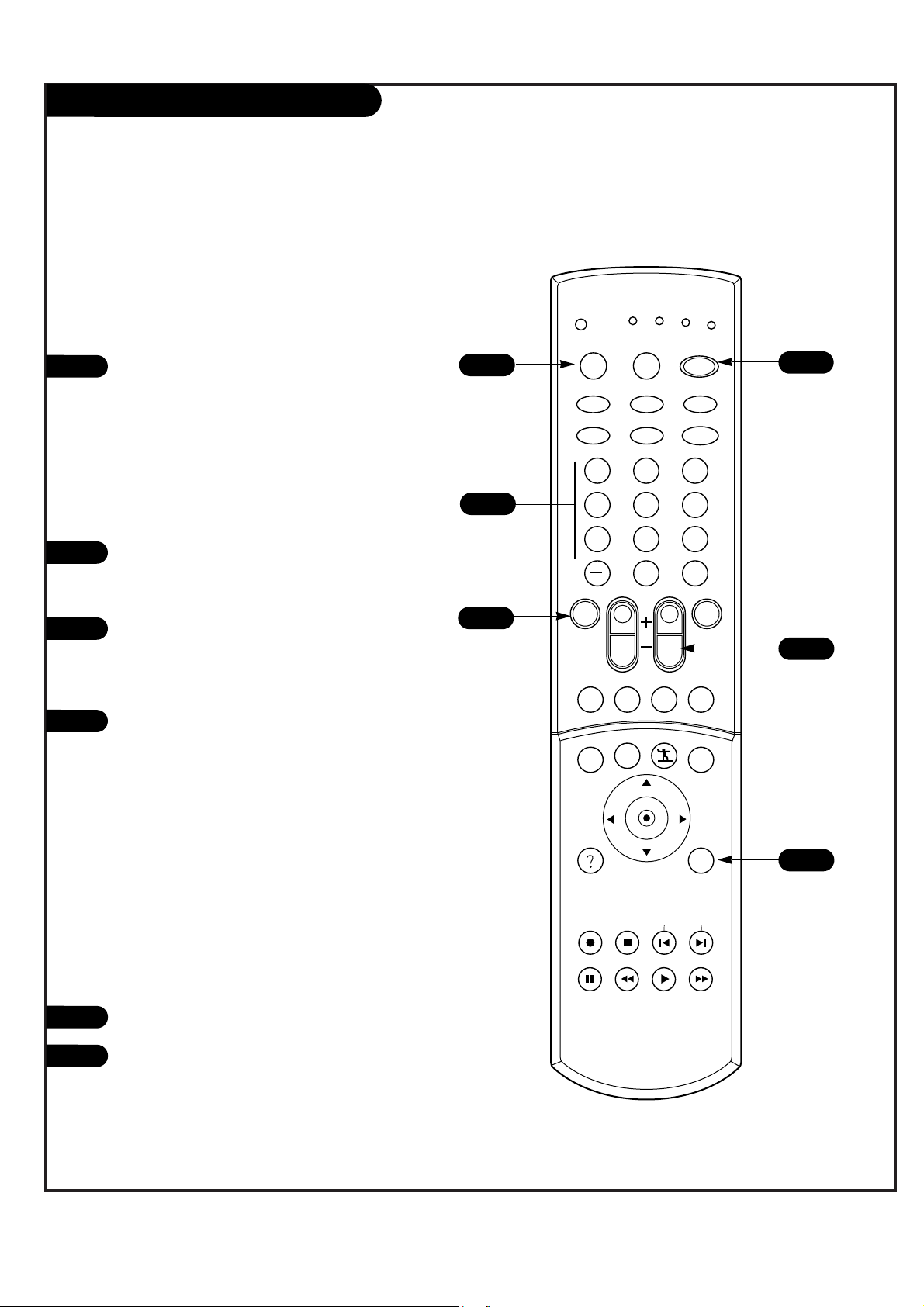

MODE
Lets you select a mode among TV, |
tv |
vcr cable dvd sat |
||
VCR, Cable, DVD and Satellite. |
||||
|
|
|
||
TV |
mode |
light |
power |
|
|
|
|
||
Lets you select the |
|
|
|
|
analog/digital TV signal. |
antenna |
video |
front |
|
|
||||
VIDEO |
comp |
rgb |
digital eye |
|
Lets you toggle between Video1 |
||||
|
|
|
||
and Video 2 inputs. |
|
|
|
|
MUTE |
1 |
2 |
3 |
Switches the sound on or off.
4 5 6
INDICATORS
indicates using mode every time any button is pressed.
LIGHT
Lets you turn the light of the remote control on.
FRONT
Lets you select the front video signal if the device, such as a camcorder or game player, is connected to the front video jack.
RATIO
Changes the screen format or aspect ratio.
FREEZE
Captures and freezes the currently-viewed.
TIMER
Lets you select the amount of time before your TV turns itself off automatically.
THUMBSTICK
Allows you to navigate the on-screen menus and to adjust the system settings and preferences, by moving to an item withF ED G and selecting the highlighted item with . IF
is pressed while you are in normal viewing, the information banner is displayed.
HELP
Bring up the on-screen EZ Help feature while the menu is already displayed.
7 8 9
0 enter
mute |
ratio |
pg up
pg dn vol ch
FLASHBK
Lets you tune to the last channel viewed.
timer freeze flashbk pip
PIP
Lets you toggle among PIP, POP (Picture out of Picture).
menu cc surf info
exit
record stop |
skip |
SURF
Changes the list of your surf channel.
EXIT
Clears all on-screen displays and returns to TV viewing from any menu.
pause rew play ff
P A G E 1 8 |
|
|
206-03714 |
