Zenith FFH-192A OPERATING GUIDE

Installation and Operating Guide

Machine Number
| F-192 (Main Unit : FFH-192A, Speakers : FE-192E) |

Hi-Fi MICRO CD COMPONENT

Precautions

2

Explanation Graphical Symbols:

The lightning flash with arrowhead symbol,
within an equilateral triangle is intended to
alert the user to the presence of uninsulated
dangerous voltage within the product’s enclo­sure that may be of sufficient magnitude to
constitute a risk of electric shock to persons.

The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operating and mainte­nance(servicing) instructions in the literature
accompanying the appliance.

WARNING

TO REDUCE THE RISK OF FIRE OF ELECTRIC
SHOCK, DO NOT EXPOSE THIS APPLIANCE TO
RAIN OR MOISTURE.
To avoid electrical shock, do not open the cabinet,
Refer servicing to qualified personnel only.

The apparatus shall not be exposed to dripping or
splashing and that no objects filled with liquids,
such as vases, shall be placed on the apparatus.

Warning:

Do not install this equipment in a confined space such
a book case or similar unit.

Note:

The regulation label is positioned at bottom of this unit.

This label is located on the interior.

This Compact Disc player is classified as a CLASS 1
LASER product.
The CLASS 1 LASER PRODUCT label is located on
the exterior.

CAUTION

Use of controls or adjustments or performance of pro­cedures other than those specified herein may result
in hazardous radiation exposure.

Laser component in this product is capable of emit­ting radiation exceeding the limit for Class 1.

CAUTION:INVISIBLE LASER RADIATION WHEN
OPEN AND INTERLOCKS DEFEATED. AVOID
EXPOSURE TO BEAM.

VARNING:OSYNLIG LASERSTRÅLNING NÄR
DENNA DEL ÄR ÖPPNAD STRÅLEN ÄR FARLIG.

Attention:Quand l'appareil est ouvert, ne pas
s'exposer aux radiations invisibles du faisceau laser.

CLASS 1 LASER PRODUCT
KLASSE 1 LASER PRODUKT
LUOKAN 1 LASER LAITE
KLASS 1 LASER APPARAT
CLASSE 1 PRODUIT LASER

RISK OF ELECTRIC

SHOCK DO NOT OPEN

CAUTION

CAUTION:TO REDUCE THE RISK OF ELECTRIC
SHOCK DO NOT REMOVE COVER(OR BACK)
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.

Table of Contents

INTRODUCTION

3

INTRODUCTION

Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Table of Contents . . . . . . . . . . . . . . . . . . . . . . 3

Important Safety Instructions. . . . . . . . . . . . . 4

Before Use . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Safety Precautions. . . . . . . . . . . . . . . . . . . . 5

Notes on Discs . . . . . . . . . . . . . . . . . . . . . . 5

Notes on Remote Control. . . . . . . . . . . . . . . 5

Front Panel/ Rear Panel . . . . . . . . . . . . . . . . . 6

Remote Control. . . . . . . . . . . . . . . . . . . . . . . . 7

Display Window . . . . . . . . . . . . . . . . . . . . . . . 7

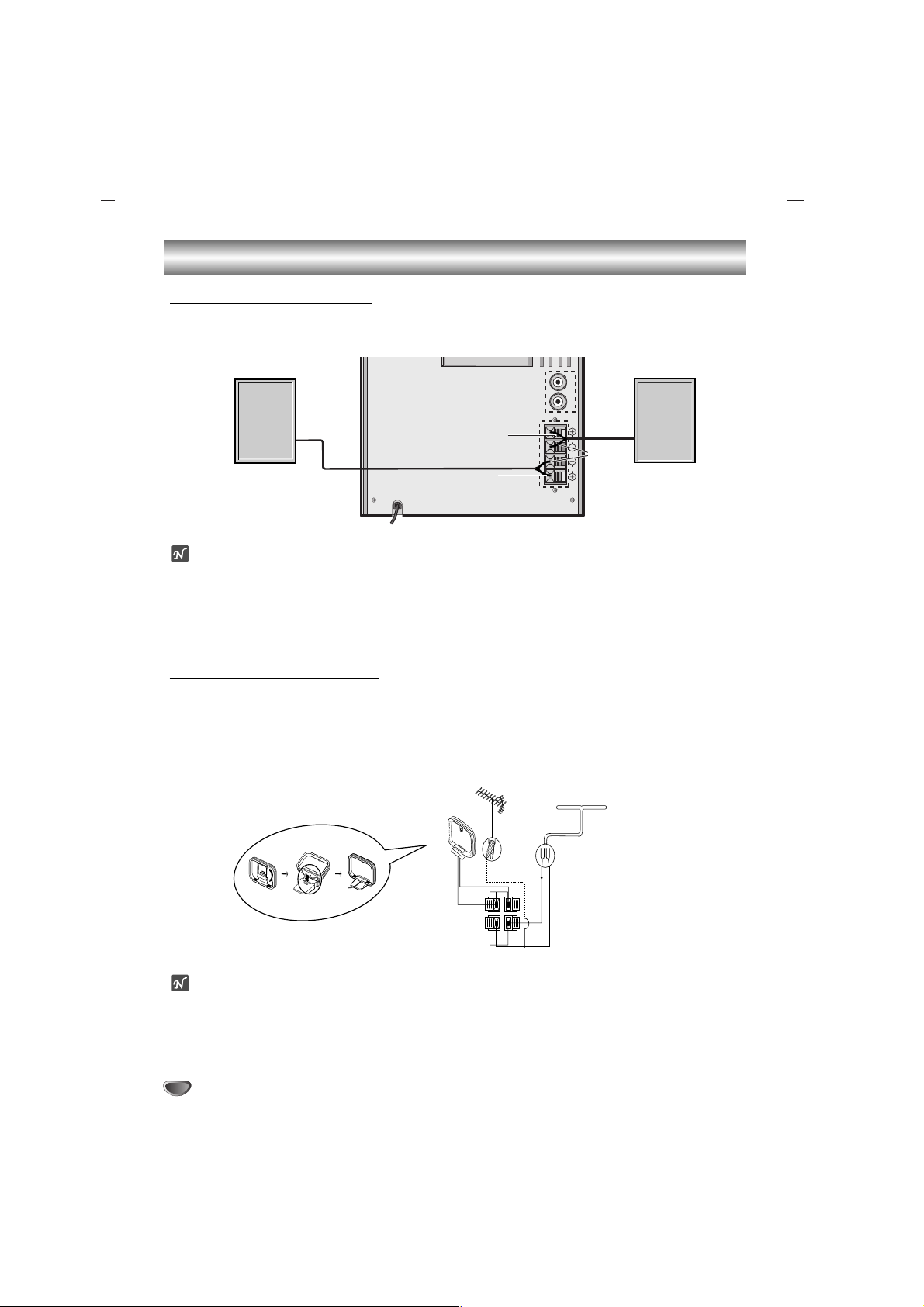

Connections . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Speaker System Connection . . . . . . . . . . . . 8

Antenna (Aerial) Connections. . . . . . . . . . . . 8

BEFORE OPERATION

Setting the CLOCK . . . . . . . . . . . . . . . . . . . . . 9

Sleep Function . . . . . . . . . . . . . . . . . . . . . . . . 9

Timer Function . . . . . . . . . . . . . . . . . . . . . . . 10

Audio Adjustment . . . . . . . . . . . . . . . . . . . . . 11

Volume Adjustment. . . . . . . . . . . . . . . . . . . 11

Sound Quality Adjustment . . . . . . . . . . . . . 11

MUTE . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

SURROUND . . . . . . . . . . . . . . . . . . . . . . . 11

XDSS (Extreme Dynamic Sound System) . . . . 11

Auxiliary Function. . . . . . . . . . . . . . . . . . . . . 11

OPERATION

Presetting the radio stations . . . . . . . . . . . . 12

Listening to the radio . . . . . . . . . . . . . . . . . . 12

Tape Playback. . . . . . . . . . . . . . . . . . . . . . . . 13

Basic Playback . . . . . . . . . . . . . . . . . . . . . 13

To Stop Play . . . . . . . . . . . . . . . . . . . . . . . 13

Tape Counter Reset . . . . . . . . . . . . . . . . . . 13

To Play Fast Rewind or Fast Forward . . . . . 13

Recording . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Basic Setting . . . . . . . . . . . . . . . . . . . . . . . 13

Recording from Radio, CD or Auxiliary

source . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

CD to Tape Synchronized Recording . . . . . 13

CD Playback . . . . . . . . . . . . . . . . . . . . . . . . . 14

Basic Playback . . . . . . . . . . . . . . . . . . . . . 14

To Pause Play . . . . . . . . . . . . . . . . . . . . . . 14

To Stop Play . . . . . . . . . . . . . . . . . . . . . . . 14

To Skipping the Track. . . . . . . . . . . . . . . . . 14

To Play Fast Rewind or Fast Forward . . . . . 14

To Repeat Play . . . . . . . . . . . . . . . . . . . . . 14

To Program Play . . . . . . . . . . . . . . . . . . . . 14

REFERENCE

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . 15

Specification . . . . . . . . . . . . . . . . . . . . . . . . . 16

About the symbols for instructions

Indicates hazards likely to cause harm to the
unit itself or other material damage.

Indicates special operating features of this
unit.

Indicates tips and hints for making the task
easier.

4

Important Safety Instructions

1. Read these instructions.

- All these safety and operating instructions should
be read before the product is operated.

2. Keep these instructions.

- The safety, operating and use Instructions should
be retained for future reference.

3. Heed all Warnings.

- All warnings of the product and in the operating
instructions should be adhered to.

4. Follow all instructions.

- All operating and use instructions should be
followed.

5. Do not use this apparatus near water.

- For example: near a bath tub, wash bowl, kitchen
sink, laundry tub, in a wet basement; or near a
swimming pool; and like.

6. Clean only with dry cloth.

- Unplug this product from the wall outlet before
cleaning. Do not use liquid cleanera.

7. Do not block any ventilation openings. Install in
accordance with the manufacturer’s Instructions.

- Slots and openings in the cabinet are provided for

ventilation and to ensure reliable operation of he
product and to protect it from over- heating. The
openings should never be blocked by placing the
product on a bed, sofa, rug or other similar
surgace. This product should not be placed in a
built-in installation such as a bookcase or rack
unless proper ventilation is provided or the
manufacturer’s instructions have been adhered to.

8. Do not install near any heat sources such as
radiators, heat registers’ stoves, or other apparatus
(including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or
grounding-type plug. A polarized plug has two
blades with one wider than the other. A grounding
type plug has two blades and a third prounding
prong. The wide blade or the third prong are
provided for your safety. If the provided plug does
not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.

10. Protect the power cord from belong walked on or
pinched particularly at plugs, convenience
receptacles, and the point where they exit from the
apparatus.

11. Only use attachments/ accessories specified by the
manufacturer.

12. Use only with the cart, stand, tripod, bracket, or
table specified by the manufacturer, or sold with
apparatus. When a cart is used, use caution when
moving the cart/apparatus combination to avoid
injury from tip-over.

13. Unplug this apparatus during lighting storms or
when unused for long periods of time.

14. Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as powersupply cord or
plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has
been exposed to rain or moisture, does not operate
normally, or has been dropped.

INTRODUCTION

5

Before Use

Safety Precautions

Handling the unit

When shipping the unit

The original shipping carton and packing materials
come in handy. For maximum protection, re-pack the
unit as it was originally packed at the factory.

To keep the surface clean

Do not use volatile liquids, such as insecticide spray,
near the unit. Do not leave rubber or plastic products in
contact with the unit for a long period of time. They will
leave marks on the surface.

Cleaning the unit

To clean the cabinet

Use a soft, dry cloth. If the surfaces are extremely dirty,
use a soft cloth lightly moistened with a mild detergent
solution. Do not use strong solvents, such as alcohol,
benzine, or thinner, as these might damage the surface
of the unit.

Notes on Discs

Handling discs

Do not touch the playback side of the disc.
Hold the disc by the edges so that fingerprints will not
get on the surface.
Do not stick paper or tape on the disc.

Storing discs

After playing, store the disc in its case.
Do not expose the disc to direct sunlight or sources of
heat, or leave it in a parked car exposed to direct
sunlight, as there may be a considerable temperature
increase inside the car.

Cleaning discs

Fingerprints and dust on the disc can cause poor
picture quality and sound distortion. Before playing,
clean the disc with a clean cloth. Wipe the disc from
the center out.

Do not use strong solvents such as alcohol, benzine,
thinner, commercially available cleaners, or anti-static
spray intended for analog records.

Notes on Remote Control

Remote Control Operation Range

Point the remote control at the remote sensor and press
the buttons.



Distance: About 23 ft (7 m) from the front of the

remote sensor.



Angle: About 30° in each direction of the front of the

remote sensor.

Remote control battery installation

Detach the battery cover on the rear
of the remote control, and insert two

R03 (size AAA) batteries with
and aligned correctly.

Caution

Do not mix old and new batteries. Never mix different
types of batteries (standard, alkaline, etc.).

6

Front Panel/ Rear Panel

1. DISPLAY

2. PRESET (-) button

3. COUNTER RESET button

4. RECORD/ RECORD PAUSE ( REC ) button

5. TUNER/ CD/ TAPE/ AUX indicators

6. POWER ( STANDBY/ON) button

7. VOLUME (-)/(+) knob

8. CD SYNC. button

9. PROG./ MEMORY button

10. HEADPHONE SOCKET ( ): 3.5mm

11. SURROUND button

12. EQUALIZER (EQ) button

13. PUSH EJECT position -DECK

14. XDSS button

15. TIMER button

16. CLOCK button

17. MODE/RIF button

18. • SET (CLOCK/ TIMER) button

• CD PAUSE (CD ) button

19. AM/ FM SELECT (BAND) button

20. FUNCTION SELECT (FUNCTION) button

(TUNER/ CD/ TAPE/ AUX)

21. • TUNING (+) button - TUNER

• SKIP ( ) button - CD

• SEARCH (+) button - CD

• FAST FORWARD PLAY ( ) button

-TAPE/ CD

22. • TUNING (-) button - TUNER

• SKIP ( ) button -CD

• SEARCH (-) button -CD

• FAST REWIND PLAY ( ) button

-TAPE/ CD

23. • FORWARD PLAY ( ) button

• PRESET (+) button

24. • STOP ( ) button

• CLEAR button

25. CD OPEN

()button

26. CD DOOR

27. ANTENNA TERMINAL

28. AUXILIARY INPUT SOCKET

29. SPEAKER TERMINAL

30. POWER CORD

1

2

3

4

5

6

7

8

9

10

11

12

26

24

22

20

18

16

14

25

23

21

19
17

15

13

30

27

AUX

L

R

L

R

28

29

INTRODUCTION

7

Remote Control

1

1. XDSS button

2. POWER button

3. TUNER/ BAND button

4. AUX button

5. PRESET ( ) button

6. CD FUNCTION buttons

• PLAY/ PAUSE ( ) button

• CD STOP( ) button

• SKIP (

/

) button

• FAST REWIND/ FAST FORWARD PLAY
(

/

) button

• REPEAT button

7. TAPE FUNCTION buttons

• RECORD/ RECORD PAUSE button ( )

• FORWARD PLAY ( ) button

• TAPE STOP button ( )

• FAST FORWARD PLAY ( ) button

• FAST REWIND PLAY ( ) button

8. SLEEP button

9. PROGRAM button

10. VOLUME CONTROL ( ) button

11. EQUALIZER PATTERN (EQ PATT.) button

12. MUTE button

13. SURROUND (SURR.) button

RECREC

1. MUTE indicator

2. CD PLAY/ PAUSE indicator

3. XDSS (Extra Dynamic Sound System) indicator

4. TIMER indicator

5. CD SYNCHRO RECORDING indicator

6. SLEEP indicator

7. PROGRAM indicator

8. FM STEREO indicator

9. CD REPEAT indicator

10. RECORD/ RECORD PAUSE indicator

11.TAPE PLAY DIRECTION indicator

12. PLAY MODE indicator (OPTIONAL)

13. • VOLUME indicator

• SOUND LEVEL METER

Display Window

2
3

4
5

6

X

34567

13

12

11
10

9

8

7

89

2
1

XDSS
MUTE

TIMER

SLEEP

PROG. REPEAT

SYNC

REC

STEREO ALL1

MHz

REC

kHz

10
11
12

13

8

Connections

Speaker System Connection

Connect the speakers using the supplied speaker cords by matching the colors of the terminals and those of the
cords. To obtain the best possible surround sound, adjust the speaker parameters (distance, level, etc.).

AUX

Notes

• Be sure to match the speaker cord to the appropriate terminal on the components: + to + and – to –.
If the cords are reversed, the sound will be distorted and will lack base.

• If you use front speakers with low maximum input rating, adjust the volume carefully to avoid excessive output on
the speakers.

• Do not disassemble the front cover of supplied speaker.

Antenna (Aerial) Connections

Connect the supplied FM/AM antennas for listening to the radio.

• Connect the AM loop antenna to the AM antenna connector.

• Connect the FM wire antenna (or FM “T” antenna) to the FM 300Ω coaxial connector.

Notes

•To prevent noise pickup, keep the AM loop antenna away from the unit and other components.

• Be sure to fully extend the FM wire antenna.

• After connecting the FM wire antenna, keep it as horizontal as possible.

Right speaker

red

red

L

R

L

R

black

Left speaker

AM loop antenna (aerial)
(Supplied)

FM external
antenna (aerial)
(not supplied)

Position it for
the best reception

300 ohms

coaxial
cable

AM

FM indoor antenna (aerial)

FM

BEFORE OPERATION

9

11

Press CLOCK.

(If the clock requires setting, press and hold
CLOCK for more than 2 seconds.)

- The hours begin to flash.

22

Select a 24 hour cycle or 12 hour cycle by
pressing PRESET (-)/(+).

33

Press SET to confirm the selected hour cycle.

44

Use PRESET (-)/(+) to set the correct hours.

55

Press SET.

66

Use PRESET (-)/(+) to set the correct minutes.

77

Press SET and the correct time is shown on
the display.

88

Press CLOCK at any time to display the time
for about 3 seconds.

(12HR)

(24HR)

or

Sleep Function

When the sleep timer is used, the power is automatically turned off after the specified time has elapsed.

11

To specify the time delay before the power is
turned off, press SLEEP.

In the display window you can see for
about 5 seconds. This means that the system
turns off automatically after 90 minutes.
Each time the button is pressed the time interval
before it turns off is reduced by 10 minutes. i.e.

80...70... etc.
Select the desired time to turn off.

22

To check the remaining time until the power is
turned off.

While the sleep function is active press SLEEP
briefly. The time remaining until it turns off is
displayed for about 5 seconds.

Note

If you press SLEEP while the sleep time is displayed,
the SLEEP time is reset.

To cancel the sleep timer mode

If you wish to stop the function, press the SLEEP button
repeatedly until 10 appears, and then press SLEEP
once again while 10 is displayed.

Setting the CLOCK

10

Timer Function

11

Press CLOCK to check the current time.

22

Press “TIMER” to enter the timer setting mode.

(If you want to correct the previous memorized
TIMER setting, press and hold the “TIMER” but­ton more than 2 seconds.)
The previous memorized timer on time and
“

TIMER

” appears in the display. Each function :
TUNER-CD-TAPE flashes in the display window in
turn.

33

Press SET when the desired function is
flashing.

44

If you select the TUNER:
PLAY and REC flash in the display window
alternately for about 3 seconds. Press SET to
confirm the desired operating mode.

REC: TUNER recording and play
PLAY: TUNER play only

• If you have selected the CD or TAPE,
ignore step 4.

55

When you have selected the TUNER;
Select the previous memorized preset number with
PRESET (-)/(+) and press SET. The hour “ON”
display flashes.

• If you have selected the CD or TAPE,

ignore step 5.

66

Set the hour to switch on by pressing PRESET
(-)/(+).

77

Press SET to confirm the hour to switch on.

The minute “ON” display flashes.

88

Set the minute to switch on by pressing
PRESET (-)/(+).

99

Press SET to confirm the minute to switch on.

The hour “OFF” now flashes in the display.

1100

Set the hour to switch off by pressing
PRESET (-)/(+).

1111

Press SET.

1122

Set the minute to switch off by pressing
PRESET (-)/(+).

1133

Press SET.

1144

Adjust the volume level by pressing
PRESET (-)/(+).

1155

Press SET.

“

TIMER

” appears in the display window and the

timer setting has been completed.

1166

Switch the system off.

The selected function is automatically
switched on and off at the time set.

To cancel or check the timer

Each time the “TIMER” button is pressed you can
select the timer set or cancel. You can also check the
timer setting status.
To activate or check the timer, press the “TIMER” but­ton so that “

TIMER

” appears in the display window.
To cancel the TIMER, press the “TIMER” button so that
“

TIMER

” disappears in the display window.

With the TIMER function you can have the radio reception and recording, CD play, tape play or auxiliary source play
and recording turned on and off at the time desired.

BEFORE OPERATION

11

Audio Adjustment

Volume Adjustment

•Turn VOLUME (-)/(+) knob clockwise to increase the
sound level, or counterclockwise to decrease it.

• Press VOLUME CONTROL ( ) to increase the
sound level, or press the VOLUME CONTROL ( )

to decrease it on the remote control.

Sound Quality Adjustment

•To activate stereo sound

You can choose between 4 fixed sound impressions.
Select a desired sound mode by using the EQ.PATT
(EQ: on the remote control) button.
FLAT : linear frequency response
ROCK : more bass, more treble
POP : less bass, less treble
CLASSIC : for orchestral music

• Headphone Socket

Connect a stereo headphone plug ( 3.5mm) into the
headphone jack.
The speakers are automatically disconnected when
you plug in the headphones (not supplied).

MUTE

Press MUTE to mute your unit.
You can mute your unit in order, for example, to answer
the telephone, “MUTE” indicator flashes in the display
window.

SURROUND

To activate surround mode

You can choose between 3 fixed sound impressions.
Select a desired surround mode by using SURROUND.

SURROUND 1 ON→ SURROUND 2 ON→ SURROUND OFF

XDSS (Extreme Dynamic Sound System)

Press XDSS to reinforce treble, bass and surround
effect.
The “XDSS ON” or “XDSS OFF” indicator lights up.
To cancel it press XDSS again.

Auxiliary Function

11

Connect an auxiliary device i.e. TV or VCR, via the rear mounted AUX phone sockets.

22

Press AUX.

Note

You can also record from the auxiliary input source, see
Recording Section.

12

Presetting the radio stations

You can preset 30 stations for FM and AM. Before
tuning, make sure that you have turned down the
volume to the minimum.

11

Press FUNCTION repeatedly to appear TUNER
indicator (or TUNER/BAND on the remote
control).

22

Press BAND to select the FM or AM you want
in the display window.

Every time you press BAND, FM and AM changes
alternately.

33

Press TUNING (-)/(+) on the front panel until
the frequency indication starts to change, then
release.

Scanning stops when the unit tunes in a station.

Notes

 Tuning in automatically

Press TUNING(-)/(+) for more than 0.5 seconds.

 Tuning in manually

Press TUNING(-)/(+) briefly and repeatedly.

44

Press PROG./MEMORY(or PROGRAM on the
remote control).

A preset number will flash in the display window.

55

Press PRESET (-)/(+) (or PRESET ( ) on
the remote control) to select the preset number
you want.

66

Press PROG./MEMORY (or PROGRAM on the
remote control) again.

- The station is stored.

77

Repeat steps 3 to 6 to store other stations.

To clear all the memorized stations

Press and hold PROG./MEMORY on the front panel for
about two seconds, “CLEAR” appears in the display
window and then press PROG./ MEMORY again, the
stations are cleared.

For your reference

If all stations have already been entered, FULL message
will appear in the display window for a moment and then
a preset number will flash. To change the preset number,
follow the steps 5-6.

To recall presets

Press and hold PRESET (-)/(+) (or PRESET ( ) on
the remote control) until the desired preset number
appears or press it repeatedly.

11

Press FUNCTION repeatedly to appear TUNER
indicator (or TUNER/BAND on the remote
control) and then press BAND to select the FM
or AM you want in the display window.

The last received station is tuned in.

22

Press PRESET (-)/(+) (or PRESET ( ) on
the remote control) repeatedly to select the
preset station you want.

- Each time you press the button, the unit tunes in
one preset station at a time.

33

Adjust the volume by rotating VOLUME (-)/(+)
KNOB (or pressing VOLUME ( ) on the

remote control) repeatedly.

To listen to non-preset radio stations

• Use manual or automatic tuning in step 2.

• For automatic tuning, press and hold TUNING (-)/(+)
on the front panel.

To turn off the radio

Press POWER to turn the unit off or select another
function mode (CD, TAPE or AUX).

For your reference

• If an FM program is noisy

Press MODE/RIF so that “

STEREO

” disappears in
the display window. There will be no stereo effect,
but the reception will improve. Press MODE/RIF
again to restore the stereo effect.

• To improve reception

Reposition the supplied antennas.

Notes

 Use MODE/RIF (Radio Interference Filter) function to

switch to mono reception if stereo reception is distorted
by noise.

 When recording the MW(AM) or LW broadcast, beat

noises may occur. If it does, press MODE/RIF once.

Listening to the radio

OPERATION

13

Tape Playback

Basic Playback

11

Press FUNCTION repeatedly to appear TAPE
indicator.

(“NO TAPE” appears in the display window.)

22

Open cassette deck by pushing

PUSH EJECT position.

33

Insert a cassette with the tape side to the bot­tom and then close deck.

44

Press PLAY .

To Stop Play

Press STOP( ) during playback.

Tape Counter Reset

Press COUNTER during playback.

Playing time appears “TP - 0000” in display window.

To Play Fast Rewind or Fast Forward

After pressing

/

on the front panel or the

remote control during playback, press PLAY ( ) at
the point you want.

AUTO STOP DECK

After auto stop deck plays only front side, the unit stops
automatically.

Basic Setting

11

Press FUNCTION repeatedly to appear the CD
or TUNER indicator.

22

Open the cassette deck and insert a blank
cassette into the cassette compartment.

Recording from Radio, CD or Auxiliary

source

11

Press REC (or on the remote
control), and then play the CD or TUNER
function.

“ REC” flashes and holds the cassette in pause
mode.

22

Press REC or PLAY( ) (or or
PLAY( ) on the remote control).

The recording begins.

To pause recording

Press REC or again.
“ REC” flashes in display window.

To stop recording

Press TAPE STOP( ).

CD to Tape Synchronized Recording

The CD synchro recording function dubs a complete CD
and programmed titles automatically into a cassette.

11

Press CD SYNC. in stop mode.

“ REC” flashes and “ ” displays in the
display window.

22

The synchronized recording is started

automatically after about 8 seconds.

Notes

 If you wish to record from the desired track, select the

desired track with SKIP / before commenc­ing CD synchro recording.

 The function change is not possible during

recording.

You can use only normal tape.

Wind the tape to the point recording starts. (Use only normal tapes.)

Recording

14

CD Playback

Basic Playback

11

Press FUNCTION repeatedly to appear CD
indicator.

If no disc is loaded then “NO DISC” is displayed.

22

Press CD OPEN( ) and place the disc into the
disc tray.

Note

To load an 8cm(3 inch) disc, put it onto the inner circle
of the tray.

33

Press CD OPEN( ) to close the disc
compartment.

44

Press PLAY ( ) or PLAY/ PAUSE ( )

on the

remote control

.

To Pause Play

Press CD PAUSE (CD ) or PLAY/ PAUSE ( ) on
the remote control during playback.

Press this button again it to resume play.

To Stop Play

Press STOP( ) during playback.

To Skipping the Track

• Press the SKIP ( ) button to go to the next
track.

• When the SKIP ( ) button is pressed once
midway through a track, the player returns to the
start of that track. When it is pressed again, a
track is skipped each time the button is pressed.

To Play Fast Rewind or Fast Forward

After pressing

/

on the front panel or the

remote control during playback, press PLAY ( ) at
the point you want.

To Repeat Play

To play one track repeatedly

Press REPEAT once during playback.

- “REPEAT 1” appears in the display.

To play all tracks repeatedly

Press REPEAT again during playback.

- “REPEAT ALL” appears in the display.

To c ancel repeat play

Press REPEAT once more during playback.

- Repeat indicator disappears.

To Program Play

You can arrange the order of the tracks on the discs and
create your own program. The program can contain up
to 20 tracks.

11

Press PROG./MEMORY (or PROGRAM on the
remote control) on the stop mode.

22

Press SKIP( / ) to select the track.

33

Press PROG./MEMORY (or PROGRAM on the
remote control).

44

Repeat 1~3.

55

Press PLAY( ) (or PLAY/ PAUSE ( ) on the
remote control).

To check program contents

Press PROG./MEMORY (or PROGRAM on the remote
control) on the stop mode.

-Atrack and program number will be displayed.

To clear program contents

Press PROG./MEMORY (or PROGRAM on the remote
control) on the stop mode. And then press CLEAR on

the front panel or STOP( ) on the remote control.

To add program contents

1. Press PROG./MEMORY (or PROGRAM on the

remote control) repeatedly on the program stop
mode until “Track Number” blinks.

2. Repeat 2~5.

To modify program contents

1. Press the PROG./MEMORY (or PROGRAM on the

remote control) to display program number you want
to modify.

2. Repeat 2~4.

REFERENCE

15

Troubleshooting

Check the following guide for the possible cause of a problem before contacting service.

Symptom

No power.

No sound.

The unit does not
start playback.

The remote control
does not work
properly.

Cause

• The power cord is disconnected.

•The audio cables are not
connected securely.

• The power of the external source
equipment is switched off.

• The Digital Audio Output is set
to the wrong position.

• An unplayable disc is inserted.

• The disc is placed upside down.

• The disc is not placed within the
guide.

• The disc is dirty.

• The remote control is not pointed
at the remote sensor of the unit.

• The remote control is too far
from the unit.

• There is an obstacle in the path
of the remote control and the
unit.

• The batteries in the remote
control are exhausted.

Correction

•Plug the power cord into the wall
outlet securely.

•Connect the audio cable into the
jacks securely.

• Switch on the external source
equipment.

• Set the Digital Audio Output to
the correct position, then turn on
the unit again by pressing
POWER.

•Insert a playablw disc.

•Place the disc with the playback
side down.

•Place the disc on the disc tray
correctly inside the guide.

•Clean the disc.

• Point the remote control at the
remote sensor of the unit.

• Operate the remote control
within about 23 ft (7 m).

•Remove the obstacle.

•Replace the batteries with new
ones.

P/NO :3828R-A061B

16

Specifications

[General][CD]

[Tuner]

AM

FM

(MW)

[Amp]

[Speakers]

[

TAPE

]

Power supply Refer to the back panel of the unit.
Power consumption 30W
Mass 3.50kg
External dimensions (WxHxD) 161 X 254 X 249.5mm
Frequency response 40 - 18000 Hz
Signal-to-noise ratio 60 dB
Dynamic range 60 dB
Tuning Range 87.5 - 108.0 MHz
Intermediate Frequency 10.7 MHz
Signal to Noise Ratio 55/50 dB
Frequency Response 60 - 10000 Hz
Tuning Range 530 - 1720 kHz
Intermediate Frequency 450 kHz
Signal to Noise Ratio 35 dB
Frequency Response 100 - 1800 Hz
Output Power 5W
T.H.D 0.5%
Frequency Response 60 - 20000 Hz
Signal-to-noise ratio 60 dB
Tape Speed 4.75cm/sec
Wow Flutter 0.25% (MTT -111, JIS-WTD)
F. F/REW Time 120sec (C-60)
Frequency Response 250 - 8000Hz
Signal to Noise Ratio 43dB
Channel Separation 50dB(P/B)/45dB(R/P)
Erase Ratio 55dB (MTT-5511)
Model name FE-192E
Type 1 Way 1 Speaker
Impedance 4 Ω
Frequency Response 90 - 20000 Hz
Sound Pressure Level 86 dB/W
Rated Input Power 5 W
Max. Input Power 10 W
Net Dimensions (WxHxD) 150x254x171mm
Net Weight (1EA) 1.56kg

❋ Designs and specifications are subject to change without notice.

FFH-192A

MODEL

SECTION
