Zenith DA-3520A, FE-3500TE, FE-3500WE OPERATING GUIDE

machine number | DA3520 (DA-3520A, FE-3500TE, FE-3500WE)

ENJOY THE VIEW

operating guide / warranty

®

PAGE 2 INTRODUCTION

Safety Precautions

The lightning flash with arrowhead symbol, within an
equilateral triangle, is intended to alert the user to the
presence of uninsulated ‘dangerous voltage’ within the
product’s enclosure that may be of sufficient magnitude to
constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in the
literature accompanying the appliance.

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT

TO RAIN OR MOISTURE.

CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY

INSERT.

ATTENTION:

POUR EVITER LES CHOCS ELECTRIQUE, INTRODUIRE LA LAME LA PLUS LARGE DE LA
FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQU’AU
FOUD.

CAUTION: This Digital Video Disc Receiver employs a Laser System.

To ensure proper use of this product, please read this owner’s manual carefully and retain for
future reference, should the unit require maintenance, contact an authorized service location-see
service procedure.

Use of controls, adjustments or the performance of procedures other than those specified herein
may result hazardous radiation exposure.

To prevent direct exposure to laser beam, do not try to open the enclosure. Visible laser radiation
when open. DO NOT STARE INTO BEAM.

FCC NOTICE:

This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connect

ed.

- Consult the dealer or an experienced radio/TV technician for help.

FCC WARNING:

Changes or modifications not expressly approved by Zenith Electronics Corporation could void the
user’s authority to operate the equipment.

INDUSTRY CANADA REQUIREMENT:

This Class B digital apparatus meets all requirements of the Canadian Interference-Causing
Equipment Regulations.
Cet appareil numéruque de la classe B respecte toutes les exigences du Règlement sur le
matériel brouilleur du Canada.

Zenith is a trademark of ZEC © Copyright Zenith Electronics Corporation 2001

RECORD YOUR MODEL NUMBER (Now, while you can see it)
The model and serial number of your new DVD

receiver are located on the back of the DVD receiver cabinet. For your future con­venience, we suggest that you record these numbers here:

MODEL NO.____________________________________
SERIAL NO.____________________________________

WARNING

RISK OF ELECTRIC SHOCK

DO NOT OPEN

WARNING : TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER (OR BACK).
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.

INTRODUCTION PAGE 3

Table of Contents

Introduction

❏ Safety Precautions. . . . . . . . . . . . . . . . . . . . . . . . 2

❏ Table of Contents. . . . . . . . . . . . . . . . . . . . . . . . . 3

❏ IMPORTANT SAFETY INSTRUCTIONS . . . . . . 4-5

❏ Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

❏ Notes on Discs . . . . . . . . . . . . . . . . . . . . . . . . . . 7

❏ Identification of Controls . . . . . . . . . . . . . . . . . 8-11

Front Panel/Display window. . . . . . . . . . . . . . . . . . . . . 8

Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Remote Control. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Preparing the Remote Control . . . . . . . . . . . . . . . . . . 11

Operating with the Remote Control . . . . . . . . . . . . . . 11

Connections

❏ Antenna Connections. . . . . . . . . . . . . . . . . . . . . 12

❏ Speaker System Connection . . . . . . . . . . . . . . . 13

❏ Connecting to a TV and VCR. . . . . . . . . . . . . . . 14

Basic Operations

❏ Basic Playback . . . . . . . . . . . . . . . . . . . . . . . 15-16

❏ Special Playback. . . . . . . . . . . . . . . . . . . . . . 17-18

Still Picture

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Frame Advance

. . . . . . . . . . . . . . . . . . . . . . . . 17

Skipping chapters and tracks forward or back

. . 17

Scanning at High Speed

. . . . . . . . . . . . . . . . . . 18

Playing in Slow-Motion

. . . . . . . . . . . . . . . . . . . 18

Operation Using GUI Menu Icons

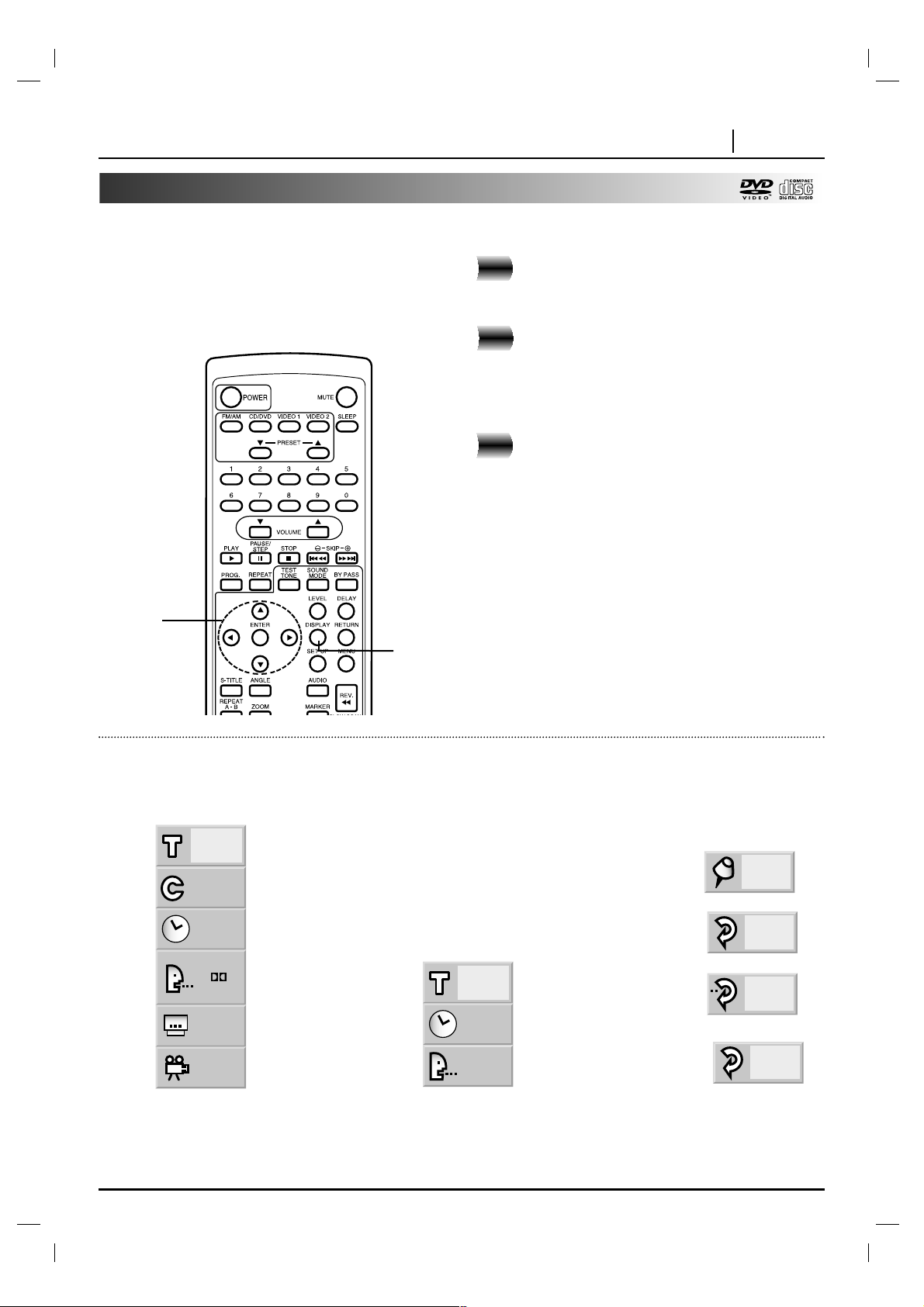

❏ General Information about GUI menu icons . . . . 19

❏ Detailed description of each GUI menu icon. . . . 20

Advanced Operation

❏ Using a title menu . . . . . . . . . . . . . . . . . . . . . . . 21

❏ Using a DVD menu . . . . . . . . . . . . . . . . . . . . . . 21

❏ Memorizing Settings for Viewed DVDs . . . . . . . . 22

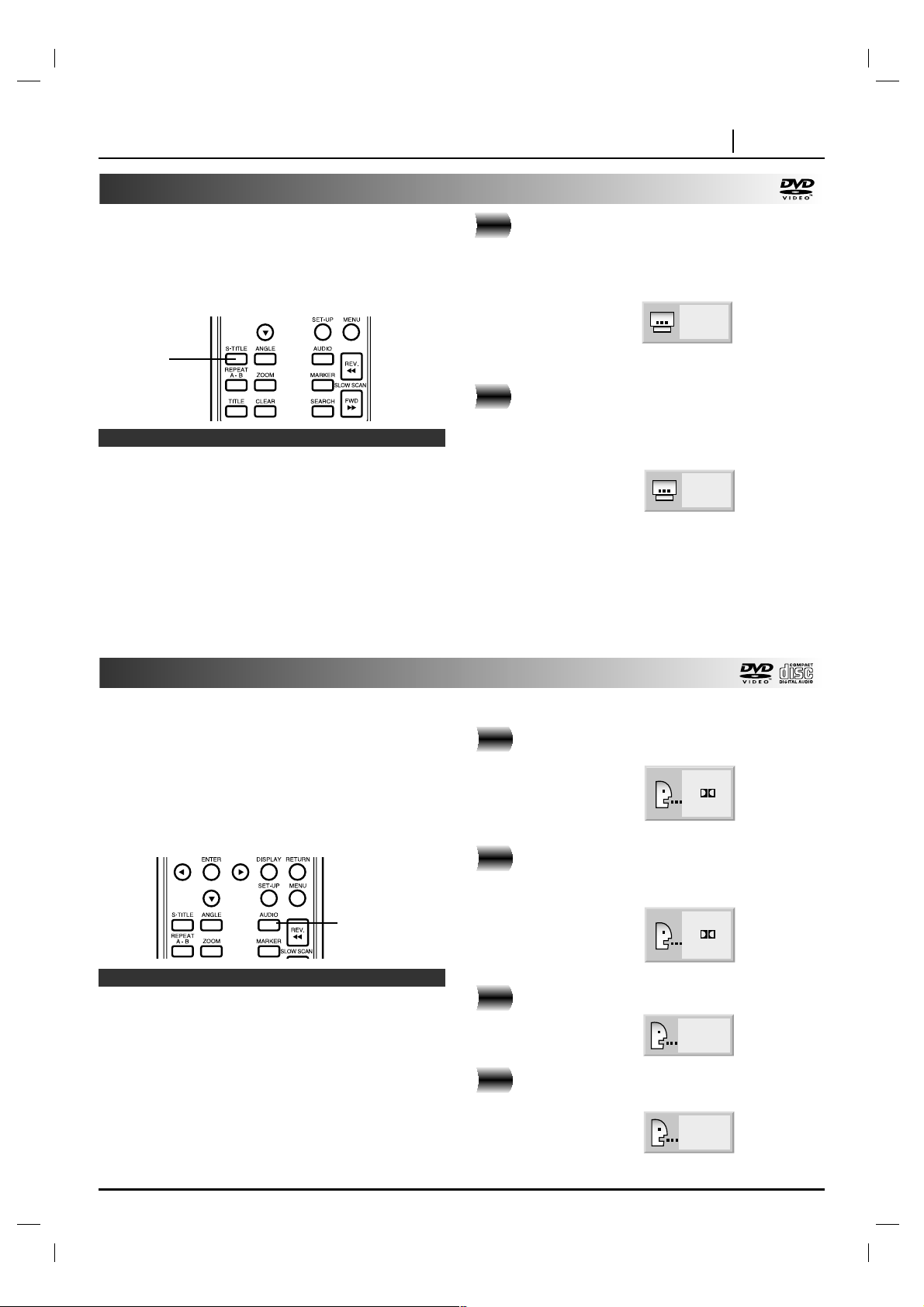

❏ Changing subtitle language . . . . . . . . . . . . . . . . 23

❏ Changing audio soundtrack language . . . . . . . . . 23

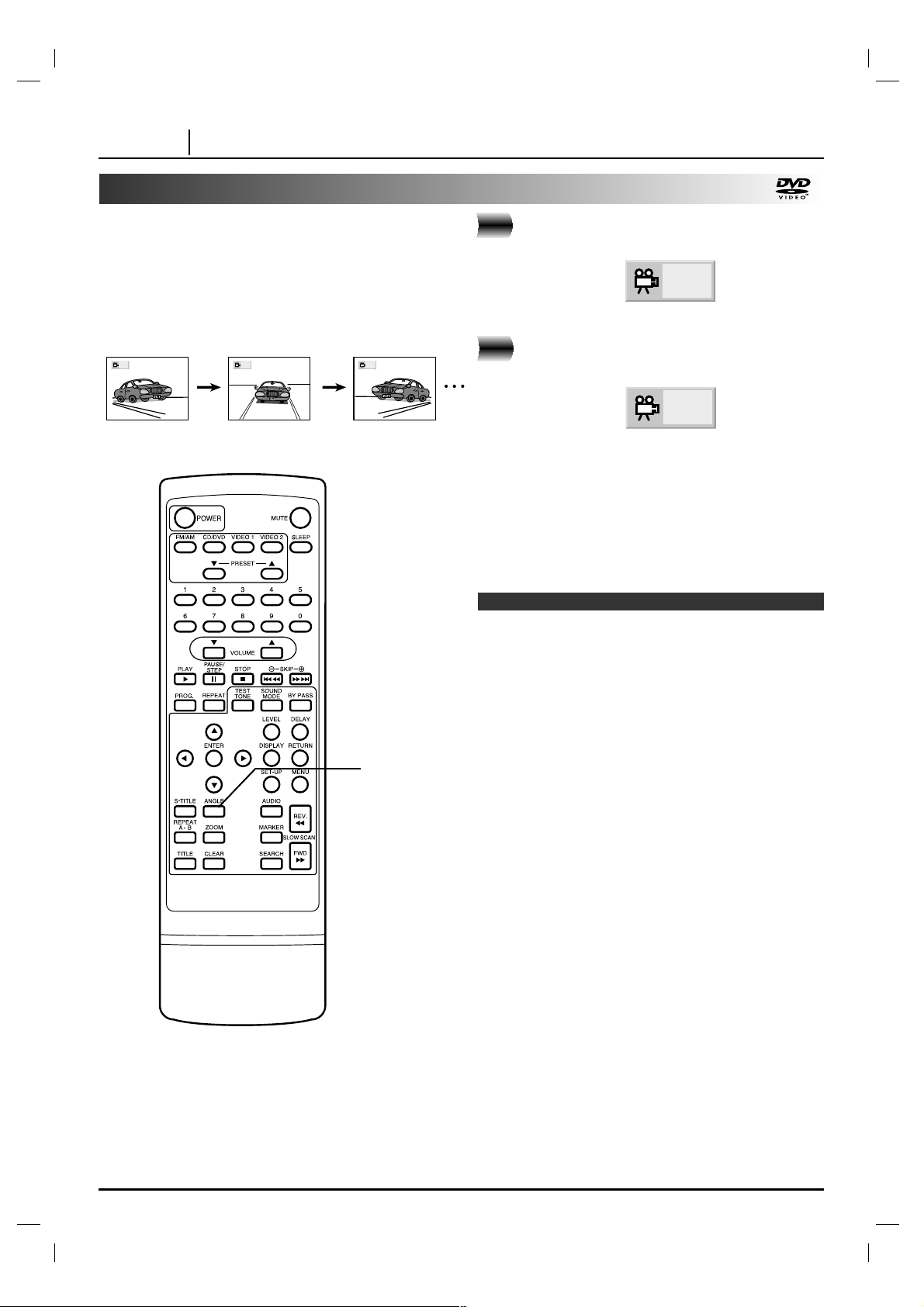

❏ Viewing from another angle . . . . . . . . . . . . . . . . 24

❏ Repeat Play. . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

❏ Storing markers in memory to be viewed

(listened to) again . . . . . . . . . . . . . . . . . . . . . . . 26

❏ Zoom Feature . . . . . . . . . . . . . . . . . . . . . . . . . . 27

❏ Sleep Timer Setting . . . . . . . . . . . . . . . . . . . . . . 27

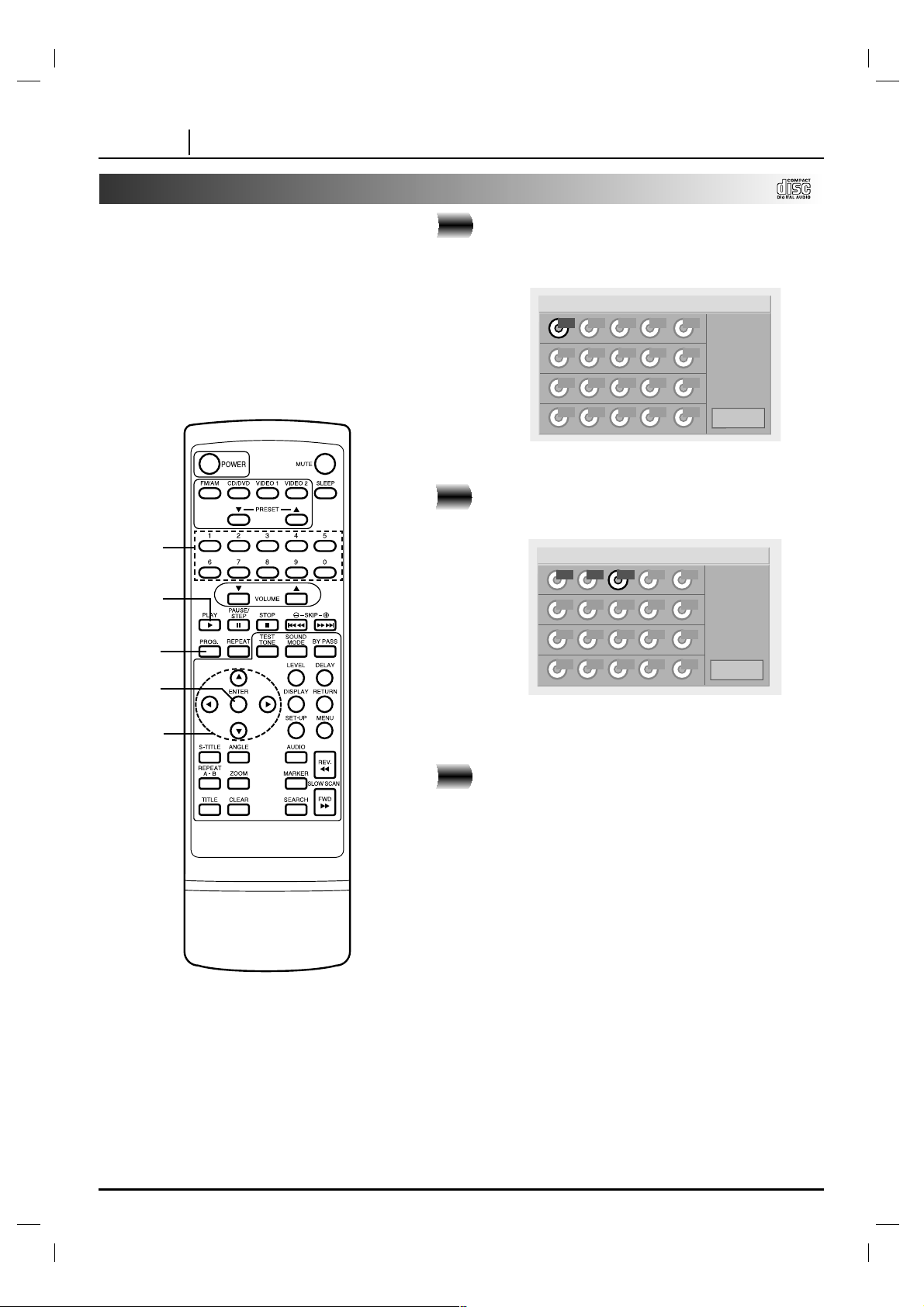

❏ Program Play. . . . . . . . . . . . . . . . . . . . . . . . . . . 28

❏

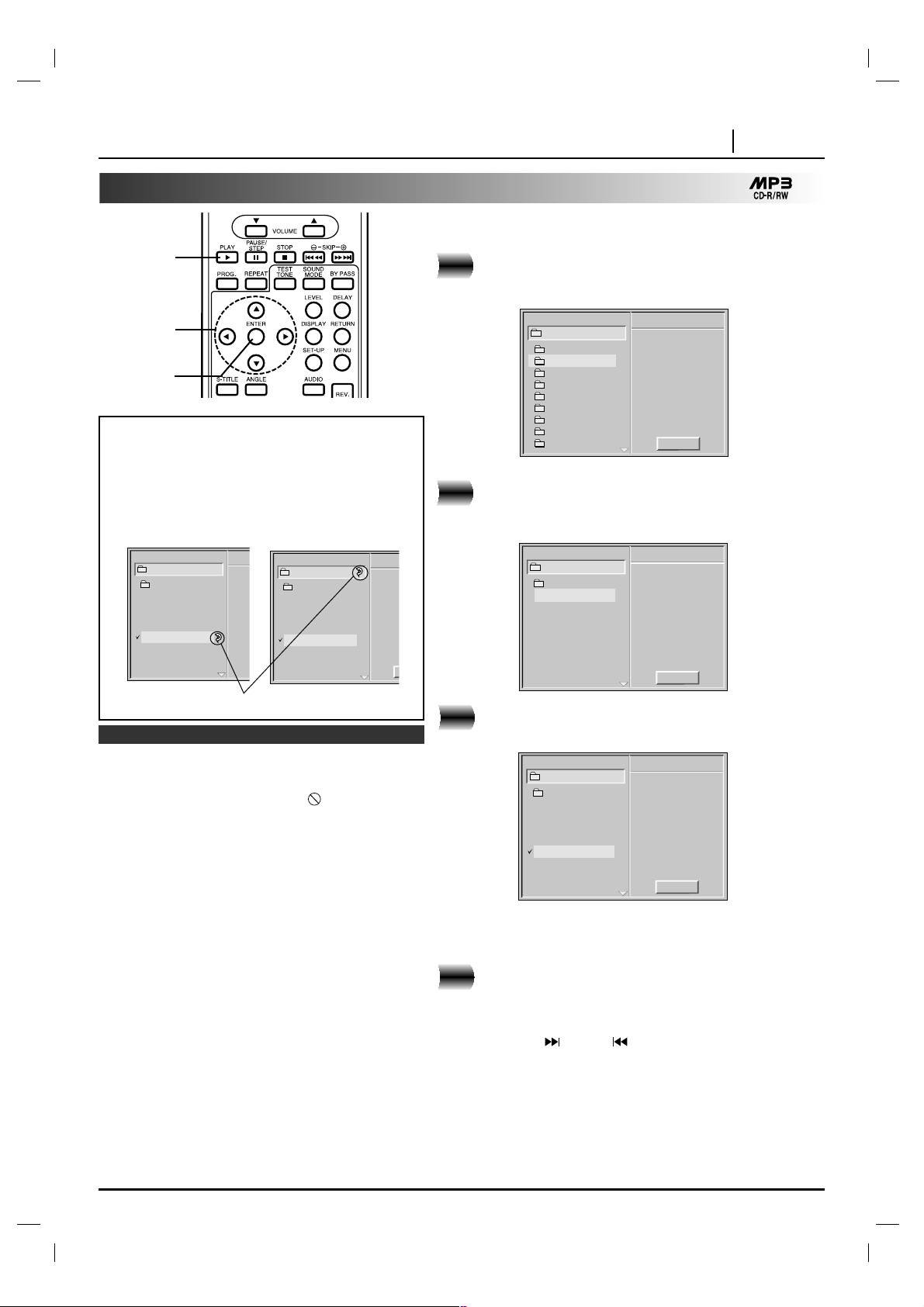

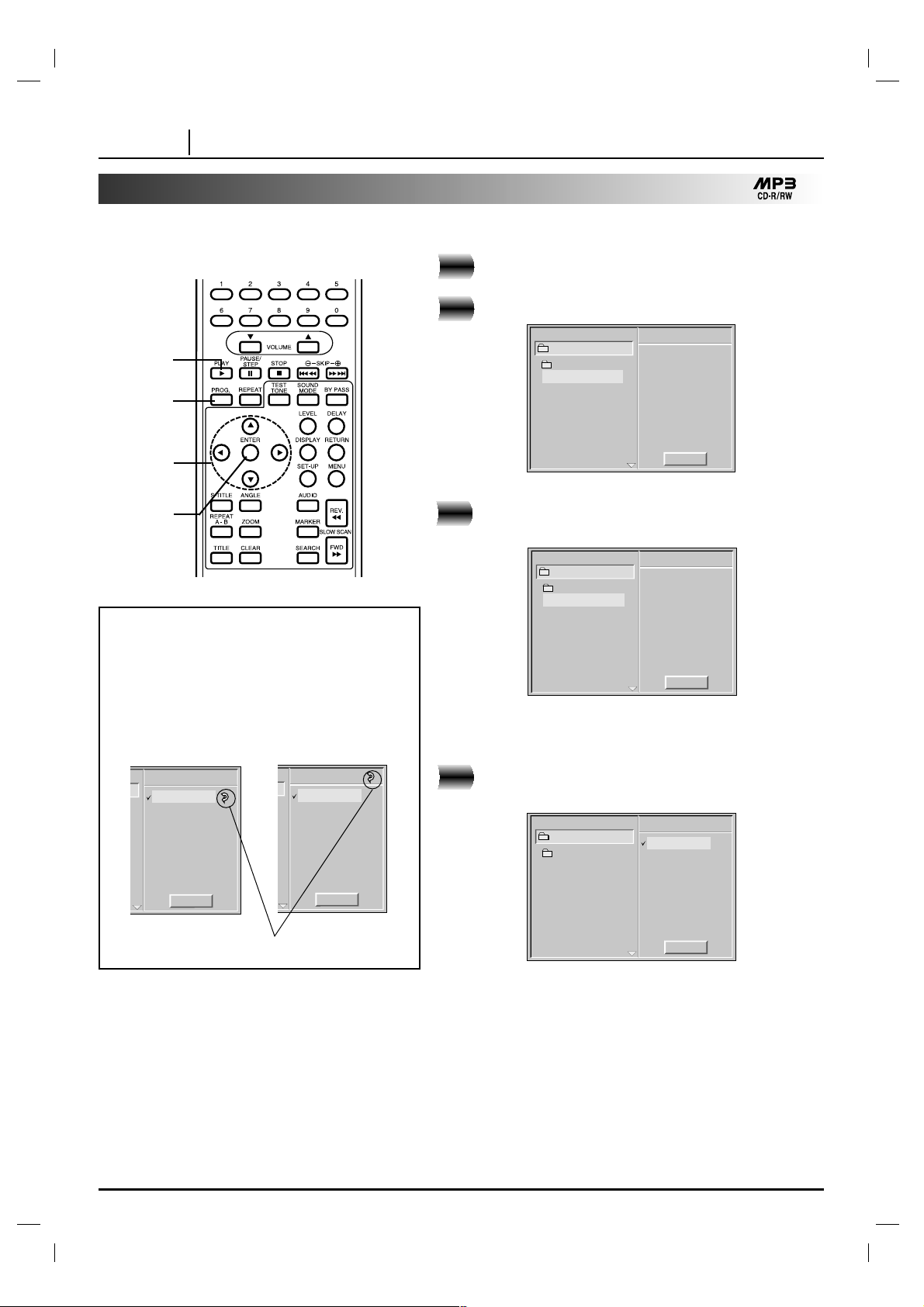

Playback with MP3

. . . . . . . . . . . . . . . . . . . . 29-30

Radio Operation

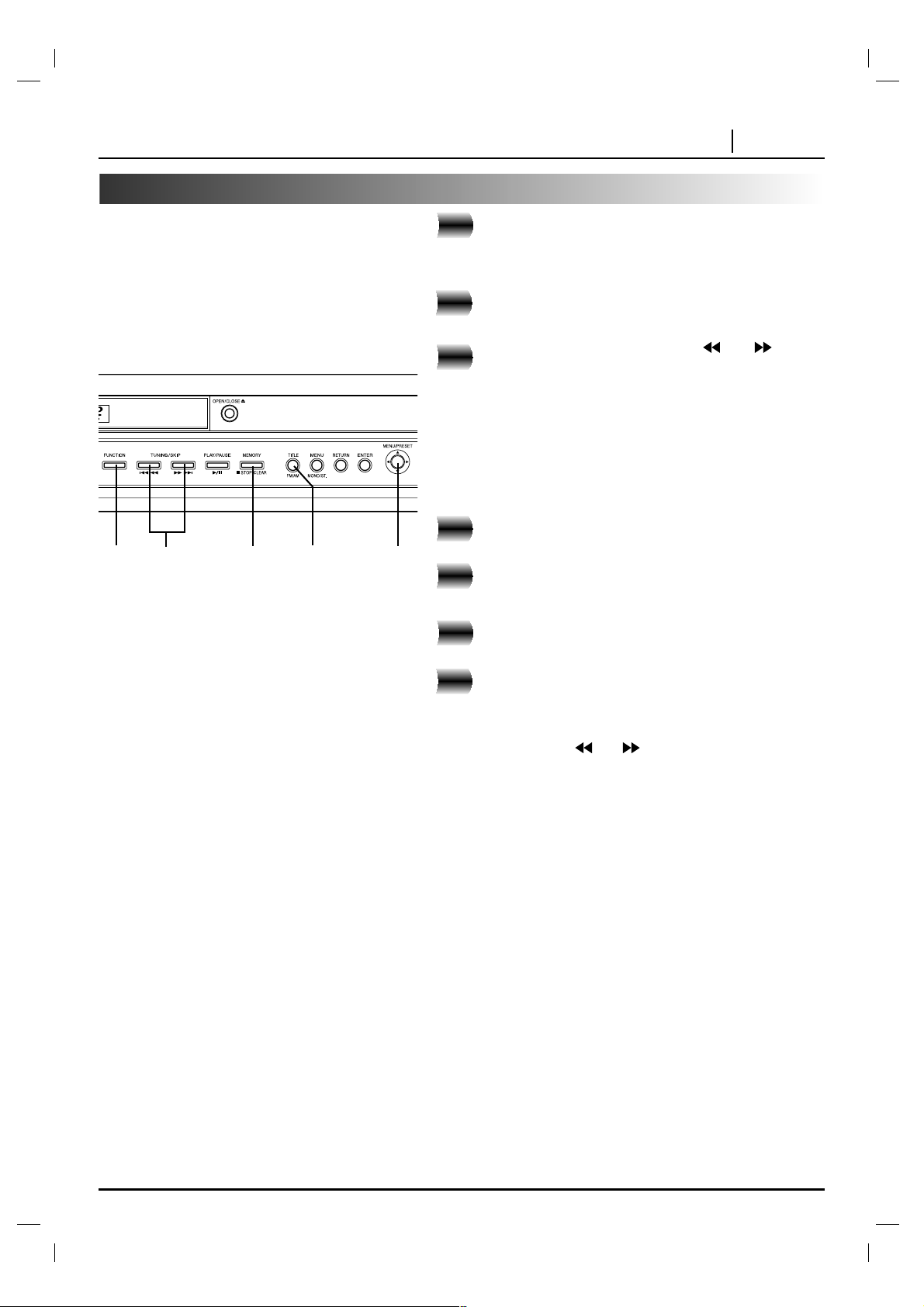

❏ Presetting the radio stations. . . . . . . . . . . . . . . . 31

❏ Listening to the radio . . . . . . . . . . . . . . . . . . . . . 32

Sound Operation

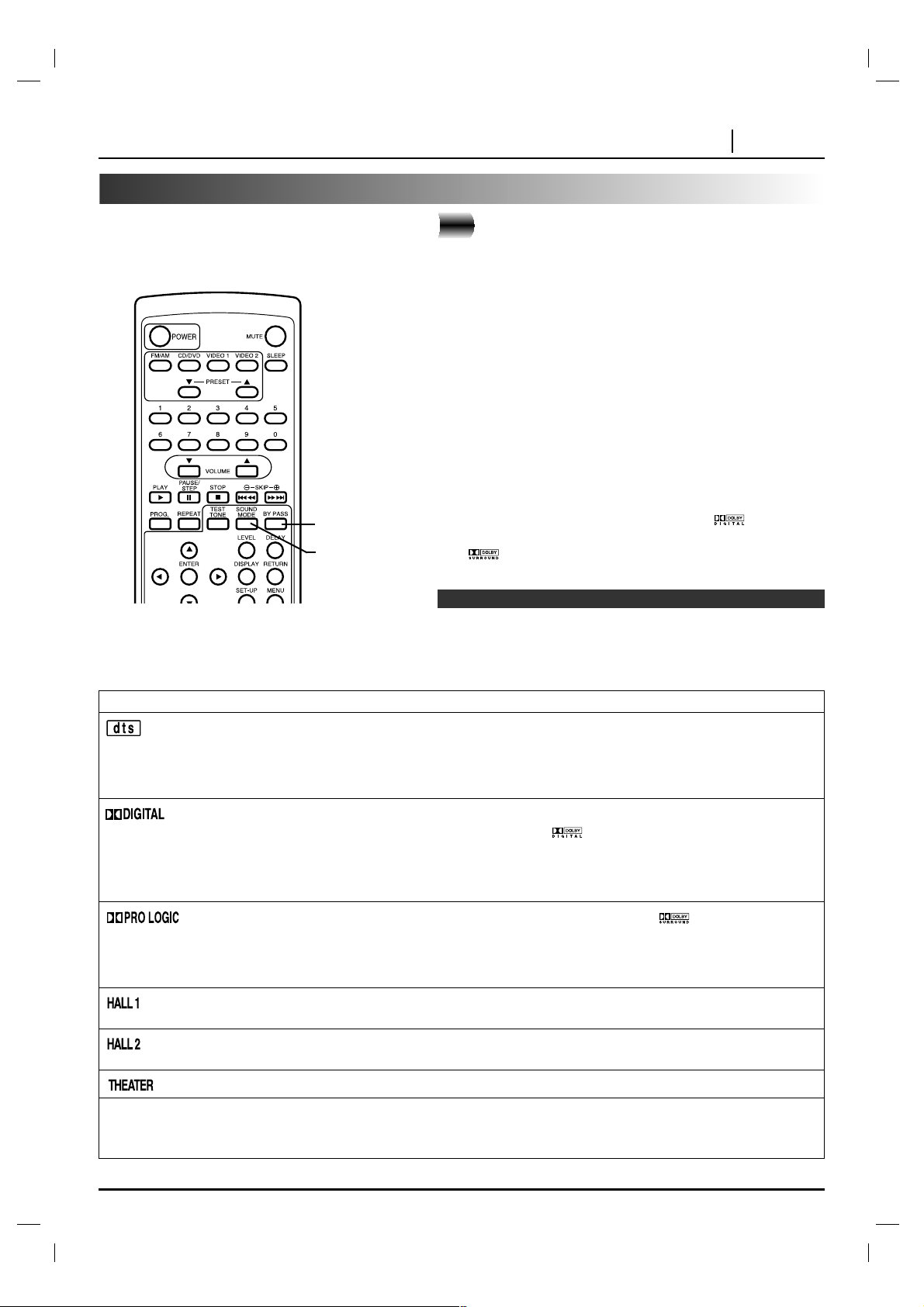

❏ Selecting a Sound mode . . . . . . . . . . . . . . . . . . 33

❏ Speaker Setup for Enjoying the Surround Sound

Effect. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Surround Sound Audio Components . . . . . . . . 34

Room features affecting sound. . . . . . . . . . . . . 34

Speaker Positioning (See Example). . . . . . . . . 34

❏ Delay Time Setting. . . . . . . . . . . . . . . . . . . . . . . 35

❏ Setting the Sound Level. . . . . . . . . . . . . . . . . . . 36

Setting the sound level of the desired channel . . . . . 36

Setting the Balance between each channel
by using the test tone

. . . . . . . . . . . . . . . . . . . . . . 36

Initial Settings

❏ Common procedures of initial settings . . . . . . . . 37

❏ Selecting disc Languages . . . . . . . . . . . . . . . . . 38

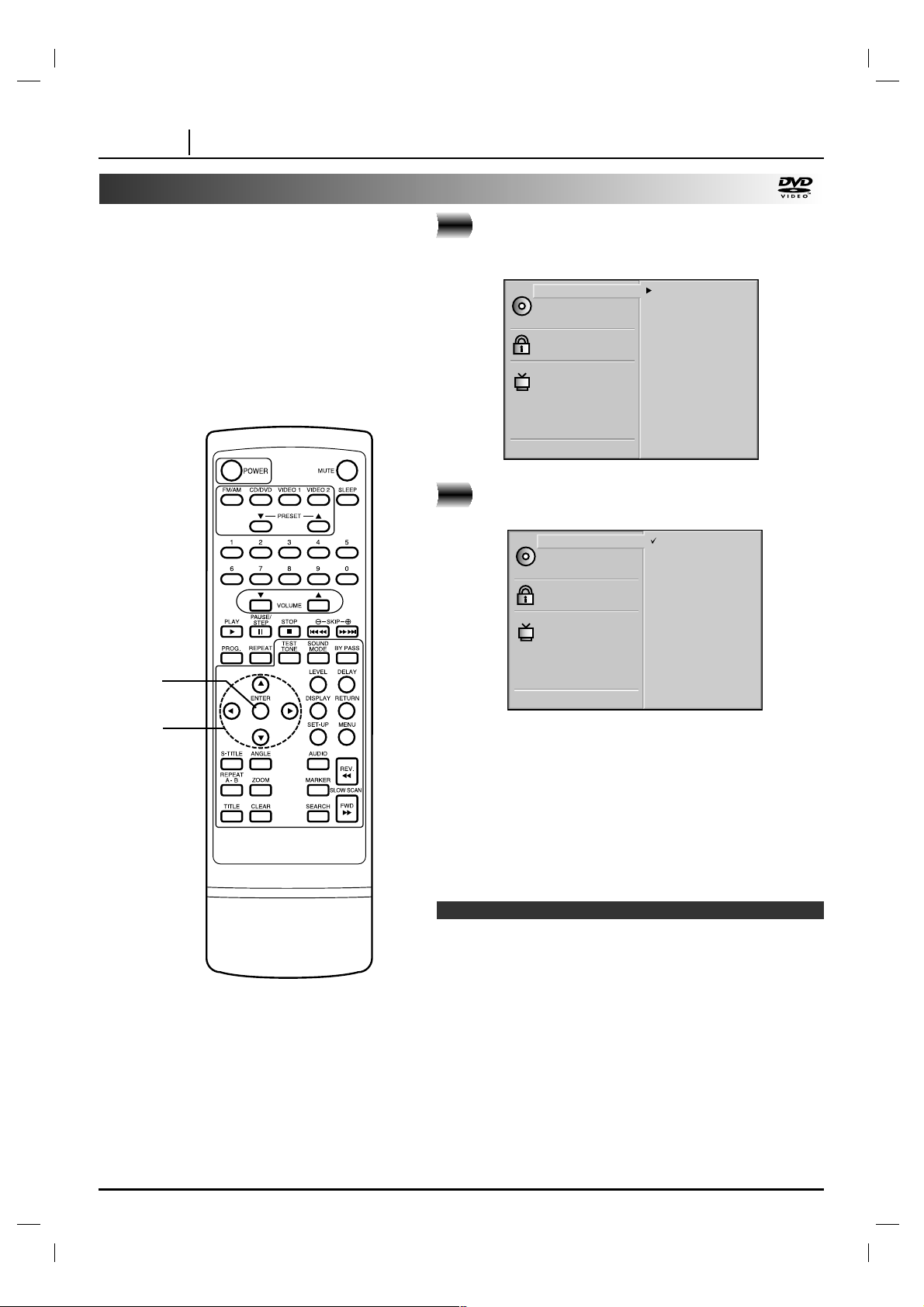

❏ Selecting rating level and password . . . . . . . 39-40

❏ Selecting TV Aspect . . . . . . . . . . . . . . . . . . . . . . 41

❏ Selecting Menu Language . . . . . . . . . . . . . . . . . 42

❏ Table of Languages and Their Abbreviations . . . 43

Reference

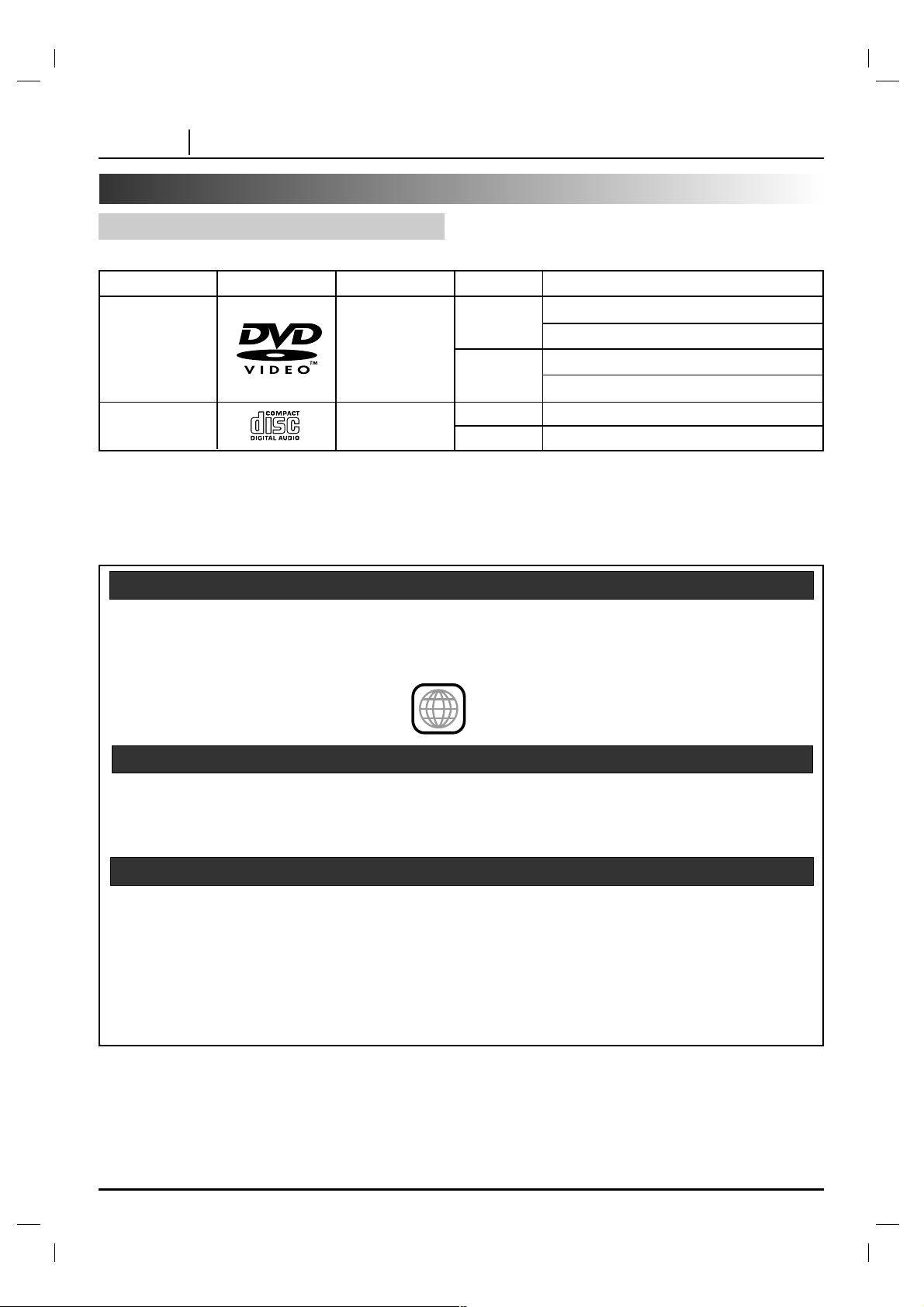

❏ Disc Requirements/Copyright Information. . . . . . 44

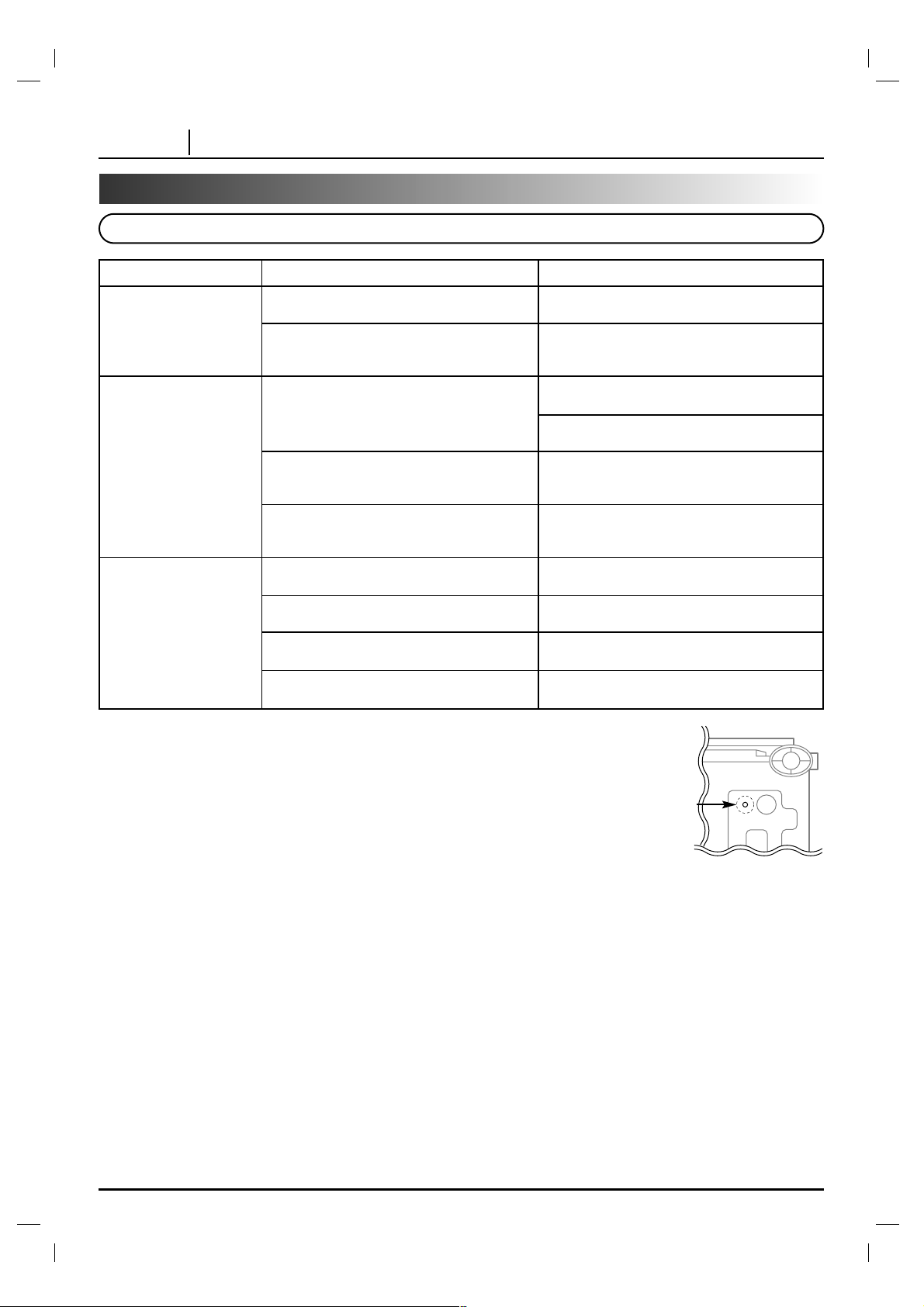

❏ Before Calling Service Personnel . . . . . . . . . 45-46

❏ Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . 47

❏ Warranty . . . . . . . . . . . . . . . . . . . . . . . Back Cover

PAGE 4 INTRODUCTION

CAUTION: PLEASE READ AND OBSERVE ALL WARNINGS AND INSTRUCTIONS IN THIS OWNER’S MANUAL

AND THOSE MARKED ON THE UNIT. RETAIN THIS BOOKLET FOR FUTURE REFERENCE.

This set has been designed and manufactured to assure personal safety. Improper use can result in electric shock or fire
hazard. The safeguards incorporated in this unit will protect you if you observe the following procedures for installation,
use and servicing.
This unit is fully transistorized and does not contain any parts that can be repaired by the user.

DO NOT REMOVE THE CABINET COVER, OR YOU MAY BE EXPOSED TO DANGEROUS VOLTAGE. REFER
SERVICING TO QUALIFIED SERVICE PERSONNEL ONLY.

1. Read owner’s manual

After unpacking this product, read the owner’s
manual carefully, and follow all the operating and
other instructions.

2. Power Sources

This product should be operated only from the type
of power source indicated on the marking label. If
you are not sure of the type of power supply in your
home, consult your product dealer or local power
company. For products intended to operate from
battery power, or other sources, refer to the
operating instructions.

3. Grounding or Polarization

This product is equipped with a polarized alternating
current line plug (a plug having one blade wider than
the other). This plug will fit into the power outlet only
one way. This is a safety feature. If you are unable
to insert the plug fully into the outlet, try reversing
the plug. If the plug should still fail to fit, contact your
electrician to replace your obsolete outlet. Do not
defeat the safety purpose of the polarized plug.

4. Ventilation

Slots and openings in the cabinet are provided for
ventilation and to ensure reliable operation of the
product and to protect it from overheating. These
openings must not be blocked or covered. The
openings should never be blocked by placing the
product on a bed, sofa, rug or other similar surface.
This product should not be placed in a built-in
installation such as a bookcase or rack unless proper
ventilation is provided or the manufacturer’s
instructions have been adhered to.

5. Heat

The product should be situated away from heat
sources such as radiators, heat registers, stoves, or
other products (including amplifiers) that produce
heat.

6. Water and Moisture

Do not use this product near water-for example,
near a bath tub, wash bowl, kitchen sink. or laundry
tub; in a wet basement; or near a swimming pool
and the like.

7. Cleaning

Unplug this product from the wall outlet before
cleaning. Do not use liquid cleaners or aerosol
cleaners. Use a damp cloth for cleaning.

8. Power-Cord Protection

Power-supply cords should be routed so that they
are not likely to be walked on or pinched by items
placed upon or against them, playing particular
attention to cords at plugs, convenience receptacles,
and the point where they exit from the product.

9. Overloading

Do not overload wall outlets, extension cords, or
integral convenience receptacles as this can result
in a risk of fire or electric shock.

10.Lightning

For added protection of this product during storms, or
when it is left unattended and unused for long
periods of time, unplug it from the wall outlet.
This will prevent damage to the product due to
lightning and power-line surges.

11.Object and Liquid Entry

Never push objects of any kind into this product
through openings as they may touch dangerous
voltage points or short-out parts that could result in
a fire or electric shock. Never spill liquid of any kind
on the product.

12.Attachments

Do not use attachments not recommended by the
product manufacturer as they may cause hazards.

IMPORTANT SAFETY INSTRUCTIONS

INTRODUCTION PAGE 5

13.Accessories, Carts, and Stands

Do not place this product on
an unstable cart, stand, tripod,
bracket, or table. The product
may fall, causing serious
injury to a child or adult, and
serious damage to the
product. Use only with a cart,
stand, tripod, bracket, or table
recommended by the manufacturer, or sold with the
product. Any mounting of the product should follow
the manufacturer’s instructions, and should use a
mounting accessory recommended by the
manufacturer. A product and cart combination should
be moved with care. Quick stops, excessive force,
and uneven surfaces may cause the product and
cart combination to overturn.

14.Disc Tray

Keep your fingers well clear of the disc tray as it is
closing. It may cause serious personal injury.

15.Burden

Do not place a heavy object on or step on the
product. The object may fall, causing serious
personal injury and serious damage to the product.

16.Connecting

When you connect the product to other equipment,
turn off the power and unplug all of the equipment
from the wall outlet. Failure to do so may cause an
electric shock and serious personal injury. Read the
owner’s manual of the other equipment carefully and
follow the instructions when making any
connections.

17.Sound Volume

Reduce the volume to the minimum level before you
turn on the product. Otherwise, sudden high volume
sound may cause hearing or speaker damage.

18.Sound Distortion

Do not allow the product to output distorted sound
for a longtime. It may cause speaker overheating
and fire.

19.Headphones

When you use the headphones, keep the volume at
a moderate level. If you use the headphones
continuously with high volume sound, it may cause
hearing damage.

20.Laser Beam

Do not look into the opening of the disc tray or venti­lation opening of the product to see the source of
the laser beam. It may cause sight damage.

21.Disc

Do not use a cracked, deformed, or repaired disc.
These discs are easily broken and may cause seri­ous personal injury and product malfunction.

22.Damage Requiring Service

Unplug this product from the wall outlet and refer
servicing to qualified service personnel under the
following conditions:

a) When the power-supply cord or plug is

damaged.

b) If liquid has been spilled, or objects have fallen

into the product.
c) If the product has been exposed to rain or water.
d) If the product does not operate normally by

following the operating instructions. Adjust only

those controls that are covered by the operating

instructions as an improper adjustment of other

controls may result in damage and will often

require extensive work by a qualified technician

to restore the product to its normal operation.
e) If the product has been dropped or damaged in

any way.
f) When the product exhibits a distinct change in

performance-this indicates a need for service.

23.Servicing

Do not attempt to service this product yourself as
opening or removing covers may expose you to
dangerous voltage or other hazards. Refer all
servicing to qualified service personnel.

24.Replacement parts

When replacement parts are required, be sure the
service technician has used replacement parts
specified by the manufacturer or have the same
characteristics as the original part. Unauthorized
substitutions may result in fire, electric shock, or
other hazards.

25.Safety Check

Upon completion of any service or repairs to this
product, ask the service technician to perform safety
checks to determine that the product is in proper
operating condition.

IMPORTANT SAFETY INSTRUCTIONS (Cont’d)

PAGE 6 INTRODUCTION

Precautions

❏

When shipping the DVD receiver, always use the
original shipping carton and packing materials.
For maximum protection, repack the unit as it was
originally packed at the factory.

❏

Do not use volatile liquids, such as insect spray, near
the DVD receiver. Do not leave rubber or plastic
products in contact with the DVD receiver for a long
time. They will leave marks on the finish.

❏

The top and rear panels of the DVD receiver may
become warm after a long period of use. This is
normal and not a malfunction.

❏

When the DVD receiver is not in use, be sure to
remove the disc and turn off the power.

❏

If you do not use the DVD receiver for a long period,
the unit may not function properly in the future. Turn
on and use the DVD receiver occasionally.

❏

When you place this DVD receiver near a TV, radio, or
VCR, the playback picture may become poor and the
sound may be distorted. In this case, move the DVD
receiver away from the TV, radio, or VCR.

Use a soft, dry cloth for cleaning.

❏

For stubborn dirt, soak the cloth in a weak detergent
solution, wring well and wipe. Use a dry cloth to wipe
it dry. Do not use any type of solvent, such as thinner
and benzine, as they may damage the surface of the
DVD receiver.

❏

If you use a chemical saturated cloth to clean the
unit, follow that product’s instructions.

Warning: Cleaning and adjustment of lenses
and/or other components of playback mechanism
should be performed by a qualified service
technician.

The DVD receiver is a high technology, precision device.
If the optical pick-up lens and disc drive parts are dirty or
worn down, the picture quality becomes poor. To obtain
a clear picture, we recommend regular inspection and
maintenance (cleaning or parts replacement) every
1,000 hours of use depending on the operating
environment. For details, contact your nearest dealer.

Moisture condensation damages the DVD receiver.
Please read the following carefully.

Moisture condensation occurs, for example, when
you pour a cold drink into a glass on a warm day.
Drops of water form on the outside of the glass. In
the same way, moisture may condense on the opti­cal pick-up lens inside this unit, one of the most cru­cial internal parts of the DVD receiver.

Moisture condensation occurs during the following
cases.

❏

When you bring the DVD receiver directly from a
cold place to a warm place.

❏ When you use the DVD receiver in a room where you

just turned on the heater, or a place where the cold
wind from the air conditioner directly hits the unit.

❏

In summer, when you use the DVD receiver in a hot
and humid place just after you move the unit from
an air conditioned room.

❏

When you use the DVD receiver in a humid place.

❏

Do not use the DVD receiver when moisture
condensation may occur.

If you use the DVD receiver in such a situation, it
may damage discs and internal parts. Remove the
disc, connect the power cord of the DVD receiver to
the wall outlet, turn on the DVD receiver and leave
it “ON” for two or three hours. After two or three
hours, the DVD receiver will have warmed up and
evaporated any moisture. Keep the DVD receiver
connected to the wall outlet and moisture conden­sation will seldom occur.

Notes on handling

Notes on Locating

Notes on Cleaning

To Obtain a Clear Picture

Notes on Moisture Condensation

E

x

a

m

p

l

e

s

o

f

m

o

i

s

t

u

r

e

c

o

n

d

e

n

s

a

t

i

o

n

Optical

pick-up lens

It’s too
warm!

Wait!

INTRODUCTION PAGE 7

Notes on Discs

This section shows you how to handle, clean, and store discs.

On Handling Discs

❍

Do not touch the playback side of the disc.

❍

Do not attach paper or tape to discs.

On Storing Discs

❍

Do not store discs in a place subject to
direct sunlight or near heat sources.

❍

Do not store discs in places subject to
moisture and dust such as a bathroom or
near a humidifier.

❍

Store discs vertically in a case. Stacking or
placing objects on discs outside of their
case may cause warping.

On Cleaning Discs

❍

Fingerprints and dust on the disc cause
picture and sound deterioration. Wipe the
disc from the center outward with a soft
cloth. Always keep the disc clean.

❍

If you cannot wipe off the dust with a soft
cloth, wipe the disc lightly with a slightly
moistened soft cloth and finish with a dry
cloth.

❍

Do not use any type of solvents such as
thinner, benzine, commercially available
cleaners or anti-static spray for vinyl LPs.
They may damage the disc.

About This Owner’s Manual

❍

This owner’s manual explains the basic
instructions of this DVD receiver.

❍

Some DVD video discs have functions that
may not be explained in this owner’s manual.
Therefore, some instructions may differ from
this owner’s manual, and there may be extra
instructions. In this case, follow the instructions
displayed on the TV screen or package.

❍

“ “ may appear on the TV screen
during operation. This icon means the
function explained in this owner’s manual is
not available on that specific DVD video
disc.

PAGE 8 INTRODUCTION

Identification of Controls

Front Panel

Display Window

SLEEP indicator

TUNED indicator

STEREO indicator

MUTE indicator

MEMORY indicator

PROGRAM indicator

Repeat playback
mode indicators

Sound mode
indicator

Chapter/Track
number indicator

Title number indicator

PLAY/PAUSE indicator

Angle icon indicator

Disc indicator

Total playing time/Elapsed time/
Frequency/Delay time/Volume etc.
indicators

STOP (MEMORY/CLEAR) button

POWER button and indicator

Disc Tray

TITLE (FM/AM) button

MENU (MONO/STEREO) button

RETURN button

ENTER button

OPEN/CLOSE
button

FUNCTION button

RESET button (located on

the bottom, see page 44.)

TUNING/SKIP buttons

PLAY/PAUSE button

Remote sensor

PHONES connector

VOLUME controller

ARROW/PRESET joy stick

INTRODUCTION PAGE 9

Identification of Controls (con’d)

Rear Panel

*VIDEO SELECTOR Switch

You can enjoy NTSC or PAL discs by using your VIDEO SELECTOR switch to choose the appropriate system.

• If you try to play back PAL disc with NTSC-TV. The DVD receiver will not playback the disc.

• When the selected VIDEO SELECTOR switch does not coincide with the system of your TV, normal color

picture may not be displayed.

• Adjust the VIDEO SELECTOR switch when the power is turned off.

• When you playback NTSC disc with PAL-TV, some discs may produce black bands at the top and

bottom of the screen.

Position of VIDEO SELECTOR switch Connected TV Available disc

PAL PAL NTSC/PALDVD disc

NTSC NTSC NTSC DVD disc

AUTO MULTI system TV NTSC/PALDVD disc

S-VIDEO OUT Connector

MONITOR OUT Connector

FM Antenna Connector

AM Antenna Connector

WOOFER OUT Connector

VIDEO 2 (Input) Connectors

VIDEO 1 (Input/Output) Connectors

SPEAKER Connectors

POWER CORD

Connect to an AC 120V, 60Hz

outlet only.

VIDEO SELECTOR Switch

Refer to below* explanation.

Identification of Controls (con’d)

REMOTE CONTROL

You will find instructions for each of the remote control functions in the appropriate sections of this
instruction manual.

POWER button

CD/DVD button

FM/AM button

VOLUME (

DD/EE

) buttons

PAUSE/STEP button

PLAY button

REPEAT button
PROGRAM button
**ARROW buttons

ENTER button

ANGLE button

SUBTITLE button

REPEAT A-B button

ZOOM button

***TITLE button

CLEAR button

AUDIO button

MARKER button

SEARCH button

MUTE button

VIDEO 1 button
VIDEO 2 button
SLEEP button

PRESET (

DD/EE

) buttons

NUMBER buttons

STOP button
SKIP (

❈

SEARCH)

/

button

SOUND MODE button
BY PASS button

TEST TONE button
DELAY button

LEVEL button
RETURN button
DISPLAY button

*MENU button
SET-UP button

SLOW SCAN (

/

)

buttons

*MENU button

Use the MENU button to display the
menu screen included on DVD video
discs. To operate a menu screen,
follow the instructions in “Using a
DVD Menu” (page 21).

***TITLE button

Use the TITLE button to display the
title screen included on DVD video
discs. To operate a menu screen,
follow the instructions in “Using a Title
Menu” (page 21).

❈

SKIP

/

Press and hold button for about two
seconds for search function.

PAGE 10 INTRODUCTION

** Directional arrow buttons

(up, down, left, right) for use in
highlighting a selection on a GUI
menu screen, TITLE and MENU
screen.

INTRODUCTION PAGE 11

Identification of Controls (con’d)

Insert the batteries into the remote control so you can
use it to operate the DVD receiver.

Open the battery cover.

Insert batteries (AAA size).

● Make sure to match the + and - on the batteries to
the marks inside the battery compartment.

Close the cover.

❍

Improper use of batteries may cause battery leakage and
corrosion.

❍

To operate the remote control correctly, follow the
instructions.

❍

Do not insert the batteries into the remote control in the
wrong direction.

❍

Do not charge, heat, open, or short-circuit the batteries.
Do not throw the batteries into fire.

❍

Do not leave dead or exhausted batteries in the remote
control.

❍

Do not use different types of batteries together, or mix
old and new batteries.

❍

If you do not use the remote control for a long period of
time, remove the batteries to avoid possible damage
from battery corrosion.

❍

If the remote control does not function correctly or if the
operating range becomes reduced, replace all batteries
with new ones.

❍

If battery leakage occurs, wipe the battery liquid from the
battery compartment, then insert new batteries.

❍

The batteries should last about one year with normal
use.

This section shows you how to use the remote control.

Point the remote control at the
remote sensor and press the
buttons.

Distance: About 23 ft (7 m) from the front of the remote

sensor

Angle: About 30° in each direction of the front of the

remote sensor

* Do not expose the remote sensor of the DVD

receiver to a strong light source such as direct
sunlight or illumination. If you do so, you may not
be able to operate the DVD receiver with the
remote control.

❍

Direct the remote control at the remote sensor of the
DVD receiver.

❍

Do not drop or give the remote control a shock.

❍

Do not leave the remote control near an extremely hot or
humid place.

❍

Do not spill water or put anything wet on the remote con­trol.

❍

Do not open the remote control.

Preparing the Remote Control

Operating with the Remote Control

30° 30°

Within about 23 ft (about 7 m)

Notes on batteries

Notes on the remote control

1

2

3

Antenna Connections

PAGE 12 CONNECTIONS

Connect the supplied FM/AM antennas for listening to the radio.

• Connect the AM loop antenna to the AM antenna connector.

• Connector the FM wire antenna to the FM antenna connector.

FM wire antenna (supplied)

AM loop antenna (supplied)

❍

To prevent noise pickup, keep the AM loop antenna away from the DVDReceiver and other component.

❍

Be sure to fully extend the FM wire antenna.

❍

After connecting the FM wire antenna, keep it as horizontal as possible.

Notes

Speaker System Connection

Connect the speakers using the supplied speaker cords by matching the colors of the terminals and those of the
cords. To obtain the best possible surround sound, adjust the speaker parameters (distance, level, etc.)

Front speaker

(right)

Rear speaker

(left surround)

Rear speaker

(right surround)

Front speaker

(left)

Subwoofer

Center

speaker

Subwoofer

(Not supplied)

Red Black

❍

Be sure to match the speaker cord to the appropriate terminal on the components: + to + and – to –. If the cords are reversed,
the sound will be distorted and will lack base.

❍

If you use front speakers with low maximum input rating, adjust the volume carefully to avoid excessive output on the speakers.

❍

Do not disassemble the front cover of supplied speaker.

Notes

CONNECTIONS PAGE 13

If you feel lack of bass frequency

Connect an active subwoofer to the WOOFER
OUT connector using a monaural audio cord
(not supplied). When you connect an active
subwoofer, disconnect the woofer from the
WOOFER speaker connector.

Red Cord

Red

White Cord

Black

PAGE 14 CONNECTIONS

Connecting to a TV and VCR

Connect the DVD receiver to your TV and VCR.

• Connect a TV(Monitor) to the MONITOR OUT or S-VIDEO OUT connector.

• Connect a VCR to the VIDEO 1 connectors.

• Connect a additional VCR to the VIDEO 2 connectors.

VIDEO

OUTIN

AUDIO (L)

AUDIO (R)

VIDEO

OUTIN

AUDIO (L)

AUDIO (R)

VCRAdditional VCR

To AUDIO/VIDEO IN

(VIDEO 2)

To

S-VIDEO

OUT

S-VIDEO Cable
(Not supplied)

VIDEO Cable
(Supplied)

To S-VIDEO IN To VIDEO IN

To
MONITOR
OUT

To AUDIO/
VIDEO IN
(VIDEO 1)

To AUDIO/VIDEO
OUT

To AUDIO/

VIDEO IN

To AUDIO/

VIDEO OUT

(VIDEO 1)

To AUDIO/VIDEO OUT

TV/MONITOR (RCA type)

S-VIDEO IN VIDEO IN

OR

❍

Refer to the owner’s manual of your TV as well.

❍

When you connect the DVD receiver to your TV, be sure to turn off the power and unplug both units from the wall outlet
before making any connections.

❍

Connect the DVD receiver to your TV directly. If you connect the DVD receiver to a VCR, the playback picture will be distorted
because DVD video discs are copy protected.

❍

The signal of S-VIDEO OUT jack will output only when the function mode is selected to CD/DVD.

❍

When you select the function mode to VIDEO 1, the signal of VIDEO 1 Output Jacks is not flow out.

Notes

If the TV has an S-video input,
connect the DVD receiver with
the S-video cable.

BASIC OPERATION PAGE 15

Basic Playback

This section shows you the basics on how to play back a DVD video disc.

1

4

5

2

3

Press POWER.

The DVD receiver turns on and the display window
lights.

Press FUNCTION on the front panel repeated­ly or CD/DVD on the Remote control to select
the CD/DVD function mode.

Press OPEN/CLOSE.

The disc tray opens.

●

You can open the disc tray by pressing this button even if the DVD
receiver is in standby mode.

Place a disc on the disc tray with the
playback side down.

●

There are two different disc sizes. Place the disc in the
correct guide on the disc tray. If the disc is out of the guide,
it may damage the disc and cause the DVD receiver to
malfunction.

●

Do not place anything except 3” discs or 5” discs on the disc tray.

Press PLAY.

The disc tray is automatically closed and playback
begins.

●

If the disc is placed in upside down (and it is a single sided disc),
“NO DISC” or “DISC ERROR” appears on the TV screen.

●

If you insert an audio CD, the CD indicator lights up in the DVD
display. The title number does not appear.

●

After playing back all of the chapters in the title, the DVD receiver
automatically stops and returns to the menu screen.

When a menu screen appears on the TV screen.

In case of interactive DVDs with control, a menu screen appears on
the TV screen. Perform step 6 on page 16 to start play.

Preparations

●

When you want to play back DVD video discs, turn on the TV and
select the video input source connected to the DVD receiver.

●

When you want to enjoy the sound of DVD video discs or audio
CDs from the audio system, turn on the audio system and select
the input source connected to the DVD receiver.

●

For connection details, see pages 12 through 14.

●

Set the playback picture size according to the aspect ratio of the
connected TV at the SET-UP menu (TV Aspect).

1

2

3

4

5

Example of interactive

DVD On-Screen Menu

2

PAGE 16 BASIC OPERATION

Basic Playback (con’d)

6

6

PressDD/EE/FF/

GG

and press ENTER, or press
the numeric button(s), to select the desired
item.

Play of the selected item now begins.

●

For further information, also refer to the jacket or case of
the disc you are playing.

After operation

When the unit is not in use, remove the disc and press
POWER to turn off the DVD receiver.

❍

Do not move the DVD receiver during playback. Doing so may
damage the disc and the DVD receiver.

❍

Use the OPEN/CLOSE button on the DVD receiver to open and
close the disc tray. Do not push the disc tray while it is moving.
Doing so may cause the DVD receiver to malfunction.

❍

Do not push up the disc tray or put any objects other than discs
on the disc tray. Doing so may cause the DVD receiver to
malfunction.

❍

Keep your fingers well clear of the disc tray as it is closing. Be
especially careful with children’s fingers around the
closing disc tray as there is a risk of personal injury.

❍

When “” appears on the TV screen while a button is
pressed, it means that this function is not available on the disc
you are playing.

❍

Depending on the DVD disc, some operations may be different
or restricted. Refer to the jacket or case of the disc you are
playing.

Notes

6

1
2

3
4

OR

BASIC OPERATION PAGE 17

Special Playback

STOP

PAUSE/
STEP

SKIP
(/)

PLAY

Press STOP during playback.

● When play is stopped, the unit records the point where
STOP was pressed (RESUME function).
Press PLAY and play will resume from this point.

❍

Resume function will be cleared when STOP is pressed in the
STOP mode.

❍

Resume function will be cleared when the power is turned off
and then on.

❍

Opening the disc tray cancels Resume function.

❍

The Resume function may not be available on some DVD discs.

Press PAUSE/STEP during playback.

●

DVD
The DVD receiver will be placed in the still picture mode.

●

CD
The DVD receiver will be placed in the pause mode.

Press PAUSE/STEP during still playback.

(Each time you press PAUSE/STEP, the picture advances
one frame)

To resume normal playback, press PLAY.

Skipping forward
Press SKIP

during playback.

A chapter (DVD) or a track (CD) is skipped each time the but­ton is pressed.

Skipping back
Press SKIP

during playback.

●

When the button is pressed once midway through a
chapter/track, the DVD receiver returns to the start of that
chapter/track. When it is pressed again, a chapter/track is
skipped each time the button is pressed.

Stopping Play

Resume Play

Still Picture (Pause)

Frame advance (DVD only)

Skipping chapters and tracks

forward or back

Notes

PAGE 18 BASIC OPERATION

SLOW SCAN
(/)

PLAY

Special Playback (con’d)

You can play back discs at various speeds.

Press and hold SKIP or button for about
two seconds during playback.

[TV screen]

●

The speed of advance (reverse) is relatively slow at first.
When the button is pressed again, the speed becomes
faster. (Each time the button is pressed, the speed
increases up to 4 steps (DVD) or 1 step (CD).)

●

The speed will be retained even after the button is
released.

To return to normal playback, press PLAY.

❍

The DVD receiver does not play back sound during the high
speed reverse and forward playback of DVD video discs.
However, the DVD receiver plays back sound during fast for­ward or fast reverse playback of audio CDs.

To Scan at fast forward or fast

reverse playback.

Playing in slow-motion (DVD only)

Note

Press SLOW SCAN or during playback.

The playback speed becomes 1/16 of the normal speed.

[TV screen]

●

The speed of slow-motion is slow at first. When the button
is pressed again, the speed becomes faster. (Each time
the button is pressed, the speed increase up to 4 steps.

●

The speed will be retained even after the button is
released.

To return to normal playback, press PLAY.

❍

The sound is muted during slow-motion playback.

❍ Subtitles do not appear on the screen during slow motion

playback.

❍

The SLOW SCAN buttons do not work with Audio CDs.

Notes

GGGG

X2

FFFF

X2

VV

GG

1/16

FF

VV

1/16

SKIP
(/)

1

2, 3

General Information about GUI menu icons

This unit features GUI Menu Icons showing disc
information (title/chapter/track number, elapsed playing
time, audio/subtitle language, angle, and sound) and
DVD receiver information (repeat play, play mode,
marker, etc.). Some icons only show the indicated
information. Other icons allow the settings to be
changed.

Common procedures

Press DISPLAY during playback.

●

Title function can be accessed from the stop mode.

Press DD/

EE

to select the desired item.

●

The current selected item is indicated by a yellow
frame on its GUI menu icons.

Press FF/

GG

to select the desired setting.

●

When numbers are displayed (e.g. title number),
the numeric buttons can also be used for setting
instead of

FF/GG

.

●

For some functions, the setting will be registered
immediately; for others, ENTER must be pressed.

To clear the GUI Menu Icons, press DISPLAY
again.

2

3

1

Examples of GUI Menu Icons.

(The screens may differ depending on the disc contents.)

1

1

0:16:57

1 ENG

D

6 CH

OFF

1

1

16:57

STER.

(DVD GUI) (CD GUI)

(DVD and CD GUI)

CHAPT

OFF

A B

1/5

OPERATION USING GUI MENU ICONS PAGE 19

PAGE 20 OPERATION USING GUI MENU ICONS

Detailed description of each GUI menu icon

You can view information about a disc and its operational status on the TV screen.

To show the current title number

and to jump to the desired title number

To show the current chapter number

and to jump to the desired chapter number

To show the elapsed time

and directly select scenes by the desired time.

To show the current audio soundtrack language,
encoding method, channel number

and to change the settings.

To show the current subtitles language

and to change the setting.

To show the current angle number

and to change the angle.

To show the current track number

and to jump to the desired track number

To show the elapsed time.

(Display only)

To show the current audio (STEREO, LEFT, RIGHT)

and to select to the desired audio channel.

1

1

0:16:57

1 ENG

D

6 CH

OFF

1

1

16:57

STER.

FUNCTION

(Press DD/EEto select desired item)

FF/GG

, or

Numeric

ENTER

FF/GG

, or Numeric

ENTER

SKIP

Numeric

ENTER

FF/GG

,

AUDIO

FF/GG

,

S-TITLE

FF/GG

,

ANGLE

FF/GG

, or Numeric

ENTER

SKIP

FF/GG

,

AUDIO

Press DISPLAY during

playback.

[TV screen] DVD GUI

SELECTION

METHOD

Press DISPLAY during

playback.

[TV screen] CD GUI

FUNCTION

(Press DD/EEto select desired item)

SELECTION

METHOD

Note

❍

Some DVD discs may not provide all of the above GUI menu icons.

1

2

1

2

Using a title menu

Press TITLE.

A list of the titles on the disc is displayed.

Pressing TITLE again to resume play from the scene
when TITLE was first pressed.

• Resume play may not be possible on certain discs.

Press DD/EE/FF/GGand press ENTER or PLAY, or
press the numeric button(s), to select desired
title.

The selected title now starts playing.

2

1

Some movie discs may contain two or more
titles. If the disc has a title menu recorded on it,
the TITLE button can be used to select the
movie title. (The details of operation differ
depending on the disc used.)

● Selecting a title may not be possible on

certain DVD discs.

Press MENU during play.

The DVD menu available on the disc is now displayed.

Pressing MENU again resumes play from the scene
when MENU was first pressed.

• Resume play may not be possible on certain discs.

Press DD/EE/FF/GGand press ENTER, or press
the numeric button(s), to select desired item.

The selected item is now executed.

Using a DVD menu

Some DVDs have unique menu structures called
DVD menus. For example, DVDs programmed
with complex contents provide guide menus, and
those recorded with various languages provide
menus for audio and subtitle language. Although
the DVD menu’s contents and operation differ
from disc to disc, the following explains the basic
operation when this feature is used.

2

1

1
2
3
4

ADVANCED OPERATION PAGE 21

PAGE 22 ADVANCED OPERATION

2

❍

Settings are stored in memory for use any time.

❍

You can store settings for up to 1 DVD in memory. If you memo­rize settings for more than 1 DVD previously memorized settings
are erased in order from the last memorized settings.
Subsequently, if you try to call up these previously memorized
settings, you will get the latest settings that have taken their
place.

❍

Switching of the audio mode etc., is automatic on some discs.

❍

This unit does not store settings in memory, if you remove the
disc from the DVD receiver or switch power to the DVD receiver
OFF when DVD or title menu is displayed on the TV screen.

Memorizing Settings for Viewed DVD (Last Condition Memory)

Load the DVD that was memorized.

It will appear on the TV screen as below

•

If the screen is left for more than 10 seconds, playback will
start from the beginning of the title automatically.

Press FF/GGto select “Yes” and press ENTER.

The memorized settings are automatically recalled.

Notes

This unit stores, in memory, settings for the last
DVD you have watched. Settings remain in
memory even if you remove the disc from the
DVD receiver, or switch power to OFF. If you
load a disc that has its settings memorized, the
“Resume disc from last position?” message will
appear on the TV screen. When you start play­ing the disc, the memorized settings are auto­matically recalled.

You can memorize details for the following six settings.

Last Stop Position (Page 17)
TV Aspect (Page 41)
Disc Subtitle Language (Page 23, 38)
Disc Audio Language (Page 23, 38)
Disc Menu Language (Page 42)
Angle (Page 24)

1

2

Resume disc from
last position?

1. No 2. Yes

ADVANCED OPERATION PAGE 23

It is possible to change the subtitle language to a
different language from the one selected at the initial
settings. (See page 38 for further info.)
This operation works only with discs on which multiple
subtitle languages are recorded.

Press S-TITLE during playback.

When no subtitles are recorded, “OFF” will be
displayed instead of the language number.

Press S-TITLE repeatedly until the
desired language is selected.

Number of the subtitle language being played
back is shown.

To eliminate the On Screen Subtitles.

Press S-TITLE repeatedly to select OFF at step 2.

❍

In some cases, the subtitle language is not changed to
the selected one immediately.

❍

When a disc supporting the closed caption is played, the
subtitle and the closed caption may overlap each other
on the TV screen. In this case, turn the subtitle off.

❍

When the desired language is not selected even after
pressing the button several times, it means that the
language is not available on the disc.

❍

When the power is turned on or the disc is removed,
subtitles appears in the language selected at the initial
settings. If this language is not recorded on the disc, the
disc’s priority language appears.

Notes

Changing subtitle language

2

1

OFF

1 ENG

Changing audio soundtrack language

It is possible to change the audio soundtrack language
(or encoding method, channel number) to a different
language from the one selected at the initial settings in
case of DVD disc. (See page 38 for further info.) This
operation works only with discs on which multiple
audio soundtrack languages are recorded.
And it is possible to change the audio channel in case
of audio CD.

• DVD
Press AUDIO during play.

Number of the audio soundtrack language being
played back.

Press AUDIO repeatedly until the
desired language (or encoding method,
channel number) is selected.

• CD
Press AUDIO during play.

Press AUDIO repeatedly until the
desired sound is selected.

Notes

2

1

1 ENG

D

6 CH

2 FRE

D

6 CH

STER.

LEFT

1

2

❍

When the desired language is not selected even after
pressing the button several times, it means that the
language is not available on the disc.

❍

When the power is turned on or the disc is removed, the
language heard is the one selected at the initial settings.
If this language is not recorded on the disc, only the
available language on the disc will be heard.

❍

Some discs may not respond to Audio feature.

1, 2

1, 2

PAGE 24 ADVANCED OPERATION

1, 2

Viewing from another angle

❍

This function only works for discs having scenes recorded
at different angles.

Note

2

1

1

2

1 2 3

Some DVDs may contain scenes which have been
shot simultaneously from a number of different angles.
For these discs, the same scene can be viewed from
each of these different angles using the ANGLE button.
(The recorded angles differ depending on the disc
used.)

Press ANGLE during playback.

Number of angle
being played back.

Press ANGLE repeatedly until the
desired angle is selected.

For your reference

•

The ANGLE indicator will blink in the display window at
scenes recorded at different angles to indicate that
angle switching is possible.

•

The angle number can be programmed beforehand; the
angle will be switched to the selected number when the
ANGLE indicator blinks.

ADVANCED OPERATION PAGE 25

Repeat Play

Repeating viewing (listening)

Press REPEAT during playback.

Each time this button is pressed, the TV screen
changes as shown below and the disc will repeat a
chapter or title (DVD) or a track (CD).

• DVD

Repeat of
chapter being
played

Repeat of title
being played

Cancel repeat mode
(normal play)

• CD

Repeat of track
being played

Repeat of entire
disc contents

Cancel repeat mode
(normal play)

To enjoy program repeat play (CD)

If REPEAT is pressed during program play, repeat play
is operated as below.

Repeat of the
current programmed
track

Repeat of all programs

Cancel repeat mode
(Program play)

To return to normal play

Press REPEAT several times until “OFF” is displayed.

Repeating sections between two
specific points (A-B repeat)

Press REPEAT A-B during play at the
point where repeat play is to start (A).

• You can select “OFF” at this step by pressing

CLEAR.

Press REPEAT A-B during play at the
point where repeat play is to be conclud­ed (B).

Repeat play of the selection between points A
and B starts.

To return to normal play

Press REPEATA-B once “OFF” is displayed.

Notes

A *

A B

1

2

❍ Repeat play works only with discs for which the elapsed

playing time appears in the display window during
playback.

❍ Repeat play may not work correctly with some DVDs.
❍ A-B repeat play works only within a title DVD or a track

CD.

❍ Some subtitles recorded around point A or B may fail to

appear (DVD).

OFF

OFF

TITLE

CHAPT

OFF

ALL

TRACK

OFF

ALL

TRACK

PAGE 26 ADVANCED OPERATION

4

1
2

4

4

3

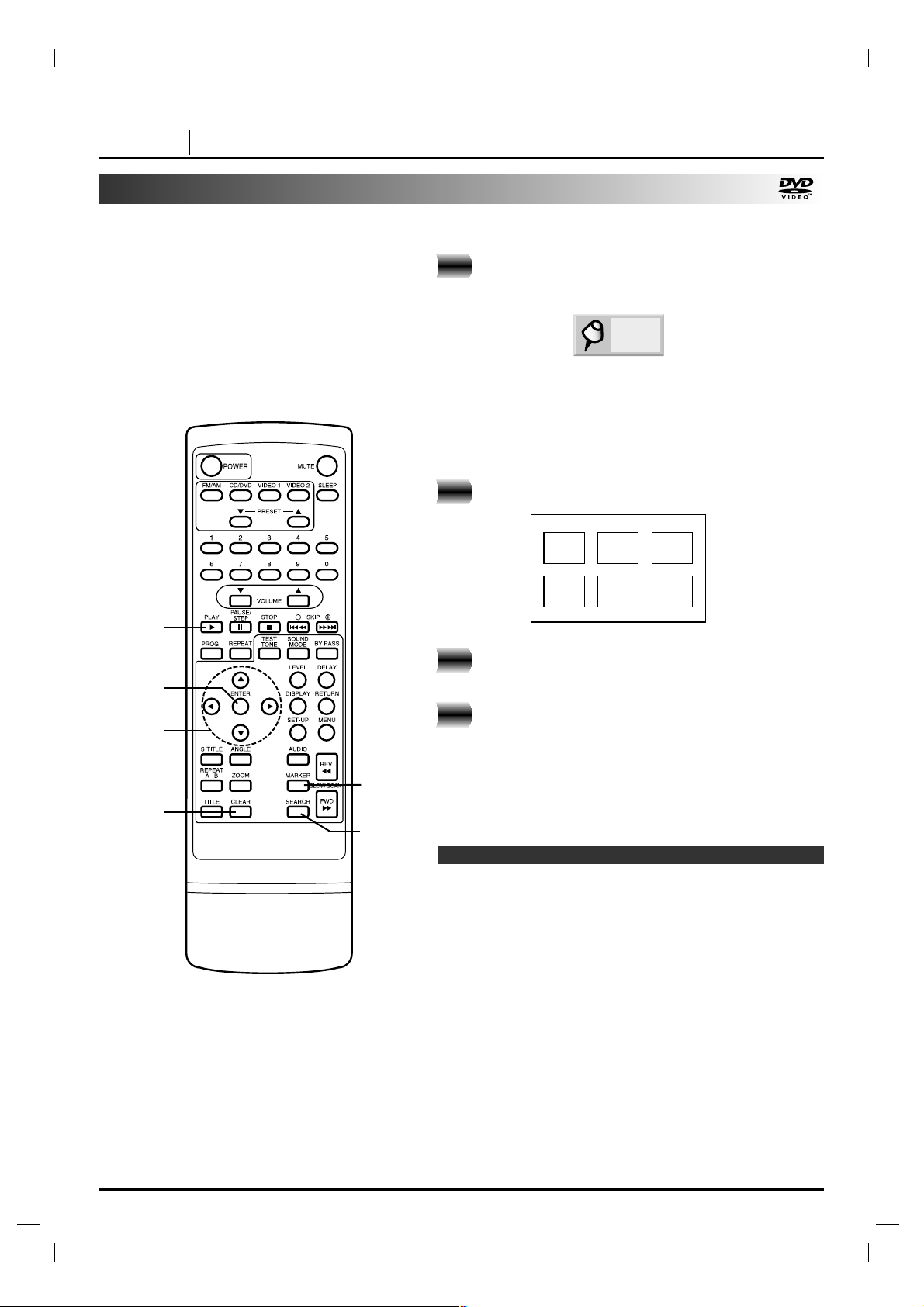

Storing markers in memory to be viewed (listened to) again

Storing a MARKER in the DVD memory is similar
to marking your page in a book. It allows you to
quickly return to any point on the disc.

Storing a marker in the memory

Press MARKER during play at the starting
point to be viewed (listened to) again.

Indicates “1/5” is stored in the memory.
Up to 5 markers can be stored in the memory.

Recalling/Clearing a marker

Press SEARCH during playback.

Press

DD/EE/FF/GG

to select the marker to be

recalled/cleared.

Press PLAY or ENTER to recall a marker. Or
press CLEAR to clear a marker.

Play resumes from the point corresponding to the
selected marker, or the selected marker is cleared.

●

The “Present Picture” is not cleared.

❍ These operations work only with discs for which the elapsed

playing time appears in the display window during playback or
stop.

❍ Some subtitles recorded around the marker may fail to appear

(DVD).

❍ All the markers are cleared when the power is turned off or the

disc is removed and when TV Aspect mode is changed on the
SET-UP menu.

❍ The marker is not stored when the DVD or title menu is

displayed on the TV screen.

Notes

1/5

2

1

3

4

Maker
Picture 1

Maker
Picture 2

Maker
Picture 3

Maker
Picture 4

Maker
Picture 5

Present

ADVANCED OPERATION PAGE 27

Zoom feature

Press ZOOM during normal playback or
still playback.

• The square frame will be displayed in the center of
the picture. If no button is pressed for more than 10
seconds, the square frame will disappear.

• Each press of the ZOOM button changes the TV
screen in the left sequence.

• The magnification level will be displayed in the upper
right corner of the zoom area.

If you press DD/EE/FF/GGbuttons, the zoom
point shifts.

Press ENTER.

The selected frame is displayed in full size on the
TV screen.

To resume normal playback.

Press ZOOM repeatedly until the normal picture
appears.

❍

Some discs may not respond to the Zoom feature.

❍

Zoom does not work on subtitles or menus included on
DVD video discs.

The Zoom feature allows you to “ZOOM-IN” and
enlarge the picture on the screen to either 4 times (X4)
or 16 times (X16) its normal size.

Notes

3

2

4

1

X4

X16

(X4) (X16) (Normal)

Sleep Timer Setting

Press SLEEP to set the desired sleep
time.

The SLEEP indicator and sleep time appears in
the display window.

Each time you press SLEEP, it is
changed as the following order.

SLEEP 120 → 90 → 60 → 30 → OFF → 120

For your reference

•

You can check the time remaining before the DVD
receiver turns off.

Press SLEEP. The remaining time appears in the
display window.

You can set the DVD receiver to turn off automatically
at a specified time.

1

2

3

1, 4

2

1, 2

PAGE 28 ADVANCED OPERATION

Program play

Press PROGRAM during playback or stop
mode.

The program playback screen appears on the TV
screen.

• To exit the screen, press PLAY or PROGRAM.

Press DD/EE/FF/GGand press the numeric
button(s), to select the desired track number.

• Repeat step 2 to select another track.

• Up to 20 tracks can be programmed.

Press PLAY or ENTER to exit the screen.

The selected track is stored in the memory and play
now begins in the programmed sequence.

● If you press PROGRAM to exit the screen, the

selected tracks are not memorized.

After playback of all tracks programmed

Play is stopped.

Clearing the program

● To clear the programmed tracks one by one

Press D/E/F/G to select the unwanted number and then
press CLEAR.

● To clear all the programmed tracks

Press D/E/F/G to select “Clear All” and then press ENTER.
Press PLAY or ENTER to exit the screen. If you press PRO­GRAM to exit the screen, the programs are not cleared. (The
programs are also cleared when the power is turned off or
the disc is removed.)

Step
Total Time100:00

Program

Clear All

Step

Total Time

3

08:32

5119

Program

Clear All

1

2

3

The DVD receiver plays the tracks on the disc in
the order you specify.

Note: Program play function is possible only
with audio CDs. It does not work with DVD
movie discs.

2

3

2

1
3

ADVANCED OPERATION PAGE 29

2, 3

4

2, 4

Playback with MP3

To play an MP3 file

Load an MP3 disc.

The MP3 menu is displayed.

Press DD/EEbuttons to select the directory where
MP3 files that you want to play are located and
then press ENTER.

Press

DD/EE

button to select the desired MP3 file

of the selected directory on your disc.

If you want to return to the previous menu, press the
RETURN button.

Press ENTER or PLAY to start playback of the
file.

For your reference

•

Press SKIP or SKIP to play the next file or previous
file during playback.

•

Press TITLE to move to 1st page of current directory during
playback and press TITLE again to move to the next page
within 5 seconds.

•

Press MENU to move to the Root Directory during playback.

1

2

3

4

Program

MP3

MP3-1
MP3-2
MP3-3
MP3-4
MP3-5
MP3-6
MP3-7
MP3-8
MP3-9

Clear All

ABCD

Program

MP3-1

MP3

Clear All

..
TRACK_1
TRACK_2
TRACK_3
TRACK_4
TRACK_5
TRACK_6
TRACK_7
TRACK_8

Program

MP3-1

MP3

Clear All

..
TRACK_1
TRACK_2
TRACK_3
TRACK_4

TRACK_6
TRACK_7
TRACK_8

TRACK_5

To play an MP3 file repeatedly

●

If you press REPEAT button once during play,
the current MP3 file will play repeatedly.

●

If you press REPEAT button twice during play,
the directory will play repeatedly.

●

If you press REPEAT button three times, the
repeat play will be cancelled.

REPEAT symbol

❍The directory and file name is only displayed in English.
❍If there is an impossible code to display, it will be

displayed underlined (_) instead of English.

❍If a directory has no MP3 file, the “” is displayed

with the directory name.

❍This unit can play up to 256 files per disc. A disc

recorded with more than 256 files cannot be played.

❍

The maximum allowable depth of nested directory is 50.

❍Disc format is compatible with ISO9660 only.
❍

If you record MP3 files using the software which cannot
create a FILE SYSTEM, for example “Direct-CD” etc., it
is impossible to playback MP3 files. We therefore
recommend that you use “Easy-CD Creator”, which
creates an ISO9660 file system.

❍A single session disc requires MP3 files in the first

track. If there is no MP3 file in the 1st track, it cannot
playback MP3 files. If you wish to playback MP3 files,
format all the data in the disc or use a new one.

❍If there are already data files which are not MP3 files

on the CD-R disc, please, do not use that disc; use a
new one instead. However, if the disc is a CD-RW disc,
this does not apply.

Notes

Prog

MP3-1

MP3

..
TRACK_1
TRACK_2
TRACK_3
TRACK_4
TRACK_5
TRACK_6
TRACK_7
TRACK_8

Progr

MP3-1

MP3

..
TRACK_1
TRACK_2
TRACK_3
TRACK_4
TRACK_5
TRACK_6
TRACK_7
TRACK_8

PAGE 30 ADVANCED OPERATION

2, 4

4

3

4

Playback with MP3 (Cont’d)

To program play an MP3 file

Follow steps 1 to 2 on previous page.

Select an MP3 file to program with

DD/EE

.

Press PROGRAM button to add an MP3 file to
the program list.

• Repeat steps 2 - 3 to select another track.

• Up to 60 files can be programmed.

Press

GG

button and select the desired MP3

file and press ENTER or PLAY button to play.

If you want to enter the main menu, press

FF

button.

After all programmed tracks are played

Play is stopped.

4

Program

MP3-1

MP3

Clear All

..
TRACK_1
TRACK_2
TRACK_3
TRACK_4
TRACK_5

TRACK_7
TRACK_6
TRACK_9

TRACK_6
TRACK_7
TRACK_8

TRACK_2

2

1

Program

MP3-1

MP3

Clear All

..
TRACK_1
TRACK_2
TRACK_3
TRACK_4
TRACK_5
TRACK_6
TRACK_7
TRACK_8

3

Program

MP3-1

MP3

Clear All

..
TRACK_1
TRACK_2
TRACK_3
TRACK_4
TRACK_5

TRACK_2
TRACK_7
TRACK_6
TRACK_9

TRACK_6
TRACK_7
TRACK_8

Clearing the program

● To clear the program one by one

Press D/E/F/G to select the unwanted MP3 file on
the program list and then press CLEAR.

● To clear all the programs

Press D/E/F/G to select the “Clear All” and press
ENTER.

To play an MP3 file repeatedly

●

If you press REPEAT button once during play,
the current MP3 file will play repeatedly.

●

If you press REPEAT button twice during play,
the all MP3 files on the program list will play
repeatedly.

●

If you press REPEAT button three times, the
repeat play will be cancelled.

REPEAT symbol

Program

Clear All

TRACK_2
TRACK_7
TRACK_6
TRACK_9

Program

Clear All

TRACK_2
TRACK_7
TRACK_6
TRACK_9

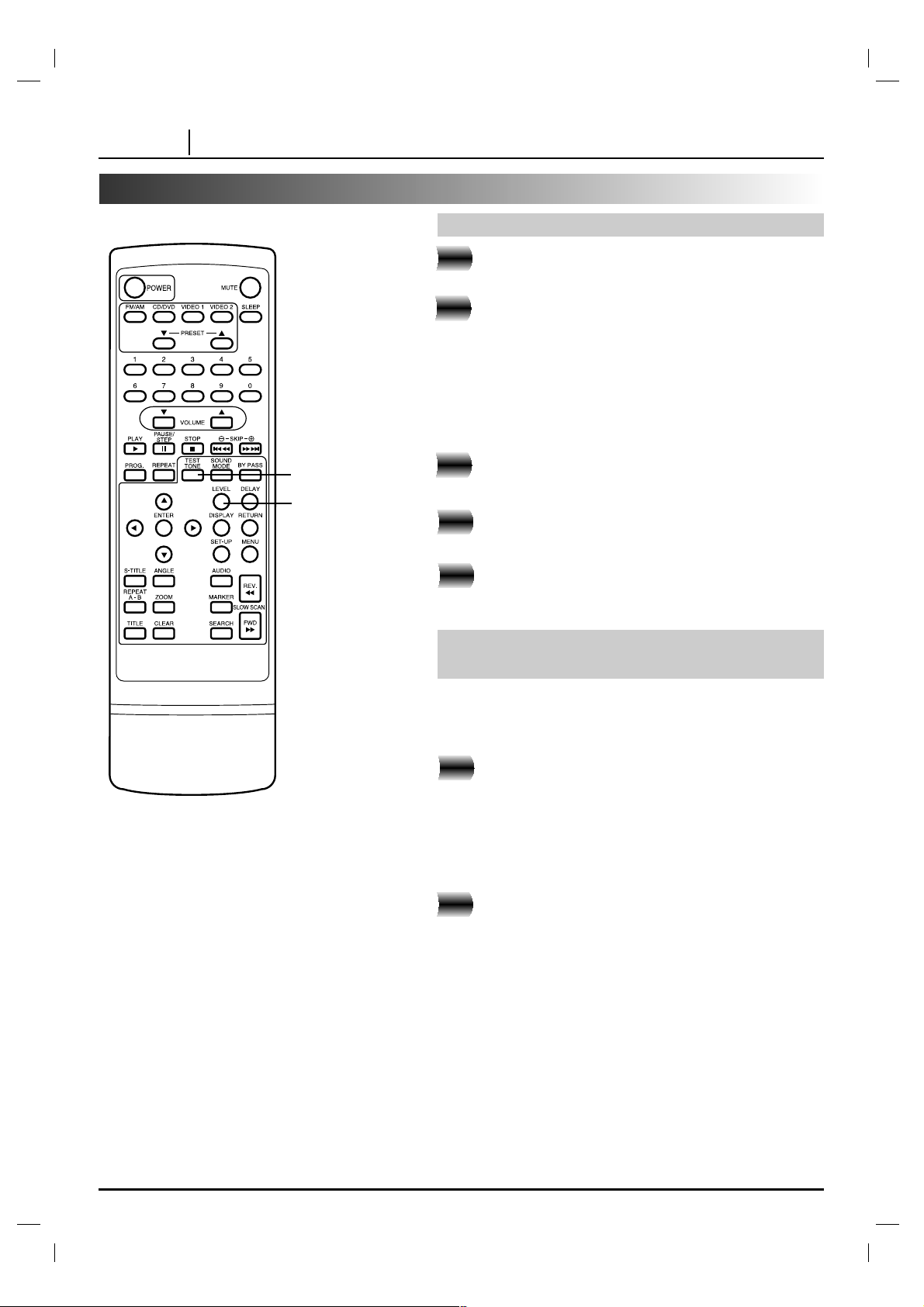

Presetting the radio stations

Press FUNCTION on the front panel repeated­ly or FM/AM on the Remote control until the
FM or AM appears in the display window.

And then every time you press FM/AM, FM
and AM changes alternately.

Press and hold TUNING/SKIP or on
the front panel for about two seconds until
the frequency indication starts to change,
then release.

Scanning stops when the DVD Receiver tunes in a
station. “TUNED” and “STEREO” (for stereo program)
appear in the display window.

Note: TUNED only appears when the signal is FM and
STEREO.

Press MEMORY.

A preset number will flash in the display window.

Press DDor EEon the front panel to select the
preset number you want.

Press MEMORY again.

The station is stored.

Repeat steps 3 to 6 to store other stations.

To tune in a station with a weak signal

Press TUNING/SKIP or repeatedly in step 3 to tune
in the station manually.

To clear all the memorized stations

Press and hold MEMORY for about three seconds and
“CLEAR ALL” appears in the display window and then
press MEMORY again, the stations are cleared.

For your reference

If all stations have already been entered, MEM FULL message
will appear in the display window for a moment and then a
preset number will flash. To change the preset number, follow
the steps 5-6 as above.

1

2

3

4
5

6

7

You can preset 30 stations for FM and AM.
Before tuning, make sure that you have turned
down the volume to the minimum.

1

3

2

5

4, 6

RADIO OPERATION PAGE 31

Listening to the radio

Press FM/AM until AM or FM appears in the
display window.

The last received station is tuned in.

Press PRESET DDor EErepeatedly to select
the preset station you want.

Each time you press the button, the DVD receiver
tunes in one preset station at a time.

Adjust the volume by rotating VOLUME on the
front panel or pressing VOLUME

DD

or

EE

repeatedly.

To turn off the radio

Press POWER to turn the DVD receiver off or select another
function mode (DVD/CD, VIDEO 1 or VIDEO 2).

To listen to non-preset radio stations

• Use manual or automatic tuning in step 2.

• For manual tuning, press TUNING/SKIP or on the

front panel repeatedly.

• For automatic tuning, press and hold TUNING/SKIP or
for about two seconds on the front panel.

1

2

3

Preset radio stations in the DVD receiver’s
memory first (see “Presetting radio stations” on
the previous page).

3

1
2

PAGE 32 RADIO OPERATION

For your reference

•

If an FM program is noisy

Press MONO/ST. on the front panel so that
“STEREO” disappears in the display window.
There will be no stereo effect, but the
reception will improve. Press the button again
to restore the stereo effect.

•

To improve reception

Reorient the supplied antennas.

SOUND OPERATION PAGE 33

Selecting a Sound Mode

Press SOUND MODE repeatedly until the
sound mode you want appears in the display
window.

See the table below for information on each sound
mode.

For your reference

•

The DVD Receiver memorizes the last sound mode
selected for each program source.

Whenever you select a program source, the sound mode
that was last applied is automatically applied again. For
example, if you listen to CD with HALL1 as the sound mode,
change to a different program source, then return to CD,
HALL1 will be applied again. With the tuner, sound fields are
memorized separately for all preset station.

•

You can identify the encoding format of program
software by looking at its packaging.

- Dolby Digital discs are labeled with the logo.

- Dolby Surround encoded programs are labeled with the
logo.

- DTS Digital Surround discs are marked with DTS.

❍When you play sound tracks with 96 kHz sampling frequency, the

output signals will be converted to 48 kHz (sampling frequency).

You can enjoy surround sound simply by select­ing one of the pre-programmed sound fields
according to the program you want to listen to.

SOUND MODE

BY PASS

Notes

Sound Mode Effect

Allows you to enjoy 5.1(or 6) discrete channels of high quality digital audio from DTS program sources bearing
the trademark such as discs, DVD and compact discs, etc. DTS Digital Surround delivers up to 6 channels of
transparent audio(which means identical to the original masters) and results in exceptional clarity throughout a
true 360 degree sound field. The term DTS is a trademark of DTS Technology, LLC. Manufactured under license
from DTS Technology, LLC.

The Dolby Digital surround format lets you enjoy up to 5.1 channels of digital surround sound from a Dolby
Digital program source. If you play DVD of laser discs with ““ mark, you can enjoy even better sound

quality, greater spatial accuracy, and improved dynamic range. This is because Dolby Digital delivers up to 5
totally discrete, audio channels (front left and right, center, and rear left and right), plus 0.1 channel called
LFE*(bass-only effects channel) *LFE=Low Frequency Extension. This channel delivers separate non­directional bass signals to the subwoofer for more dynamic deep bass sound effects.

Use this mode when playing movie or Dolby Digital 2 channel which carries the “” mark. This mode pro-
vides the effect of being in a movie theater or live concert house-an effect with an intensity which can only be
obtained through DOLBY PRO LOGIC SURROUND. The effect of the front/back/left/right movement of the
sound image, as well as the sense of fixed position in the sound image, is much clearer and more dynamic than
before.

When playing recordings of live music or classicals, this mode provides a feeling similar to actually being in a
small concert hall.

When playing recordings of live music or classicals, this mode provides a feeling similar to actually being in a
large concert hall.

This mode provides a three dimensional effect similar to that of movie theater.

2CH STEREO Outputs the sound from the front left and right speakers and subwoofer. Standard two channel (stereo) sources

completely bypass the sound field processing. This allows you to play any source using only the front left and
right speakers and subwoofer. You can select 2CH STEREO by pressing BY PASS on the remote control.

1

Speaker Setup for Enjoying the Surround Sound Effect

PAGE 34 SOUND OPERATION

DTS Digital Surround, Dolby Digital and Dolby Pro Logic
technologies can be used to enjoy 3-dimensional sound
effects with video image. We recommend you use the
following devices.

• Hi-Fi Stereo VCR to play the program sources.

• Large screen TV monitor for a high-quality video image.

• Use the program sources (e.g. LD, DVD, VIDEO TAPE etc.)

labeled with DTS Digital Surround ( ) or Dolby Digital
Surround ( or ) Dolby Pro Logic Surround.

Manufactured under license from Dolby Laboratories. “Dolby”,
“Pro Logic”, and the double-D symbol are trademarks of Dolby
Laboratories. Confidential Unpublished works. Copyright 1992­1997 Dolby Laboratories. All rights reserved.

Manufactured under license from Digital Theater Systems, Inc.
US Pat. No. 5,451,942 and other worldwide patents issued and
pending. “DTS” and “DTS Digital Surround” are trademarks of
Digital Theater Systems, Inc. Copyright 1996 Digital Theater
Systems, Inc. All rights reserved.

If the room is made of concrete and hard materials like wood
walls, you will not hear the ultimate surround effects. The
walls of the room must have the appropriate absorption factor
and be able to "reflect" the sound for the proper effect. If the
room has too much sound reflection, try repositioning the
furniture. You may also need to hang curtains etc. to absorb
more of the sound - experiment with the room’s acoustics.

A typical speaker setup uses 6 speakers: 2 front speakers, a
center speaker, 2 rear speakers, and a subwoofer. Add a sub­woofer to hear excellent bass sound, DTS digital surround or
Dolby Digital surround. Set up a listening position; a couch or
chairs, etc. as shown in the speaker positioning example.

• Front speakers

We recommend that the height of the tweeters of the front speakers
be at the same height as the listener’s ears, to the left and right of
the TV.
See speaker positioning example for speaker placement.

• Center speaker

Ideally, the center speaker and front speakers would be positioned at the
same height. Place the center speaker above or below the television.

• Rear speakers (Surround)

Place left and right surround speakers behind the listening area.
These speakers help recreate sound motion and atmosphere;
required for surround playback. For optimum sound effects, do not
place the rear speakers too far behind the listening position. Install
them at or above the height of the listener’s ears. It is also effective
to point the rear speakers toward a wall or ceiling, to further dis­perse the sound.
If the room is small and the listeners area is near the rear wall, set
the rear speakers opposite each other about 2 - 3 feet higher than
the listeners’ ears.

• Subwoofer

Place it an appropriate position. (See speaker positioning example.)

❍

We recommend that you use magnetic shielded
speakers for the front left/right speakers and center
speaker to prevent video noise from appearing on
the TV picture.

❍

Use speakers in your setup that have similar tonal
characteristics.

Notes

Surround Sound Audio Components

Room features affecting sound

Speaker Positioning (See Example)

Center Speaker

Front

Speaker

(Left)

Speaker Positioning Example

Surround
Speaker
(Left)

Surround
Speaker
(Right)

Front
Speaker
(Right)

Subwoofer

SOUND OPERATION PAGE 35

Delay Time Setting

The interval from the speakers to the listener. If the distance
from the listener to each speaker is the same in the Dolby
Digital and Dolby Pro Logic mode, the delay time of each
speaker is as follows.

In Dolby Digital mode

Center delay time : 0ms
Rear delay time: 5ms

In Dolby Pro Logic mode

Center delay time : (no setting)
Rear delay time : 15-30ms

If the rear delay time is set in Dolby Digital mode, in the Dolby
Pro Logic mode the delay time will be set automatically.
The delay time is 1 msec per foot.
If the center and rear speakers are further than the front speak­ers from the listener, the delay time will be set at minimum.

If the distance of DS is equal to or longer than the DF in the
left figure, set the Surround Delay Time as 0ms. Otherwise,
change the setting according to the specifications below.
Ex) If the distance from front speakers to the listener is 10 ft.
and from rear speakers from the listener is 5 ft., in the Dolby
Digital mode the rear delay time is 5 msec.
10 ft. (D

F) - 5 ft. (DS) = 5 ft. (B)

5 ft. (B) = 5 ft. / 1 ft. = 5msec

If the distance of D

F is equal to the distance of DC in the left

figure, set the Center Delay Time as 0ms. Otherwise, change
the setting according to the specifications below.
Ex) If the distance from the front speakers to the listener is
10 ft. and from the center speaker to the listener is 8 ft., the
center delay time is 2msec.
10 ft. (D

F) - 8 ft. (DC) = 2 ft. (A)

2 ft. (A) / 1 ft. = 2msec

Press DELAY.

The current surround delay time appears in the display
window.
You can select center delay time by pressing

FF/GG

in

the Dolby Digital mode only.

Press DD/EEto change the delay time.

If setting is complete, press DELAY.

Delay Time Setting

Surround delay time setting

Center delay time setting (Dolby Digital mode only)

Setting the delay time in the Dolby Digital

and Dolby Pro Logic modes

In Dolby Digital or Dolby Pro Logic mode it is
assumed that the time it takes the sound from each
speaker to reach the listener, is the same. But if the
time interval from the center or rear left and right
speakers to the listener is closer than the time
interval from the listener to the front left and right
speaker, the sound of center or rear left and right
speaker will reach the listener first; instead of the
sound of the front speakers. (It is desirable that the
sound from the front speakers reach the listener
first.)
Dolby Digital and Dolby Pro Logic modes provide
speaker time delay adjustments to resolve this
problem:; you can manually set the delay time of
the center or rear left and right speakers so that the
sound from all speakers will arrive simultaneously
to the listener.

❍

You can adjust the center delay time only in the
Dolby Digital mode; as you adjust it, the delay time
specified appears.

Note

1

2

3

2

1, 3

L

(A)

C

C

D

SL SR

R

DF

SW

DS

(B)

Setting the Sound Level

Press LEVEL.

The LEVEL indicator will appear in the display window.

Press FF/GGto select a desired speaker to set.

Each time you press the FF/GGbutton, it changes in the
following order;
FL (Front Left) → C (Center) → FR (Front Right) →
SR (Surround Right) → SL (Surround Left) →
SW (Subwoofer) → FL (Front Left)

• In the 2 channel stereo mode, you can only select
the SW (Subwoofer).

Press DD/EEto adjust the sound level of the
selected channel.

Repeat step 2-3 and adjust the sound level of
the other channels.

If setting is complete, press LEVEL.

In Dolby Digital and Dolby Pro Logic mode by using the test
tone function you can easily adjust the sound balance of the
speakers from the listener’s position.

Select the test tone mode by pressing TEST
TONE.

• A hiss noise comes out for 2 seconds from each
speakers in the following order;
FL (Front Left) → C (Center) → FR (Front Right) →
SR (Surround Right) → SL (Surround Left) →
SW (Subwoofer) → FL (Front Left)

Adjust the sound level the same way as
described in “Setting the sound level of the
desired channel” above, so that all the speak­er’s sound level is same from the listener’s
position.

• During operating the test tone, if you adjust the
sound level, it will be paused in the current speaker
channel.

For your reference

•

To adjust the volume of all the speakers at one time.

Use the VOLUME control.

1

2

1

2

3

4

5

Setting the sound level of the desired channel

Setting the Balance between each

channel by using the test tone

LEVEL

TEST TONE

PAGE 36 SOUND OPERATION

2, 3

3

1

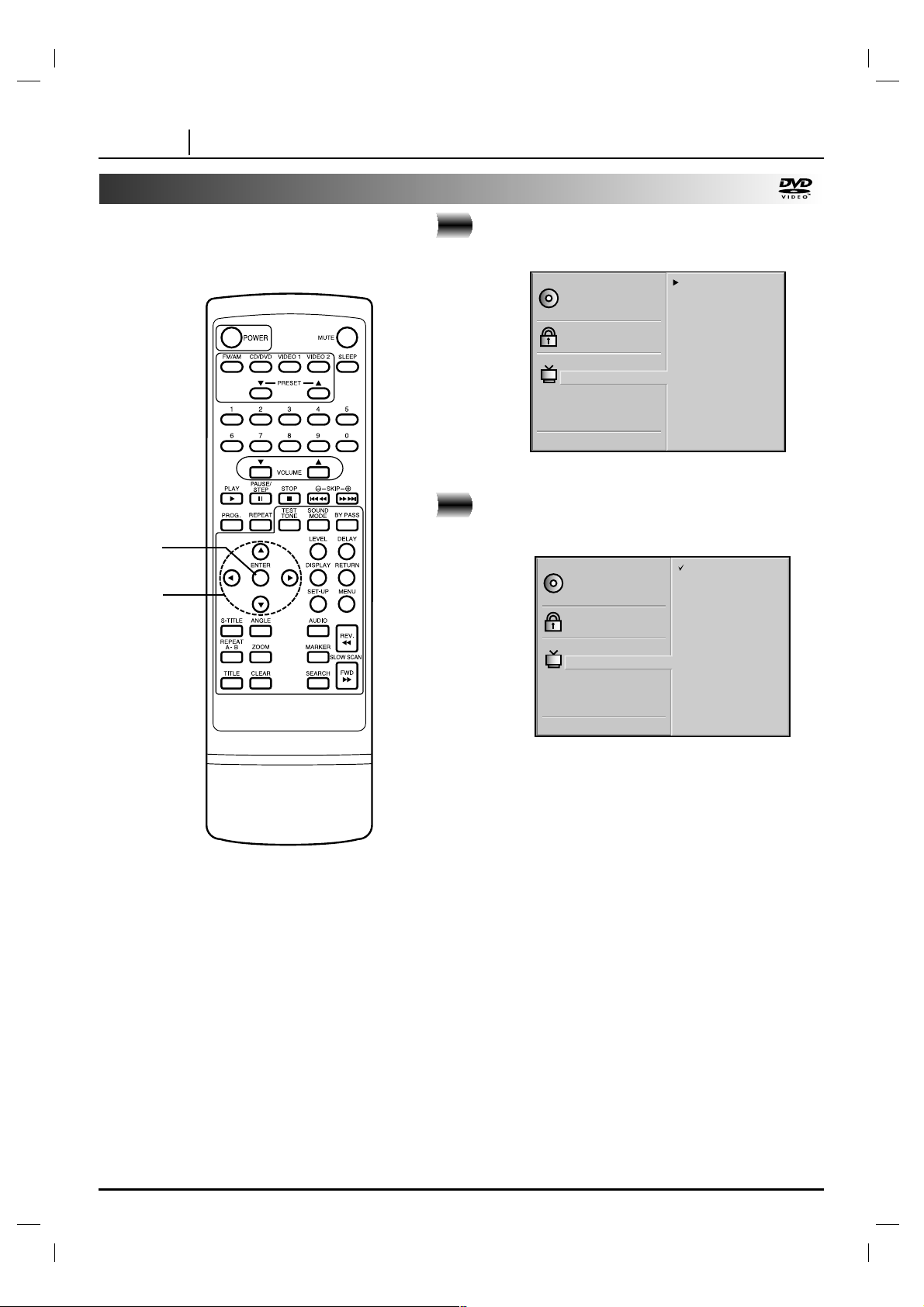

Selection of initial settings

Selection of initial settings

Press SET-UP in the stop or playback mode.

The SET-UP menu is displayed.

Press DD/EEto select the desired item.

The screen will show the current setting for the
selected item, and the alternate setting(s).

• Disc Audio (see page 38.)

• Disc Subtitle (see page 38.)

• Disc Menu (see page 38.)

• Rating (see page 39.)

• Password (see page 40.)

• TV Aspect (see page 41.)

• Menu Language (see page 42.)

Press GGand then DD/

EE

to select the desired

setting and press ENTER.

• Some items require additional steps. (See the

respective page.)

When the alternate setting is selected the screen returns to
the Initial Settings display.

To exit SET-UP menu

Press SET-UP, RETURN or PLAY.

Once the initial settings have been completed,
the DVD receiver can always be operated under
the same conditions (especially with DVD discs).
The settings will be retained in the memory until
they are changed, even if the power is switched
off.

2

1

Disc Subtitle
Disc Menu
Rating
Password
TV Aspect
Menu Language

Disc Audio

Original

Spanish

English

Chinese
Polish
Hungarian
Russian

French
German

Italian

Other — — — —

3

INITIAL SETTINGS PAGE 37

1, 2

2

PAGE 38 INITIAL SETTINGS

Selecting disc languages

At the setup screen, press DD/EEto select
“Disc Audio” and press

GG

.

Press

DD/EE

to select the desired language and

then press ENTER.

Original : The original language of each disc will be selected.
English : The English will be Selected.
Other : Another language can be selected. You can input

4-digit language code. (Refer to the language
codes on page 43. Press CLEAR if an incorrect
language code is entered.)

The “Disc Subtitle” and “Disc Menu” are selected by the
same method.

❍

If the language selected is not available on the disc, the original
language designated by each disc will be selected.

This is to select the audio soundtrack language,
subtitle language and the language used in title
menus or DVD menus which will always be used
for every disc to be played back.

When you play back a DVD video disc, the DVD
receiver automatically displays the pre-selected
subtitle language if it is included on the disc.

Note

2

1

Disc Subtitle
Disc Menu
Rating
Password
TV Aspect
Menu Language

Disc Audio

Original

Spanish

English

Chinese
Polish
Hungarian
Russian

French
German

Italian

Other — — — —

Disc Subtitle
Disc Menu
Rating
Password
TV Aspect
Menu Language

Disc Audio

Original

Spanish

English

Chinese
Polish
Hungarian
Russian

French
German

Italian

Other — — — —

INITIAL SETTINGS PAGE 39

Selecting rating level and password

Selecting rating level (DVD only)

At the SET-UP screen, press DD/EEto select
“Rating” and press

GG

.

Press

DD/EE

to select the desired level and

press ENTER.

You cannot play DVD video discs rated higher than the level
you selected unless you cancel the parental lock function.
For example, when you select level 7, discs rated higher than
level 7 are blocked and cannot be played.

The parent lock level is equivalent to the following USA movie
ratings.

Level 7: NC-17 Level 6: R Level 4: PG 13
Level 3: PG Level 1: G

• Some titles do not match with the rating level described as
above.

If you change the level and enter a password, playback of all
DVDs with ratings higher than your selection will be blocked,
unless the correct password is entered again. For example: if
you change the level to “5”, the DVD receiver will not play
discs with ratings of “6”, “7” or “8” unless the correct pass­word is entered on the remote control.

1

This is to prohibit the playing of specified
DVDs which are unsuitable for children.

● Some DVD discs contain a restriction level

which enables parents to remove scenes or
prevent playback of discs by children. DVD
receivers are equipped with a password
designed to prevent children from changing
the level.

Disc Subtitle
Disc Menu
Rating
Password
TV Aspect
Menu Language

Disc Audio

8
7
6
5
4
3
2
1
Unlock

Disc Subtitle
Disc Menu
Rating
Password
TV Aspect
Menu Language

Disc Audio

8 Blocked
7 Blocked
6
5
4
3
2
1
Unlock

2

1, 2

2

Mini glossary

MOTION PICTURE ASSOCIATION OF

AMERICA (MPAA) RATING SYSTEM

G (General Audiences) : Content not offensive

to most viewers.

PG (Parental Guidance Suggested) : Content is

such that parents may not want their children to
view the program.

PG-13 (Parental Guidance Suggested) :

Program is inappropriate for preteens, with a
greater degree of offensive material than a PG
rated program.

R (Restricted viewing) : Not for children under

age 17. Strong elements of sex and/or violence.

NC-17 (Restricted Viewing) : Not for children

under age 17 under any circumstances. Strong
sexual content.

X (Hard Core Films) : Same as NC-17 rating.

Zenith Electronics Corporation is not liable for any
program content that appears when using this
rating system; as always, user discretion is
advised.

Note

PAGE 40 INITIAL SETTINGS

1

2, 3

2, 3

Selecting rating level and password (Cont’d)

Setting your password (DVD only)

If you change the rating level to “7” or lower, you must enter
a 4-digit “password” to prevent playback of discs with higher
ratings.

At the SET-UP screen, press EEto select
“Password” and press

GG

.

Input a 4-digit password and press ENTER.

Example : 1234
Do not forget your password.

Input the 4-digit password again and press
ENTER to verify.

Setting is finished.

●The rating is locked. Any disc whose rating is higher than
the setting, cannot be played back unless the correct
password is entered.

To change/clear memorized password

At the SET-UP screen, press EEto select
“Password” and press

GG

.

Input your password and press ENTER.

To change or clear your password, press

DD/EE

to select the “Change” or “Clear” and press
ENTER.

To change the rating level/password, follow the steps on
page 39-40 again.

2

3

1

2

3

1

Disc Subtitle
Disc Menu
Rating
Password
TV Aspect
Menu Language

Disc Audio

New

— — — —
Disc Subtitle
Disc Menu

Rating
Password
TV Aspect
Menu Language

Disc Audio

Change
Clear

To clear your 4-digit password

If you forget your password, to clear the
current password, follow the procedure below.

At the SET-UP screen

1 Press

EE

to select “Password” item.

2 Enter 6-digit number “210499” and

then press ENTER.

The 4-digit password is cleared.

3 Enter a new password

Refer to “Setting your password” section on the
right.

INITIAL SETTINGS PAGE 41

Selecting TV Aspect

Select the appropriate screen type according to
your TV set; conventional size screen (4:3) or
wide-screen (16:9).

16:9 Wide

4:3 Panscan

Cut Off

4:3 Letterbox

At the SET-UP screen, press DD/EEto select
“TV Aspect” and press

GG

.

Press

DD/EE

to select the desired Aspect and

press ENTER.

4:3 Letterbox : The video material not formatted in the Pan

& Scan style is played back in the letterbox style (black
bands appear at top and bottom of screen).

4:3 Panscan : Select when a conventional TV set is
connected. The video material formatted in the Pan & Scan
style is played back in that style (the left and right edges are
cut off).

16:9 Wide : Select when a wide-screen TV set is connected.
Played in “FULL” size. (Setting the wide-screen TV to “FULL”
mode is also necessary.)

* Each screen shows an example when the video material

for a wide-screen is played.
(This setting does not affect the video material for
conventional size.)

1

2

Disc Subtitle
Disc Menu
Rating
Password
TV Aspect
Menu Language

Disc Audio

4:3 Letterbox
4:3 Panscan
16:9 Wide

Disc Subtitle
Disc Menu
Rating
Password
TV Aspect
Menu Language

Disc Audio

4:3 Letterbox
4:3 Panscan
16:9 Wide

1, 2

2

PAGE 42 INITIAL SETTINGS

Selecting Menu Language

At the SET-UP screen, press DD/EEto select
“Menu Language” and press

GG

.

Press

DD/EE

to select the desired Language and

press ENTER.

2

1

Selects language for SET-UP menus and displays
on the TV.

Disc Subtitle
Disc Menu
Rating
Password
TV Aspect
Menu Language

Disc Audio

English
Spanish
French

Disc Subtitle
Disc Menu
Rating
Password
TV Aspect
Menu Language

Disc Audio

English
Spanish
French

1, 2

2

INITIAL SETTINGS PAGE 43

Table of Language and Their Abbreviations

Code Language

6565 Afar
6566 Abkhazian
6570 Afrikaans
6577 Ameharic
6582 Arabic
6583 Assamese
6588 Aymara
6590 Azerbaijani
6665 Bashkir
6669 Byelorussian
6671 Bulgarian
6672 Bihari
6678 Bengali; Bangla
6679 Tibetan
6682 Breton
6765 Catalan
6779 Corsican
6783 Czech
6789 Welsh
6865 Danish
6869 German
6890 Bhutani
6976 Greek
6978 English
6979 Esperanto
6983 Spanish
6984 Estonian
6985 Basque
7065 Persian
7073 Finnish
7074 Fiji

Code Language

7079 Faroese
7082 French
7089 Frisian
7165 Irish
7168 Scots Gaelic
7176 Galician
7178 Guarani
7185 Gujarati
7265 Hausa
7273 Hindi
7282 Croatian
7285 Hungarian
7289 Armenian
7365 Interlingua
7378 Indonesian
7383 Icelandic
7384 Italian
7387 Hebrew
7465 Japanese
7473 Yiddish
7487 Javanese
7565 Georgian
7575 Kazakh
7576 Greenlandic
7577 Cambodian
7578 Kannada
7579 Korean
7583 Kashmiri
7585 Kurdish
7589 Kirghiz
7665 Latin

Code Language

7678 Lingala
7679 Laothian
7684 Lithuanian
7686 Latvian, Lettish
7771 Malagasy
7773 Maori
7775 Macedonian
7776 Malayalam
7778 Mongolian
7779 Moldavian
7782 Marathi
7783 Malay
7784 Maltese
7789 Burmese
7865 Nauru
7869 Nepali
7876 Dutch
7879 Norwegian
7982 Oriya
8065 Panjabi
8076 Polish
8083 Pashto, Pushto
8084 Portuguese
8185 Quechua
8277 Rhaeto-Romance
8279 Rumanian
8285 Russian
8365 Sanskrit
8368 Sindhi
8372 Serbo-Croatian
8373 Singhalese

Code Language

8375 Slovak
8376 Slovenian
8377 Samoan
8378 Shona
8379 Somali
8381 Albanian
8382 Serbian
8385 Sundanese
8386 Swedish
8387 Swahili
8465 Tamil
8469 Telugu
8471 Tajik
8472 Thai
8473 Tigrinya
8475 Turkmen
8476 Tagalog
8479 Tonga
8482 Turkish
8484 Tatar
8487 Twi
8575 Ukrainian
8582 Urdu
8590 Uzbek
8673 Vietnamese
8679 Volapük
8779 Wolof
8872 Xhosa
8979 Yoruba
9072 Chinese
9085 Zulu

Enter the appropriate code number for the initial settings “Audio”, “Subtitle” and/or “Menu” (See page 38).

PAGE 44 REFERENCE

Disc Requirements/Copyright Information

Playable Discs

This DVD receiver can play back the following discs.

In addition, this unit can play back a CD-R or CD-RW that contains audio titles or MP3 files.

You cannot playback discs other than those listed above. (Video CD, CD-ROM, CD-Extra, CD-G, photo CD, and
CD-i discs can not be played on this DVD receiver.)

Region Management Information: This DVD receiver is designed and manufactured to respond to the Region
Management Information that is recorded on a DVD disc. If the Region number described on the DVD disc does
not correspond to the Region number of this DVD receiver, this DVD receiver cannot play that disc.

The Region number of this DVD receiver is 1.

You may not be able to play back some DVD video discs on this DVD receiver if they were purchased from out­side your geographic area or made for business purposes.
When you try to play back an unauthorized disc, “Check Regional Code” appears on the TV screen.

It is forbidden by law to copy, broadcast, show, broadcast on cable, play in public, and rent copyrighted material
without permission.
DVD video discs are copy protected, and any recordings made from these discs will be distorted.
This product incorporates copyright protection technology that is protected by method claims of certain U.S.
patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of
this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home
and other limited viewing uses only, unless otherwise authorized by Macrovision Corporation. Reverse
engineering or disassembly is prohibited.

Notes on Unauthorized Discs

Region Management Information

Notes on Copyright

1

Disc mark Contents

Audio+Video

(moving pictures)

Audio

Disc size

12 cm

8 cm

12 cm

8 cm

Maximum playback time

Approx. 4 hours (single sided disc)
Approx. 8 hours (double sided disc)
Approx. 80 minutes (single sided disc)
Approx. 160 minutes (double sided disc)
74 minutes
20 minutes

DVD video discs

Audio CDs

REFERENCE PAGE 45

Symptom

No power.

The power is on, but
the DVD receiver does
not work.

No picture.

There is no sound or
only a very low-level
sound is heard.

The playback picture is poor.
The DVD receiver does

not start playback.

Severe hum or noise is
heard.

Cause

• The power cord is disconnected.

• No disc is inserted.

• The TV is not set to receive DVD signal

output.

• The video cable is not connected
securely.

• The connected TV power is turned off.

• The equipment connected with the

audio cable is not set to receive DVD
signal output.

• The audio cables are not connected
securely.

• The power of the equipment connected
with the audio cable is turned off.

• The audio connecting cord is damaged.

• The disc is dirty.

• No disc is inserted.

• An unplayable disc is inserted.

• The disc is placed upside down.

• The disc is not placed within the guide.

• The disc is dirty.

• A menu is on the TV screen.

• The Rating level is set.

• The plugs and jacks are dirty.

• The disc is dirty.

• The speakers and components are

connected poorly.

• The DVD receiver is located with TV
nearly.

Correction

• Plug the power cord into the wall outlet
securely.

• Insert a disc. (Check that the DVD or,
audio CD indicator in the DVD display is
lit.)

• Select the appropriate video input mode
on the TV so the picture from the DVD
receiver appears on the TV screen.

• Connect the video cable into the jacks
securely.

• Turn on the TV.

• Select the correct input mode of the

audio receiver so you can listen to the
sound from the DVD receiver.

• Connect the audio cable into the jacks
securely.

• Turn on the equipment connected with
the audio cable.

• Replace it with new one.

• Clean the disc.

• Insert a disc.(Check that the DVD, or

audio CD indicator in the DVD display is
lit.)

• Insert a playable disc. (Check the disc
type, color system and Regional code.)

• Place the disc with the playback side
down.

• Place the disc on the disc tray correctly
inside the guide.

• Clean the disc.

• Press the SET-UP button to turn off the

menu screen.

• Cancel the Rating function or change
the rating level.

• Wipe them with a cloth slightly moist­ened with alcohol.

• Clean the disc.

• Connect the speakers and components

securely.

• Move your TV away from the audio
components.

Before Calling Service Personnel

Check the following guide for the possible cause of a problem before contacting service.

Symptoms and Correction

PAGE 46 REFERENCE

Symptom

Recording cannot be
done.

Radio stations cannot
be tuned in.

The remote control
does not work properly.

Cause

• The components are connected
incorrectly.

• The source is selected incorrectly.

• The antennas are connected poorly.

• The signal strength of the stations is too

weak (when tuning in with automatic
tuning).

• No stations have been preset or preset
stations have been cleared (when
tuning by scanning preset stations).

• The remote control is not pointed at the
remote sensor of the DVD receiver.

• The remote control is too far from the
DVD receiver.

• There is an obstacle in the path of the
remote control and the DVD receiver.

• The batteries in the remote control are
exhausted.

Correction

• Connect the components correctly.

• Select the source with FUNCTION but-

ton (CD/DVD, VIDEO 1, VIDEO 2 or
Tuner).

• Connect the antenna securely.

• Adjust the antennas and connect an

external antenna if necessary.

• Tune in the station manually.

• Preset the stations (page 31).

• Point the remote control at the remote

sensor of the DVD receiver.

• Operate the remote control within about
23 ft (7 m).

• Remove the obstacle.

• Replace the batteries with new ones.

Before Calling Service Personnel (Cont’d)

Symptoms and Correction

Using the RESET button (located on the bottom of DVD receiver)

This button is used to solve the problem as following symptom;

• When the power cannot be turned on, even if the power cord is connected to the outlet.

• When the window display does not display.

• When the DVD receiver does not operate normally.

- Use a pencil or ball-pen when you press the RESET button.
NOTES:

• If the RESET button is pressed, then all memorized data will be cleared such as preset stations etc..

• Reset the settings according to instructions.

You can reset the DVD receiver also as below.

Unplug the power cord and then plug the power cord again after more than five seconds.

RESET Button

(DVD receiver’s bottom)

REFERENCE PAGE 47

Specifications

[General][CD/DVD][Video]

[Tuner]

AM

FM

(MW)

[Amplifier][Speakers]

[Supplied

Accessories]

Power supply AC 120V, 60 Hz
Power consumption 70 W
Weight 10.2 lbs (4.6 kg)
External dimensions (W x H x D) 360 x 82 x 388 mm (14.2 X 3.2 X 15.3 inches)
Operating conditions Temperature: 5°C to 35°C, Operation status: Horizontal
Operating humidity 5% to 90%
Laser Semiconductor laser, wavelength 650 nm
Signal system NTSC 525/60, PAL625/50
Frequency response (audio) 4 Hz to 20 kHz
Signal-to-noise ratio (audio) More than 90 dB (1 kHz, NOP, 20 kHz LPF/A-Filter)
Dynamic range (audio) More than 95 dB
Harmonic distortion (audio) 0.15 % (1 kHz, at 12W position)
Video input 1.0 V (p-p), 75 Ω, negative sync., RCA jack
Video output 1.0 V (p-p), 75 Ω, negative sync., RCA jack
S-video output (Y) 1.0 V (p-p), 75 Ω, negative sync., Mini DIN 4-pin x 1

(C) 0.3 V (p-p), 75 Ω
Tuning Range 87.5 - 108 MHz
Intermediate Frequency 10.7 MHz
Signal-to Noise Ratio 50 dB
Frequency Response 150 - 12,000 Hz
Tuning Range 522 - 1,611 kHz
Intermediate Frequency 450 kHz
Stereo mode 30W + 30W (8 Ω at 1 kHz, THD 1 %)
Surround mode Front: 30W + 30W

Center*: 30W

Surround*: 30W + 30W (8Ω at 1 kHz, THD 1 %)

Subwoofer*: 30W (8Ω at 60 Hz, THD 1 %)
Inputs VIDEO 1, 2
Outputs VIDEO 1 (AUDIO OUT) : 2 V

WOOFER: 2 V

Satellite Speaker (FE-3500TE) Passive Subwoofer (FE-3500WE)
Type 1 Way 1 Speaker 1 Way 1 Speaker
Impedance 8 Ω 8 Ω
Frequency Response 120 - 20,000 Hz 35 - 1,000 Hz
Sound Pressure Level 84 dB/W (1m) 83 dB/W (1m)
Rated Input Power 30 W 30 W
Max. Input Power 60 W 60 W
Net Dimensions (W x H x D) 90 x 125 x 106 mm 160 x 350 x 325 mm
Net Weight 0.7 kg 4.78 kg

• Audio cable . . . . . . . . . . . . . . . . . . . . . . . . .1 • Video cable . . . . . . . . . . . . . . . . . . . . . . . . . .1

• Speakers . . . . . . . . . . . . . . . . . . . . . . . . . . .6 • Speaker cables . . . . . . . . . . . . . . . . . . . . . .5

• Remote control . . . . . . . . . . . . . . . . . . . . . .1 • Batteries (AAA) . . . . . . . . . . . . . . . . . . . . . . .2

• AM loop antenna . . . . . . . . . . . . . . . . . . . . .1 • FM antenna . . . . . . . . . . . . . . . . . . . . . . . . .1

❋ Designs and specifications are subject to change without notice.

(*

Depending on the sound mode
settings and the source, there
may be no sound output.)

Your Zenith Limited Warranty

DVD RECEIVER

Welcome into the Zenith family! We believe that you will be pleased with your new Zenith Entertainment Machine. Please
read this warranty carefully, it is a “LIMITED WARRANTY” as defined under Federal Law. This warranty gives you specific
legal rights, and you may also have other rights that vary from state to state within the U.S.A.

ZENITH’S RESPONSIBILITY

Service Labor During a period of 90 days from effective warranty date, Zenith will provide service labor by a Zenith authorized service

center when needed as determined by Zenith, as a result of manufacturing defects.

Parts New or remanufactured replacements for factory-defective parts will be supplied by a Zenith authorized service center for

one year from effective warranty date. Such replacement parts are warranted for the remaining portion of the original
warranty period.

Not Covered This warranty covers manufacturing defects and does not cover installation, adjustment of customer controls in the home,

installation or repair of home antenna systems, cable converters or cable company-supplied equipment; it also does not
cover damage due to misuse, abuse, negligence, acts of God or other causes beyond the control of Zenith. Any alteration of
the product after manufacture voids this warranty in its entirety.

OWNER’S RESPONSIBILITY

Effective Warranty Date Warranty begins on the date of original consumer purchase. For your convenience, keep the dealer’s dated bill of sale or a

delivery ticket as evidence of the purchase date.

Operating Guide Read your Operating Guide carefully so that you will understand the operation of your DVD Receiver and how to adjust the

customer controls.

Carry-In Service The video product must be taken to a U.S. or Canadian Zenith authorized service center for warranty service and must be

picked up by the owner.

TV Set Performance It is the owner’s responsibility to maintain the TV receiver with which the video product is used, and the associated

antenna system, in proper operating condition.

Important Product Registration—Please fill out and mail your Product Registration Card. It is imperative that Zenith know how to

reach you promptly if we should discover a safety problem that could affect you.

Warranty Service For warranty service information, contact any Zenith authorized service center. Parts and service labor that are Zenith’s

responsibility (see above) will be provided without charge. Other service is at the owner’s expense. If you have any problem
in obtaining satisfactory warranty service, call or write the Zenith Response Center. You must provide the model number,
serial number and date of purchase or date of original installation. Before you ask for warranty service, read “Before calling
service personnel” in your operating guide. You might avoid a service call.

THIS WARRANTY IS IN LIEU OF ANY OTHER WARRANTY, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION, ANY
WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, AND ZENITH SHALL NOT BE LIABLE FOR
ANY CONSEQUENTIAL, INDIRECT, OR INCIDENTAL DAMAGES OF ANY KIND, INCLUDING LOST REVENUES OR PROFITS IN
CONNECTION WITH THE PRODUCT.

ZENITH ELECTRONICS CORPORATION Zenith Part No. 206-3728
2000 MILLBROOK DRIVE GS# 3835RS0024B
LINCOLNSHIRE, IL 60069 Printed in China

Issue O

Customer Service

Zenith National Response Center

201 James Record Road, Building #3

Huntsville, AL 35824

Phone: [phone]

Fax: [phone]

email: [e-mail]
