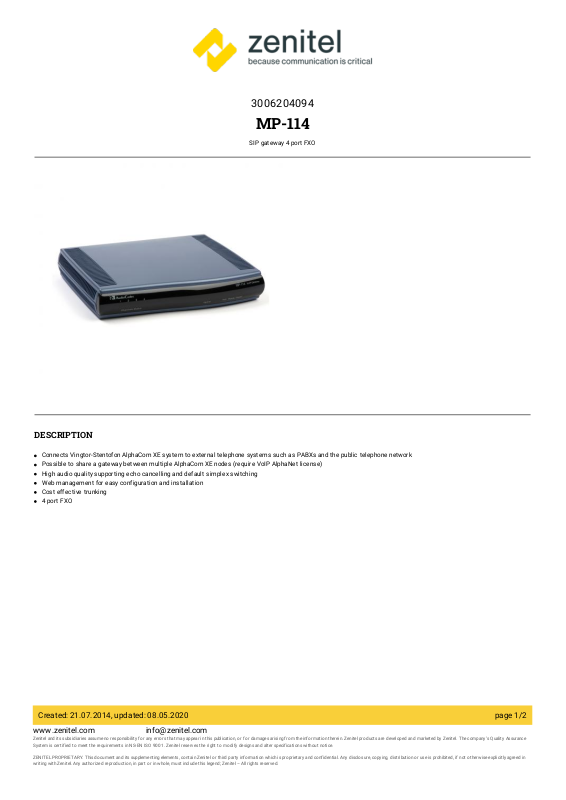

ZENITEL MP-114 User Manual
3006204094
MP-114
SIP gateway 4 port FXO
DESCRIPTION
Connects Vingtor-Stentofon AlphaCom XE system to external telephone systems such as PABXs and the public telephone network
Possible to share a gateway between multiple AlphaCom XE nodes (require VoIP AlphaNet license)
High audio quality supporting echo cancelling and default simplex switching
Web management for eas y configuration and installation
Cost effecti ve trunking
4 port FXO
Created: 21.07.2014, updated: 08.05.2020 page 1/2
www.zenitel.com info@zenitel.com
Zenitel and its subsidiaries assume no responsibility for any errors t hat may appear in this publication, or for damages arising from t he informatio n therein. Zenitel products are develo ped and marketed by Zenitel. The company’s Quality Assurance
System is certi fied to meet t he requirements in NS-EN IS O 900 1. Zenitel reserves the right to mo dify designs and alter specifications without notice.
ZENIT EL PROPRIETARY. T his document and its supplementing elements, contain Zenitel or t hird party informat ion which is proprietary and confid ential. Any disclosure, copying, dist ribution or use is prohibited, if not otherwise explicitly agreed in
writing with Zenitel. Any authorized reprod uction, in part or in whole, must include this legend; Zenitel – All rights reserved.
SPECIFICATIONS
GENERAL
Usage Analogue telephone gateway
Telephone interface FXO Loop-start
Temperature range Storage: -25° to 85°C / Operational: 5° to 40°C
Humidity range 10% to 90% non-condensing
Dimensions (WxHxD) 220 x 42 x 172mm / 8.67 x 1.66 x 6.78 inches
Power 100 – 240 VAC / 50-60 Hz
Mounting Rack mount with optional rack -mount k it Table top Wall mount
Ethernet Interface 10/100 Mbps, Base-Tx, RJ45
Network QoS DiffServ, TOS
IP transport RFP / RTCP per IETF RFC 3550 and 3551
Calling Line Identity Bellcore Type 1 & 2, ETSI, BT, NTT and DTM F-based CID (Brazil, Denmark, India, Netherlands, Sweden)
In-band signalling DTMF (TIA 464B) User defined and call progress t ones
EMC compliance EN55022 Class B, CFR Part 15 Class B, EN55024, EN61000-3-3, EN61000-3-2, VCCI Class X1 (equal to class B)
Safet y compliance EN60950-1 Safety of IT equipment, UL60950-1 Including compliance to section 6 (over-voltage protection)
Telecom compliance TRR-21, TIA-968
Call routing Two stage dialing, Line hunt ing, Preflix line selection
