Zehnder PALMA DATASHEET

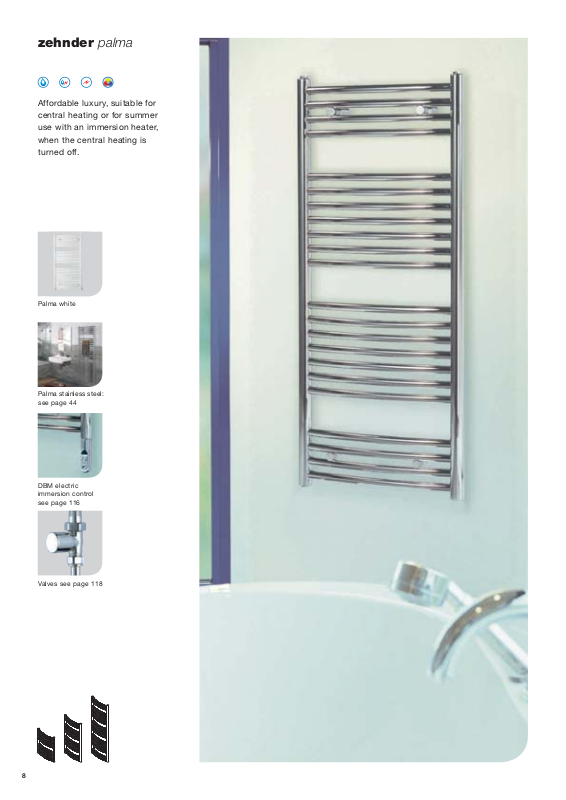

zehnder palma
Affordable luxury, suitable for
central heating or for summer
use with an immersion heater,
when the central heating is
turned off.
Palma white
Palma stainless steel:
see page 44
DBM electric
immersion control
see page 116
Valves see page 118
8
Central Heating
Model Stock
Height Width
mm mm
(H) (W)
(EN 442) Watts
Finish
Output Electric
Output
ΔT=50K Immersion Weight RRP
ΔT=60K
Watts/btu
Watts/btu Rating kg (ex VAT)
Zehnder Palma
ZCL-080-050 748 496 white 494/1686 393/1341 300 5.7
ZCL-080-060 748 597 white 581/1982 463/1580 300 6.6
ZCL-120-050 1148 496 white 737/2515 585/1996 300 8.5
ZCL-120-060 1148 597 white 869/2965 690/2354 600 9.8
ZCL-170-050 1708 496 white 1072/3658 847/2958 600 12.3
ZCL-170-060 1708 597 white 1260/4299 999/3409 900 14.1
ZCLC-080-050 748 496 chrome 363/1239 287/979 300 5.7
ZCLC-080-060 748 597 chrome 426/1454 338/1153 300 6.6
ZCLC-120-050 1148 496 chrome 541/1846 427/1457 300 8.5
ZCLC-120-060 1148 597 chrome 638/2177 504/1720 300 9.8
ZCLC-170-050 1708 496 chrome 783/2672 618/2108 600 11.0
ZCLC-170-060 1708 597 chrome 924/3153 729/2487 600 14.1
Max. working pressure: 11.5 Bar
Dual Energy: Self Fit - Additional cost to Central Heating model prices see page 117 for details
£145
£160
£165
£180
£232
£244
£251
£268
£329
£341
£486
£524
RRP
(inc 20%
VAT)
£174.00
£192.00
£198.00
£216.00
£278.40
£292.80
£301.20
£321.60
£394.80
£409.20
£583.20
£628.80
Height
(max)
mm
(H)
Width
mm
(W)
Finish
Weight
(kg)
Model
Simple electric immersion heater
Class I IPX5, Zones 1 and 2
Electric
rating
RRP
(ex VAT)
RRP (inc
20% VAT)
Model
DBM immersion heater
Class II IPX4, Zones 1 and 2
Electric
rating
RRP
(ex VAT)
Zehnder Palma electric only models (with a choice of either a simple immersion heater (no controls) or the DBM immersion heater)
868 500 white 9.6 ZCLES-080-050 300 £264 £316.80 ZCLED-080-050 300 £320 £384.00
868 600 white 11.0 ZCLES-080-060 400 £279 £334.80 ZCLED-080-060 300 £335 £402.00
1268 500 white 14.3 ZCLES-120-050 500 £284 £340.80 ZCLED-120-050 500 £340 £408.00
1268 600 white 16.3 ZCLES-120-060 600 £299 £358.80 ZCLED-120-060 600 £355 £426.00
1828 500 white 20.6 ZCLES-170-050 700 £351 £421.20 ZCLED-170-050 750 £407 £488.40
1828 600 white 23.7 ZCLES-170-060 900 £363 £435.60 ZCLED-170-060 900 £419 £502.80
868 500 chrome 9.6 ZCLCES-080-050 250 £370 £444.00 n/a
868 600 chrome 11.0 ZCLCES-080-060 250 £38 £464.40 ZCLCED-080-060 300 £467 £560.40
1268 500 chrome 14.3 ZCLCES-120-050 300 £448 £537.60 ZCLCED-120-050 300 £528 £633.60
1268 600 chrome 16.3 ZCLCES-120-060 300 £460 £552.00 ZCLCED-120-060 300 £540 £648.00
1828 500 chrome 19.3 ZCLCES-170-050 500 £605 £726.00 ZCLCED-170-050 500 £685 £822.00
1828 600 chrome 23.7 ZCLCES-170-060 600 £643 £771.60 ZCLCED-170-060 600 £723 £867.60
The immersion heater is fitted to the right hand header as standard, but can be in the left handed header if stipulated at order stage.
Colour finish: Standard colours from the Zehnder colour chart: white + 25%. Colour finish delivery 20-30 working days.
1
/2” air vent
*
† height excludes air vent
F = flow
R = return
Tube: Horizontal ⵰ 23mm
Vertical ⵰ 38mm
RRP (inc
20% VAT)
W
W
H
H
ZCL-170
ZCLC-170
ZCL-120
ZCLC-120
98-113
W
H
W-38
ZCL-080
ZCLC-080
RF
1919
54-66
9494
ZCLES
ZCLCES
ZCLED
ZCLCED
35
120
1st January 2011
9
