P4T/RP4T™ Mobile Printer Series
User Guide
UMAN-P4T-013 Rev.A
© ZIH Corp. 2013
User Guide
2
P4T/RP4T
Introduction pg. 4
pg. 5
pg. 7
Manual
P4T Overview-
Printer Preparation
Connecting the
Radio Regulatory
RP4T Printers pg.
Proprietary Statement
This manual contains proprietary information of Zebra Technologies Corporation.
It is intended solely for the information and use of parties operating and maintaining the equipment described herein. Such proprietary information may not be used, reproduced, or disclosed to any other parties for any other purpose without the expressed written permission of Zebra Technologies Corporation.
Product Improvements
Since continuous product improvement is a policy of Zebra Technologies
Corporation, all specifications and signs are subject to change without notice.
FCC Compliance Statement
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits or a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio
Troubleshooting pg.
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet or circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Speci cations pg.
WARNING: Exposure to Radio Frequency radiation. To conform to FCC RF exposure requirements this device shall be used in accordance with the operating conditions and instructions listed in this manual. Note that there are several radio options available with this printer. Additional regulatory information is contained in later sections devoted to each radio individually. NOTE: This unit was tested with shielded cables on the peripheral devices. Shielded cables must be used with the unit to insure compliance. Changes or modifications to this unit not expressly approved by Zebra Technologies Corporation could void the user’s authority to operate this equipment.
Canadian Compliance Statement
This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme á la norme NMB-003 du Canada. “IC:” before the equipment certification number signifies that the Industry Canada technical specifications were met. It does not guarantee that the certified product will operate to the user’s satisfaction.
Agency Approvals and Regulatory Information
• FCC part 15 • Canadian STD RSS-210
• NOM-ETL (Mexico) • EN60950-1: Safety Standard
• EN55022: Class B European • C-Tick (Australia) Electromagnetic Radiation Standard
• Design certified by TUV
Liability Disclaimer
Inasmuch as every effort has been made to supply accurate information in this manual, Zebra Technologies Corporation is not liable for any erroneous information or omissions. Zebra Technologies Corporation reserves the right to correct any such errors and disclaims liability resulting therefrom.
No Liability for Consequential Damage
In no event shall Zebra Technologies Corporation or anyone else involved in the creation, production, or delivery of the accompanying product (including hardware and software) be liable for any damages whatsoever (including, without limitation, damages for loss of business profits, business interruption, loss of business information, or other pecuniary loss) arising out of the use of or the results of use of or inability to use such product, even if Zebra Technologies Corporation has been advised of the possibility of such damages. Because some states do not allow the exclusion of liability for consequential or incidental damages, the above limitation may not apply to you.
Copyrights
The copyrights in this manual and the label print engine described therein are owned by Zebra Technologies Corporation. Unauthorized reproduction of this manual or the software in the label print engine may result in imprisonment of up to one year and fines of up to $10,000 (17 U.S.C.506). Copyright violators may be subject to civil liability. This product may contain ZPL Equalizer® Circuit; E3®; and AGFA fonts. Software © ZIH Corp. All rights reserved worldwide. ZebraLink and all product names and numbers are trademarks, and Zebra, the Zebra logo, ZPL, ZPL II, Element Energy Equalizer Circuit, and E3 Circuit are registered trademarks of ZIH Corp. All rights reserved worldwide. Monotype®, Intellifont® and UFST® are trademarks of Monotype Imaging, Inc. registered in the United States Patent and Trademark Office and may be registered in certain jurisdictions. AndyTM , CG PalacioTM, CG Century SchoolbookTM, CG TriumvirateTM, CG TimesTM, Monotype KaiTM, Monotype MinchoTM and Monotype SungTM are trademarks of Monotype Imaging, Inc. and may be registered in some jurisdictions. HY Gothic HangulTM is a trademark of Hanyang Systems, Inc. AngsanaTM is a trademark of Unity Progress Company (UPC) Limited. Andale®, Arial®, Book Antiqua®, Corsiva®, Gill Sans®, Sorts® and Times New Roman® are trademarks of The Monotype Corporation registered in the United States Patent and Trademark Office and may be registered in certain jurisdictions. Century Gothic™, Bookman Old StyleTM and Century SchoolbookTM are trademarks of The Monotype Corporation and may be registered in certain jurisdictions. HGPGothicB is a trademark of the Ricoh company, Ltd. and may be registered in some jurisdictions. UniversTM is a trademark of Heidelberger Druckmaschinen AG, which may be registered in certain jurisdictions, exclusively licensed through Linotype Library GmbH, a wholly owned subsidiary of Heidelberger Druckmaschinen AG. Futura® is a trademark of Bauer Types SA registered in the United States Patent and Trademark Office and may be registered in some jurisdictions. TrueType® is a trademark of Apple Computer, Inc. registered in the United States Patent and Trademark Office and may be registered in certain jurisdictions. All other brand names, product names, or trademarks belong to their respective holders.
©
2012 ZIH Corp.
®
, ZPL II®, and ZebraLinktm programs; Element Energy
Section Continues
2
User Guide
3
P4T/RP4T
Introduction pg. 4
Document Conventions
RP4T Printers pg.
pg. 5
pg. 7
Manual
P4T Overview-
Printer Preparation
Troubleshooting pg.
The following conventions are used throughout this document to convey certain information:
Caution • Warns you of the potential for electrostatic discharge.
Caution • Warns you of a potential electric shock situation.
Caution • Warns you of a situation where excessive heat could cause a burn
Caution • Advises you that failure to take or avoid a speci c action could result in physical harm to you.
Caution • Advises you that failure to take or avoid a speci c action could result in physical harm to the hardware.
Important • Advises you of information that is essential to complete a task.
Note • Indicates neutral or positive information that emphasizes or supplements important points of the main text.
Text in
this format will jump to the appropriate section in the manual.
Connecting the
Radio Regulatory
Speci cations pg.
3
User Guide
P4T/RP4T
pg. 5
pg. 7
Introduction pg. 4
Manual
P4T Overview-
Printer Preparation
Connecting the
RP4T Printers pg.
Introduction to the P4T Series
Troubleshooting pg.
Speci cations pg.
Thank you for choosing one of our Zebra P4T Series Mobile Print­ers. The P4T Series consists of two models. The P4T can print on direct thermal or thermal transfer media. The RP4T can print on direct or thermal transfer media and also encode special RFID media.
Because these printers are made by Zebra Technologies, you’re assured of world-class support for all of your bar code printers, software, and supplies.
• This User’s Guide gives you the information you’ll need to operate and maintain both the P4T and RP4T models.
• P4T Series printers use the CPCL programming language. To create and print receipts and labels using the CPCL language, refer to our Label Vista™ label creation program or the Mobile Printing Systems CPCL Programming Manual which are both available on our Web site at:
• P4T Series printer software also includes interpreters for the
®
ZPL II for the ZPL label design programming language are also avail­able on our Web site. Refer to for more information on accessing and downloading manuals and other user information.
programming language (up to Version 30.8.4). Manuals
www.zebra.com/manuals .
Appendix “F” of this manual
Unpacking and Inspection
Inspect the printer for possible shipping damage:
• Check all exterior surfaces for damage.
• Open the media cover (refer to “Loading the Media” in the Printer Preparation section) and inspect the media compart­ment for damage.
In case return shipping is required, save the carton and all pack-
ing material.
Reporting Damage
If you discover shipping damage:
• Immediately notify and file a damage report with the shipping company. Zebra Technologies Corporation is not responsible for any damage incurred during shipment of the printer and will not cover the repair of this damage under its warranty policy.
• Keep the carton and all packing material for inspection.
• Notify your authorized Zebra re-seller.
Always refer to the Important Safety Information data sheet
Radio Regulatory
shipped with each printer and the Technical Bulletin shipped with each battery pack. These documents detail procedures to ensure maximum reliability and safety while using this printer.
Section Continues
4
User Guide
5
P4T/RP4T
Introduction pg. 4
P4T/RP4T Overview
RP4T Printers pg.
Figure 1: P4T/RP4T Illustrated
Manual
7
6
pg. 5
pg. 7
P4T Overview-
Printer Preparation
Connecting the
Troubleshooting pg.
Speci cations pg.
8
9
10
4
5
3
2
1
Figure 1a: P4T/RP4T Bottom View
1 Platen Roller
2. Bar Sensor
3. Media Support
4. Printhead
5. RFID Reader/Encoder (RP4T only)
Radio Regulatory
6. Ribbon Cartridge Cover
7. Control Panel
8. Ribbon Cartridge Cover Latch
9. Media Cover Latch
10. Media Support Disks
11. Label Peeler
12. Media Cover
13. External Media Access (optional)
14. Battery
15. Battery Charging Receptacle
16. RS232 Communications Port
17. USB Port
15
16
17
11
12
13
14
Section Continues
5
User Guide
P4T/RP4T
Introduction pg. 4
P4T Series Technology
RP4T Printers pg.
pg. 5
pg. 7
Manual
P4T Overview-
Printer Preparation
The P4T Series introduces several new technologies to the Zebra
Mobile Printer product line.
Smart Battery
The P4T Series battery pack contains electronics which allow the printer to monitor its operating parameters. Among these are the battery’s charge state, the number of charge cycles it has under­gone, and its date of manufacture. Using these parameters, the P4T Series’ software can monitor the battery’s condition and alert the user when to recharge, re-condition or remove the battery from service.
Use of any battery pack other than the one manufactured by
Zebra specifically for use with P4T Series printers will not
be able to use the diagnostic features of the Zebra Smart
Troubleshooting pg.
Printing Technology
The P4T Series uses two methods to print human readible text, graphics and barcodes: Direct Thermal, and Thermal Transfer
Direct Thermal
Battery and will not work with the printer.
For ease of installation, P4T Series thermal transfer film is supplied as a cartridge. Typically a thermal transfer film cartridge will be able to print two rolls of media before needing replacement. This ratio may vary considerably based on the amount of label stock per roll.
RFID (Radio Frequency Identi cation)
A P4T Series printer equipped with an RFID encoder allows it to encode information on special label media using radio frequen­cies in addition to using conventional thermal transfer technology.
These printers are identified as RP4T printers.
RFID encoded information can be retrieved using an RFID scanner from a distance of inches to several yards from an encoded label.
Zebra’s implementation of RFID follows accepted industry stan­dards. As an example, the RP4T verifies the information encoded on the label media after it is transmitted and voids the label if the data is incorrect. More information concerning RFID may be found in Zebra’s
Zebra’s Web site.
RFID Programming Manual, available for download on
Direct thermal printing uses heat to cause a chemical reaction on specially treated media. This reaction creates a dark mark wher­ever a heated element on the printhead comes in contact with the media. Since the printing elements are arranged very densely at
Connecting the
Radio Regulatory
Speci cations pg.
203 d.p.i. (dots per inch) or 8 dots per mm, highly legible characters
and graphic elements may be created a row at a time as the media is advanced past the printhead. This technology has the advantage of simplicity, as there is no requirement for consumable supplies such as ink or toner. However, since the media is sensitive to heat, it will gradually loose legibility over long periods of time, especially if exposed to environments with relatively high temperatures.
Thermal Transfer
Thermal transfer printing uses the same basic technology as direct thermal, except that the printhead elements react with a transfer film which passes between the printhead and the media. The print­ing process fuses the thermal transfer material to the media being printed and creates characters and graphic images that are very dark, and more permanent than those created by direct thermal printing. Offsetting this advantage is the extra cost of the thermal transfer film and printing speeds slower than those required for direct thermal printing.
6
User Guide
7
P4T/RP4T
Introduction pg. 4
Printer Preparation
RP4T Printers pg.
pg. 5
pg. 7
Manual
P4T Overview-
Printer Preparation
Battery Safety
Troubleshooting pg.
The Battery Packs used on Zebra Mobile Printers contain a great deal of energy and can cause personal injury or start a fire if used
improperly or carelessly. Please observe the following safety practices:
Caution • Avoid accidental short circuiting of any batter y. Allowing battery terminals to contact conduc tive material will
create a short circuit which could cause burns and other injuries or could start a  re.
Caution • Batteries can explode or catch fire if improperly charged or exposed to high temperatures or fire. Do not disassemble,
crush or expose batteries to water.
Caution • Use of any charger not approved specifically by Zebra for use with its batteries could cause damage to the battery
pack or the printer and will void the warranty.
Read carefully and always observe the safety guidelines for Li-ion batteries provided with each Battery Pack.
Charger Safety
Do not place a charger in locations where liquids or metallic objects may be dropped on the charger or, in the case of the
UCLI72-4 Quad Charger, into the charging bays.
Use care in locating any of the approved P4T Series single chargers, the AC Adapter or the UCLI72-4 Quad Charger. Do not
block the ventilating slots on the top and bottom covers. Ensure that the Charger is plugged into a power source which won’t accidently be turned o if you will be charging batteries overnight.
Connecting the
Radio Regulatory
Speci cations pg.
Required Regulatory Text for Argentina
Only certified adaptors with the following electrical characteristics shall be used. The use of different adaptors could damage
the device, present hazards to the user and declare the correspondent guaranty void.
LI72: Input ratings: 100-240 VAC 50/60Hz 200mA., Class 2 Output ratings: 8.4 VDC, 800 mA
Section Continues
7
User Guide
8
P4T/RP4T
Introduction pg. 4
RP4T Printers pg.
Approved Chargers
Manual
The following table lists battery chargers approved for use with the P4T Series Printer.
Use of chargers not approved by Zebra specifically for use with the P4T Series will void the warranty and could cause damage
to the printer or the battery pack. Zebra is not responsible for any damage to equipment caused by the improper use of unauthorized equipment.
pg. 5
pg. 7
P4T Overview-
Printer Preparation
Connecting the
Radio Regulatory
Troubleshooting pg.
Description Part no Notes.
LI72 single charger)
AC Adapter/US Line Cord
AC Adapter/UK Line Cord
AC Adapter/EU Line Cord
UCLI72-4 Quad Charger
AT17696-xx AT18737-xx
AK18913-002
AK18913-006
AK18913-007
AC18177-xx
1
Must be used with battery removed from printer
Must be used with battery installed in printer
Must be used with battery installed in printer
Must be used with battery installed in printer
Must be used with battery
1
removed from printer
Description Part no Notes.
15-60V DC Adapter/Right Angle
1. Full par t number is determine d by the AC main ad a pter appropriate for the region of intended use. Consult your Zebra sales represenetative or the fac tor y for th e appropriate part number.
AK18913-003 N/A
Single Battery Charger
Figure 2: LI72 Single Charger
Speci cations pg.
Yellow Green
The LI72 Charger
LI72 charger is a wall mounted fast charger with a universal 110 to 230, 50-60 Hz. VAC input. Multiple AC plug configurations comply with most international standards. This charger is intended for use with the P4T Series printers which are equipped with Lithium Ion (Li-ion) batteries.
Full part numbers are determined by the AC mains connectors.
Consult Zebra or your authorized re-seller for full part number in-
formation.
The LI72 will charge a battery pack as fast as its charge level will allow, and then switch over to a maintenance charge to keep the charge at its maximum.
LI72 Charger AT17696-xx
Section Continues
8
User Guide
9
P4T/RP4T
Introduction pg. 4
RP4T Printers pg.
Figure 3: Charging the P4T Series Battery with the LI72
pg. 5
pg. 7
Manual
P4T Overview-
Printer Preparation
Receptacle
Battery Charging
Mains connector will vary with country of intended use.
LI72 Battery Charger
Troubleshooting pg.
P4T Series Battery Pack
Charging Battery Packs with the AT17696-xx LI72 Single Charger
Plug the LI72 into the appropriate AC wall receptacle, then insert the charge cable into the battery pack charger jack.
The yellow/green charge indicator LED will indicate the status of the charger as per the following table.
Connecting the
Radio Regulatory
Speci cations pg.
Indicator
Steady yellow indicator Standby AC power on; no battery being charged
Slow (1 Hz)  ashing yellow indicator
Fast (4 Hz)  ashing green indicator
Slow (1 Hz)  ashing green indicator
Fast (4 Hz)  ashing yellow indicator
Steady green indicator Ready No charge is being applied to the battery
Slow (1 Hz)  ashing alternate yellow and green indicator
Charger
Function
Pre-Charge
Rapid Charge
Maintain
Error
Wait
Charger Status
Charger is applying trickle charge current (5% of maximum) to bring a cold battery temperature up to 0°C before starting a full charge cycle
Charger is applying the maximum charge rate to the battery
Charger is in trickle charge mode(10% of nominal charge value).
The battery may have an internal short,
or its charge monitoring circuitry may be malfunctioning. The battery pack should not be used any further.
Battery temperature is too hot. Charging will not begin until battery temperature reaches 45°C.
Notes: The battery pack must be removed from the printer when using the AT17696-xx LI72 Single Charger.
Charging will cease three (3) hours after the charger has entered the “Maintain” mode.
Section Continues
9
User Guide
P4T/RP4T
Introduction pg. 4
pg. 5
Manual
P4T Overview-
RP4T Printers pg.
Figure 4: Charging the P4T Series Battery with the LI72 Single Charger
Battery Charging Receptacle
Mains connector will vary with country of intended use.
LI72 Battery Charger
pg. 7
Printer Preparation
Connecting the
Radio Regulatory
Troubleshooting pg.
Pack
Charging Battery Packs with the AT18737-xx LI72 Single Charger
Plug the LI72 into the appropriate AC wall receptacle, then insert the charge cable into the battery pack charger jack. The amber/green charge indicator LED will indicate the status of the charger as per the following table.
Speci cations pg.
LED Status Charger Status
Green Solid Fully Charged
Amber Solid Charging
• Battery Contact Problem
P4T Series Battery
Amber Blinking
1. Short Circuit of Output Terminals
2. Detection of Short Battery's Circuit
3. No Contact + Terminal
• Over Voltage Protection
• Over Current Protection
• Temperature Waiting Time
Operating Temperature 0 to 40o C @ 30-85% Relative Humidity
Storage Temperature -30 to 60
Input Voltage AC100 to 240V 47 to 63Hz
Input Current 0.18A MAX
Output DC 8.4V 800mA
o
C @ 10-90% Relative Humidity
10
User Guide
P4T/RP4T
Introduction pg. 4
Charging the P4T Series Battery with the P1026943-1 AC Adapter
RP4T Printers pg.
pg. 5
pg. 7
Manual
P4T Overview-
Printer Preparation
Figure 4A: Charging the P4T Series Battery with the AC Adapter
AC Power Cord
(varies with
location)
Troubleshooting pg.
P4T Series AC Adapter
p/n P1026943-1
Open the
protective cover
for access to
the charger
receptacle
Connecting the
Speci cations pg.
• Connect the appropriate AC power cord for your location to the adapter and then plug the power cord into an AC receptacle.
• Plug the barrel plug from the P1026943-1 AC adapter into the charger jack on the printer.
• Open the protective cover on the P4T Series printer to expose the charger jack and the communication ports.
• The printer will power up and begin charging. The printer can be left on or turned off at this point. Charging will continue in either state.
The following table details how the AC Adapter and P4T Series printers interact:
Printer
Radio Regulatory
Status
O O O Pressing turns printer On
On O Normal display operation Pressing turns printer O
On On
O On
Charging Status
Printer LCD Power Button Operation
Normal display operation, plus battery icon will cycle through level bars. Charging will continue as required..
Battery icon will cycle through level bars. Printer turns o at end of charge cycle.
Pressing switches printer to limited operation: only battery charging & LCD functional
Pressing turns printer On. Printer will run normally
Note: If the battery is out of its safe charging temperature range (either too hot or too cold) the printer will display the following:
“Charging will resume when battery is in the range 0-40 degrees C (32-104 degrees F)” and the battery icon will alternately
 ash
and . Once the battery reaches a safe charging temperature, normal charging will automatically resume.
Section Continues
11
User Guide
P4T/RP4T
Introduction pg. 4
Manual
P4T Overview-
Charging the P4T Series Battery with the AT18488-1 DC Adapter (Customer ordering
RP4T Printers pg.
p/n AK18913-003)
Figure 4B: Charging the P4T Series Battery with the DC Adapter
DC Power Cord
(open wires)
pg. 5
pg. 7
Printer Preparation
Connecting the
P4T Series DC Adapter
p/n AT18488-1
Troubleshooting pg.
Open the
protective cover
for access to
the charger
receptacle
Speci cations pg.
• Open the protective cover on the P4T Series printer to expose the charger jack and the communication ports.
• Plug the right angled barrel plug from the AT18488-1 DC adapter into the charger jack on the printer.
• Connect the black cable ground (-) terminal to vehicle ground (preferably at the vehicle fuse box).
• Connect the white cable power (+) terminal to the vehicle power source (preferably at the vehicle fuse box).
The following table details how the DC Adapter and P4T Series printers interact:
Radio Regulatory
Printer
Status
O O O Pressing turns printer On
On O Normal display operation Pressing turns printer O
On On
O On
Charging Status
Printer LCD Power Button Operation
Normal display operation, plus battery icon will cycle through level bars. Charging will continue as required..
Battery icon will cycle through level bars. Printer turns o at end of charge cycle.
Pressing switches printer to limited operation: only battery charging & LCD functional
Pressing turns printer On. Printer will run normally
Note: If the battery is out of its safe charging temperature range (either too hot or too cold) the printer will display the following:
“Charging will resume when battery is in the range 0-40 degrees C (32-104 degrees F)” and the battery icon will alternately
 ash
and . Once the battery reaches a safe charging temperature, normal charging will automatically resume.
Section Continues
12
User Guide
P4T/RP4T
Introduction pg. 4
pg. 5
Manual
P4T Overview-
Charging the P4T Series Battery with the AT18488-2 DC Adapter (Customer ordering
RP4T Printers pg.
p/n AK18913-015)
Figure 4C: Charging the P4T Series Battery with the DC Adapter (Vehicle Cradle)
DC Power Cord
(open wires)
P4T Vehicle Cradle DC Adapter
p/n AT18488-2
pg. 7
Printer Preparation
Connecting the
Radio Regulatory
Troubleshooting pg.
Access the charger
receptacle located
on the bottom
of the vehicle
cradle as
indicated..
Speci cations pg.
• Locate the charger receptacle on the bottom of the P4T vehicle cradle.
• Plug the Molex connector of the AT18488-2 DC adapter into the charger receptacle.
• Connect the black cable ground (-) terminal to vehicle ground (preferably at the vehicle fuse box).
• Connect the white cable power (+) terminal to the vehicle power source (preferably at the vehicle fuse box).
The following table details how the DC Adapter and P4T Series printers interact:
Printer Status
O O O Pressing turns printer On
On O Normal display operation Pressing turns printer O
On On
O On
Charging Status
Printer LCD Power Button Operation
Normal display operation, plus battery icon will cycle through level bars. Charging will continue as required..
Battery icon will cycle through level bars. Printer turns o at end of charge cycle.
Pressing switches printer to limited operation: only battery charging & LCD functional
Pressing turns printer On. Printer will run normally
Note: If the battery is out of its safe charging temperature range (either too hot or too cold) the printer will display the following:
“Charging will resume when battery is in the range 0-40 degrees C (32-104 degrees F)” and the battery icon will alternately
 ash
and . Once the battery reaches a safe charging temperature, normal charging will automatically resume.
13
User Guide
14
P4T/RP4T
Introduction pg. 4
pg. 5
pg. 7
Manual
P4T Overview-
Printer Preparation
Installation Guidelines (DC Adapter)
RP4T Printers pg.
CAUTION: Insure that the adapter and cable you are using for this installation are clearly labeled for use with the vehicle's
voltage. Failure to match the adapter's capacity to the vehicle's voltage could result in improper printer operation, or severe damage to either the printer and/or the adapter.
Note: It is the installer's responsibility to insure correct wiring and installation.
Note: Zebra is not liable for damage to any equipment caused by improper installation or wiring of the adapter, or
damage resulting from use of the wrong adapter for the intended application.
Note: Do not lengthen the adapter's power cable or remove the cable's ferrite if equipped. Extending the cable or removing
Troubleshooting pg.
the ferrite may affect the adapter's reliability and radio frequency interference (RFI). Use care when attaching the adapter's power cable and power source. The red wire attaches to the positive (+) and the black wire to the negative (-) terminal. If
wired backwards the adapter will be rendered inoperable and will need to be replaced.
General Guidelines
• Completely install the input power (battery) cable before connecting the unit(s).
Connecting the
Radio Regulatory
Speci cations pg.
• Route the input power from the general area where the unit(s) will be mounted.
• Use a snap-in bushing if the input power passes through the firewall or other sheet metal.
• Make sure that cable routing does not interfere with other equipment or vehicle controls.
• Make sure that cable routing does not expose the cable to potential physical damage.
• Secure the input power at least every 12 inches (30 cm) throughout the cable run.
Section Continues
14
User Guide
15
Fault
Fast Charg e
Fault
Fast Charg e
Fault
Fast Charg e
Ready
Power
Full Charg e
Ready
Full Charg e
Ready
Full Charg e
Full Charg e
Fault
Fast Charg e
Ready
P4T/RP4T
Introduction pg. 4
RP4T Printers pg.
Manual
Charging the P4T Series Battery with the UCLI72-4 Quad Charger
Figure 5- UCLI72-4 Quad Charger
The UCLI72-4 Quad Charger is designed to charge up to four battery packs simultane­ously. Charging times are as follows:
pg. 5
pg. 7
P4T Overview-
Printer Preparation
Slide Battery Pack into a Charger bay
Power Supply
Battery Status Charging Time
80% charged 2.5 Hrs.
Full charge 5 Hrs.
• Ensure that the charger has been installed properly per the Quad Charger instruction manual. Ensure that the power indicator on the front panel is on.
• Remove any protective shrink-wrap and labels from all battery packs prior to first use. Plug a battery pack into any one of the four charging bays as shown opposite in Figure _,
Troubleshooting pg.
Rock Battery Pack into place
noting the orientation of the battery pack.
• Slide the battery pack into the charging bay until it stops.
• Rock the battery pack back until it snaps into place.
The amber indicator directly under the bat­tery being charged will turn on if the battery is properly inserted.
Connecting the
Speci cations pg.
Amber Indicator
Green Indicator
Charger Bay
Power Indicator
Important • A fault condition (flashing amber indicator) is caused by a problem with the battery
pack. The charger may indicate a fault because the battery is too hot or too cold to charge
Radio Regulatory
reliably. Try to charge the battery again when it returns to the room’s ambient temperature. If the amber indicator starts flashing on the second charging attempt, the batter y should
The indicators under each battery will allow you to monitor the charging process per the table below:
Amber Green
On O Charging
On Flashing
O On
Flashing O Faulty Battery
Battery Status
80% charged (O.K. to use)
Completely Charged
be discarded. Always dispose of batteries in a proper manner. Refer to Appendix E of this manual.
Notes: For more information regarding the installation and use of the UCLI72-4 Quad Charger refer to the instructions included
with the product.
The UCLI72-4 Quad Charger has a safety feature which stops charging a battery after six hours regardless of its charge state.
Section Continues
15
User Guide
16
P4T/RP4T
Introduction pg. 4
Installing the P4T Series Battery Pack
RP4T Printers pg.
Manual
uncharged. Remove any protective shrink­wrap and labels from a new battery pack prior to use.
Additional battery packs may be ordered
using Zebra p/n AK18913-001.
Important • New battery packs are shipped
Figure 6: Installing the P4T Series Battery Pack
pg. 5
pg. 7
P4T Overview-
Printer Preparation
Connecting the
If you are using an LI72 single charger
or the LI72- 4 Quad Charger, you must charge the battery prior to installing it in the printer.
•. Insert the battery pack into the printer as shown in Figure 6 .
• Rock the battery pack into the printer as
Troubleshooting pg.
shown until it locks in place.
Charger port for use with the P1026943-1
AC Adapter
If you are using the AC adapter, you should
allow the battery pack to charge completely
prior to using it for the first time.
When a new battery pack is first installed, the Control Panel indicators may briefly turn on and then go off, indicating the battery is not fully charged. Refer to the
Operator Controls topics in this manual.
Speci cations pg.
Charging the Battery and
Insert this side of the battery pack into the bottom of the printer as shown. Rock the battery pack
Radio Regulatory
P4T Series Battery Pack
until it clicks into place.
Section Continues
16
User Guide
P4T/RP4T
Introduction pg. 4
Load the Media
RP4T Printers pg.
pg. 5
pg. 7
Manual
P4T Overview-
Printer Preparation
media or label stock.

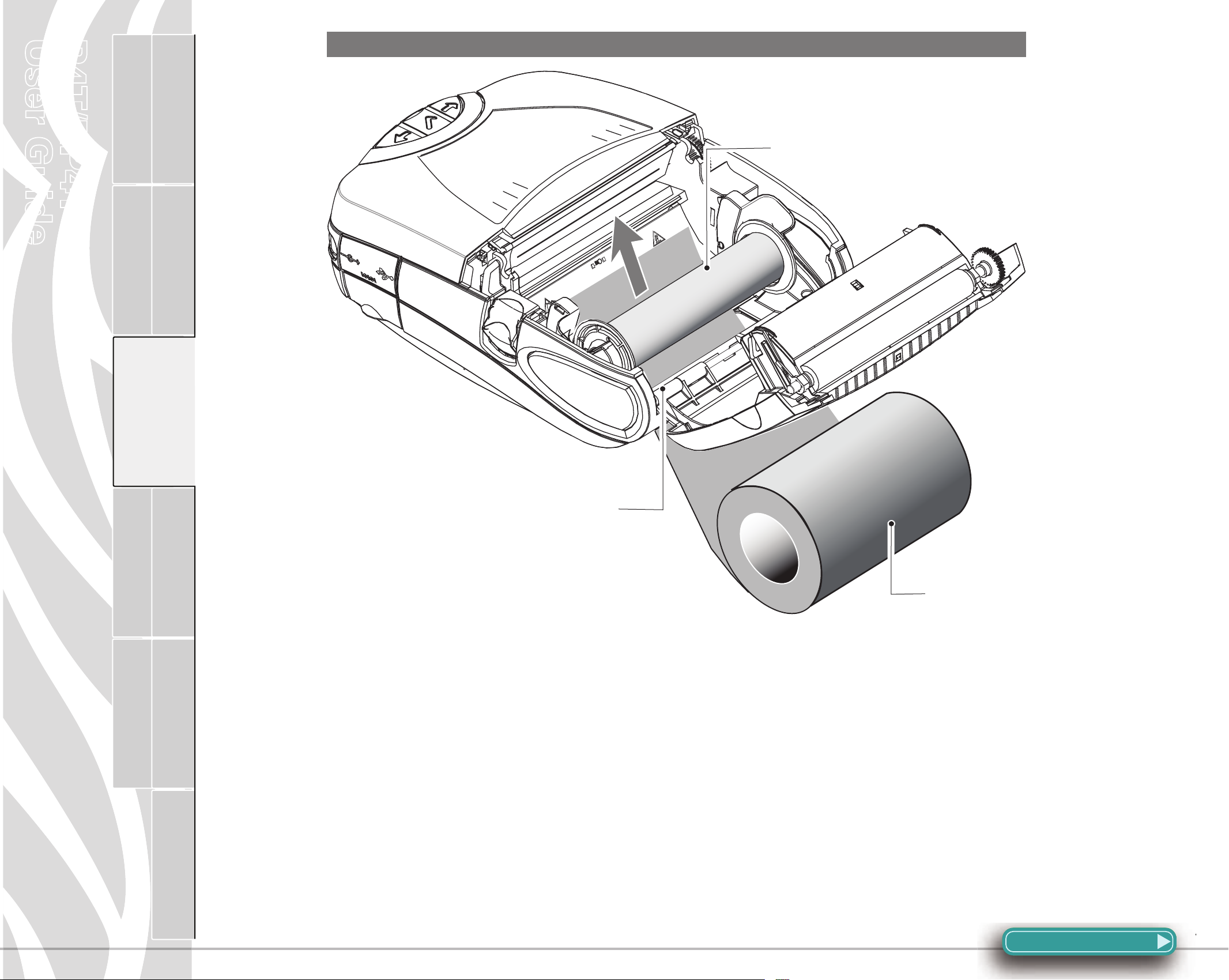

Figure 7.1 Opening the Media Cover Figure 7.2 Loading the Media
Load Media Roll
P4T series printers are designed to print either continuous (journal)
Pull Media Supports
apart where shown.
Troubleshooting pg.
Press down on the Media Cover Latch Lever
Note direction media pulls o the roll.
Media cover opens
1. Open the Media Cover
Connecting the
Speci cations pg.
Refer to Figure 7.1.
• Press the latch release button on the side of the printer as
shown at “1” below. The media cover will open automati­cally
• Rotate the Media Cover back completely as shown exposing the media compartment and the adjustable media supports.
2. Loading Media From An Internal Supply
Refer to Figure 7.2.
• Pull the media supports apart as shown.
• Insert the roll of media between them, and let the media sup­ports close. Ensure that the media pulls off the core in the direction shown in Figures 7.2 and 7.4. The supports will center the media roll within the media compartment, and the media roll should be able to spin freely on the supports.
Radio Regulatory
Section Continues
17
User Guide
18
P4T/RP4T
Introduction pg. 4
pg. 5
Manual
P4T Overview-
RP4T Printers pg.
Figure 7.3- Loading Media From An External Supply
Media Spacer
pg. 7
Printer Preparation
Connecting the
Radio Regulatory
Troubleshooting pg.
Speci cations pg.
3. Loading Media From An External Supply
Refer to Figure 7.3. A P4T Series printer configured with the External Media option has a loading slot in the rear of the media compartment allowing you to use 4.0 in. (101.6 mm) wide fanfold or roll media from an external supply. The external supply must be designed such that it does not exert excessive drag as media is fed through the printer, which could result in distorted printing.
Rear Feed Slot
External Media Source
• Pull the media supports apart, insert a Media Spacer (Zebra part number BA16625-1) between them, and let the media supports close.
• Insert the media from the external supply through the rear feed slot, between the media guides and up through the media compartment as shown. Make sure the side of the media you will be printing on faces the printhead.
Section Continues
18
User Guide
19
P4T/RP4T
Introduction pg. 4
RP4T Printers pg.
Figure 7.4-Close the Media Cover
Figure 7.5- Insert Media into Peeler
pg. 5
pg. 7
Manual
P4T Overview-
Printer Preparation
Troubleshooting pg.
Pull Media out of the Printer. Use alignment marks on the cover to ensure alignment.
Close Media Cover
Peeler Assembly.
Peeler Bar.
3. Feed the leader over the peeler bar and into the printer if you will be peeling labels as you print.
4. Press down on Peeler Assembly where shown and slide the media until it emerges .
1. Remove enough labels from the media roll to create a 4” [100 mm] leader.
2. Align the edge of the leader with the index marks on the top cover to ensure it will pass through the peeler without wrinkling.
4. Close the Media Cover:
Refer to Figure 7.4.
• Pull the media out of the printer as shown at “1.”
• Close the media cover as shown at “2”, ensuring that it latches
Connecting the
Speci cations pg.
securely into place.
• Turn the printer on or press the Feed button if the printer is already on.
5. Using the Label Peeler
Optional Step for label stock only
Refer to Figure 7.5. The label peeler feature allows automatic separation of the printed
label from its backing.
1. If you wish to use the label peeling feature, remove enough labels from the media roll to create a leader approximately 4” [100 mm.] long.
• The printer will advance a short strip of media and will then be ready for printing.
2. Align the media as it emerges from the printhead with the index marks on the top cover to ensure it will pass through the peeler assembly without wrinkling.
2. Feed the leader you created in step 1 over the peeler bar and
Radio Regulatory
into the peeler assembly.
3 Push on the peeler assembly where shown in Figure 6.5.
Insert the leader into the label peeler as shown and push on the media roll until it emerges from the slot at the rear of the peeler assembly.
• Turn the printer on or press the Feed button if the printer is already on.
• The printer will advance a short strip of media and will then be ready for printing.
Section Continues
19
User Guide
20
P4T/RP4T
Introduction pg. 4
Adjusting The Media Support Disks
RP4T Printers pg.
pg. 5
pg. 7
Manual
P4T Overview-
Printer Preparation
Connecting the
Media Core Size
Media supplied for the P4T Se­ries printers will have two pos­sible core sizes, depending on the media type. Journal media
and most label media is supplied with a 0.75” [19.1 mm] diameter core to maximize the amount of media contained on a roll.
P4T printer media supports are set at the factory for 0.75” diam­eter media cores.
RP4T printers (equipped with
Troubleshooting pg.
the RFID encoder) are configured for media with 1.38” [35.05 mm] diameter cores since RFID me-
dia cannot be wound around a small diameter core without both degrading its ability to feed properly past the printhead and causing possible damage to the embedded RFID circuitry.
Speci cations pg.
Figure 8- Adjusting the Media Core Diameter
Media Support Disk
(shown re-adjusted for
3/4” label media core)
Remove Support Disk, and  ip it 180° to change core size.
Changing The Media Support Core Diameter Size
It may become necessary to change the media core size in the field to allow use of different media.
The media support disks are designed for both sizes of media cores, and they can be adjusted by removing them, flipping their position and re-securing them to the printer.
1. Open the Media Cover and
remove any label media.
2. Use Phillips head screwdriver with a long blade to keep the screw attaching the Support Disk to the printer from turning.
3. Rotate the Support Disk while keeping the attachment screw from turning, and remove it.
4. Flip the Media Support Disk so that the desired core diameter
ridge faces towards the inside of
the printer. Please refer to Figure 8.
5. Re-secure the Support Disk by tighten-
Media Support Disk (shown adjusted for 1 3/8” label media core)
Radio Regulatory
freely.
ing it onto the attaching screw. Do not over
tighten the Support Disk. It must be able to spin
Repeat this procedure on the other Support Disk.
Always ensure that both Support Disks are adjusted for the
same size media core.
Replace the Media Support Disks if they have been adjusted
for di erent core sizes more than 5 ( ve) times.
Section Continues
20
User Guide
P4T/RP4T
Introduction pg. 4
Load the Ribbon Cartridge
RP4T Printers pg.
pg. 5
pg. 7
Manual
P4T Overview-
Printer Preparation
Figure 9.1-Open the Printer Covers
3. Press the Ribbon Cartridge Cover latch. Cover will slide open
If you are using media that requires Thermal Transfer media, perform
this step. If you are using journal stock, or media that uses direct thermal technology to print labels, omit this step.
1. Open the Printer Covers
Refer to Figure 9.1.
• Press the latch release button on the side of the printer as shown at
“1” in figure 9.1. The media cover will open automatically
• Press on the Ribbon Cartridge Cover latch. The cover will slide open.
1. Press down on the Media Cover Latch Lever
Troubleshooting pg.
Figure 9.2-Load the Ribbon Cartridge
3. Locating pins
on the cartridge
must lock into the
printer frame.
2. Media cover opens
2. Drop the cartridge in place over the printhead as shown.
2. Load the Ribbon Cartridge.
Refer to Figure 9.2.
Select the correct Thermal Transfer cartridge for the media you will be us­ing. Consult a Zebra sales representative for information regarding proper media selection for your application.
• Remove the tape holding the transfer ribbon in place.
1. Remove tape and pre-tension the media to remove wrinkles.
• Pre-tension the transfer ribbon to remove wrinkles by turning the take­up roll until the media is stretched flat between the two rolls of the
Connecting the
Speci cations pg.
Ribbon Cartridge cartridge.
• Drop the appropriate cartridge in place. The locating pins on either
side of the cartridge must be secured in the printer frame.
The Ribbon Cartridges are protected by a security device which
verifies compatiblity with P4T Series printers. Use of third part y cartridges will cause the printer to malfunction, and will void the
Radio Regulatory
Figure 9.3-Close the Printer Covers
2. Slide the Ribbon Car­tridge Cover closed until it locks in place.
1. Ensure Media is pulled out of Printer
3. Close the Printer Covers
Refer to Figure 9.3.
factory warranty.
• If you have not done so, load label media into the printer as detailed previously, ensuring that the media has been pulled out of the printer past the printhead.
• Slide the Ribbon Cartridge cover closed until it latches in place.
3. Close the Media Cover
Always close the Ribbon Cartridge cover before closing the media
cover.
• Close the media cover and ensure it latches in place.
Section Continues
21
User Guide
P4T/RP4T
Introduction pg. 4
Printer Controls
RP4T Printers pg.
Operator Controls
Manual
The printer control panel has buttons for the power on/off and media feed functions and a display which provides information regard-
ing printer functions and application prompts. Two navigation keys provide easy selection of menu options.
The “Scroll Forward” button allows scrolling through the various options and settings. The “Scroll Back” button allows scrolling back
through previously viewed menus. Pressing the “Select” button selects the currently highlighted option or function.
pg. 5
pg. 7
P4T Overview-
Printer Preparation
The status icons at the top of the screen indicate the state of various printer functions per the table below. Refer to the
Troubleshooting sec-
tion for more information on the printer status icons.
Indicates a Bluetooth connection is established. This icon is functional only on P4T Series printers with a Bluetooth wireless option installed.
Indicates that the printer is associated with a wireless Local Area Network (LAN) using an 802.11b/g compliant radio. This icon is functional only on a P4T Series printer with a WLAN wireless option installed.
A  ashing icon indicates that the printer does not detect any label media. This could indicate an out of media condition, or improperly loaded media.
A  ashing icon indicates that the thermal transfer  lm is depleted.
Troubleshooting pg.
A  ashing icon indicates that data is being transferred to the printer.
A  ashing outside element of the battery icon indicates low charge status. You should suspend any printing operations and recharge or replace the Battery Pack as soon as is convenient.
Cycling charge level elements within the battery icon indicate the P4T Series battery is being charged by the AC Adapter. Refer to Charger section of this manual.
Connecting the
Speci cations pg.
Figure 10 -P4T Series Printer Controls & LCD Icons
Scroll Back Button
Press to scroll to the previous
menu choice on the display.
Press to select a menu choice on
.
Select Button
the display.
Scroll Forward Button
Press to scroll to the next menu choice on the display.
If the printer displays:
“ Please Recondition the Battery” and beeps  ve times, the user should recondition the battery to return it to optimal operation.
To recondition the battery, charge
Radio Regulatory
the battery fully overnight and then use the printer until the printer shuts down due to a low battery condition.
Charge the battery again until it
is fully charged. At that point the battery will be reconditioned. If the battery is not reconditioned prop­erly the indicated battery charge level will indicate that there is more
Power Button
Press to turn unit on.
Press again to turn unit
o .
Printer Status Icons
Refer to the Trouble­shooting section for more information on the status icons.
charge remaining in the battery pack than is actually available. Re­conditioning performed as prompt-
Display
Indicates status mes-
sages and menu
prompts..
Feed Button
Press to advance a blank label or a pre­determined length of journal media.
ed by the printer will ensure accu­rate capacity indication throughout the serviceable life of the battery pack.
Section Continues
22
User Guide
23
P4T/RP4T
Introduction pg. 4
pg. 5
pg. 7
Manual
P4T Overview-
Printer Preparation
Connecting the
Radio Regulatory
Programmable LCD Settings
RP4T Printers pg.
In addition to the status icons, the LCD on the control panel can display many of the printer’s settings and functions as text as deter-
mined by the printer’s application. Applications can be written to allow the user to view and /or modify these settings using the scroll and select keys on the display. Refer to the following tables for a partial set of printer features that can be programmed to display on the LCD.
The LCD has a backlighting option which allows viewing of the screen in a dark environment, or provides better contrast in a very bright environment. Use of the display backlight will decrease the time the printer will run between charges. Refer to the section “Extending Battery Life” for more information.
Extended LCD Functions
Function Default setting Scroll & Select Options
Sensor Type Bar
Baud Rate 19200
Troubleshooting pg.
Speci cations pg.
Data Bits 8
Parity N (none)
LCD Contrast 8
No-activity Timeout 120 sec.
Audio Volume 3
Media Type Journal
LCD Backlight
Factory Reset (Resets all to factory set values)
3
Momentary On
No
• Bar
• Gap
• 9600
• 19200
• 32400
• 57600
• 115200
• 7
• 8
• E (Even)
• N (None)
• O (Odd)
• Increase (15max.)
• Decrease (15 max.)
• Decrease (0 min.)
• Increase (120 max.)
• 1 – Low
• 2 – Medium
• 3 - High
• Journal
• Label
• Momentary On w/ time delay
• O
• No
• Yes
2
NOTES: 1: LCD menu options are under speci c application control. Not all options may be available In your printer’s application. 2: A No-activity timeout value of “0” means the printer will remain on until powered o by the operator. 3: LCD Backlight turns on when any key other than FEED is pressed.
Section Continues
23
User Guide
P4T/RP4T
Introduction pg. 4
pg. 5
pg. 7
Manual
P4T Overview-
Printer Preparation
Display Functions Not Controlled from the Keypad
RP4T Printers pg.
While the parameters in this table can appear on the display they can be set only by using a PC running Zebra’s Label Vista label cre-
ation program and a data cable link to the printer.
Function Default setting Scroll & Select Options
WLAN ID Factory Set Value N/A
Tear-o Position (Top of Form) 00
Network & RF Settings
Bridge Mode O
DTR/VBUS-Power O O
Present-at 000
Troubleshooting pg.
Bluetooth parameters n/a Displays current Bluetooth operating parameters
802.11g operating parameters n/a Displays current 802.11g WLAN parameters
Media Type Journal
• Increase (max. = +10)
• Decrease (min. = -120)
• All protocols On
• Protocols On or O individually
• O
• On
• On
• O
• Increase (max.= +120)
• Decrease (min. = 000
•Journal
•Label
Connecting the
Radio Regulatory
Speci cations pg.
Section Continues
24
User Guide
25
P4T/RP4T
Introduction pg. 4
Adjustable Shoulder Strap
RP4T Printers pg.
Manual
Figure 11- Shoulder Strap
pg. 5
pg. 7
P4T Overview-
Printer Preparation
Connecting the
Hold Buckle
Pull Strap here
to shorten
Troubleshooting pg.
Speci cations pg.
Pull Strap here to lengthen
Snap into feature on printer
Radio Regulatory
Refer to figure above. Snap each end of the shoulder strap into the retaining features on top of the printer. Hold the buckle and adjust
the strap as shown until you achieve the desired length.
Section Continues
25
User Guide
P4T/RP4T
Introduction pg. 4
Verify the Printer Is Working
RP4T Printers pg.
Before you connect the printer to your computer or
Manual
portable data terminal, make sure that the printer is in proper working order. You can do this by printing a con­figuration label using the “two key reset” method. If you can’t get this label to print, refer to the “Troubleshooting” section of this manual

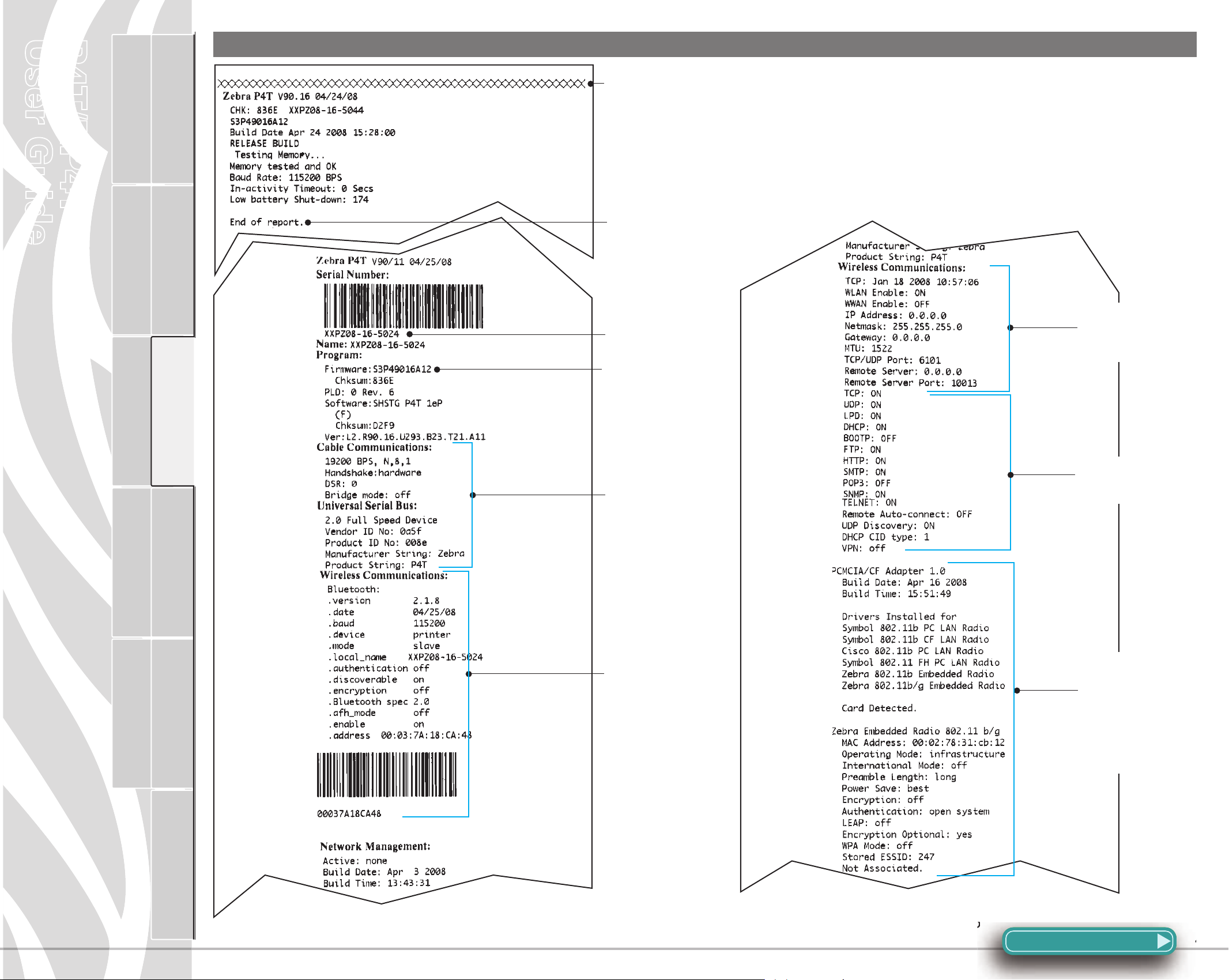

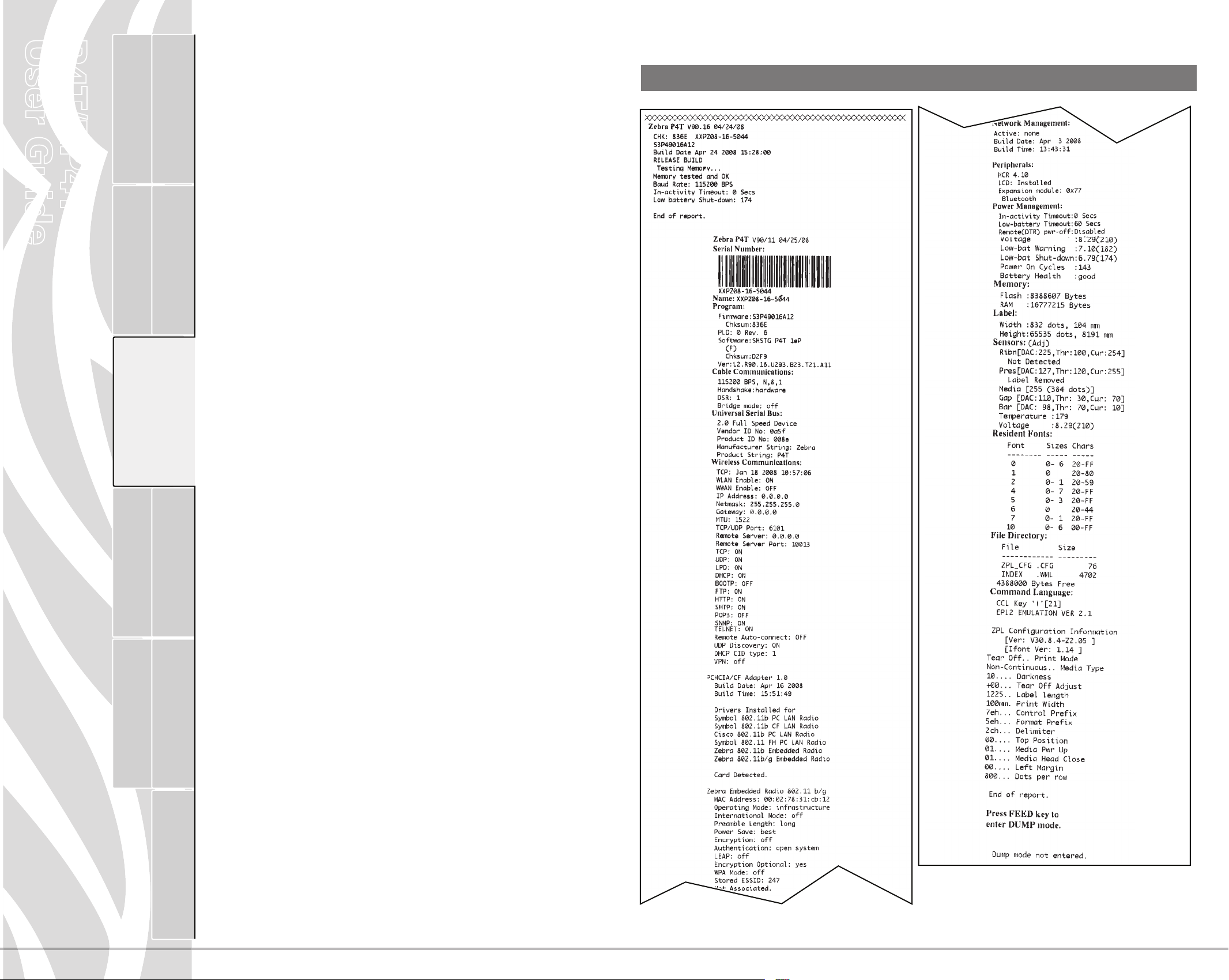

Figure 12 -Sample P4T Series Con guration Label
pg. 5
pg. 7
P4T Overview-
Printer Preparation
Connecting the
Printing a Con guration Label
1. Turn the printer off. Load the media compartment with journal media (media with no black bars printed on the back)
2. Press and hold the Feed Button.
3. Press and release the Power button and keep the Feed button pressed. When printing starts, release the Feed button.
The unit will print a line of interlocking “x” characters
Troubleshooting pg.
to ensure all elements of the printhead are working, print out the version of software loaded in the printer and then print two reports.
The first report indicates the printer model, ROM ver­sion, serial number, baud rate, etc. The second report prints out more detailed information on the printer’s con­figuration and parameter settings. If no second report appears, there is no application loaded.
Speci cations pg.
See the Troubleshooting Section for a further discussion on how to interpret the configuration label as a diagnostic tool.
Radio Regulatory
26
User Guide
P4T/RP4T
Introduction pg. 4
RP4T Printers pg.
Connecting the Printer
pg. 5
pg. 7
Manual
P4T Overview-
Printer Preparation
The printer must establish communications with a host device which sends the data to be printed. Communications occur in three
basic ways:
• By a cable between the printer and its host terminal using either RS232C or USB protocols
• By means of a Bluetooth short-range radio frequency link
• By means of a wireless LAN (Local Area Network) per 802.11b/g specifications
Cable Communications
Caution • The printer should be turned o before connecting or disconnecting any communications cable.
Note • All P4T series printers can communicate by cable; the specific cable used with your printer can vary with the host
terminal.

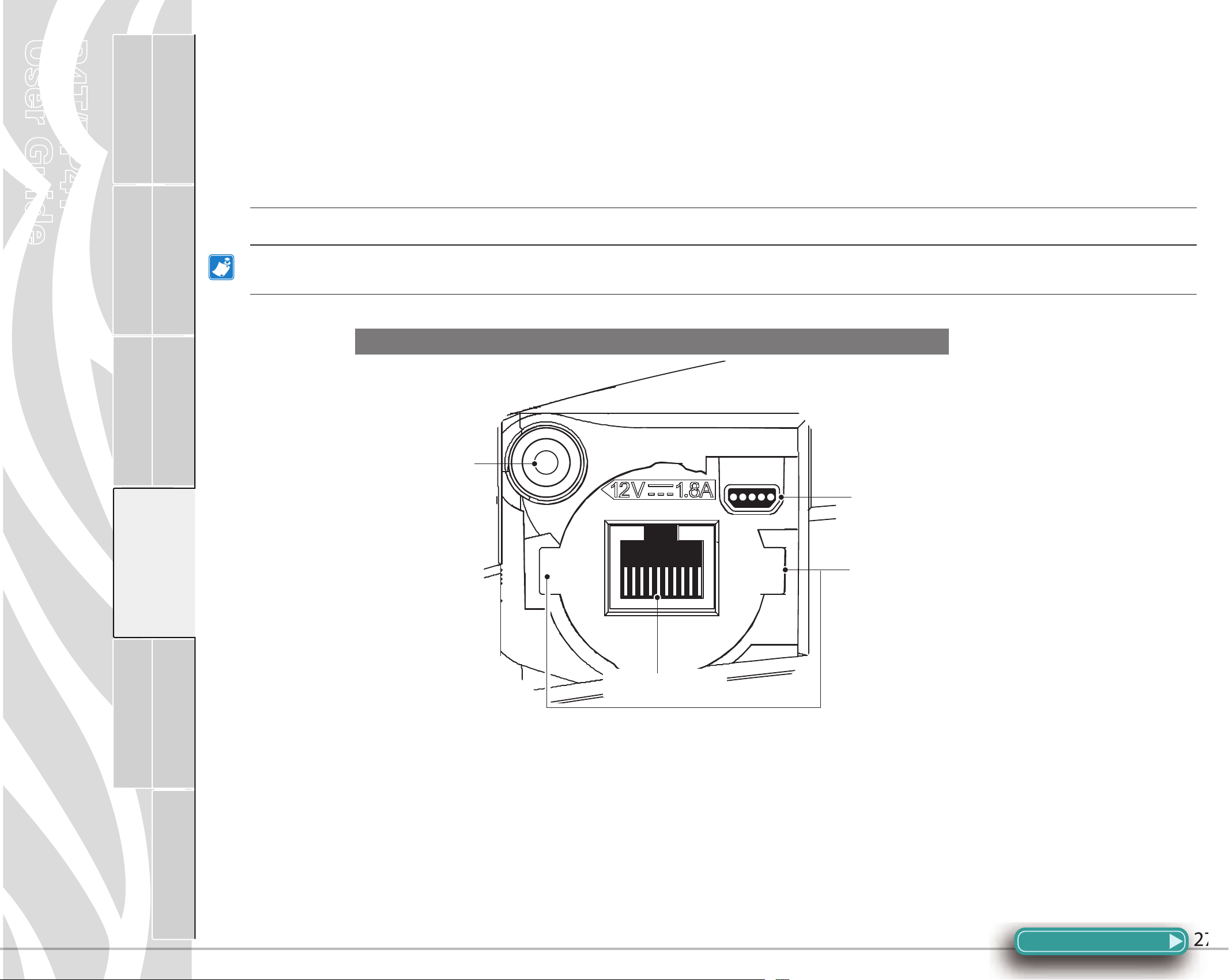

Figure 13: P4T Series Communication Ports
Troubleshooting pg.
Battery Charging
Receptacle
USB Port
Connecting the
Radio Regulatory
Speci cations pg.
RS232/USB Port
Align Locking Plug features with these cutouts. Rotate clockwise to lock the cable in place; counter­clockwise to un­lock the cable.
Serial (RS232C) or USB Port
The 10- pin modular connector on your communications cable plugs into the combination RS232C/USB communications port on the
side of the printer. Signals and pin assignments for both communications ports are in the Specifications section of this manual.
The protocol used with this port is determined by the communications cable you are using. Refer to Appendix A for more information
on the communications cables offered with the P4T Series.
Plug the connector into the RS232 port and ensure its locking device has clicked into position.
The other end of the cable must be plugged into the host terminal as shown in Figure 14, or to a serial port on a computer as shown
in Figure 15.
Section Continues
27
User Guide
28
P4T/RP4T
Introduction pg. 4
USB
RP4T Printers pg.
pg. 5
pg. 7
Manual
P4T Overview-
Printer Preparation
P4T Series Printers also have a USB type B port located directly above and to the right of the RS232C port. (Refer to Figure 13)
The USB port is configured with the USB Open HCI interface driver allowing it to communicate with Windows
®
based devices. USB drivers are included in the Zebra Universal Driver which can be downloaded from www.zebra.com. Other terminals or communications devices may require the installation of special drivers to use the USB connection. Consult your Zebra re-seller or the factory for further details.
Figure 14- Connecting to a Terminal Figure 15- Connecting to a PC
Troubleshooting pg.
Communications Ports
RS232C or USB Communications Cable to Terminal
Terminal
Communications Ports
RS-232C or USB Communications Cable to Computer
Refer to Appendix A for part numbers.
Connecting the
Radio Regulatory
Speci cations pg.
USB
USB
RS232
Connector
Connector
RS232
Connector
Connector
RS232
Connector
USB
Connector
Section Continues
28
User Guide
29
P4T/RP4T
Introduction pg. 4
Connect the Printer by Radio
RP4T Printers pg.
Manual
If your P4T Series printer has a radio option, you can connect wirelessly to either a terminal or a wireless network (WLAN.) Refer to the Mobile Printer Wireless Configuration Guide available on the product CD or at www.zebra.com/manuals for help on setting up wireless communications with your printer.
pg. 5
pg. 7
P4T Overview-
Printer Preparation
Connecting the

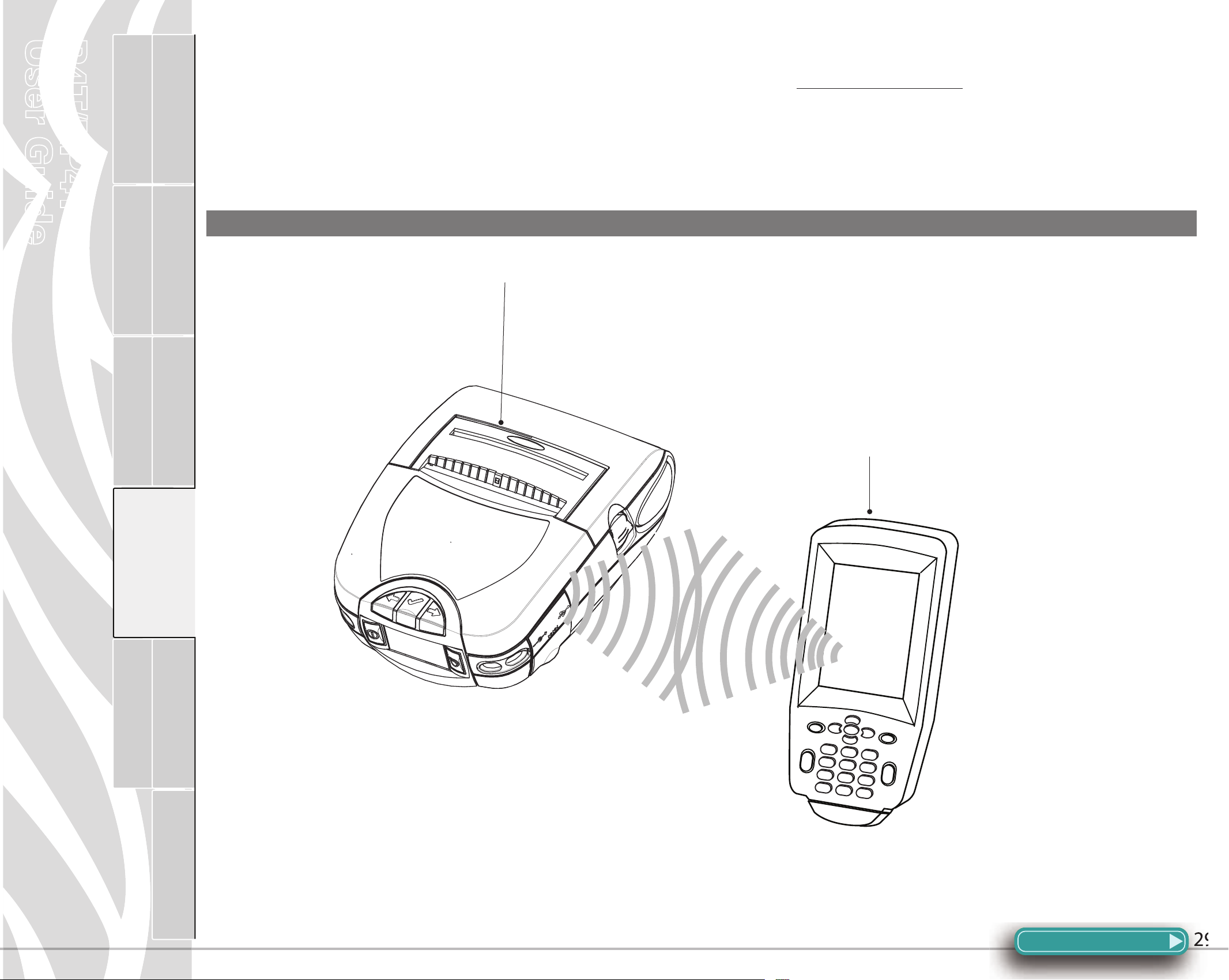

Figure 16- Connecting Wirelessly to a Terminal
P4T Series printer with
Wireless option
Troubleshooting pg.
Terminal with wireless communications capability
Speci cations pg.
Radio Regulatory
Section Continues
29
User Guide
P4T/RP4T
Introduction pg. 4
pg. 5
pg. 7
Manual
P4T Overview-
Printer Preparation
Connecting the
Radio Regulatory
Wireless Communications
RP4T Printers pg.
Wireless Communications with Bluetooth®
“Bluetooth” is a worldwide standard for the exchange of data
between two devices via radio frequencies. Bluetooth radios are relatively low powered to help prevent interference with other de-
vices running at similar radio frequencies. This limits the range of
a Bluetooth device to about 10 meters (about 32 feet).
Both the printer and the device it communicates with must follow
the Bluetooth standard.
Bluetooth Networking Overview
Each Bluetooth enabled P4T series printer has a unique Bluetooth
Device Address (BDA) loaded into its radio module when manu-
factured.
Bluetooth software is always running in the background, ready to respond to connection requests. One device (known as the master or the client) must request a connection with another. The second
Troubleshooting pg.
device (the slave or the server) then accepts or rejects the connec-
tion. A Bluetooth enabled P4T series printer will normally act as
a slave creating a miniature network with the terminal sometimes referred to as a “piconet.”
For the most part, communications using Bluetooth are initiated and processed without any operator intervention.
P4T Series printers can be equipped with both a Bluetooth and an 802.11b/g radio, allowing communications with both Bluetooth
Speci cations pg.
enabled devices and a Wireless Local Area Network (WLAN) (see discussion below).
Wireless Local Area Network Overview
P4T Series printers can be equipped with several radio options
which use the industry standard 802.11b or g WLAN protocols.
• P4T Series Wireless Network Printers with the Zebra 802.11b/g WLAN radio module can be identified by the Product Con-
figuration Code (PCC) on the serial number label on the back of the printer. Printers with this option will have a “K” as the seventh character of the PCC Code. Printers with this option may also be identified by the FCC ID: I28-PLAN11BG, or the Industrie Canada ID: 3798B-PLAN11BG on printers built for the North American region.
• P4T printers with both an 802.11b/g WLAN radio and a
Bluetooth radio running in the same unit are considered to be dual radio devices. Printers with this option will have an “A” as the seventh character of the PCC Code.
Such dual radio equipped P4T units will have an FCC
ID: I28 -ZB4L AN -01 and and an Industrie Canada ID: 3798B-ZB4LAN01. The FCC and IC ID numbers and other regulatory information for this radio configuration are also lo­cated on the serial number label of printers built for the North
American region.
Refer to Appendix D of this manual for more information on
locating the Product Con guration Code.
Printers equipped with either of the 802.11b/g radio options allow
wireless communication as a node within a WLAN and its wireless
capabilities allow communications from any point within the WLAN’s perimeter. P4T printers equipped with the dual Bluetooth/802.11b/g
WLAN radio configuration can be linked to both a WLAN and a
Bluetooth network simultaneously.
Methods of establishing communications to P4T Series print­ers will vary with each LAN application. General information on establishing WLAN communications can be found in either the
”CPCL Programmers Manual” or the “Quick Start Guide for Mobile
Wireless Printers” both available on-line at the Zebra Web site
www.zebra.com/manuals. More information and LAN configura-
tion utilities may also be found in Zebra’s Label Vista™ program (version 2.8 and later). The latest version of Label Vista may be
downloaded from Zebra’s Web site.
Setting Up the Software
P4T Series printers use Zebra’s CPCL Programming language
which was designed for mobile printing applications. CPCL is fully
described in the ” CPCL Programmers Manual”, available on-line at the Zebra Web site.
You can also use Label Vista™, Zebra’s Windows based label cre­ation program which uses a graphical interface to create and edit labels in the CPCL language.
All P4T Series printers support an interpreter for the ZPL II pro­gramming language. RP4T printers (with RFID encoding/reading capabilities) use the ZPL programming language’s extensive set of RFID commands.
If you plan to use ZPL II , refer to the appropriate Programming
Guides available on-line from Zebra’s Web site.
If you have a printer with wireless capabilities, you can refer to the “Wireless Configuration Guide.” also available on the Zebra web site.
RP4T model printers cannot be configured with the 802.11g/
Bluetooth dual radio option.
If you choose to use a third party label preparation system, follow the installation instructions included in the package.
30
User Guide
31
P4T/RP4T
Introduction pg. 4
Radio Regulatory Information
RP4T Printers pg.
pg. 5
pg. 7
Manual
P4T Overview-
Printer Preparation
Bluetooth ZBR4 Radio
The following section only applies when the Bluetooth ZBR4 module is installed in a P4T series printer. This radio con guration has demonstrated compliance to FCC regulations. P4T series printers with this con guration sold in North America will have the FCC ID: I28-MD-ZBR4WA and the Industrie Canada ID: 3798B-ZBR4WA for this radio module on a label on the back of the printer.
Caution • Exposure to Radio Frequency Radiation.
WLAN Module Using 802.11b/g Radio
The following section only applies when the 802.11b/g WLAN module is installed in a P4T
series printer. Other than conditions speci ed elsewhere in this manual, only one of the radio options can be installed in the printer at one time and the antenna used for these transmitters must not be co-located or must not operate in conjunction with any other antenna. P4T Series printers for sale in North America will have the 802.11b/g radio FCC ID: I28-PLAN11BG, and the Industrie Canada ID: 3798B-PLAN11BG printed on a label on the back of the unit.
The radiated output power of this internal Bluetooth radio
is far below the FCC radio frequency exposure limits. The internal Bluetooth radio operates within guidelines found in radio frequency safety standards and recommendations. Do not use the printer in an unauthorized manner.
Caution • The radiated output power of this internal 802.11b/g
WLAN radio is far below the FCC radio frequency exposure limits. The internal radio operates within guidelines found in radio frequency safety standards and recommendations. Do not use the printer in an unauthorized manner.
Note • The following section only applies when the ZBR4
Troubleshooting pg.
Bluetooth Radio is installed in a P4T Series printer. Unless specified elsewhere in this manual, the antenna used for this transmitter must not be co-located or must not operate in
conjunction with any other antenna.
European Regulatory Information for this Radio
AT BE CY CZ DK
EE FI FR DE GR HU IE IT LV LT LU MT NL PL PT
European Regulatory Information for the ZBR4 Bluetooth Radio
This device is intended for use in all EU and EFTA member states.
Europe – EU Declaration of Conformity
This device complies with the essential requirements of the R&TTE Directive
Connecting the
Radio Regulatory
Speci cations pg.
1999/5/EC. The following test methods have been applied in order to prove
presumption of compliance with the R&TTE Directive 1999/5/EC:
• EN55022
European Immunity Standard
• EN 60950-1 Safety of Information Technology Equipment
• EN 300 328 Technical requirements for spread-spectrum radio equipment
• EN 301 489
EMC requirements for spread-spectrum radio equipment.
This device is a 2.4 GHz wireless LAN transceiver, intended for indoor home and office
use in all EU and EFTA member states.
Important Notice:
This device is a portable RF printer intended for commercial and industrial use in all EU and EFTA member states.
Note: -Member states in the EU with restrictive use for this device are crossed out!
This device is also authorized for use in all EFTA member states (CH, IS, LI, NO)
SK SI ES SE GB
Important Notice:
This device is a portable RF printer intended for commercial and industrial use in all EU and EFTA member states except in France where restrictive use applies
Section Continues
31
User Guide
32
P4T/RP4T
Introduction pg. 4
pg. 5
pg. 7
Manual
P4T Overview-
Printer Preparation
Connecting the
Radio Regulatory
RP4T Printers pg.
Europe – EU Declaration of Conformity
This device complies with the essential requirements of the R&TTE Directive 1999/5/EC. The following test methods have been applied in order to prove
presumption of compliance with the R&TTE Directive 1999/5/EC:
• EN55022 European Emissions Standard
• EN 60950-1 Safety of Information Technology Equipment
• EN 300 328-2 V1.2.1
Technical requirements for spread-spectrum radio equipment
• EN 301 489-17 V1.2.1 EMC requirements for spread-spectrum radio equipment.
This device is a 2.4 GHz wireless LAN transceiver, intended for indoor home and
office use in all EU and EFTA member states, except in France where restrictive use applies.
The use of this frequency band in France is subject to restrictions. You may only
use channels 10 and 11 (2457 and 2462 MHz) on French territory, except in those French departments as listed in the table below where channels 1-13 (2412­2472 MHz) may be used. For more information see http://www.anfr.fr/ and/or
Troubleshooting pg.
Speci cations pg.
http://www.art-telecom.fr
01 Ain 36 Indre 69 Rhone 02 Aisne 37 Indre et Loire 70 Haute Saone 03 Allier 39 Jura 71 Saone et Loire
05 Hautes Alpes 41 Loir et Cher 72 Sarthe 08 Ardennes 42 Loire 75 Paris 09 Ariege 45 Loiret 77 Seine et Marne 10 Aube 50 Manche 78 Yvelines
11 Aude 54
12 Aveyron 55 Meuse 82 Tarn et Garonne 16 Charente 57 Moselle 84 Vaucluse 19 Correze 58 Nievre 86 Vienne 2A Corse Sud 59 Nord 88 Vosges 2B Haute Corse 60 Oise 89 Yonne
21 Cote d’Or 61 Orne 90 Territoire de Belfort
24 Dordogne 63 Puy de Dome 91 Essonne
25 Doubs 64
26 Drome 65 Hautes Pyrenees 93 Seine St Denis
27 Eure 66
32 Gers 67 Bas Rhin
35 Ille et Vilaine 68 Haute Rhin
Meurthe et
Moselle
Pyrenees
Atlantique
Pyrenees
Orientales
79 Deux Sievres
92 Hauts de Seine
94 Val de Marne
NCC (Taiwan) Compliance Statement
經型式認證合格之低功率射頻電機,非經許可,公司、商號或使用 者均不得擅自變更頻率、加大功率或變更原設計之特性及功能。 低功率射頻電機之使用不得影響飛航安全及干擾合法通信;經發 現有干擾現象時,應立即停用,並改善至無干擾時方得繼續使用。 前項合法通信,指依電信法規定作業之無線電通信。低功率射頻 電機須忍受合法通信或工業、科學及醫療用電波輻射性電機設備 之干擾。
“ According to “Administrative Regulations on Low Power Radio Waves Radiated
Devices” Without permission granted by the NCC, any company, enterprise, or user is not allowed to change frequency, enhance transmitting power or alter original characteristic as well as performance to a approved low power radio­frequency devices. The low power radio-frequency devices shall not influence aircraft security and interfere legal communications; If found, the user shall cease operating immediately until no interference is achieved. The said legal
communications means radio communications is operated in compliance with the Telecommunications Act. The low power radio-frequency devices must be susceptible with the interference
from legal communications or ISM radio wave radiated devices.”
Section Continues
32
User Guide
33
P4T/RP4T
Introduction pg. 4
pg. 5
pg. 7
Manual
P4T Overview-
Printer Preparation
Connecting the
Radio Regulatory
802.11b/g and Bluetooth Co-located Radio
RP4T Printers pg.
Modules
The following section only applies when the CF (Compact Flash) WLAN module and Bluetooth ZBR4 module are installed in a P4T printer. This co-located radio con guration has demonstrated compliance to FCC regulations. P4T printers with this con guration sold in North America will have the FCC ID: I28-ZB4LAN-01 and the Industrie Canada ID: 3798B-ZB4LAN01 for this radio con guration printed on a label on the back of the printer.
Caution • Use of a P4T printer with the co-located ZBR4
Bluetooth radio modul e and the 802.11b/g WL AN radio module meets the FCC requirements for radio frequency (RF) radiation exposure in the standard body worn configuration with no minimum separation. In this configuration, which applies whether the belt clip or shoulder strap is used, the face of the printer from which paper is transported is facing
Europe – EU Declaration of Conformity
This device complies with the essential requirements of the R&TTE Directive 1999/5/EC. The following test methods have been applied in order to prove
presumption of compliance with the R&TTE Directive 1999/5/EC:
• EN 60950-1 Safety of Information Technology Equipment
• EN 300 328-2 V1.2.1
Technical requirements for spread-spectrum radio equipment
• EN 301 489-17 V1.2.1 EMC requirements for spread-spectrum radio equipment.
This device is a 2.4 GHz wireless LAN transceiver, intended for indoor home and
office use in all EU and EFTA member states, except in France where restrictive use applies.
The use of this frequency band in France is subject to restrictions. You may only
use channels 10 and 11 (2457 and 2462 MHz) on French territory, except in those
French departments as listed in the table below where channels 1-13 (2412­2472 MHz) may be used. For more information see http://www.anfr.fr/ and/or http://www.art-telecom.fr
away from the user’s body. The standard configuration must always be used when the printer is body worn.
Troubleshooting pg.
The radiated output power of this radio configuration is far
below the FCC radio frequency exposure limits. Both the
internal Bluetooth and the 802.11b/G radio operate within
guidelines found in radio frequency safety standards and recommendations. Do not use the printer in an unauthorized manner.
RP4T printers are not con gured with this radio option.
Speci cations pg.
European Regulatory Information for the Compact Flash 802.11b Radio and Bluetooth Co-located Radio Modules
Note: -Member states in the EU with restrictive use for this device are
crossed out!
This device is also authorized for use in all EFTA member states (CH, IS, LI, NO)
AT BE CY CZ DK
EE FI FR DE GR
HU IE IT LV LT
LU MT NL PL PT SK SI ES SE GB
01 Ain 36 Indre 69 Rhone 02 Aisne 37 Indre et Loire 70 Haute Saone 03 Allier 39 Jura 71 Saone et Loire 05 Hautes Alpes 41 Loir et Cher 72 Sarthe 08 Ardennes 42 Loire 75 Paris 09 Ariege 45 Loiret 77 Seine et Marne
10 Aube 50 Manche 78 Yvelines
11 Aude 54
12 Aveyron 55 Meuse 82 Tarn et Garonne
16 Charente 57 Moselle 84 Vaucluse 19 Correze 58 Nievre 86 Vienne 2A Corse Sud 59 Nord 88 Vosges 2B Haute Corse 60 Oise 89 Yonne
21 Cote d’Or 61 Orne 90 Territoire de Belfort 24 Dordogne 63 Puy de Dome 91 Essonne
25 Doubs 64
26 Drome 65 Hautes Pyrenees 93 Seine St Denis
27 Eure 66
32 Gers 67 Bas Rhin 35 Ille et Vilaine 68 Haute Rhin
Meurthe et
Moselle
Pyrenees
Atlantique
Pyrenees
Orientales
79 Deux Sievres
92 Hauts de Seine
94 Val de Marne
Section Continues
33
User Guide
P4T/RP4T
Introduction pg. 4
RP4T Printers pg.
Manual
The following section only applies when the RFID encoder is in­stalled in an RP4T printer. The RFID encoder may be installed in con­junction with either the Bluetooth or 802.11g radio options detailed previously, but may not be installed with the Bluetooth/802.11g dual radio option.
RP4T Series printers will have the fifth character of the Product Configuration Code (PCC), which determines country compatibility for the RFID encoder, per the following table:
RFID Encoder
pg. 5
pg. 7
P4T Overview-
Printer Preparation
Connecting the
RFID option
No RFID 0 P4T
US U RP4T
EU 1 RP4T
Australia 2 RP4T
Taiwan 6 RP4T
Troubleshooting pg.
Speci cations pg.
New Zealand 8 RP4T
Brazil 9 RP4T
China A RP4T
Malaysia B RP4T
Phillipines C RP4T
India D RP4T
El Salvador E RP4T
Isreal F RP4T
Japan G RP4T
Korea H RP4T
PCC digit “5”
Printer Model
The following table lists FCC and Industrie Canada ID numbers
for the various configurations of RP4T printer radio options.
Con guration FCC ID: Industrie Canada ID:
RFID Encoder I28RFID-M5ECZ-01 3798B-M5ECZ01
RFID Encoder & 801.11b/G Radio) I28RFID-R4LANG-01 3798B-R4LANG01
Radio Regulatory
RFID Encoder & BT2.0 Radio I28RFID-M5ZBR4-01 3798B-M5ZBR401:
Caution • Exposure to Radio Frequency Radiation.
The radiated output power of this RFID encoder is far below
the FCC radio frequency exposure limits. The RFID encoder operates within guidelines found in radio frequency safety standards and recommendations. Do not use the printer in an unauthorized manner.
34
User Guide
P4T/RP4T
Introduction pg. 4
RP4T Printers pg.
Model RP4T RFID Encoder
pg. 5
pg. 7
Manual
P4T Overview-
Printer Preparation
Connecting the
Radio Regulatory
Troubleshooting pg.
Speci cations pg.
The in fo rm ation in t his se ction is p rovided for yo ur
co nve ni enc e o nly a nd is sub je c t to chan ge. G o to
h t t p : // w w w. e p c g l o b a l i n c . o r g f or t h e l a t e s t E P C
information.
The RP4T printer is equipped with an RFID encoder/reader, which is integrated into the printer’s printhead assembly. The RP4T en­codes (writes) information on ultra-thin UHF RFID transponders that are embedded in “smart” labels, tickets, and tags. The printer encodes the information; verifies proper encoding; and prints bar codes, graphics, and/or text on the label’s surface. The RP4T printer uses Zebra’s extensive set of RFID commends running under ZPL programming language emulation.
The RFID transponder is sometimes called the RFID tag or an inlay.
The transponder is usually made of an antenna that is bonded to
an integrated circuit (IC) chip. The IC chip contains the RF circuit, coders, decoders, and memory. If you hold an RFID label up to the light, you can see the transponder’s antenna, and you can feel a bump in the label where the IC chip is located.
The RP4T can encode and verify EPC (Electronic Product Code) Generation 2 Class 1 UHF passive RFID tags, in addition to printing human readable text and conventional 1 and 2-D barcode informa­tion on Zebra supplied RFID thermal transfer media.
EPC is a product numbering standard that can be used to identify a variety of items by using RFID technology. EPC Generation 2 tags offer advantages over other tag types. The tag identification (TID) memory in a Generation 2 tag includes the chip manufacturer and model number information, which can be used to identify which optional features are present on the tag. These optional features include those for data content and security.
Gen 2 tags typically have a 96-bit EPC identifier, which is different from the 64-bit identifiers common in early EPC tags. The 96-bit EPC code links to an online database, providing a secure way of sharing product-specific information along the supply chain.
Generation 2 Class 1 UHF Passive Tags Supported By The P4T
Alien Squiggle Avery Dennison
Ra atac Onetenna Omron Wave
Encoding and printing of an RFID label usually are completed on the first try, but some failures may occur. If you experience consistent encoding failures, it may signal a problem with the RFID tags, your label formats, or with the transponder placement.
If an RFID tag cannot be encoded, “VOID” will be printed on the label. The printer then attempts to read/encode “n” labels before the next format is attempted, where “n” is specified by the ZPL programming language “^RS” command. Acceptable values of “n” are 1 to 10 and the default is 3. After printing the defined number of
voided RFID labels, printer will go into an error mode. The printer
response to an error is defined by the RFID Setup command and will allow:
1. No Action (Label format causing the error is dropped)
2. Notification to the Host of the details of the error (Label format causing the error is dropped).
The user has control of where on the label the VOID is printed.
More information on the “^RS” command may be found in Zebra’s
RFID Programming Guide available on the corporate Web site.
Gen 2 tags also support much larger data structures. The size of user memory available (if any) varies by the model and manufac­turer of the tag.
Print quality will be reduced when attempting to print over
the transponder portion of an RFID label. It is recommended that RFID label layouts should not allow printing over the
RFID transponder portion of a label.
35
User Guide
36
P4T/RP4T
Introduction pg. 4
Preventive Maintenance
RP4T Printers pg.
pg. 5
pg. 7
Manual
P4T Overview-
Printer Preparation
Extending Battery Life
Troubleshooting pg.
• Avoid exposing the battery to direct sunlight or temperatures over 104 °F (40 °C).
• Always use a Zebra charger designed specifically for Lithium­Ion batteries. Use of any other kind of charger may damage the battery.
Caution • Do not print while an LI72 Sin gl e Charger is
plugged into the unit. Unreliable batter y charging can result.
• Use the correct media for your printing requirements. An au­thorized Zebra re-seller can help you determine the optimum media for your application.
• If you print the same text or graphic on every label, consider using a preprinted label.
• Choose the correct print darkness and print speed for your media.
• RP4T printers (with the RFID encoder/reader): adjust the en­coder settings to use the minimum power required for the RFID media in use.
• Remove the battery from the printer if it won’t be used for a day or more and you’re not performing a maintenance charge.
• Consider purchasing an extra battery.
• Remember that any rechargeable battery will lose its ability
to maintain a charge over time and can be recharged only a finite number of times before it must be replaced. The “Smart Battery” feature of the P4T Series monitors the battery pack’s condition and will prompt you when a battery pack is nearing the end of its useful life.
Always dispose of used batteries properly. Refer to Appendix E
for more information on proper battery disposal.
• When the printer displays “Please Recondition The Battery”
and beeps five times, the user should recondition the battery to return it to optimal capacity Refer to the Operator Controls section of this manual for information in reconditioning the battery.
• Use software handshaking (XON/XOFF) whenever possible.
• Use the LCD display backlight only when necessary. Turn it
Connecting the
Speci cations pg.
off whenever it is not needed.
General Cleaning Instructions
Caution • Always turn the printer o before cleaning.
To avoid possible personal injury or damage to the printer, never insert any pointed or sharp objects into the printer.
Radio Regulatory
Use care when working near the Tear Bar. The edges are very sharp.
Caution • The printhead can become ver y hot af ter prolonged printing. Allow it to cool off before attempting any cleaning
procedures.
Caution • Use only cleaning agents specified in the P4T Series cleaning instructions. Zebra Technologies Corporation will not
be responsible for damage caused by any other cleaning materials used on this printer.
Clean the printer with either a Zebra cleaning pen or a cotton swab saturated with 70% Isopropyl alcohol.
Section Continues
36
User Guide
P4T/RP4T
Introduction pg. 4
P4T Series Cleaning
RP4T Printers pg.
pg. 5
pg. 7
Manual
P4T Overview-
Printer Preparation
Caution • To avoid possible personal injury or damage to the printer never insert sharp or pointed objects into the printer
mechanism.
Figure 17.1- P4T Series Cleaning
Tear Edge
Printhead Elements
Troubleshooting pg.
Gap Sensor
Media Support Disks
Bar Sensor
Connecting the
Speci cations pg.
Peeler Bar
Platen Surface
Radio Regulatory
Figure 17.2- Cleaning the P4T Series Peeler Assembly
Label Presence
Sensor
Area Cleaning Method Interval
Use a Zebra cleaning pen to clean the print
Printhead Elements
Platen Surface
Peeler Bar
Tear Edge
Exterior Wipe with water-dampened cloth
Interior
elements from end to end (the print elements are located in the thin gray line on the printhead).
Rotate the platen roller and clean it thoroughly with the cleaning pen.
Clean thoroughly with the cleaning pen.
Brush/air blow. Ensure the Bar Sensor, Gap Sensor and Label Present Sensor windows and the Media Support Disks are free of dust.
After every  ve rolls of media (or more often, if needed)
As needed
37
User Guide
38
P4T/RP4T
Introduction pg. 4
RP4T Printers pg.
Troubleshooting
pg. 5
pg. 7
Manual
P4T Overview-
Printer Preparation
LCD Control Panel
The top of the display shows icons indicating the status of various printer functions. Check the icon’s status and refer to the referenced
Troubleshooting topic on the following pages.
Icon Status Indication
On Bluetooth link established n/a
Troubleshooting pg.
O No Bluetooth link 6,8
On 802.11b/g RF Link established n/a
O No 802.11b/g RF Link 6,8
Number of bars indicates 802.11g signal strength n/a
Outer icon element  ashing Low Battery 4, 6,
Number of bars indicates battery charge level. Display will cycle through the battery icons if it is undergoing a charge from the AC Adapter.
Ref. to Troubleshooting Topic
n/a
Flashing Battery too hot or too cold to charge 2
Connecting the
Radio Regulatory
Speci cations pg.
Blank Screen n/a
Troubleshooting Topics
Flashing Out of Media 9
Flashing Ribbon Cartridge depleted 9
Flashing Data transfer in process n/a
Battery voltage too low to turn printer on or no application loaded
1,14
2. AC Adapter is plugged in and the battery icon is alternately  ashing and .
1. No power:
• Check that battery is installed properly.
• Recharge or replace battery as necessary.
• If the battery voltage is outside of the range at which the printer will turn on and the AC Adapter is plugged into printer, the printer will not turn on. The battery will start to charge, but the user will have no indication that the battery is charging. When the battery reaches a valid operating voltage range, the printer will still not turn on unless the user manually turns it on, or unplugs and re-plugs the charge cable.
• Indicates that the battery is out of its safe charging temperature range. Charging will resume when the battery reaches a safe charging temperature.
3. Media does not feed:
• Be sure printhead is closed and latched.
• Check media support components for any binding.
• If unit is equipped with label presence sensor, ensure the most recently printed label is removed.
• Ensure label sensor is not blocked.
Section Continues
38
User Guide
39
P4T/RP4T
Introduction pg. 4
pg. 5
Manual
P4T Overview-
Printer Preparation
Troubleshooting Topics (continued)
RP4T Printers pg.
free operation when loading media into the peeler assembly.
4. Poor or faded print or low battery icon ( )
Correct media alignment if necessary.
Troubleshooting pg.
 ashing:
• Clean printhead.
• Check battery pack. Recharge or replace as necessary.
Always dispose of used battery packs properly. Refer to
Appendix E for more information.
• Check quality of media.
5. Partial/missing print:
• Check Ribbon Cartridge and/or label media alignment.
• Clean printhead.
• Ensure printhead is properly closed and latched.
6. No print:
• Replace battery pack.
• Check cable to terminal.
12. Prints multiple “Void” messages:
• RP4T printers only: Ensure you have installed RFID media.
Printer cannot verify RF encoding on non-RFID media and will print “Void” on a pre-set number of labels before stopping.
13. Communication Error:
• Check media is loaded, head is closed and all error indicators
are off.
• Replace cable to terminal.
14. Screen blank
• No application loaded. Attempt to re-load application and
restart printer.
• No power. See Topic “1” of this section.
pg. 7
Connecting the
Radio Regulatory
• Wireless units only: Restore wireless connection.
• Units using Thermal Transfer media: Ensure Ribbon Cartridge has been installed.
7. Reduced battery life:
• Check battery pack date code. If battery is one to two years old, short life may be due to normal aging.
Speci cations pg.
• Check printer display. If battery has exceeded a factory set number of charge cycles the printer will display a message that the battery needs re-conditioning or replacing.
• Replace battery pack.
8. or icon o :
• Units with Bluetooth or 802.11g option only: indicates no radio link has been established.
9. or  ashing:
• Check that label media is loaded.
• Replace Ribbon Cartridge if depleted.
• Check that the printhead is closed and securely latched.
10. Skips labels:
• Ensure correct media is being used.
• Ensure bar/ or gap sensor is not blocked.
• Ensure label design does not exceed actual media length.
11. Prints “wrinkle pattern” or partial characters:
• Ensure Ribbon Cartridge has been tensioned prior to installation. Problem will self-correct after printing a few labels.
• Ensure label media tracks properly when emerging from printer. Use the alignment marks on the printer cover to ensure wrinkle
Section Continues
39
User Guide
40
P4T/RP4T
Introduction pg. 4
pg. 5
Manual
P4T Overview-
Printer Preparation
Troubleshooting Techniques
RP4T Printers pg.
Printing a Con guration Label
Troubleshooting pg.
To print out a listing of the printer’s current configuration follow
these steps:
1. Turn the printer off. Load the media compartment with journal media (media with no black bars printed on the back)
2. Press and hold the Feed Button.
3. Press and release the Power button and keep the Feed button pressed. When printing starts, release the Feed button.
4. The printer will create two reports. The first report is a basic functional test of the printer. It prints a series of interlocking “X” characters which acts as a test of the printhead elements and reports on basic features of the printer including memory installed.
The second report is a detailed list of the printer’s configura-
tion, including any options installed (such as radios) and cur­rent status of system settings.
hex codes of any data sent to it, and their text representation (or “.” if not a printable character).
information will be created and stored in the printer’s memory. It can be viewed, “cloned” or deleted using the Label Vista applica­tion. (Refer the Label Vista documentation for more information.)
To terminate the Communications Diagnostics Mode:
“Press FEED key to enter DUMP mode.”
3. Press the FEED key. The printer will print: “Entering DUMP mode.”
Note • If the FEED key is not pressed within 3 seconds, the
printer will print “DUMP mode not entered” and will resume normal operation.
4. At this point, the printer is in DUMP mode and will print the ASCII
Additionally, a file with a “.dmp” extension containing the ASCII
1. Turn the printer OFF.
pg. 7
Connecting the
Radio Regulatory
Speci cations pg.
Refer to Figures 18.1 through 18.2 for a sample configuration
label printout.
Performing a Forced Shutdown
It the printer has locked up and is not responding to any operator inputs or external commands, from either a connected terminal or a linked LAN, you can perform a forced shutdown.
• If the printer software locks up during normal operation, force the printer to shut down by pressing and holding the Power Button for 3 seconds.
• If you try to turn the printer off normally and the software locks up, the printer will automatically shut itself off after a 10 second delay.
• If you try to turn the printer off and it does not respond, you can force an immediate shut down by pressing and holding the Power Button again within 10 seconds.
A forced shutdown will preserve the printer’s data and settings.
Communications Diagnostics
2. Wait 5 seconds.
3. Turn the printer ON. The printer will resume normal operation.
Calling Technical Support
If the printer fails to print the configuration label, or you encounter problems not covered in the Troubleshooting Guide, contact Zebra Technical Support. You will need to supply the following informa­tion:
• Model number/type (e.g. P4T, RP4T)
• Unit serial number (14 digit number, including dashes) and Product Configuration Code (PCC) (15 digit number, including dashes). Refer to Appendix D for the location of these num­bers.
• Technical support contact information may be found in Ap­pendix D of this manual.
If there’s a problem transferring data between a terminal or WLAN, placing the printer in the Communications Diagnostics Mode (also referred to as the “DUMP” mode) will allow diagnostic analysis. The printer will print transmitted data as ASCII characters and their text representation (or a period “.” if not a printable character) for any data received from the host terminal or network
To enter Communications Diagnostics Mode:
1. Print a configuration label as described above.
2. At the end of 2nd diagnostics report, the printer will print:
Section Continues
40
User Guide
P4T/RP4T
Introduction pg. 4
RP4T Printers pg.
Figure 18.1- P4T Series Con guration Label Sample
pg. 5
pg. 7
Manual
P4T Overview-
Printer Preparation
Print Head Test
First diagnostic report for all P4T Series printers
End of First Report
Wireless Communi-
Unit Serial Number
Troubleshooting pg.
Installed software and  rmware
cations section for a P4T Series with an
802.11 radio installed
Information on TCP/
Settings for RS232 and USB communi-
Connecting the
Speci cations pg.
cations via cable
IP and LAN address­es and settings.
Wireless Communications section with a
Radio Regulatory
Bluetooth radio installed. Units with no wireless options will print an empty line and resume printing.
Information on any installed
802.11b/g wire­less devices. In this example, an 802.11b WLAN card has been detected.
Second diagnostic report for a printer with a
Bluetooth radio
Second diagnostic report for a printer with an
802.11b/g radio
Section Continues
41
User Guide
P4T/RP4T
Introduction pg. 4
pg. 5
Manual
P4T Overview-
RP4T Printers pg.
Figure 18.2- P4T Series Con guration Label Sample
Command languges supported. P4T Series supports both CPCL languge
and emulates ZPLII.
Con guration settings for ZPL language emulation
pg. 7
Printer Preparation
Connecting the
Radio Regulatory
Troubleshooting pg.
Flash Memory Size
RAM Size
End of Con gura-
Maximum label dimensions and label sensor
settings
tion Report
Speci cations pg.
Resident Fonts Installed
End of second diagnostic report
Second diagnostic report continued
Files Loaded in Printer Memory. Will include  le for LCD prompts (.wml format)
Amount of Memory Available
42
User Guide
43
P4T/RP4T
Introduction pg. 4
Specifications
RP4T Printers pg.
pg. 5
pg. 7
Manual
P4T Overview-
Printer Preparation
Connecting the
Radio Regulatory
Note.- Printer specifications are subject to change without

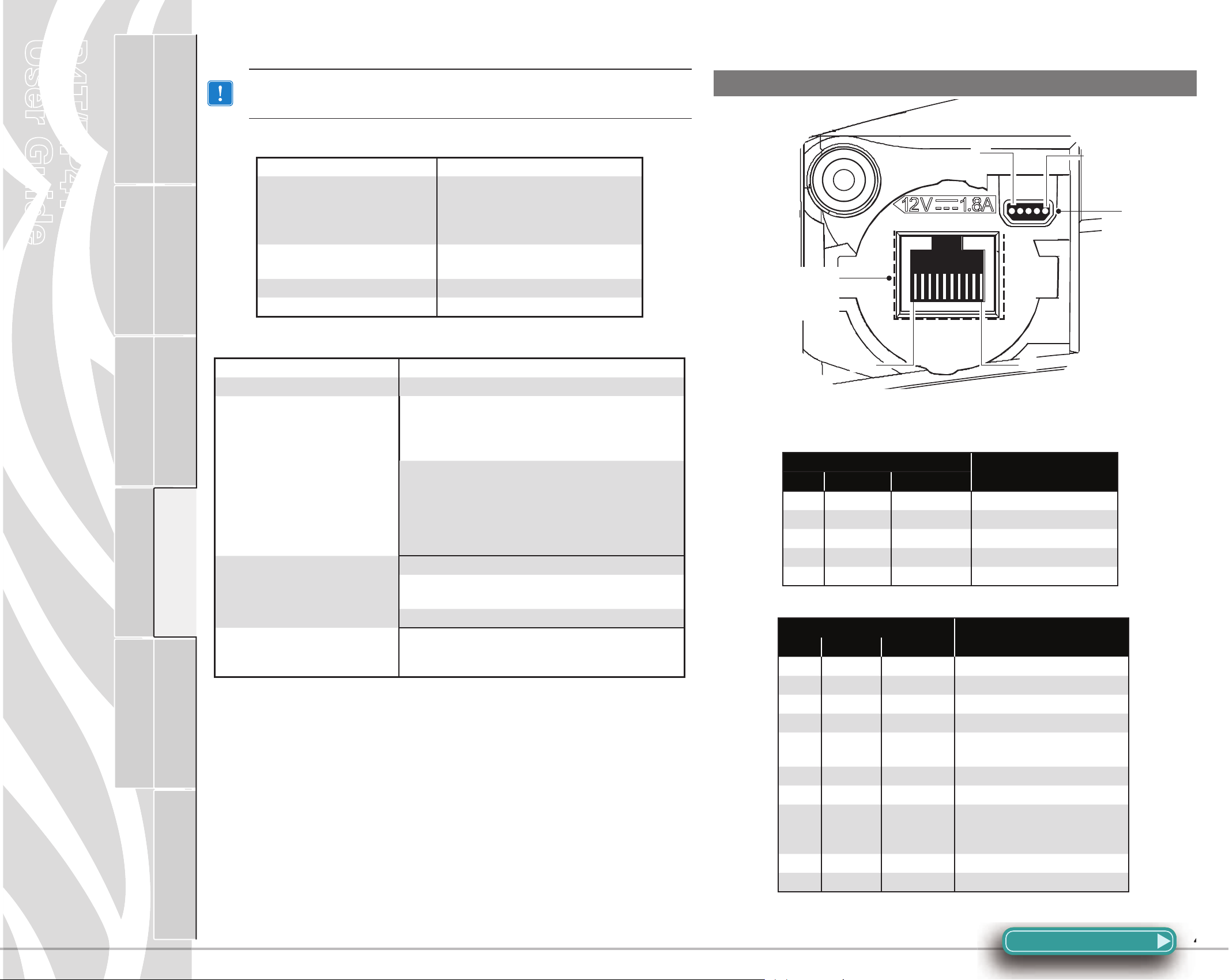

Figure 19- P4T Series Communication Ports
notice.
Printing Speci cations
1
Maximum Print Width 4.09 in. [103,8 mm]
Print Speed @ 30% density
Distance from Print Element to Tear Edge
Print Head Life 1,000,000 inches (25.4 Km) min.
Print Density 203 dots/inch (8 dots/mm)
Memory/Communications Speci cations
Troubleshooting pg.
Flash Memory 8 MB  ash (standard)
RAM Memory 16 MB RAM)
Standard Communications
Speci cations pg.
Optional Wireless Communications
Real Time Clock (RTC)
RS-232C serial port (RJ-45 connector) Con gurable Baud rate (from 9600 to 115.2 Kbps), parity and data bits. Software (X-ON/X-OFF) or hardware (DTR/STR) communication handshake protocols.
Two USB 2.0 Full Speed Interface connections: (1) a “B” type USB connector, and (2) USB signals are also integrated into the RJ-45 connector. Refer to the Communications Ports speci cations and Appendix A for information on USB cables.
Bluetooth 2.0 compatible 2.4 GHz SRRF link
Wireless LAN capabilities comply with 802.11b or 802.11g protocols
Co-located Bluetooth 2.0 + 802.11b/g radios (P4T only)
Time and date under application control. Refer to CPCL Programming Manual, available at www.zebra.com for RTC commands.
2.0 in. /sec. [50,8 mm/second ] Direct Thermal mode
1.5 in/sec. [38,1 mm/second] Thermal Transfer mode
0.39 in. [9,91 mm] 41 dots
RS232/USB
Combination
Port
10
Communications Ports
USB
Signal
Pin# Name Type
1 VBUS USB Bus Power
2 USB - bi-directional I/O signals
3 USB + bi-directional I/O signals
4 USB_ID Identi es A/B connector
5 Return Ground
RS232/USB
Signal
Pin# Name Type
1 USB D- bi-directional I/O signals
2 USB D+ bi-directional I/O signals
3 RXD input Receive Data
4 TXD output Transmit Data
5 DTR output Data Terminal Ready- set high
6 GND Ground
7 DSR input Data Set Ready- low to high
8 RTS output Request To Send- set high when
9 CTS input Clear To Send from host
10 VBUS USB Bus Power
1
Description
Description
when printer is on.
printer is ready to accept a command or data
5
USB
Section Continues
43
User Guide
P4T/RP4T
Introduction pg. 4
pg. 5
pg. 7
Manual
P4T Overview-
Printer Preparation
Connecting the
Radio Regulatory
P4T Series Media Speci cations
RP4T Printers pg.
Media Width 2.0 in. to 4.12 in. (50,8 to 104,6 mm)
Troubleshooting pg.
Max. continuous receipt (w/std. memory) Continuous, dependent on installed memory
Inter-label Gap. 0.08 in. to 0.16 in. (0.12 in. preferred)(2 mm to 4 mm
[3 mm preferred])
Media Thickness - Receipt Paper Minimum: 0.0032 in. (0,08 mm)
- Labels Maximum: 0.0082 in. (0,21 mm)
- Tag Maximum: 0.0065 in. (0,16 mm)
RFID Label Thickness (RP4T only)
Media outside diameter. 2.6 in. (66,04 mm) O.D.
Label Inner Core
Black Mark Dimensions
Media Requirements
Use Zebra brand direct or thermal transfer media that is outside wound. Media may be re ective (black mark) sensing, or transmissive (gap) sensing, die-cut, or continuous. P4T Series units con gured with the External Media option will accept fanfold media used with an external media supply. For die-cut labels, use only full auto dies.
Same as above but thickness over RFID element maximum 0.023 in. (0,58 mm)
0.75 in. (19 mm) minimum diameter;
1.38 in. (35 mm) RFID Media
The re ective media black marks should
extend past the centerline of the roll.
Minimum mark width: 1.0 in. (25,4 mm) perpendicular to edge of media, centered within the width of the roll. Mark length: 0.094 in. (2,4 mm) parallel to edge of media
Speci cations pg.
P4T Series Font and Bar Code Speci cations
Codabar (NW-7)
UCC/EAN 128
Code 39
Code 93
EAN 8/JAN 8, 2 and 5 digit extensions
EAN 13/JAN 13, 2 and 5 digit extensions
EAN 14/JAN 14, 2 and 5 digit extensions
lnterleaved 2 of 5
MSI/Plessey
FIM/POSTNET
Linear & 2-D Bar Codes Available
Rotation Angles
Fonts Available
UPC-A, 2 and 5 digit extensions
UPC-E, 2 and 5 digit extensions
QR Code
MaxiCode
PDF 417
Aztec
DataMatrix (using ZPL emulation)
RSS (Reduced Space Symbology
RSS-14 Truncated RSS-14 Stacked RSS-14 Stacked Omnidirectional RSS Limited RSS Expanded
TLC-39/Micro PDF
0°, 90°, 180°, and 270°
Standard Fonts: 25 bit-mapped fonts; 1 scalable (CG Trimvirate
Bold Condensed*)
Downloadable optional bit-mapped & scalable fonts via Label
Vista software
International character sets: Chinese 16 x 16 (trad.), 16 x 16 (simpli ed), 24 x 24 (simpli ed);
Japanese 16 x 16, 24 x 24
Korean Myang 16 x 16 Greek Hebrew/Arabic
®
):
*Contains UFST from Agfa Monotype Corporation *Contains UFST from Agfa Monotype Corporation
Section Continues
44
User Guide
45
P4T/RP4T
Introduction pg. 4
pg. 5
Manual
P4T Overview-
RP4T Printers pg.
Physical/Environmental/Electrical Speci cations
P4T Series
Weight w/ battery, and TT ribbon excluding media and radio option
Operating Temperature
Charging Temperature 32 °F to 104 °F (0°C to 40 °C)
Storage Temperature
Relative Humidity
Battery
Intrusion Protection (IP) Rating
Direct Thermal: -4 °F to 122 °F (-20 °C to 50 °C)
Thermal Transfer: 32 °F to 113 °F (0 °C to 45 °C)
-22 °F to 149 °F (-30 °C to 65 °C)
2.9 lbs. (1,32 Kg.)
Operating: 10% to 90%
(non-condensing)
Storage: 10% to 90%
(non-condensing)
7.4V Lithium-Ion 4.2 AHr. 14
(54 w/ optional soft case)
pg. 7
Printer Preparation
Connecting the
Radio Regulatory
Troubleshooting pg.
Speci cations pg.
Figure 20-P4T Series Overall Dimensions
2.92 in.
[74,2 mm]
3.38 in.
[85,9 mm]
6.53 in.
[165,9 mm]
[220,5 mm]
8.68 in.
#8-32 x .30 DP.
[14,5mm]
0.57 in.
x2
[80,2 mm]
3.16 in.
External Media Supply Loading Slot
4.25 in.
[108,0 mm]
[40,6 mm]
1.60 in.
3.14 in.
[79,7 mm]
Appendix A
45
User Guide
46
P4T/RP4T
Introduction pg. 4
Appendix A
RP4T Printers pg.
pg. 5
pg. 7
Manual
P4T Overview-
Printer Preparation
Interface Cables
RS232 Download Cable
Part Number AK17463-008; RW Mod Plug to 9-Pin DB PC Cable
10 PIN MOD Plug
PIN 9
Troubleshooting pg.
PIN 1
(TXD)23 (RXD)
(DSR) (GND) (DTR) (CTS) (RTS)
SHIELD
6 5 4 8 7
(Printer Signals)
3
(RXD)
(TXD)
4
(DTR)
5
(GND)
6
(DSR)
7
(RTS)
8
(CTS)
9
SHIELD
PIN 1
PIN 10
USB Cable
Part Number AT17010-1; USB A to USB Mini B Cable
Contact the Factor y or your Zebra Sales Representative
for more information on interface cables to most major
manufacturer’s data terminals.
USB Download Cable
You may also visit the Zebra Web site at ww w.zebra.com
Part Number AK18666-1; RW Mod Plug to USB A Cable
for a listing of interface cables for all series of Zebra mobile
printers
Connecting the
Radio Regulatory
Speci cations pg.
4 PIN USB
(Type A Plug)
1 (VBUS) 10 (VBUS)
10 PIN MOD Plug
(Printer Signals)
1 (USB D-)2 (USB D-) 2 (USB D+)3 (USB D+) 6 (GND)4 (GND)
PIN 1
PIN 10
Appendix B & C
46
User Guide
P4T/RP4T
Introduction pg. 4
Appendix B Appendix C
RP4T Printers pg.
Manual
Media Supplies
Maintenance Supplies
pg. 5
pg. 7
P4T Overview-
Printer Preparation
To insure maximum printer life and consistent print quality and
performance for your individual application, it is recommended
that only media produced by Zebra be used.
Advantages include:
• Consistent quality and reliability of media products.
• Large range of stocked and standard formats.
• In-house custom format design service.
• Large production capacity which services the needs of many large and small media consumers including major retail chains world wide.
• Media products that meet or exceed industry standards.
Troubleshooting pg.
For more information about standard or custom media contact your
re-seller or Zebra Technologies Corporation at +1.866.230.9495
(U.S., Canada and Mexico) and ask to speak to a Media Sales Rep-
resentative.
In addition to using quality media provided by Zebra, it is recom­mended that the printer be cleaned as prescribed in the Mainte­nance section. The following items are available for this purpose:
• Cleaning Pen (12 pack), Reorder No. 105950-035
Connecting the
Radio Regulatory
Speci cations pg.
Appendix D
47
User Guide
48
P4T/RP4T
Introduction pg. 4
Appendix D
RP4T Printers pg.
Manual
Product Support

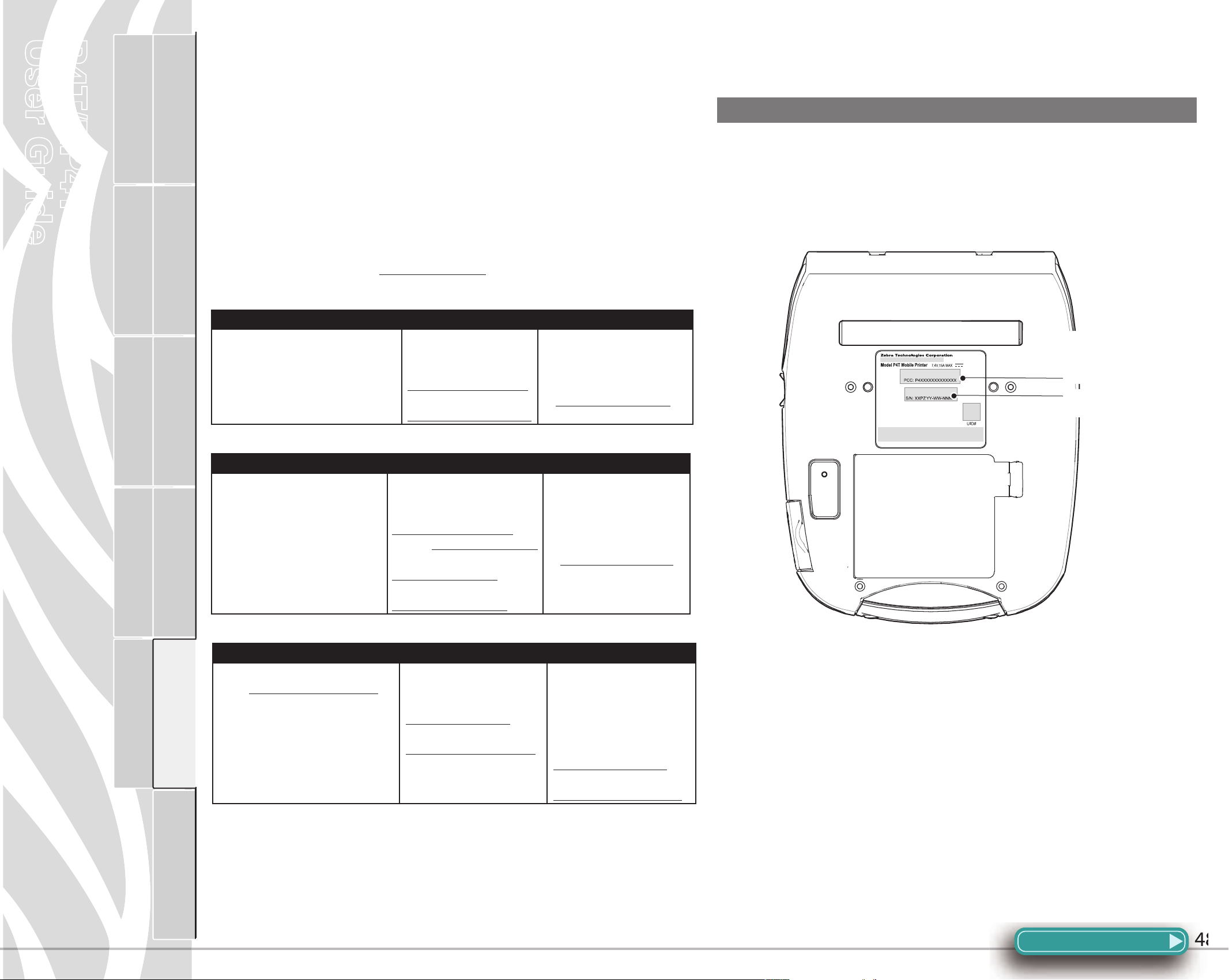

Serial and PCC Number Locations for P4T Series Printers
When calling with a specific problem regarding your printer, please
have the following information on hand:
• Model number/type (e.g. P4T, RP4T)
pg. 5
pg. 7
P4T Overview-
Printer Preparation
Connecting the
• Product Configuration Code (PCC)
For on-line product support and the most recent versions of down-
loadable user documentation, firmware and software utilities, go
• Unit serial number
to the Zebra Web site:
In the Americas, contact
Regional Headquarters Technical Support Customer Service Dept
Zebra Technologies International, LLC
Troubleshooting pg.
Speci cations pg.
333 Corporate Woods Parkway Vernon
Hills, Illinois 60061-3109 U.S.A T: +1 847 793 2600 Toll-free +1 800 423 0422
F: +1 847 913 8766
In Europe, Africa, the Middle East, and India, contact
Regional Headquarters Technical Support Internal Sales Dept.
Zebra Technologies Europe Limited
Dukes Meadow
Millboard Road
Bourne End
Buckinghamshire SL8 5XF, UK T: +44 (0)1628 556000
F: +44 (0)1628 556001
www.zebra.com
T: +1 847 913 2259
F: +1 847 913 2578 Hardware: ts1america@zebra.com Software: ts3america@zebra.com
T: +44 (0) 1494 768298
F: +44 (0) 1494 768210 Germany: Tsgermany@zebra.com
France: Tsfrance@zebra.com
Spain/ Portugal: Tsspain @zebra.com All other areas: Tseurope@zebra.com
For printers, parts, media, and ribbon, please call your distributor, or contact us.
T: +1 877 275 9327
E: clientcare@zebra.com
For printers, parts, media, and ribbon, please call your distributor, or contact us
T: +44 (0) 1494 768316
F: +44 (0) 1494 768244 E: cseurope@zebra.com
P4T Series Product Con guration Code (PCC)
P4T Series Serial Number
In the Asia Paci c region, contact
Radio Regulatory
Regional Headquarters Technical Support Customer Service
Zebra Technologies Asia Paci c, LLC Go to www.zebra.com/contact for
complete contact information
T: +65 6858 0722
F: +65 6885 0838
T: +65 6858 0722
F: +65 6885 0838 E: (China): tschina@zebra.com
All other areas:
tsasiapaci c@zebra.com
For printers, parts, media, and ribbon, please call your distributor, or contact us T: +65 6858 0722 F: +65 6885 0836 E: (China) order-csr@zebra.com All other areas: csasiapaci c@zebra.com
Appendix E
48
User Guide
49
P4T/RP4T
Introduction pg. 4
pg. 5
pg. 7
Manual
P4T Overview-
Printer Preparation
Appendix E
RP4T Printers pg.
Battery Disposal
®
The EPA certified RBRC Lithium-Ion (Li-ion) battery supplied with your printer indicates Zebra Technologies Corporation is voluntarily
out of service in the United States or Canada. The RBRC program provides a convenient alternative to placing used Li-ion batteries into the trash or the municipal waste stream, which may be illegal in your area.
Insul ate de pl eted b at tery termi nals wit h t ap e b ef ore
Troubleshooting pg.
Please call +1 800 8BATTERY for information on Li-ion battery
recycling and disposal bans or restrictions in your area. Zebra
Technologies Corporation’s involvement in this program is part of
our commitment to preserving our environment and conserving our natural resources.
participating in an industry program to collect and recycle these batteries at the end of their useful life, when taken
disposal.
Battery Recycling Seal on the
Product Disposal
Do not dispose of this product in unsorted municipal waste.
This product is recyclable. Please recycle according to your
local standards. For more information, please see our web site at:
http://www.zebra.com/environment
Outside North America, please follow local battery recycling
guidelines.
Connecting the
Radio Regulatory
Speci cations pg.
Appendix F
49
User Guide
50
P4T/RP4T
Introduction pg. 4
Appendix F
RP4T Printers pg.
pg. 5
pg. 7
Manual
P4T Overview-
Printer Preparation
Using zebra.com
The following examples use the search functions on Zebra’s Web
Example 2: Find the Label Vista Download page:
www.zebra.com/software
Go to
and select “Label Vista”, then click “Submit”.
site for finding specific documents .
Example1: Find the Mobile Printer Wireless Con guration Guide.
www.zebra.com/manuals
Go to Select as a manual type “Networking Manual” then click on “Submit”.
Troubleshooting pg.
.
Select manual type
Click on “SUBMIT”
Select the “Label Vista demo
At the resulting screen, select Wireless Mobile as the networking type. Then select the
desired language. (Best choices are “All” or “English”)
Connecting the
Radio Regulatory
Speci cations pg.
Select networking type (Wireless Mobile in this example)
Select language
Click on “SUBMIT”
At the resulting screen, select “Zebra Mobile Printers - Wireless Con guration Guide” then
click on “Download” to begin the download process.
At the resulting window select “Download a free Label Vista demo now “
Appendix G
50
User Guide
D 275,286
D 347,021
D 389,178
D 430,199
D 433,702
D 549,768
3,964,673
4,019,676
4,044,946
4,360,798
4,369,361
4,387,297
4,460,120
4,496,831
4,593,186
4,607,156
4,673,805
4,736,095
4,758,717
4,816,660
4,845,350
4,896,026
4,897,532
4,923,281
4,933,538
4,992,717
5,015,833
5,017,765
5,021,641
5,029,183
5,047,617
5,103,461
5,113,445
5,140,144
5,132,709
5,142,550
5,149,950
5,157,687
5,168,148
5,168,149
5,180,904
5,229,591
5,230,088
5,235,167
5,243,655
5,247,162
5,250,791
5,250,792
5,262,627
5,267,800
5,280,163
5,280,164
5,280,498
5,304,786
5,304,788
5,321,246
5,335,170
5,364,133
5,367,151
5,372,439
5,373,148
5,378,882
5,396,053
5,396,055
5,399,846
5,408,081
5,410,139
5,410,140
5,412,198
5,415,482
5,418,812
5,420,411
5,436,440
5,444,231
5,449,891
5,449,893
5,468,949
5,479,000
5,479,002
5,479,441
5,486,057
5,503,483
5,504,322
5.519,381
5,528,621
5,532,469
5,543,610
5,545,889
5,552,592
5,570,123
5,578,810
5,589,680
5,612,531
5,642,666
5,657,066
5,680,459
5,726,630
5,768,991
5,790,162
5,791,796
5,806,993
5,813,343
5,816,718
5,820,279
5,848,848
5,860,753
5,872,585
5,874,980
5,
909,233
5,976,720
5,978,004
5,995,128
5,997,193
6,004,053
6,010,257
6,020,906
6,034,708
6,036,383
6,057,870
6,068,415
6,068,415
6,095,704
6,109,801
6,123,471
6,147,767
6,151,037
6,201,255 B1
6,231,253 B1
6,261,009
6,261,013
6,267,521
6,270,072 B1
6,285,845 B1
6,292,595
6,296,032
6,364,550
6,379,058 B1
6,409,401 B1
6,411,397 B1
6,428,227 B2
6,480,143
6,530,705
6,540,122
6,540,142
6,607,316
6,609,844
6,655,593
6,784,787
6,874,958
6,899,477
6,908,034
7,126,716
7,137,000
7,172,122
7,190,270
This product and/or its use m ay be covered by one or m ore of the
follow ing U S patents and corresponding international patents
w orldwide
51
P4T/RP4T
Introduction pg. 4
RP4T Printers pg.
Appendix G- Patents
Manual
P4T Overview-
Troubleshooting pg.
Speci cations pg.
pg. 5
Printer Preparation
pg. 7
Connecting the
Radio Regulatory
Index
51
User Guide
P4T/RP4T
Introduction pg. 4
pg. 5
pg. 7
Manual
P4T Overview-
Printer Preparation
Connecting the
Radio Regulatory
RP4T Printers pg.
Index
B
Battery pack
installing 16
life, tips for extending 36
Troubleshooting pg.
Speci cations pg.
reconditioning 22
Smart Battery, features 6
C
Cable Communications 27
Combination Port 27
USB 28
Charger, battery
AC Adapter 11, 12, 13
LI72 single charger 8
AT17696-xx 9, 10
AT18737-xx 10
List of approved 8
UCLI72-4 Quad Charger 15
battery charge times 15
indicators 15
Cleaning
general instructions 36
methods & intervals
table of 37
Communications, Wireless
802.11 b/g 30
Bluetooth 30
Controls, Operator
functions illustrated 22
LCD functions, extended 23
CPCL Programming 30
RFID Programming Guide 35
Wireless Configuration Guide 29
Media, loading
adjusting for core diameter 20
external media
media Spacer, use of 18
Internal roll 17
thermal transfer film 21
use of label peeler 19
using external supply 18
P
P4T Media 44 Printing Method
Direct Thermal 6
thermal transfer
Loading thermal transfer film 21
Thermal Transfer 6
thermal transfer film 6
Programming language
CPCL 4 ZPL II 4, 35
R
Radio Regulatory Information
802.11b/g Radio 31
Bluetooth radio (ZBR4) 31 Co-located 802.11b & Bluetooth 30, 33
RFID Encoder 34
RFID
label types supported 35
Model RP4T 6
overall dimensions 45
printing 43
T
Technical Support
contacting 40
Troubleshooting
entering communications diagnostic mode 40
forced shutdown 40
LCD Control Panel 38
printing a configuration label 26
Troubleshooting Topics 38
, 40, 41, 42
E
Encoder option
RFID 5, 6
L
Label, Configuration 26
use as a diagnostic tool 26
Label Vista
setting WLAN parameters with 30
M
Manual
S
Safety
Battery 7
Charger 7
Shoulder Strap, Adjustable 25 Specifications
Font/bar Codes 45
Media 44
Memory/communications 43
communications ports 43
Physical 45
52
Zebra Technologies Corporation
475 Half Day Road, Suite 500 Lincolnshire, IL 60069 Phone: +1 847.634.6700 Toll Free: +1 800.423.0442 Fax: +1 847.913.8766
UMAN-P4T-013 Rev. A May 2013
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
