WT6000
Wearable Computer
User Guide
for Android ™ 7.1.1 Nougat
MN-003226-05
Copyright
ZEBRA and the stylized Zebra head are trademarks of Zebra Technologies Corporation, registered in many
jurisdictions worldwide. Google, Android, Google Play and other marks are trademarks of Google LLC. All other
trademarks are the property of their respective owners. ©2019 Zebra Technologies Corporation and/or its affiliates.
All rights reserved.
COPYRIGHTS & TRADEMARKS: For complete copyright and trademark information, go to www.zebra.com/
copyright.
WARRANTY: For complete warranty information, go to www.zebra.com/warranty
END USER LICENSE AGREEMENT: For complete EULA information, go to www.zebra.com/eula
Terms of Use
• Proprietary Statement
This manual contains proprietary information of Zebra Technologies Corporation and its subsidiaries (“Zebra
Technologies”). It is intended solely for the information and use of parties operating and maintaining the
equipment described herein. Such proprietary information may not be used, reproduced, or disclosed to any
other parties for any other purpose without the express, written permission of Zebra Technologies.
• Product Improvements
Continuous improvement of products is a policy of Zebra Technologies. All specifications and designs are
subject to change without notice.
• Liability Disclaimer
Zebra Technologies takes steps to ensure that its published Engineering specifications and manuals are
correct; however, errors do occur. Zebra Technologies reserves the right to correct any such errors and
disclaims liability resulting therefrom.
• Limitation of Liability
In no event shall Zebra Technologies or anyone else involved in the creation, production, or delivery of the
accompanying product (including hardware and software) be liable for any damages whatsoever (including,
without limitation, consequential damages including loss of business profits, business interruption, or loss of
business information) arising out of the use of, the results of use of, or inability to use such product, even if
Zebra Technologies has been advised of the possibility of such damages. Some jurisdictions do not allow the
exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not
apply to you.
.
.
Revision History
Changes to the original guide are listed below:
Change Date Description
-01 Rev A 5/2018 Initial release.
-02 Rev A 7/2018 Include information on extended battery.
-03 Rev A 9/2019 Include information on keypad accessory.
2
Change Date Description
-04 Rev A 10/2019 Update keypad illustrations and descriptions to include back-light icon.
-05 Rev A 11/2019 Update table 7. Only ten special characters are supported.
3
Table Of Contents
Revision History ................................................................................................................................ 2
Table Of Contents.................................................................................................................................. 4
About This Guide
Introduction ..................................................................................................................................... 10
Documentation Set ......................................................................................................................... 10
Software Versions ........................................................................................................................... 10
Configurations ................................................................................................................................. 11
Chapter Descriptions ...................................................................................................................... 11
Notational Conventions ................................................................................................................... 12
Related Documents and Software .................................................................................................. 12
Service Information ......................................................................................................................... 13
Provide Documentation Feedback .................................................................................................. 13
Getting Started
Introduction ..................................................................................................................................... 14
Unpacking ................................................................................................................................. 14
Removing the Screen Protection Film ....................................................................................... 14
Features .......................................................................................................................................... 15
Setup ............................................................................................................................................... 16
Installing the Battery .................................................................................................................. 16
Charging the Battery ................................................................................................................. 17
Starting the WT6000 ................................................................................................................. 18
Installing the Wrist Mount ................................................................................................................ 19
Connecting a Scanner .................................................................................................................... 20
Replacing the Battery ...................................................................................................................... 20
Accessing Device Settings .............................................................................................................. 22
Battery Management ....................................................................................................................... 23
Monitor Battery Usage .............................................................................................................. 23
Low Battery Notification ............................................................................................................ 23
Battery Optimization .................................................................................................................. 24
Turning Off the Radios .............................................................................................................. 24
Setting the Date and Time .............................................................................................................. 24
Display Setting ................................................................................................................................ 25
4
Table of Contents
Setting the Screen Brightness ................................................................................................... 25
Setting Screen Rotation ............................................................................................................ 25
Setting Screen Timeout Setting ................................................................................................ 25
Setting Key Light Timeout Setting ............................................................................................. 26
Setting Font Size ....................................................................................................................... 26
Cast ........................................................................................................................................... 26
General Sound Setting .................................................................................................................... 27
Using the WT6000
Introduction ..................................................................................................................................... 29
Home Screen .................................................................................................................................. 29
Status Bar ................................................................................................................................. 30
Status Icons ........................................................................................................................ 30
Notification Icons ....................................................................................................................... 31
Managing Notifications .............................................................................................................. 32
Setting Application Notifications .......................................................................................... 32
Viewing Notification Settings for All Apps ........................................................................... 33
Controlling Lock Screen Notifications ................................................................................. 33
Quick Access Panel .................................................................................................................. 33
Edit Icons on Quick Settings ............................................................................................... 34
Application Shortcuts and Widgets ........................................................................................... 34
Adding an Application to the Home Screen ........................................................................ 35
Adding a Widget to the Home Screen ................................................................................. 35
Moving Items on the Home Screen ..................................................................................... 35
Removing an Application Shortcut or Widget from the Home Screen ................................ 35
Folders ...................................................................................................................................... 35
Creating a Folder ................................................................................................................ 35
Naming Folders ................................................................................................................... 35
Removing a Folder .............................................................................................................. 36
Home Screen Wallpaper ........................................................................................................... 36
Application Shortcuts and Widgets ........................................................................................... 36
Adding an Application or Widget to the Home Screen ........................................................ 36
Moving Items on the Home Screen ..................................................................................... 36
Removing an App or Widget from the Home Screen .......................................................... 37
Folders ...................................................................................................................................... 37
Using the Touchscreen ................................................................................................................... 37
Keyboards ....................................................................................................................................... 38
Keyboard Configuration .......................................................................................................
Enabling Keyboards ............................................................................................................ 38
Switching Between Android and Enterprise Keyboards ...................................................... 38
Selecting the Japanese IME Keyboard ............................................................................... 38
Using the Enterprise Keyboard ................................................................................................. 38
Numeric Tab ........................................................................................................................ 38
Alpha Tab ............................................................................................................................ 39
Scan Tab ............................................................................................................................. 40
Using the Android Keyboard ..................................................................................................... 40
Editing Text ......................................................................................................................... 40
Entering Numbers, Symbols and Special Characters ......................................................... 40
Keypad ............................................................................................................................................ 41
Do Not Disturb Feature ................................................................................................................... 43
..... 38
5
Table of Contents
Limit Sounds and Vibrations ..................................................................................................... 43
Total Silence ....................................................................................................................... 43
Alarms Only ......................................................................................................................... 43
Priority Notifications Only .................................................................................................... 44
Automatically Block Sounds and Vibrations .................................................................................... 44
Silence Sounds During Certain Times ...................................................................................... 44
Silence Sounds During Events and Meetings ........................................................................... 45
Turn Sounds Back On ............................................................................................................... 45
Override Do Not Disturb for Specific Apps ................................................................................ 45
Applications ..................................................................................................................................... 45
Accessing Applications ....................................................................................................... 48
Switching Between Recent Applications ............................................................................. 48
Un-Locking the Screen .............................................................................................................. 49
Suspend Mode ................................................................................................................................ 51
Resetting the WT6000 .................................................................................................................... 51
Performing a Soft Reset ............................................................................................................ 51
Performing a Hard Reset .......................................................................................................... 51
Transferring Files with a Host Computer via USB .......................................................................... 52
Transferring Files using Media Transfer Protocol ..................................................................... 52
Transferring Files using Photo Transfer Protocol ...................................................................... 52
Disconnect from the Host Computer ......................................................................................... 53
Data Capture
Introduction ..................................................................................................................................... 54
Laser Scanning ............................................................................................................................... 54
Scanning Bar Codes ................................................................................................................. 54
Imaging ........................................................................................................................................... 54
Operational Modes .................................................................................................................... 55
Scanning Considerations ................................................................................................................ 55
Bar Code Capture with RS4000 ...................................................................................................... 55
Adaptive Scanning .............................................................................................................. 56
Bar Code Capture with RS5,000 Corded Imager ............................................................................ 56
Bar Code Capture with RS6000 Hands-Free Imager ..................................................................... 57
Bar Code Capture with RS507 Hands-Free Imager ....................................................................... 59
Pairing the RS507/RS6000 Hands-Free Imager ............................................................................. 60
Pairing Using Near Field Communication ................................................................................. 60
Pairing in HID Mode Using Near Field Communication ............................................................ 61
Pairing Using Simple Serial Interface ........................................................................................ 62
Pairing Using Bluetooth Human Interface Device ..................................................................... 63
Wireless
Wireless Local Area Networks ........................................................................................................ 65
Scan and Connect to a Wi-Fi Network ...................................................................................... 65
Remove a Wi-Fi Network .......................................................................................................... 66
Bluetooth ......................................................................................................................................... 67
Adaptive Frequency Hopping .................................................................................................... 67
Security ..................................................................................................................................... 67
Bluetooth Profiles ...................................................................................................................... 68
Bluetooth Power States ............................................................................................................. 68
6
Table of Contents
Bluetooth Radio Power ............................................................................................................. 68
Enabling Bluetooth .............................................................................................................. 69
Disabling Bluetooth ............................................................................................................. 69
Discovering Bluetooth Device(s) ............................................................................................... 69
Changing the Bluetooth Name .................................................................................................. 69
Connecting to a Bluetooth Device ............................................................................................. 70
Selecting Profiles on the Bluetooth Device ............................................................................... 70
Unpairing a Bluetooth Device .................................................................................................... 70
Near Field Communications ............................................................................................................ 70
Reading NFC Cards .................................................................................................................. 71
Applications
Introduction ..................................................................................................................................... 73
Battery Manager ............................................................................................................................. 73

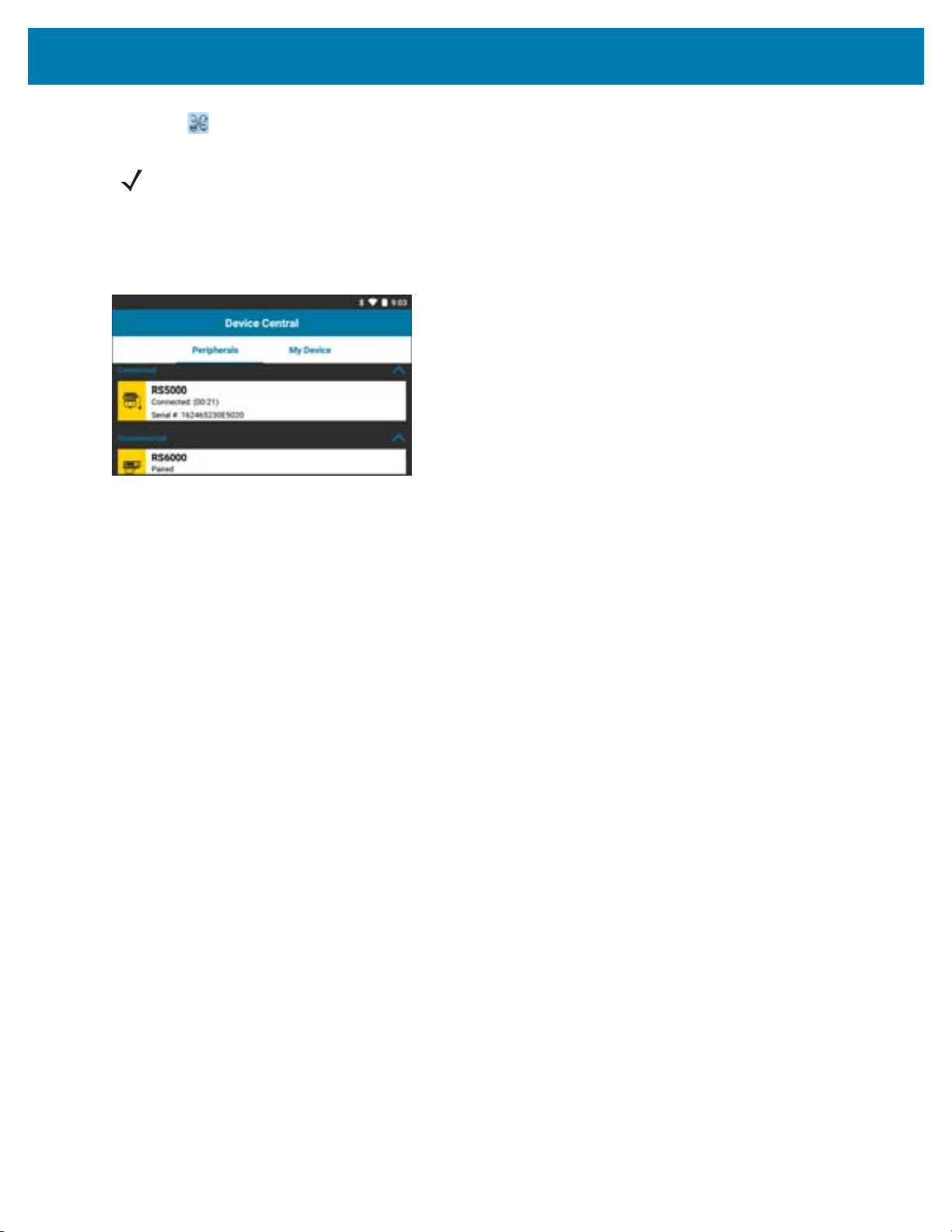

Device Central ................................................................................................................................ 76
Device Central Tabs .................................................................................................................. 76
Paging an RS6000 Ring Scanner ............................................................................................. 76

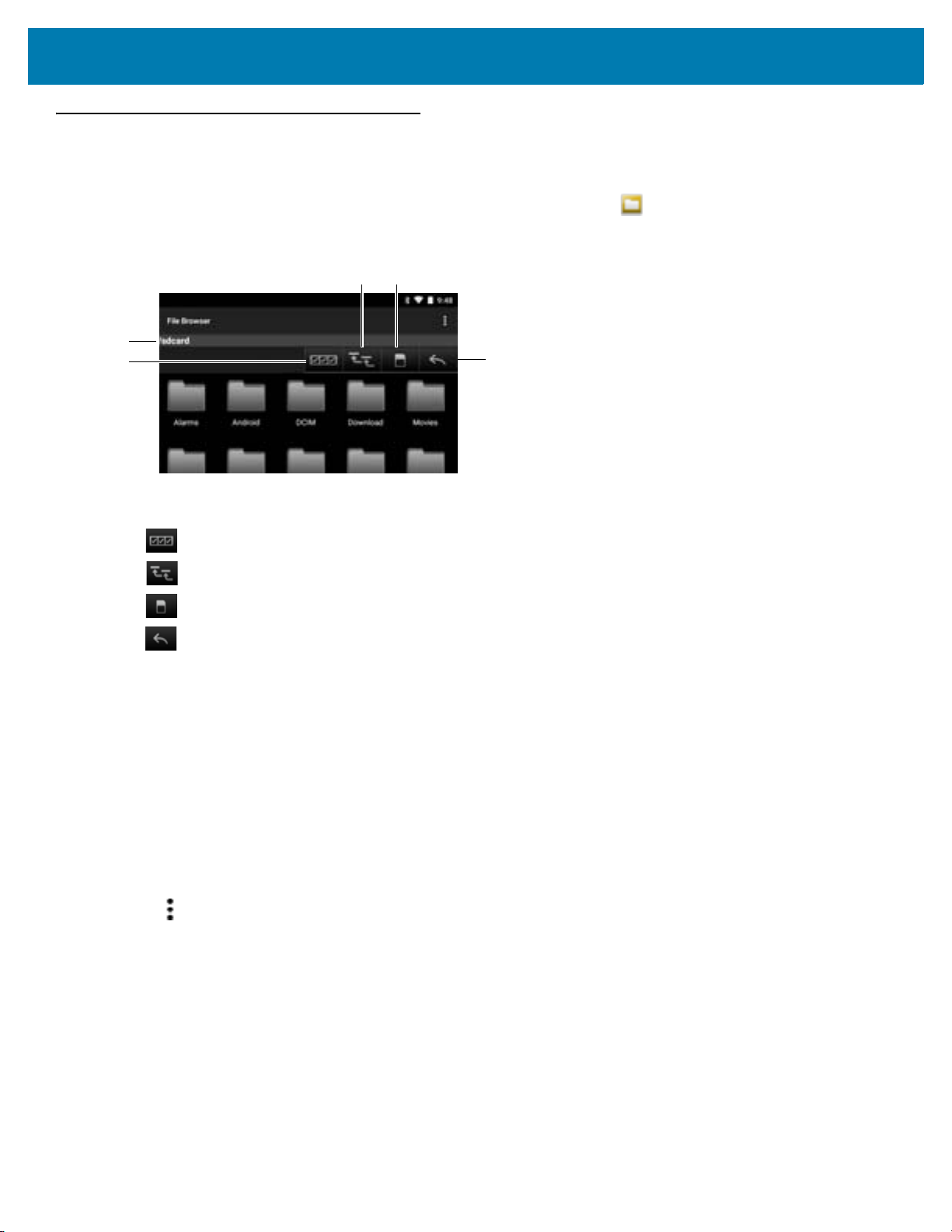

File Browser .................................................................................................................................... 78
Contacts .......................................................................................................................................... 79
Adding a Contact ....................................................................................................................... 79
Editing Contacts ........................................................................................................................ 79
Deleting Contacts ...................................................................................................................... 79
Gallery ............................................................................................................................................. 80
Working with Albums ................................................................................................................. 80
Share an Album .................................................................................................................. 81
Get Album Information ........................................................................................................ 81
Deleting an Album ............................................................................................................... 81
Working with Photos ................................................................................................................. 81
Viewing and Browsing Photos ............................................................................................. 81
Cropping a Photo ................................................................................................................ 82
Setting a Photo as a Contact Icon ....................................................................................... 82
Share a Photo ..................................................................................................................... 83
Deleting a Photo .................................................................................................................. 83
Working with Videos .................................................................................................................. 83
Watching Videos ................................................................................................................. 83
Sharing a Video ................................................................................................................... 83
Deleting a Video .............................................................................................................
PTT Express Voice Client ............................................................................................................... 85
PTT Audible Indicators .............................................................................................................. 85
Notification Icons ....................................................................................................................... 86
Enabling PTT Communication .................................................................................................. 86
Selecting a Talk Group .............................................................................................................. 86
PTT Communication ................................................................................................................. 87
Creating a Group Call ......................................................................................................... 87
Responding with a Private Response ................................................................................. 87
Disabling PTT Express Voice Client Communication ............................................................... 88
DataWedge ..................................................................................................................................... 89
DataWedge Demonstration ............................................................................................................. 89

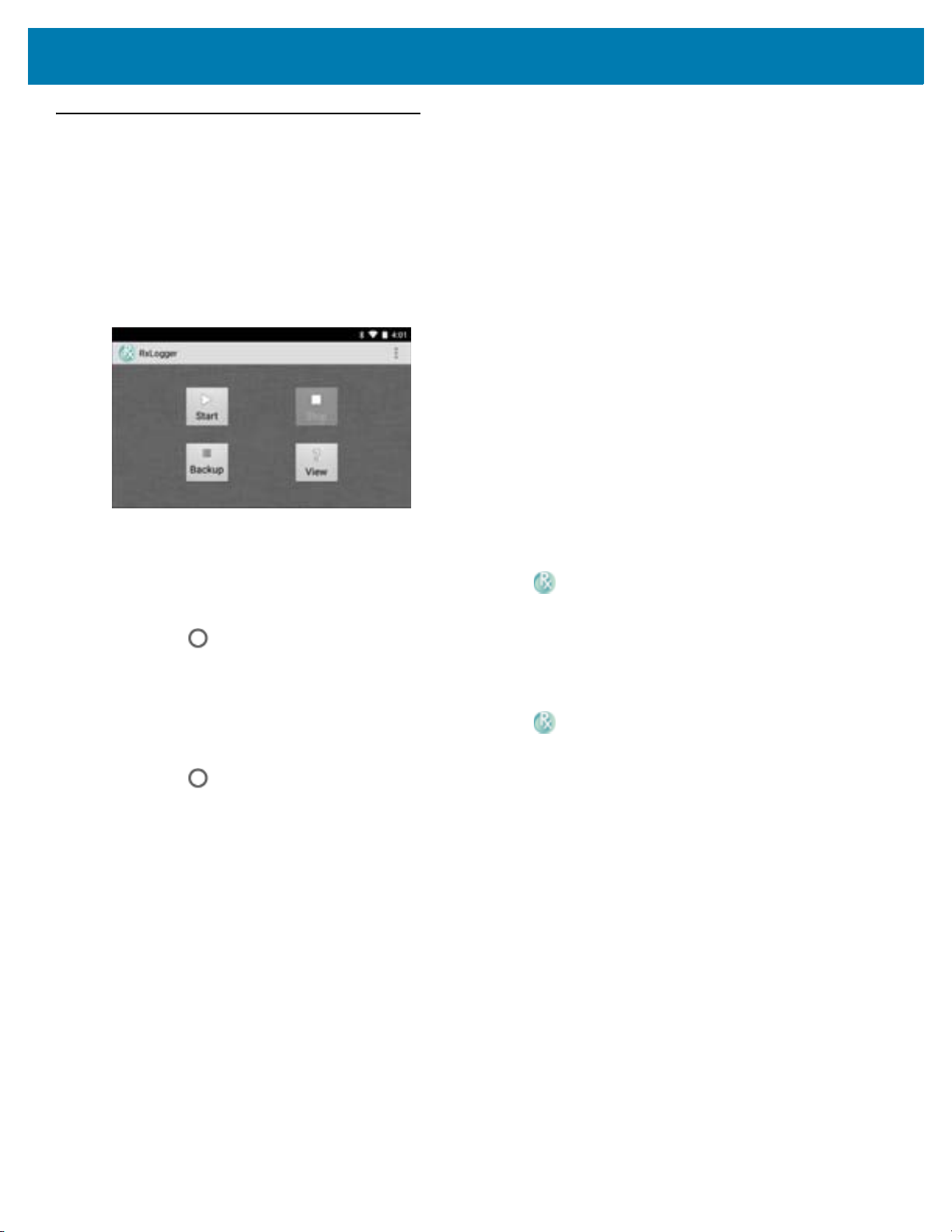

RxLogger ........................................................................................................................................ 90
Enabling Logging ...................................................................................................................... 90
..... 84
7
Table of Contents
Disabling Logging ...................................................................................................................... 90
RxLogger Utility ............................................................................................................................... 91

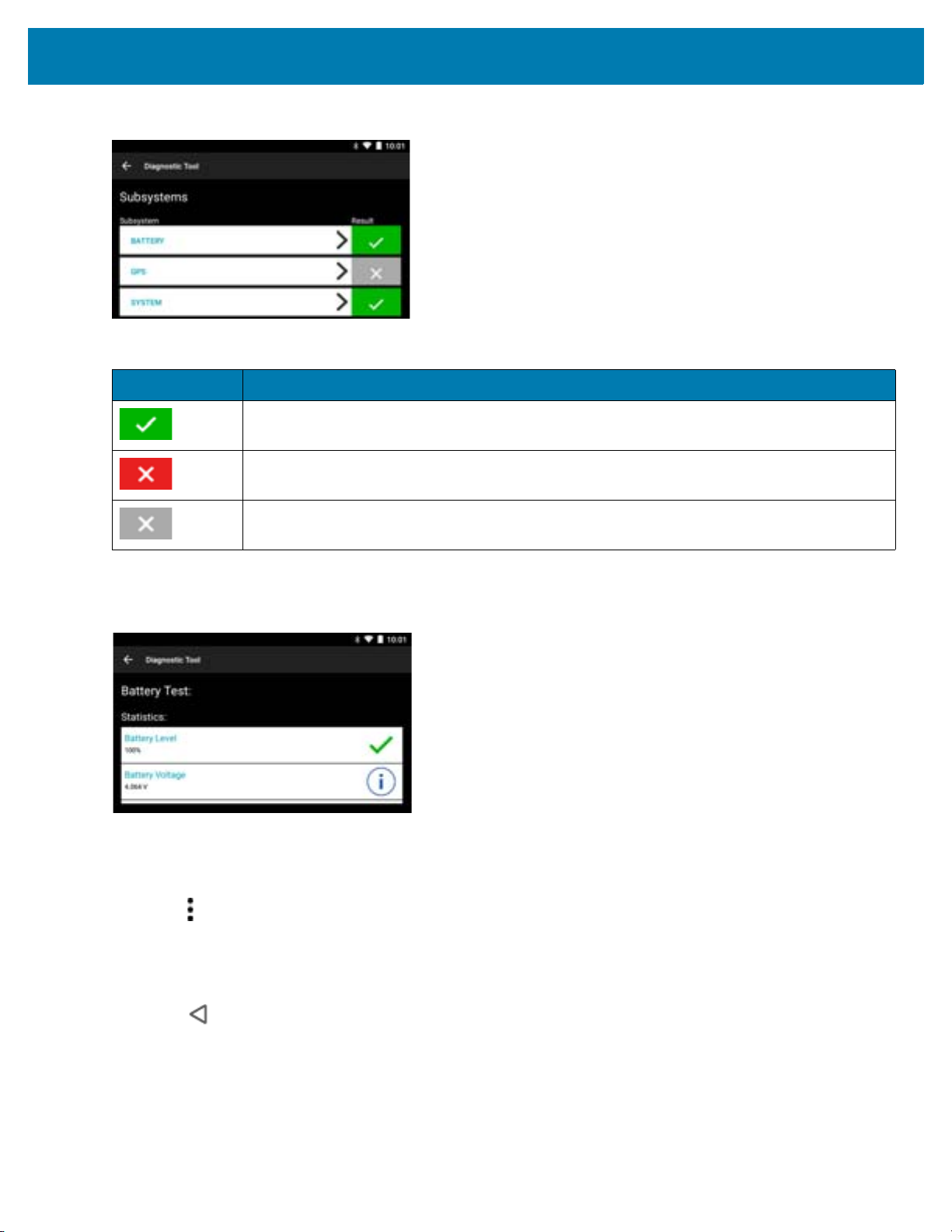

Diagnostic Tool ............................................................................................................................... 92
Settings ............................................................................................................................... 93
Battery Test Information ...................................................................................................... 93
GPS Test Information .......................................................................................................... 94
System Test Information ..................................................................................................... 94
WLAN Test Information ....................................................................................................... 94
WWAN Test Information ..................................................................................................... 94
Bluetooth Test Information .................................................................................................. 94
Accessories
Accessories ..................................................................................................................................... 95
1-Slot WT6000 USB Charging Cradle ............................................................................................ 98
Charging the Device .................................................................................................................. 98
Charging the Spare Battery ....................................................................................................... 99
Battery Charging ..................................................................................................................... 100
2-Slot WT6000/RS6000 Charging Cradle ..................................................................................... 101
Charging the WT6000 ............................................................................................................. 101
Charging the RS6000 .............................................................................................................. 102
Battery Charging ..................................................................................................................... 103
5-Slot WT6000 Charge Only Cradle ............................................................................................. 104
Charging the WT6000 ............................................................................................................. 104
Charging the Spare Battery ..................................................................................................... 105
Battery Charging ..................................................................................................................... 106
10-Slot WT6000/RS6000 Charge Only Cradle ............................................................................. 107
Charging the WT6000 ............................................................................................................. 107
Charging the RS6000 .............................................................................................................. 108
Battery Charging ..................................................................................................................... 109
10-Slot WT6000 Charge Only Cradle ........................................................................................... 110
Charging the WT6000 ............................................................................................................. 110
Battery Charging ..................................................................................................................... 111
5-Slot WT6000 Ethernet Cradle .................................................................................................... 112
Charging the WT6000 ............................................................................................................. 112
Charging the Spare Battery ..................................................................................................... 113
Battery Charging ..................................................................................................................... 114
Establishing Ethernet Communication ...........................
Ethernet LED Indicators .................................................................................................... 114
4-Slot Battery Charger .................................................................................................................. 116
Battery Installation ................................................................................................................... 116
Battery Removal ...................................................................................................................... 117
Battery Charging ..................................................................................................................... 117
Spare Battery Charging ..................................................................................................... 117
20-Slot Battery Charger ................................................................................................................ 118
Battery Installation ................................................................................................................... 118
Battery Removal ...................................................................................................................... 119
Battery Charging ..................................................................................................................... 119
Spare Battery Charging ..................................................................................................... 119
USB and Charging Cable .............................................................................................................. 120
Attaching the USB and Charging Cable .................................................................................. 120
......................................................... 114
8
Table of Contents
Removing the USB and Charging Cable ................................................................................. 121
Battery Charging ..................................................................................................................... 121
Main Battery Charging ...................................................................................................... 121
Charging Temperature ............................................................................................................ 121
Keypad .......................................................................................................................................... 122
Installing the Keypad ............................................................................................................... 122
Hip Mount ...................................................................................................................................... 124
Routing an Extended Cable Scanner ...................................................................................... 125
Quick Disconnect Audio Cables .................................................................................................... 127
Attaching the Audio Adapter ................................................................................................... 127
Connecting the Audio Cable to a Headset .............................................................................. 128
Removing the Audio Adapter .................................................................................................. 129
Vibrator Cable ............................................................................................................................... 130
RS4000 Scanner ........................................................................................................................... 131
RS5000 Imager ............................................................................................................................. 133
Maintenance and Troubleshooting
Introduction ................................................................................................................................... 135
Maintaining the WT6000 ............................................................................................................... 135
Battery Safety Guidelines ............................................................................................................. 135
Long Term Storage ....................................................................................................................... 136
Cleaning Instructions .................................................................................................................... 136
Approved Cleanser Active Ingredients .................................................................................... 136
Harmful Ingredients ................................................................................................................. 136
Cleaning Instructions ............................................................................................................... 136
Special Cleaning Notes ........................................................................................................... 137
Cleaning Materials Required ................................................................................................... 137
Cleaning Frequency ................................................................................................................ 137
Cleaning the WT6000 ............................................................................................................. 137
Housing ............................................................................................................................. 137
Display .............................................................................................................................. 137
Power Connector .............................................................................................................. 137
Cleaning Cradle Connectors ................................................................................................... 138
Cleaning the Wrist Mount ........................................................................................................ 138
Troubleshooting ............................................................................................................................ 141
WT6000 ................................................................................................................................... 141
Specifications
Technical Specifications ......................................
Index
......................................................................... 143
9
About This Guide
Introduction
This guide provides information about setting up and configuring WT6000 mobile computers with Android
operating system and installing its accessories.
NOTE: Some screens or windows shown in this guide may differ from the actual screens shown on the WT6000.
Documentation Set
The documentation set for the WT6000 is divided into guides that provide information for specific user needs.
WT6000 documentation includes:
• WT6000 Quick Reference Guide - describes basic set up and operation of the WT6000 and it’s
accessories.
• WT6000 User Guide (this guide) - describes how to set up, operate and program the WT6000 with
Android operating system and it’s accessories.
• WT6000 Integrator Guide - describes how to setup and configure WT6000 and accessories.
Software Versions
To determine the current software versions, touch > About device.
• Model number - Displays the model number.
• Android version - Displays the operating system version.
• Kernel version - Displays the kernel version number.
• Build number - Displays the software build number.
To determine the device serial number, touch > About device > Status.
• Serial number - Displays the serial number.
10
About This Guide
Configurations
This guide covers the following configurations:
Radios Data Capture Display Keypad Memory OS Sensors Battery
Configuration
NFC
RS4000
802.11 abgn
Bluetooth 4.0
Standard
WT60A0-TS0LEWR X X X X X X X X X X X X X
WT60A0-TS0LEUS X X X X X X X X X X X X X
WT60A0-TX0LEWR X X X X X X X X X X X X X
WT60A0-TX0LEUS X X X X X X X X X X X X X
RS5,000
RS6000
RS507
3.2” WVGA Color
External Keypad
1G RAM/
2G RAM/
4 GB Flash
8 GB Flash
Android AOSP
V5.1.1
Android AOSP
V7.1.1
Accelerometer
Gyroscope
Standard
Extended
Premium
WT60A0-TS2NEWR X X X X X X X X X X X X X
WT60A0-TS2NEUS X X X X X X X X X X X X X
WT60A0-TX2NEWR X X X X X X X X X X X X X
WT60A0-TX2NEUS X X X X X X X X X X X X X
Premium
WT60A0-KS2NEWR X X X X X X X X X X X X X X
WT60A0-KS2NEUS X X X X X X X X X X X X X X
WT60A0-KX2NEWR X X X X X X X X X X X X X X
WT60A0-KX2NEUS X X X X X X X X X X X X X X
Chapter Descriptions
Topics covered in this guide are as follows:
• Getting Started, describes the features and basic operation of the WT6000, lists the accessories for the
WT6000 and explains how to install and charge the batteries and start the WT6000 for the first time.
• Using the WT6000, provides instructions for connecting the WT6000 to a host computer and using the OS
desktop of the WT6000.
• Data Capture, provides information for capturing bar code data.
• Wireless, provides information on the various wireless options.
• Applications, provides information on various applications pre-installed on the WT6000.
• Accessories, Accessories, provides information for using the accessories with the WT6000.
11
• Maintenance and Troubleshooting, includes instructions on cleaning and storing the WT6000, and
provides troubleshooting solutions for potential problems during WT6000 operation.
• Specifications, includes a table listing the technical specifications for the WT6000 and accessories.
Notational Conventions
The following conventions are used in this document:
• Bold text is used to highlight the following:
• Dialog box, window and screen names
• Drop-down list and list box names
• Check box and radio button names
• Icons on a screen
• Key names on a keypad
• Button names on a screen
• Bullets (•) indicate:
• Action items
• Lists of alternatives
• Lists of required steps that are not necessarily sequential
• Sequential lists (e.g., those that describe step-by-step procedures) appear as numbered lists.
About This Guide
NOTE: This symbol indicates something of special interest or importance to the reader. Failure to read the note
will not result in physical harm to the reader, equipment or data.
CAUTION:This symbol indicates that if this information is ignored, the possibility of data or material damage may
occur.
WARNING: This symbol indicates that if this information is ignored the possibility that serious personal injury may
occur.
Related Documents and Software
The following documents provide more information about the WT6000 touch computers.
• WT6000 Quick Start Guide, p/n MN-002700-xx
• WT6000 Regulatory Guide, p/n MN-002701-xx
• WT6000 Integrator Guide, p/n MN-003227-xx
• WT6000 Accessory Regulatory Guide, p/n MN-002702-xx
For the latest version of this guide and all guides, go to: http://www.zebra.com/support.
12
About This Guide
Service Information
If you have a problem with your equipment, contact Customer Support for your region. Contact information is
available at: http://www.zebra.com/support.
When contacting Customer Support, please have the following information available:
• Serial number of the unit
• Model number or product name
• Software type and version number.
We respond to calls by E-mail, or telephone within the time limits set forth in support agreements.
If your problem cannot be solved by Zebra Support, you may need to return your equipment for servicing and will
be given specific directions. Zebra is not responsible for any damages incurred during shipment if the approved
shipping container is not used. Shipping the units improperly can possibly void the warranty.
If you purchased your business product from a business partner, contact that business partner for support.
Provide Documentation Feedback
If you have comments, questions, or suggestions about this guide, send an email to EVM-Techdocs@zebra.com.
13
Getting Started
Introduction
This chapter describes the features of the WT6000 and explains how to install and charge the battery and how to
reset the WT6000.
Unpacking
Carefully remove all protective material from the WT6000 and save the shipping container for later storage and
shipping.
Verify that box contains all the equipment listed below:
• WT6000
• Battery
• Regulatory Guide.
Inspect the equipment for damage. If you are missing any equipment or if you find any damaged equipment,
contact Support immediately. See Service Information on page 13 for contact information.
Removing the Screen Protection Film
A screen protection film is applied to the WT6000 screen to protect the screen during shipping. To remove the
screen protector, carefully lift the thin film off the display.
14
Features
3
12
1
2
15
11
10
9
8
5
13
4
7
6
14
Figure 1 Front View
Getting Started
Table 1 Front View Descriptions
Number Item Function
1 Speaker Provides audio output for video and music playback.
2 Battery¹ Provides power to the device.
3 Display Displays all information needed to operate the WT6000.
4 Recent Button Displays recently open applications.
5 Right Interface
Connector
Provides USB host and client communication, audio and device charging
via cables and accessories.
6 Home Button Displays the Home screen.
7 Back Button Displays the previous screen.
8 P3 / Enter Button Initiates Push-To-Talk communication (programmable).
Use as the Enter button when a keypad is attached.
9 P2 Button Increases volume.
10 Microphone Use for communication on handset.
11 P1 Button Decreases volume.
12 Power Button Turns the display on and off. Press and hold to reset the device and
power off.
13 NFC Antenna Provides communication with other NFC-enabled devices.
¹ Standard battery is shown.
15
Getting Started
17
16
Table 1 Front View Descriptions (Continued)
Number Item Function
14 Ambient Light
Sensor
15 Notification/Charge
LED
¹ Standard battery is shown.
Figure 2 Back View
Determines ambient light for controlling display backlight intensity.
Indicates battery charging status while charging with USB Charge cable
and provide notifications from applications.
Table 2 Back View Descriptions
Number Item Function
16 Cleat Provides alignment and secures the WT6000 to the wrist mount.
17 Left Interface
Setup
Perform these procedures to start using the WT6000 for the first time.
1. Install the battery.
2. Charge the WT6000.
3. Power on the WT6000.
Installing the Battery
To install the battery:
1. Insert the end of the battery into the battery well.
Connector
Provides USB host and client communication, audio and device
charging via cables and accessories.
16
Figure 3 Standard Battery Installation
Figure 4 Extended Battery Installation
Getting Started
2. Press the battery down until it snaps into place.
Charging the Battery
Before using the WT6000 for the first time, charge the battery using a cable or a cradle with the appropriate power
supply. For information about the accessories available for the WT6000, see Accessories.
The standard 3,350 mAh battery fully charges in approximately four hours at room temperature. The extended
5,000 mAh battery fully charges in approximately five hours and 30 minutes at room temperature.
Charge batteries in temperatures from 0°C to 40°C (32°F to 104°F). The WT6000 or accessory always performs
battery charging in a safe and intelligent manner. At higher temperatures (e.g. approximately +37°C (+98°F)) the
WT6000 or accessory may for small periods of time alternately enable and disable battery charging to keep the
battery at acceptable temperatures. The WT6000 or accessory indicates when charging is disabled due to
abnormal temperatures via its red blinking LED.
1. To charge the main battery, connect the charging accessory to the appropriate power source.
2. Insert the WT6000 into a cradle or attach to a cable. The WT6000 turns on and begins charging.
When using the USB Charge cable, the Notification/Charge LED lights amber while charging, then turns solid
green when fully charged.
When using a cradle, the cradle Charge LED lights amber while charging, then turns solid green when fully
charged.
17
Getting Started
Table 3 Charge LED Charging Indicators
State Indication
Off WT6000 is not charging. WT6000 is not inserted correctly in the cradle or
connected to a power source. Charger/cradle is not powered.
Solid Amber Healthy battery is charging.
Solid Green Healthy battery charging is complete.
Fast Blinking Red
(2 blinks/second)
Solid Red Unhealthy battery is charging or fully charged.
IMPORTANT: When trying to power on the device, a quick red blink of the Charging LED indicates that it does not
have enough battery power to turn on. Charge the battery or replace it.
Charging error, e.g.:
- Temperature is too low or too high.
- Charging has gone on too long without completion (typically eight hours).
Starting the WT6000
When installed in a cradle, the WT6000 starts automatically as soon as power is applied.
When a charged battery is installed and the WT6000 is turned off, press the Power button to turn on.
When the WT6000 is powered on for the first time, it initializes its system. The splash screen appears for a short
period of time.
Figure 5 Splash Screen
The splash screen is followed by the boot animation screen and then the Home Screen.
Figure 6 Home Screen
18
Installing the Wrist Mount
Mounting Bracket
Release Lever
Strap Tighten Dial
Mounting Bracket
The wrist mount provides the mounting of the WT6000 on the forearm for hands-free applications. Refer to the
Wrist Mount Installation Guide for information on the wrist mount.
Figure 7 Wrist Mount
Getting Started
To install the wrist mount:
1. Slide the wrist mount onto arm.
2. Position the Install the short strap on the forearm.
3. Turn the dial clockwise to tighten. If too tight, turn counterclockwise to loose slightly.
4. Align the cleat on the back of the WT6000 with the mounting bracket on the wrist mount.
Figure 8 Aligning the Cleat
5. Slide the WT6000 onto the wrist mount until it clicks into place.
6. If necessary, use the dial to loosen and re-tighten the strap.
19
Getting Started
Release Lever
Figure 9 WT6000 and Wrist Mount
To remove the WT6000 from the wrist mount, press down on the release lever and slide the WT6000 out.
Figure 10 WT6000 Removal
Connecting a Scanner
The RS4000 scanner and the RS5,000 and RS6000 imagers can be used with the WT6000. See RS4000 Scanner
on page 131 for procedures for connecting the scanner to the WT6000. Refer to the RS5,000 Quick Start Guide for
procedures for connecting the RS5,000 imager to the WT6000. Refer to the RS6000 Product Reference Guide for
procedures for connecting the RS6000 imager to the WT6000.
Replacing the Battery
To remove the battery:
20
Getting Started
1. Press the Power button to place the WT6000 in suspend mode.
2. Using finger tip, press the battery release latch toward the end of the battery.
Figure 11 Pull Release Latch Back on Standard Battery
Figure 12 Pull Release Latch Back on Extended Battery
3. Lift the battery out of the battery well.
Figure 13 Standard Battery Removal
21
Getting Started
Figure 14 Extended Battery Removal
4. Insert the end of the battery into the battery well.
Figure 15 Standard Battery Installation
Figure 16 Extended Battery Installation
5. Press the battery down until it snaps into place.
Accessing Device Settings
Throughout this guide, the user can access device settings:
22
• Swipe down from the status bar to open the quick settings bar and then touch .
• On the Home screen, swipe up from the bottom of the screen and touch .
Battery Management
NOTE: Prior to checking the battery charge level, remove the WT6000 from any AC power source (cradle or cable).
To check the charge status of the main battery, open Settings and touch About device > Status.
Battery status indicates that the battery is discharging (not charging) and Battery level lists the battery charge (as
a percentage of fully charged). The battery percentage can also be viewed under the battery icon in the quick
access panel. Swipe down with two fingers from the status bar to open the quick settings panel.
Monitor Battery Usage
The Battery screen lists which applications consume the most battery power. Also use it to turn off applications
that were downloaded if they are consuming too much power.
Getting Started
Swipe down from the status bar to open the quick settings bar and then touch > Battery.
Figure 17 Battery Screen
The Battery screen lists the applications using the battery. The discharge graph at the top of the screen shows the
rate of the battery discharge since last charged (short periods of time when connected to a charger are shown as
thin green lines at the bottom of the chart), and how long it has been running on battery power.
Touch an application in the Battery screen to display details about its power consumption. Different applications
display different information. Some applications include buttons that open screens with settings to adjust power
use.
Low Battery Notification
When the battery charge level drops below 15%, the WT6000 displays a notice to connect the WT6000 to power.
Place the WT6000 into a cradle to charge the battery.
23
Getting Started
Figure 18 Low Battery Notification
When the battery charge drops below 10%, the WT6000 displays a notice to connect the WT6000 to power. The
user must charge the battery using one of the charging accessories.
When the battery charge drops below 5%, the WT6000 turns off. Place the WT6000 into a cradle to charge the
battery.
Battery Optimization
Observe the following battery saving tips:
• Set the screen to turn off after a short period of non-use. See Setting Screen Timeout Setting on page 25.
• Reduce screen brightness. See Setting the Screen Brightness on page 25.
• Turn off all wireless radios when not in use.
• Turn off automatic syncing for Email, Calendar, Contacts and other applications.
• Use the Power Control widget to check and control the status of radios, the screen brightness, and
syncing.
• Minimize use of applications that keep the WT6000 from suspending, for example, music and video
applications.
Turning Off the Radios
To turn off all the radios:
NOTE: Alternately, you can place the device into Airplane mode using the Quick Settings option.
1. Press the power button until the menu appears.
2. Touch Airplane mode. The airplane icon appears in the Status bar indicating that all the radios are off.
Setting the Date and Time
The date and time is automatically synchronized using a NTP server when the WT6000 is connected to a Wi-Fi
network. To manually change the date and time:
1. Swipe down from the status bar to open the quick settings bar and then touch .
2. Touch Date & time.
3. Touch Automatic date & time to disable automatic date and time synchronization.
4. Touch Set date.
5. Move the sliders up and down to select the month, date and year.
24
6. Touch Done.
7. Touch Set time.
8. Move the sliders up and down to select the hour, minutes and part of the day.
9. Touch Done.
10. Touch Select time zone.
11. Select the current time zone from the list.
12. Touch .
Display Setting
Use Display settings to change the screen brightness, set sleep time and change font size.
Setting the Screen Brightness
To manually set the screen brightness:
1. Swipe down with two fingers from the status bar to open the quick settings panel.
2. Slide the icon to adjust the screen brightness level.
Getting Started
Figure 19 Brightness Dialog Box
To automatically set the screen brightness:
1. Swipe down from the status bar to open the quick settings bar and then touch .
2. Touch Display.
3. If disabled, touch Adaptive brightness to automatically adjust the brightness. The control switch moves to the
right and turns green indicating the option is enabled.
4. Touch .
Setting Screen Rotation
By default, screen rotation is disabled. To enable screen rotation, swipe down from the status bar to open the quick
settings bar and touch .
Setting Screen Timeout Setting
To set the screen sleep time:
1. Swipe down from the status bar to open the quick settings bar and then touch .
2. Touch Display > Sleep.
3. Select one of the sleep values.
• 15 seconds
• 30 seconds
• 1 minute (default)
25
Getting Started
• 2 minutes
• 5 minutes
• 10 minutes
• 30 minutes.
4. Touch .
Setting Key Light Timeout Setting
To set the key light sleep time:
1. Swipe down from the status bar to open the quick settings bar and then touch .
2. Touch Display > Key light timeout setting.
3. Select one of the sleep values.
• Always on
• 6 seconds (default)
• 10 seconds
• 15 seconds
• 30 seconds
• 1 minute.
4. Touch .
Setting Font Size
To set the size of the font is system applications:
1. Swipe down from the status bar to open the quick settings bar and then touch .
2. Touch Display > Font size.
3. Select one of the font size values.
• Small
• Default (default)
• Large
• Largest.
4. Touch .
Cast
Use Cast to mirror the WT6000 screen on a Miracast enabled wireless display.
1. Swipe down from the status bar to open the quick settings bar and then touch .
2. Touch Display > Cast.
4. Touch > Enable wireless display. The WT6000 searches for nearby Miracast devices and lists them.
5. Touch a device to begin casting.
26
6. Touch .
General Sound Setting
Use the Sound settings to configure media, alarm, and ring volumes, and to set notifications.
Swipe down from the status bar to open the quick settings bar and then touch .
Touch Sound.
Figure 20 Sound Screen
Getting Started
Zebra volume controls
• Ring volume - Controls the ringtone volume.
• Media volume - Controls the music, games and media volume.
• Alarm volume - Controls the alarm clock volume.
• Notifications volume - Controls the notification volume.
• Scanner volume - Controls the scanner volume.
• - Mutes the ring, notifications and scanner so that the device does not make sounds or vibrate.
• - All sounds except media and alarms are silenced and vibrate mode is active.
• - Enables all sounds at the user defined levels.
Also vibrate for calls - Turn on the switch to make the device vibrate when a call is received (default – disabled).
Do not disturb - Mutes the device so that it does not make sounds or vibrate when you do not want it to.
27
Getting Started
• Priority only allows - Use to set priorities.
• Alarms - Disabled.
• Reminders and Events - Switch on or off.
• Messages - Choose from anyone, starred contacts, any contact, or none. To star contacts, use the
Contacts app.
• Calls - Choose from anyone, any contacts, starred contacts, or none. To star contacts, use the
Contacts app.
• Repeat callers - Choose whether to let the device ring if the same person calls again within 15
minutes.
• Automatic rules - To automatically silence the device during certain times, like at night or on weekends.
Touch a default rule Weekend or Weeknight. Or, to make your own rule, tap Add rule and then Time rule.
• Block visual disturbances
• Block when screen is on - option pertains to notifications you receive when you are actively using the
device. If you would like to disable the banner like notifications when Do not Disturb is enabled, turn
this option On. This will also prevent you from peeking at notifications.
• Block when screen is off - option pertains to notifications you receive when you are not using your
device i.e. the display is asleep. If you want to prevent the display from waking up when a new
notification is received, turn this option On. This will additionally disable the LED light alerts your phone
sends you when you have new notifications.
Phone ringtone - Touch to select a sound to play for incoming calls.
Default notification ringtone - Touch to select a sound to play for all system notifications.
Default alarm ringtone - Touch to select a sound to play for alarms.
Other sounds
• Dial pad tones - Play a sound when pressing keys on dial pad (default - disabled).
• Screen locking sounds - Play a sound when locking and unlocking the screen (default – enabled).
• Charging sounds - Play a sound when inserting and removing the device from a charger. (default –
enabled)
• Touch sounds - Play a sound when making screen selections (default – enabled).
• Vibrate on tap - Device vibrates when making screen selections (default – disabled).
28
Using the WT6000
Status Bar
Widget
All App Icon
Setting Icon
Shortcut Icon
Introduction
This chapter describes the screens, status and notification icons, and controls on the WT6000, and provides basic
instructions for using the WT6000.
Home Screen
The Home screen displays when the WT6000 turns on. Depending upon the configuration, the Home screen might
appear different. Contact your system administrator for more information.
After a suspend or screen time-out, the Home screen displays with the lock sliders. Slide to the right toward to
unlock the screen. For screen locking information see Un-Locking the Screen on page 49.
Figure 21 Home Screen
NOTE: The Home screen icons can be configured by the user and may look different than shown.
The Home screen provides four additional screens for placement of widgets and shortcuts. Swipe the screen left or
right to view the additional screens.
29
Using the WT6000
Status Bar
The Status bar displays the time, notification icons (left side) and status icons (right side).
If there are more notifications than can fit in the Status bar, displays indicating that more notifications exist.
Open the Notifications panel to view all notifications and status.
Status Icons
Table 4 Status Icons
Icon Description
Indicates that the Alarm is active.
Indicates that the battery is fully charged.
Indicates that the battery is partially drained.
Indicates that the battery charge is low.
Indicates that the battery charge is very low.
Indicates that the battery is charging.
Indicates that all sounds except media and alarms are silenced and vibrate mode is active.
Indicates that the Airplane Mode is active. All radios are turned off.
Indicates that Bluetooth is on.
Connected to a Wi-Fi network.
Not connected to a Wi-Fi network or no Wi-Fi signal.
Connected to an Ethernet network.
Indicates that the Orange key is locked.
Indicates that the Blue key is pressed.
Indicates that the ALT key is pressed.
Indicates that the CTRL key is pressed.
Indicates that the Shift key is pressed.
30
Table 4 Status Icons (Continued)
Icon Description
Indicates that the Shift key is locked.
Indicates that the Blue Key and SHIFT key are pressed enabling CAPSLOCK.
Notification Icons
Table 5 Notification Icons
Icon Description
Indicates battery is low.
Indicates that more notifications are available for viewing.
Indicates that data is syncing.
Using the WT6000
Indicates an upcoming event.
Indicates that an open Wi-Fi network is available.
Indicates that a song is playing.
Indicates that a problem with sign-in or sync has occurred.
Indicates that the WT6000 is uploading data.
Indicates that the WT6000 is downloading data when animated and download is complete when
static.
Indicates that the WT6000 is connected via USB cable.
Indicates that the WT6000 is connected to or disconnected from virtual private network (VPN).
Preparing Internal Storage.
Indicates that USB debugging is enabled on the WT6000.
Headset audio cable is connected to the WT6000.
Indicates that the WT6000 is connected to a cable or cradle.
Indicates that the WT6000 is connected to a wireless hands-free imager.
Indicates that the WT6000 is connected to a corded hands-free imager.
Indicates the RS507 or RS6000 is connected to the device in HID mode.
31
Using the WT6000
Table 5 Notification Icons (Continued)
Icon Description
Indicates that the RxLogger application is running and capturing data.
Indicates PTT Express is active. See NEED LINK for more information.
Managing Notifications
Notification icons report the arrival of new messages, calendar events, and alarms, as well as ongoing events.
When a notification occurs, an icon may appear in the Status bar with a brief description. See Notification Icons on
page 31 for a list of possible notification icons and their description. Open the Notifications panel to view a list of all
the notifications.
To open the Notification panel, drag the Status bar down from the top of the screen.
Figure 22 Notification Panel
The WT6000 provides notifications when the user connects an accessory or cables into the interface connectors.
The notification lists the connector and the type of cable.
To respond to a notification, open the Notifications Panel and then touch a notification. The Notifications Panel
closes and the subsequent activity is dependent on the notification.
To clear all notifications, open the Notifications Panel and then touch CLEAR ALL. All event-based notifications
are removed. Ongoing notifications remain in the list.
To close the Notification Panel, swipe the Notifications Panel up.
Setting Application Notifications
To change notification settings for a specific app:
1. Swipe down from the status bar to open the notification panel and then touch .
2. Touch Notifications.
3. Select an application.
4. Select an available option:
• Block all - Never show notifications from this application.
• Show silently - Do not allow notifications from this application to make sound, vibrate or peek into view.
• Override Do Not Disturb - Allow these notifications to interrupt when Do Not Disturb is set to Priority Only.
32
Using the WT6000
NOTE: In the notification, slide the notification slightly left or right and touch .
Viewing Notification Settings for All Apps
1. Swipe down from the status bar to open the notification panel and then touch .
2. Touch Notifications.
3. Touch down-arrow next to All apps.
4. To see all the apps currently set to a specific setting, touch that setting.
Controlling Lock Screen Notifications
To control whether notifications can be seen when the device is locked.
1. Swipe down from the status bar to open the notification panel and then touch .
2. Touch Notifications.
3. Touch > On the lock screen and select one of the following:
• Show all notification content (default)
• Don’t show notifications at all.
Quick Access Panel
Use Quick Settings to get to frequently used settings, like turning on airplane mode. To open the Quick Settings
bar, swipe down once from the top of an unlocked screen.
Figure 23 Quick Settings Bar
To see the full Quick Settings panel:
• If the WT6000 is locked, swipe down once.
• If the WT6000 is unlocked, swipe down once with two fingers, or twice with one finger.
• If the Quick Settings bar is open, touch the Down arrow.
Figure 24 Quick Access Panel
To change a setting, just touch the icon from the Quick Settings panel:
• Display brightness: Slide to lower or increase the brightness of the screen.
33
Using the WT6000
• Wi-Fi network: Turn Wi-Fi on or off. To open Wi-Fi settings, touch the Wi-Fi network name.
• Bluetooth settings: Turn Bluetooth on or off. To open Bluetooth settings, touch the Bluetooth icon.
• Battery Power - Indicates percentage of battery power remaining. Touch to view battery usage.
• Invert colors - Invert the display colors.
• Do not disturb: Control how and when to receive notifications.
• Airplane mode: Turn airplane mode on or off. Airplane mode means device will not connect to Wi-Fi or
Bluetooth.
• Auto-rotate: Lock the device’s orientation in portrait or landscape mode or set to automatically rotate.
• Data Saver - Turn on to prevent some apps from sending or receiving data in the background.
• Hotspot - Not supported.
• Cast - Turn on to mirror the WT6000 screen on a Miracast enabled wireless display
Edit Icons on Quick Settings
The first several setting tiles become the Quick Settings bar.
To move a setting tile:
1. Open Quick Settings panel.
2. Touch .
3. Touch and drag a setting tile to another location.
4. Release the tile.
5. Touch to save tiles and return to quick settings.
To add a setting tile:
1. Open Quick Settings panel.
2. Touch .
3. Slide Quick Settings panel up to reveal additional tiles.
4. Touch and drag a setting tile from the Drag to add tiles area to the main area.
5. Release the tile.
6. Touch to save tiles and return to quick settings.
To remove a setting tile:
1. Open Quick Settings.
2. Touch .
3. Touch and drag a setting tile to the Drag here to remove area.
4. Release the tile.
5. Touch to save tiles and return to quick settings.
Application Shortcuts and Widgets
Application shortcuts placed on the Home screen allow quick and easy access to applications. Application Widgets
are self-contained applications placed on the Home screen to access frequently used features.
34
Using the WT6000
Adding an Application to the Home Screen
1. Go to the desired Home screen.
2. Swipe up from the bottom of the screen.
3. Scroll through the list to find the application icon.
4. Touch and hold the icon until the Home screen appears.
5. Position the icon on the screen and then release.
Adding a Widget to the Home Screen
To add a widget to the Home screen:
1. Go to the desired Home screen.
2. Touch and hold until the menu appears.
3. Touch WIDGETS.
4. Scroll through the list to find the widget.
5. Touch and hold the widget until the Home screen appears.
6. Position the widget on the screen and then release.
Moving Items on the Home Screen
1. Touch and hold the item until it floats on the screen.
2. Drag the item to a new location. Pause at the edge of the screen to drag the item onto an adjacent Home
screen.
3. Lift finger to place the item on the Home screen.
Removing an Application Shortcut or Widget from the Home Screen
1. Go to the desired Home screen.
2. Touch and hold the application shortcut or widget icon until it floats on the screen.
3. Drag the icon to on the top of the screen and then release.
Folders
Use Folders to organize similar applications together. Tap the folder to open and display items in the folder.
Creating a Folder
To create a folder, there must be at least two app icons on the Home screen.
1. Go to the desired Home screen.
2. Touch and hold on one application icon.
3. Drag the icon and stack on top of another icon.
4. Lift and release.
Naming Folders
To name a folder:
1. Touch the folder.
35
Using the WT6000
Figure 25 Figure 26 Open Folder
2. Touch the title area and enter a folder name using the keyboard.
3. Touch on the keyboard.
4. Touch anywhere on the Home screen to close the folder. The folder name appears under the folder.
Removing a Folder
To remove a folder:
1. Touch and hold the folder icon.
2. Drag the folder to
X
Remove and release.
Home Screen Wallpaper
To change the Home screen wallpaper:
1. Touch and hold on the screen until the menu appears.
2. Touch WALLPAPERS.
3. Touch My photos to select a photo from Gallery or select one of the pre-installed photos.
4. Touch Set wallpaper.
Application Shortcuts and Widgets
Application shortcuts placed on the Home screen allow quick and easy access to applications. Widgets are
self-contained applications placed on the Home screen to access frequently used features.
Adding an Application or Widget to the Home Screen
1. Go to the desired Home screen.
2. Touch .
3. Swipe right, if necessary, to find the application icon or widget.
4. Touch and hold the icon or widget until the Home screen appears.
5. Position the icon on the screen and then release.
Moving Items on the Home Screen
1. Touch and hold the item until it floats on the screen.
2. Drag the item to a new location. Pause at the edge of the screen to drag the item onto an adjacent Home
screen.
3. Lift finger to place the item on the Home screen.
36
Removing an App or Widget from the Home Screen
1. Go to the desired Home screen.
2. Touch and hold the application shortcut or widget icon until it floats on the screen.
3. Drag the icon to on the top of the screen and then release.
Folders
Use Folders to organize similar applications together. Tap the folder to open and display items in the folder.
Using the Touchscreen
Use the multi-tap sensitive screen to operate the device.
• Tap - Tap to:
• select items on the screen
• type letters and symbols using the on-screen keyboard
• press on-screen buttons.
• Tap and Hold - Tap and hold:
Using the WT6000
• an item on the Home screen to move it to a new location or to the trash.
• an item in Apps to create a shortcut on the Home screen.
• the Home screen to open a menu for customizing the Home screen.
• an empty area on the Home screen until the menu appears.
• Drag - Tap and hold an item for a moment and then move finger on the screen until reaching the new
position.
• Swipe - Move finger up and down or left and right on the screen to:
• unlock the screen
• view additional Home screens
• view additional application icons in the Launcher window
• view more information on an application’s screen.
• Double-tap - Tap twice on a web page, map, or other screen to zoom in and out.
• Pinch - In some applications, zoom in and out by placing two fingers on the screen and pinching them
together (to zoom out) or spreading them apart (to zoom in).
37
Keyboards
The device provides the following types of keyboards:
• Android Keyboard
• Enterprise Keyboard
• Japanese IME
NOTE: By default the Enterprise and Japanese IME keyboards are disabled.
Keyboard Configuration
Enabling Keyboards
1. Swipe down from the status bar to open the quick settings bar and then touch .
2. Touch Languages & input > Virtual keyboard > Manage keyboards.
3. Slide the keyboard switch to the On position to enable.
Using the WT6000
Switching Between Android and Enterprise Keyboards
1. Touch in a text box to display the current keyboard.
2. On the Enterprise keyboard, touch or on the Android keyboard, touch .
Selecting the Japanese IME Keyboard
1. Touch in a text box to display the current keyboard.
2. Press and hold or and select Japanese IME.
Using the Enterprise Keyboard
The Enterprise Keyboard contains the following keyboards:
• Numeric
• Alpha
• Special characters
• Data capture.
Numeric Tab
To access the numeric keyboard, touch the 123 tab. The keys displayed vary on the application being used. For
example, an arrow displays in Contacts, however Done displays in Email account setup.
38
Using the WT6000
Figure 26 Numeric Keyboard
Alpha Tab
To access the alpha keyboard, touch the EN tab.
Figure 27 Alpha Keyboard
Touch to enter emoji icons in a text message.
Figure 28 Emoji Keyboard
Touch ABC to return to the Alpha keyboard.
39
Using the WT6000
Additional Character Tab
To access additional characters, touch the #*/ tab.
Figure 29 Symbols Keyboard
Scan Tab
The Scan tab provides an easy data capture feature for scanning barcodes.
Figure 30 Scan Keyboard
Using the Android Keyboard
Use the Android keyboard to enter text in a text field. To configure the keyboard settings, touch and hold / (forward
slash) and then select Android keyboard settings.
Editing Text
Edit entered text and use menu commands to cut, copy, and paste text within or across applications. Some
applications do not support editing some or all of the text they display; others may offer their own way to select text.
Entering Numbers, Symbols and Special Characters
To enter numbers and symbols:
• Touch and hold one of the top-row keys until a menu appears then select a number or special character.
• Touch the Shift key once for a single capital letter. Touch the Shift key twice to lock in uppercase. Touch
the Shift key a third time to unlock Capslock.
• Touch ?123 to switch to the numbers and symbols keyboard.
• Touch the =\< key on the numbers and symbols keyboard to view additional symbols.
To enter special characters, touch and hold a number or symbol key to open a menu of additional symbols.
• A larger version of the key displays briefly over the keyboard.
• Keys with alternate characters display an ellipsis ( ... ) below the character.
40
Keypad
The alphanumeric keypad accessory contains scroll keys and function keys. The keypad is color-coded to indicate
the alternate function keys (blue, orange and gray). Note that keypad functions can be changed by an application,
so the wearable terminal’s keypad may not function exactly as described.
Figure 31 Keypad
Using the WT6000
Table 6 Alphanumeric Keypad Descriptions
Key Description
Orange Press and release the Orange key to activate alphabetic characters (shown on the keypad in
orange). The orange icon appears in the Status bar.
Gray Press and release the Gray key to activate alphabetic characters (shown on the keypad in
gray). The gray icon appears in the Status bar.
Blue Press and release the Blue key to activate the keypad alternate functions (shown on the
keypad in blue). The blue icon appears in the Status bar.
Scroll Keys Moves up or down from one item to another or increases/decreases specified values. Moves
left or right from one item to another when used with the Blue key. For each left or right scroll,
the Blue key must be pressed first.
ESC Exits the current operation.
Alphanumeric In default state, produces the numeric value on the key.
In Left Alpha state, produces the lower case alphabetic characters in the orange area. In
Right Alpha state, produces the lower case alphabetic characters in the gray area. When the
CAPS key is pressed in the Alpha state, the upper case alphabetic characters on the key are
produced. For example, press and release the Orange key, press and release the CAPS key
and then press the 4 key once to produce the letter ‘G’.
CTRL (Control) Press and release the CTRL key to activate the keypad alternate CTRL functions. The CTRL
icon appears in the Status bar.
Press the Blue key followed by the CTRL key to activate the keypad alternate ALT functions.
The ALT icon appears in the Status bar.
SHIFT Press and release the SHIFT key to activate the keypad alternate SHIFT functions. The
arrow icon appears in the Status bar.
41
Using the WT6000
Table 6 Alphanumeric Keypad Descriptions (Continued)
Key Description
ENTER Executes a selected item or function.
TAB Move the focus to the next field in a window.
MENU Press and release Blue key, then press and release the MENU key to display the menu on
the current screen.
CAPS Press and release Blue key, then press and release the CAPS key to activate upper case
alphabetic characters.
Backspace function.
Space function when used with the Blue key.
Enables the backlight when used with the Orange key.
Disables the backlight when used with the Orange key.
The keypad is color-coded to indicate the alternate function key (blue) values and the alternate ALPHA key
(orange) values. See Table 7 for the special character generation.
Table 7 Special Character Generation Map
Special Character Keypad
!
(exclamation point)
@
(at sign)
#
(Pound sign)
$
(dollar sign)
%
(percent sign)
^
(carat)
&
(ampersand)
Shift - 1
Shift - 2
Shift - 3
Shift - 4
Shift - 5
Shift - 6
Shift - 7
*
(asterisk)
Shift - 8
42
Using the WT6000
Table 7 Special Character Generation Map (Continued)
Special Character Keypad
(
(open parenthesis)
)
(close parenthesis)
Do Not Disturb Feature
This mode mutes the WT6000 so that it does not make sounds or vibrate.
For example, use Do Not Disturb to:
• Automatically limit sounds at night or during events
• Mute interruptions other than alarms
• Get alerted to messages only from favorite contacts.
Limit Sounds and Vibrations
Mute the WT6000 completely, or let through the important alarms or important calls.
Total Silence
To completely mute the WT6000 so that it does not make a sound or vibrate, choose Total silence.
Shift - 9
Shift - 0
In Total silence mode:
• Alarms do not make noise.
• WT6000 does not vibrate or make sounds when receiving a message, or notification.
• Sounds from music, videos, games, and other media are muted.
NOTE: The user will not hear alarms in Total silence mode.
1. Swipe down with two fingers from the status bar to open the quick access panel.
2. Touch Do not disturb > Total silence.
3. Choose Until you turn it off or select a time period.
4. Touch Done.
When Total Silence is on, appears in the quick access panel and the Status Bar.
To turn off Total Silence, open quick access panel and touch Total silence.
Alarms Only
To mute the WT6000 so that the user hears alarms, choose Alarms only. This option does not mute sounds from
music, videos, games, or other media.
1. Swipe down with two fingers from the status bar to open the quick access panel.
2. Touch Do not disturb > Alarms only.
43
Using the WT6000
3. Choose Until you turn it off or select a time period.
4. Tap Done.
When Alarms Only is on, appears in the quick access panel and the Status Bar.
To turn off Alarms Only, open quick access panel and touch Alarms only.
NOTE: To quickly turn on Alarms Only, with the screen on, press and hold the Volume Down button until the volume
is all the way down. Then, press Volume Down again to turn on Alarms Only.
To turn off Alarms Only, press either the Volume Up or Volume Down button and the touch END NOW in the
alert message. Then, press Volume Up again to turn on Alarms Only.
Priority Notifications Only
To only be interrupted by important notifications, choose Priority Only. This option does not mute sounds from
music, videos, games, or other media.
Before turning on Priority Only mode, set the notification priorities:
1. Swipe down from the status bar to open the quick access panel and then touch .
2. Touch Sound > Do not disturb > Priority only allows.
3. Set priorities.
• Alarms: Disabled by default.
• Reminders and Events: Switch on or off.
• Messages and Calls: Choose From anyone, From contacts only, From starred contacts only, or
none. To star contacts, use the Contacts app.
• Repeat callers: Choose whether to let the WT6000 ring if the same person calls again within 15 minutes.
After setting notification priorities, turn on Priority only mode to limit interruptions. The priority notifications make a
sound or vibrate based on the current ringer volume, but other notifications will be silenced.
1. Swipe down with two fingers from the status bar to open the quick access panel.
2. Touch Do not disturb > Priority only.
3. Choose Until you turn it off or select a time period.
4. Tap Done.
When Priority Only is on, appears in the quick access panel and the Status Bar.
To turn off Priority Only, open quick access panel and touch Priority only.
Automatically Block Sounds and Vibrations
Silence Sounds During Certain Times
To automatically silence the WT6000 during certain times, like at night or on weekends, set the time rules.
1. Swipe down from the status bar to open the quick access panel and then touch .
2. Touch Sound > Do not disturb > Automatic rules.
3. Touch a default Weekend or Weeknight. Or, to make a new rule, touch Add rule and then Time rule.
44
Using the WT6000
4. Edit the new rule:
• Rule name: Name the rule.
• Days, Start time, and End time: Set the rule's schedule.
• Do not disturb: Choose whether the rule uses Alarms only, Priority only, or Total silence.
5. Touch the On/Off text or switch at the top to turn on the rule.
Silence Sounds During Events and Meetings
To automatically silence the WT6000 during events or meetings, set an event rules.
1. Swipe down from the status bar to open the quick access panel and then touch .
2. Touch Sound > Do not disturb > Automatic rules.
3. To edit the default rule, touch Event. Or, to create a new rule, touch Add rule > Event rule.
4. Edit the rule settings.
• During events for: Select which Google Calendar events the rule uses.
• Where reply is: Options: Yes, Maybe, or Not replied, Yes or Maybe, or Yes.
• Do not disturb: Choose whether the rule uses Priority only, Alarms only, or Total silence.
5. Touch the On/Off switch at the top to turn on the rule.
Turn Sounds Back On
When the WT6000 is in Do Not Disturb mode, Alarms or Priority only or Total silence display.
To turn off Do Not Disturb, either:
• In the quick access panel, touch Alarms only, Priority only, or Total silence.
• Press the Volume Down button and touch End Now.
Override Do Not Disturb for Specific Apps
To let through notifications from specific apps:
1. Open Settings > Notifications.
2. Touch an app.
3. Touch Override Do Not Disturb.
Applications
The APPS screen displays icons for all installed applications. The table below lists the applications installed on the
WT6000. Refer to the WT6000 Integrator Guide for information on installing and uninstalling application.
45
Using the WT6000
Table 8 Applications
Icon Description
App Gallery - Provides links to utilities and demonstration applications that can be installed on the
WT6000.
Battery Manager - Displays battery information, including charge level, status, health and wear
level.
Bluetooth Pairing Utility – Use to pair the RS6000 Hans-free Imager with the WT6000 by
scanning a bar code.
Calculator - Provides the basic and scientific arithmetic functions.
Calendar - Use to manage events and appointments.
Chromium - Use to access the Internet or intranet.
Clock - Use to schedule alarms for appointments or as a wake-up.
Contacts - Use to manage contact information.
DataWedge - Enables data capture using the imager.
Device Central - Displays detailed information about the WT6000 and supported peripherals. See
Device Central on page 76 for more information.
Diagnostic Tool - Use to diagnose the WT6000.
Downloads - Lists all downloads files.
DWDemo - Provides a way to demonstrate the data capture features using the imager. See
DataWedge Demonstration on page 89 for more information.
46
Using the WT6000
Table 8 Applications (Continued)
Icon Description
Email - Use to send and receive email.
File Browser - Organize and manage files on the WT6000. See File Browser on page 78 for more
information.
Gallery - Use to view photos stored on the device.
License Manager - Use to manage software licenses on the WT6000.
Music - Play music stored on the device.
PTT Express - Use to launch PTT Express client for VoIP communication.
PTT Express - Use to launch PTT Express client for VoIP communication.
RxLogger - Use to diagnose device and application issues. See the WT6000 Integrator Guide for
more information.
RxLogger Utility – Use to monitor data from log files on the WT6000 while RxLogger is running.
See RxLogger Utility on page 91 for more information.
Search - Use the Google search engine to search the Internet and the WT6000.
Settings - Use to configure the WT6000.
Sound Recorder - Use to record audio.
47
Using the WT6000
Table 8 Applications (Continued)
Icon Description
StageNow - Allows the WT6000 to stage a device for initial use by initiating the deployment of
settings, firmware and software.
Velocity - Opens the Ivanti (formerly Wavelink) terminal emulation application.
Accessing Applications
All applications installed on the device are accessed using the APPS window.
1. On the Home screen, swipe up from the bottom of the screen.
Figure 32 APPS Window
2. Slide the APPS window up or down to view more application icons. Touch an icon to open the application. See
Application Shortcuts and Widgets on page 34 for information on creating a shortcut on the Home screen.
Switching Between Recent Applications
1. Touch and hold . A window appears on the screen with icons of recently used applications.
Figure 33 Recently Used Applications
2. Slide the window up and down to view all recently used applications.
3. Swipe left or right to remove application from the list and force close the application.
4. Touch an icon to open it or touch to return to the current screen.
48
Using the WT6000
Un-Locking the Screen
Use the Lock screen to protect access to data on the WT6000. Some email account require locking the screen.
Refer to the WT6000 Integrator Guide for information on setting up the locking feature. The Locking feature
functions differently in Single User mode or Multiple User mode.
When locked, a pattern, PIN or password is required to unlock the device. Press the Power button to lock the
screen. The device also locks after a pre-defined time-out.
Press and release the Power button to wake the device. The Lock screen displays. Swipe the screen up to unlock.
If the Pattern screen unlock feature is enabled, the Pattern screen appears instead of the Lock screen. If the PIN or
Password screen unlock feature is enabled, enter the PIN or password after unlocking the screen.
Figure 34 Lock Screen
Figure 35 PIN Screen
Figure 36 Pattern Screen
49
Figure 37 Password Screen
Using the WT6000
50
Suspend Mode
The WT6000 goes into suspend mode when the user presses the Power button or after a period of inactivity (set in
the Display settings).
To wake the WT6000 from Suspend mode, press the Power button. The Lock screen displays. Swipe the screen
up to unlock. If the Pattern screen unlock feature is enabled, the Pattern screen appears instead of the Lock
screen. If the PIN or Password screen unlock feature is enabled, enter the PIN or password after unlocking the
screen. See Un-Locking the Screen on page 49.
NOTE: If the user enters the PIN, password or pattern incorrectly five times, they must wait 30 seconds before
trying again.
If the user forgets the PIN, password or pattern contact the system administrator.
Resetting the WT6000
There are two reset functions:
Using the WT6000
• Soft reset
• Hard reset.
Performing a Soft Reset
Perform a soft reset if applications stop responding.
1. Press the power button until the menu appears.
2. Touch Reset.
3. The device reboots.
Performing a Hard Reset
CAUTION:Performing a hard reset with a microSD card installed in the WT6000 may cause damage or data
corruption to the microSD card.
Perform a hard reset if the WT6000 stops responding.
1. Simultaneously press and hold the power, P1 and P2 buttons for five seconds.
2. When the screen turns off, release the buttons.
3. The WT6000 reboots.
51
Using the WT6000
Transferring Files with a Host Computer via USB
Connect the WT6000 to a host computer using the USB/Charge Cable, 1-Slot Charging Cradle, or 2-Slot Charging
Cradle to transfer files between the WT6000 and the host computer. See Accessories for more information.
When connecting the WT6000 to a host computer, follow the host computer’s instructions for connecting and
disconnecting USB devices, to avoid damaging or corrupting files.
Transferring Files using Media Transfer Protocol
1. Connect the Rugged Charge/USB Cable to the WT6000 or place the WT6000 into the 1-Slot Charging Cradle,
or 2-Slot Charging Cradle. See Accessories for setup information.
2. Pull down the Notification panel and touch USB charging this device.
Figure 38 Use USB Dialog Box
3. Touch Transfer files.
4. On the host computer, open a file explorer application.
5. Locate the WT6000 as a portable device.
6. Open the Internal storage folder.
7. Copy files to and from the WT6000 or delete files as required.
Transferring Files using Photo Transfer Protocol
NOTE: Use Photo Transfer Protocol (PTP) to copy photos from either the microSD card or internal memory to
the host computer.
1. Connect the Rugged Charge/USB Cable to the WT6000 or place the WT6000 into the 1-Slot Charging Cradle,
or 2-Slot Charging Cradle. See Accessories for setup information.
2. Pull down the Notification panel and touch USB charging this device.
3. Touch Transfer photos (PTP).
4. On the host computer, open a file explorer application.
5. Open the Internal storage folder.
6. Copy or delete photos as required.
52
Using the WT6000
Disconnect from the Host Computer
CAUTION:Carefully follow the host computer’s instructions to unmount the microSD card and disconnect USB
devices correctly to avoid losing information.
1. On the host computer, unmount the device.
2. Remove the USB Charging cable from the device or remove the device from the cradle.
53
Data Capture
Introduction
The WT6000 can be used with the following optional data capture accessories:
• RS4000 laser scanner
• RS5,000 corded imager
• RS6000 Hands-free imager
• RS507/RS507X Hands-free imager.
Laser Scanning
WT6000 with an optional RS4000 laser scanner has the following features:
• Reading of a variety of bar code symbologies, including the most popular linear and 1D code types.
• Advanced intuitive laser aiming for easy point-and-shoot operation
• Adaptive scanning.
Scanning Bar Codes
NOTE: Scanning procedures depend on the application and WT6000 configuration. An application may use
different scanning procedures from the one listed below.
Imaging
The WT6000 with an optional RS507, RS5,000 or RS6000 imager has the following features:
• Omnidirectional (360°) reading of a variety of bar code symbologies, including the most popular linear,
postal, PDF417, and 2D matrix code types.
• Advanced intuitive laser aiming for easy point-and-shoot operation.
The imager uses imaging technology to take a picture of a bar code, stores the resulting image in its memory, and
executes state-of-the-art software decoding algorithms to extract the bar code data from the image.
54
Operational Modes
The optional imager supports two modes of operation. Activate each mode pressing the Scan button.
• Decode Mode: In this mode, the imager attempts to locate and decode bar codes within its field of view.
The imager remains in this mode as long as the user holds the scan button, or until it decodes a bar code.
NOTE: To enable Pick List Mode use DataWedge. Pick List can also be set in an application using a API
command.
• Pick List Mode: This mode allows the user to selectively decode a bar code when more than one bar code
is in the imager’s field of view. To accomplish this, move the aiming crosshair center dot over the required
bar code to decode only that bar code. This feature is ideal for pick lists containing multiple bar codes and
manufacturing or transport labels containing more than one bar code (either 1D or 2D).
Scanning Considerations
Typically, scanning is a simple matter of aim, scan/decode and a few quick trial efforts master it. However, two
important considerations can be used to optimize any scanning performance:
Data Capture
• Range
Any scanning device decodes well over a particular working range - minimum and maximum distances from
the bar code. This range varies according to bar code density and scanning device optics.
Scanning within range brings quick and constant decodes; scanning too close or too far away prevents
decodes. Move the scanner closer and further away to find the right working range for the bar codes being
scanned. However, the situation is complicated by the availability of various integrated scanning modules. The
best way to specify the appropriate working range per bar code density is through a chart called a decode zone
for each scan module. A decode zone simply plots working range as a function of minimum element widths of
bar code symbols. Refer to the WT6000 Integrator Guide for decode zones for the optional data capture
options.
• Angle
Scanning angle is important for promoting quick decodes. When laser beams reflect directly back into the
scanner from the bar code, this specular reflection can “blind” the scanner.
To avoid this, scan the bar code so that the beam does not bounce directly back. But don’t scan at too sharp
an angle; the scanner needs to collect scattered reflections from the scan to make a successful decode.
Practice quickly shows what tolerances to work within.
\
NOTE: Contact the Zebra Global Support Center if chronic scanning difficulties develop. Decoding of properly
printed bar codes should be quick and effortless.
Bar Code Capture with RS4000
To read a bar code, a scan-enabled application is required. The WT6000 contains the DataWedge application that
allows the user to enable the scanner to decode bar code data and display the bar code content. See DataWedge
on page 89 for information on enabling DataWedge.
1. Connect the RS4000 to the WT6000. See RS4000 Scanner on page 131 for more information.
2. Ensure that a scan enabled application is loaded or DataWedge is enabled (see DataWedge on page 89 for
more information).
3. Press the trigger.
55
Data Capture
4. Aim the scan beam at the bar code.
Ensure the red scan beam covers the entire bar code. The Decode LED lights red to indicate that scanning is
in process, then lights green and a beep sounds, by default, to indicate the bar code was decoded
successfully.
Figure 39 Laser Scanner Aiming Pattern
5. Release the trigger.
Adaptive Scanning
The RS4000 contains the adaptive scanning feature that automatically adjusts the scan beam width for rapid and
easy scanning of bar codes from near contact to more than 200 inches away.
By default the RS4000 is set to wide scan beam width. When the user presses the trigger, the RS4000 determines
the distance from the bar code. For close bar codes the RS4000 sets a wide beam width and for far bar codes it
sets a narrow beam width. The RS4000 uses distance, bar code type and material to determine the correct scan
beam width.
Figure 40 RS4000 Adaptive Scanning
Bar Code Capture with RS5,000 Corded Imager
To read a bar code, a scan-enabled application is required. The WT6000 contains the DataWedge application that
allows the user to enable the scanner to decode bar code data and display the bar code content. See DataWedge
on page 89 for more information on launching DataWedge.
56
Data Capture
1. Connect the RS5,000 to the WT6000. See RS5000 Imager on page 133 for more information.
2. Press the scan trigger and aim the RS5,000 at a bar code.
3. Ensure the bar code is within the area formed by the aiming pattern. The aiming dot is used for increased
visibility in bright lighting conditions.
Figure 41 RS5,000 Aiming Pattern
Figure 42 RS5,000 Pick List Mode with Multiple Bar Codes
4. If the decode is successful the LED lights green. The terminal beeps if programmed accordingly.
NOTE: Imager decoding usually occurs instantaneously. The RS5,000 repeats the steps required to take a
digital picture (image) of a poor or difficult bar code as long as the scan button remains pressed.
Bar Code Capture with RS6000 Hands-Free Imager
To read a bar code, a scan-enabled application is required. The WT6000 contains the DataWedge application that
allows the user to enable the scanner to decode bar code data and display the bar code content. See DataWedge
on page 89 for more information on launching DataWedge.
Pair the RS6000 with the WT6000. See Pairing Using Simple Serial Interface on page 62 or Pairing Using
Bluetooth Human Interface Device on page 63 for more information.
1. Ensure that an application is open on the device and a text field is in focus (text cursor in text field).
2. Point the RS6000 at a bar code.
57
Data Capture
Figure 43 Bar Code Scanning with RS6000
3. Press and hold the trigger.
The red laser aiming pattern turns on to assist in aiming. Ensure the bar code is within the area formed by the
cross-hairs in the aiming pattern. The aiming dot is used for increased visibility in bright lighting conditions.
The RS6000 LEDs light green, a beep sounds to indicate the bar code was decoded successfully. Note that
when the RS6000 is in Pick List Mode, the RS6000 does not decode the bar code until the center of the
crosshair touches the bar code.
Figure 44 Aiming Pattern
Figure 45 Pick List Mode with Multiple Bar Codes in Aiming Pattern
4. The captured data appears in the text field.
58
Data Capture
Bar Code Capture with RS507 Hands-Free Imager
To read a bar code, a scan-enabled application is required. The WT6000 contains the DataWedge application that
allows the user to enable the scanner to decode bar code data and display the bar code content. See DataWedge
on page 89 for more information on launching DataWedge.
Pair the RS507 with the WT6000. See Pairing Using Simple Serial Interface on page 62 or Pairing Using Bluetooth
Human Interface Device on page 63 for more information.
1. Ensure that an application is open on the device and a text field is in focus (text cursor in text field).
2. Point the RS507 at a bar code.
Figure 46 Bar Code Scanning with RS507
3. Press and hold the trigger.
The red laser aiming pattern turns on to assist in aiming. Ensure the bar code is within the area formed by the
cross-hairs in the aiming pattern. The aiming dot is used for increased visibility in bright lighting conditions.
The RS507 LEDs light green, a beep sounds to indicate the bar code was decoded successfully. Note that
when the RS507 is in Pick List Mode, the RS507 does not decode the bar code until the center of the crosshair
touches the bar code.
Figure 47 Aiming Pattern
59
Data Capture
Figure 48 Pick List Mode with Multiple Bar Codes in Aiming Pattern
4. The captured data appears in the text field.
Pairing the RS507/RS6000 Hands-Free Imager
To connect the RS507 or RS6000 imagers to the WT6000, use one of the following methods:
• Near Field Communication (NFC)
• Simple Serial Interface (SSI)
• Bluetooth Human Interface Device (HID) Mode.
Pairing Using Near Field Communication
The WT6000 provides the ability to pair the RS6000 using NFC.
NOTE: RS6000 only.
1. Ensure that the RS6000 is in SSI mode. Refer to the RS6000 User Guide for more information.
2. Ensure that NFC is enabled on the WT6000.
3. Align the NFC icon on the RS6000 with the NFC icon on the WT6000.
The Status LED blinks blue indicating that the RS6000 is attempting to establish connection with the WT6000.
When connection is established, the Status LED turns off and the RS6000 emits a single string of low/high
beeps.
A notification appears on the WT6000 screen and the icon appears in the Status bar.
60
Figure 49 Align NFC Antennas
NFC Logo
Data Capture
The WT6000 pairs with the RS6000 and appears in the Status bar.
NOTE: Not all Zebra device support NFC readers and the Tap-to-Pair feature.
Pairing in HID Mode Using Near Field Communication
The WT6000 provides the ability to pair the RS6000 in HID Mode using NFC.
NOTE: RS6000 Only.
1. Ensure that NFC is enabled on the WT6000.
2. Ensure that Bluetooth is enabled on both devices.
3. Ensure that the Bluetooth device to discover is in discoverable mode.
4. Ensure that the two devices are within 10 meters (32.8 feet) of one another.
5. Place the RS6000 in Human Interface Device (HID) mode. If the RS6000 is already in HID mode, skip to step
5.
a. Remove the battery from the RS6000.
b. Press and hold the Restore key.
c. Install the battery onto the RS6000.
d. Keep holding the Restore key for about five seconds until a chirp is heard and the Scan LEDs flash green.
e. Scan the bar code below to place the RS6000 in HID mode.
61
Data Capture
NFC Logo
Figure 50 Bluetooth HID Bar Code
6. Remove the battery from the RS6000.
7. Re-install the battery into the RS6000.
IMPORTANT: Use only the standard 3,350 mAh battery in the RS6000.
8. Align the NFC icon on the RS6000 with the NFC icon on the WT6000.
The Status LED blinks blue indicating that the RS6000 is attempting to establish connection with the WT6000.
When connection is established, the Status LED turns off and the RS6000 emits a single string of low/high
beeps.
A notification appears on the WT6000 screen.
The icon appears in the Status bar.
Figure 51 Align NFC Antennas
The WT6000 pairs with the RS6000 and appears in the Status bar.
NOTE: Not all Zebra device support NFC readers and the Tap-to-Pair feature.
Pairing Using Simple Serial Interface
To pair the RS507/RS6000 with the WT6000 using SSI:
62
Data Capture
1. Ensure that the two devices are within 10 meters (32.8 feet) of one another.
2. Install the battery into the RS6000.
3. On the WT6000 swipe up from the bottom of the Home screen and touch .
Figure 52 Bluetooth Pairing Utility
4. Using the RS507/RS6000, scan the bar code on the screen.
The RS507/RS6000 emits a high/low/high/low beeps. The Scan LED flashes green indicating that the
RS507/RS6000 is attempting to establish connection with the WT6000. When connection is established, the
Scan LED turns off and the RS6000 emits one string of low/high beeps.
A notification appears on the WT6000 screen and the icon appears in the Status bar.
5. On the WT6000, touch .
Pairing Using Bluetooth Human Interface Device
To pair the RS507/RS6000 with the WT6000 using HID:
1. Ensure that Bluetooth is enabled on both devices.
2. Ensure that the Bluetooth device to discover is in discoverable mode.
3. Ensure that the two devices are within 10 meters (32.8 feet) of one another.
4. Place the RS507/RS6000 in Human Interface Device (HID) mode. If the RS507/RS6000 is already in HID
mode, skip to step 5.
a. Remove the battery from the RS507/RS6000.
b. Press and hold the Restore key.
c. Install the battery onto the RS507/RS6000.
d. Keep holding the Restore key for about five seconds until a chirp is heard and the Scan LEDs flash green.
e. Scan the bar code below to place the RS507/RS6000 in HID mode.
Figure 53 Bluetooth HID Bar Code
63
Data Capture
5. Remove the battery from the RS507/RS6000.
6. Re-install the battery into the RS507/RS6000.
7. Swipe down from the status bar to open the quick access panel and then touch .
8. Touch Bluetooth.
9. Touch SCAN FOR DEVICES. The device begins searching for discoverable Bluetooth devices in the area and
displays them under AVAILABLE DEVICES.
10. Scroll through the list and select RS507/RS6000.
The device connects to the RS507/RS6000 and Connected appears below the device name. The Bluetooth
device is added to the Bluetooth devices list and a trusted (“paired”) connection is established.
64
Wireless
Wireless Local Area Networks
Wireless local area networks (WLANs) allow the WT6000 to communicate wirelessly inside a building. Before
using the WT6000 on a WLAN, the facility must be set up with the required hardware to run the WLAN (sometimes
known as infrastructure). The infrastructure and the WT6000 must both be properly configured to enable this
communication.
Refer to the documentation provided with the infrastructure (access points (APs), access ports, switches, Radius
servers, etc.) for instructions on how to set up the infrastructure.
Once the infrastructure is set up to enforce the chosen WLAN security scheme, use the Wireless & networks
settings to configure the WT6000 to match the security scheme.
The WT6000 supports the following WLAN security options:
• Open
• Wireless Equivalent Privacy (WEP).
• Wi-Fi Protected Access (WPA/WPA2) Personal (PSK).
• Extensible Authentication Protocol (EAP).
• Protected Extensible Authentication Protocol (PEAP) - with MSCHAPV2 and GTC authentication.
• Transport Layer Security (TLS)
• TTLS - with Password Authentication Protocol (PAP), MSCHAP and MSCHAPv2 authentication.
• LEAP
• FAST - with MSCHAPV2 and GTC authentication.
The Status bar displays icons that indicate Wi-Fi network availability and Wi-Fi status. See Status Bar on page 30
for more information.
NOTE: Turn off Wi-Fi when not using it, to extend the life of the battery.
Scan and Connect to a Wi-Fi Network
1. Swipe down with two fingers from the status bar to open the quick access panel.
65
Wireless
Figure 54 Quick Access Panel
2. Touch WLAN to open the WLAN screen. The device searches for WLANs in the area and lists them.
Figure 55 WLAN Screen
3. Scroll through the list and select the desired WLAN network.
4. For open networks, touch profile once or press and hold and then select Connect to network or for secure
networks enter the required password or other credentials then touch Connect. See the system administrator
for more information.
The WT6000 obtains a network address and other required information from the network using the dynamic
host configuration protocol (DHCP) protocol. To configure the WT6000 with a fixed internet protocol (IP)
address, refer to the WT6000 Wearable Computer Integrator Guide for Android 7.1.2.
5. In the Wi-Fi setting field, Connected appears indicating that the WT6000 is connected to the WLAN.
Remove a Wi-Fi Network
1. Swipe down from the status bar to open the quick settings bar and then touch .
2. Touch Wi-Fi.
3. In the Wi-Fi list, touch and hold the name of the network.
4. In the menu, touch Forget network.
5. Touch .
66
Bluetooth
Bluetooth-equipped devices can communicate without wires, using frequency-hopping spread spectrum (FHSS)
radio frequency (RF) to transmit and receive data in the 2.4 GHz Industry Scientific and Medical (ISM) band
(802.15.1). Bluetooth wireless technology is specifically designed for short-range (10 meters (32.8 feet))
communication and low power consumption.
Devices with Bluetooth capabilities can exchange information (e.g., files, appointments, and tasks) with other
Bluetooth enabled devices such as printers, access points, and other mobile devices.
Adaptive Frequency Hopping
Adaptive Frequency Hopping (AFH) is a method of avoiding fixed frequency interferers, and can be used with
Bluetooth voice. All devices in the piconet (Bluetooth network) must be AFH-capable in order for AFH to work.
There is no AFH when connecting and discovering devices. Avoid making Bluetooth connections and discoveries
during critical 802.11b communications. AFH for Bluetooth consists of four main sections:
• Channel Classification - A method of detecting an interference on a channel-by-channel basis, or
pre-defined channel mask.
• Link Management - Coordinates and distributes the AFH information to the rest of the Bluetooth network.
• Hop Sequence Modification - Avoids interference by selectively reducing the number of hopping
channels.
• Channel Maintenance - A method for periodically re-evaluating the channels.
Wireless
When AFH is enabled, the Bluetooth radio “hops around” (instead of through) the 802.11b high-rate channels. AFH
coexistence allows Enterprise devices to operate in any infrastructure.
The Bluetooth radio in this device operates as a Class 2 device power class. The maximum output power is 2.5
mW and the expected range is 10 meters (32.8 ft.). A definition of ranges based on power class is difficult to obtain
due to power and device differences, and whether one measures open space or closed office space.
NOTE: It is not recommended to perform Bluetooth wireless technology inquiry when high rate 802.11b
operation is required.
Security
The current Bluetooth specification defines security at the link level. Application-level security is not specified. This
allows application developers to define security mechanisms tailored to their specific need. Link-level security
occurs between devices, not users, while application-level security can be implemented on a per-user basis. The
Bluetooth specification defines security algorithms and procedures required to authenticate devices, and if needed,
encrypt the data flowing on the link between the devices. Device authentication is a mandatory feature of Bluetooth
while link encryption is optional.
Pairing of Bluetooth devices is accomplished by creating an initialization key used to authenticate the devices and
create a link key for them. Entering a common personal identification number (PIN) in the devices being paired
generates the initialization key. The PIN is never sent over the air. By default, the Bluetooth stack responds with no
key when a key is requested (it is up to user to respond to the key request event). Authentication of Bluetooth
devices is based-upon a challenge-response transaction. Bluetooth allows for a PIN or passkey used to create
other 128-bit keys used for security and encryption. The encryption key is derived from the link key used to
authenticate the pairing devices. Also worthy of note is the limited range and fast frequency hopping of the
Bluetooth radios that makes long-distance eavesdropping difficult.
67
Recommendations are:
• Perform pairing in a secure environment
• Keep PIN codes private and do not store the PIN codes in the device
• Implement application-level security.
Bluetooth Profiles
The device supports the following Bluetooth services:
• Service Discovery Protocol (SDP) - Handles the search for known and specific services as well as
general services.
• Serial Port Profile (SPP) - Allows use of RFCOMM protocol to emulate serial cable connection between
two Bluetooth peer devices. For example, connecting the device to a printer.
• Advanced Audio Distribution Profile (A2DP) - Allows the device to stream stereo-quality audio to a
wireless headset or wireless stereo speakers.
• Audio/Video Remote Control Profile (AVRCP) - Allows the device to control A/V equipment to which a
user has access. It may be used in concert with A2DP.
• Human Interface Device Profile (HID) - Allows Bluetooth keyboards, pointing devices, gaming devices
and remote monitoring devices to connect to the device.
• Object Push Profile (OPP) - Allows the device to push and pull objects to and from a push server.
• Headset Profile (HSP) - Allows a hands-free device, such as a Bluetooth headset, to place and receive
calls on the device.
• Hands-Free Profile (HFP) - Allows car hands-free kits to communicate with the device in the car.
• Personal Area Network (PAN) - Allows the use of Bluetooth Network Encapsulation Protocol to provide
L3 networking capabilities over a Bluetooth link. Only PANU role is supported.
• Out of Band (OOB) - Allows exchange of information used in the pairing process. Pairing is completed
using the Bluetooth radio, but requires information from the OOB mechanism. Using OOB with NFC
enables pairing when devices simply get close, rather than requiring a lengthy discovery process.
• Symbol Serial Interface (SSI) - Allows for communication with RS507 Bluetooth Imager.
Wireless
Bluetooth Power States
The Bluetooth radio is off by default.
• Suspend - When the WT6000 goes into suspend mode, the Bluetooth radio stays on.
• Airplane Mode - When the WT6000 is placed in Airplane Mode, the Bluetooth radio turns off. When
Airplane mode is disabled, the Bluetooth radio returns to the prior state. When in Airplane Mode, the
Bluetooth radio can be turned back on if desired.
Bluetooth Radio Power
Turn off the Bluetooth radio to save power or if entering an area with radio restrictions (e.g., an airplane). When the
radio is off, other Bluetooth devices cannot see or connect to the device. Turn on the Bluetooth radio to exchange
information with other Bluetooth devices (within range). Communicate only with Bluetooth radios in close proximity.
NOTE: To achieve the best battery life turn off radios when not in use.
68
Wireless
Enabling Bluetooth
1. Swipe down with two fingers from the status bar to open the quick access panel.
2. Touch to turn Bluetooth on.
3. Touch .
Disabling Bluetooth
1. Swipe down with two fingers from the status bar to open the quick access panel.
2. Touch to turn Bluetooth off.
3. Touch .
Discovering Bluetooth Device(s)
The WT6000 can receive information from discovered devices without pairing. However, once paired, the WT6000
and a paired device exchange information automatically when the Bluetooth radio is on. To find Bluetooth devices
in the area:
1. Ensure that Bluetooth is enabled on both devices.
2. Ensure that the Bluetooth device to discover is in discoverable mode.
3. Ensure that the two devices are within 10 meters (32.8 feet) of one another.
4. Swipe down with two fingers from the status bar to open the quick access panel.
5. Touch Bluetooth.
6. Touch More Settings. The Bluetooth screen appears.
7. The WT6000 begins searching for discoverable Bluetooth devices in the area and displays them under
Available devices.
8. Scroll through the list and select a device. The Bluetooth pairing request dialog box appears.
Figure 56 Bluetooth Pairing - Smart Pairing
9. Enter a PIN in the text box and touch OK. Enter the same PIN on the other device.
10. For Simple Pairing, touch Pair on both devices.
11. The Bluetooth device is added to the Paired devices list and a trusted (“paired”) connection is established.
Changing the Bluetooth Name
By default, the WT6000 has a generic Bluetooth name that is visible to other devices when connected.
1. Swipe down from the status bar to open the quick settings bar and then touch .
2. Touch Bluetooth.
3. If Bluetooth is not on, touch the switch to turn Bluetooth on.
69
Wireless
4. Touch .
5. Touch Rename this device.
6. Enter a name and touch Rename.
7. Touch .
Connecting to a Bluetooth Device
Once paired, connect to a Bluetooth device.
1. Swipe down from the status bar to open the quick settings bar and then touch .
2. Touch Bluetooth.
3. If Bluetooth is not on, touch the switch to turn Bluetooth on.
4. In the list, touch the unconnected Bluetooth device.
5. When connected, Connected appears below the device name.
Selecting Profiles on the Bluetooth Device
Some Bluetooth devices have multiple profiles. To select a profile:
1. Swipe down from the status bar to open the quick settings bar and then touch .
2. Touch Bluetooth.
3. In the Paired devices list, touch next to the device name.
4. Under Use for, check or uncheck a profile to allow the device to use that profile.
5. Touch OK.
6. Touch .
Unpairing a Bluetooth Device
To unpair a Bluetooth device and erase all pairing information:
1. Swipe down from the status bar to open the quick settings bar and then touch .
2. Touch Bluetooth.
3. In the Paired devices list, touch next to the device name.
4. Touch FORGET.
5. Touch .
Near Field Communications
NFC/HF RFID is a short-range wireless connectivity technology standard that enables secure transaction between
a reader and a contactless smart card. The technology is based on ISO/IEC 14443 type A and B (proximity), Felica
and ISO/IEC 15693 (vicinity) standards, using the HF 13.56 MHz unlicensed band. The WT6000 supports three
operating modes:
• Reader mode
70
Wireless
• Peer-to-Peer communication
• Card Emulation mode.
Using NFC, the WT6000 can:
• Read contactless cards such as contactless tickets, NFC labels, HF tokens or standard smart cards.
• Read and write information to contactless cards such as SmartPosters and tickets, as well as devices with
NFC interface such as vending machines.
• Read information from supported medical sensors.
• Pair with supported Bluetooth devices such as printers and headsets. See Pairing Using Near Field
Communication on page 60 for instruction on pairing the RS6000 Ring Scanner with the WT6000 using
NFC.
• Exchange data with another NFC device.
• Emulate contactless card such as ticket or V-card.
The WT6000 NFC antenna is uniquely positioned to read NFC cards from the front of the device.
Reading NFC Cards
1. Make sure NFC is turned on.
a. Swipe down from the status bar to open the quick settings bar and then touch .
b. Touch More.
c. Ensure that the NFC switch is in the on (green) position.
d. Touch .
2. Launch an NFC enabled application or use a NFC NDEF formatted tag.
3. Hold device as shown.
Figure 57 Reading NFC Card
4. Move NFC card until the WT6000 detects the card.
71
Wireless
5. Hold the card steadily until the transaction is complete (usually indicated by the application).
72
Applications
Introduction
This chapter describes the applications installed on the device.
Battery Manager
The Battery Manager provides detailed information about the battery.
Figure 58 Battery Manager Screen
Table 9 Battery Icon Description
Battery Icon Description
Indicates battery charge level.
Indicates battery charging.
Indicates battery charge level is below 20%.
• Battery level - Indicate the current battery charge level as a percentage. Displays -% when level is
unknown.
73
Applications
• Time until empty - Indicates the amount of time before the battery is depleted based on current usage.
Displays when the device is not on AC power.
• Time until full - Indicates the amount of time until the battery is fully charged based on charge rate.
Displays when the device is on AC power.
• Time since charging - Indicates the amount of time since the battery started charging.
• Battery status
• Not charging - Indicates that the device is not connected to AC power.
• Charging over AC - Indicates that the device is connected to AC power and charging.
• Charging over USB - Indicates that the device is connected to a host computer with a USB cable and
charging.
• Discharging - Indicates that the battery is discharging.
• Full - Indicates that the battery is fully charged.
• Unknown - Indicates that the battery status is unknown.
• Battery health - Indicates the health of the battery. If a critical error occurs, appears. Touch to view
error description.
• Decommission - The battery is past it’s useful life and should be replaced. See system administrator.
• Good - The battery is good.
• Charge error - An error occurred while charging. See system administrator.
• Over Current - An over-current condition occurred. See system administrator.
• Dead - The battery has no charge. Replace the battery.
• Over Voltage - An over-voltage condition occurred. See system administrator.
• Below Temperature - The battery temperature is below the operating temperature. See system
administrator.
• Failure Detected - A failure has been detected in the battery. See system administrator.
• Unknown - See system administrator.
• Wear level - Indicates the health of the battery in graphical form. When the wear level exceeds 80%, the
bar color changes to red.
74
Applications
• Advanced info - Touch to view additional battery information.
• Battery present status - Amount of usable charge remaining in the battery at present, under the
current discharge conditions.
• Battery level - Indicates battery charge level as a percentage of scale.
• Battery scale - Battery scale level used to determine battery level (100).
• Battery voltage - Indicates current battery voltage in millivolts.
• Battery temperature - Indicates current battery temperature in degrees Centigrade.
• Battery technology - Lists the type of battery.
• Battery manufacture date - Lists the date of manufacture.
• Battery serial number - Lists the battery serial number. The number matches the serial number
printed on the battery label.
• Battery part number - Lists the battery part number.
• Backup battery voltage - Indicates the backup battery voltage in millivolts.
• Backup battery level - Indicates the current backup battery charge level as a percentage.
• Battery rated capacity - Lists the rated capacity of the backup battery in mAh.
• Battery decommission status - Indicates if the battery is past it’s life span.
• Battery Good - Battery is in good health.
• Decommissioned Battery - Battery is past it’s useful life and should be replaced.
• Base cumulative charge - Indicates the total amount of charge applied to the battery.
• Battery present capacity - Maximum amount of charge that could be pulled from the battery under
the present discharge conditions if the battery were fully charged.
• Battery health percentage - With a range from 0 to 100, this is the ratio of “present_capacity” to
“design_capacity” at a discharge rate of “design_capacity”.
• % decommission threshold - Lists the default % decommission threshold for a gifted battery as 80%.
• Battery present charge - Amount of usable charge remaining in the battery at present under the
current discharge conditions.
• Battery total cumulative charge - Lists the total accumulated charge in all chargers.
• Battery time since first use - Lists the time passed since the battery was placed in a Zebra terminal
for the first time.
• App version - Lists the application version number.
75
Device Central
Device Central displays detailed information about the WT6000 and connected peripherals and supports the
following Zebra devices:
• RS507/RS507X Hands-free Imager
• RS6000 Bluetooth Ring Scanner
• RS5,000 Corded Ring Scanner
• HS3100 Bluetooth Headset
• DS3678 Digital Scanner.
Device Central features include:
• Discovering and pairing with supported peripherals via Bluetooth or corded connection.
• Paging a connected RS6000 Ring Scanner.
• Updating the firmware of supported ring scanners. For information on updating ring scanner firmware
using Device Central, refer to the RS5,000 Quick Start Guide or RS6000 User Guide.
• Displaying the connection status of peripherals.
• Displaying information for a connected peripheral in the notification bar.
Applications
Figure 59 Device Central Screen
Device Central Tabs
• Peripherals Tab - displays all currently connected and previously connected peripherals. Connected
peripherals display the length of time (in minutes) that they have been connected. When an RS6000 is
connected the Page button displays. See Paging an RS6000 Ring Scanner on page 76.
Touch the peripheral information to display the Device Details screen.
• Device Details - displays detailed device information for the selected peripheral.
• My Device Tab - displays information about the WT6000 and the current version of Device Central.
• Device Details - displays the About device screen.
• Device Battery Details - displays the Battery screen.
Paging an RS6000 Ring Scanner
Use the Page button to easily locate the currently connected RS6000 Ring Scanner:
1. With the RS6000 Ring Scanner connected, swipe up from the bottom of the screen.
76
Applications
2. Touch .
NOTE: The RS6000 Ring Scanner must be within 10 m (32 ft) of the WT6000.
3. Under the RS6000 peripheral information, touch Page to begin paging the RS6000. The paged RS6000
beeps and vibrates.
Figure 60 Page RS6000
To stop paging, press the scan trigger of the RS6000. On a triggerless RS6000, stop paging by resetting the
RS6000. See Resetting the WT6000 on page 51.
77
File Browser
1
2
3 4
5
Use the File Browser application to view and manage files on the device.
To open File Browser, swipe up from the bottom of the screen and touch .
Figure 61 File Browser Screen
The address bar (1) indicates the current folder path. Touch the current folder path to manually enter a path and
folder name.
Applications
Use (2) to select multiple files/folder.
Use (3) to view the internal storage root folder.
Use (4) to view the Internal Storage root folder.
Use (5) to view the previous folder or to exit the application.
Touch and hold an item to perform an operation on that item. Select one of the options from the File Operations
menu:
• Information - View detailed information about the file or folder.
• Move - Move the file or folder to a new location.
• Copy - Copy the select file.
• Delete - Delete the selected file.
• Rename - Rename the select file.
• Open as - Open the selected file as a specific file type.
• Share - Share the file with other devices.
Touch to open menu options:
• New Folder to create a new folder in the current folder.
• Search to search for a file or folder.
• Sort to sort the list by name, by type, by size or by date.
• Refresh to re-display the contents of the current folder.
• List View to change the folder view from tile to list format.
• Change Size to change the size of the icons: Large, Normal or Small.
• About File Browser to view the application version information.
78
Contacts
Use the Contacts application to manage contacts.
From a Home or Apps screen, touch . People opens to the main list of contacts. View contacts in three ways at
the top of the screen: Groups, All contacts, and Favorites. Touch the tabs to change how to view the contacts.
Swipe up or down to scroll through the lists.
Adding a Contact
1. In the Contacts application, touch .
2. If there are more than one account with contacts, touch the one to use.
3. Type the contact’s name and other information. Touch a field to start typing, and swipe down to view all
categories.
4. To open a menu with preset labels, such as Home or Work for an email address, touch the label to the right of
the item of contact information. Or, to create your own label, touch Custom in the menu.
5. Touch the check mark next to Add new contact.
Editing Contacts
Applications
1. In the Contacts application, touch a contact name to edit.
2. Touch .
3. Edit the contact information.
4. Touch the check mark next to Edit contact.
Deleting Contacts
1. In the Contacts application, touch a contact name to delete.
2. Touch .
3. Touch Delete.
4. Touch OK to confirm.
79
Gallery
Use Gallery to:
Gallery presents all photos and videos stored on the internal memory.
To open the Gallery application, swipe up from the bottom of the Home screen and touch .
Applications
NOTE: The device supports the following image formats: jpeg, gif, png and bmp.
The device supports the following video formats: H.263, H.264 and MPEG4 Simple Profile.
• view photos
• play videos
• perform basic editing of photos
• set photos as wallpaper
• set photos as a contact photo
• share photos and videos.
By default, Gallery opens to the Albums view.
Figure 62 Gallery - Albums
• Touch an album to open it and view its contents. The photos and videos in the album are displayed in
chronological order.
• Touch a photo or video in an album to view it.
• Touch to return to the main Gallery screen.
Working with Albums
Albums are groups of images and videos in folders. Touch an album to open it. The photos and videos are listed in
a chronologically ordered grid. The name of the album displays at the top of the screen.
80
Applications
Figure 63 Photos Inside an Album
Swipe left or right to scroll images across the screen.
Share an Album
1. Swipe up from the bottom of the Home screen and touch .
2. Touch and hold an album until it highlights.
3. Touch other albums as required.
4. Touch . The Share menu opens. Touch the application to use to share the selected albums.
5. Follow the instructions within the selected application.
Get Album Information
1. Swipe up from the bottom of the Home screen and touch .
2. Touch and hold an album until it highlights.
3. Touch .
4. Touch Details.
Deleting an Album
To delete an album and its contents:
1. Swipe up from the bottom of the Home screen and touch .
2. Touch and hold an album until it highlights.
3. Check other albums to delete. Ensure that other albums are selected.
4. Touch > Delete.
5. In the Delete selected item? menu, touch OK to delete the album.
Working with Photos
Use Gallery to view photos on the internal storage and edit and share photos.
Viewing and Browsing Photos
To view a photo:
1. Swipe up from the bottom of the Home screen and touch .
2. Touch an album to open it.
3. Touch a photo.
81
Applications
Figure 64 Photo Example
4. Swipe left or right to view the next or previous photo in the album.
5. Turn the device to view the photo in upright (portrait) or sideways (landscape) orientation. The photo is
displayed (but not saved) in the new orientation.
6. Touch the photo to view the controls.
7. Double-tap the screen to zoom in or pinch two fingers together or spread them apart to zoom in or out.
8. Drag the photo to view parts that are not in view.
Cropping a Photo
1. In Gallery, touch a photo to view the controls.
2. Touch > > . The cropping tool appears.
3. Use the cropping tool to select the portion of the photo to crop.
• Drag from the inside of the cropping tool to move it.
• Drag an edge of the cropping tool to resize it to any proportion.
Figure 65 Cropping Tool
4. Touch the check mark > SAVE to save a copy of the cropped photo. The original version is retained.
Setting a Photo as a Contact Icon
1. Swipe up from the bottom of the Home screen and touch .
2. Touch an album to open it.
3. Touch the photo to open it.
82
Applications
4. Touch .
5. Touch Set picture as.
6. Touch Contact photo.
7. In the Contacts application, touch a contact.
8. Touch the white box and crop the photo accordingly.
9. Touch Save.
Share a Photo
1. Swipe up from the bottom of the Home screen and touch .
2. Touch an album to open it.
3. Touch a photo to open it.
4. Touch .
5. Touch the application to use to share the selected photo. The application selected opens with the photo
attached to a new message.
Deleting a Photo
1. Swipe up from the bottom of the Home screen and touch .
2. Touch an album to open it.
3. Touch a photo to open it.
4. Touch > Delete.
5. In the Delete selected item? menu, touch OK to delete the photo.
Working with Videos
Use Gallery to view videos and share videos.
Watching Videos
1. Swipe up from the bottom of the Home screen and touch .
2. Touch an album to open it.
3. Touch a video.
4. Touch . The video begins to play.
5. Touch the screen to view the playback controls.
Sharing a Video
1. Swipe up from the bottom of the Home screen and touch .
2. Touch an album to open it.
3. Touch a video to open it.
4. Touch . The Share menu appears.
5. Touch the application to use to share the selected video. The application selected opens with the video
attached to a new message.
83
Applications
Deleting a Video
1. Swipe up from the bottom of the Home screen and touch .
2. Touch an album to open it.
3. Touch a video to open it.
4. Touch > Delete.
5. In the Delete selected item? menu, touch OK to delete the video.
84
PTT Express Voice Client
Settings
Enable/Disable Switch
Notification Icon
Service Indication
Talk Groups
NOTE: PTT Express Voice Client creates Push-To-Talk (PTT) communication capability between disparate
enterprise devices. Leveraging existing Wireless Local Area Network (WLAN) infrastructure, PTT Express delivers
simple PTT communication without the need of a voice communication server.
• Group Call: Press and hold the PTT (Talk) button to start communicating with other voice client users.
• Private Response: Double-press and the PTT button to respond to the originator of the last broadcast or
to make a Private Response.
PTT Audible Indicators
The following tones provide helpful cues when using the voice client.
• Talk Tone: Double chirp. Plays when the Talk button is depressed. This is a prompt for the user to start
talking.
• Access Tone: Single beep. Plays when another user just finished a broadcast or response. The user is
now able to initiate a Group Broadcast or Private Response.
• Busy Tone: Continuous tone. Plays when the Talk button is depressed and another user is already
communicating on the same talkgroup. Plays after the maximum allowed talk time is reached (60
seconds).
• Network Tone:
Applications
• Three increasing pitch beeps. Plays when PTT Express has acquired the WLAN connection and the
service is enabled.
• Three decreasing pitch beeps. Plays when PTT Express has lost the WLAN connection or the service
is disabled.
Figure 66 PTT Express Default User Interface
Table 10 PTT Express Default User Interface Descriptions
Item Description
Notification Icon Indicates the current state of the PTT Express client.
Service Indication Indicates the status of the PTT Express client. Options: Service Enabled, Service Disabled
or Service Unavailable.
Talk Groups Lists all 32 Talk Groups available for PTT communication.
85
Applications
Table 10 PTT Express Default User Interface Descriptions (Continued)
Item Description
Settings Opens the PTT Express Settings screen.
Enable/Disable
Switch
Turns the PTT service on and off.
Notification Icons
Indicates the current state of the PTT Express Voice client.
Table 11 PTT Express Default User Interface Descriptions
Status Icon Description
Indicates that PTT Express Voice client is disabled.
Indicates that PTT Express Voice client is enabled but not connected to a WLAN.
Indicates that PTT Express Voice client is enabled, connected to a WLAN and listening on the
Talk Group indicated by the number next to the icon.
Indicates that PTT Express Voice client is enabled, connected to a WLAN and communicating
on the Talk Group indicated by the number next to the icon.
Indicates that PTT Express Voice client is enabled, connected to a WLAN and in a private
response.
Indicates that PTT Express Voice client is enabled and muted.
Indicates that the PTT Express Voice client is enabled but it is not able to communicate due to
a VoIP telephony call is in progress.
Enabling PTT Communication
1. Swipe up from the bottom of the Home screen and touch .
2. Slide the Enable/Disable Switch to the ON position. The button changes to an ON button.
Selecting a Talk Group
One of 32 Talk Groups can be selected by PTT Express users. However, only one talk group may be enabled at a
time on the device. Touch one of the 32 Talk Groups. The selected Talk Group is highlighted.
86
Applications
PTT Button
PTT Communication
NOTE: This section describes the default PTT Express client configuration. See the PTT Express V1.2 User
Guide for detailed information on using the client.
PTT communication may be established as a Group Call. When PTT Express is enabled, the P3 button is assigned
for PTT communication.
Figure 67 PTT Button
Creating a Group Call
To create a group call:
1. Press and hold the PTT button and listen for the talk tone to play.
If a busy tone is heard, release the button and wait a moment before making another attempt. Ensure that PTT
Express and the WLAN are enabled.
2. Start talking after the talk tone is heard.
NOTE: If the user holds the button for more than 60 seconds (default), the call is dropped allowing others to
make Group calls. The user should release the button when finished talking to allow others to make calls.
3. Release the button when finished talking.
Responding with a Private Response
The Private Response can only be initiated once a Group Call has been established. The initial Private Response
is made to the originator of the Group Call.
1. Wait until an access tone is heard.
2. Within 10 seconds, double-press the PTT button, and listen for the talk tone to play.
3. If a busy tone is heard, release the button and wait a moment before making another attempt. Ensure that PTT
Express and the WLAN are enabled.
4. Start talking after the talk tone plays.
87
Applications
5. Release the button when finished talking.
Disabling PTT Express Voice Client Communication
1. Swipe up from the bottom of the Home screen and touch .
2. Slide the Enable/Disable Switch to the OFF position. The button changes to OFF.
3. Touch .
88
DataWedge
Refer to the WT6000 Integrator Guide for detailed information on configuring DataWedge.
DataWedge Demonstration
Use DataWedge Demonstration to demonstrate data capture functionality.
Figure 68 DataWedge Demonstration Window
Applications
Table 12 DataWedge Demonstration Icons
Feature Icon Description
Illumination Select to disable imager illumination (RS507, RS5,000 and RS6000 only).
Select to enable imager illumination (RS507, RS5,000 and RS6000 only).
Connection Indicates that an RS507 or RS6000 Bluetooth imager is not connected to the WT6000.
Indicates that an RS507 or RS6000 Bluetooth imager is connected to the WT6000.
Indicates that an RS4000 laser scanner or RS5,000 imager is not connected to the
WT6000.
Indicates that an RS4000 laser scanner or RS5,000 imager is connected to the
WT6000.
Scan Mode Select to enable picklist mode (RS507, RS5,000 and RS6000 only).
Select to enable normal scan mode (RS507, RS5,000 and RS6000 only).
Menu Opens a menu to view the application information or to set the application DataWedge
profile.
NOTE: See WT6000 Integrator Guide for information on DataWedge configuration.
Either press the device Scan key or touch the yellow scan button in the application to enable data capture. The
captured data appears in the text field below the yellow button.
89
RxLogger
RxLogger is a comprehensive diagnostic tool that provides application and system metrics. It allows for custom
plug-ins to be created and work seamlessly with this tool. RxLogger is used to diagnose device and application
issues. Its information tracking includes the following: CPU load, memory load, memory snapshots, battery
consumption, power states, wireless logging, cellular logging, TCP dumps, Bluetooth logging, GPS logging, logcat,
FTP push/pull, ANR dumps, etc. All logs and files generated are saved onto flash storage on the device (internal or
external).
Figure 69 RxLogger
Applications
Enabling Logging
1. Swipe up from the bottom of the Home screen and touch .
2. Touch Start.
3. Touch .
Disabling Logging
1. Swipe up from the bottom of the Home screen and touch .
2. Touch Stop.
3. Touch .
90
RxLogger Utility
RxLogger Utility is a data monitoring application for viewing logs in the device while RxLogger is running. The user
can access the logs and RxLogger Utility features in the App View or the Overlay View.
In the App View the user views logs in the RxLogger Utility.
Figure 70 RxLogger Utility App View
Refer to the WT6000 Touch Computer Integrator Guide for detailed information about using RxLogger Utility.
Applications
91
Diagnostic Tool
The Diagnostic Tool is a utility that determines the health of the WT6000. Use the Diagnostic Tool to
troubleshooting the device and determine issues.
1. Swipe up from the bottom of the Home screen and touch .
Figure 71 Diagnostic Tool
2. Touch Run Test. The app tests all enabled subsystems (by default only the Battery and System tests are
enabled). See Settings on page 93 to enable subsystem tests.
Applications
Figure 72 Test Passed Screen
Figure 73 Test Failed Screen
3. To view each individual subsystem test, touch Subsystem Tests.
92
Applications
Figure 74 Subsystem Screen
Table 13 Subsystem Test Result Indicators
Status Icon Description
Indicates test passed.
Indicates test failed.
Indicates test not supported or not enabled.
4. Touch one of the subsystems to view details.
Figure 75 Battery Subsystem Details
Settings
By default only the Battery and System tests are enabled. To enable other tests:
1. Touch > Settings.
2. Touch to the left of the test name. A green box with a checkmark appears.
3. Touch SAVE.
4. Touch Yes to confirm.
5. Touch .
Battery Test Information
The Battery Test obtains the following information:
• Battery Level - Indicates the current battery charge level.
93
Applications
• Battery Voltage - Indicates the current battery voltage.
• Status - Indicates if the battery is charging (on AC power) or discharging (on battery power).
• Power Source - Indicates whether the device is receiving power from the battery or from an external
source.
• Temperature - Indicates the current battery temperature.
• Health Percentage - Indicates the health of the battery.
• Backup Battery Voltage - Indicates backup battery voltage.
• Manufacture Date - Not applicable (Displays the manufacture date of the battery).
GPS Test Information
Not supported on the WT6000.
System Test Information
Use the System Test to determine if the CPU or memory loads are too high, there are too many processes running
on the device, or that storage on the device is almost full. The System Test obtains the following information:
• CPU Load - Indicates the amount of CPU being used.
• Free Physical Memory - Indicates the amount of RAM available.
• Free Storage - Indicates the amount of internal Flash memory available.
• Process Count - Indicates the number of processes currently running.
WLAN Test Information
If the WiFi radio is not present or disabled the test may be skipped. Use this information to determine if the device’s
WLAN configuration is correct or whether there is any connection with an access point or network. The WLAN Test
obtains the following information:
• WLAN Enabled - Indicates if the WLAN radio is enabled or disabled.
• WLAN Status - Indicates the current status of association with the access point.
• ESSID - Displays the name of the wireless network.
• BSSID - Displays the MAC address of the connected access point.
• MAC Address - Displays the device’s MAC address.
• Signal - Indicates the strength of the Wi-Fi signal (in dBm).
• IP Address - Displays the IP address of the device.
WWAN Test Information
Not supported on the WT6000.
Bluetooth Test Information
The Bluetooth Test obtains the following information:
• Enabled - Indicates if the Bluetooth radio is enabled or disabled.
• Status - Indicates if the device is paired to another Bluetooth device.
• Connectable/Discoverable - Indicates if the device is discoverable or connectable.
• Address - Displays the Bluetooth radio MAC address.
• Name - Displays the Bluetooth name for the device.
94
Accessories
Accessories
Table 14 Accessories
Accessory Part Number Description
Cradles
1-Slot WT6000 Charging
Cradle
2-Slot WT6000/RS6000
Charging Cradle
5-Slot WT6000 Charge
Only Cradle
10-Slot WT6000/RS6000
Charge Only Cradle
10-Slot WT6000 Charge
Only Cradle
CRD-NGWT-1S1BU-01 Provides WT6000 and spare battery charging and
USB communication with a host computer. Use with
power supply, p/n PWRS-14000-148R and country
specific grounded AC line cord.
CRD-NWTRS-2SUCH-01 Provides WT6000 and RS6000 charging and USB
communication with a host computer. Use with
power supply, p/n PWRS-14000-148R and country
specific grounded AC line cord.
CRD-NGWT-5S5BC-01 Charges up to five WT6000 devices and five spare
batteries. Use with power supply, p/n
PWRS-14000-241R, DC line cord, p/n
50-16002-029R and country specific grounded AC
line cord.
CRD-NWTRS-10SCH-01 Charges up to five WT6000 devices and up to five
RS6000 scanners. Use with power supply, p/n
PWRS-14000-241R, DC line cord, p/n
50-16002-029R and country specific grounded AC
line cord.
CRD-NGWT-10SCH-01 Charges up to 10 WT6000 devices. Use with power
supply, p/n PWRS-14000-241R, DC line cord, p/n
50-16002-029R and country specific grounded AC
line cord.
5-Slot WT6000 Ethernet
Cradle
CRD-NGWT-5S5BE-01 Charges up to five WT6000 devices and five spare
batteries and provides Ethernet communication.
Use with power supply, p/n PWRS-14000-241R, DC
line cord, p/n 50-16002-029R and country specific
grounded AC line cord.
95
Table 14 Accessories (Continued)
Accessory Part Number Description
Batteries and Chargers
Accessories
Replacement Standard
Battery
Replacement Extended
Battery
4-Slot Battery Charger SAC-NWTRS-4SCH-01 Charges up to four spare batteries. Requires power
20-Slot Battery Charger SAC-NWTRS-20SCH-01 Charges up to 20 spare batteries. Use with power
Mounting Brackets
Rack Mount Bracket BRKT-SCRD-SMRK-01 Use for mounting a 5-Slot cradle or four 4-Slot
Cables
Headset Adapter Cable with
Quick Disconnect (Long)
Headset Adapter Cable with
Quick Disconnect (Short)
BTRY-NWTRS-33MA-01 Replacement standard 3,350 mAh battery for
WT6000 and RS6000 (single pack).
BTRY-NGWT-50MA-01 Replacement extended 5,000 mAh battery for
WT6000 only (single pack).
supply, p/n PWRS-14000-148R and country specific
grounded AC line cord.
supply, p/n PWRS-14000-241R, DC line cord, p/n
50-16002-029R and country specific grounded AC
line cord.
Battery Chargers on a rack.
CBL-NGWT-AUQDLG-01 Connects a wired headset to the WT6000 on a Hip
Mount.
CBL-NGWT-AUQDST-01 Connects a wired headset to the WT6000 on a Wrist
Mount.
USB/Charge Cable CBL-NGWT-USBCHG-01 Provides USB communication and power to the
WT6000. Requires power supply
PWRS-14000-249R and country specific
un-grounded AC line cord.
Vibrating Cable CBL-NGWT-HDVBAP-01 Provides haptic notification feedback.
DC Y Cable 25-122026-02R Provides power from the PWRS-14000-148R power
supply to two 4-Slot Battery Chargers.
DC 4-way Cable 25-85992-01R Provides power from the PWRS-14000-241R power
supply to four 4-Slot Battery Chargers.
DC Line Cord 50-16002-029R Provides power from the power supply to the 5-Slot
Charge Only Cradle, 5-Slot Ethernet Cradle, 5-Slot
Charge Only Cradle with Battery Charge and 5-Slot
Ethernet Cradle with Battery Charger.
Power Supplies
Power Supply PWRS-14000-249R Provides power to the device using the USB and
Charging Cable. Requires country specific
un-grounded AC line cord.
Power Supply PWRS-14000-148R Provides power to the 2–Slot cradles and 4-Slot
Spare Battery Charger. Requires country specific
grounded AC line cord.
96
Accessories
Table 14 Accessories (Continued)
Accessory Part Number Description
Power Supply PWRS-14000-241R Provides power to the 5-Slot Charge Only Cradle,
5-Slot Ethernet Cradle, 5-Slot Charge Only Cradle
with Battery Charger and the 5-Slot Ethernet Cradle
with Battery Charger. Requires DC Line Cord, p/n
50-16002–029R and country specific grounded AC
line cord.
Miscellaneous
Screen Protectors MISC-WT6X-SCRN-01 Provides additional protection for display (5-pack).
Soft Goods
WT6000 Hip Mount SG-NGWT-HPMNT-01 Provides mounting the WT6000 on a belt.
WT6000 Wrist Mount
(Small/Medium)
WT6000 Wrist Mount
(Medium/Large)
WT6000 Spare Straps
(Small/Medium)
WT6000 Spare Straps
(Medium/Large)
WT6000 Spare Comfort
Pad
SG-NGWT-WRMTS-01 Replacement strap.
SG-NGWT-WRMTL-01 Replacement strap.
SG-NGWT-WSTPST-01 Replacement strap.
SG-NGWT-WSTPLN-01 Replacement strap.
SG-NGWT-CMPD-01 Replacement Comfort Pad for the Wrist Mount.
97
Accessories
Spare Battery Charging LED
Spare Battery Charing Slot
Power LED
WT6000 Charging Slot
WT6000 Charging LED
1-Slot WT6000 USB Charging Cradle
NOTE: Ensure that you follow the guidelines for battery safety described in Battery Safety Guidelines on page 135.
The 1-Slot WT6000 Charging Cradle:
• provides 5.4 VDC (nominal) power for operating the WT6000
• provides USB communication with a host computer
• charges a spare battery.
Figure 76 1-Slot WT6000 Charging Cradle
Charging the Device
1. If charging a WT6000 with a standard battery, insert either end of the WT6000 into the WT6000 charging slot.
98
Accessories
Figure 77 Insert WT6000 with Standard Battery into Cradle
2. If charging a WT6000 with a extended battery, insert the end of the WT6000 into the WT6000 charging slot as
shown below.
Figure 78 Insert WT6000 with Extended Battery into Cradle
3. Ensure the WT6000 is seated properly. The WT6000 Charge LED blinks indicating charging.
Charging the Spare Battery
1. Insert a spare battery into the spare battery slot.
99
Accessories
Figure 79 Insert Standard Battery into Cradle
Figure 80 Insert Extended Battery into Cradle
2. Ensure the battery is seated properly. The Spare Battery Charging LED blinks indicating charging.
Battery Charging
The WT6000 Charging LED indicates the charging status of the battery in the WT6000 and the Spare Battery
Charging LED indicates the charging status of the spare battery. See Table 15 on page 100. The standard 3,350
mAh battery fully charges in less than four hours at room temperature. The extended 5,000 mAh battery fully
charges in approximately five hours and 30 minutes at room temperature.
Table 15 Charging LED Indicators
State Indication
Off The battery is not charging. The battery is not inserted correctly in the cradle or
connected to a power source. Cradle is not powered.
Solid Amber Battery is charging.
Solid Green Battery charging is complete.
Fast Blinking Red
(2 blinks/second)
Solid Red Unhealthy battery is charging or fully charged.
Charge batteries in temperatures from 0°C to 40°C (32°F to 104°F). The device or cradle always performs battery
charging in a safe and intelligent manner. At higher temperatures (e.g. approximately +37°C (+98°F)) the device or
cradle may for small periods of time alternately enable and disable battery charging to keep the battery at
acceptable temperatures. The device and cradle indicates when charging is disabled due to abnormal
temperatures via its LED.
Charging error, e.g.:
- Temperature is too low or too high.
- Charging has gone on too long without completion (typically eight hours).
100
