Zebra WT6000 User Guide

Download

WT6000

MN-002698-03

Wearable Computer

User Guide

WT6000 Wearable Terminal

User Guide

MN-002698-03

Rev. A

February 2018

ii WT6000 User Guide

No part of this publication may be reproduced or used in any form, or by any electrical or mechanical means, without permission in writing. This includes electronic or mechanical means, such as photocopying, recording, or information storage and retrieval systems. The material in this manual is subject to change without notice.

The software is provided strictly on an “as is” basis. All software, including firmware, furnished to the user is on a licensed basis. We grant to the user a non-transferable and non-exclusive license to use each software or firmware program delivered hereunder (licensed program). Except as noted below, such license may not be assigned, sublicensed, or otherwise transferred by the user without prior written consent. No right to copy a licensed program in whole or in part is granted, except as permitted under copyright law. The user shall not modify, merge, or incorporate any form or portion of a licensed program with other program material, create a derivative work from a licensed program, or use a licensed program in a network without written permission. The user agrees to maintain copyright notice on the licensed programs delivered hereunder, and to include the same on any authorized copies it makes, in whole or in part. The user agrees not to decompile, disassemble, decode, or reverse engineer any licensed program delivered to the user or any portion thereof.

We reserve the right to make changes to any software or product to improve reliability, function, or design.

We do not assume any product liability arising out of, or in connection with, the application or use of any product, circuit, or application described herein.

No license is granted, either expressly or by implication, estoppel, or otherwise under any of our intellectual property rights. An implied license only exists for equipment, circuits, and subsystems contained in our products.

Revision History

Changes to the original manual are listed below:

Change Date Description

Rev. A 6/2016 Initial release.

-02 2/2017 Add RS5000 to supported devices.

iii

-03 2/2018

Supported stylus is c

apacitive, not conductive.

iv WT6000 User Guide

Revision History ................................................................................................................................. iii

Table Of Contents

About This Guide

Introduction ....................................................................................................................................... xi

Documentation Set ........................................................................................................................... xi

Configurations................................................................................................................................... xii

Software Versions....................................................................................................................... xii

Chapter Descriptions ........................................................................................................................ xii

Notational Conventions.................................................................................................................... xiii

Related Documents and Software ................................................................................................... xiii

Service Information .......................................................................................................................... xiv

Chapter 1: Getting Started

Introduction .................................................................................................................................... 1-1

Unpacking ................................................................................................................................ 1-1

Removing the Screen Protection Film ...................................................................................... 1-1

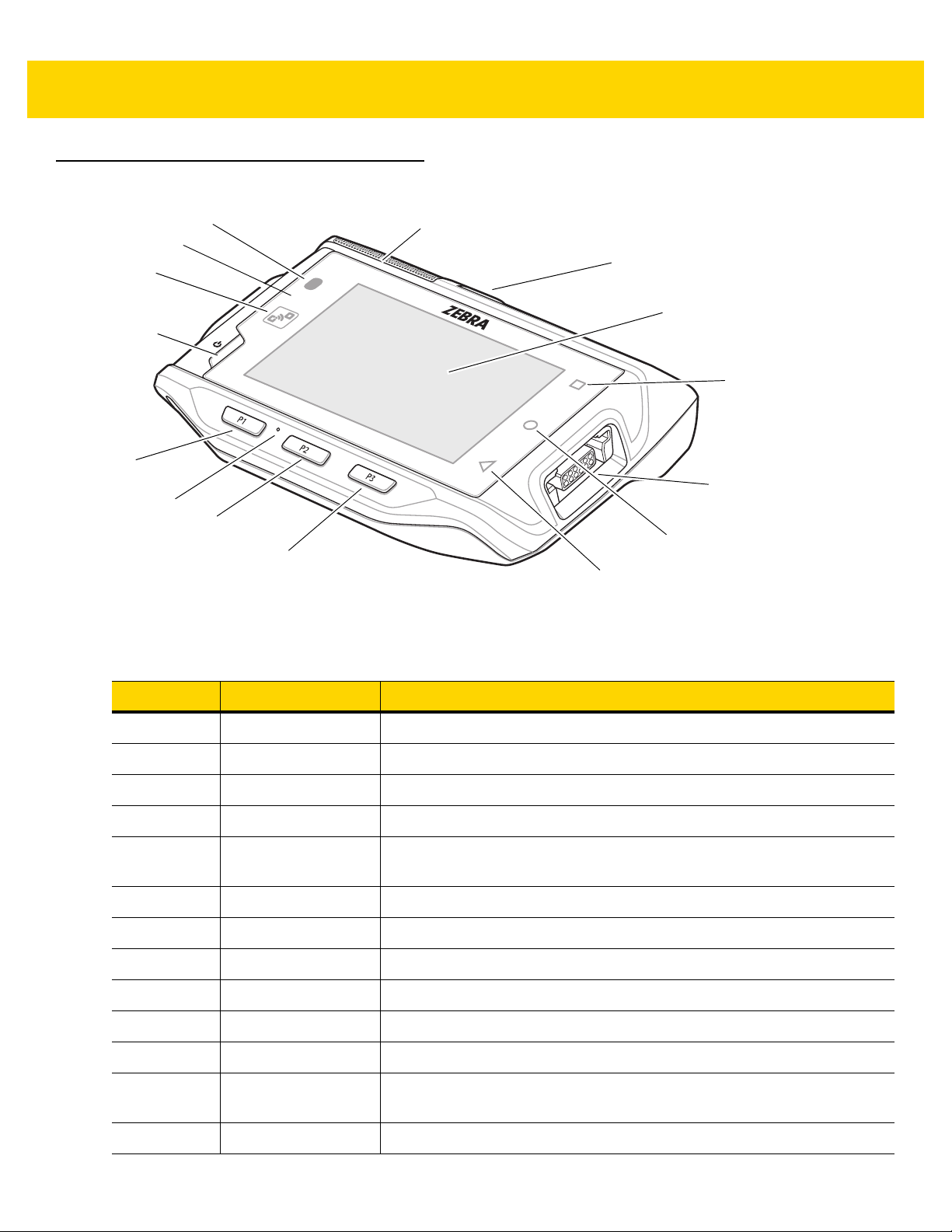

Features ......................................................................................................................................... 1-2

Setup .............................................................................................................................................. 1-3

Installing the Battery ................................................................................................................. 1-3

Charging the Battery ................................................................................................................ 1-4

Starting the WT6000 ................................................................................................................ 1-5

Installing the Wrist Mount ............................................................................................................... 1-6

Connecting a Scanner ................................................................................................................... 1-7

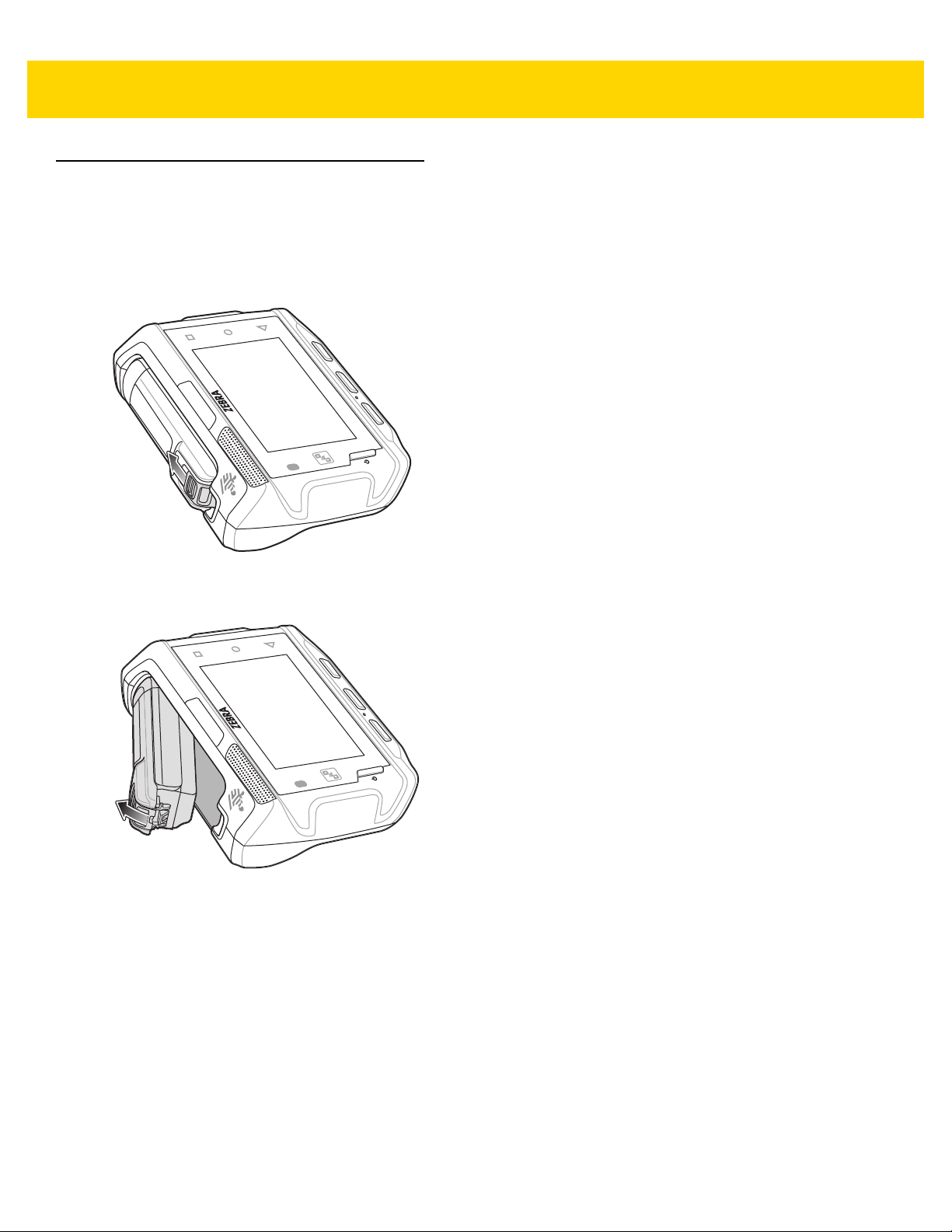

Replacing the Battery ..................................................................................................................... 1-8

Battery Management ...................................................................................................................... 1-9

Monitor Battery Usage ............................................................................................................. 1-9

Low Battery Notification ......................................................................................................... 1-10

Battery Optimization ............................................................................................................... 1-10

Turning Off the Radios ........................................................................................................... 1-10

vi WT6000 User Guide

Setting the Date and Time ........................................................................................................... 1-10

Display Setting ............................................................................................................................. 1-11

Setting the Screen Brightness ................................................................................................ 1-11

Setting Screen Timeout Setting ............................................................................................. 1-11

Setting Key Light Timeout Setting .......................................................................................... 1-12

Setting Font Size .................................................................................................................... 1-12

General Sound Setting ................................................................................................................. 1-12

Chapter 2: Using the WT6000

Introduction .................................................................................................................................... 2-1

Home Screen ................................................................................................................................. 2-1

Status Bar ................................................................................................................................ 2-2

Status Icons ....................................................................................................................... 2-2

Notification Icons ...................................................................................................................... 2-3

Managing Notifications ............................................................................................................. 2-3

Quick Settings .......................................................................................................................... 2-4

Using the Touchscreen ............................................................................................................ 2-5

Using the On-screen Keyboard ................................................................................................ 2-5

Editing Text .............................................................................................................................. 2-5

Entering Numbers, Symbols and Special Characters .............................................................. 2-5

Applications .................................................................................................................................... 2-6

Accessing Applications ...................................................................................................... 2-8

Switching Between Recent Applications ............................................................................ 2-9

Un-Locking the Screen ............................................................................................................. 2-9

Suspend Mode ............................................................................................................................. 2-10

Resetting the WT6000 ................................................................................................................. 2-11

Performing a Soft Reset ......................................................................................................... 2-11

Performing a Hard Reset ....................................................................................................... 2-11

Chapter 3: Data Capture

Introduction .................................................................................................................................... 3-1

Laser Scanning .............................................................................................................................. 3-1

Scanning Bar Codes ................................................................................................................ 3-1

Imaging .......................................................................................................................................... 3-1

Operational Modes ................................................................................................................... 3-2

Scanning Considerations ............................................................................................................... 3-2

Bar Code Capture with RS4000 ..................................................................................................... 3-2

Adaptive Scanning ............................................................................................................. 3-3

Bar Code Capture with RS5000 Hands-Free Imager .................................................................... 3-4

Bar Code Capture with RS6000 Hands-Free Imager .................................................................... 3-4

Bar Code Capture with RS507 Hands-Free Imager ...................................................................... 3-6

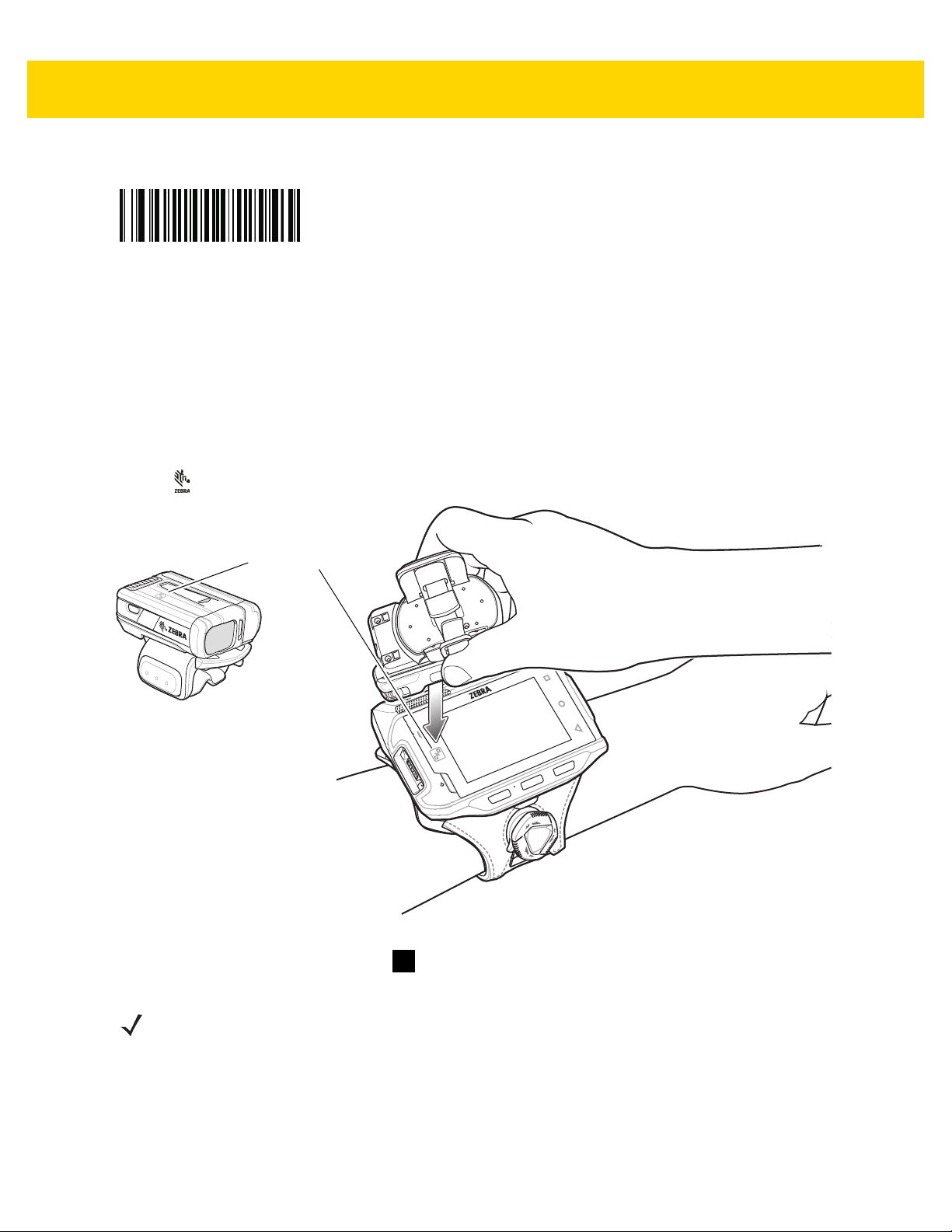

Pairing the RS507/RS6000 Hands-Free Imager ............................................................................ 3-7

Pairing Using Near Field Communication ................................................................................ 3-7

Pairing in HID Mode Using Near Field Communication ........................................................... 3-8

Pairing Using Simple Serial Interface ....................................................................................... 3-9

Pairing Using Bluetooth Human Interface Device .................................................................. 3-10

Table of Contents vii

Chapter 4: Wireless

Wireless Local Area Networks ....................................................................................................... 4-1

Scan and Connect to a Wi-Fi Network ..................................................................................... 4-2

Configuring a Wi-Fi Network .................................................................................................... 4-2

Manually Adding a Wi-Fi Network ............................................................................................ 4-3

Configuring for a Proxy Server ................................................................................................. 4-4

Configuring the Device to Use a Static IP Address .................................................................. 4-5

Advanced Wi-Fi Settings .......................................................................................................... 4-6

Additional Settings ................................................................................................................... 4-6

Remove a Wi-Fi Network ......................................................................................................... 4-7

Modify or Edit a Wi-Fi Network ................................................................................................. 4-7

Wi-Fi Advanced Features .............................................................................................................. 4-8

Bluetooth ........................................................................................................................................ 4-8

Adaptive Frequency Hopping ................................................................................................... 4-9

Security .................................................................................................................................... 4-9

Bluetooth Profiles ................................................................................................................... 4-10

Bluetooth Power States .......................................................................................................... 4-10

Bluetooth Radio Power .......................................................................................................... 4-10

Enabling Bluetooth ........................................................................................................... 4-10

Disabling Bluetooth .......................................................................................................... 4-11

Discovering Bluetooth Device(s) ............................................................................................ 4-11

Changing the Bluetooth Name ............................................................................................... 4-11

Connecting to a Bluetooth Device .......................................................................................... 4-12

Selecting Profiles on the Bluetooth Device ............................................................................ 4-12

Unpairing a Bluetooth Device ................................................................................................. 4-12

Near Field Communications ......................................................................................................... 4-12

Reading NFC Cards ............................................................................................................... 4-13

Chapter 5: Applications

Introduction .................................................................................................................................... 5-1

Battery Manager ............................................................................................................................ 5-1

Device Central ............................................................................................................................... 5-4

Device Central Tabs ................................................................................................................. 5-4

Paging an RS6000 Ring Scanner ............................................................................................ 5-4

File Browser ................................................................................................................................... 5-6

PTT Express Voice Client .............................................................................................................. 5-8

PTT Audible Indicators ............................................................................................................. 5-8

Notification Icons ...................................................................................................................... 5-9

Enabling PTT Communication ................................................................................................. 5-9

Selecting a Talk Group ............................................................................................................. 5-9

PTT Communication .............................................................................................................. 5-10

Creating a Group Call ............................................................................................................ 5-10

Disabling PTT Express Voice Client Communication ............................................................ 5-10

DataWedge .................................................................................................................................. 5-11

DataWedge Demonstration .......................................................................................................... 5-11

RxLogger ..................................................................................................................................... 5-13

RxLogger Configuration ......................................................................................................... 5-13

Configuration File ............................................................................................................. 5-13

Enabling Logging ................................................................................................................... 5-13

viii WT6000 User Guide

Disabling Logging ................................................................................................................... 5-13

Extracting Log Files ................................................................................................................ 5-14

Elemez ......................................................................................................................................... 5-15

Disabling Elemez Data Collection .......................................................................................... 5-15

Enabling Elemez Data Collection ........................................................................................... 5-15

Print Station ................................................................................................................................. 5-17

Printer Setup ................................................................................................................................ 5-18

Tap & Pair .................................................................................................................................... 5-19

Chapter 6: Accessories

Accessories .................................................................................................................................... 6-1

1-Slot WT6000 USB Charging Cradle ........................................................................................... 6-4

Charging the Device ................................................................................................................. 6-4

Charging the Spare Battery ...................................................................................................... 6-5

Battery Charging ...................................................................................................................... 6-5

2-Slot WT6000/RS6000 Charging Cradle ...................................................................................... 6-7

Charging the WT6000 .............................................................................................................. 6-7

Charging the RS6000 ............................................................................................................... 6-8

Battery Charging ...................................................................................................................... 6-8

5-Slot WT6000 Charge Only Cradle .............................................................................................. 6-9

Charging the WT6000 .............................................................................................................. 6-9

Charging the Spare Battery .................................................................................................... 6-10

Battery Charging .................................................................................................................... 6-10

10-Slot WT6000/RS6000 Charge Only Cradle ............................................................................ 6-11

Charging the WT6000 ............................................................................................................ 6-11

Charging the RS6000 ............................................................................................................. 6-12

Battery Charging .................................................................................................................... 6-12

10-Slot WT6000 Charge Only Cradle .......................................................................................... 6-13

Charging the WT6000 ............................................................................................................ 6-13

Battery Charging .................................................................................................................... 6-14

5-Slot WT6000 Ethernet Cradle ................................................................................................... 6-15

Charging the WT6000 ............................................................................................................ 6-15

Charging the Spare Battery .................................................................................................... 6-16

Battery Charging .................................................................................................................... 6-16

Establishing Ethernet Communication ................................................................................... 6-16

Ethernet LED Indicators ................................................................................................... 6-17

4-Slot Battery Charger ................................................................................................................. 6-18

Battery Installation .................................................................................................................. 6-18

Battery Removal ..................................................................................................................... 6-18

Battery Charging .................................................................................................................... 6-19

Spare Battery Charging .................................................................................................... 6-19

20-Slot Battery Charger ............................................................................................................... 6-20

Battery Installation .................................................................................................................. 6-20

Battery Removal ..................................................................................................................... 6-21

Battery Charging .................................................................................................................... 6-21

Spare Battery Charging .................................................................................................... 6-21

USB and Charging Cable ............................................................................................................. 6-22

Attaching the USB and Charging Cable ................................................................................. 6-22

Removing the USB and Charging Cable ................................................................................ 6-23

Table of Contents ix

Battery Charging .................................................................................................................... 6-23

Main Battery Charging ..................................................................................................... 6-23

Charging Temperature ........................................................................................................... 6-23

Hip Mount ..................................................................................................................................... 6-24

Routing an Extended Cable Scanner ..................................................................................... 6-26

Quick Disconnect Audio Cables ................................................................................................... 6-27

Attaching the Audio Adapter .................................................................................................. 6-27

Connecting the Audio Cable to a Headset ............................................................................. 6-28

Removing the Audio Adapter ................................................................................................. 6-29

Vibrator Cable .............................................................................................................................. 6-30

RS4000 Scanner .......................................................................................................................... 6-31

RS5000 Imager ............................................................................................................................ 6-33

Chapter 7: Maintenance and Troubleshooting

Introduction .................................................................................................................................... 7-1

Maintaining the WT6000 ................................................................................................................ 7-1

Battery Safety Guidelines .............................................................................................................. 7-1

Long Term Storage ........................................................................................................................ 7-2

Cleaning Instructions ..................................................................................................................... 7-2

Approved Cleanser Active Ingredients ..................................................................................... 7-2

Harmful Ingredients .................................................................................................................. 7-2

Cleaning Instructions ................................................................................................................ 7-3

Special Cleaning Notes ............................................................................................................ 7-3

Cleaning Materials Required .................................................................................................... 7-3

Cleaning Frequency ................................................................................................................. 7-3

Cleaning the WT6000 .............................................................................................................. 7-3

Housing .............................................................................................................................. 7-3

Display ............................................................................................................................... 7-3

Power Connector ............................................................................................................... 7-3

Cleaning Cradle Connectors .................................................................................................... 7-4

Cleaning the Wrist Mount ......................................................................................................... 7-4

Troubleshooting ............................................................................................................................. 7-7

WT6000 .................................................................................................................................... 7-7

Appendix A: Specifications

Technical Specifications ............................................................................................................... A-1

Index

x WT6000 User Guide

ABOUT THIS GUIDE

Introduction

This guide provides information about setting up and configuring WT6000 mobile computers with Android operating system and installing its accessories.

NOTE Some screens or windows shown in this guide may differ from the actual screens shown on the WT6000.

Documentation Set

The documentation set for the WT6000 is divided into guides that provide information for specific user needs.

WT6000 documentation includes:

•

WT6000 Quick Reference Guide - describes basic set up and operation of the WT6000 and it’s

accessories.

•

WT6000 User Guide (this guide) - describes how to set up, operate and program the WT6000 with Android

operating system and it’s accessories.

•

WT6000 Integrator Guide - describes how to setup and configure WT6000 and accessories.

xii WT6000 User Guide

Configurations

This guide covers the following configurations:

Radios Data Capture Display Memory OS

Configuration

NFC

RS6000

802.11 abgn

Bluetooth 4.0

Standard

WT60A0-TS0LEWR X X X X X X X X X X X X

RS4000

RS507

RS5000

3.2” WVGA Color

1G RAM/

4 GB Flash

2G RAM/

16 GB Flash

Android AOSP

Software Versions

To determine the current software versions, touch > About device.

•

Model number - Displays the model number.

•

Android version - Displays the operating system version.

•

Kernel version - Displays the kernel version number.

•

Build number - Displays the software build number.

To determine the device serial number, touch > About device > Status.

Sensor

V5.1.1

Gyroscope

Accelerometer

•

Serial number - Displays the serial number.

Chapter Descriptions

Topics covered in this guide are as follows:

•

Chapter 1, Getting Started, describes the features and basic operation of the WT6000, lists the accessories

for the WT6000 and explains how to install and charge the batteries and start the WT6000 for the first time.

•

Chapter 2, Using the WT6000, provides instructions for connecting the WT6000 to a host computer and

using the OS desktop of the WT6000.

•

Chapter 3, Data Capture, provides information for capturing bar code data.

•

Chapter 4, Wireless, provides information on the various wireless options.

•

Chapter 5, Applications, provides information on various applications pre-installed on the WT6000.

•

Chapter 6, Accessories, Accessories, provides information for using the accessories with the WT6000.

•

Chapter 7, Maintenance and Troubleshooting, includes instructions on cleaning and storing the WT6000, and

provides troubleshooting solutions for potential problems during WT6000 operation.

•

Appendix A, Specifications, includes a table listing the technical specifications for the WT6000 and

accessories.

Notational Conventions

The following conventions are used in this document:

•

Italics are used to highlight the following:

• Chapters and sections in this guide

• Related documents

•

Bold text is used to highlight the following:

• Dialog box, window and screen names

• Drop-down list and list box names

• Check box and radio button names

• Icons on a screen

• Key names on a keypad

• Button names on a screen

•

Bullets (•) indicate:

• Action items

• Lists of alternatives

• Lists of required steps that are not necessarily sequential

• Sequential lists (e.g., those that describe step-by-step procedures) appear as numbered lists.

About This Guide xiii

NOTE This symbol indicates something of special interest or importance to the reader. Failure to read the note

will not result in physical harm to the reader, equipment or data.

CAUTION This symbol indicates that if this information is ignored, the possibility of data or material damage

may occur.

WARNING! This symbol indicates that if this information is ignored the possibility that serious personal

injury may occur.

Service Information

If you have a problem with your equipment, contact Customer Support for your region. Contact information is available at: http://www.zebra.com/support.

When contacting Customer Support, please have the following information available:

•

Serial number of the unit

•

Model number or product name

•

Software type and version number.

We respond to calls by E-mail, or telephone within the time limits set forth in support agreements.

If your problem cannot be solved by Zebra Support, you may need to return your equipment for servicing and will be given specific directions. Zebra is not responsible for any damages incurred during shipment if the approved shipping container is not used. Shipping the units improperly can possibly void the warranty.

If you purchased your business product from a business partner, contact that business partner for support.

CHAPTER 1 GETTING STARTED

Introduction

This chapter describes the features of the WT6000 and explains how to install and charge the battery and how to reset the WT6000.

Unpacking

Carefully remove all protective material from the WT6000 and save the shipping container for later storage and shipping.

Verify that box contains all the equipment listed below:

•

WT6000

•

Battery

•

Regulatory Guide.

Inspect the equipment for damage. If you are missing any equipment or if you find any damaged equipment, contact Support immediately. See Service Information on page xiv for contact information.

Removing the Screen Protection Film

A screen protection film is applied to the WT6000 screen to protect the screen during shipping. To remove the screen protector, carefully lift the thin film off the display.

1 - 2 WT6000 User Guide

Features

Figure 1-1 Front View

Table 1-1 Front View Descriptions

Number Item Function

1 Speakers Provides audio output for video and music playback.

2 Battery Provides power to the device.

3 Display Displays all information needed to operate the WT6000.

4 Recent Button Displays recently open applications.

5 Right Interface

Connector

6 Home Button Displays the Home screen.

Provides USB host and client communication, audio and device charging via cables and accessories.

7 Back Button Displays the previous screen.

8 P3 Button Initiates Push-To-Talk communication (programmable).

9 P2 Button Increases volume.

10 Microphone Use for communication in Headset mode.

11 P1 Button Decreases volume.

12 Power Button Turns the display on and off. Press and hold to reset the device and power

off.

13 NFC Antenna Provides communication with other NFC-enabled devices.

Getting Started 1 - 3

Table 1-1 Front View Descriptions (Continued)

Number Item Function

14 Ambient Light Sensor Determines ambient light for controlling display backlight intensity.

15 Notification/Charge

LED

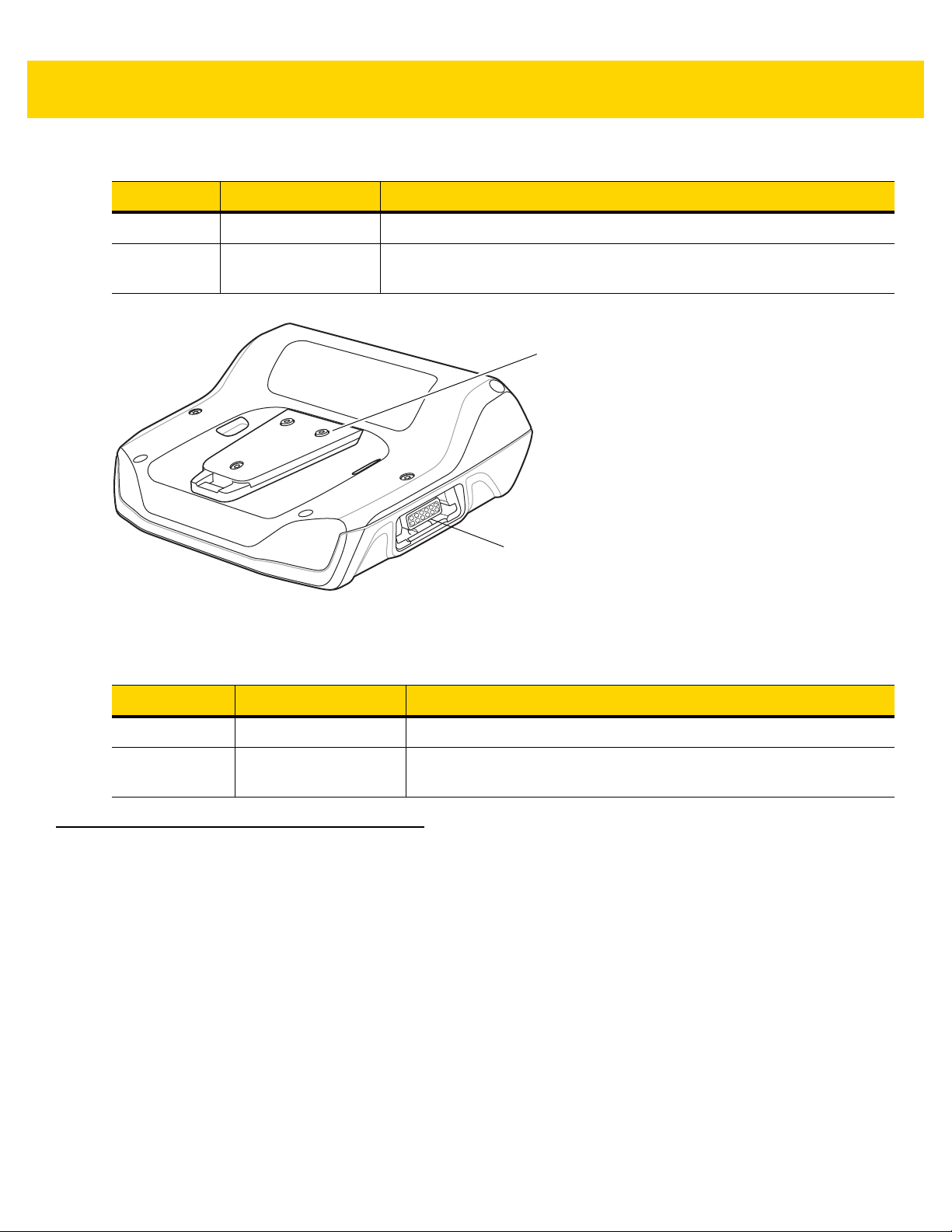

Figure 1-2 Back View

Table 1-2 Back View Descriptions

Number Item Function

Indicates battery charging status while charging with USB Charge cable and provide notifications from applications.

16 Cleat Provides alignment and secures the WT6000 to the wrist mount.

17 Left Interface

Setup

Perform these procedures to start using the WT6000 for the first time.

1. Install the battery.

2. Charge the WT6000.

3. Power on the WT6000.

Installing the Battery

To install the battery:

1. Insert the silver end of the battery into the battery well.

Connector

Provides USB host and client communication, audio and device charging via cables and accessories.

1 - 4 WT6000 User Guide

Figure 1-3 Battery Installation

2. Press the battery down until it snaps into place.

Charging the Battery

Before using the WT6000 for the first time, charge the battery using a cable or a cradle with the appropriate power supply. For information about the accessories available for the WT6000, see Chapter 6, Accessories.

The 3,350 mAh battery fully charges in approximately four hours at room temperature.

Charge batteries in temperatures from 0°C to 40°C (32°F to 104°F). The WT6000 or accessory always performs battery charging in a safe and intelligent manner. At higher temperatures (e.g. approximately +37°C (+98°F)) the WT6000 or accessory may for small periods of time alternately enable and disable battery charging to keep the battery at acceptable temperatures. The WT6000 or accessory indicates when charging is disabled due to abnormal temperatures via its red blinking LED.

1. To charge the main battery, connect the charging accessory to the appropriate power source.

2. Insert the WT6000 into a cradle or attach to a cable. The WT6000 turns on and begins charging.

When using the USB Charge cable, the Notification/Charge LED lights amber while charging, then turns solid green when fully charged.

When using a cradle, the cradle Charge LED lights amber while charging, then turns solid green when fully charged.

Table 1-3 Charge LED Charging Indicators

State Indication

Off WT6000 is not charging. WT6000 is not inserted correctly in the cradle or

connected to a power source. Charger/cradle is not powered.

Solid Amber Healthy battery is charging.

Solid Green Healthy battery charging is complete.

Fast Blinking Red (2 blinks/second)

Solid Red Unhealthy battery is charging or fully charged.

Charging error, e.g.:

- Temperature is too low or too high.

- Charging has gone on too long without completion (typically eight hours).

Getting Started 1 - 5

IMPORTANT

When trying to power on the device, a quick red blink of the Charging LED indicates that it does not have enough battery power to turn on. Charge the battery or replace it.

Starting the WT6000

When installed in a cradle, the WT6000 starts automatically as soon as power is applied.

When a charged battery is installed and the WT6000 is turned off, press the Power button to turn on.

When the WT6000 is powered on for the first time, it initializes its system. The splash screen appears for a short period of time.

Figure 1-4 Splash Screen

The splash screen is followed by the boot animation screen and then the Home Screen.

Figure 1-5 Home Screen

1 - 6 WT6000 User Guide

Mounting Bracket

Release Lever

Strap Tighten Dial

Mounting Bracket

Installing the Wrist Mount

The wrist mount provides the mounting of the WT6000 on the forearm for hands-free applications. Refer to the Wrist Mount Installation Guide for information on the wrist mount.

Figure 1-6 Wrist Mount

To install the wrist mount:

1. Slide the wrist mount onto arm.

2. Position the Install the short strap on the forearm.

3. Turn the dial clockwise to tighten. If too tight, turn counterclockwise to loose slightly.

4. Align the cleat on the back of the WT6000 with the mounting bracket on the wrist mount.

Figure 1-7 Aligning the Cleat

5. Slide the WT6000 onto the wrist mount until it clicks into place.

Getting Started 1 - 7

Release Lever

6. If necessary, use the dial to loosen and re-tighten the strap.

Figure 1-8 WT6000 and Wrist Mount

To remove the WT6000 from the wrist mount, press down on the release lever and slide the WT6000 out.

Figure 1-9 WT6000 Removal

Connecting a Scanner

The RS4000 scanner and the RS5000 and RS6000 imagers can be used with the WT6000. See RS4000 Scanner

on page 6-31 for procedures for connecting the scanner to the WT6000. Refer to the RS5000 Quick Start Guide for

procedures for connecting the RS5000 imager to the WT6000. Refer to the RS6000 Product Reference Guide for procedures for connecting the RS6000 imager to the WT6000.

1 - 8 WT6000 User Guide

Replacing the Battery

To remove the battery:

1. Press the Power button to place the WT6000 in suspend mode.

2. Using finger tip, press the battery release latch toward the silver end of the battery.

Figure 1-10 Pull Release Latch Back

3. Lift the battery out of the battery well.

Figure 1-11 Battery Removal

4. Insert the silver end of the battery into the battery well.

Figure 1-12 Battery Installation

5. Press the battery down until it snaps into place.

Battery Management

Getting Started 1 - 9

To check the charge status of the main battery, on the Home screen touch > > About device > Status.

Battery status indicates that the battery is discharging (not charging) and Battery level lists the battery charge (as a percentage of fully charged).

Monitor Battery Usage

The Battery screen lists which applications consume the most battery power. Also use it to turn off applications that were downloaded if they are consuming too much power.

Touch > > Battery.

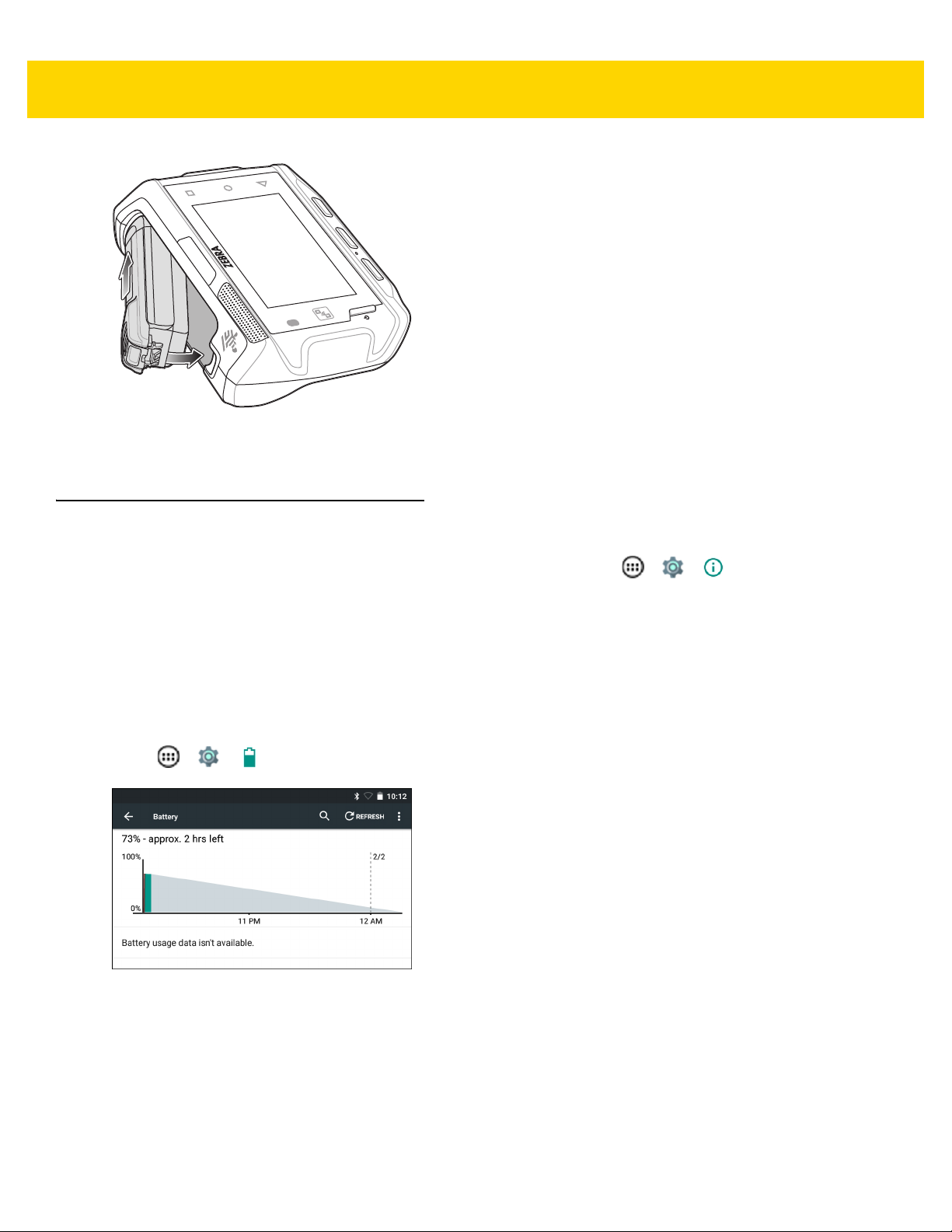

Figure 1-13 Battery Screen

The Battery screen lists the applications using the battery. The discharge graph at the top of the screen shows the rate of the battery discharge since last charged (short periods of time when connected to a charger are shown as thin green lines at the bottom of the chart), and how long it has been running on battery power.

Touch an application in the Battery screen to display details about its power consumption. Different applications display different information. Some applications include buttons that open screens with settings to adjust power use.

1 - 10 WT6000 User Guide

Low Battery Notification

When the battery charge level drops below 15%, the WT6000 displays a notice to connect the WT6000 to power. Place the WT6000 into a cradle to charge the battery.

Figure 1-14 Low Battery Notification

When the battery charge drops below 10%, the WT6000 displays a notice to connect the WT6000 to power. The user must charge the battery using one of the charging accessories.

When the battery charge drops below 5%, the WT6000 turns off. Place the WT6000 into a cradle to charge the battery.

Battery Optimization

Observe the following battery saving tips:

•

Set the screen to turn off after a short period of non-use. See Setting Screen Timeout Setting on page 1-11.

•

Reduce screen brightness. See Setting the Screen Brightness on page 1-11.

•

Turn off all wireless radios when not in use.

•

Turn off automatic syncing for Email, Calendar, Contacts and other applications.

•

Use the Power Control widget to check and control the status of radios, the screen brightness, and syncing.

•

Minimize use of applications that keep the WT6000 from suspending, for example, music and video applications.

Turning Off the Radios

To turn off all the radios:

NOTE

Alternately, you can place the device into Airplane mode using the Quick Settings option.

1. Press the power button until the menu appears.

2. Touch Airplane mode. The airplane icon appears in the Status bar indicating that all the radios are off.

Setting the Date and Time

The date and time is automatically synchronized using a NTP server when the WT6000 is connected to a Wi-Fi network. To manually change the date and time:

1. Touch > > Date & time.

2. Touch Automatic date & time to disable automatic date and time synchronization.

3. Touch Set date.

4. Move the sliders up and down to select the month, date and year.

5. Touch Done.

6. Touch Set time.

7. Move the sliders up and down to select the hour, minutes and part of the day.

8. Touch Done.

9. Touch Select time zone.

10. Select the current time zone from the list.

11. Touch .

Display Setting

Use Display settings to change the screen brightness, set sleep time and change font size.

Getting Started 1 - 11

Setting the Screen Brightness

To manually set the screen brightness:

1. Touch > Display.

2. Touch Brightness level.

Figure 1-15 Brightness Dialog Box

3. Use the slider to set a brightness level.

4. Touch .

To automatically set the screen brightness:

1. Touch > Display.

2. Touch Adaptive brightness. The control switch moves to the right and turns green indicating the option is

enabled.

3. Touch .

Setting Screen Timeout Setting

To set the screen sleep time:

1. Touch > Display > Sleep.

2. Select one of the sleep values.

•

15 seconds

1 - 12 WT6000 User Guide

•

30 seconds

•

1 minute

•

2 minutes

•

5 minutes (default)

•

10 minutes

•

30 minutes.

3. Touch .

Setting Key Light Timeout Setting

To set the key light sleep time:

1. Touch > Display > Key light timeout setting.

2. Select one of the sleep values.

•

Always on

•

6 seconds (default)

•

10 seconds

•

15 seconds

•

30 seconds

•

1 minute.

3. Touch .

Setting Font Size

To set the size of the font is system applications:

1. Touch > Display > Font size.

2. Select one of the font size values.

•

Normal (default)

•

Large

•

Huge.

3. Touch .

General Sound Setting

Use the Sounds & notifications settings to configure media and alarm volumes. On the Home screen, touch > > Sounds.

Getting Started 1 - 13

Figure 1-16 Sounds Screen

•

Sound

• Zebra Volume Control

1 - 14 WT6000 User Guide

Figure 1-17 Zebra Volume Control Dialog Box

• - Controls the music and media volume.

• - Controls the ringtone volume.

• - Controls the system notification volume.

• - Controls the alarm clock volume.

• - Controls the scan good decode beep volume.

• Bottom row icons:

• - Places all sounds except media and alarms in silence mode.

• - Places all sounds except media and alarms in vibrate mode.

• - Places all sounds in sound mode.

• Also vibrate for calls - Touch to enable the WT6000 to also vibrate on incoming calls.

• Interruptions - Use to prioritize sound notifications. Touch the settings to turn call and message

interruptions on or off. If user turns Messages notifications on, touch Calls/messages from to specify from whom to accept

notifications (Anyone, Starred contacts only or Contacts Only). In Downtime section, select which days and times to allow for sound notifications.

• Phone ringtone - Touch to select a sound to play on incoming calls.

• Default notification ringtone - Touch to select a sound to play for all system notifications.

• Type of Heptic on touch pressed - Touch to select the type of haptic feedback when user touch the

Back, Home and Recent buttons.

• Type2 25ms, 45ms, 10ms - Long vibration.

• Type3 30ms, 260ms, 10ms - Medium vibration.

Getting Started 1 - 15

• Default type - Short vibration.

• Other sounds

• Dial pad tones - (default – enabled)

• Screen locking sounds - plays a sound when locking and unlocking the screen (default – enabled)

• Touch sounds - Plays a sound when making screen selections (default – enabled).

• Vibrate on touch - Vibrates when making screen selections (default – enabled).

•

Notification

• When device is locked - Manage whether notifications can be seen when the WT6000 is locked.

• Show all notification content -

• Don’t show notifications at all -

• App notification - Modify the notification settings individually for an application. The setting under When device is locked always takes precedence over the setting for an individual application.

• Notification access - Displays which applications can access notifications.

When a notification arrives, its icon appears at the top of the screen. Icons for pending notifications appear on the left, and system icons on the right.

1 - 16 WT6000 User Guide

CHAPTER 2 USING THE WT6000

Status Bar

Widget

All App Icon

Setting Icon

Shortcut Icon

Introduction

This chapter describes the screens, status and notification icons, and controls on the WT6000, and provides basic instructions for using the WT6000.

Home Screen

The Home screen displays when the WT6000 turns on. Depending upon the configuration, the Home screen might appear different. Contact your system administrator for more information.

After a suspend or screen time-out, the Home screen displays with the lock sliders. Slide to the right toward to unlock the screen. For screen locking information see Un-Locking the Screen on page 2-9.

Figure 2-1 Home Screen

NOTE

The Home screen icons can be configured by the user and may look different than shown.

2 - 2 WT6000 User Guide

The Home screen provides four additional screens for placement of widgets and shortcuts. Swipe the screen left or right to view the additional screens.

Status Bar

The Status bar displays the time, notification icons (left side) and status icons (right side).

If there are more notifications than can fit in the Status bar, displays indicating that more notifications exist. Open the Notifications panel to view all notifications and status.

Status Icons

Table 2-1 Status Icons

Icon Description

Indicates that the Alarm is active.

Indicates that the ringer is silenced.

Indicates that the battery is fully charged.

Indicates that the battery is partially drained.

Indicates that the battery charge is low.

Indicates that the battery charge is very low.

Indicates that the battery is charging.

Indicates that the Airplane Mode is active. All radios are turned off.

Indicates that Bluetooth is on.

Connected to a Wi-Fi network.

Not connected to a Wi-Fi network or no Wi-Fi signal.

Connected to an Ethernet network.

Headset audio cable is connected to the WT6000.

Notification Icons

Table 2-2 Notification Icons

Icon Description

Indicates battery is low.

Indicates that more notifications are available for viewing.

Indicates that data is syncing.

Indicates an upcoming event.

Indicates that an open Wi-Fi network is available.

Indicates that a song is playing.

Indicates that a problem with sign-in or sync has occurred.

Using the WT6000 2 - 3

Indicates that the WT6000 is uploading data.

Indicates that the WT6000 is downloading data when animated and download is complete when static.

Indicates that the WT6000 is connected via USB cable.

Indicates that the WT6000 is connected to or disconnected from virtual private network (VPN).

Preparing Internal Storage.

Indicates that USB debugging is enabled on the WT6000.

Indicates that the WT6000 is connected to a cable or cradle.

Indicates that the WT6000 is connected to a RS507 or RS6000.

Indicates that the RxLogger application is running and capturing data.

Managing Notifications

Notification icons report the arrival of new messages, calendar events, and alarms, as well as ongoing events. When a notification occurs, an icon may appear in the Status bar with a brief description. See Notification Icons on

page 2-3 for a list of possible notification icons and their description. Open the Notifications panel to view a list of all

the notifications.

To open the Notification panel, drag the Status bar down from the top of the screen.

2 - 4 WT6000 User Guide

Figure 2-2 Notification Panel

The WT6000 provides notifications when the user connects an accessory or cables into the interface connectors. The notification list the connector and the type of cable.

To respond to a notification, open the Notifications Panel and then touch a notification. The Notifications Panel closes and the subsequent activity is dependent on the notification.

To clear all notifications, open the Notifications Panel and then touch . All event-based notifications are removed.

Ongoing notifications remain in the list.

To close the Notification Panel, swipe the Notifications Panel up.

Quick Settings

Use Quick Settings to get to frequently used settings, like turning on airplane mode. To open Quick Settings, swipe down from the top of the screen with two fingers or twice with one finger.

Figure 2-3 Quick Settings

To change a setting, just touch the icon:

•

Display brightness: Slide to lower or increase the brightness of the screen.

•

Wi-Fi network: Turn Wi-Fi on or off. To open Wi-Fi settings, touch the Wi-Fi network name.

•

Bluetooth settings: Turn Bluetooth on or off. To open Bluetooth settings, touch the Bluetooth.

•

Airplane mode: Turn airplane mode on or off. Airplane mode means device will not connect to Wi-Fi or Bluetooth.

•

Auto-rotate: Lock the device’s orientation in portrait or landscape mode or set to automatically rotate.

Using the Touchscreen

Use the multi-tap sensitive screen to operate the device.

•

Tap -Tap to:

• select items on the screen

• type letters and symbols using the on-screen keyboard

• press on-screen buttons.

•

Tap and Hold - Tap and hold:

• an item on the Home screen to move it to a new location or to the trash.

• an item in Apps to create a shortcut on the Home screen.

• the Home screen to open a menu for customizing the Home screen.

• an empty area on the Home screen until the menu appears.

•

Drag - Tap and hold an item for a moment and then move finger on the screen until reaching the new

position.

•

Swipe - Move finger up and down or left and right on the screen to:

• unlock the screen

• view additional Home screens

• view additional application icons in the Launcher window

• view more information on an application’s screen.

Using the WT6000 2 - 5

•

Double-tap - Tap twice on a web page, map, or other screen to zoom in and out.

•

Pinch - In some applications, zoom in and out by placing two fingers on the screen and pinching them

together (to zoom out) or spreading them apart (to zoom in).

Using the On-screen Keyboard

Use the on-screen keyboard to enter text in a text field. To configure the keyboard settings, touch and hold (comma) > and then select Android keyboard settings.

Editing Text

Edit entered text and use menu commands to cut, copy, and paste text within or across applications. Some applications do not support editing some or all of the text they display; others may offer their own way to select text.

Entering Numbers, Symbols and Special Characters

To enter numbers and symbols:

•

Touch and hold one of the top-row keys until a menu appears then select a number. Keys with alternate characters display an ellipsis ( ... ) below the character.

•

Touch and hold the Shift key with one finger, touch one or more capital letters or symbols to enter them, and then lift both fingers to return to the lowercase keyboard.

•

Touch to switch to the numbers and symbols keyboard.

•

Touch the key on the numbers and symbols keyboard to view additional symbols.

2 - 6 WT6000 User Guide

To enter special characters, touch and hold a number or symbol key to open a menu of additional symbols.

•

A larger version of the key displays briefly over the keyboard.

•

Keys with alternate characters display an ellipsis ( ... ) below the character.

Applications

The APPS screen displays icons for all installed applications. The table below lists the applications installed on the WT6000. Refer to the WT6000 Integrator Guide for information on installing and uninstalling application.

Table 2-3 Applications

Icon Description

App Gallery

WT6000.

Battery Manager

Bluetooth Pairing Utility

a bar code.

Browser

Calculator

Calendar

- Provides links to utilities and demonstration applications that can be installed on the

- Displays battery information, including charge level, status, health and wear level.

- Use to access the Internet or intranet.

- Provides the basic and scientific arithmetic functions.

- Use to manage events and appointments.

– Use to pair the RS6000 Hans-free Imager with the WT6000 by scanning

Clock

- Use to schedule alarms for appointments or as a wake-up.

Contacts

DataWedge

- Use to manage contact information.

- Enables data capture using the imager.

Table 2-3 Applications (Continued)

Icon Description

Using the WT6000 2 - 7

Device Central

Device Central on page 5-4 for more information.

Downloads

DWDemo

DataWedge Demonstration on page 5-11

elemez

File Browser

information.

- Use to provide diagnostic information. See

- Use to send and receive email.

Displays detailed information about the WT6000 and supported peripherals. See

- Lists all downloads files.

- Provides a way to demonstrate the data capture features using the imager. See for more information.

- Organize and manage files on the WT6000. See

Elemez on page 5-15

File Browser on page 5-6

for more information.

for more

Gallery

IST

sensor information, and versions of each component in sensor subsystem.

MobiControl Stage

MSP Agent

appropriate MSP client license per device to suit the level of management functionality required.

Music

Print Station

WLAN.

- Use to view photos stored on the device.

- Use to configure sensor related features and view available sensors on the device,

– Opens the

- Enables management of the WT6000 from an MSP server. Requires the purchase of an

- Play music stored on the device.

- Use to print labels and receipts directly to a Zebra ZPL printer via USB, Bluetooth or

Mobi Control Stage

application to stage the device.

2 - 8 WT6000 User Guide

Table 2-3 Applications (Continued)

Icon Description

Printer Setup

PTT Express

Rapid Deployment

of settings, firmware and software. Requires the purchase of an MSP client license per device.

RxLogger

more information.

Settings

- Use to connect to a Zebra printer.

- Use to launch PTT Express client for VoIP communication.

- Allows the WT6000 to stage a device for initial use by initiating the deployment

- Use to diagnose device and application issues. See the WT6000 Integrator Guide for

- Use the Google search engine to search the Internet and the WT6000.

- Use to configure the WT6000.

Sound Recorder

StageNow

settings, firmware and software.

Tap & Pair

Velocity

Zebra Utilities

Bluetooth or WLAN.

- Opens the Wavelink terminal emulation application.

- Use to record audio.

- Allows the WT6000 to stage a device for initial use by initiating the deployment of

- Use to pair the WT6000 with a Zebra Bluetooth printer.

- enables printing of barcode labels and receipts directly to a Zebra printer via

Accessing Applications

All applications installed on the device are accessed using the APPS window.

1. On the Home screen, touch .

Using the WT6000 2 - 9

Figure 2-4 APPS Window

2. Slide the APPS window left or right to view more application icons. Touch an icon to open the application.

Switching Between Recent Applications

1. Touch and hold . A window appears on the screen with icons of recently used applications.

Figure 2-5 Recently Used Applications

2. Slide the window up and down to view all recently used applications.

3. Swipe left or right to remove application from the list and force close the application.

4. Touch an icon to open it or touch to return to the current screen.

Un-Locking the Screen

Use the Lock screen to protect access to data on the WT6000. Some email account require locking the screen. Refer to the WT6000 Integrator Guide for information on setting up the locking feature. The Locking feature functions differently in Single User mode or Multiple User mode.

When locked, a pattern, PIN or password is required to unlock the device. Press the Power button to lock the screen. The device also locks after a pre-defined time-out.

Press and release the Power button to wake the device.

The Lock screen displays. Slide up to unlock the screen.

If the Pattern screen unlock feature is enabled, the Pattern screen appears instead of the Lock screen.

If the PIN or Password screen unlock feature is enabled, enter the PIN or password after unlocking the screen.

2 - 10 WT6000 User Guide

Figure 2-6 Lock Screen

Figure 2-7 PIN Screen

Figure 2-8 Pattern Screen

Figure 2-9 Password Screen

Suspend Mode

The WT6000 goes into suspend mode when the user presses the Power button or after a period of inactivity (set in the Display settings).

Using the WT6000 2 - 11

To wake the WT6000 from Suspend mode, press the Power button. The Lock screen displays. Slide up to unlock the screen. If the Pattern screen unlock feature is enabled, the Pattern screen appears instead of the Lock screen.

NOTE

If the user enters the PIN, password or pattern incorrectly five times, they must wait 30 seconds before trying again.

If the user forgets the PIN, password or pattern contact the system administrator.

Figure 2-10 Lock Screen

Resetting the WT6000

There are two reset functions:

•

Soft reset

•

Hard reset.

Performing a Soft Reset

Perform a soft reset if applications stop responding.

1. Press the power button until the menu appears.

2. Touch Reset.

3. The device reboots.

Performing a Hard Reset

CAUTION

To perform a hard reset, simultaneously press and hold the power, P1 and P2 buttons for five seconds. When the device reboots, release the buttons.

Perform a hard reset only if the WT6000 stops responding.

2 - 12 WT6000 User Guide

CHAPTER 3 DATA CAPTURE

Introduction

The WT6000 can be used with the following optional data capture accessories:

•

RS4000 laser scanner

•

RS5000 Hands-free imager.

•

RS6000 Hands-free imager

•

RS507 Hands-free imager.

Laser Scanning

WT6000 with an optional RS4000 laser scanner has the following features:

•

Reading of a variety of bar code symbologies, including the most popular linear and 1D code types.

•

Advanced intuitive laser aiming for easy point-and-shoot operation

•

Adaptive scanning.

Scanning Bar Codes

NOTE

Imaging

The WT6000 with an optional RS507, RS5000 or RS6000 imager has the following features:

•

Omnidirectional (360°) reading of a variety of bar code symbologies, including the most popular linear, postal, PDF417, and 2D matrix code types.

•

Advanced intuitive laser aiming for easy point-and-shoot operation.

Scanning procedures depend on the application and WT6000 configuration. An application may use different scanning procedures from the one listed below.

3 - 2 WT6000 User Guide

The imager uses imaging technology to take a picture of a bar code, stores the resulting image in its memory, and executes state-of-the-art software decoding algorithms to extract the bar code data from the image.

Operational Modes

The optional imager supports two modes of operation. Activate each mode pressing the Scan button.

•

Decode Mode: In this mode, the imager attempts to locate and decode bar codes within its field of view. The

imager remains in this mode as long as the user holds the scan button, or until it decodes a bar code.

NOTE

To enable Pick List Mode use DataWedge. Pick List can also be set in an application using a API command.

•

Pick List Mode: This mode allows the user to selectively decode a bar code when more than one bar code is

in the imager’s field of view. To accomplish this, move the aiming crosshair center dot over the required bar code to decode only that bar code. This feature is ideal for pick lists containing multiple bar codes and manufacturing or transport labels containing more than one bar code (either 1D or 2D).

Scanning Considerations

Typically, scanning is a simple matter of aim, scan/decode and a few quick trial efforts master it. However, two important considerations can be used to optimize any scanning performance:

•

Range

Any scanning device decodes well over a particular working range — minimum and maximum distances from the bar code. This range varies according to bar code density and scanning device optics.

Scanning within range brings quick and constant decodes; scanning too close or too far away prevents decodes. Move the scanner closer and further away to find the right working range for the bar codes being scanned. However, the situation is complicated by the availability of various integrated scanning modules. The best way to specify the appropriate working range per bar code density is through a chart called a decode zone for each scan module. A decode zone simply plots working range as a function of minimum element widths of bar code symbols. Refer to the WT6000 Integrator Guide for decode zones for the optional data capture options.

•

Angle

Scanning angle is important for promoting quick decodes. When laser beams reflect directly back into the scanner from the bar code, this specular reflection can “blind” the scanner.

To avoid this, scan the bar code so that the beam does not bounce directly back. But don’t scan at too sharp an angle; the scanner needs to collect scattered reflections from the scan to make a successful decode. Practice quickly shows what tolerances to work within.

NOTE

Contact the Zebra Global Support Center if chronic scanning difficulties develop. Decoding of properly printed bar codes should be quick and effortless.

Bar Code Capture with RS4000

To read a bar code, a scan-enabled application is required. The WT6000 contains the DataWedge application that allows the user to enable the scanner to decode bar code data and display the bar code content. See DataWedge

on page 5-11 for information on enabling DataWedge.

Data Capture 3 - 3

1. Connect the RS4000 to the WT6000. See RS4000 Scanner on page 6-31 for more information.

2. Ensure that a scan enabled application is loaded or DataWedge is enabled (see DataWedge on page 5-11 for

more information).

3. Press the trigger.

4. Aim the scan beam at the bar code.

Ensure the red scan beam covers the entire bar code. The Decode LED lights red to indicate that scanning is in process, then lights green and a beep sounds, by default, to indicate the bar code was decoded successfully.

Figure 3-1 Laser Scanner Aiming Pattern

5. Release the trigger.

Adaptive Scanning

The RS4000 contains the adaptive scanning feature that automatically adjusts the scan beam width for rapid and easy scanning of bar codes from near contact to more than 200 inches away.

By default the RS4000 is set to wide scan beam width. When the user presses the trigger, the RS4000 determines the distance from the bar code. For close bar codes the RS4000 sets a wide beam width and for far bar codes it sets a narrow beam width. The RS4000 uses distance, bar code type and material to determine the correct scan beam width.

Figure 3-2 RS4000 Adaptive Scanning

3 - 4 WT6000 User Guide

Bar Code Capture with RS5000 Hands-Free Imager

on page 5-11 for more information on launching DataWedge.

1. Connect the RS5000 to the WT6000. See RS5000 Imager on page 6-33 for more information.

2. Press the scan trigger and aim the RS5000 at a bar code.

3. Ensure the bar code is within the area formed by the aiming pattern. The aiming dot is used for increased

visibility in bright lighting conditions.

Figure 4 RS5000 Aiming Pattern

Figure 5 RS5000 Pick List Mode with Multiple Bar Codes

4. If the decode is successful the LED lights green. The terminal beeps if programmed accordingly.

NOTE

Imager decoding usually occurs instantaneously. The RS5000 repeats the steps required to take a digital picture (image) of a poor or difficult bar code as long as the scan button remains pressed.

Bar Code Capture with RS6000 Hands-Free Imager

on page 5-11 for more information on launching DataWedge.

Pair the RS6000 with the WT6000. See Pairing Using Simple Serial Interface on page 3-9 or Pairing Using

Bluetooth Human Interface Device on page 3-10 for more information.

1. Ensure that an application is open on the device and a text field is in focus (text cursor in text field).

Data Capture 3 - 5

2. Point the RS6000 at a bar code.

Figure 3-1 Bar Code Scanning with RS6000

3. Press and hold the trigger.

The red laser aiming pattern turns on to assist in aiming. Ensure the bar code is within the area formed by the cross-hairs in the aiming pattern. The aiming dot is used for increased visibility in bright lighting conditions.

The RS6000 LEDs light green, a beep sounds to indicate the bar code was decoded successfully. Note that when the RS6000 is in Pick List Mode, the RS6000 does not decode the bar code until the center of the crosshair touches the bar code.

Figure 3-2 Aiming Pattern

Figure 3-3 Pick List Mode with Multiple Bar Codes in Aiming Pattern

4. The captured data appears in the text field.

3 - 6 WT6000 User Guide

Bar Code Capture with RS507 Hands-Free Imager

on page 5-11 for more information on launching DataWedge.

Pair the RS507 with the WT6000. See Pairing Using Simple Serial Interface on page 3-9 or Pairing Using

Bluetooth Human Interface Device on page 3-10 for more information.

1. Ensure that an application is open on the device and a text field is in focus (text cursor in text field).

2. Point the RS507 at a bar code.

Figure 3-4 Bar Code Scanning with RS507

3. Press and hold the trigger.

The RS507 LEDs light green, a beep sounds to indicate the bar code was decoded successfully. Note that when the RS507 is in Pick List Mode, the RS507 does not decode the bar code until the center of the crosshair touches the bar code.

Figure 3-5 Aiming Pattern

Figure 3-6 Pick List Mode with Multiple Bar Codes in Aiming Pattern

4. The captured data appears in the text field.

Pairing the RS507/RS6000 Hands-Free Imager

To connect the RS507 or RS6000 imagers to the WT6000, use one of the following methods:

•

Near Field Communication (NFC)

•

Simple Serial Interface (SSI)

Data Capture 3 - 7

•

Bluetooth Human Interface Device (HID) Mode.

Pairing Using Near Field Communication

The WT6000 provides the ability to pair the RS6000 using NFC.

NOTE

RS6000 only.

1. Ensure that the RS6000 is in SSI mode. Refer to the RS6000 User Guide for more information.

2. Ensure that NFC is enabled on the WT6000.

3. Align the NFC icon on the RS6000 with the NFC icon on the WT6000.

The Status LED blinks blue indicating that the RS6000 is attempting to establish connection with the WT6000. When connection is established, the Status LED turns off and the RS6000 emits a single string of low/high beeps.

A notification appears on the WT6000 screen.

The icon appears in the Status bar.

3 - 8 WT6000 User Guide

NFC Logo

Figure 3-7 Align NFC Antennas

The WT6000 pairs with the RS6000 and appears in the Status bar.

NOTE

Not all Zebra device support NFC readers and the Tap-to-Pair feature.

Pairing in HID Mode Using Near Field Communication

The WT6000 provides the ability to pair the RS6000 in HID Mode using NFC.

NOTE

RS6000 only.

1. Ensure that NFC is enabled on the WT6000.

2. Ensure that Bluetooth is enabled on both devices.

3. Ensure that the Bluetooth device to discover is in discoverable mode.

4. Ensure that the two devices are within 10 meters (32.8 feet) of one another.

5. Place the RS6000 in Human Interface Device (HID) mode. If the RS6000 is already in HID mode, skip to step

a. Remove the battery from the RS6000.

b. Press and hold the Restore key.

c. Install the battery onto the RS6000.

d. Keep holding the Restore key for about five seconds until a chirp is heard and the Scan LEDs flash green.

Data Capture 3 - 9

NFC Logo

e. Scan the bar code below to place the RS6000 in HID mode.

Figure 3-8 Bluetooth HID Bar Code

6. Remove the battery from the RS6000.

7. Re-install the battery into the RS6000.

8. Align the NFC icon on the RS6000 with the NFC icon on the WT6000.

A notification appears on the WT6000 screen.

The icon appears in the Status bar.

Figure 3-9 Align NFC Antennas

The WT6000 pairs with the RS6000 and appears in the Status bar.

NOTE

Not all Zebra device support NFC readers and the Tap-to-Pair feature.

Pairing Using Simple Serial Interface

To pair the RS507/RS6000 with the WT6000 using SSI:

1. Ensure that the two devices are within 10 meters (32.8 feet) of one another.

3 - 10 WT6000 User Guide

2. Install the battery into the RS6000.

3. On the WT6000, touch > .

Figure 3-10 Bluetooth Pairing Utility

4. Using the RS507/RS6000, scan the bar code on the screen.

The RS507/RS6000 emits a high/low/high/low beeps. The Scan LED flashes green indicating that the RS507/RS6000 is attempting to establish connection with the WT6000. When connection is established, the Scan LED turns off and the RS6000 emits one string of low/high beeps.

5. On the WT6000, touch .

Pairing Using Bluetooth Human Interface Device

To pair the RS507/RS6000 with the WT6000 using HID:

1. Ensure that Bluetooth is enabled on both devices.

2. Ensure that the Bluetooth device to discover is in discoverable mode.

3. Ensure that the two devices are within 10 meters (32.8 feet) of one another.

4. Place the RS507/RS6000 in Human Interface Device (HID) mode. If the RS507/RS6000 is already in HID

mode, skip to step 5.

a. Remove the battery from the RS507/RS6000.

b. Press and hold the Restore key.

c. Install the battery onto the RS507/RS6000.

d. Keep holding the Restore key for about five seconds until a chirp is heard and the Scan LEDs flash green.

e. Scan the bar code below to place the RS507/RS6000 in HID mode.

Figure 3-11 Bluetooth HID Bar Code

5. Remove the battery from the RS507/RS6000.

6. Re-install the battery into the RS507/RS6000.

7. Touch > Bluetooth.

Data Capture 3 - 11

8. Touch SCAN FOR DEVICES. The device begins searching for discoverable Bluetooth devices in the area and

displays them under AVAILABLE DEVICES.

9. Scroll through the list and select RS507/RS6000.

The device connects to the RS507/RS6000 and Connected appears below the device name. The Bluetooth device is added to the Bluetooth devices list and a trusted (“paired”) connection is established.

3 - 12 WT6000 User Guide

CHAPTER 4 WIRELESS

Wireless Local Area Networks

Wireless local area networks (WLANs) allow the WT6000 to communicate wirelessly inside a building. Before using the WT6000 on a WLAN, the facility must be set up with the required hardware to run the WLAN (sometimes known as infrastructure). The infrastructure and the WT6000 must both be properly configured to enable this communication.

Refer to the documentation provided with the infrastructure (access points (APs), access ports, switches, Radius servers, etc.) for instructions on how to set up the infrastructure.

Once the infrastructure is set up to enforce the chosen WLAN security scheme, use the Wireless & networks settings to configure the WT6000 to match the security scheme.

The WT6000 supports the following WLAN security options:

•

Open

•

Wireless Equivalent Privacy (WEP).

•

Wi-Fi Protected Access (WPA/WPA2) Personal (PSK).

•

Extensible Authentication Protocol (EAP).

• Protected Extensible Authentication Protocol (PEAP) - with MSCHAPV2 and GTC authentication.

• Transport Layer Security (TLS)

• TTLS - with Password Authentication Protocol (PAP), MSCHAP and MSCHAPv2 authentication.

• LEAP

• FAST - with MSCHAPV2 and GTC authentication.

The Status bar displays icons that indicate Wi-Fi network availability and Wi-Fi status. See Status Bar on page 2-2 for more information.

NOTE

Turn off Wi-Fi when not using it, to extend the life of the battery.

4 - 2 WT6000 User Guide

Scan and Connect to a Wi-Fi Network

1. Touch .

Figure 4-1 Settings Screen

2. Slide the Wi-Fi switch to the ON position.

3. Touch Wi-Fi. The WT6000 searches for WLANs in the area and lists them.

Figure 4-2 Wi-Fi Screen

4. Scroll through the list and select the desired WLAN network.

5. For open networks, touch profile once or press and hold and then select Connect to network or for secure

networks enter the required password or other credentials then touch Connect. See the system administrator for more information.

6. The WT6000 obtains a network address and other required information from the network using the dynamic

host configuration protocol (DHCP) protocol. To configure the WT6000 with a fixed internet protocol (IP) address, See Configuring the Device to Use a Static IP Address on page 4-5.

7. In the Wi-Fi setting field, Connected appears indicating that the WT6000 is connected to the WLAN.

Configuring a Wi-Fi Network

To set up a Wi-Fi network:

1. Touch > Wi-Fi.

2. Slide the switch to the ON position.

3. The device searches for WLANs in the area and lists them on the screen.

4. Scroll through the list and select the desired WLAN network.

Wireless 4 - 3

5. Touch the desired network. If the network security is Open, the device automatically connects to the network.

For all other network security a dialog box appears.

6. If the network security is WEP or WPA/WPS2 PSK, enter the required password and then touch Connect.

7. If the network security is 802.1x EAP:

•

Touch the EAP method drop-down list and select PEAP, TLS, TTLS, LEAP or FAST.

•

Touch the Phase 2 authentication drop-down list and select an authentication method.

•

If required, touch CA certificate and select a Certification Authority (CA) certificate. Note: Certificates are installed using the Security settings or Wi-Fi Advanced settings.

•

If required, touch User certificate and select a user certificate. Note: User certificates are installed using the Location & security settings or Wi-Fi Advanced settings.

•

If required, in the Identity text box, enter the username credentials.

•

If desired, in the Anonymous identity text box, enter an anonymous identity username.

•

If required, in the Password text box, enter the password for then given identity.

NOTE

By default, the network Proxy is set to None and the IP settings is set to DHCP. See Configuring for

a Proxy Server on page 4-4 for setting connection to a proxy server and see Configuring the Device to Use a Static IP Address on page 4-5 for setting the device to use a static IP address.

8. Touch Connect.

9. Touch .

Manually Adding a Wi-Fi Network

Manually add a Wi-Fi network if the network does not broadcast its name (SSID) or to add a Wi-Fi network when out of range.

1. Touch > Wi-Fi.

2. Slide the Wi-Fi switch to the On position.

3. Touch (three dots) > Add network.

4. In the Enter SSID text box, enter the name of the Wi-Fi network.

5. In the Security drop-down list, select the type of security. Options:

•

None

•

WEP

•

WPA/WPA2 PSK

•

802.1x EAP.

6. If the network security is None, touch Save.

7. If the network security is WEP or WPA/WPA2 PSK, enter the required password and then touch Save.

8. If the network security is 802.1x EAP:

•

Touch the EAP method drop-down list and select PEAP, TLS, TTLS, LEAP or FAST.

4 - 4 WT6000 User Guide

•

Touch the Phase 2 authentication drop-down list and select an authentication method.

•

If required, touch CA certificate and select a Certification Authority (CA) certificate. Note: Certificates are installed using the Security settings or Wi-Fi Advanced settings.

•

If required, touch User certificate and select a user certificate. Note: User certificates are installed using the Security settings or Wi-Fi Advanced settings.

•

If required, in the Identity text box, enter the username credentials.

•

If desired, in the Anonymous identity text box, enter an anonymous identity username.

•

If required, in the Password text box, enter the password for then given identity.

By default, the network Proxy is set to None and the IP settings is set to DHCP. See Configuring for a

Proxy Server on page 4-4 for setting connection to a proxy server and see Configuring the Device to Use a Static IP Address on page 4-5 for setting the device to use a static IP address.

1. Touch Connect.

2. Touch .

Configuring for a Proxy Server

A proxy server is a server that acts as an intermediary for requests from clients seeking resources from other servers. A client connects to the proxy server, requesting some service, such as a file, connection, web page, or other resource, available from a different server. The proxy server evaluates the request according to its filtering rules. For example, it may filter traffic by IP address or protocol. If the request is validated by the filter, the proxy provides the resource by connecting to the relevant server and requesting the service on behalf of the client.

It is important for enterprise customers to be able to set up secure computing environments within their companies, and proxy configuration is an essential part of doing that. Proxy configuration acts as a security barrier ensuring that the proxy server monitors all traffic between the Internet and the intranet. This is normally an integral part of security enforcement in corporate firewalls within intranets.

1. In the Wi-Fi list, touch a network.

2. Touch Show Advanced options checkbox.

3. Touch Proxy settings and select Manual.

Figure 4-3 Proxy Settings

Wireless 4 - 5

4. In the Proxy hostname text box, enter the address of the proxy server.

5. In the Proxy port text box, enter the port number for the proxy server.

NOTE

When entering proxy addresses the Bypass proxy for field, do not use spaces or carriage returns between addresses.

6. In the Bypass proxy for text box, enter addresses for web sites that do not require to go through the proxy

server. Use the separator “|” between addresses.

7. Touch Connect.

8. Touch .

Configuring the Device to Use a Static IP Address

By default, the device is configured to use Dynamic Host Configuration Protocol (DHCP) to assign an Internet protocol (IP) address when connecting to a wireless network. To configure the device to connect to a network using a static IP address:

1. In the Wi-Fi list, touch a network.

2. Touch Show Advanced options checkbox.

3. Touch IP settings and select Static.

Figure 4-4 Static IP Settings

4. In the IP address text box, enter an IP address for the device.

5. If required, in the Gateway text box, enter a gateway address for the device.

6. If required, in the Network prefix length text box, enter a the prefix length.

7. If required, in the DNS 1 text box, enter a Domain Name System (DNS) address.

8. If required, in the DNS 2 text box, enter a DNS address.

9. Touch Connect.

10. Touch .

4 - 6 WT6000 User Guide

Advanced Wi-Fi Settings

NOTE

Advanced Wi-Fi settings are for the device not for a specific wireless network.

•

Network notification - When enabled, notifies the user when an open network is available.

•

Scanning always available - Select to let Google’s location service and other applications scan for

networks, even when Wi-Fi is off. Default - disabled.

•

Keep Wi-Fi on during sleep - Opens a menu to set whether and when the Wi-Fi radio turns off.

• Always On - The radio stays on when the device enters suspend mode.

• Only when plugged in - The radio stays on while the device is connected to external power.

• Never - The radio turns off when the device enters suspend mode (default).

•

Wi-Fi frequency band - Options: Automatic (default), 5 GHz only or 2.4 GHz only.

•

Install Certificates – Touch to install certificates.

•

MAC address - Displays the Media Access Control (MAC) address of the device when connecting to Wi-Fi

networks.

•

IP address - Displays the IP address of the device.

Additional Settings

•

Regulatory

• Country selection - Use to select the country of operation. Touch to select the country. If Auto is

selected, the WT6000 will acquire country information from infrastructure if it is supported. Displays the acquired country if Auto is selected else displays the selected country. Default: Auto.

• Region code - Displays the configured region code for the device.

•

Band and Channel Selection

• Wi-Fi frequency band - Use to select the frequency band. Options: Auto (default), 5 GHz only or 2.4 GHz only.

• Available channels (2.4 GHz) - Use to select specific channels. Touch to display the Available channels menu. Select specific channels. Touch OK.

• Available channels (5 GHz) - Use to select specific channels. Touch to display the Available channels menu. Select specific channels. Touch OK.

•

Logging

• Advanced Logging – Touch to enable advanced logging.

• Wireless logs - Use to capture Wi-Fi log files.

• Fusion Logger - Touch to open the Fusion Logger application. This application maintains a history of

high level WLAN events which helps to understand the status of connectivity.

Figure 4-5 Fusion Logger Screen

• Fusion Status - Touch to display live status of WLAN state. Also provides information of device and

connected profile.

Wireless 4 - 7

Figure 4-6 Fusion Status Screen

•

About

•Version - Displays the current Fusion information. Touch to see component versions.

Remove a Wi-Fi Network

To remove a remembered or connected network:

1. Touch > Wi-Fi.

2. In the Wi-Fi networks list, touch and hold the name of the network.

3. In the menu, touch Forget network.

4. Touch .

Modify or Edit a Wi-Fi Network

To modify a remembered or connected network:

1. 1.Touch > Wi-Fi.

2. In the Wi-Fi networks list, touch and hold the name of the network.

3. In the menu, touch Modify network.

4. Edit the network parameters.

5. Touch SAVE.

4 - 8 WT6000 User Guide

1. Touch .

Wi-Fi Advanced Features

Some additional Wi-Fi settings cannot be accessed from the User Interface. They can be configured by using Wi-Fi CSP. Refer to EMDK documentation for the details on the Wi-Fi settings configuration using the Wi-Fi CSP.

•

Auto Time Config - Using this feature, the device can sync up its time with Zebra WLAN infrastructure. This

feature works only when the device is connected to Zebra WLAN infrastructure and the feature is enabled on the WLAN infrastructure side. Default: disabled.

•

PMKID Caching - Allows the device to skip 802.1x authentication during roaming if it had previously

connected to that AP with a full 802.1x authentication. Default: disabled. Note: disable OKC when enabling PMKID Caching.

•

Opportunistic Key Caching - Use this feature to skip 802.1x authentication during roaming. The device will

go for full 802.1x authentication for the first time it connects to the network. For subsequent roaming, the device skips 802.1x authentication. Default: enabled.

•

Cisco Centralized Key Management - Allows the device to skip 802.1x and key-handshake phases during

roaming. This feature is available only when the device is connected to a Cisco infrastructure that supports Cisco Centralized Key Management (CCKM). Default: enabled.

•

Fast Transition - Fast Transition (FT) is the fast roaming standard, 802.11r. With this feature, the device can

skip 802.1x and key-handshake phases during roam. Default: enabled.

•

Fast Transition Resource Information Container - Allows the device to request TSPEC as part of

reassociation frame exchange. This helps to avoid sending a separate resource request after roaming is completed. Default: disabled.

•

Power Save - The device can be configured to work in different power save modes:

•Active - Keeps the WLAN radio always in active mode (i.e. power save mode disabled).

• Power save using WMM-PS - Device uses WMM-PS power save method if the AP is configured to use

this. If the AP is not supporting WMM-PS, the device will use Null data power save method.

• Power save using PS-Poll - In this method, the device will use PS-Poll frames to retrieve buffered frames from the AP.

• Null Data Power Save - In Null Data Power Save (NDP), the device will stay awake for 100 ms after the last frame is sent or received. The device will send a Null Data packet with power management bit cleared to retrieve buffered frames from the AP. This is the default power save mode.

•

Band Preference - The device can be configured to prefer one band over another. By default, Band

Preference feature is disabled.

•

Subnet Roaming - When the device roams between different sub networks, if it detects that it is roaming to

a different subnet, the device will request a fresh IP address. Default: disabled.

Bluetooth

Bluetooth-equipped devices can communicate without wires, using frequency-hopping spread spectrum (FHSS) radio frequency (RF) to transmit and receive data in the 2.4 GHz Industry Scientific and Medical (ISM) band (802.15.1). Bluetooth wireless technology is specifically designed for short-range (10 meters (32.8 feet)) communication and low power consumption.

Wireless 4 - 9

Devices with Bluetooth capabilities can exchange information (e.g., files, appointments, and tasks) with other Bluetooth enabled devices such as printers, access points, and other mobile devices.

Adaptive Frequency Hopping

Adaptive Frequency Hopping (AFH) is a method of avoiding fixed frequency interferers, and can be used with Bluetooth voice. All devices in the piconet (Bluetooth network) must be AFH-capable in order for AFH to work. There is no AFH when connecting and discovering devices. Avoid making Bluetooth connections and discoveries during critical 802.11b communications. AFH for Bluetooth consists of four main sections:

•

Channel Classification - A method of detecting an interference on a channel-by-channel basis, or

pre-defined channel mask.

•

Link Management - Coordinates and distributes the AFH information to the rest of the Bluetooth network.

•

Hop Sequence Modification - Avoids interference by selectively reducing the number of hopping channels.

•

Channel Maintenance - A method for periodically re-evaluating the channels.

When AFH is enabled, the Bluetooth radio “hops around” (instead of through) the 802.11b high-rate channels. AFH coexistence allows Enterprise devices to operate in any infrastructure.

The Bluetooth radio in this device operates as a Class 2 device power class. The maximum output power is 2.5 mW and the expected range is 10 meters (32.8 ft.). A definition of ranges based on power class is difficult to obtain due to power and device differences, and whether one measures open space or closed office space.

NOTE

It is not recommended to perform Bluetooth wireless technology inquiry when high rate 802.11b operation is required.

Security

The current Bluetooth specification defines security at the link level. Application-level security is not specified. This allows application developers to define security mechanisms tailored to their specific need. Link-level security occurs between devices, not users, while application-level security can be implemented on a per-user basis. The Bluetooth specification defines security algorithms and procedures required to authenticate devices, and if needed, encrypt the data flowing on the link between the devices. Device authentication is a mandatory feature of Bluetooth while link encryption is optional.

Pairing of Bluetooth devices is accomplished by creating an initialization key used to authenticate the devices and create a link key for them. Entering a common personal identification number (PIN) in the devices being paired generates the initialization key. The PIN is never sent over the air. By default, the Bluetooth stack responds with no key when a key is requested (it is up to user to respond to the key request event). Authentication of Bluetooth devices is based-upon a challenge-response transaction. Bluetooth allows for a PIN or passkey used to create other 128-bit keys used for security and encryption. The encryption key is derived from the link key used to authenticate the pairing devices. Also worthy of note is the limited range and fast frequency hopping of the Bluetooth radios that makes long-distance eavesdropping difficult.

Recommendations are:

•

Perform pairing in a secure environment

•

Keep PIN codes private and do not store the PIN codes in the device

•

Implement application-level security.

4 - 10 WT6000 User Guide

Bluetooth Profiles

The device supports the following Bluetooth services:

•

Service Discovery Protocol (SDP) - Handles the search for known and specific services as well as general

services.

•

Serial Port Profile (SPP) - Allows use of RFCOMM protocol to emulate serial cable connection between two

Bluetooth peer devices. For example, connecting the device to a printer.

•

Advanced Audio Distribution Profile (A2DP) - Allows the device to stream stereo-quality audio to a

wireless headset or wireless stereo speakers.

•

Audio/Video Remote Control Profile (AVRCP) - Allows the device to control A/V equipment to which a user

has access. It may be used in concert with A2DP.

•

Human Interface Device Profile (HID) - Allows Bluetooth keyboards, pointing devices, gaming devices and

remote monitoring devices to connect to the device.

•

Object Push Profile (OPP) - Allows the device to push and pull objects to and from a push server.

•

Headset Profile (HSP) - Allows a hands-free device, such as a Bluetooth headset, to place and receive calls

on the device.

•

Hands-Free Profile (HFP) - Allows car hands-free kits to communicate with the device in the car.

•

Personal Area Network (PAN) - Allows the use of Bluetooth Network Encapsulation Protocol to provide L3

networking capabilities over a Bluetooth link. Only PANU role is supported.

•

Out of Band (OOB) - Allows exchange of information used in the pairing process. Pairing is completed using

the Bluetooth radio, but requires information from the OOB mechanism. Using OOB with NFC enables pairing when devices simply get close, rather than requiring a lengthy discovery process.

Bluetooth Power States

The Bluetooth radio is off by default.

•

Suspend - When the WT6000 goes into suspend mode, the Bluetooth radio stays on.

•

Airplane Mode - When the WT6000 is placed in Airplane Mode, the Bluetooth radio turns off. When Airplane

mode is disabled, the Bluetooth radio returns to the prior state. When in Airplane Mode, the Bluetooth radio can be turned back on if desired.

Bluetooth Radio Power

Turn off the Bluetooth radio to save power or if entering an area with radio restrictions (e.g., an airplane). When the radio is off, other Bluetooth devices cannot see or connect to the device. Turn on the Bluetooth radio to exchange information with other Bluetooth devices (within range). Communicate only with Bluetooth radios in close proximity.

NOTE

To achieve the best battery life turn off radios when not in use.

Enabling Bluetooth

1. Touch > Bluetooth.

2. Slide the switch to the right. ON appears and appears in the Status bar.

Wireless 4 - 11

3. Touch .

Disabling Bluetooth

1. Touch > Bluetooth.

2. Slide the switch to the left. OFF appears.

3. Touch .

Discovering Bluetooth Device(s)

The WT6000 can receive information from discovered devices without pairing. However, once paired, the WT6000 and a paired device exchange information automatically when the Bluetooth radio is on. To find Bluetooth devices in the area:

1. Ensure that Bluetooth is enabled on both devices.

2. Ensure that the Bluetooth device to discover is in discoverable mode.

3. Ensure that the two devices are within 10 meters (32.8 feet) of one another.

4. Touch > Bluetooth.

5. The WT6000 begins searching for discoverable Bluetooth devices in the area and displays them under

Available devices.

6. Scroll through the list and select a device. The Bluetooth pairing request dialog box appears.

Figure 4-7 Bluetooth Pairing - Smart Pairing

7. Enter a PIN in the text box and touch OK. Enter the same PIN on the other device.

8. For Simple Pairing, touch Pair on both devices.

9. The Bluetooth device is added to the Paired devices list and a trusted (“paired”) connection is established.

Changing the Bluetooth Name

By default, the WT6000 has a generic Bluetooth name that is visible to other devices when connected.

1. Touch > Bluetooth.

2. If Bluetooth is not on, slide the switch to the ON position.

3. Touch .

4 - 12 WT6000 User Guide

4. Touch Rename this device.

5. Enter a name and touch Rename.

6. Touch .

Connecting to a Bluetooth Device

Once paired, connect to a Bluetooth device.

1. Touch > Bluetooth.

2. If Bluetooth is not on, slide the switch to the ON position.

3. In the Paired devices list, touch and hold on a unconnected Bluetooth device until a menu appears.

4. Touch Connect. When connected, the device is displayed as connected in the list.

Selecting Profiles on the Bluetooth Device

Some Bluetooth devices have multiple profiles. To select a profile:

1. Touch > Bluetooth.

2. In the Paired devices list, touch next to the device name.

3. Under Use for, check or uncheck a profile to allow the device to use that profile.

4. Touch OK.

5. Touch .

Unpairing a Bluetooth Device

To unpair a Bluetooth device and erase all pairing information:

1. Touch > Bluetooth.

2. In the Paired devices list, touch next to the device name.

3. Touch FORGET.

4. Touch .

Near Field Communications

NFC/HF RFID is a short-range wireless connectivity technology standard that enables secure transaction between a reader and a contactless smart card. The technology is based on ISO/IEC 14443 type A and B (proximity), Felica and ISO/IEC 15693 (vicinity) standards, using the HF 13.56 MHz unlicensed band. The WT6000 supports three operating modes:

•

Reader mode

•

Peer-to-Peer communication

•

Card Emulation mode.

Using NFC, the WT6000 can:

•

Read contactless cards such as contactless tickets, NFC labels, HF tokens or standard smart cards.

•

Read and write information to contactless cards such as SmartPosters and tickets, as well as devices with NFC interface such as vending machines.

•

Read information from supported medical sensors.

•

Pair with supported Bluetooth devices such as printers and headsets. See Pairing Using Near Field

Communication on page 3-7 for instruction on pairing the RS6000 Ring Scanner with the WT6000 using

NFC.

•

Exchange data with another NFC device.

•

Emulate contactless card such as ticket or V-card.

The WT6000 NFC antenna is uniquely positioned to read NFC cards from the front of the device.

Reading NFC Cards

Wireless 4 - 13

1. Make sure NFC is turned on.

a. Touch Settings > More.

b. Ensure that the NFC switch is in the on (green) position.

c. Touch Home.

2. Launch an NFC enabled application or use a NFC NDEF formatted tag.

3. Hold device as shown.

Figure 4-8 Reading NFC Card

4 - 14 WT6000 User Guide

4. Move NFC card until the WT6000 detects the card.

5. Hold the card steadily until the transaction is complete (usually indicated by the application).

CHAPTER 5 APPLICATIONS

Introduction

This chapter describes the applications installed on the device.

Battery Manager

The Battery Manager provides detailed information about the battery.

Figure 5-1 Battery Manager Screen

5 - 2 WT6000 User Guide

Table 5-1 Battery Icon Description

Battery Icon Description

Indicates battery charge level.

Indicates battery charging.

Indicates battery charge level is below 20%.

•

Battery level - Indicate the current battery charge level as a percentage. Displays -% when level is unknown.

•

Time until empty - Indicates the amount of time before the battery is depleted based on current usage.

Displays when the device is not on AC power.

•

Time until full - Indicates the amount of time until the battery is fully charged based on charge rate. Displays

when the device is on AC power.

•

Time since charging - Indicates the amount of time since the battery started charging.

•

Battery status

• Not charging - Indicates that the device is not connected to AC power.

• Charging over AC - Indicates that the device is connected to AC power and charging.

• Charging over USB - Indicates that the device is connected to a host computer with a USB cable and

charging.

• Discharging - Indicates that the battery is discharging.

•Full - Indicates that the battery is fully charged.

• Unknown - Indicates that the battery status is unknown.

•

Battery health - Indicates the health of the battery. If a critical error occurs, appears. Touch to view error

description.

• Decommission* - The battery is past it’s useful life and should be replaced. See system administrator.

• Good - The battery is good.

• Charge error* - An error occurred while charging. See system administrator.

• Over Current - An overcurrent condition occurred. See system administrator.

• Dead - The battery has no charge. Replace the battery.

• Over Voltage - An overvoltage condition occurred. See system administrator.

• Below Temperature - The battery temperature is below the

• Failure Detected* - A failure has been detected in the battery. See system administrator.

• Unknown - See system administrator.

•

Wear level - Indicates the health of the battery in graphical form. When the wear level exceeds 80%, the bar

color changes to red.

Applications 5 - 3

•

Advanced info - Touch to view additional battery information.

• Battery present status - Indicates the maximum amount of charge (in mAh) that could be pulled from the

battery under the present discharge conditions if the battery is fully charged.

• Battery level - Indicates battery charge level as a percentage of scale.

• Battery scale - Battery scale level used to determine battery level (100).

• Battery voltage - Indicates current battery voltage in millivolts.

• Battery temperature - Indicates current battery temperature in degrees Centigrade.

• Battery technology - Lists the type of battery.

• Battery manufacture date - Lists the date of manufacture.

• Battery serial number - Lists the battery serial number. The number matches the serial number printed

on the battery label.

• Battery part number - Lists the battery part number.

• Backup battery voltage - Indicates the backup battery voltage in millivolts.

• Backup battery level - Indicates the current backup battery charge level as a percentage.

• Battery rated capacity - Lists the rated capacity of the backup battery in mAh.

• Battery decommission status - Indicates if the battery is past it’s life span.

• Battery Good - Battery is in good health.

• Decommissioned Battery - Battery is past it’s useful life and should be replaced.

• Base cumulative charge - Indicates the total amount of charge applied to the battery.

• Battery usage number - Indicates the number of charge cycles of the battery.

• Usage decommission threshold - Lists the threshold charge cycle count. When the Battery usage

number reaches this value the battery should be d

• App version - Lists the application version number.

5 - 4 WT6000 User Guide

Device Central

Device Central displays detailed information about the WT6000 and connected peripherals and supports the following Zebra devices:

•

RS6000 Bluetooth Ring Scanner

•

RS5000 Corded Ring Scanner

•

HS3100 Bluetooth Headset

Device Central features include:

•

Discovering and pairing with supported peripherals via Bluetooth or corded connection.

•

Paging a connected RS6000 Ring Scanner.

•

Updating the firmware of supported ring scanners. For information on updating ring scanner firmware using Device Central, refer to the RS5000 Quick Start Guide or RS6000 User Guide.

•

Displaying the connection status of peripherals.

•

Displaying information for a connected peripheral in the notification bar.

Figure 5-2 Device Central Screen

Device Central Tabs

•

Peripherals Tab - displays all currently connected and previously connected peripherals. Connected

peripherals display the length of time (in minutes) that they have been connected. When an RS6000 is connected the Page button displays. See Paging an RS6000 Ring Scanner on page 5-4.

Touch the peripheral information to display the Device Details screen.

• Device Details - displays detailed device information for the selected peripheral.

•

My Device Tab - displays information about the WT6000 and the current version of Device Central.

• Device Details - displays the About device screen.

• Device Battery Details - displays the Battery screen.

Paging an RS6000 Ring Scanner

Use the Page button to easily locate the currently connected RS6000 Ring Scanner:

1. With the RS6000 Ring Scanner connected, touch > .

Applications 5 - 5

NOTE

The RS6000 Ring Scanner must be within 10 m (32 ft) of the WT6000.

2. Under the RS6000 peripheral information, touch Page to begin paging the RS6000. The paged RS6000 beeps

and vibrates.

Figure 5-3 Page RS6000

To stop paging, press the scan trigger of the RS6000. On a triggerless RS6000, stop paging by resetting the RS6000. See Resetting the WT6000 on page 2-11.

5 - 6 WT6000 User Guide

1 2

3 4

File Browser

Use the File Browser application to view and manage files on the device.

To open File Browser, touch > .

Figure 5-4 File Browser Screen

The address bar (1) indicates the current folder path. Touch the current folder path to manually enter a path and folder name.

Use (2) to select multiple files/folder.

Use (3) to view the internal storage root folder.

Use (4) to view the Internal Storage root folder.

Use (5) to view the previous folder or to exit the application.

Touch and hold an item to perform an operation on that item. Select one of the options from the File Operations menu:

•

Information - View detailed information about the file or folder.

•

Move - Move the file or folder to a new location.

•

Copy - Copy the select file.

•

Delete - Delete the selected file.

•

Rename - Rename the select file.

•

Open as - Open the selected file as a specific file type.

•

Share - Share the file with other devices.

Touch to open additional functionality:

•

Touch > New Folder to create a new folder in the current folder.

•

Touch > Search to search for a file or folder.

•

Touch > Sort to sort the list by name, by type, by size or by date.

•

Touch > Refresh to re-display the contents of the current folder.

•

Touch > List View to change the folder view from tile to list format.

•

Touch > Change Size to change the size of the icons: Large, Normal or Small.

•

Touch > About File Browser to view the application version information.

Applications 5 - 7

5 - 8 WT6000 User Guide

Settings

Enable/Disable Switch

Notification Icon

Service Indication

Talk Groups

PTT Express Voice Client

NOTE

PTT Express Voice Client creates Push-To-Talk (PTT) communication capability between disparate enterprise devices. Leveraging existing Wireless Local Area Network (WLAN) infrastructure, PTT Express delivers simple PTT communication without the need of a voice communication server.

•

Group Call: Press and hold the PTT (Talk) button to start communicating with other voice client users.

PTT Audible Indicators

The following tones provide helpful cues when using the voice client.

•

Talk Tone: Double chirp. Plays when the Talk button is depressed. This is a prompt for the user to start

talking.

•

Access Tone: Single beep. Plays when another user just finished a broadcast or response. The user is now

able to initiate a Group Broadcast or Private Response.

•

Busy Tone: Continuous tone. Plays when the Talk button is depressed and another user is already

communicating on the same talkgroup. Plays after the maximum allowed talk time is reached (60 seconds).

•

Network Tone:

• Three increasing pitch beeps. Plays when PTT Express has acquired the WLAN connection and the

service is enabled.

• Three decreasing pitch beeps. Plays when PTT Express has lost the WLAN connection or the service is disabled.

Figure 5-5 PTT Express Default User Interface

Table 5-2 PTT Express Default User Interface Descriptions

Item Description

Notification Icon

Indicates the current state of the PTT Express client.

Service Indication

Talk Groups Lists all 32 Talk Groups available for PTT communication.

Indicates the status of the PTT Express client. Options: Service Enabled, Service Disabled or Service Unavailable.

Table 5-2 PTT Express Default User Interface Descriptions (Continued)

Item Description

Settings Opens the PTT Express Settings screen.

Applications 5 - 9

Enable/Disable Switch

Turns the PTT service on and off.

Notification Icons

Indicates the current state of the PTT Express Voice client.

Table 5-3 PTT Express Default User Interface Descriptions

Status Icon Description

Indicates that PTT Express Voice client is disabled.

Indicates that PTT Express Voice client is enabled but not connected to a WLAN.

Indicates that PTT Express Voice client is enabled, connected to a WLAN and listening on the Talk Group indicated by the number next to the icon.

Indicates that PTT Express Voice client is enabled, connected to a WLAN and communicating on the Talk Group indicated by the number next to the icon.

Indicates that PTT Express Voice client is enabled, connected to a WLAN and in a private response.

Indicates that PTT Express Voice client is enabled and muted.

Indicates that the PTT Express Voice client is enabled but it is not able to communicate due to a VoIP telephony call is in progress.

Enabling PTT Communication

1. Touch > .

2. Slide the Enable/Disable Switch to the ON position. The button changes to an ON button.

Selecting a Talk Group

One of 32 Talk Groups can be selected by PTT Express users. However, only one talk group may be enabled at a time on the device. Touch one of the 32 Talk Groups. The selected Talk Group is highlighted.

5 - 10 WT6000 User Guide

PTT Button

PTT Communication

NOTE

This section describes the default PTT Express client configuration. See the PTT Express V1.2 User Guide for detailed information on using the client.

PTT communication may be established as a Group Call. When PTT Express is enabled, the P3 button is assigned for PTT communication.

Figure 5-6 PTT Button

Creating a Group Call

To create a group call:

1. Press and hold the PTT button and listen for the talk tone to play.

If a busy tone is heard, release the button and wait a moment before making another attempt. Ensure that PTT Express and the WLAN are enabled.

2. Start talking after the talk tone is heard.

NOTE

If the user holds the button for more than 60 seconds (default), the call is dropped allowing others to make Group calls. The user should release the button when finished talking to allow others to make calls.

3. Release the button when finished talking.

Disabling PTT Express Voice Client Communication

1. Touch > .

2. Slide the Enable/Disable Switch to the OFF position. The button changes to OFF.

3. Touch .

DataWedge

Refer to the WT6000 Integrator Guide for detailed information on configuring DataWedge.

DataWedge Demonstration

Use DataWedge Demonstration to demonstrate data capture functionality.

Applications 5 - 11

Figure 5-7 DataWedge Demonstration Window

Table 5-4 DataWedge Demonstration Icons

Feature Icon Description

Illumination Select to disable imager illumination (RS507, RS5000 and RS6000 only).

Select to enable imager illumination (RS507, RS5000 and RS6000 only).

Connection Indicates that an RS507 or RS6000 Bluetooth imager is not connected to the WT6000.

Indicates that an RS507 or RS6000 Bluetooth imager is connected to the WT6000.

Indicates that an RS4000 laser scanner or RS5000 imager is not connected to the WT6000.

Indicates that an RS4000 laser scanner or RS5000 imager is connected to the WT6000.

Scan Mode Select to enable picklist mode (RS507, RS5000 and RS6000 only).

Select to enable normal scan mode (RS507, RS5000 and RS6000 only).

Menu Opens a menu to view the application information or to set the application DataWedge

profile.

NOTE

See WT6000 Integrator Guide for information on DataWedge configuration.

5 - 12 WT6000 User Guide

Either press the device Scan key or touch the yellow scan button in the application to enable data capture. The captured data appears in the text field below the yellow button.

RxLogger

RxLogger is a comprehensive diagnostic tool that provides application and system metrics. It allows for custom plug-ins to be created and work seamlessly with this tool. RxLogger is used to diagnose device and application issues. Its information tracking includes the following: CPU load, memory load, memory snapshots, battery consumption, power states, wireless logging, cellular logging, TCP dumps, Bluetooth logging, GPS logging, logcat, FTP push/pull, ANR dumps, etc. All logs and files generated are saved onto flash storage on the device (internal or external).

Figure 5-8 RxLogger

Applications 5 - 13

RxLogger Configuration

RxLogger is built with an extensible plug-in architecture and comes packaged with a number of plugins already built-in. The included plug-ins are described below. Touch > Settings to open the configuration screen.

Configuration File

RxLogger configuration can be set using an XML file. The config.xml configuration file is located on the Enterprise storage in the

Edit the configuration file and the replace the .XML file on the device. There is no need to stop and restart the RxLogger service since the file change is automatically detected.

RxLogger\config folder. Copy the file from the device to a host computer using a USB connection.

Enabling Logging

1. Touch > .

2. Touch Start.

3. Touch .

Disabling Logging

1. Touch > .

2. Touch Stop.

3. Touch .

5 - 14 WT6000 User Guide

Extracting Log Files

1. Connect the device to a host computer using an USB connection.

2. Using a file explorer, navigate to the Internal Storage in the /RxLogger folder.

3. Copy the file from the device to the host computer.

4. Disconnect the device from the host computer.

Elemez

Use Elemez to provide diagnostics information to us. Touch Submit Diagnostics button to send the data.

Applications 5 - 15

NOTE

Elemez collects specific device information in the background and sends this information to us to help improve product functionality. This feature can be disabled.

See Disabling Elemez Data Collection. Ensure that the date, time and time zone are set correctly prior to using Elemez.

Figure 5-9 Elemez Application

Disabling Elemez Data Collection

The user can disable the Elemez application from collection specific data in the background and sending it to Zebra Technologies.

1. From the Home screen, touch > > Apps.

2. Swipe left or right until the ALL tab displays.

3. Scroll through the list and touch Elemez.

4. In the App info screen, touch Uninstall updates.

5. In the Uninstall updates dialog box, touch OK.

6. Touch OK.

7. After uninstall is complete, touch OK.

8. In the All tab, scroll through the list and touch Elemez.

9. Touch Disable.

10. In the Disable built-in app? dialog box, touch OK.

11. Touch .

Enabling Elemez Data Collection

The user can re-enable the Elemez application for collection specific data in the background and sending it to Zebra Technologies.

5 - 16 WT6000 User Guide

1. From the Home screen, touch .

2. Touch Manage Apps.

3. Swipe left or right until the ALL tab displays.

4. Scroll through the list and touch Elemez.

5. In the App info screen, touch Enable.

6. Touch > > .

7. Touch Enable Elemez.

Print Station

Use the Print Station application to print labels and receipts directly to a Zebra ZPL printer via USB, Bluetooth or WLAN.

Features include:

•

Discovering and pairing with Zebra printers via a Bluetooth, WLAN or USB connection.

•

Retrieving and displaying a list of document templates stored on the device and on the printer.

•

Using document templates to generate on-screen prompts allowing data entry at print time.

•

Using the camera on the device to scan bar codes for data entry.

•

Supports multiple Zebra printer models using the ZPL command language.

Applications 5 - 17

5 - 18 WT6000 User Guide

Printer Setup

Use the Printer Setup utility to configure select Zebra industrial, mobile and desktop printers. Wizards quickly guide user through the printer setup utility, whether adding a new printer, moving an existing printer to a new location or adding new capabilities.

Figure 5-10 Printer Setup Screen

Tap & Pair

Use the Tap & Pair application to easily connect to a Zebra printer.

1. Enable Bluetooth and NFC:

a. Touch > . b. Slide the Bluetooth switch to the ON position.

c. Touch More... .

d. Touch NFC checkbox. A blue check mark appears indicating that NFC is enabled.

e. Touch .

2. Touch > .

Applications 5 - 19

Figure 5-11 Tap & Pair Application

3. Touch the back of the WT6000 to the NFC logo on the Zebra printer.

Figure 5-12 Complete Action Dialog Box

4. Ta p Tap & Pair and then tap Just once.

The printer displays the pair code on the display. Verify that this code matches the code shown on the WT6000.

5. Ta p PAIR.

6. Verify that the Zebra printer is in the list of paired devices.

5 - 20 WT6000 User Guide

Figure 5-13 Paired Printer List

7. Tap the Zebra printer in the Paired Devices list to print a test page.

8. Ta p OK to print the test page.

CHAPTER 6 ACCESSORIES

Accessories

Table 6-1 Accessories

Accessory Part Number Description

Cradles

1-Slot WT6000 Charging Cradle

2-Slot WT6000/RS6000 Charging Cradle

5-Slot WT6000 Charge Only Cradle

10-Slot WT6000/RS6000 Charge Only Cradle

10-Slot WT6000 Charge Only Cradle

CRD-NGWT-1S1BU-01 Provides WT6000 and spare battery charging and

USB communication with a host computer. Use with power supply, p/n PWRS-14000-148R and country specific grounded AC line cord.

CRD-NWTRS-2SUCH-01 Provides WT6000 and RS6000 charging and USB

communication with a host computer. Use with power supply, p/n PWRS-14000-148R and country specific grounded AC line cord.

CRD-NGWT-5S5BC-01 Charges up to five WT6000 devices and five spare

batteries. Use with power supply, p/n PWRS-14000-241R, DC line cord, p/n 50-16002-029R and country specific grounded AC line cord.

CRD-NWTRS-10SCH-01 Charges up to five WT6000 devices and up to five

RS6000 scanners. Use with power supply, p/n PWRS-14000-241R, DC line cord, p/n 50-16002-029R and country specific grounded AC line cord.

CRD-NGWT-10SCH-01 Charges up to 10 WT6000 devices. Use with power

supply, p/n PWRS-14000-241R, DC line cord, p/n 50-16002-029R and country specific grounded AC line cord.

6 - 2 WT6000 User Guide

Table 6-1 Accessories (Continued)

Accessory Part Number Description

5-Slot WT6000 Ethernet Cradle

Batteries and Chargers

Replacement Battery BTRY-NWTRS-33MA-01 Replacement battery for WT6000 and RS6000 (single

4-Slot Battery Charger SAC-NWTRS-4SCH-01 Charges up to four spare batteries. Requires power

20-Slot Battery Charger SAC-NWTRS-20SCH-01 Charges up to 20 spare batteries. Use with power

Mounting Brackets

Rack Mount Bracket BRKT-SCRD-SMRK-01 Use for mounting a 5-Slot cradle or four 4-Slot Battery

Cables

CRD-NGWT-5S5BE-01 Charges up to five WT6000 devices and five spare

batteries and provides Ethernet communication. Use with power supply, p/n PWRS-14000-241R, DC line cord, p/n 50-16002-029R and country specific grounded AC line cord.

pack).

supply, p/n PWRS-14000-148R and country specific grounded AC line cord.

supply, p/n PWRS-14000-241R, DC line cord, p/n 50-16002-029R and country specific grounded AC line cord.

Chargers on a rack.

Headset Adapter Cable with Quick Disconnect (Long)

Headset Adapter Cable with Quick Disconnect (Short)

USB/Charge Cable CBL-NGWT-USBCHG-01 Provides USB communication and power to the

Vibrating Cable CBL-NGWT-HDVBAP-01 Provides haptic notification feedback.

DC Y Cable

DC 4-way Cable 25-85992-01R Provides power from the PWRS-14000-241R power

DC Line Cord 50-16002-029R Provides power from the power supply to the 5-Slot

Power Supplies

Power Supply PWRS-14000-249R Provides power to the device using the USB and

CBL-NGWT-AUQDLG-01 Connects a wired headset to the WT6000 on a Hip

Mount.

CBL-NGWT-AUQDST-01 Connects a wired headset to the WT6000 on a Wrist

Mount.

WT6000. Requires power supply PWRS-14000-249R and country specific un-grounded AC line cord.

25-122026-02R

Provides power from the PWRS-14000-148R power supply to two 4-Slot Battery Chargers.

supply to four 4-Slot Battery Chargers.

Charge Only Cradle, 5-Slot Ethernet Cradle, 5-Slot Charge Only Cradle with Battery Charge and 5-Slot Ethernet Cradle with Battery Charger.

Charging Cable. Requires country specific un-grounded AC line cord.

Accessories 6 - 3

Table 6-1 Accessories (Continued)

Accessory Part Number Description

Power Supply PWRS-14000-148R Provides power to the 2–Slot cradles and 4-Slot Spare

Battery Charger. Requires country specific grounded AC line cord.

Power Supply PWRS-14000-241R Provides power to the 5-Slot Charge Only Cradle,

5-Slot Ethernet Cradle, 5-Slot Charge Only Cradle with Battery Charger and the 5-Slot Ethernet Cradle with Battery Charger. Requires DC Line Cord, p/n 50-16002–029R and country specific grounded AC line cord.

Miscellaneous

Screen Protectors MISC-WT6X-SCRN-01 Provides additional protection for display (5-pack).

Soft Goods

WT6000 Hip Mount SG-NGWT-HPMNT-01 Provides mounting the WT6000 on a belt.

WT6000 Wrist Mount (Small/Medium)

WT6000 Wrist Mount (Medium/Large)

WT6000 Spare Straps (Small/Medium)

WT6000 Spare Straps (Medium/Large)

WT6000 Spare Comfort Pad SG-NGWT-CMPD-01 Replacement Comfort Pad for the Wrist Mount.

SG-NGWT-WRMTS-01 Replacement strap.

SG-NGWT-WRMTL-01 Replacement strap.

SG-NGWT-WSTPST-01 Replacement strap.

SG-NGWT-WSTPLN-01 Replacement strap.

6 - 4 WT6000 User Guide

Spare Battery Charging LED

Spare Battery Charing Slot

Power LED

WT6000 Charging Slot

WT6000 Charging LED

1-Slot WT6000 USB Charging Cradle

NOTE

Ensure that you follow the guidelines for battery safety described in Battery Safety Guidelines on page 7-1.

The 1-Slot WT6000 Charging Cradle:

•

provides 5.4 VDC (nominal) power for operating the WT6000

•

provides USB communication with a host computer

•

charges a spare battery.

Figure 6-1 1-Slot WT6000 Charging Cradle

Charging the Device

1. Insert either end of the WT6000 into the WT6000 charging slot.

Accessories 6 - 5

Figure 6-2 Insert WT6000 into Cradle

2. Ensure the WT6000 is seated properly. The WT6000 Charge LED blinks indicating charging.

Charging the Spare Battery

1. Insert a spare battery into the spare battery slot.

Figure 6-3 Insert Battery into Cradle

2. Ensure the battery is seated properly. The Spare Battery Charging LED blinks indicating charging.

Battery Charging

The WT6000 Charging LED indicates the charging status of the battery in the WT6000 and the Spare Battery Charging LED indicates the charging status of the spare battery. See Table 6-2 on page 6-5. The 3,350 mAh battery fully charges in less than four hours at room temperature.

Table 6-2 Charging LED Indicators

State Indication

Off The battery is not charging. The battery is not inserted correctly in the cradle or

connected to a power source. Cradle is not powered.

Solid Amber Battery is charging.

Solid Green Battery charging is complete.

6 - 6 WT6000 User Guide

Table 6-2 Charging LED Indicators (Continued)

State Indication

Fast Blinking Red (2 blinks/second)

Solid Red Unhealthy battery is charging or fully charged.

Charge batteries in temperatures from 0°C to 40°C (32°F to 104°F). The device or cradle always performs battery charging in a safe and intelligent manner. At higher temperatures (e.g. approximately +37°C (+98°F)) the device or cradle may for small periods of time alternately enable and disable battery charging to keep the battery at acceptable temperatures. The device and cradle indicates when charging is disabled due to abnormal temperatures via its LED.

Charging error, e.g.:

- Temperature is too low or too high.

- Charging has gone on too long without completion (typically eight hours).

2-Slot WT6000/RS6000 Charging Cradle

RS6000 Charging LED

RS6000 Charging Slot

Power LED

WT6000 Charging Slot

WT6000 Charging LED

NOTE

Ensure that you follow the guidelines for battery safety described in Battery Safety Guidelines on page 7-1.

The 2-Slot WT6000/RS6000 Charging Cradle:

•

provides 5.4 VDC (nominal) power for operating the WT6000 and RS6000.

Accessories 6 - 7

Figure 6-4 2-Slot WT6000/RS6000 Charging Cradle

Charging the WT6000

1. Insert the WT6000 into the WT6000 charging slot.

6 - 8 WT6000 User Guide

Figure 6-5 Insert WT6000 into Cradle

2. Ensure the WT6000 is seated properly. The WT6000 Charging LED blinks indicating charging.

Charging the RS6000

1. Insert the RS600 into the RS6000 charging slot.

Figure 6-6 Insert RS6000 into Cradle

2. Ensure the RS6000 is seated properly. The RS6000 Charging LED blinks indicating charging.

Battery Charging

The WT6000 Charging LED indicates the charging status of the battery in the WT6000 and the RS6000 Charging LED indicates the charging status of the battery in the RS6000. See Table 6-2 on page 6-5. The 3,350 mAh battery fully charges in less than four hours at room temperature.

Charge batteries in temperatures from 0 °C to 40 °C (32 °F to 104 °F). The device or cradle always performs battery charging in a safe and intelligent manner. At higher temperatures (e.g. approximately +37 °C (+98 °F)) the device or cradle may for small periods of time alternately enable and disable battery charging to keep the battery at acceptable temperatures. The device and cradle indicates when charging is disabled due to abnormal temperatures via its LED.

5-Slot WT6000 Charge Only Cradle

Spare Battery Charging LED

Spare Battery Charing Slot

Power LED

WT6000 Charging Slot

WT6000 Charging LED

NOTE

Ensure that you follow the guidelines for battery safety described in Battery Safety Guidelines on page 7-1.

The 5-Slot Charge Only Cradle:

•

Provides 5.4 VDC (nominal) power for operating up to five WT6000 devices.

•

Simultaneously charges up to five WT6000 devices.

•

Simultaneously charges up to five spare batteries.

Accessories 6 - 9

Figure 6-7 5-Slot WT6000 Charge Only Cradle

Charging the WT6000

To Charge the WT6000:

1. Insert the WT6000 in a WT6000 charging slot.

6 - 10 WT6000 User Guide

Figure 6-8 Insert WT6000 into Cradle

2. Ensure that the WT6000 is properly seated in the charging slot.

Charging the Spare Battery

1. Insert a spare battery into the spare battery slot.

Figure 6-9 Insert Battery into Cradle

2. Ensure the battery is seated properly. The Spare Battery Charging LED blinks indicating charging.

Battery Charging

Charge batteries in temperatures from 0 °C to 40 °C (32 °F to 104 °F). The device or cradle always performs battery charging in a safe and intelligent manner. At higher temperatures (e.g. approximately +37 °C (+98 °F)) the device or cradle may for small periods of time alternately enable and disable battery charging to keep the battery at acceptable temperatures. The device and cradle indicates when charging is disabled due to abnormal temperatures via its LED.
