Zebra WT6000 integrator Guide

WT6000
MN-002699-03
Wearable Computer
Integrator Guide
WT6000
INTEGRATOR GUIDE
MN-002699-03
Rev. A
ii WT6000 Integrator Guide
No part of this publication may be reproduced or used in any form, or by any electrical or mechanical means, without permission in writing. This includes electronic or mechanical means, such as photocopying, recording, or information storage and retrieval systems. The material in this manual is subject to change without notice.
The software is provided strictly on an “as is” basis. All software, including firmware, furnished to the user is on a licensed basis. We grant to the user a non-transferable and non-exclusive license to use each software or firmware program delivered hereunder (licensed program). Except as noted below, such license may not be assigned, sublicensed, or otherwise transferred by the user without prior written consent. No right to copy a licensed program in whole or in part is granted, except as permitted under copyright law. The user shall not modify, merge, or incorporate any form or portion of a licensed program with other program material, create a derivative work from a licensed program, or use a licensed program in a network without written permission. The user agrees to maintain copyright notice on the licensed programs delivered hereunder, and to include the same on any authorized copies it makes, in whole or in part. The user agrees not to decompile, disassemble, decode, or reverse engineer any licensed program delivered to the user or any portion thereof.
We reserve the right to make changes to any software or product to improve reliability, function, or design. We do not assume any product liability arising out of, or in connection with, the application or use of any
product, circuit, or application described herein. No license is granted, either expressly or by implication, estoppel, or otherwise under any of our intellectual
property rights. An implied license only exists for equipment, circuits, and subsystems contained in our products.

Revision History

Changes to the original guide are listed below:
Change Date Description
Rev A 6/2016 Initial release.
- 02 10/2016 Add support for RS5000.
iii
- 03 2/2018
Supported stylus is capacitive, not conductive.
iv WT6000 Integrator Guide

TABLE OF CONTENTS

Revision History................................................................................................................................ iii
About This Guide
Introduction ....................................................................................................................................... xi
Documentation Set ........................................................................................................................... xi
Configurations.................................................................................................................................. xii
Software Versions...................................................................................................................... xii
Chapter Descriptions ....................................................................................................................... xii
Notational Conventions.................................................................................................................... xiii
Related Documents and Software ................................................................................................... xiii
Service Information.......................................................................................................................... xiii
Chapter 1: Getting Started
Introduction .................................................................................................................................... 1-1
Unpacking ................................................................................................................................ 1-1
Removing the Screen Protection Film ...................................................................................... 1-1
Features ......................................................................................................................................... 1-2
Setup .............................................................................................................................................. 1-3
Installing the Battery ................................................................................................................. 1-3
Charging the Battery ................................................................................................................ 1-4
Starting the WT6000 ................................................................................................................ 1-5
Resetting the WT6000 ................................................................................................................... 1-5
Performing a Soft Reset ........................................................................................................... 1-5
Performing a Hard Reset ......................................................................................................... 1-6
Performing an Enterprise Reset ............................................................................................... 1-6
Performing a Factory Reset ..................................................................................................... 1-6
Chapter 2: Accessories
Introduction .................................................................................................................................... 2-1
1-Slot WT6000 USB Charging Cradle ........................................................................................... 2-4
Charging the Device ................................................................................................................. 2-4
vi WT6000 Integrator Guide
Charging the Spare Battery ...................................................................................................... 2-5
Battery Charging ...................................................................................................................... 2-5
2-Slot WT6000/RS6000 Charging Cradle ...................................................................................... 2-7
Charging the WT6000 .............................................................................................................. 2-7
Charging the RS6000 ............................................................................................................... 2-8
Battery Charging ...................................................................................................................... 2-8
5-Slot WT6000 Charge Only Cradle .............................................................................................. 2-9
Charging the WT6000 .............................................................................................................. 2-9
Charging the Spare Battery .................................................................................................... 2-10
Battery Charging .................................................................................................................... 2-10
10-Slot WT6000/RS6000 Charge Only Cradle ............................................................................ 2-11
Charging the WT6000 ............................................................................................................ 2-11
Charging the RS6000 ............................................................................................................. 2-12
Battery Charging .................................................................................................................... 2-12
10-Slot WT6000 Charge Only Cradle .......................................................................................... 2-13
Charging the WT6000 ............................................................................................................ 2-13
Battery Charging .................................................................................................................... 2-14
5-Slot WT6000 Ethernet Cradle ................................................................................................... 2-15
Charging the WT6000 ............................................................................................................ 2-15
Charging the Spare Battery .................................................................................................... 2-16
Battery Charging .................................................................................................................... 2-16
Main Battery Charging ...................................................................................................... 2-16
Establishing Ethernet Communication ................................................................................... 2-16
Ethernet LED Indicators ................................................................................................... 2-17
Daisy-chaining Ethernet Cradles ............................................................................................ 2-17
Ethernet Settings .................................................................................................................... 2-18
Configuring Ethernet Proxy Settings ...................................................................................... 2-18
Configuring Ethernet Static IP Address .................................................................................. 2-19
LED Indicators ........................................................................................................................ 2-20
Establishing Ethernet Connection .......................................................................................... 2-20
4-Slot Battery Charger ................................................................................................................. 2-21
Battery Installation .................................................................................................................. 2-21
Battery Removal ..................................................................................................................... 2-21
Battery Charging .................................................................................................................... 2-22
20-Slot Battery Charger ............................................................................................................... 2-23
Battery Installation .................................................................................................................. 2-23
Battery Removal ..................................................................................................................... 2-24
Battery Charging .................................................................................................................... 2-24
5-Slot Cradle Rack Installation ..................................................................................................... 2-25
4-Slot Battery Chargers Rack Installation .................................................................................... 2-28
Rack Mount Installation ................................................................................................................ 2-31
5-Slot Cradle Wall Installation ...................................................................................................... 2-34
Bottom Tray Assembly ........................................................................................................... 2-34
Bracket Wall Mounting ........................................................................................................... 2-34
4-Slot Battery Charger Wall Installation ....................................................................................... 2-37
Bottom Tray Assembly ........................................................................................................... 2-37
Bracket Wall Mounting ........................................................................................................... 2-37
Table of Contents vii
Chapter 3: USB Communication
Connecting to a Host Computer via USB ....................................................................................... 3-1
Connecting to the WT6000 as a Media Device .............................................................................. 3-1
Disconnect from the Host Computer .............................................................................................. 3-1
Chapter 4: DataWedge Configuration
DataWedge Configuration .............................................................................................................. 4-1
Basic Scanning .............................................................................................................................. 4-1
Profiles ........................................................................................................................................... 4-1
Profile0 ..................................................................................................................................... 4-2
Plug-ins .................................................................................................................................... 4-2
Input Plug-ins ........................................................................................................................... 4-2
Process Plug-ins ...................................................................................................................... 4-2
Output Plug-ins ........................................................................................................................ 4-3

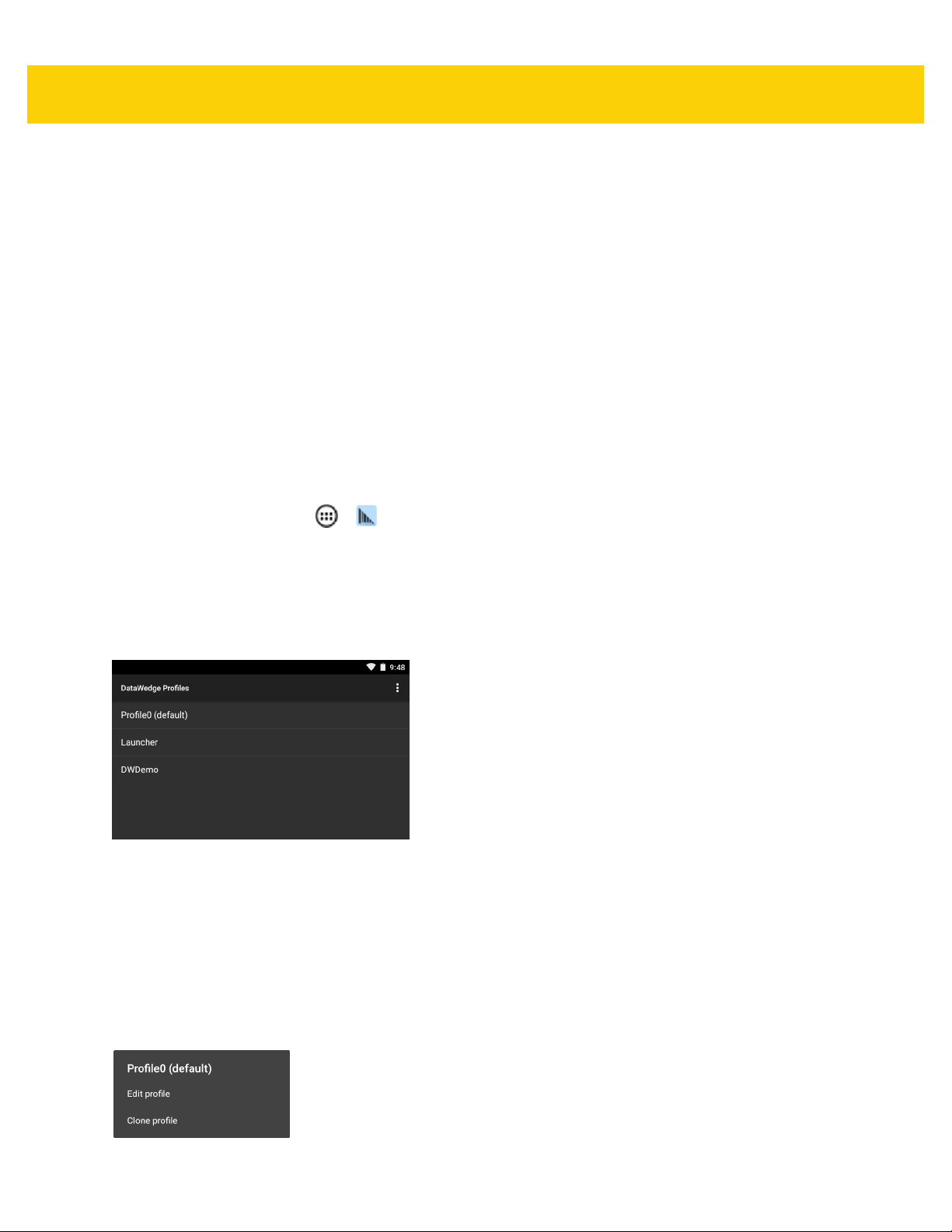

Profiles Screen ......................................................................................................................... 4-3
Profile Context Menu ................................................................................................................ 4-3
Options Menu ........................................................................................................................... 4-4
Disabling DataWedge .............................................................................................................. 4-4
Creating a New Profile ............................................................................................................. 4-4
Profile Configuration ...................................................................................................................... 4-5
Associating Applications .......................................................................................................... 4-5
Data Capture Plus .................................................................................................................... 4-6
Bar Code Input ......................................................................................................................... 4-8
Enabled .............................................................................................................................. 4-8
Scanner Selection .............................................................................................................. 4-8
Decoders ............................................................................................................................ 4-8
Decoder Params .............................................................................................................. 4-10
Decode Lengths ............................................................................................................... 4-15
UPC EAN Params ............................................................................................................ 4-15
Reader Params ................................................................................................................ 4-17
Scan Params .................................................................................................................... 4-19
Keystroke Output ................................................................................................................... 4-20
Intent Output .......................................................................................................................... 4-21
Intent Overview ................................................................................................................ 4-22
IP Output ................................................................................................................................ 4-23
Usage ............................................................................................................................... 4-24
Using IP Output with IPWedge ......................................................................................... 4-24
Using IP Output without IPWedge .................................................................................... 4-25
Generating Advanced Data Formatting Rules ............................................................................. 4-26
Configuring ADF Plug-in .............................................................................................................. 4-27
Creating a Rule ................................................................................................................ 4-27
Deleting a Rule ................................................................................................................. 4-27
Defining Criteria ................................................................................................................ 4-27
Defining an Action .................................................................................................................. 4-29
Deleting a Rule ....................................................................................................................... 4-29
Order Rules List ..................................................................................................................... 4-29
Deleting an Action .................................................................................................................. 4-30
ADF Example ......................................................................................................................... 4-31
DataWedge Settings .............................................................................................................. 4-33
viii WT6000 Integrator Guide
Importing a Configuration File ................................................................................................ 4-33
Exporting a Configuration File ................................................................................................ 4-34
Importing a Profile File ........................................................................................................... 4-34
Exporting a Profile .................................................................................................................. 4-34
Restoring DataWedge ............................................................................................................ 4-34
Configuration and Profile File Management ................................................................................. 4-35
Enterprise Folder .................................................................................................................... 4-35
Auto Import ............................................................................................................................. 4-35
Programming Notes ..................................................................................................................... 4-35
Overriding Trigger Key in an Application ................................................................................ 4-36
Capture Data and Taking a Photo in the Same Application ................................................... 4-36
Disable DataWedge on Device and Mass Deploy ................................................................. 4-36
Soft Scan Feature .................................................................................................................. 4-36
Sample ................................................................................................................................... 4-36
Scanner Input Plugin .............................................................................................................. 4-37
Function Prototype ........................................................................................................... 4-37
Parameters ....................................................................................................................... 4-37
Return Values ................................................................................................................... 4-37
Example ........................................................................................................................... 4-38
Comments ........................................................................................................................ 4-38
Enumerate Scanners ............................................................................................................. 4-38
Function Prototype ........................................................................................................... 4-38
Parameters ....................................................................................................................... 4-39
Return Values ................................................................................................................... 4-39
Example ........................................................................................................................... 4-40
Comments ........................................................................................................................ 4-40
Set Default Profile .................................................................................................................. 4-40
Default Profile Recap ....................................................................................................... 4-40
Usage Scenario ................................................................................................................ 4-41
Function Prototype ........................................................................................................... 4-41
Parameters ....................................................................................................................... 4-41
Return Values ................................................................................................................... 4-41
Example ........................................................................................................................... 4-42
Comments ........................................................................................................................ 4-42
Reset Default Profile .............................................................................................................. 4-43
Function Prototype ........................................................................................................... 4-43
Parameters ....................................................................................................................... 4-43
Return Values ................................................................................................................... 4-43
Example ........................................................................................................................... 4-43
Comments ........................................................................................................................ 4-43
Switch To Profile .................................................................................................................... 4-44
Profiles Recap .................................................................................................................. 4-44
Usage Scenario ................................................................................................................ 4-44
Function Prototype ........................................................................................................... 4-44
Parameters ....................................................................................................................... 4-44
Return Values ................................................................................................................... 4-45
Example ........................................................................................................................... 4-45
Comments ........................................................................................................................ 4-45
Notes ................................................................................................................................ 4-46
Table of Contents ix
Chapter 5: Settings
Screen Unlock Settings .................................................................................................................. 5-1
Set Screen Unlock Using PIN .................................................................................................. 5-1
Set Screen Unlock Using Password ........................................................................................ 5-2
Set Screen Unlock Using Pattern ............................................................................................. 5-2
Passwords ..................................................................................................................................... 5-3
Button Remapping ......................................................................................................................... 5-3
Remapping a Button ................................................................................................................ 5-3
Accounts ........................................................................................................................................ 5-4
Language Usage ............................................................................................................................ 5-4
Changing the Language Setting ............................................................................................... 5-4
Adding Words to the Dictionary ................................................................................................ 5-5
Keyboard Settings .......................................................................................................................... 5-5
About Device .................................................................................................................................. 5-5
Chapter 6: Application Deployment
Security .......................................................................................................................................... 6-1
Secure Certificates ......................................................................................................................... 6-1
Installing a Secure Certificate ........................................................................................................ 6-1
Development Tools ........................................................................................................................ 6-2
ADB USB Setup ............................................................................................................................. 6-2
Application Installation ................................................................................................................... 6-3
Installing Applications Using the USB Connection ................................................................... 6-3
Installing Applications Using the Android Debug Bridge .......................................................... 6-4
Uninstalling an Application ............................................................................................................. 6-4
System Update .............................................................................................................................. 6-4
Storage .......................................................................................................................................... 6-5
Random Access Memory ......................................................................................................... 6-5
Internal Storage ........................................................................................................................ 6-6
Enterprise Folder ...................................................................................................................... 6-6
Application Management ............................................................................................................... 6-6
Viewing Application Details ...................................................................................................... 6-7
Stopping an Application ................................................................................................................. 6-7
Managing Downloads .................................................................................................................... 6-8
Chapter 7: Maintenance and Troubleshooting
Introduction .................................................................................................................................... 7-1
Maintaining the WT6000 ................................................................................................................ 7-1
Battery Safety Guidelines .............................................................................................................. 7-1
Cleaning ......................................................................................................................................... 7-2
Approved Cleanser Active Ingredients ..................................................................................... 7-2
Harmful Ingredients .................................................................................................................. 7-2
Special Cleaning Notes ............................................................................................................ 7-3
Cleaning Materials Required .................................................................................................... 7-3
Cleaning the WT6000 .............................................................................................................. 7-3
Housing .............................................................................................................................. 7-3
Display ................................................................................................................................ 7-3
Power Connector ................................................................................................................ 7-3
x WT6000 Integrator Guide
Cleaning Cradle Connectors .................................................................................................... 7-3
Cleaning Frequency ................................................................................................................. 7-4
Cleaning the Wrist Mount ......................................................................................................... 7-4
Troubleshooting ............................................................................................................................. 7-7
Device ...................................................................................................................................... 7-7
Cradles ..................................................................................................................................... 7-9
Appendix A: Specifications
Technical Specifications ............................................................................................................... A-1
WT6000 ................................................................................................................................... A-1
I/O Connector Pin-Outs ........................................................................................................... A-4
1-Slot WT6000 USB Charging Cradle Technical Specifications ............................................. A-5
2-Slot WT6000/RS6000 Charging Cradle Technical Specifications ....................................... A-5
5-Slot WT6000 Charge Only Cradle Technical Specifications ................................................ A-6
10-Slot WT6000/RS6000 Charge Only Cradle Technical Specifications ................................ A-7
10-Slot WT6000 Charge Only Cradle Technical Specifications .............................................. A-7
5-Slot WT6000 Ethernet Cradle Technical Specifications ...................................................... A-8
4-Slot Battery Charger Technical Specifications ..................................................................... A-9
20-Slot Battery Charger Technical Specifications ................................................................... A-9
USB and Charging Cable Technical Specifications .............................................................. A-10
Short Quick Disconnect Headset Adapter Cable Technical Specifications ........................... A-10
Long Quick Disconnect Headset Adapter Cable Technical Specifications ........................... A-11
Vibrator Cable Technical Specifications ................................................................................ A-11

ABOUT THIS GUIDE

Introduction

This guide provides information about using the WT6000 touch computer and accessories.
NOTE Screens and windows pictured in this guide are samples and can differ from actual screens.

Documentation Set

The documentation set for the WT6000 is divided into guides that provide information for specific user needs. WT6000 documentation includes:
WT6000 Quick Reference Guide - describes basic set up and operation of the WT6000.
WT6000 User Guide - describes how to set up, operate and program the WT6000 with Android operating
system and it’s accessories.
WT6000 Integrator Guide (this guide) - describes how to setup and configure WT6000 and accessories.
xii WT6000 Integrator Guide

Configurations

This guide covers the following configurations:
Radios Data Capture Display Memory OS
Configuration
NFC
RS4000
RS5000
802.11 abgn
Bluetooth 4.0
Standard
WT60A0-TS0LEWR X X X X X X X X X X X X
RS6000
RS507
3.2” WVGA Color
1G RAM/
4 GB Flash
2G RAM/
16 GB Flash
Android AOSP

Software Versions

To determine the current software versions, touch > About device.
Model number - Displays the model number.
Android version - Displays the operating system version.
Kernel version - Displays the kernel version number.
Build number - Displays the software build number.
To determine the device serial number, touch > About device > Status.
Sensor
s
V5.1.1
Gyroscope
Accelerometer
Serial number - Displays the serial number.

Chapter Descriptions

Topics covered in this guide are as follows:
Chapter 1, Getting Started, provides information on getting the mobile computer up and running for the first
time.
Chapter 2, Accessories, describes the accessories available for the mobile computer and how to use the
accessories with the mobile computer.
Chapter 3, USB Communication, explains how to perform Bluetooth functionality on the mobile computer.
Chapter 4, DataWedge Configuration, describes how to use and configure the DataWedge application.
Chapter 5, Administrator Utilities, provides information for using the suite of administrative tools for
configuring the WT6000.
Chapter 5, Settings, provides the settings for configuring the WT6000.
Chapter 6, Application Deployment, provides information for developing and managing applications.
Chapter 7, Maintenance and Troubleshooting, includes instructions on cleaning and storing the mobile
computer, and provides troubleshooting solutions for potential problems during WT6000 operation.
Appendix A, Specifications, includes a table listing the technical specifications for the WT6000.

Notational Conventions

The following conventions are used in this document:
“touch computer” refers to the Zebra WT6000 touch computer.
Italics are used to highlight the following:
Chapters and sections in this guide
Related documents
Bold text is used to highlight the following:
Dialog box, window and screen names
Drop-down list and list box names
Check box and radio button names
Icons on a screen
Key names on a keypad
Button names on a screen.
About This Guide xiii
Bullets (•) indicate:
Action items
Lists of alternatives
Lists of required steps that are not necessarily sequential.
Sequential lists (e.g., those that describe step-by-step procedures) appear as numbered lists.

Related Documents and Software

The following documents provide more information about the WT6000.
WT6000 Quick Start Guide, p/n MN-002700-xx
WT6000 Regulatory Guide, p/n MN-002271-xx
WT6000 User Guide, p/n MN-002698-xx
Rack/Wall Mount Bracket Installation Guide, p/n MN-002412-xx
For the latest version of this guide and all guides, go to: http://www.zebra.com/support.

Service Information

If you have a problem with your equipment, contact Zebra Global Customer Support for your region. Contact information is available at: http://www.zebra.com/support.
When contacting support, please have the following information available:
Serial number of the unit
xiv WT6000 Integrator Guide
Model number or product name
Software type and version number. Zebra responds to calls by email, telephone or fax within the time limits set forth in support agreements. If your problem cannot be solved by Zebra Customer Support, you may need to return your equipment for servicing
and will be given specific directions. Zebra is not responsible for any damages incurred during shipment if the approved shipping container is not used. Shipping the units improperly can possibly void the warranty.
If you purchased your Zebra business product from a Zebra business partner, contact that business partner for support.

CHAPTER 1 GETTING STARTED

Introduction

This chapter describes the features of the WT6000 and explains how to install and charge the battery and how to reset the WT6000.

Unpacking

Carefully remove all protective material from the WT6000 and save the shipping container for later storage and shipping.
Verify that box contains all the equipment listed below:
WT6000
Battery
Regulatory Guide.
Inspect the equipment for damage. If you are missing any equipment or if you find any damaged equipment, contact Support immediately. See Service Information on page xiii for contact information.

Removing the Screen Protection Film

A screen protection film is applied to the WT6000 screen to protect the screen during shipping. To remove the screen protector, carefully lift the thin film off the display.
1 - 2 WT6000 Integrator Guide

Features

15
14
13
12
11
10
9
Figure 1-1 Front View
Table 1-1 Front View Descriptions
1
2
3
4
5
6
8
7
Number Item Function
1 Speakers Provides audio output for video and music playback. 2 Battery Provides power to the device. 3 Display Displays all information needed to operate the WT6000. 4 Recent Button Displays recently open applications. 5 Right Interface
Connector
Provides USB host and client communication, audio and device charging
via cables and accessories. 6 Home Button Displays the Home screen. 7 Back Button Displays the previous screen. 8 P3 Button Initiates Push-To-Talk communication (programmable). 9 P2 Button Increase volume. 10 Microphone Use for communication in Headset mode. 11 P1 Button Decreases volume. 12 Power Button Turns the display on and off. Press and hold to reset the device and
power off. 13 NFC Antenna
Provides communication with other NFC-enabled devices.
Table 1-1 Front View Descriptions (Continued)
Number Item Function
Getting Started 1 - 3
14 Ambient Light
Sensor
15 Charge Status LED Indicates battery charging status while charging.
Figure 1-2 Back View
Table 1-2 Back View Descriptions
Determines ambient light for controlling display backlight intensity.
16
17
Number Item Function
16 Cleat
17 Left Interface

Setup

Perform these procedures to start using the WT6000 for the first time.
1. Install the battery.
2. Charge the WT6000.
3. Power on the WT6000.

Installing the Battery

To install the battery:
1. Insert the silver end of the battery into the battery well.
Connector
Provides alignment and secures the WT6000 to the wrist mount.
Provides USB host and client communication, audio and device charging via cables and accessories.
1 - 4 WT6000 Integrator Guide
Figure 1-3 Battery Installation
2. Press the battery down until it snaps into place.

Charging the Battery

Before using the WT6000 for the first time, charge the battery using a cable or a cradle with the appropriate power supply. For information about the accessories available for the WT6000, see Chapter 2, Accessories.
The 3,350 mAh battery fully charges in approximately four hours at room temperature. Charge batteries in temperatures from 0°C to 40°C (32°F to 104°F). The WT6000 or accessory always performs
battery charging in a safe and intelligent manner. At higher temperatures (e.g. approximately +37°C (+98°F)) the WT6000 or accessory may for small periods of time alternately enable and disable battery charging to keep the battery at acceptable temperatures. The WT6000 or accessory indicates when charging is disabled due to abnormal temperatures via its LED.
1. To charge the main battery, connect the charging accessory to the appropriate power source.
2. Insert the WT6000 into a cradle or attach to a cable. The WT6000 turns on and begins charging.
When using the USB Charge cable, the Notification/Charge LED lights amber while charging, then turns solid green when fully charged.
When using a cradle, the cradle Charge LED lights amber while charging, then turns solid green when fully charged.
Table 1-3 Charge LED Charging Indicators
State Indication
Off WT6000 is not charging. WT6000 is not inserted correctly in the cradle or
connected to a power source. Charger/cradle is not powered. Solid Amber Healthy battery is charging. Solid Green Healthy battery charging is complete. Fast Blinking Red
(2 blinks/second)
Solid Red Unhealthy battery is charging or fully charged.
Charging error, e.g.:
- Temperature is too low or too high.
- Charging has gone on too long without completion (typically eight hours).
Getting Started 1 - 5
IMPORTANTWhen trying to power on the device, a quick red blink of the Charging LED indicates that it does not have
enough battery power to turn on. Charge the battery or replace it.

Starting the WT6000

When installed in a cradle, the WT6000 starts automatically as soon as power is applied. When a charged battery is installed and the WT6000 is turned off, press the Power button to turn on. When the WT6000 is powered on for the first time, it initializes its system. The splash screen appears for a short
period of time.
Figure 1-4 Splash Screen The splash screen is followed by the boot animation screen and then the Home Screen.
Figure 1-5 Home Screen

Resetting the WT6000

There are four reset functions:
Soft reset
Hard reset
Enterprise reset
Factory reset.

Performing a Soft Reset

Perform a soft reset if applications stop responding.
1 - 6 WT6000 Integrator Guide
1. Press the power button until the menu appears.
2. Touch Reset.
3. The device reboots.

Performing a Hard Reset

CAUTION Perform a hard reset only if the WT6000 stops responding.
To perform a hard reset, simultaneously press and hold the power button, P1 button and P2 button for five seconds. When the device reboots, release the buttons.

Performing an Enterprise Reset

An Enterprise Reset erases all data in the /cache and /data partitions and clears all device settings, except those in the /enterprise partition.
Before performing an Enterprise Reset, copy all applications and the key remap configuration file that you want to persist after the reset into the /enterprise/usr/persist folder.
1. Download the Enterprise Reset file from the Support Central web site.
2. Copy the Enterprise Reset file to the root of the Internal Storage. See Chapter 3, USB Communication.
3. Press and hold the Power button until the menu appears.
4. Touch Power off.
5. Touch OK. The device turns off.
6. Press and hold the Power button and the P1 button.
7. When the Zebra splash screen appears, release the buttons.
The System Recovery Screen appears.
8. Press the P1 and P2 buttons to navigate to the apply update from internal storage option.
9. Press the P3 button.
10. Press the P1 and P2 buttons to navigate to the Enterprise Reset file.
11. Press the P3 button. The Enterprise Reset occurs and then the device resets.

Performing a Factory Reset

A Factory Reset erases all data in the /cache, /data and /enterprise partitions in internal storage and clears all device settings. A Factory Reset returns the device to the last installed operating system image.
1. Download the Enterprise Reset file from the Support Central web site.
2. Copy the Factory Reset file to the root of Internal Storage. See Chapter 3, USB Communication.
3. Press and hold the Power button until the menu appears.
4. Touch Power off.
5. Touch OK. The device turns off.
6. Press and hold the Power button and the P1 button.
7. When the Zebra splash screen appears, release the button and trigger.
The System Recovery Screen appears.
Getting Started 1 - 7
8. Press the P1 and P2 buttons to navigate to apply update from internal storage option.
9. Press the P3 button.
10. Press the P1 and P2 buttons to navigate to the Factory Reset file.
11. Press the P3 button. The Factory Reset occurs and then the device resets.
1 - 8 WT6000 Integrator Guide

CHAPTER 2 ACCESSORIES

Introduction

The WT6000 accessories provide a variety of product support capabilities. Table 2-1 lists the accessories available.
9
Table 2-1 Accessories
Accessory Part Number Description
Cradles
1-Slot WT6000 Charging Cradle
2-Slot WT6000/RS6000 Charging Cradle
5-Slot WT6000 Charge Only Cradle
10-Slot WT6000/RS6000 Charge Only Cradle
10-Slot WT6000 Charge Only Cradle
CRD-NGWT-1S1BU-01 Provides WT6000 and spare battery charging and
USB communication with a host computer. Use with power supply, p/n PWRS-14000-148R and country specific grounded AC line cord.
CRD-NWTRS-2SUCH-01 Provides WT6000 and RS6000 charging and USB
communication with a host computer. Use with power supply, p/n PWRS-14000-148R and country specific grounded AC line cord.
CRD-NGWT-5S5BC-01 Charges up to five WT6000 devices and five spare
batteries. Use with power supply, p/n PWRS-14000-241R, DC line cord, p/n 50-16002-029R and country specific grounded AC line cord.
CRD-NWTRS-10SCH-01 Charges up to five WT6000 devices and up to five
RS6000 scanners. Use with power supply, p/n PWRS-14000-241R, DC line cord, p/n 50-16002-029R and country specific grounded AC line cord.
CRD-NGWT-10SCH-01 Charges up to 10 WT6000 devices. Use with power
supply, p/n PWRS-14000-241R, DC line cord, p/n 50-16002-029R and country specific grounded AC line cord.
2 - 2 WT6000 Integrator Guide
Table 2-1 Accessories (Continued)
Accessory Part Number Description
5-Slot WT6000 Ethernet Cradle
Batteries and Chargers
Replacement Battery BTRY-NWTRS-33MA-01 Replacement battery for WT6000 and RS6000 (single
4-Slot Battery Charger SAC-NWTRS-4SCH-01 Charges up to four spare batteries. Requires power
20-Slot Battery Charger SAC-NWTRS-20SCH-01 Charges up to 20 spare batteries. Use with power
Mounting Brackets
Rack Mount Bracket BRKT-SCRD-SMRK-01 Use for mounting a 5-Slot cradle or four 4-Slot Battery
Cables
CRD-NGWT-5S5BE-01 Charges up to five WT6000 devices and five spare
batteries and provides Ethernet communication. Use with power supply, p/n PWRS-14000-241R, DC line cord, p/n 50-16002-029R and country specific grounded AC line cord.
pack).
supply, p/n PWRS-14000-148R and country specific grounded AC line cord.
supply, p/n PWRS-14000-241R, DC line cord, p/n 50-16002-029R and country specific grounded AC line cord.
Chargers on a rack.
Headset Adapter Cable with Quick Disconnect (Long)
Headset Adapter Cable with Quick Disconnect (Short)
USB/Charge Cable CBL-NGWT-USBCHG-01 Provides USB communication and power to the
Vibrating Cable CBL-NGWT-HDVBAP-01 Provides haptic notification feedback. DC Y Cable
DC 4-way Cable 25-85992-01R Provides power from the PWRS-14000-241R power
DC Line Cord 50-16002-029R Provides power from the power supply to the 5-Slot
Power Supplies
Power Supply PWRS-14000-249R Provides power to the device using the USB and
CBL-NGWT-AUQDLG-01 Connects a wired headset to the WT6000 on a Hip
Mount.
CBL-NGWT-AUQDST-01 Connects a wired headset to the WT6000 on a Wrist
Mount.
WT6000. Requires power supply PWRS-14000-249R and country specific un-grounded AC line cord.
25-122026-02R
Provides power from the PWRS-14000-148R power supply to two 4-Slot Battery Chargers.
supply to four 4-Slot Battery Chargers.
Charge Only Cradle, 5-Slot Ethernet Cradle, 5-Slot Charge Only Cradle with Battery Charge and 5-Slot Ethernet Cradle with Battery Charger.
Charging Cable. Requires country specific un-grounded AC line cord.
Accessories 2 - 3
Table 2-1 Accessories (Continued)
Accessory Part Number Description
Power Supply PWRS-14000-148R Provides power to the 2–Slot cradles and 4-Slot
Spare Battery Charger. Requires country specific grounded AC line cord.
Power Supply PWRS-14000-241R Provides power to the 5-Slot Charge Only Cradle,
5-Slot Ethernet Cradle, 5-Slot Charge Only Cradle with Battery Charger and the 5-Slot Ethernet Cradle with Battery Charger. Requires DC Line Cord, p/n 50-16002–029R and country specific grounded AC line cord.
Miscellaneous
Screen Protectors MISC-WT6X-SCRN-01 Provides additional protection for display (5-pack).
Soft Goods
WT6000 Hip Mount SG-NGWT-HPMNT-01 Provides mounting the WT6000 on a belt. WT6000 Wrist Mount
(Small/Medium) WT6000 Wrist Mount
(Medium/Large) WT6000 Spare Straps
(Small/Medium) WT6000 Spare Straps
(Medium/Large) WT6000 Spare Comfort Pad SG-NGWT-CMPD-01 Replacement Comfort Pad for the Wrist Mount.
SG-NGWT-WRMTS-01 Replacement strap.
SG-NGWT-WRMTL-01 Replacement strap.
SG-NGWT-WSTPST-01 Replacement strap.
SG-NGWT-WSTPLN-01 Replacement strap.
2 - 4 WT6000 Integrator Guide

1-Slot WT6000 USB Charging Cradle

NOTE Ensure that you follow the guidelines for battery safety described in Battery Safety Guidelines on page 7-1.
The 1-Slot WT6000 Charging Cradle:
provides 5.4 VDC (nominal) power for operating the WT6000
provides USB communication with a host computer
charges a spare battery.
AC Line Cord
Power Supply
USB Cable
Figure 2-1 1-Slot WT6000 Charging Cradle Setup

Charging the Device

1. Insert either end of the WT6000 into the WT6000 charging slot.
Spare Battery Charing Slot
Spare Battery Charging LED WT6000 Charging LED
WT6000 Charging Slot
Power Input
USB Port
Accessories 2 - 5
Figure 2-2 Insert WT6000 into Cradle
2. Ensure the WT6000 is seated properly. The WT6000 Charge LED blinks indicating charging.

Charging the Spare Battery

1. Insert a spare battery into the spare battery slot.
Figure 2-3 Insert Battery into Cradle
2. Ensure the battery is seated properly. The Spare Battery Charging LED blinks indicating charging.

Battery Charging

The WT6000 Charging LED indicates the status of the battery charging in the device. The Spare Battery Charging LED indicates the status of the spare battery charging. See Table 2-2 on page 2-5. The 3,350 mAh battery fully charges in less than four hours at room temperature.
Table 2-2 Spare Battery Charging LED Indicators
State Indication
Off The WT6000, RS6000 or battery is not charging. The WT6000, RS6000 or battery
is not inserted correctly in the cradle. Cradle is not powered. Solid Amber Battery is charging. Solid Green Battery charging is complete.
2 - 6 WT6000 Integrator Guide
Table 2-2 Spare Battery Charging LED Indicators (Continued)
State Indication
Fast Blinking Red (2 blinks/second)
Solid Red Unhealthy battery is charging or fully charged.
Charge batteries in temperatures from 0°C to 40°C (32°F to 104°F). The device or cradle always performs battery charging in a safe and intelligent manner. At higher temperatures (e.g. approximately +37°C (+98°F)) the device or cradle may for small periods of time alternately enable and disable battery charging to keep the battery at acceptable temperatures. The device and cradle indicates when charging is disabled due to abnormal temperatures via its LED.
Charging error, e.g.:
- Temperature is too low or too high.
- Charging has gone on too long without completion (typically eight hours).

2-Slot WT6000/RS6000 Charging Cradle

NOTE Ensure that you follow the guidelines for battery safety described in Battery Safety Guidelines on page 7-1.
The 2-Slot WT6000/RS6000 Charging Cradle:
provides 5.4 VDC (nominal) power for operating the WT6000 and RS6000.
provides USB communication with a host computer
AC Line Cord
Accessories 2 - 7
Power Supply
Figure 2-4 2-Slot WT6000/RS6000 Charging Cradle Setup

Charging the WT6000

1. Insert the WT6000 into the WT6000 charging slot.
WT6000 Charging Slot
WT6000 Charging LED RS6000 Charging LED
RS6000 Charging Slot Power Input
WT6000 USB Port
RS6000 USB Port
USB Cable
2 - 8 WT6000 Integrator Guide
Figure 2-5 Insert WT6000 into Cradle
2. Ensure the WT6000 is seated properly. The WT6000 Charging LED blinks indicating charging.

Charging the RS6000

1. Insert the RS600 into the RS6000 charging slot.
Figure 2-6 Insert RS6000 into Cradle
2. Ensure the RS6000 is seated properly. The RS6000 Charging LED blinks indicating charging.

Battery Charging

The WT6000 Charging LED indicates the status of the battery charging in the device. The RS6000 Battery Charging LED indicates the status of the battery charging in the device. See Table 2-2 on page 2-5. The 3,350 mAh battery fully charges in less than four hours at room temperature.
Charge batteries in temperatures from 0°C to 40°C (32°F to 104°F). The device or cradle always performs battery charging in a safe and intelligent manner. At higher temperatures (e.g. approximately +37°C (+98°F)) the device or cradle may for small periods of time alternately enable and disable battery charging to keep the battery at acceptable temperatures. The device and cradle indicates when charging is disabled due to abnormal temperatures via its LED.

5-Slot WT6000 Charge Only Cradle

NOTE Ensure that you follow the guidelines for battery safety described in Battery Safety Guidelines on page 7-1.
The 5-Slot Charge Only Cradle:
Provides 5.4 VDC (nominal) power for operating up to five WT6000 devices.
Simultaneously charges up to five WT6000 devices.
Simultaneously charges up to five spare batteries.
Accessories 2 - 9
AC Line Cord
Power Supply
Figure 2-7 5-Slot WT6000 Charge Only Cradle Setup

Charging the WT6000

To Charge the WT6000:
1. Insert the WT6000 in a WT6000 charging slot.
DC Line Cord
Power Input
2 - 10 WT6000 Integrator Guide
Figure 2-8 Insert WT6000 into Cradle
2. Ensure that the WT6000 is properly seated in the charging slot.

Charging the Spare Battery

1. Insert a spare battery into the spare battery slot.
Figure 2-9 Insert Battery into Cradle
2. Ensure the battery is seated properly. The Spare Battery Charging LED blinks indicating charging.

Battery Charging

The WT6000 Charging LED indicates the status of the battery charging in the device. The Spare Battery Charging LED indicates the status of the spare battery charging. See Table 2-2 on page 2-5. The 3,350 mAh battery fully charges in less than four hours at room temperature.
Charge batteries in temperatures from 0°C to 40°C (32°F to 104°F). The battery charger always performs battery charging in a safe and intelligent manner. At higher temperatures (e.g. approximately +37°C (+98°F)) the battery charger may for small periods of time alternately enable and disable battery charging to keep the battery at acceptable temperatures. The battery charger indicates when charging is disabled due to abnormal temperatures via its LED.

10-Slot WT6000/RS6000 Charge Only Cradle

NOTE Ensure that you follow the guidelines for battery safety described in Battery Safety Guidelines on page 7-1.
The 10-Slot Charge Only Cradle:
Provides 5.4 VDC (nominal) power for operating the WT6000 and RS6000.
Simultaneously charges up to five WT6000 devices.
Simultaneously charges up to five RS6000 devices.
Power Supply
Accessories 2 - 11
AC Line Cord
Figure 2-10 10-Slot WT6000/RS6000 Charge Only Cradle Setup

Charging the WT6000

To Charge the WT6000:
1. Insert the WT6000 in the WT6000 charging slot.
DC Line Cord
Power Input
2 - 12 WT6000 Integrator Guide
Figure 2-11 Insert WT6000 into Cradle
2. Ensure that the WT6000 is properly seated in the charging slot.

Charging the RS6000

To Charge the RS6000:
1. Insert the RS6000 in the RS6000 charging slot.
Figure 2-12 Insert RS6000 into Cradle
2. Ensure that the RS6000 is properly seated in the charging slot.

Battery Charging

The WT6000 and RS6000 Charging LEDs indicate the status of the battery charging in the device. See Table 2-2
on page 2-5. The 3,350 mAh battery fully charges in less than four hours at room temperature.
Charge batteries in temperatures from 0°C to 40°C (32°F to 104°F). The battery charger always performs battery charging in a safe and intelligent manner. At higher temperatures (e.g. approximately +37°C (+98°F)) the battery charger may for small periods of time alternately enable and disable battery charging to keep the battery at acceptable temperatures. The battery charger indicates when charging is disabled due to abnormal temperatures via its LED.

10-Slot WT6000 Charge Only Cradle

NOTE Ensure that you follow the guidelines for battery safety described in Battery Safety Guidelines on page 7-1.
The 10-Slot WT6000 Charge Only Cradle:
Provides 5.4 VDC (nominal) power for operating the WT6000.
Simultaneously charges up to 10 WT6000 devices.
Power Supply
Accessories 2 - 13
AC Line Cord
Figure 2-13 10-Slot WT6000 Charge Only Cradle Setup

Charging the WT6000

To Charge the WT6000:
1. Insert the WT6000 in the charging slot.
DC Line Cord
Power Input
2 - 14 WT6000 Integrator Guide
Figure 2-14 Insert WT6000 into Cradle
2. Ensure that the WT6000 is properly seated in the charging slot.

Battery Charging

The WT6000 Charging LED indicates the status of the battery charging in the device. See Table 2-2 on page 2-5. The 3,350 mAh battery fully charges in less than four hours at room temperature.
Charge batteries in temperatures from 0°C to 40°C (32°F to 104°F). The battery charger always performs battery charging in a safe and intelligent manner. At higher temperatures (e.g. approximately +37°C (+98°F)) the battery charger may for small periods of time alternately enable and disable battery charging to keep the battery at acceptable temperatures. The battery charger indicates when charging is disabled due to abnormal temperatures via its LED.

5-Slot WT6000 Ethernet Cradle

NOTE Ensure that you follow the guidelines for battery safety described in Battery Safety Guidelines on page 7-1.
The 5-Slot WT6000 Ethernet Cradle:
Provides 5.4 VDC (nominal) power for operating the WT6000.
Connects up to five WT6000 devices to an Ethernet network.
Simultaneously charges up to five WT6000 devices.
Simultaneously charges up to five spare batteries.
Primary Ethernet Port
Accessories 2 - 15
AC Line Cord
Power Supply
Ethernet
Switch
Ethernet Cable
Figure 2-15 5-Slot WT6000 Ethernet Cradle Setup

Charging the WT6000

To charge the WT6000:
1. Insert the WT6000 in the WT6000 charging slot.
DC Line Cord
Power Port
2 - 16 WT6000 Integrator Guide
Figure 2-16 Insert WT6000 into Cradle
2. Ensure that the WT6000 is properly seated in the charging slot.

Charging the Spare Battery

1. Insert a spare battery into the spare battery slot.
Figure 2-17 Insert Battery into Cradle
2. Ensure the battery is seated properly. The Spare Battery Charging LED blinks indicating charging.

Battery Charging

Main Battery Charging
The WT6000 Charging/Scan LED indicates the status of the battery charging in the device. The Spare Battery Charging LED indicates the status of the spare battery charging. See Table 2-2 on page 2-5. The 3,350 mAh battery fully charges in less than four hours at room temperature.
Charge batteries in temperatures from 0°C to 40°C (32°F to 104°F). The battery charger always performs battery charging in a safe and intelligent manner. At higher temperatures (e.g. approximately +37°C (+98°F)) the battery charger may for small periods of time alternately enable and disable battery charging to keep the battery at acceptable temperatures. The battery charger indicates when charging is disabled due to abnormal temperatures via its LED.

Establishing Ethernet Communication

1. Touch .
Accessories 2 - 17
2. Touch Ethernet.
3. Slide the Ethernet switch to the ON position.
4. Insert the device into a slot.
5. The icon appears in the Status bar.
6. Touch Eth0 to view Ethernet connection details.
Ethernet LED Indicators
There are two green LEDs on the side of the cradle. These green LEDs light and blink to indicate the data transfer rate.
Table 2-3 LED Data Rate Indicators
Data Rate 1000 LED 100/10 LED
1 Gbps On/Blink Off 100 Mbps Off On/Blink 10 Mbps Off On/Blink

Daisy-chaining Ethernet Cradles

Daisy-chain up to ten 5-Slot Ethernet cradles to connect several cradles to an Ethernet network. Use either a straight or crossover cable. Daisy-chaining should not be attempted when the main Ethernet connection to the first cradle is 10 Mbps as throughput issues will almost certainly result.
To daisy-chain 5-Slot Ethernet cradles:
1. Connect power to each 5-Slot Ethernet Cradle.
2. Connect an Ethernet cable to port 1 on the back of the first cradle and to the Ethernet switch.
3. Connect an Ethernet cable to port 2 on the back of the first cradle to port 1 on the back of the second cradle.
2 - 18 WT6000 Integrator Guide
Ethernet Switch
Primary Port
Secondary Port
First Cradle
DC Line Cord (to Power Supply)
Second Cradle
DC Line Cord (to Power Supply)
Ethernet Cable (to Next Cradle)
Figure 2-18 Daisy-Chaining 5-Slot Ethernet Cradles
4. Connect additional cradles as described in step 2 and 3.

Ethernet Settings

The following settings can be configured when using Ethernet communication:
Proxy Settings
Static IP.

Configuring Ethernet Proxy Settings

The WT6000 includes Ethernet cradle drivers. After the WT6000, configure the Ethernet connection:
1. Place the WT6000 into the Ethernet cradle slot.
2. Touch > > Ethernet.
3. Slide the switch to the ON position.
4. Touch > Advance.
Figure 2-19 Ethernet Proxy Settings
5. Touch Enable Http Proxy.
6. In the Proxy hostname field, enter the proxy server address.
7. In the Proxy port field, enter the proxy server port number.
NOTE When entering proxy addresses in the Bypass proxy for field, do not use spaces or carriage returns
between addresses.
Accessories 2 - 19
8. In the Bypass proxy for text box, enter addresses for web sites that do not require to go through the proxy
server. Use the separator “|” between addresses.
9. Touch Save.
10. Touch .

Configuring Ethernet Static IP Address

The WT6000 includes Ethernet cradle drivers. After the WT6000, configure the Ethernet connection:
1. Place the WT6000 into the Ethernet cradle slot.
2. Touch > > Ethernet.
3. Slide the switch to the ON position.
4. Touch > Advance.
Figure 2-20 Configure Ethernet Device Settings
2 - 20 WT6000 Integrator Guide
5. Touch Static IP radio button.
6. In the IP address field, enter the proxy server address.
7. If required, in the Network text box, enter a the network address.
8. If required, in the Gateway address text box, enter a gateway address for the WT6000.
9. If required, in the DNS address text box, enter a Domain Name System (DNS) address.
10. Touch Save.
11. Touch .

LED Indicators

There are two green LEDs on the side of the cradle and on each Ethernet port. These green LEDs light and blink to indicate the data transfer rate.
Table 2-4 LED Data Rate Indicators
Data Rate 1000 LED 100/10 LED
1 Gbps On/Blink Off 100 Mbps Off On/Blink 10 Mbps Off On/Blink

Establishing Ethernet Connection

1. Insert the WT6000 into a slot.
2. Touch > Ethernet.
3. Slide the Ethernet switch to the ON position.
The icon appears in the Status bar.
4. Touch Ethernet Information to view Ethernet connection details.
5.
Figure 2-21 Ethernet Information Dialog Box
6. Touch OK to close dialog box.

4-Slot Battery Charger

NOTE Ensure that you follow the guidelines for battery safety described in Battery Safety Guidelines on page 7-1.
The 4-Slot Battery Charger charges up to four spare batteries.
Accessories 2 - 21
AC Line Cord
Power Supply
Input Power
Figure 2-22 Four Slot Battery Charger Power Setup

Battery Installation

To install the battery:
1. Insert the battery into a battery slot.
2. Gently press down on the battery until it snaps into place.
Figure 2-23 Insert Battery into Slot

Battery Removal

To remove the battery, press the two release latches on each side of the battery and lift the battery out of the battery slot.
2 - 22 WT6000 Integrator Guide

Battery Charging

Each Battery Charging LED indicates the status of the battery charging in each slot. The table below describes the Battery Charging LED status. See Table 2-2 on page 2-5. The 3,350 mAh battery fully charges in less than four hours at room temperature.
Charge batteries in temperatures from 0°C to 40°C (32°F to 104°F). The battery charger always performs battery charging in a safe and intelligent manner. At higher temperatures (e.g. approximately +37°C (+98°F)) the battery charger may for small periods of time alternately enable and disable battery charging to keep the battery at acceptable temperatures. The battery charger indicates when charging is disabled due to abnormal temperatures via its LED.

20-Slot Battery Charger

NOTE Ensure that you follow the guidelines for battery safety described in Battery Safety Guidelines on page 7-1.
The 20-Slot Battery Charger charges up to 20 spare batteries.
Accessories 2 - 23
AC Line Cord
Power Supply
DC Line Cord
Figure 2-24 20-Slot Battery Charger

Battery Installation

To install the battery:
1. Insert the battery into a battery slot.
2. Gently press down on the battery until it snaps into place.
Input Power
2 - 24 WT6000 Integrator Guide
Figure 2-25 Insert Battery into Slot

Battery Removal

To remove the battery, press the two release latches on each side of the battery and lift the battery out of the battery slot.

Battery Charging

Each Battery Charging LED indicates the status of the battery charging in each slot. The table below describes the Battery Charging LED status. See Table 2-2 on page 2-5. The 3,350 mAh battery fully charges in less than four hours at room temperature.
Charge batteries in temperatures from 0°C to 40°C (32°F to 104°F). The battery charger always performs battery charging in a safe and intelligent manner. At higher temperatures (e.g. approximately +37°C (+98°F)) the battery charger may for small periods of time alternately enable and disable battery charging to keep the battery at acceptable temperatures. The battery charger indicates when charging is disabled due to abnormal temperatures via its LED.

5-Slot Cradle Rack Installation

Use the Rack/Wall Mount Bracket to mount a 5-slot cradle on a rack. When installing on a rack, first assemble the bracket and cradles/chargers and then install the assembly on the rack.
1. Place the power supply in bottom tray.
2. Connect AC line cord to power supply.
3. Connect DC line cord to power supply.
4. Secure power supply and cables to bottom tray with tie wraps.
NOTE Ensure tie wrap buckle is on side of power supply. Tie wrap buckle on top of power supply interferes with
top tray.
5.
Route cables through cable slots.
DC line Cord AC line CordPower Supply
Accessories 2 - 25
Figure 2-26 Power Supply in Bottom Tray
6. Secure four M2.5 studs to top tray as shown.
Figure 2-27 Install Studs
7. Align and install 5-Slot cradle onto studs of top tray.
Studs (4)
2 - 26 WT6000 Integrator Guide
Figure 2-28 Align Cradle on Studs
8. Secure cradle to top tray with two M2.5 safety screws.
Safety Screws(2)
Figure 2-29 Secure Cradle
9. Slide top tray onto bottom tray.
Figure 2-30 Slide Top Trap onto Bottom Tray
10. Connect cables to cradle.
Figure 2-31 Connect Cables
11. Secure top tray to bottom tray with 4 M5 screws (two on each side).
Accessories 2 - 27
Figure 2-32 Secure Top and Bottom Tray
See Rack Mount Installation on page 2-31 for installing the bracket assembly onto a rack.
2 - 28 WT6000 Integrator Guide

4-Slot Battery Chargers Rack Installation

Use the Rack/Wall Mount Bracket to mount four 4-Slot Battery Chargers on a rack. When installing on a rack, first assemble the bracket and chargers and then install the assembly on the rack.
1. Place one power supply horizontally in bottom tray.
2. Place one power supply vertically in bottom tray.
3. Connect AC line cords to power supplies.
4. Connect DC line cords to power supplies.
5. Secure power supplies and cables to bottom tray with tie wraps.
6. Route cables through cable slots.
DC Y Cable 1
AC line Cord 1
Figure 2-33 Power Supplies in Bottom Tray
7. Slide top tray onto bottom tray until top tray touches vertical power supply.
DC Y Cable 2
Power Supply 1
Power Supply 2
AC line Cord 2
Figure 2-34 Slide top Tray onto Bottom Tray
8. Install 16 M2.5 studs onto top tray as shown below.
Accessories 2 - 29
Figure 2-35 Install Studs
9. Align and install 4-Slot Battery Charger onto four studs.
Studs (16)
Figure 2-36 Align Chargers on Studs
2 - 30 WT6000 Integrator Guide
10. Connect DC Y cables to four 4-Slot Battery Chargers.
Figure 2-37 Connect Cables
11. Secure top tray to bottom tray with four M5 screws (two on each side).
Figure 2-38 Secure Top Tray to Bottom Tray
See Rack Mount Installation on page 2-31 for installing the bracket onto a rack.

Rack Mount Installation

NOTE Use screws provided with rack system. Refer to rack user documentation for instructions.
1.
Secure mounting brackets to both sides of top tray with four M5 screws (two on each side). For 5-Slot cradles, position the flange for vertical installation. For 4-Slot Battery Chargers, position the flange for 25° installation.
Accessories 2 - 31
Top Screw Hole Flange
Figure 2-39 Flange Vertical Position (5-Slot Cradles)
Flange
Fourth Screw Hole
Figure 2-40 Flange 25° Position (4-Slot Battery Chargers)
2. Install two rack system screws for top of mounting brackets. The screw heads should protrude half way from
the rail.
2 - 32 WT6000 Integrator Guide
Figure 2-41 Install Rack System Screws
Rack Screws
3. Align the mounting bracket’s top mounting key holes with the screws.
4. Place the brackets on the screws.
Figure 2-42 Secure Bracket to Rack (Vertical Position Shown)
5. Secure the top screws.
6. Install bottom screws and tighten screws.
7. Route cables and connect to power source.
CAUTION Installer should ensure that all building codes are followed when connecting the power supplies to an
AC power source.
While installing the brackets, power supplies and cables:
Use tie wraps to secure cables to the bracket and rails.
Coil cables wherever possible.
Route power cables along the rails.
Route inter-cradle cables to the side rails and then from the rails to the bracket.
Accessories 2 - 33
2 - 34 WT6000 Integrator Guide

5-Slot Cradle Wall Installation

Use the Rack/Wall Mount Bracket to mount a cradle on a wall. When installing on a wall, first assemble the bottom tray, install the bottom tray on the wall and then assemble the top tray.
Use mounting hardware (screws and/or anchors) appropriate for the type of wall mounting the bracket onto. The Mount Bracket mounting slots dimensions are 5 mm (0.2 in.). Fasteners must be able to hold a minimum of 20 Kg (44 lbs.)
For proper installation consult a professional installer. Failure to install the bracket properly can possibly result in damage to the hardware.

Bottom Tray Assembly

See steps 1 through 5 on page 25 for instructions.

Bracket Wall Mounting

1. Drill holes and install anchors according to the template supplied with the bracket.
2. Install two screws for bottom of bracket. The screw heads should protrude 2.5 mm (0.01”) from the wall.
406 mm
137.8 mm
Figure 2-43 Vertical Wall Mounting Dimensions
3. Align the mounting bracket’s bottom mounting key holes with the screws.
4. Hang the bracket on the screws.
Accessories 2 - 35
Figure 2-44 Vertical Installation
5. Install two top screws.
6. Tighten all screws.
Figure 2-45 Horizontal Installation - Tighten Screws
7. Assembly the top tray. See steps 6 through 8 on page 25.
8. Slide the assembled top tray onto bottom tray.
9. Connect cables to cradle.
2 - 36 WT6000 Integrator Guide
10. Secure top tray to bottom tray with four M5 screws (two on each side).
11. Route cables and connect to power source.
CAUTION Installer should ensure that all building codes are followed when connecting the power supplies to an
AC power source.
While installing the brackets, power supplies and cables:
Use tie wraps to secure cables to the bracket.
Coil cables wherever possible.
Route power cables along wall and secure.

4-Slot Battery Charger Wall Installation

Use the Rack/Wall Mount Bracket to mount four 4-Slot Battery Chargers a cradle on a wall. When installing on a wall, first assemble the bottom tray, install the bottom tray on the wall and then assemble the top tray.
Use mounting hardware (screws and/or anchors) appropriate for the type of wall mounting the bracket onto. The Mount Bracket mounting slots dimensions are 5 mm (0.2 in.). Fasteners must be able to hold a minimum of 20 Kg (44 lbs.)
For proper installation consult a professional installer. Failure to install the bracket properly can possibly result in damage to the hardware.

Bottom Tray Assembly

See steps 1 through 5 on page 28 for instructions.

Bracket Wall Mounting

1. Drill holes and install anchors according to the template supplied with the bracket.
2. Install two screws for bottom of bracket. The screw heads should protrude 2.5 mm (0.01”) from the wall.
Accessories 2 - 37
398 mm
22.85 mm
Figure 2-46 Horizontal Mounting Template
3. Align the mounting bracket’s bottom mounting key holes with the screws.
4. Hang the bracket on the screws.
2 - 38 WT6000 Integrator Guide
Figure 2-47 Horizontal Installation
5. Install two top screws.
6. Tighten all screws.
Figure 2-48 Horizontal Installation - Tighten Screws
7. Assembly the four 4-Slot Battery Chargers onto the bracket. See steps 7 through 11 on page 28.
8. Route cables and connect to power source.
CAUTION Installer should ensure that all building codes are followed when connecting the power supplies to an
AC power source.
While installing the brackets, power supplies and cables:
Use tie wraps to secure cables to the bracket and rails.
Coil cables wherever possible.
Route power cables along the rails.
Route inter-cradle cables to the side rails and then from the rails to the bracket.

CHAPTER 3 USB COMMUNICATION

This chapter provides information for transferring files between the device and a host computer.

Connecting to a Host Computer via USB

Connect the WT6000 to a host computer using the USB and Charging Cable to transfer files between the WT6000 and the host computer.
CAUTION When connecting the WT6000 to a host computer, follow the host computer’s instructions for
connecting and disconnecting USB devices, to avoid damaging or corrupting files.

Connecting to the WT6000 as a Media Device

1. Connect the USB Charge cable to the WT6000 and then to the host computer.
2. On the host computer, open a file explorer application.
3. Locate the WT6000 as a portable device.
4. Open the Internal storage folder.
5. Copy or delete files as required.

Disconnect from the Host Computer

CAUTION Carefully follow the host computer’s instructions to unmount the device and disconnect USB devices
correctly to avoid losing information.
6. On the host computer, unmount the device.
7. Remove the USB and Charging Cable from the device.
3 - 2 WT6000 Integrator Guide
CHAPTER 4 DATAWEDGE
CONFIGURATION

DataWedge Configuration

This chapter applies to DataWedge on Android devices. DataWedge is an application that reads data, processes the data and sends the data to an application.

Basic Scanning

Scanning can be performed using the laser scanner or imager. To capture bar code data:
1. Ensure that an application is open on the WT6000 and a text field is in focus (text cursor in text field).
2. Aim the exit window at a bar code.
3. Press the trigger button. Ensure the red scan beam covers the entire bar code. The Charging/Scan LED
Indicators illuminate green and a beep sounds to indicate a successful decode.

Profiles

DataWedge is based on profiles and plug-ins. A profile contains information on how DataWedge should behave with different applications.
Profile information consists of:
Associated application
data capture plus configurations
Input plug-in configurations
Output plug-in configurations
Process plug-in configurations.
Using profiles, each application can have a specific DataWedge configuration. For example, each user application can have a profile which outputs scanned data in the required format when that application comes to the
4 - 2 WT6000 Integrator Guide
foreground. DataWedge can be configured to process the same set of captured data differently based on the requirements of each application.
DataWedge includes the following visible and hidden pre-configured profiles which support specific built-in applications:
• Profile0 - created automatically the first time DataWedge runs. Generic profile used when there are no user created profiles associated with an application.
• Launcher - enables scanning when the Launcher is in foreground. Note: to save battery power, disable this profile when not required.
• DWDemo - provides support for the DWDemo application.
Some Zebra applications are capable of capturing data by scanning. DataWedge is pre-loaded with private and hidden profiles for this purpose. There is no option to modify these private profiles.

Profile0

Profile0 can be edited but cannot be associated with an application. That is, DataWedge allows manipulation of plug-in settings for Profile0 but it does not allow assignment of a foreground application. This configuration allows DataWedge to send output data to any foreground application other than applications associated with user-defined profiles when Profile0 is enabled.
Profile0 can be disabled to allow DataWedge to only send output data to those applications which are associated
in user-defined profiles. For example, create a profile associating a specific application, disable Profile0 and then scan. DataWedge only sends data to the application specified in the user-created profile. This adds additional security to DataWedge enabling the sending of data only to specified applications.

Plug-ins

A plug-in is a software module utilized in DataW edge to extend its functionality to encompass technologies such as bar code scanning. The plug-ins can be categorized into three types based on their operations:
Input Plug-ins
Output Plug-ins
Process Plug-ins.

Input Plug-ins

An Input Plug-in supports an input device, such as a bar code scanner contained in, or attached to the device.
DataWedge contains base plug-ins for these input devices.
• Bar Code Scanner Input Plug-in – The Bar Code Scanner Input Plug-in is responsible for reading data from
the integrated bar code scanner and supports different types of bar code readers including laser , imager and internal camera. Raw data read from the bar code scanner can be processed or formatted using Process Plug-ins as required. DataWedge has built-in feedback functionality for the bar code scanner to issue user alerts. The feedback settings can be configured according to user requirement.

Process Plug-ins

Process Plug-ins are used in DataWedge to manipulate the received data according to the requirement, before sending to the foreground application via the Output Plug-in.
• Basic Data Formatting Process Plug-in – The Basic Data Formatting Plug-in allows DataWedge to add a prefix and/or a suffix to the captured data before passing it to an Output Plug-in.
DataWedge Configuration 4 - 3
• Advanced Data Formatting Process Plug-in – The Advanced Data Formatting Plug-in allows DataWedge to apply rules (actions to be performed based on defined criteria) to the data received via an input plug-in before passing it to an Output Plug-in.

Output Plug-ins

Output Plug-ins are responsible for sending the data from Input Plug-ins to a foreground application on the device.
• Keystroke Output Plug-in – The Keystroke Output Plug-in collects and sends data received from the Input Plug-in to the foreground applications by emulating keystrokes.
• Intent Output Plug-in – The Intent Output Plug-in collects and sends data received from the Input Plug-ins to foreground applications using the Android Intent mechanism.
• IP Output Plug-in – The IP Output Plug-in collects and sends data received from the Input Plug-ins to a host computer via a network connection. Captured data can be sent over an IP network to a specified IP address and port using either TCP or UDP transport protocols.

Profiles Screen

To launch DataWedge, touch > . By default, three profiles appear:
• Profile0
• Launcher
• DWDemo.
Profile0 is the default profile and is used when no other profile can be applied.
Figure 4-1 DataWedge Profiles Screen
Profile names are color coded. Enabled profiles are white and disabled profiles are gray. To configure a profile touch the profile name.

Profile Context Menu

Touch and hold a profile to open a context menu that allows additional actions to be performed on the selected profile.
Figure 4-2 Profile Context Menu
4 - 4 WT6000 Integrator Guide
The profile context menu allows the profile to be edited (same as just tapping on a profile), renamed or deleted.

Options Menu

Touch to open the options menu.
Figure 4-3 DataWedge Options Menu
The menu provides options to create a new profiles, access to general DataWedge settings and DataWedge version information.

Disabling DataWedge

1. Touch > .
2. Touch .
3. Touch Settings.
4. Touch DataWedge enabled.
The blue check disappears from the checkbox indicating that DataWedge is disabled.

Creating a New Profile

1. Touch > .
2. Touch .
3. Touch New profile.
4. In the New profile dialog box, enter a name for the new profile. It is recommended that profile names be
unique and made up of only alpha-numeric characters (A-Z, a-z, 0-9).
Figure 4-4 New Profile Name Dialog Box
5. Touch OK.
The new profile name appears in the DataWedge profile screen.

Profile Configuration

To configure the Profile0 or a user-created profile, touch the profile name.
Figure 4-5 Profile Configuration Screen
The configuration screen lists the following sections:
Profile enabled
Applications
Data Capture Plus (DCP)
Barcode Input
Keystroke output
Intent Output
IP Output.
DataWedge Configuration 4 - 5

Associating Applications

Use Applications option to associate applications with this profile. User created profiles should be associated with one or more applications and its activities.
1. Touch Associated apps. A list of applications/activities associated with the profile displays. Initially the list
does not contain any applications/activities.
Figure 4-6 Associated Apps Screen
2. Touch .
3. Touch New app/activity.
4 - 6 WT6000 Integrator Guide
Figure 4-7 Select Application Menu
4. In the Select application screen, select the desired application from the list.
Figure 4-8 Select Activity Menu
5. In the Select activity menu, selecting the activity adds that application/activity combination to the associated
application list for that profile. Selecting * as the activity results in all activities within that application being associated to the profile. During operation, DataWedge tries to match the specific application/activity combinations with the foreground application/activity before trying to match the general application/* combinations.
6. Touch .
Figure 4-9 Selected Application/Activity

Data Capture Plus

The Data Capture Plus (DCP) is a DataWedge feature that enables the user to initiate data capture by touching an area on the screen. A button or screen overlay acts like a scan button.
DataWedge Configuration 4 - 7
DCP Button
Figure 4-10 Data Capture Plus Dock Button
The DataWedge profile configuration screen allows the user to configure how the DCP appears on the screen once the particular profile is enabled. The DCP is hidden by default. Enabling DCP option displays additional configuration parameters.
Figure 4-11 Data Capture Plus Settings
• Enable - Select to enable Data Capture Plus (default - disabled).
• Dock button on - Select position of the button.
• Left or right - Allows user to place the button on either the right or left edge of the screen.
• Left only - Places the button on left edge of the screen.
• Right only - Places the button on the right edge of the screen.
• Start in - Select the initial DCP state.
• Fullscreen mode - DCP covers the whole screen.
• Button mode - DCP displays as a circular button on the screen and can be switched to fullscreen mode.
• Button only mode - DCP displays as a circular button on the screen and cannot be switched to fullscreen
mode.
• Button highest position - Select the top of the range the user is allowed to move the DCP, given as a percent of the screen height (default - 0).
• Button lowest position - Select the bottom of the range the user is allowed to move the DCP, given as a percent of the screen height (default - 100).
4 - 8 WT6000 Integrator Guide
• Drag detect time - Select the time in milliseconds that the scanner waits before activating scanner. This allows the user to drag the button without initiating scanner (default - 100 ms, maximum 1000 ms).
NOTE The DCP does not appear if the scanner is disabled in the profile even though the Enabled option is set.
In Button mode, the user can place DCP in full screen mode by dragging the button over Fullscreen mode. The overlay covers the screen.
Figure 4-12 Fullscreen Mode
Swipe down to return to button mode.

Bar Code Input

Use the Bar Code Input options to configure the Bar Code Scanner Input Plug-in for the profile.
Enabled
Enables or disables this plug-in. A check in the checkbox indicates that the plug-in is enabled.
Scanner Selection
Configures which scanning device to use for bar code data capture when the profile is active.
• Auto - The software automatically selects the best scanner.
• Plugable Serial SSI Scanner - Scanning is performed using the RS4000 laser scanner or RS5000 imager.
• Bluetooth Scanner - Scanning is performed using the optional RS507 or RS6000 Hands-free Bluetooth
scanner.
Decoders
Configures which bar code decoders are enabled or disabled. For best performance disable all unnecessary decoders.
Touch Decoders. The Barcode input screen appears. A check in the checkbox indicates that the decoder is enabled. By default the most commonly used decoders are enabled (shown below with an asterisk). The supported decoders are:
NOTE DataWedge supports the decoders listed below but not all are validated on this device.
Touch to return to the previous screen.
DataWedge Configuration 4 - 9
Table 4-1 Supported Decoders
Symbology RS507 RS4000 RS5000 RS6000
Australian Postal Disabled N/A Disabled Disabled Aztec Enabled N/A Enabled Enabled Canadian Postal N/A N/A N/A Disabled Chinese 2 of 5 Disabled Disabled Disabled Disabled Codabar Enabled Enabled Enabled Disabled Code 11 Disabled Disabled Disabled Disabled Code 128 Enabled Enabled Enabled Enabled Code 39 Enabled Enabled Enabled Enabled Code 93 Disabled Disabled Disabled Disabled Composite AB Disabled N/A Disabled Disabled Composite C Disabled N/A Disabled Disabled Datamatrix Enabled N/A Enabled Enabled Decoder Signature Disabled N/A Disabled Disabled Discrete 2 of 5 Disabled Disabled Disabled Disabled Dutch Postal Disabled N/A Disabled Disabled EAN13 Enabled Enabled Enabled Enabled EAN8 Enabled Enabled Enabled Enabled GS1 DataBar Enabled Enabled Enabled Enabled GS1 DataBar Expanded Enabled Enabled Enabled Enabled GS1 DataBar Limited Disabled Disabled Disabled Disabled HAN XIN N/A N/A Disabled Disabled Interleaved 2 of 5 Disabled Disabled Disabled Disabled Japanese Postal Disabled N/A Disabled Disabled Korean 2 of 5 Disabled Disabled Disabled Disabled MAIL MARK N/A N/A Enabled Enabled Matrix 2 of 5 Disabled Disabled Disabled Disabled Maxicode Enabled N/A Enabled Enabled MicroPDF Disabled N/A Disabled Disabled MicroQR Disabled N/A Disabled Disabled MSI Disabled Disabled Disabled Disabled
4 - 10 WT6000 Integrator Guide
Table 4-1 Supported Decoders (Continued)
Symbology RS507 RS4000 RS5000 RS6000
PDF417 Enabled Enabled Enabled Enabled QRCode Enabled N/A Enabled Enabled TLC39 Disabled Disabled Disabled Disabled Trioptic 39 Disabled Disabled Disabled Disabled UK Postal Disabled N/A Disabled Disabled UPCA Enabled Enabled Enabled Enabled UPCE0 Enabled Enabled Enabled Enabled UPCE1 Disabled Disabled Disabled Disabled US4state N/A N/A Disabled N/A US4state FCIS N/A N/A Disabled N/A US Planet Disabled N/A Disabled Disabled US Postnet Disabled N/A Disabled Disabled
Decoder Params
Use Decode Params to configure individual decoder parameters.
Codabar
• Length1 - Use to set decode lengths (default - 6). See Decode Lengths on page 4-15 for more information.
• Length2 - Use to set decode lengths (default - 55). See Decode Lengths on page 4-15 for more information.
• Redundancy - Sets the reader to read the bar code twice before accepting data. A check in the checkbox
indicates that redundancy is enabled (default - enabled).
• CLSI Editing - Enable this parameter to strip the start and stop characters and insert a space after the first, fifth, and tenth characters of a 14-character Codabar symbol. Enable this feature if the host system requires this data format (default - disabled).
• NOTIS Editing - Enable this parameter to strip the start and stop characters from a decoded Codabar symbol. Enable this feature if the host system requires this data format (default - disabled).
• Redundancy - Sets the reader to read the bar code twice before accepting data. A check in the checkbox indicates that redundancy is enabled (default - enabled).
Code 11
• Length1 - Use to set decode lengths (default - 4). See Decode Lengths on page 4-15 for more information.
• Length2 - Use to set decode lengths (default - 55). See Decode Lengths on page 4-15 for more information.
• Redundancy - Sets the reader to read the bar code twice before accepting data. A check in the checkbox
indicates that redundancy is enabled (default - enabled).
• Report Check Digit - Transmit Code 11 data with or without the check digit. A check in the checkbox indicates to send Code 11 data with check digit (default - disabled).
DataWedge Configuration 4 - 11
• Verify Check Digit - Check the integrity of all Code 11 symbols to verify that the data complies with the specified check digit algorithm. This selects the check digit mechanism for the decoded Code 11 bar code.
• No Check Digit - Do not verify check digit.
• 1 Check Digit - Bar code contains one check digit (default).
• 2 Check Digits - Bar code contains two check digits.
Code128
• Check ISBT Table - The ISBT specification includes a table that lists several types of ISBT bar codes that are commonly used in pairs. If ISBT128 Concat Mode is set, enable Check ISBT Table to concatenate only those pairs found in this table. Other types of ISBT codes are not concatenated. A check in the checkbox indicates that redundancy is enabled (default - disabled).
• Enable GS1-128 - Set the GS1 128 subtype. A check in the checkbox indicates that the option is enabled (default - enabled).
• Enable ISBT128 - Set the ISBT128 subtype. A check in the checkbox indicates that the option is enabled (default - enabled).
• ISBT128 Concatenation Mode - Select an option for concatenating pairs of ISBT code types:
• Concat Mode Never - Do not concatenate pairs of ISBT codes encountered (default).
• Concat Mode Always - There must be two ISBT codes in order to decode and perform concatenation.
Does not decode single ISBT symbols.
• Concat Mode Auto - Decodes and concatenates pairs of ISBT codes immediately. If only a single ISBT
symbol is present, the device must decode the symbol the number of times set via DataWedge Configuration 4 - 11 Redundancy - Code128 before transmitting its data to confirm that there is no additional ISBT symbol.
• Length1 - Use to set decode lengths (default - 0). See Decode Lengths on page 4-15 for more information.
• Length2- Use to set decode lengths (default - 55). See Decode Lengths on page 4-15 for more information.
• Redundancy - Sets the reader to read the bar code twice before accepting data. A check in the checkbox
indicates that redundancy is enabled (default - disabled).
• Security Level - The scanner offers four levels of decode security for Code 128 bar codes. Select increasing levels of security for decreasing levels of bar code quality. There is an inverse relationship between security and scanner aggressiveness, so choose only that level of security necessary for any given application.
• Security Level 0 - This setting allows the scanner to operate in its most aggressive state, while providing
sufficient security in decoding most “in-spec” bar codes.
• Security Level 1 - This setting eliminates most misdecodes (default).
• Security Level 2 - Select this option if Security level 1 fails to eliminate misdecodes.
• Security Level 3 - If Security Level 2 is selected and misdecodes still occur, select this security level. Be
advised, selecting this option is an extreme measure against mis-decoding severely out of spec bar codes. Selecting this level of security significantly impairs the decoding ability of the scanner. If this level of security is needed, try to improve the quality of the bar codes.
• Code128 Reduced Quiet Zone - Enables decoding of margin-less Code 128 bar codes.
• Ignore Code128 FCN4 - When enabled, and a Code 128 bar code has an embedded FNC4 character, it will
be removed from the data and the following characters will not be changed. When the feature is disabled, the FNC4 character will not be transmitted but the following character will have 128 added to it.
Code39
• Length1 - Use to set decode lengths (default - 0). See Decode Lengths on page 4-15 for more information.
4 - 12 WT6000 Integrator Guide
• Length2 - Use to set decode lengths 4 (default - 55). See Decode Lengths on page 4-15 for more information.
• Verify Check Digit - Enable this feature to check the integrity of all Code 39 symbols to verify that the data complies with a specified check digit algorithm. The digital scanner decodes only those Code 39 symbols that include a modulo 43 check digit. Enable this feature only if the Code 39 symbols contain a modulo 43 check digit (default - disabled).
• Report Check Digit - Transmit Code 39 data with or without the check digit. A check in the checkbox indicates to send Code 39 data with check digit (default - disabled).
• Full ASCII- Code 39 Full ASCII is a variant of Code 39 that pairs characters to encode the full ASCII character set. To enable or disable Code 39 Full ASCII (default - disabled),
• Redundancy - Sets the reader to read the bar code twice before accepting data. A check in the checkbox indicates that redundancy is enabled (default - disabled).
• Convert Code39 To Code32 - Code 32 is a variant of Code 39 used by the Italian pharmaceutical industry. Scan the appropriate bar code below to enable or disable converting Code 39 to Code 32 (default - disabled).
• Report Code32 Prefix - Scan the appropriate bar code to enable or disable adding the prefix character “A” to all Code 32 bar codes (default - disabled).
• Security Level - Options: Security level 0, Security Level 1, Security Level 2 and Security Level 3 (default - Security level 1).
• Security Level 0 - This setting allows the scanner to operate in its most aggressive state, while providing
sufficient security in decoding most “in-spec” bar codes.
• Security Level 1 - This setting eliminates most misdecodes (default).
• Security Level 2 - Select this option if Security level 1 fails to eliminate misdecodes.
• Security Level 3 - If Security Level 2 is selected and misdecodes still occur, select this security level. Be
advised, selecting this option is an extreme measure against mis-decoding severely out of spec bar codes. Selecting this level of security significantly impairs the decoding ability of the scanner. If this level of security is needed, try to improve the quality of the bar codes.
• Code39 Reduced Quiet Zone - Enables decoding of margin-less Code 39 bar codes.
Code93
• Length1 - Use to set decode lengths (default - 0). See Decode Lengths on page 4-15 for more information.
• Length2 - Use to set decode lengths (default - 55). See Decode Lengths on page 4-15 for more information.
• Redundancy - Sets the reader to read the bar code twice before accepting data. A check in the checkbox
indicates that redundancy is enabled (default - disabled).
Composite AB (RS507, RS5000 and RS6000 only)
• UCC Link Mode
• Link Flag ignored - 1D component is transmitted regardless of whether a 2D component is detected.
• Always Linked - 1D and the 2D components are transmitted. If 2D is not present, the 1D component is
not transmitted.
• Auto Discriminate - the digital scanner determines if there is a 2D portion, then transmits the 1D
component, as well as the 2D portion if present. (default).
Discrete 2 of 5
• Length1 - Use to set decode lengths (default - 0). See Decode Lengths on page 4-15 for more information.
• Length2 - Use to set decode lengths (default - 14). See Decode Lengths on page 4-15 for more information.
DataWedge Configuration 4 - 13
• Redundancy - Sets the reader to read the bar code twice before accepting data. A check in the checkbox indicates that redundancy is enabled (default - enabled).
GS1 DataBar Limited
• GS1 Limited Security Level -
• Security Level 0 - This setting allows the scanner to operate in its most aggressive state, while providing
sufficient security in decoding most “in-spec” bar codes.
• Security Level 1 - This setting eliminates most misdecodes (default).
• Security Level 2 - Select this option if Security level 1 fails to eliminate misdecodes.
• Security Level 3 - If Security Level 2 is selected and misdecodes still occur, select this security level. Be
advised, selecting this option is an extreme measure against mis-decoding severely out of spec bar codes. Selecting this level of security significantly impairs the decoding ability of the scanner. If this level of security is needed, try to improve the quality of the bar codes.
Interleaved 2 of 5
• Length1 - Use to set decode lengths (default - 14). See Decode Lengths on page 4-15 for more information.
• Length2 - Use to set decode lengths (default - 10). See Decode Lengths on page 4-15 for more information.
• Redundancy - Sets the reader to read the bar code twice before accepting data. A check in the checkbox
indicates that redundancy is enabled (default - enabled).
• Check Digit
• No Check Digit - A check digit is not used. (default)
• USS Check Digit - Select to check the integrity of all Interleaved 2 of 5 symbols to verify the data
complies with either the Uniform Symbology Specification (USS) check digit algorithm.
• OPCC Check Digit - Select to check the integrity of all Interleaved 2 of 5 symbols to verify the data
complies with either the Optical Product Code Council (OPCC) check digit algorithm.
• Report Check Digit - Transmit Interleaved 2 of 5 data with or without the check digit. A check in the checkbox indicates to send Interleaved 2 of 5 data with check digit (default - disabled).
• Convert ITF-14 To EAN13 - Convert 14-character Interleaved 2 of 5 bar codes to EAN-13, and transmit as EAN-13. The Interleaved 2 of 5 bar code must be enabled and must have a leading zero and a valid EAN-13 check digit. A check in the checkbox indicates that the option is enabled (default - disabled).
• I2of5 Security Level - Options: I2of5 Security level 0, I2of5 Security Level 1, I2of5 Security Level 2 and I2of5 Security Level 3 (default - I2of5 Security level 1).
• I2of5 Reduced Quiet Zone - Enables decoding of margin-less I2of5 bar codes.
Matrix 2 of 5
• Length1 - Use to set decode lengths (default - 10). See Decode Lengths on page 4-15 for more information.
• Length2 - Use to set decode lengths (default - 0). See Decode Lengths on page 4-15 for more information.
• Redundancy - Sets the reader to read the bar code twice before accepting data. A check in the checkbox
indicates that redundancy is enabled (default - disabled).
• Report Check Digit - Transmit Matrix 2 of 5 data with or without the check digit. A check in the checkbox indicates to send Matrix 2 of 5 data with check digit (default - enabled).
• Verify Check Digit - Enable this feature to check the integrity of all Matrix 2 of 5 symbols to verify that the data complies with a specified check digit algorithm (default - enabled).
MSI
• Length 1 - Use to set decode lengths (default - 4). See Decode Lengths on page 4-15 for more information.
4 - 14 WT6000 Integrator Guide
• Length 2 - Use to set decode lengths (default - 55). See Decode Lengths on page 4-15 for more information.
• Redundancy - Sets the reader to read the bar code twice before accepting data. A check in the checkbox
indicates that redundancy is enabled (default - enabled).
• Check Digit - With MSI symbols, one check digit is mandatory and always verified by the reader. The second check digit is optional.
• One Check Digit - Verify one check digit (default).
• Two Check Digits - Verify two check digits.
• Check Digit Scheme - T wo algorithms are possible for the verification of the second MSI check digit. Select
the algorithm used to encode the check digit.
• Mod-11-10 - First check digit is MOD 11 and second check digit is MOD 10 (default).
• Mod-10-10 - Both check digits are MOD 10.
• Report Check Digit - Transmit MSI data with or without the check digit. A check in the checkbox indicates to
send MSI data with check digit (default - disabled).
Trioptic 39
• Redundancy - Sets the reader to read the bar code twice before accepting data. A check in the checkbox indicates that redundancy is enabled (default - enabled).
UK Postal (RS507, RS5000 and RS6000 only)
• Report Check Digit - Transmit UK Postal data with or without the check digit. A check in the checkbox indicates to send UK Postal data with check digit (default - disabled).
UPCA
• Report Check Digit - The check digit is the last character of the symbol used to verify the integrity of the data. Enables or disables this option. A check in the checkbox indicates that the option is enabled (default ­enabled).
• Preamble - Preamble characters are part of the UPC symbol consisting of Country Code and System Character. Select the appropriate option to match the host system.
There are three options for transmitting a UPCA preamble:
• Preamble None - Transmit no preamble.
• Preamble Sys Char - Transmit System Character only (default).
• Preamble Country and Sys Char - Transmit System Character and Country Code (“0” for USA). Select
the appropriate option to match the host system.
UPCE0
• Report Check Digit - The check digit is the last character of the symbol used to verify the integrity of the data. Enables or disables this option. A check in the checkbox indicates that the option is enabled (default ­disabled).
• Preamble - Preamble characters are part of the UPC symbol consisting of Country Code and System Character. Select the appropriate option to match the host system.
There are three options for transmitting a UPCE0 preamble:
• Preamble Sys Char - Transmit System Character only.
• Preamble Country and Sys Char - Transmit System Character and Country Code (“0” for USA).
• Preamble None - Transmit no preamble (default).
DataWedge Configuration 4 - 15
• Convert UPCE0 To UPCA - Enable to convert UPCE0 (zero suppressed) decoded data to UPC-A format before transmission. After conversion, the data follows UPC-A format and is affected by UPC-A programming selections. Disable to transmit UPCE0 decoded data as UPCE0 data, without conversion (default - disabled).
UPCE1
• Report Check Digit - The check digit is the last character of the symbol used to verify the integrity of the
data. Enables or disables this option. A check in the checkbox indicates that the option is enabled (default ­disabled).
• Preamble - Preamble characters are part of the UPC symbol consisting of Country Code and System Character. Select the appropriate option to match the host system.
There are three options for transmitting a UPCE1 preamble:
• Preamble Sys Char - Transmit System Character only.
• Preamble Country and Sys Char - Transmit System Character and Country Code (“0” for USA).
• Preamble None - Transmit no preamble (default).
• Convert UPCE1 To UPCA - Enable this to convert UPCE1 decoded data to UPC-A format before
transmission. After conversion, the data follows UPC-A format and is affected by UPC-A programming selections. Disable this to transmit UPCE1 decoded data as UPCE1 data, without conversion (default ­disabled).
US Planet (RS507, RS5000 and RS6000 only)
• Report Check Digit - The check digit is the last character of the symbol used to verify the integrity of the data. Enables or disables this option. A check in the checkbox indicates that the option is enabled (default ­disabled).
Decode Lengths
The allowable decode lengths are specified by options Length1 and Length2 as follows:
Variable length: Decode symbols containing any number of characters.
Set both Length1 and Length2 to 0.
Range: Decode a symbol with a specific length range (from a to b, including a and b).
Set Length1 to a and set Length2 to b.
Two Discrete Lengths: Decode only symbols containing either of two selected lengths.
Set both Length1 or Length2 to the specific lengths. Length1 must be greater than Length2.
One Discrete Length: Decode only symbols containing a specific length.
Set both Length1 and Length2 to the specific length.
UPC EAN Params
Allows the configuration of the parameters that apply to more than one UPC or EAN decoder.
• Convert DataBar To UPC EAN - If this is set it converts DataBar bar codes to UPC/EAN format. For this setting to work UPC/EAN symbologies must be enabled. A check in the checkbox indicates that the option is enabled.
• UPC Reduced Quiet Zone - Enables decoding of margin-less UPC bar codes.
• Bookland - Enable Bookland decoding. A check in the checkbox indicates that the option is enabled.
4 - 16 WT6000 Integrator Guide
• Bookland Format - If Bookland EAN is enabled, select one of the following formats for Bookland data (RS5000 only):
• Format ISBN-10 - The decoder reports Bookland data starting with 978 in traditional 10-digit format with
the special Bookland check digit for backward-compatibility. Data starting with 979 is not considered Bookland in this mode. (default)
• Format ISBN-13 - The decoder reports Bookland data (starting with either 978 or 979) as EAN-13 in
13-digit format to meet the 2007 ISBN-13 protocol.
• Coupon - Enables Coupon code decoding. Note that in order to successfully decode Coupon codes, all of the correct decoders must be enabled. A check in the checkbox indicates that the option is enabled.
• Coupon Report Mode - Traditional coupon symbols are composed of two bar code: UPC/EAN and Code
128. A new coupon symbol is composed of a single Data Expanded bar code. The new format offers more options for purchase values (up to $999.999) and supports complex discount offers as a second purchase requirement. An interim coupon symbol also exists that contain both types of bar codes: UPC/EAN and Databar Expanded. This format accommodates both retailers that do not recognize or use the additional information included in the new coupon symbol, as well as those who can process new coupon symbols.
• Old Coupon Report Mode - Scanning an old coupon symbol reports both UPC and Code 128, scanning
is interim coupon symbol reports UPC, and scanning a new coupon symbol reports nothing (no decode).
• New Coupon Report Mode - Scanning an old coupon symbol reports either UPC or Code 128, and
scanning an interim coupon symbol or a new coupon symbol reports Databar Expanded.
• Both Coupon Report Modes - Scanning an old coupon symbol reports both UPC and Code 128, and
scanning an interim coupon symbol or a new coupon symbol reports Databar Expanded.
• Ean Zero Extended – Enable this parameter to add five leading zeros to decoded EAN-8 symbols to make them compatible in format to EAN-13 symbols. Disable this to transmit EAN-8 symbols as is. Default – disabled.
• Linear Decode - This option applies to code types containing two adjacent blocks (e.g., UPC-A, EAN-8, EAN-13). Enable this parameter to transmit a bar code only when both the left and right blocks are successfully decoded within one laser scan. Enable this option when bar codes are in proximity to each other.
• Retry Count - Retry count for auto-discriminating for supplementals. Possible values are 2 to 20 inclusive. Note that this flag is only considered if Supplemental Mode - UPC EAN is set to one of the following values:
Supplementals Auto, Supplementals Smart, Supplementals 378-379, Supplementals 978-979, Supplementals 977 or Supplementals 414-419-434-439 (2 to 20, default 10).
• Security Level - The scanner offers four levels of decode security for UPC/EAN bar codes. Select higher
security levels for lower quality bar codes. There is an inverse relationship between security and decode speed, so be sure to choose only that level of security necessary for the application.
• Level 0 - This default setting allows the scanner to operate fastest, while providing sufficient security in
decoding “in-spec” UPC/EAN bar codes (default).
• Level 1 - As bar code quality levels diminish, certain characters become prone to misdecodes before
others (i.e., 1, 2, 7, 8). If the scanner is misdecoding poorly printed bar codes, and the misdecodes are limited to these characters, select this security level.
• Level 2 - If the scanner is misdecoding poorly printed bar codes, and the misdecodes are not limited to
characters 1, 2, 7, and 8, select this security level.
• Level 3 - If the scanner is still misdecoding, select this security level. Be advised, selecting this option is
an extreme measure against misdecoding severely out of spec bar codes. Selecting this level of security can significantly impair the decoding ability of the scanner. If this level of security is necessary, try to improve the quality of the bar codes.
• Supplemental2 - Enables or disables this option. A check in the checkbox indicates that the option is enabled.
DataWedge Configuration 4 - 17
• Supplemental5 - Enables or disables this option. A check in the checkbox indicates that the option is enabled.
• Supplemental Mode
• No Supplementals - the scanner is presented with a UPC/EAN plus supplemental symbol, the scanner
decodes UPC/EAN and ignores the supplemental characters (default).
• Supplemental Always - the scanner only decodes UPC/EAN symbols with supplemental characters, and
ignores symbols without supplementals.
• Supplements Auto - the scanner decodes UPC/EAN symbols with supplemental characters immediately .
If the symbol does not have a supplemental, the scanner must decode the bar code the number of times set via UPC/EAN Supplemental Redundancy before transmitting its data to confirm that there is no supplemental.
• Supplemental Smart - Enables smart supplementals. In this mode the decoder returns the decoded
value of the main block right away if it does not belong to one of the following supplemental types: 378, 379, 977, 978, 979, 414, 419, 434 or 439. If the bar code starts with one of the prefixes it searches the image more aggressively for a supplemental. Tries to scan the supplemental if it is present. If the supplemental scanning failed, then the main bar code is returned.
• Supplemental 378-379 - Enables (auto-discriminate) supplemental for UPC/EAN codes starting with 378
or 379. Disables reading of supplementals for any other UPC/EAN bar code not starting with 378 or 379. Tries to scan the supplemental if it is present. If the supplemental scanning failed, then the main bar code is returned.
• Supplemental 978-979 - Enables (auto-discriminate) supplemental for UPC/EAN codes starting with 978
or 979. Disables reading of supplementals for another UPC/EAN bar code not starting with 978 or 979. Tries to scan the supplemental if it is present. If the supplemental scanning failed, then the main bar code is returned.
• Supplemental 414-419-434-439 - Enables (auto-discriminate) supplemental for UPC/EAN codes starting
with 414, 419, 434 or 439. Disables reading of supplementals for another UPC/EAN bar code 4 - 16 not starting with 414, 419, 434 or 439. Tries to scan the supplemental if it is present. If the supplemental scanning failed, then the main bar code is returned.
• Supplemental 977 - Enables (auto-discriminate) supplemental for UPC/EAN codes starting with 977.
Disables reading of supplementals for another UPC/EAN bar code not starting with 977. Tries to scan the supplemental if it is present. If the supplemental scanning failed, then the main bar code is returned.
Reader Params
Allows the configuration of parameters specific to the selected bar code reader.
• Adaptive Scanning - The RS4000 contains the adaptive scanning feature that automatically adjusts the scan beam width for rapid and easy scanning of bar codes from near contact to more than 200 inches away . When the user presses the trigger, the RS4000 determines the distance from the bar code. For close bar codes the RS4000 sets a wide beam width and for far bar codes it sets a narrow beam width. The RS4000 uses distance, bar code type and material to determine the correct scan beam width. Options: Enable or
Disable. (RS4000 only).
• Beam Width - Selects the beam width of the scanner. Options: Narrow, Normal or Wide (RS4000 only).
• 1D Quiet Zone Level - Sets the level of aggressiveness in decoding bar codes with a reduced quiet zone
(the area in front of and at the end of a bar code), and applies to symbologies enabled by a Reduced Quiet Zone parameter. Because higher levels increase the decoding time and risk of misdecodes, Zebra strongly
4 - 18 WT6000 Integrator Guide
recommends enabling only the symbologies which require higher quiet zone levels, and leaving Reduced Quiet Zone disabled for all other symbologies (RS5000 and RS6000 only). Options are:
•0 - The scanner performs normally in terms of quiet zone.
•1 - The scanner performs more aggressively in terms of quiet zone (default).
•2 - The scanner only requires one side EB (end of bar code) for decoding.
•3 - The scanner decodes anything in terms of quiet zone or end of bar code.
• Aim mode - Turns the scanner cross-hairs on or off (RS507, RS5000 and RS6000 only).
•On - Cross-hair is on (default).
• Off - Cross-hair is off.
• Character Set Selection -
ISO-88959-1 - part of the ISO/IEC 8859 series of ASCII-based standard character encodings. It is
generally intended for Western European languages.
Shift_JIS - Shift Japanese Industrial Standards (JIS) is a character encoding for the Japanese language.
UTF-8 - A character encoding capable of encoding all possible characters, or code points, defined by
Unicode (default).
• Time Delay to Low Power - Sets the time the decoder remains active after decoding. After a scan session, the decoder waits this amount of time before entering Low Power Mode. Options: 1 Second (default), 30
Seconds, 1 Minute or 5 Minutes.
• Illumination Brightness - Sets the brightness of the illumination by altering LED power. The default is 10,
which is maximum LED brightness. For values from 1 to 10, LED brightness varies from lowest to highest level of brightness (RS507/RS6000 only).
• Illumination mode - Turns imager illumination on and off. This option is only available when Bluetooth Scanner is selected in the Barcode input, Scanner selection option (RS507, RS5000 and RS6000 only).
•On - Illumination is on.
• Off - Illumination is off (default).
• Inverse 1D Mode - This parameter allows the user to select decoding on inverse 1D bar codes (RS507,
RS5000 and RS6000 only).
• Disable - Disables decoding of inverse 1D bar codes (default).
• Enable - Enables decoding of only inverse 1D bar codes.
• Auto - Allows decoding of both twice positive and inverse 1D bar codes.
• LCD Mode - Enables or disables LCD mode. LCD mode enhances the ability of the imager to read bar codes
from LCD displays such as cellphones (RS507, RS5000 and RS6000 only).
• Disable - Disables the LCD mode (default).
• Enable - Enables LCD mode.
• Picklist - Allows the imager to decode only the bar code that is directly under the cross-hair/reticle (+) part of
the pattern. This feature is useful in applications where multiple bar codes may appear in the field of view during a decode session and only one of them is targeted for decode (RS507, RS5000 and RS6000 only).
• Disabled – Disables Picklist mode. Any bar code within the field of view can be decoded (default).
• Enabled – Enables Picklist mode so that only the bar code under the projected reticle can be decoded.
• Poor Quality Decode Effort - Enable poor quality bar code decoding enhancement feature (RS5000 only).
• Aim Timer - Sets the maximum amount of time that aiming remains on (0 - 60,000 ms in increments of 100
ms). A value of 0 sets the aim to stay on indefinitely (default - 500) (RS5000 only).
DataWedge Configuration 4 - 19
• Aim Type - Set the aiming usage (RS507, RS5000 and RS6000 only).
• Trigger - A trigger event activates decode processing, which continues until the trigger event ends or a
valid decode occurs.
• Continuous - When the imager detects an object in its field of view, it triggers and attempt to decode.
• Beam Timer - Sets the maximum amount of time that the reader remains on (0 - 60,000 ms in increments of
100 ms). A value of 0 sets the reader to stay on indefinitely (default -15000).
• Different Symbol Timeout - Controls the time the scanner is inactive between decoding different symbols. Programmable in 500 msec increments from 0 to 5 seconds. The default is 500 msec.
• Power Mode - Select whether or not the decoder enters Low Power consumption mode after a decode attempt.
• Optimized Power Mode - Power level adjusts with scanning usage.
• High Power Mode - High power, and excellent performance.
• Always On - Highest power, fastest performance.
• Same Symbol Timeout - Controls the time the scanner is inactive between decoding same symbols.
Programmable in 500 msec increments from 0 to 5 seconds. The default is 500 msec.
Scan Params
Allows the configuration of Code ID and decode feedback options.
• Code ID Type - A Code ID character identifies the code type of a scanned bar code. This is useful when the reader is decoding more than one code type. Select a code ID character to insert between the prefix and the decoded symbol.
• Code ID Type None - No prefix.
• Code ID Type AIM - Insert AIM Character prefix.
• Code ID Type Symbol - Insert Symbol character prefix.
• Code ID Type None (Auto) - No prefix. (default).
• Code ID Type Symbol (Auto) - Insert Symbol character prefix.
• Engine Decode LED - Use to turn on scanner red LED when the scan beam is emitting either by scanner
trigger or using soft scan button (RS507 and RS5000 only).
• BT Disconnect On Exit - Bluetooth connection is disconnected when data capture application is closed. (RS507 and RS6000 only).
• Connection Idle Time - Set connection idle time. The Bluetooth connection disconnects after being idle for set time (RS507 and RS6000 only).
• Decode Haptic Feedback - Enable the device to vibrate upon a good decode (default - enabled).
• Display BT Address Barcode - Enable or disable displaying Bluetooth Address bar code if there is no
Bluetooth scanner being paired when application tries to enable the Bluetooth scanner (RS507 and RS6000 only).
• Establish Connection Time - The timeout which the WT6000 will try to enable or reconnect to the Bluetooth scanner when the Bluetooth scanner is not in the vicinity or not paired (RS507 and RS6000 only).
• Audio Feedback Mode - Select good decode audio indication.
• Local Audio Feedback - Good decode audio indication on WT6000 only.
• Remote Audio Feedback - Good decode audio indication on scanner only.
• Both - Good decode audio indication on WT6000 and scanner.
• Disable - No good decode audio indication on either WT6000 or scanner (default).
4 - 20 WT6000 Integrator Guide
• LED Feedback Mode - Select good decode LED indication.
• Local LED Feedback - Good decode LED indication on WT6000 only.
• Remote LED Feedback - Good decode LED indication on scanner only.
• Both Good decode LED indication on WT6000 and scanner (default).
• Disable - No good decode LED indication on either WT6000 or scanner.
• Decode Audio Feedback - Select an audio tone to sound upon a good decode.
• Decoding LED Notification - Enable the device to light the red Data Capture LED when data capture is in
progress. (default - disabled).
• Decode Feedback LED Timer - Set the amount of time (in milliseconds) that the green Data Capture LED stays lit after a good decode. (default - 75 msec.)
• Beep Volume Control - Set the good decode beep to a system or other sound. This allows for independent control of the good beep volume.
NOTE Not all ringtones are fully supported as decode tones and those of longer length may be truncated when
used as a decode tone. The recommendation is to test the selected tone for operation before deployment to a customer site.
• Ringer - Set the good decode beep to the ringer sound.
• Notifications - Set the good decode beep to the notification sound (default).
• Alarms - Set the good decode beep to the alarm sound.

Keystroke Output

Use to configure the Keystroke Output Plug-in for the profile.
• Enabled — Enables or disables this plug-in. A check in the checkbox indicates that the plug-in is enabled (default - enabled).
• Action key character - Enables decoding of a special character embedded within a bar code data for use in native Android applications. This feature is helpful when populating or executing a form.
• None - Action key character feature is disabled (default).
•Tab - Tab character code in a bar code is processed. When DataWedge detects this character code in a
bar code, move the focus to the next field.
• Line feed - Line feed character code in a bar code is processed. When DataWedge detects this character
code in a bar code, move the focus to the next field.
• Carriage return - Carriage return character code in a bar code is processed. When DataWedge detects
this character code in a bar code, move the focus to the next field.
• Multi byte character delay - Set the inter-character delay for multi-byte characters (in milliseconds).
• Advanced data formatting - is a way to customizing data before transmission. Use advanced data
formatting (ADF) to edit scan data to suit requirements.
• Enable - Enables or disables ADF. A check in the checkbox indicates that ADF is enabled (default -
disabled).
• Rules - ADF uses rules to customize data. These rules perform detailed actions when the data meets
certain criteria. One rule may consist of single or multiple criteria applied to single or multiple actions. See Generating Advanced Data Formatting Rules on page 4-26 for more information.
• Basic data formatting - Allows the configuration of any data formatting for the related Output Plug-in. When the plug-in is disabled, any data is passed on without modification.
• Enabled - Enables or disables Basic Data Formatting. A check in the checkbox indicates that it is enabled
(default - enabled).
• Prefix to data - Add characters to the beginning of the data when sent.
• Suffix to data - Add characters to the end of the data when sent.
• Send data - Set to transfer the captured data to the foreground application. Disabling this option prevents
the actual data from being transmitted. However, the prefix and suffix strings, if present, are still transmitted even when this option is disabled (default - enabled).
• Send as hex - Set to send the data in hexadecimal format. A check in the checkbox indicates that the
plug-in is enabled (default - disabled).
• Send T AB key - Set to append a tab character to the end of the processed data. A check in the checkbox
indicates that the plug-in is enabled (default - disabled).
• Send ENTER key - Set to append an Enter character to the end of the processed data. A check in the
checkbox indicates that the plug-in is enabled (default - disabled).

Intent Output

DataWedge Configuration 4 - 21
Allows configuration of the Intent Output Plug-in for the profile. The Intent Output Plug-in allows the captured data to be sent to an application in the form of an implicit Intent. Refer to the Android Developer web site for more information, http://developer.android.com.
• Enabled - Enables or disables this plug-in. A check in the checkbox indicates that the plug-in is enabled (default - disabled).
• Intent action - Enter the Intent Action name (required).
• Intent category - Enter the Intent Category name (required).
• Intent delivery - Select the method by which the intent is delivered:
Send via StartActivity
Send via startService (default)
Broadcast intent
• Receiver foreground flag - Set flag in broadcast event.
• Advanced data formatting - is a way to customizing data before transmission. Use advanced data
formatting (ADF) to edit scan data to suit requirements.
• Enable - Enables or disables ADF. A check in the checkbox indicates that ADF is enabled (default -
disabled).
• Rules - ADF uses rules to customize data. These rules perform detailed actions when the data meets
certain criteria. One rule may consist of single or multiple criteria applied to single or multiple actions. See Generating Advanced Data Formatting Rules on page 4-26 for more information.
4 - 22 WT6000 Integrator Guide
• Basic data formatting - Allows configuration of any data formatting for the related Output Plug-in. When the plug-in is disabled any data is passed on without modification.
• Enabled - Enables or disables Basic Data Formatting. A check in the checkbox indicates that it is enabled
(default - enabled).
• Prefix to data - Add characters to the beginning of the data when sent.
• Suffix to data - Add characters to the end of the data when sent.
• Send data - Set to transfer the captured data to the foreground application. Disabling this option prevents
the actual data from being transmitted. However, the prefix and suffix strings, if present, are still transmitted even when this option is disabled (default - enabled).
• Send as hex - Set to send the data in hexadecimal format. A check in the checkbox indicates that the
plug-in is enabled (default - disabled).
• Send T AB key - Set to append a tab character to the end of the processed data. A check in the checkbox
indicates that the plug-in is enabled (default - disabled).
• Send ENTER key - Set to append an Enter character to the end of the processed data. A check in the
checkbox indicates that the plug-in is enabled (default - disabled).
Intent Overview
The core components of an Android application (its activities, services, and broadcast receivers) are activated by intents. An intent is a bundle of information (an Intent object) describing a desired action - including the data to be acted upon, the category of component that should perform the action, and other pertinent instructions. Android locates an appropriate component to respond to the intent, launches a new instance of the component if one is needed, and passes it the Intent object.
Components advertise their capabilities, the kinds of intents they can respond to, through intent filters. Since the system must learn which intents a component can handle before it launches the component, intent filters are specified in the manifest as <intent-filter> elements. A component may have any number of filters, each one describing a different capability. For example, if the manifest contains the following:
<intent-filter . . . > <action android:name=”android.intent.action.DEFAULT” /> <category android:name=”android.intent.category.MAIN” /> </intent-filter>
In the Intent output plug-in configuration, the Intent action would be: android.intent.category.DEFAULT and the Intent category would be:
android.intent.category.MAIN.
The Intent delivery option allows the method by which the intent is delivered to be specified. The delivery mechanisms are Send via startActivity, Send via startService or Broadcast intent.
The decode related data added to the Intent’s bundle can be retrieved using the
Intent.getStringExtra() and Intent.getSerializableExtra() calls, using the following
String tags:
DataWedge Configuration 4 - 23
String LABEL_TYPE_TAG = “com.symbol.emdk.datawedge.label_type”;
String contains the label type of the bar code.
String DATA_STRING_TAG = “com.symbol.emdk.datawedge.data_string”;
String contains the output data as a String. In the case of concatenated bar codes, the decode data is
concatenated and sent out as a single string.
String DECODE_DATA_TAG = “com.symbol.emdk.datawedge.decode_data”;
Decode data is returned as a list of byte arrays. In most cases there will be one byte array per decode. For
bar code symbologies that support concatenation e.g. Codabar, Code128, MicroPDF, etc., the decoded data is stored in multiple byte arrays (one byte array per bar code). Clients can get data in each byte array by passing an index.
Most scanning applications might want the user to be able to decode data and for that decode data to be sent to the *current* activity but not necessarily displayed. If this is the case, then the activity needs to be marked as ‘singleTop’ in its AndroidManifest.xml file. If your activity is not defined as singleTop, then on every decode, the system will create another copy of your Activity and send the decode data to this second copy.
Finally there will be a configuration option for each process plug-in so that the process plug-in can be configured specifically for the intent output, which in this case is the basic data formatting process plug-in.

IP Output

NOTE IPWedge application is required on a host computer. Download the IPW edge application from the Support
Central web site: http://www.zebra.com/support.
IP Output allows DataWedge to send captured data to a host computer via a network connection. Captured data can be sent over an IP network to a specified IP address and port using either TCP or UDP transport protocols.
• Enabled - Enables or disables this plug-in. A check in the checkbox indicates that the plug-in is enabled (default - disabled).
• Remote Wedge - Enable or disable the Remote Wedge option (default - enabled). Remote Wedge is used with the IPWedge application.
• Protocol - Select the protocol used by the remote application. Options: TCP (default) or UDP.
• IP address - Enter the IP address used by the remote application (default - 0.0.0.0).
• Port - Enter the port number used by the remote application (default - 58627).
• Advanced data formatting - is a way of customizing data before transmission. Use advanced data
formatting (ADF) to edit scan data to suit requirements.
• Enable - Enables or disables ADF. A check in the checkbox indicates that ADF is enabled (default -
disabled).
• Rules - ADF uses rules to customize data. These rules perform detailed actions when the data meets
certain criteria. One rule may consist of single or multiple criteria applied to single or multiple actions. See Generating Advanced Data Formatting Rules on page 4-26 for more information.
4 - 24 WT6000 Integrator Guide
• Basic data formatting - Allows configuration of any data formatting for the related Output Plug-in. When the plug-in is disabled any data is passed on without modification.
• Enabled - Enables or disables Basic Data Formatting. A check in the checkbox indicates that it is enabled
(default - enabled).
• Prefix to data - Add characters to the beginning of the data when sent.
• Suffix to data - Add characters to the end of the data when sent.
• Send data - Set to transfer the captured data to the foreground application. Disabling this option prevents
the actual data from being transmitted. However, the prefix and suffix strings, if present, are still transmitted even when this option is disabled (default - enabled).
• Send as hex - Set to send the data in hexadecimal format. A check in the checkbox indicates that the
plug-in is enabled (default - disabled).
• Send T AB key - Set to append a tab character to the end of the processed data. A check in the checkbox
indicates that the plug-in is enabled (default - disabled).
• Send ENTER key - Set to append an Enter character to the end of the processed data. A check in the
checkbox indicates that the plug-in is enabled (default - disabled).
Usage
This section provides information on how to configure IP Output using the DataWedge configuration user interface. To use IP Output in a particular DataWedge profile (for example: Profile0), scroll downward on IP Output.
Figure 4-13 IP Output Screen
Using IP Output with IPWedge
IPWedge is a computer application that can be easily configured to retrieve data sent over network by DataWedge IP Output. Refer to the IPWedge User Manual on how to install and configure in a host computer. To enable IP Output to send captured data to a remote computer that is installed with IPWedge:
1. In IP Output, touch Enabled.
A check appears in the checkbox.
2. Ensure Remote Wedge option is enabled.
3. Touch Protocol.
4. In the Choose protocol dialog box, touch the same protocol selected for the IPWedge computer application.
(TCP is the default).
DataWedge Configuration 4 - 25
Figure 4-14 Protocol Selection
5. Touch IP Address.
6. In the Enter IP Address dialog box, enter the IP address of host computer to send data to.
Figure 4-15 IP Address Entry
7. Touch Port.
8. In the Enter port number dialog box, enter same port number selected for IPWedge computer application.
Figure 4-16 Port Number Entry
9. Configure Advanced data formatting and Basic data formatting Plug-in if any required modification to be
done to captured data before sending to remote computer.
Using IP Output without IPWedge
IP Output Plug-in can be used to send captured data from DataWedge to a remote device or host computer without using IPWedge. At the data receiving end, the host computer or mobile device should have an application, that listens to TCP or UDP data coming from a configured port and IP address in the IP Output plug-in. To enable IP Output to send captured data to a remote computer:
1. In IP Output, touch Enabled.
2. A check appears in the checkbox.
3. Ensure Remote Wedge option is disabled.
4. Touch Protocol.
5. In the Choose protocol dialog box, touch the same protocol selected in the client application. (TCP is the
default).
4 - 26 WT6000 Integrator Guide
Figure 4-17 Protocol Selection
6. Touch IP Address.
7. In the Enter IP address dialog box, enter the IP address of host computer to send data to.
Figure 4-18 IP Address Entry
8. Touch Port.
9. In the Enter port number dialog box, enter the port number that the host computer application is listening on.
Figure 4-19 Port Number Entry
10. Configure Advanced Data Formatting and Basic Data Formatting Plug-in if any required modification to be
done to captured data before sending to remote computer.

Generating Advanced Data Formatting Rules

The ADF plug-in applies rules (actions to be performed based on defined criteria) to the data received via an input plug-in before sending it to the output plug-in.
Rules - The ADF process plug-in consists of one or more rules. DataWedge formats the output data according to the first matching rule. A rule is a combination of criteria and a set of actions to be performed, upon fulfillment of the criteria set in the rule.
Criteria - Criteria can be set according to Input plug-in, symbology, matching string within the data (at the specified position) and/or data length. Received data must match the defined criteria in order for the data to be processed.
Actions - A set of procedures defined to format data. There are four types of actions which are for formatting cursor movement, data modification, data sending and delay specifications. An action can be defined to send the first number of characters to the Output plug-in, pad the output data with spaces or zeros, remove spaces in data, etc.

Configuring ADF Plug-in

Configuring the ADF plug-in consists of creating a rule, defining the criteria and defining the actions.
1. Touch > .
2. Touch a DataWedge profile.
3. In Keystroke Output, touch Advanced data formatting.
Figure 4-20 Advanced Data Formatting Screen
DataWedge Configuration 4 - 27
4. Touch the Enable checkbox to enable ADF.

Creating a Rule

NOTE By default, Rule0, is the only rule in the Rules list.
Touch .
1.
2. Touch New rule.
3. Touch the Enter rule name text box.
4. In the text box, enter a name for the new rule.
5. Touch OK.

Deleting a Rule

1. Touch and hold on a rule until the context menu appears.
2. Touch Delete to delete the rule from the Rules list.
NOTE When there is no rule available for ADF plug-in or all rules are disabled, DataWedge passes decoded data
to the output plug-in without processing the data.

Defining Criteria

1. Touch Criteria.
4 - 28 WT6000 Integrator Guide
Figure 4-21 Criteria Screen
2. Touch String to check for option to specify the string that must be present in the data.
3. In the Enter the string to check for dialog box, enter the string.
4. Touch OK.
5. Touch String position option to specify the position of the string specified in the String to check for option.
The ADF rule is only applied if the specific string in String to check for is found at the specified String position location (zero for the start of the string).
6. Touch the + or - to change the value.
7. Touch OK.
8. Touch String length option to specify a length for the received data. The ADF rule only applies to the bar
code data with that specified length.
9. Touch the + or - to change the value.
10. Touch OK.
11. Touch Source criteria option to associate an input device to an ADF rule. The ADF rule only applies to data
received from associated input devices.
12. Touch Barcode input.
13. Touch the Source enabled checkbox to accept data from this source.
Figure 4-22 Barcode Input Screen
14. For Barcode inputs, touch the All decoders enabled checkbox to select all bar code symbologies. Deselect
the All decoders enabled checkbox to individually select the symbologies.
15. Touch until the Rule screen appears.
16. If required, repeat steps to create another rule.
17. Touch until the Rule screen appears.
DataWedge Configuration 4 - 29

Defining an Action

NOTE By default the Send remaining action is in the Actions list.
Touch .
1.
2. Touch New action.
3. In the New action menu, select an action to add to the Actions list. See Table 4-2 on page 4-29 for a list of
supported ADF actions.
4. Some Actions require additional information. Touch the Action to display additional information fields.
5. Repeat steps to create more actions.
6. Touch .
7. Touch .

Deleting a Rule

1. Touch and hold on a rule until the context menu appears.
2. Touch Delete to delete the rule from the Rules list.
NOTE When there is no rule available for ADF plug-in or all rules are disabled, DataWedge passes decoded data
to the output plug-in without processing the data.

Order Rules List

NOTE When there are no rules defined, ADF passes the captured data through as is. In contrast, when rules are
defined but all are disabled, ADF does not pass any captured data through.
Rules are processed in top-down order. The rules that are on top of the list are processed first. Use the icon next to the rule to move it to another position in the list.
Table 4-2 ADF Supported Actions
Type Actions Description
Cursor Movement
Skip ahead Moves the cursor forward by a specified number of characters. Enter
the number of characters to move the cursor ahead.
Skip back Moves the cursor back by a specified number of characters. Enter the
number of characters to move the cursor back. Skip to start Moves the cursor to the beginning of the data. Move to Moves the cursor forward until the specified string is found. Enter the
string in the data field. Move past a Moves the cursor forward past the specified string. Enter the string in
the data field.
4 - 30 WT6000 Integrator Guide
Table 4-2 ADF Supported Actions (Continued)
Type Actions Description
Data Modification
Crunch spaces Remove spaces between words to one and remove all spaces at the
beginning and end of the data. Stop space crunch Stops space crunching. This disables the last Crunch spaces action. Remove all spaces Remove all spaces in the data. Stop space removal Stop removing spaces. This disables the last Remove all spaces
action. Remove leading zeros Remove all zeros at the beginning of data. Stop zero removal Stop removing zeros at the beginning of data. This disables the
previous Remove leading zeros action. Pad with zeros Left pad data with zeros to meet the specified length. Enter the
number zeros to pad. Stop pad zeros Stop padding with zeros. This disables the previous Pad with zeros
action. Pad with spaces Left pad data with spaces to meet the specified length. Enter the
number spaces to pad. Stop pad spaces Stop padding with spaces. This disables the previous Pad with
spaces action. Replace string Replaces a specified string with a new string. Enter the string to
replace and the string to replace it with. Stop all replace string Stop all Replace string actions.
Data Sending
Send next Sends the specified number of characters from the current cursor
Send remaining Sends all data that remains from the current cursor position. Send up to Sends all data up to a specified string. Enter the string. Send pause Pauses the specified number of milliseconds before continuing the
Send string Sends a specified string. Enter the string to send. Send char Sends a specified ASCII/ Unicode character. Enter a character value.

Deleting an Action

1. Touch and hold the action name.
2. Select Delete action from the context menu.
position. Enter the number of characters to send.
next action. Enter the amount of time in milliseconds.
The maximum Unicode character value can be entered is U-10FFFF
(= 1114111 in decimal).

ADF Example

The following illustrates an example of creating Advanced Data Formatting: When a user scans a bar code with the following criteria:
Code 39 bar code.
length of 12 characters.
contains 129 at the start position.
Modify the data as follows:
Pad all sends with zeros to length 8.
send all data up to character X.
send a space character.
To create an ADF rule for the above example:
1. Touch > DataWedge > Profile0.
2. Under Keystroke Output, touch Advanced data formatting.
3. Touch Enable.
4. Touch Rule0.
5. Touch Criteria.
6. Touch String to check for.
7. In the Enter the string to check for text box, enter 129 and then touch OK.
8. Touch String position.
9. Change the value to 0.
10. Touch OK.
11. Touch String length.
12. Change value to 12.
13. Touch OK.
14. Touch Source criteria.
15. Touch Barcode input.
16. Touch All decoders enabled to disable all decoders.
17. Touch Code 39.
DataWedge Configuration 4 - 31
18. Touch three times.
19. Touch and hold on the Send remaining rule until a menu appears.
20. Touch Delete action.
21. Touch .
22. Touch New action.
23. Select Pad with zeros.
24. Touch the Pad with zeros rule.
25. Touch How many.
26. Change value to 8 and then touch OK.
4 - 32 WT6000 Integrator Guide
27. Touch .
28. Touch .
29. Touch New action.
30. Select Send up to.
31. Touch Send up to rule.
32. Touch String.
33. In the Enter a string text box, enter X.
34. Touch OK.
35. Touch .
36. Touch .
37. Touch New action.
38. Select Send char.
39. Touch Send char rule.
40. Touch Character code.
41. In the Enter character code text box, enter 32.
42. Touch OK.
43. Touch .
Figure 4-23 ADF Sample Screen
44. Ensure that an application is open on the device and a text field is in focus (text cursor in text field).
45. Aim the exit window at the bar code.
Figure 4-24 Sample Bar Code
46. Press and hold the scan key.
The red laser aiming pattern turns on to assist in aiming. Ensure that the bar code is within the area formed by the aiming pattern. The LED light red to indicate that data capture is in process.
DataWedge Configuration 4 - 33
47. The LED lights green, a beep sounds and the device vibrates, by default, to indicate the bar code was decoded
successfully.The LED lights green and a beep sounds, by default, to indicate the bar code was decoded successfully. The formatted data 000129X<space>appears in the text field.
Scanning a Code 39 bar code of 1299X15598 does not transmit data (rule is ignored) because the bar code data did not meet the length criteria.
Figure 4-25 Formatted Data

DataWedge Settings

The DataWedge Settings screen provides access to general, non-profile related options. Touch > Settings.
Figure 4-26 DataWedge Settings Window
• DataWedge enabled - Enables or disables DataWedge. To disable DataWedge uncheck this option.
• Enable logging - Enables or disables debug output file to logcat. To enable logging check this option.
• Import - allows import of a DataWedge configuration file. The imported configuration replaces the current
configuration.
• Export - allows export of the current DataWedge configuration.
• Import Profile - allows import of a DataWedge profile file.
• Export Profile - allows export of a DataWedge profile.
• Restore - return the current configuration back to factory defaults.

Importing a Configuration File

1. Copy the configuration file to the Internal Storage /Android/data/com.symbol.datawedge/files folder.
2. Touch > .
3. Touch .
4. Touch Settings.
5. Touch Import.
4 - 34 WT6000 Integrator Guide
6. Touch filename to import.
7. Touch Import. The configuration file (datawedge.db) is imported and replaces the current configuration.

Exporting a Configuration File

1. Touch > .
2. Touch .
3. Touch Settings.
4. Touch Export.
5. In the Export to dialog box, select the location to save the file.
6. Touch Export. The configuration file (datawedge.db) is saved to the selected location.

Importing a Profile File

NOTE Do not change the filename of the of the profile file. If the filename is changed, the file will not be imported.
1.
Copy the profile file to the Internal Storage /Android/data/com.symbol.datawedge/files folder.
2. Touch > .
3. Touch .
4. Touch Settings.
5. Touch Import Profile.
6. Touch the profile file to import.
7. Touch Import. The profile file (dwprofile_x.db, where x = the name of the profile) is imported and appears in
the profile list.

Exporting a Profile

1. Touch > .
2. Touch .
3. Touch Settings.
4. Touch Export Profile.
5. Touch the profile to export.
6. Touch Export.
The profile file (dwprofile_x.db, where x = name of the profile) is saved to the selected location.

Restoring DataWedge

To restore DataWedge to the factory default configuration:
1. Touch > .
2. Touch .
3. Touch Settings.
4. Touch Restore.
5. Touch Yes.

Configuration and Profile File Management

The configuration or profile settings for DataWedge can be saved to a file for distribution to other devices. After making configuration or profile changes, export the new configuration or profile to the root of the Internal
Storage. The configuration file created is automatically named datawedge.db. The profile file created is automatically named dwprofile_x.db, where x is the profile name. The files can then the copied to the Internal Storage of other devices and imported into DataWedge on those devices. Importing a configuration or profile replaces the existing settings.

Enterprise Folder

Internal storage contains the Enterprise folder (/enterprise). The Enterprise folder is persistent and maintains data after an Enterprise reset. After an Enterprise Reset, DataWedge checks folder
/enterprise/device/settings/datawedge/enterprisereset/for a configuration file, datawedge.db or a profile file, dwprofile_x.db. If the file is found, it imports the file to replace any existing configuration or profile.
DataWedge Configuration 4 - 35
NOTE A Factory Reset deletes all files in the Enterprise folder.

Auto Import

DataWedge supports remote deployment of a configuration to a device, using tools such as MSP. DataWedge monitors the /enterprise/device/settings/datawedge/autoimport folder for the DataWedge configuration file (datawedge.db) or a profile file (dwprofile_x.db). When DataWedge launches it checks the folder . If a configuration or profile file is found, it imports the file to replace any existing configuration or profile. Once the file has been imported it is deleted from the folder.
While DataWedge is running it receives a notification from the system that a file has been placed into the /enterprise/device/settings/datawedge/autoimport folder. When this occurs, DataWedge imports this new configuration or profile, replacing the existing one and delete the file. DataWedge begins using the imported configuration immediately.
NOTE A Factory Reset deletes all files in the Enterprise folder.
It is strongly recommended that the user exits DataWedge before remotely deploying any configuration or profile. It is required that the file permissions are set to 666.

Programming Notes

The following paragraphs provide specific programming information when using DataWedge.
4 - 36 WT6000 Integrator Guide

Overriding Trigger Key in an Application

To override the trigger key in an application, create a profile for the application that disables the Barcode input. In the application, use standard APIs, such as onKeyDown() to listen for the KEYCODE_BUTTON_L1 and KEYCODE_BUTTON_R1 presses.

Capture Data and Taking a Photo in the Same Application

To be able to capture bar code data and take a photo in the same application:
Create a Datawedge profile pertaining to the picture taking Activity in your application that disables scanning and use standard Android SDK APIs to control the Camera.
The default Datawedge profile takes care of the scanning in the application. You might want to create another DataWedge profile that caters to any specific scanning needs, associated to your Application's Activity pertaining to scanning.

Disable DataWedge on Device and Mass Deploy

To disable DataWedge and deploy onto multiple devices:
1. Touch > .
2. Touch .
3. Touch Settings.
4. Unselect the DataWedge enabled check box.
5. Export the DataWedge configuration. See Exporting a Configuration File on page 4-34 for instructions. See
Configuration and Profile File Management on page 4-35 for instructions for using the auto import feature.

Soft Scan Feature

DataWedge allows a native Android application to programmatically start, stop, or toggle the scan trigger state. The application can issue an Android Broadcast Intent, to control the scanner, without requiring the scan key to be pressed. The active DataWedge profile is required to control all the parameters during a scan operation.
The structure of the broadcast intent that resolves to the soft scan is:
action: “com.symbol.emdk.datawedge.api.ACTION_SOFTSCANTRIGGER” extras: This is a String name/value pair that contains trigger state details. name: “com.symbol.emdk.datawedge.api.EXTRA_PARAMETER” value: “START_SCANNING” or “STOP_SCANNING” or “TOGGLE_SCANNING”

Sample

Intent sendIntent = new Intent(); sendIntent.setAction(“com.symbol.emdk.datawedge.api.ACTION_SOFTSCANTRIGGER”); sendIntent.putExtra(“com.symbol.emdk.datawedge.api.EXTRA_PARAMETER”,
