WIRELESS FUSION ENTERPRISE MOBILITY SUITE

USER GUIDE FOR VERSION X2.00

Wireless Fusion Enterprise Mobility Suite

User Guide for Version X2.00

72E-1164268-02

Rev. A

March 2015

ii Wireless Fusion Enterprise Mobility Suite User Guide

No part of this publication may be reproduced or used in any form, or by any electrical or mechanical means, without permission in writing from Zebra. This includes electronic or mechanical means, such as photocopying, recording, or information storage and retrieval systems. The material in this manual is subject to change without notice.

The software is provided strictly on an “as is” basis. All software, including firmware, furnished to the user is on a licensed basis. Zebra grants to the user a non-transferable and non-exclusive license to use each software or firmware program delivered hereunder (licensed program). Except as noted below, such license may not be assigned, sublicensed, or otherwise transferred by the user without prior written consent of Zebra. No right to copy a licensed program in whole or in part is granted, except as permitted under copyright law. The user shall not modify, merge, or incorporate any form or portion of a licensed program with other program material, create a derivative work from a licensed program, or use a licensed program in a network without written permission from Zebra. The user agrees to maintain Zebra’s copyright notice on the licensed programs delivered hereunder, and to include the same on any authorized copies it makes, in whole or in part. The user agrees not to decompile, disassemble, decode, or reverse engineer any licensed program delivered to the user or any portion thereof.

Zebra reserves the right to make changes to any software or product to improve reliability, function, or design.

Zebra does not assume any product liability arising out of, or in connection with, the application or use of any product, circuit, or application described herein.

No license is granted, either expressly or by implication, estoppel, or otherwise under any Zebra, intellectual property rights. An implied license only exists for equipment, circuits, and subsystems contained in Zebra products.

Revision History

Changes to the original manual are listed below:

Change Date Description

-01 Rev. A 03/08/13 Initial release.

-02 Rev. A 03/30/15 Zebra rebranding.

iii

iv Wireless Fusion Enterprise Mobility Suite User Guide

Revision History .............................................................................................................................. iii

About This Guide

Introduction ..................................................................................................................................... ix

Chapter Descriptions ...................................................................................................................... ix

Notational Conventions................................................................................................................... x

Related Documents ........................................................................................................................ x

Chapter 1: Getting Started

Introduction .................................................................................................................................... 1-1

Configuring the Infrastructure ........................................................................................................ 1-1

Fusion Overview ............................................................................................................................ 1-1

Windows Mobile Home Screen ................................................................................................ 1-2

Windows Classic Today Screen .............................................................................................. 1-2

Windows CE ............................................................................................................................ 1-2

Fusion Signal Strength Icon ........................................................................................................... 1-3

Fusion Functions ............................................................................................................................ 1-4

Enable/Disable Radio .............................................................................................................. 1-5

Hide Menu ................................................................................................................................ 1-5

Exit ........................................................................................................................................... 1-6

Fusion Help .............................................................................................................................. 1-6

Minimum Setup .............................................................................................................................. 1-6

Chapter 2: Find WLAN Application

Introduction .................................................................................................................................... 2-1

Chapter 3: Manage Profiles Application

Introduction .................................................................................................................................... 3-1

Connect to a Profile ....................................................................................................................... 3-2

Editing a Profile .............................................................................................................................. 3-3

vi Wireless Fusion Enterprise Mobility Suite User Guide

Creating a New Profile ................................................................................................................... 3-3

Deleting a Profile ........................................................................................................................... 3-3

Ordering Profiles ............................................................................................................................ 3-3

Export a Profile .............................................................................................................................. 3-3

Profile Roaming ............................................................................................................................. 3-4

Chapter 4: Profile Editor Wizard

Introduction .................................................................................................................................... 4-1

Profile Name .................................................................................................................................. 4-1

Operating Mode ............................................................................................................................. 4-2

Ad-hoc ........................................................................................................................................... 4-2

Security Mode ................................................................................................................................ 4-3

Authentication Type ....................................................................................................................... 4-5

Tunneled Authentication ................................................................................................................ 4-5

User Certificate Selection .............................................................................................................. 4-7

User Certificate Installation ...................................................................................................... 4-7

Server Certificate Selection ..................................................................................................... 4-9

Server Certificate Installation ................................................................................................... 4-10

User Name ............................................................................................................................... 4-11

Password ....................................................................................................................................... 4-11

Advanced Identity .......................................................................................................................... 4-12

Credential Cache Options .............................................................................................................. 4-13

Encryption ...................................................................................................................................... 4-15

Hexadecimal Keys ................................................................................................................... 4-17

Pass-phrase Dialog .................................................................................................................. 4-18

IPv4 Address Entry ........................................................................................................................ 4-19

Transmit Power .............................................................................................................................. 4-22

Battery Usage ................................................................................................................................ 4-23

Performance Settings .............................................................................................................. 4-24

Chapter 5: Manage Certificates Application

Introduction .................................................................................................................................... 5-1

Certificate Properties ..................................................................................................................... 5-2

Import a Certificate ........................................................................................................................ 5-3

Delete a Certificate ........................................................................................................................ 5-5

Chapter 6: Manage PACs Application

Introduction .................................................................................................................................... 6-1

PAC Properties .............................................................................................................................. 6-2

Delete PAC .................................................................................................................................... 6-2

Import PAC .................................................................................................................................... 6-3

Chapter 7: Options

Introduction .................................................................................................................................... 7-1

Op (Operating) Mode Filtering ....................................................................................................... 7-1

Regulatory ..................................................................................................................................... 7-2

Band/Channel Selection ................................................................................................................ 7-3

Table of Contents vii

802.11 Options ............................................................................................................................... 7-4

System Options .............................................................................................................................. 7-5

Auto PAC Settings ......................................................................................................................... 7-5

IPv6 ................................................................................................................................................ 7-6

Change Password .......................................................................................................................... 7-6

Import/Export ................................................................................................................................. 7-7

Data Management ......................................................................................................................... 7-8

Chapter 8: Wireless Status Application

Introduction .................................................................................................................................... 8-1

Signal Strength Window ........................................................................................................... 8-2

Current Profile Window ............................................................................................................ 8-3

IPv4 Status Window ................................................................................................................. 8-4

IPv6 Status Window ................................................................................................................. 8-5

Wireless Log Window .............................................................................................................. 8-7

Saving a Log ...................................................................................................................... 8-7

Clearing the Log ................................................................................................................. 8-8

Logos & Certifications Window ................................................................................................ 8-8

Versions Window ..................................................................................................................... 8-9

Chapter 9: Wireless Diagnostics Application

Introduction .................................................................................................................................... 9-1

ICMP Ping Window .................................................................................................................. 9-2

Graphs ..................................................................................................................................... 9-3

Trace Route Window ............................................................................................................... 9-3

Known APs Window ................................................................................................................. 9-4

Chapter 10: Log On/Off Application

Introduction .................................................................................................................................... 10-1

Logging On .................................................................................................................................... 10-2

Logging Off .............................................................................................................................. 10-3

Chapter 11: Configuration Persistence

Introduction .................................................................................................................................... 11-1

Exporting Fusion Configuration ...................................................................................................... 11-1

Export Data .............................................................................................................................. 11-2

Import Data .............................................................................................................................. 11-3

Returning to Factory Default Settings ............................................................................................ 11-4

Chapter 12: Configuration Examples

Introduction .................................................................................................................................... 12-1

EAP–FAST/MS Chap v2 Authentication ........................................................................................ 12-1

Chapter 13: No User Interface Features

Network Policy Configuration Service ............................................................................................ 13-1

viii Wireless Fusion Enterprise Mobility Suite User Guide

Glossary

Index

ABOUT THIS GUIDE

Introduction

This guide provides information about using the Fusion Wireless Companion software on a Zebra mobile computer.

NOTE Screens and windows pictured in this guide are samples and can differ from actual screens.

This guide describes the functionally using Windows Mobile operating system.

Chapter Descriptions

Topics covered in this guide are as follows:

•

Chapter 1, Getting Started provides an overview of the Fusion Wireless Companion software.

•

Chapter 2, Find WLAN Application provides information about the Find WLAN application.

•

Chapter 3, Manage Profiles Application provides information about managing profiles.

•

Chapter 4, Profile Editor Wizard explains how to configure a profile.

•

Chapter 5, Manage Certificates Application explains how to manage certificates.

•

Chapter 6, Manage PACs Application explains how to manage PACs.

•

Chapter 7, Options explains how to configure the Fusion options.

•

Chapter 8, Wireless Status Application describes how to get status about the wireless connection.

•

Chapter 9, Wireless Diagnostics Application describes tools to help diagnose problems with the wireless

connection.

•

Chapter 10, Log On/Off Application explains how to log on and off the wireless network.

•

Chapter 11, Configuration Persistence explains how to persist Fusion data and settings across a clean/cold

boot.

•

Chapter 12, Configuration Examples provides examples for setting up profiles with various authentication

and encryption types.

x Wireless Fusion Enterprise Mobility Suite User Guide

•

Chapter 13, No User Interface Features describes the features of Fusion that can be turned on and off

but do not have a standard Fusion user interface.

Notational Conventions

The following conventions are used in this document:

•

Italics are used to highlight the following:

• Chapters and sections in this and related documents

• Dialog box, window and screen names

• Icons on a screen.

•

Bold text is used to highlight the following:

• Key names on a keypad

• Button names on a screen or window.

• Drop-down list and list box names

• Check box and radio button names

•

bullets (•) indicate:

• Action items

• Lists of alternatives

• Lists of required steps that are not necessarily sequential

•

Sequential lists (e.g., those that describe step-by-step procedures) appear as numbered lists.

NOTE This symbol indicates something of special interest or importance to the reader. Failure to read the note

will not result in physical harm to the reader, equipment or data.

CAUTION This symbol indicates that if this information is ignored, the possibility of data or material damage may

WARNING! This symbol indicates that if this information is ignored the possibility that serious personal

CHAPTER 1 GETTING STARTED

Introduction

Each Zebra mobile computer has a wireless local area network (WLAN) interface. This WLAN interface is managed by the Fusion Wireless Companion application. The software allows the user to configure and control the wireless radio in order to securely connect to the WLAN infrastructure. This guide enables the user to configure the mobile computer so that it can connect properly to a WLAN. This guide describes how to use the Fusion software.

Configuring the Infrastructure

WLANs allow mobile computers to communicate wirelessly. Before using the mobile computer on a WLAN, the facility must be set up with the required hardware to run the WLAN (sometimes known as infrastructure). The infrastructure and the mobile computer must both be properly configured to enable this communication.

Refer to the documentation provided with the infrastructure (access points (APs), access ports, switches, Radius servers, etc.) for instructions on how to set up the infrastructure.

Once you have set up the infrastructure to enforce your chosen WLAN security scheme, use the Fusion software to configure the mobile computer to match.

Fusion Overview

The Fusion software contains applications with which to create wireless profiles. Each profile specifies the security parameters to use for connecting to a particular WLAN as identified by its ESSID. The Fusion software also allows the user to control which profile out of a set of profiles is used to connect. Other Fusion applications allow the user to monitor the status of the current WLAN connection and to invoke diagnostic tools for troubleshooting.

The Fusion applications are accessed differently depending upon the operating system configuration, Windows Mobile 6.5, by default, supports a Windows Home screen as well as the classic Mobile 6.1 Today screen.

1 - 2 Wireless Fusion Enterprise Mobility Suite User Guide

Fusion Plug-in

Fusion Signal Strength icon

ESSID

Fusion Tile Tap to open Access Fusion applications

Tap to open the Log

On/Off Application

Fusion Signal Strength icon

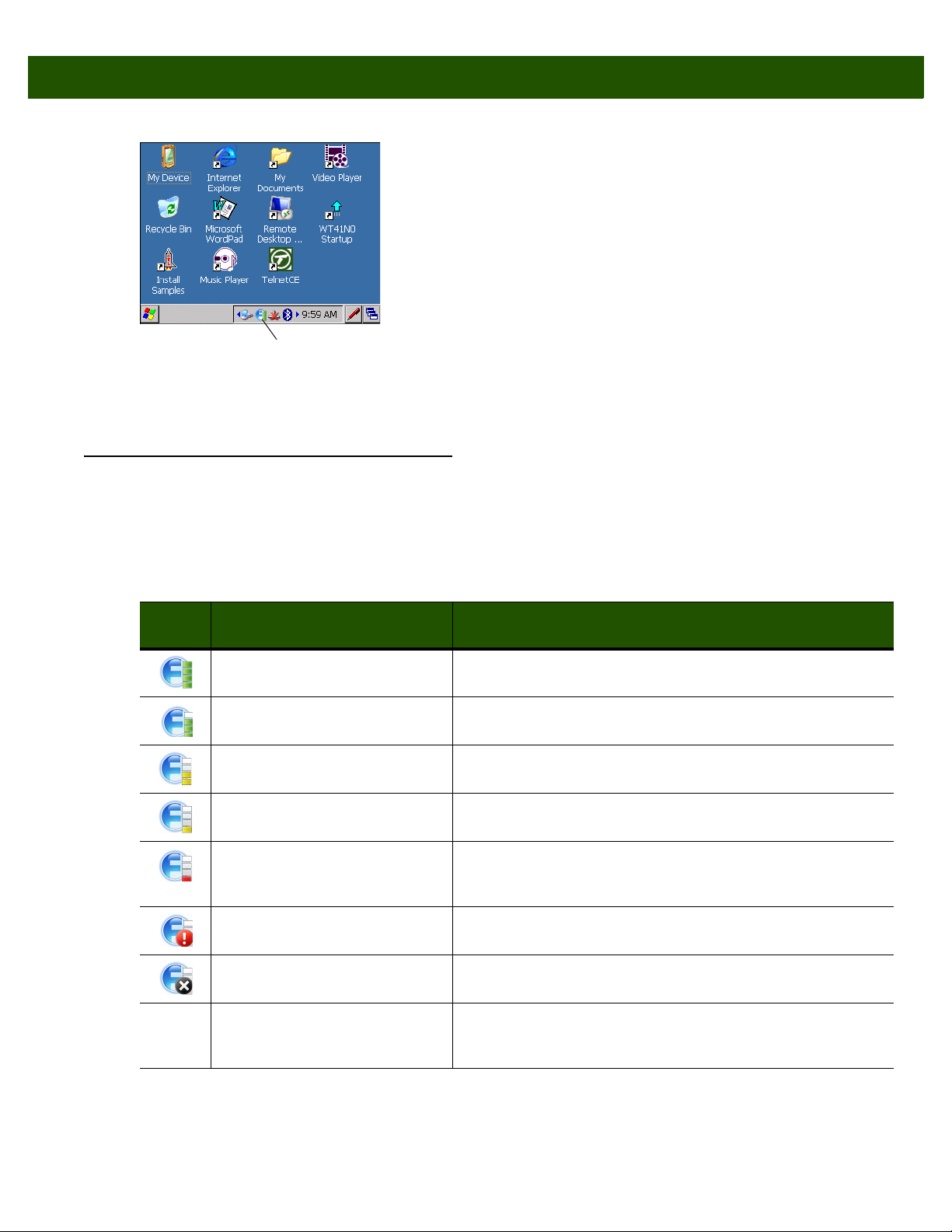

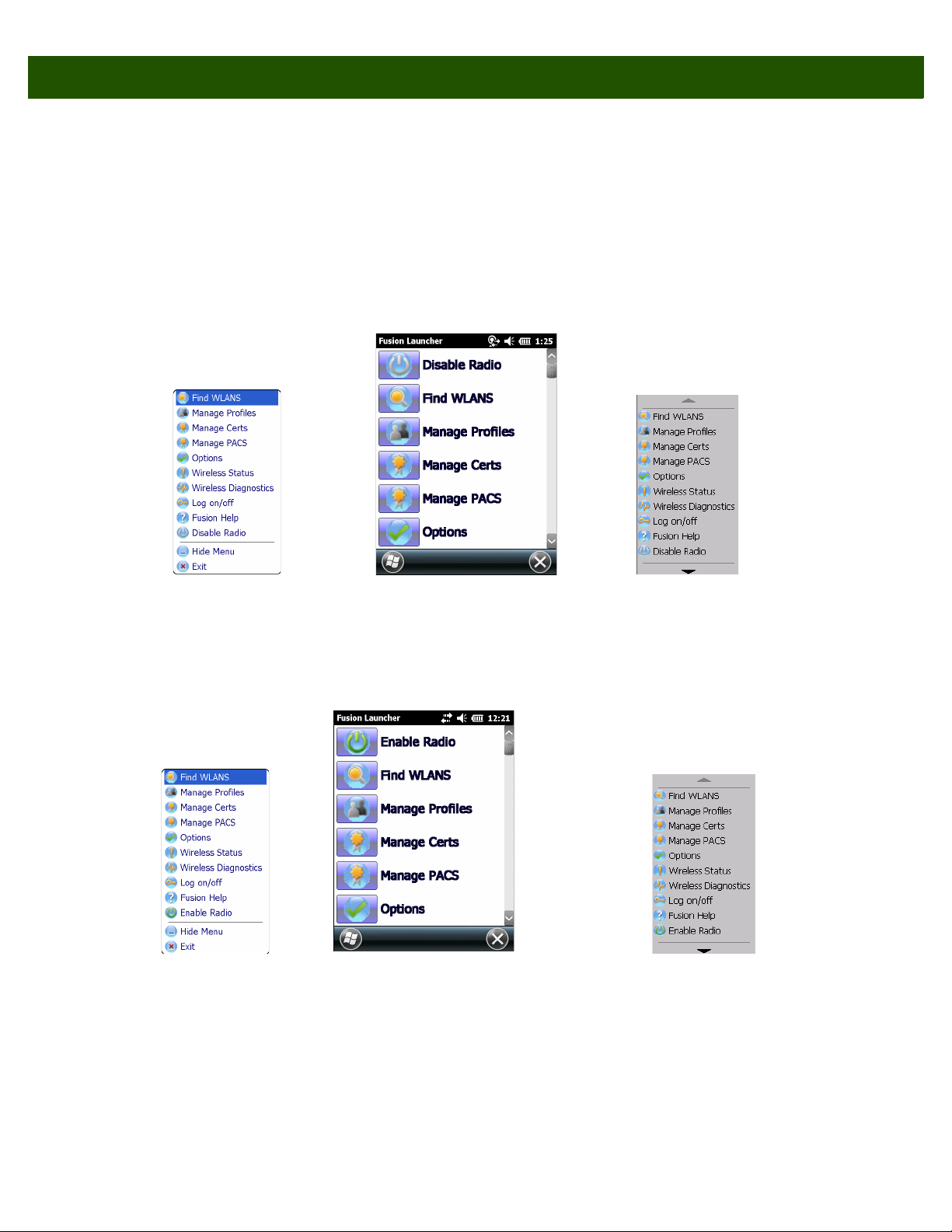

Windows Mobile Home Screen

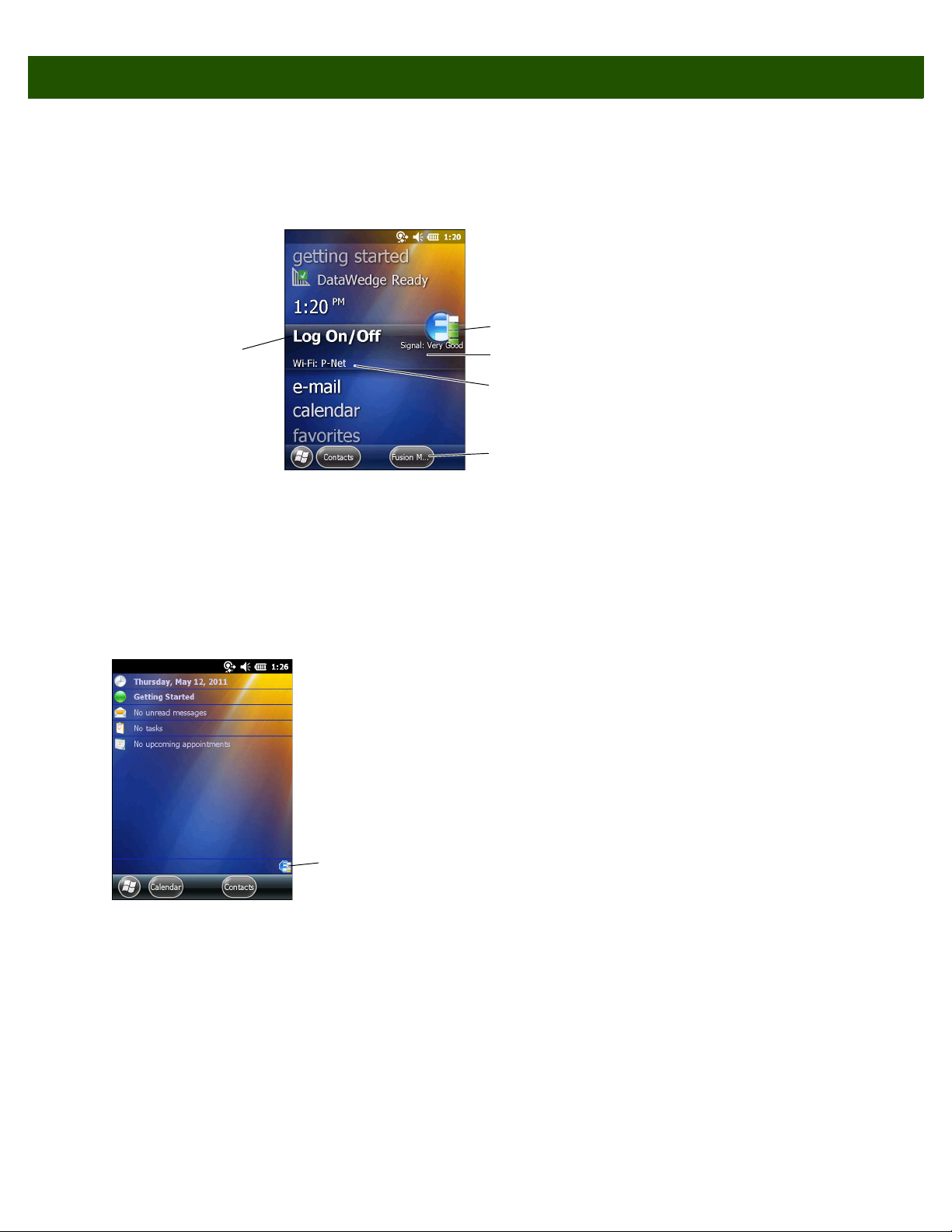

When the Windows Mobile Home screen is configured, a Fusion plug-in displays on the Home screen to provide information about signal strength and profile name.

Figure 1-1

Tap the Fusion tile to open the Wireless Launcher window.

Windows Mobile Home Screen with Fusion Plug-in

Windows Classic Today Screen

When the Windows Mobile Classic Today screen is configured and Fusion is managing the WLAN, a Fusion signal strength icon appears in the Task tray.

Figure 1-2

Windows Mobile Classic Today Screen with Fusion

Windows CE

A Fusion signal strength icon appears in the Task tray.

Getting Started 1 - 3

Fusion Signal Strength icon

Figure 1-3

Select the icon to open the Wireless Launcher menu.

Windows CE Screen

Fusion Signal Strength Icon

The shape and color of the Signal Strength icon provides information about the received wireless signal strength for the WLAN connection. Table 1-1 describes the different icons and their meanings.

Table 1-1

Fusion

Icon

Signal Strength Icon Descriptions

Status Description

Excellent signal strength WLAN network is ready to use.

Very good signal strength WLAN network is ready to use.

Good signal strength WLAN network is ready to use.

Fair signal strength WLAN network is ready to use. Notify the network

administrator that the signal strength is only “Fair”.

Poor signal strength WLAN network is ready to use. Performance may not be

Out-of-network range (not associated)

The WLAN radio is disabled. The WLAN radio is disabled. To enable, choose Enable Radio

None The Wireless Launcher

application was exited.

optimum. Notify the network administrator that the signal strength is “Poor”.

No WLAN network connection. Notify the network administrator.

from the Wireless Applications menu.

The Wireless Launcher application has been closed. See the Fusion Functions paragraphs below for how to restart the Wireless Launcher.

1 - 4 Wireless Fusion Enterprise Mobility Suite User Guide

Fusion Functions

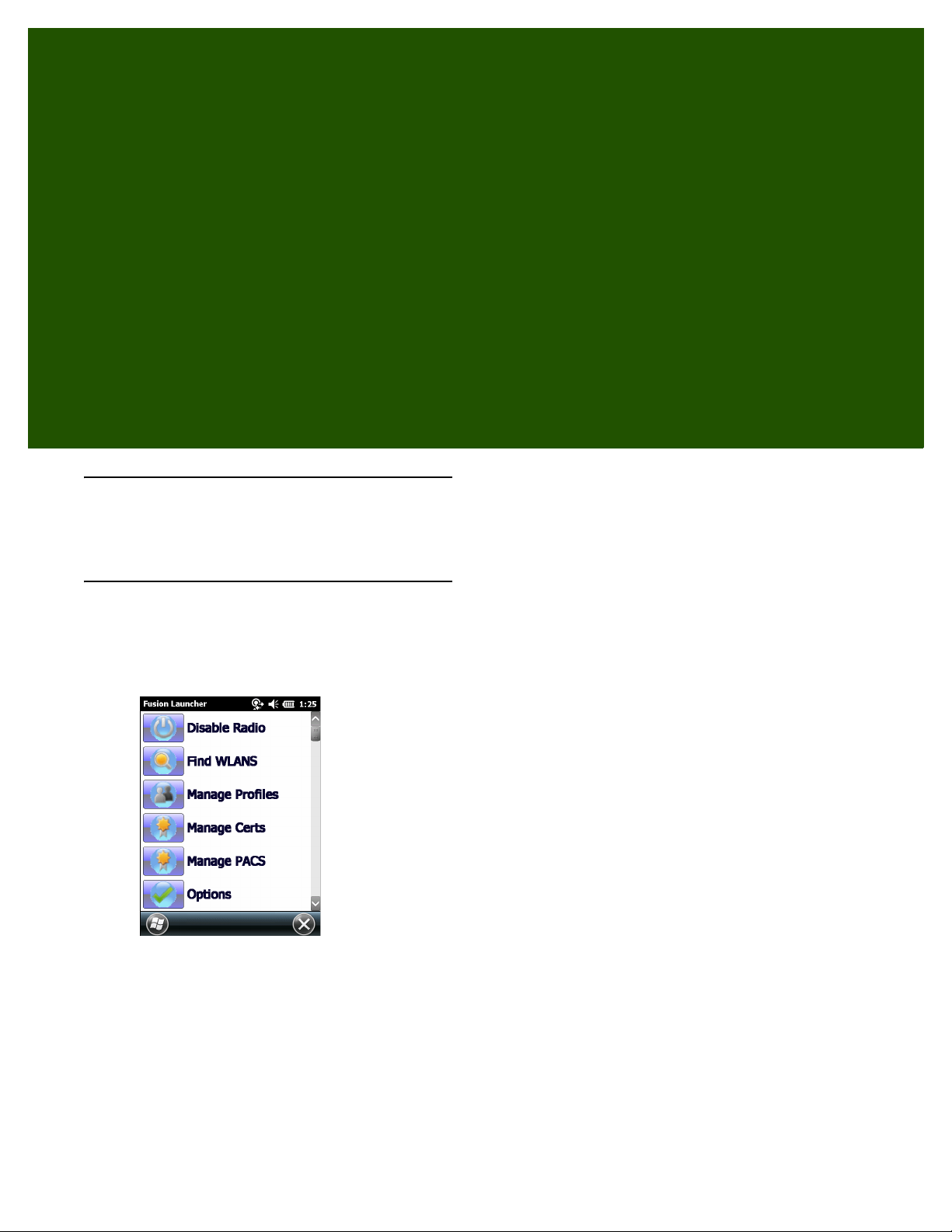

Tap the Signal Strength icon or Fusion tile or tap Start > Wireless Companion > Wireless Launcher icon to display the Wireless Launcher menu.

Figure 1-4

Many of the items in the menu invoke one of the Fusion applications. These menu items and their corresponding applications are summarized in Table 1-2.

Table 1-2

Find WLANs Invokes the Find WLANs application which displays a list of the WLANs available

Manage Profiles Invokes the Manage Profiles application (which includes the Profile Editor

Manage Certs Invokes the Certificate Manager application which allows you to manage

Manage PACs Invokes the PAC Manager application which helps you manage the list of

Options Invokes the Options application which allows you to configure the Fusion option

Wireless Status Invokes the Wireless Status application which allows you to view the status of the

Wireless Launcher Menu

Supported Applications

Application Description

in your area.

Wizard) to manage and edit your list of WLAN profiles.

certificates used for authentication.

Protected Access Credentials used with EAP-FAST authentication.

settings.

current wireless connection.

Wireless Diagnostics Invokes the Wireless Diagnostics application which provides tools with which to

diagnose problems with the wireless connection.

Log On/Off Invokes the Network Login dialog which allows you to log on to a particular profile

or to log off from the currently active profile.

Fusion Help Invokes Fusion Help application which provides on-device Fusion Help (Windows

Mobile only).

Each of the applications have a chapter devoted to it in this guide.

Additional Wireless Launcher menu entries include:

Getting Started 1 - 5

Classic Home Screen

Windows Mobile Home Screen Windows CE Screen

Classic Home Screen

Windows Mobile Home Screen

Windows CE Screen

•

Enable/Disable Radio

•

Hide Menu

•

Exit.

Enable/Disable Radio

To turn the WLAN radio off, tap the Signal Strength icon and select Disable Radio.tap the Fusion tile or tap Start > Wireless Companion > Wireless Launcher icon and select Disable Radio.

Figure 1-5

To turn the WLAN radio on, tap the Fusion tile or tap Start > Wireless Companion > Wireless Launcher icon and select Enable Radio.

Figure 1-6

Also note that the radio may be enabled or disabled using the Wireless Manager screen on Windows Mobile devices.

Disable Radio

Enable Radio

Hide Menu

To hide the menu tap Hide in the menu.

1 - 6 Wireless Fusion Enterprise Mobility Suite User Guide

Exit

Ta p Exit to close the menu and exit the Wireless Launcher application. A dialog appears to confirm exiting the Wireless Launcher application. Tap Yes to exit. This closes the Wireless Launcher application and removes the Signal Strength icon from the screen.

To restart the Wireless Launcher application and redisplay the Signal Strength icon:

1. Ta p Start > Programs > Wireless Companion icon > Wireless Launch icon.

2. Ta p ok twice to close the windows.

3. The Signal Strength icon appears on the screen.

Fusion Help

On Windows Mobile devices, to access the on-device Fusion Help tap Start > Wireless Companion > Fusion Help.

Minimum Setup

Below is a list of the minimum effort to achieve a wireless connection. Note that there are many discrete nuances that may affect the performance of your wireless connection that might be missed if you do not consider them carefully.

You will need to create a profile. It is recommended that you read the profile editor chapter.

1. Find out from your IT administrator what the connection settings should be (Extended Service Set Identifier

(ESSID), Enterprise or Personal, authentication type, tunnel type, certificate requirements, Access Credentials

2. Create the profile using the information provided by the IT administrator.

3. Enter the Manage Profile screen, select the profile (press and hold), and select the Connect option in the

context menu that appears.

(PAC) requirements). Note that not all of the items listed may be relevant.

Protected

CHAPTER 2 FIND WLAN APPLICATION

Introduction

Use the Find WLANs application to discover available networks in the vicinity of your and mobile computer. To open the Find WLANs application, tap the Signal Strength icon > Find WLANs. The Find WLANs window displays.

Figure 2-1

The Find WLANs list displays:

•

Find WLANs Window

WLAN Networks - Available wireless networks, (both infrastructure and Ad-hoc) with icons that indicate signal strength and encryption. The signal strength and encryption icons are described in Table 2-1 and

Table 2-2.

Network Type - Type of network. 802.11(a), 802.11(b), 802.11(g) or 802.11(n).

Channel - Channel on which the AP/Ad-hoc peer is transmitting.

Signal Strength - The signal strength of the signal from the AP/Ad-hoc peer.

2 - 2 Wireless Fusion Enterprise Mobility Suite User Guide

Table 2-1

Signal Strength Icon

Icon Description

Excellent signal

Very good signal

Good signal

Fair signal

Poor signal

Out of range or no signal

Table 2-2

Encryption Icon

Icon Description

No encryption. WLAN is an infrastructure network.

WLAN is an Ad-hoc network.

WLAN uses encryption. WLAN is an infrastructure network.

Tap-and-hold on a WLAN network to open a pop-up menu which provides three options: Connect to, Create profile and Refresh.

Figure 2-2

Find WLANs Menu

NOTE The number of WLANs (ESSIDs) that can be detected by the wireless radio at one time is limited. If you

have a large number of WLANs active in your area, the Find WLANs window may not display them all.

The scan triggered by Find WLAN is at a lower priority compared to a roam scan. If the device is attempting to roam then a Find WLAN done at the exact same time may result in showing only the currently connected AP. Redoing the Find WLAN command shows the proper full results.

If you do not see your ESSID, try a Refresh. If your ESSID is still not displayed and you wish to create or connect to a profile for it, you will need to use the Manage Profiles application.

Select Connect to to view the list of existing profiles matching the select ESSID. The mobile computer connects to the given profile upon selection.

Find WLAN Application 2 - 3

Select Create profile to create a new WLAN profile for that network. This starts the Profile Editor Wizard which allows you to configure the security parameters that your mobile computer will use for the selected network. After editing the profile, the mobile computer automatically connects to this new profile.

NOTE A warning displays when connecting to an unsecure (or open) network via the Find WLANs application.

For open WLANs, the profile’s settings will take on automatically generated default values. If you wish to manually configure the settings, uncheck the Use Default configuration checkbox.

Figure 2-3

Warning Notice

Select Refresh to refresh the WLAN list.

2 - 4 Wireless Fusion Enterprise Mobility Suite User Guide

CHAPTER 3 MANAGE PROFILES

WirelessOutofBoxMagic

APPLICATION

Introduction

A profile is a set of operating parameters that define how the mobile computer will connect to a specific WLAN. Create different profiles for use in different network environments. The Manage Profiles application displays the list of user-created wireless profiles. You may have a maximum of 32 profiles at any one time. To open the Manage Profiles application, tap the Signal Strength icon > Manage Profiles.

out

Figure 3-1

Icons next to each profile identify the profile’s current state.

Table 3-1

Icon Description

No Icon Profile is not selected, but enabled.

Manage Profiles Window

Profile Icons

Profile is disabled.

Profile is cancelled. A cancelled profile is disabled until you connect to it, either by selecting Connect from the pop-up menu, or by using the Log On/Off application.

3 - 2 Wireless Fusion Enterprise Mobility Suite User Guide

Wire

WirelessOutof

Table 3-1

Profile Icons (Continued)

Icon Description

Profile is in use and describes an infrastructure profile not using security.

Profile is in use and describes an infrastructure profile using security.

Profile is in use and describes an ad-hoc profile not using security.

Profile is in use and describes an ad-hoc profile using security.

Profile is not valid in the regulatory domain in which the device is currently operating.

You can perform various operations on the profiles in the list. To operate on an existing profile, tap and hold it in the list and select an option from the menu to connect, edit, disable (enable), or delete the profile. (Note that the Disable menu item changes to Enable if the profile is already disabled.)

Figure 3-2

Connect to a Profile

Tap and hold a profile and select Connect from the pop-up menu to set this as the active profile.

Figure 3-3

Manage Profiles Context Menu

Manage Profiles - Connect

Once selected, the mobile computer uses the settings configured in the profile (i.e., authentication, encryption,

Wire

ESSID, IP Config, power consumption, etc.) to connect to a WLAN.

Editing a Profile

Tap and hold a profile and select Edit from the pop-up menu.This will invoke the Profile Wizard where the profile settings are configured.

Creating a New Profile

To create a new profile tap and hold anywhere in the Manage Profiles window and select Add from the pop-up menu.

Manage Profiles Application 3 - 3

Figure 3-4

Selecting Add invokes the Profile Wizard wherein the settings for the new profile are configured, such as profile name, ESSID, security, network address information, and the power consumption level.

Manage Profiles - Add

Deleting a Profile

To delete a profile from the list, tap and hold the profile and select Delete from the pop-up menu. A confirmation dialog box appears.

Ordering Profiles

The profiles are listed in priority order for use by the automatic Profile Roaming feature (see Profile Roaming below). Change the order by moving profiles up or down. Tap and hold a profile from the list and select Move Up or Move Down from the pop-up menu.

Export a Profile

To export a profile to a registry file, tap and hold a profile from the list and select Export from the pop-up menu. The Save As dialog box displays with the Application folder and a default name of WCS_PROFILE{profile GUID}.reg (Globally Unique Identifier).

3 - 4 Wireless Fusion Enterprise Mobility Suite User Guide

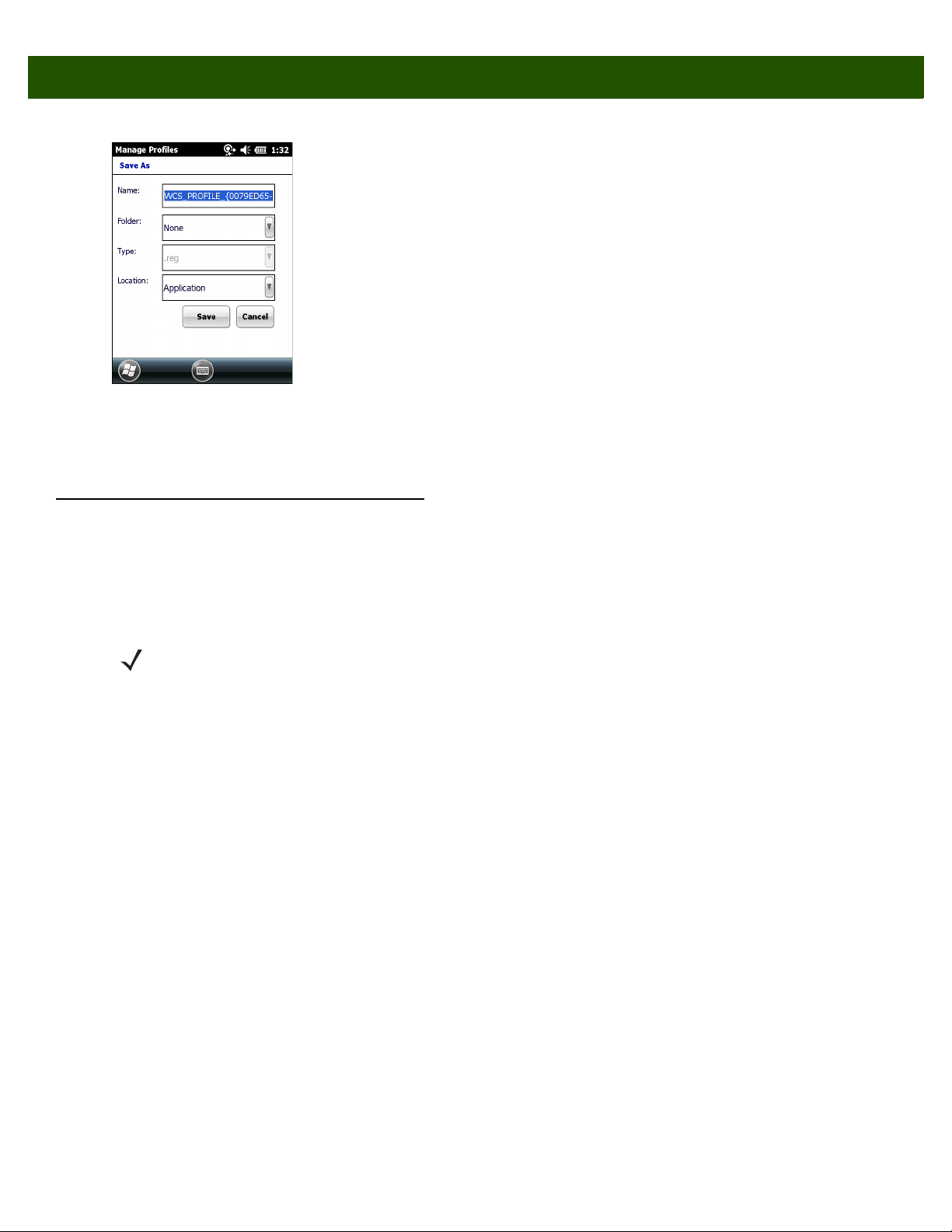

Figure 3-5

If required, change the name in the Name field and tap Save. A confirmation dialog box appears after the export completes.

Save As Dialog Box

Profile Roaming

Profile Roaming attempts to automatically select and connect to a profile from the profile list displayed in the Manage Profiles window. The Profile Roaming algorithm uses the order of the profiles in the profile list to determine the order in which profiles are tried.

NOTE Profile Roaming must be enabled in the Options application. See Chapter 7, Options.

The Profile Roaming algorithm makes two passes through the profile list. The first pass attempts to connect only to profiles that specify ESSIDs that can be detected by the wireless radio. If no connection is made, a second pass through the list is performed attempting to connect to those profiles that were not tried in the first pass. The Profile Roaming algorithm will only attempt to connect to a profile for which it is not necessary to prompt the user for credentials (i.e., username and password). This includes:

•

A profile that does not require credentials.

•

A device profile. A device profile is one in which the username and password have been pre-entered directly into the profile. (A profile with the username specified but with the password field left empty is still considered a device profile since an empty password is considered a valid password.)

•

A user profile with cached credentials. A user profile is one in which the username and password have not been pre-entered into the profile. A profile has cached credentials if the user has entered credentials for the profile via the Network Login dialog. When a profile has cached credentials, the user is said to have logged on to the profile. See Chapter 10, Log On/Off Application for more information.

The Profile Roaming algorithm will not attempt to connect to:

•

A profile that specifies EAP-GTC for its Tunnel Authentication Type and Token (as opposed to Static) for its password type. See Tunneled Authentication on page 4-5 for more information.

•

A user profile without cached credentials.

•

A user profile that has cached credentials but that also has the At-Connect option enabled. See

Credential Cache Options on page 4-13 for more information.

Manage Profiles Application 3 - 5

•

A device profile that has cached credentials because the user has logged on to it (called a user-override profile), but that also has the At-Connect option enabled.

•

A profile that has been disabled.

•

A profile that has been cancelled.

The Profile Roaming algorithm is invoked whenever the mobile computer becomes disconnected (disassociated) from the current WLAN.

3 - 6 Wireless Fusion Enterprise Mobility Suite User Guide

CHAPTER 4 PROFILE EDITOR WIZARD

Introduction

Use the Profile Editor Wizard to create a new WLAN profile or edit an existing profile. If editing a profile, the fields reflect the current settings for that profile. If creating a new profile, default values appear in the fields.

Navigate through the wizard using the Next and Back buttons. An indicator in the bottom left corner tracks the number of pages traversed and total number of pages required to complete the current profile configuration. Ta p X or the Cancel button to quit. On the confirmation dialog box, tap No to return to the wizard or tap Yes to quit and return to the Manage Profiles window. See Chapter 3, Manage Profiles Application for instructions on navigating to and from the Profile Editor Wizard.

Profile Name

In the Profile Name dialog box in the Profile Editor Wizard, enter the profile name and the ESSID.

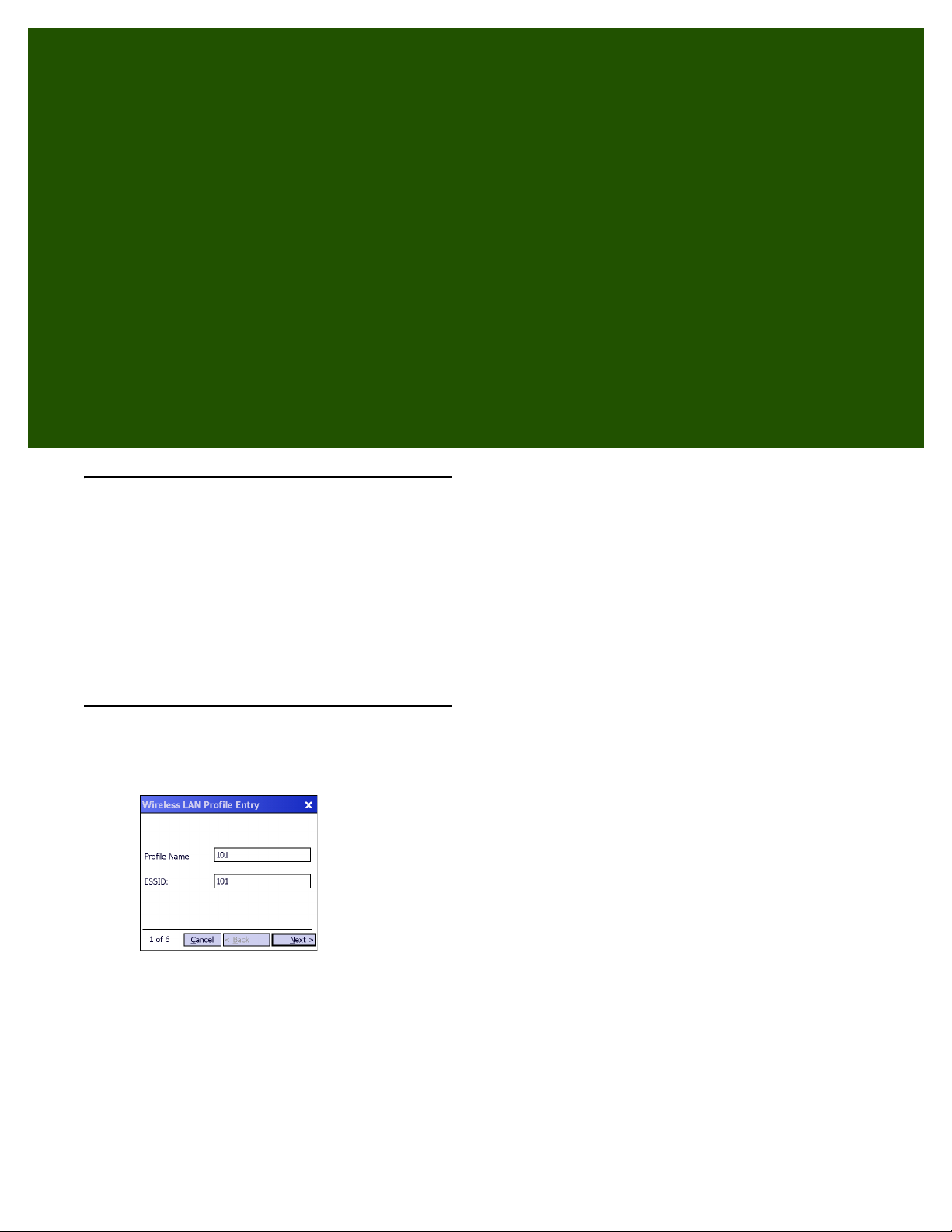

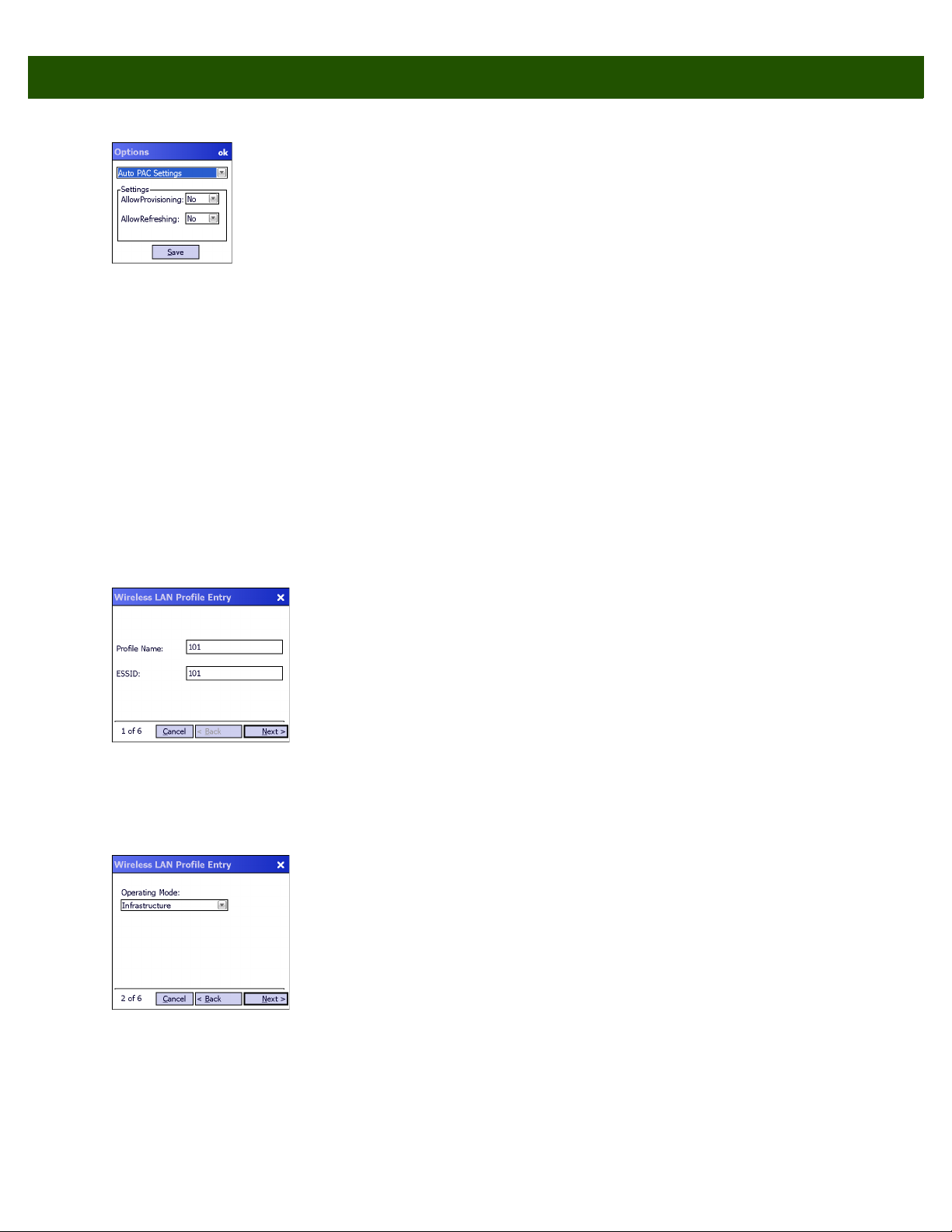

Figure 4-1

Profile Name Dialog Box

4 - 2 Wireless Fusion Enterprise Mobility Suite User Guide

Table 4-1

Profile Name The user-friendly name you wish to give the profile. The profile name is limited to 64

ESSID The ESSID is the 802.11 extended service set identifier. The ESSID is a 32-character

Ta p Next. The Operating Mode dialog box displays.

Profile Name Fields

Field Description

NOTE Two profiles with the same user friendly name are acceptable but not recommended.

Operating Mode

Use the Operating Mode dialog box to select the operating mode (Infrastructure or Ad-hoc) and the country location.

characters. Example: The Public LAN.

(maximum) case sensitive string identifying the WLAN, and must match the AP ESSID for the mobile computer to communicate with the AP.

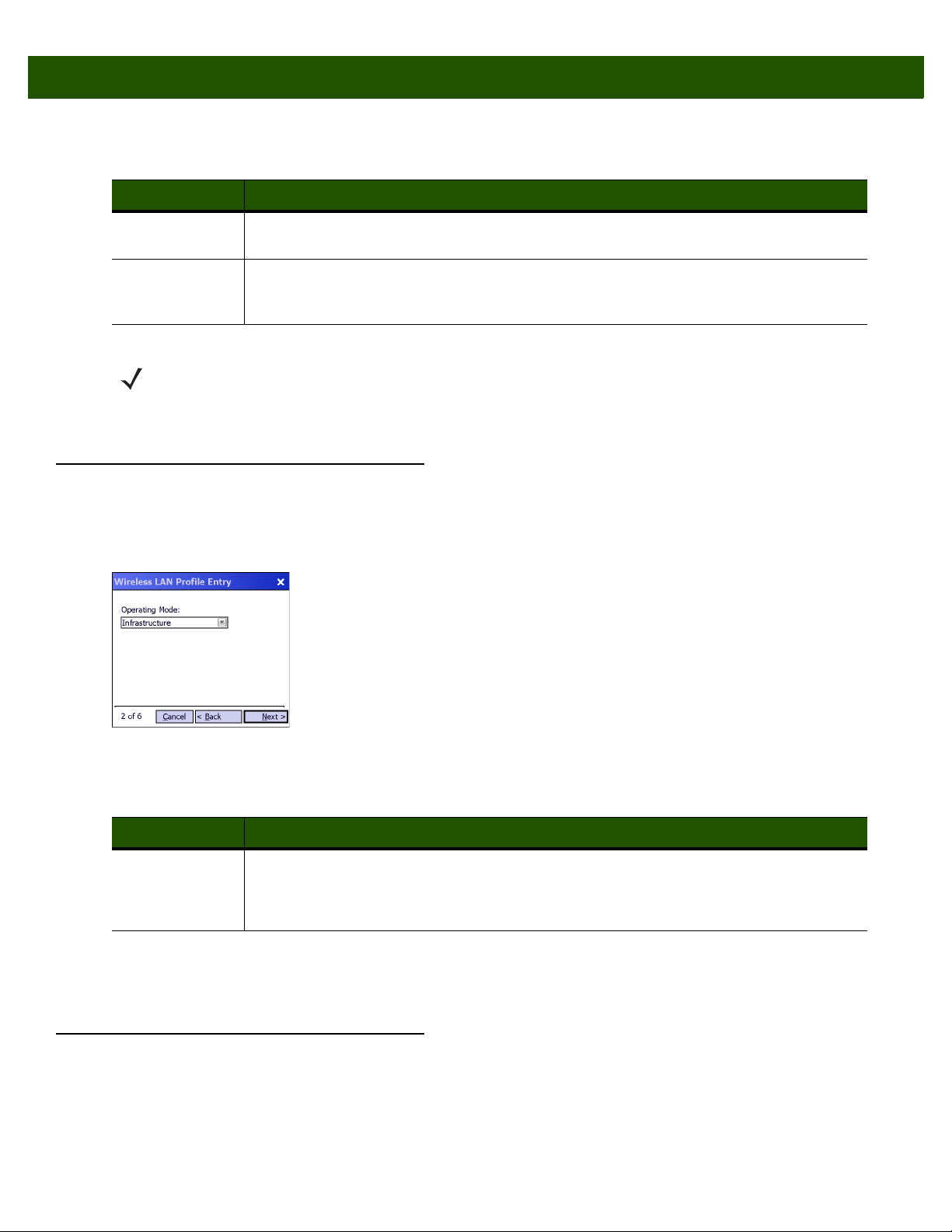

Figure 4-2

Table 4-2

Ta p Next. If Ad-hoc mode was selected the Ad-hoc Channel dialog box displays. If Infrastructure mode was selected the Security Mode dialog box displays. See Encryption on page 4-15 for instruction on setting up authentication.

Ad-hoc

Use the Ad-hoc Channel dialog box to configure the required information to create an Ad-hoc profile. This dialog box does not appear if you selected Infrastructure mode.

1. Select a channel number from the Channel drop-down list.

Operating Mode Dialog Box

Operating Mode Fields

Field Description

Operating Mode Select Infrastructure to enable the mobile computer to transmit and receive data with an

AP. Infrastructure is the default mode. Select Ad-hoc to enable the mobile computer to form its own local network where mobile computers communicate peer-to-peer without APs using a shared ESSID.

Profile Editor Wizard 4 - 3

Figure 4-3

Table 4-3

2.4 GHz 1 2412 MHz

Ad-hoc Channel Selection Dialog Box

Ad-hoc Channels

Band Channel Frequency

2 2417 MHz

3 2422 MHz

4 2427 MHz

5 2432 MHz

6 2437 MHz

7 2442 MHz

8 2447 MHz

9 2452 MHz

10 2457 MHz

11 2462 MHz

2. Ta p Next. The Encryption dialog box displays. See Encryption on page 4-15 for encryption options.

Security Mode

NOTE Security Mode dialog box only appears when Infrastructure mode is selected in the Operating Mode

Use the Security Mode dialog box to configure the Security and Authentication methods. If Ad-hoc mode is selected, this dialog box is not available and authentication is set to None by default.

dialog box.

4 - 4 Wireless Fusion Enterprise Mobility Suite User Guide

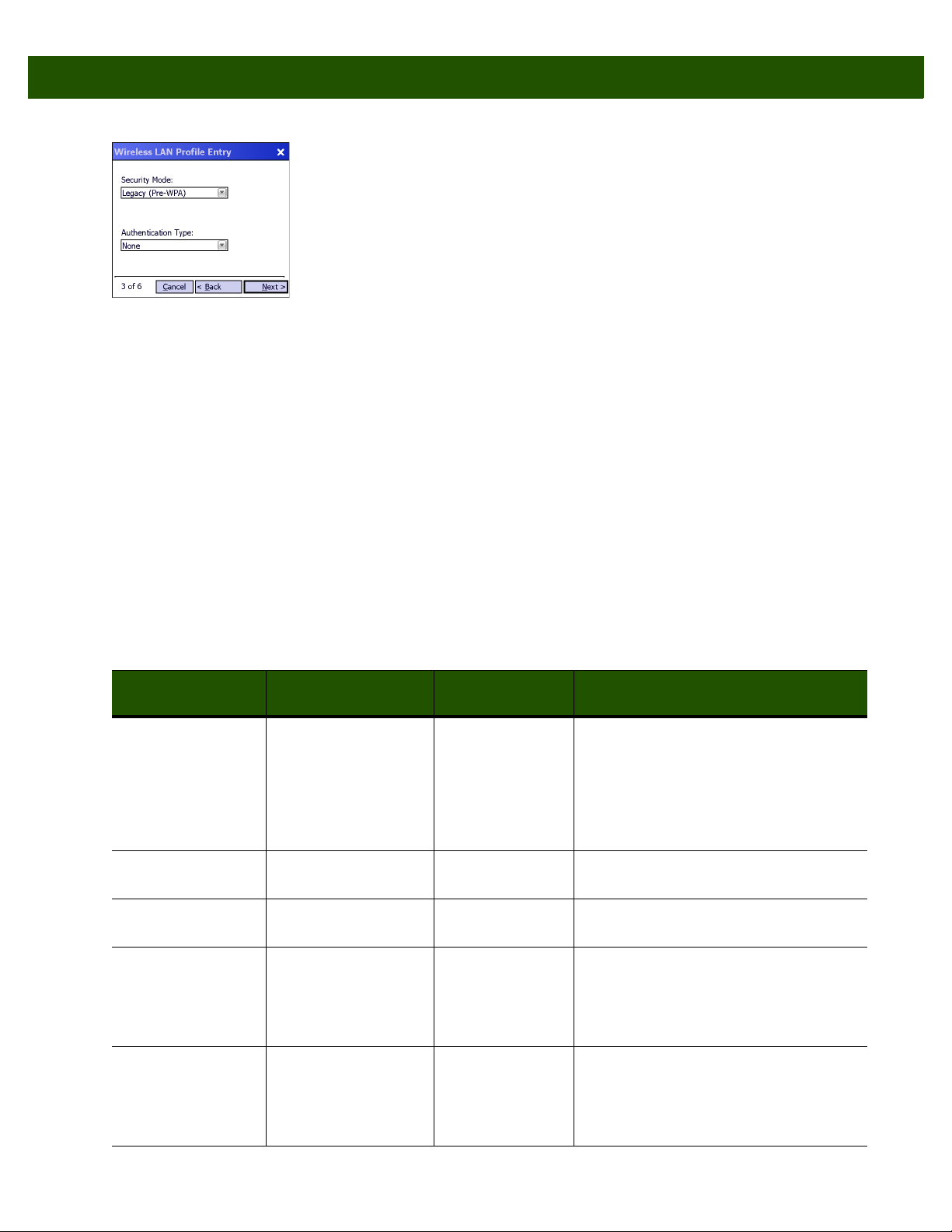

Figure 4-4

Select the security mode from the Security Mode drop-down list. The selection chosen affects the availability of other choices for Authentication Type and Encryption methods.

•

Table 4-4

Security Mode

Legacy (Pre-WPA) None,

Authentication Dialog Box

Legacy (Pre - WPA) - This mode allows the user to configure protocols not available in the other Security Mode selections: Open authentication / encryption; Open authentication with WEP-40 or WEP-104; and

802.1X authentications that use WEP-104 Encryption.

WPA - Personal - This mode allows the user to configure a WPA-TKIP-PSK protocol.

WPA2 - Personal - This mode allows the user to configure WPA2-PSK protocols with TKIP or Advanced Encryption Standard (AES) encryption method.

WPA - Enterprise - This mode allows the user to configure profiles with 802.1X Authentication that uses WPA with TKIP encryption method.

WPA2 - Enterprise - This mode allows the user to configure profiles with 802.1X Authentication that uses WPA2 with TKIP or AES encryption method.

Security Modes

Authentication

Ty pe s

EAP-TLS, EAP-FAST, PEAP, LEAP, TTLS

Encryption

Types

Open, WEP-40 (40/24), WEP-104 (104/24)

Pass-phrase/Hexkey Configuration

Enabled for Authentication Type “None.” User input required with pass-phrase/hex key configuration.

Disabled for all other Authentication Types. No user input required for encryption key.

WPA - Personal None TKIP Enabled. User input required with

pass-phrase/hex key configuration.

WPA2 - Personal None TKIP

AES

WPA - Enterprise EAP-TLS,

EAP-FAST, PEAP, LEAP, TTLS

WPA2 - Enterprise EAP-TLS,

EAP-FAST, PEAP, LEAP, TTLS

TKIP Disabled. No user input required for

TKIP AES

Enabled. User input required with pass-phrase/hex key configuration.

encryption key.

Disabled. No user input required for encryption key.

Authentication Type

Select an available authentication type from the drop-down list. The options listed in the drop-down list are based on the selected Security Mode as shown in Table 4-4.

The authentication types, other than None, all use IEEE 802.1x authentication to ensure that only valid users and sometimes servers can connect to the network. Each authentication type uses a different scheme using various combinations of tunnels, username/passwords, user certificates, server certificates, and Access Credentials

Profile Editor Wizard 4 - 5

Protected

(PACs).

Table 4-5

Authentication Description

None Use this setting when user authentication is not required. A global key mechanism, WEP

EAP-TLS Select this option to enable EAP-TLS authentication. A user certificate is required;

EAP-FAST Select this option to enable EAP-FAST authentication. This type uses a Protected

PEAP Select this option to enable PEAP authentication. This type establishes a tunnel and then

LEAP Select this option to enable LEAP authentication. This type does not establish a tunnel.

TTLS Select this option to enable TTLS authentication. This type establishes a tunnel in which

Authentication Options

or PSK, is still applied when this option is selected.

validating the server certificate is optional.

Access Credential (PAC) to establish a tunnel and then uses the selected tunnel type to verify credentials. PACs are handled behind the scenes, transparently to the user. Automatic PAC provisioning can, depending on the tunnel type and the RADIUS server settings, require a user certificate and the validation of a server certificate.

based on the tunnel type, uses a user certificate and/or a username/password. Validating the server certificate is optional.

It requires a username and password.

the username/password are verified. A user certificate may optionally be used. Validating the server certificate is also optional.

Ta p Next. Selecting PEAP, TTLS or EAP-FAST displays the Tunneled Authentication Type dialog box. Selecting None displays the Encryption dialog box. Selecting EAP-TLS displays the Installed User Certs dialog box. Selecting LEAP displays the User Name dialog box.

Tunneled Authentication

Use the Tunneled Authentication Type dialog box to select the tunneled authentication options. The content of the dialog will differ depending on the Authentication Type chosen.

4 - 6 Wireless Fusion Enterprise Mobility Suite User Guide

Figure 4-5

Tunneled Authentication Dialog Box

To select a tunneled authentication type:

1. Select a tunneled authentication type from the drop-down list. See Table 4-6 for the Tunnel authentication

options for each authentication type.

2. Select the Provide User Certificate check box if a certificate is required. If the TLS tunnel type that

requires a user certificate is selected, the check box is already selected.

3. Ta p Next. The Installed User Certificates dialog box appears.

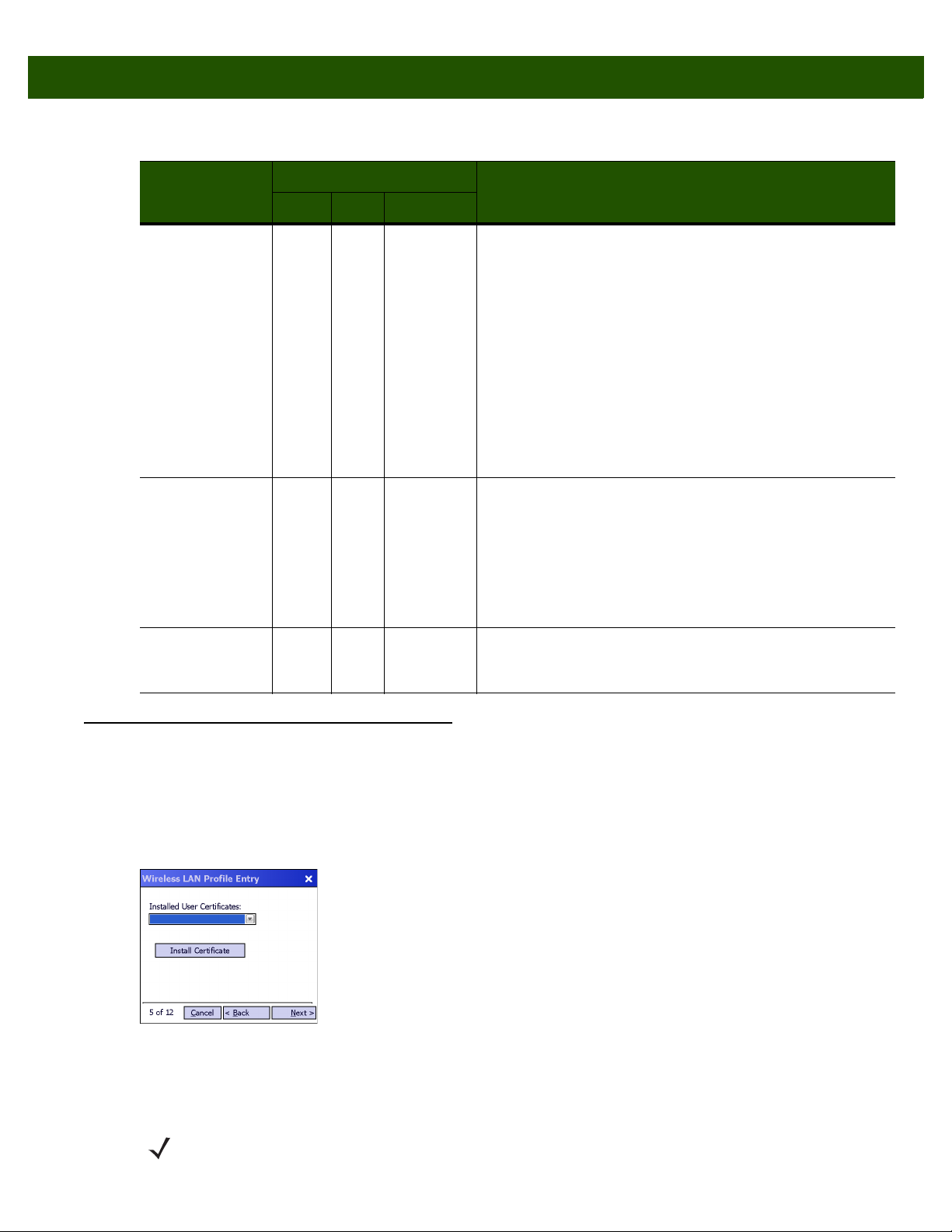

Table 4-6

Authentication

Tunneled Authentication Options

Tunneled

Authentication Type

PEAP TTLS EAP-FAST

Description

CHAP X Challenge Handshake Authentication Protocol (CHAP) is

one of the two main authentication protocols used to verify the user name and password for Point-to-Point (PPP) Internet connections. CHAP is more secure than Password Authentication Protocol (PAP) because it performs a three way handshake during the initial link establishment between the home and remote machines. It can also repeat the authentication anytime after the link is established.

EAP-GTC X X Extensible Authentication Protocol-Generic Token Card

(EAP-GTC) is used during phase 2 of the authentication process. This method uses a time-synchronized hardware or software token generator, often in conjunction with a user PIN, to create a one-time password.

MD5 X Message Digest-5 (MD5) is an authentication algorithm

developed by RSA. MD5 generates a 128-bit message digest using a 128-bit key, IPSec truncates the message digest to 96 bits.

MS CHAP X Microsoft Challenge Handshake Authentication Protocol

(MS CHAP) is an implementation of the CHAP protocol that Microsoft created to authenticate remote Windows workstations. MS CHAP is identical to CHAP, except that MS CHAP is based on the encryption and hashing algorithms used by Windows networks, and the MS CHAP response to a challenge is in a format optimized for compatibility with Windows operating systems.

Profile Editor Wizard 4 - 7

Table 4-6

Authentication

MS CHAP v2 X X X Microsoft Challenge Handshake Authentication Protocol

PAP X PAP has two variations: PAP and CHAP PAP. It verifies a

Tunneled Authentication Options (Continued)

Tunneled

Authentication Type

PEAP TTLS EAP-FAST

Description

version 2 (MS CHAP v2) is a password-based, challenge-response, mutual authentication protocol that uses the industry-standard Message Digest 4 (MD4) and Data Encryption Standard (DES) algorithms to encrypt responses. The authenticating server challenges the access client and the access client challenges the authenticating server. If either challenge is not correctly answered, the connection is rejected. MS CHAP v2 was originally designed by Microsoft as a PPP authentication protocol to provide better protection for dial-up and virtual private network (VPN) connections. With Windows XP SP1, Windows XP SP2, Windows Server 2003, and Windows 2000 SP4, MS CHAP v2 is also an EAP type.

user name and password for PPP Internet connections, but it is not as secure as CHAP, since it works only to establish the initial link. PAP is also more vulnerable to attack because it sends authentication packets throughout the network. Nevertheless, PAP is more commonly used than CHAP to log in to a remote host like an Internet service provider.

TLS X X EAP-TLS is used during phase 2 of the authentication

User Certificate Selection

If a User Certificate is required to support the chosen security scheme then the Installed User Certificates dialog box displays. Select a certificate from the drop-down list of currently installed certificates before proceeding. The selected certificate’s name appears in the drop-down list. If the required certificate is not in the list, install it.

Figure 4-6

User Certificate Installation

Installed User Certificates Dialog Box

process. This method uses a user certificate to authenticate.

NOTE User Certificates can also be installed using the Manage Certificates Application. See Chapter 5,

Manage Certificates Application for more information.

4 - 8 Wireless Fusion Enterprise Mobility Suite User Guide

There are two methods available to install a user certificate for authentication. The first is to obtain the user certificate from the Certificate Authority (CA). This requires connectivity with that CA. The second method is to install the user certificate from a .pfx file that has been manually placed on the device.

To install a user certificate from the CA:

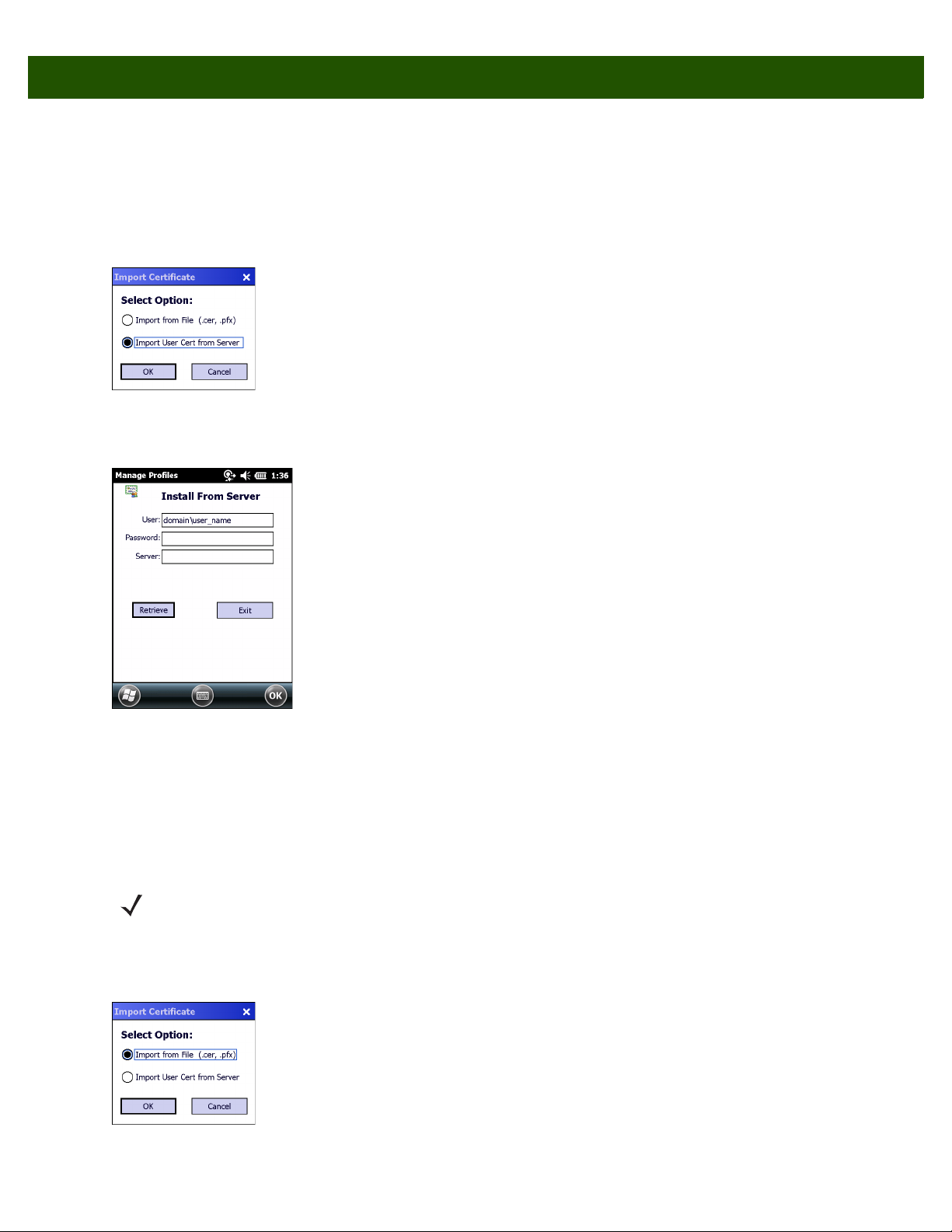

1. Ta p Install Certificate. The Import Certificate dialog box appears.

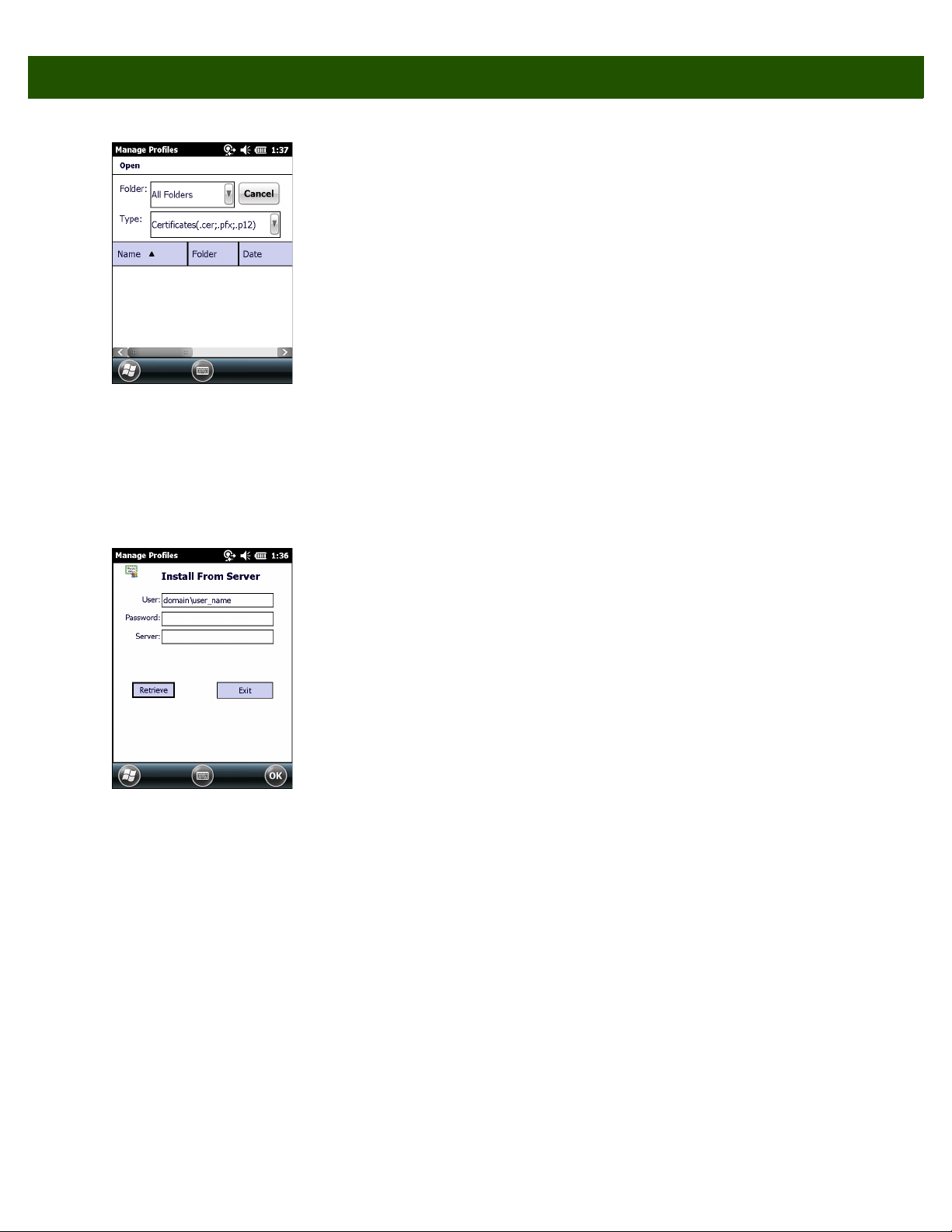

Figure 4-7

2. Select Import User Cert from Server and tap OK. The Install from Server dialog box appears.

Figure 4-8

3. Enter the User:, Password: and Server: information in their respective text boxes.

4. Ta p Retrieve. A Progress dialog indicates the status of the certificate retrieval or tap Exit to exit.

Import Certificate Dialog Box

Install from Server Dialog Box

After the installation completes, the Installed User Certs dialog box displays and the certificate is available in the drop-down for selection.

NOTE To successfully install a user certificate from a server, the mobile computer must already be connected to

a network from which that server is accessible.

To install a user certificate from a .pfx file:

1. Ta p Install Certificate. The Import Certificate dialog box appears.

Figure 4-9

Import Certificate Dialog Box

2. Choose Import from File and tap OK.

The Open dialog box appears.

Profile Editor Wizard 4 - 9

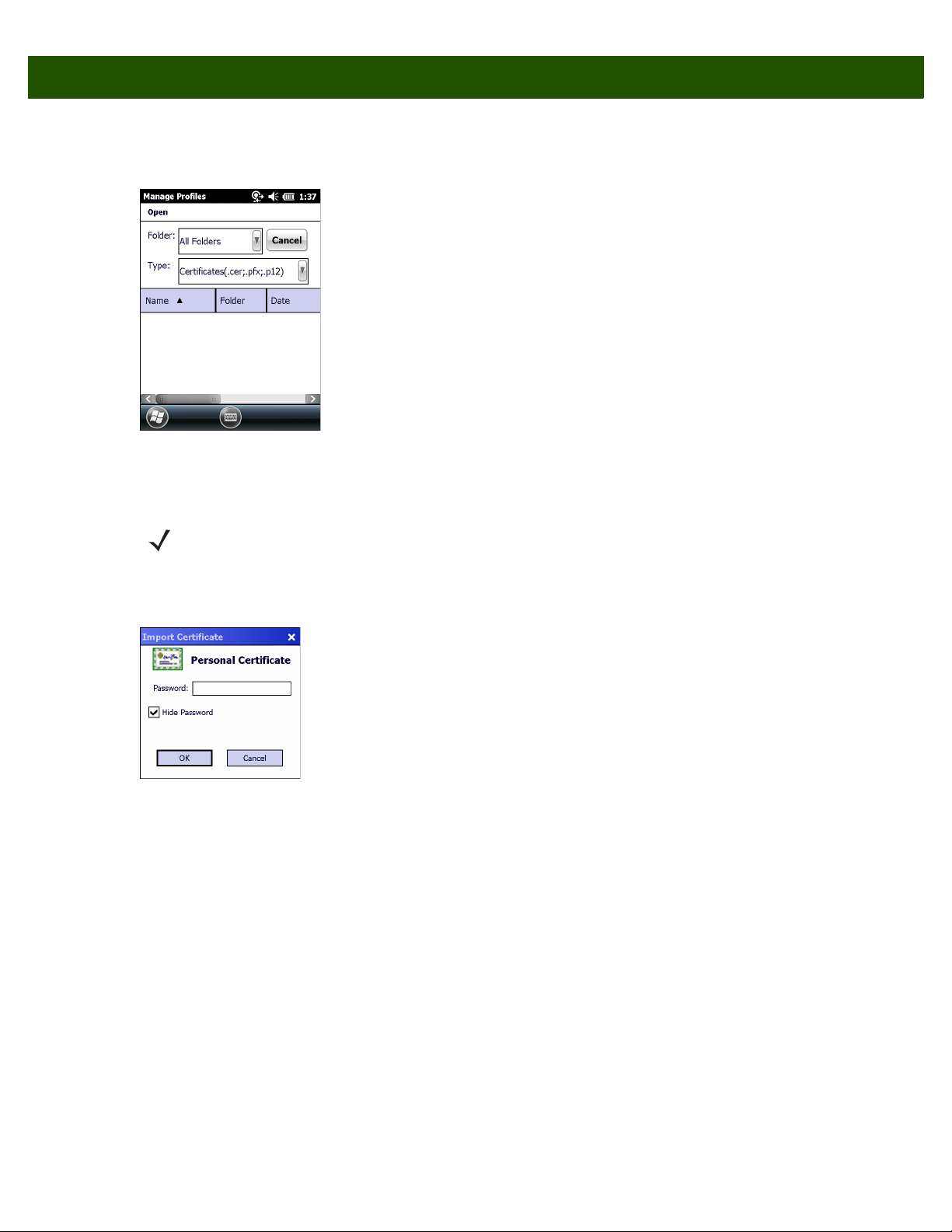

Figure 4-10

3. In the Type drop-down list, select Certificates (.cer, .pfx).

4. Browse to the desired .pfx file and tap OK.

Open Dialog Box

NOTE Installing a user certificate from a file requires that the file be of type *.pfx.

WAPI user certificates are issued as .cer file extensions.

The Personal Certificate dialog box appears.

Figure 4-11

5. If the .pfx file is password protected, enter the appropriate password; else leave the password fields empty.

Personal Certificate Window

Deselect the Hide Password check box to see the password characters as they are entered.

6. Ta p OK. The certificate(s) are imported.

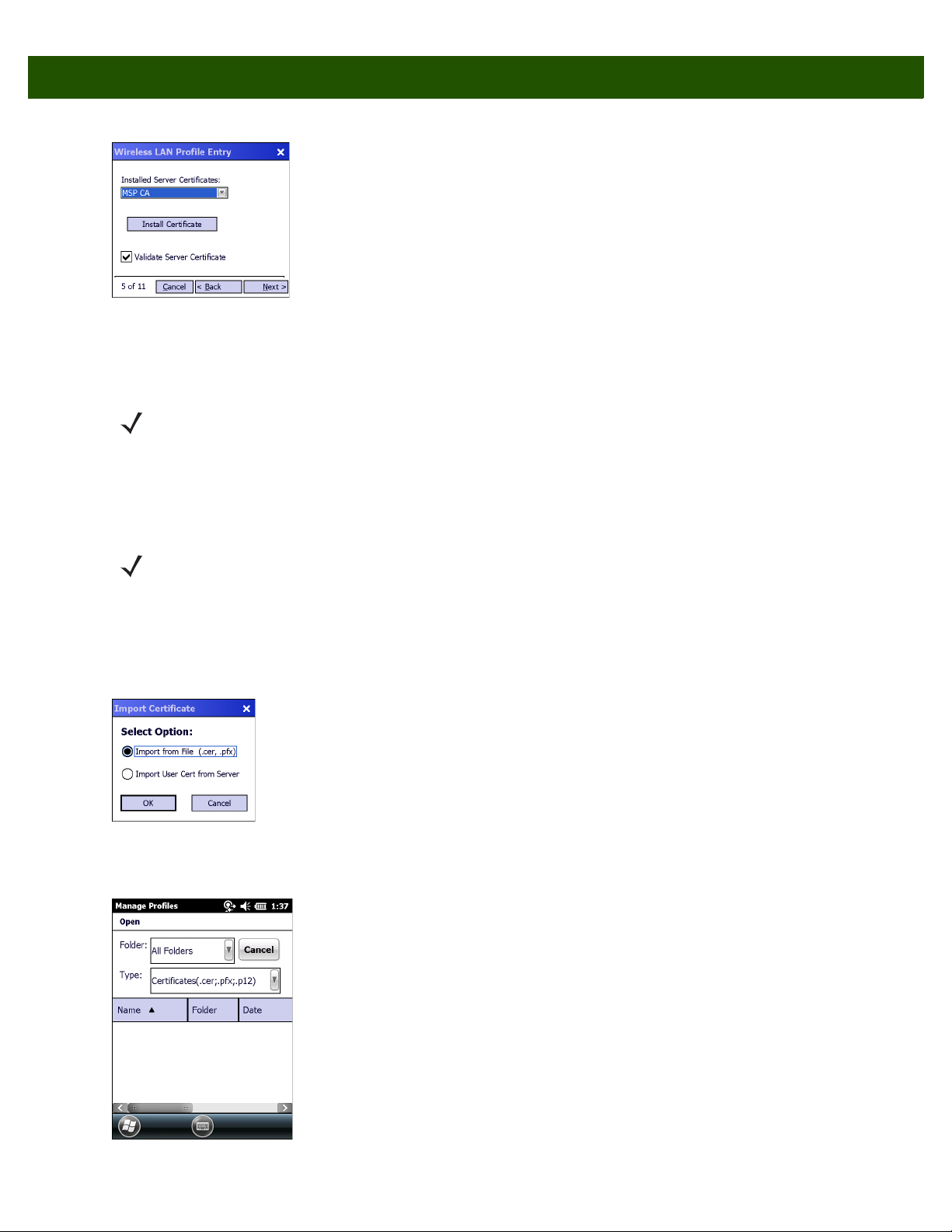

Server Certificate Selection

If the user selects the Validate Server Certificate check box, a server certificate is required. Select a certificate from the drop-down list of currently installed certificates in the Installed Server Certificates dialog box. An hour glass may appear as the wizard populates the existing certificate list. If the required certificate is not listed, install it.

4 - 10 Wireless Fusion Enterprise Mobility Suite User Guide

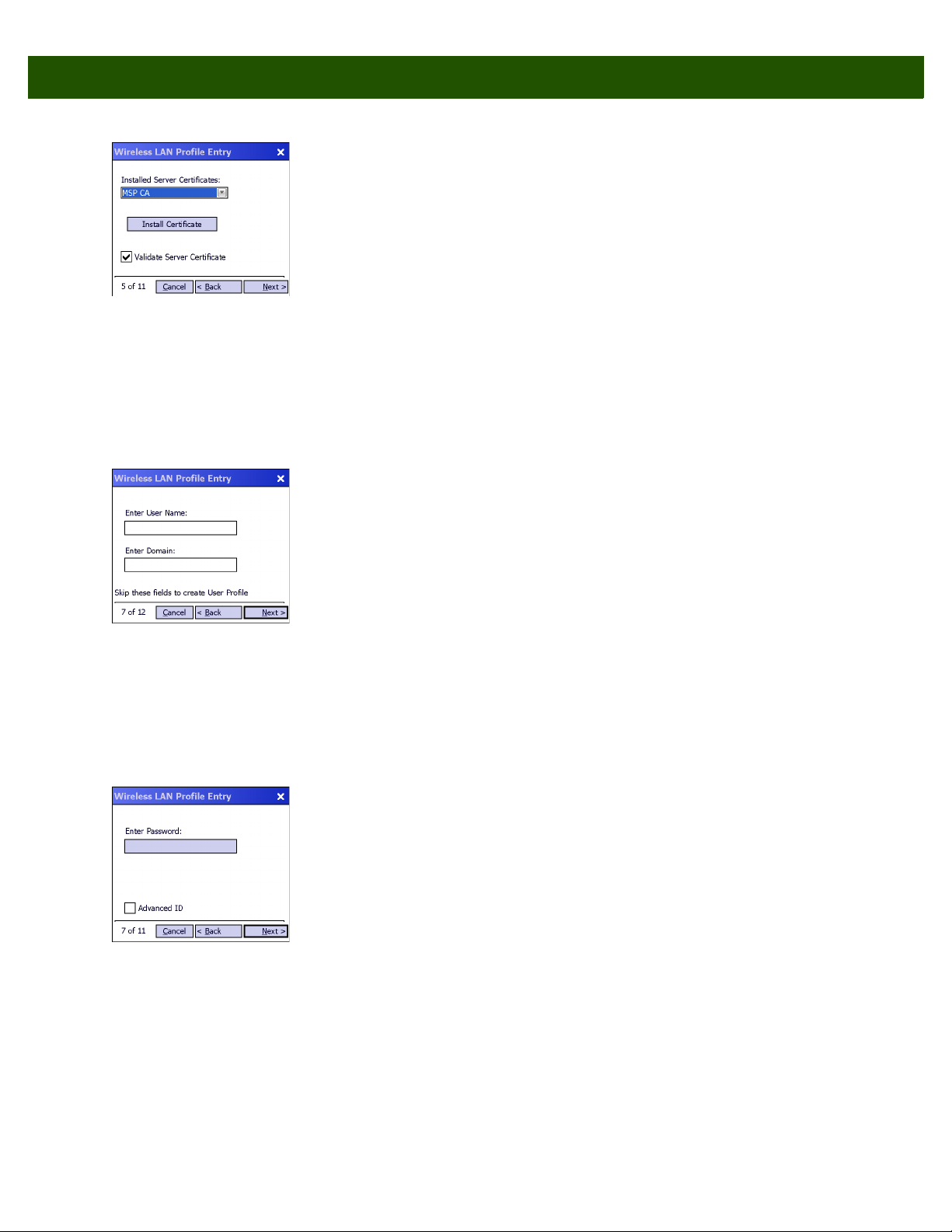

Figure 4-12

Installed Server Certificates Dialog Box

Server Certificate Installation

NOTE Server Certificates can also be installed using the Manage Certificates Application. See Chapter 5,

Manage Certificates Application for more information.

A server certificate can only be installed from either a .cer file or a .pfx file that has been loaded onto the device. The certificate file can be loaded either manually or via a web-browser-based interface to the Certificate Authority (CA).

NOTE To successfully install a server certificate from a CA using a web-browser, the mobile computer must

already be connected to a network from which that CA is accessible. The procedure you should follow to download the server certificate from the CA is beyond the scope of this guide.

To install a server certificate for authentication:

1. Ta p Install Certificate. The Import Certificate dialog box appears. Choose Import from File (.cer, .pfx)

and tap OK.

Figure 4-13

2. A dialog box appears that lists the certificate files found with the default extension.

Figure 4-14

Import Certificates Dialog Box

Open Window

Profile Editor Wizard 4 - 11

3. Browse to the file and tap OK.

4. A confirmation dialog verifies the installation. If the information in this dialog is correct, tap the Yes button,

If the information in this dialog is not correct tap the No button. The wizard returns to the Installed Server

Certs dialog box. Select the newly-installed certificate from the drop down list.

Figure 4-15

Confirmation Dialog Box

User Name

The user name and password can optionally be entered when the profile is created (called a device profile) or they can be left empty (called a user profile). If the username and password are not entered in the profile, then when attempting to connect, the user will be prompted to supply them. The entered information (credentials) will be saved (cached) for future reconnections.

Whether a profile is a device or a user profile affects how the profile is treated during a Profile Roaming operation (see Profile Roaming on page 3-4). Profiles are excluded from profile roaming consideration if they require user entry of credential information.

If the profile uses an authentication tunnel type of EAP-GTC and Token is selected (see Encryption on page

4-15), then you can control certain behavior by whether you choose to enter a value in the Enter User Name

field. If you enter a value in the Enter User Name field, then whenever the Fusion software prompts you to enter credentials, the username field in the interactive credential dialog will be initialized with the value that you entered when you created the profile. If you enter a different value in the username field of the interactive credential dialog, it is cached and used to initialize the username field the next time the interactive credential dialog is shown for that profile. If you do not enter a value in the Enter User Name field when you create an EAP-GTC token profile, then the username field in the interactive credential dialog is initialized to blank. After you enter a username in the interactive credential dialog, it is cached as usual, but it is not be used to initialize the username field the next time the interactive credential dialog is shown for that profile; the username field will still be initialized to blank. In summary, the user can control whether the username field in the interactive credential dialog box is initialized, either with the last-interactively-entered username for that profile or with the username entered into the profile, by whether any value is entered in the Enter User Name field during profile entry.

Figure 4-16

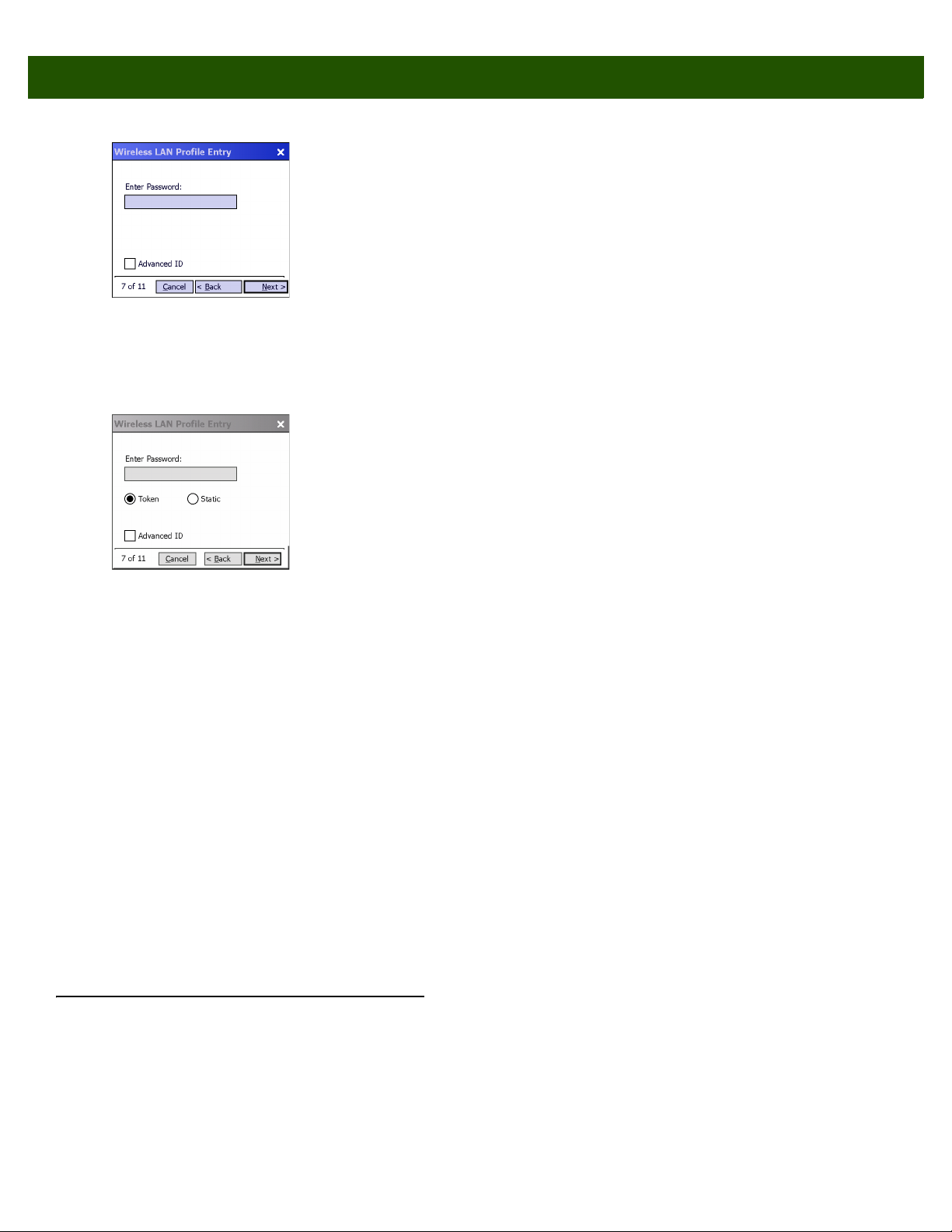

Password

Use the Password dialog box to enter a password. If EAP-TLS is the selected authentication type, the password dialog box does not display. Note that if a username was entered and no password is entered, Fusion assumes that no password is a valid password.

Username Dialog Box

4 - 12 Wireless Fusion Enterprise Mobility Suite User Guide

Figure 4-17

1. Enter a password in the Enter Password field.

If an authentication tunnel type of EAP-GTC is used, a Password dialog box with additional radio buttons displays.

Figure 4-18

Two radio buttons are added to allow the user to choose a token or static password.

Choose the Token radio button when using the profile in conjunction with a token generator (hardware or software). The system administrator should supply the user with a token generator for use with EAP-GTC token profiles. A token generator generates a numeric value that is entered into the password field at connect time, usually along with a PIN. Tokens have a very limited lifetime and usually expire within 60 seconds. The token generator is time-synchronized with a token server. When authenticating, the RADIUS server asks the token server to verify the token entered. The token server knows what value the token generator generates given the time of day and the username. Since tokens expire, EAP-GTC token profiles are treated differently. A prompt appears at the appropriate time to enter a token, even if a token has previously been entered. Tokens are never cached in the credential cache (though the username that is entered when the token is entered is cached).

Password Dialog Box

EAP-GTC Password Dialog Box

If the Static radio button is selected, the Enter Password field is enabled and a password can be entered if desired. A profile that uses an EAP-GTC tunnel type with a static password is handled in the same manner as other profiles that have credentials that don't expire.

1. Select the Advanced ID check box, if advanced identification is desired.

2. Ta p Next. The Prompt for Login at dialog box displays. See Credential Cache Options on page 4-13.

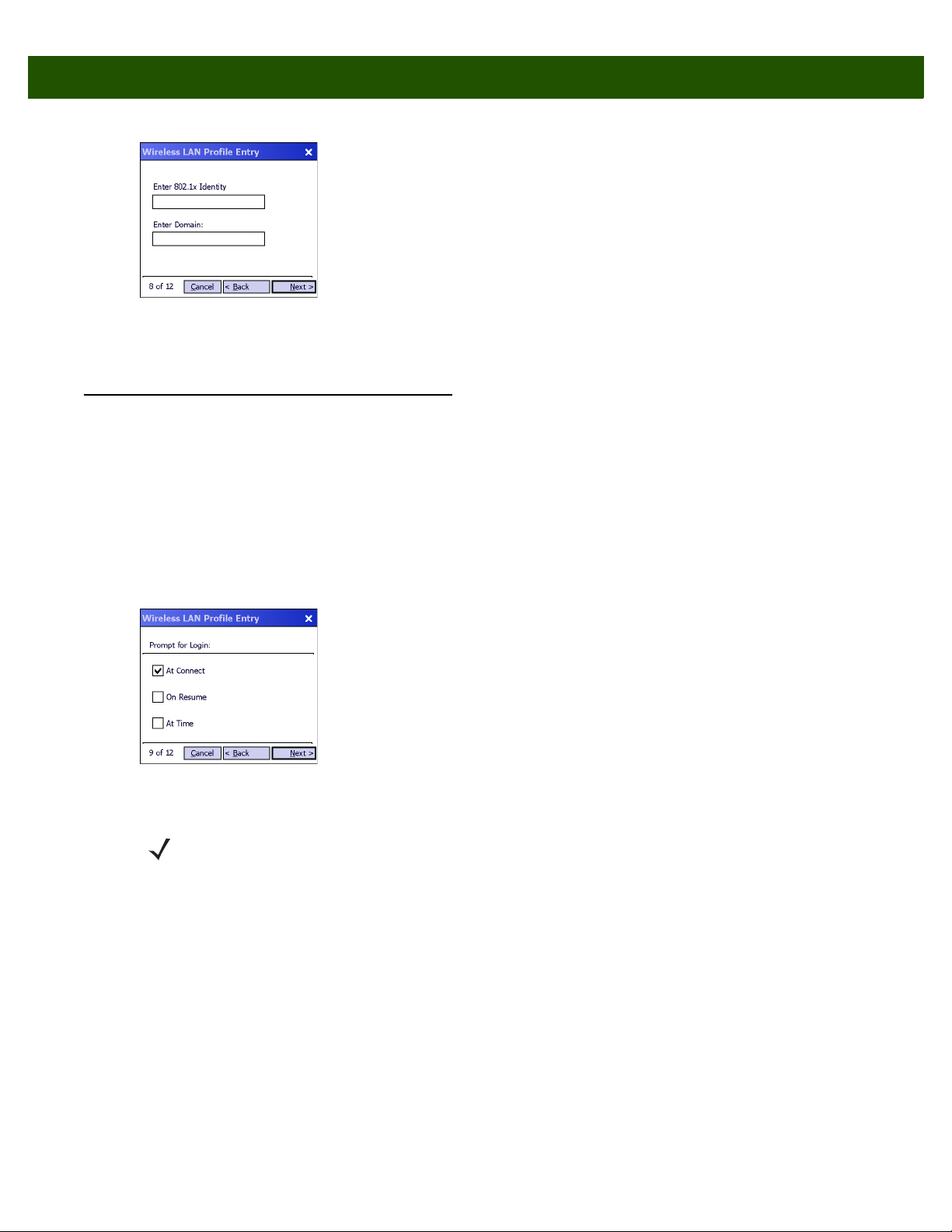

Advanced Identity

Use the Advanced ID dialog box to enter the 802.1x identity to supply to the authenticator. This value can be 63 characters long and is case sensitive. For TTLS,EAP-FAST, and PEAP authentication types, it is recommended entering the identity anonymous (rather than a true identity). You can optionally enter a fully qualified domain (e.g., mydomain.local) and it will automatically be combined with the 802.1x identity (i.e., anonymous@mydomain.local) before being sent to the RADIUS server.

Entering an 802.11x Identity is required before proceeding.

Profile Editor Wizard 4 - 13

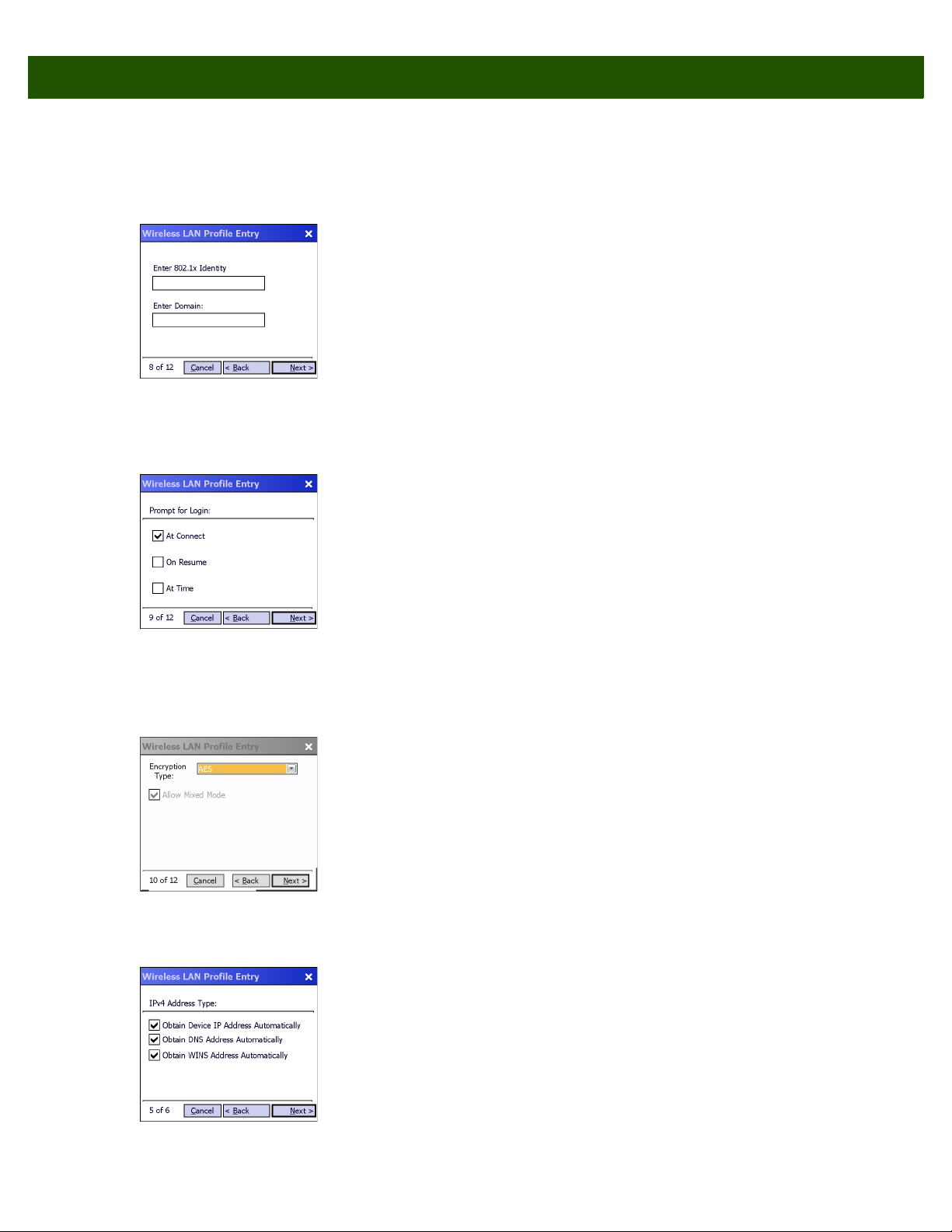

Figure 4-19

Ta p Next. The Encryption dialog box displays.

Advanced Identity Dialog Box

Credential Cache Options

When connecting to a password-based user profile for the first time, Fusion will prompt the user to enter credentials. After the credentials have been entered, they are cached. These cached credentials will normally be used, without prompting the user, whenever Fusion reconnects to that profile, The credential caching options allow the administrator to specify additional circumstances under which Fusion will prompt the user to re-enter the credentials even though it already has cached credentials for the given profile. Requiring the user to re-enter credentials can help ensure that only an authorized user is using the device.

The credential caching options are at connection, on each resume, or at a specified time.

Figure 4-20

If the mobile computer does not have the credentials, a username and password must be entered. If the mobile computer has the credentials (previous entered via a login dialog box), it uses these credentials unless the caching options require the mobile computer to prompt for new credentials. If credentials were entered via the profile, the mobile computer does not prompt for new credentials (except for profiles where the credentials expire, such as EAP-GTC token profiles). Table 4-7 lists the caching options.

Prompt for Login at Dialog Box

NOTE Credential caching options only apply to user profiles and to user-override profiles (a device profile that a

user has logged on to using the Log On/Off command). Credential caching options do not apply to device profiles. You are allowed to set the options for a device profile so that they will have an effect if you convert the profile to a user-override profile by logging on to it using the Log On/Off command.

4 - 14 Wireless Fusion Enterprise Mobility Suite User Guide

Table 4-7

At Connect Select this option to have the mobile computer prompt for credentials each time it

On Resume Select this option to cause an authenticated user to be reauthenticated when a

At Time Select this option to perform a local verification on an authenticated user at a

Cache Options

Option Description

tries to connect. Deselect this to use the cached credentials to authenticate. If the credentials are not cached, the user is prompted to enter credentials. This option only applies when the user has previously entered credentials.

If the infrastructure has implemented a fast reconnect technology such as Fast Session Resume, or PMKID caching then selecting this option will prevent that technology from working properly by prompting the user for credentials when attempting to reconnect.

suspend/resume occurs. The mobile computer uses the cached credentials to authenticate. Once authenticated, the user is prompted for credentials. If the user does not enter matching credentials within three attempts, the user is disconnected from the network. This option only applies when the user has previously entered credentials.

specified time. The time can be an absolute time or a relative time from the authentication, and should be in at least five minute intervals. Once the time has passed, the user is prompted for credentials. If the user does not enter the same credentials that were entered prior to the At-Time event within three attempts, the user is disconnected from the network. This option only applies when the user has previously entered credentials.

NOTE Entering credentials applies the credentials to a particular profile. Logging out clears all cached

credentials. Editing a profile clears any cached credentials for that profile.

The following authentication types have credential caching:

•

EAP-TLS

•

PEAP

•

LEAP

•

TTLS

•

EAP-FAST.

Some exceptions to the credential caching rules apply for profiles where the credentials expire, such as EAP-GTC token profiles. Since the token expires after a short period, the user may be prompted for credentials even when credentials have already been entered and cached for that profile.

Selecting the At Time check box displays the Time Cache Options dialog box.

Profile Editor Wizard 4 - 15

Figure 4-21

1. Tap the Interval radio button to check credentials at a set time interval.

2. Enter the value in minutes in the Min text box.

3. Tap the At (hh:mm) radio button to check credentials at a set time.

4. Ta p Next. The At Time dialog box appears.

Figure 4-22

5. Enter the time using the 24 hour clock format in the (hh:mm) text box.

6. Ta p > to move the time to the right. Repeat for additional time periods.

7. Ta p Next. The Encryption dialog box displays.

Time Cache Options Dialog Box

At Time Dialog Box

Encryption

Use the Encryption dialog box to select an encryption method. This page contains the fields to configure the encryption method and corresponding keys, if any. The drop-down list only includes encryption methods available for the selected security mode and authentication type.

Figure 4-23

NOTE The only available encryption methods in Ad-hoc mode are Open, WEP-40 and WEP-104.

Encryption Dialog Box

4 - 16 Wireless Fusion Enterprise Mobility Suite User Guide

Based on the encryption method and the authentication type, the user may have to manually enter pre-shared encryption keys (or a pass phrase). When the user selects any authentication type other than None, 802.1x authentication is used and the keys are automatically generated.

Table 4-8

Open Select Open (the default) when no data packet encryption is needed over the network.

WEP-40 (40/24) Select WEP-40 (40/24) to use 64-bit key length WEP encryption. This encryption method

WEP-104 (104/24)

TKIP Select TKIP for the adapter to use the Temporal Key Integrity Protocol (TKIP) encryption

Encryption Options

Encryption Description

Selecting this option provides no security for data transmitted over the network.

is only available for the Legacy security mode with Authentication Type set to None.

Note: This is alternately referred to as WEP-64.

Select WEP-104 (104/24) to use a 128-bit key length WEP encryption. If WEP-104 (104/24) is selected, other controls appear that allow you to enter keys. This encryption method is available for the Legacy security mode.

Note: This is alternately referred to as WEP-128.

method. This encryption method is available for all security modes other than Legacy.

When TKIP is selected, Mixed Mode support is automatically enabled. The Allow Mixed Mode checkbox is enabled and grayed out. This is true for all security modes that allow TKIP as an encryption method. This means that the mobile computer will operate in an environment in which TKIP is used for encrypting the unicast traffic, and either TKIP or WEP-104 is used for encrypting multicast/broadcast traffic. This allows the mobile computer to operate with an AP that is set up to support both WPA and legacy mobile computers simultaneously.

AES Select AES for the adapter to use the Advanced Encryption Standard (AES) encryption

method. This encryption method is available for the WPA2 - Enterprise and WPA2 Personal security modes.

When AES is selected, Mixed Mode support is automatically enabled. The Allow Mixed Mode checkbox is enabled and grayed out. This means that the mobile computer will use only AES encryption for unicast traffic, but allows it to use either AES, TKIP, or WEP-104 encryption for broadcast traffic. This allows the mobile computer to operate with an AP that is set up to support legacy and/or WPA and WPA2 mobile computers simultaneously.

For all Encryption types other than Open, if authentication is set to None, then the wizard displays additional controls for entering pre-shared keys (see Figure 4-23 on page 4-15). This includes Personal security modes, which default to authentication None and exclude Enterprise security modes, which require an authentication type to be specified.

•

Select the Pass-phrase or Hexadecimal Keys radio button to indicate whether a pass-phrase or hexadecimal keys will be entered on the next page.

•

Select the For added security - Mask characters entered check box to hide characters entered. Deselect this to show characters entered.

Profile Editor Wizard 4 - 17

Table 4-9

Encryption / Authentication Matrix

Authentication Encryption

Legacy (Pre-WPA)

WPA

Personal

WPA2

Personal

WPA

Enterprise

WPA2

Enterprise

Open WEP TKIP AES or TKIP TKIP AES or TKIP

None Yes WEP-40 or

Yes Yes

WEP-104

EAP-TLS WEP-104 Yes Yes

EAP-FAST WEP-104 Yes Yes

PEAP WEP-104 Yes Yes

LEAP WEP-104 Yes Yes

TTLS WEP-104 Yes Yes

Hexadecimal Keys

To enter the hexadecimal key information select the Hexadecimal Keys radio button. An option is provided to hide the characters that are entered for added security. To hide the characters select the For added security - Mask characters entered check box.

To enter a hexadecimal key with characters hidden:

1. Select the For added security - Mask characters entered check box.

2. Ta p Next.

Figure 4-24

3. For WEP only, in the Edit Key drop-down list, select the key to enter.

4. In the Key field, enter the key.

a. For WEP-40 enter 10 hexadecimal characters.

b. For WEP-104 enter 26 hexadecimal characters.

c. For TKIP enter 64 hexadecimal characters.

d. For AES enter 64 hexadecimal characters.

WEP-40 and WEP-104 WEP Keys Dialog Boxes

e. For SMS4 enter 32 hexidecimal characters.

5. In the Confirm field, re-enter the key. When the keys match, a message appears indicating that the keys

match.

4 - 18 Wireless Fusion Enterprise Mobility Suite User Guide

6. Repeat for each WEP key.

7. For WEP only, in the Transmit Key drop-down list, select the key to transmit.

8. Ta p Next. The IPv4 Address Entry dialog box displays.

To enter a hexadecimal key without characters hidden:

1. Ta p Next.

Figure 4-25

2. For WEP only, in each Key field, enter the key.

a. For WEP-40 enter 10 hexadecimal characters.

b. For WEP-104 enter 26 hexadecimal characters.

c. For TKIP enter 64 hexadecimal characters.

d. For AES enter 64 hexadecimal characters.

e. For SMS4 enter between 8 and 63 characters.

3. For WEP only, in the Transmit Key drop-down list, select the key to transmit.

4. Ta p Next. The IPv4 Address Entry dialog box displays.

WEP-40 and WEP-104 WEP Keys Dialog Boxes

Pass-phrase Dialog

When selecting None as an authentication and WEP as an encryption, choose to enter a pass-phrase by checking the Pass-phrase radio button. The user is prompted to enter the pass-phrase. For WEP, the Pass-phrase radio button is only available if the authentication is None.

When selecting None as an authentication and TKIP as an encryption, the user must enter a pass-phrase. The user cannot enter a pass-phrase if the encryption is TKIP and the authentication is anything other than None.

When selecting None as an authentication and AES as an encryption, the user must enter a pass-phrase. The user cannot enter a pass-phrase if the encryption is AES and the authentication is anything other than None.

To enter a pass-phrase with characters hidden:

1. Select the For added security - Mask characters entered check box.

2. Ta p Next.

Profile Editor Wizard 4 - 19

Figure 4-26

3. In the Key field, enter the key.

a. For WEP-40 enter between 4 and 32 characters.

b. For WEP-104 enter between 4 and 32 characters.

c. For TKIP enter between 8 and 63 characters.

d. For AES enter between 8 and 63 characters.

4. In the Confirm field, re-enter the key. When the keys match, a message appears indicating that the keys

WEP-40 and WEP-104 WEP Keys Dialog Boxes

match.

5. Ta p Next. The IPv4 Address Entry dialog box displays.

To enter a pass-phrase key without characters hidden:

1. Ta p Next.

Figure 4-27

2. In the Key field, enter the key.

a. For WEP-40 enter between 4 and 32 characters.

b. For WEP-104 enter between 4 and 32 characters.

c. For TKIP enter between 8 and 63 characters.

d. For AES enter between 8 and 63 characters.

WEP-40 and WEP-104 WEP Keys Dialog Boxes

Ta p Next. The IPv4 Address Entry dialog box displays.

IPv4 Address Entry

Use the IPv4 Address Entry dialog box to configure network address parameters: IP address, subnet mask, gateway, DNS, and WINS.

4 - 20 Wireless Fusion Enterprise Mobility Suite User Guide

Figure 4-28

Table 4-10

IPv4 Address Entry Dialog Box

IPv4 Address Entry

Field Description

Obtain Device IP Address Automatically

Check to obtain a leased IP address and network configuration information from a remote server. This setting is checked by default in the mobile computer profile.

Uncheck to manually assign IP, subnet mask and default gateway addresses the mobile computer profile uses.

Ad-hoc mode does not support DHCP. Use only Static IP address assignment.

Obtain DNS Address Automatically

Check to use DNS server addresses obtained from a remote server. This setting is checked by default in the mobile computer profile.

Uncheck to manually assign DNS server addresses. Ad-hoc mode does not support DHCP. Use only Static IP address assignment.

Obtain WINS Address Automatically

Check to use WINS server addresses obtained from a remote server. This setting is checked by default in the mobile computer profile.

Uncheck to manually assign WINS server addresses. Ad-hoc mode does not support DHCP. Use only Static IP address assignment.

Select all three check boxes to automatically obtain addresses from a remote server. Tap Next. The Tran smit Power dialog box displays.

Uncheck the Obtain Device IP Address Automatically to manually assign IP, subnet mask and default gateway addresses the mobile computer profile uses. Tap Next. The Static IP Address dialog box appears.

Figure 4-29

Static IP Address Entry Dialog Box

Profile Editor Wizard 4 - 21

Static DNS Address and Set Static WINS

Address checkboxes selected

Only Static DNS Address

checkbox selected

Only Static WINS Address

checkbox selected

Table 4-11

Static IP Address Entry Fields

Field Description

IPv4 Address The Internet is a collection of networks with users that communicate with each other. Each

communication carries the address of the source and destination networks and the particular machine within the network associated with the user or host computer at each end. This address is called the IP address (Internet Protocol address). Each node on the IP network must be assigned a unique IP address that is made up of a network identifier and a host identifier. Enter the IP address as a dotted-decimal notation with the decimal value of each octet separated by a period, for example, 192.168.7.27.

Subnet Mask Most TCP/IP networks use subnets to manage routed IP addresses. All IP addresses have

a network part and a host part. The network part specifies a physical network. The host part specifies a host on that physical network. The subnet mask allows a network administrator to use some of the bits that are normally used to specify the host to instead specify physical sub-networks within an organization. This helps organize and simplify routing between physical networks.

Gateway The default gateway forwards IP packets to and from a remote destination.

Set Static DNS

Check to manually assign DNS server addresses. Address (Optional)

Set Static WINS

Check to manually assign WINS server addresses. Address (Optional)

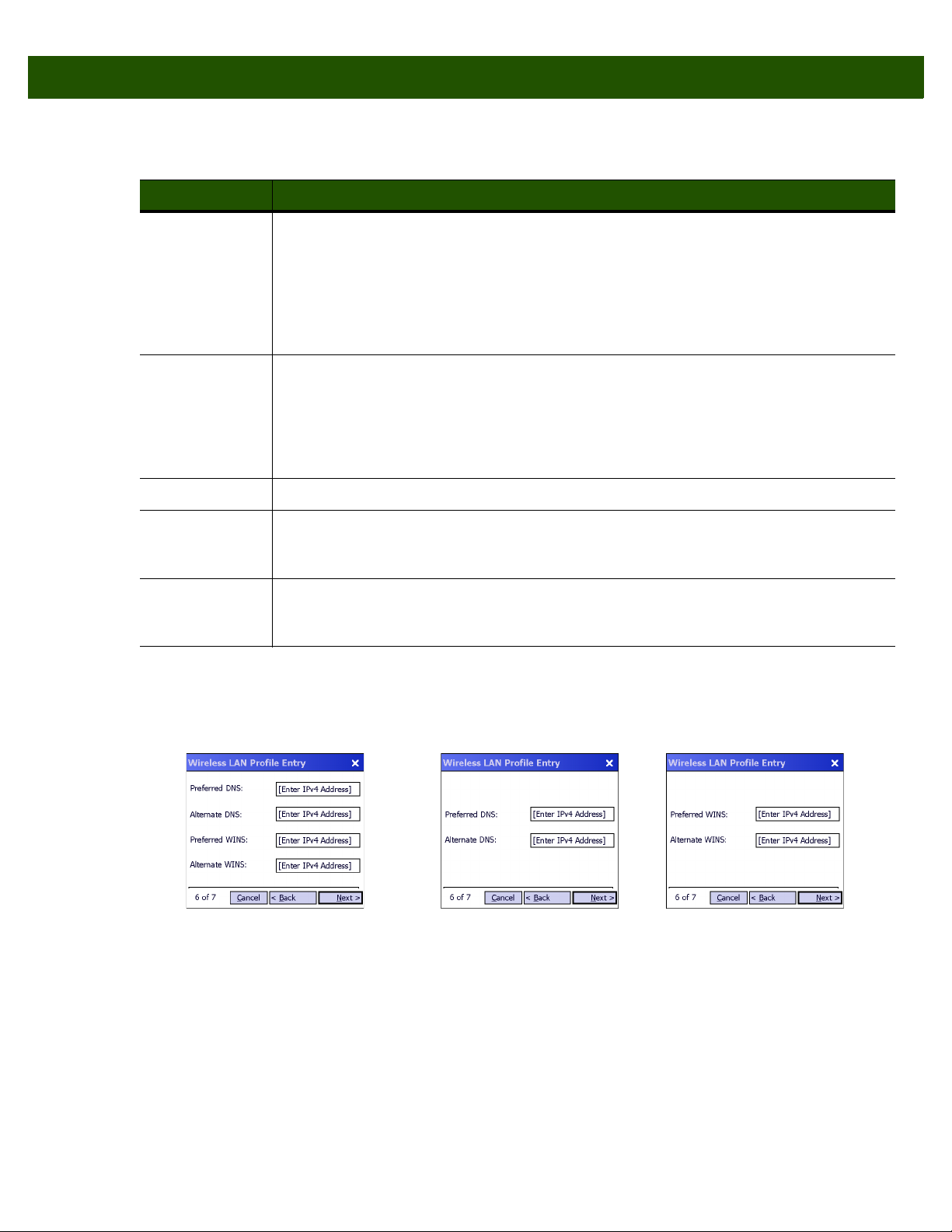

Select the Set Static DNS Address or Set static WINS address check box, then tap Next to display the DNS/WINS Address Entry dialog box. Enter the DNS and/or WINS addresses here. Tap Next without selecting the Set Static DNS Address or Set static WINS Address check box to display the Transmit Power dialog box.

Figure 4-30

DNS/WINS Address Entry Dialog Box

The IP information entered in the profile is only used if the Enable IPv4 Mgmt check box in the Options > System Options dialog box was selected (System Options on page 7-5). If not selected, the IP information in

the profile is ignored and the IP information entered in the Microsoft interface applies.

4 - 22 Wireless Fusion Enterprise Mobility Suite User Guide

Table 4-12

DNS The Domain Name System (DNS) is a distributed Internet directory service. DNS

WINS WINS is a Microsoft

Ta p Next. The Transmit Power dialog box displays.

DNS/WINS Address Entry Fields

Field Description

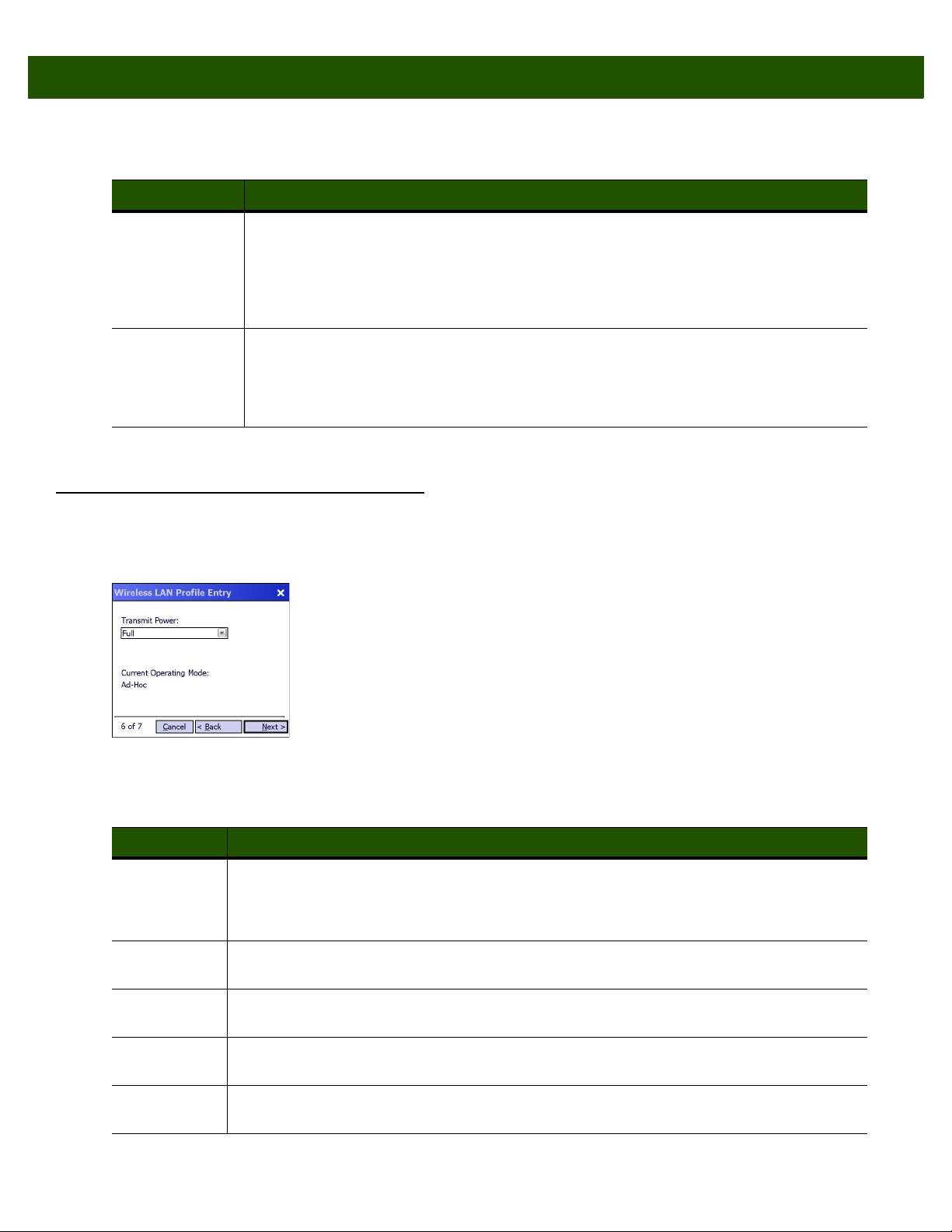

Transmit Power

The Transmit Power drop-down list contains different options for Ad-hoc.

translates domain names and IP addresses, and controls Internet email delivery. Most Internet services require DNS to operate properly. If DNS is not configured, Web sites cannot be located and/or email delivery fails.

The Alternate DNS server address will be used if the Preferred DNS server is unavailable.

Net BIOS name server. WINS eliminates the broadcasts needed to

resolve computer names to IP addresses by providing a cache or database of translations.

The Alternate WINS server address will be used if the Preferred WINS server is unavailable.

Figure 4-31

Table 4-13

Full Select Full power for the highest transmission power level. Select Full power when

30 mW Select 30 mW to set the maximum transmit power level to 30 mW. The radio transmits at the

15 mW Select 15 mW to set the maximum transmit power level to 15 mW. The radio transmits at the

5 mW Select 5 mW to set the maximum transmit power level to 5 mW. The radio transmits at the

1 mW Select 1 mW to set the maximum transmit power level to 1 mW. The radio transmits at the

Ta p Next to display the Battery Usage dialog box.

Transmit Power Dialog Box (Ad-hoc Mode)

Power Transmit Options (Ad-hoc Mode)

Field Description

operating in highly reflective environments and areas where other devices could be operating nearby, or when attempting to communicate with devices at the outer edge of a coverage area.

minimum power required.

Battery Usage

Use the Battery Usage dialog box to select power consumption of the wireless LAN. There are three settings available: CAM, Fast Power Save, and MAX Power Save. Battery usage cannot be configured in Ad-hoc profiles and options are disabled (grayed-out).

Profile Editor Wizard 4 - 23

Figure 4-32

Table 4-14

CAM Continuous Aware Mode (CAM) provides the best network performance, but

Fast Power Save Fast Power Save (the default) yields much better battery life than CAM, but

MAX Power Save Max Power Save yields the longest battery life, but with potentially more

When the AP that the mobile computer associates to is configured to use WMM Power Save mode, the mobile computer will ignore the Battery Usage Mode setting – assuming it’s not set to CAM – and will use the WMM protocol instead. While the use of WMM Power Save mode can maximize battery life, it can also decrease network performance.

Battery Usage Dialog Box

NOTE Power consumption is also related to the transmit power settings.

Battery Usage Options

Field Description

yields the shortest battery life.

with some degradation in network performance.

degradation in network performance. However, in networks with minimal latency, MAX Power Save can yield the same network performance as Fast Power Save.

NOTE WMM Power Save mode will override Fast Power Save and MAX Power Save mode and cannot be

disabled.

4 - 24 Wireless Fusion Enterprise Mobility Suite User Guide

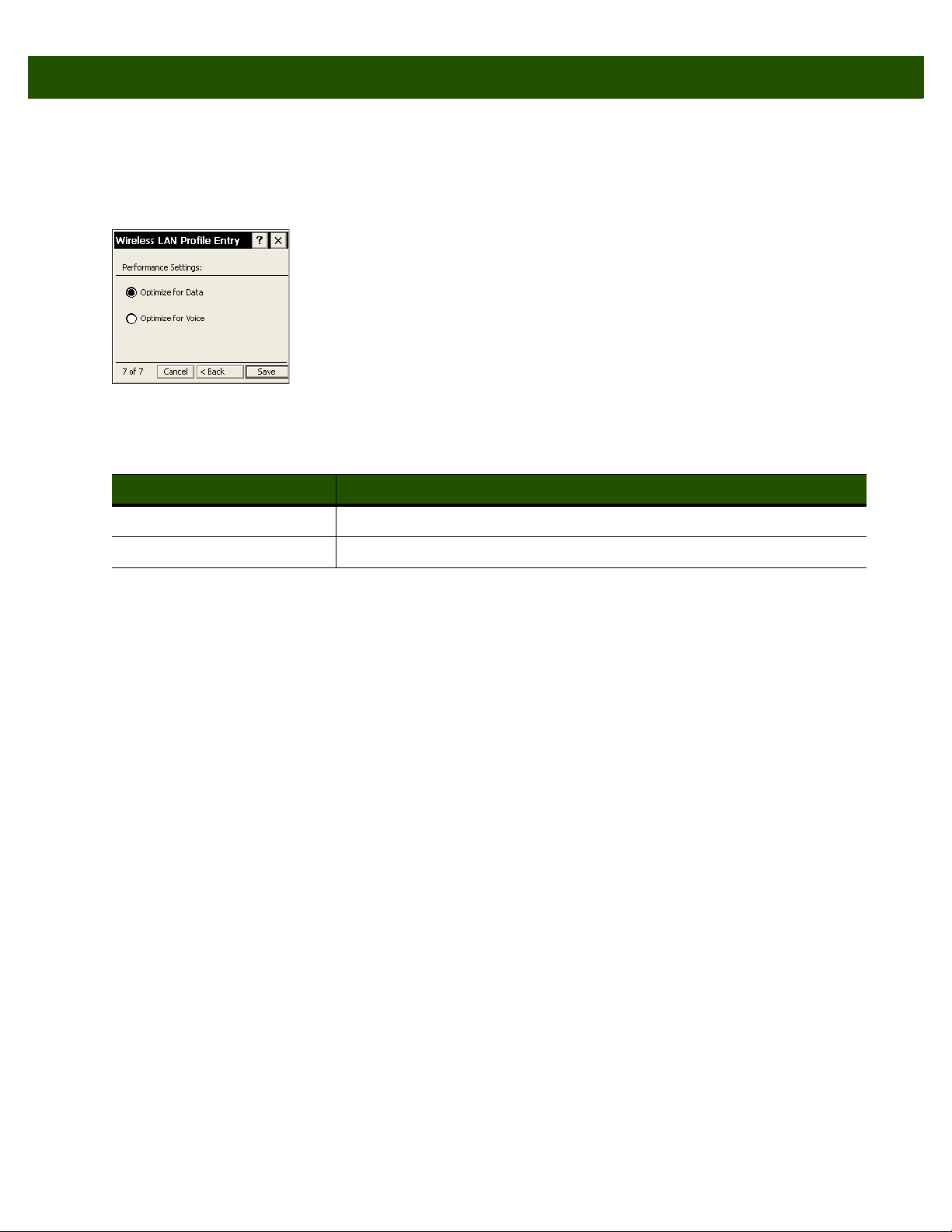

Performance Settings

Use the Performance Settings dialog box to tune a profile to maximize data throughput or optimal voice quality. There are two settings available: Optimize for Data and Optimize for Voice.

Figure 4-33

Table 4-15

Optimize for Data Roam and power save parameters are tuned to maximize data throughput.

Optimize for Voice Roam and power save parameters are tuned to maximize voice quality.

Performance Settings Dialog Box

Performance Settings Options

Field Description

CHAPTER 5 MANAGE CERTIFICATES

APPLICATION

Introduction

Users can view and manage security certificates in the various certificate stores. Tap the Signal Strength icon > Manage Certs. The Certificate Manager window displays.

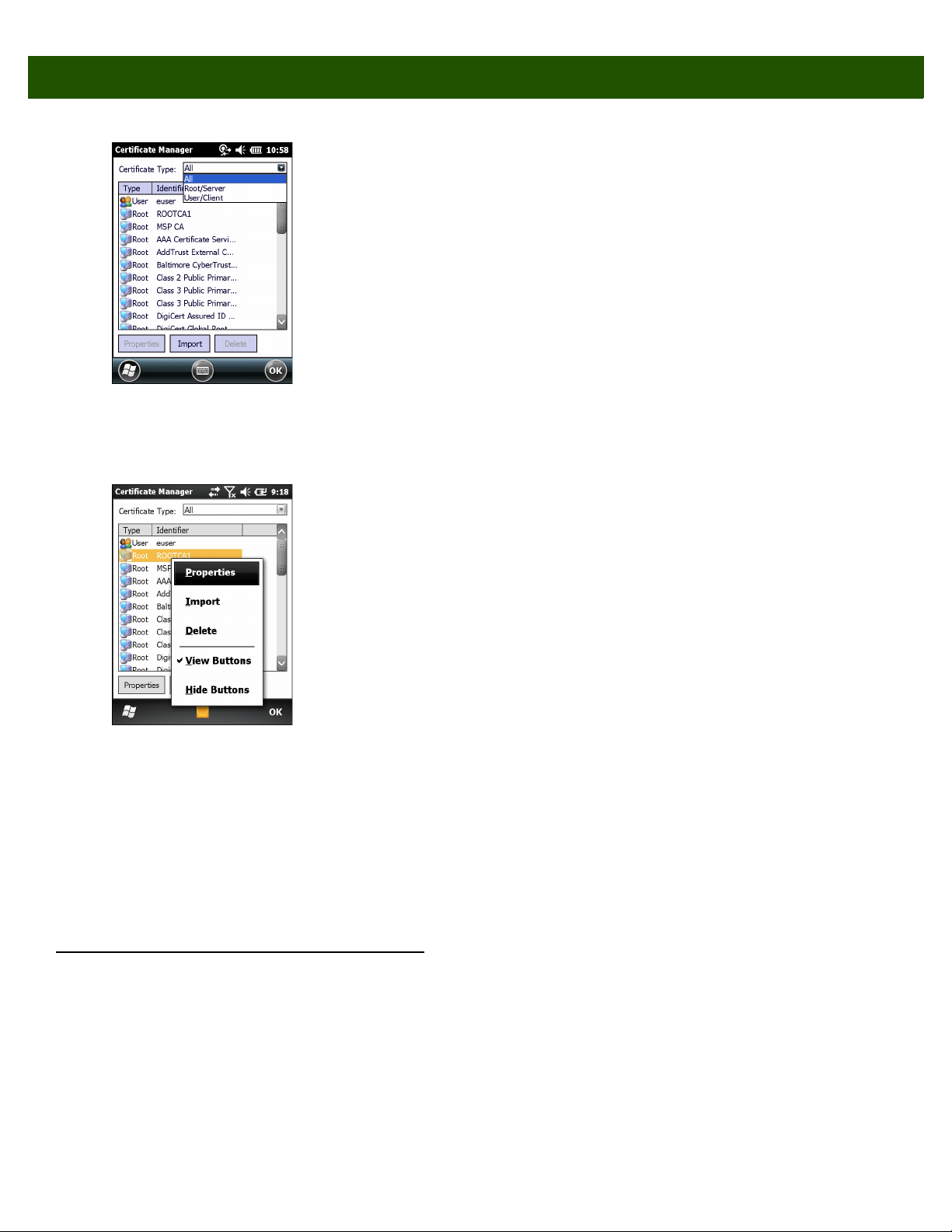

Figure 5-1

Various certificate types display at one time. Select the Certificate Type drop-down box to filter the certificate list to display All, only Root/Server, or only User/Client certificates.

Certificate Manager Window

5 - 2 Wireless Fusion Enterprise Mobility Suite User Guide

Figure 5-2

Certificate Type Options

The Certificate Manager window contains command buttons at the bottom of the window. A button might be disabled (gray) if the operation cannot be performed based on any selected object.

Figure 5-3

Command Buttons and Context Menu

These buttons can be hidden to allow more space for displaying the list of certificates. To hide the buttons tap-and-hold and/or double-tap the stylus in the list area depending on the mobile computer. It can also be brought up by pressing the Enter key on the keyboard. The pop-up menu appears.

Select Hide Buttons to hide the command buttons.

To display the buttons select View Buttons from the pop-up menu.

The pop-up menu also allows the user to select the Properties, Import, and Delete commands.

Certificate Properties

To display the detailed properties of a certificate, select a certificate in the list and tap the Properties button. The window display the properties of the certificate. Select a property in the upper list and the detailed information displays in the Expanded Value section.

Manage Certificates Application 5 - 3

Figure 5-4

Certificate Properties Window

Ta p ok, Escape, or X button to exit (depending on the mobile computer).

Import a Certificate

Import certificates from either files or from a server machine:

•

.CER file - DER encrypted Root/Server certificates.\

NOTE In order to validate a server certificate for an Intermediate CA during authentication, it is only necessary to

import the certificate from the associated Root CA and then specify the Root CA in the profile.

•

.PFX file - Personal inFormation eXchange formatted file containing one or more Root/Server and/or User/Client Certificates. These files are usually protected by a password, so a password will be prompted for. If there is no password, enter nothing and select the OK button.

•

Server - User/Client certificates can be requested directly from a Certificate Authority (CA) on the network. A User name, Password (optional), and the Server (an IP address) must be provided to obtain a certificate for the User from the CA.

NOTE It is possible to import and successfully use a user certificate issued by an Intermediate CA; however, this

may require additional infrastructure setup. For example, it may be necessary to supply the RADIUS server with certificates for both the Intermediate CA and for the Root CA. Infrastructure setup is beyond the scope of this guide.

Tap the Import button or select from the context menu. The Import Certificate dialog box displays.

Figure 5-5

Import Certificate Dialog Box

Select the Import from File (.cer, .pfx) radio button to import a certificate file. The Open window displays.

Select the file to import.

5 - 4 Wireless Fusion Enterprise Mobility Suite User Guide

Figure 5-6

Select the Import User Cert from Server radio button to import a certificate from a server. The Install From Server window displays.

Enter the user, password, and server information in the respective text boxes.

Tap the Retrieve button to import the certificate.

Figure 5-7

Certificate Manage Window - Import from File

Install From Server

Delete a Certificate

To delete a certificates:

Select the certificate to delete.

Manage Certificates Application 5 - 5

Figure 5-8

Certificate Dialog Box - Delete Certificate

Tap the Delete button or select Delete from the pop-up menu.

5 - 6 Wireless Fusion Enterprise Mobility Suite User Guide

CHAPTER 6 MANAGE PACS APPLICATION

Introduction

Users can view and manage Protected Access Credentials (PACs) used by Cisco's EAP-FAST authentication protocol. Tap the Signal Strength icon > Manage PACs. The PAC Manager window displays.

Figure 6-1

PACs are uniquely identified by referencing a PAC Authority Identifier (A-ID) (the server that issued the PAC) and by the individual user identifier (I-ID). The PACs display sorted by A-ID (default) or by I-ID in a tree display.

The PAC Manager window contains buttons at the bottom of the window. A button might be disabled (gray) if the operation cannot be performed based on any selected object.

Select Hide Buttons to hide the buttons.

To display the buttons select View Buttons from the pop-up menu.

The pop-up menu also allows the user to select the Properties, Import and Delete commands.

You can always sort by A-ID, sort by I-ID, view buttons and hide buttons in the pop-up menu.

PAC Manager Window

6 - 2 Wireless Fusion Enterprise Mobility Suite User Guide

Figure 6-2

Command Buttons and Context Menu

PAC Properties

Display the detailed properties of a PAC by selecting an item in a sub-tree, and selecting the Properties button or pop-up menu. The following Window appears with the list of properties in the upper portion of the window. By selecting an entry in the upper list, the expanded details of the entry property display in the lower list of the window.

Figure 6-3

PAC Properties Popup

To return to the main page, tap the Ok button, Escape, or X button depending on the mobile computer.

Delete PAC

To delete a single PAC, tap a leaf item (right most tree item) to select the PAC, then select the Delete button or pop-up menu. A confirmation dialog box appears.

To delete a group of PACs having the same A-ID or same I-ID, sort the PACs by desired ID type, then tap on the parent item (left most tree item) to select the group. Select the Delete button or pop-up menu and a confirmation dialog box appears.

Import PAC

Usually PACs are automatically provisioned to the mobile computer over the air the first time EAP-FAST authentication occurs. For increased security, an administrator may choose to manually provision the mobile computer with a PAC instead. In this case, the administrator must generate an appropriate PAC file manually using commands on the PAC Authority. Once the PAC file is generated, it must be manually transferred to the mobile computer’s file system before it can be imported by the Manage PACs application.

To import a PAC, tap the Import button. A dialog displays asking you to select the PAC file to be imported.

Manage PACs Application 6 - 3

Figure 6-4

Navigate to the file to be imported and choose it. The Import PAC dialog displays.

Figure 6-5

If the PAC file is password protected, enter the password in the Password field. If you uncheck the Hide Password checkbox, the password will be displayed in clear text as you type it. To hide the password as you

type it, leave the Hide Password checkbox checked. If you wish to overwrite any existing PAC in the Fusion PAC Store without being prompted for verification, check the Overwrite PAC if Exists checkbox. Tap the Ok button to import the PAC. Tap the Cancel button to abort the import operation.

If you have tapped Ok and the PAC already exists in the PAC Store, a verification dialog box may appear. Tap Yes to continue the import operation or tap No to abort the operation. If you have tapped Yes, an informational dialog box appears listing the attributes (A-ID and I-ID) of the imported PAC.

Open Window

Import PAC Dialog Box

Figure 6-6

Import PAC File Dialog Box

6 - 4 Wireless Fusion Enterprise Mobility Suite User Guide

Ta p ok to close the dialog box. You will be returned to the main PAC Manager window with the tree list of PACs. The newly-imported PAC should appear in the list.

CHAPTER 7 OPTIONS

Introduction

Use the wireless Option dialog box to select one of the following operation options from the drop-down list.

•

Op Mode Filtering

•

Regulatory

•

Band Selection

•

802.11 Options

•

System Options

•

Auto PAC Settings

•

IPv6

•

Change Password

•

Import/Export

•

Data Management.

Change the option settings as you desire and then tap SAVE to save your changes. Until you tap the SAVE button, no changes are saved. To close the dialog, tap ok. If you tap ok and you have made changes without saving them, a dialog will display asking if you want to quit without saving.

Op (Operating) Mode Filtering

The Op Mode Filtering options cause the Find WLANs application to filter the available networks found.

7 - 2 Wireless Fusion Enterprise Mobility Suite User Guide

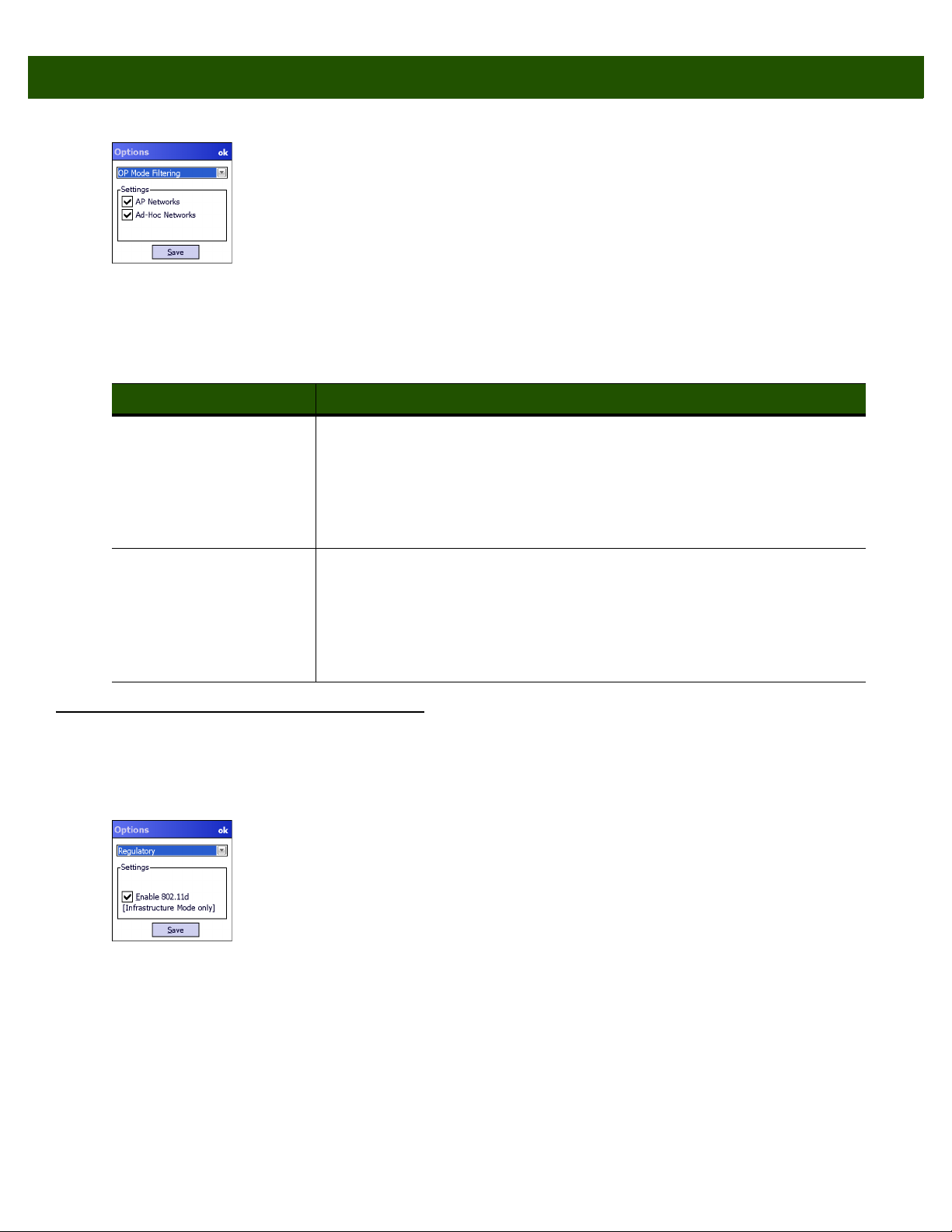

Figure 7-1

The AP Networks and Ad-Hoc Networks check boxes are selected by default.

Table 7-1

AP Networks Select the AP Networks check box to display available AP networks and their

AD-Hoc Networks Select the Ad-Hoc Networks check box to display available peer (adapter)

OP Mode Filtering Dialog Box

OP Mode Filtering Options

Field Description

signal strength within the Available WLAN Networks (see Chapter 2, Find

WLAN Application). These are the APs in the vicinity available to the mobile

computer for association. If this option was previously disabled, refresh the Available WLAN Networks window to display the AP networks available to the mobile computer. Default: Enabled.

networks and their signal strength within the Available WLAN Networks. These are peer networks in the vicinity that are available to the mobile computer for association. If this option was previously disabled, refresh the Available WLAN Networks window to display the Ad Hoc networks available to the mobile computer. Default: Enabled

Regulatory

Use the Regulatory settings to configure the 802.11d mode for the mobile computer. Due to regulatory requirements (within a country) a mobile computer is only allowed to use certain channels.

Figure 7-2

Regulatory Dialog Box

Options 7 - 3

Table 7-2

Regulatory Options

Field Description

Settings

Select a country from the drop-down list. If the selected, a profile’s country selection must match this setting in order to connect to that profile.

Enable 802.11d

If the standard. It passively scans until valid country information is received from an AP. It limits transmit power settings based on maximums received from the AP.

If the Enable 802.11d check box is not selected, the WLAN adapter uses the channel and power limit settings programmed in the device. Profiles which use Ad-hoc mode are not 802.11d compliant.

Band/Channel Selection

The Band Selection settings identify the frequency bands to scan when searching for WLANs.

Enable 802.11d

check box is not

check box is selected, the WLAN adapter follows the 802.11d

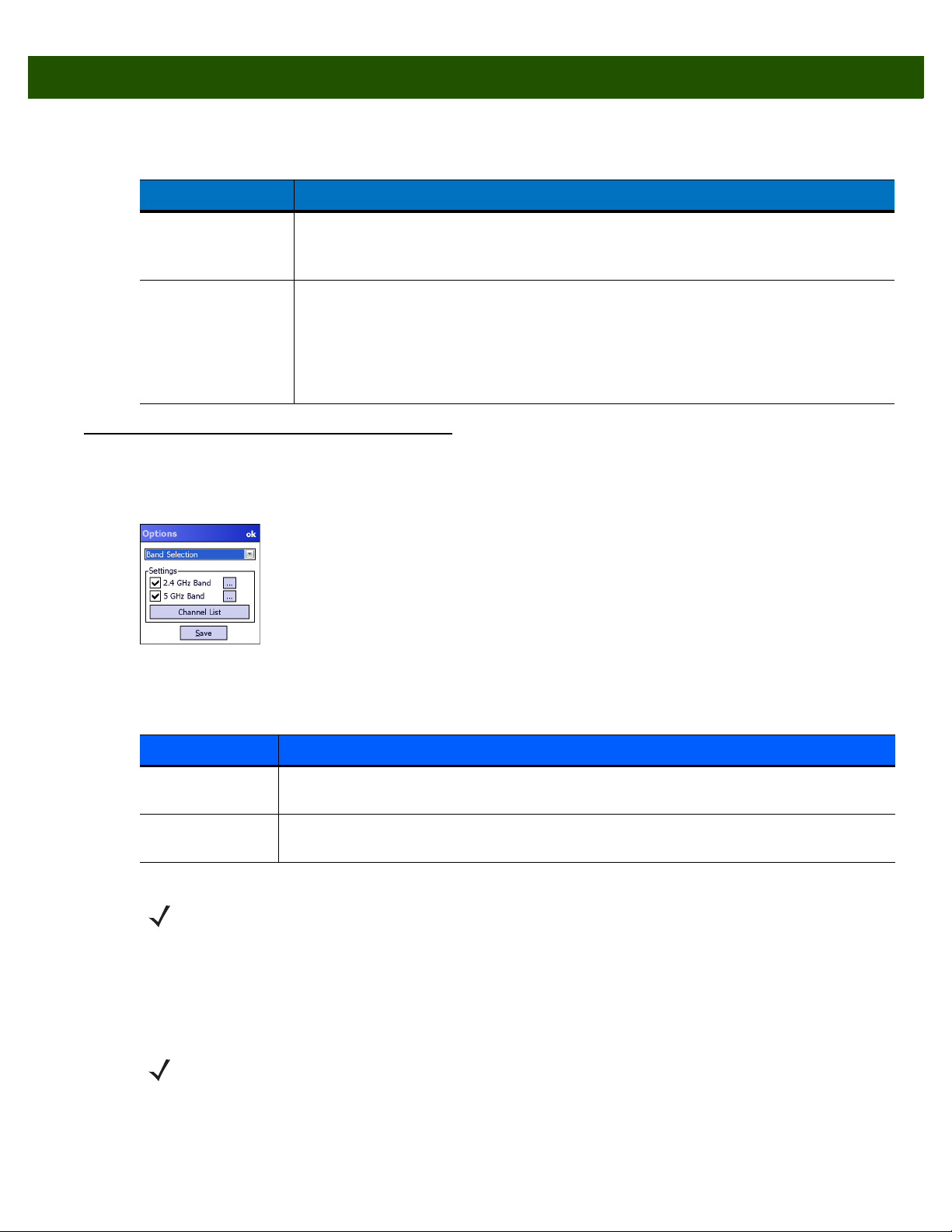

Figure 7-3

Table 7-3

Options - Band Selection Dialog Box

Band Selection Options

Field Description

2.4GHz Band The Find WLANs application list includes all networks found in the 2.4 GHz band

(802.11b and 802.11g).

5GHz Band The Find WLANs application list includes all networks found in the 5 GHz band

(802.11a).

NOTE When both bands are enabled, the device gives scan priority to the band it is currently connected to.

Channel Mask overrides this inter-band priority and enforce the configured list of channels.

Final list of channels that the device scans is decided by an intersection of Band Selection, Channel Mask and Regulatory settings. Band Selection is a top level filter, i.e., no channels from a disabled band are used for any purpose. Channel Mask and Regulatory constraints further prune the channel list. If the resulting channel set is a null set then no scanning or connection may occur.

NOTE Not all devices support both 2.4 GHz and 5 GHz bands.

Use the Channel List button to view enabled channels for each band. Note that channel configuration for each band is remembered even if a band is deselected (these channels are effectively inactive as the band itself is deselected).

7 - 4 Wireless Fusion Enterprise Mobility Suite User Guide

To edit default channel settings or to edit previously saved channel list, tap the button next to the band to edit. A list of channels displays.

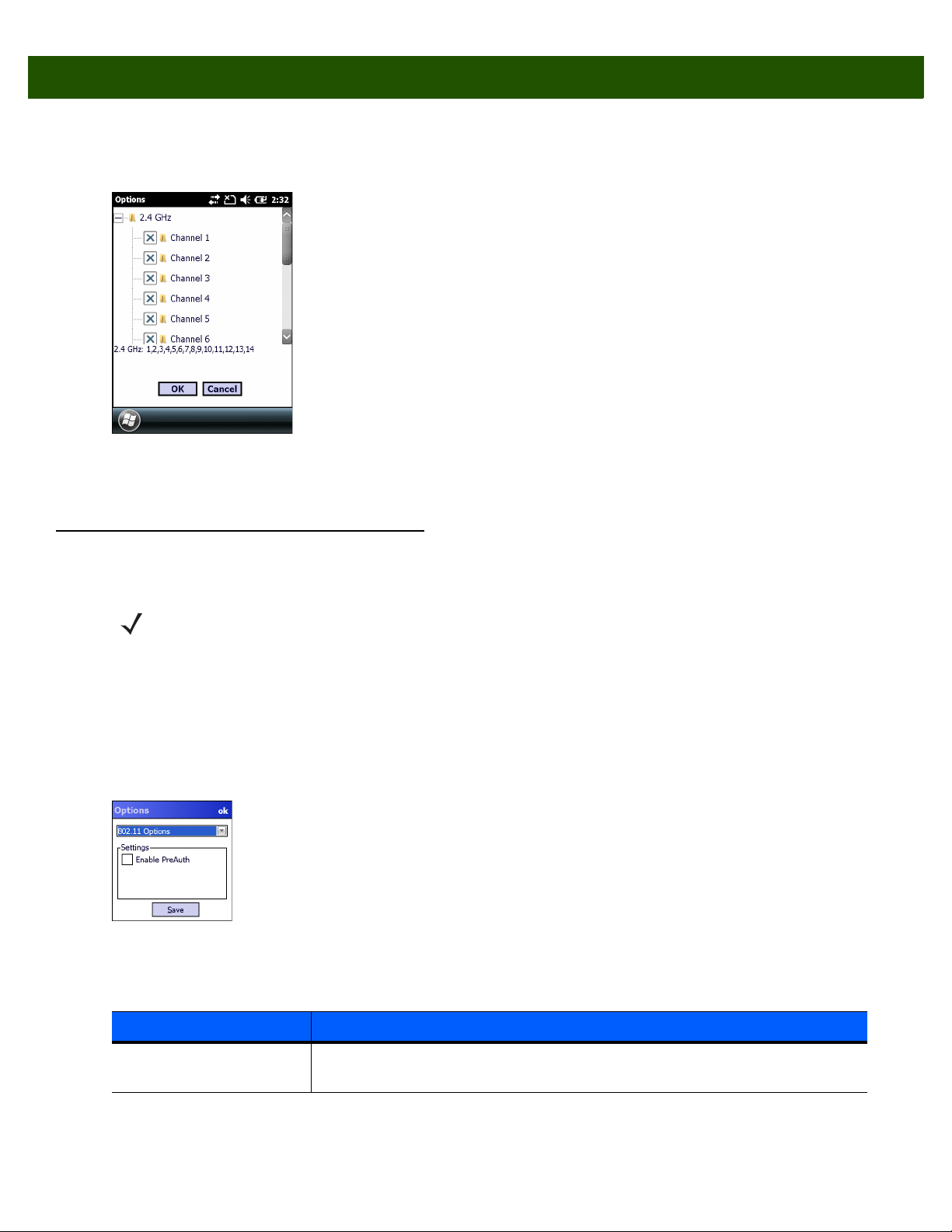

Figure 7-4

Each channel with a check box is included in the enabled channel list.

Channel Selection Dialog Box

802.11 Options

NOTE 802.11 Option is available only when Fusion Manages WLAN is enabled.

Use the 802.11 Option to enable or disable Pre-Authentication for WLAN. When Pre-Authentication feature is enabled on the mobile computer as well as the on the infrastructure, the mobile computer uses its current AP connection to “authenticate ahead” with other APs as detected by channel scan. This forward authentication reduces roam time as the mobile computer roams to these pre-authenticated APs.

802.11 Pre-Authentication complements PMKID and Opportunistic key Caching (OKC) mechanisms supported by Fusion.

Figure 7-5

Table 7-4

Enable Pre-Authentication Select the

802.11 Options Dialog Box

802.11 Options

Option Description

for WLAN. Pre-authentication option is disabled by default.

Enable Pre-Authentication

check box to enable Pre-Authentication

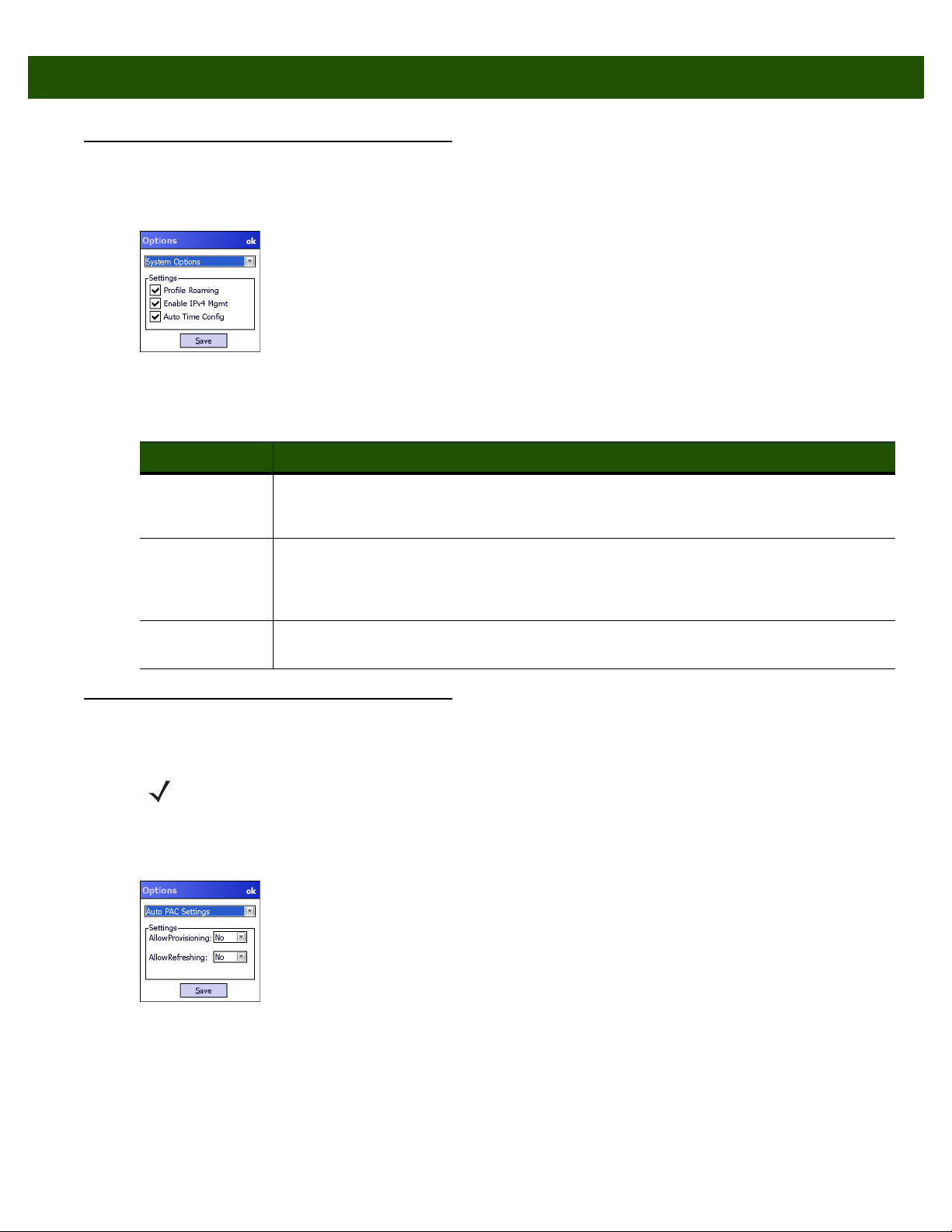

System Options

Use System Options to set miscellaneous system setting.

Options 7 - 5

Figure 7-6

Table 7-5

Profile Roaming Configures the mobile computer to roam to the next available WLAN profile when it moves

Enable IPv4 Mgmt

Auto Time Config Synchronizes device system time to the WLAN network time during association.

System Options Dialog Box

System Options

Field Description

Auto PAC Settings

NOTE Auto PAC Settings option is available only when Fusion Manages WLAN is enabled.

out of range of the current WLAN profile.

Default: Enabled

Enables the Wireless Companion Services to handle IPv4 address management. The

Wireless Companion Service configures the IP based on what is configured in the network

profile. Deselect this to manually configure the IP in the standard Windows IP window.

Default: Enabled

This feature is only supported with Zebra infrastructure.

Use the Auto PAC Settings to configure whether to allow automatic PAC provisioning and automatic PAC refreshing when using the EAP-FAST authentication protocol.

Figure 7-7

Auto PAC Settings Dialog Box

7 - 6 Wireless Fusion Enterprise Mobility Suite User Guide

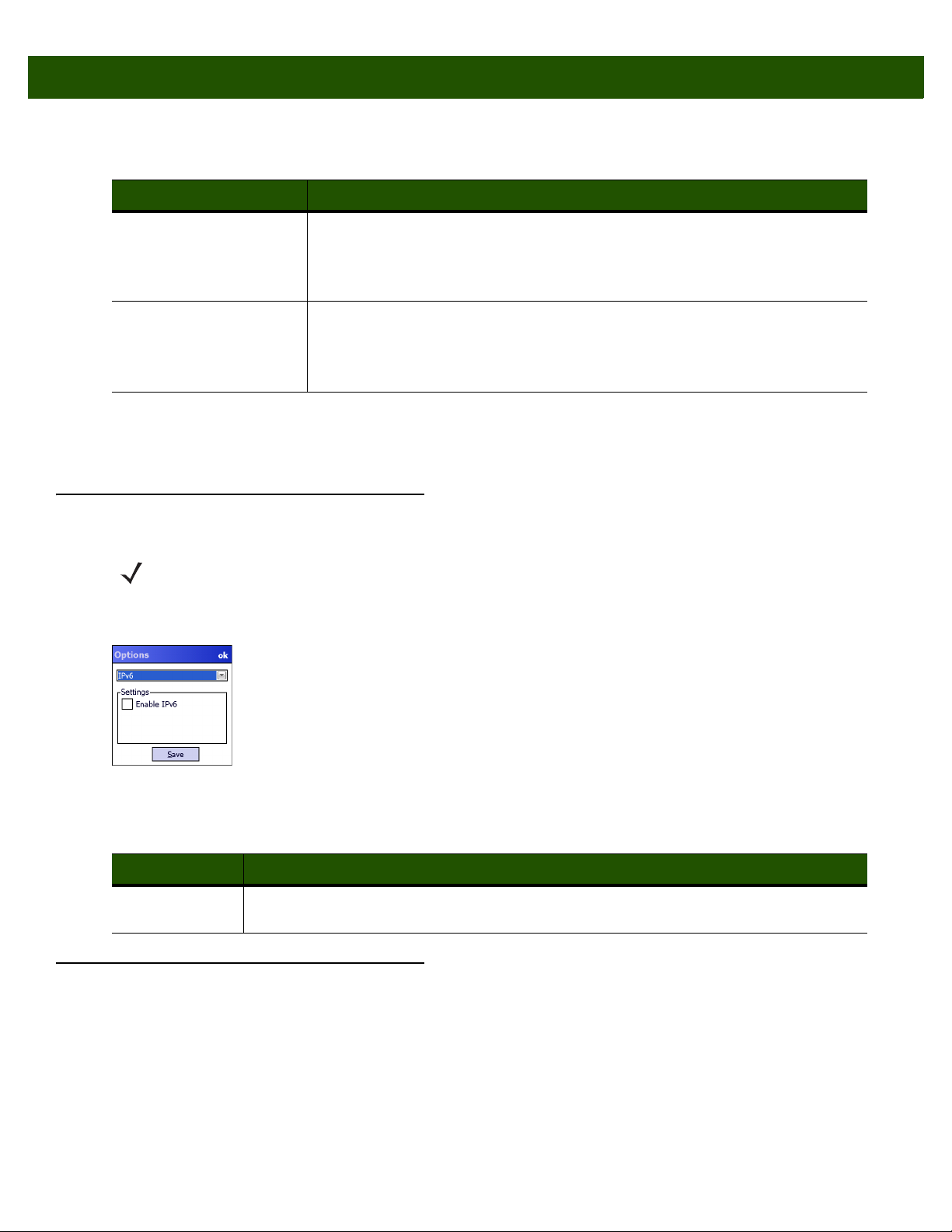

IPv6

Table 7-6

AllowProvisioning Select

AllowRefreshing Select

If the master key on the PAC Authority has expired then the PAC on the mobile computer that was generated with this expired key will have to be manually deleted and a new PAC provisioned even when AllowRefreshing is set to Yes.

Auto PAC Settings

Field Description

Yes

from the drop down list to allow the mobile computer to be automatically provisioned with a PAC when using the EAP-FAST authentication protocol. Select

Default: No

Yes

computer to be automatically refreshed when using the EAP-FAST authentication protocol. Select

Default: No

NOTE IPv6 option is available only when Fusion Manages WLAN is enabled. When Windows Manages

WLAN is enabled, IPv6 is always enabled.

to disallow automatic PAC provisioning.

from the drop down list to allow an existing PAC on the mobile

to disallow automatic PAC refreshing.

Use the IPv6 options to enable or disable IPv6 for WLAN.

Figure 7-8

Table 7-7

Enable IPv6 Select the Enable IPv6 check box to enable IPv6 for WLAN.

IPv6 Options Dialog Box

IPv6 Options

Field Description

Change Password

Use Change Password to require that a user enter a password before being allowed to access certain Fusion functions. The functions that are password protected include:

Default: Disabled

•

Find WLANs

•

Manage Profiles

•

Manage Certs

•

Manage PACs

Options 7 - 7

•

Options.

Having a password prohibits an un-trusted user from, for example, creating or editing a profile or changing the Options. This allows pre-configuring profiles and prevents users from changing the network settings. The user can use this feature to protect settings from a guest user. By default, the password is not set.

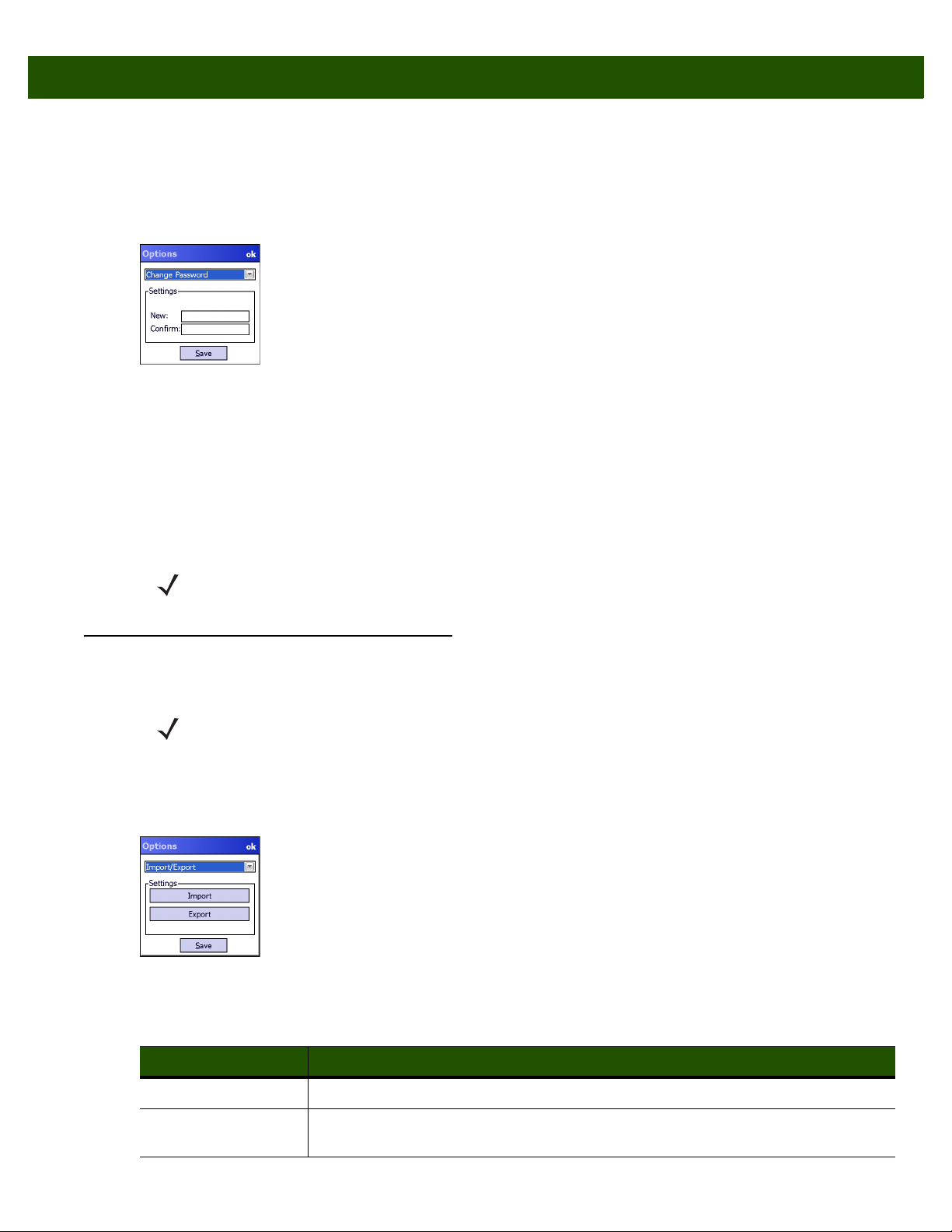

Figure 7-9

Enter the current password in the Current text box. If there is no current password, the Current text box is not displayed. Enter the new password in the New and Confirm text boxes. Tap Save.

To change an existing password, enter the current password in the Current text box and enter the new password in the New: and Confirm: text boxes. Tap Save.

To delete the password, enter the current password in the Current: text box and leave the New: and Confirm: text boxes empty. Tap Save.

NOTE Passwords are case sensitive and can not exceed 63 characters.

Import/Export

NOTE For Windows CE devices, exporting options enables settings to persists after cold boot. For Windows

Use the Import/Export options to export Fusion configuration database to a file and to import previously exported data back to the Fusion configuration database.

Change Password Window

Mobile devices, exporting options enables settings to persists after clean boot. See Chapter 11,

Configuration Persistence for more information.

Figure 7-10

Table 7-8

Import Allows import of configuration data exported previously to a file.

Export Allows export of Options, Profiles, PACs and Certificates from Fusion configuration

Options - Import/Export Dialog Box

Import/Export Options

Option Description

database to a file. Allows securing the file with an optional password.

7 - 8 Wireless Fusion Enterprise Mobility Suite User Guide

Data Management

Use the Data Management option reset Fusion configuration to factory default state.

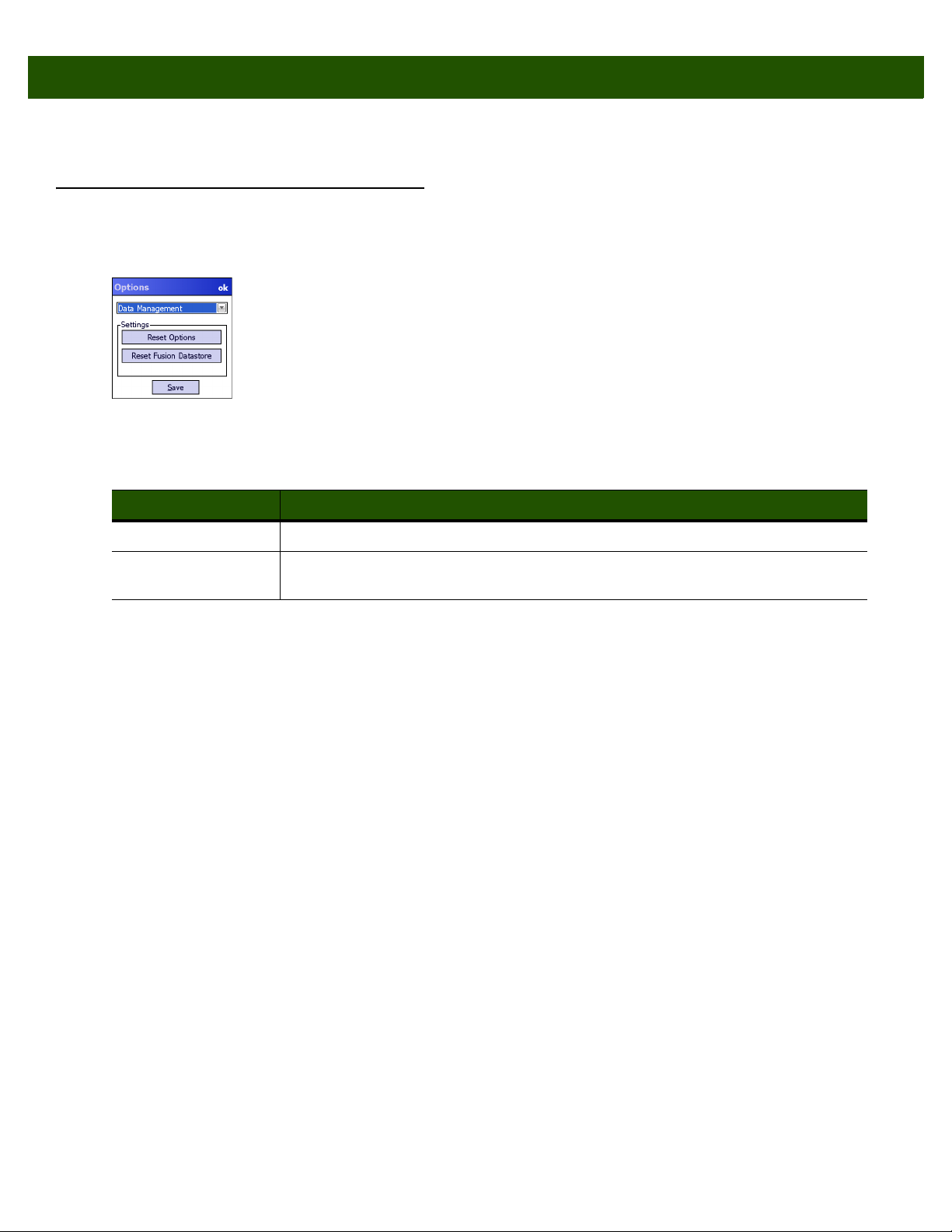

Figure 7-11

Table 7-9

Reset Options Restores default values for all Fusion option settings.

Reset Fusion Data Store

Options - Data Management Dialog Box

Data Management Options

Option Description

Restores default values for all configuration data, including profiles, certificates, and PACs. Fusion options are also set to default values.

Options 7 - 9

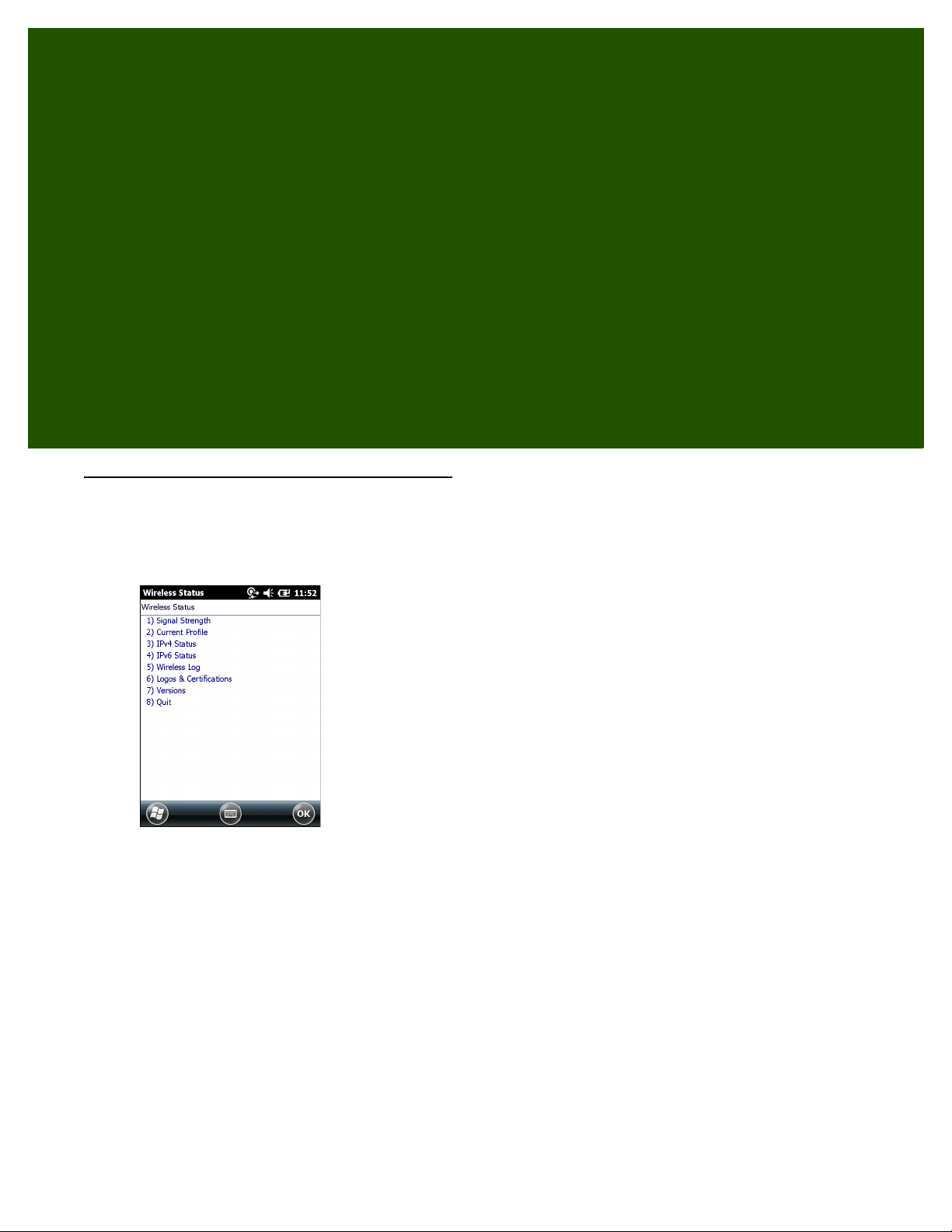

CHAPTER 8 WIRELESS STATUS

APPLICATION

Introduction

To open the Wireless Status window, tap the Signal Strength icon > Wireless Status. The Wireless Status window displays information about the wireless connection.

Figure 8-1

The Wireless Status window contains the following options. Tap the option to display the option window.

•

Wireless Status Window

Signal Strength - provides information about the connection status of the current wireless profile.

Current Profile - displays basic information about the current profile and connection settings.

IPv4 Status - displays the current IP address, subnet, and other IP related information assigned to the mobile computer.

IPv6 Status – displays IPv6 status and IPv6 related information assigned to the WLAN interface of the mobile computer.

Wireless Log - displays a log of important recent activity, such as authentication, association, and DHCP renewal completion, in time order.

Logos & Certification – Displays logos and certificates

Versions - displays software, firmware, and hardware version numbers.

8 - 2 Wireless Fusion Enterprise Mobility Suite User Guide

•

Quit - exits the Wireless Status window.

Each option window contains a back button to return to the main Wireless Status window.

Signal Strength Window

The Signal Strength window provides information about the connection status of the current wireless profile including signal quality, missed beacons, and other statistics described below. The BSSID address (shown as AP MAC Address) displays the AP currently associated with the connection. In Ad-hoc mode, the AP MAC Address shows the BSSID of the Ad-hoc network. Information in this window updates every 2 seconds.

To open the Signal Status window, tap Signal Strength in the Wireless Status window.

Figure 8-2

After viewing the Signal Strength window, tap the back button to return to the Wireless Status window.

Table 8-1

Signal Displays the Relative Signal Strength Indicator (RSSI) of the signal transmitted

Signal Strength Window

Signal Strength Status

Field Description

between the AP and mobile computer. As long as the Signal Quality icon is green, the AP association is not jeopardized. If the icon is red (poor signal), an association with a different AP could be warranted to improve the signal. The signal strength icon changes depending on the signal strength.

Excellent Signal

Very Good Signal

Good Signal

Fair Signal

Poor Signal

Out of Range (no signal)

The radio card is off or there is a problem communicating with the radio card.

Profile Name Displays the name of the current profile.

Status Indicates if the mobile computer is associated with the AP.

Wireless Status Application 8 - 3

Table 8-1

Signal Quality Displays a text format of the Signal icon.

Tx Retries Displays a percentage of the number of data packets the mobile computer

Signal Level The AP signal level in decibels per milliwatt (dBm).

Association Count Displays the number of times the mobile computer has roamed from one AP to

AP MAC Address Displays the MAC address of the AP to which the mobile computer is connected.

Transmit Rate Displays the current rate of the data transmission.

Signal Strength Status (Continued)

Field Description

retransmits. The fewer transmit retries, the more efficient the wireless network is.

another.

Current Profile Window

The Current Profile window displays basic information about the current profile and connection settings. This window updates every two seconds.

To open the Current Profile window, tap Current Profile in the Wireless Status window.

Figure 8-3

Table 8-2

Profile Name Displays the name of the profile that the mobile computer is currently using to

ESSID Displays the current profile’s ESSID.

Mode Displays the current profile’s mode, either Infrastructure or Ad-hoc. See Tab le

Security Mode Displays the current profile’s security mode. See Table 4-4 on page 4-4.

Authentication Displays the current profile’s authentication type. See Table 4-5 on page 4-5.

Current Profile Window

Field Description

communicate with the AP.

4-2 on page 4-2.

8 - 4 Wireless Fusion Enterprise Mobility Suite User Guide

Table 8-2

Encryption Displays the current profile’s encryption type. See Table 4-8 on page 4-16.

Channel Displays the channel currently being used to communicate with the AP.

Country Displays the country setting currently being used.

Current Profile Window (Continued)

Field Description

IPv4 Status Window

The IPv4 Status window displays the current IP address, subnet, and other IP related information assigned to the mobile computer. It also allows renewing the IP address if the profile is using DHCP to obtain the IP information. Tap Renew to initiate the IP address renewal process. Tap Export to export IPv4 status information to a text file. The IPv4 Status window updates automatically when the IP address changes.

To open the IPv4 Status window, tap IPv4 Status in the Wireless Status window.

Figure 8-4

Table 8-3

IP Type Displays the IP address assignment method used for the current profile: DHCP or Static.

IP Address Displays the mobile computer’s IP address. The Internet is a collection of networks with

IPv4 Status Window

IPv4 Status Fields

Field Description

If the IP Type is DHCP, the IP Address and other information shown is obtained from the DHCP server. In this case, the DHCP Server address and the Lease information will also be shown. If the IP Type is Static, the IP Address and other information shown are those that were entered in the profile.

users that communicate with each other. Each communication carries the address of the source and destination networks and the particular machine within the network associated with the user or host computer at each end. This address is called the IP address. Each node on the IP network must be assigned a unique IP address that is made up of a network identifier and a host identifier. The IP address is shown in dotted-decimal notation with the decimal value of each octet separated by a period, for example, 192.168.7.27.

Wireless Status Application 8 - 5

Table 8-3

Subnet Displays the mobile computer's subnet mask. Most TCP/IP networks use subnets to

Gateway Displays the IP addresses of the gateways. A gateway forwards IP packets to and from a

DCHP Server Displays the IP address of the DHCP server.

Lease Obtained Displays the date and time that the IP address was obtained.

Lease Expires Displays the date and time that the IP address expires.

DNS Displays the IP addresses of the DNS server.

WINS Displays the IP addresses of the WINS servers. WINS is a Microsoft Net BIOS name

MAC The IEEE 48-bit address is assigned to the network adapter at the factory to uniquely

IPv4 Status Fields (Continued)

Field Description

manage routed IP addresses. All IP addresses have a network part and a host part. The network part specifies a physical network. The host part specifies a host on that physical network. The subnet mask allows a network administrator to use some of the bits that are normally used to specify the host to instead specify physical sub-networks within an organization. This helps organize and simplify routing between physical networks.

remote destination.

service. A WINS server provides a cache or database of NetBIOS name translations, eliminating the need to broadcast NetBIOS requests to resolve these names to IP addresses.

identify the adapter at the physical layer.

Host Name Displays the name of the mobile computer.

IPv6 Status Window

The IPv6 Status window displays IPv6 status, current IPv6 addresses and other IPv6 related information assigned to the WLAN interface. It also allows resetting the IPv6 address. The IPv6 Status window updates automatically when the IPv6 address changes.

Ta p Reset to initiate IPv6 reset. Reset forces the TCP/IPv6 stack to re-bind to the WLAN interface. During re-bind, IPv6 stack discards its current IPv6 configuration and starts a fresh address auto configuration.

Ta p Export to export IPv6 status information to a text file.

To open the IPv6 Status window, tap IPv6 Status in the Wireless Status window.

8 - 6 Wireless Fusion Enterprise Mobility Suite User Guide

Figure 8-5

Table 8-4

Status Indicates whether IPv6 is enabled or disabled for the WLAN interface. You can enable or

IPv6 Addresses Displays the mobile computer’s IPv6 addresses assigned to WLAN interface. Displays all

Temporary IPv6 Address

Gateway Displays the IPv6 address of the gateway. A gateway forwards IP packets to and from a

DNS Displays the IPv6 address of the DNS server.

MAC The IEEE 48-bit address is assigned to the network adapter at the factory to uniquely

Host Name Displays the name of the mobile computer.

IPv6 Status Window

IPv6 Status Fields

Field Description

disable IPv6 from Options > Enable IPv6, see IPv6 on page 7-6.

IPv6 addresses except Temporary IPv6 address. For each IPv6 address, it shows the scope (link local/site local/global/unknown) and remaining valid lifetime of the address.

Displays the mobile computer's Temporary IPv6 address assigned to WLAN interface. It displays the scope and remaining valid lifetime of the address. Temporary IPv6 addresses are based on random interface identifiers and are generated for public address prefixes that use stateless address auto configuration.

remote destination.

identify the adapter at the physical layer.

Double tap on a device IPv6 Addresses or Temporary IPv6 address to get more detailed information.

Wireless Status Application 8 - 7

Figure 8-6

Table 8-5

IPv6 Address Displays the IPv6 address for which details are displayed.

Prefix origin Displays the prefix origin for the IPv6 address. Possible values are Router Advertisement,

Suffix origin Displays the suffix origin for the IPv6 address. Possible values are Link layer address,

DAD state Displays the Duplicate Address Detection state for the IPv6 address. Possible values are

Preferred Lifetime (Remaining)

IPv6 Address Details Example

IPv6 Address Details Fields

Field Description

Well-known, Manual, DHCPv6 or Unknown source.

Random, Well-known, Manual, DHCPv6 or Unknown source.

Preferred, Tentative, Deprecated, Duplicate or Invalid.

Displays the amount of time this address will remain in the Preferred state.

Wireless Log Window

The Wireless Log window displays a log of recent activity, such as authentication, association, and DHCP renewal completion, in time order. Save the log to a file or clear the log. The auto-scroll feature automatically scrolls down when new items are added to the log.

To open the Wireless Log window, tap Wireless Log in the Wireless Status window. The Wireless Log window displays.

Figure 8-7

Wireless Log Window

Saving a Log

To save a Wireless Log:

8 - 8 Wireless Fusion Enterprise Mobility Suite User Guide

1. Tap the Save button. The Save As dialog box displays.

2. Navigate to the desired folder.

3. In the Name field, enter a file name and then tap OK. The Wireless Log is saved as a text file in the

selected folder.

Clearing the Log

To clear the log, tap Clear.

Logos & Certifications Window

The Logos & Certifications window displays a list of logos and compliance standards supported by this device, such as Wi-Fi Interoperability and Cisco Compatible Extensions. Select an item in the list to view the corresponding certificate. For a list of supported standards, see Table 8-6 on page 8-8.

NOTE If the certificate images corresponding to this device have been removed this menu entry may be hidden.

Additionally, the certificate images may be removed to conserve storage space on the device.

To open the Logos & Certifications window, tap Logos & Certifications in the Wireless Status window.

Figure 8-8

•

Table 8-6

Certification Description

Wi-Fi Association

Windows Mobile Logo

Logos & Certifications Window

When viewing the certificate, controls to adjust the zoom and scroll are available.

For certain certificates a link is available to view the certificate in a browser, if an internet connection is available.

Supported standards are as follows:

Logos & Certifications

This certificate indicates the device has passed Wi-Fi Alliance interoperability tests.

This certificate indicates the device has passed the Windows Mobile Logo test.

Wireless Status Application 8 - 9

ZIHCorp2015

Versions Window

The Versions window displays software, firmware, and hardware version numbers.

To open the Versions window, tap Versions in the Wireless Status window.

Figure 8-9

•

Table 8-7

Applications Version information for Wireless Fusion Enterprise Mobility Suite applications.

Middleware Version information for Wireless Fusion Enterprise Mobility Suite middleware

WLAN Adapters Version and type information for WLAN adapters and the corresponding firmware and

Interface Version and type information for the device’s interface to the WLAN adapter and the

Device Device model and identification numbers.

OS Operating System version information.

Versions Window

The window displays Fusion software version numbers as well as application and middleware version information.

Ta p Export to export version information to a text file.

Ta p Export FusionPublicApi.h to export the current version of the FusionPublicAPI.h header file to the specified location.

Version Sub-categories

Field Description

components.

drivers.

corresponding firmware.

8 - 10 Wireless Fusion Enterprise Mobility Suite User Guide

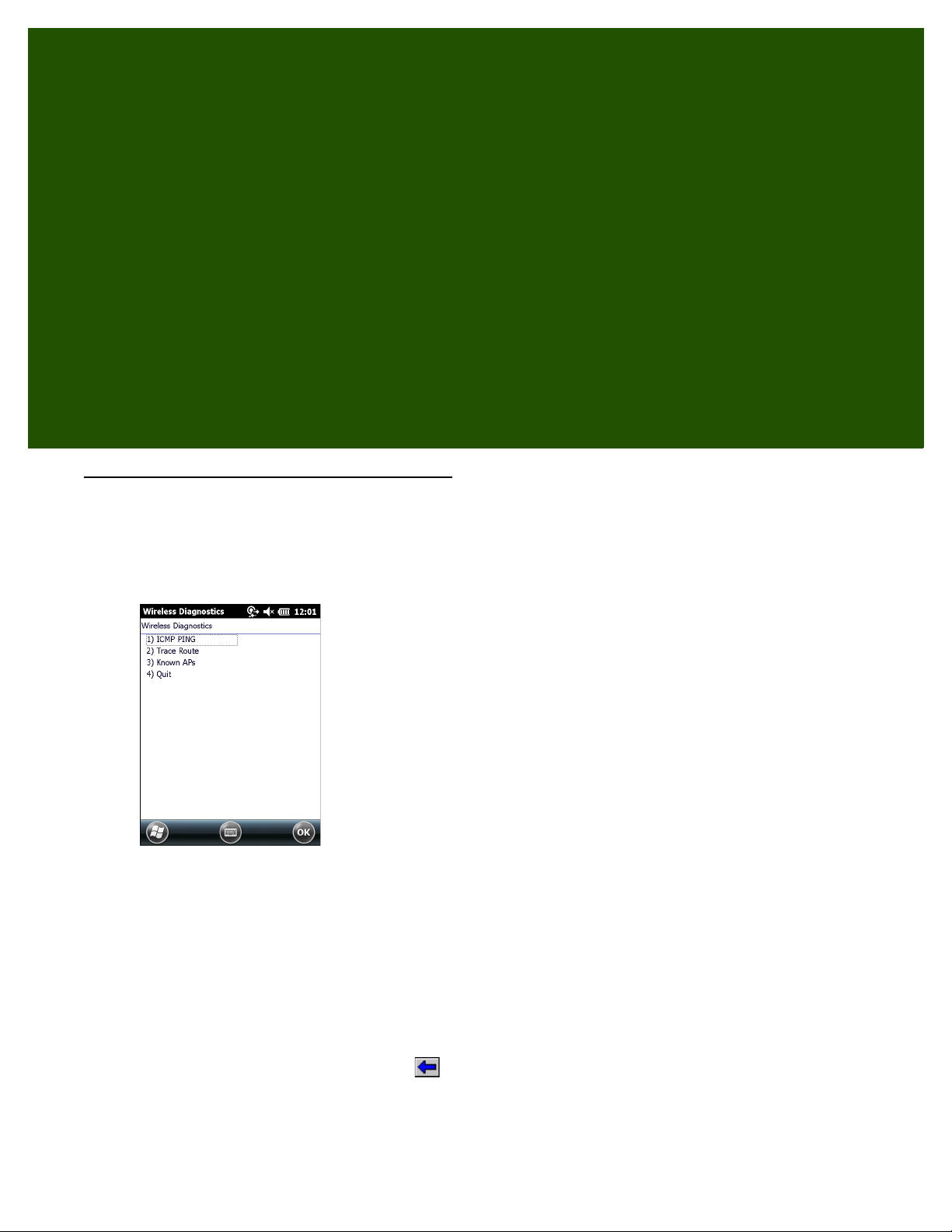

CHAPTER 9 WIRELESS DIAGNOSTICS

APPLICATION

Introduction

The Wireless Diagnostics application window provides links to perform ICMP Ping, Trace Routing, and Known APs functions. To open the Wireless Diagnostics window, tap the Signal Strength icon > Wireless Diagnostics.

Figure 9-1

The Wireless Diagnostics window contains the following options. Tap the option to display the option window.

•

Option windows contain a back button to return to the Wireless Diagnostics window.

Wireless Diagnostics Window

ICMP Ping - tests the wireless network connection.

Trace Route - tests a connection at the network layer between the mobile computer and any place on the network.

Known APs - displays the APs in range using the same ESSID as the mobile computer.

Quit - Exits the Wireless Diagnostics window.

9 - 2 Wireless Fusion Enterprise Mobility Suite User Guide

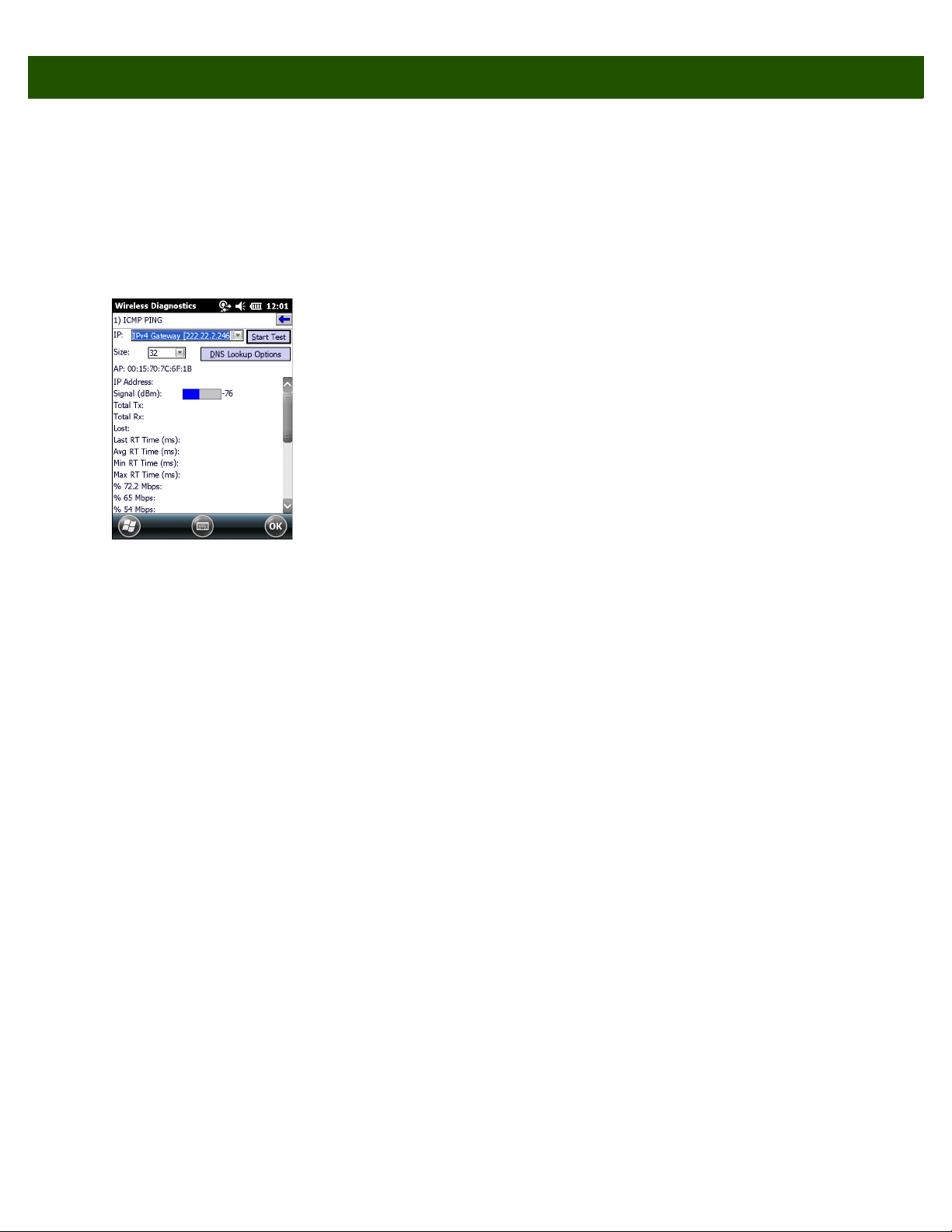

ICMP Ping Window

The ICMP Ping window allows testing of a connection at the network layer (part of the IP protocol) between the mobile computer and any other device on the network. Ping tests only stop when the Stop Test button is selected, the Wireless Diagnostics application is closed, or if the mobile computer switches between infrastructure and ad-hoc modes.

To open the ICMP Ping window, tap ICMP Ping in the Wireless Diagnostics window.

Figure 9-2

To perform an ICMP Ping:

1. In the IP field, enter an IP address or select an IP address from the drop-down list.

2. From the Size drop-down list, select a size value.

3. Ta p Start Test. The ICMP Ping test starts. Information of the ping test displays in the appropriate fields.

The following statistics appear on the page:

•

Use the DNS Lookup Options button to select the name resolution priority. Select the option and tap OK button. If a name is entered in the IP field, DNS Lookup Options setting will decide whether to use IPv4 or IPv6 address for the test. By default, this is set to IPv4 then IPv6, which indicates that it will try to resolve the name to an IPv4 address; if this fails and if IPv6 is enabled, it will try to resolve the name to an IPv6 address.

ICMP Ping Window

IPv4 Address or IPv6 Address – Target IP address.

Signal - The current signal strength, measured in dBm, is provided both as a numerical value and as a histogram.

Total Tx - The total number of pings sent is displayed numerically.

Total Rx - The total number of valid ping responses received is displayed numerically.

Lost - The total number of pings that were lost is displayed numerically.

RT Times - Four round trip times: Last, Average, Minimum, and Maximum are displayed in milliseconds.

% Rates - For each of the 14 data rates, the number of times that rate was used to transmit the ping is displayed as a percentage.

Wireless Diagnostics Application 9 - 3

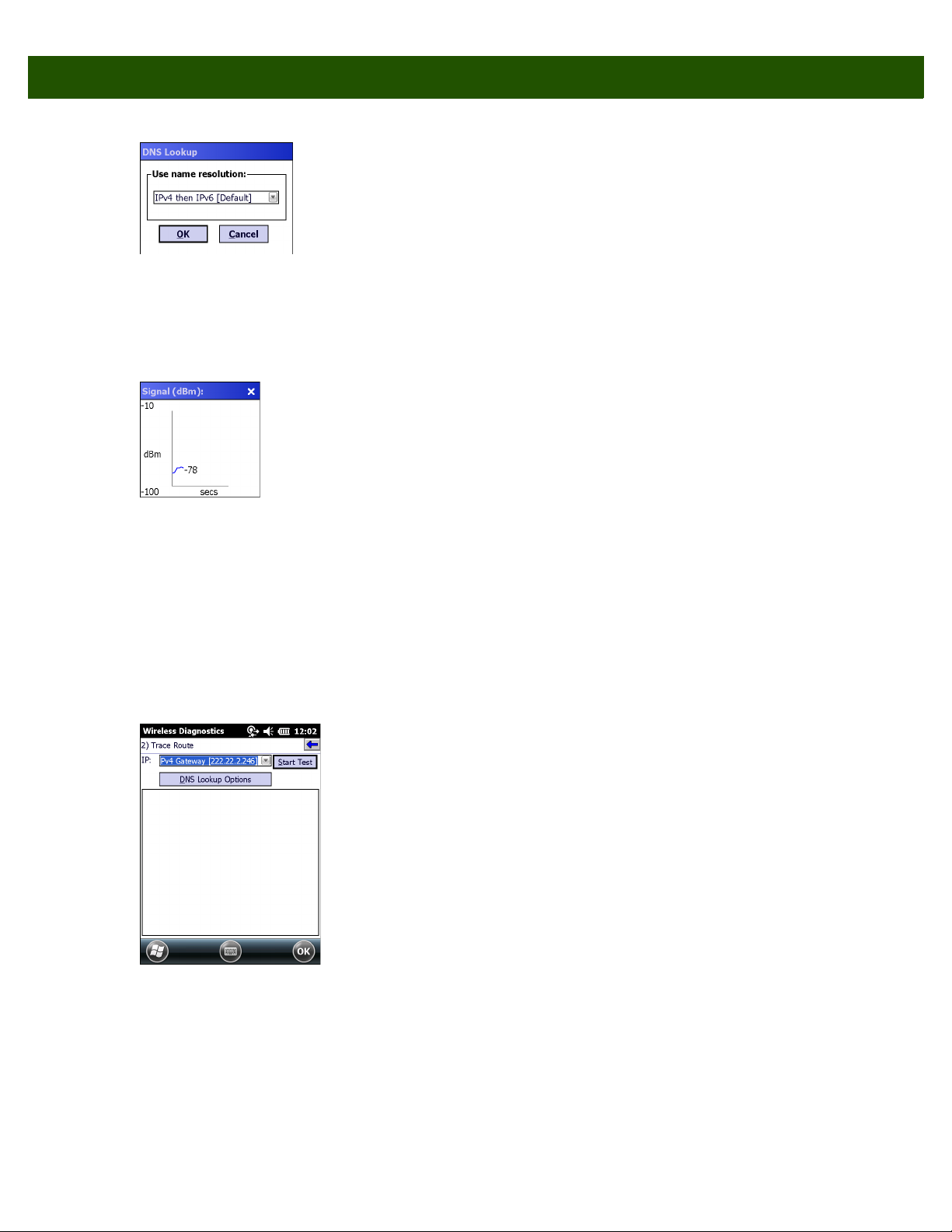

Figure 9-3

DNS Lookup Options Window

Graphs

A real time graph of any of the above statistics can be displayed by double tapping on that statistic.

Figure 9-4

Graph Example

Trace Route Window

Trace Route traces a packet from a computer to a host, showing how many hops the packet requires to reach the host and how long each hop takes. The Trace Route utility identifies where the longest delays occur.

The Trace Route window allows testing a connection at the network layer (part of the IP protocol) between the mobile computer and any other device on the network.

To open the Trace Route window, tap Trace Route in the Wireless Diagnostics window.

Figure 9-5

In the IP drop-down list, enter an IP address or choose one from the drop-down list, or enter a DNS Name and tap Start Test. When starting a test, the trace route attempts to find all routers between the mobile computer and the destination. The Round Trip Time (RTT) between the mobile computer and each router appears, along with the total test time. The total test time may be longer than all RTTs added together because it does not only include time on the network.

Trace Route Window

9 - 4 Wireless Fusion Enterprise Mobility Suite User Guide

address for the test. By default, this is set to IPv4 then IPv6, which indicates that it will try to resolve the name to an IPv4 address; if this fails and if IPv6 is enabled, it will try to resolve the name to an IPv6 address.

Figure 9-6

DNS Lookup Options Window

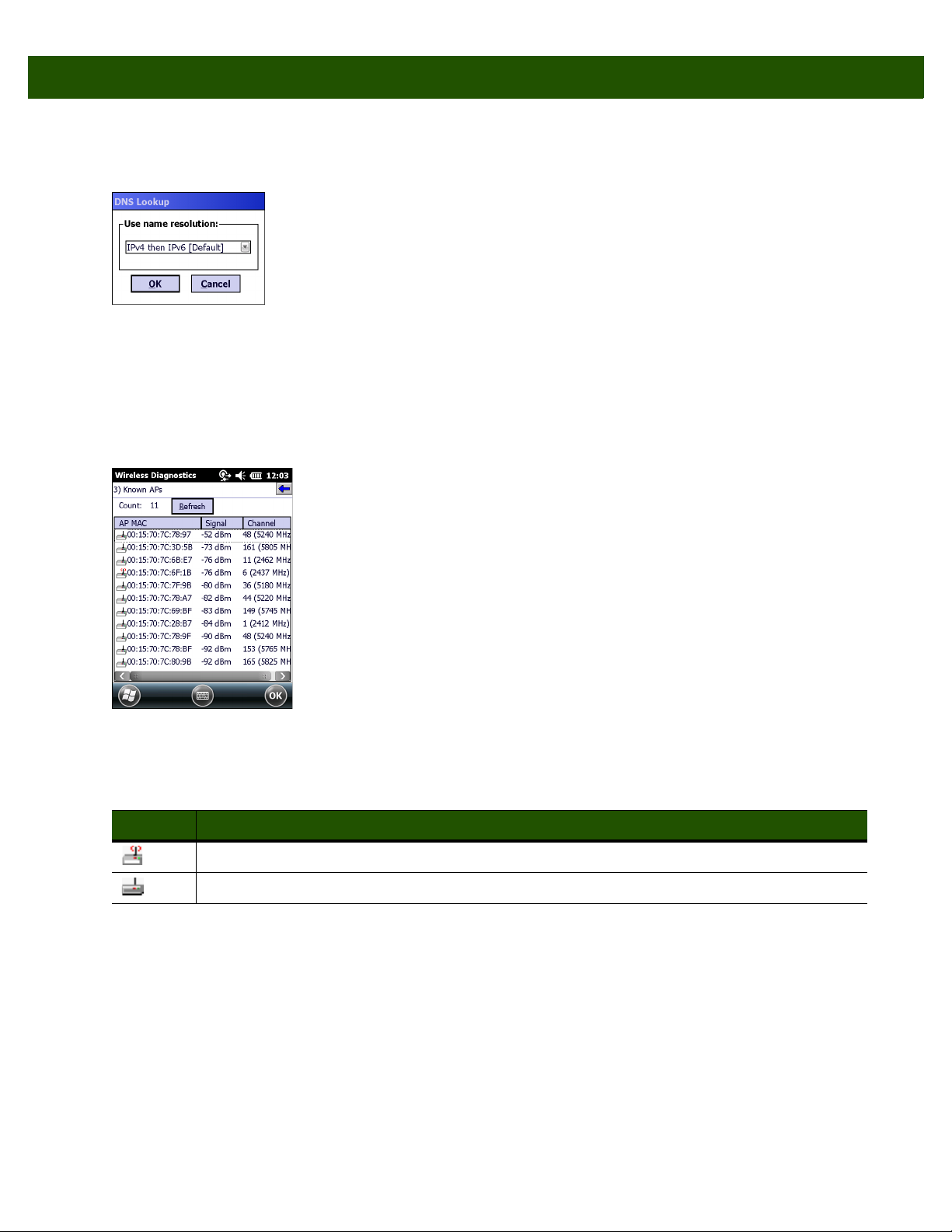

Known APs Window

The Known APs window displays the APs in range using the same ESSID as the mobile computer. This window is only available in Infrastructure mode. To open the Known APs window, tap Known APs in the Wireless Diagnostics window.

Figure 9-7

See Table 9-1 for the definitions of the icons next to the AP.

Known APs Window

Table 9-1

Current Profile Window

Icon Description

The AP is the associated access point.

The mobile computer is not associated to this AP.

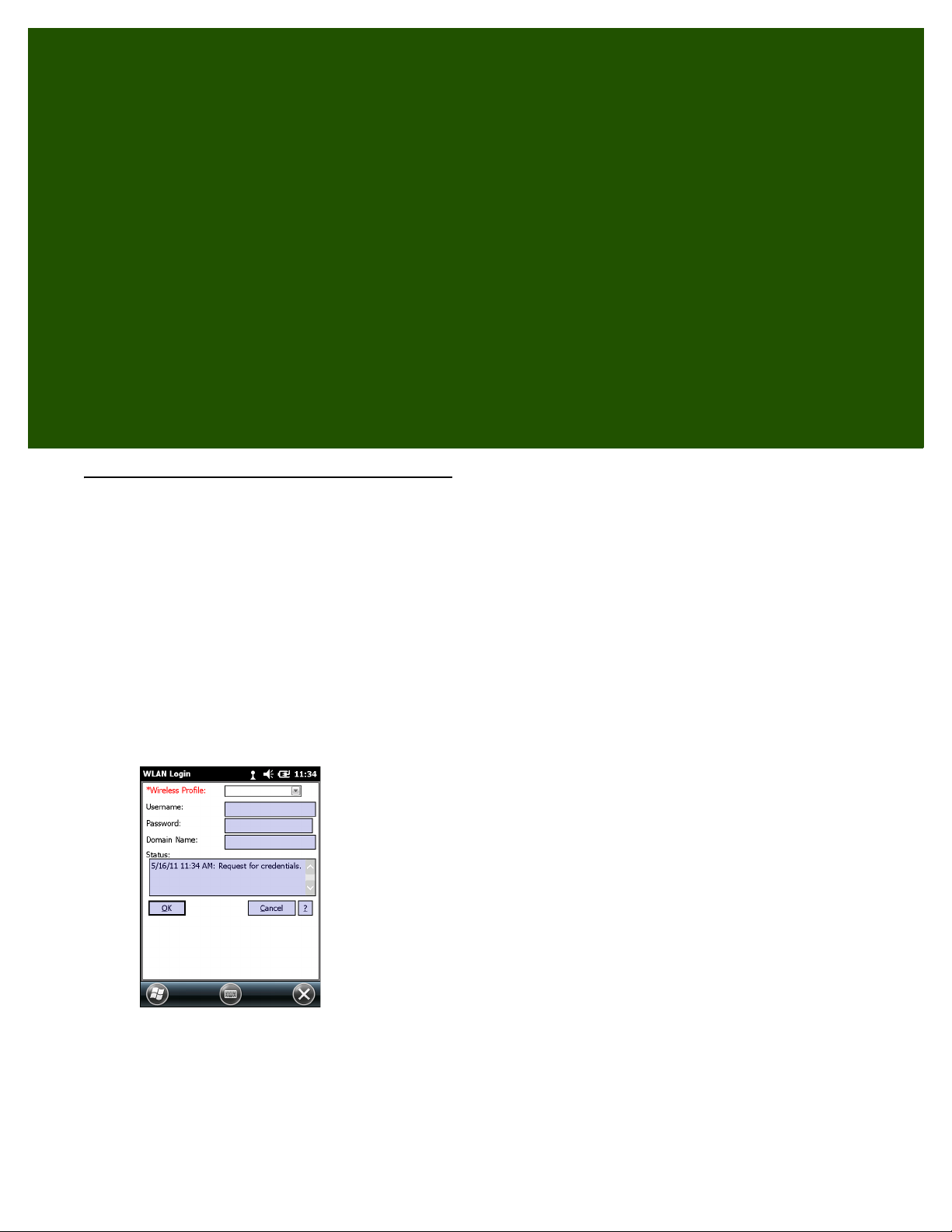

CHAPTER 10 LOG ON/OFF APPLICATION

Introduction

There are two ways a user can connect to a profile when the profile requires credentials: either by using the Manage Profiles window, or by using the Network Login application. In the first case, Fusion automatically launches the Network Login window to allow the user to enter credentials when they are needed. In the second case, the user explicitly launches the Network Login window and supplies the credentials ahead of time and then tells the system to use them to connect. In either case, once the user has given the credentials, the user is said to have logged on (or in) to the profile. When the user has logged on to a profile, the system saves those credentials and the profile is said to have cached credentials.

When the user launches the Network Login application, the mobile computer may be in one of two states; the user may be logged onto one or more profiles, by having already entered credentials through the login window, or the user is not logged on to any profile. Each of these states has a separate set of use cases and a different look to the dialog box.

Figure 10-1

Network Login In Window

10 - 2 Wireless Fusion Enterprise Mobility Suite User Guide

Logging On

If not already logged on to any profile, the user can launch the Network Login window in order to select a profile to log on to.

If already logged into one or more profiles, the user can launch the Network Login window to perform any of these functions:

•

Connect to a different profile.

•

Connect to and re-enable a cancelled profile. To do this:

• Launch the Network Login window.

• Select the cancelled profile from the Wireless Profile drop-down list.

• Login to the profile.

NOTE A cancelled profile can also be re-enabled by using the Manage Profile window to connect to the

cancelled profile.

•

Log off from all profiles simultaneously to prevent another user from accessing the current users network privileges.

•

Switch mobile computer users.This is equivalent to performing a log off followed by a log on.

The appearance of the Network Login dialog box varies if it is:

•

Launched by Fusion, because the service is connecting to a new profile that needs credentials.

•

Launched by Fusion, because the service is trying to verify the credentials due to credential caching rules.

•

Launched by a user, when a user is logged in.

•

Launched by a user, when no user is logged in

Table 10-1

Wireless Profile When launching the login application, the Wireless Profile field lists all the

Profile Status icon The profile status icon (next to the profile name) shows one of the following

Network Login Options

Field Description

wireless profiles that require credentials. This includes profiles that use EAP TLS, PEAP, LEAP, EAP-TTLS or EAP-FAST.

states:

The profile is the current profile (always the case for Fusion Launched).

The selected profile is enabled but is not the current profile.

The selected profile is cancelled.

Username Used to obtain secure access on the selected Wireless profile. The Username

and Domain Name fields combined are limited to 63 characters. If the field label is red, then entry is mandatory; if black, then the entry is optional.

Log On/Off Application 10 - 3

Table 10-1

Password Along with the username, required to gain access to the network with the

Domain Name Use to specify the network domain of the security server used for authentication.

Mask Password checkbox The Mask Password checkbox determines whether the password field is

Status Field The status field indicates the reason the dialog is open.

Ta p OK to send the credentials to Fusion. If one or more of the required fields is left blank, a dialog box displays requesting the user to fill in all required fields.

Network Login Options (Continued)

Field Description

selected Wireless profile. The Password field is limited to 63 characters. If the field label is red, then entry is mandatory; if black, then the entry is optional.

If the field label is red, then entry is mandatory; if black, then the entry is optional.

masked (i.e., displays only the '*' character) or unmasked (i.e., displays the entered text). Check the box to unmask the password. Uncheck the box to mask the password (the default).

Logging Off

The user can log off from all profiles simultaneously by launching the Network Login window and tapping the Log Off button. The Log Off button only displays when a user has cached credentials for one or more profiles. When the Log Off button is selected, the user is prompted with three options: Log Off, Switch Users, and Cancel. Switching users logs off the current user and re-initialize the Network Login window to be displayed for when there is no user logged on. Logging off logs off the current user from all profiles and closes the login dialog box. Tapping Cancel closes the Log Off dialog box and returns to the Login dialog box.

When the user is logged off, the mobile computer only roams to profiles that do not require credentials or to profiles that were created with the credentials entered into the profile.

Tap the Cancel button to close the Network Login window without logging into the network. If the Network Login window was launched by Fusion and not by the user, tapping Cancel first causes a message box to display a warning that the cancel will disable the current profile. If the user still chooses to cancel the login at this point, the profile is cancelled.

Once a profile is cancelled, the profile is suppressed until a user actively re-connects to it.

NOTE Entering credentials applies the credentials to a particular profile. Logging out clears all cached

credentials. Editing a profile clears any cached credentials for that profile.

10 - 4 Wireless Fusion Enterprise Mobility Suite User Guide

CHAPTER 11 CONFIGURATION

PERSISTENCE

Introduction

When configuring the Fusion settings (i.e., profiles, options, user and root certificates, and PACs), they are saved in a Fusion database. This allows the Fusion settings to persist across a warm boot and a clean/cold boot.

This chapter discusses how to:

•

export and import configuration data

•

return the Fusion settings to their factory default values.

Exporting Fusion Configuration

The following configuration data can be exported to a file:

•

Profiles

•

Options

•

PACs

•

Certificates.

Use Options > Import/Export to export configuration database to a file and import previously exported data back into the database.

Figure 11-1

To export configuration data:

Options - Import/Export Dialog Box

11 - 2 Wireless Fusion Enterprise Mobility Suite User Guide

1. In the Options menu, select Import/Export.

2. Select Export. The Export File Wizard appears.

3. In the Select data to export section, select the data to export.

4. Check the Add user password to exported file check box to assign a password to the file.

5. Enter a password in the text box.

6. Select Overwrite conflicting records check box to overwrite any conflicts on import. The overwrite flag is

stored in the exported file and used during import.

7. Select Delete file on successful import check box to automatically delete the file after import. The delete

file flag is stored in the exported file and used during import.

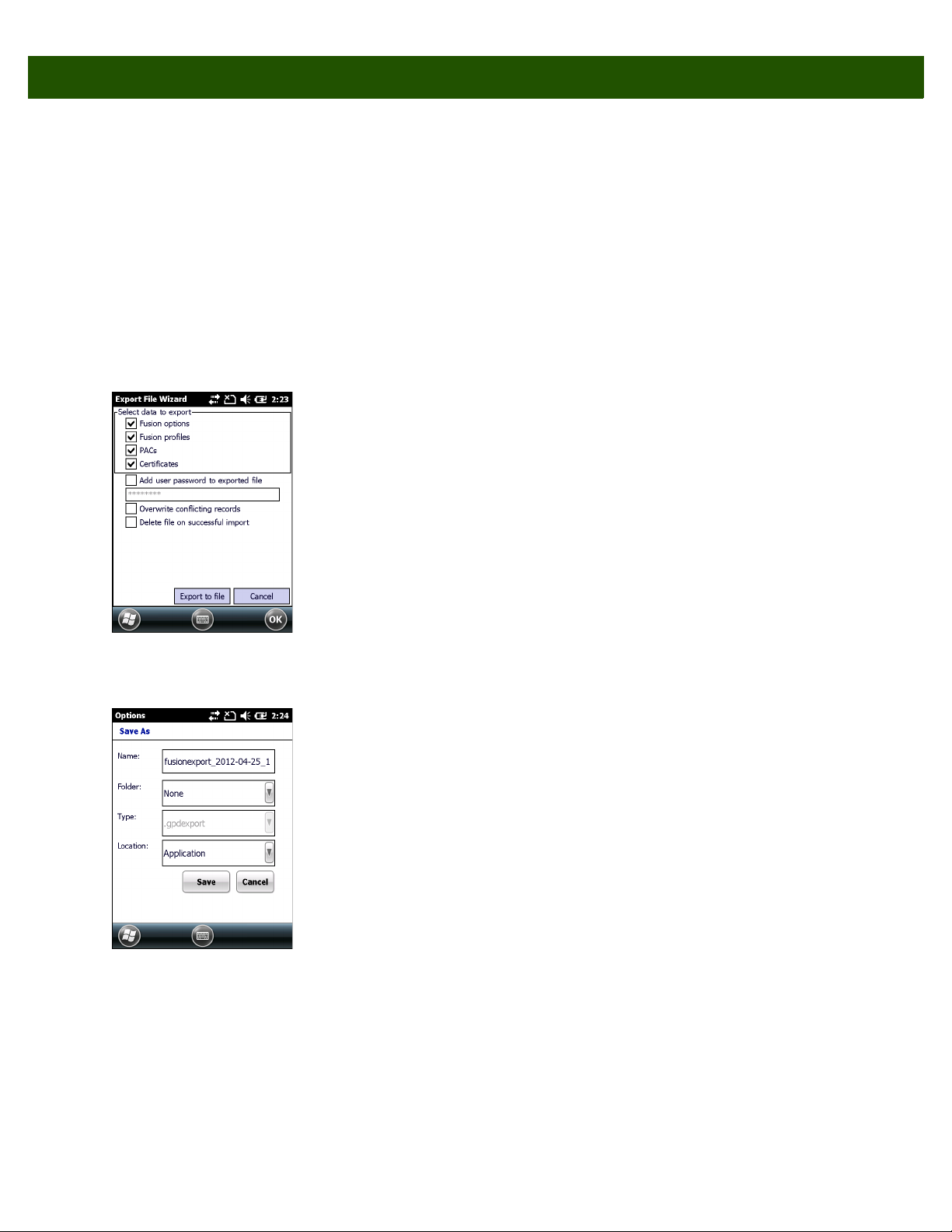

Figure 11-2

8. Select Export to file to export the data to a file. The Save As window appears.

Figure 11-3

9. In the Name text box a file name is automatically populated. Change the filename if desired.

10. Use the Folder drop-down list to select a specific folder to save the file into.

11. Use the Location drop-down list to select the area of memory to save the file into.

12. Select Save.

Export Options

Save As Window

13. Select ok.

Importing Fusion Configuration

To import configuration data:

1. In the Options menu, select Import/Export.

2. Select Import. The Open window appears.

Configuration Persistence 11 - 3

Figure 11-4

3. Use the Folders drop-down list to locate the file to import.

4. Select a file in the list. If the file is protected, the Enter Password window appears.

Figure 11-5

5. Enter the password and then tap OK.

Import Options

Enter Password Window

11 - 4 Wireless Fusion Enterprise Mobility Suite User Guide

Figure 11-6

6. In the Import File Wizard window, select the data to import.

7. Select Overwrite conflicting records check box to overwrite any conflicts on import. This will apply

entries contained in the import file over existing entries on the device for any conflicting entries. Note: Any changes made to Fusion Options will cause it to be considered a conflicting entry between the device's existing configuration and import file's configuration unless the Fusion Options are reset.

8. Select Delete file on successful import check box to automatically delete the file after import. Note: If the

Delete file on successful import box is checked in the export wizard when generating the file, this

checkbox is then “locked” to the checked state in the import wizard.

9. Select Import.

10. Select ok.

Import File Wizard Window

Auto Import of Configuration

Exported Fusion configuration files with the .gpdexport extension can be placed in the \Application folder. These files are automatically imported on a cold or clean boot.

For backward compatibility, Fusion configuration stored in legacy registry files are also automatically imported on a cold or clean boot.

CAUTION GPD sub-folder in the \Application folder is a Fusion private area for cold boot persistence. Data in this

folder must not be modified by the user.

Returning to Factory Default Settings

To return the Fusion settings to their factory default values, use Fusion Options > Data Management.

Configuration Persistence 11 - 5

Figure 11-7

Ta p Reset Options button to reset the Fusion options to factory default values.

Ta p Reset Fusion Data Store to reset all configuration data including options, profiles, PACs and certificates to the factory default values.

Options - Data Management Dialog Box

11 - 6 Wireless Fusion Enterprise Mobility Suite User Guide

CHAPTER 12 CONFIGURATION EXAMPLES

Introduction

This chapter provides example procedures for configuring specific authentication and encryption types.

EAP–FAST/MS Chap v2 Authentication

To configure EAP-FAST and MS Chap v2 authentication:

1. Ta p Start > Wireless Companion > Wireless Launch.

Figure 12-1

2. Select Options. The Options window appears.

3. In the drop-down list, select Auto PAC Settings. The Auto PAC Settings window appears.

Wireless Launcher Menu

12 - 2 Wireless Fusion Enterprise Mobility Suite User Guide

Figure 12-2

4. In the Allow Provisioning drop-down list, select Yes.

5. In the Allow Refreshing drop-down list, select Yes.

6. Ta p Save.

7. Ta p ok.

8. Ta p Start > Wireless Companion > Wireless Launch.

9. Select Manage Profiles. The Manage Profiles window appears.

10. Tap and hold in the window and select Add from the pop-up menu. The Profile Editor window appears.

11. In the Profile Name text box enter a name for the profile.

12. In the ESSID text box enter the ESSID.

Auto PAC Settings Window

Figure 12-3

13. Ta p Next. The Operating Mode dialog box displays.

14. In the Operating Mode drop-down list, select Infrastructure.

Figure 12-4

15. Ta p Next. The Security Mode dialog box displays.

16. In the Security Mode drop-down list, select WPA2-Enterprise.

Profile ID Dialog Box

Operating Mode Dialog Box

Configuration Examples 12 - 3

Figure 12-5

17. In the Authentication drop-down list, select EAP-FAST.

18. Ta p Next. The Tunneled Authentication Type dialog box displays.

19. In the Tunneled Authentication Type drop-down list, select MS CHAP v2.

Figure 12-6

20. Select the Provide User Certificate check box if a certificate is required.

21. Ta p Next. The Installed User Certificates dialog box appears.

Authentication Dialog Box

Tunneled Authentication Dialog Box

Figure 12-7

22. Select a certificate from the drop-down list of currently installed certificates before proceeding. The

Installed User Certificates Dialog Box

selected certificate’s name appears in the drop-down list.

If the required certificate is not in the list, tap Install Certificate. See User Certificate Installation on page

4-7 for information on installing User Certificates.

23. Ta p Next. The Install Server Certificate dialog box appears.

12 - 4 Wireless Fusion Enterprise Mobility Suite User Guide

Figure 12-8

24. Select a certificate from the drop-down list of currently installed certificates. The selected certificate’s name

Installed Server Certificates Dialog Box

appears in the drop-down list.

If the required certificate is not in the list, tap Install Certificate. See Server Certificate Installation on page

4-10 for information on installing Server Certificates.

25. Ta p Next. The User Name dialog box appears.

Figure 12-9

User Name Dialog Box

The user name and password can be entered (but is not required) when the profile is created. If the username and password are not entered in the profile, then when attempting to connect, the user is be prompted to supply them. The entered information (credentials) will be saved (cached) for future reconnections.

26. Ta p Next. The Password dialog box appears.

Figure 12-10

27. In the Enter Password text box, enter a password. Note that if a username was entered and no password

Password Dialog Box

is entered, Fusion assumes that no password is a valid password.

28. Select the Advanced ID check box, if advanced identification is desired.

29. Ta p Next.

If the Advanced ID is not selected, the Prompt for Login dialog box appears. Go to step 31.

The Advanced ID dialog box appears.

Configuration Examples 12 - 5

30. Use the Advanced ID dialog box to enter the 802.1X identity to supply to the authenticator. This value can
