AG-3621
Reference Manual for the
ZComax Enterprise-Class
802.11a/b/g
Wireless Access Point
== CONFIDENTIAL (All right reserved by Zcomax uk ltd) ==
19 Colindale avenue, London NW9 5DS
HTTP://www.zcomax.co.uk
Tel: +4420 8982 8200
1
Table of Content
CHAPTER 1. INTRODUCTION........................................................................................................... 5
OVERVIEW .................................................................................................................................................. 5
KEY FEATURES:.......................................................................................................................................... 6
SYSTEM REQUIREMENTS ........................................................................................................................... 7
HARDWARE DESCRIPTION........................................................................................................................... 8
The LEDs.............................................................................................................................................. 8
CHAPTER 2. BASIC INSTALLATION AND SECURITIES............................................................. 9
OPERATING DISTANCE TIPS:........................................................................................................................ 9
DEFAULT FACTORY SETTINGS .................................................................................................................. 10
GETTING TO KNOW AG-3621 WIRELESS SECURITY OPTIONS....................................................................11
Security Precautions..........................................................................................................................11
SECURITY OPTIONS....................................................................................................................................11
INSTALLING AG-3621 ACCESS POINT....................................................................................................... 13
DEPLOY THE AG-3621 ACCESS POINT...................................................................................................... 16
CHAPTER 3. GENERAL INFORMATION....................................................................................... 17
INFORMATION ........................................................................................................................................... 17
CONNECTION............................................................................................................................................ 19
STATISTICS ................................................................................................................................................ 19
CHAPTER 4. COPIOUS FUNCTIONALITIES................................................................................ 21
TIME SERVER............................................................................................................................................ 21
BRIDGE/ROUTER MODE............................................................................................................................ 22
ANY IP...................................................................................................................................................... 23
UNDERSTANDING RADIUS SETTINGS ...................................................................................................... 24
FIREWALL MANAGEMENT......................................................................................................................... 27
VIRTUAL SERVER...................................................................................................................................... 29
CHAPTER 5. WIRELESS SETUP...................................................................................................... 31
OPERATING MODE:................................................................................................................................... 32
VAP / VLAN SETTINGS ............................................................................................................................ 34
Overview............................................................................................................................................. 34
UNDERSTANDING WEP/WPA SECURITY OPTIONS. ................................................................................... 36
ACCESS CONTROL..................................................................................................................................... 38
WDS MODE.............................................................................................................................................. 38
SMART WDS:............................................................................................................................................ 39
ADVANCED SETTINGS ............................................................................................................................... 40
Wi-Fi Multi-media (WMM)................................................................................................................. 40
Super G and wireless parameters.................................................................................................. 41
CHAPTER 6. MANAGING AND TESTING YOUR AG-3621.......................................................... 43
SITE SURVEY............................................................................................................................................. 43
LINK TEST................................................................................................................................................. 44
CHAPTER 7. MANAGEMENT........................................................................................................... 45
CHANGE PASSWORD ................................................................................................................................. 45
REMOTE MANAGEMENT............................................................................................................................ 46
UPGRADE FIRMWARE ................................................................................................................................52
BACKUP / RESTORE SETTINGS................................................................................................................... 53
EVENT LOG............................................................................................................................................... 54
== CONFIDENTIAL (All right reserved by Zcomax uk ltd) ==
19 Colindale avenue, London NW9 5DS
HTTP://www.zcomax.co.uk
Tel: +4420 8982 8200
2
REBOOT AP............................................................................................................................................. 55
CHAPTER 8. TROUBLESHOOTING................................................................................................ 56
CHAPTER 9. WARRANTY INFOR M ATION................................................................................... 58
CHAPTER 10. REGULATORY INFORMATION .......................................................................... 60
FCC STATEMENT...................................................................................................................................... 60
CHAPTER 11. CONTACT INFORMATION................................................................................... 61
== CONFIDENTIAL (All right reserved by Zcomax uk ltd) ==
19 Colindale avenue, London NW9 5DS
HTTP://www.zcomax.co.uk
Tel: +4420 8982 8200
3
Copyright
This user’s manual and the software described in it are copyrighted with all rights reserved.
No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval
system, or translated into any language in any form by any means without the written
permission of Zcomax (UK) Limited Corporation.
Preface
About This Manual
This manual explains Zcomax (UK) Limited enterprise-class AG-3621 access point.
Document Conventions
AP refers to an access point.
STA refers to a station
ETH refers to a PC
The following special notations are used:
Note
This indicates an important Note.
Bold: Indicates the function, important words, and so on.
== CONFIDENTIAL (All right reserved by Zcomax uk ltd) ==
19 Colindale avenue, London NW9 5DS
HTTP://www.zcomax.co.uk
Tel: +4420 8982 8200
4
Chapter 1. Introduction
Thank you for choosing the Zcomax (UK) Limited’s AG-3621 Access Point (hereafter called
access point). This Access Point provides a secure, affordable, and easy-to-use wireless LAN
solution that combines mobility and flexibility with the enterprise-class features required by
networking professionals.
This chapter gives an overview of the enterprises-class AG-3621 access point, as well as its
key features. In addition, we detail about the hardware description, system requirement and
basic installation.
Overview
802.11a/b/g-compliant, this access point distinguishes herself by one built-in mini-PCI card,
providing wired and wireless two ports in a bigger infrastructure. Typically, VAP functionality
allows a single network AP to behave as “8” number of virtual network APs. This does away
with the limitation by the sheer number of Ethernet connections that need APs acting as a
proxy. WMM prioritizes traffic demands from different applications and extends Wi-Fi’s high
quality end-user experience from data connectivity to voice, music, and video applications
under a wide variety of environment.
This Access points serves as the connection point between wireless and wired networks or as
the center point of a stand-alone wireless network. In large installations, wireless users within
radio range of an access point can roam throughout a facility while maintaining seamless,
uninterrupted access to the network.
You can configure and monitor the access point using the command-line interface (CLI), the
browser-based management system, or Simple Network Management Protocol (SNMP).
This Access Point currently can support data rate up to 108Mbps. Users are encouraged to
update their latest firmware through http://www.zcom.com.tw
Networks are useful tools for sharing computer resources. You can access one printer from
different computers and access data located on another computer's hard drive. Networks are
even used for playing multiplayer video games. So, networks are not only useful in homes
and offices, they can also be fun. Use the instructions in this Guide to help you connect the
Access Point, set it up, and configure it to bridge your different networks. These instructions
should be all you need to get the most out of the Access point.
== CONFIDENTIAL (All right reserved by Zcomax uk ltd) ==
19 Colindale avenue, London NW9 5DS
HTTP://www.zcomax.co.uk
Tel: +4420 8982 8200
5
Key Features:
The AG-3621 Access Point is use-friendly and provides solid wireless and networking support.
The following standards and conventions are supported:
• Standards Compliant. The Wireless Access Point complies with the IEEE 802.11a/b/g for
Wireless LANs.
• WEP support. Support for WEP is included. 64-bit, 128-bit, and 152-bit keys.
• DHCP Client Support. DHCP Server provides a dynamic IP address to PCs and other
devices upon request. The AG-3621 can act as a client and obtain information from your
DHPC server.
• RADIUS Accounting—Enable accounting on the access point to send accounting data
about wireless client devices to a RADIUS server on your network.
• SNMP Support. Support for Simple Network Management Protocol (SNMP) Management
Information Base (MIB) management.
• Multiple operating modes:
1. Access point
2. Station Adapter
3. Point-to-Point Bridge.
4. Wireless Repeater
5. Inter-building
• Repeater mode—Configure the access point as a wireless repeater to extend the
coverage area of your wireless network.
• VAPs
Assign Multi-SSIDs on your access point (one SSID per VAP) to differentiate policies and
services among users forming a wide variety of VLANs.
•QoS
Use this feature to support quality of service for prioritizing traffic from the Ethernet to the
access point. The access point also supports the voice-prioritization schemes used by
802.11a/b/g wireless phones.
•Transmit Power Control
Supports settable transmit power levels to adjust coverage cell size, ranging from full,
half(50%), quarter(25%) eighth(12.5%0 and min
•Atheros Super G Mode: Super G mode enables the transmission up to 108Mbps
• Multiple security settings per VLAN with up to 8 VLANs
Security settings for multiple groups – so employees, guests and contractors now easily and
== CONFIDENTIAL (All right reserved by Zcomax uk ltd) ==
19 Colindale avenue, London NW9 5DS
HTTP://www.zcomax.co.uk
Tel: +4420 8982 8200
6
securely share the same infrastructure
•Access Control.
The Access Control MAC address filtering feature can ensure that only trusted wireless
stations can use the AG-3621 to gain access to your LAN.
•Hidden Mode
The SSID is not broadcast, assuring only clients configured with the correct SSID can
connect.
System Requirements
Before installing the AG-3621 access point, make sure your system meets these
requirements
• The Category 5 UTP straight through Ethernet cable with RJ-45 connector included in the
package, or one like it
• A 230 V, 50 HZ AC power source
• A Web browser for configuration such as Microsoft Internet Explorer 6.0 or above, or
Netscape Navigator 4.78 or above
• At least one computer with the TCP/IP protocol installed
What’s In the Box?
• Zcomax (UK) Limited Wireless Access Point 802.11a/b/g AG-3621
• Power adapter and cord
• Two Dual-Band Omni-directional
• AG-3621 11a/b/g Wireless Access Point Installation Guide
• Resource CD for the Zcomax (UK) Limited AG-3621 Wireless Access Point
• Support Registration card
If any missing or damaged, please contact your local seller.
antennas
== CONFIDENTIAL (All right reserved by Zcomax uk ltd) ==
19 Colindale avenue, London NW9 5DS
HTTP://www.zcomax.co.uk
Tel: +4420 8982 8200
7
Hardware Description
We’ll discuss the AG-3621 front and rear functions.
The LEDs
The Access Point's LEDs, where information about network activity is displayed, are located
on the front panel.
LLEEDD
PWR
TEST
LAN(LINK/ACT) Blinking Indicates that Data processing(Frequency depends on traffic)
WLAN
Off No power. If this LED does not come on with the power adapter
On Power is on.
Off Indicates that leaving boot-code mode
On Indicates that entering boot-code mode
Blink 1. Reset button is pressed around 3 seconds (slow blinking).
Off 10 Mbps Ethernet link is detected but no activity. LAN(100)
On 100Mbps Fast Ethernet link is detected but no activity.
Off Indicates no wireless links
On Wireless LAN is in service but no activity.
DDEESSCCRRIIPPTTIIOONN
and cord correctly installed
2. Reset button is pressed after 3 seconds(fast blinking)
3. Whlie you upgrade firmware or reset to factory default,the
TEST LED is blinking.After firmware is upgraded or reset to
factory default, the Access Point will reboot automatically.
Blinking Indicates the device is linking or active data through wireless
links.
== CONFIDENTIAL (All right reserved by Zcomax uk ltd) ==
19 Colindale avenue, London NW9 5DS
HTTP://www.zcomax.co.uk
Tel: +4420 8982 8200
8
Chapter 2. Basic Installation and Securities
This chapter explains how to place and connect the AG-3621 Access Point. In addition, the
AG-3621’s security features are elaborated.
Note
You need to prepare these three things before you can establish a connection
through your wireless access point.
• A location for the AG-3621 that conforms to the Observing Placement and Range Guidelines
below.
• The wireless access point connected to your LAN through a device such as a hub, switch,
router, or Cable/DSL gateway.
• One or more computers with properly configured 802.11a/b/g.
Operating Distance Tips:
The range of your wireless connection is significantly determined by the physical placement
of the access point.
To optimize the results, place your wireless access point:
• Near the center of the area in which your PCs will operate.
• In an elevated location such as a high shelf where the wirelessly connected PCs have
line-of-sight access (even if through walls).
• Away from sources of interference, such as PCs, microwaves, and 2.4 GHz cordless phones.
• Away from large metal surfaces.
• Putting the antenna in a vertical position provides best side-to-side coverage. Putting the
antenna in a horizontal position provides best up-and-down coverage.
• If using multiple access points, it is better if adjacent access points use different radio
frequency Channels to reduce interference. The recommended Channel spacing between
adjacent access points is 5 Channels (for example, use Channels 1 and 6, or 6 and 11).
== CONFIDENTIAL (All right reserved by Zcomax uk ltd) ==
19 Colindale avenue, London NW9 5DS
HTTP://www.zcomax.co.uk
Tel: +4420 8982 8200
9
Default Factory Settings
We’ll detail about AG-3621 default factory settings below. Factory Default Restore will enable
you to restore these defaults.
FEATURE FACTORY DEFAULT SETTINGS
User Name (case sensitive) admin
Password (case sensitive) password
Access Point Name APxxxxxx(xxxxxx represents the last 6 digits of
MAC address)
Country / Region United States
Router Mode Bridge
IP T ype static IP
IP Address 192.168.1.1
IP Subnet Mask 255.255.255.0
Default Gateway 0.0.0.0
Operating Mode Access Point
Wireless Mode 802.11a
Channel / Frequency 52 / 5.260GHz
== CONFIDENTIAL (All right reserved by Zcomax uk ltd) ==
19 Colindale avenue, London NW9 5DS
HTTP://www.zcomax.co.uk
Tel: +4420 8982 8200
10
Getting To Know AG-3621 Wireless Security Options
Zcomax (UK) Limited wants to make wireless networking as safe and easy for you as possible.
The current generation of Zcomax (UK) Limited products provides several network security
features, but they require specific action on your part for implementation. So, keep the
following in mind whenever you are setting up or using your wireless network.
Security Precautions
The following is a complete list of security precautions to take as shown in this User’s Manual.
(at least steps 1 through 5 should be followed):
1. Change the default SSID.
2. Disable SSID Broadcast.
3. Change the default password for the Administrator account.
4. Enable MAC Address Filtering.
5. Change the SSID periodically.
6. Use the highest encryption algorithm possible. Use WPA if it is available. Please note that
this may reduce your network performance.
7. Change the WEP encryption keys periodically.
To ensure network security, steps one through four should be followed, at least. Wireless
networks are easy to find. Hackers know that in order to join a wireless network, wireless
networking products first listen for “beacon messages”. These messages can be easily
decrypted and contain much of the network’s information, such as the network’s SSID
(Service Set Identifier).
Security Options
There are several ways you can enhance the security of your wireless network:
• Restrict Access Based on MAC address. You can restrict access to only trusted clients so
that unknown clients cannot wirelessly connect to the AG-3621. MAC address filtering adds
an obstacle against unwanted access to your network, but the data broadcast over the
wireless link is fully exposed.
• Use WEP. Wired Equivalent Privacy (WEP) data encryption provides data security. WEP
Shared Key authentication and WEP data encryption will block all but the most determined
eavesdropper.
• Use WPA or WPA-PSK. Wi-Fi Protected Access (WPA) data encryption provides data
security. The very strong authentication along with dynamic per frame re-keying of WPA
makes it virtually impossible to compromise.
== CONFIDENTIAL (All right reserved by Zcomax uk ltd) ==
19 Colindale avenue, London NW9 5DS
HTTP://www.zcomax.co.uk
Tel: +4420 8982 8200
11
• Enable Wireless Security Separator
The associated wireless clients will not be able to communicate with each other if this feature
is enabled. The default setting is Disable.
== CONFIDENTIAL (All right reserved by Zcomax uk ltd) ==
19 Colindale avenue, London NW9 5DS
HTTP://www.zcomax.co.uk
Tel: +4420 8982 8200
12
Installing AG-3621 Access Point
Before installing, you should make sure that Ethernet network is perfectly working. You will be
connecting the AG-3621 to the Ethernet network so that computers with 10/100 Fast Ethernet
adapters will communicate computers on the Ethernet.
1. SET UP THE AG-3621 ACCESS POINT Tip:
Before mounting the AG-3621 in a high location, first set up and test the AG-3621 to verify
wired network connectivity.
a. Prepare a computer with an Ethernet adapter. If this computer is already part of your
network, record its TCP/IP configuration settings.
b. Configure the computer with a static IP address of 192.168.1.x (x cannot be 1)and
255.255.255.0 for the Subnet Mask.
c. Connect an Ethernet cable from the AG-3621 to the computer.
d. Turn on your computer, connect the power adapter to the AG-3621 and verify the following:
– The PWR power light goes on.
– The LAN light of the wireless access point is lit when connected to a powered on computer.
2. 2 CONFIGURE LAN AND WIRELESS ACCESS
a. Configure the AG-3621 Ethernet port for LAN access
• Connect to the AG-3621 by opening your browser and entering http://192.168.1.1 in
the address field. A login window like the one shown below opens:
== CONFIDENTIAL (All right reserved by Zcomax uk ltd) ==
19 Colindale avenue, London NW9 5DS
HTTP://www.zcomax.co.uk
Tel: +4420 8982 8200
13

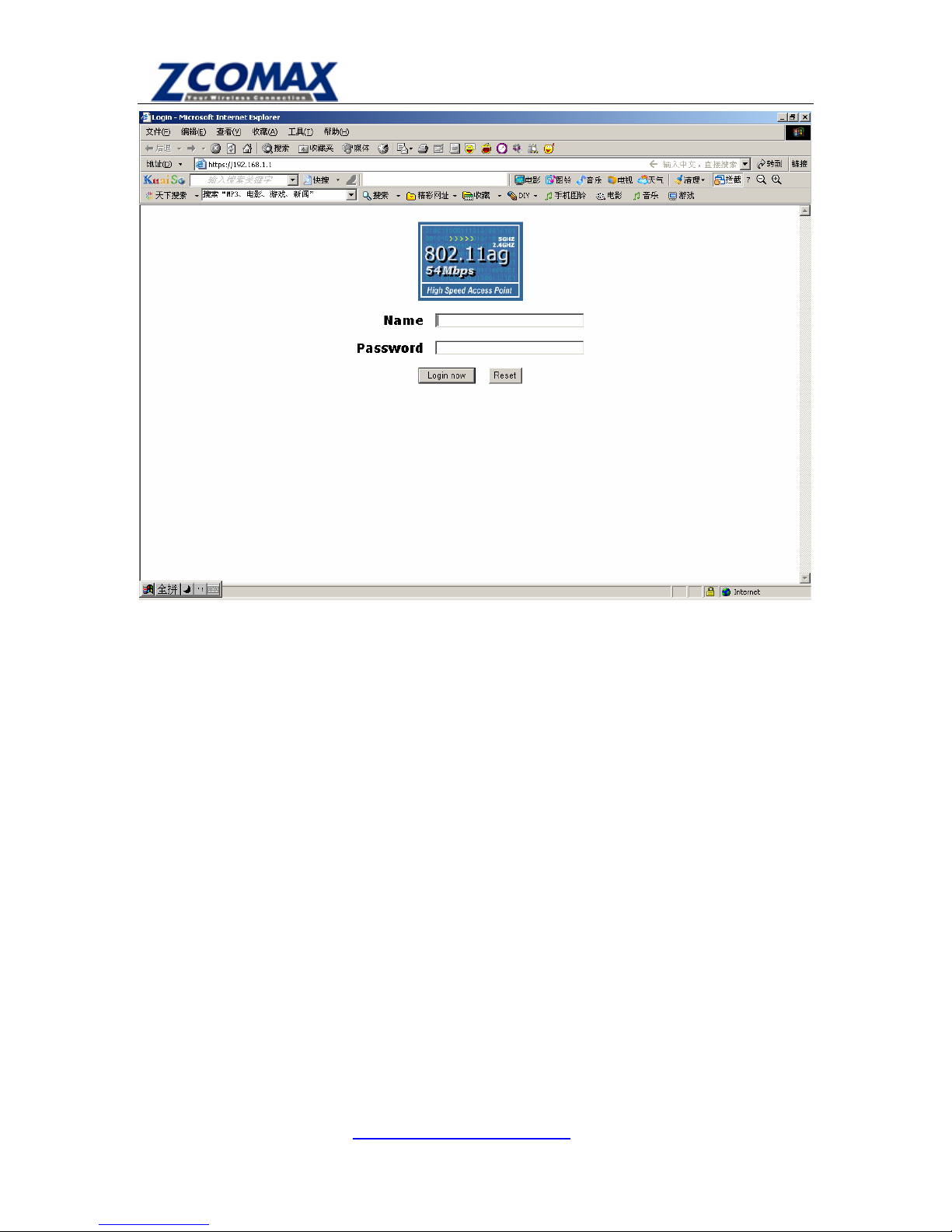

Figure:2-1 AG-3621 log in window
When prompted, please enter admin for Name and password for password, both in low
cases.
3. Clicking Login now, it will navigate you into AG-3621’s homepage-----General Information
will be shown below.
== CONFIDENTIAL (All right reserved by Zcomax uk ltd) ==
19 Colindale avenue, London NW9 5DS
HTTP://www.zcomax.co.uk
Tel: +4420 8982 8200
14

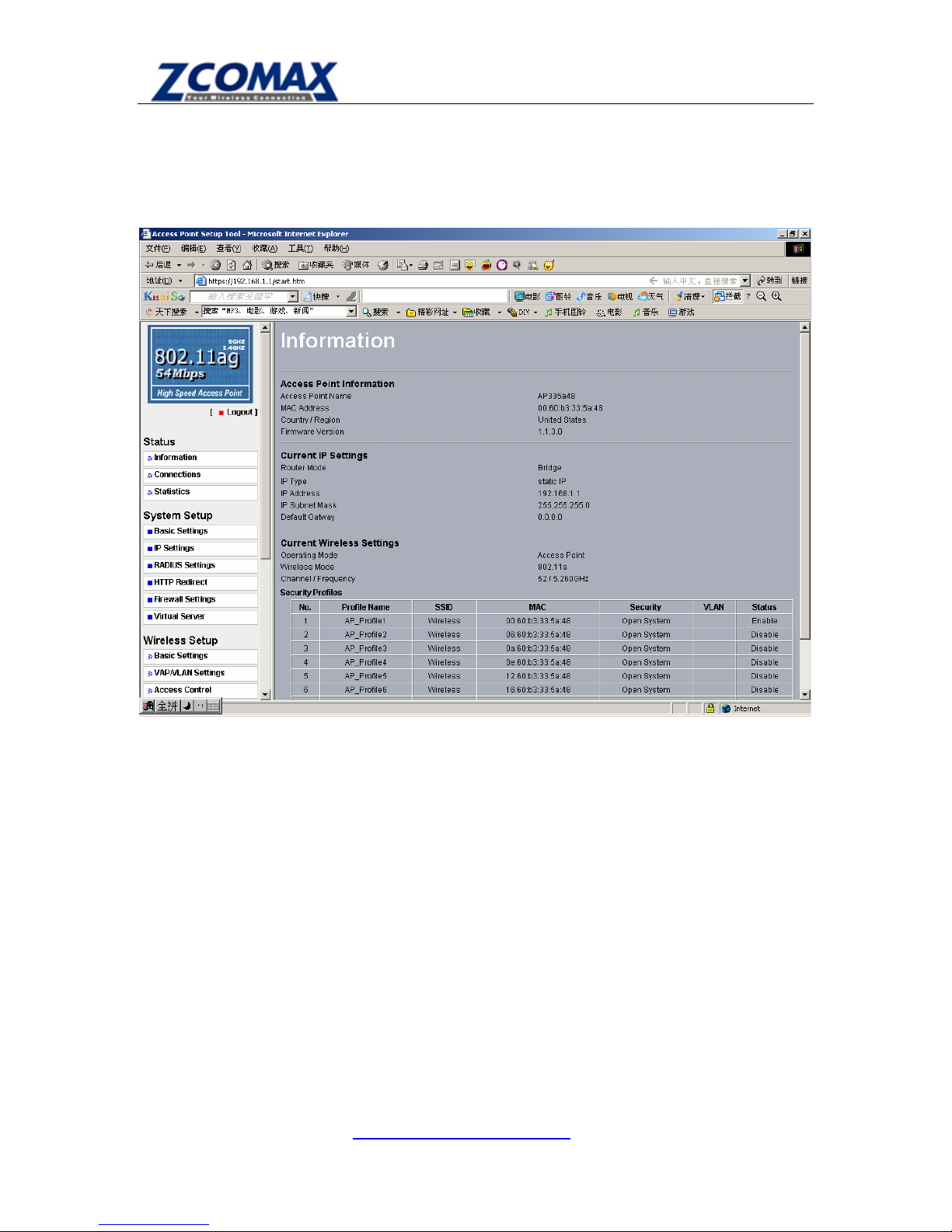

Figure:2-2 AG-3621 general information
== CONFIDENTIAL (All right reserved by Zcomax uk ltd) ==
19 Colindale avenue, London NW9 5DS
HTTP://www.zcomax.co.uk
Tel: +4420 8982 8200
15
Deploy the AG-3621 Access Point
a. Disconnect the AG-3621 and position it where you will deploy it. The best location is
elevated, such as wall mounted or on the top of a cubicle, at the center of your wireless
coverage area, and within line of sight of all the mobile devices.
b. Lift the antenna on either side so that they are vertical.
Note: Consult the antenna positioning and wireless mode configuration information in the
Advanced Configuration chapter of the Reference Manual.
c. Connect an Ethernet cable from your AG-3621 Access Point to a LAN port on your router,
switch, or hub.
d. Connect the power adapter to the wireless access point and plug the power adapter in to a
power outlet. The PWR, LAN, and Wireless LAN lights should light up.
== CONFIDENTIAL (All right reserved by Zcomax uk ltd) ==
19 Colindale avenue, London NW9 5DS
HTTP://www.zcomax.co.uk
Tel: +4420 8982 8200
16
Chapter 3. General Information
General information gives you a basic concept of the AG-3621 Access Point.
Information
Figure: 3-1 AG-3621 general information
Understanding General Information Settings
We’ll elaborate the information from the AG-3621 homepage
Access Point Name: You may assign any device name to the Access Point. This name is only
used by the Access Point administrator for identification purposes. Unique, memorable
names are helpful, especially if you are employing multiple access points on the same
network. The default name is APxxxxxx..
MAC Address: Short for Media Access Control address, a hardware address that uniquely
identifies each
Country/Region: This field identifies the region where the AG-3621 can be used. It may not be
legal to operate the wireless features of the wireless access point in a region other than one
of those identified in this field. The default country is the United States.
node of a network.
== CONFIDENTIAL (All right reserved by Zcomax uk ltd) ==
19 Colindale avenue, London NW9 5DS
HTTP://www.zcomax.co.uk
Tel: +4420 8982 8200
17
Firmware Version: Firmware is stored in a flash memory and can be upgraded easily, using
your Web browser, and can be upgraded via ftp server or ftp server. The currently available
version of AG-3621 is 1.1.3.0.
IP Type: By default, the AG-3621 is configured as static IP Address.
IP Address: The IP address must be unique to your network. The default IP address is
192.168.1.1
Note
To associate the access point to your PC, make sure the PC IP address
need to be matched the AP. For instance, the AG-3621 is 192.168.1.1, and
your PC IP should be 192.168.1. X.
Subnet Mask: The Subnet Mask must be the same as that set on the LAN that your Access
Point is connected to. The default is 255.255.255.0.
Operating Mode: AG-3621 provides five modes, Access Point, Station, bridge, repeater and
inter-building.
Access Point: Act as a standard 802.11a/b/g. The default mode is Access Point.
Station: Perform as a clie nt station associated to other APs. Be sure that they share the same
SSID when connected.
Bridge: The AG-3621 acts as a bridge connecting APs. Two bridge modes are available
below.
Point-to-Multi-Point Bridge:Select this only if this AG-3621 is the “Master” for a group of
bridges. The other bridge must use this AG-3621 MAC address. They then send all traffic to
this “Master”, rather than communicate directly with each other. WEP should be used to
protect this traffic.
Wireless Repeater: In this mode, the AG-3621 can communicate with another wireless station
or wireless bridge. You can enter the MAC address of both adjacent repeaters in the fields
provided to communicate with other wireless bridge or use SSID to communicate with other
wireless station. WEP should be used to protect this communication.
Wireless Mode: Select the desired wireless operating mode. The default mode is 802.11a.
Channel: This field identifies which operating frequency will be used.
Security Profiles: This provides a list of virtual APs derived from AG-3621 Virtual AP, spelling
out profile name, SSID, MAC, security, and status.
== CONFIDENTIAL (All right reserved by Zcomax uk ltd) ==
19 Colindale avenue, London NW9 5DS
HTTP://www.zcomax.co.uk
Tel: +4420 8982 8200
18
Connection
Under the Information heading, click the connection link to view the connection status shown
below.
Figure: 3-2 AG-3621 connection status
Note
If the wireless access point is rebooted, the table data is lost until the
wireless access point rediscovers the devices.
Statistics
The statistics provide various LAN and WAN statistics.
== CONFIDENTIAL (All right reserved by Zcomax uk ltd) ==
19 Colindale avenue, London NW9 5DS
Figure: 3-3-AG-3622 statistics
HTTP://www.zcomax.co.uk
Tel: +4420 8982 8200
19
Loading...
