M511E Day/Night Pan/Tilt IP Camera
Hardware User Manual
-Contents-
CHAPTER 1. SAFETY INSTRUCTION........................................................................................2
CHAPTER 2. INTRODUCTION.....................................................................................................4
CHAPTER 3. PACKAGE CONTENTS ..........................................................................................5
CHAPTER 4. PHYSICAL DESCRIPTION....................................................................................6
CHAPTER 5. BASIC CONNECTION ............................................................................................8
5.1 WITHOUT POE CONNECTION ................................................................................................................................. 8
5.2 WITH POE CONNECTION........................................................................................................................................8
CHAPTER 6. APPLICATION..........................................................................................................9
M511E User Manual
2
Hardware User Manual
Chapter 1. Safety Instruction
Before you use this product
This product has been designed with safety in mind. However, the electrical products can cause
fires which may lead to serious body injury if not used properly. To avoid such accidents, be sure to
heed the following.
Legal Caution
Video and audio surveillance can be forbidden by laws that vary from country to country. Check the
laws in your local region before using this product for surveillance purposes.
Don't open the housing of the product
Don't try to open the housing or remove the covers which may expose yourself to dangerous voltage
or other hazards.
Don't use the accessories not recommend by the manufacturer
Heed the safety precautions
Be sure to follow the general safety precautions and the “Operation Notice.”
Operation Notice - Operating or storage location
Avoid operating or storing the camera in the following locations:
Extremely hot or cold places
(Operating temperature: 0 °C to + 50 °C [32 °F to 122°F] )
Exposed to direct sunlight for a long time, or close to heating equipment (e.g., near heaters)
Close to water (e.g.,near a bathtub, kitchen sink, laundry tub)
Close to sources of strong magnetism
Close to sources of powerful electromagnetic radiation, such as radios or TV transmitters
Locations subject to strong vibration or shock
M511E User Manual
3
In case of a breakdown
In case of system breakdown, discontinue use and contact your authorized dealer.
In case of abnormal operation
If the unit emits smoke or an unusual smell,
If water or other foreign objects enter the cabinet, or
If you drop the unit or damage the cabinet:1 Disconnect the cable and the connecting cables. 2
Contact your authorized dealer or the store where you purchased the product.
Transportation
When transporting the camera, repack it as originally packed at the factory or in materials of equal
quality.
Ventilation
To prevent heat buildup, do not block air circulation around the device.
Cleaning
Use a soft, dry cloth to clean the external surfaces of the device. Stubborn stains can be
removed using a soft cloth dampened with a small quantity of detergent solution, then wipe dry.
Do not use volatile solvents such as alcohol, benzene or thinners as they may damage the
surface.
M511E User Manual
Chapter 2. Introduction
The M511E Day/Night Pan/Tilt IP Camera provides full overview and true day/night capabilities to
be the perfect solution for indoor applications that need to cover everything at anytime, but still be
cost-effective.
Key Features:
Simultaneous MPEG-4 and Motion JPEG video stream
Excellent Image Quality up to flexible 30 fps in all resolution for optimum bandwidth use
Automatic-changeable IR-cut filter with adjustable threshold
Synchronized Two-way Audio with built in Microphone
12 pcs Infrared LEDs for night use up to 10 working distance
Optimal Synchronization of Audio and Video
Support Live Video Viewing on Windows Live Messenger (WLM )
Control panel add-in, i.e. snapshot, image setup and PT control
Support Mac OS Browser
Support iPhone through Safari Browser
Power over Ethernet IEEE 802.3af Class 0 suppliers power to the camera via the network
Digital Input / Output Port for External Alarm & Sensor
Mobile Phone Streaming Live Video through 3GPP / ISMA / RTSP
Mobile Phone Live Image through 2.5 WAP
Multi-level Password Protection for Restricting Camera Access
Built-In Multi-Window Motion Detection (3 detection areas)
Video Buffer makes the Streaming Smoother
UPnP and Bonjour for Fast and Easy Installation
DDNS Supported
Bundled 16 Channel Surveillance Software
User-friendly & Multi-lingual UI
4
M511E User Manual
Chapter 3. Package Contents
Quick Installation Guide
Softw
are CD
Component Pack
Camera
Camera
– M511E Day / Night Pan / Tilt IP Camera
Quick Installation Guide - To provide brief product information and quick installation and
wireless setting
Software CD - To provide IP Surveillance Software, Intelligence IP Installer, User Manuals, and
Language Packs
Component Pack -Camera mount Kit & Pads (one bracket and two packs of screws)
Adaptor - 12V DC, max 6W
5
M511E User Manual
Chapter 4. Physical Description
Overview
Focus Adjustment Ring - Adjust focus manually to achieve the best image quality
Infrared LEDs - Infrared LEDs for night use up to 10 working distance
Built-In Microphone - Built-In Microphone for Two-way Audio
Power LED indicator - Power LED will light up after completing the boot process
Network LED indicator - Network LED will light up after connecting with network.
Power Connector - For connection of 12V DC input.
Reset - When the device is empowered, press the Reset Button to reboot the device, or
hold the Reset Button for 10 seconds to set the device settings back to factory default
Audio In -To support audio in with Microphone for two way audio
Audio Out - To support audio out with earphones or speakers for two way audio
Network Connector - For connection to the Ethernet via RJ-45 standard with PoE
I / O Terminal Connector - 1Input / 1Output to support External Alarm and Sensor used
for motion detection, event triggering and alarm notification…etc.
6
M511E User Manual
DI / DO Terminal connector diagram
Please refer the following illustration below for connection method.
D+ D- COM NO
Ground
12V
Max. 30W
Ground
Alarm out device
12V
Switch
7
M511E User Manual

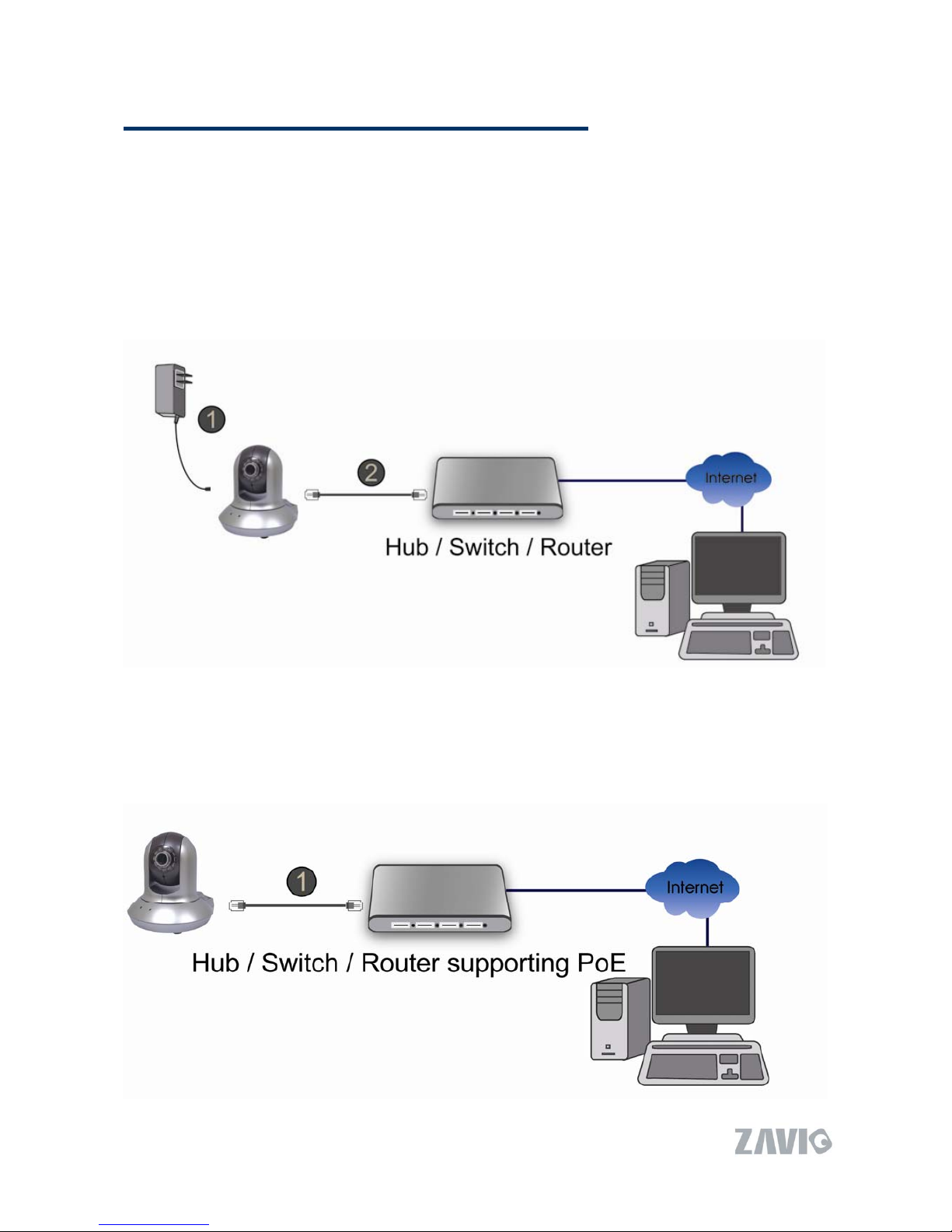

Chapter 5. Basic Connection
M511E offers Power over Ethernet (PoE) connection. However, you still can use M511E with PoE
or without PoE connection. You can follow the procedure below to connect the IP Camera for both
applications.
5.1 Without PoE Connection
1. Connect IP Camera’ Ethernet port to your Hub / Switch / Rout supporting PoE
5.2 With PoE Connection
1. Connect the power adaptor to IP Camera.
2. Connect IP Camera’ Ethernet port to your Hub / Switch / Router
8
M511E User Manual
Chapter 6. Application
