ELECTRIC
DOUBLE OVEN
AND GRILL
ZCE 5200
INSTRUCTION BOOKLET
2
IMPORTANT SAFETY INFORMATION
These warnings are provided in the interests of your safety. Ensure that you understand them all before installing
or using the appliance. Your safety is of paramount importance. If you are unsure about any of the meanings of
these warnings contact the Customer Care Department.
INSTALLATION
The appliance must be installed according to
the instructions supplied. The installation work
must be undertaken by a qualified electrician/
competent person.
The appliance must be installed in an adequately
ventilated room.
If the appliance is to be placed on a base,
measures must be taken to prevent the appliance
slipping from the base.
This appliance is heavy and care must be taken
when moving it.
Warning: Do not attempt to lift or move this
appliance by the handles.
All packaging, both inside and outside the
appliance must be removed before the appliance
is used.
It is dangerous to alter the specifications or
modify the appliance in any way.
After installation please dispose of the packaging
with due regard for safety and the environment.
Your local authority can arrange this.
CHILD SAFETY
Do not allow young children to play with any part
of the packaging.
This appliance is designed to be operated by
adults. Young children must not be allowed to
tamper with the controls or play near or with the
appliance.
CAUTION: Accessible parts may be hot when
in use. Young children should be kept away.
DURING USE
This appliance is not intended to be operated by
means of an external timer or separate remote
control system.
This appliance has been designed for domestic
use to cook edible foodstuffs only, and must not
be used for any other purposes.
Take great care when heating fats and oils as
they will ignite if they become too hot.
Never place plastic or any other material which
may melt in or on the oven.
Always stand back from the appliance when
opening the doors to allow any build up of steam
or heat to release.
Always use oven gloves to remove and place
food in the oven.
Ensure that all vents are left unobstructed to
ensure ventilation of the oven cavity.
Do not use this appliance if it is in contact with
water. Never operate it with wet hands.
Ensure cooking utensils are large enough to
contain foods to prevent spillage and boil over.
During use the appliance becomes hot. Care
should be taken to avoid touching heating
elements inside the oven.
Do not leave the grill pan in position when grilling
as it will become hot.
Always use oven gloves to remove and replace
the grill pan handle when grilling.
Always support the grill pan when it is in the
withdrawn or partially withdrawn position
The handles of saucepans, which are smaller
than the heated area on the hob, will become
hot. Ensure your hand is protected before
handling the pan.
Do not leave the hotplates switched ON for long
periods when not covered by a saucepan. The
controls and cabinets may overheat.
Ensure the anti-tilt shelves are put in correctly.
Never line any part of the appliance with foil. Do
not allow heatproof cooking material, e.g.
roasting bags, to come into contact with oven
elements.
Never leave the appliance unattended when
the oven door is open.
Do not place sealed cans or aerosols inside the
oven. They may explode if they are heated.
Ensure that all control knobs are in the OFF
position when not in use.
Do not stand on the appliance or on the open
oven doors.
Do not hang towels, dishcloths or clothes from
the appliance or its handles. They are a safety
hazard.
CLEANING AND MAINTENANCE
For hygiene and safety reasons this
appliance should be kept clean at all times. A
build-up of fats or other foodstuffs could
result in a fire especially in the grill pan.
Do not leave cookware containing foodstuffs,
e.g. fat or oil in the appliance in case it is
inadvertently switched on.
Always allow the appliance to cool down before
switching off at the wall prior to carrying out any
cleaning / maintenance work.
Only clean this appliance in accordance with the
instructions given in this book.
SERVICE
Repairs should not be carried out by
inexperienced persons as this may cause injury
or serious malfunction. This appliance should be
serviced by an authorised Service Engineer and
only genuine approved spare parts should be
used.
AT THE END OF THE APPLIANCE'S LIFE
When the time comes to dispose of your
appliance please contact your local authority.
They can arrange to dispose of the appliance in a
safe and controlled manner.
3
CONTENTS
FOR THE USER
Important Safety Information 2
Description of the Appliance 4
Getting to Know Your Appliance 5
The Control Panel 5
Before Using the Appliance 6
Rating Plate 6
Preparing to Use your Appliance 6
Control Panel Indicator Neon(s) 6
Condensation and Steam 6
Cookware 6
Grill and Oven Furniture 6
The Sealed Hotplates 7
Recommended Saucepans 7
Hints and Tips 7
The Grill 8
Selecting the Grill 8
Things to Note 8
The Grill Pan and Handle 8

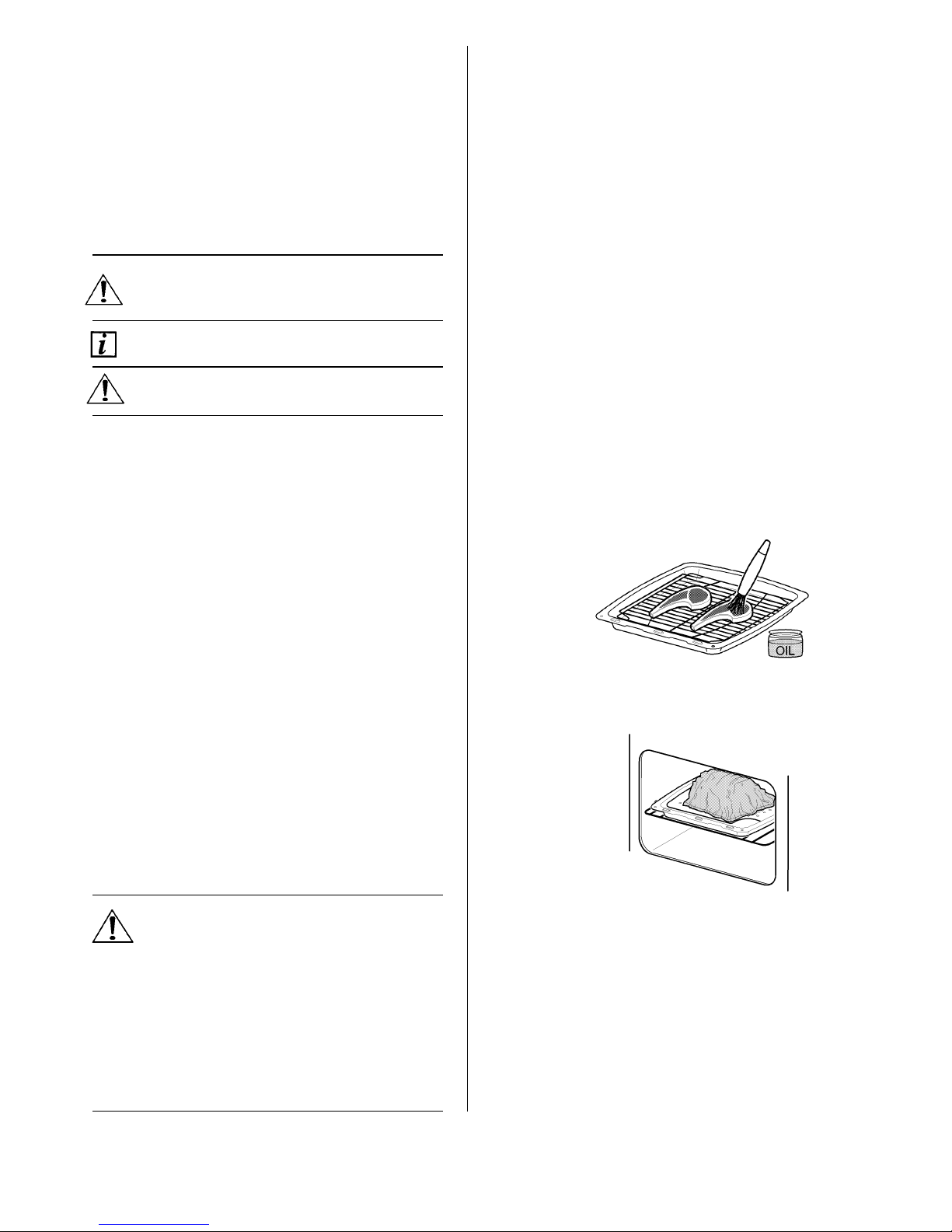

Hints and Tips 9
Grilling Chart

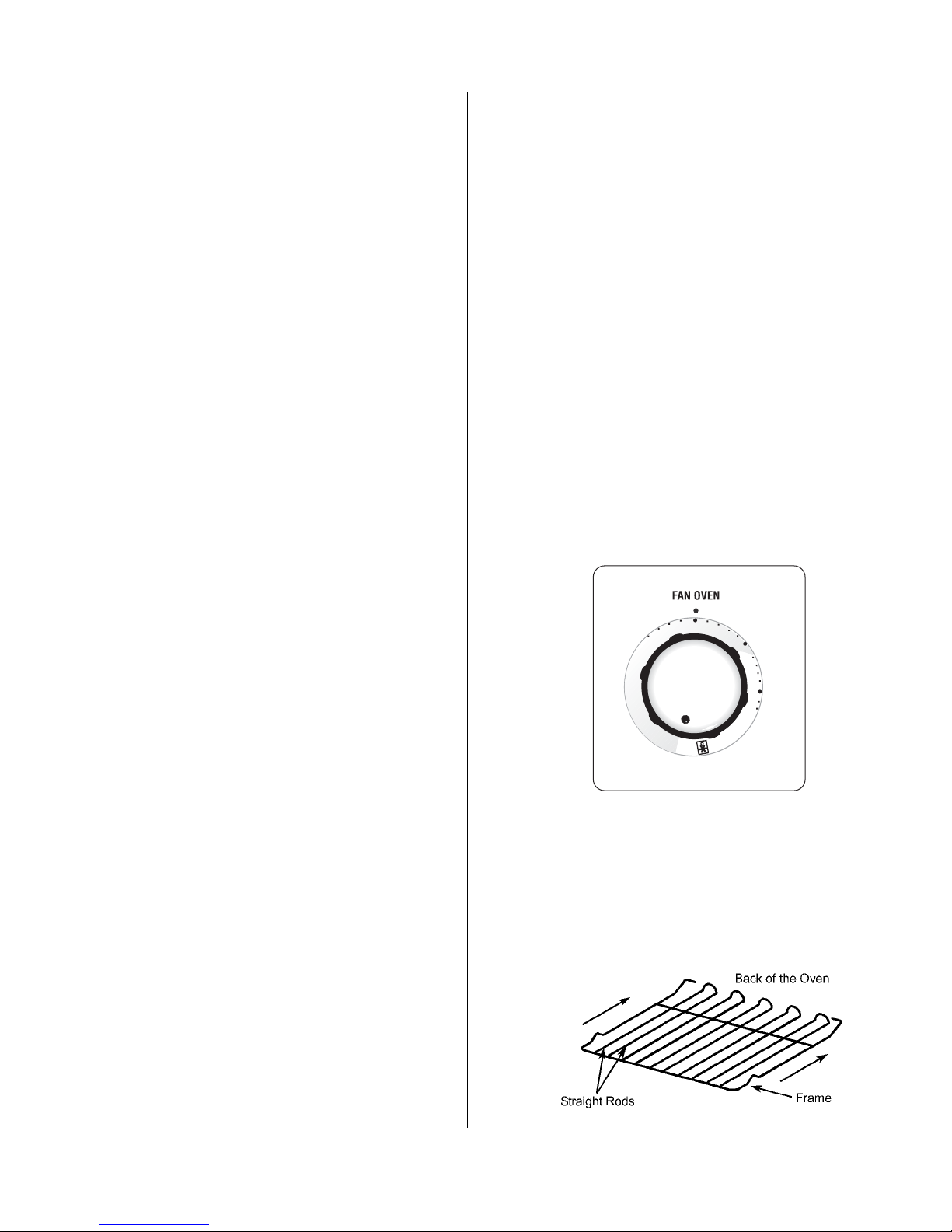

The Fan Oven 10
Uses of the Fan Oven 10
Selecting the Fan Oven 10
Things to Note 10
To Fit the Fan Oven Shelves 10
Hints and Tips 11
Oven Cooking Chart 12
Oven Roasting Chart 13

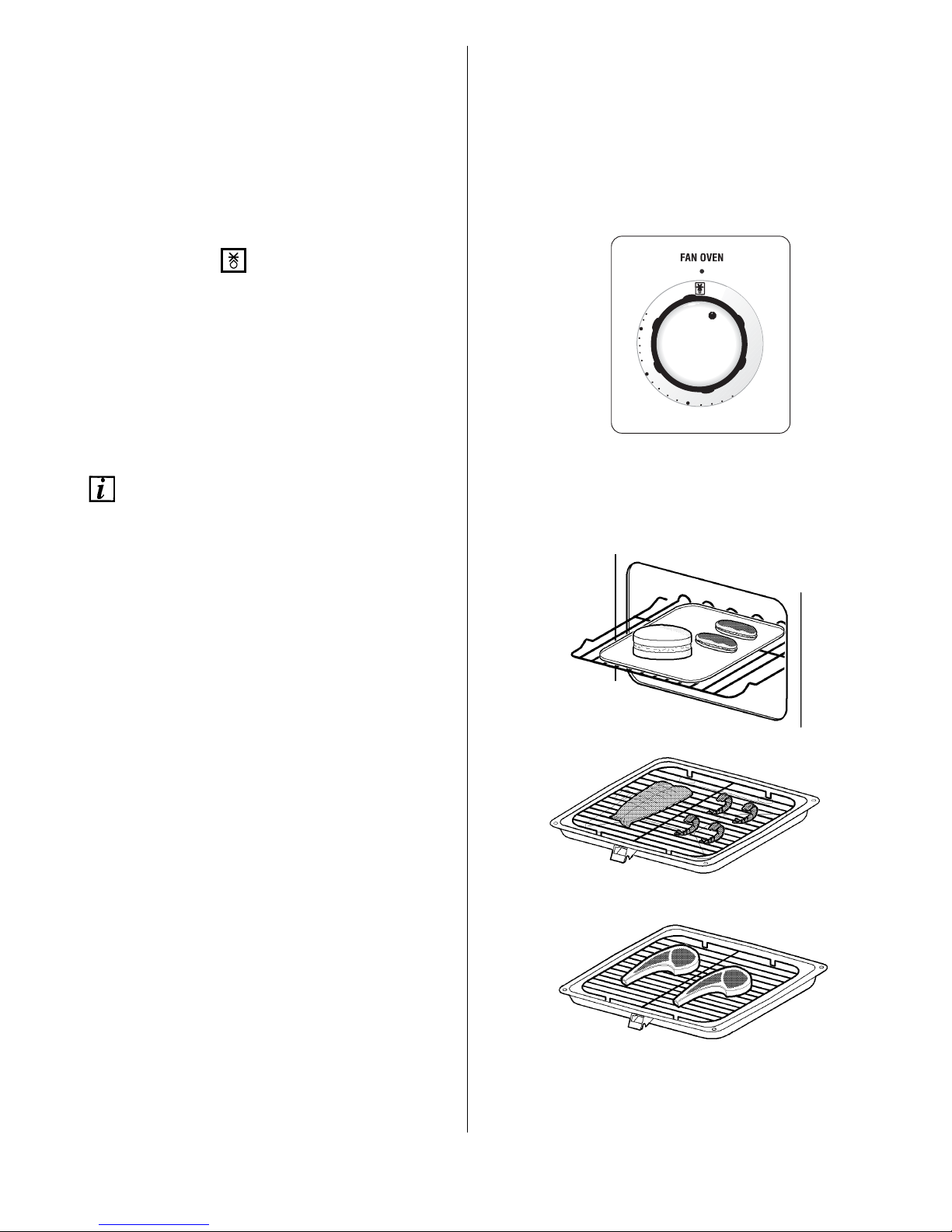

Defrost Feature 14
Uses of Defrost Feature 14
Selecting Defrost 14
Things to Note 14
Hints and Tips 14
Care and Cleaning 15
Cleaning Materials 15
Cleaning the Outside of the Appliance 15
Cleaning the Control Knobs and Handles 15
Cleaning the Sealed Hotplates and
Hotplate Trims 15
Things to Note 16
Cleaning the Grill and Oven Furniture 16
Cleaning Inside the Grill and Oven
Compartments 17
Hints and tips 17
Cleaning the Door Glass 17
Cleaning Between the Outer and
Inner Door Glass 18
To Clean the Inner Glass Door 18
Something Not Working? 19
Service and Spare Parts 20
Guarantee Conditions 21
FOR THE INSTALLER
Technical Details 22
Installation Instructions 23
To help you the following symbols will be
found in the text.
Safety Instructions.
Hints and Tips
Please read the instruction book carefully
before use and retain for future reference.
4
DESCRIPTION OF THE APPLIANCE
SLIP-IN ELECTRIC DOUBLE OVEN
FAN OVEN
Thermaflow
Fan Oven
Control Panel
Grill
5
GETTING TO KNOW YOUR APPLIANCE
THE CONTROL PANEL
FEATURES
A - Fan Oven Temperature Control
B - Grill Control
C - Hotplate Controls
D - Fan Oven Indicator Neon
4
2
0
4
2
0
4
2
0
4
2
0
4
2
0
100
150
200
240
0
C
B
A
D
6
BEFORE USING THE APPLIANCE
RATING PLATE
This is situated on the lower front frame of the
appliance and can be seen upon opening the door.
Alternatively the rating plate may also be found on
the back or top of some models (where applicable).
The appliance must be protected by a suitably rated
fuse or circuit breaker. The rating of the appliance is
given on the rating plate.
Do not remove the rating plate from the appliance
as this may invalidate the guarantee.
PREPARING TO USE YOUR APPLIANCE
Wipe over the base of the oven(s) with a soft cloth
and hot soapy water and wash the furniture before
use. We suggest that you run the oven elements for
10 – 15 minutes at 220
o
C to burn off any residue
from their surfaces. The procedure should be
repeated with the grill for approximately 5 – 10
minutes. During this period an odour may be
emitted, it is therefore advisable to open a window for
ventilation.
CONTROL PANEL INDICATOR NEON(S)
The indicator neon will operate when the grill (where
applicable) or oven(s) is switched on. The indicator
neon will glow. It may turn on and off during use to
show that the setting is being maintained. If the neon
does not operate as the instructions indicate the
controls have been incorrectly set. Return all
controls to zero and reset following the instructions
for the required setting.
CONDENSATION AND STEAM
When food is heated it produces steam similar to a
boiling kettle. The vents allow some of this steam to
escape. However, always stand back from the
appliance when opening the door(s) to allow any
build up of steam or heat to release.
If the steam comes into contact with a cool surface
on the outside of the appliance, e.g. a trim, it will
condense and produce water droplets. This is quite
normal and is not caused by a fault on the appliance.
To prevent discolouration, regularly wipe away
condensation and also soilage from surfaces.
For your safety wall coverings at the rear of the
appliance should be securely fixed to the wall.
COOKWARE
Baking trays, dishes etc., should not be placed
directly against the grid covering the fan at the back
of the oven.
Do not use baking trays larger than 30cm x 35cm
(12” x 14”) as they will restrict the circulation of heat
and may affect performance.
GRILL AND OVEN FURNITURE
The following items of grill/oven furniture have been
supplied with the appliance:
1 grill pan
1 grill pan handle
1 grill pan grid
1 straight shelf
(for grilling only)
2 straight shelves
(for fan oven cooking)
7
THE SEALED HOTPLATES
BEFORE USING THE HOTPLATES FOR
THE FIRST TIME
Turn the control knob to a high setting and allow the
hotplate to heat, uncovered by a saucepan for 3-5
minutes. This hardens the protective coating on the
hotplates and makes it more resistant to normal use.
A harmless smoke will be given off from the
hotplates.
USING THE HOB
· For single hotplates turn the control knob in
either direction to vary the heat setting.
· The highest number represents the hottest
setting and the lowest number represents the
coolest setting.
RECOMMENDED SAUCEPANS
Only saucepans with flat bases and close fitting lids
are recommended. The saucepan base should be
approximately the same size as the cooking area.
Ensure that new saucepans are well scrubbed to
remove edges and take off any deposits left from
manufacture.
Traditional round bottomed Woks must not be used
even with a stand. Woks with flat-bottomed bases
are available and do comply with the above
recommendations.
HINTS AND TIPS
· Lift, rather than slide saucepans on and off the
hob to help reduce scratches and maintain the
efficiency of the hotplates.
· Avoid the use of decorative covers as they can
cause condensation to form on the hotplates
which may lead to deterioration.
· Follow any guidelines provided by the saucepan
manufacturer, particularly those relating to
recommended heat settings.
· Avoid using thin, badly dented or distorted
saucepans. Those with uneven bases should not
be used.
· Never leave the hotplates ON when not
covered with a saucepan.
· Ensure that the hob and saucepans are
clean and dry before the start of cooking to
reduce cleaning.
· Follow the cleaning instructions very closely
to keep the hob looking like new.
4
2
0
8
THE GRILL
WARNING – Accessible parts may become
hot when the grill is in use. Keep children
away.
USING THE GRILL
· To operate the grill open the grill door and turn
the grill control in either direction.
· The highest number represents the hottest
setting and the lowest number represents the
coolest setting.
· At lower settings the grill may turn on and off
over time and you may prefer to use these
settings for keeping food warm. The food will
however continue to cook gently if the grill is
used for this purpose.
The grill door must be left open when
grilling.
THINGS TO NOTE
· Closing the grill door will cut OFF the power to
the grill element preventing incorrect use.
· Some smoke from fat splashes may be evident
as the grill cleans itself.
THE GRILL PAN AND HANDLE
The grill pan is supplied with a removable handle.
To insert the handle, press the button on the handle
with the thumb and pivot the handle slightly upwards
inserting the lip into the widest part of the bracket.
Move the handle towards the left, lower into position
and release the button.
Ensure the handle is positively located.
When removing the handle, press the button on the
handle with the thumb and pivot the handle slightly
upwards and towards the right to remove from the
bracket.
Ensure your hand is protected when
removing the grill pan handle as the
control panel trim and grill element can
become very hot.
Always remove the grill pan handle during
grilling.
To correctly locate the grill pan on the shelf, ensure
that the cut out on the underside of the handle
bracket locates over the front bar of the shelf.
4
2
9
To check the progress of the food being grilled, the
grill pan should be withdrawn on the shelf to tend the
food during cooking.
HINTS AND TIPS
· Food should be thoroughly dried before grilling to
minimise splashing. Brush lean meats and fish
lightly with a little oil or melted butter to keep
them moist during cooking.
· Adjust the height of the grilling grid and grill pan
runner position to allow for different thicknesses
of foods.
· Place food on the grill pan or grid directly onto
the grill pan base.
· Accompaniments such as tomatoes and
mushrooms may be placed underneath the grid
when grilling meats.
· When toasting bread use the shelf in position 1
with the grid in the high position and placing the
bread in the centre of the grid.
· Preheat the grill on a full setting for five minutes
before cooking. Adjust the heat setting and shelf
as necessary during cooking.
· The food should be turned over during cooking
as required.
GRILLING CHART
FOOD RUNNER
POSITION
GRILL TIME
(mins in total)
Bacon Rashers 1 2-3 each side
Beefburgers 1 6-10 each side
Chicken Joints 1 15-20 each side
Chops - Lamb 1 7-10 each side
Pork 1 10-15 each side
Fish – Whole
Trout/Mackerel 1 8-12 each side
Fillets – Plaice/Cod 1 4-6 each side
Kebabs 1 10-15 each side
Kidneys – Lamb/Pig 1 4-6 each side
Liver – Lamb/Pig 1 5-10 each side
Sausages 1 10-15 each side
Steaks - Rare 1 3-6 each side
Medium 1 6-8 each side
Well Done 1 7-10 each side
Toasted Sandwiches 1 1¼-1½ each side
Shelf positions are counted from the bottom up.
The times quoted above are given as a guide and
should be adjusted to suit personal taste.
10
THE FAN OVEN
The fan oven is particularly suitable for cooking larger
quantities of food. The advantages of fan oven
cooking are:
PREHEATING
The fan oven quickly reaches its temperature, so it is
not usually necessary to preheat the oven. Without
preheating however, you may need to add an extra 5
– 10 minutes on the recommended cooking times.
For recipes needing high temperatures, e.g. bread,
pastries, scones, soufflés etc., best results are
achieved if the oven is preheated first. For best
results when cooking frozen or cooked chilled ready
meals always preheat the oven first.
COOKING TEMPERATURES
Fan oven cooking generally requires lower
temperatures than conventional cooking. Follow the
temperatures recommended in the cooking chart. As
a guide reduce temperatures by about 20°C – 25°C
for your own recipes, using a conventional oven.
BATCH BAKING
The fan oven cooks evenly on both shelf levels,
especially useful when batch baking.
USING THE FAN OVEN
· Turn the fan oven temperature control to the
required setting.
THINGS TO NOTE
· The cooling fan for the controls may operate after
a time.
· The indicator neon will glow. It may turn ON and
OFF during use to show that the setting is being
maintained.
TO FIT THE FAN OVEN SHELVES
The shelves should be fitted with the straight rods
uppermost on the frame and the forms towards the
back of the oven. If not fitted correctly the anti-tilt
and safety stop mechanism will be affected.
100
150
200
240
0
11
HINTS AND TIPS
· Arrange the shelves in the required positions
before switching the oven on. Shelf positions are
numbered from the bottom upwards.
· When cooking more than one dish in the fan
oven, place dishes centrally on different shelves
rather than cluster several dishes on one shelf,
this will allow the heat to circulate freely for the
best cooking results.
· When batch baking one type of food, e.g. Victoria
sandwich cakes, those of similar size will be
cooked in the same time.
· It is recommended that when baking larger
quantities the shelf positions should be evenly
spaced to suit the load being cooked. A slight
increase in cooking time may be necessary.
· The use of excessively high temperatures can
cause uneven browning. It may be necessary to
reduce temperatures slightly. Refer to the
recommendations given in the oven cooking
chart.
· Do not place baking trays directly on the oven
base as it interferes with the oven air circulation
and can lead to base burning; use the lower shelf
position.
12
OVEN COOKING CHART
The oven temperatures are intended as a guide only. It may be necessary to increase or decrease the
temperatures by 10°C to suit individual
preferences and requirements.
FAN OVEN
FOOD
SHELF
POSITION
COOKING
TEMP (°C)
APPROXIMATE
COOK TIME (m)
Biscuits
Bread
Bread rolls/buns
Cakes: Small & Queen Shelf
180-190
200-220
200-220
160-170
10 - 20
25 - 30
15 - 20
18 - 25
Sponges 160-170 18 - 20
Victoria Sandwich positions 160-170 18 - 25
Madeira 140-150 1¼ - 1½
Rich Fruit 130-140 2¼ - 2½
Christmas are not 130-140 3 – 4½
depends on size
Gingerbread 140-150 1¼ - 1½
Meringues critical 90-100 2½ - 3h
Flapjack 170-180 25 - 30
Shortbread 130-140 45 - 65
Casseroles: Beef/Lamb but ensure 140-160 2½ - 3h
Chicken 180-190 1¼-1½ h
Convenience Foods Follow manufacturer’s instructions
Fish that oven 170-190 20 - 30
Fish Pie (Potato Topped) 190-200 20 - 25
Fruit Pies, Crumbles 190-200 40 - 50
Milk Puddings 130-140 1½ - 2h
Pasta Lasagne etc. shelves are 190-200 40 - 45
Pastry: Choux 190-200 30 - 35
Eclairs, Profiteroles 170-180 20 - 30
Flaky/Puff Pies evenly 210-220 25 - 40
Shortcrust Mince Pies 190-200 15 - 20
Meat Pies 190-210 25 - 35
Quiche, Tarts, Flans spaced 180-210 25 - 45
Roasting Meat, Poultry 160-180 See roasting chart
Scones 210-220 8 - 12
Shepherd’s Pie when more 190-200 30 - 40
Soufflés 170-180 20 - 30
Vegetables: Baked Jacket 180-190 1 – 1½h
Roast Potatoes than one is 180-190 1 – 1½h
Yorkshire Puddings: Large 210-220 25 - 40
Individual
used
200-210 15 - 25
Note: Shelf positions are counted from the bottom of the oven.
13
ROASTING CHART
INTERNAL TEMPERATURES –
Rare : 50-60°C; Medium : 60-70°C; Well done : 70-80°C
MEAT
TEMPERATURE
COOKING TIME
Beef/ Beef boned 160-180°C
20-35 minutes per ½kg (1lb)
and 20-35 minutes over
Mutton/Lamb 160-180°C 25-35 minutes per ½kg (1lb)
and 25-35 minutes over
Pork/Veal/Ham 160-180°C 30-40 minutes per ½kg (1lb)
and 30-40 minutes over
Chicken 160-180°C 15-20 minutes per ½kg (1lb)
and 20 minutes over
Turkey/Goose 160-180°C 15-20 minutes per ½kg (1lb)
up to 3½kg (7lb) then 10
minutes per ½kg (1lb) over
3½kg (7lb)
Duck 160-180°C 25-35 minutes per ½kg (1lb)
and 25-30 minutes over
Pheasant 160-180°C 35-40 minutes per ½kg (1lb)
and 35-40 minutes over
Rabbit 160-180°C 20 minutes per ½kg (1lb)
and 20 minutes over
The roasting temperatures and times given in the chart should be adequate for most joints, but slight adjustments
may be required to allow for personal requirements and the shape and texture of the meat. However, lower
temperatures and longer cooking times are recommended for less tender cuts or larger joints.
Wrap joints in foil if preferred, for extra browning uncover for the last 20 – 30 min. cooking time.
14
DEFROST FEATURE
This main fan oven function defrosts most foods
faster than more conventional methods. It is
particularly suitable for delicate frozen foods which
are to be served cold e.g. cream filled gateaux, cakes
covered with icings or frostings, cheesecakes,
biscuits, scones, etc.
USING DEFROST FEATURE
· Turn the fan oven temperature control to the
defrost setting.
· When defrost is selected, the oven indicator neon
may come ON. It will stay ON until the oven
reaches room temperature and then go OFF.
· It may turn ON and OFF periodically during
defrosting to maintain a steady room
temperature, inside the oven.
THINGS TO NOTE
· The oven fan will come on.
HINTS AND TIPS
· Place the frozen food in a single layer where
possible and turn it over half way through the
defrosting process.
· The actual speed of defrosting is influenced by
room temperature. On warm days defrosting will
be faster than on cooler days.
· It is preferable to thaw fish, meat and poultry
slowly in the fridge. However, this process can
be accelerated by using the defrost function.
Small or thin fish fillets, frozen peeled prawns,
cubed or minced meat, liver, thin chops, steaks
etc., can be thawed in 1 – 2 hours.
· A 1kg/2¼lb oven ready chicken will be thawed in
approximately 5 hours. Remove the giblets as
soon as possible during the thawing process.
· Joints of meat up to 2kg/4½lb in weight can be
thawed using the defrost function.
· All joints of meat and poultry must be thawed
thoroughly before cooking.
· Always cook thoroughly immediately after
thawing.
· DO NOT leave food at room temperature once it
is defrosted. Cook raw food immediately or store
cooked food in the fridge, once it has cooled.
· Care must always be taken when handling foods
in the home. Always follow the basic rules of
food hygiene to prevent bacterial growth and
cross contamination when defrosting, preparing,
cooking, cooling and freezing foods.
100
150
200
240
0
15
CARE AND CLEANING
Always switch off the electricity supply at the
main wall switch and allow the appliance to
cool before cleaning.
CLEANING MATERIALS
Before using any cleaning materials on your
appliance, check that they are suitable and that their
use is recommended by the manufacturer.
Cleaners that contain bleach should NOT be used as
they may dull the surface finishes. Harsh abrasives
and scourers should also be avoided.
CLEANING THE OUTSIDE OF THE
APPLIANCE
DO NOT use abrasive cleaning materials e.g. Hob
Brite, Brillo pads or scourers on painted or printed
finishes as damage may occur. Regularly wipe over
the control panel, oven doors and appliance sides
using a soft cloth and hot soapy water. To prevent
streaking on stainless steel models finish with a soft
cloth.
Any spillage on the stainless steel finish must be
wiped off immediately.
Stainless Steel cream cleaners are abrasive and
should be avoided as they may dull the surface
finish.
Do not attempt to remove any of the control
knobs from the appliance as this may cause
damage and is a safety hazard.
CLEANING THE CONTROL KNOBS AND
HANDLES
It is strongly recommended that only hot soapy water
is used for cleaning the control knobs and handles.
THE USE OF ANY OTHER CLEANING MATERIALS
MAY DULL THE FINISH.
CLEANING THE SEALED HOTPLATES
AND HOTPLATE TRIMS
In order to maintain the appearance of your
appliance's sealed hotplates and trims, you are
advised to use the recommended cleaning agents
daily. If you do not allow spillages to burn on they
will be much easier to clean off.
16
THINGS TO NOTE
The red spot in the centre of the hotplates may be
removed with some abrasive cleaning agents. This is
not a fault and does not affect the performance of the
hotplates.
FOR NORMAL SOILAGE
Wipe over the hotplates and trims using a clean
damp cloth then switch to a low or medium setting for
a few minutes to thoroughly dry.
FOR HEAVY SOILAGE
Use a clean damp cloth or scourer with a cream
cleaner e.g. ‘Cif’ or a powder cleaner e.g. ‘Ajax’ on
the hotplate and trims. Follow the circular grooved
pattern on the hotplate when cleaning. Rinse off
cleaning agents thoroughly. Dry as for normal
soilage.
For more stubborn marks warm the hotplate on a low
setting for 30 seconds. Clean the sealed plate with
‘Ajax’ powder cleaner, ‘Cif’ or cream cleaner or a
‘Brillo’ pad. You may have to rub hard for several
minutes.
Rinse off cleaning agents thoroughly with a damp
cloth. Switch to a low or medium setting for a few
minutes until the hotplate is thoroughly dry.
CLEANING THE HOTPLATE TRIMS
The stainless steel trims may become straw coloured
during use. Using a proprietary stainless steel
cleaner, e.g. ‘Shiny Sinks’ will help maintain a bright
appearance. Alternatively a powder cleaner such as
‘Bar Keepers Friend’ may be used regularly.
CLEANING THE GRILL AND OVEN
FURNITURE
All removable parts, except the grill pan handle can
be washed in the dishwasher.
The grill pan, grill pan grid and oven shelves may be
cleaned using a soap impregnated steel wool pad.
Soaking first in hot soapy water will make cleaning
easier.
17
CLEANING INSIDE THE GRILL AND
OVEN COMPARTMENTS
The vitreous enamel coating in the grill compartment
and main oven base can be cleaned using normal
oven cleaners or aerosol oven cleaners with care.
Ensure that the manufacturers instructions are
followed and that all parts are well rinsed afterwards.
The sides and back panel of the main oven are
coated with a special Stayclean coating. It should
not be cleaned manually.
Aerosol cleaners must not come into
contact with elements or the door seal as
this may cause damage.
HINTS AND TIPS
Aerosol cleaners must not be used on
Stayclean surfaces.
Stayclean surfaces destroy splashes of food and fats
when the oven temperature is raised to around 220°C.
It is a good idea to run the oven for an hour or two per
week to ensure continued good performance from the
Stayclean finish.
Slight discolouration and polishing of the Stayclean
surfaces may occur in time. This DOES NOT affect
the Stayclean properties in any way.
Use minimal, if any, extra oil or fat when roasting
meat, potatoes only require brushing with fat before
cooking. Extra fat in the oven during roasting will
increase splashing and soilage.
It is NOT necessary to add water to a meat tin when
roasting. The water and the fat juices from the joint
create excessive splattering during cooking – even at
normal temperatures, as well as causing
condensation.
Covering joints during cooking will also prevent
splashing onto the interior surfaces. Removing the
covering for the last 20-30 minutes will allow extra
browning if required. Some large joints and turkeys
especially benefit by this method of cooking, allowing
the joint to cook through before the outside is overbrowned.
CLEANING THE DOOR GLASS
To prevent damaging or weakening the
door glass panels avoid the use of the
following:
· Household detergents and bleaches
· Impregnated pads unsuitable for non-
stick saucepans
· Brillo/Ajax pads or steel wool pads
· Chemical oven pads or aerosols
· Rust removers
· Bath/Sink stain removers
18
CLEANING BETWEEN THE OUTER AND
INNER DOOR GLASS
The outer door glass is removable for cleaning.
TO REMOVE THE OUTER GLASS
1. Open the oven door slightly to gain access to the
two cross head screws on the top of the oven
door.
2. Loosen the two screws using a Pozidrive
screwdriver.
3. Hold the door glass securely in place with one
hand before removing the screws completely with
the other hand.
4. Using both hands, gently tilt the top of the door
glass towards you, lift slightly to disengage the
locators from the two bottom brackets.
5. Clean the outer and inner glass using hot soapy
water or Hob Brite cleaner may be used. DO NOT
use Hob Brite on the Stainless Steel or painted
finishes. DO NOT try to clean the foil which is
inside the door. The foil is there to help keep the
door cool, if it is damaged it will not work. Ensure
that all parts are well rinsed and thoroughly dried
before attempting to replace the outer door.
If the door glass panel becomes chipped or
has deep scratches the glass will be
weakened and must be replaced to prevent
the possibility of the panel shattering.
Please contact your local Service Force
Centre who will be pleased to advise
further.
TO REPLACE THE OUTER GLASS
1. Holding the oven glass with both hands, gently
place the locators into the holes of the brackets
at the bottom of the oven door.
2. Push the top of the oven glass towards the oven
door, ensuring the screw location holes line up.
3. Hold the glass in place with one hand and insert
the cross head screws into the location holes
with the other hand. Give the screws one turn to
ensure the glass is secure.
4. Tighten the screws positively with a Pozidrive
screwdriver before closing the oven door.
Do not attempt to use the oven without the
glass being in place.
TO CLEAN THE INNER GLASS DOOR
PANELS
Clean the inner glass door panels using a soft cloth
and hot water to which a little washing up liquid has
been added. If the inner panel is heavily soiled, Hob
Brite may be used. Do not use abrasive cleaning
materials on the door glass. Ensure that all parts are
well rinsed and thoroughly dried before attempting to
replace the glass.
19
SOMETHING NOT WORKING?
Please carry out the following checks on your appliance before calling a Service Engineer. It may be that the
problem is a simple one which you can solve yourself without the expense of a service call.
In-guarantee customers should make sure that the checks have been made as the engineer will make a
charge if the fault is not a mechanical or electrical breakdown.
Please note that proof of purchase is required for in-guarantee service calls.
PROBLEM POSSIBLE SOLUTION
The grill and oven do not work.
Check that the appliance has been wired in to the
appliance supply and is switched on at the wall.
Check that the main appliance fuse is working.
If you have checked the above:
Allow the appliance to cool for a couple of hours. The
appliance should now be working normally.
The grill does not work or cuts out after being used
for a long period of time.
Leave the grill door open and allow the grill to cool. After
a couple of hours check that the grill works as normal.
The indicator neon is not working correctly.
Check that you have selected only the function you
require. Ensure all other controls are in the Off position.
The oven is not cooking evenly.
Check that the appliance is correctly installed and is
level.
Check that the recommended temperatures and shelf
positions are being used.
The oven fan is noisy.
Check that the oven is level.
Check that the shelves and bakeware are not vibrating in
contact with the oven back panel.
The oven temperature is too high or too low.
Check that the recommended temperatures and shelf
positions are being used. Be prepared to adjust the
temperature up or down by 10°C to achieve the results
you want.
20
SERVICE AND SPARE PARTS
In the event of your appliance requiring service, or if you wish to purchase spare parts, please contact your local
Service Force Centre by telephoning:-
0870 5 929929
Your telephone call will be automatically routed to the Service Force Centre covering your post code area.
For the address of your local Service Force Centre and further information about Service Force, please visit the
website at www.serviceforce.co.uk.
Before calling out an engineer, please ensure you have read the details under the heading "Something Not
Working?".
When you contact the Service Force Centre you will need to give the following details:
1. Your name, address and post code.
2. Your telephone number.
3. Clear and concise details of the fault.
4. The model and serial number of the appliance (found on the rating plate).
5. The purchase date.
Please note that a valid purchase receipt or guarantee documentation is required for in-guarantee service
calls.
For Customer Service in Ireland please contact us at the address below:
Zanussi-Electrolux
Electrolux Group (Irl) Ltd
Long Mile Road
Dublin 12
Republic of Ireland
Tel: +353 (0) 1 4090751
Email: service.eid@electrolux.ie
CUSTOMER CARE DEPARTMENT
For general enquires concerning your Zanussi-Electrolux appliance, or for further information on Zanussi-Electrolux
products, please contact our Customer Care Department by letter or telephone at the address below or visit our
website at www.zanussi-electrolux.co.uk
Customer Care Department
Zanussi-Electrolux
55 – 77 High Street
Slough
Berkshire
SL1 1DZ
Tel: 0870 5 727727 (*)
*calls to this number may be recorded for training purposes.
21
GUARANTEE CONDITIONS
Standard guarantee conditions
We, Zanussi-Electrolux, undertake that if within 12 months of the date of the purchase this ZANUSSIELECTROLUX appliance or any part thereof is proved to be defective by reason only of faulty workmanship or
materials, we will, at our option repair or replace the same FREE OF CHARGE for labour, materials or carriage on
condition that:
· The appliance has been correctly installed and used only on the electricity supply stated on the rating plate.
· The appliance has been used for normal domestic purposes only, and in accordance with the manufacturer’s
instructions.
· The appliance has not been serviced, maintained, repaired, taken apart or tampered with by any person not
authorised by us.
· All service work under this guarantee must be undertaken by a Service Force Centre.
· Any appliance or defective part replaced shall become the Company’s property.
· This guarantee is in addition to your statutory and other legal rights.
Home visits are made between 8.30am and 5.30pm Monday to Friday. Visits may be available outside these
hours in which case a premium will be charged.
Exclusions
This guarantee does not cover:
· Damage or calls resulting from transportation, improper use or neglect, the replacement of any light bulbs or
removable parts of glass or plastic.
· Costs incurred for calls to put right an appliance which is improperly installed or calls to appliances outside
the United Kingdom.
· Appliances found to be in use within a commercial environment, plus those which are subject to rental
agreements.
· Products of Zanussi-Electrolux manufacture which are not marketed by Zanussi-Electrolux.
European Guarantee
If you should move to another country within Europe then your guarantee moves with you to your new home
subject to the following qualifications:
· The guarantee starts from the date you first purchased your product.
· The guarantee is for the same period and to the same extent for labour and parts as exists in the new country
of use for this brand or range of products.
· This guarantee relates to you and cannot be transferred to another user.
· Your new home is within the European Community (EC) or European Free Trade Area.
· The product is installed and used in accordance with our instructions and is only used domestically, i.e. a
normal household.
· The product is installed taking into account regulations in your new country.
Before you move please contact your nearest Customer Care centre, listed below, to give them details of your
new home. They will then ensure that the local Service Organisation is aware of your move and able to look after
you and your appliances.
France Senlis +33 (0) 3 44 62 29 29
Germany Nürnberg +49 (0) 800 234 7378
Italy Pordernone +39 (0) 0434 39 4700
Sweden Stockholm +46 (0) 8 672 53 90
UK Slough +44 (0) 1753 219897
Ireland Dublin +353 (0) 1 4090751
22
TECHNICAL DETAILS
MODEL NO. ZCE5200
Voltage: 230-240 Volts AC 50Hz
Wattage: 9.3-10.2kW
Height: 900mm
Width: 500mm
Depth: 500mm
Weight: 55 kg
This appliance complies with: European Council Directive 73/23/EEC.
EMC Directive 89/336/EEC.
CE Marking Directive 93/68/EEC
23
INSTALLATION INSTRUCTIONS
WARNING: THIS APPLIANCE MUST BE
EARTHED
If your appliance has been damaged in transit,
contact your supplier immediately. DO NOT attempt
to install it.
Your appliance left the factory fully packaged to
protect it from damage. If it is delivered without
packaging and damage has occurred, the
manufacturer cannot accept responsibility. Contact
your supplier for advice.
Once the packaging has been removed the appliance
should only be moved by hand. DO NOT use a sack
barrow or any other aid to lift the appliance as
damage may occur.
Connection to the electricity supply must be carried
out by a qualified electrician/competent person.
The electrical connection should be made using a
double pole isolating switch (cooker socket) with at
least 3mm contact separation in all poles. The cable
must have conductors of sufficiently high crosssectional area to prevent overheating and
deterioration.
The recommended cross-section area is six square
millimetres (6.00mm
2
).
The cable should be routed away from potentially hot
areas marked by X. See Fig.1.
To move the appliance, open the oven door, and lift
the appliance by holding inside the top of the
compartment. See Fig.2.
This is a type X appliance, which means it is freestanding and can be fitted with cabinets on one or
both sides. It may also be fitted in a corner setting.
Side walls which are above hob level should be
protected by heat resistant non-combustible material
and MUST NOT be nearer than 40mm to the hob
side.
A nominal air gap of 2mm at either side of the
appliance is required to enable the appliance to be
moved into position.
Always ensure an air gap is maintained at hotplate
level. Tiles or other forms of deep wall covering
should not obscure this gap. See Fig.3.
Overhanging surfaces or a cooker hood should be a
minimum of 685mm above the hob. See Fig.4.
It is important to ensure that the appliance is level
after installation. Levelling feet are fitted to the
appliance to accommodate uneven floors.
Air gap
Fig.1.
Fig.2.
Fig.3.
Fig.4.
IMPORTANT NOTICE
In line with our continuing policy of research and development, we reserve the right to alter models and
specifications without prior notice.
This instruction booklet is accurate at the date of printing, but will be superseded if specifications or appearance are
changed.
ZANUSSI-ELECTROLUX
55 – 77 HIGH STREET,
SLOUGH,
BERKSHIRE,
SL1 1DZ.
TELEPHONE 0870 5 727727
www.zanussi-electrolux.co.uk
Part Number: 311734400
© Electrolux plc 2004
Loading...
