Dear customer,
Please read these operating instructions carefully
and pay particular attention to the safety notes
indicated in the first pages. We recommend that you
keep this instruction booklet for future reference and
pass it on to any future owners.
Transport damages
When unpacking the appliance, check that it is not
damaged. If in doubt, do not use it and contact the
Service Centre.
The symbols you will see on some paragraphs of this booklet have the following meaning:
The warning triangle and/or the key words (Warning!, Caution!) emphasize information that is particularly
important for your safety or correct functioning of the appliance.
The information marked with this symbol provides additional instructions and practical tips on the use of
the appliance.
Tips and information about economical and ecological use of the machine are marked with this symbol.
Our contribution to the protection of the
environment: we use environmentally
friendly paper.
Contents
3
International wash code symbols 14
Operating sequence 15-17
Washing only 15-16
Drying only 17
Automatic washing and drying 17
Washing programmes 18-19
Drying programmes 20
Maintenance 21
Bodywork 21
Detergent dispenser drawer 21
Drain filter 21
Water inlet filter 21
Emergency emptying out 22
Frost precautions 22
Something not working? 23-24
Warnings 4-5
Disposal 5
Tips for environmental protection 5
Technical specifications 6
Installation 7
Unpacking 7
Positioning 7
Water inlet 7
Water drainage 8
Electrical connection 8
Description of the appliance 9
Detergent dispenser drawer 9
Use 10
Control panel 10
Controls 10
Washing hints 11
Sorting the laundry 11
Temperatures 11
Before loading the laundry 11
Maximum loads 11
Laundry weights 11
Removing stains 11
Detergents and additives 12
Drying hints 13
Load 13
Garments not suitable for drying 13
Drying symbols on garment labels 13
Duration of the drying cycle 13
Fibre residue 13
Additional drying 13
4
Installation
• All internal packing must be removed before using
the appliance. Serious damage may be caused to
the machine or adjacent furniture if the protective
transit devices are not removed or are not
completely removed. Refer to the relevant
paragraph in the instruction book.
• Any electrical work required to install this appliance
must be carried out by a qualified electrician.
• Any plumbing work required to install this
appliance must be carried out by a qualified
plumber.
• After having installed the machine, check that it is
not standing on its electrical supply cable.
• If the appliance is placed on a carpeted floor,
ensure that air can circulate freely between the
feet and the floor.
Use
• This appliance is designed for domestic use. It
must not be used for purposes other than those for
which it was designed.
• Only wash and dry fabrics which are designed to
be machine washed and dried. Follow the
instructions on each garment label.
• Do not overload the appliance. Follow the
instructions in the instruction book.
• Make sure that all pockets are empty. Objects such
as coins, safety pins, pins and screws can cause
extensive damage.
• Do not machine wash garments saturated with
petroleum, methylated spirits, trichlorethylene, etc.
If such fluids have been used to remove stains
prior to washing, wait until they have completely
evaporated from the fabric before placing
garments in the appliance.
• Place small items such as socks, belts, etc. in a
cloth bag or pillowcase to prevent them getting
trapped between the drum and the tub.
• If you use a liquid detergent with a dispenser
which has to be placed directly in the drum,
remember to remove this dispenser before
drying.
Warnings
• Use only the recommended quantities of fabric
softener. An excessive amount could damage the
laundry.
• Leave the porthole door slightly ajar when the
appliance is not in use. This preserves the door
seal and prevents the formation of musty smells.
• Always check that water has emptied out before
opening the door. If not, drain the water following
the instructions in the instruction book.
• Always unplug the appliance and shut the water
tap after use.
General safety
• Repairs to the machine must be carried out only by
qualified personnel. Repairs carried out by
inexperienced persons could cause serious
danger. Contact your local Service Centre.
• Never pull the power supply cable to remove the
plug from the socket; always take hold of the plug
itself.
• During high temperature wash programmes and
during the drying cycle the door glass may get hot.
Do not touch it!
The following warnings are provided in the interests of overall safety. You must read them carefully before
installing or using the appliance.
5
Disposal
Tips for environmental protection
Packaging materials
The materials marked with the symbol are
recyclable.
>PE<=polyethylene
>PS<=polystyrene
>PP<=polypropylene
This means that they can be recycled by disposing of
them properly in appropriate collection containers.
Machine
Use authorised disposal sites for your old appliance.
Help to keep your country tidy!
The symbol on the product or on its packaging
indicates that this product may not be treated as
household waste. Instead it shall be handed over to
the applicable collection point for the recycling of
electrical and electronic equipment. By ensuring this
product is disposed of correctly, you will help prevent
potential negative consequences for the environment
and human health, which could otherwise be caused
by inappropriate waste handling of this product. For
more detailed information about recycling of this
product, please contact your local city office, your
household waste disposal service or the shop where
you purchased the product.
To save water, energy and to help protect the
environment, we recommend that you follow these
tips:
• Normally soiled laundry may be washed without
prewashing in order to save detergent, water and
time (the environment is protected too!).
• The machine works more economically if it is fully
loaded (for both washing and drying cycles).
• The machine will consume less energy if the
laundry is adequately spun before being dried.
• With adequate pre-treatment, stains and limited
soiling can be removed; the laundry can then be
washed at a lower temperature.
• Measure out detergent according to the water
hardness, the degree of soiling and the quantity of
laundry being washed.
Child safety
• Children are often not aware of how dangerous
electrical appliances can be. When the machine is
working, children should be carefully supervised
and not be allowed to play with the appliance.
• The packaging components (e.g. plastic film,
polystyrene) can be dangerous to children - danger
of suffocation! Keep them out of children’s reach.
• Keep all detergents in a safe place out of children’s
reach.
• Make sure that children or pets do not climb into
the drum.
• When the appliance is to be scrapped, cut off the
electrical supply cable and destroy the plug with
the remaining cable. Disable the door catch in
order to prevent children from becoming trapped
inside while playing.
6
DIMENSIONS Height 85 cm
Width 60 cm
Depth 58 cm
WASHING DRYING
MAXIMUM LOAD Cotton 5 kg 2.5 kg
Synthetics 2 kg 1.5 kg
Delicates 2 kg -
Woollens 1 kg SPIN SPEED 900 rpm max.
POWER SUPPLY VOLTAGE/FREQUENCY 220-230 V/50 Hz
TOTAL POWER ABSORBED 2200 W
MINIMUM FUSE PROTECTION 10 A
WATER PRESSURE Minimum 0.05 MPa
Maximum 0.8 MPa
This appliance complies with the following EEC Directives:
73/23/EEC of 19/02/73 relating to low voltage
89/336/EEC of 03/05/89 relating to electromagnetic compatibility.
Technical specifications
7
Installation
Unpacking
All transit bolts and packing must be
removed before using the appliance.
You are advised to keep all transit devices so that
they can be refitted if the machine ever has to be
transported again.
1. Using a spanner, unscrew and remove the two
rear bottom screws. Slide out the two plastic pins.
2. Lay the machine on its back, taking care not to
squash the hoses. This can be avoided by
placing one of the corner packing pieces between
the machine and the floor.
3. Remove the polystyrene block(s) from the bottom
of the machine. Unscrew and remove the four
feet. Release the two plastic bags.
4. Very carefully slide out the left polythene bag,
removing it towards the right and then downwards.
5. Very carefully slide out the right polythene bag,
removing it towards the left and then upwards.
P1127
P1126
P1124
2
3
1
P0001
P1129
6. Set the machine upright and remove the
remaining rear screw. Slide out the relevant pin.
7. Plug all the holes with the plugs which you will
find in the envelope containing the instruction
booklet.
Positioning
Install the machine on a flat hard floor.
Make sure that air circulation around the machine is
not impeded by carpets, rugs etc. Check that the
machine does not touch the wall or other kitchen units.
Carefully level by screwing the adjustable feet in or
out. Never place cardboard, wood or similar
materials under the machine to compensate for any
unevenness in the floor.
Water inlet
Connect the water inlet hose to a tap with a 3/4" thread.
The other end of the inlet hose which connects to the
machine can be turned in any direction. Simply
loosen the fitting, rotate the hose and retighten the
fitting, making sure there are no water leaks.
The inlet hose must not be lengthened. If it is too
short and you do not wish to move the tap, you will
have to purchase a new, longer hose specially
designed for this type of use.
P0021
P1088
P1051
P0002
P1128
8
Water drainage
The end of the drain hose can be positioned in three
ways:
Hooked over the edge of a sink using the plastic
hose guide supplied with the machine. In this
case, make sure the end cannot come unhooked
when the machine is emptying.
This could be done by tying it to the tap with a piece
of string or attaching it to the wall.
In a sink drain pipe branch. This branch must be
above the trap so that the bend is at least 60 cm
above the ground.
Directly into a drain pipe at a height of not less
than 60 cm and not more than 90 cm.
The end of the drain hose must always be
ventilated, i.e. the inside diameter of the drain pipe
must be larger than the outside diameter of the drain
hose.
The drain hose must not be kinked. Run it along the
floor; only the part near the drainage point must be
raised.
P0023
P0022
Electrical connection
This machine is designed to operate on a 220-230 V,
single-phase, 50 Hz supply.
Check that your domestic electrical installation can
take the maximum load required (2.2 kW), also
taking into account any other appliances in use.
WARNING: THIS APPLIANCE MUST BE
EARTHED.
The manufacturer declines any liability
should this safety measure not be
observed.
The appliance is supplied with a 13amp plug fitted.
In the event of having to change the fuse in the plug
supplied, a 13amp ASTA approved (BS1363A) fuse
must be used.
Should the plug need to be replaced for any reason,
proceed as described below.
The wires in the mains lead are coloured in

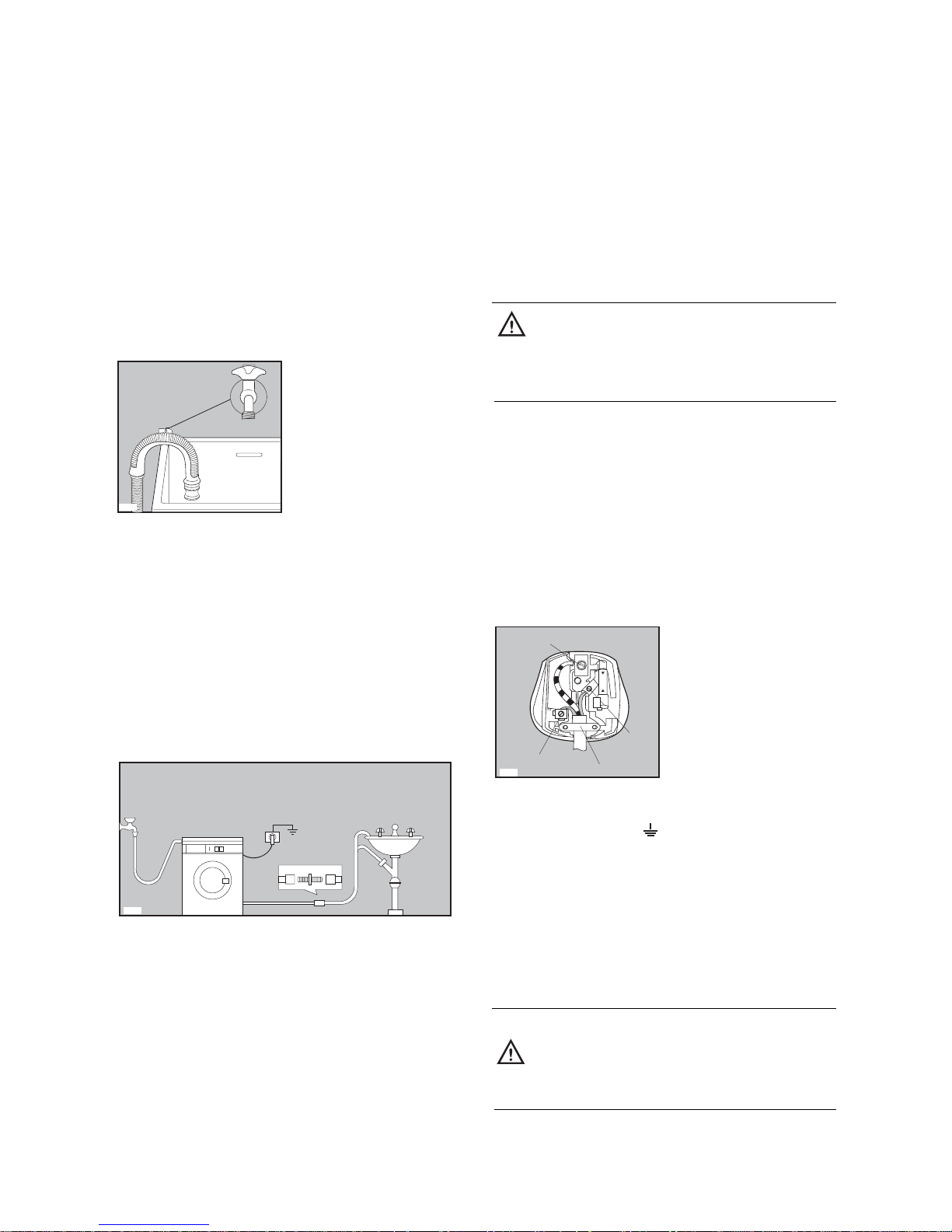

accordance with the following code:
Green and Yellow - Earth
Blue - Neutral
Brown - Live
The wire coloured green and yellow must be
connected to the terminal marked with the letter «E»
or by the earth symbol or coloured green and
yellow.
The wire coloured blue must be connected to the
terminal «N» or coloured black.
The wire coloured brown must be connected to the
terminal marked «L» or coloured red.
Upon completion there must be no cut, or stray
strands of wire present and the cord clamp must be
secure over the outer sheath.
WARNING:
A cut off plug inserted into a 13 amp socket
is a serious safety (shock) hazard.
Ensure that the cut off plug is disposed of
safely.
GREEN & YELLOW
BROWN
CORD CLAMP
BLUE
13A
P1041
E
N
L
9
1 Detergent dispenser drawer
2 Programme chart
3 Control panel
4 Door handle
5 Drain filter
6 Adjustable feet
Detergent dispenser drawer
Prewash
Main wash
Fabric softener, starch
Description of the appliance
13
4
5
6
2
TURBODRY
ON/OFF
DRY
QUICK
WASH
DRYING
TEMPERATURE PROGRAMME
W 905
MADE IN ITALY
A
WHITE COTTONS WITH PREW.
60°C - 90°C
B
WHITE COTTONS
COLOURED COTTONS WITH PREW.
COLOURED COTTONS
60°C - 90°C
30°C - 60°C
30°C - 60°C
A
B
RINSES
SPIN
COTTONS DRY
C
D
F
SYNTHETICS
G
SHORT CYCLE
H
SHORT SPIN
J
SYNTHETICS DRY
K
WOOL
L
DELICATES
M
DELICATE RINSE
N
DRAIN
P
30°C - 60°C
- 30°C
- 40°C
30°C - 40°C
C0063
10
Use
1324 7 86
5
TURBODRY
ON/OFF
DRY
QUICK
WASH
DRYING
TEMPERATURE PROGRAMME
W 905
MADE IN ITALY
A
WHITE COTTONS WITH PREW.
60°C - 90°C
B
WHITE COTTONS
COLOURED COTTONS WITH PREW.
COLOURED COTTONS
60°C - 90°C
30°C - 60°C
30°C - 60°C
A
B
RINSES
SPIN
COTTONS DRY
C
D
F
SYNTHETICS
G
SHORT CYCLE
H
SHORT SPIN
J
SYNTHETICS DRY
K
WOOL
L
DELICATES
M
DELICATE RINSE
N
DRAIN
P
30°C - 60°C
- 30°C
- 40°C
30°C - 40°C
Control panel
1 Programme guide
2 Drying time selector dial
Graduated up to 120 mins for cottons (yellow
section) and synthetics (black section), this dial
allows you to select the desired drying time
according to the type and quantity of laundry and the
required degree of dryness.
Turn the dial clockwise only.
Cooling phase
To allow the laundry to cool down, a cooling phase
starts automatically 10 minutes before the end of
drying and this phase must in no circumstances be
reduced or interrupted.
3 Drying indicator light
This light illuminates when the machine is drying.
4 ON/OFF button
By depressing this button the machine starts
operating.
When depressed again, the machine stops.
5 Mains-on light
This light illuminates when the machine starts
working and goes out when the ON/OFF button is
released.
6 QUICK WASH button
By depressing this button on cotton and synthetic
programmes the washing time will be reduced by
approx. 30 mins for cotton from COLD to 60°C
and by 15 mins for synthetics.
Max. recommended temperature 60°C.
To be used for lightly soiled laundry.
7 Temperature selector dial
Turn this dial clockwise or anti-clockwise to select
the required temperature.
Position
means that the machine will wash with
cold water.
8 Programme selector dial
Turn the dial clockwise to select the required wash
and drying programme.
Before setting the dial to any position the machine
must be switched off by depressing the ON/OFF
button again.
Washing hints
Sorting the laundry
Follow the wash code symbols on each garment
label and the manufacturer’s washing instructions.
Sort the laundry as follows:
whites, coloureds, synthetics, delicates, woollens.
Temperatures
90° for normally soiled white cottons and linen
(e.g. tea cloths, towels, tablecloths,
sheets...)
60° for normally soiled, colour fast garments
(e.g. shirts, night dresses, pyjamas....) in
linen, cotton or synthetic fibres and for
lightly soiled white cotton (e.g. underwear).
(cold)for delicate items (e.g. net curtains), mixed
30°-40° laundry including synthetic fibres and
woollens.
Before loading the laundry
Never wash whites and coloureds together. Whites
may lose their “whiteness” in the wash.
New coloured items may run in the first wash; they
should therefore be washed separately the first time.
Make sure that no metal objects are left in the
laundry (e.g. hair clips, safety pins, pins).
Button up pillowcases, close zip fasteners, hooks
and poppers. Tie any belts or long tapes.
Remove persistent stains before washing. Rub
particularly soiled areas with a special detergent or
detergent paste.
Treat curtains with special care. Remove hooks or tie
them up in a bag or net.
Maximum loads
Recommended loads are indicated in the
programme charts.
General rules:
Cotton, linen: drum full but not too tightly packed;
Synthetics: drum no more than half full;
Delicate fabrics and woollens: drum no more than
one third full.
Washing a maximum load makes the most efficient
use of water and energy.
For heavily soiled laundry, reduce the load size.
Laundry weights
The following weights are indicative:
bathrobe 1200 g
napkin 100 g
quilt cover 700 g
sheet 500 g
pillow case 200 g
tablecloth 250 g
towelling towel 200 g
tea cloth 100 g
night dress 200 g
ladies’ briefs 100 g
man’s work shirt 600 g
man’s shirt 200 g
man’s pyjamas 500 g
blouse 100 g
men’s underpants 100 g
Removing stains
Stubborn stains may not be removed by just water
and detergent. It is therefore advisable to treat them
prior to washing.
Blood: treat fresh stains with cold water. For dried
stains, soak overnight in water with a special
detergent then rub in the soap and water.
Oil based paint: moisten with benzine stain
remover, lay the garment on a soft cloth and dab the
stain; treat several times.
Dried grease stains: moisten with turpentine, lay
the garment on a soft surface and dab the stain with
the fingertips and a cotton cloth.
Rust: oxalic acid dissolved in hot water or a rust
removing product used cold. Be careful with rust
stains which are not recent since the cellulose
structure will already have been damaged and the
fabric tends to hole.
Mould stains: treat with bleach, rinse well (whites
and fast coloureds only).
Grass: soap lightly and treat with bleach (whites and
fast coloureds only).
Ball point pen and glue: moisten with acetone (*),
lay the garment on a soft cloth and dab the stain.
Lipstick: moisten with acetone as above, then treat
stains with methylated spirits. Remove any residual
marks from white fabrics with bleach.
Red wine: soak in water and detergent, rinse and
treat with acetic or citric acid, then rinse. Treat any
11
Quantity of detergent to be used
The type and quantity of detergent will depend on
the type of fabric, load size, degree of soiling and
hardness of the water used.
Water hardness is classified in so-called “degrees” of
hardness. Information on hardness of the water in
your area can be obtained from the relevant water
supply company, or from your local authority.
Follow the product manufacturers’ instructions on
quantities to use.
Use less detergent if:
– you are washing a small load,
– the laundry is lightly soiled,
– large amounts of foam form during washing.
residual marks with bleach.
Ink: depending on the type of ink, moisten the fabric
first with acetone (*), then with acetic acid; treat any
residual marks on white fabrics with bleach and then
rinse thoroughly.
Tar stains: first treat with stain remover, methylated
spirits or benzine, then rub with detergent paste.
(*) do not use acetone on artificial silk.
Detergents and additives
Good washing results also depend on the choice of
detergent and use of the correct quantities to avoid
waste and protect the environment. Although
biodegradable, detergents contain substances
which, in large quantities, can upset the delicate
balance of nature.
The choice of detergent will depend on the type of
fabric (delicates, woollens, cottons, etc.), the colour,
washing temperature and degree of soiling.
All commonly available washing machine detergents
may be used in this appliance:
– powder detergents for all types of fabric,
– powder detergents for delicate fabrics (60°C max)
and woollens,
– liquid detergents, preferably for low temperature
wash programmes (60°C max) for all types of
fabric, or special for woollens only.
The detergent and any additives must be placed in
the appropriate compartments of the dispenser
drawer before starting the wash programme.
If using concentrated powder or liquid detergents, a
programme without prewash must be selected.
The washing machine incorporates a recirculation
system which allows an optimal use of the
concentrated detergent.
Pour liquid detergent into the dispenser drawer
compartment marked just before starting the
programme.
Any fabric softener or starching additives must be
poured into the compartment marked before
starting the wash programme.
Follow the product manufacturer’s recommendations
on quantities to use and do not exceed the «MAX»
mark in the detergent dispenser drawer.
12
13
Drying hints
As a dryer, the machine works on the condensation
principle.
Therefore, the water tap must be open and the
drain hose must drain water into a sink or into
the drain pipe, even during the drying cycle.
Load
Warning:
Loads of washed laundry exceeding these values
must be divided before being dried, otherwise
poor results will be obtained.
Garments not suitable for drying
• Particularly delicate items such as synthetic
curtains, woollen and silk, garments with metal
inserts, nylon stockings, bulky garments such as
anoraks, bedcovers, quilts, sleeping bags and
duvets must not be machine dried.
• Garments padded with foam-rubber or materials
similar to foam-rubber must not be machine dried;
they represent a fire hazard.
• Also, fabrics containing residues of setting lotions
or hair sprays, nail solvents or similar solutions
must not be machine dried in order to avoid the
formation of harmful vapours.
Drying symbols on garment labels
Always look at the garment label to check whether
garments can be machine dried.
The following symbols refer to drying:
Machine drying is usually possible
Normal drying (normal temperature)
Gentle drying (reduced temperature)
Do not machine dry
Duration of the drying cycle
The drying time can vary according to
• the final spin speed;
• the required degree of drying (store dry or iron
dry);
• the type of laundry;
• the size of load.
The usual drying times are indicated in the
programme chart. As you become more familiar with
the appliance, you will discover the drying times that
best suit your needs according to the various type of
fabric. It is a good idea to make a note of these
times.
Fibre residue
After drying fluffy fabrics, such as new towels, it is
advisable to perform the rinse programme N
(delicates rinse) to be sure that any residue that may
remain in the tub is completely removed and does
not stick to garments dried afterwards.
After each drying cycle the filter should be
checked and cleaned.
Additional drying
Should the laundry still be too wet at the end of the
programme, set another short drying cycle.
Warning! To prevent the formation of creases or
shrinking of fabrics, avoid excessive drying.
max. load
(dry weight)
2.5 kg
1.5 kg
Linen and cottons
Synthetics
Sort of laundry
14
International wash code symbols
These symbols appear on fabric labels, in order to help you choose the best way to treat your laundry.
Energetic wash
Delicate wash
Max. wash
temperature
95°C
Max. wash
temperature
60°C
Max. wash
temperature
40°C
Max. wash
temperature
30°C
Hand wash Do not
wash
at all
Bleaching Bleach in cold water Do not bleach
Ironing Hot iron
max 200°C
Warm iron
max 150°C
Lukewarm iron
max 110°C
Do not iron
Dry cleaning Dry cleaning
in all solvents
Dry cleaning in
perchlorethylene,
petrol, pure alcohol,
R 111 & R 113
Dry cleaning
in petrol,
pure alcohol
and R 113
Do not
dry clean
Drying Flat On the line On clothes
hanger
Tumble dr y
high
temperature
low
temperature
Do not
tumble dry
95
60
60
40
40
40
30
30
15
4.Depress QUICK WASH button if
required
5.Select the temperature
Turn the dial to the required setting.
6.Select the required programme
Turn the programme selector dial clockwise to the
desired position.
M0046BM0045S
90
QUICK
WASH
Operating sequence
Washing only
Before washing your first load of laundry, we
recommend that you run a cotton cycle at 90°C, with
the machine empty, in order to remove any
manufacturing residue from the drum and tub.
Pour half a measure of detergent into the main wash
compartment and start up the machine.
1.Place the laundry in the drum
Open the door.
Place the laundry in the drum, one item at a time,
shaking them out as much as possible.
Close the door.
2.Measure out the detergent
Pull out the dispenser drawer until it stops. Measure
out the amount of detergent recommended by the
manufacturer in a graduated cup and pour it into the
main wash compartment .
If you wish to carry out the prewash, pour detergent
into the appropriate compartment marked .
3.Measure out the additive
If required, pour fabric softener into the compartment
marked , without exceeding the «MAX» mark.
C0065
C0064
P0004
7. Start the machine
Depress the ON/OFF button: the mains-on light will
illuminate and the machine starts operating.
8.At the end of the programme
The machine stops automatically.
If you have selected a programme which ends with
the water of the last rinse in the tub, drain the water
before opening the door by selecting programme P
(drain) or J (drain and short spin).
The door is controlled by a safety device which
releases 2 minutes after the end of the programme.
Switch the machine off by pressing the ON/OFF
button. The mains-on light goes out.
Remove the laundry from the drum and carefully
check that the drum is empty so as to avoid any
forgotten items being damaged in a subsequent
wash (e.g. shrinking) or their colour running into a
load of whites.
If you do not intend to carry out another wash, close
the water tap.
Leave the door open to prevent the formation of
mildew and unpleasant smells.
ON/OFF
16
17
Drying only
Warning! Do not exceed the maximum laundry
loads:
- 2.5 kg for linen and cottons
- 1.5 kg for synthetics.
The water tap must be open and the drain hose must
be positioned in the sink or connected to the drain
pipe.
1. Load the laundry
2. Select the drying programme F (for cotton) or K
(for synthetics), depending on the type of fabrics).
3. Select the drying time according to the fabrics to
dry (in the yellow section of the selector for
cotton or in the black section for synthetics).
4. Press the ON/OFF button to start the programme.
5. At the end of the cycle press the ON/OFF button
again to switch the appliance off.
6. Remove the laundry.
Automatic washing and drying
(NON-STOP programme)
Warning! For NON-STOP programmes, it is also
essential not to exceed the maximum load sizes of
2.5 kg for cotton and 1.5 kg for synthetics.
1. Load the laundry.
2. Add detergent and additive.
Do not use dosing device/ball when carrying
out a NON-STOP programme. The plastic
material with which it is made cannot
withstand the high temperature in the drum
during drying.
3. Select the wash programme.
4. Select the drying time.
5. Start the programme by depressing the ON/OFF
button.
6. At the end of the programme press the ON/OFF
button again to switch the machine off.
7. Remove the laundry.
18
Washing Programmes
Degree of soil
and type of laundry
Description
Wash programme
Programme/
Temperature
Possible
option
Max.
load
COLOURED
COTTON WITH
PREW.
WHITE COTTONS
(without prewash)
WHITE COTTONS
WITH
PREW.
For heavy soiled
cotton items.
Coloured cotton or
linen fabrics, shirts,
underwear, towels,
blouses.
White cotton, for
example normally
soiled work garments,
sheets, household
linen, underwear,
towels.
A
60°-90°
A
30°-60°
B
60°-90°
Wash at 60°-90 °C
3 rinses
Long spin
Prewash at 40 °C
Wash at 30°-60 °C
3 rinses
Long spin
Prewash at 40 °C
Wash at 60-90°C
3 rinses
Long spin
QUICK WASH
QUICK WASH
QUICK WASH
5 kg
5 kg
5 kg
COLOURED
COTTON
(without prewash)
Delicate or fast
coloured cotton or
linen fabrics, shirts,
underwear, towels.
B
30°-60°
Wash at 30°-60 °C
3 rinses
Long spin
QUICK WASH
5 kg
SPIN
Separate long spin for
cotton and linen items
D
Long spin
5 kg
RINSES
Separate rinse cycle
for hand washed
cotton and linen items.
C
4 rinses
Long spin
5 kg
Programmes for cotton and linen
Important!
• Programme B begins with a short drain, then the programme selector dial advances automatically to the water
filling position.
• We suggest you not to switch the appliance off and on during its operation. This would modify the memorised
programme in progress with unsatisfactory washing results.
19
Washing Programmes
Degree of soil
and type of laundry
Description
Wash programme
Programme/
Temperature
Possible
option
SHORT
SPIN
WOOL
DELICATES
Specially tested
programme for wool
garments bearing the
“Pure new wool, nonshrink, machine
washable” label.
Delicate fabrics, for
example curtains.
H
-30°
L
-40°
M
30°-40°
Wash at 30°-40°C
3 rinses
Stop with water left
in tub
Wash at -40°C
3 rinses
Stop with water left
in tub
Wash at -30°C
3 rinses
Stop with water left
in tub
DRAIN
DELICATE
RINSES
SHORT
CYCLE
Slightly soiled
synthetic or mixed
fabrics, shirts,
blouses, underwear.
This programme can
be used for rinsing
hand washed
garments.
Separate spin for hand
washed delicate items.
For emptying out the
last rinse water of
these programmes.
P
J
N
Draining of water
and short spin
3 delicate rinses,
with fabric softener,
if required
Stop with water left
in tub
Draining of water
Programmes for synthetics, mixed fabrics, delicates and wool
Max.
load
2 kg
1 kg
2 kg
2 kg
2 kg
-
SYNTHETICS
Synthetics or mixed
fabrics, underwear,
coloured items, shirts,
blouses.
G
30°-60°
Wash at 30°-60° C
3 rinses
Stop with water left
in tub
2 kg
QUICK WASH
At the end of these programmes, the last rinse water is not emptied out, so as to avoid creasing of the fabrics.
To empty out the water, select programme J (short spin) or P (drain).
Important: When the automatic NON-STOP washing plus drying programme is used, the water is emptied out
automatically and there is a short spin at 850 rpm before drying starts.
Important!
• The programme G for synthetics and the programme L for wool begin with a short drain, then the programme
selector dial advances automatically to the water filling position.
• We suggest you not to switch the appliance off and on during its operation. This would modify the memorised
programme in progress with unsatisfactory washing results.
20
Drying Programmes
Timed drying
Degree of
drying
Store dry
Suitable for
items to put
away without
ironing
Type of fabric
Cotton and linen
(towels, T-shirts,
bathrobes)
Programme F
Max. load
2.5 kg
Spin speed
900
Drying time
mins
Yellow section
95
1 kg
900
Yellow section
65
Synthetic and mixed
fabrics (jumpers,
blouses, underwear,
household linen)
Programme K
1.5 kg 850
Black section
95
1,0 kg 850
Black section
65
Iron dry
Suitable
for ironing
Cotton and linen
(sheets, tablecloths,
shirts, etc.)
Programme F
2.5 kg
900
Yellow section
75
1 kg
900
Yellow section
50
Maintenance
21
1.Bodywork
Clean the outside of the machine with warm water
and a detergent used to handwash dishes. Rinse
with clean water and dry with a soft cloth.
Important: do not use methylated spirits, solvents or
similar products to clean the bodywork.
2.Detergent dispenser drawer
After a while, detergents and fabric softeners leave
deposits in the drawer.
Clean the drawer from time to time by rinsing it under
a running tap. To remove the drawer from the
machine, press the button in the rear left-hand
corner.
To facilitate cleaning, the top part of the additive
compartments can be removed.
Detergent can also accumulate inside the drawer
recess: clean it with an old toothbrush. Refit the
drawer after cleaning.
P0038
C0067
C0066
3.Drain filter
The drain filter collects threads and small objects
inadvertently left in the laundry. Check regularly that
the filter is clean.
Open the filter door.
Place a container under the filter and unscrew it.
Pull out the filter.
Clean the filter under a running tap, then refit it,
screwing it fully in.
4.Water inlet filter
If you notice that the machine is taking longer to fill,
check that the filter in the water inlet hose is not
blocked.
Turn off the water tap.
Unscrew the hose from the tap.
Clean the filter with a stiff brush.
Screw the hose back onto the tap.
P0040
P0133
P0132
P0011
P1090
22
5.Emergency emptying out
If the water is not discharged (outlet pump is
blocked, filter or drain hose are clogged), proceed as
follows to empty out the machine:
• pull out the plug from the power socket;
• close the water tap;
• if necessary, wait until the water has cooled down;
• place a bowl on the floor under the filter;
• slightly loosen the filter to let the water come out
slowly;
• at the end screw the filter again.
6.Frost precautions
If the machine is installed in a place where the
temperature could drop below 0°C, proceed as
follows:
• Close the water tap and unscrew the water inlet
hose from the tap.
• Place the end of the drain hose and that of the inlet
hose in a bowl placed on the floor.
• Select programme P (draining) and run it until the
machine stops.
• Switch the machine OFF by depressing ON/OFF
button.
• Screw the water inlet hose back on and put the
drain hose back in its place.
By doing this, any water remaining in the machine is
removed, avoiding the formation of ice and,
consequently, breakage of the affected parts.
When you use the machine again, make sure that
the ambient temperature is above 0°C.
23
Something not working?
Problem Possible cause
• The machine does not start up:
• The door is not firmly closed.
• The machine is not plugged in or there is no power
at the socket.
• The main fuse or the fuse in the plug has blown.
• The programme selector dial is not positioned
correctly.
• The ON/OFF button has not been depressed.
• The machine does not fill:
• The water tap is closed.
• The inlet hose is squashed or kinked.
• The filter in the inlet hose is blocked.
• The door is not properly closed.
• The machine fills then empties
immediately:
• The end of the drain hose is too low. Refer to
relevant paragraph in “water drainage” section.
• The machine does not empty
and/or does not spin:
• The drain hose is squashed or kinked.
• A programme which ends with water in tub has
been selected.
• The drain filter is clogged.
• There is water on the floor:
• Too much detergent or unsuitable detergent
(creates too much foam) has been used.
• Check whether there are any leaks from one of the
inlet hose fittings. It is not always easy to see this
as the water runs down the hose; check to see if it
is damp.
• The drain hose is damaged.
• Unsatisfactory washing results:
• Too little detergent or unsuitable detergent has
been used.
• Stubborn stains have not been treated prior to
washing.
• The correct temperature was not selected.
• Excessive laundry load.
• The machine vibrates or is
noisy:
• The transit bolts and packing have not been
removed.
• The support feet have not been adjusted.
• The laundry is not evenly distributed in the drum.
• Maybe there is very little laundry in the drum.
• The door will not open:
• The programme is still running.
• The door lock has not been released.
• There is water in the drum.
Problems which you can resolve yourself.
24
If you are unable to identify or solve the problem,
contact our service centre. Before telephoning, make
a note of the model, serial number and purchase
date of your machine: the Service Centre will require
this information.
Mod. ..........
Prod. No. ...........
Ser. No. .........
M
o
d
.
.
.
.
..
..
..
.
P
r
o
d
.
N
o
.
.
..
.
.
..
.
..
.
S
e
r
.
N
o
.
.
.
.
..
.
.
..
P0042
P1035UK
Water is not
visible in the machine. The machine,
which is the result of modern technology, runs
in a very economical way with low water
consumption. Performance is
nevertheless excellent.
Problem Possible cause
• Spinning starts late or the
laundry is not spun enough:
• The machine will not dry or the
laundry is not dry enough
• The electronic unbalance detection device has cut
in because the laundry is not evenly distributed in
the drum. The laundry is redistributed by reverse
rotation of the drum. This may happen several
times before the unbalance disappears and normal
spinning can resume. If, after 20 minutes, the
laundry is still not evenly distributed in the drum,
the machine will not spin. If at the end of the
programme the laundry is not spun enough,
redistribute the load manually and select the spin
programme.
• The water tap is closed.
• The drain filter is clogged.
• The drying time
has not been selected.
• An appropriate drying time has not been chosen.
• There is too much laundry inside the appliance.
The machine makes an unusual
noise. The machine is fitted with a commutator
motor which improves machine
performance.
P1034UK
MADE IN ITALY
From the Electrolux Group. The world’s No. 1 choice.
The Electrolux Group is the world's largest producer of powered appliances for kitchen, cleaning and outdoor
use. More than 55 million Electrolux Group products (such as refrigerators, cookers, washing machines,
vacuum cleaners, chain saws and lawn mowers) are sold each year to a value of approx. USD 14 billion in
more than 150 countries around the world.
Loading...
