Page 1
74. 75.

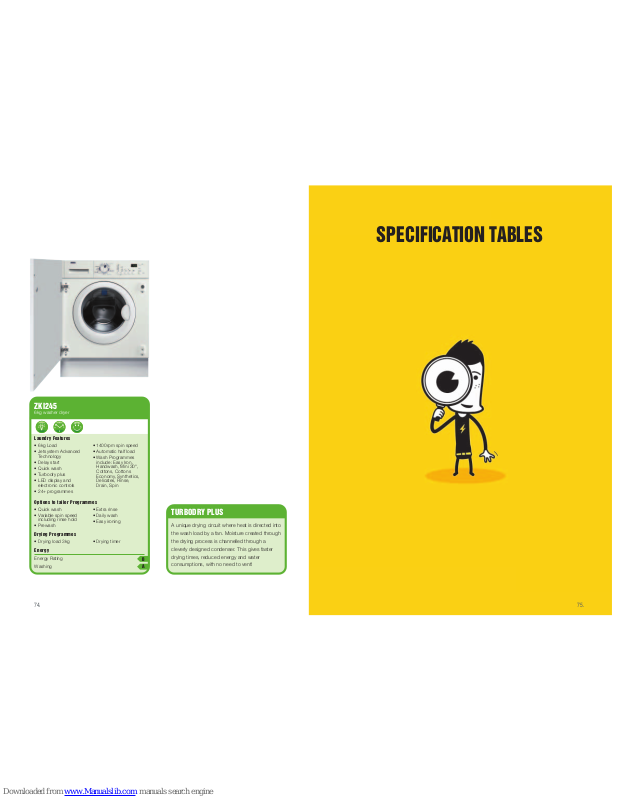

ZKI245
6kg washer dryer
• 6kg Load
• Jetsystem Advanced
Technology
• Delay start
• Quick wash
• Turbodry plus
• LED display and
electronic controls
• 24+ programmes
• 1400rpm spin speed
• Automatic half load
• Wash Programmes
include: Easy Iron,
Handwash, Mini 30°,
Cottons, Cottons
Economy, Synthetics,
Delicates, Rinse,
Drain, Spin
Laundry Features
• Quick wash
• Variable spin speed
including rinse hold
• Prewash
• Extra rinse
• Daily wash
• Easy ironing
Options to tailor Programmes
• Drying load 3kg • Drying timer
Drying Programmes
B
A
A unique drying circuit where heat is directed into
the wash load by a fan. Moisture created through
the drying process is channelled through a
cleverly designed condenser. This gives faster
drying times, reduced energy and water
consumptions, with no need to vent!
TURBODRY PLUS
Energy
Energy Rating
Washing
SPECIFICATION TABLES
Page 2
77.
OVEN FUNCTIONS (t=top, m=main)
Thermaflow®fan operated cooking ■■■■■■ ■■
Fan assisted cooking ■
Thermal grilling ■■■■ ■■
Conventional cooking ■■■ ■ ■
Pizza setting ■■
Booster ■■
Fan controlled defrosting ■■■■■■ ■■
Full width grill ■■■■ ■■■
Economy grill ■■■■■■■■
Bottom heat - reheat ■■■ ■ ■
Top heat browning ■■■ ■ ■
OVEN FEATURES
Oven door(s) (Q=quadruple T=triple, D-double) Q T D D D D D D T
Interior lights Watts 1x15 1x15 1x15 1x15 1x15 1x15 1x15 1x15 2x15
Interior lights Position Side Side Side Side Side Side Side Side 1 Each Side
Digital push button controls ■■
Retractable controls ■■
Rotary controls ■■■■■
Controls behind glass ■■■
Digital display ■■
Digital temperature control ■■
Compact hinge ■■■■■■■■■
Cooling fan ■■■■■■■■■
Easy installation - side handles and stability feet ■■■■■■■■
PROGRAMMER
Mechanical minute minder ■
Fully programmable electronic clock & minute minder ■■■ ■■
Digital controls with menu guided cooking ■■
CLEANING
Pyrolytic oven cleaning 2) ■
Catalytic lining / liners ■■■ ■■
Easy clean enamel interior ■■■
Fold down grill ■■■ ■
EQUIPMENT SUPPLIED
Telescopic runners Optional Optional Optional Optional ■
Chrome grid runners ■■■■ ■ ■
Chrome auto-stop non-tip shelves 2 2 2 2 2 2 2 2 1
Grill pan, trivet & handle(s) ■■■■■■■■■
INTERNAL OVEN DIM. (t=top, m-main)
Volume (usage) Litres 53 53 53 53 53 53 53 53 67
Height mm 335 335 335 335 335 335 335 335 316
Width mm 395 395 395 395 405 405 405 395 555
Depth mm 400 400 400 400 400 400 410 400 381
ENERGY INFORMATION
Oven temperature range °C 30-250 30-250 50-250 50-250 50-250 50-250 50-250 50-250 50-250
Energy class A A A A A A A A A
Energy efficiency class in mode Static/Fan F F F F F F S F F
Cooktime standard load static Minutes 43 43 43 43 43 43 43 43 46
Cooktime standard load fan Minutes 41 41 41 41 41 41 N/A 41 50
Energy consumption static kW/h 0.79 0.79 0.79 0.79 0.79 0.79 0.79 0.79 1.12
Energy consumption fan kW/h 0.78 0.78 0.78 0.78 0.78 0.78 N/A 0.78 0.99
Standby power W 1.3 1 1 1.3 1 0 0 1 1
ELECTRICAL CONNECTION
Connected load kW 2.5 2.5 2.5 2.1 2.1 2.1 2.5 2.5 2.9
Fuse rating A 13 13 13 13 13 13 13 13 13
Oven/Grill power (max) kW 2.5/2.45 2.5/2.45 2.5/2.45 2.1/2.45 2.1/1.65 2.1/1.65 2.5/2.45 2.5/2.45 2.9/2.8
SAFETY AND INTERFERENCE SUPPRESSION
Low Voltage Directive (LVD) ■■■■■■■■■
Electromagnetic Compatibility (EMC) ■■■■■■■■■
LIERATURE SUPPLIED
Operation and installation instructions ■■■■■■■■■
APPLIANCE DIMENSIONS
Height mm 590 590 590 590 590 590 590 590 474
Width mm 594 594 594 594 594 594 594 594 894
Depth mm 560 560 560 560 560 560 560 560 545
Net weight kg 34.6 34.6 34.6 30.6 30.6 29.7 30 34.2 47
APERTURE DIMENSIONS 1)
Height* mm 593 593 593 593 593 593 593 593 460
Width mm 560 560 560 560 560 560 560 560 860
Depth mm 550 550 550 550 550 550 550 550 550
PACKAGING DIMENSIONS
Height mm 660 660 660 660 660 660 660 660 585
Width mm 630 630 630 630 630 630 630 630 980
Depth mm 660 660 660 660 660 660 660 660 670
Gross weight kg 36.1 36.1 36.1 32.1 32.1 31.2 31.5 35.7 53
SINGLE OVENS
COOKING
ZYB594X
ZOB690X
ZOB580N
ZOB580X
ZOB551X
ZOB330W
ZOB330X
ZOB230W
ZOB230X
ZOB150X
ZOB550WL
ZOB550XL
ZOB9900X
MODEL
1) Refer to User Instructions before cutting out. 2) Pyrolytic cleaning : 5.0kW/h. * 593mm if built under worktop or hob for all models.
76.
OVEN FUNCTIONS (t=top, m=main) t | m t | m t | m t | m t | m
Thermaflow®fan operated cooking ■ | ■ ■| ■ ■| ■ ■ | ■ ■| ■
Fan assisted cooking ■ | ■
Thermal grilling ■ | ■ ■| ■■| ■
Conventional cooking ■ | ■■| ■ ■| ■ ■ | ■■| ■
Pizza setting ■ | ■ ■ | ■
Booster ■ | ■ ■ | ■
Fan controlled defrosting ■| ■ ■ | ■ ■ | ■■| ■ ■| ■
80° keep warm ■ | ■ ■ | ■
Full width grill ■| ■■| ■■| ■ ■ | ■■| ■
Economy grill ■| ■■| ■■| ■ ■ | ■■| ■
Bottom heat - reheat ■ | ■
OVEN FEATURES
Oven door(s) (Q=quadruple T=triple, D-double) D D D D D
Interior lights Watts 2x25 2x25 2x25 1x38 | 1x25 2x25
Interior lights Position Back | Side Back | Side Back | Side Side | Side Side | Side
Digital touch controls ■
Retractable controls ■■
Rotary controls ■■
Controls behind glass ■
Digital display ■
Digital temperature control ■
Compact hinge ■■■■■
Cooling fan ■■■■■
PROGRAMMER
Mechanical minute minder
Fully programmable electronic clock & minute minder ■ | ■ ■ | ■ ■ | ■ ■ | ■
Digital controls with menu guided cooking ■ | ■
CLEANING
Catalytic lining / liners ■■ ■■
Easy clean enamel interior ■
Fold down grill Top
EQUIPMENT SUPPLIED
Telescopic runners Optional Optional Optional
Chrome grid runners ■■■■■
Chrome auto-stop non-tip shelves 1 | 2 1 | 2 1 | 2 1 | 2 1 | 2
Grill pan, trivet & handle(s) ■■■■■
INTERNAL OVEN DIM. (t=top, m-main)
Volume (usage) Litres 31 | 53 31 | 53 31 | 57 35 | 49 38 | 53
Height mm 180 | 330 180 | 330 180 | 350 260 | 270 260 | 290
Width mm 420 | 420 420 | 420 420 | 420 345 | 445 345 | 445
Depth mm 405 | 385 405 | 385 405 | 385 385 | 410 425 | 410
ENERGY INFORMATION
Oven temperature range °C 50-250 50-250 50-250 50-250 50-250
Energy class B | B B | A B | A A | B A | B
Energy efficiency class in mode Static/Fan S | F S | F S | F F | S S | F
Cooktime standard load static Minutes 38 | 47 42 | NA 40 | NA 46 | 51 41 | NA
Cooktime standard load fan Minutes NA | 52 NA | 49 NA | 47 42 | 60 NA | 56
Energy consumption static kW/h 0.71 | 0.96 0.74 | NA 0.71 | NA 0.86 | 0.98 0.77 | NA
Energy consumption fan kW/h NA | 0.91 NA | 0.78 NA | 0.79 0.79 | 0.99 NA | 0.98
Standby power W 1.1 1.1 1.1 1.1 1.1
ELECTRICAL CONNECTION
Connected load kW 5.6 5.4 5.6 6.4 5.4
Fuse rating A 30 30 30 30 30
Oven power (max) kW 1.7 | 3.2 1.7 | 2.5 1.7 | 2.5 1.7 | 2.5 1.7 | 2.5
Grill power (max) kW 2.3 | 2.3 2.8 | 2.3 2.8 | NA 2.8 | 2.3 2.8 | NA
SAFETY AND INTERFERENCE SUPPRESSION
Low Voltage Directive (LVD) ■■■■■
Electromagnetic Compatibility (EMC) ■■■■■
LIERATURE SUPPLIED
Operation and installation instructions ■■■■■
APPLIANCE DIMENSIONS
Height mm 888 888 888 720 720
Width mm 595 595 595 593 593
Depth mm 545 545 545 550 550
Net weight kg 53 53 53 50 48
APERTURE DIMENSIONS 1)
Height* mm 872 872 872 870 870
Width mm 558 558 558 600 600
Depth mm 550 550 550 560 560
PACKAGING DIMENSIONS
Height mm 965 965 965 800 800
Width mm 665 665 665 660 660
Depth mm 680 680 680 660 660
Gross weight kg 55 55 55 52 50
DOUBLE OVENS
COOKING
ZOD685X
ZOD550X
ZOD550N
ZOD330X
ZOD330W
ZOU575X
ZOU575N
ZOU330X
ZOU330W
MODEL
1) Refer to User Instructions before cutting out
Page 3
78. 79.
PERFORMANCE
Microwave output (IEC 705) 1000W 1000W 900W
Heating category 1) E E E
Grill output 1500 1500
Convection oven output 1600
FEATURES
Fully built-in ■■■
Under counter installation ■■■
In-column installation ■■■
Microwave power levels 5 5 5
Hinged grill ■■
Electronic push controls 5 5 4
Control knobs 2 2 1
Electronic clock/programmer ■■■
Programme end signal ■■■
Internal light ■■■
Child lock ■■■
COOKING MODES
Microwave ■■■
Grill ■■
Microwave & Grill ■■
Convection (Fan) ■
Microwave & Convection ■
Defrost by time ■■■
Auto defrost by weight programmes 5 5 4
Auto cook by weight programmes 8
Quickstart ■■■
TECHNICAL
Total load rating Kw 3.4 2.5 1.3
Fuse A 16 13 13
PRODUCT DIMENSIONS
Oven volume litres 38 38 26
Product height mm 455 455 460
Product width mm 594 594 592
Product depth mm 542 542 437
Net weight Kg 35 35 18
BUILT-IN DIMENSIONS 2)
Built-in height mm 450 450 450
Built-in width mm 560 560 560
Built-in depth mm 600 600 500
PACKAGING DIMENSIONS
Height mm 535 535 525
Width mm 680 680 660
Depth mm 660 660 535
Gross weight Kg 38 38 21
MICROWAVES
COOKING
ZNF31X
ZNF21X
ZNM11N
ZNM11X
MODEL
Combi
Microwave Microwave Solo
Fan Oven & Grill Microwave
& Grill
1) Heating category of the microwave oven in line with government guidelines
2) Installation aperture dimensions, for full details refer to installation guidelines
TECHNICAL DATA
Connected load kW 1.07
Fuse rating A 13
Lamp 20W Halogen
Working pressure 12
PRODUCT DIMENSIONS
Product height mm 357 95
Product width mm 594 594
Product depth mm 260 465
Net weight kg 17.6 6.8
BUILT-IN DIMENSIONS
Built-in height mm 450 450
Built-in width mm 563 563
Built-in depth mm 600 600
PACKAGING DIMENSIONS
Height mm 425 130
Width mm 663 640
Depth mm 338 535
Gross weight kg 19.0 8.0
COFFEE MACHINE
COOKING
ZCOF637X
ZDRA600X
MODEL
Coffee Accessory
Machine Drawer
HOB FEATURES
Number of cooking zones 5 5 4 4 4 5 4 4 4 4 5 2
Ignition type Integrated Integrated Integrated Integrated Integrated Integrated Integrated Integrated Integrated Integrated Integrated Integrated
Control position Front Front Front Front Front Front Side Front Side Side Front Front
Control type Rotary Rotary Rotary Rotary Rotary Rotary Rotary Rotary Rotary Rotary Rotary Rotary
Wok burner ■■■■ ■■ ■
Safety thermocouples ■■ ■ ■ ■ ■
Cast Iron pan supports ■ Matt black ■■Matt black ■■
Design Flat Flat Flat Flat Flat Gas Gas Soft Soft Soft Soft Domino
on Glass on Glass
No. of stability fingers 5 5 5 5 5 4 4 4 8 8 4 4
ZONE SPECIFICATION
Front left spec 2) SR SR SR SR SR SR R S R R S
Front left rating 3) kW 2.0 2.0 2.0 2.0 2.0 1.9 2.9 1.0 3.0 3.0 1.0
Front left diameter mm 70 70 70 70 70 70 100 54 100 100 54
Front right spec 2) S S S S S S S R S S R
Front right rating 3) kW 1.0 1.0 1.0 1.0 1.0 1.0 1.0 3.0 1.0 1.0 3.0
Front right diameter mm 54 54 54 54 54 48 54 100 48 54 122
Rear left spec 2) SR SR SR SR SR SR SR SR SR SR SR
Rear left rating 3) kW 2.0 2.0 2.0 2.0 2.0 1.9 1.9 2.0 2.0 2.0 2.0
Rear left diameter mm 70 70 70 70 70 70 70 70 70 70 62
Rear right spec 2) R R TC TC TC SR SR SR SR SR SR
Rear right rating 3) kw 3.0 3.0 4.0 4.0 4.0 1.9 1.9 2.0 2.0 2.0 2.0
Rear right diameter mm 100 100 122 122 122 70 70 70 70 70 62
Middle front spec 2) S
Middle front rating 3) kW 1.0
Middle front diameter mm 54
Middle rear spec TC TC TC TC R
Middle rear rating kW 4.0 4.0 4.0 2.0 3.0
Middle rear diameter mm 129 129 122 122 100
ELECTRICAL CONNECTION
Total rating (max.) 3) kW 12 12 9 9 9 9.6 7.7 8 8 8 12 4
Fuse rating A 3 3 3 3 3 3 3 3 3 3 3 3
SAFETY AND INTERFERENCE SUPPRESION
Low Voltage Directive (LVD) ■■ ■■■■ ■■ ■■ ■■
Electromagnetic Compatability (EMC) ■■ ■■■■ ■■ ■■ ■ ■
Gas directive ■■ ■■■■ ■■ ■■ ■■
LITERATURE SUPPLIED
Operation and installation instructions ■■ ■■■■ ■■■ ■■ ■
APPLIANCE DIMENSIONS
Height (above worktop) mm 15 15 8 8 8 8 8 15 12 12 15 8
Width mm 744 744 594 594 594 680 580 580 580 580 860 290
Depth mm 510 510 510 510 510 510 510 510 500 500 510 510
Net weight kg 14.4 14.4 12.8 12.8 12.8 15.4 12.1 8.6 8.4 8.4 18.3 4.2
APERTURE DIMENSIONS 1)
Height mm 30 30 30 30 30 40 40 30 30 30 30 30
Width mm 560 560 560 560 560 560 550 560 550 550 830 270
Depth mm 480 480 480 480 480 480 470 480 470 470 480 490
PACKAGING DIMENSIONS
Height mm 100 160 150 150 150 150 150 150 140 140 148 120
Width mm 870 870 680 680 680 790 680 680 680 680 985 400
Depth mm 620 620 620 620 620 630 620 620 620 620 610 620
Gross weight kg 15 15 13.5 13.5 13.5 16.1 14.7 9.2 9 9 19 4.6
GAS HOBS
COOKING
ZGS782ICTX
ZGS782ITX
ZGS682ICTX
ZGS682ICX
ZGS682ICN
ZGS682IX
ZGG782CTX
ZGG642CX
ZGG642CN
ZGF642X
ZGL62ITX
ZGL62ITW
ZGL62IX
ZGL62IW
ZGF982IX
ZGS322TX
MODEL
1) Refer to User Instructions before cutting out
2) S=Simmer burner; R=Rapid burner; SR=Semi-Rapid; HS=High Speed burner; TC=Triple Crown burner
3) For gas conversion purpose 3.450 BTU = 1kW
Page 4
80. 81.
HOB FEATURES
Number of cooking zones 4 4 4 4 4 4 4 4 2
Control position Front Front Front Front Front Front Front Side Front
Control type Touch Touch Touch Touch Touch Rotary Rotary Rotary Rotary
Residual heat/hob on indicator ■■ ■■■■
Electronic timer ■■ ■■
Child lock ■■ ■■■
Auto cut-off ■■■■■
No of booster zones 2 1
Automatic heat up ■■■
Pot sensors ■■
ZONE SPECIFICATION
Front left spec 2) | | F HA F F F F
Front left rating 3) kW 2.2-3.1 2.2 | 3.1 0.75 | 2.2 2.4 2.3 2.3 2 2
Front left diameter mm 210 210 120 | 210 210 210 210 180 180
Front right spec 2) | F F F F F F F
Front right rating 3) kW 1.8 - 2.8 1.2 1.2 1.2 1.2 1.2 1.5 1.5
Front right diameter mm 180 145 145 145 145 145 145 145
Rear left spec 2) | | F F F F F F
Rear left rating 3) kW 1.4 1.4 1.2 1.2 1.2 1.2 1.5 1.5
Rear left diameter mm 140 145 145 145 145 145 180 145
Rear right spec 2) | F F F F F F F
Rear right rating 3) kW 1.8 0.7 | 1.7 1.5 | 2.4 1.7 | 7 1.8 1.8 2 2
Rear right diameter mm 180 120 | 180 170 | 265 180 | 120 180 180 180 180
Middle front spec Fast
solid plate
Middle front rating kW 1
Middle front diameter mm 145
Middle rear spec Fast
solid plate
Middle rear rating kW 1.5
Middle rear diameter mm 180
ELECTRICAL CONNECTION
Total rating (max.) kW 7.2 6.5 7 6.5 6.5 6.5 7 6 2.5
Fuse rating A 30 30 30 30 30 30 30 30 30
SAFETY AND INTERFERENCE SUPPRESION
Low Voltage Directive (LVD) ■■ ■■■■■■ ■
Electromagnetic Compatability (EMC) ■■■■■■■■ ■
LITERATURE SUPPLIED
Operation and installation instructions ■■■■■■■■■
APPLIANCE DIMENSIONS
Height (above worktop) mm 3 3 3 3 3 3 | 5 8 4
Width mm 570 576 766 590 570 570 594 580 290
Depth mm 500 506 506 520 500 500 510 500 510
Net weight kg 11.4 11.7 10.5 7.5 7.8 7.7 11.9 11.9 5.9
APERTURE DIMENSIONS 1)
Height mm 58 58 41 38 41 41 | 38 30 30 30
Width mm 560 560 750 560 560 560 560 550 270
Depth mm 490 490 490 490 490 490 480 470 490
PACKAGING DIMENSIONS
Height mm 115 115 115 115 110 110 120 120 120
Width mm 745 745 865 745 665 665 670 670 400
Depth mm 575 575 575 575 570 570 600 600 600
Gross weight kg 12.2 12.4 11.1 8.3 8.6 8.6 12.5 12.5 6.2
INDUCTION HOBS CERAMIC HOBS SOLID PLATE HOBS
COOKING
ZKT652DX
ZXE65X
ZKT863LX
ZKT641H
ZVT64X
ZVM640X
ZVM640F
ZBE603W/1
ZBE603X/1
ZEL63W
ZEL63X
ZDE320X
MODEL
1) Refer to User Instructions before cutting out
2) HA=HALOLIGHT zone; D=Dual Circuit zone; O=Oval multi-purpose zone;
I=Induction; F=Fast plate/Fast zone
*Hob height: is height above worktop only
SPECIFICATION
Fan speeds 5 4 3 4 4 3 3 3 3 3
Control type Push Rotary Push Touch Touch Push Push Slider Slider Slider
Buttons Switch Buttons Buttons Buttons
Electronic speed control ■■ ■■
Intensive setting ■■ ■■
Hob illumination (H=Halogen) Watts 4x20 H 2x20 H 2x20 H 2x20 H 4x20 H 2x40 2x20 H 2x40 2x40 2x40
Extraction/recirculation operation ■ | ■■| ■■| ■■| ■■| ■■| ■■| ■■| ■■| ■■| ■
Saturation indication
Metal grease filter(s) ■■■■■■■■■■
INSTALLATION HEIGHT FROM:
Electric hob mm 650 500 500 650 650 650 600 650 650 650
Gas hob mm 650 650 650 650 650 650 650 650 650 650
PERFORMANCE DATA
Extraction rate free blowing max 870 600 440 660 660 440 450 450 450 450
Extraction ca.m3/h max 620 490 400 460 460 390 400 400 400 400
Extraction ca.m3/h intensive 820 550 550 550
Recirculation ca.m3/h max 360 360 280 320 320 290 320 300 300 300
Recirculation ca.m3/h intensive 440 410 360 360
Noise (max. setting) extraction dB 60 63 63 62 62 61 62 61 61 61
recirculation dB 59 67 65 61 67 60 64 60 60 60
ADDITIONAL EQUIPMENT REQUIRED:
For ducting: Ventilation hose and wall box ■■■■■■■■■■
Ventilation hose diameter * mm 150 150 150 150 150 150 150 150 150 150
For recirculation: Charcoal filter Included Included Included EFF72 EFF72 EFF72 TYPE 160 EFF62 EFF62 EFF62
ELECTRICAL CONNECTION
Connected load Watts 410 215 205 245 285 230 210 230 230 230
Fuse rating A 13 13 13 13 13 13 13 13 13 13
SAFETY AND INTERFERENCE SUPPRESSION
Low Voltage Directive (LVD) ■■■ ■■■■■■■
Electromagnetic Compatibility (EMC) ■■■■■■■■■■
LITERATURE SUPPLIED
Operation and installation instructions ■■■■■■■■■■
APPLIANCE DIMENSIONS 1)
Height for extraction mm 750-1200 670-1170 670-1105 940-1270 880-1060 678-898 750-1165 670-925 670-925 670-925
Height for recirculation (if different) mm 815-1270 880-1120
Width mm 448 898 898 898 898 598-698 700 898 598 698
Depth mm 483 500 500 490 650 520 505 502 502 502
Net weight kg 29 23.6 23.5 17.6 33.5 19.4 15.7 12.6 11.2 11.2
PACKAGING DIMENSIONS
Height mm 915 540 1090 975 990 775 585 645 645 645
Width mm 995 1090 540 405 760 405 815 980 680 680
Depth mm 616 617 617 645 525 645 440 410 410 410
Gross weight kg 40.7 32.3 31.1 23.6 43 23.7 19.5 17.2 14.2 14.2
CHIMNEY HOODS
1) For installation aperture dimensions see installation instructions
# 120cm outlet adaptor included
*CDK5F
120mm (5") diameter flexible ducting kit. 1 metre length. For use with all hoods up to 1 metre ducting.
CDK5FR
120mm (5") diameter ducting kits for ducting of hoods situated away from exterior wall, up to 3 metres.
CDK6FR
150mm (6") diameter ducting kits for ducting of hoods situated away from exterior wall, up to 3 metres.
COOKING HOODS
ZHC4284X
ZHC9454X
ZHC9254X
EFC90950X
EFA90950X
EFC70710X
EFC70700X
EFC90001X/W/K
EFC60001X/W/K
EFC70001X
MODEL
Page 5
82. 83.
SPECIFICATION
Fan speeds 3333
Control type Slider Slider Slider Slider
Electronic speed control
Intensive setting
Hob illumination (H=Halogen) Watts 2x40 2x40 2x40 1x40
Extraction/recirculation operation ■ | ■■| ■■| ■■| ■
Saturation indication on filter on filter on filter
Metal grease filter ■
INSTALLATION HEIGHT FROM:
Electric hob mm 650 500 500 650
Gas hob mm 650 650 700 650
PERFORMANCE DATA
Extraction rate free blowing max 280 310 220 180
Extraction ca.m3/h max 250 280 210 170
Extraction ca.m3/h intensive
Recirculation ca.m3/h max 210 230 110 150
Recirculation ca.m3/h intensive
Noise (max. setting) extraction dB 61 63 58 59
recirculation dB 60 62 62 58
ADDITIONAL EQUIPMENT REQUIRED:
For ducting: Ventilation hose and wall box ■■■■
Ventilation hose diameter * mm 120 120 100 120
For recirculation: Charcoal filter EFF70 EFF70 TYPE 29 EFF57
ELECTRICAL CONNECTION
Connected load Watts 195 215 230 135
Fuse rating A 13 13 13 13
SAFETY AND INTERFERENCE SUPPRESSION
Low Voltage Directive (LVD) ■■■■
Electromagnetic Compatibility (EMC) ■■■■
LITERATURE SUPPLIED
Operation and installation instructions ■■■■
APPLIANCE DIMENSIONS 1)
Height for extraction mm 204 175 400 150
Height for recirculation (if different) mm
Width mm 522 598 598 598
Depth mm 284 280 270 482
Net weight kg 4.8 7.6 9.3 7.2
PACKAGING DIMENSIONS
Height mm 290 255 550 645
Width mm 605 660 720 205
Depth mm 370 360 395 545
Gross weight kg 5.8 8.7 10.5 8.2
CANOPY TELESCOPIC INTEGRATED TRADITIONAL
COOKING HOODS
EFG52002iS
EFP60032X
EFI60011S
EFT60004K//W/X
MODEL
1) For installation aperture dimensions see installation instructions
# 120cm outlet adaptor included
*CDK5F - 120mm (5") diameter flexible ducting kit. 1 metre length. For use with all hoods up to 1 metre ducting.
CDK5FR - 120mm (5") diameter ducting kits for ducting of hoods situated away from exterior wall, up to 3 metres.
CDK6FR - 150mm (6") diameter ducting kits for ducting of hoods situated away from exterior wall, up to 3 metres.
FRIDGE FEATURES
Defrost auto auto auto auto auto auto
Electronic controls with LCD display ■
SET Electronic controls ■■
Electromechanical temperature controls ■■■■
Adjustable thermostat coin/knob Knob Knob Knob Knob
Dairy compartment 2 ■■■■■
Full width can shelves 2 22222
1/2 width sliding shelf ■■
Bottle rack with grippers 2 ■■■■■
MINI DAC/Supercooling ■ | ■■| ■
Glass shelves (full depth) 3 22222
Glass shelves (half depth) 2 22222
Flexible shelf positions ■■■■■■
Large telescopic drawer with divider
for salad veg etc ■
2 half width salad bins with full width glass cover ■■■■■
Interior light 2 ■■■■■
Egg container 2 ■■■■■
FREEZER FEATURES
Frost Free ■■■
Defrost - freezer auto auto auto manual manual manual
Electronic temperature controls ■■■
Electronic controls with LCD display ■
On LED (Green) ■ In LCD Display ■
Fast freeze function with timed auto switch off ■■■
Fast freeze LED (Yellow) ■ In LCD Display ■
High temperature warning LED (Red) ■ In LCD Display
High temperature warning audible buzzer ■■
Freezer compartments (drawers) 4 43342
Transparent freezer drawers ■■■■■■
Freezer calendar ■■■■■■
Ice tray ■■■■■■
OTHER FEATURES
Adjustable feet ■
Reversible doors ■■■■■
100% CFC Free ■■■■■■
100% HFC Free ■■■■■■
Fridge freezer split 50:50 70:30 70:30 50:50 60:40
ENERGY EFFICIENCY INFORMATION
Energy efficiency class* AAAAAA
Energy consumption kW/year** 416 335 314 318 321 292
Noise IEC 704-3 dB(A) 40 38 38 36 36 36
Gross capacity fridge litres (cu.ft) 342 (12.1) 164 (5.8) 214 (7.6) 214 (7.6) 173 (6.1) 173 (6.1)
Net capacity fridge litres (cu.ft) 338 (11.9) 162 (5.7) 210 (7.4) 210 (7.4) 170 (6.0) 170 (6.0)
Gross capacity freezer litres (cu.ft) 128 (4.5) 91 (3.2) 68 (2.4) 76 (2.7) 110 (3.9) 62 (2.2)
Net capacity freezer litres (cu.ft) 96 (3.4) 78 (2.7) 55 (1.9) 70 (2.5) 92 (3.3) 60 (2.1)
Frozen food rating 4 star 4 star 4 star 4 star 4 star 4 star
Power cut safe hours*** 14 25 13 20 18 20
Freezing capacity Kg/24 hours 13 10 4 4 10 6
Climate class**** SN/T SN/T SN/ST SN/ST SN/ST SN
ELECTRICAL CONNECTION
Connected load Watts 240 160 160 120 160 100
Fuse rating A 13 13 13 13 13 13
PRODUCT DIMENSIONS
Height mm 1900-1950 1772 1772 1772 1772 1441
Width mm 856 540 540 540 540 540
Depth mm 542 547 547 547 547 547
Net weight kg 104.0 59.5 57.5 57.0 57.5 48.0
BUILT-IN DIMENSIONS
Built-in height mm 1900-1950 1780 1780 1780 1780 1446
Built-in width mm 860 560 560 560 560 560
Built-in depth mm 550 550 550 550 550 550
Door fixing Door on door Slider Slider Slider Slider Slider
PACKAGING INFORMATION
Height mm 2020 1850 1860 1860 1860 1530
Width mm 920 600 610 610 610 610
Depth mm 600 600 620 620 620 620
Gross weight kg 125.0 64.0 62.0 62.0 62.0 52.0
COOLING
ZJB9476X
ZBB7266
ZBB6286
ZBB7294
ZBB6284
ZBB6244
MODEL
4 Door Frost free Total No-frost 50:50 Frost free Fridge 50:50 Fridge Fridge
Fridge freezer Fridge freezer Fridge freezer freezer freezer freezer
Stainless Steel
Page 6
84. 85.
FRIDGE FEATURES
Defrost auto auto auto auto
Electromechanical temperature controls ■■■■
Adjustable thermostat coin/knob Knob Knob Knob Knob
Dairy compartment ■■■■
Full width can shelves 2 2
1/2 width sliding shelf ■■
Bottle rack with grippers ■■■■
Glass shelves (full depth) 2421
Glass shelves (half depth) 2 2 2
Flexible shelf positions ■■■■
Full width transparent salad bin with 2 half width
hinged glass lids ■■
Full width salad bin with glass lid ■
2 half width salad bins with full width glass cover ■
Interior light ■■■■
Egg container ■■■■
FREEZER FEATURES
Defrost - freezer manual manual manual
Electronic temperature controls ■■
Adjustable thermostat coin/knob Knob Knob
On LED (Green) ■■
Fast freeze function with timed auto switch off ■■
Fast freeze LED (Yellow) ■■
High temperature warning LED (Red) ■■
High temperature warning audible buzzer ■
Door open warning audible buzzer ■
Freezer compartments (flap/drawers) 1/0 0/4 0/4
Transparent freezer compartments ■■
Freezer calendar ■
Ice tray ■■
Ice scraper ■■■
OTHER FEATURES
Adjustable feet ■■ ■
Reversible doors ■■■■■■
100% CFC Free ■■■■■■
100% HFC Free ■■■■■■
Matching fridge/freezer ZBF6114 ZQF6114 ZQF6114 ZBA6160 ZQS6140
ENERGY EFFICIENCY INFORMATION
Energy efficiency class* AAAAAA
Energy consumption kW/year** 150 161 146 212 208 208
Noise IEC 704-3 dB(A) 38 36 35 37 36 38
Gross capacity fridge litres (cu.ft) 158 (5.6) 230 (8.1) 142 (5.0) 105 (3.7)
Net capacity fridge litres (cu.ft) 154 (5.5) 228 (8.1) 138 (4.8) 103 (3.6)
Gross capacity freezer litres (cu.ft) 17 (0.6) 110 (3.9) 108 (3.8)
Net capacity freezer litres (cu.ft) 17 (0.6) 94 (3.3) 98 (3.4)
Frozen food rating 4 star 4 star 4 star
Power cut safe hours*** 13 20 20
Freezing capacity Kg/24 hours 2.5 16 18
Climate class**** SN/ST SN/ST SN/ST SN/ST SN/ST SN/ST
ELECTRICAL CONNECTION
Connected load Watts 100 140 90 90 110 120
Fuse rating A 13 13 13 13 13 13
PRODUCT DIMENSIONS
Height mm 873 1218 815/885 815/885 873 815/885
Width mm 540 540 596 596 540 596
Depth mm 549 549 550 550 549 550
Net weight kg 30 43 34 37 33.5 38
BUILT-IN DIMENSIONS
Built-in height mm 880 1225 820/890 820/890 880 820/890
Built-in width mm 560 560 600 600 560 600
Built-in depth mm 550 550 550 550 550 550
Door fixing Slider Slider Door on door Door on door Slider Door on door
PACKAGING INFORMATION
Height mm 960 1300 880 880 960 880
Width mm 610 600 670 670 600 670
Depth mm 610 620 600 600 620 600
Gross weight kg 33.0 46.0 37.0 40.0 36.0 41.0
COOLING
ZBA6160
ZBA6230
ZQS6140
ZQS6124
ZBF6114
ZQF6114
MODEL
In-column In-column Under counter Under counter In-column Under counter
larder fridge larder fridge larder fridge fridge with freezer freezer
4 star freezer
Matt silver inclinable bottle rack for wine and large soft drink bottles - optional extra. Order BTLRACKS, suitable for all Zanussi fridge freezers
* Energy efficiency class based on a scale of A+ (most efficient) to G (least efficient)
** Based on standard test results for 24 hours in accordance with EN153. Actual consumption will depend on how the appliance is used and where it is located
*** Time for food temperature to rise from -18ºC to -9ºC with the power off and the door remaining closed
**** Climate class - the product is suitable for use in ambient temperatures of SN: 10-320C, N:16-320C, ST: 18-380C, T: 18-430C
Capacity (number of IEC place settings) 12 12 12 12 12 9 12
Controls
Design Square Fully Integrated Fully Integrated Fully Integrated Fully Integrated Slimline Fully Integrated
Fully Integrated
Fuzzy Logic ■■
Electronic controls ■■■■■■■
LED programme progress indicator ■■■ ■ ■
Time to programme end display ■■
End of programme indicator ■■■■■■■
End of programme alarm ■■■■■
Delay start ■■■
Salt refill indicator ■■■■■■ ■
Rinse aid refill indicator ■■ ■
Half load option ■
Number of programmes 8 7 5 5 4 5 5
Number of temperature options 5 4 4 2 2 2 3
INTERIOR
Upper basket height Quick Lift Quick Lift Adjustable Adjustable Adjustable Adjustable Adjustable
Cup shelves 4 foldable 4 foldable 4 foldable 4 foldable 4 foldable 3 (2 foldable) 2 foldable
Lower basket plate racks 4 foldable 4 foldable Fixed Fixed Fixed Fixed Fixed
Basket handles Delta Silver Delta Silver Delta Grey Wire Wire Wire Wire
Cutlery basket
Dividable Delta Silver
Delta Silver Delta Grey Delta Grey Delta Grey Delta Grey Delta Grey
Automatic rinse aid dispenser ■■■■■■■
Automatic detergent dispenser ■■■■■■■
Anti flood device ■■■■■■■
Drying with hidden heater Active Active Active Active Residual Residual Residual
Stainless steel interior ■■■■■■ ■
INSTALLATION FEATURES
Cold water fill ■■■■■■■
Water pressure min/max (psi) 7/110 7/110 7/110 7/110 7/110 7/110 7/110
Equipoise door ■■■■■ ■■
Double fulcrum hinge ■■
Drawer-line adjustment 30mm
Worktop steam protection Metal Bar Metal Bar Aluminium Foil Aluminium Foil Aluminium Foil Aluminium Foil Aluminium Foil
Top & side fixing brackets ■■■■■■■
Recessed plinth ■■■■■■■
Feet - 3 (front adjustment block) ■■■■■■■
ENERGY EFFICIENCY INFORMATION
Energy efficiency class*** A A A A A A A
Energy consumption kWh 1.05 1.05 1.05 1.05 1.05 0.8 1.05
Wash performance*** A A A A A A A
Drying performance*** A A B A B B B
Noise dB(A) to IEC 704-3 47dB(a) 48dB(a) 51dB(a) 51dB(a) 53dB(a) 54dB(a) 53dB(a)
Programme time**** mins 160 160 160 140 140 130 140
Water consumption litres/cycle 14 14 14 16 16 14 16
Average annual energy consumption kWh/year 231 231 231 231 231 176 231
Average annual water consumption litres/year 3080 3080 3080 3520 3520 3080 3520
ELECTRICAL CONNECTION
Connected load kW 2.2 2.2 2.2 2.2 2.2 2.2 2.2
Fuse rating A 13 13 13 13 13 13 13
PRODUCT DIMENSIONS
Height mm 818 818 818 818 818 818 818
Width mm 596 596 596 596 596 446 596
Depth mm 575 555 555 555 555 555 575
Net weight kg 45.7 36.9 36.9 37.1 36.9 33 38
FURNITURE DOOR DIMENSIONS
Height mm 120 660-720 660-720 660-720 660-720 660-720 540-604
Width mm 596 596 596 596 596 445 596
Weight kg N/A**** 2-10 2-10 2-10 2-10 1.5-6 2-8
PACKAGING DIMENSIONS
Height mm 910 902 902 902 902 910 902
Width mm 650 635 635 635 635 500 635
Depth mm 680 680 680 680 680 680 680
Gross weight kg 49.0 38.6 38.9 38.6 38.6 34.8 39.8
DISHWASHERS
DISHWASHING
ZDi600QX
ZDT420
ZDT312
ZDT201
ZDT40
ZDTS101
ZDi122
MODEL
* Energy consumption is stated in kWh per standard test cycle, using cold water fill. Actual consumption will depend on how the appliance is used.
** Estimated annual consumption based on 220 washing cycles.
*** Models with an ‘A’ rated classification offer a higher performance than those with a ‘G’ rating.
**** Time taken for a standard test cycle, using cold water fill.
***** These models need a false drawer panel to be fitted below the stainless steel door (similar to the infill panel located below the under counter single oven).
Page 7
86.
Wash system Jetsystem Aquacycle Jetsystem
Wash capacity kg 6 6 6
Dry capacity kg 3
Spin speed rpm 1200 1200 1400
CONTROLS
LED display ■■
Electronic controls ■■ ■
Rotary controls 1 1 1
Push buttons 9 4 9
Programme progress LEDs ■■
Delay timer ■■
Display for programme time, delay time
and countdown to programme end ■■
PROGRAMMES
Cottons/linens ■■■
Cotton economy ■■
Synthetics ■■ ■
Easy iron ■■
Delicates ■■■
Wool ■■
Handwash ■
Mini 30 minutes ■■
Worn once 30º ■
Additional programmes ■■
2 temperature drying ■
OPTIONS
Quick wash ■■■
Temperature selection/cold wash ■■ ■
Spin speed reduction/rinse hold ■■
Prewash ■■
Extra rinse ■■ ■
Daily wash ■■
Easy ironing ■
Drying time ■
FEATURES
Large porthole ■■ ■
Wide door opening ■■ ■
INFORMATION
Wash/spin only
Energy class (wash/spin only)
1
A+ A+ A+
Energy consumption
2
kWh/cycle 0.85 1.15 0.85
Average annual energy consumption4kWh/year 170 230 170
Water consumption
2
litres/cycle 42 46 46
Average annual water consumption4litres/year 9800 11800 9800
Washing programme time
2
mins 145 140 145
Washing performance (A-G)
2
AAA
Spin efficiency (A-G)
2
BBB
Water extraction efficiency % 53 60 53
Wash/spin/dry - always using the dryer
Energy class (wash/spin/dry)
1
B
Energy consumption
3
kWh/cycle 4.45
Average annual energy consumption5kWh/year 890
Water consumption
3
litres/cycle 120
Average annual water consumption5litres/year 24000
Washing programme time
3
mins 235
Washing performance A
Water extraction efficiency % 53
ELECTRICAL AND WATER CONNECTION
Voltage/frequency Volts/Hz 240/50 240/50 240/50
Connected load Watts 2050 2050 2050
Fuse rating A 13 13 13
Water fill Cold Cold Cold
APPLIANCE DIMENSIONS
Height mm 820 820 820
Width mm 600 600 600
Depth mm 541 541 541
Net Weight kg 73.3 67.3 78.3
BUILT-IN DIMENSIONS*
Built-in height mm 820 820 820
Built-in width mm 600 600 600
Built-in depth mm 600 600 600
PACKAGED DIMENSIONS
Height mm 900 900 900
Width mm 640 640 640
Depth mm 650 650 650
Gross weight kg 75.5 69.5 80.5
LAUNDRY
LAUNDRY
ZWI2125
ZWI1125
ZKI245
MODEL
Washing Machine Washing Machine Washer Dryer
* PD10 kit for 50mm extra height - optional extra
1) Models with an ‘A’ rated classification offer a higher
performance than those with a ‘G’ rating
2) Based on standard test results for 60ºC cotton cycle
3) Based on standard test results for 60ºC cotton cycle
and “dry cotton” drying cycle
4) Average annual consumption for a 4 person
household based on 200 standard 60ºC cotton cycles,
never using the dryer
5) Average annual consumption for a 4 person
household based on 200 standard 60ºC cotton cycles,
always using the dryer
INSTALLATION DIAGRAMS
87.
Loading...
