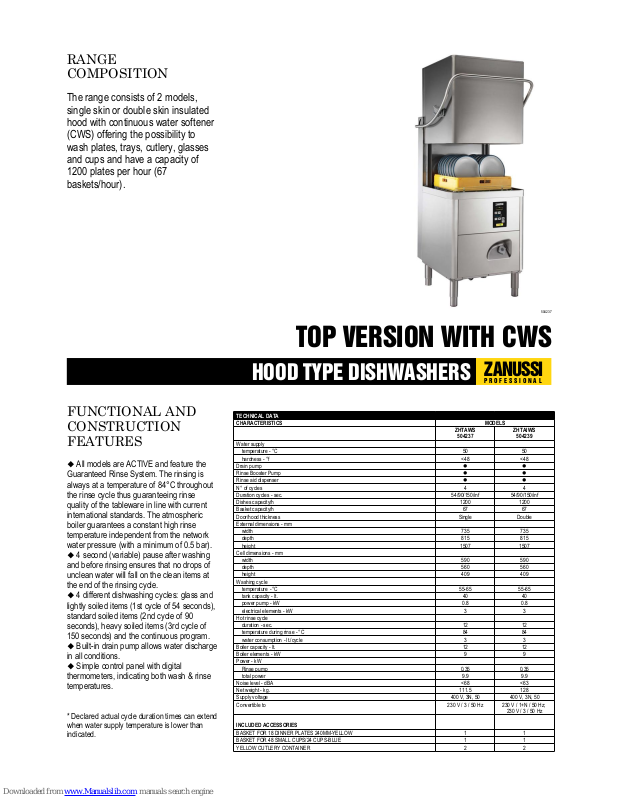

Page 1
ZANUSSI
P R O F E S S I O N A L
HOOD TYPE DISHWASHERS
TOP VERSION WITH CWS
504237
YELLOW CUTLERY CONTAINER 2 2
BASKET FOR 48 SMALL CUPS/24 CUPS-BLUE 1 1
BASKET FOR 18 DINNER PLATES 240MM-YELLOW 1 1
INCLUDED ACCESSORIES
Convertible to 230 V / 3 / 50 Hz 230 V / 1+N / 50 Hz;
230 V / 3 / 50 Hz
Supply voltage 400 V, 3N, 50 400 V, 3N, 50
Net weight - kg. 111.5 128
Noise level - dBA <68 <63
total power 9.9 9.9
Rinse pump 0.35 0.35
Power - kW
Boiler elements - kW 9 9
Boiler capacity - lt. 12 12
water consumption - lt./cycle 3 3
temperature during rinse - °C 84 84
duration - sec. 12 12
Hot rinse cycle
electrical elements - kW 3 3
power pump - kW 0.8 0.8
tank capacity - lt. 40 40
temperature -°C 55-65 55-65
Washing cycle
height 409 409
depth 560 560
width 590 590
Cell dimensions - mm
height 1507 1507
depth 815 815
width 735 735
External dimensions - mm
Door/hood thickness Single Double
Basket capacity/h 67 67
Dishes capacity/h 1200 1200
Duration cycles - sec. 54/90/150/inf 54/90/150/inf
N° of cycles 4 4
Rinse aid dispenser l l
Rinse Booster Pump l l
Drain pump l l
hardness - °f <48 <48
temperature - °C 50 50
Water supply
ZHTAWS
504237
ZHTAIWS
504239
CHARACTERISTICS MODELS
TECHNICAL DATA
RANGE
COMPOSITION
The range consists of 2 models,
single skin or double skin insulated
hood with continuous water softener
(CWS) offering the possibility to
wash plates, trays, cutlery, glasses
and cups and have a capacity of
1200 plates per hour (67
baskets/hour).
FUNCTIONAL AND
CONSTRUCTION
FEATURES
� All models are ACTIVE and feature the
Guaranteed Rinse System. The rinsing is
always at a temperature of 84°C throughout
the rinse cycle thus guaranteeing rinse
quality of the tableware in line with current
international standards. The atmospheric
boiler guarantees a constant high rinse
temperature independent from the network
water pressure (with a minimum of 0.5 bar).
� 4 second (variable) pause after washing
and before rinsing ensures that no drops of
unclean water will fall on the clean items at
the end of the rinsing cycle.
� 4 different dishwashing cycles: glass and
lightly soiled items (1st cycle of 54 seconds),
standard soiled items (2nd cycle of 90
seconds), heavy soiled items (3rd cycle of
150 seconds) and the continuous program.
� Built-in drain pump allows water discharge
in all conditions.
� Simple control panel with digital
thermometers, indicating both wash & rinse
temperatures.
* Declared actual cycle duration times can extend
when water supply temperature is lower than
indicated.
Page 2
HOOD TYPE DISHWASHERS
TOP VERSION WITH CWS
EADB2 2010-05-28 The Company reserves the right to alter technical specifications without prior notice.
www.zanussiprofessional.com
ZANUSSI
P R O F E S S I O N A L
YELLOW CUTLERY CONTAINER 864242 864242
STAINLESS STEEL INLET HOSE KIT 864016 864016
RINSE AID LEVEL PROBE KIT FOR UC+HT DW 864005 864005
KIT TO MEASURE TOTAL/PART.WATER HARDNESS 864050 864050
KIT 8 PLASTIC BOXES FOR CUTLERY-YELLOW 780068 780068
KIT 4 PLASTIC BOXES FOR CUTLERY-YELLOW 865574 865574
DRAIN PUMP KIT FOR 50HZ DISHWASHERS 864199 864199
DETERGENT PUMP KIT 864218 864218
DETERGENT LEVEL PROBE KIT FOR UC+HT DW 864004 864004
COVER GRID FOR SMALL/LIGHT ITEMS IN RACK 867016 867016
BRASS INLET VALVE KIT FOR UC AND HT 864000 864000
BASKET SEMI-PROFESSIONAL 500X500X190MM 867024 867024
BASKET FOR BULK CUTLERY-BROWN 867009 867009
BASKET FOR 6 TRAYS 530X370MM-RED 866743 866743
BASKET FOR 48 SMALL CUPS/24 CUPS-BLUE 867007 867007
BASKET FOR 18 DINNER PLATES 240MM-YELLOW 867002 867002
BASKET FOR 12 SOUP BOWLS 240MM-GREEN 867000 867000
BASKET F.16 VERTIC.GLASSES (H70MM)-BLUE 867023 867023
ZHTAWS
504237
ZHTAIWS
504239
ACCESSORIES MODELS
OPTIONAL ACCESSORIES
� Electronic board with digital display
incorporating fault diagnosis system, number
of cycles counter and number of drain cycles
counter.
� Fault auto-diagnosis system.
� Double skinned insulated wall (available
only for code 504235) ensures a low noise
level and a reduction in heat loss from the
machine.
� An effective rinse system that uses only 3
litres of clean hot water per rack to ensure
lower running costs (in energy, water and
chemical consumption).
� Large deep drawn wash tank and internal
wash area with round corners and no pipes
to avoid dirt built-up.
� Easily removable washing and rinsing
arms, filters and rack support.
� All the machines have smooth surfaces
and a wash tank with rounded corners to
facilitate cleaning.
� Safety devices prevent the hood from
suddenly closing in case of spring breakage,
thus avoiding operator injury.
� The fully automatic self-cleaning cycle
avoids the risk of bacteria proliferation.
� The self-draining wash pump facilitates
the evacuation of stagnant water after long
periods of inactivity to ensure a higher level
of hygiene.
� Load bearing frame height adjustable feet,
hood, tank, washin and rinsing arms,jets and
screws in 304 AISI stainless steel to ensure
long term reliability.
� High efficiency air gap (class A) in water
inlet circuit to avoid water being siphoned
back into the network as a result of a sudden
drop in main pressures.
� 304L stainless steel boiler with higher
welding protection improves the resistance
against corrosion with chlorinated water
� PVC water supply hose with metal
connections resistant to high water pressure.
� The IPX5 water protection.
� Pre-arranged for on-site HACCP
implementation and Energy Management
device.
� The incorporated Soft Start feature offers
additional protection to delicate items such
as glassware and crockery and increases
wash pump reliability.
� Three phase electrical connection,
convertible on-site.
� Suitable to be connected to specific
pre-wash tabling, service entry and exit
tabling and roller conveyor tabling – included
in ZANUSSI Professional Handling System
range.
� The machine will start with the close of the
hood and stop when the hood is opened
� Open hood on the back side to prevent
steam blasts to the operator.
� All machines are pre-arranged to accept
external dispensers.
� 97% recyclable by weight.
� CFC free packaging.
� Low noise level.
� Developed and produced in ISO 9001 and
ISO 14001 certified factory.
� In compliance with CE requirements.
CONTINUOUS WATER SOFTENER:
� Two resin containers automatically
alternate between softening and regenerating
to provide non-stop washing.
� Regeneration activated automatically – no
operator intervention.
� 100% of rinse water softened with no
pressure drop during rinse to ensure full
detergent removal and perfect rinse quality of
items.
� Comfortable front loading of regeneration
salt.
Page 3
HOOD TYPE DISHWASHERS
TOP VERSION WITH CWS
EADB2 2010-05-28 The Company reserves the right to alter technical specifications without prior notice.
www.zanussiprofessional.com
ZANUSSI
P R O F E S S I O N A L

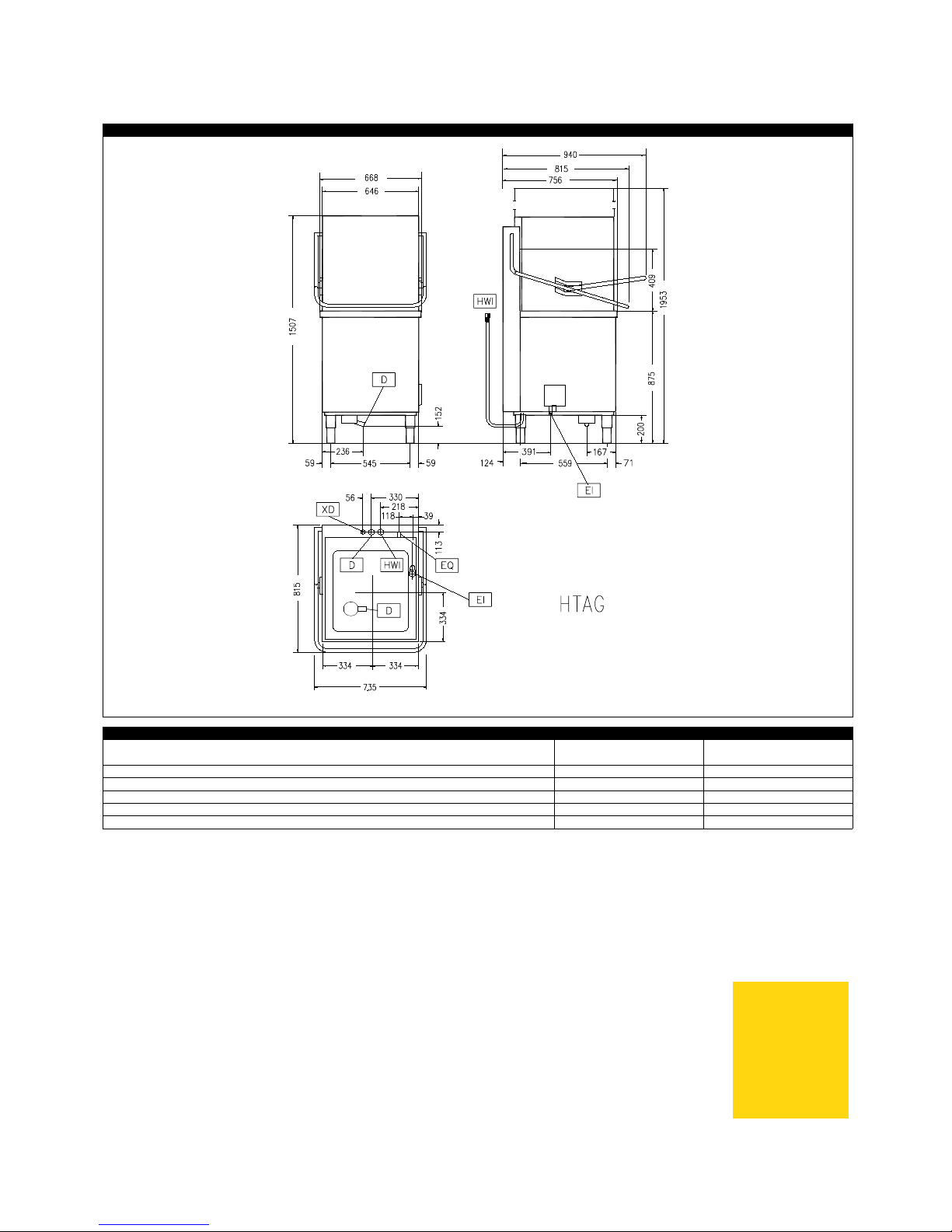

XR - Connection for detergent dispenser l l
HWI - Hot water inlet G 3/4" G 3/4"
EQ - Equipotential screw l l
EI - Electrical connection 400 V, 3N, 50 400 V, 3N, 50
D - Water drain 40mm 40mm
ZHTAWS
504237
ZHTAIWS
504239
LEGEND
504237, 504239
