Zanussi ZD 50/17 R, ZD 50/17 RAL User Manual

REFRIGERATOR-

FREEZER

ZD 50/17 R

ZD 50/17 RAL

INS TRUCTION BOOKLET

2222 038-67

2

IMPORTANT SAFETY INFORMATION

It is most important that this instruction book should be retained with the appliance for future
reference. Should the appliance be sold or transferred to another owner, or should you move house and
leave the appliance, always ensure that the book is left with the appliance in order that the new owner
can get to know the functioning of the appliance and the relevant safety information.

This information has been provided in the interest of safety. You MUST read it carefully before installing
or using the appliance.

Installation

¥ This appliance is heavy. Care should be taken

when moving it.

¥ It is dangerous to alter the specifications or

attempt to modify this product in any way.

¥ Care must be taken to ensure that the appliance

does not stand on the electrical supply cable. If
the supply cord is damaged, it must be replaced
by a special cable available from your local
Service Force Centre.

¥ Any electrical work required to install this

appliance should be carried out by a qualified
electrician or competent person.

¥ Parts which heat up should not be exposed.

Whenever possible, the back of the appliance
should be close to a wall but leaving the required
distance for ventilation as stated in the installation
instructions.

¥ The appliance should be left for 2 hours after

installation before it is turned on, in order to allow
the refrigerant to settle.

Child Safety

¥ Do not allow children to tamper with the controls

or play with the product.

¥ Keep all packaging well away from children.

During Use

¥ This appliance is designed for domestic use only,

specifically for the storage of edible foodstuffs
only.

¥ Frozen food must NOT be re-frozen once it has

thawed out.

¥ Do not place carbonated or fizzy drinks in the

freezer.

¥ Do not remove items from the freezer if your

hands are damp/wet, as this could cause skin
abrasions or frost/freezer burns.

¥ Ice lollies can cause Ôfrost/freezer burnsÕ if

consumed straight from the freezer.

¥ ManufacturersÕ storage recommendations should

be strictly adhered to. Refer to relevant
instructions.

¥ The cooling plate or refrigerated freezer shelves

in this appliance contain channels through which
the refrigerant passes. If these are punctured this
will cause substantial damage to the appliance
and result in food loss. DO NOT USE SHARP
INSTRUMENTS to scrape off frost or ice. Under
NO circumstances should solid ice be forced off
the lining or shelves. Solid ice should be allowed
to thaw, when defrosting the appliance. See
Defrost Instructions.

Maintenance and Cleaning

¥ Switch off and unplug the appliance before

carrying out any cleaning or maintenance work.

Servicing

¥ This product should be serviced by an authorised

engineer and only genuine spare parts should be
used.

¥ Under no circumstances should you attempt to

repair the machine yourself. Repairs carried out
by inexperienced persons may cause injury or
serious malfunctioning. Refer to your local
Zanussi Service Force Centre and always insist
on genuine spare parts.

At the end of the Appliance
Life

¥ When disposing of your appliance, use an

authorised disposal site.

¥ Remove the plug and ensure that any locks or

catches are removed, to prevent young children
being trapped inside.

3

CONTENTS

2222 038-67

Instructions for the user

Important Safety Information

2

Description of the appliance

4

Operation

5

Before use 5

Setting the temperature 5

Freezing fresh food 5

Storage of frozen food 5

Thawing 6

Making ice cubes 6

Fresh food refrigeration 7

Movable shelves 7

Hints and Tips

8

Maintenance and Cleaning

9

Internal cleaning 9

External cleaning 9

When the appliance is not in use 9

Changing the light bulb 9

Defrosting 9

Something not working

11

Service and Spare Parts

12

Customer Care

12

Guarantee Conditions

13

Instructions for the
installer

Technical specification

14

Installation

15

Positioning 15

Rear Spacers 15

Electrical Connection

16

Door Reversability

17

4

DESCRIPTION OF THE APPLIANCE

3
6

9

12

A

B

C
D

E

F

G

H

I

L

M

N

A- Ice trays
B - Shelves for freezing fresh foods
C - Freezer calender
D- Frozen food storage
E- Dairy compartment (for dairy products to prevent tainting)
F- Can storage shelf
G- Bottle storage shelf
H- Salad crisper (to keep fruit and vegetables fresh)
I- Glass shelf (for storing fresh meat)
L- Drain channel
M- Cooked foods storage shelves
N- Thermostat control for both compartments

5

OPERATION

Before using

Remove all securing tapes. Wash inside the
appliance with lukewarm water and bicarbonate of
soda (5 ml to 0.5 litre of water).

Do not use soap or detergent as the smell may
linger. Dry thoroughly.

Setting the temperature

The temperature inside the refrigerator is regulated
by a thermostat with 6 temperature positions and
one ÇOFFÈ (O) position.

Position 1 = minimum coldness

Position 6 = maximum coldness

Turn the thermostat dial to the required position.

The intermediate position is usually the most
suitable (3-4).

The thermostat setting can vary as the temperature
inside the refrigeration compartment depends on the
following factors:

Ð room temperature

Ð how often the door is opened

Ð how much food is stored

Ð position of the appliance

Important

If the fridge is not defrosting correctly, it is possible
that because a very low temperature has been
selected, the motor is working continuously, which
prevents the defrost cycle from operating.

To ensure correct defrosting, a lower number should
be selected on the thermostat and you should notice
that the motor cuts out from time to time, which is
correct.

If you wish to return to a lower temperature, turn the
thermostat to a higher number, however you should
turn the setting lower occasionally to allow automatic
defrosting.

Storage of frozen food

When first starting-up or after a period of use, before
putting the products in the compartment let the
appliance run for at least two hours on the coldest
setting, then turn the thermostat knob to the normal
opertion position.

Do not exceed the storage period indicated by the
manufacturer.

Finally, do not open the door frequently or leave it
open longer than is absolutely necessary.

Warning

Do not put carbonated liquids, (fizzy drinks etc.), in
the freezer compartment.

Water ices, if consumed immediately after removal
from the freezer, can cause low temperature skin
burns.

Do not remove items from the freezer if your hands
are damp/wet, as this could cause skin abrasions or
Òfrost/freezer burnsÓ.

Important

In the event of a power cut the food in the freezer will
not be affected if the power cut is short and if the
freezer is full. Do not open the door. Should the food
begin to thaw, it must be consumed quickly and must
not be re-frozen .

The freezer compartment

The four-star freezer compartment is suitable for
storage of commercially frozen food and for freezing
fresh foods.

Freezing fresh food

To freeze fresh foods it is not necessary to change
the setting of the thermostat knob.

However, for a quicker freezing operation, turn the
thermostat knob to the coldest setting; but remember

that, in this condition the refrigerator compartment
temperature might drop below 0¡ C.

If this occurs reset thermostat knob to a warmer
setting.

In any 24 hours you can freeze up to 3 kg.

Place the food to be frozen on the shelf of the
freezer as this is the coldest part.

Important

In the event of a power cut the food in the freezer
will not be affected if the power cut is short and if the
freezer is full. Do not open the door. Should the food
begin to thaw, it must be consumed quickly and must
not be re-frozen.

6

Fresh food refrigeration

To obtain the best performance, do not store warm
food or evaporating liquids in the refrigerator; do
cover or wrap the food, particularly if it has a strong
flavour.

Do not cover the shelves with any protective
material, such as paper, cardboard or plastic, which
may obstruct the air circulation through them.

To help you use your refrigerator correctly, here are
some more useful hints:

Raw meat (beef, pork, lamb & wild fowl): wrap in
polythene bags and place on top of the salad
crispers.

Meat can only be stored safely in this way for
one or two days at the most.

Fruit & vegetables: these should be thoroughly

cleaned and placed in the bottom salad crispers.

Butter & cheese: these should be placed in special
airtight containers or wrapped in aluminium foil or
polythene bags to exclude as much air as possible.

Milk bottles: these should have a cap and should
be stored in the bottle rack on the door.

Making ice cubes

The appliance is provided with one or more trays for
the production of ice-cubes.

Fill the trays 3/4 full to allow the ice to expand and
place them in one of the freezer compartment.

Do not use metallic instruments to remove the trays
from the freezer.

Thawing

Deep frozen or frozen food, prior to being used, can
be thawed in the fridge or at room temperature
depending on the time available. Small food items
may even be cooked from frozen; in this case
cooking will take longer.

Any frozen food which is allowed to thaw
accidentally should either be eaten as soon as
possible or thrown away. Alternatively, if the food is
uncooked and has not been completely defrosted it
can be cooked and then refrozen.

Meat, fish and fruit should be thawed in the
refrigerator compartment and small pieces of meat
can even be cooked while still frozen, but you must
ensure that it is thoroughly cooked through.

Vegetables should be directly immersed in boiling
water; ready-cooked dishes can be placed directly in
the oven in their aluminium wrapping.

A microwave oven is particularly suitable for thawing
any type of frozen or deep-frozen food: follow the
oven instructions, particularly regarding the
placement of aluminium wrapping or containers in
the oven.

Defrosted cooked food must never be refrozen.

7

Movable shelves

The walls of the refrigerator have runners so that
shelves can be positioned as desired.

The door shelves can be easily removed for cleaning

D040

D307

D058

8

Normal Operating Sounds

¥ You may hear faint gurgling or bubbling sounds

when the refrigerant is pumped through the coils
or tubing at the rear, to the cooling
plate/evaporator.

¥ When the compressor is on, the refrigerant is

being pumped round, and you will hear a whirring
sound or pulsating noise from the compressor.

¥ A thermostat controls the compressor, and you

will hear a faint ÕclickÕ when the thermostat cuts in
and out.

Food Storage

To obtain the best performance from your fridge­freezer

¥ Do not store warm food or evaporating liquids.

¥ Avoid buying frozen food if you cannot store it

straight away. The use of an insulated container
is advisable. When you arrive home place the
frozen food in the frezeer immediately.

¥ Keep the time between buying chilled food and

placing it in your refrigerator as short as possible.

¥ Do not push food together too much, try to allow

air to circulate around each item.

¥ Do not store food uncovered.

¥ Ensure that food placed in the freezer is dated

and labelled and used in date order to ensure
that food is consumed at its best.

¥ Remove suspect food from your refrigerator and

clean, refer to Maintenance and Cleaning.

¥ Lean food keeps better and longer than fatty

food, salt reduces the storage time.

¥ Wrap the food in polythene or aluminium freezing

bags or foil so that they adhere to the food and
provide an airlight seal .

¥ Packaging which is swollen or has traces of

refrozen water droplets on the pack could
indicate that the product has not been kept at a
suitable temperature and that it may have lost its
original quality. Partially thawed food must not be
refrozen, it must be consumed within 24 hours.
Never exceed the storage times indicated by the
manufacturer.

Energy Saving Advice

¥ Do not install the appliance close to sources of

heat, such as a boiler or radiator.

¥ Locate the appliance in a cool well ventilated

room and make sure that the air openings of the
appliance are not obstructed.

¥ Avoid unnecessary frosting in the cabinet by

packing all foodstuffs into airtight pakages before
placing them in the freezer.

¥ Always leave warm food to cool down to room

temperature before placing in the fridge.

¥ Food which is to be frozen (when cool) should be

placed in the fridge before being transferred to
the freezer.

¥ Thaw frozen food in the fridge. This will ensure

safer defrosting of foods and reduce the work of
the refrigeration unit.

¥ Try to avoid keeping the door open for long

periods or opening the door too frequently as
warm air will enter the cabinet and cause the
compressor to switch on unnecessarily often.

¥ Ensure there are no obstructions preventing the

door from closing properly.

In the Event of a Power Failure

If there is a power failure during the storage of frozen
foods, keep the door closed. If the temperature
within your freezer should rise, do not refreeze the
food without checking its condition. The following
guidelines should assist you:

Ice-cream: Once thawed should be discarded.
Fruits & Vegetables: If soft should be cooked and

used up.

Breads & Cakes: Can be refrozen without danger.
Shellfish: Should be refrigerated and used up

quickly.

Cooked Dishes: i. e. casseroles should be
refrigerated and used up.

Large Pieces of Meat: Can be refrozen providing
there are still ice crystals remaining within them.

Small Joints: Should be cooked and can then be
refrozen as cooked dishes.

Chicken: Should also be cooked and refrozen as a
fresh dish.

HINTS AND TIPS

9

Defrosting

Refrigerator

The refrigerator automatically defrosts every time the
compressor stops. The water is discharged, via the
pipe, into a tray located at the back of the appliance
above the compressor, where it evaporates.

Important

To avoid defrost water overflowing into the fridge,
periodically clean the water discharge hole in the
centre of the V shaped drip collector at the back of
the refrigerator compartment behind the fruit and
vegetable drawer. Use the defrost cleaner provided
which you will find already inserted into the
discharge hole.

D037

MAINTENANCE AND CLEANING

External cleaning

Wash the outer cabinet with warm soapy water. Do
NOT use abrasive products.

An accumulation of dust will affect the performance
of the appliance and cause excessive electricity
consumption.

You MUST ensure that the appliance is switched
OFF

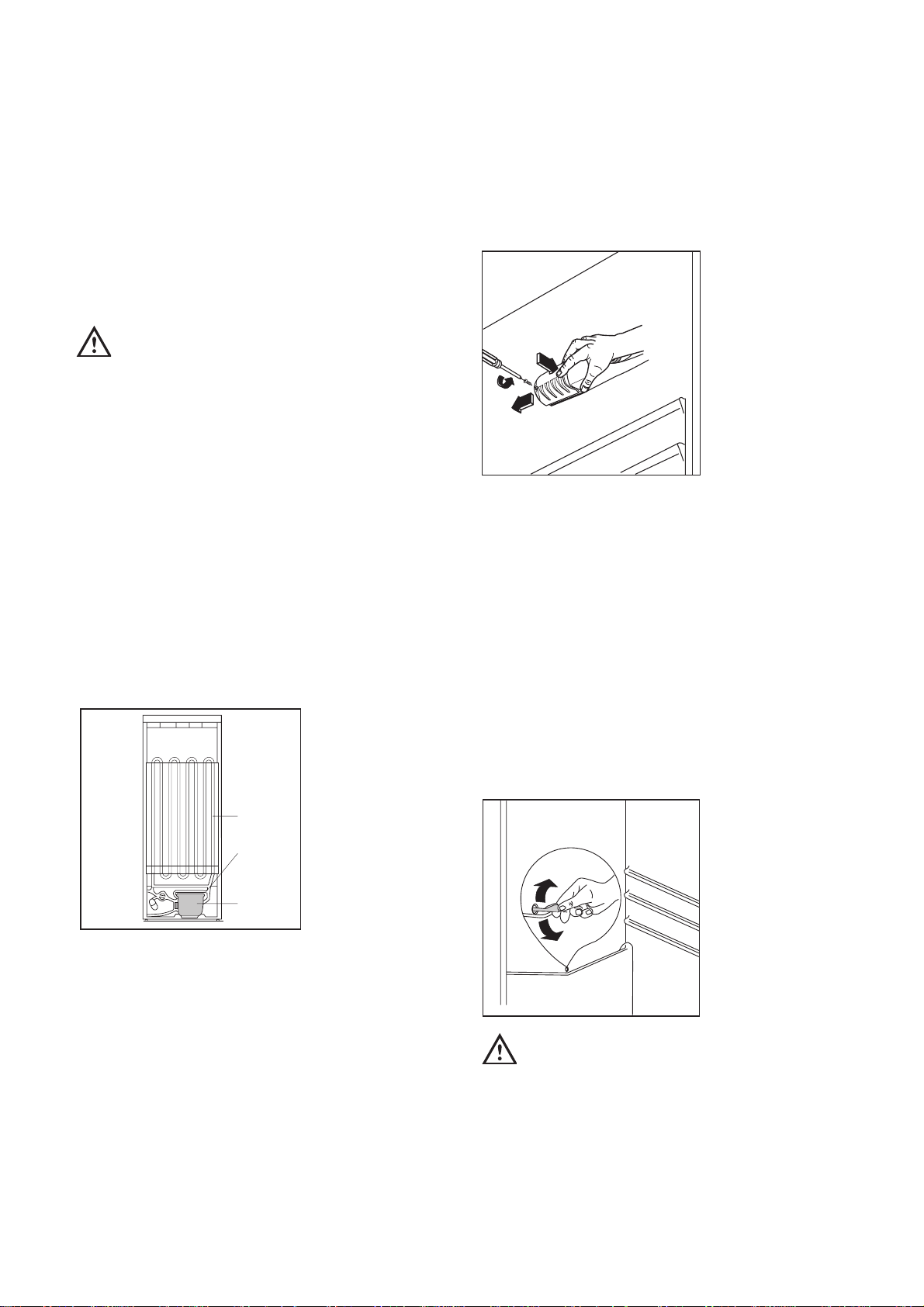

Once or twice a year dust the condenser (black grill)
and the compressor at the back of the appliance,
with a brush or vacuum cleaner, see figure.

D273

CONDENSER

COMPRESSOR

DEFROST
TRAY

Before any maintenance or cleaning work is carried
out, DISCONNECT the appliance from the
ELECTRICITY supply.

Internal cleaning

Clean the inside and accessories with warm water
and bicarbonate of soda (5ml to 0.5 litre of water).
Rinse and dry thoroughly.

NEVER USE DETERGENTS, ABRASIVE
POWDERS, HIGHLY PERFUMED
CLEANING PRODUCTS OR WAX
POLISHES, TO CLEAN THE INTERIOR AS
THESE WILL DAMAGE THE SURFACE AND
LEAVE A STRONG SMELL.

When the appliance is not in use

When the appliance is not in use for long periods,
disconnect from the electricity supply, empty all
foods and clean the appliance, leaving the doors ajar
to prevent unpleasant smells.

Changing the light bulb

Should the interior light fail to work, first switch off
the appliance and disconnect from the electricity
supply, then replace the bulb as follows;

Unscrew the light cover and then pull it outward by
pressing as shown in the figure. Unscrew the bulb
and replace it with a new 15 watt bulb (available
from your nearest Service Force Centre).

Replace the light cover by sliding it into its original
position and replacing the screw.

D411

10

Remember to wash the defrost cleaner in hot soapy
water at regular intervals. Dry throughly before
replacing.

Freezer

When the frost has reached a thickness of up to
4mm it can be removed using the ice scraper
provided with the appliance. During this operation it
is not necessary to disconnect the appliance from
the mains and remove the food. Never use metal
tools for this operation.

For complete defrosting (once or twice a year)
proceed as follows:

- turn the thermostat dial to the ÇOFFÈ position (O)
or disconnect the appliance from the mains.

- Remove any food from inside the freezer and
fridge, wrap it in several sheets of newspaper and
store in a cool,dry place.

- Leave the door open, place a basin on the top
shelf of the refrigerator compartment, under the
drain hole, lift the plug as shown in the figure..

- Clean and dry thoroughly.

- Replace the scraper in one of the drawers .

- Reconnect the appliance to the mains or reset
the thermostat to a functioning position.

- After letting the appliance run for a least half an
hour, replace the previously removed food into
the compartment.

Important

When defrosting the freezer, the fridge is also
controlled by the thermostat and will not be
operational during this period. A temperature rise of
the frozen food packs, during defrosting, may
shorten their safe storage life.

PR138

11

SOMETHING NOT WORKING

Symptom

No power to the appliance

The light does not come on

The temperature in the fridge or freezer section is
too high

The freezer door will not open

The compressor runs continously

Excessive frost and ice has built up

Noise

Water under the salad bin

Solution

Check there is power at the socket.

Check there is not a power cut by checking the
household lights.

Check the fuse has not blown.

Ensure that the bulb is correctly fitted.

Replace the bulb if it has blown.

Check the door light switch is not jammed.

Check the temperature in the fridge is turned to the
correct setting relative to ambient conditions.

Check the ambient temperature is within the
applianceÕs operating limits of 10¡C to 32¡C.

Has door just been opened? If so leave for a few
minutes to allow the air pressure to equalise.

Adjust the thermostat to give correct temperature
control. See ÒSetting the temperatureÓ.

Check that the doors are closed.

Large quantities of food have recently been placed in
the cabinet/and or door is frequently opened.

Check that air ventilation is not obstructed.

Ensure the doors are not left open.

Check that nothing is preventing the doors from
closing.

Is the door gasket intact and clean.

Has advised periodic defrosting been carried out.

Refer to normal operating sounds.

Check the drain hole is not blocked. (see
Maintenance and Cleaning).

Important: If you call out an engineer to a fault listed below, or to repair a fault caused by incorrect use or
installation a charge will be made, even if the appliance is under guarantee.

Before contacting your local Service Force Centre, check the following points:

If, after the above checks, there is still a fault, call your local Service Force Centre.

In-guarantee customers should ensure that the above checks have been made as the engineer will make a
charge if the fault is not a mechanical or electrical breakdown.

Please note that proof of purchase is required for any in-guarantee service call.

12

SERVICE AND SPARE PARTS

CUSTOMER CARE DEPARTMENT

In the event of your appliance requiring service, or if you wish to purchase spare parts, please contact your
local Zanussi Service Force Centre by telephoning:-

0870 5 929929

Your telephone call will be automatically routed to the Service Force Centre covering your post code area.

For further details please see the accompanying Customer Care Booklet.

Before calling out an engineer, please ensure you have read the details under the heading ÔSomething Not
Working?

When you contact the Service Force Centre you will need to give the following details:

1. Your name, address and post code

2. Your telephone number

3. Clear and concise details of the fault

4. The model and serial number of the appliance (found on the rating plate)

5. The purchase date

For general enquiries concerning your Zanussi appliance or for further information on Zanussi products, please
contact our Customer Care Department by letter or telephone as follows:-

Customer Care Department

Zanussi

55-77 High Street

Slough

Berkshire

SL1 1DZ

Tel: [phone]

13

Standard guarantee conditions

We, Zanussi, undertake that if within 12 months of the date of the purchase this Zanussi appliance or any part
thereof is proved to be defective by reason only of faulty workmanship or materials, we will, at our option repair
or replace the same FREE OF CHARGE for labour, materials or carriage on condition that:

The appliance has been correctly installed and used only on the electricity supply stated on the rating plate.

The appliance has been used for normal domestic purposes only, and in accordance with the manufacturerÕs
instructions.

The appliance has not been serviced, maintained, repaired, taken apart or tampered with by any person not
authorised by us.

All service work under this guarantee must be undertaken by a Zanussi Service Force Centre. Any appliance or
defective part replaced shall become the CompanyÕs property.

This guarantee is in addition to your statutory and other legal rights.

Home visits are made between 8.30am and 5.30pm Monday to Friday. Visits may be available outside these
hours in which case a premium will be charged.

Exclusions

This guarantee does not cover:

Damage or calls resulting from transportation, improper use or neglect, the replacement of any light bulbs or
removable parts of glass or plastic.

Costs incurred for calls to put right an appliance which is improperly installed or calls to appliances outside the
European Community (EC) or European Free Trade Area.

Appliances found to be in use within a commercial environment, plus those which are subject to rental
agreements.

Products of Zanussi manufacture which are not marketed by Zanussi.

European Guarantee

If you should move to another country within Europe then your guarantee moves with you to your new home
subject to the following qualifications:

The guarantee starts from the date you first purchased your product.

The guarantee is for the same period and to the same extent for labour and parts as exists in the new country
of use for this brand or range of products.

This guarantee relates to you and cannot be transferred to another user.

Your new home is within the European Community (EC) or European Free Trade Area.

The product is installed and used in accordance with our instructions and is only used domestically, i.e. a
normal household.

The product is installed taking into account regulations in your new country.

Before you move please contact your nearest Customer Care centre, listed below, to give them details of your
new home. They will then ensure that the local Service Organisation is aware of your move and able to look
after you and your appliances.

France Senlis [phone]

Germany NŸrnberg [phone]

Italy Pordenone [phone]

Sweden Stockholm [phone]

UK Slough [phone]

GUARANTEE CONDITIONS

14

TECHNICAL SPECIFICATIONS

DIMENSIONS

Height 120 cm

Width 49.5 cm

Depth 60 cm

POWER SUPPLY VOLTAGE AND FREQUENCY 220-240 V / 50 Hz

TOTAL POWER ABSORBED 150 W

AVERAGE DAILY UNITS ELECTRICITY * 0.98 kWh

GROSS CAPACITY

Fridge 138 l

Freezer 42 l

NET CAPACITY

Fridge 136 l

Freezer 42 l

* This figure is based on standard test results in accordance with European Standard EN 153.

Actual consumption will depend on how the appliance is used and where it is located.

15

INSTALLATION

Positioning

This appliance is designed to operate in ambient
temperatures between 10¡C (50¡F) and 32¡C (90¡F).
It should be located in a dry atmosphere, out of
direct sunlight and away from extreme temperature
e.g. not next to a boiler or radiator, or in a very cold
room e.g. an outhouse, where the temperatures may
fall below 10¡C (50¡F). If these temperatures are
exceeded i.e. colder or warmer, then the appliance
may not operate correctly.

You should also ensure that air can circulate freely
around the back and the top of the cabinet. There
must also be at least 100 mm (4Ó) distance between
the top of the cabinet and any overhanging kitchen
furniture (A). Ideally, the appliance should not be
positioned beneath overhanging furniture (B).

There should also be a gap of 25 mm either side of
the appliance. Do not obstruct the space
underneath. The back of the cabinet may be placed
close to the wall but must not touch it. DO NOT
install in places with restricted ventilation.

Adjust the level of the appliance by screwing out the
adjustable foot, or feet, at the bottom of the cabinet
using your fingers or a spanner (see figure).

D200

A

B

NP005

100 mm10 mm

10 mm

Warning

IF YOU ARE DISCARDING AN OLD APPLIANCE
THAT HAS A LOCK OR CATCH ON THE DOOR,
YOU MUST ENSURE THAT IT IS MADE
UNUSABLE TO PREVENT YOUNG CHILDREN
BEING TRAPPED INSIDE.

Depending upon the position which you choose for
your appliance, you may wish to reverse the way in
which the door opens. To do this, refer to instructions
on ÒDoor reversal directionsÓ paragraph.

Rear spacers

In the bag with the documentation, there are two
spacers which must be fitted in the two top corners.

Slacken the screws and insert the spacer under the
screw head, then re-tighten the screws.

D594

16

Electrical connections

Any electrical work required to install this appliance
should be carried out by a qualified electrician or
competent person.

WARNING: THIS APPLIANCE MUST BE
EARTHED.

The manufacturer declines any liability should
this safety measure not be observed.

If the plug that is fitted to your appliance is not
suitable for your socket outlet, it must be cut off and
the appropriate plug fitted.

Remove the fuse from the cut off plug.

The cut off plug should then be disposed of to
prevent the hazard of shocks in case it should be
plugged into a 13amp socket in another part of your
home.

Important

The wires in the mains lead are coloured in
accordance with the following code:

Green and Yellow - Earth

Blue - Neutral

Brown - Live

If you fit your own plug, the colours of the wires in
the mains lead of your appliance may not
correspond with the markings identifying the
terminals in your plug, proceed as follows:

Connect the Green and Yellow (earth) wire to the
terminal in the plug which is marked with the letter

ÇEÈ or the earth symbol or coloured green and
yellow.

Connect the blue (neutral) wire to the terminal in the
plug which is marked with the letter ÇNÈ or coloured
black.

Connect the brown (live) wire to the terminal in the
plug which is marked with the letter ÇLÈ or coloured
red.

The plug moulded onto the lead incorporates a fuse.

D207

GREEN & YELLOW

13 AMP. FUSE

BROWN

CORD CLAMP

BLUE

13 AMP

For replacement, use a 13amp BSI362 fuse. Only
ASTA or BSI approved fuses should be used.

The plug must not be used if the fuse cover/carrier is
lost. The cover/carrier is indicated by the coloured
insert at the base of the plug.

A replacement cover/carrier must be obtained from
your local Zanussi Service Force Centre whose
address is listed in the Customer Care Booklet which
accompanies your instruction manual.

This appliance complies with the E.E.C. Directive
No. 87/308 of 2.6.87 relative to radio interference
suppression.

This appliance complies with the following
E.E.C. Directives:

- 73/23 EEC of 19.2.73 (Low Voltage Directive)

and subsequent modifications;

- 89/336 EEC of 3.5.89 (Electromagnetic

Compatibility Directive) and subsequent
modifications.

Please ensure that when the appliance is
installed it is easily accessible for the engineer in
the event of a breakdown.

17

Door reversibility

1. Unplug the appliance from the power supply
before carrying out the below-mentioned
operations.

2. Remove the feets (3).

3. Unscrew the bottom hinge (1).

4. Remove the freezer door by releasing it from the
middle hinge (H).

5. Unscrew the middle hinge.

6. Remove the fridge door by releasing it from the
top hinge pin (G).

7. Remove the pin (G) from the top hinge, then
mount these on the opposite side.

8. Refit the fridge door, after having removed the
plugs(I) which must be refitted on the other side.

9. Replace the middle hinge to the left hand side.

10.Replace the freezer door.

11.Screw down the bottom hinge (1) on the opposite
side by using the screws previously removed.

12.The doors can be aligned by adjusting the middle
hinge.

13.The middle hinge can be adjusted horizontally,
with the help of a tool, after having slackened the
two screws.

Attention

After completion of the door reversing operation,
check that the door gasket adheres to the cabinet. If
the ambient temperature is cold (i.e. in Winter), the
gasket may not fit perfectly to the cabinet. In that
case, wait for the natural fitting of the gasket or
accelerate this process by heating up the part
involved with a normal hairdrier.

H

G

D715

1

3

I

I

I
