Zanussi ZD34/9LR USER MANUAL

m Warnings for your safety

Warnings for your safety. Carefully read these instructions before installing and using the machine.

m This freezer is designed to be operated by adults only. Children should not be allowed to tamper with the controls or play with the product.

m Any electrical work required to install the appliance should be carried out by a qualified electrician or competent person.

m This appliance is heavy. Care should be taken when moving it.

m Make sure that the cable is not trapped underneath the appliance, nor touches the motor.

m Repairs carried out by inexperienced persons may cause injuries or serious malfunctioning. Refer to the nearest Authorized Dealer.

m Make sure the rear part of the appliance stands against a wall as there are working parts which heat up and should not be of easy access.

m Make sure that there is a continous and adequate ventilation as a failure to do so may result in damage to the appliance or deterioration of the food.

m The appliance should be left for at least 4 hours after installation before it is turned on ill order to allow the refrigerant to settle.

m This product must be serviced only by an AUTHORIZED DEALER, and only GENUINE SPARE PARTS must be employed.

m Before cleaning or reparing the appliance, make sure it is unplugged.

m It is dangerous to alter the specifications or modify this product in any way.

mThese domestic refrigerators are designed to be used specifically for the storage and conservation of food.

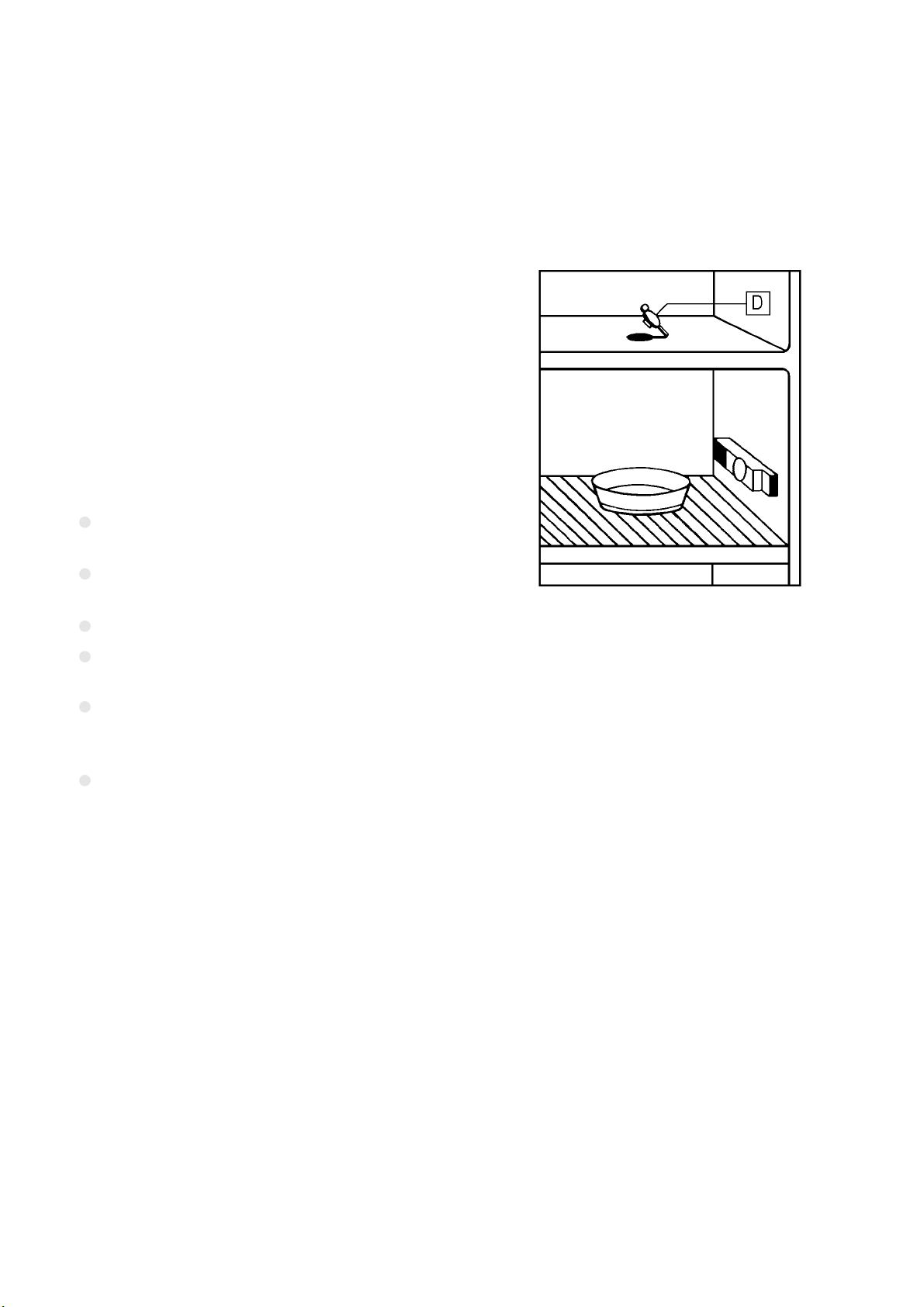

mDO NOT USE SHARP INSTRUMENTS to scrap off frost or ice. Frost may be removed by using a plastic scraper. (See defrosting instructions).

m Frozen food must not be re-frozen once it has been thawed out.

m Manufacturer’s storage recommendations should be strictly complied with.

m Lollies can cause frost burns if consumed right away from the freezer.

m Do not place carbonate or fizzy drinks in the freezer as these may explode.

m When an old freezer is to be discarded make sure to:

m Dismount the doors in order to prevent children from getting trapped inside.

Have the gas from the cooling system withdrawn before making it to scrap iron.

Índex

Warnings for your safety	pag. 14
Installation	pag. 16
Regulation and Control	pag. 17
How to use your
Refrigerator-Freezer	pag. 18 - 19
Maintenance of your
Refrigerator-Freezer	pag. 20 - 21
Something not working	pag. 22 - 23
Normal noises when
functioning	pag. 24
Guarantee, Service
and Spare Parts	pag. 25
Tecnical Features	pag. 26

Installation

Positioning

•Place the refrigerator away from direct sunlight and heat sources.

•Maintain recommended ventilation - see Fig. 1.

•Make sure the refrigerator is accurately levelled turning the adjustable feet in order to avoid vibrations and noises, Fig. 2.

•This is a built in design to be aligned with other furniture

The climate classification can be found on the serial plate, which is located at the left on the inside of the appliance.

The following table shows which ambient temperature is correct for each climate classification:

Climate classification	for an ambient temperature of
SN	+ 10 to + 32°C
N	+ 16 to + 32°C
ST	+ 18 to + 38°C
T	+ 18 to + 43°C

Cleaning the interior

•Do not use alcohol or any cleanig product containing alcohol because it can damage the cabinet.

•Before using the appliance for the first time wash the interior whith luke warm water and some neutral soap so as to remove the typical smell of a brandnew product arid then dry thoroughly.

•Do not use detergents or abrasive powders as these will damage the finish.

•Remove security used for transportation.

Electrical connection

mBefore plugging the appliance make sure that the voltage and frequency shown on the «Technical Features» correspond to your home supply.

mIt is essential that the appliance be efficiently earthed.

For this purpose the supply cable plug incorporates a special earth contact. If the sockets of your domestic wiring system are not grounded, have the appliance connected to a separate ground wire in accordance with existing safety regulations.

«THE MANUFACTURER DECLINES TO ACCEPT ANY LIABILITY IF THIS SAFETY RULE IS NOT OBSERVED».

Starting – up

•Plug the appliance into the mains.

•Turn to intermediate position the knobs of the «temperature regulators» «A» Fig. 3

•Make sure the inner light «H» turns on when opening the door.

Fig. 1

Fig. 2

Regulation and Control

Temperature Regulator: «A» Fig. 3

Allows to adjust the temperature inside the refrigerator according to use and external conditions.

•Pos. 1 = Minimum cold.

•Pos. 6 = Maximum cold.

•Pos. 0 = Motor disconnected.

Interior light: «H» Fig. 3

Lightens when opening the door of the refrigerator compartment and shuts off when closing the door. The light smuts off when turning the «temperature knob» to «0».

If you need to reach the bulb (see «SOMETHING NOT WORKING» point A) release the protection lid «X», by removing the screw «Y» and pushing it as showns in Fig. 3

Fig. 3
