EN
User Manual
Cooker
ZCV661MWC
ZCV661MXC
Contents
Safety information 2
Safety Instructions 3
Product description 6
Before first use 7
Hob - Daily use 7
Hob - Helpful hints and tips
Hob - Care and cleaning 8
Oven - Daily use 8
Oven - Helpful hints and tips 10
Oven - Care and cleaning 15
Troubleshooting 17
Installation
7
Subject to change without notice.
Safety information
Before the installation and use of the appliance, carefully read the
supplied instructions. The manufacturer is not responsible if an
incorrect installation and use causes injuries and damages.
Always keep the instructions with the appliance for future
reference.
Children and vulnerable people safety
WARNING!
Risk of suffocation, injury or permanent disability.
• This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
• Do not let children play with the appliance.
• Keep all packaging away from children.
• Keep children and pets away from the appliance when it
operates or when it cools down. Accessible parts are hot.
• Cleaning and user maintenance shall not be made by children
without supervision.
18
General Safety
• Only a qualified person must install this appliance and replace
the cable.
• Do not operate the appliance by means of an external timer or
separate remote-control system.
2 www.zanussi.com
• Unattended cooking on a hob with fat or oil can be dangerous
and may result in fire.
• Never try to extinguish a fire with water, but switch off the
appliance and then cover flame e.g. with a lid or a fire blanket.
• Do not store items on the cooking surfaces.
• Do not use a steam cleaner to clean the appliance.
• Metallic objects such as knives, forks, spoons and lids should
not be placed on the hob surface since they can get hot.
• If the glass ceramic surface/ glass surface is cracked, switch
off the appliance to avoid the possibility of electric shock
• Internally the appliance becomes hot when in operation. Do not
touch the heating elements that are in the appliance. Always
use oven gloves to remove or put in accessories or ovenware.
• Before maintenance cut the power supply.
• Ensure that the appliance is switched off before replacing the
lamp to avoid the possibility of electric shock.
• Do not use harsh abrasive cleaners or sharp metal scrapers to
clean the glass door since they can scratch the surface, which
may result in shattering of the glass.
• If the supply cord is damaged, it must be replaced by the
manufacturer, its Authorised Service Centre or similarly
qualified persons in order to avoid a hazard.
• The means for disconnection must be incorporated in the fixed
wiring in accordance with the wiring rules.
Safety Instructions
Installation
WARNING!
Only a qualified person must install
this appliance.
• Remove all the packaging.
• Do not install or use a damaged appliance.
• Obey the installation instruction supplied
with the appliance.
• Always be careful when you move the
appliance because it is heavy. Always wear
safety gloves.
• Do not pull the appliance by the handle.
• The kitchen cabinet and the recess must
have suitable dimensions.
www.zanussi.com 3
• Keep the minimum distance from the other
appliances and units.
• Make sure that the appliance is installed
below and adjacent safe structures.
• Parts of the appliance carry current. Close
the appliance with furniture to prevent
touching the dangerous parts.
• The sides of the appliance must stay
adjacent to appliances or to units with the
same height.
• Do not install the appliance on a platform.
• Do not install the appliance adjacent to a
door or under a window. This prevents hot
cookware to fall from the appliance when the
door or the window is opened.
• Make sure to install a stabilizing means in
order to prevent tipping of the appliance.
Refer to Installation chapter.
Electrical Connection
WARNING!
Risk of fire and electrical shock.
• All electrical connections should be made by
a qualified electrician.
• The appliance must be earthed.
• Make sure that the electrical information on
the rating plate agrees with the power
supply. If not contact an electrician.
• Always use a correctly installed shockproof
socket.
• Do not use multi-plug adapters and
extension cables.
• Do not let mains cables to come in touch
with the appliance door, specially when the
door is hot.
• The shock protection of live and insulated
parts must be fastened in such a way that it
cannot be removed without tools.
• Connect the mains plug to the mains socket
only at the end of the installation. Make sure
that there is access to the mains plug after
the installation.
• If the mains socket is loose, do not connect
the mains plug.
• Do not pull the mains cable to disconnect
the appliance. Always pull the mains plug.
• Use only correct isolation devices: line
protecting cut-outs, fuses (screw type fuses
removed from the holder), earth leakage trips
and contactors.
• The electrical installation must have an
isolation device which lets you disconnect
the appliance from the mains at all poles.
The isolation device must have a contact
opening width of minimum 3 mm.
• Fully close the appliance door, before you
connect the mains plug to the mains socket.
Use
WARNING!
Risk of injury and burns. Risk of
electrical shock.
• Use this appliance in a household only.
• Do not change the specification of this
appliance.
• Make sure that the ventilation openings are
not blocked.
• Do not let the appliance stay unattended
during operation.
• Deactivate the appliance after each use.
• Be careful when you open the appliance
door while the appliance is in operation. Hot
air can release.
• Do not operate the appliance with wet hands
or when it has contact with water.
• Do not use the appliance as a work surface
or as a storage surface.
• If the surface of the appliance is cracked,
disconnect immediately the appliance from
the power supply. This to prevent an
electrical shock.
WARNING!
Risk of fire and explosion
• Fats and oil when heated can release
flammable vapours. Keep flames or heated
objects away from fats and oils when you
cook with them.
• The vapours that very hot oil releases can
cause spontaneous combustion.
• Used oil, that can contain food remnants,
can cause fire at a lower temperature than
oil used for the first time.
• Do not put flammable products or items that
are wet with flammable products in, near or
on the appliance.
• Do not let sparks or open flames to come in
contact with the appliance when you open
the door.
• Open the appliance door carefully. The use
of ingredients with alcohol can cause a
mixture of alcohol and air.
WARNING!
Risk of damage to the appliance.
• To prevent damage or discoloration to the
enamel:
– do not put ovenware or other objects in
the appliance directly on the bottom.
– do not put water directly into the hot
appliance.
– do not keep moist dishes and food in the
appliance after you finish the cooking.
– be careful when you remove or install
the accessories.
• Discoloration of the enamel has no effect on
the performance of the appliance. It is not a
defect in the sense of the warranty law.
• Use a deep pan for moist cakes. Fruit juices
cause stains that can be permanent.
• Do not keep hot cookware on the control
panel.
4 www.zanussi.com
• Do not let cookware boil dry.
• Be careful not to let objects or cookware fall
on the appliance. The surface can be
damaged.
• Do not activate the cooking zones with
empty cookware or without cookware.
• Do not put aluminium foil on the appliance or
directly on the bottom of the appliance.
• Cookware made of cast iron, aluminium or
with a damaged bottom can cause
scratches. Always lift these objects up when
you have to move them on the cooking
surface.
• This appliance is for cooking purposes only.
It must not be used for other purposes, for
example room heating.
Care and Cleaning
WARNING!
Risk of injury, fire, or damage to the
appliance.
• Before maintenance, deactivate the
appliance.
Disconnect the mains plug from the mains
socket.
• Make sure the appliance is cold. There is the
risk that the glass panels can break.
• Replace immediately the door glass panels
when they are damaged. Contact the
Service.
• Be careful when you remove the door from
the appliance. The door is heavy!
• Clean regularly the appliance to prevent the
deterioration of the surface material.
• Remaining fat or food in the appliance can
cause fire.
• Clean the appliance with a moist soft cloth.
Only use neutral detergents. Do not use
abrasive products, abrasive cleaning pads,
solvents or metal objects.
• If you use an oven spray, obey the safety
instructions on the packaging.
• Do not clean the catalytic enamel (if
applicable) with any kind of detergent.
Internal light
• The type of light bulb or halogen lamp used
for this appliance is only for household
appliances. Do not use it for house lighting.
WARNING!
Risk of electrical shock.
• Before replacing the lamp, disconnect the
appliance from the power supply.
• Only use lamps with the same specifications.
Disposal
WARNING!
Risk of injury or suffocation.
• Disconnect the appliance from the mains
supply.
• Cut off the mains cable and discard it.
• Remove the door catch to prevent children
and pets to get closed in the appliance.
www.zanussi.com 5

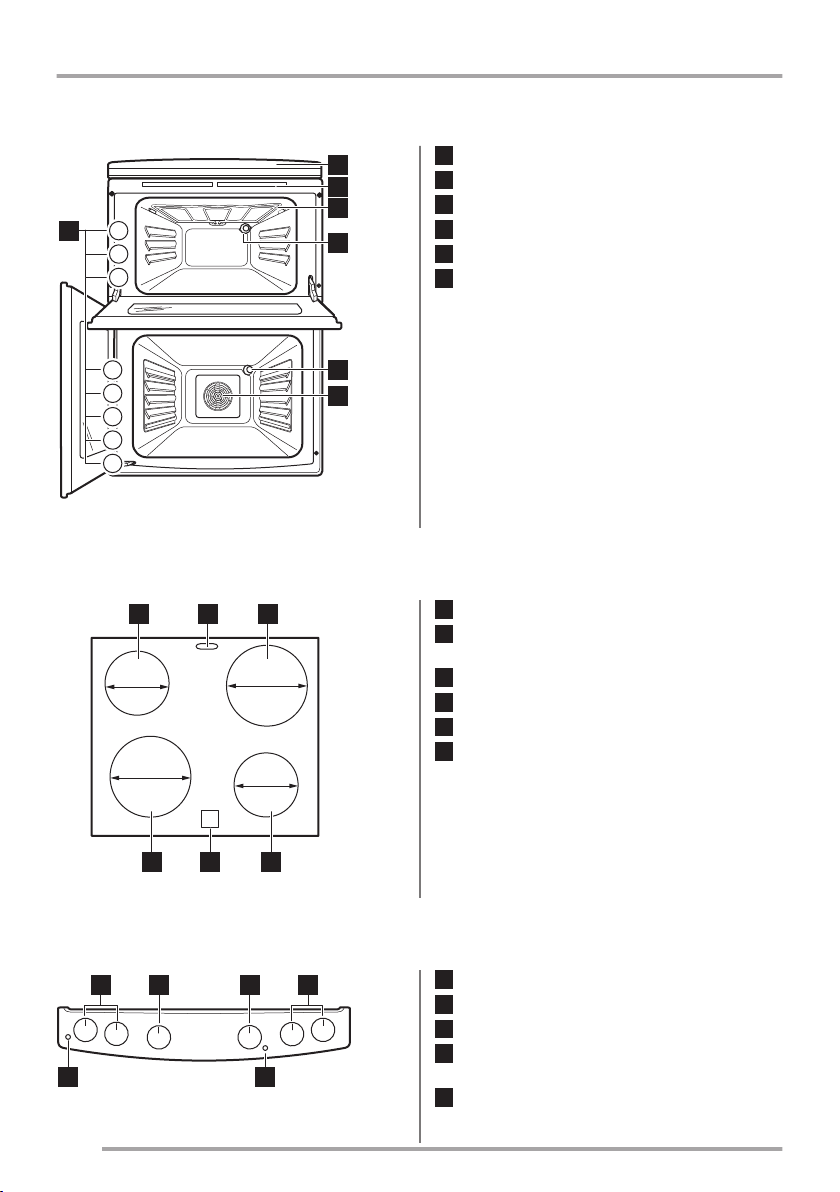

Product description
2
1
3
4
4
5
3
2
1
5
4
3
2
1
6
180 mm
145 mm
145 mm
180 mm
1
3
456
2
45
1 2 3 1
General overview
Cooking surface layout
Control panel and hob
1
Air vents for the cooling fan
2
Heating element
3
Lamp
4
Fan
5
Shelf positions
6
Cooking zone 1200 W
1
Steam outlet - number and position
2
depends on the model
Cooking zone 1700 W
3
Cooking zone 1200 W
4
Residual heat indicator
5
Cooking zone 1700 W
6
Control panel
6 www.zanussi.com
Knobs for the hob
1
Knob for the top oven functions
2
Knob for the main oven functions
3
Temperature lamp / symbol / indicator for
4
the main oven
Temperature lamp / symbol / indicator for
5
the top oven
Accessories
• Wire shelf
For cookware, cake tins, roasts.
• Grill- / Roasting pan
To bake and roast or as pan to collect fat.
Before first use
• Trivet
For roasting and grilling.
Use the trivet only with the Grill- /
roasting pan.
WARNING!
Refer to Safety chapters.
Initial Cleaning
Remove all accessories from the appliance.
Refer to "Care and cleaning"
chapter.
1. Clean the appliance before first use.
2. Put the accessories back to their initial
position.
Hob - Daily use
WARNING!
Refer to Safety chapters.
Heat setting
Symbols Function
Off position
1 - 6 Heat settings
(1 - lowest heat setting, 6 - highest heat setting)
Use the residual heat to decrease
energy consumption. Deactivate the
cooking zone approximately 5 - 10
minutes before the cooking process
is completed.
Preheating
Preheat the empty appliance to burn off the
remaining grease.
Preheat the two ovens. Heat up one
oven at a time.
1. Set the maximum temperature.
2. Let the appliance operate for 1 hour.
Accessories can become hotter than usual. The
appliance can emit an odour and smoke. This is
normal. Make sure that the airflow is sufficient.
Turn the knob to a necessary heat setting.
To complete the cooking process, turn the knob
to the off position.
Residual heat indicator
WARNING!
There is a risk of burns from residual
heat.
The indicator comes on when a cooking zone is
hot.
Hob - Helpful hints and tips
WARNING!
Refer to Safety chapters.
www.zanussi.com 7
Cookware
The bottom of the cookware must be
as thick and flat as possible.
Cookware made of enamelled steel
and with aluminium or copper
bottoms can cause the colour
change on the glass-ceramic
surface.
Energy saving
• If it is possible, always put the lids on the
cookware.
• Put cookware on a cooking zone before you
start it.
• Use the residual heat to keep the food warm
or to melt it.
• The bottom of the pans and cooking zones
must have the same dimension.
Examples of cooking applications
Heat
set-
ting:
2 Gentle simmering
3 Simmering
4 Frying / browning
5 Bringing to the boil
6 Bringing to the boil / quick frying /
deep-frying
Application:
Heat
set-
ting:
1 Keeping warm
Application:
Hob - Care and cleaning
WARNING!
Refer to Safety chapters.
General information
• Clean the hob after each use.
• Always use cookware with clean bottom.
• Scratches or dark stains on the surface have
no effect on how the hob operates.
• Use a special scraper for the glass.
• Use a special cleaner applicable for the
surface of the hob.
Cleaning of the hob
• Remove immediately: melted plastic,
plastic foil, and food with sugar. If not, the
Oven - Daily use
WARNING!
Refer to Safety chapters.
Cooling fan
When the appliance operates, the cooling fan
activates automatically to keep the surfaces of
dirt can cause damage to the hob. Put the
special scraper on the glass surface at an
acute angle and move the blade on the
surface.
• Remove when the hob is sufficiently
cool: limescale rings, water rings, fat stains,
shiny metallic discoloration. Clean the hob
with a moist cloth and some detergent. After
cleaning, rub the hob dry with a soft cloth.
the appliance cool. If you deactivate the
appliance, the cooling fan can continue to
operate until the appliance cools down.
8 www.zanussi.com
Activating and deactivating the top / main oven
1. Turn the knob for the top / main oven
functions to select an oven function.
2. To deactivate the oven turn the knob for the
It depends on the model if your
top / main oven functions to the off position.
appliance has knob symbols,
indicators or lamps:
• The indicator comes on when the
oven heats up.
• The lamp comes on when the
oven operates.
• The symbol shows whether the
knob controls one of the cooking
zones, the oven functions or the
temperature.
Top oven functions
Symbol Oven function Application
Off position The appliance is off.
Oven Lamp To bake and roast food on 1 shelf position.
100 - 250 Conventional Cooking To bake and roast food on 1 shelf position.
Dual Circuit Grill To grill food items in medium quantities in the middle of
the shelf. To make toasts.
Full Grill To grill flat food and to toast bread.
Main oven functions
Symbol Oven function Application
Off position The appliance is off.
Oven Lamp To activate the lamp without a cooking function.
Defrost To defrost frozen food.
100 - 250 Thermaflow® To bake on up to 2 shelf positions at the same time and to
dry food.
www.zanussi.com 9
Trivet and Grill- / Roasting pan
WARNING!
Be careful when you remove the
accessories from a hot appliance.
There is a risk of burns.
You can use the trivet to roast larger pieces of
meat or poultry on one shelf position.
1. Put the trivet into the deep pan so that the
supports of the wire shelf point up.
Oven - Helpful hints and tips
2. Put the deep pan into the oven on the
necessary shelf position.
You can use the trivet to grill flat dishes in large
quantities and to toast.
1. Put the trivet into the deep pan so that the
supports of the wire shelf point down.
2. Put the deep pan into the oven on the
necessary shelf position.
WARNING!
Refer to Safety chapters.
The temperature and baking times in
the tables are guidelines only. They
depend on the recipes and the
quality and quantity of the
ingredients used.
Top oven
The top oven is the smaller of the two ovens. It
has 3 shelf positions. Use it to cook smaller
quantities of food. It gives especially good
results when used to cook fruitcakes, sweets
and savoury flants or quiche.
Main oven
The main oven is particularly suitable for
cooking larger quantities of food.
Baking
• Your oven can bake or roast differently to the
appliance you had before. Adapt your usual
settings (temperature, cooking times) and
shelf positions to the values in the tables.
• The manufacturer recommends that you use
the lower temperature the first time.
• If you cannot find the settings for a special
recipe, look for the one that is almost the
same.
• You can extend baking times by 10 – 15
minutes if you bake cakes on more than one
level.
• Cakes and pastries at different heights do
not always brown equally at first. If this
occurs, do not change the temperature
setting. The differences equalize during the
baking procedure.
• With longer baking times, you can deactivate
the oven approximately 10 minutes before
the end of the baking time and then use the
residual heat.
When you cook frozen food, the trays in the
oven can twist during baking. When the trays
become cold again, the distortions are gone.
10 www.zanussi.com
Tips on baking
Baking results Possible cause Remedy
The bottom of the cake is not
browned sufficiently.
The cake sinks and becomes
soggy, lumpy or streaky.
The cake sinks and becomes
soggy, lumpy or streaky.
The cake sinks and becomes
soggy, lumpy or streaky.
The cake is too dry. The oven temperature is too
The cake is too dry. The baking time is too long. The next time you bake, set a
The cake browns unevenly. The oven temperature is too
The cake browns unevenly. The mixture is unevenly distrib-
The cake is not ready in the
baking time given.
The shelf position is incorrect. Put the cake on a lower shelf.
The oven temperature is too
high.
The baking time is too short. Set a longer baking time. You
There is too much liquid in the
mixture.
low.
high and the baking time is too
short.
uted.
The oven temperature is too
low.
The next time you bake, set a
slightly lower oven temperature.
cannot decrease baking
times by setting higher
temperatures.
Use less liquid. Be careful with
mixing times, especially if you
use a mixing machine.
The next time you bake, set a
higher oven temperature.
shorter baking time.
Set a lower oven temperature
and a longer baking time.
Spread the mixture evenly on
the baking tray.
The next time you bake, set a
slightly higher oven temperature.
Conventional Baking - Top Oven
Food Shelf position Temperature (°C) Time (min)
Biscuits 2 170 - 190 10 - 20
Bread 2 200 - 220 30 - 35
Bread rolls / buns 2 200 - 220 10 -15
Cakes: Small & Queen 2 160 - 180 18 - 25
Cakes: Sponges 2 160 - 175 20 - 30
Cakes: Victoria Sandwich 2 160 -170 18 - 25
Cakes: Madeira 2 140 - 150 75 - 90
Cakes: Rich Fruit 2 140 - 150 120 - 150
www.zanussi.com 11
Food Shelf position Temperature (°C) Time (min)
Cakes: Gingerbread 2 140 - 150 80 - 90
Cakes: Meringues 2 90 - 100 150 - 180
Cakes: Flapjack 2 160 - 170 25 -30
Cakes: Shortbread 2 130 - 150 45 - 60
Cakes: Apple Pie 2 170 - 180 50 - 60
Casseroles: Beef / Lamb 2 160 -170 150 - 180
Casseroles: Chicken 2 160 - 180 80 - 90
Convenience Foods 2 Follow manufacturer`s instructions
Fish 2 170 - 190 20 - 30
Fish Pie (Potato Topped) 2 190 - 200 20 - 30
Fruit Pies, Crumbles 2 190 - 200 30 - 50
Milk Puddings 2 150 - 170 90 -120
Pasta Lasagne etc. 2 170 - 180 40 -50
Pastry: Choux 2 180 - 190 30 - 40
Pastry: Eclairs, Profiteroles 2 180 - 190 30 - 40
Pastry: Flaky / Puff Pies 2 210 - 220 30 - 40
Shortcrusts: Mince Pies 2 190 - 200 15 - 20
Shortcrusts: Meat Pies 2 190 - 210 25 - 35
Shortcrusts: Quiche, Tarts,
Flans
Scones 3 220 - 230 8 - 12
Shepard`s Pie 2 190 - 200 30 - 40
Souffles 2 170 - 180 20 - 30
Vegetables: Baked Jacket
Potatos
Vegetables: Roast Potatos 2 180 - 190 60 - 90
Yorkshire Pudding Large 2 220 - 210 25 - 40
Yorkshire Pudding Individual 2 210 - 220 15 - 25
Roasting Meat, Poultry 2 Refer to the Roasting table
2 180 - 200 25 - 50
2 180 - 190 60 - 90
12 www.zanussi.com
Thermaflow® Baking - Main Oven
Shelf positions are not critical but
ensure that the oven accessories are
evenly spaced when more than one
is used.
Food Shelf position Temperature (°C) Time (min)
Biscuits 1 – 3 180 - 190 10 - 20
Bread 2 190 - 210 30 - 35
Cakes: Small &
Queen
Cakes: Sponges 3 160 - 170 20 - 25
Cakes: Madeira 3 140 - 160 60 - 80
Cakes: Rich Fruit 3 130 - 140 120 - 150
Cakes: Christmas 3 130 - 140 180 - 270
Cakes: Apple Pie 3 160 - 170 50 - 60
- Shortbread 1 – 3 130 - 150 45 - 60
Fish 3 160 - 180 30 - 40
Fruit Pies, Crumbles 3 170 - 180 30 - 50
Milk Puddings 3 140 - 160 60 - 90
Pastry: Choux 3 180 - 190 30 - 40
Pastry: Shortcrust 3 180 - 190 25 - 35
Pastry: Flaky 3 180 - 190 30 -40
Pastry: Puff 3 Follow manufacturer`s instructions. Reduce the
Plate Tarts 3 180 - 190 25 - 45
Quiches/Flans 3 170 - 180 25 - 45
Scones 1 – 3 210 - 230 8 - 12
Roasting: Meat, Poul-
try
1 – 3 150 - 170 18 - 25
temperature for Fan oven by 20°C
2 160 - 180 Refer to the Roasting
table
Roasting
• Use heat-resistant ovenware to roast (refer
to the instructions of the manufacturer).
• You can roast large roasting joints directly in
the deep pan (if present) or on the wire shelf
above the deep pan.
• Roast lean meats in the roasting tin with the
lid. This keeps the meat more succulent.
• All types of meat that can be browned or
have crackling can be roasted in the roasting
tin without the lid.
• We recommend that you cook meat and fish
weighing 1 kg and above in the appliance.
• To prevent the meat juices or fat from
burning onto the pan, put some liquid into
the deep pan.
www.zanussi.com 13
• If necessary, turn the roast (after 1/2 - 2/3 of
the cooking time).
• Baste large roasts and poultry with their
• You can deactivate the appliance
approximately 10 minutes before the end of
the roasting time, and use the residual heat.
juices several times during roasting. This
gives better roasting results.
Thermaflow® - Main Oven
Roasting
Food Temperature (°C) Time (min)
Beef / Beef boned 170 - 190 20 - 35 minutes per 0.5 kb (1 lb) and 20-30 minutes
over
Mutton / Lamb 170 - 190 20 - 35 minutes per 0.5 kb (1 lb) and 25-35 minutes
over
Pork / Veal / Ham 170 - 190 30 - 40 minutes per 0.5 kb (1 lb) and 30-40 minutes
over
Chicken 180 - 200 20 - 25 minutes per 0.5 kb (1 lb) and 20 minutes
over
Turkey / Goose 170 - 190 15 - 20 minutes per 0.5 kg (1 lb) up to 3.5 kg (7 lb)
then 10 minutes per 0.5 kg (1 lb) over 3.5 kg (7 lb)
Duck 180 - 200 25 - 35 minutes per 0.5 kb (1 lb) and 25-30 minutes
over
Pheasant 170 -190 35 - 40 minutes per 0.5 kb (1 lb) and 35-40 minutes
over
Rabbit 170 - 190 20 minutes per 0.5 kb (1 lb) and 20minutes over
Grilling in general
WARNING!
• Always preheat an empty oven with the
grill functions for 5 minutes.
Always grill with the oven door
closed
• Always grill with the maximum
temperature setting.
• Set the shelf into the shelf position as
recommended in the grilling table.
• Always set the deep pan to collect the fat
into the first shelf position.
• Set the deep pan and the trivet as
The grilling area is set in centre of the shelf.
recommended in the grilling table
• Grill only flat pieces of meat or fish.
Dual Circuit Grill - Top Oven
Food Shelf position Time (min)
Bacon Rashers 3 5 - 6
14 www.zanussi.com
Food Shelf position Time (min)
Beefburgers 3 10 - 20
Chicken Joints 2 20 - 40
Chops - Lamb 2 - 3 15 - 25
Chops - Pork 2 - 3 20 - 25
Fish - Whole / Trout / Makarel 2 10 - 12
Fillets - Plaice/Cod 2 4 - 6
Kebabs 2 - 3 12 - 18
Kidneys - Lamb / Pig 2 - 3 6 - 10
Sausages 3 20 - 30
Steaks: Rare 3 4 - 6
Steaks: Medium 3 6 - 8
Steaks: Well Done 3 12 - 15
Toasted Sandwiches 3 3- 4
Defrosting
• Remove the food packaging. Put the food on
a plate.
• Do not cover it with a bowl or a plate. This
can extend the defrost time.
Oven - Care and cleaning
WARNING!
Refer to Safety chapters.
Notes on cleaning
• Clean the front of the appliance with a soft
cloth with warm water and a cleaning agent.
• To clean metal surfaces, use a usual
cleaning agent.
• Clean the appliance interior after each use.
Fat accumulation or other food remains may
result in a fire. The risk is higher for the grill
pan.
• Clean stubborn dirt with a special oven
cleaner.
• Clean all accessories after each use and let
them dry. Use a soft cloth with warm water
and a cleaning agent.
• If you have nonstick accessories, do not
clean them using aggressive agents, sharp-
• Use the first oven shelf level. The one on the
bottom.
edged objects or a dishwasher. It can cause
damage to the nonstick coating.
Stainless steel or aluminium appliances
Clean the oven door with a wet
sponge only. Dry it with a soft cloth.
Do not use steel wool, acids or
abrasive materials as they can
damage the oven surface. Clean the
oven control panel with the same
precautions.
www.zanussi.com 15
Catalytic cleaning
1
2
1
1
2
A
CAUTION!
Do not clean the catalytic surface
with oven sprays, abrasive cleaning
agents, soap or other cleaning
agents. This will damage the
catalytic surface.
Spots or discolouration of the
catalytic surface have no effect on
catalytic properties.
WARNING!
Keep children away when you clean
the oven at a high temperature. The
oven surface becomes very hot and
there is a risk of burns.
CAUTION!
Always turn the oven light on while
using the catalytic cleaning (if
applicable).
Before activating the catalytic
cleaning remove all the accessories
from the oven.
The walls with a catalytic coating are selfcleaning. They absorb fat which collects on the
walls while the appliance operates.
To support the self-cleaning procedure, heat
the empty oven on a regular basis.
1. Clean the oven floor with warm water and
washing up liquid, then dry it.
2. Set the oven temperature to 250 °C and let
the oven operate for 1 hour.
3. When the appliance is cool, clean it with a
soft and moist sponge.

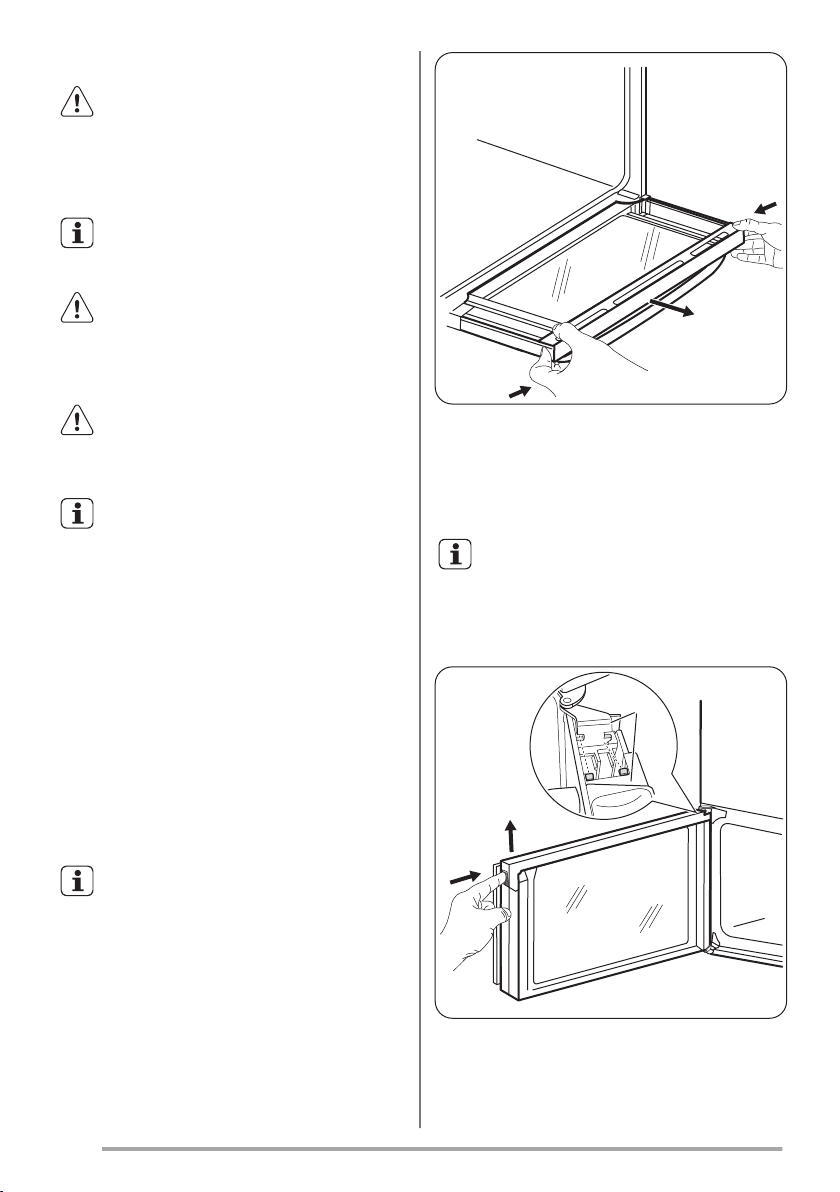

Removing and cleaning the door glasses - top oven
The door glass on your product can
be different in type and shape from
the examples you see in the graphic.
The number of glasses can also be
different.
1. Open the door.
2. Hold the door trim on the top edge of the
door at the two sides and push inwards to
release the clip seal.
Pull the door trim to the front to remove it.
3.
4. Remove the glass panels.
To install panels, do the same steps in reverse.
Removing and cleaning the door glasses - main oven
The door glass on your product can
be different in type and shape from
the example you see in the graphic.
The number of glasses can also be
different.
1. Push the door trim at one side to remove it.
2. Pull up the trim.
3. Remove the glass panels.
16 www.zanussi.com
To replace the glass panels, do the
same steps in reverse. Before you
lower the trim, attach the A trim part
to the door. Refer to the graphic.
Replacing the lamp
Put a cloth on the bottom of the interior of the
appliance. It prevents damage to the lamp glass
cover and the cavity.
WARNING!
Danger of electrocution! Disconnect
the fuse before you replace the
lamp. The lamp and the lamp glass
cover can be hot.
Troubleshooting
WARNING!
Refer to Safety chapters.
What to do if...
Problem Possible cause Remedy
1. Deactivate the appliance.
2. Remove the fuses from the fuse box or
deactivate the circuit breaker.
The back lamp
The lamp glass cover is at the back
of the cavity.
1. Turn the lamp glass cover counterclockwise
to remove it.
2. Clean the glass cover.
3. Replace the oven lamp with a suitable 300
°C heat-resistant oven lamp.
Use the same oven lamp type.
4. Install the glass cover.
You cannot activate the appliance.
You cannot activate the appliance.
Residual heat indicator does
not come on.
The oven does not heat up. The oven is deactivated. Activate the oven.
The oven does not heat up. The necessary settings are not
The lamp does not operate. The lamp is defective. Replace the lamp.
Steam and condensation settle
on the food and in the cavity of
the oven.
Service data
If you cannot find a solution to the problem
yourself, contact your dealer or an Authorised
Service Centre.
The appliance is not connected to an electrical supply or it
is connected incorrectly.
The fuse is released. Make sure that the fuse is the
The zone is not hot because it
operated only for a short time.
set.
You left the dish in the oven for
too long.
Check if the appliance is correctly connected to the electrical supply.
cause of the malfunction. If the
fuse releases again and again,
contact a qualified electrician.
If the zone operated sufficiently
long to be hot, speak to an Authorised Service Centre.
Make sure that the settings are
correct.
Do not leave the dishes in the
oven for longer than 15 - 20
minutes after the cooking
process ends.
The necessary data for the service centre is on
the rating plate. The rating plate is on the front
frame of the appliance cavity. Do not remove
the rating plate from the appliance cavity.
www.zanussi.com 17
We recommend that you write the data here:
A
A
B
Model (MOD.) .........................................
Product number (PNC) .........................................
Serial number (S.N.) .........................................
Installation
WARNING!
Refer to Safety chapters.

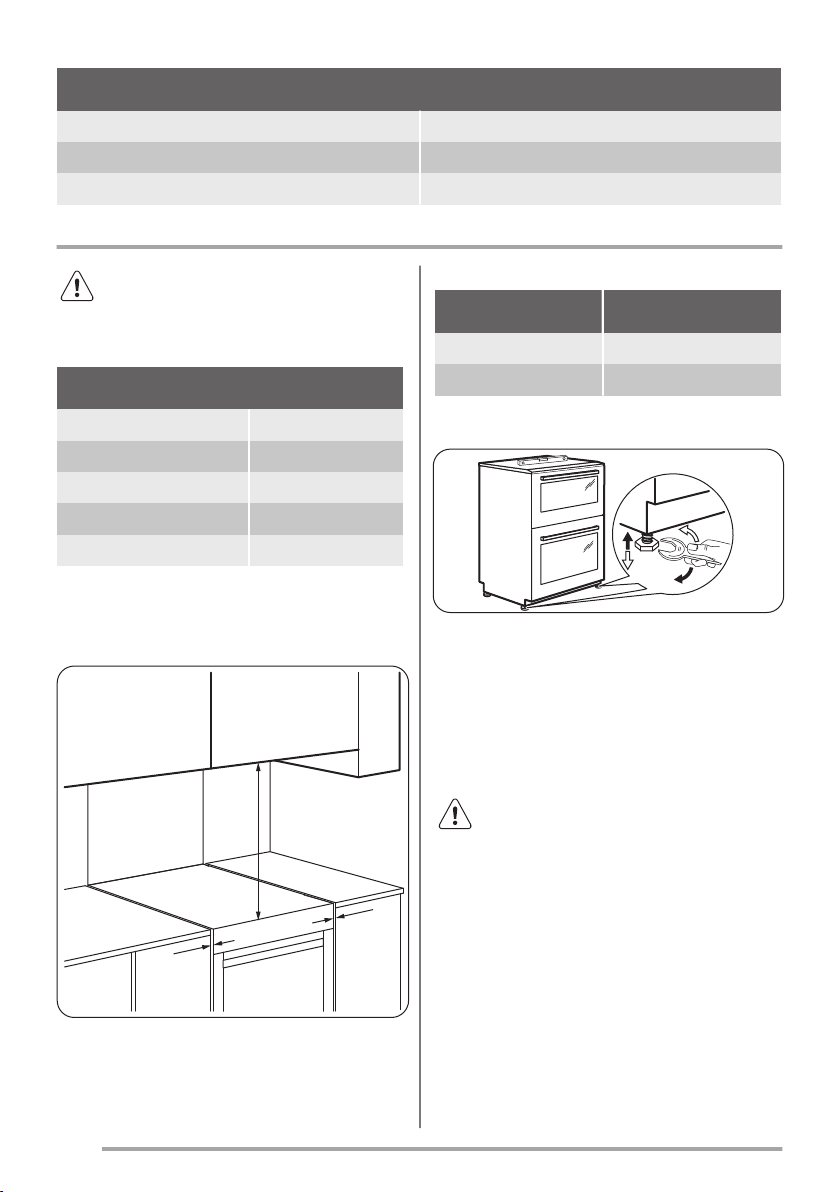

Technical data
Dimensions
Height 894 - 912 mm
Width 600 mm
Depth 600 mm
Top oven capacity 37 l
Main oven capacity 74 l
Location of the appliance
You can install your freestanding appliance with
cabinets on one or two sides and in the corner.
Minimum distances
Dimension mm
A 2
B 685
Levelling of the appliance
Use small feet on the bottom of appliance to set
the appliance top surface level with other
surfaces.
Anti-tilt protection
Adjust the appliance to the correct height and
put it in the correct area before you attach the
anti-tilt protection.
CAUTION!
Install the anti-tilt protection to
prevent the appliance from falling
under incorrect loads. The anti-tilt
protection only works when the
appliance is put in a correct area.

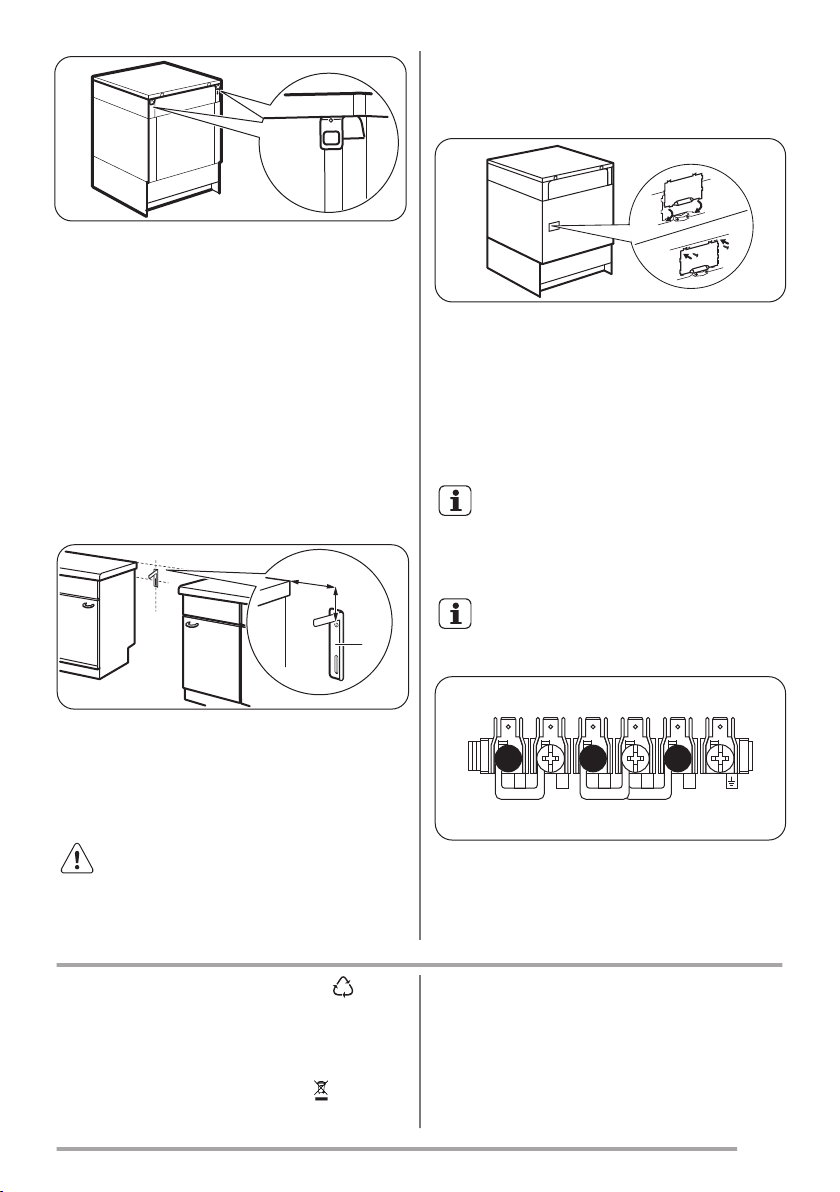

The anti-tilt protection has two parts (A+B).
You can find the anti-tilt protection (B) on the
right or left side of the rear wall of the appliance.
18 www.zanussi.com
B
1. Install the anti-tilt protection (A) on the wall.
50 mm
77 mm
A
N N N
LL
Make sure that the wall is made of a solid
material. If not, you need to make the wall
sufficiently strong to hold the weight.
Make sure that the surface behind the appliance
is smooth.
2. Put the appliance in the middle of the space
between the cupboards.
If the space is larger than the width of the
appliance, you must adjust the side
measurement.
3. Install the anti-tilt protection (A)
approximately 77 mm below the top surface
of the appliance and 50 mm from the left or
right side of the appliance into the circular
hole on the bracket. Screw it into the wall.
This appliance is supplied without a main plug
or a main cable.
Covering terminal board
• The recommended cross-section area is six
square millimetres (6 mm²).
• When you refit the mains terminal cover,
make sure that the lower tabs are located
inside the bottom edge of the aperture,
before you fix the two screws into the top
edge of the mains terminal cover.
• Make sure that the cover is securely
fastened.
To open the cover of terminal board
obey the procedure in opposite
sequence.
Terminal board
Do not remove blanking plates.
Make sure that the links are fitted as shown.
4. Check that the anti-tilt protection (A) fits
minimum 20 mm into the hole in the rear
wall of the appliance (B) when you push the
appliance.
Electrical installation
WARNING!
The manufacturer is not responsible
if you do not follow the safety
precautions from Safety chapters.
ENVIRONMENTAL CONCERNS
Recycle the materials with the symbol . Put
the packaging in applicable containers to
recycle it. Help protect the environment and
human health and to recycle waste of electrical
and electronic appliances. Do not dispose
appliances marked with the symbol with the
www.zanussi.com 19
household waste. Return the product to your
local recycling facility or contact your municipal
office.
*
www.zanussi.com/shop
867307034-A-022014
Loading...
