Zanussi ZCG7610WN, ZCG7610WL, ZCG7610SVN User Manual

User Manual

Gas Cooker

ZCG7610

Important safety information

These warnings are provided in the interests of your safety. Ensure that you understand them all before installing or using the appliance. Your safety is of paramount importance. If you are unsure about any of the information in this book contact the Customer Care Department.

Installation

The appliance must be installed according to the instructions supplied. The installation work must be undertaken by a competent person as stated in the Gas Safety (Installation & Use) Regulations current editions and the IEE Wiring Regulations. The appliance should be serviced by an authorised Service Engineer and only genuine approved spare parts should be used. It is important that the appliance is suitable for your gas supply. Your installer should check the rating plate. Make sure that a stability bracket is fitted. The appliance must be installed in an adequately ventilated room. If the appliance is to be placed on a base, measures must be taken to prevent the appliance from slipping from the base. This appliance is heavy and care must be taken when moving it. Do not attempt to lift or move this appliance by the handles. All packaging, both inside and outside the appliance must be removed before the appliance is used. It is dangerous to alter the specifications or modify the appliance in any way. After installation please dispose of the packaging with due regard for safety and the environment. Your local authority can arrange this.

Child safety

Do not allow children to play with any part of

the packaging. Do not allow children to sit or climb on the drop down doors. This appliance is not intended for use by children and other persons whose physical, sensory or mental capabilities or lack of experience and knowledge prevents them from using the appliance safely without supervision or instruction by a responsible person to ensure that they can use the appliance safely. Children should be supervised to ensure that they do not play with the appliance.

CAUTION: Accessible parts may be hot when the grill is in use. Young children should be kept away.

During use

This appliance is not intended to be operated by means of an external timer or separate remote control system. This appliance has been designed for domestic use to cook edible foodstuffs only and must not be used for any other purposes. Take great care when heating fats and oils as they will ignite if they become too hot. When you are lighting any burner check that it is lit before you leave the appliance. When turning off a burner, do not leave the appliance until the flame has gone out. Never place plastic or any other material that may melt in or on the oven. (NG models only) Do not leave the grill pan handle in position when grilling as it will become hot. (NG models only) Always use oven gloves to remove and replace the grill pan handle when grilling. Always support the grill pan when it is in the withdrawn or partially withdrawn position. Always use oven gloves to remove and place food in the oven.

Ensure cooking utensils are large enough to contain foods to prevent spillages and boil overs. During use the appliance becomes hot. Care should be taken to avoid touching the heating elements inside the oven. Ensure that all vents are not obstructed to ensure ventilation of the oven cavity.

Never line any part of the appliance with foil. Always stand back from the appliance when

opening the oven door to allow any build up of steam or heat to release.

Never leave the appliance unattended when the oven doors are open. Do not place sealed cans or aerosols inside

the oven. They may explode if they are heated. Ensure that all control knobs are in the OFF position when not in use. Do not stand on the appliance or on the open oven doors. Do not hang towels, dishcloths or clothes from the appliance or its handles. Do not use this appliance if it is in contact with water. Never operate it with wet hands.

Cleaning and maintenance

At the end of the appliance’s life

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

For hygiene and safety reasons this appliance should be kept clean at all times. A build-up of fats or other foodstuffs could result in a fire especially in the grill pan. Do not leave cookware containing

foodstuffs, e.g. fat or oil in the appliance in case it is inadvertently switched on. Do not disconnect the appliance from the gas supply if the supply pipe does not have a bayonet connection as described in the installation section. If this is the case contact the person who installed the appliance. Always allow the appliance to cool before switching off at the wall prior to carrying out any cleaning/maintenance work. Only clean this appliance in accordance with the instructions given in this book. Never use steam or high pressure steam cleaners to clean the appliance.

Contents

For the user

Important safety information 2 Description of the appliance 5 Getting to know your appliance 6

Before using the appliance 7 Rating plate 7 Preparing to use your appliance 7 Condensation and steam 7 Cookware 7 Grill and oven furniture 7

The timer 9 The hob 11

Using the hob 11 To light the hob burners 11 To turn off any burner 12 Things to note 12 Hints & tips 12

The grill 13 Using the grill 13 Things to note 13 The grill pan and handle 13 Hints & tips 15 Grilling chart 16

The second oven 17 Preheating 17 Using the second oven 17 Things to note 17 To fit the second oven shelf 18 Hints and tips 18

The main oven 19 Heat zones 19 Preheating 19 To fit the main oven shelves 19 Using the main oven 19 Hints & tips 20

Cooking chart 21 Roasting chart 22 Slowcook 23

Using slowcook 23 Food preparation 23 General points 24

Care and cleaning 25 Cleaning materials 25 Cleaning the outside of the appliance 25 Cleaning the control knobs and handles 25 Cleaning the hob 26 When replacing hotplate burner parts 26 Cleaning the shelves and grill/oven furniture 27 Cleaning the grill 27 Cleaning inside the oven(s) 27 Hints and tips 27 Cleaning the door(s) 28 Replacing an oven light bulb 29

Something not working 30 Service and spare parts 32 Guarantee conditions 33

For the installer

Technical details 34 Important safety requirements 36 Provision for ventilation 36 Moving your appliance 36 For your safety 37 Location of appliance 37 Levelling the appliance 38 Connecting to electricity supply 38 Connecting to gas supply 39 Fitting the stability bracket 40 Testing 41 General note 43

To help you the following symbols will be found in the text.

Hints and Tips

Safety Instructions

Please read the instruction book carefully before use and retain for future reference.

Control panel

Grill/Second oven

Description of the appliance

Gas slip-in double oven

Main oven

TOP OVEN/GRILL

BACK LEFT

FRONT LEFT

FRONT RIGHT

BACK RIGHT MAIN OVEN

Alarm

Stop

SET TIME

Push

Both

E F

Getting to know your appliance

The control panel

Features

A - Second oven/Grill control

B - Hotplate controls

C - Electronic minute minder

D - Hotplate controls

E - Main oven temperature control

F - Ignition switch

Before using the appliance

Rating plate

This is situated on the lower front frame of the appliance and can be seen upon opening the door. Alternatively the rating plate may also be found on the back or top of some models (where applicable). The appliance must be protected by a suitably rated fuse or circuit breaker. The rating of the appliance is given on the rating plate.

Do not remove the rating plate from the appliance as this may invalidate the guarantee.

Preparing to use your appliance

Wipe over the base of the oven(s) with a soft cloth and hot soapy water and wash the furniture before use. We suggest that you run the oven(s) and grill for 10 – 15 minutes at maximum temperature, to burn off any residue from their surfaces. Accessible parts may become hotter than in normal use. Children should be kept away. During this period an odour may be emitted, it is therefore advisable to open a window for ventilation.

Condensation and steam

When food is heated it produces steam similar to a boiling kettle. The vents allow some of this steam to escape. However, always stand back from the appliance when opening the door(s) to allow any build up of steam or heat to release. If the steam comes into contact with a cool surface on the outside of the appliance, e.g. a trim, it will condense and produce water droplets. This is quite normal and is not caused by a fault on the appliance. To prevent discolouration, regularly wipe away condensation and also soilage from surfaces.

For your safety wall coverings at the rear of the appliance should be securely fixed to the wall.

Cookware

Main oven - Do not use baking trays larger than 30cm x 30cm (12” x 12”) as they will restrict the circulation of heat and may affect performance.

Grill and oven furniture

The following items of grill and oven furniture have been supplied with the appliance. If you require replacements of any of the items listed below please contact your local Service Force Centre, quoting the relevant part number.

(LPG models only)

1 grill pan (311409401)

1 grill pan handle (311468100)

Note:

If you require an additional handle for your grill pan, this can be ordered from your local Service Force Centre by quoting part number 311479800\6.

1 grill pan grid (311757500)

(NG models only)

1 grill pan

1 grill pan handle

1 grill pan grid

All models

1 straight shelf (for grilling and second oven cooking)

2 straight shelves (for main oven cooking)

Alarm

Stop

SET TIME

Push

Both

Button 2

Button 1

Bell Symbol

Alarm

Stop

SET TIME

Push

Both

Fig.1

Alarm

Stop

SET TIME

Push

Both

Fig.2

Alarm

Stop

SET TIME

Push

Both

Fig.3

Alarm

Stop

SET TIME

Push

Both

Fig.4

Alarm

Stop

SET TIME

Push

Both

Fig.5

Electronic minute minder

1 = ( - ) Decrease control & Minute minder

2 = ( + ) Increase control

( ) Bell Symbol

The electronic minute minder can also be used to show the time of day. Please note that this is a 24 hour clock, for example 2.00pm is shown as 1400. In the following pages we explain how to set the controls. Read through them a few times until you are familiar with the procedure. If the appliance is switched off on the wall, or there is a loss of power, the clock will stop and you will not be able to use the main oven.

Set the time of day

When the electricity supply is first switched ON, the display will flash 0.00. See Fig.1.

Press buttons (1) and (2) together. Release buttons, 0.00 will appear in the display as Fig. 2. Within 5 seconds press button (2),

12.00 will show in the display as Fig. 3.

Within 5 seconds press and hold either button (1) to decrease or button (2) to increase the time until the correct time of day on the 24 hour clock is reached, e.g. 14.30. See Fig. 4.

Note: The increase and decrease control buttons operate slowly at first and then more rapidly. They should be pressed separately.

The minute minder

The minute minder gives an audible reminder at the end of any period of cooking up to 23 hours and 59 minutes.

To set press button (1) and the display will read 0.00, see Fig. 5.

Alarm

Stop

SET TIME

Push

Both

Fig.6

Alarm

Stop

SET TIME

Push

Both

Fig.7

Alarm

Stop

SET TIME

Push

Both

Fig.8

Alarm

Stop

SET TIME

Push

Both

Fig.9

Alarm

Stop

SET TIME

Push

Both

Fig.10

Release button (1) and press and hold button (2). The display will count up in one minute intervals until the interval to be timed is reached e.g. 30 minutes, see Fig. 6. If necessary press and hold button (1) to achieve the correct time interval. The bell symbol will show in the display.

The minute minder will begin to count down once set. The time of day will show in the display. To show the remainder of the cook time press button (1).

At the end of the timed period an audible signal will sound for up to 2 minutes. The bell symbol will flash and the time of day will show in the display, see Fig 7.

To stop the sound press button (1). The bell symbol will go out and show the time of day e.g. 15.00, see Fig 8.

To cancel the minute minder

If you change your mind and want to cancel the minute minder. Press and release button (1).

Press and hold button (1) and the display will count down in one minute intervals to 0.00. See Fig. 9.

Release button (1). After a few seconds the time of day will show in the display, see Fig.

10.

BACK LEFT

The hob

Using the hob

The gas hob has different burner sizes to suit different types of cooking: To ensure maximum burner efficiency only use pots and pans with flat bases appropriate to the burner size used. Larger burner (Rapid) - use a large pan for food such as chips. Medium burners (Normal) - use for everyday cooking. Small burner (Simmer) - use for simmering foods such as soups and stews. The largest pan which you should use on any burner is 230mm (9"). The base of the smallest pan should not measure less than 100mm (4").

Ensure the pan supports are

correctly fitted before using the hob.

To light the hob burners

The hob ignition works by means of an electric spark system.

• Push in and turn the control knob to the

• When the burner has lit release the

left to the highest setting. This is shown by a large flame symbol. Press the ignition button immediately.

control and ignition button, adjust the setting as required.

Warning: If the ignition button is

not pressed immediately a build up of gas may cause the flame to spread.

To turn off any burner

1. Turn the control knob to the off position. This is shown by a large dot.

When lighting any burner, ensure

that it is lit before you leave the appliance.

When turning off a burner, ensure

the flame has gone out before leaving the appliance.

In the event of the burner flames

being accidentally extinguished, turn off the burner control and do not attempt to re-ignite the burner for at least 1 min.

Things to note

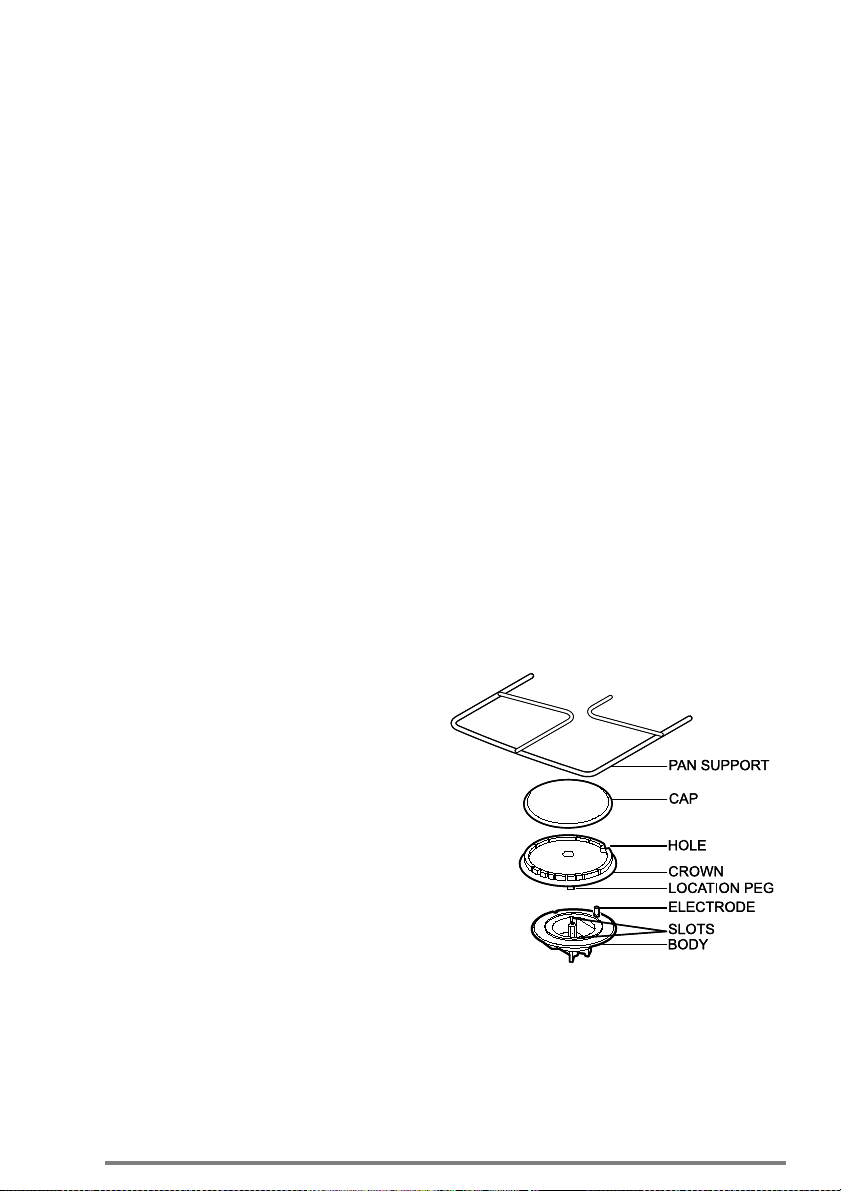

If you are having any difficulty lighting a hob burner turn all the hob controls off and make sure the burner parts have been replaced correctly.

Hints and tips

• Do not overfill pans or they will boil over.

• Do not use pans with very heavy handles which cause the pan to tip.

• Do not leave accidental spillage on the hob or removable parts. The spillage should be wiped up and the parts washed and carefully dried as soon as the hob, pan supports and burner parts are cool enough to touch.

• A flat based Wok will stand stable on the pan supports. If you use a round Wok with a collar support, the collar must be the open wirework type otherwise the performance of the burner will be affected.

Take care to avoid burns and

scalds when reaching across the hotplate.

Take extra care when deep fat

frying, do not cover the pan with a lid. Do not leave a pan unattended. If the pan catches fire, leave it where it is and turn off all controls. Place a damp cloth or a fitting lid over the pan to smother the flames. Never put water on the fire. Leave to cool for 30 minutes.

Place pans on the centre of the

burners.

Position pans so the handles

cannot be accidentally knocked or overhang the appliance.

Lift pans on and off the pan

supports.

Do not slide them across the hob.

The grill

CAUTION – Accessible parts may

be hot when the grill is in use. Young children should be kept away.

When you first operate the grill you may hear some sounds as the burner heats up, this is quite normal and is not a fault on the appliance.

Using the grill

• Fully open the door. Push in the control knob and turn to the large flame symbol (highest setting) and press the ignition button immediately.

• When the burner has lit release the control and ignition button, adjust the setting as required.

The grill door must be left open when grilling.

Things to note

• Some smoke from fat splashes may be

evident as the grill cleans itself.

Never cover the grill pan or grid

with foil as this can lead to grill fires.

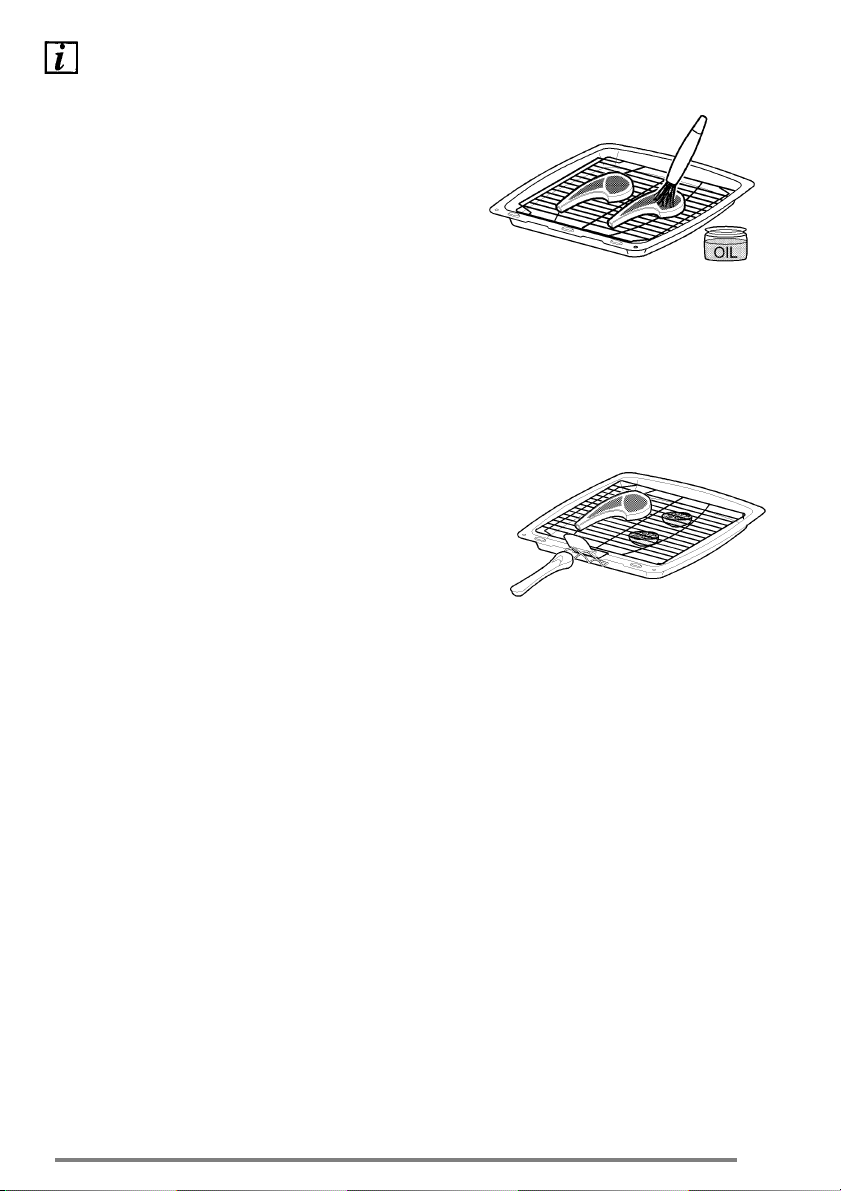

The grill pan and handle

(LPG models only)

The grill pan is supplied with a removable handle.

TOP OVEN/GRILL

To attach the handle, place the wirework under the cut out in the pan so that the metal plate hooks over the top of the grill pan.

Slide the handle to the left and over the central bump on the grill pan.

Ensure the handle is correctly located. It is not necessary to remove the grill pan handle during grilling.

Place the grill pan on the shelf so that the pan is positioned centrally beneath the grill.

To remove the handle, slide the handle to the right and lift the handle away from the cut out on the grill pan.

The grill pan and handle

(NG models only)

The grill pan has a removable handle. To insert the handle, press the button on the

handle with the thumb and pivot slightly upwards inserting the lip into the widest part of the bracket. Move the handle towards the left, lower into position and release the button.

Ensure the handle is properly located.

To remove the handle, press the button on the handle with the thumb and pivot the handle slightly upwards and towards the right to remove from the bracket.

Protect your hands when removing the grill pan handle.

Always remove the grill pan handle during grilling.

To check the progress of the food being grilled, the grill pan should be withdrawn on the shelf to attend to food during cooking.
