Page 1
ELECTRIC OVENS
ZBF 859
ZBS 869
INSTRUCTION BOOKLET
IL
Page 2
English
Important Safety Information
These warnings are provided in the interest of safety. You MUST read them carefully before installing or using the appliance.
Installation
It is mandatory that all operations required for the
installation are carried out by a qualified or competent
person, in accordance with existing rules and
regulations.
It is dangerous to alter the specification in any way.
Once you removed all packaging from the appliance,
ensure that it is not damaged and the electric cable is
in perfect conditions. Otherwise, contact your dealer
before proceeding with the installation.
Child Safety
This appliance has been designed to be operated by
adults and children under supervision. Young children
MUST NOT be allowed to tamper with the controls or play
near or with the oven.
Accessible parts of this appliance may become hot
when it is in use. Children should be KEPT AWAY until it
has cooled.
eventual 400V poliphasic connection without earth
wire will destroy the oven and the hob, if fitted.
The manufacturer disclaims any responsability
should all the safety measures not be carried out.
Service
Under no circumstances should you attempt to repair
the appliance yourself. Repairs carried out by
unexperienced persons may cause injury or serious
malfunctioning. Refer to your local Service Centre.
Always insist on genuine spare parts.
Environmental Information
After installation, please dispose of the packaging with
due regard to safety and the environment.
When disposing of an old appliance, make it unusable,
by cutting off the cable.
During use
This appliance has been designed for cooking edible
foodstuff only and MUST NOT be used for any other
purposes.
Ensure that all control knobs are in the OFF position
when not in use.
Should you connect any electrical tool to a plug near
this cooking appliance, ensure that electric cables are
not in contact with it and keep them far enough from
the heated parts of this appliance.
If the appliance is out of order, disconnect it from the
electric supply.
Do not leave untensils containing foodstuffs, e. g. fat
or oil in or on the appliance. This could cause damage
in case the appliance is inadvertently switched on.
Always place the dripping pan in position to collect fat
when using the grill or when cooking meat. Pour a little
water into the dripping pan to avoid smoke and
unpleasant smells.
Always use oven gloves to remove pans from the oven.
For hygiene and safety reasons, this appliance should
be kept clean at all times. A build-up of fats or other
foodstuff could result in a fire.
Disconnect the appliance from the electrical supply,
before carrying out any cleaning or manteinance work.
Some parts of the appliance are covered by a shock-
proof plastic film. Remove this film before using the
oven.
This appliance is meant to operate with a single-
phased connection to 230V electrical supply. An
It is most important that this instruction book
is be retained with the appliance for future
reference. Should the appliance be sold or
transferred, always ensure that the book is left
with the appliance in order that the new
owner can get to know the functions of the
appliance and the relevant warnings.
Guide to Use the instructions
The following symbols will be found in the text to guide
you throughout the Instructions:
Safety Instructions
Step by step instructions for an operation
F
Hints and Tips
Environmental information
MANUFACTURER: ELECTROLUX ZANUSSI S.p.A.
Viale Bologna, 298
47100 FORLÌ (Italy)
3
Page 3
Contents
For the User For the Installer
Important Safety Information 3
Description of the Oven 4
When the oven is first installed 6
Using the Oven 6
Cooking Tables 8
Cleaning and maintenance 10
Technical Assistance 12
Something not working... 12
Technical Data 13

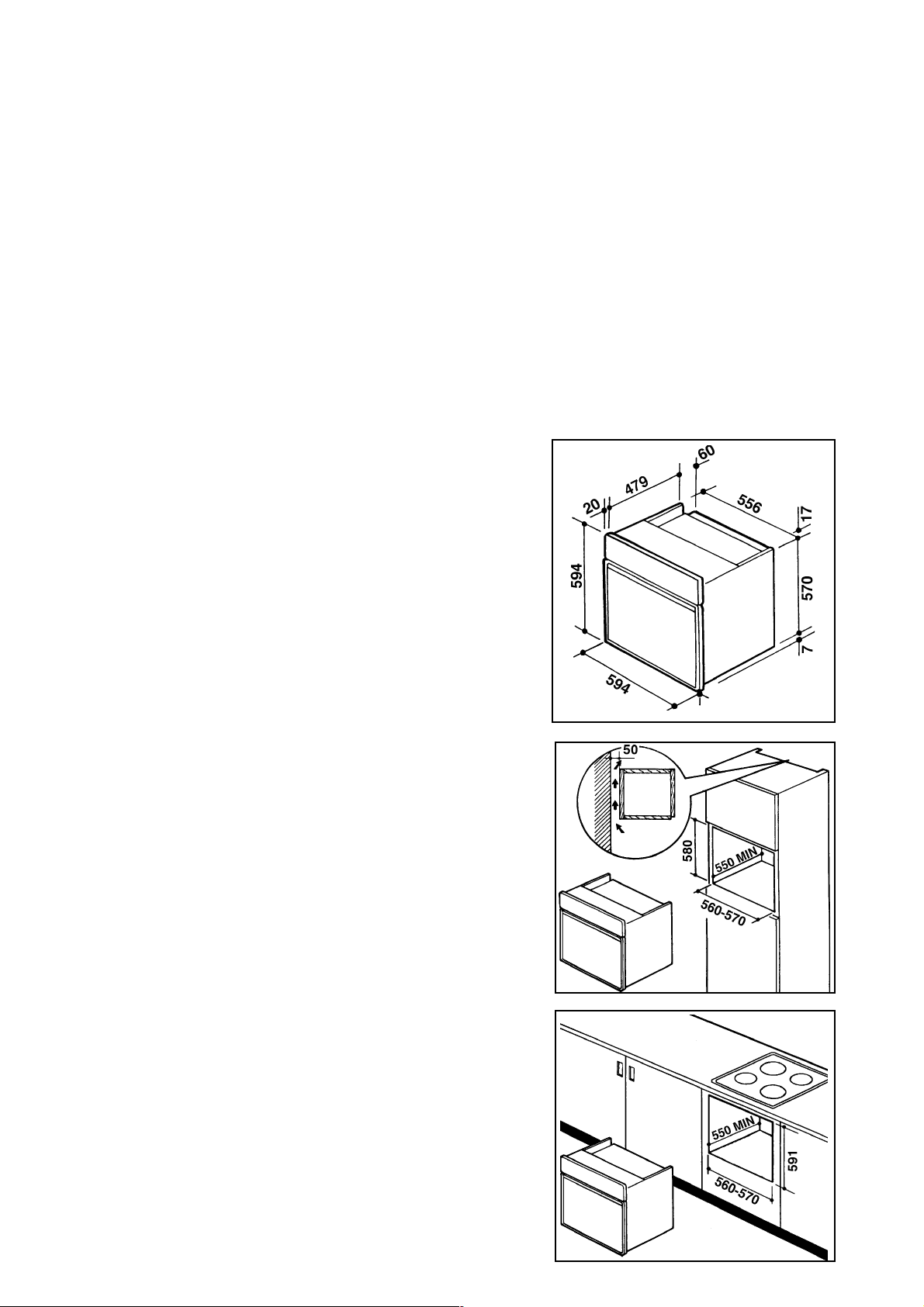

Installation 13
Electrical connection 14
Description of the Oven

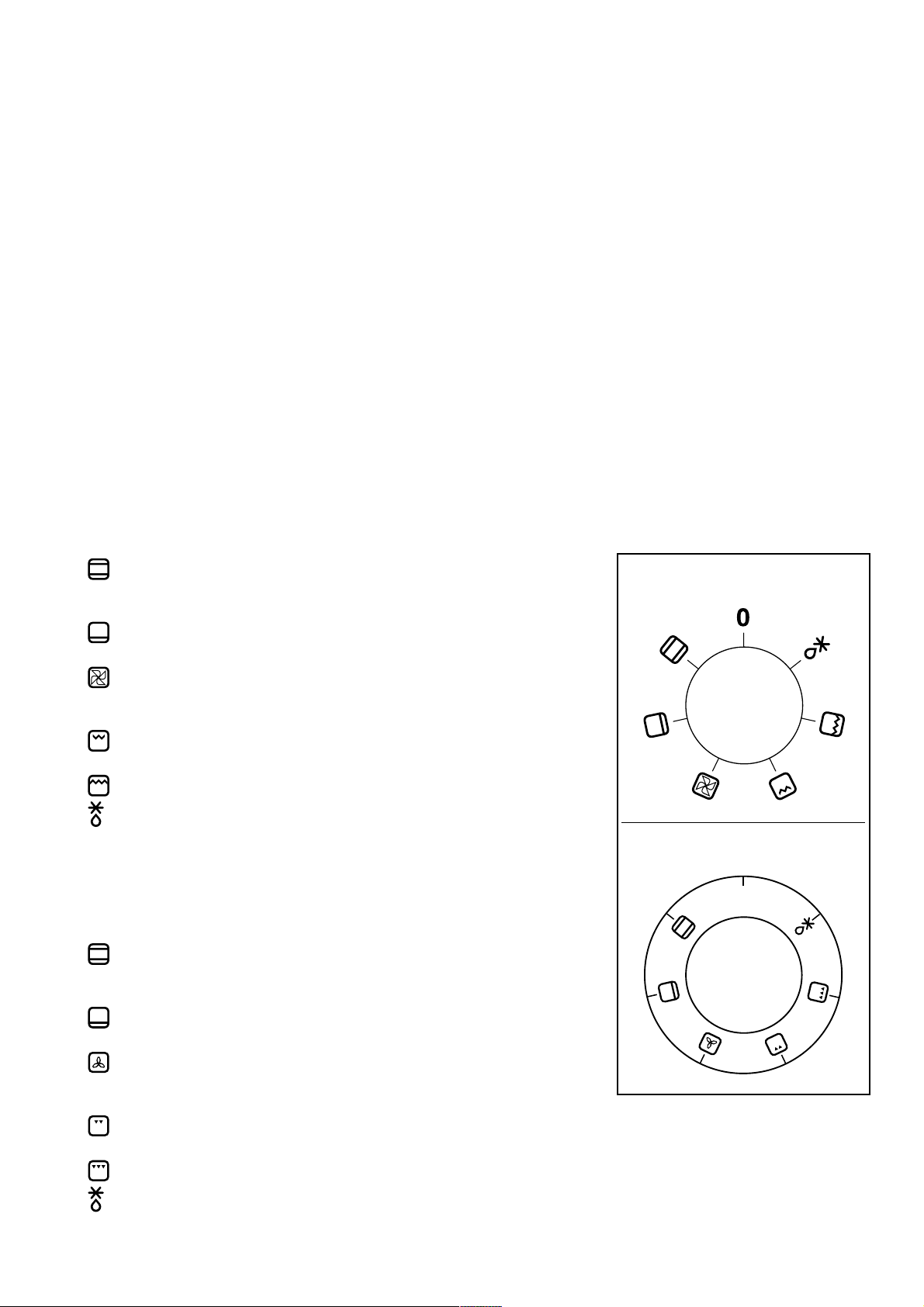

Oven function control knob (Fig. 1)
- Model ZBF 859
The oven function control knob can have the following
symbols and functions:
Conventional cooking - The heat comes from both
the top and bottom element, ensuring even heating
inside the oven.
Bottom heating element - The heat comes from the
bottom of the oven only.
Fan cooking - This allows you to roast or roast and
bake simoultaneously using any shelf, without
flavour transference.
Inner grill element only - can be used for grilling
small quantities.
Double Grill - The full grill element will be on.
Defrost Setting - This setting is intended to assist
in thawing of frozen food.
Fig. 1
Model ZBF 859
FO 2572
Model ZBS 869
- Model ZBS 869
The oven function control knob can have the following
symbols and functions:
Conventional cooking - The heat comes from both
the top and bottom element, ensuring even heating
inside the oven.
Bottom heating element - The heat comes from the
bottom of the oven only.
Fan cooking - This allows you to roast or roast and
bake simoultaneously using any shelf, without
flavour transference.
Inner grill element only - can be used for grilling
small quantities.
Double Grill - The full grill element will be on.
Defrost Setting - This setting is intended to assist
in thawing of frozen food.
4
0
FO2618
Page 4

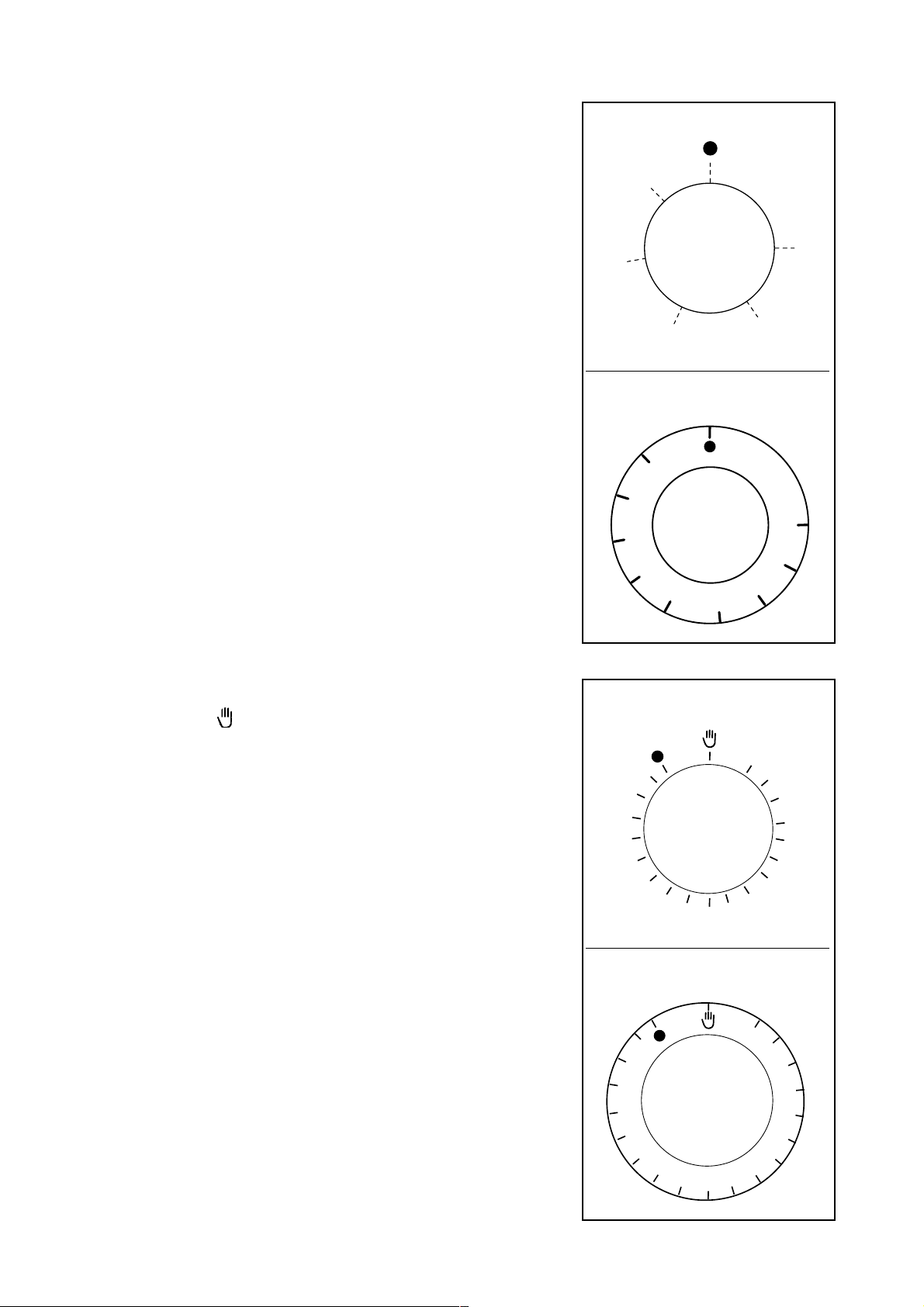

Thermostat control knob (Fig. 2)
Turn the thermostat control knob to select temperatures
between 50°C and 250°C / MAX.
Thermostat control light (°C)
Once the oven temperature has been selected, the
temperature light will come on and remain on until the
oven has reached the correct setting; after that, it will go
on and off with the thermostat, showing how the temperature is being maintained.
Oven control light
It will come on every time an heating element is set on
operation.
Model ZBF 859
50
250
100
200
150
FO 2617
Fig. 2
Model ZBS 869
End of cooking programmer
(Fig. 3)
This device allows you to make the oven switch off
automatically once the preset time is over. An acousitic
signal will be heard when the cooking is completed.The
cooking duration can be set up to 90 minutes maximum.
Place food in the oven and turn the oven function control
knob and the thermostat control knob on the required
settings. Turn the timer knob to maximum time position,
then turn it back to set the required cooking time. When
the cooking time is over, an acoustic alarm will sound
and the oven will switch off automatically.
Turn the timer knob on to set the oven on manual
operation.
Turn the the oven function and thermostat control knobs
to zero.
The Safety Thermostat
This oven is provided with a safety thermostat. In case of
malfunctioning of the main thermostat, and consequent
over-heating, the safety device will stop the power supply
to the appliance. If this happens, call your local Zanussi
Service Centre. Under no circumstances should you
attempt to repair the appliance yourself.
Fig. 3
50
100
FO0282
Model ZBF 859
5
10
15
30
FO 2617
Model ZBS 869
MAX
200
150
90
75
60
45
The Cooling Fan for the Controls
This oven is provided with a cooling fan, meant to keep the
front panel, the knobs and the oven door handle cool. This
fan may run on after the oven or grill is switched off, until
a normal temperature is reached.
FO2480
15
10
90
5
75
60
30
45
5
Page 5
When the oven is first installed
Before cooking for the first time, carefully wash
the oven accessories.
F
Once the oven has been installed:
a) set the thermostat knob to MAX (250);
b) switch the oven function control knob to conventional
cooking ( );
c) allow the oven to run empty for approximately 45
minutes;
d) open a window for ventilation.
During this time, an unpleasant odour may be emitted.
This is absolutely normal, and is caused by residues of
manufacturing.
Repeat this operation for the grill and fan cooking function.
Once this operation is carried out, let the oven cool down,
then clean the oven cavity with a soft cloth soaked in warm
soapy water.
Using the Oven
Always cook with the oven door closed.
Stand clear when opening the drop down oven door.
Do not allow it to fall open - support the door using the
door handle, until it is fully open.
The oven has four shelf levels. The shelf positions are
counted from the bottom of the oven as shown in the
diagram.
Do not place cookware directly on the oven base.

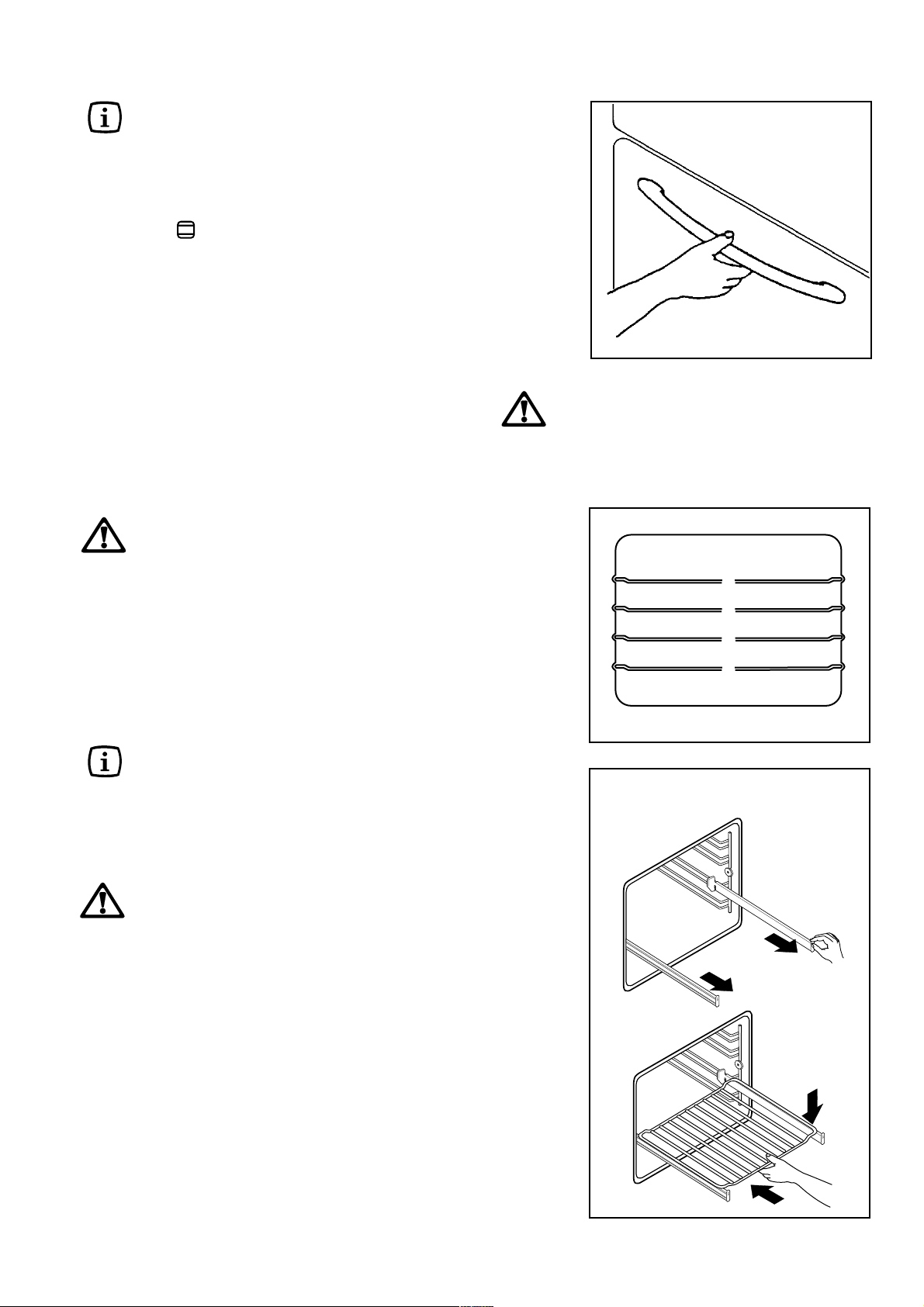

Fig. 4
FO 2161
To open the oven door, always catch the
handle in its central part (Fig. 4).
4
3
2
1
Telescopic shelf supports (fig. 6)
Mod. ZBS 869: Shelf level 2 is fitted with telescopic
shelf supports.
1. Pull the right and left hand telescopic shelf supports
completely out, as shown in fig. 6.
2. Place the shelf or the grill pan on the telescopic shelf
supports, as shown in the diagram, then gently push
them all inside the oven.
Do not attempt to close the oven door if the
telescopic shelf supports are not completely
inside the oven. This could damage the door
enamel and glass.
Condensation and steam
When food is heated it produces steam in the same way
as a boiling kettle. The oven vents allow some of this
steam to escape. However, always stand back from
the oven when opening the oven door to allow any
build up of steam or heat to release.
If the steam comes into contact with a cool surface on the
outside of the oven, e.g. a trim, it will condense and
produce water droplets. This is quite normal and is not a
fault with the oven. To prevent discoloration, regularly
wipe away condensation and also soilage from surfaces.
Fig. 5
FO 0019
Model ZBS 869
Fig. 6
6
Page 6
Using the oven
Always cook with the oven door closed
Conventional cooking
Turn the oven function control knob to the relevant symbol
(
) and set the thermostat knob on the required tempe-
rature.
If you need more heat from the bottom of the oven, turn the
oven function control knob to (bottom heating element
only).
Fan cooking
Turn the oven function control knob to the relevant symbol
( - ) and set the thermostat knob on the required
temperature. The fan behind the back panel circulates
heated air into the oven.

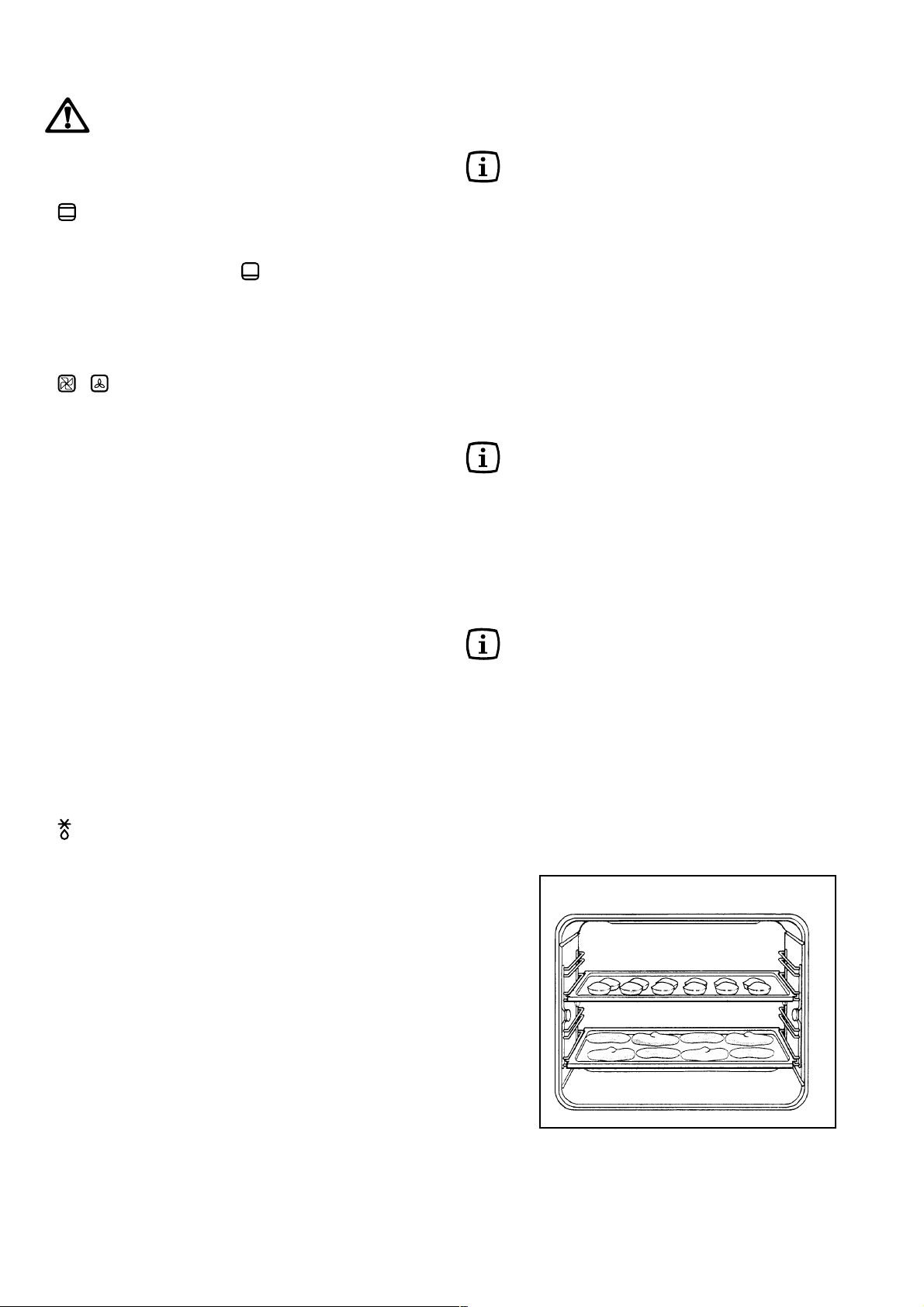

If you need to cook more than one dish in the fan oven at
the same time, place the shelves on the first and third
position from the bottom (fig. 7). If you are cooking only
one dish in the fan oven, use the lower positions, as this
will give you better results.
Grilling
Turn the oven function control knob to the relevant symbol
and set the thermostat knob on the required temperature.
With the setting on the "double grill" function, you will
obtain even heating on the whole surface of the dish.
When grilling meat or fish, spread a little oil on them and
always place them on the oven grid. The shelf level
depends on the thinckness of the food.
Always place the dripping pan at the lowest level, with
some water in it, to avoid smoke and unpleasant smells.
Defrosting
Hints and Tips on Cooking
Fish and Meat
You can place meat in oven proof dishes, or directly on the
oven shelf. In this case, remember to place the dripping
pan in the first position from the bottom with some water
in it. The dripping pan will avoid the falling of melted fat on
the oven base.
White meat, poultry and fish in general, need a medium
temperature cooking (between 150 and 175 °C). If you
need to cook red meat (slightly browned on the outside
and more gently cooked in the inside), a higher temperature (between 200 and 250 °C) for a short time is
recommended.
Hints and Tips on baking
Cakes usually need a medium temperature cooking,
between 150 and 200 °C.
A short oven pre-heating (about 10 minutes) is
recommeded when cooking cakes or baking. Once the
cooking has been started, keep the oven door closed
during all the cooking time, and check the cooking results
through the oven door glass.
Hints and Tips on grilling
If you need to grill meat or fish, place them directly on the
shelf after spreading a little oil on them. In the grill
function, heat comes only from the top element. Therefore,
you need to adjust the cooking level depending on meat
or fish's thickness. Always remember to place the dripping
pan in the lower position with some water in it.
Turn the oven function control knob to the relevant symbol
( ) and set the thermostat knob on the OFF position
(symbol : l). The oven fan operates without heat and
circulates the air, at room temperature, inside the oven.
The temperatures inside the oven can reach 250°C.
Always ensure that you are using oven proof baking
trays, oven dishes, etc.
Do not place pans, biscuit pans or aluminium foil
directly on the base of the oven. This could cause a
heat build-up which could affect the performance of the
oven and damage the oven enamel.
Carefully supervise cookings with fats or oil, since
these types of foodstuff can result in a fire, if overheated. For the same reason, be careful when placing
or removing food in the oven, not to let any fat or oil fall
on the oven base. If this happens, carefully clean the
oven to avoid unpleasant smells or smoke.
Fig. 7
Fan cooking
4
3
2
1
FO 0351
7
Page 7
Cooking Tables
Conventional and fan cooking
Level
Fan Oven - Conventional Cooking
4
3
temp.
2
1
WEIGHT
(GR.)
1000 White bread 1 200 2 175 45 ~ 60 1 piece
500 Rye bread 2 200 2 175 30 ~ 45 In bread pan
500 Bread rolls 2 200 2 (1 and 3)* 175 20 ~ 35 8 rolls
250 Pizza 1 220 2 (1 and 3)* 200 20 ~ 35 In baking pan
1000 Beef 2 200 2 175 50 ~ 70 On grid
1200 Pork 2 200 2 175 100 ~ 130 On grid
1000 Veal 2 200 2 175 90 ~ 120 On grid
1500 English roast beef 2 220 2 200 50 ~ 70 On grid
1200 Lamb 2 200 2 175 110 ~ 130 Leg
1000 Chicken 2 200 2 175 60 ~ 80 Whole
4000 Turkey 2 200 2 175 210 ~ 240 Whole
1500 Duck 2 175 2 160 120 ~ 150 Whole
3000 Goose 2 175 2 160 150 ~ 200 Whole
1200 Hare 2 200 2 175 60 ~ 80 Cut in pieces
1000 Whole 2 200 2 (1 and 3)* 175 40 ~ 60 2 fishes
800 Fillets 2 200 2 (1 and 3)* 175 30 ~ 40 4 fillets
TYPE OF DISH
Level
Cakes
Whipped up kneading
Leavened kneading 2 180 2 (1 and 3)* 160 20 ~ 35
Shortbread dough 2 180 2 (1 and 3)* 160 20 ~ 30
Butter-milk cheese cake
Apple cake 1 180 2 (1 and 3)* 160 40 ~ 60
Strudel 2 175 2 (1 and 3)* 150 60 ~ 80
Jam-tart 2 180 2 (1 and 3)* 160 45 ~ 60
Small cakes 2 180 2 (1 and 3)* 160 15 ~ 25
Biscuits 2 180 2 (1 and 3)* 160 10 ~ 20
Meringues 2 100 2 (1 and 3)* 100 90 ~ 120
Bread and Pizza
Flans
Pasta flan 2 200 2 (1 and 3)* 175 40 ~ 50
Vegetable flan 2 200 2 (1 and 3)* 175 45 ~ 60
Quiches 2 200 2 (1 and 3)* 175 35 ~ 45
Lasagne 2 200 2 175 45 ~ 60
Meat
Fish
4
3
temp.
2
1
2 180 2 (1 and 3)* 160 45 ~ 60
1 175 2 150 60 ~ 80
°C
°C
Cooking
time
minutes
NOTES
NOTE: Cooking times do not include pre-heating time. We reccomend a short oven pre-heating (about 10 minutes)
before baking or cooking pizza.
(*) If you need to cook more than one dish at the same time, we recommend you to place them on the levels quoted
between brackets.
The times given in the table are intended as a guide only. Only experience will enable you to determine the correct
setting to suit your personal requirements.
8
Page 8
Cooking Tables
Grilling
Quantity
TYPE OF DISH
PIECES
Steaks
Chops
Sausages 8 500 4 max 10 6
Chicken (cut in pieces)
Kebabs 4 700 4 max 12 10
Chicken (breast) 4 400 4 max 13 10
Tomatoes 8 500 4 max 12
Fish (fillets) 4 400 4 max 8 6
Sandwiches 4 4 max 8
Toast 4 4 max 2~3 1
WEIGHT
4 800 4 max 10 8
4 600 4 max 12 8
6 800 3 max 30 20
Level
Grilling
4
3
2
1
temp.
Cooking time
°C
(minutes)
Upper
side
Lower
side

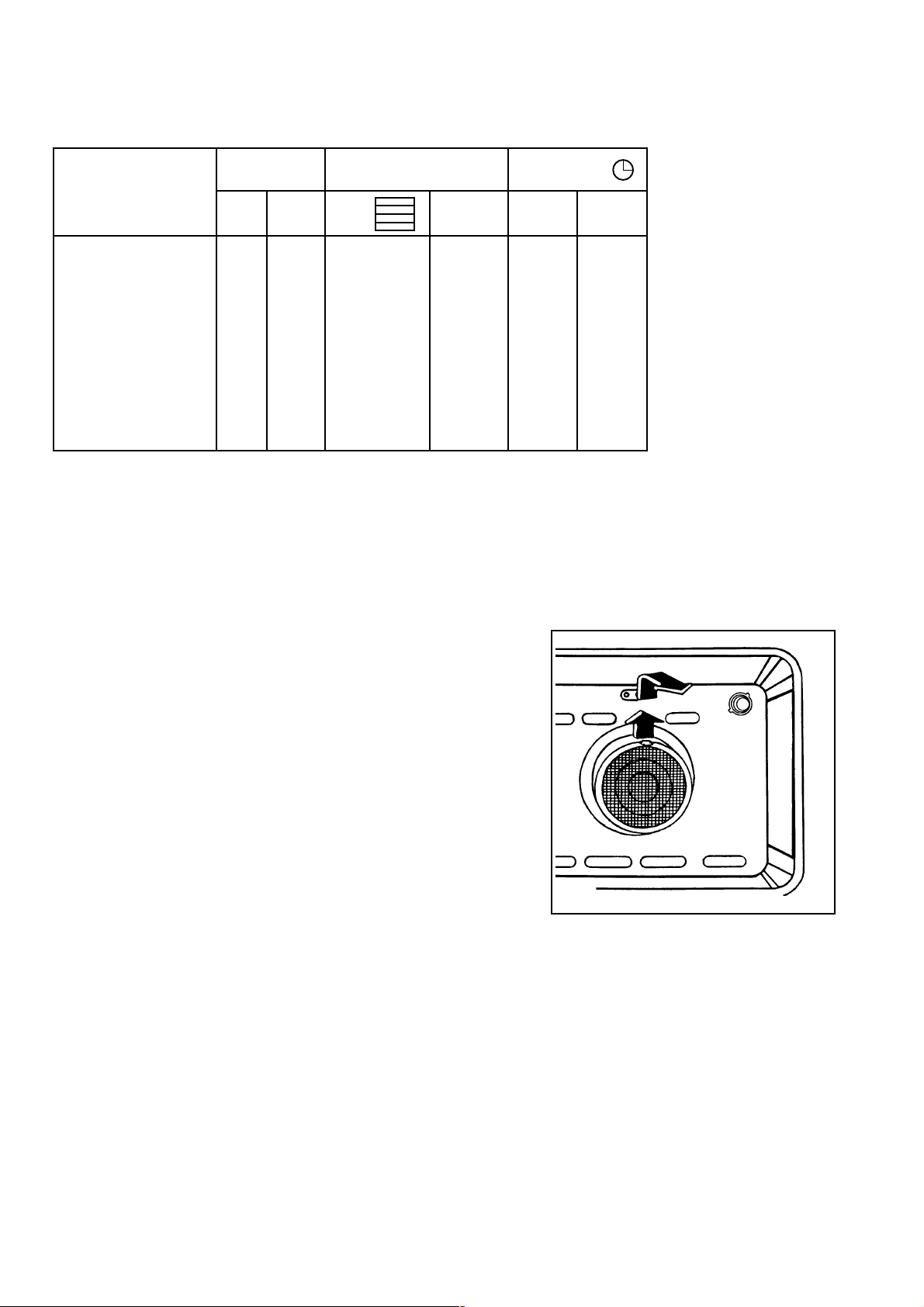

Grease Filter
When cooking meat, the grease filter must be fitted over
the oven fan by clipping it over the vents in the back
panel. This will prevent a built-up of fat on the fan
impellor. Do not use abrasive materials to clean the seal.
The grease filter is dishwasher proof.
When cooking is completed and the oven has cooled
down, remove the filter by pushing the protruding tongue
on the filter upward. (See Fig. 8) Wash the filter after use
using warm soapy water.
Fit the grease filter only when roasting.
Fig. 8
FO 0018
9
Page 9
Cleaning and maintenance
General Cleaning
Before carrying out any cleaning or
manteinance work, always disconnect the
appliance from the electrical supply, and
allow it to cool down.
When using spray cleaning products, be careful not
to spread them on the heating elements or on the
thermostat sensor.
Never use harsh abrasives, steel wool or cleaners
with bleach, as they could damage the enamel and
the oven door glass.
The Oven Cavity
The enamelled oven cavity is best cleaned whilst the oven
is still warm. It is advisable to wipe the oven over with a soft
cloth soaked in warm soapy water after each use.
However, from time to time, it will be necessary to do a
more complete cleaning, using a proper oven cleaner.
In case of particularly tough stains, you can use stainless
steel cleaning products or some warm vinegar.
If cooking fruits, some over-heated natual acids
can squeeze and settle on the oven enamel,
causing stains quite difficult to remove. This could
affect the enamel brightness, but it will have no
consequence on the oven performances. To avoid
these stains to be burnt out during the next
cooking, carefully clean the oven cavity after all
fruits cookings.

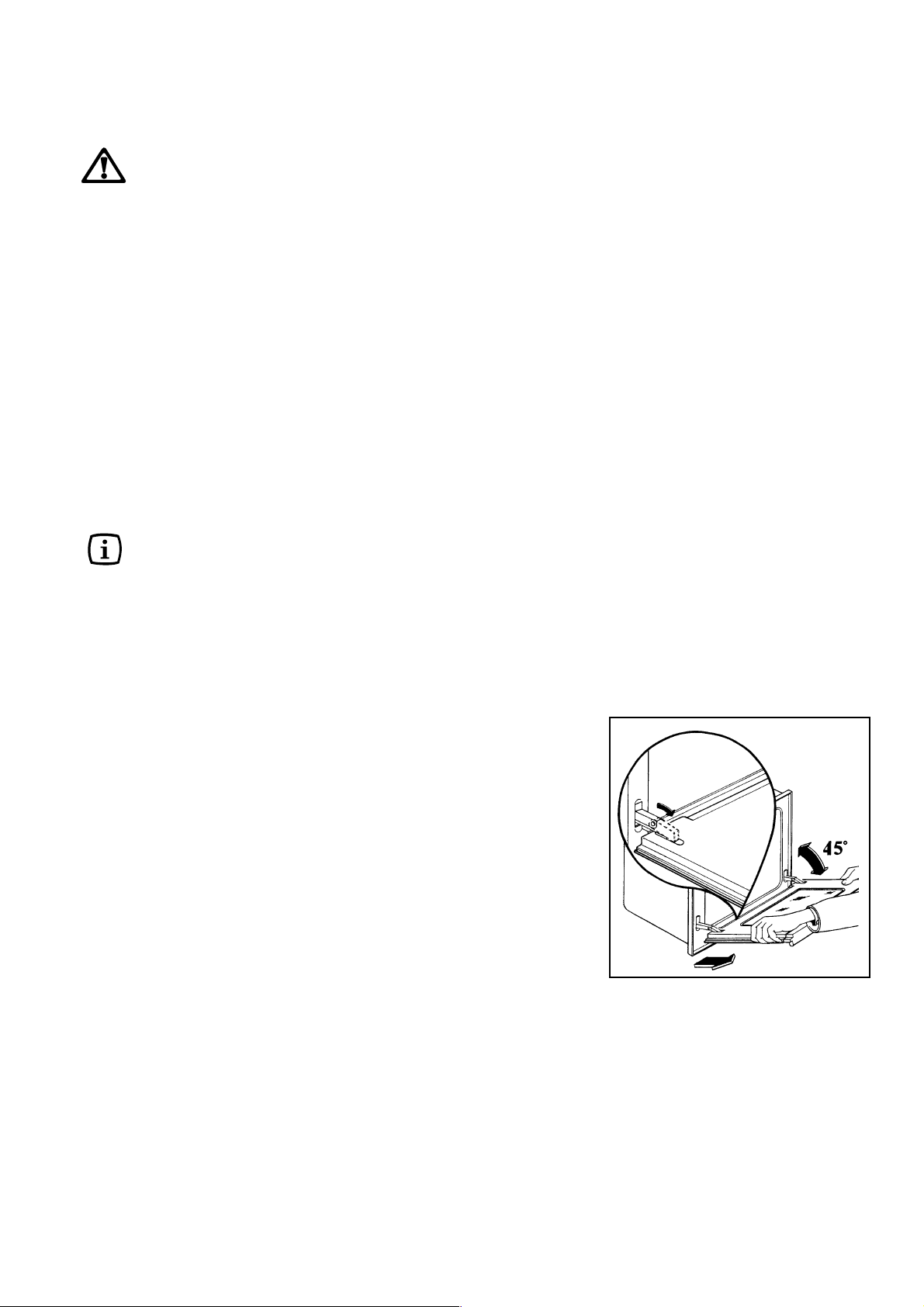

The Oven Door and its gasket
Before cleaning the oven door, we recommend you to
remove it from the oven.
Proceed as follows:
F
a) open the oven door completely;
b) find the hinges linking the door to the oven (fig. 9);
c) unlock and turn the small levers located on the two
hinges (fig. 9);
d) handle the door by its left- and right-hand sides, then
slowly turn it towards the oven until it is half-closed;
e) gently pull the oven door off its site (fig. 9);
f) place it on a steady plan.
Clean the oven door glass with warm water and a softh
cloth only.
Once the cleaning is carried out, refit the oven door,
following the procedure in reverse.
Fig. 9
FO 0288
The correct operation of the oven is ensured by a gasket
placed round the edge of the oven cavity.
Periodically check the condition of this gasket. If
necessary, clean it without using abrasive cleaning
products.
If the gasket shows to be damaged, call you local
Service Centre. Do not use the oven until it has been
repaired.
10
Page 10

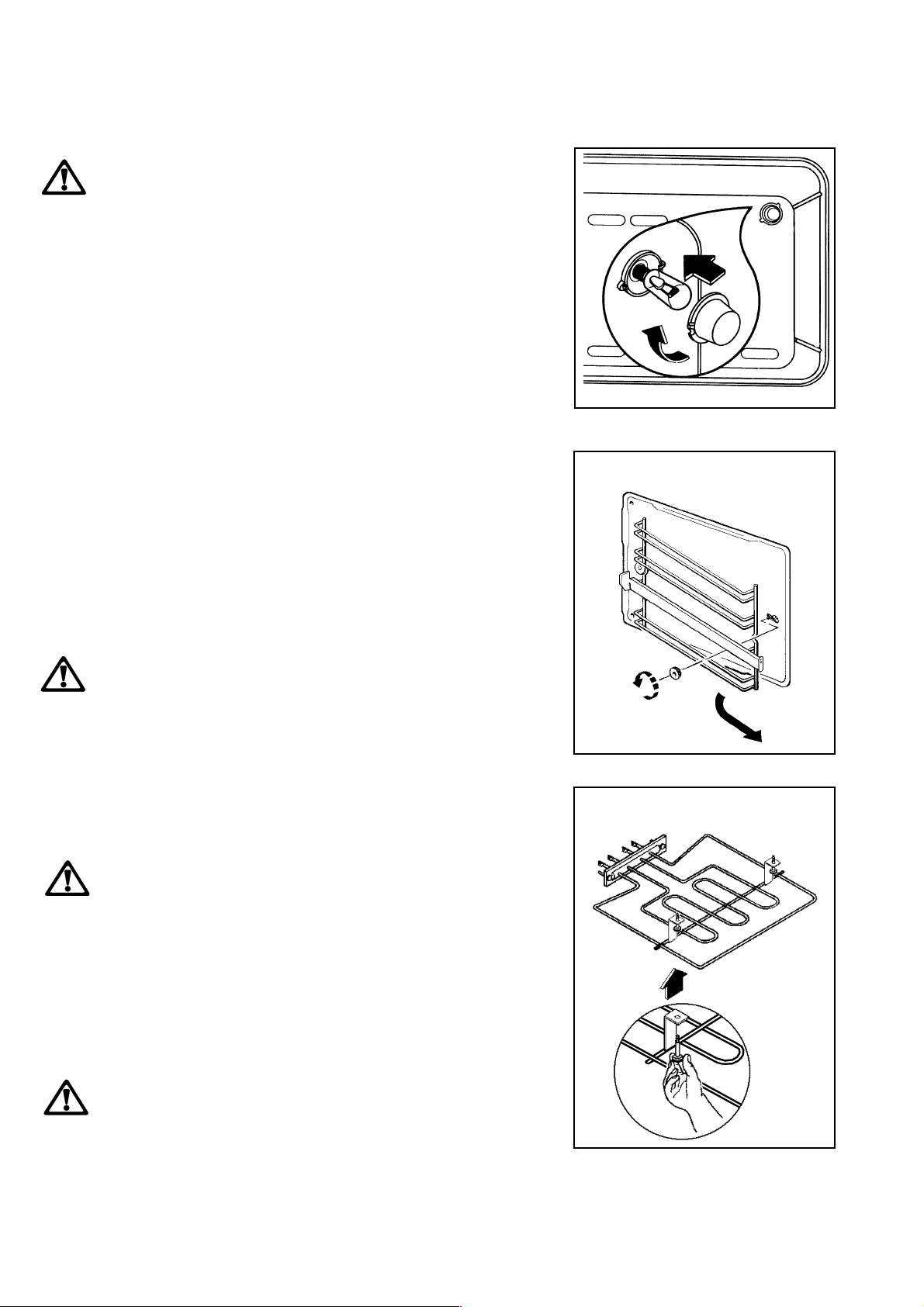

Replacing the Oven Light
Ensure the electricity supply is switched off
before carrying out this operation.
The oven bulb has to comply to these features:
a) resistant to temperatures of 300 °C;
b) electric rate: 230 V - 50 Hz;
c) electric power rate: 25 W;
d) connection type: E 14.
To replace the bulb, proceed as follows (Fig. 10):
a) push in and turn the glass lid anticlockwise;
b) remove tha faulty bulb;
c) replace it with a new one;
d) refit the glass lid;
e) switch on the electricity supply.
Fig. 10
FO 0287
Oven Shelves and Shelf
Supports
To clean the oven shelves, soak in warm soapy water and
remove stubborn marks with a well wetted soap
impregnated pad. Rinse well and dry with a soft cloth.
Mod. ZBS 869: The shelf supports can be removed for
easy cleaning (Fig. 11). Please, ensure the retaining nuts
are secure when refitting the shelf support.
When cleaning the shelf supports, take care not
to remove the lubricating grease behind the
telescopic runners. This is meant to ensure their
good operation.
The Hinged Grill (Mod. ZBS 869)
Some models are fitted with a hinged grill element, to
enable you to clean the roof of the oven easily.
Before proceeding ensure the oven is cool
and is isolated from the electricity supply.
l Undo the screws which hold the grill in place (see
Fig. 12). When doing this operation for the first time,
we recommend using a screwdriver.
l Then gently pull the grill downward to allow access to
the oven roof.
l Clean the oven roof with a suitable cleaner and wipe
dry before replacing the hinged grill element.
l Gently push up the grill element into place and firmly
screw into place the holding nuts.
Ensure the grill holding nuts are firmly in
place to avoid the grill falling down when in
use.
Model ZBS 869
Fig. 11
Model ZBS 869
Fig. 12
11
Page 11

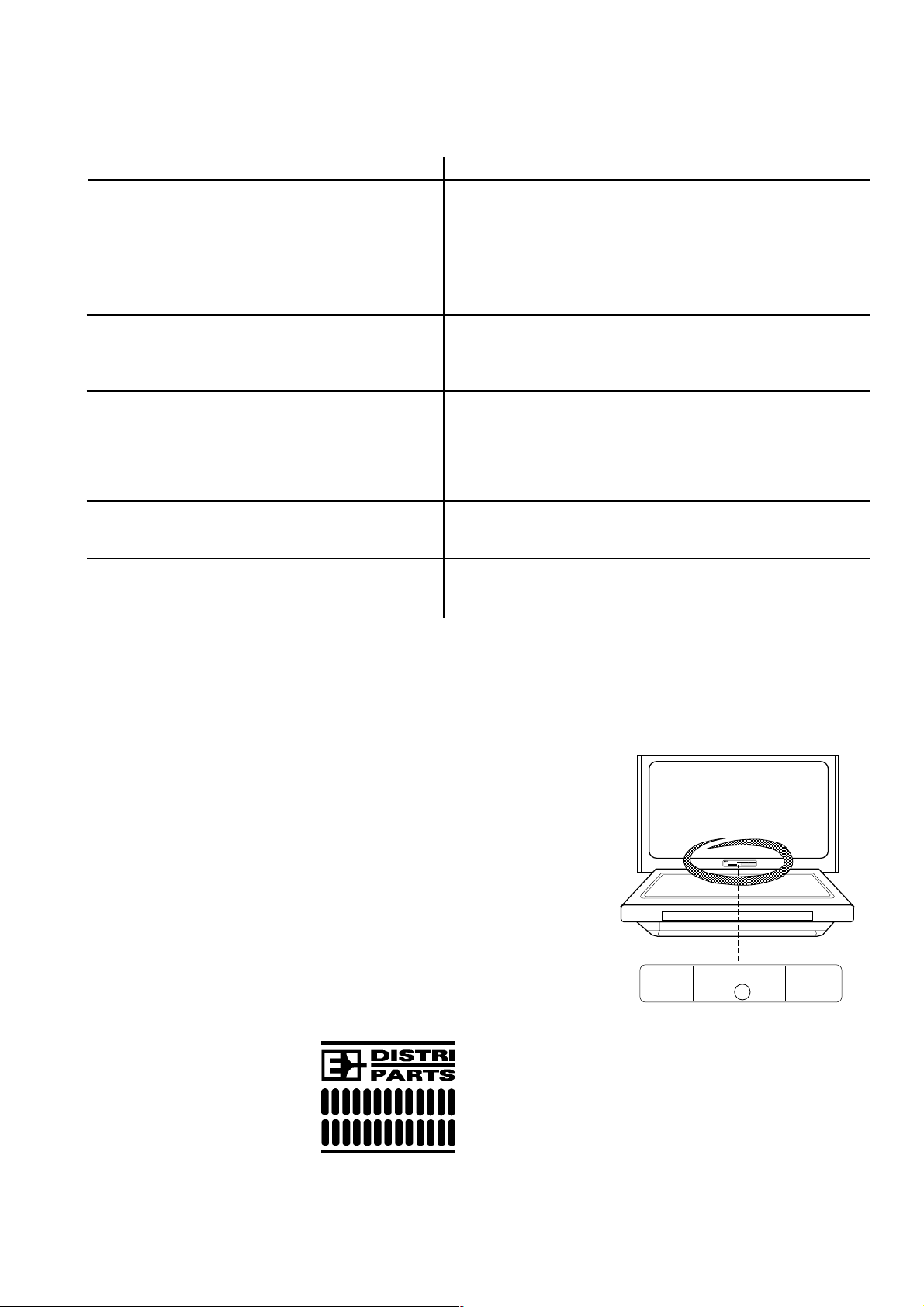

Something not working...
If the appliance is not working correctly, please carry out the following checks, before contacting your local
Service Centre.
SYMPTOM
n The oven does not come on
n The oven temperature light does not come on
n The oven light does not come on
n It takes too much time to finish the dishes, or
they are cooked too fast.
n Steam and condensation settle on the food and
the oven cavity.
SOLUTION
uCheck that both a cooking function and a temperature have
been selected
or
uCheck the appliance is wired in properly, and the socket
switch or the switch from the mains supply to the oven are
ON.
uTurn the thermostat knob on a temperature
or
uTurn the oven function control knob on a function.
uTurn the oven function control knob on a function
or
uBuy a new oven light bulb, asking for it to your local Service
Centre and replace it by following the instruction provided in
this booklet.
uRefer to the contents of this booklet, especially to the chapter
"Using the oven".
uLeave dishes inside the oven no longer than 15-20 minutes
after the cooking is completed.
Technical Assistance
If after the checks listed in the previous chapter, the
appliance still does not work correctly, contact your
local Service Centre, specifying the type of
malfunctioning, the appliance model (Mod.), the product
number (Prod. No.) and the serial number (Ser. No.)
marked on the identification plate.
This plate is placed on the front external edge of the oven
cavity.
Original spareparts, certified by the product
manufacturer and carrying this symbol are only available
at our Service Centre and authorized spareparts shops.
MOD.
PROD. NO.
Mod.
PROD. NO.
SER. NO.
TYPE
SER. NO.
12
Page 12
Technical Data
Recess dimensions
Height in-column 58,0 cm
undertop 59,1 cm
Width 56,0 cm
Depth 55,0 cm
Oven cavity dimensions
Height 32,5 cm
Width 42,0 cm
Depth 39,0 cm
Volume 53 l

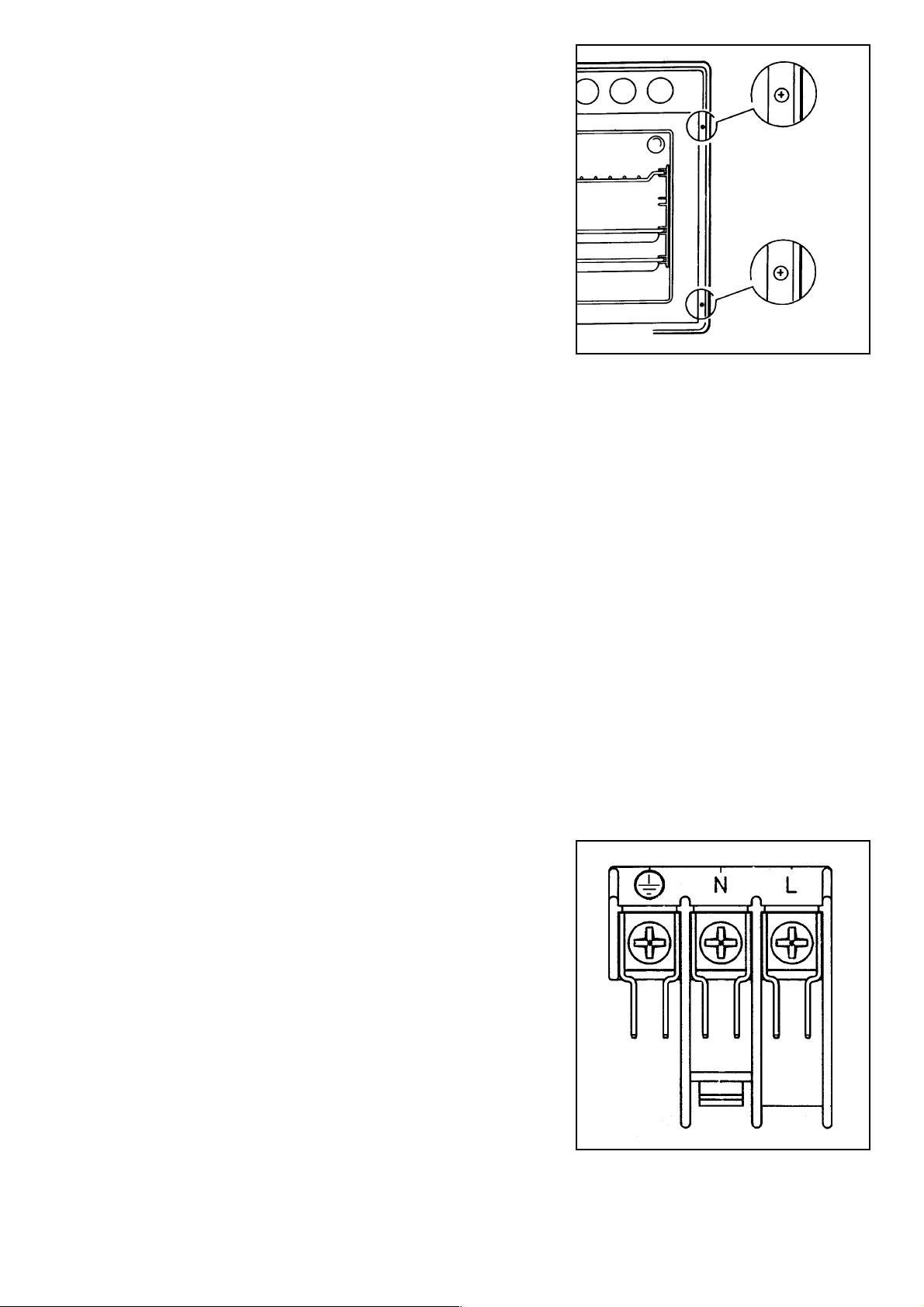

Installation
The following instructions are meant to a qualified
technician, in order to allow him carry out the
installation in compliance with the rules in force.
The building-in and the electrical connection fo the
appliance must be carried out by a qualified and
authorized technician only.
Heating elements ratings
Bottom heating element 1000 W
Top heating element 800 W
Full Oven (Top+Bottom) (1000 + 800) 1800 W
Simple Grill heating element 1750 W
Double Grill heating element 2550 W
Oven rear heating element 2000 W
Convection fan 30 W
Cooling fan 25 W
Oven lamp 25 W
Voltage tension (50 Hz) 230 V
Maximum power rating (230V - 50Hz) 2600 W
Building In
It is important that the dimensions and materials of the
surround or cabinet into which the oven will be built are
correct and will withstand a temperature increase.
A correct installation will have to ensure a proper protection
against contact with electric parts or merely functionally
isolated parts.
All the units meant to ensure protection have to be fitted
not to be taken away without using any tool.
We recommed not to install the appliance near refrigerators
or freezer, since the heat could affect the performance of
these appliances.
Oven dimensions
The oven dimensions are shown in fig. 13.
In-Column recess dimensions
The recess must have the dimensions shown in Fig. 14.
Undertop recess dimensions
The recess must have the dimensions shown in Fig. 15.
Fig. 13
Fig. 14
FO 0374
FO 0290
Fig. 15
FO 0292
13
Page 13
Securing the oven to the cabinet
- Fit the appliance into the cabinet recess.
- Open the oven door and secure the oven to the kitchen
cabinet with four wood screws, which fit the holes
provided in the oven frame (Fig.16).
When installing an electric plate hob over the oven, the
hob's electrical connection and the oven's one have to be
carried out separately, for security reasons and to let the
oven be taken off the unit easier, if necessary.
Fig. 16
Electrical connection
Before the appliance is connected:
1) check that the main fuse and the domestic installation
can support the load;
2) check that the power supply is properly earthed in
compliance with the current rules;
3) check the socket or the double pole switch used for
the electrical connection can be easily reached with
the appliance built in the forniture unit.
This appliance is supplied with connection cable (type
H05 V2V2-F (T90), section 3x 1,5 mm2) fitted with plug.
The plug has to be fitted in a proper socket.
If connecting the appliance directly to the electric system,
a double pole switch must be installed between the
appliance and the electricity supply, with a minimum gap
of 3 mm. between the switch contacts and of a type
suitable for the required load in compliance with the
current rules. The earth wire must not be interrupted by
the double switch pole.
The connection cable has to be placed in order that, in
each part, it cannot reach a temperature 50 °C higher than
the room temperature.
After the connection is carried out, test the heating
elements for about 3 minutes.
FO 0039
Terminal block
The oven has an easily accessible terminal block, which
is meant to work with an electric single-phase rate of
230 V (Fig. 17).
The manufacturer disclaims any
responsability should all the safety
measures not be carried out.
14
Fig. 17
FO 2159
Page 14
15
Page 15
35671-7803 07/01
Grafiche MDM - Forlì
Loading...
