Zanussi TLS992V User Manual

ZZ

ANUSSIANUSSI

Z

ANUSSI

ZZ

ANUSSIANUSSI

WASHING MACHINE

TLS 992 V

146 1585 03

INSTRUCTIONS MANUAL

CONTENTS

For the user

Safety instructions 4/5
Description of the appliance 6
Use of your appliance 7
Operating instructions 8/9
Programme chart 10/11
Hints & Tips 12-14
Cleaning and maintenance 15
If something doesn't work 16/17

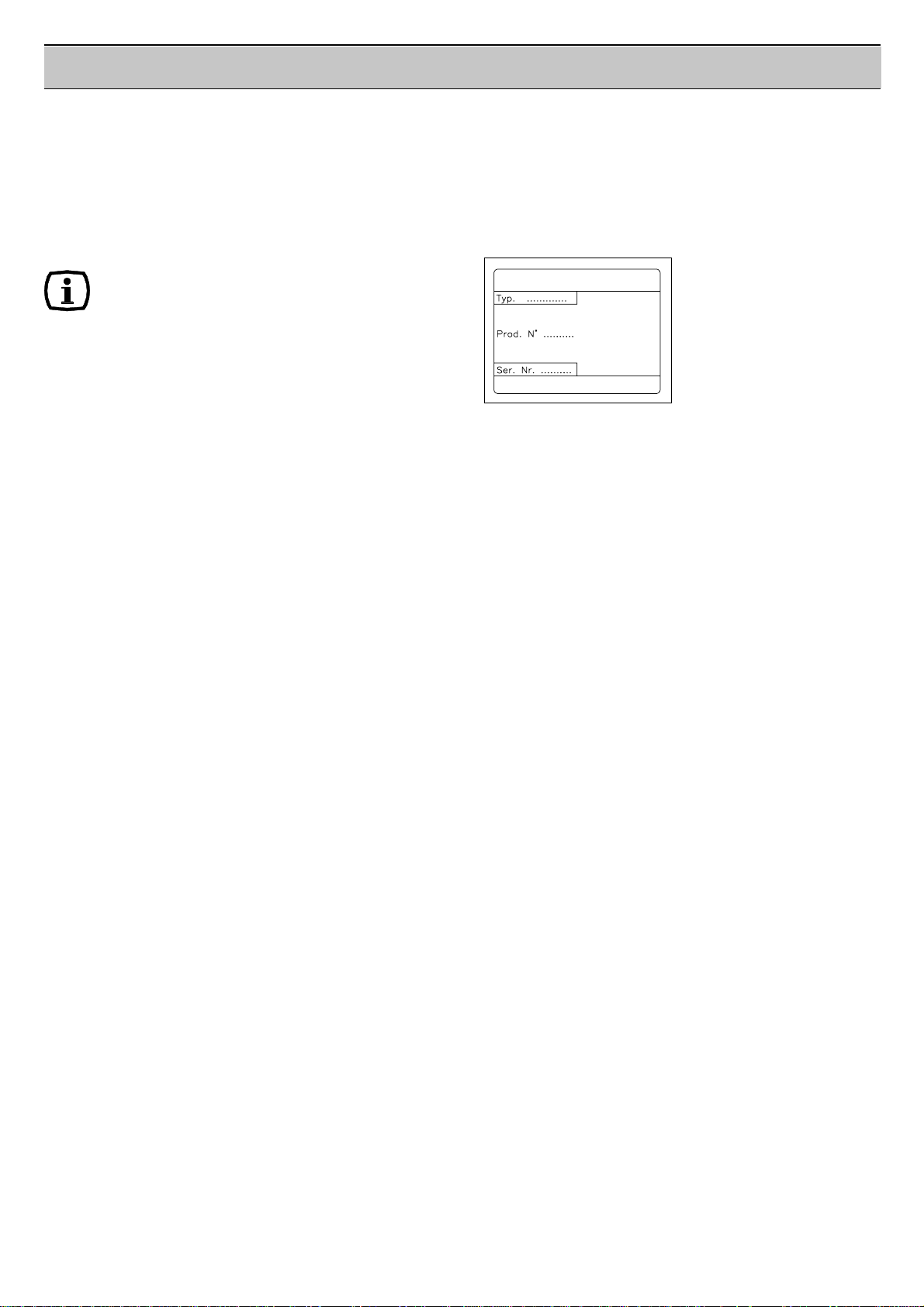

Service 18

For the installer

Technical information 19

Installation

Unpacking 19
Installation 20
Levelling 20
Moving of the appliance 20

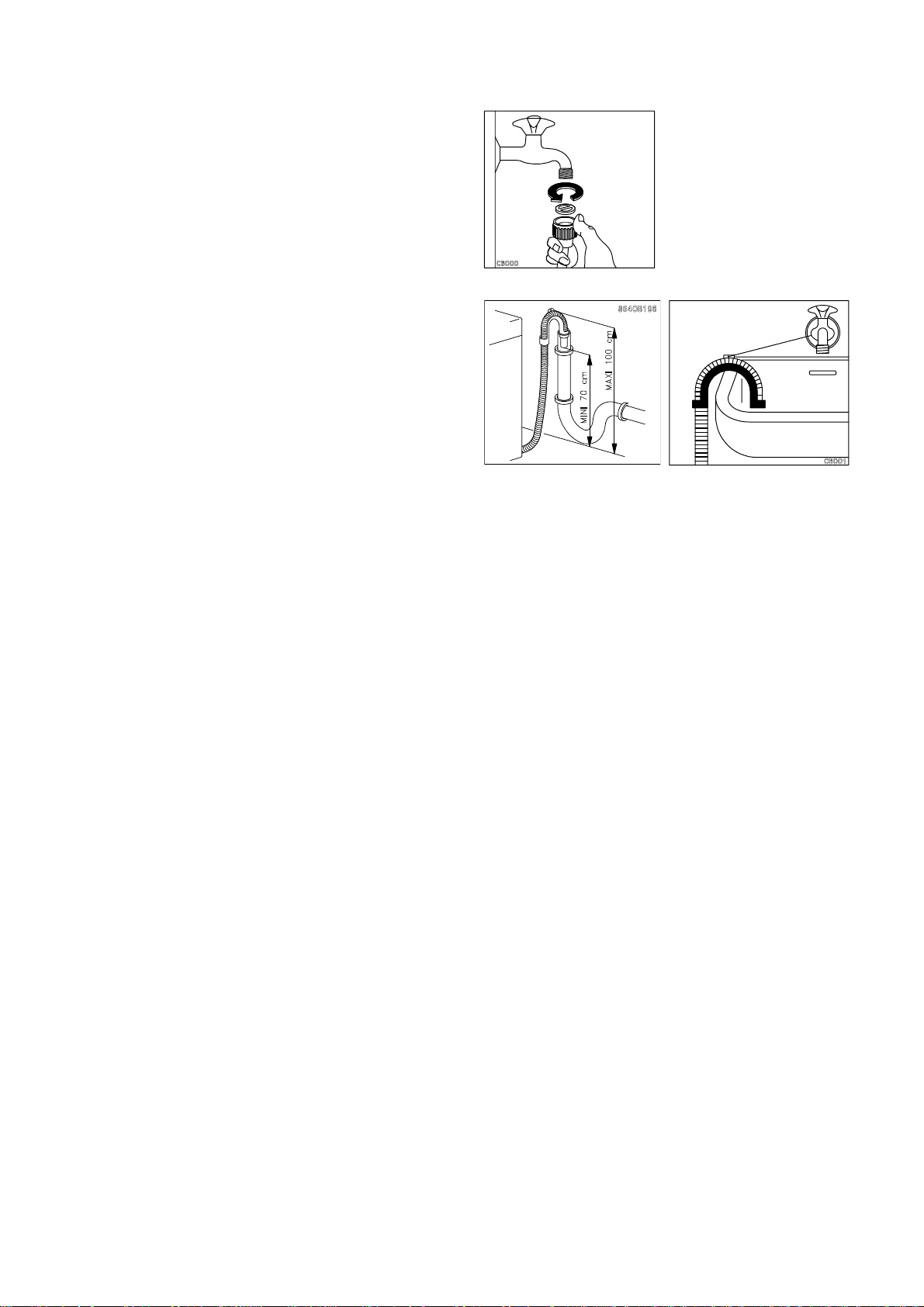

Water connection 21
Electrical connection 21

Guide to use the instruction

The following symbols will be found in the text to guid you
throughout the instructions :

Safety instructions

Hints and tips

Environmental information

- 2 -

SAFETY INSTRUCTIONS

You must read the whole of this instruction book before
you use the appliance. Follow the advice carefully.
Keep the book for future reference. If you sell or give
away the appliance, make sure that the book is passed
to the new owner.
The following warnings are provided in the interest of
overall safety. You must read them before the appliance
is installed or used.

Use

This appliance is designed to be used by
adults. Children should not be allowed to touch
the controls or play with the product.

It is dangerous to modify the specifications of
this appliance in any way.

Always unplug the appliance and turn off the
water after use.

Only wash fabrics with are designed to be
machine washed. If in doubt, follow the instruc­tions you find on the label of the item itself.

Place small metal rings or edged plastic rings
in a net or bag.

Make sure that all pockets are empty. Hard,
sharp objects such as coins, safety pins, nails,
screws or stones can cause extensive damage.

Do not machine wash fabrics which are
saturated with petroleum products. If volatile
cleaning fluids have been used, make sure
that they are thoroughly removed from the
fabrics before they are placed in the appliance.

Small and delicate objects (e.g. baby socks,
stockings) can be easily washed inside a small
pillowcase with a zip fastener or in larger
socks.

Use only the recommended quantities of fabric
conditioner.

Before cleaning, care and maintenance, ensure
that the machine is unplugged.

Installation

Any electrical work required to install this
appliance should be carried out by a qualified
electrician or competent person.

Any plumbing work required to install this
appliance should be carried out by a qualified
plumber or competent person.

Make sure that the appliance does not stand
on its electrical supply cable.

This appliance is heavy. Care should be taken
when moving it.

All packaging and transit bolts must be removed
before the appliance is used. Serious damage
may occur if this is not done.

If your washing machine is in a room subject to
temperatures below freezing, the water must
be removed from the machine. So, the
danger of freezing should be expected.

- 3 -

Read all instructions before using

the appliance and save them for

future reference.

Safeties

Lid : your washing machine is equipped with
a safety avoiding the switching of the appliance
when the flapdoors of the drum are opened ;
the closure of the lid is so impossible. An
electromechanic safety prohibits the opening
of the lid when the washing machine works and
2 minutes after the end of the programme.

Washing motor : in case of mechanic
overloading, overvoltage, a thermic safety
protects automatically the motor.

Heating : the heating can only begin when
the water quantity necessary for the washing
is in the tub. This safety is useful when there is
a water break-up or if you forget to open the
water inlet hose.

Environmental information

All materials marked by the symbol are
biodegradable. They can be disposed of without dan­ger or burnt in rubbish incinerators.

In order to realize water and energy savings and to act
in an environmentally conscious manner, we advice to
follow the below instructions :

- use if possible the appliance with full loads
instead of partial loads. Take care to do not
overload the drum.

- Use only the programmes with prewash for very
soiled laundry.

The anti-foam system: water consumption is very
low, due to the electronic spin cycle with an inter­mediate spin after the main wash and three rinse
cycles for white and color programs. The spin cycle
remains under the control of the foam detection
system after the wash cycle has finished. If
necessary, the spin cycle will stop until all foam is
removed.

Anti-balanced system : This safety allows to the
appliance to keep a perfect stability during the
intermediary spinnings and during the final spinning.
If you notice that your laundry is not spinned enough,
the anti-balanced system has then detected a bad
distribution of the laundry during the final spinning ;
so it is adviced to realize a new spinning taking care
to unpack handly the laundry before.

- Savings on detergent and for the environment
may also be achieved if with medium to hard
water you add sufficient detergent for soft water
and then add separately a softener. This relieves
our waters of a certain amount of chemicals.

When disposing of the machine in a proper
manner, destroy the door lock and cut off the
power supply cord.

- 4 -

DESCRIPTION OF THE APPLIANCE

Programme selector
Spinning speed selector

Pushbuttons

Light

Temperature selector

Control panel

Lid

Handle for opening lid

Detergent dispenser

Symbols

) Washing powder for programmes with

(

prewash (1).

( ) Washing powder or liquid detergent for

the main wash (2).
( ) Bleach compartment (3).
(

) Liquid additives (fabric softener and

conditioner...) (4).
(5) Overflow orifice

Lever for castors

Trap door for lint filter

2

1

4

3

5

- 5 -

USE OF YOUR APPLIANCE

The control panel

Never turn the programme selector when the appliance is working.

2

1 3

5

1 ON/OFF pushbutton " "

Press the ON/OFF pushbutton, the programme
starts : the control lamp lights on.

2 Control lamp

The control lamp lights on when the appliance is
working (on/off pushbutton " " pressed). It lights off
when the on/off pushbutton " " is pressed out.

3 Quick wash pushbutton " "

This pushbutton allows to reduce the duration of the
washing phases in cotton programmes cold ( )-60°C
of 35 minutes ; and about 20 minutes for cotton
programmes 70°C-90°C and synthetics/mixed pro­grammes.

4 Rinse hold pushbutton " "

Press this button to leave the water in the drum after the
wash cycle is completed. This works on all program­mes. The clothes are left suspended in water after the
final rinse to prevent the formation of creases.
You can end these programmes by a spinning (by
depressing this pushbutton) or by a draining (by setting
the timer on the programme P). Please depress the

on/off pushbutton " " before doing your choice.

64

7

5 Spinning speed selector

It enables to choose the spinning speed from the
draining position "

cotton programmes, from "
thetics/wool programmes.

" (or no spin) to 900 rpm on the

" to 600 rpm on syn-

6 Programme selector

It enables to select the most adapted programme to the
nature and degrees of soil of your laundry.
Turn the programme selector clockwise to select the
chosen programme.
The programme selector indicates each programme
phase as it takes place.
At the end of the programme, the appliance stops
automatically on a position off "I" (the rinse hold

pushbutton " " is not selected).

Never turn the programme selector anticlockwise.

7 Temperature selector

It enables to choose the mosta adapted temperature
between cold ( ) and 90°C.
Choose the temperature which corresponds to the
chosen programme, with the help of the indications or
the programme table, according to the fibers and the
fastness of the colours.

- 6 -

OPERATING INSTRUCTIONS

Before using your appliance for the first time, we recommend that you do a preliminary wash
with the machine empty, as a precaution to clean the drum, the tub and the detergent
dispenser.

1. Pour a dose of detergent in the “washing” compartment.

2. Select the "whites 90°C" program without prewash.

3. Press the on/off button "

1. Place the laundry in the drum

lift up the lid of the machine.
open the drum with your two hands by pressing the

button A and the two flapdoors till they disengage.

introduce the laundry into the drum ; close the drum
and the lid of the machine.
Be careful : before closing the lid of your machine,
make sure that the drum flapdoors are correctly
closed :

the two flapdoors fastened,

the button A pressed out.

". The cycle starts.

A

2. Measure out the detergent

Measure out the amount of detergent recommended
by the manufacturer in the main wash compartment
( ).
If you wish to carry out a prewash, pour the amount
required into the prewash compartment ( ).

3. Add the bleach agent, if required

You may use a bleach agent on cotton programmes.
However, make sure that the fabric withstands the
treatment. Bleach is automatically washed down into
the drum. Pour 1/4 to 1 glass of 12° chl bleach into
compartment marked ( ) before switching the ma­chine on.

4. Add the fabric softener

Pour the softener, if required, into the compartment
marked (

Your washing machine has been conceived in
order to save water and detergent products. Please
take care the filling level of the detergent products
do not exceed the MAX marks located near the
display window of your detergent dispenser.

). Do not exceed the MAX level.

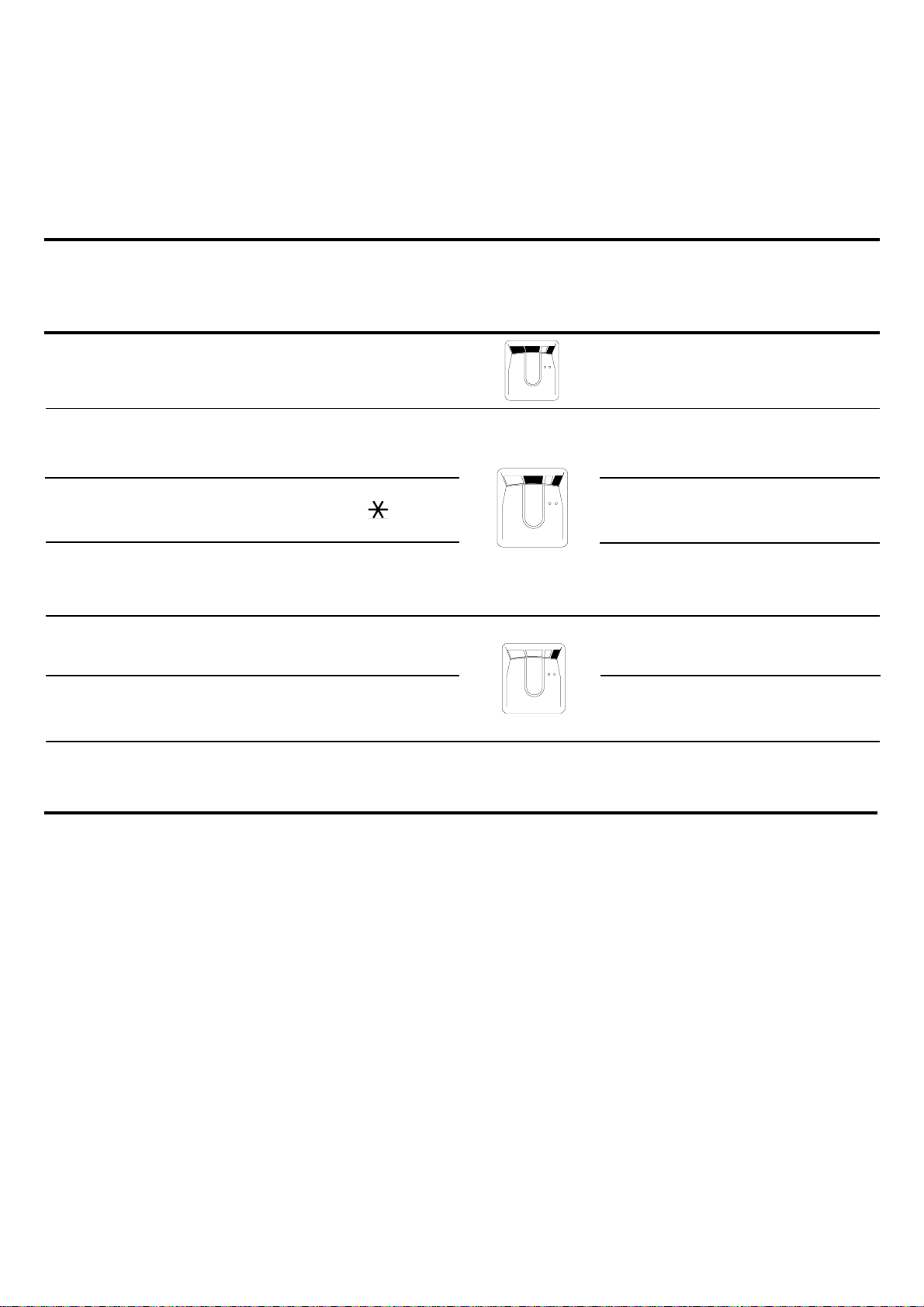

Liquid detergent
only compartment

Powder detergent
Compartment

(prewash)
Compartment

(wash)

5. Press the quick wash " " or the
rinse hold "

" pushbuttons if required.

- 7 -

6. Select the temperature

Choose the temperature which corresponds to the
chosen programme.

7. Select the spinning speed

Choose the spinning speed suiting best to the nature of
your laundry and to the degree of humidity wished at

the end of the wash.

8. Select the programme

Choose the programme according to the nature and
the degree of soil of the laundry.
Turn the programme selector clockwise to select the
chosen programme.

9. Starting of the programme

The ON/OFF pushbutton " " enables to switch on
your machine. The control lamp lights on and the

programme begins.

10. At the end of the programme

When the selected programme is over, the machine
stops automatically. The timer knob stops on the
position "I" for all the programmes.

If the rinse hold pushbutton "
chosen programme end by a rinse hold. You can finish
this programme by a spinning by depressing the rinse

hold pushbutton " " or by a draining (programme P).
Depress the on/off pushbutton "
choice.

After each wash, depress the on/off pushbutton.
Press off the pushbuttons if necessary ; unplug the
machine from the wall socket ; turn off the water tap.

" is selected, the

" before doing your

- 8 -

PROGRAMMES CHAR T

Programmes for cotton/linen

Maximum load : 5 kg (cotton)

Programmes

description

A

White with prewash

White ( )

B

Coloured

C

Coloured delicate

D

Rinsings

F

Temperatures

(°C)

60-90

60-90

40-60

30-40

Detergent

dispensers

to use

(1)

Water

consumption

in liters

85

58

1

(

)

58

58

68

Time

in minutes

(2)

165

130

130

100

60

Spinning

G

( ) : This programme B with temperature selector on 60°C is the reference programme for Energy Label.
(1) if the laundry can withstand the bleaching treatment.
(2) Program times given in the above table are provided as a guide and may vary depending on the water supply

temperature and pressure, and your electricity power supply mains voltage.
The programs B and C begin with a short draining, followed then by an automatic advance of the program selector

until the filling position.
The temperatures given in the programs table are provided as a guide. You can vary them using the thermostat

knob on your washing machine. Always scrupulously respect the temperature shown on the label on each item
of washing.

BE CAREFUL :
THE LID CAN ONLY BE OPENED 2 MINUTES AFTER THE MACHINE HAS STOPPED.

0

12

- 9 -

Programmes for synthetics/delicates/wool

Maximum loads : 2,5 kg (synthetics), 1 kg (wool).

Programmes

description

Synthetics with prewash

H

Synthetics

J

Wool

K

Delicate

L

Rinsings

M

Rinsing

N

Temperatures

(°C)

40-60

40-60

-40

30-40

Detergent

dispensers

to use

Water

consumption

in liters

65

50

45

50

40

16

Time

in minutes

(1)

100

75

55

60

20

10

Drain

P

(1) Program times given in the above table are provided as a guide and may vary depending on the water
supply temperature and pressure, and your electricity power supply mains voltage.

The temperatures given in the programs table are provided as a guide. You can vary them using the thermostat
knob on your washing machine. Always scrupulously respect the temperature shown on the label on each item
of washing.

The programs J and K begin with a short draining, followed then by an automatic advance of the program selector
until the filling position.

BE CAREFUL :
THE LID CAN ONLY BE OPENED 2 MINUTES AFTER THE MACHINE HAS STOPPED.

0

2

- 10 -

HINTS AND TIPS

Washing hints

You are advised not to leave your laundry too long,
especially when damp. Damp laundry produces moult
and unpleasant smells.
Moult stains cannot be removed.

Sort your laundry.

Study carefully the chart in this booklet explaining the
symbols used on clothes labels (see page 14).
The following points are particularly important :

- a line under the bowl means that the garment cannot
be washed using programmes for resistant fabrics
such as cotton and linen;

- do not mix coloured garments with whites;

- anticrease materials like polyester/cotton should be
treated as synthetics;

- non-resistant fabrics like acrylic and most curtain
materials should be treated as delicate fabrics;

- the wool programme is designed specifically for pure
new wool. Other types of wool and wool mixtures may
shrink or felt if machine-washed.
Woollen garments should be spun briefly immediately
after washing.

Resistant white and coloured synthetics can normally
be washed at 60°C but also in this case 40°C is
sufficient if the laundry is not excessively dirty.
Delicate synthetics, synthetics with non-fast colours
and woollen garments must never be washed above
40°C.
As you already know, your washing machine can also
wash with cold water. However, it must be remembered
that the detergents currently on the market have not
been designed for cold washes and that in winter,
when the water is very cold, they may not dissolve
adequately.
We suggest the use of liquid detergents.

How much laundry can be washed in
one load?

Strictly speaking you should always weigh your laundry.
The drum will take a maximum of 5 kg of cotton and
linen. For synthetics and delicate fabrics, the maxi­mum load is 2,5 kg and for wool, 1 kg.

As weighing can be complicated, we suggest you
estimate the weight according to how full the drum is:

Prewash

Prewash is not normally necessary. Your new washing
machine combined with modern detergents will give
perfect washing results without prewash, thus saving
energy, time, water and detergent.
However, when the laundry is particularly dirty (for
example if you have to wash mechanics' overalls or
butchers' aprons), you are advised to use prewash
with a biological detergent.

Temperatures

We suggest that white cotton and linen, if it is not
excessively soiled, can be washed at 60° instead of
90°C. There should be no reduction in performance,
but there will be an energy saving of approximately
30%.
The same applies to a lesser extent to fast coloured
garments.
They usually require a temperature of 60°C but if they
are not excessively dirty, you will have satisfactory
results at 40°C.
Garments with non-fast colours should not be washed
at temperatures above 40°C. If fast and non-fast
colours are washed together, they should be treated
as non-fast colours and therefore the temperature
should not exceed 40°C.

cotton and linen : drum full not too tighty packed
resistant synthetics : no more than 2/3 of the drum
delicate fabrics and wool : no more than 1/2 of the

drum.

Before placing the laundry in the ma­chine:

- mend all tears, holes and ladders;

- secure loose buttons and close poppers and zips;

- do not wash frayed garments - mend hems before
washing;

- remove all small objects from pockets. Nails, pins,
clips and similar objects can seriously damage your
washing machine and laundry;

- remove curtain hooks;

- wash coloured garments and in particular those with
non-fast colours separately when washing for the first
time. They are likely to lose colour the first time they are
washed.

- treat obstinate stains such as grass, rust, tar, paint,
ink etc. with a stain remover before washing.

- 11 -

To remove paint stains, for example, use a volatile
substance such as turpentine: in this case, you should
wait for it to dry completely before washing.
The manufacturer of your washing machine is not
responsible for any damage deriving from the use of
volatile, inflammable or toxic substances.

At the end of the washing

Damp laundry should be dried as soon as possible
after finishing the wash.
Knitwear and woollens should be dried flat away from
direct sunlight.

Detergents and additives

Good washing results also depend on the choice of
detergent and use of the correct quantities to avoid
waste and protect the environment. Although
biodegradable, detergents contain substances which
in large quantities can damage the delicate ecological
balance of nature.

Liquid detergents

Using the new automatic dispenser for liquid detergents,
it is possible to use a liquid detergent for main wash
phases if you start the washing machine immediately.
Liquid detergents can be used instead of powder
detergents particularly for lightly soiled laundry and for
medium or low temperature washing programmes,
while it is better to use a powder detergent for high
temperature washing programmes.

Liquid additives

Any liquid additives for softening the laundry must be
poured into the compartment of the detergent dis­penser drawer before starting the programme.
The addition of water softener is particularly useful
when drying the clothes in a tumble dryer after washing
to avoid a static charge.
Make sure that the level of the liquid never exceeds the
MAX level.

Always use good quality detergents suitable for
use in washing machines.

Follow the indications given by the detergent manu­facturer according to the weight of laundry, the degree
of soil and the hardness of the water in your area; if you
do not know how hard it is, ask your local Water
Authority.

Powder detergents.

The washing powder should be placed in the appropriate
compartments of the dispenser drawer before starting
the programme. Special detergents are availaible for
coloured and delicate fabrics and for wool.

"Concentrated" powder detergents

Pour the concentrated powder detergent into the main
wash ( ) compartment.

Avoid selecting programmes including prewash
when concentrated detergents are used.

Bleach

You may use a bleach agent on cotton programmes.
However, make sure that the fabric withstands the
treatment. Bleach is automatically washed down into
the drum. Pour 1/4 to 1 glass of 12° chl bleach into
compartment " " before switching the machine on.
Make sure that the level of the liquid never exceeds the
MAX level.

Water hardness

German degreesGerman degrees

German degrees

Level Characteristic French degrees

1 Soft 0 - 7 0 - 1,3 0 - 15
2 medium 8 - 14 1,4 - 2,5 16 - 25
3 hard 15 - 21 2,6 - 3,8 26 - 37
4 very hard > 21 > 3,8 > 37

German degreesGerman degrees

°dH m mol °T.H.

- 12 -

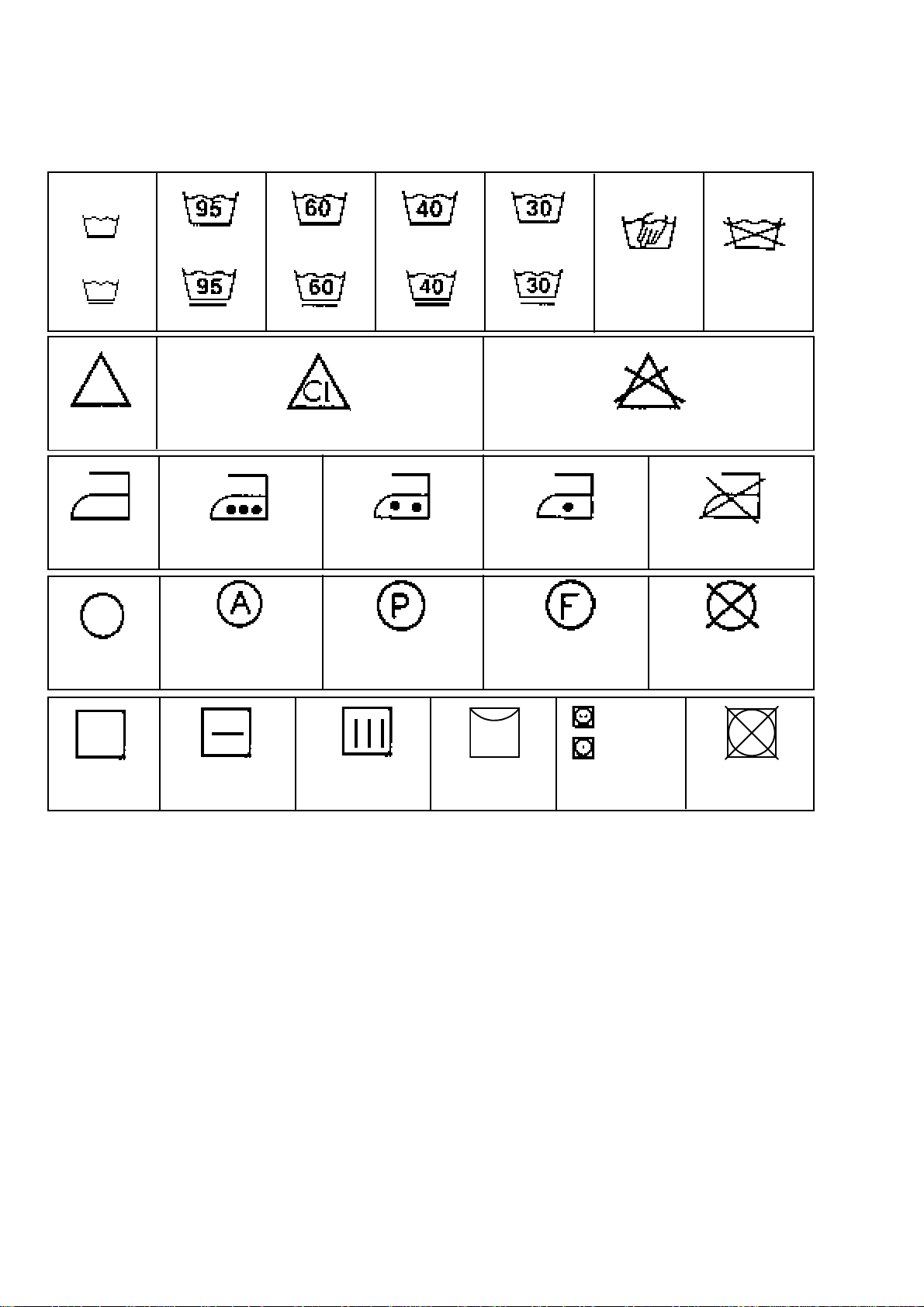

Wash code symbols

These symbols appear on fabric label, in order to help you choose the best way to treat your laundry.

Strong wash

Max. wash

WASH

Delicate wash

BLEACHING Bleach in cold water

IRONING

DRY CLEANING

temperature 95°C

Hot iron max. 200°C

Dry cleaning

in all solvents

Max. wash

temperature 60°C

Warm iron max. 150°C Lukewarm iron max. 110°C Do not iron

perchlorethylene petrol, pure

alcohol, R 111 & R 113

Max. wash

temperature 40°C

Dry cleaning in

Max. wash

temperature 30°C

Do not bleach

Dry cleaning in petrol,

pure alcohol, and R 113

Hand
wash

Do not

wash

at all

Do not dry clean

DRYING On the lineFlat On clothes hanger

high
temperature

low
temperature

Tumble dry

Do not tumble dry

- 13 -

CLEANING AND MAINTENANCE

Make sure that the machine is unplugged and

the water tap turned off before undertaking any kind of maintenance.

Bodywork

The outside or the machine can be cleaned with warm
water and a neutral non-abrasive household detergent.
Wipe with clean water and dry after cleaning.
Important : do not use methylated spirit, diluents or
similar products.
It is advisable, from time to time, to carry out a complete
cycle without a washing load, adding a decalcifying
product.

The detergent dispenser

The detergent dispenser is very easy to remove.
Exert a pressure on the brooches located on each side

of the detergent dispenser and pull it up (fig.1 and fig.2).
Clean the detergent dispenser under running water

with a brush or a piece of rag (fig.3). Check that the
siphons located at the back of the detergent dispenser
are not obstructed (fig.4).

fig.1

fig.2

Replace the detergent dispenser in the notches until
the hanging (fig.5).

The drain filter

The machine has got a mecanic filter located on the
front part to collect lint and small objects (toothpins,
coins, pins, etc) inadvertently left in the clothes. It is
essential that this filter is cleaned regularly.

Frequency of cleaning depends on the type of articles
washed (cleaning should be more frequent if the arti­cles have no hem and tend to fray).

Open the door, with a screwdriver for example (fig.6

and7) :

To drain the residual water :
Place below a container not very high up with
straight edges. To complete the draining, turn the
cap of the drain filter until its vertical position and the
residual water will be released (fig.8)
To clean the filter :
Turn the filter anticlockwise and get it away (fig.9).
Clean it with current water. Replace the filter and

screw down it clockwise. Then, close the flapdoor.
After cleaning the filter, you are required to closed the
door. In fact, for reasons of safety, the door must be
closed when the appliance is working.

fig.3

fig.5

fig.6

fig.8

fig.4

fig.7

fig.9

- 14 -

IF SOMETHING DOESN'T WORK ?

ProblemsProblems

Problems

ProblemsProblems

SolutionsSolutions

Solutions

SolutionsSolutions

The wash results are not as usualThe wash results are not as usual

The wash results are not as usual

The wash results are not as usualThe wash results are not as usual

The washing cycle is very much too long.The washing cycle is very much too long.

The washing cycle is very much too long.

The washing cycle is very much too long.The washing cycle is very much too long.

The washing machine stops during a washingThe washing machine stops during a washing

The washing machine stops during a washing

The washing machine stops during a washingThe washing machine stops during a washing
cycle.cycle.

cycle.

cycle.cycle.

Check that :

was the wrong quantity or the wrong detergent
added ? Insufficient detergent leads to grey washes
and scale deposits in the machine. Check the
quantities more exactly.

were special stains pre-treated ?
were programme and temperature correctly chosen?

Check that :

the water pression is sufficient.
the pump filter is not obstructed.

there has not been a power breakdown.

Check that :

the water pression is sufficient.
the pump filter is not obstructed.
the mains fuse is intact.
there is not a rinse hold ending a washing
programme (see page 7).

The machine does not start upThe machine does not start up

The machine does not start up

The machine does not start upThe machine does not start up

The machine does not drain and/or does notThe machine does not drain and/or does not

The machine does not drain and/or does not

The machine does not drain and/or does notThe machine does not drain and/or does not
spinspin

spin

spinspin

The machine does not fillThe machine does not fill

The machine does not fill

The machine does not fillThe machine does not fill

Check that :

the mains fuse is intact.
the appliance is plugged in.
the lid is firmly shut.
the programme selector dial is correctly positioned.
the beginning of the programme has been ordered
(on/off pushbutton pushed on).
there has not been a power breakdown.

Check that :

the drain hose is not squashed or bent.

the drain filter is not clogged.

Check that :

the inlet water hose is opened and the water
pression is sufficent.
the lid of the appliance is closed.
there has not been a breakwater.

- 15 -

IF SOMETHING DOESN'T W ORK (continue)

ProblemProblem

Problem

ProblemProblem

SolutionsSolutions

Solutions

SolutionsSolutions

The machine vibrates or is too noisy

The machine empties as it fills

There is water on the floor

Check that :

all the transit bolts and packing have been

removed.

all the feet resting firmly on the ground, the lock
nuts have been secured.

the machine does not touch something.
the load is sufficent.

Check that :

the end of the drain hose is not too low.

Check that :

there is not too much detergent or unsuitable
detergent. The formation of foam can cause water
leaks.

one of the detergent dispenser is not obstructed.

the drain hose is well hanged.
if one of the joints or the tap leaking ? It is not always

easy to see as the leak often runs along the hose.

is the drain filter cover properly closed ?

Softener detergent flows out the overflow orifice

Check that :

you have respected the adviced quantities

check that the siphons located at the back of the
detergent dispenser are not obstructed.

- 16 -

SERVICE

If you have unable to identify or solve the problem,
consult our servicing department. Before telephoning,
make a note of the make, model and date of purchase
of your machine : the service department will require
this information.

Data plate

You will find these informations on the data plate (at
the back of the appliance) and on a sticker placed on
the internal door filter.

- 17 -

FOR THE INST ALLER

Technical information

Dimensions height with panel 895 mm

height without panel 850 mm
width 397 mm

depth 600 mm
Power supply voltage / frequency 230 V / 50 Hz
Total power absorbed 2300 W (10 A)
Heater rating 1950 W
Water pressure minimum 0,05 MPa (0,5 bar)

maximum 0,8 MPa (8 bar)
Maximum load cotton 5 kg

synthetics 2,5 kg

wool 1 kg
Spinning speed from draining position " " to 900 rpm

This appliance complies with the following EC Directive :

- 72/23/EEC of 19.02.1973 - Low-Voltage Directive

- 89/336/EEC of 03.05.1989 (including Amentment Directive 92/31/EEC) - EMV Directive.

Installation

Unpacking

The parts protecting the inner components of the
machine during transit must all be removed before
using your machine for the first time. These parts
and their securing means should be kept in case
the machine has to be transported again.

Unpack the appliance. Tilt the appliance
backwards. Give to one of the back corners a
quarter turn. The appliance comes free naturally
out the polystyrene basis. Take away this basis
(fig. 1).

Open the lid of the appliance and remove the
polystyrene and plastic wedges which block the
drum. Close the lid (fig. 2).

On the back part and with a spanner, remove
the two loosened spacers (A) (fig. 3).

The holes which are now visible must be closed
with the plugs (B) provided with the appliance
(fig. 4).

Fig. 1

Fig 3

Fig. 2

B

A

Fig 4

Please ensure that these parts have been
removed from the machine and keep them in
case of next transport (fig. 5).

If you want to keep the alignment of your
appliance with the adjacent cupboards, you
have the possibility to cut the crossbar holding
the hoses located at the back of your washing
machine (fig. 6).

- 18 -

Fig 5

Fig 6

Installation

The floor must be clean and dry, free from floor polish
and other greasy substances, so that the machine
does not slide about. Do not use any grease as
lubrification.
Installation on deep pile carpets and floor
coverings with foam backings is not recommended, as
the stability of the machine is no longer guaranteed. If
the installation must be done on a carpeted floor, the
openings located at the lower part of the back of the
appliance must remain free. These openings ensure
a good ventilation of your appliance. In case of small
format tiles, place a standard rubber mat under the
machine.

With sprung floors, in particular wooden plank floors
with yielding floor boards, screw down a waterproof
wooden base at least 15 mm thick, across at least 2
floor boards. Wherever possible, place the appliance
in the corner of the room - there wooden floors are most
secure and least liable to resonance vibrations.
Never compensate for small unevennesses in the floor
by placing wood, pasteboard or such like.

The front adjustable feet must be blocked after
installation of the appliance by means of the locking
nuts.

Levelling

It is essential that your machine is absolutely level.
Raise or lower the front feet of the machine; tighten the
nuts of the feet with an adjustable wrench.
Also make sure that the machine does not touch the
wall, the furnitures etc. during the functioning.
This in order to avoid vibrations, noise or displace­ments of the appliance during operation.

Moving of the appliance

To move your washing machine, put it on its wheels by
turning from the right to the left the special lever
situated at the bottom of the machine. Once the ma­chine placed at the chosen place, bring back the lever
to its initial original position.

- 19 -

Water connection

Connect the water inlet hose to a cold water tap with a
3/4" gas threaded orifice, after having
inserted the rugger sealing washer into the hose collar
(fig.1). If the water connection is made onto new pipes
or onto pipes which have not been used for a long time,
it is advisable to run off a certain amount of water before
connecting the machine.
Place the curved end of the outled hose into a drain
pipe having a height between 70 and 100 cm from floor
level (fig.2) or secure it to a sink (fig.3). Make sure that
the drain hose is firmly secured so that it will not slip out
or fall down from its position.

The water should drain freely and, consequently, the
drain hose should not be choked or placed in such a
way as to obstruct the normal water flow. If an exten­sion hose is required, remember that it might cause a
malfunction in the drain pump, particularly if the exten­sion has a length in excess of 1 meter or if the diameter
of the extension is smaller than the diameter of the
original drain hose.

Fig.1

Fig.2 Fig.3

Electrical connection

Before you fit the plug into the wall socket, check the
following points :

1) The supply voltage of the domestic wiring system
does not fluctuate by more that 10%, plus or minus,
from 230 V.

2) The meter, the fuses, the supply line and the wall
socket are suitable to carry the maximum load required
by the machine (2,3 kW).

Very important :
The washing machine is provided with a feeding
wire with earth connection: it must be connected
to a plug like that is provided with a good earth
connection. The wall plug must be easily accessi­ble.

The replacing of the power cord must only be
realized by the After Sales Service in order to avoid
any danger.

The manufacturer declines any responsibility where
the previous recommendations are not followed.

- 20 -

146 1585 03

05/02
