TUMBLE DRYER

WRING DRY

SLIGHTLY DAMP

STORE DRY

READY TO WEAR

EXTRA DRY

IRON DRY

EXTRA DRY

SYNTHETICS

BABY DRY

STORE DRY

IRON DRY

COTTON

AUTOREVERSE

ABCDEF

GHJ

CONDENSER DRYER

ELECTRONIC SENSOR

XTRACAPACITY

TIMED

PROGRAMME

DRY FRESH

9 0



60

3 0



TCE 7124 W

Unpacking: see page 14

125992080

INSTRUCTION BOOKLET

Page 2

Important Safety Information

It is most important that this instruction book should be retained with the appliance for future reference. Should the appliance be sold or transferred to another owner, or should you move house and leave the appliance, always ensure that the book is supplied with the appliance in order that the new owner can get to know the functioning of the appliance and the relevant warnings.

These warnings have been provided in the interest of safety. You MUST read them carefully before installing or using the appliance.

Installation

• This appliance is heavy. Care should be taken when

moving it.

• It is dangerous to alter the specifications or attempt

to modify this product in any way.

• Any electrical work required to install this

appliance should be carried out by a qualified electrician or competent person.

• Care must be taken to ensure that the appliance

does not stand on the electrical supply cable.

• If the machine is situated on a carpeted floor,

please adjust the feet in order to allow air to circulate freely.

• If the tumble dryer is placed on top of a washing

machine, it is compulsory to use the stacking kit (optional accessory).

Child Safety

• This appliance is designed to be operated by adults.

Children should not be allowed to tamper with the controls or play with the product.

• Pets and children have been known to climb into

tumble dryers. Please check your drum before use. Keep all packaging well away for children.

•

Use

• Do not overload the appliance (see programme

chart).

• Clothes which are dripping wet should not be

placed in the dryer.

• As some bulky items such as duvets and

eiderdowns should be dried in large commercial machines because of their bulk, check with the manufacturer of the item if it is suitable for drying in a domestic machine, even if the dry weight of the item is within the limit advised.

• Please make sure that no gas lighters have

accidentally been left in pockets of garments to be loaded into appliance.

• Danger of explosion: Never tumble dry items that

have been in contact with inflammable solvents (petrol, methylated spirits, dry cleaning fluid and the like). As these substance are volatile, they could cause an explosion. Only tumble dry items washed with water.

• In order to avoid danger of fires caused by

excessive drying, do not use appliance to dry the following items:

Cushions, quilts and the like (these items accumulate heat). Items containing rubber foam or materials similar to rubber foam.

• Leave the door slightly ajar when the appliance is

not being used. This will allow the seal to be preserved.

• Clean fluff filters after using tumble dryer. To

prevent fire risks, do not use the appliance if the fluff filters are damaged.

• Do not allow fluff to accumulate around the dryer.

• Under no circumstances should you attempt to

repair the machine yourself. Repairs carried out by inexperienced persons may cause injury or serious malfunctioning. Contact your local Service Force Centre. Always insist on genuine Zanussi spare parts.

Page 3

Contents

For the User

Important Safety Information

• Installation

• Child Safety

• Use

Your New Tumble Dryer Description of the Appliance The Control Panel

• Programme Chart 5

• Mains-on Light 5

• On/Off Button 5

• Low Temperature Button 5

• Buzzer Off Button 5

• Start Button 5

• Programme Phase Indicator Lights 5

• Programme/Time Selector Dial 6

Programme Chart

Something Not Working

Service and Spare Parts Customer Care Guarantee Conditions

For the Installer

Installation Instructions

Technical Specifications

• Unpacking 14

• Positioning 14

• Stacking kit (optional accessory) 15

• Door reversal 15

• Electrical connection 15

Operating Sequence Hints & Tips on Drying Maintenance and Cleaning

• External cleaning 10

• Cleaning the door 10

• Cleaning fluff filters 10

• Cleaning the condenser unit 10

• Emptying the water reservoir 11

• Cleaning the drum 11

• Cleaning the air intake grille 11

Guide to use the Instruction Book

The following symbols will be found in the text to guide you throughout the instructions:

Safety instructions

Hints and tips Environmental information

Page 4

NDE

SER DR

YER

BCD

9 0



60

0 

Your New Tumble Dryer

This tumble dryer will give your wash that soft, relaxed feel whatever the weather.

Extremely high quality standards both during development and manufacturing guarantee a long service life for your appliance.

Maximum economy in the operation of your dryer is achieved through very frugal electricity consumption and short drying times.

Energy saving tips

To save energy we recommend that you follow these hints:

• Try to load the maximum capacity of the machine

as small loads are uneconomical.

• Always load well spun laundry. The higher the spin

speed, the lower the electricity consumption and the shorter the drying times.

• Do not over-dry laundry, this avoids creasing and

saves energy.

• Clean the filters regularly to avoid excessive drying

times and high electricity consumption.

• Ventilate the room well. The room temperature

should not exceed +35°C during drying.

In the interest of the environment

• Materials marked with the symbol are

recyclable.

• Check with your local Council or Environmental

Health Office to see if there are facilities in your area for re-cycling this appliance.

• When the appliance is to be scrapped, cut off the

power supply cable and make the door closing device unusable to prevent young children from being trapped inside.

• Help to keep your country tidy - use authorised

disposal sites for your old appliance.

How do we help to protect the environment? We use recycled paper!

Description of the Appliance

1 Worktop 2 Programme chart 3 Control panel 4 Fluff filters 5 Rating Plate 6 Condenser unit 7 Water reservoir 8 Adjustable feet

Page 5

The Control Panel

ON/OFF LOW

TEMP.

BUZZER

OFF

START

TIMED

PROGRAMME

DRY

FRESH

XTRACAPACITY

CONDENSER DRYER

ELECTRONIC SENSOR

12345678

E 7

AUTOREVERSE

ABCDEF

GH J K

WRING

DRY

SLIGHTLY

DAMP

STORE

DRY

READY

TO WEAR

EXTRA

DRY

IRON

DRY

90

60



EXTRA

DRY

SYNTHETICS

BABY

DRY

STORE

DRY

IRON

DRY

COTTON

1 Programme Chart

This will help you to select the correct programme for drying.

2 Mains-On Light

Comes on when the appliance is switched on (ON/OFF button pressed down) and goes out when this button is released.

3 ON/OFF Button

This button is used to switch the dryer on. At the end of the programme, release this button by pressing it again to switch the dryer off.

4 Low Temperature

Button

Pressing this button allows drying to be performed at a lower temperature, for delicate items. The corresponding pilot light comes on. This option can also be used for time controlled drying. The dryer heats at 1400 W instead of 2200 W. If the button is not pressed, drying is performed at full power (2200 W).

5 Buzzer OFF Button

A buzzer sounds by depressing the push buttons during the anti-creasing phase, at the end of programme and when the water reservoir is full. Press this button when selecting the programme if you wish to switch the buzzer off during the anticreasing phase. The corresponding light illuminates.

6 Start button

Press this button for about 2 seconds to start the dryer after having selected the programme.

If the door of the appliance or the small door covering the condenser and the water reservoir is opened while the programme is running, this button must be pressed again after closing the door in order to restart the programme from the point at which it was interrupted.

This button must be also depressed after a power failure and after having re-inserted the water reservoir, if it has been emptied in the middle of a programme. In both cases light or (depending on the phase in progress) flashes to remind you that the start button needs to be pressed again.

7 Programme Phase

Indicator Lights

These lights indicate the various phases of the programme as they are being performed.

“Drying” light

This light indicates that the appliance is in the drying phase.

“Cooling” light

This light indicates that the appliance is in the cooling phase. At the end of drying, there is a 10 minute cooling phase to cool the laundry.

If light or is flashing, this means that the Start button needs to be pressed again for the programme to resume.

“End of programme” light

This light flashes at the end of the cooling phase and during the anti-creasing phase.

“Water reservoir full” light

This light flashes when the reservoir is full.

Page 6

8 Programme/Time

Selector Dial

Allows you to select electronically controlled or time controlled drying.

Turn the dial to the required programme or time.

Electronically controlled drying (automatic)

The appliance runs these programmes with the help of probes which detect the degree of dampness of the laundry. Simply select the programme according to the type of laundry and degree of drying required.

Time controlled drying

Can be used to finish off drying if necessary. Select the 90 or 60 minute programme for cottons or the 30 minute programme for synthetics.

To cancel a programme which is running, turn the programme selector dial to “0”.

At the end of drying, turn the selector dial to “0” before removing the laundry.

Page 7

Programme Chart

Automatic drying (electronic programmes)

Type of laundry

Cotton

Synthetics

Jumpers

Jackets, trousers, dresses, skirts.

(*) According to CEI 1121 Standards.

• Baby cycle “K” is a special programme for jumpers to be dried “ready to wear”.

• Dry fresh “L” is designed to clean and freshen garments labelled “dry clean only” and “hand wash” at home, in your tumble dryer, using the special product available on the market.

Degree of drying

required

extra dry ready to wear store dry slightly damp iron dry wring dry

extra dry store dry iron dry

baby dry

dry fresh

Max-load

6 kg 6 kg 6 kg 6 kg 6 kg

6 kg

2.5 kg

1 kg

1 - 4 garments

(1)

Programme

A B C(*) D E(*) F

G H(*) J

Time controlled drying

Type of laundry Drying time Max-load

Cotton

Synthetics

(1) Never overfill the drum (do not load large quilts, for example). Drying times vary according to:

• The type of laundry

• The size of the load

• The degree of spinning prior to drying.

• The degree of dryiness required

Fresh & Cool

This position on the programme selector dial can be used to freshen the laundry (e.g. to remove a persistent odour of moth-balls).

Load

It is often difficult to estimate the weight of items to be dried. We therefore recommend that you adopt the following guidelines:

• cotton, linen: drum full but not too tightly packed;

• synthetics: drum no more than half full;

• delicate fabrics: drum no more than one third full.

90 min

60 min

30 min

6kg

2.5 kg

(1)

Programme

selector dial position

90’

60’

30’

Page 8

Operating Sequence

P1108

P1149

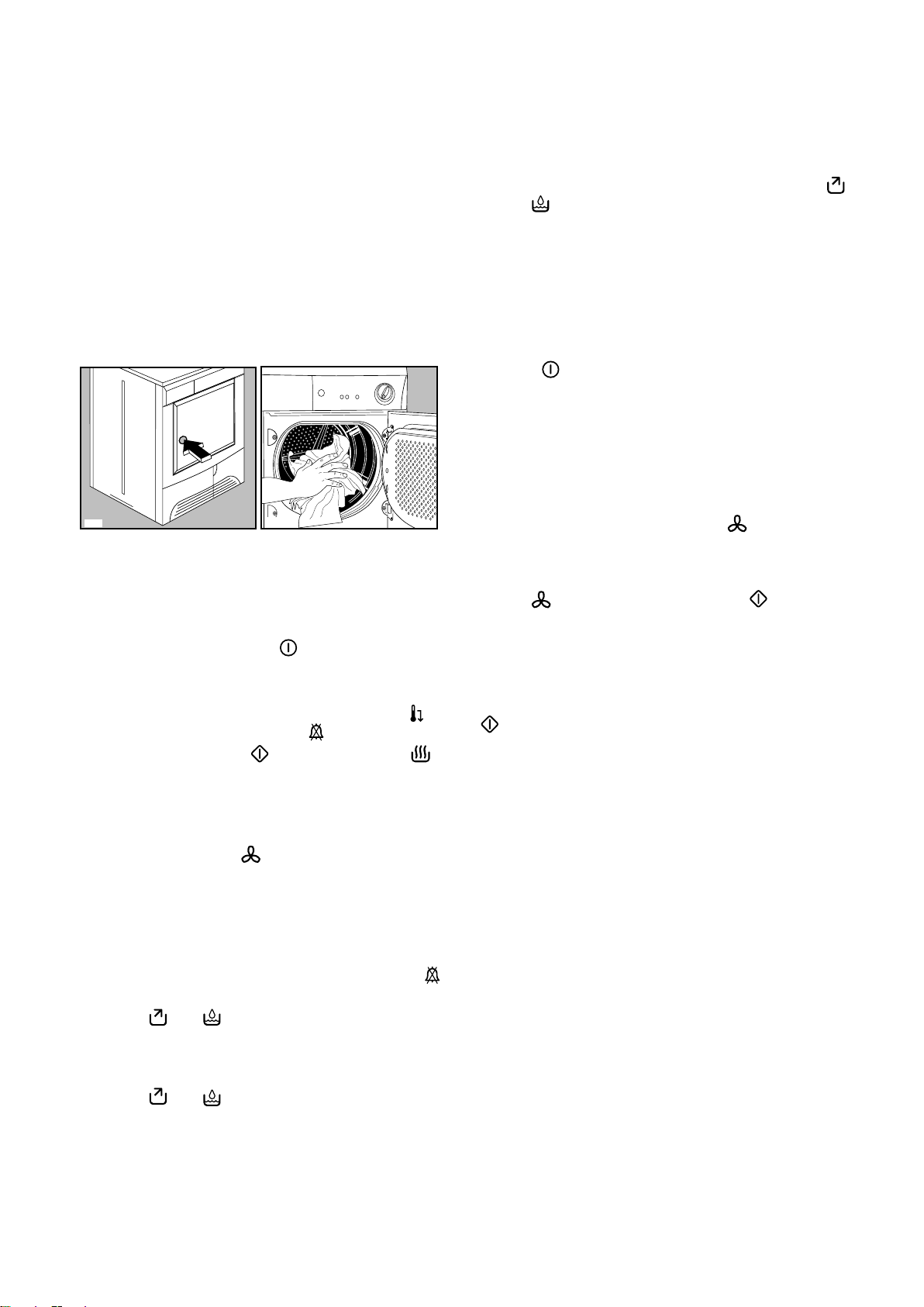

Before using your tumble dryer for the first time, we recommend to place a few damp cloths inside the appliance and dry for 30 minutes. There may be dust inside a brand new tumble dryer.

Drying

1. Connect the appliance.

2. Open the door.

3. Load the items one at a time, shaking them out

loosely.

4. Close the door. Please check the laundry does not

get caught between the door and filter.

5. Press the ON/OFF button : the mains-ON light

comes on.

6. Select the drying programme or time.

7. If required, press the low temperature button

and/or the buzzer OFF button .

8. Press the Start button for 2 seconds: light

comes on and drying starts. The drum turns alternately in both directions during drying.

All drying programmes end with a 10 minute cooling phase (light is on).

You may remove the

laundry after this phase.

9. If the laundry is not removed at the end of the

cycle, the dryer performs an anti-creasing phase (duration: 30 minutes maximum).

The buzzer sounds every 10 seconds (if button has not been pressed).

Lights and flash alternately.

If you do not remove the laundry, the dryer will stop automatically at the end of the anti-creasing phase. Lights and flash and the mains-ON light

stays on.

Turn the programme selector dial to “0”; lights and go out.

Release the ON/OFF button (the mains-ON light goes out) and immediately remove the laundry.

After each use

• Turn the programme selector dial to “0”.

• Switch the appliance off by releasing the ON/OFF button . The mains-ON light goes out.

• Clean the filters (see page 10).

• Empty the water reservoir (see page 11).

Important!

If the drying programme has to be stopped before it reaches the end, we recommend that you turn the programme selector dial to position (cooling) and wait until the end of this phase before removing the laundry. This will avoid a build-up of heat inside the appliance. To do this first turn the dial to “0” and then to and depress START Button

Modifying the programme

To change a programme which is running, first cancel it by turning the programme selector dial to “0”. Select the new programme and press the Start button

Page 9

Hints & Tips on Drying

Before placing articles of laundry in your tumble dryer, check the care labels to ensure they are recommended for tumble drying.

Care Labels you may find on your laundry

may be tumble dried

normal drying (high temperature)

delicate drying (low temperature)

do not tumble dry

Do not overload the appliance.

Here is a list of the approximate weight of some common laundry items.

Sheet 700 to 1000 g Pillowcase 100 to 200 g Tablecloth 400 to 500 g Table Napkin 50 to 100 g Kitchen Towel 70 to 120 g Linen Hand Towel 100 to 150 g Hand Towel 150 to 250 g Bath Towel 700 to 1000 g Bathrobe 1000 to 1500 g Shirt 200 to 300 g Apron 150 to 200 g

• Always load well spun laundry. The higher the spin

speed the lower the electricity consumption and the shorter the drying time.

• DO NOT load dripping wet laundry into the dryer.

Roll the article in a towel or spin to remove excess water.

• Close poppers and zips and fasten any buttons.

• Sort the laundry. Separate synthetics from

cotton/linens, and dry separately.

Remove the laundry immediately after the

•

programme has finished.

Use a fabric conditioning sheet to reduce static. We

•

recommend the sheet is pinned to an article of laundry (using a safety pin).

• Mix the load i.e. large and small articles.

• When drying large items such as sheets, we

recommend you periodically stop the dryer to redistribute the load.

DO NOT use the tumble dryer to dry the following:

• Articles contaminated with inflammable substances

e.g. petrol, cleaning solvents, cooking oil, fats or hair lacquer.

Woollen and synthetic/wool mixtures unless the

•

item is labelled as suitable for tumble drying.

• Very delicate articles such as silk.

• Very large and bulky items such as duvets or

sleeping bags.

Page 10

P1151

P1110

P1150

Maintenance and Cleaning

P1159

P1177

P1152

You must disconnect the appliance from the electricity supply, before you can carry out any cleaning or maintenance work.

External cleaning

Use only soap and water and then dry thoroughly. Important: do not use methylated spirit, diluents or similar products.

Cleaning the door

Clean periodically the interior part of the door to remove any fluff from the seals around the filter. Regular cleaning ensures correct drying.

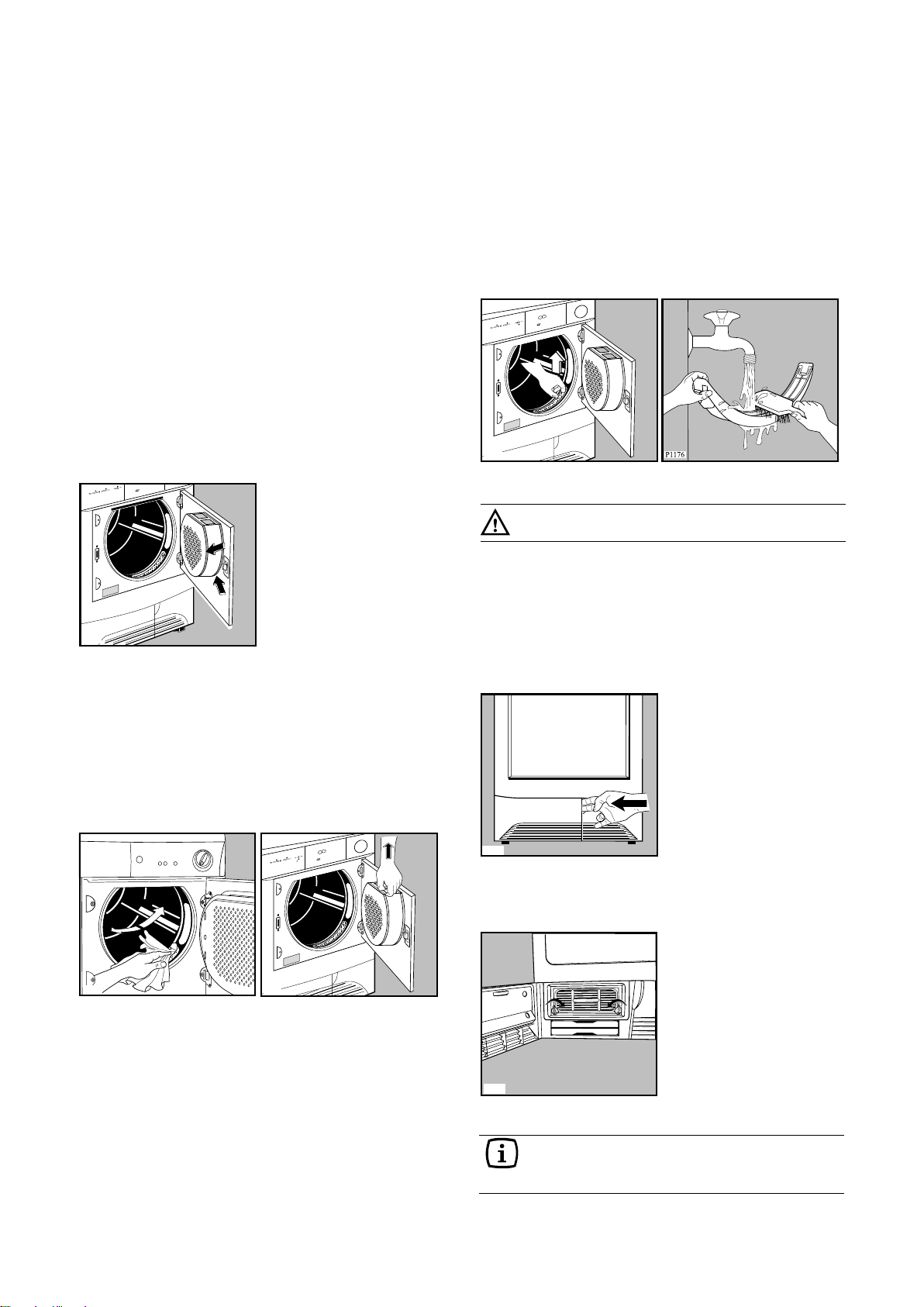

Cleaning the filters

Your dryer will only function well if the filters are clean. The filters collect all the fluff which accumulates during drying and they must therefore be cleaned at the end of each programme, before removing the laundry, with a damp cloth.

After a while, a whitish film due to detergent residue on laundry forms on the filters. When this occurs, clean the filters (especially the filter in the door opening) with warm water using a brush. Remove it as per picture (it can be positioned with the tooth facing to the left or to the right).

Do not use the appliance without filters.

Cleaning the condenser unit

Clean the air condenser periodically, 3 or 4 times a year depending on how frequently the dryer is used.

The condenser is situated at the lower part of the cabinet behind a small door. To open the door, push the catch as per picture.

To pull out the condenser, first turn the two red stops inwards as shown below and then remove the condenser unit holding it at the handle.

The filter in the inner door must be removed for cleaning. Do not be alarmed by the amount of fluff. It is not due to excessive wear caused by the dryer. All fabric looses fluff when drying but it goes un-noticed in the air. In a tumble dryer it simply collects in the filter.

It is quite normal to find droplets of water on top of or at the front of the condenser unit. This is not a fault with the appliance.

Page 11

Clean it with a brush and rinse it under the shower if

P1178

P0639



P1162

necessary.

Also clean the outside, removing all fluff. Clean the rubber seal round the condenser cabinet

and in the inner part of the small door with a damp cloth.

Important! Do not use pointed objects or utensils to clean the spaces between the plates, as this could damage the condenser and make it permeable.

Re-fit the condenser, turn the red stops upwards and close the door.

Do not use this appliance if the condenser has not been fitted.

The reservoir must be re-inserted correctly. Push it until it clicks.

After inserting the reservoir the START-button has to be depressed again to allow the programme to continue.

Handy tip: The condensed water may be used in a steam iron or to top up a battery, etc. In this case it must be filtered (e.g. through a coffee filter).

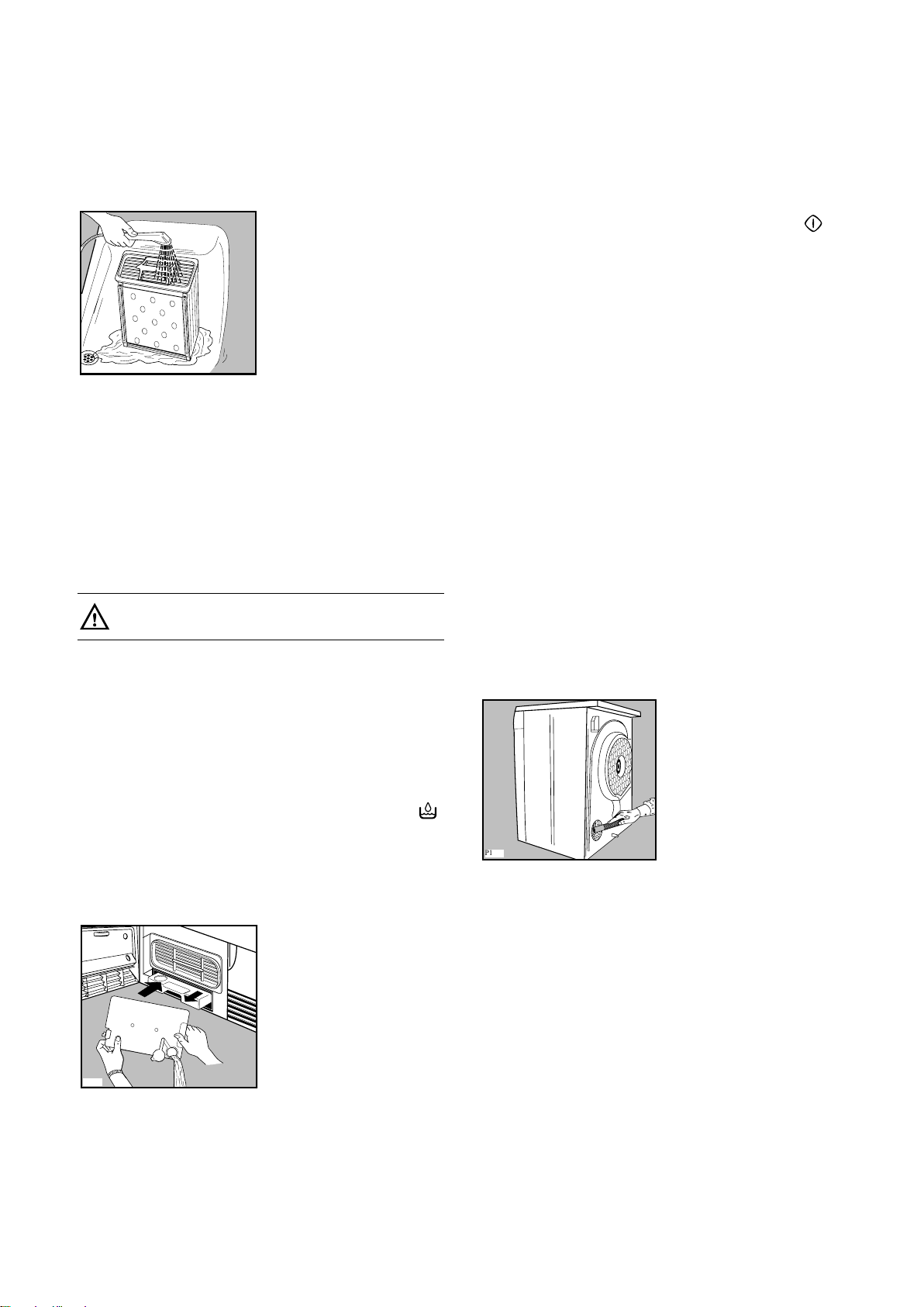

Cleaning the drum

When your laundry does not reach the desired degree of dryness, in other words, when it turns out either too dry or too damp,we advise you to clean the inside of the drum with a cloth soaked with vinegar.

This will eliminate the slight patina that has formed in the drum (due to residues of detergent and softeners used in the washing, and to the lime contained in the water), which prevents the probes from detecting the correct degree of dryness.

Cleaning the air intake grille

Emptying the water reservoir

Water extracted from the laundry condenses inside the machine and is collected in a reservoir. The reservoir must be emptied after each drying cycle to ensure efficient operation when the machine is next used. If this is not done a safety device trips: pilot light on the control panel comes on and the programme stops, leaving the laundry damp. The buzzer will sound for 1 minute.

The reservoir can be emptied even in the middle of a programme.

Using a vacuum cleaner remove the fluff from the air intake grille at the back of the appliance.

Page 12

Something Not Working

Certain problems are due to lack of simple maintenance or oversights, which can be solved easily without calling out an engineer. Before contacting your local Service Centre, please carry out the checks listed below.

IMPORTANT: if you call out an engineer to a fault listed below, or to repair a fault caused by incorrect use or installation, a charge will be made even if the appliance is under guarantee.

Symptom

The tumble dryer does not start

Possible causes

• The door(s) has (have) not been closed.

• The plug is not properly inserted in the power socket.

• There is no current at the socket.

• The main fuse or the fuse in the plug has blown.

• The selector dial is not set correctly.

• The water reservoir is full or not properly inserted

(the pilot light is on ).

• The Start Button has not been depressed.

Drying takes too long or laundry is not

dry enough.

• The laundry has not been spun properly.

• The filters and/or the condenser are clogged up.

• The water reservoir is full.

• The room temperature is too high.

• The selected time or drying cycle was not suitable

for the laundry.

• The low temperature button has been pressed.

• There is too much laundry

inside the appliance.

If after the above checks, there is still a fault, call your local Service Force Centre.

Service & Spare Parts

In the event of your appliance requiring service, or if you wish to purchase spare parts, please contact your local Service Force Centre by telephoning:

0870 5 929929

Your telephone call will be automatically routed to the Service Force Centre covering your post code area.

For the address of your local Service Force Centre and further information about Service Force, please visit the website at www.serviceforce.co.uk.

For Customer Service in Ireland please contact us at the address below:

Zanussi Electrolux Electrolux Group (Irl) Ltd Long Mile Road Dublin 12 Republic of Ireland

Tel: +353 (0)1 4090751 Email: [email protected]

Before calling out an engineer, please ensure you have read the details under the heading “Something Not Working”.

When you contact the Service Force Centre you will need to give the following details:

1. Your name, address and post code

2. Your telephone number

3. Clear and concise details of fault

4. The model and serial number of the appliance (found on the rating plate)

5. The purchase date.

Please note that a valid purchase receipt or guarantee documentation is required for inguarantee service calls.

Page 13

Customer Care Department

For general enquiries concerning your Zanussi Electrolux appliance or for further information on Zanussi Electrolux products, please contact our Customer Care Department by letter or telephone at the address below or visit our website at www.zanussi.co.uk

Customer Care Department Zanussi Electrolux 55-77 High Street Slough Berkshire SL1 1DZ Tel 08705 727727*

* calls to this number may be recorded for training

purposes.

Guarantee Conditions

●

Standard guarantee conditions

We, Zanussi Electrolux, undertake that if, within 12 months of the date of the purchase, this ZANUSSI ELECTROLUX appliance or any part thereof is proved to be defective by reason only of faulty workmanship or materials, we will, at our option repair or replace the same FREE OF ANY CHARGE for labour, materials or carriage on condition that:

●

The appliance has been correctly installed and used only on the electricity supply stated on the rating plate.

●

The appliance has been used for normal domestic purposes only, and in accordance with the manufacturer’s instructions.

●

The appliance has not been serviced, maintained, repaired, taken apart or tampered with, by any person not authorised by us.

●

All service work under this guarantee must be undertaken by a Service Force Centre.

●

Any appliance or defective part replaced shall become the Company’s property.

●

This guarantee is in addition to your statutory and other legal rights.

Home visits are made between 8.30am and 5.30pm Monday to Friday. Visits may be available outside these hours in which case a premium will be charged.

Exclusions

This guarantee does not cover:

●

Damage or calls resulting from transportation, improper use or neglect, the replacement of any light bulbs or removable parts of glass or plastic.

●

Costs incurred for calls to put right an appliance which is improperly installed or calls to appliances outside the United Kingdom.

Appliances found to be in use within a commercial environment, plus those which are subject to rental agreements.

●

Products of Zanussi Electrolux manufacture which are NOT marketed by Zanussi Electrolux.

European guarantee

If you should move to another country within Europe then your guarantee moves with you to your new home subject to the following qualifications:

The guarantee starts from the date you first

●

purchased your product. The guarantee is for the same period and to the

●

same extent for labour and parts as exists in the new country of use for this brand or range of products.

The guarantee relates to you and cannot be

●

transferred to another user. Your new home is within the European

●

Community (EC) or European Free Trade Area. The product is installed and used in accordance

●

with our instructions and is only used domestically, i.e. a normal household.

The product is installed taking into account

●

regulations in your new country.

Before you move please contact your nearest Customer Care Centre, listed below, to give them details of your new home. They will then ensure that the local Service Organisation is aware of your move and able to look after you and your appliances.

France Senlis +33 (0) 344 62 29 29 Germany Nurnberg +49 (0) 800 234 7378 Italy Pordenone +39 0434 39 4700 Sweden Stockholm +46 (0) 8 672 53 90 UK Slough +44 (0) 1753 219897 Ireland Dublin +353 (0)1 4090751

Page 14

P1106

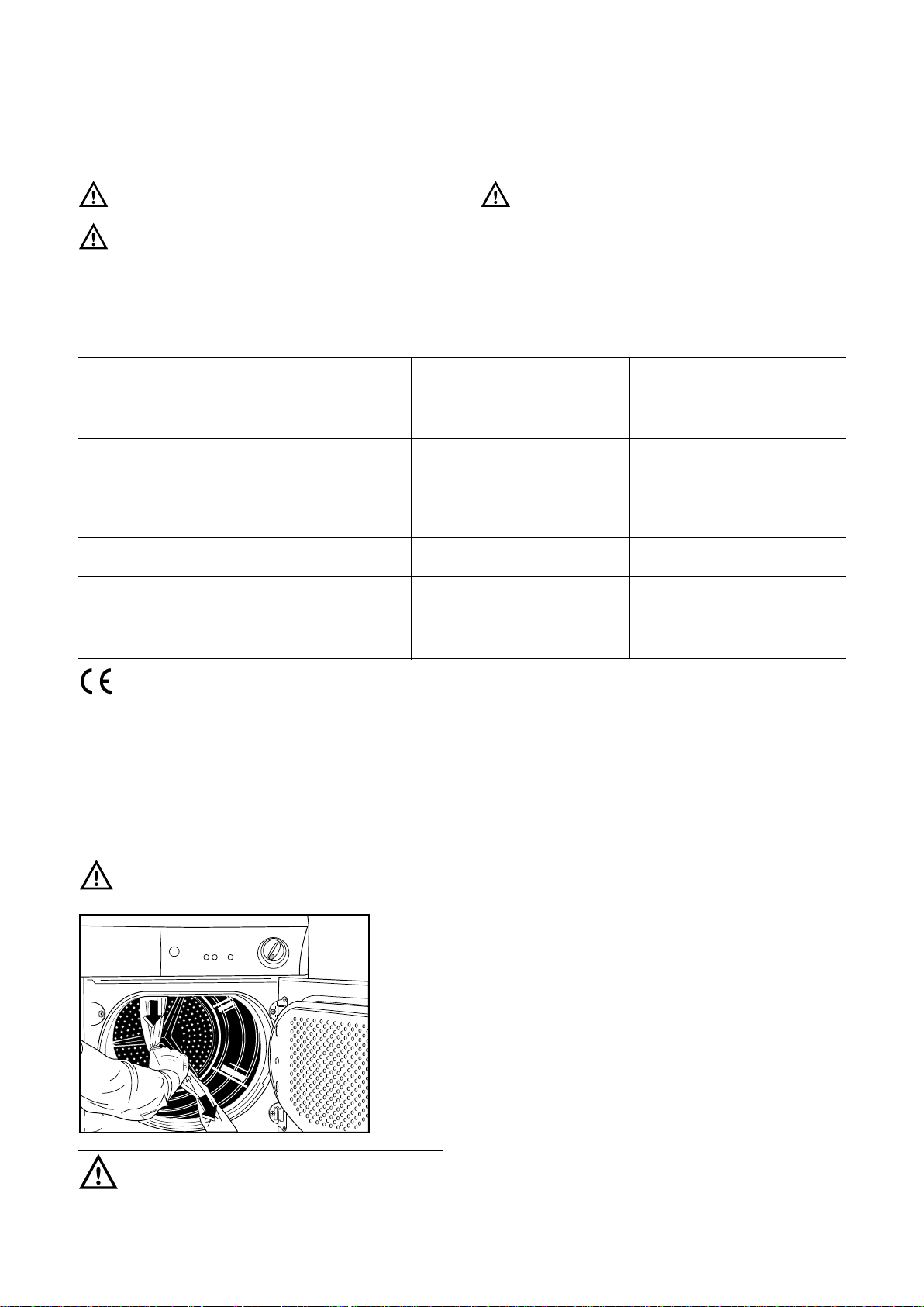

Installation Instructions

It is dangerous to alter the specifications or attempt to modify this product in any way.

Care must be taken to ensure that the appliance does not stand on the electrical supply cable.

Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person.

Technical Specifications

DIMENSIONS Height 85 cm (33.5”)

Width 60 cm (23.6”) Depth 58 cm (22.8”)

POWER SUPPLY VOLTAGE 230-240 V/50 Hz TOTAL POWER ADSORBED 2450 W (13A)

MAX LOAD CAPACITY Cotton, linen 6 kg (13.2 lbs)

Synthetics 2.5 kg ( 5.5 lbs)

DRUM VOLUME 108 l

CONSUMPTIONS Cotton, linen 4.37 kWh (6 kg store dry)

Cotton, linen 3.6 kWh (6 kg iron dry) Synthetics 1.4 kWh (2,5 kg store dry)

This appliance complies with the following E.E.C. Directives:

- 73/23 EEC of 19.2.73 (Low Voltage Directive) and subsequent modifications;

- 89/336 EEC of 3.5.89 (Electromagnetic Compatibility Directive) and subsequent modifications.

Unpacking

Warning !

Slide out the polythene bag containing the polystyrene block before using the appliance.

Should the appliance be moved, it must be

transported vertically.

Positioning

It is recommended that, for your convenience, the machine is positioned close to your washing machine. The tumble dryer must be installed in a clean place, where dirt does not build up.

Air must be able to circulate freely all round the appliance. Do not obstruct the front ventilation grille or the air intake grilles at the back of the machine.

To keep vibration and noise to a minimum when the dryer is in use, it should be placed on a firm, level surface. Once in its permanent operating position, check that the dryer is absolutely level with the aid of a spirit level. If it is not, raise or lower the feet until it is.

The feet must never be removed.

Do not restrict the floor clearance through deeppile carpets, strips of wood or similar. This might cause heat build-up which would interfere with the operation of the appliance.

Page 15

GREEN & YELLOW

BROWN

CORD CLAMP

BLUE

13A

P1041

Important

P1148

The hot air emitted by the tumble dryer can reach temperatures of up to 60°C. The appliance must therefore not be installed on floors which are not resistant to high temperatures.

When operating the tumble dryer, the room temperature must not be lower than +5°C and higher than +35°C, as it may affect the performance of the appliance.

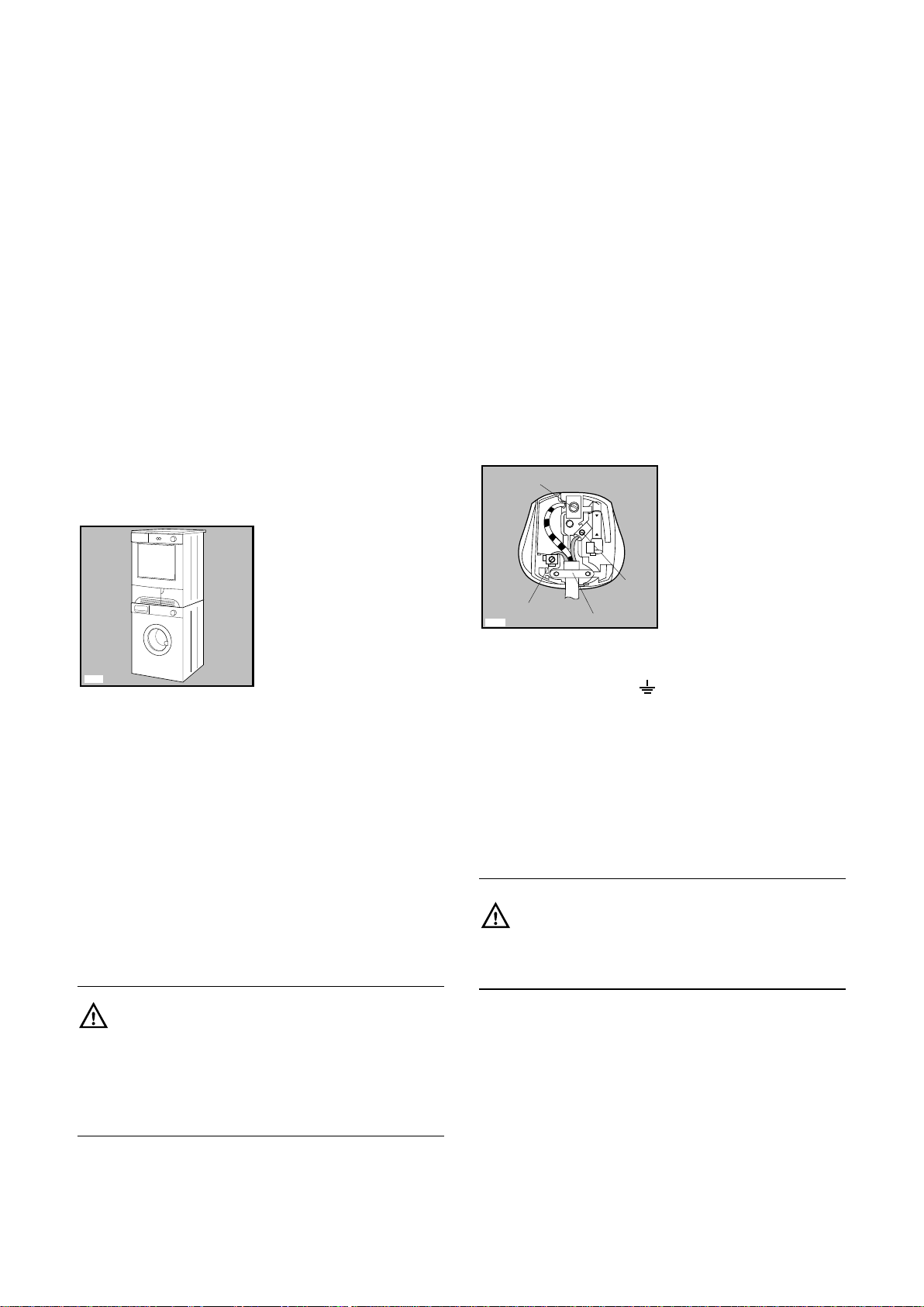

Stacking kit (optional accessory)

It should be possible to stack your new dryer on top of a front loading washing machine with a worktop depth between 48 and 60 cm.

Read carefully the instructions supplied with the kit.

Please contact your local Service Force Centre for further advice.

Before switching on, make sure the electricity supply voltage is the same as that indicated on the appliance’s rating plate. (See picture on page 4).

The appliance is supplied with a 13amp plug fitted. In the event of having to change the fuse in the plug supplied, a 13amp ASTA approved BS 1363/A fuse must be used. Should the plug need to be replaced for any reason, proceed as described below. The wires in the mains lead are coloured in accordance with the following code:

Green and Yellow - Earth

Blue - Neutral

Brown - Live

Door reversal

To make it easier to load or unload the laundry the door can be reversed.

This operation must be carried out by qualified personnel.

Please contact the nearest Zanussi Service Force Centre.

Electrical connection

Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person.

WARNING: THIS APPLIANCE MUST BE

EARTHED.

The manufacturer declines any liability should this safety measure not be observed. Should the appliance power supply cable need to be replaced, this must be carried out by our Service Centre.

The wire coloured green and yellow must be connected to the terminal marked with the letter «E» or by the earth symbol or coloured green and yellow.

The wire coloured blue must be connected to the terminal «N» or coloured black.

The wire coloured brown must be connected to the terminal marked «L» or coloured red. Upon completion there must be no cut, or stray strands of wire present and the cord clamp must be secure over the outer sheath.

WARNING:

A cut off plug inserted into a 13 amp socket

is a serious safety (shock) hazard. Ensure that the cut off plug is disposed of safely.

Permanent connection

In the case of permanent connection it is necessary that you install a double pole switch between the appliance and the electricity supply (mains), with a minimum gap of 3mm between the switch contacts and of a type suitable for the required load in compliance with the current electrical regulations.

The switch must not break the yellow and green earth cable at any point.

Page 16

From the Electrolux Group. The world’s No. 1 choice.

The Electrolux Group is the world's largest producer of powered appliances for kitchen, cleaning and outdoor use. More than 55 million Electrolux Group products (such as refrigerators, cookers, washing machines, vacuum cleaners, chain saws and lawn mowers) are sold each year to a value of approx. USD 14 billion in more than 150 countries around the world.
