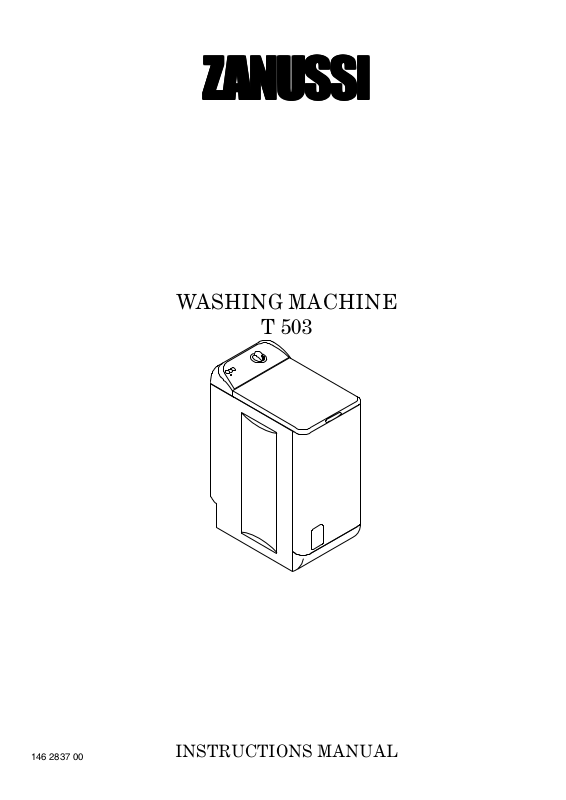

WASHING MACHINE
T 503
146 2837 00
INSTRUCTIONS MANUAL
CONTENTS
For the user
Safety instructions 23/24
Description of the appliance 25
Use of your appliance 26
Operating instructions 27/28
Programme chart 29/30
Hints & Tips 31-33
Cleaning and maintenance 34
If something doesn't work 35/36
Service 37
For the installer
Technical information 38
Installation
Unpacking 38
Installation 39
Levelling 39
Moving of the appliance 39
Water connection 40
Electrical connection 40
Guide to use the instruction
The following symbols will be found in the text to guid you
throughout the instructions :
Safety instructions
Hints and tips
Environmental information
22
SAFETY INSTRUCTIONS
You must read the whole of this instruction book
before you use the appliance. Follow the advice
carefully. Keep the book for future reference. If
you sell or give away the appliance, make sure
that the book is passed to the new owner.
The following warnings are provided in the interest
of overall safety. You must read them before the
appliance is installed or used.
Use
This appliance is designed to be used by
adults. Children should not be allowed to touch
the controls or play with the product.
It is dangerous to modify the specifications of
this appliance in any way.
Always unplug the appliance and turn off the
water after use.
Only wash fabrics with are designed to be
machine washed. If in doubt, follow the instructions you find on the label of the item itself.
Place small metal rings or edged plastic rings
in a net or bag.
Make sure that all pockets are empty. Hard,
sharp objects such as coins, safety pins, nails,
screws or stones can cause extensive damage.
Do not machine wash fabrics which are
saturated with petroleum products. If volatile
cleaning fluids have been used, make sure
that they are thoroughly removed from the
fabrics before they are placed in the appliance.
Small and delicate objects (e.g. baby socks,
stockings) can be easily washed inside a small
pillowcase with a zip fastener or in larger
socks.
Use only the recommended quantities of fabric
conditioner.
Before cleaning, care and maintenance, ensure
that the machine is unplugged.
Installation
Any electrical work required to install this
appliance should be carried out by a qualified
electrician or competent person.
Any plumbing work required to install this
appliance should be cariied out by a qualified
plumber or competent person.
Make sure that the appliance does not stand
on its electrical supply cable.
This appliance is heavy. Care should be taken
when moving it.
All packaging and transit bolts must be removed
before the appliance is used. Serious damage
may occur if this is not done.
If your washing machine is in a room subject to
temperatures below freezing, the water must
be removed from the machine. So, the danger
of freezing should be expected.
Read all instructions before using
the appliance and save them for
future reference.
23
Safeties
Lid : your washing machine is equipped with
a safety avoiding the switching of the appliance
when the flapdoors of the drum are opened ;
the closure of the lid is so impossible. An
electromechanic safety prohibits the opening
of the lid when the washing machine works and
2 minutes after the end of the programme.
Washing motor : in case of mechanic
overloading, overvoltage, a thermic safety
protects automatically the motor.
Heating : the heating can only begin when
the water quantity necessary for the washing
is in the tub. This safety is useful when there is
a water break-up or if you forget to open the
water inlet hose.
Environmental information
All materials marked by the symbol are
biodegradable. They can be disposed of without
danger or burnt in rubbish incinerators.
In order to realize water and energy savings and
to act in an environmentally conscious manner,
we advice to follow the below instructions :
Use if possible the appliance with full loads
instead of partial loads. Take care to do not
overload the drum.
Use only the programmes with prewash for very
soiled laundry.
Savings on detergent and for the environment
may also be achieved if with medium to hard
water you add sufficient detergent for soft water
and then add separately a softener. This relieves
our waters of a certain amount of chemicals.
When disposing of the machine in a proper
manner, destroy the door lock and cut off the
power supply cord.
24
DESCRIPTION OF THE APPLIANCE
Programme selector
Pushbuttons
Control lamp
Control panel
Lid
Handle for
opening lid
Detergent dispenser
Symbols
) Washing powder for programmes with
(
pre-wash (1).
( ) Washing powder or liquid detergent for
the main wash (2).
(
) Bleach compartment (3).
(
) Liquid additives (fabric softener and
conditioner...) (4).
5 Softener overflow
Trap door for
lint filter
1
3
2
4
5
25
USE OF YOUR APPLIANCE
The control panel
Never turn the programme selector when the appliance is working.
1234 5
1 ON/OFF pushbutton " "
Press the on/off pushbutton, the programme starts
: the control lamp lights on.
2 Control lamp
The control lamp lights on when the appliance is
working (on/off pushbutton " " pressed). It lights
off when the cycle is finished (programme selector
on a stop position "I").
3 Cold pushbutton " "
This pushbutton allows to wash laundry with cold
water on all programmes. The water coming into
the tub is not heated.
4 Rinse hold pushbutton " "
Press this button to leave the water in the drum
after the wash cycle is completed. This works only
on synthetics, wool and delicate programmes.
The clothes are left suspended in water after the
final rinse to prevent the formation of creases.
You can end these programmes by a draining by
depressing this pushbutton or select the programme G for a spinning phase (with the on/off
pushbutton " " pressed out).
5 Programme selector
It enables to select the most adapted programme
to the nature and degrees of soil of your laundry.
Turn the programme selector clockwise to select
the chosen programme.
The programme selector indicates each programme phase as it takes place.
At the end of the programme, the appliance stops
automatically on a stop position "I" for all the
programmes or on a rinse hold position " " for the
synthetics and wool programmes if the rinse hold
pushbutton " " is selected.
Never turn the programme selector anticlockwise.
26
OPERATING INSTRUCTIONS
Before using your washing machine for the first time, we recommend that you do a preliminary wash with
the machine empty, as a precaution to clean the drum, tank and the product box.
1. Pour a dose of detergent in the “washing” detergent dispenser
2. Select the program B 90°.
3. Press the on/off pushbutton
1. Place the laundry in the drum
lift up the lid of the machine.
open the drum with your two hands by pressing
the button A and the two flapdoors till they
disengage.
introduce the laundry into the drum ; close the
drum and the lid of the machine.
Be careful : before closing the lid of your machine,
make sure that the drum flapdoors are correctly
closed :
the two flapdoors fastened,
the button A pressed out.
" ".
A
2. Measure out the detergent
Measure out the amount of detergent
recommended by the manufacturer in the main
wash compartment ( ).
If you wish to carry out a prewash, pour the amount
required into the prewash compartment ( ).
3. Add the bleach agent, if required
You may use a bleach agent on cotton programmes. However, make sure that the fabric withstands
the treatment. Bleach is automatically washed
down into the drum. Pour 1/4 to 1 glass of 12° chl
bleach into compartment marked (
switching the machine on.
) before
4. Add the fabric softener
Pour the softener, if required, into the compartment
marked (
Your washing machine has been conceived in
order to save water and detergent products.
Please take care the filling level of the detergent
products do not exceed the MAX marks located
near the display window of your detergent
dispenser.
). Do not exceed the MAX level.
Liquid detergent
only compartment
Powder detergent
Compartment
(prewash)
Compartment
(wash)
5. Press the cold pushbutton " "
and/or the rinse hold pushbutton "
if required.
"
27
