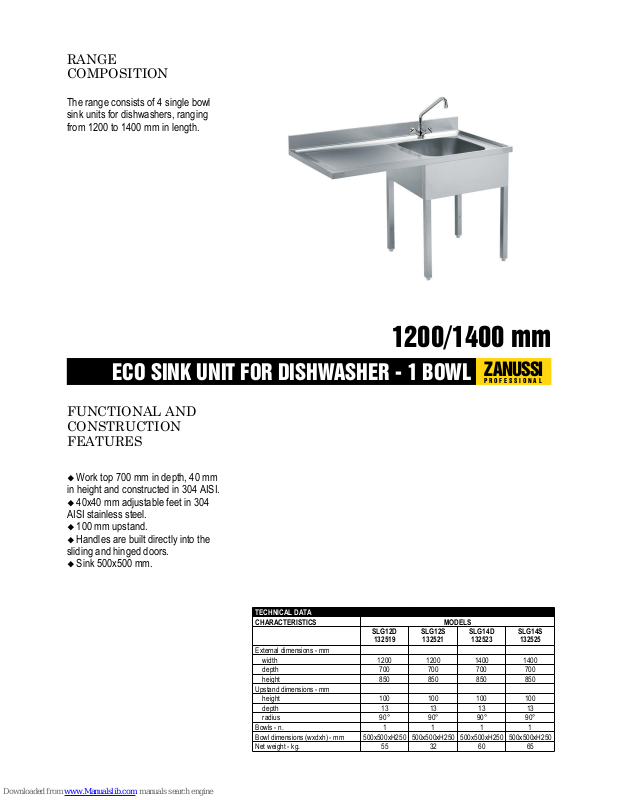

Page 1
ZANUSSI
P R O F E S S I O N A L
ECO SINK UNIT FOR DISHWASHER - 1 BOWL
1200/1400 mm
Net weight - kg. 55 32 60 65
Bowl dimensions (wxdxh) - mm 500x500xH250 500x500xH250 500x500xH250 500x500xH250
Bowls - n. 1 1 1 1
radius 90° 90° 90° 90°
depth 13 13 13 13
height 100 100 100 100
Upstand dimensions - mm
height 850 850 850 850
depth 700 700 700 700
width 1200 1200 1400 1400
External dimensions - mm
SLG12D
132519
SLG12S
132521
SLG14D
132523
SLG14S
132525
CHARACTERISTICS MODELS
TECHNICAL DATA
RANGE
COMPOSITION
The range consists of 4 single bowl
sink units for dishwashers, ranging
from 1200 to 1400 mm in length.
FUNCTIONAL AND
CONSTRUCTION
FEATURES
� Work top 700 mm in depth, 40 mm
in height and constructed in 304 AISI.
� 40x40 mm adjustable feet in 304
AISI stainless steel.
� 100 mm upstand.
� Handles are built directly into the
sliding and hinged doors.
� Sink 500x500 mm.
Page 2
AEEF1 2010-05-28 The Company reserves the right to alter technical specifications without prior notice.
www.zanussiprofessional.com
ZANUSSI
P R O F E S S I O N A L
WALL MIXER TAP WITH SWIVEL SPOUT 3/4" 855310 855310 855310 855310
WALL MIX.TAP+SPRAY+SPOUT+SH.LEVER+THERM 855307 855307 855307 855307
SINGLE PLASTIC DRAIN SYPHON 1,5" 855306 855306 855306 855306
SINGLE BRASS DRAIN SYPHON 1,5" 855308 855308 855308 855308
PRE-WASH SPRAY UNIT,SINGLE HOLE 855315 855315 855315 855315
MIXER TAP+SPRAY ARM+SPOUT-3/4" SING.HOLE 855329 855329 855329 855329
MIXER TAP WITH SPOUT 3/4" SINGLE HOLE 855319 855319 855319 855319
MIXER TAP W/FOOT PEDAL FOR SINKS ON LEGS 855317 855317 855317 855317
MAXIREEL-RETRACTABLE HOSE SPRAY UNIT 6M 855327 855327 855327 855327
LOWER SHELF 800MM 855166 855166
LOWER SHELF 600MM 855164 855164
FOOT OP.MIXER TAP(HOT+COLD)+SPOUT-3/4" 855328 855328 855328 855328
ELBOW OP.TAP+SPRAY ARM+SPOUT-3/4" HOLE 855324 855324 855324 855324
ELBOW OP.MIXER TAP+SPOUT-3/4"SINGLE HOLE 855322 855322
ELBOW OP.MIX.TAP+SHORT SPOUT-3/4" HOLE 855323 855323
SLG12D
132519
SLG12S
132521
SLG14D
132523
SLG14S
132525
ACCESSORIES MODELS
OPTIONAL ACCESSORIES
HWI - Hot water inlet 3/4" 3/4" 3/4" 3/4"
D - Water drain 1"1/2 1"1/2 1"1/2 1"1/2
CWI - Cold water inlet 3/4" 3/4" 3/4" 3/4"
SLG12D
132519
SLG12S
132521
SLG14D
132523
SLG14S
132525
LEGEND
132519 132521
132523 132525
